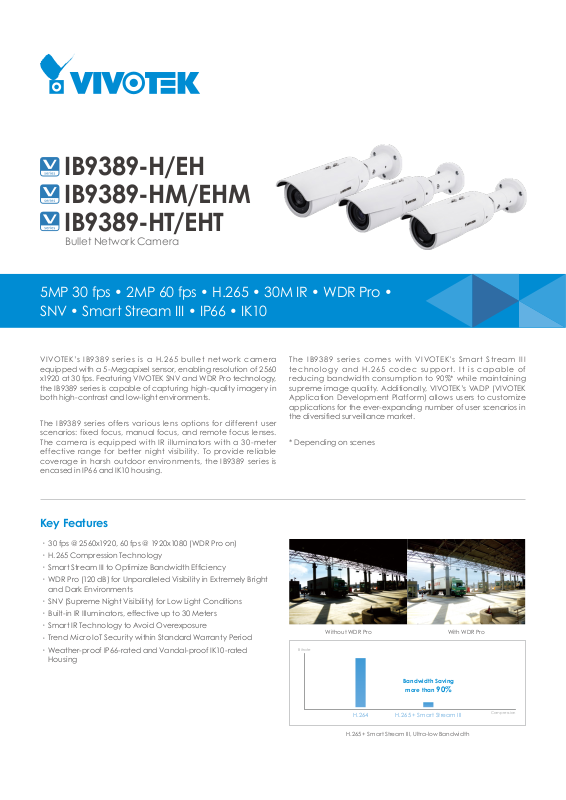

Page 1
IB9389-H/EH
IB9389-HM/EHM
IB9389-HT/EHT
Bullet Network Camera
5MP 30 fps • 2MP 60 fps • H.265 • 30M IR • WDR Pro •
SNV • Smart Stream III • IP66 • IK10
VIVOTEK’s IB93 89 series is a H.265 bullet network camera
equipped with a 5-Megapixel sensor, enabling resolution of 2560
x1920 at 30 fps. Featuring VIVOTEK SNV and WDR Pro technology,
the IB9389 series is capable of capturing high-quality imager y in
both high-contrast and low-light environments.
The IB9389 series offers various lens options for different user
scenarios: fixed focus, manual focus, and remote focus lenses.
The camera is equipped with IR illuminators with a 30 -meter
effective range for better night visibility. To provide reliable
coverage in harsh outdoor environments, the IB9389 series is
encased in IP66 and IK10 housing.
Key Features
30 fps @ 2560x1920, 60 fps @ 1920x1080 (WDR Pro on)
•
H.265 Compression Technology
•
Smar t Stream III to Optimize Bandwidth Efciency
•
WDR Pro (120 dB) for Unparalleled Visibility in E xtremely Bright
•
and Dark Environments
SNV (Supreme Night Visibility) for Low Light Conditions
•
Built-in IR Illuminators, effective up to 30 Meters
•
Smar t IR Technology to Avoid Overexposure
•
Trend Micro IoT Securit y within Standard War ranty Period
•
Weather-proof IP66- rated and Vandal-proof IK10- rated
•
Housing
The IB9389 series comes with VIVOTEK's Smart Stream III
technology and H.265 codec support. It is capable of
reducing bandwidth consumption to 90%* while maintaining
supreme image quality. Additionally, VIVOTEK’s VADP (VIVOTEK
Application Development Platform) allows users to customize
applications for the ever-expanding number of user scenarios in
the diversied sur veillance market.
* Depending on scenes
With out WDR P ro With WD R Pro
Bitrate
Bandwidth Saving
more than
H.264 H.26 5 + Smart Stre am II I
H.26 5 + Smart Stre am II I, Ultra- low Ba ndw idth
90%
Compression
Page 2
Technical Specications
IB9389-H
IB9389-EH
Model
IB9389-HM
IB9389-EHM
IB9389-HT
IB9389-EHT
System Information
CPU Multimedia SoC (System-on-Chip)
Flash 128MB
RAM 512 M B
Camera Features
Image Sensor 1/2.7" Progressive CMOS
Max. Resolution 2560x1920 (5MP)
IB9389-H/EH: Fixed -focal
Lens Type
Focal Length
Aperture
Iris type
Fiel d of View
Shutter Time 1/5 sec. to 1/32,00 0 sec.
WDR Technology WDR Pro
Day/N ig ht Yes
Removable IR-cut lter Yes
IR Illuminato rs
Minimum Illumination
Tilt Range 90°
Rotation Range 180 °
Pan/Tilt/Zoom
Functionalities
IB9389-HM/EHM: Vari-focal, Manual Focus
IB9389-HT/EHT: Motorized, Vari -foca l,
Remote Focus
IB9389-H/EH: f = 3.6 mm
IB9389-HM/EHM: f = 2.8 ~ 12 mm
IB9389-HT/EHT: f= 3.7 ~ 7.7 mm
IB9389-H/EH: F2.0
IB9389-HM/EHM: F1.4 ~ F2.8
IB9389-HT/EHT: F1.9 ~ F2.9
IB9389-H/EH/HT/EHT: Fixed-iris
IB9389-HM/EHM: DC-iris
IB9389-H/EH:
76° (Horizontal)
56° (Vertical)
100° (Diagonal)
IB9389-HM/EHM:
30° ~ 81° (Hori zontal)
23° ~ 60° (Ver tical)
38° ~ 104° (Diagonal)
IB9389-HT/EHT:
38° ~ 80° (Hor izontal)
29° ~ 6 0° (Vertical)
48° ~ 101° (Diagonal)
Built-in IR il lum inators, effective up to 30
meters with Smar t IR
IB9389-H/EH:
0.06 Lux @ F2.0 (Color)
0.01 Lux @ F2.0 (B/W)
0 Lux with IR il lum ination on
IB9389-HM/EHM:
0.07 Lux @ F1.4 (Co lor)
0.01 Lux @ F1.4 (B/W)
0 Lux with IR il lum ination on
IB9389-HT/EHT:
0.06 Lux @ F1.9 (Color)
0.01 Lux @ F1.9 (B/W)
0 Lux with IR il lum ination on
ePTZ: 48x digital zoom (4x on IE plug-in, 12x
built-in)
On- board Storage
Slot type: MicroSD/SDHC/SDXC card slot
Seamless Recording
Video
Compression H.265, H.264, MJ PEG
Maximum F rame Rate
Maximum Streams 3 simu ltaneous streams
S/N Ratio
Dynamic Range 120 dB
Video Streaming
Image Settings
30 fps @ 2560 x1920
60 fps @ 1920x1080
IB9389-H/EH: 51 dB
IB9389-HM/EHM: 53 dB
IB9389-HT/EHT: 55 dB
Adjus table resol ution, qualit y and bitrate,
Smar t Stream III
Time stamp, text overlay, ip & mirror;
Cong urab le br ightness, contrast,
saturation, sharpness, white balance,
exposure control, gain, backlight
compensation, pr ivacy masks; Scheduled
prole setti ngs, HLC, defog, 3DNR, DI S,
video rotation
Network
Users Live vi ewing for up to 10 clients
802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP,
Protocol s
Inter face
ONVIF
DNS, F TP, HTTP, HTTPS, ICMP, IGMP, IPv4,
IPv6, NTP, PPPoE, QoS, RT SP/RTP/RTCP, SMTP,
SNMP, SSL, TCP/IP, TLS, UD P, UPnP
10 Base-T/100 Base -TX Ethernet (RJ -4 5)
*It is h ighly recommended to use standard
CAT5e & CAT6 cables whi ch are compliant
with the 3P/ETL standard.
Suppo rted, speci cation avai lable at
www.onvif.org
Intelligent Video
Smar t Motion Detection
Video Motion Detection
VCA
VAD P Pac kag e
IB9389-H/EH/HT/EHT:
Five-window video mot ion detection,
people detection, time lter
IB9389-HM/EHM:
Five-window video motion detection
Standard VCA (optional)
*Including li ne crossing detection, eld
detection, loitering detection
Trend Micro IoT Security, Smart Motion
Detection*, Stratocast(support)
*Sma rt Motion Detection is on ly for
IB9389-H/EH, IB9389- HT/EHT.
Alarm and Event
Motion detection, ma nual trigger,
periodical tr igger, system boot, recording
Alarm Tri ggers
Alarm Events
notication, camera tampering detection,
SD card life expectancy, shock detection,
cybersecurity events (block brute force
attack , block cyber attack, quarantine
event)
Event notication via email, HTTP, SMTP, FTP,
NAS server and SD ca rd
File upload via email, HTTP, FTP, NAS server,
SD card
General
Page 3
Technical Specications
Connectors
LED Indicator System power and status indicator
Power Input
Power Consumption
Dimensions
Weig ht
RJ- 45 cab le connector for Net wor k 10/100
Mbps PoE connection*1
IB9389-H/HM/HT:
IEEE 802.3af PoE Class 0
IB9389-EH/EHM/EHT:
IEEE 802.3at PoE Class 4
IB9389-H:
Max. 8 W (IR on)
Max. 5.5 W (IR off)
IB9389-EH:
Max. 19.2 W (Heater on)
Max. 8 W (Heater off)
IB9389-HM:
Max. 9.5 W (IR on)
Max. 5.5 W (IR off)
IB9389-EHM:
Max. 23.5 W (H eater on)
Max. 9.5 W (Heater of f)
IB93 89- HT:
Max. 10 W (I R on)
Max. 6 W (IR off)
IB9389-EHT:
Max. 2 2.1 W (Heate r on)
Max. 10 W (Heater off)
IB9389-H/EH: Ø 86 x 299.5 mm
IB9389-HM/EHM: Ø 86 x 327 mm
IB9389-HT/EHT: Ø 86 x 3 03 mm
IB9389-H/EH: 1,0 05 g
IB9389-HM/EHM: 1,077 g
IB9389-HT/EHT: 999 g
War ranty 36 months
System Requirements
Operating System
Web Browser
Other Players
Microsoft W indows 8/7
Mac 10.12 (Chrome only)
Chrome 58.0 or above
Inter net Explorer 10/11
VLC: 1.1.11 or above
QuickTime: 7 or above
Included Accessories
Others
Quick installation guide, alignment sticker,
screw pack
Dimensions
IB9389-H/EH
Ø 86 mm Ø 2 99. 5 mm
IB9389-HM/EHM
Ø 86 mm 327 mm
Casing IP66, IK10(Metal Housing)
Safety Certications CE, FCC Class A, UL, LVD, VCCI, C-Tick
IB9389-H/HM/HT:
Star ting Temperatu re:
-10°C ~ 60°C (14°F ~ 140° F)
Worki ng Te mperature:
Operating Temperature
Humidity 90%
-30°C ~ 6 0° C (-22 °F ~ 140°F)
IB9389-EH/EHM/EHT:
Star ting Temperatu re:
-40°C ~ 6 0° C (-4 0° F ~ 140°F)
Worki ng Te mperature:
-50 °C ~ 6 0° C (-58°F ~ 140° F)
IB9389-HT/EHT
Ø 86 mm 303 mm
Compatible Accessories
Mounting Kits
AM - 312 AM - 412 AM-523 AM -71C
Pole Mount Adapte r Corner Mount Adapter Adapti ng Plate Outdoor Junction Box
Page 4
Ordering Information
Model Description Part Number
IB9389-H
IB9389-HM*
IB9389-HT*
IB9389-EH*
IB9389-EHM*
IB9389-EHT*
IB9389-H (w/ cable)*
IB9389-HM (w/ cable)*
IB9389-HT (w/ cable)*
*The stock levels may vary by region. Please contact your local sales representative for further inquiry.
5MP, 30fps, 3.6mm, 30M IR, Smart Stream I II,
-30°C ~ 60°C
5MP, 30fps, 2.8~12mm, 3 0M IR, Smart Stream II I,
-30°C ~ 60°C
5MP, 30fps, 3.7~7.7mm, 30M IR, Smar t Strea m III,
-30°C ~ 60°C
5MP, 30fps, 3.6mm, 30M IR, Smart Stream I II,
-50°C ~ 60°C
5MP, 30fps, 2.8~12mm, 3 0M IR, Smart Stream II I,
-50°C ~ 60°C
5MP, 30fps, 3.7~7.7mm, 30M IR, Smar t Strea m III,
-50°C ~ 60°C
5MP, 30fps, 3.6mm, 30M IR, Smart Stream I II,
-30°C ~ 6 0° C, w/ cable
5MP, 30fps, 2.8~12mm, 3 0M IR, Smart Stream II I,
-30°C ~ 6 0° C, w/ cable
5MP, 30fps, 3.7~7.7mm, 30M IR, Smar t Strea m III,
-30°C ~ 6 0° C, w/ cable
100202000G
100202300G
100202600G
100202200G
100202500G
100202800G
100 20 2100 G
100202400G
100202700G
All sp eci catio ns are su bject to change witho ut notice. Copyr ight © VI VOTEK IN C. All r ights reser ved. Ver. 9
6F, No.192, Lien -Cheng Rd., Chun g-Ho, New Tai pei Ci ty, 235 , Taiwa n, R.O.C. | T: +8 86-2-8 2455 282 | F: +8 86 -2- 8245 5532 | E: sal es@v ivotek .com | W: w ww.vivotek.com
