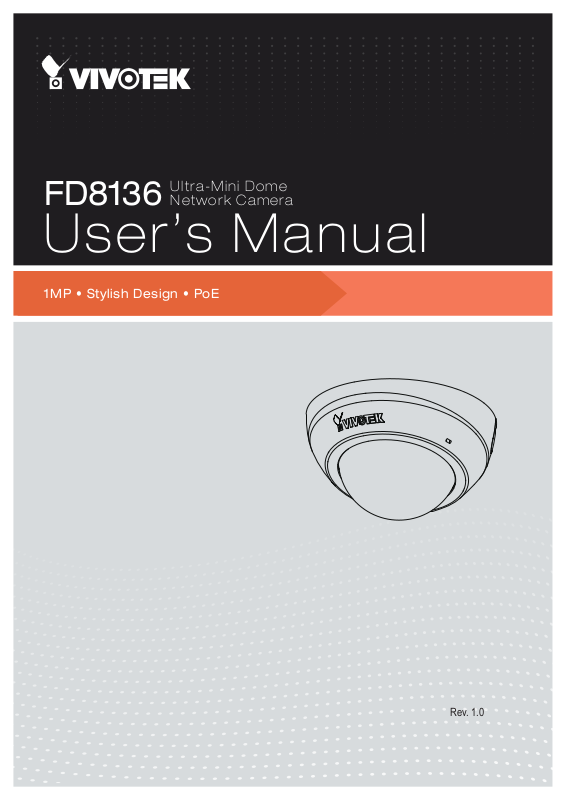

Vivotek FD8136-F6-B, FD8136-F2-W, FD8136-F6-W, FD8136-F6, FD8136-F2 User Manual

Ultra-Mini Dome

FD8136

Network Camera

User’s Manual

1MP • Stylish Design • PoE

Rev. 1.0

VIVOTEK

Table of Contents

Overview....................................................................................................................................... 4

Revision History �� 4

Read Before Use �� 5

Package Contents �� 5

Symbols and Statements in this Document �� 5

Physical Description �� 6

Installation �� 8

Restoring defaults

Network Deployment �� 10

Software Installation �� 12

Ready to Use �� 13

Accessing the Network Camera

Using Web Browsers �� 16

Using RTSP Players �� 19

Using 3GPP-compatible Mobile Devices �� 20

Using VIVOTEK Recording Software �� 21

Main Page ............................................................................................................................... 22

Client Settings ................................................................................................................... 26

Configuration ................................................................................................................... 30

System > General settings �� 31

System > Homepage layout �� 33

System > Logs �� 36

System > Parameters �� 38

System > Maintenance �� 39

Media > Image �� 43

Media > Video �� 49

Media > Video �� 50

Media > Audio�� 54

Network > General settings �� 55

Network > Streaming protocols �� 62

Network > SNMP Security > User Account �� 72

Security > HTTPS Security > Access List �� 78

PTZ > PTZ settings �� 83

Event > Event settings�� 87

Applications > Motion detection�� 100

Applications > Digital Input �� 103

Applications > Tampering detection �� 103

Recording > Recording settings �� 104

Local storage > SD card management �� 109

Local storage > Content management �� 11 0

Appendix ............................................................................................................................. 113

URL Commands for the Network Camera �� 113

(Simple Network Management Protocol) ��71

(Hypertext Transfer Protocol over SSL)

�� 73

9

16

2 - User's Manual

VIVOTEK

Technical Specications ��202

Technology License Notice ��203

Electromagnetic Compatibility (EMC) ��204

User's Manual - 3

VIVOTEK

Overview

VIVOTEK FD8136 is the world’s smallest network xed dome camera. With installation as easy

as one-two-three and Power over Ethernet (PoE) functionality, setup time is completed in less than 120 seconds, making installation quick and easy�

The FD8136 features a megapixel sensor enabling viewing resolution of 1280x800 at 30 fps, and also supports the industry-standard H�264 compression technology, drastically reducing

le sizes and conserving valuable network bandwidth. With MPEG-4 and MJPEG compatibility

also included, video streams can also be transmitted in any of these formats for versatile applications�

Designed with selectable focal lengths, FD8136 can be used in various environments, including but not

limited to ofces, elevators, campus, chain stores, boutique stores and health care facilities. At the size of

only 90 mm in diameter, VIVOTEK FD8136 is truly an all-in-one surveillance solution that meets a wide variety of needs for indoor surveillance� The package also includes VIVOTEK’s 32-channel recording software� With all this and more, the FD8136 is the ideal solution for your surveillance needs�

Revision History

■ Rev. 1.0: Initial release

4 - User's Manual

VIVOTEK

i

Read Before Use

The use of surveillance devices may be prohibited by law in your country� The Network Camera

is not only a high-performance web-ready camera but can also be part of a exible surveillance

system� It is the user’s responsibility to ensure that the operation of such devices is legal before installing this unit for its intended use�

It is important to first verify that all contents received are complete according to the Package Contents listed below� Take note of the warnings in the Quick Installation Guide before the Network Camera is installed; then carefully read and follow the instructions in the Installation chapter to avoid damage due to faulty assembly and installation� This also ensures the product is used properly as intended�

The Network Camera is a network device and its use should be straightforward for those who have basic networking knowledge� It is designed for various applications including video sharing,

general security/surveillance, etc. The Configuration chapter suggests ways to best utilize the

Network Camera and ensure proper operations� For creative and professional developers, the URL

Commands of the Network Camera section serves as a helpful reference to customizing existing

homepages or integrating with the current web server�

Package Contents

■ FD8136

■ Screws / Plastic Anchors

■ Alignment sticker

■ Quick Installation Guide

■ Mount bracket

Symbols and Statements in this Document

INFORMATION: provides important messages or advices that might help prevent

inconvenient or problem situations�

NOTE: Notices provide guidance or advices that are related to the functional integrity of

the machine�

Tips: Tips are useful information that helps enhance or facilitate an installation, function,

or process�

WARNING: or IMPORTANT: These statements indicate situations that can be dangerous

or hazardous to the machine or you.

Electrical Hazard: This statement appears when high voltage electrical hazards might

occur to an operator�

User's Manual - 5

VIVOTEK

Physical Description

Outer View

Release tab

Leave the slide cover in place if you route cables through the bottom and then through a hole on the ceiling or wall�

Inner View

Side View

RJ-45 Socket

Slide cover

Lens

Digital input

DI+ DI-

Max� is 40V�

LEDs

MicroSD/SDHC card slot

Tilt adjustment screw

Reset button

Screw slot

6 - User's Manual

Digital Input Diagram

Please refer to the following illustration for the connection method�

Max. voltage: 40V

3.3V

DI+

Digital input

DI-

DI-: Ground

VIVOTEK

Hardware Reset

Reset Button

The reset button is used to reset the system or restore the factory default settings� Sometimes resetting the system can return the camera to normal operation� If the system problems remain after reset, restore the factory settings and install again�

Reset: Press and release the reset button. Wait for the Network Camera to reboot.

Restore: Press and hold the recessed reset button until the status LED rapidly blinks. Note that all settings will be restored to factory default� Upon successful restore, the status LED will blink green and red during normal operation�

Micro SD/SDHC Card Capacity

This network camera is compliant with Micro SD/SDHC 16GB / 8GB and other preceding standard SD cards�

User's Manual - 7

VIVOTEK

0002D10766AD

2

Installation

Removing Dome Cover

1� Use one hand to hold the camera

bottom and another hand to hold the

dome cover� Press the release button� 2� Remove the dome cover� 3� Remove the slide cover if you want to

route cables from the side of camera

instead of a hole on the ceiling or wall�

Release tab

IMPORTANT!

Semi-circular cut-out

1

Slide cover

2

1� Record the MAC address before installing the camera�

2. You can check the model name sufx for the type of lens mounted on your camera. The

applicable lens can be:

F2: 2.5mm; F3: 3.6mm; F6: 6mm; F8: 8mm; F12: 12mm. The shorter the focal length,

the wider the view�

NOTE:

It is recommended to use an Ethernet cable that comes without the strain relief boot� You can remove the boot if your cable comes with one�

8 - User's Manual

Strain relief boot

VIVOTEK

Mounting the Network Camera - Ceiling or Wall Mount

1� Use the curved slots on the camera as a template to mark where holes will be drilled on

the ceiling� Drill two holes into the ceiling; and hammer in the plastic anchors� 2� Drill another hole if you want to route cables through the ceiling or wall� 3� Connect and route an Ethernet cable through the ceiling or wall� 4� Attach the Network Camera to the ceiling using two included screws�

2

Routing hole position

1

NOTE:

LED Denitions

3

4

1� Do not completely tighten the mounting screws

in the screw slots yet� You may need to turn the camera left or right for a best shooting direction later�

2� The camera can only be powered by PoE� There

is no DC or AC input connector�

3� As shown on the left, you may also route cable

from the side�

Item LED Status Description

1 Steady Red Power on and system boot-

ing

Red LED off Power off

2 Steady Red + blinking Green every 1 sec� (Green LED on

for 1 sec and off for another) Steady Red + Green LED off Network disconnected

3 Blinking Red every 0�15 sec� + Blinking Green every 1 sec�

(Red LED on for 0�15 sec� and Green LED on for 1 sec� and off for another)

4 Blinking Red every 0�15 sec� + blinking Green every 0�15

sec�

Network heartbeat

Upgrading rmware

Restoring defaults

User's Manual - 9

VIVOTEK

Network Deployment

General Connection (without PoE)

Power over Ethernet (PoE)

When using a PoE-enabled switch

This Network Camera is PoE-compliant, allowing transmission of power and data via a single Ethernet cable� Follow the below illustration to connect the camera to a PoE-enabled switch via Ethernet cable�

PoE Switch

L

I N

POW

ER

C

O

LL

I S

ION

1

K

RE

CEIVE

PARTITIO

2

3

N

4

5

When using a non-PoE switch

Use a PoE power injector (optional) to connect between the Network Camera and a non-PoE switch�

PoE Power Injector

(optional)

Non-PoE Switch

L I

N

POW

ER

C

O

LL

I S

ION

K

RECEIVE

1

PARTITIO

2

N

3

4

5

10 - User's Manual

VIVOTEK

Internet connection via a router

Before setting up the Network Camera over the Internet, make sure you have a router and follow the steps below�

1� Connect your Network Camera behind a router, the Internet environment is illustrated below�

Regarding how to obtain your IP address, please refer to Software Installation on page 12 for details�

IP address : 192.168.0.3 Subnet mask : 255.255.255.0 Default router : 192.168.0.1

IP address : 192.168.0.2 Subnet mask : 255.255.255.0 Default router : 192.168.0.1

Internet

Cable or DSL Modem

WAN (Wide Area Network ) Router IP address : from ISP

LINK

POWER

COLLISION

RECEIVE

1

2

PARTITION

3

4

5

LAN (Local Area Network) Router IP address : 192.168.0.1

2� In this case, if the Local Area Network (LAN) IP address of your Network Camera is 192�168�0�3, please forward the following ports for the Network Camera on the router�

■ HTTP port: default is 80

■ RTSP port: default is 554

■ RTP port for audio: default is 5558

■ RTCP port for audio: default is 5559

■ RTP port for video: default is 5556

■ RTCP port for video: default is 5557

If you have changed the port numbers on the Network page, please open the ports accordingly on your router� For information on how to forward ports on the router, please refer to your router’s user’s manual�

3� Find out the public IP address of your router provided by your ISP (Internet Service Provider)� Use the public IP and the secondary HTTP port to access the Network Camera from the Internet� Please refer to Network Type on page 55 for details�

Internet connection with static IP

Choose this connection type if you are required to use a static IP for the Network Camera�

Please refer to LAN setting on page 55 for details�

Internet connection via PPPoE (Point-to-Point over Ethernet)

Choose this connection type if you are connected to the Internet via a DSL Line� Please refer to PPPoE on page 56 for details�

User's Manual - 11

VIVOTEK

Software Installation

Installation Wizard 2 (IW2), free-bundled software included on the product CD, helps you set up

your Network Camera on the LAN�

IW

1� Install IW2 under the Software Utility directory from the software CD� Double-click the IW2 shortcut on your desktop to launch the program�

2� The program will conduct an analysis of your network environment� After your network environment is analyzed, please click Next to continue the program�

2

Installation

Wizard 2

3� The program will search for all VIVOTEK network devices on the same LAN�

4� After a brief search, the installer window will prompt� Click on the MAC and model name that matches the one printed on the product label� You can then double-click on the address to

open a management session with the Network Camera�

2

0002D10766AD

00-02-D1-73-02-02 192.168.5.151 FD8136

0002D1730202

12 - User's Manual

VIVOTEK

Ready to Use

1� A browser session with the Network Camera should prompt as shown below� 2� You should be able to see live video from your camera� You may also install the 32-channel

recording software from the software CD in a deployment consisting of multiple cameras� For its installation details, please refer to its related documents�

User's Manual - 13

VIVOTEK

Adjusting the Lens

WARNING!

Do not use your hands to tune the lens module's tilt angle� Doing so will damage the delicate tilt mechanism�

Lens UP Lens DOWN

3� Tighten the camera's mounting screws

after you change the horizontal shooting

direction�

1� There is a tilt adjustment screw near the

lens module� Use a #0, #1, or #2 Phillips screwdriver to turn the screw and the lens will move upwards or downwards�

2. You may also tune the camera's horizontal

orientation by turning it along its curved screw slots�

25°

14 - User's Manual

57°

VIVOTEK

4� With a live video feed, you can place the included

focus adjustment tool carefully on the lens, and use it to turn the lens clockwise or counterclockwise to adjust to the best image focus�

You may try tuning the focus slightly closer due to

the concern that focus might be changed when the dome cover is installed�

5� Use a piece of clean cotton cloth to hold and and

install the dome cover�

6� Install dome cover by aligning the semi-circular

cut-out with the release tab� Press on both ends of the dome cover for it to snap into place� A "Click" sound should be heard when it is properly installed�

Release tab

Semi-circular cut-out

User's Manual - 15

VIVOTEK

Accessing the Network Camera

This chapter explains how to access the Network Camera through web browsers, RTSP players, 3GPP-compatible mobile devices, and VIVOTEK recording software�

Using Web Browsers

Use Installation Wizard 2 (IW2) to access the Network Cameras on LAN. If your network environment is not a LAN, follow these steps to access the Netwotk Camera:

1� Launch your web browser (e�g�, Microsoft® Internet Explorer, Mozilla Firefox, or Netscape).

2. Enter the IP address of the Network Camera in the address eld. Press Enter� 3� The live video will be displayed in your web browser�

4. If it is the rst time installing the VIVOTEK network camera, an information bar will pop up as

shown below� Follow the instructions to install the required plug-in on your computer�

NOTE

► For Mozilla Firefox or Netscape users, your browser will use Quick Time to stream the live

16 - User's Manual

NOTE:

video. If you don’t have Quick Time on your computer, please download it rst, then launch

the web browser�

VIVOTEK

► By default, the Network Camera is not password-protected. To prevent unauthorized access,

it is highly recommended to set a password for the Network Camera� For more information about how to enable password protection, please refer to Security on page 72�

► If you see a dialog box indicating that your security settings prohibit running ActiveX®

Controls, please enable the ActiveX® Controls for your browser�

1� Choose Tools > Internet Options > Security > Custom Level�

2. Look for Download signed ActiveX® controls; select Enable or Prompt� Click OK�

3. Refresh your web browser, then install the ActiveX® control� Follow the instructions to

complete installation�

User's Manual - 17

VIVOTEK

IMPORTANT!

Currently the Network Camera utilizes 32-bit ActiveX plugin. You CAN NOT open a

•

management/view session with the camera using a 64-bit IE browser�

If you encounter this problem, try execute the Iexplore.exe program from C:\

•

Windows\SysWOW64. A 32-bit version of IE browser will be installed. On Windows 7, the 32-bit explorer browser can be accessed from here:

•

C:\Program Files (x86)\Internet Explorer\iexplore.exe

18 - User's Manual

VIVOTEK

Using RTSP Players

To view the MPEG-4 streaming media using RTSP players, you can use one of the following players that support RTSP streaming�

Quick Time Player

Real Player

VLC media player 1� Launch the RTSP player�

mpegable Player

2� Choose File > Open URL� A URL dialog box will pop up�

3. The address format is rtsp://<ip address>:<rtsp port>/<RTSP streaming access name for

pvPlayer

stream1 or stream2>

As most ISPs and players only allow RTSP streaming through port number 554, please set the RTSP port to 554� For more information, please refer to RTSP Streaming on page 63�

For example:

rtsp://192.168.5.151:554/live.sdp

4� The live video will be displayed in your player�

For more information on how to configure the RTSP access name, please refer to RTSP Streaming on page 63 for details�

Video 16:38:01 2012/01/25

User's Manual - 19

VIVOTEK

Using 3GPP-compatible Mobile Devices

To view the streaming media through 3GPP-compatible mobile devices, make sure the Network Camera can be accessed over the Internet� For more information on how to set up the Network Camera over the Internet, please refer to Setup the Network Camera over the Internet on page 10�

To utilize this feature, please check the following settings on your Network Camera:

1� Because most players on 3GPP mobile phones do not support RTSP authentication, make

sure the authentication mode of RTSP streaming is set to disable�

For more information, please refer to RTSP Streaming on page 63�

2. As the the bandwidth on 3G networks is limited, you will not be able to use a large video size.

Please set the video and audio streaming parameters as listed below�

For more information, please refer to Stream settings on page 49�

Video Mode MPEG-4 Frame size 176 x 144 Maximum frame rate 5 fps Intra frame period 1S Video quality (Constant bit rate) 40kbps Audio type (GSM-AMR) 12.2kbps

3� As most ISPs and players only allow RTSP streaming through port number 554, please set

the RTSP port to 554� For more information, please refer to RTSP Streaming on page 63�

4� Launch the player on the 3GPP-compatible mobile devices (e�g�, Real Player)�

5� Type the following URL commands into the player�

The address format is rtsp://<public ip address of your camera>:<rtsp port>/<RTSP streaming access name for stream # with small frame size and frame rate>.

For example:

You can configure Stream #2 into the suggested stream settings as listed above for live viewing on a mobile device�

20 - User's Manual

VIVOTEK

Using VIVOTEK Recording Software

The product software CD also contains an ST7501 recording software, allowing simultaneous monitoring and video recording for multiple Network Cameras� Please install the recording software; then launch the program to add the Network Camera to the Channel list� For detailed information about how to use the recording software, please refer to the user’s manual of the software or download it from http://www.vivotek.com�

User's Manual - 21

VIVOTEK

VIVOTEK INC. Logo

Camera Control Area

Configuration Area

Host Name

Resize Buttons

Hide Button

Live View Window

Main Page

This chapter explains the layout of the main page. It is composed of the following sections:

VIVOTEK INC� Logo, Host Name, Camera Control Area, Configuration Area, Menu, and Live Video Window�

VIVOTEK INC. Logo

Click this logo to visit the VIVOTEK website�

Host Name

The host name can be customized to t your needs. For more information, please refer to System on page 31.

Camera Control Area

Video Stream: This Network Camera supports multiple streams (stream 1 ~ 2) simultaneously. You can select either one for live viewing� For more information about multiple streams, please refer to page 81 for detailed information�

Manual Trigger: Click to enable/disable an event trigger manually. Please configure an event setting

on Application page before enable this function. A total of 3 event settings can be congured. For more

information about event setting, please refer to page 86� If you want to hide this item on the homepage, please go to Conguration> System > Homepage Layout > General settings > Customized button to deselect “show manual trigger button”�

22 - User's Manual

VIVOTEK

Conguration Area

Client Settings: Click this button to access the client setting page. For more information, please refer to Client Settings on page 26�

Conguration: Click this button to access the conguration page of the Network Camera. It is suggested

that a password be applied to the Network Camera so that only the administrator can configure the

Network Camera. For more information, please refer to Conguration on page 30.

Language: Click this button to choose a language for the user interface. Language options are available in: English, Deutsch, Español, Français, Italiano,

日本語

, Português,

簡体中文

, and

繁體中文

� Please

note that you can also change a language on the Conguration page; please refer to page 30.

Hide Button

You can click the hide button to hide the control panel or display the control panel�

Resize Buttons

: Click the Auto button, the video cell will resize automatically to t the monitor. Click 100% is to display the original homepage size. Click 50% is to resize the homepage to 50% of its original size. Click 25% is to resize the homepage to 25% of its original size.

Live Video Window

■ The following window is displayed when the video mode is set to H.264 / MPEG-4:

H.264 / MPEG-4 Protocol and Media Options

Video Title

Title and Time

Zoom Indicator

Video (TPC-AV)

Video 17:08:56 2011/06/25

x4.0

Video Title: The video title can be congured. For more information, please refer to Video Settings on page 49�

H�264 / MPEG-4 Protocol and Media Options: The transmission protocol and media options for H.264 /

MPEG-4 video streaming. For further conguration, please refer to Client Settings on page 26.

2011/02/25 17:08:56

Time

Video and Audio Control Buttons

Time: Display the current time. For further conguration, please refer to Media > Image > Genral settings on page 43�

Title and Time: The video title and time can be stamped on the streaming video. For further conguration, please refer to Media > Image > General settings on page 43�

User's Manual - 23

VIVOTEK

Global View: Click on this item to display the Global View window� The Global View window contains a full view image (the largest frame size of the captured video) and a oating frame (the viewing region of

the current video stream). The oating frame allows users to control the e-PTZ function (Electronic Pan/

Tilt/Zoom)� For more information about e-PTZ operation, please refer to E-PTZ Operation on page 83� For more information about how to set up the viewing region of the current video stream, please refer to page 83�

The viewing region of the current video stream

The largest frame size

PTZ Panel: This Network Camera supports both “digital“ (e-PTZ) pan/tilt/zoom control. Please refer to PTZ settiings on page 83 for detailed information�

Video and Audio Control Buttons: Depending on the Network Camera model and Network Camera

conguration, some buttons may not be available.

Snapshot: Click this button to capture and save still images. The captured images will be displayed

in a pop-up window� Right-click the image and choose Save Picture As to save it in JPEG (*.jpg) or BMP

(*.bmp) format.

Digital Zoom: Click and uncheck “Disable digital zoom” to enable the zoom operation. The navigation

screen indicates the part of the image being magnied. To control the zoom level, drag the slider bar. To

move to a different area you want to magnify, drag the navigation screen�

Pause: Pause the transmission of the streaming media. The button becomes the Resume button

after clicking the Pause button�

Stop: Stop the transmission of the streaming media. Click the Resume button to continue

transmission�

Start MP4 Recording: Click this button to record video clips in MP4 file format to your computer.

Press the Stop MP4 Recording button to end recording� When you exit the web browser, video recording stops accordingly. To specify the storage destination and le name, please refer to MP4 Saving

Options on page 27 for details�

Volume: When the Mute function is not activated, move the slider bar to adjust the volume on the

local computer�

Mute: Turn off the volume on the local computer� The button becomes the Audio On button after

clicking the Mute button�

Full Screen: Click this button to switch to full screen mode. Press the “Esc” key to switch back to normal

mode�

24 - User's Manual

VIVOTEK

■ The following window is displayed when the video mode is set to MJPEG:

Video Title

Title and Time

Video (HTTP-V)

Video 17:08:56 2011/06/25

Video Title: The video title can be congured. For more information, please refer to Media > Image on page 43�

Time: Display the current time. For more information, please refer to Media > Image on page 43.

2011/02/25 17:08:56

Time

Video Control Buttons

Title and Time: Video title and time can be stamped on the streaming video. For more information, please refer to Media > Image on page 43

�

Video and Audio Control Buttons: Depending on the Network Camera model and Network Camera

conguration, some buttons may not be available.

Snapshot: Click this button to capture and save still images. The captured images will be displayed

in a pop-up window� Right-click the image and choose Save Picture As to save it in JPEG (*.jpg) or BMP

(*.bmp) format.

Digital Zoom: Click and uncheck “Disable digital zoom” to enable the zoom operation. The navigation

screen indicates the part of the image being magnied. To control the zoom level, drag the slider bar. To

move to a different area you want to magnify, drag the navigation screen�

Start MP4 Recording: Click this button to record video clips in MP4 file format to your computer.

Press the Stop MP4 Recording button to end recording� When you exit the web browser, video recording stops accordingly. To specify the storage destination and le name, please refer to MP4 Saving

Options on page 27 for details�

Full Screen: Click this button to switch to full screen mode. Press the “Esc” key to switch back to normal

mode�

User's Manual - 25

VIVOTEK

Client Settings

This chapter explains how to select the stream transmission mode and saving options on the local computer� When completed with the settings on this page, click Save on the page bottom to enable the settings�

H.264 / MPEG-4 Media Options

H.264/MPEG-4 Media Options

Select to stream video or audio data or both� This is enabled only when the video mode is set to H�264 or MPEG-4�

H.264 / MPEG-4 Protocol Options

H.264/MPEG-4 Protocol Options

Depending on your network environment, there are four transmission modes of H�264 or MPEG-4

streaming:

UDP unicast: This protocol allows for more real-time audio and video streams. However, network packets may be lost due to network burst trafc and images may be broken. Activate UDP connection

when occasions require time-sensitive responses and the video quality is less important� Note that each unicast client connecting to the server takes up additional bandwidth and the Network Camera allows up to ten simultaneous accesses�

UDP multicast: This protocol allows multicast-enabled routers to forward network packets to all clients requesting streaming media� This helps to reduce the network transmission load of the Network Camera

while serving multiple clients at the same time. Note that to utilize this feature, the Network Camera must

be configured to enable multicast streaming at the same time� For more information, please refer to RTSP Streaming on page 63�

TCP: This protocol guarantees the complete delivery of streaming data and thus provides better video quality� The downside of this protocol is that its real-time effect is not as good as that of the UDP protocol�

HTTP: This protocol allows the same quality as TCP protocol without needing to open specic ports for

streaming under some network environments. Users inside a firewall can utilize this protocol to allow

streaming data through�

26 - User's Manual

VIVOTEK

MP4 Saving Options

Users can record live video as they are watching it by clicking Start MP4 Recording on the main

page. Here you can specify the storage destination and le name.

Folder: Specify a storage destination for the recorded video les.

File name prex: Enter the text that will be appended to the front of the video le name.

Add date and time sufx to the le name: Select this option to append the date and time to the end of the le name.

CLIP_20110628-180853

File name preﬁx

Date and time sufﬁx

The format is: YYYYMMDD_HHMMSS

Local Streaming Buffer Time

Due to the unsteady bandwidth ow, the live streaming may lag and not be very smoothly. If you enable

this option, the live streaming will be stored on the camera’s buffer area for a few seconds before playing on the live viewing window� This will help you see the streaming more smoothly� If you enter 3000 Millisecond, the streaming will delay for 3 seconds�

User's Manual - 27

VIVOTEK

Joystick settings

Enable Joystick

Connect a joystick to a USB port on your management computer� Supported by the plug-in

(Microsoft’s DirectX), once the plug-in for the web console is loaded, it will automatically detect if

there is any joystick on the computer� The joystick should work properly without installing any other driver or software�

Then you can begin to configure the joystick settings of connected devices� Please follow the instructions below to enable joystick settings�

1� Select a detected joystick, if there are multiple, from the Selected joystick menu� If your joystick

is not detected, if may be defective�

2� Click Calibrate or Congure buttons to congure the joystick-related settings.

NOTE:

• If you want to assign Preset actions to your joystick, the preset locations should be congured in advance in the Conguration > PTZ page.

• If your joystick is not working properly, it may need to be calibrated� Click the Calibrate button

to open the Game Controllers window located in Microsoft Windows control panel and follow the instructions for trouble shooting�

• The joystick will appear in the Game Controllers list in the Windows Control panel� If you want to check out for your devices, go to the following page: Start -> Control Panel -> Game Controllers.

28 - User's Manual

VIVOTEK

Buttons Conguration

Click the Congure Buttons button, a window will prompt as shown below� Please follow the steps

below to congure your joystick buttons:

1� Select a button number from the Button # pull-down menu�

Tips

If you are not sure of the locations of each button, use the Properties window in the Game Controllers utility�

2� Select a corresponding action, such as Patrol or Preset#�

3�

Click the Assign button to assign an action to the button� You can delete an association by selecting a button number, and then click the Delete button�

Repeat the process until you are done with the configuration of all preferred actions�

The buttons you dene should appear on

the button list accordingly�

4� Please remember to c

button on the Client settings page to preserver your settings�

lick the Save

User's Manual - 29

VIVOTEK

Conguration

Click Configuration on the main page to enter the camera setting pages� Note that only

Administrators can access the conguration page.

VIVOTEK offers an easy-to-use user interface that helps you set up your network camera with

minimal effort. To simplify the setting procedure, two types of user interfaces are available:

Advanced Mode for professional users and Basic Mode for entry-level users� Some advanced functions (PTZ/ Event/ Recording/ Local storage) are not displayed in Basic Mode�

If you want to set up advanced functions, please click [Advanced Mode] on the bottom of the

conguration list to quickly switch to Advanced Mode.

In order to simplify the user interface, the detailed information will be hidden unless you click to

unfold a functional item. When you click on the rst sub-item, the detailed information for the rst

sub-item will be displayed; when you click on the second sub-item, the detailed information for

the second sub-item will be displayed and that of the rst sub-item will be hidden.

The following is the interface of the Basic Mode and the Advanced Mode:

Basic Mode

Navigation Area

Configuration List

Click to switch to Advanced Mode

30 - User's Manual

Firmware Version
