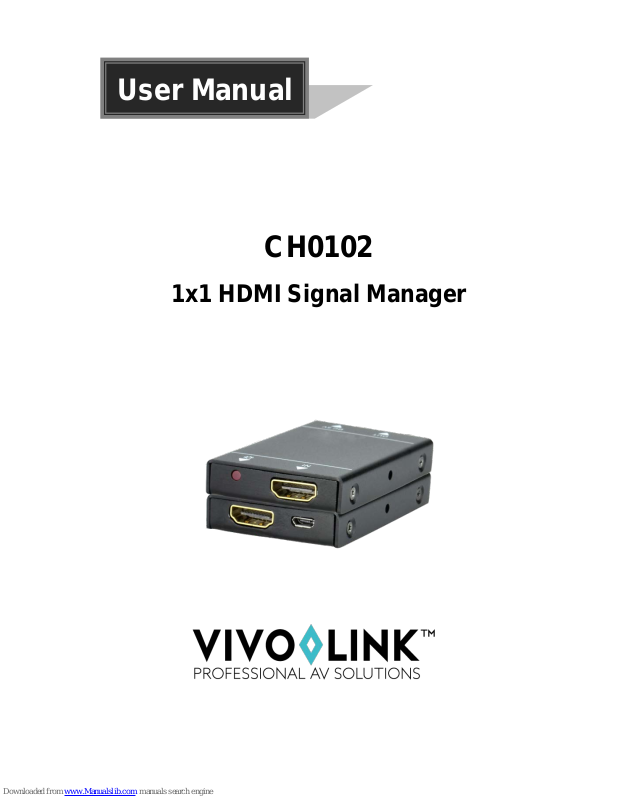

CH0102
1x1 HDMI Sign al Manager
User Manual
1x1 HDMI Signal Manager
Preface
Read this user ma nual caref ull y before us ing this pr odu ct. Pictures shown in thi s manu al
is for reference only, different model and specifications are subject to real product.
This manual is only for operation instruction only, not for any maintenance usage. The
functions described in this version are updated till May 2016. Any changes of functions
and parameters since then will be informed separately. Please refer to the dealers for
the latest details.
All product function is valid till 2016-5-6.
Trademarks
Product model and logo are trademarks . Any other tr adem arks me ntioned in this manua l
are acknowledged as the properties of the trademark owner. No part of this publication
may be copied or reproduced without prior written consent.
FCC Statement
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. It has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. T hese lim its are design ed
to provide reasonable protection against harmful interference in a commercial
installation.
Operation of this equipment in a residential area is likely to cause interference, in which
case the user at their own expense will be required to take whatever measures may be
necessary to correct the interference
Any changes or modifications not expressly approved by the manufacture would void
the user’s authority to operate the equipment.
1x1 HDMI Signal Manager
SAFETY PRECAUTIONS
To insure the best from the product, please read all instructions carefully before using
the device. Save this manual for further reference.
Unpack the equipment carefully and save the original box and packing material for
possible future shipm ent
Follow basic safety precautions to reduce the risk of fire, electrical shock and injury
to persons.
Do not dismantle the housing or modify the module. It may result in electrical shock
or burn.
Using supplies or parts not meeting the products’ s pec ifi cations may cause damage ,
deterioration or malfunction.
Refer all servicing to qualified service personnel.
To prevent fire or shock hazard, do not expose the unit to rain, moisture or i nst all thi s
product near water.
Do not put any heavy items on the extension cable in case of extrusion.
Do not remove the housing of the device as opening or removing housing may
expose you to dangerous voltage or other hazards.
Install the device in a place with fine ventilation to avoid damage caused by
overheat.
Keep the module away from liquids.
Spillage into the ho usi ng m ay resul t in f ir e, e lec tric al s ho ck, or equipment damag e. I f
an object or liquid falls or spills on to the housing, unplug the module immediately.
Do not twist or pull by force ends of the optical cable. It can cause malfunction.
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to
the device before cleaning.
Unplug the power cord when left unused for a long perio d of time.
Information on disposal for scrapped devices: do not burn or mix with general
household waste, please treat them as norm al ele ctrical wastes.
1x1 HDMI Signal Manager
1
1. Introduction
1x1 HDMI Signal Manager is a 1x 1 H DMI signal manager s u pports HDMI2.0&HDCP2.2.
It is designed to enhance the compatibility between HDMI source and display. The
high-definition HDMI signal can be transmitted from HDMI source to match all kinds of
display device.
The transmission distance of 4k*2k@60Hz (max) signal can up to 15m. Beside
straight-through HDMI transmission, the EDID bypass function ensures the best
resolution.
1.1 Features
Supports HDMI2.0& HDCP2.2
EDID bypass
Auto input resolution detection
Easy to install and simple to operate
1.2 Package List
1 x 1x1 HDMI Signal Manager 2 x Mounting ears
2 x Screws 4 x Plastic cushions
1 x Power Adapter (DC 5V 1A) 1 x User manual
Check whether all the items listed above are included in your package. If not,
contact your dealer to make up.
1x1 HDMI Signal Manager
2
2. Appearances
No. Name Description
①
Power Indicator
Illuminate red when powered on
② IN Connect with HDMI/ DVI source
③
DC 5V
Micro USB power port, insert DC 5V 1A power adapter
④
OUT
Connect with HDMI/ DVI display
Pictures shown in this manual are for reference only.
3. System Connection
The figure below illustrates a typical connection that can be utilized with 1x1 HDMI
Signal Manager:
Step1. Connect a HDMI source (e.g. a Blu-ray DVD) to IN port of 1x1 HDMI Signal
Manager;
Step2. Connect a HDMI display (e.g. a Blu-ray DVD) to OUT port of 1x1 HDMI Signal
Manager;
Step3. Plug DC 5V 1A power adapter into the power port of 1x1 HDMI Signal Manager.
1) System should be installed in a clean environment with prop temperature and
humidity.
2) All of the power switches, plugs, sockets and power cords should be insulated.
3) All devices should be connected before power on.
DVD
HDTV
DC 5V
HDMI Signal:
1x1 HDMI Signal Manager
3
4. Specification
Input
Output
Input
1 HDMI IN
Output
1 HDMI OUT
Connector
19-pin type-
A female
HDMI
Connector
19-pin type-
A female
HDMI
Audio
HDMI embedded audio Audio
HDMI embedded
audio
General
Transmission
Distance
4K*2K@60Hz≤15m
1080P≤20m
Bandwidth
18 Gbps
Audio
Support PCM（2.0,2.1,5.1,6.1,7.1
，）、
Dolby Digital （5.1）、DTS-HD
（
5.1,7.1）,DD+/True HD（2.0,5.1,7.1） DTS-ES 6.1
Audio Sampling
Rate
32k, 44.1k, 48k, 88.2k, 96k, 176.4k, 192k
Power Supply
DC 5V 1A
Power
Consumption
0.5W
Dimensions
(W*H*D)
45.5*12*75 mm Weight 49g
Work
Temperature
0~50℃
Reference
Humility
10%-90%
EDID
Management
Support pass-through EDID
4.1 Supported Resolution
4K 3840*2160, 4096*2160 （30Hz/60Hz）
16:9 1920*1080, 1600*900, 1366*768, 1280*720, 1024*576（60Hz）
16:10 1920*1200, 1680*1050, 1440*900, 1360*768, 1280*800（60Hz）
4:3 1600*1200, 1400*1050, 1280*1204, 1024*768, 800*600, 640*480
（60Hz）
21:9 2560*1080（30Hz/60Hz）
Use quality HDMI cable to connect the devices to ensure preferred transmission
effect.
1x1 HDMI Signal Manager
4
5. Panel Drawing
6. Troubleshooting & Maintenance
Problems
Causes
Solutions
Color losing or vague/
double image in HDMI
display
Poor quality of the optical
fiber cable
Change for qualified HDMI
cable.
Power led is off, operations
don’t work
Not been powered Power up the unit
Poor contact of power port
Make sure power adapter
is in well contact
No output on the display
Source/ Display is off
Turn on the source/ display
Poor contact of HDMI ports
Check the HDMI ports one
by one to make sure
they’re in well contact.
If your problem persists after following the above troubleshooting steps, seek
further help from authorized dealer or our technical support.
OUT
DC 5V
45.50 mm
75.00 mm
14.99 mm
15.00 mm
12.00 mm
1x1 HDMI Signal Manager
5
7. After-sales Service
If there appear s om e problems when running the dev i ce, ple a se che ck and deal with th e
problems reference to this user manual.
4) Product Limited Warranty: We warrants that our products will be free from defects
in materials and workmanship for three years, which starts from the first day the
product leaves warehouse (check the SN mark on the product).
Proof of purchase in the form of a bill of sale or receipted invoice must be presented
to obtain warranty service.
5) What the warranty does not cover:
Warranty expiration.
Factory applied serial number has been altered or removed from the product.
Damage, deterioration or malfunction caused by:
Normal wear and tear
U se of suppli es or parts not m eetin g our speci fic ati ons
No certificate or invoice as the proof of warranty.
The product model showed on the warranty card does not match with the
model of the product for repairing or had been altered.
Damage caused by force majeure.
Servicing not authorized
Other causes which does not relate to a product defect
Delivery, installation or labor charges for installation or setup of the product
6) Technical Support: Email to our after-sa les department or make a call, please
inform us the following information about your cases.
Product version and name.
Detailed failure situations.
The formation of the cases.
Remarks: For any questions or problems, please try to get help from your local
distributor.
