Vivitek DX883ST, DW884ST User Manual

Ver.：1

Copyright

This publication, including all photographs, illustrations and software, is protected under international
copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may
be reproduced without written consent of the author.

© Copyright 2014

Disclaimer

The information in this document is subject to change without notice. The manufacturer makes no
representations or warranties with respect to the contents hereof and specifically disclaims any implied
warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to
revise this publication and to make changes from time to time in the content hereof without obligation of
the manufacturer to notify any person of such revision or changes.

Trademark Recognition

Kensington is a U.S. registered trademark of ACCO Brand Corporation with issued registrations
and pending applications in other countries throughout the world.

HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing LLC in the United States and other countries.

MHL, the MHL logo, and Mobile High-Definition Link are trademarks or registered
trademarks of MHL licensing, LLC.

All other product names used in this manual are the properties of their respective owners and are
acknowledged.

— i —

Important Safety Information

！！！

！

Important:

It is strongly recommended that you read this section carefully before using the projector. These
safety and usage instructions will ensure that you enjoy many years of safe use of the projector.

Keep this manual for future reference.

Symbols Used

Warning symbols are used on the unit and in this manual to alert you of hazardous situations.
The following styles are used in this manual to alert you to important information.

Note:

Provides additional information on the topic at hand.

Important:

Provides additional information that should not be overlooked.

Caution:

Alerts you to situations that may damage the unit.

Warning:

Alerts you to situations that may damage the unit, create a hazardous environment, or cause
personal injury.

Throughout this manual, component parts and items in the OSD menus are denoted in bold font as in this
example:
“Push the Menu button on the remote control to open the Main menu.”

General Safety Information

 Do not open the unit case. Aside from the projection lamp, there are no user-serviceable parts in

the unit. For servicing, contact qualified service personnel.

 Follow all warnings and cautions in this manual and on the unit case.
 The projection lamp is extremely bright by design. To avoid damage to eyes, do not look into the

lens when the lamp is on.

 Do not place the unit on an unstable surface, cart, or stand.
 Avoid using the system near water, in direct sunlight, or near a heating device.
 Do not place heavy objects such as books or bags on the unit.

— ii —

Projector Installation Notice

Mininum 500mm
(19.69 inch)

Mininum 500mm
(19.69 inch)

Mininum 500mm
(19.69 inch)

Mininum 100mm
(3.94 inch)

Mininum 500mm
(19.69 inch)

Mininum 300mm
(11.81 inch)

15

°

-15°

 Place the projector in a horizontal position

The tilt angle of the projector should not exceed 15 degrees, nor should the projector be
installed in any way other than the desktop and ceiling mount, otherwise lamp life could decrease
dramatically, and may lead to other unpredictable damages.

 Allow at least 50 cm clearance around the exhaust vent.

 Ensure that the intake vents do not recycle hot air from the exhaust vent.
 When operating the projector in an enclosed space, ensure that the surrounding air temperature

within the enclosure does not exceed operation temperature while the projector is running, and the
air intake and exhaust vents are unobstructed.

 All enclosures should pass a certified thermal evaluation to ensure that the projector does not

recycle exhaust air, as this may cause the device to shutdown even if the enclosure temperature is
with the acceptable operation temperature range.

–iii –

Verify Installation Location

 To supply power, the 3-blade (with earthing lead) socket should be used to ensure proper

grounding and equalized ground potential for all of the equipment in the Projector System.

 The power code provided with the Projector should be used. In case of any missing item, other

qualified 3-blade (with earthing lead) power cord can be used as substitution; however, do not use
2-blade power cord.

 Verify if the voltage is stable, grounded properly and there is no electricity leakage.
 Measure total power consumption which should not higher the safety capacity and avoid safety

issue and short circuit.

 Turn on Altitude Mode when located in high altitude areas
 The projector can only be installed upright or inverted.
 When installation the bracket, make sure the weight limit is not exceed and firmly secured.
 Avoid installing near air conditioner duct or subwoofer.
 Avoid installing at high temperature, insufficient cooling and heavy dust locations.
 Keep your product away from fluorescent lamps to avoid malfunction

caused by IR interference

 The VGA IN connector should be connected to the VGA IN port. Note that it should be inserted

tightly, with the screws on both sides securely fastened to ensure proper connection of the signal
wire for achieving optimal display effect.

 The AUDIO IN connector should be connected to the AUDIO IN port and CANNOT be connected

to AUDIO OUT or other ports like BNC, RCA; otherwise, it will lead to mute output and even
DAMAGE the port.

 Install the projector above 200cm to avoid damage.
 The power cord and signal cable should be connected before power on the projector. During the

projector starting and operating process, DO NOT insert or remove the signal cable or the power
cord to avoid damaging the projector.

Cooling notes

Air outlet

 Make sure the air outlet is 50cm clear of any obstruction to ensure proper cooling.
 Air outlet location should not be in front of the lens of other projector to avoid causing illusions.
 Keep the outlet at least 100cm away from the inlets of other projectors

 The projector generates a massive amount of heat during use. The internal fan dissipates the heat

of the projector when shutting down, and such process may continue for a certain period. After the
project enters STANDBY MODE status, press the AC power button to turn off the projector and
remove the power cord. DO NOT remove the power cord during the shutdown process, as it may
cause damage to the projector. In the meantime, the delayed heat radiating will also affect the
service life of the projector. The shutdown process may vary depending on the model used.
Whatever the case may be, be sure to disconnect the power cord till after the projector enters the
STANDBY status.

Air inlet

 Make sure there is no object blocking air input within 30 cm.
 Keep the inlet away from other heat sources
 Avoided heavy dust area

— iv —

Power Safety

DISPOSAL: Do not use household or municipal waste collection services for
disposal of electrical and electronic equipment. EU countries require the use
of separate recycling collection services.

！

 Only use the supplied power cord.
 Do not place anything on the power cord. Place the power cord where it will not be in the way of

foot traffic.

 Remove the batteries from the remote control when storing or not in use for a prolonged period.

Replacing the Lamp

Replacing the lamp can be hazardous if done incorrectly. See Replacing the Projection Lamp on page 47
for clear and safe instructions for this procedure. Before replacing the lamp:

 Unplug the power cord.
 Allow the lamp to cool for about one hour.

Caution:

In rare cases the lamp bulb may burn out during normal operation and cause glass dust or shards
to be discharged outward from the rear exhaust vent.

Do not inhale or do not touch glass dust or shards. Doing so could result in injury.
Always keep your face away from the exhaust vent so that you do not suffer from the gas and

broken shards of the lamp.

Cleaning the Projector

 Unplug the power cord before cleaning. See Cleaning the Projector on page 51.
 Allow the lamp to cool for about one hour.

Regulatory Warnings

Before installing and using the projector, read the regulatory notices in the Regulatory Compliance on
page 63.

Important Recycle Instructions:

Lamp(s) inside this product contain mercury. This product may contain other electronic waste that
can be hazardous if not disposed of properly. Recycle or dispose in accordance with local, state, or federal
Laws. For more information, contact the Electronic Industries Alliance at WWW.EIAE.ORG. For lamp

specific disposal information check WWW.LAMPRECYCLE.ORG.

Symbol Explanations

–v –

Main Features

 Lightweight unit, easy to pack away and transport.
 Compatible with all major video standards including NTSC, PAL, and SECAM.
 A high brightness rating allows for presentations in daylight or in lit rooms.
 Supports resolutions up to UXGA at 16.7 million colors to deliver crisp, clear images.
 Flexible setup allows for front, rear projections.
 Line-of-vision projections remain square, with advanced keystone correction for angled projections.
 Input source automatically detected.

About this Manual

This manual is intended for end users and describes how to install and operate the DLP projector.
Wherever possible, relevant information—such as an illustration and its description—has been kept on
one page. This printer-friendly format is both for your convenience and to help save paper, thereby
protecting the environment. It is suggested that you only print sections that are relevant to your needs.

— vi —

Table of Contents

GETTING STARTED .............................................................................................................................................. 1

PACKING CHECKLIST ............................................................................................................................................. 1

VIEWS OF PROJECTOR PARTS ............................................................................................................................... 2

Front-right View ............................................................................................................................................... 2

Top view—On-screen Display (OSD) buttons and LEDs ................................................................................ 3

Rear view ......................................................................................................................................................... 4

Bottom view ..................................................................................................................................................... 6

REMOTE CONTROL PARTS ..................................................................................................................................... 7

REMOTE CONTROL OPERATING RANGE ................................................................................................................. 9

PROJECTOR AND REMOTE CONTROL BUTTONS ...................................................................................................... 9

SETUP AND OPERATION ................................................................................................................................... 10

INSERTING THE REMOTE CONTROL BATTERIES ..................................................................................................... 10

STARTING AND SHUTTING DOWN THE PROJECTOR ................................................................................................ 11

SETTING AN ACCESS PASSWORD (SECURITY LOCK) ............................................................................................. 13

ADJUSTING THE PROJECTOR LEVEL ..................................................................................................................... 15

ADJUSTING THE FOCUS AND KEYSTONE ............................................................................................................... 16

ADJUSTING THE VOLUME ..................................................................................................................................... 16

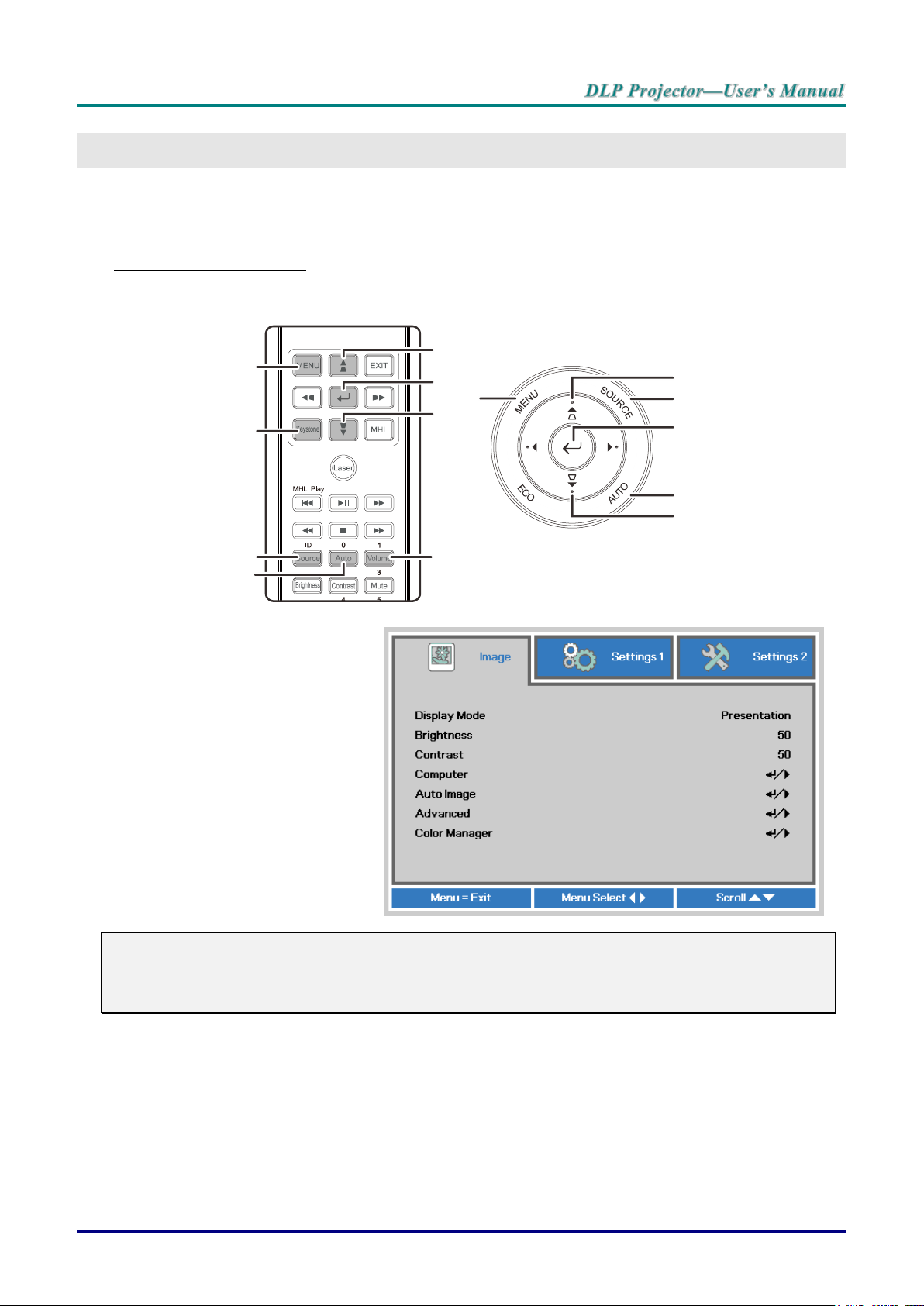

ON-SCREEN DISPLAY (OSD) MENU SETTINGS.............................................................................................. 17

OSD MENU CONTROLS ....................................................................................................................................... 17

Navigating the OSD ....................................................................................................................................... 17

SETTING THE OSD LANGUAGE ............................................................................................................................ 18

OSD MENU OVERVIEW ........................................................................................................................................ 19

IMAGE MENU ....................................................................................................................................................... 22

Computer Menu ............................................................................................................................................. 23

Advanced Feature ......................................................................................................................................... 24

White Balance ............................................................................................................................................... 25

Color Manager ............................................................................................................................................... 26

SETTINGS 1 MENU ............................................................................................................................................... 27

Audio.............................................................................................................................................................. 28

Advanced 1 Feature ...................................................................................................................................... 29

Advanced 2 Feature ...................................................................................................................................... 31

SETTINGS 2 MENU ............................................................................................................................................... 32

Status............................................................................................................................................................. 33

Advanced 1 Feature ...................................................................................................................................... 34

Advanced 2 Feature ...................................................................................................................................... 45

MAINTENANCE AND SECURITY ....................................................................................................................... 47

REPLACING THE PROJECTION LAMP ..................................................................................................................... 47

Resetting the Lamp ....................................................................................................................................... 50

CLEANING THE PROJECTOR ................................................................................................................................. 51

Cleaning the Lens .......................................................................................................................................... 51

Cleaning the Case ......................................................................................................................................... 51

USING THE KENSINGTON

®

LOCK .......................................................................................................................... 52

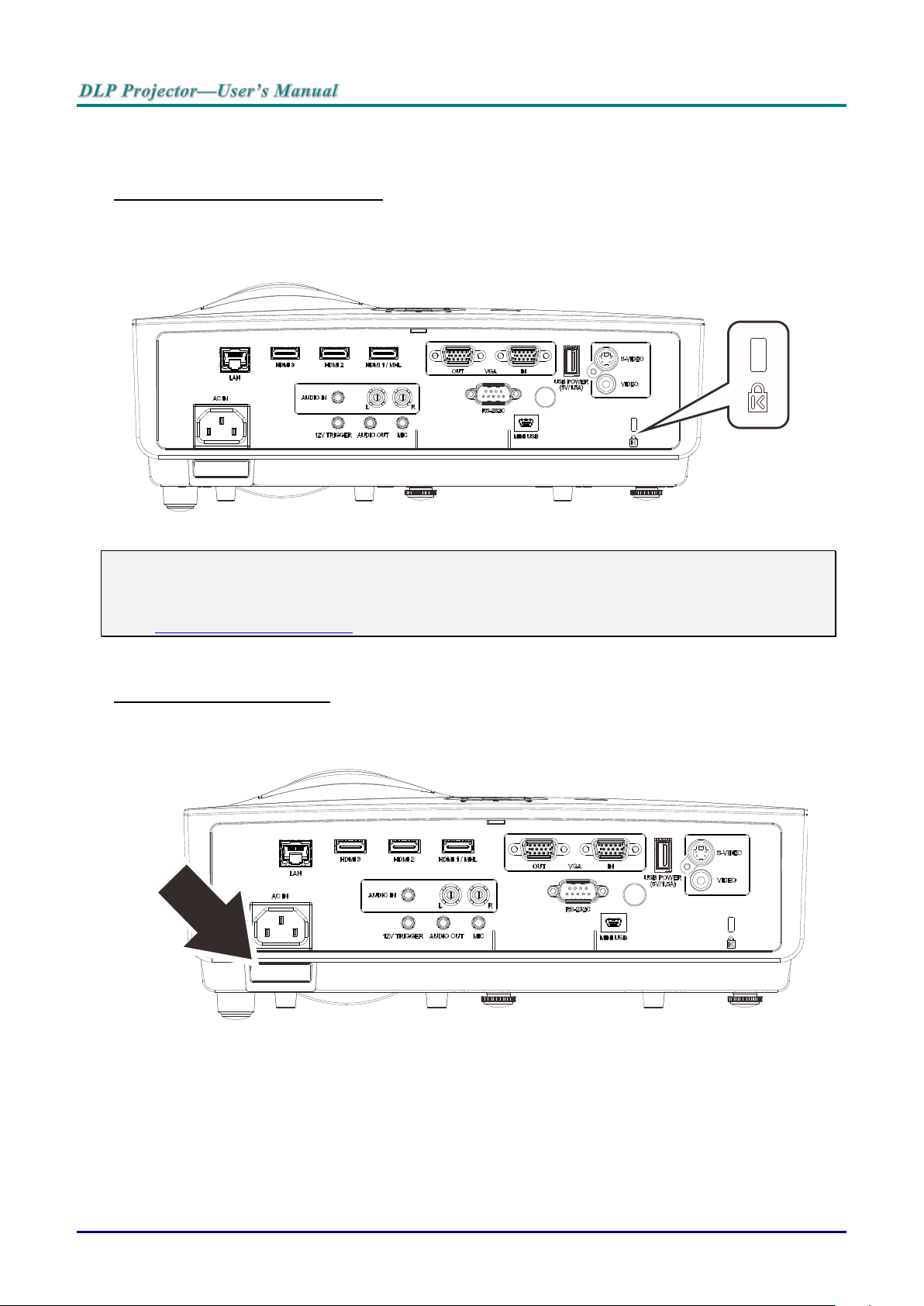

Using the Kensington® Lock .......................................................................................................................... 52

Using the Security Bar ................................................................................................................................... 52

TROUBLESHOOTING ......................................................................................................................................... 53

COMMON PROBLEMS AND SOLUTIONS .................................................................................................................. 53

TIPS FOR TROUBLESHOOTING .............................................................................................................................. 53

LED ERROR MESSAGES ...................................................................................................................................... 54

IMAGE PROBLEMS ............................................................................................................................................... 54

LAMP PROBLEMS ................................................................................................................................................ 55

REMOTE CONTROL PROBLEMS ............................................................................................................................ 55

AUDIO PROBLEMS ............................................................................................................................................... 56

HAVING THE PROJECTOR SERVICED ..................................................................................................................... 56

HDMI Q & A ....................................................................................................................................................... 57

–vii –

SPECIFICATIONS ................................................................................................................................................ 58

SPECIFICATIONS .................................................................................................................................................. 58

PROJECTION DISTANCE VS. PROJECTION SIZE ..................................................................................................... 59

Projection Distance and Size Table .............................................................................................................. 59

TIMING MODE TABLE ........................................................................................................................................... 60

PROJECTOR DIMENSIONS .................................................................................................................................... 62

REGULATORY COMPLIANCE ........................................................................................................................... 63

FCC WARNING ................................................................................................................................................... 63

CANADA ............................................................................................................................................................. 63

SAFETY CERTIFICATIONS ..................................................................................................................................... 63

APPENDIX I ......................................................................................................................................................... 64

RS-232C PROTOCOL .......................................................................................................................................... 64

— viii —

GETTING STARTED

DLP PROJECTOR WITH LENS CAP

REMOTE CONTROL

(WITH TWO AAA BATTERIES)

RGB CABLE

POWER CORD

CD-ROM

(THIS USER’S MANUAL)

QUICK START GUIDE

WARRANTY CARD

！

Packing Checklist

Carefully unpack the projector and check that the following items are included:

Contact your dealer immediately if any items are missing, appear damaged, or if the unit does not work. It
is recommend that you keep the original packing material should you ever need to return the equipment
for warranty service.

Avoid using the projector in dusty environments.

Caution:

– 1 –

Views of Projector Parts

ITEM

LABEL

DESCRIPTION

SEE PAGE

1.

IR receiver

Receive IR signal from remote control

2.

Lens

Projection Lens

3.

Focus ring

Focuses the projected image

16

4.

Function keys

See Top view—On-screen Display (OSD)
buttons and LEDs.

3

1

2

3

4

！

Front-right View

Important:

Ventilation openings on the projector allow for good air circulation, which keeps the projector lamp
cool. Do not obstruct any of the ventilation openings.

— 2 —

Top view—On-screen Display (OSD) buttons and LEDs

ITEM

LABEL

DESCRIPTION

SEE PAGE

1.

▲ (Up cursor) /
Keystone

Navigates and changes settings in the OSD
Quick Menu – For Keystone

17

2.

MENU

Opens and exits OSD menus

3.

◄ (Left cursor)

Navigates and changes settings in the OSD

4.

▼ (Down cursor) /
Keystone

Navigates and changes settings in the OSD
Quick Menu – For Keystone

5.

ECO

Enter the lamp mode menu

6.

SOURCE

Navigates and changes settings in the OSD
Enter the Source menu

17

7.

(Power button)

Turns the projector On or Off.

8.

► (Right cursor)

Navigates and changes settings in the OSD

9.

AUTO

Navigates and changes settings in the OSD
Optimizes image size, position, and resolution

10.

Enter

Enter or confirm highlighted OSD menu item

11.

POWER LED
Solid Green

Standby, Lamp Lit, over temperature

54

Flashing Green

System Initialized, System Power
On , Cooling , Error code

12.

TEMP LED

Solid Red

Over temperature

13.

LAMP LED
Solid Red

Lamp Fail.

Flashing Red

Error code

1
2

3
4

5

6

7
8

9
10

13 1112

– 3 –

Rear view

ITEM

LABEL

DESCRIPTION

SEE PAGE

1.

AC IN

Connect the POWER cable.

11

2.

LAN

Connect a LAN cable from Ethernet.

3.

HDMI 3

Connect the HDMI cable from a HDMI device.

4.

AUDIO IN

Connect an AUDIO cable from the audio device.

5.

HDMI 2

Connect the HDMI cable from a HDMI device.

6.

HDMI 1 / MHL

Connect the HDMI cable from a HDMI device.
Connect the MHL cable from a MHL-compatible device.
Note: For some MHL compatible devices, whose output is not thru
micro-USB, an extra cable adaptor may be required.

7.

AUDIO IN (L and R)

Connect an AUDIO cable from the audio device.

8.

VGA OUT

Connect the RGB cable from a computer.

9.

VGA IN

Connect the RGB cable from a computer or components device.

10.

USB POWER
(5V/1.5A)

Connect the USB cable for power supply.

11.

S-VIDEO

Connect the S-VIDEO cable from a video device.

12.

VIDEO

Connect the COMPOSITE cable from a video device.

！

5 6 8

12

9 10

11

13

14151617

3

18

7

Warning:

As a safety precaution, disconnect all power to the projector and connecting devices before making
connections.

— 4 —

13.

Kensington Lock

Secure to permanent object with a Kensington®
Lock system.

52

14.

MINI USB

Connect the USB cable from a computer. (For service only)

15.

RS-232C

Connect RS-232 serial port cable for remote control.

16.

MIC

Connect the Microphone for use.

17.

AUDIO OUT

Connect an AUDIO cable to audio amplifier.

18.

12V TRIGGER

Connect the 12V OUT. (Screen Trigger-- For screen controllers used)

– 5 –

Bottom view

ITEM

LABEL

DESCRIPTION

SEE PAGE

1.

Ceiling support holes

Contact your dealer for information on mounting the projector on a
ceiling

2.

Tilt adjustor

Rotate adjuster lever to adjust angle position.

15

2

2

1

1

1

45.5mm
[1.79"]

154.5mm
[6.08"]

30.5mm
[1.20"]

61.7mm
[2.43"]

132.7mm
[5.23"]

152.2mm
[5.99"]

Note:
When installing, ensure that you use only UL Listed ceiling mounts.
For ceiling installations, use approved mounting hardware and M4 screws with a maximum screw
depth of 6 mm (0.24 inch).
The construction of the ceiling mount must be of a suitable shape and strength. The ceiling mount
load capacity must exceed the weight of the installed equipment, and as an additional precaution
be capable of withstanding three times the weight of the equipment (not less than 5.15 kg) over a
period of 60 seconds.

— 6 —

Remote Control Parts

1

2

3

4

5

6

7

8

9

10

11

12

13

14
15

16
17
18

20
19

21

22

23

24

25

26

27

28

29

30

31

32

33

！

Important:

1. Avoid using the projector with bright fluorescent lighting turned on. Certain high-frequency

fluorescent lights can disrupt remote control operation.

2. Be sure nothing obstructs the path between the remote control and the projector. If the path
between the remote control and the projector is obstructed, you can bounce the signal off certain
reflective surfaces such as projector screens.

3. The buttons and keys on the projector have the same functions as the corresponding buttons on
the remote control. This user’s manual describes the functions based on the remote control.

Note:

Complies with FDA performance standards for laser products except for deviations pursuant to
Laser Notice No. 50, dated June 24, 2007

– 7 –

— 8 —

ITEM

LABEL

DESCRIPTION

SEE PAGE

1.

OFF

Turns the projector off

2.

PC

Toggles the input sources for display between PC sources

3.

Video/S-Video

Toggles the input sources for display between Video and S-Video

4.

Navigates and changes settings in the OSD or MHL mode
Keystone correction.

17

5.

EXIT

Goes back to previous OSD menu, exits and saves menu settings
Goes back to previous page or exit programs in MHL mode

6.

Enters and confirms settings in the OSD and MHL mode

17

7.

Navigates and changes settings in the OSD or MHL mode

8.

Navigates and changes settings in the OSD or MHL mode
Keystone correction.

17

9.

MHL

Starts for selection in MHL mode

10.

Laser

Presses to emit the on-screen pointer. DO NOT POINT IN EYES.

11.

Starts / pauses the file in MHL mode

12.

Goes to the next file in MHL mode

13.

Stops the file in MHL mode

14.

Fast forwards the file in MHL mode

15.

Volume

Displays the volume setting bar

16

16.

Mute

Toggles the built-in speaker between on and off

17.

3D

Opens the 3D function OSD

18.

Status

Opens the OSD Status menu (the menu only opens when
an input device is detected)

33

19.

Blank

Toggles the screen between blank and normal

20.

Freeze

Freeze/unfreezes the on-screen picture

21.

Zoom

Displays the zoom setting bar

22.

Lamp

Displays the lamp mode selection

23.

Contrast

Displays the contrast setting bar

24.

Brightness

Displays the brightness setting bar

25.

Auto

Auto adjustment for frequency, phase, and position

17

26.

Source

Displays the source selection bar

27.

Fast reverses the file in MHL mode

28.

Goes to the previous file in MHL mode

29.

Keystone

Displays the keystone setting bar

16

30.

Navigates and changes settings in the OSD or MHL mode

31.

Menu

Opens the OSD

17

ITEM

LABEL

DESCRIPTION

SEE PAGE

32.

HDMI

Toggles the input sources for display between HDMI sources

33.

ON

Turns the projector on

Caution:

！

Use of controls, adjustments or performance of procedures other than those specified herein may
result in hazardous laser light exposure.

Note:
Controlling your smart device with the remote control

When the projector projects the contents from your MHL compatible smart device, you can use
the remote control to control your smart device.

To enter the MHL mode, the following buttons are available for controlling your smart device,
Arrow keys (▲Up, ▼Down, ◄ Left, ► Right), MENU/EXIT, MHL control buttons.

When the projector is under MHL mode, The keypad on projector should be with the same
definition of the key on remote control.

Remote Control Operating Range

The remote control uses infrared transmission to control the projector. It is not necessary to point the
remote directly at the projector. Provided you are not holding the remote perpendicular to the sides or
the rear of the projector, the remote will function well within a radius of about 7 meters (23 feet) and
15 degrees above or below the projector level. If the projector does not respond to the remote control,
move a little closer.

Projector and Remote Control Buttons

The projector can be operated using the remote control or the buttons on the top of the projector. All
operations can be carried out with the remote control; however, the buttons on the projector are
limited in use.

– 9 –

Inserting the Remote Control Batteries

1.

Remove the battery compartment
cover by sliding the cover in the
direction of the arrow.

2.

Insert the battery with the positive
side facing up.

3.

Replace the cover.

！

SETUP AND OPERATION

Caution:

1. Only use AAA batteries (Alkaline batteries are recommended).

2. Dispose of used batteries according to local ordinance regulations.

3. Remove the batteries when not using the projector for prolonged periods.

— 10 —

Starting and Shutting down the Projector

1.

Connect the power cord to the
projector. Connect the other end to
a wall outlet.

The POWER LED on the
projector light.

2.

Turn on the connected devices.

3.

Ensure the POWER LED not a
flashing. Then press the POWER

button to turn on the projector.
The projector splash screen displays

and connected devices are
detected.

See Setting an Access Password

(Security Lock) on page 13 if

security lock is enabled.

4.

If more than one input device is
connected, press the SOURCE

button and use ▲▼ to scroll among

devices.
(Component is supported through
the RGB to COMPONENT
ADAPTER.)

Note:

After powered on for 3 minutes,
the projector goes into the ED
(Extreme Dimming) mode if the
source cannot be detected within
30 seconds.

 VGA1: Analog RGB
 Composite Video: Traditional composite video

 S-Video: Super video (Y/C separated)
 HDMI 1 / MHL: High-Definition Multimedia Interface 1

/ MHL

 HDMI 2: High-Definition Multimedia Interface 2
 HDMI 3: High-Definition Multimedia Interface 3

– 11 –

5.

When the “Power Off? /Press

Power again” message appears,
press the POWER button. The
projector turns off.

Caution:

！

1. Be sure to remove the lens cap before starting projector.

2. Do not unplug the power cord until the POWER LED stops flashing–indicating the projector has
cooled down.

— 12 —

Setting an Access Password (Security Lock)

1.

Press the MENU button to open the
OSD menu.

2.

Press the cursor ◄► button to move

to the Settings 1 menu, press the

cursor ▲▼ button to select Advanced

1.

3.

Press (Enter) / ► to enter the
Advanced 1 sub menu. Press the

cursor ▲▼ button to select Security
Lock.

4.

Press the cursor ◄► button to enter
and enable or disable security lock
function.

A password dialog box automatically
appears.

！

You can use the four (arrow) buttons to set a password and prevent unauthorized use of the projector.
When enabled, the password must be entered after you power on the projector. (See Navigating the

OSD on page 17 and Setting the OSD Language on page 18 for help on using OSD menus.)

Important:

Keep the password in a safe place. Without the password, you will not be able to use the projector.
If you lose the password, contact your reseller for information on clearing the password.

– 13 –

5.

You can use the cursor buttons
▲▼◄►
either on keypad or IR remote control
for password entry. You can use any
combination including the same arrow
five times, but not less than five.

Press the cursor buttons in any order
to set the password. Push the MENU
button to exit the dialog box.

6.

The password confirm menu appears
when user presses the power-on key
in case the Security Lock is enabled.
Enter the password in the order you
set it at step 5. In case you forget the
password, please contact the service
center.
The service center will validate the
owner and help reset the password.

— 14 —

Adjusting the Projector Level

To adjust the angle of the picture, turn the tilt-adjuster right or left until the desired
angle has been achieved.

Take note of the following when setting up the projector:

 The projector table or stand should be level and sturdy.
 Position the projector so that it is perpendicular to the screen.
 Ensure the cables are in a safe location. You could trip over them.

– 15 –

Adjusting the Focus and Keystone

1.

Use the Image-focus
control (on the projector
only) to sharpen the
projected image .

2.

Use the KEYSTONE
buttons (on the
projector or the remote
control) to correct
image-trapezoid (wider
top or bottom) effect.

3.

The keystone control
appears on the display.

1.

Press the Volume +/-
buttons on the remote
control.
The volume control
appears on the display.

2.

Press the MUTE button
to turn off the volume.
(This feature is available
only on the remote).

Adjusting the Volume

— 16 —

ON-SCREEN DISPLAY (OSD) MENU SETTINGS

1. To enter the OSD, press the
MENU button.

2. There are three menus.

Press the cursor ◄► button

to move through the menus.

3. Press the cursor ▲▼ button
to move up and down in a
menu.

4. Press ◄► to change values
for settings.

5. Press MENU to close the
OSD or leave a submenu.

2
3

4

5

6

1

2

3

4

5

6

2

2

2

OSD Menu Controls

The projector has an OSD that lets you make image adjustments and change various settings.

Navigating the OSD

You can use the remote control cursor buttons or the projector keypad to navigate and make changes
to the OSD.

Note:

Depending on the video source, not all items in the OSD are available. For example, the
Horizontal/Vertical Position items in the Computer menu can only be modified when connected
to a PC. Items that are not available cannot be accessed and are grayed out.

– 17 –

Setting the OSD Language

Set the OSD language to your preference before continuing.

1. Press the MENU button. Press the cursor ◄► button to navigate to Settings 1. Press the
cursor ▲▼ button to move to the Advanced 1 menu.

2. Press (Enter) / ► to enter the Advanced 1 sub menu. Press the cursor ▲▼ button

until Language is highlighted.

3. Press the cursor button until the language you want is highlighted.

4. Press the MENU button four times to close the OSD.

— 18 —

OSD Menu Overview

Main
Menu

Sub Menu

Settings


Display Mode

Presentation, Bright, Game,
Movie, TV, sRGB, Blackboard,
User

Brightness

0~100

Contrast

0~100

Computer

Horizontal Position

-5~5 (depend on Autolock)

Vertical Position

-5~5 (depend on Autolock)

Frequency

0~31

Tracking

-5~5

Auto Image

Advanced

Brilliant Color

0~10

Sharpness

0~31

Gamma

1.8, 2.0, 2.2, 2.4, B&W, Linear

Color Temperature

Warm, Normal, Cold

Video AGC

Off, On

Video Saturation

0~100

Video Tint

0~100

White Balance

RGain

0~200

GGain

0~200

BGain

0~200

ROffset

-256~255

GOffset

-256~255

BOffset

-256~255

Color Manager

Red

Hue, Saturation, Gain

0~100

Green

Hue, Saturation, Gain

0~100

Blue

Hue, Saturation, Gain

0~100

Cyan

Hue, Saturation, Gain

0~100

Magenta

Hue, Saturation, Gain

0~100

Yellow

Hue, Saturation, Gain

0~100

White

Red, Green, Blue

0~100

Use the following illustration to quickly find a setting or determine the range for a setting.

– 19 –

Main
Menu

Sub Menu

Settings

Settings 1

Source

Source

reference Input Source Select (IR/Keypad)

Projection

Normal, Real, Ceiling, Real+Ceiling

Aspect Ratio

Fill, 4:3, 16:9, Letter Box, Native, 2.35:1

Keystone

-40~40

Digital Zoom

-10~10

Audio

Volume

0~10

Mute

Off, On

Advanced 1

Language

English, Français, Deutsch, Español, 簡体
中文, 繁體中文, Italiano, Svenska,
Nederlands, Русский, Polski, 한국어,
Čeština, Türkçe, Việt, ไทย

Security Lock

Off, On

Blank Screen

Blank, Red, Green, Blue, White

Splash Logo

Std., Off, User

Closed Captioning

Off, On

KeypadLock

Off, On

3D Setting

3D

Off, DLP-Link, IR

3D Sync Invert

Off, On

3D Format

Frame Sequential, Top/Bottom, Side-By­Side, Frame Packing (3D Frame Packing
HDMI source only)

Advanced 2

Test Pattern

None, Grid, White, Red, Green, Blue,
Black

H Image Shift

-50~50

V Image Shift

-50~50

— 20 —

Main
Menu

Sub Menu

Settings

Settings 2

Auto Source

Off, On

No Signal
Power Off

0~180

Auto Power
On

Off, On
Lamp Mode

ECO , Normal, Dynamic ECO

Reset All

Status

Active Source

Video Information

Lamp Hours(ECO, Normal)

Software Version

Advanced 1

Menu Position

Center, Down, Up, Left, Right

Translucent Menu

0%, 25%, 50%, 75%, 100%

Low Power Mode

Off, On, On By Lan

Fan Speed

Normal, High

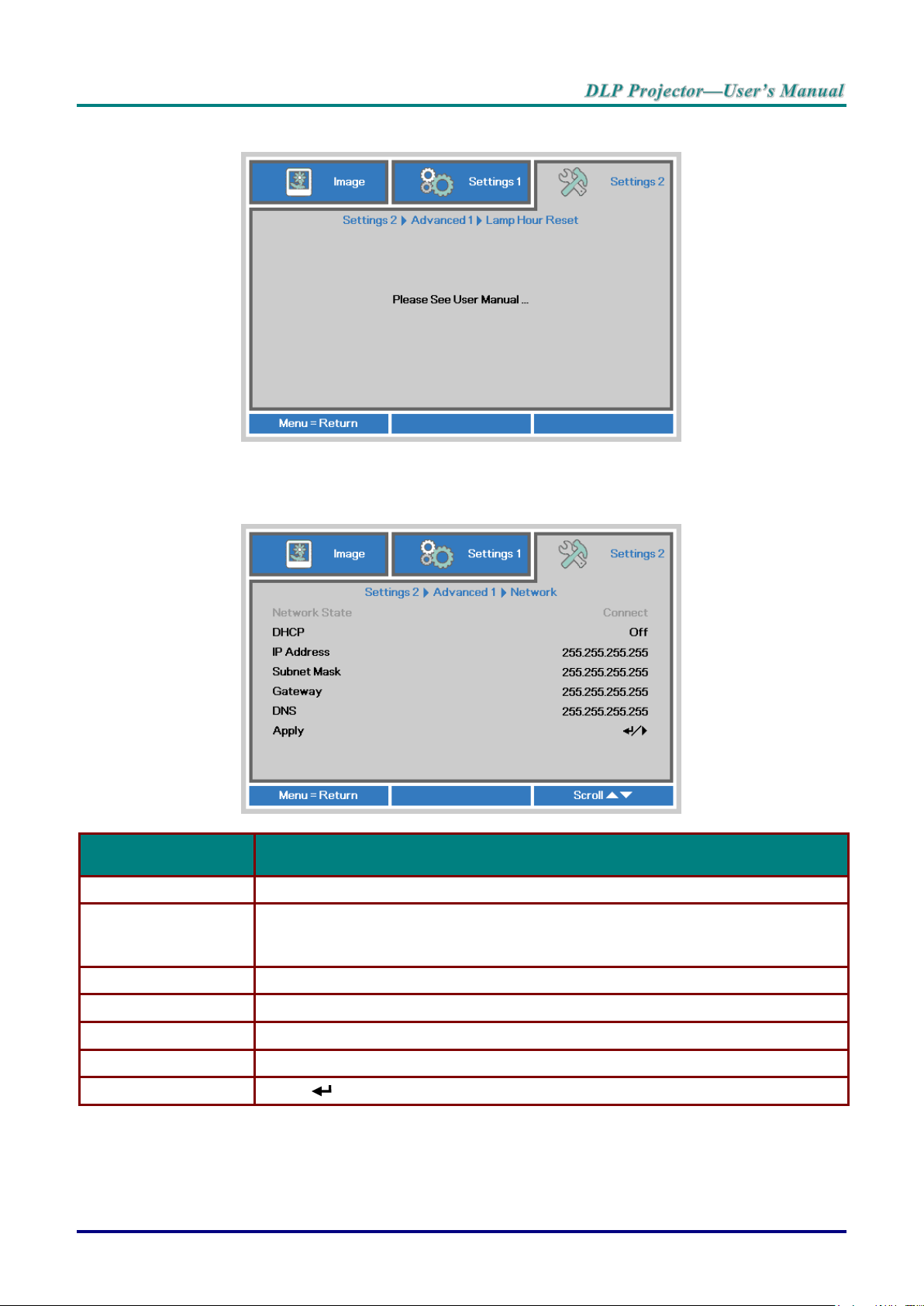

Lamp Hour Reset

Projector ID

0-98

Network

Network State

Connect, Disconnect

DHCP

Off, On

IP Address

0~255, 0~255, 0~255. 0~255

Subnet Mask

0~255, 0~255, 0~255. 0~255

Gateway

0~255, 0~255, 0~255. 0~255

DNS

0~255, 0~255, 0~255. 0~255

Apply

Ok / Cancel

Advanced 2

Sleep Timer

0~600

Source Filter

VGA

Disable, Enable

Composite Video

Disable, Enable

S-Video

Disable, Enable

HDMI 1 / MHL

Disable, Enable

HDMI 2

Disable, Enable

HDMI 3

Disable, Enable

Wall Color

Off, Light Yellow, Pink, Light
Green, Blue, Blackboard

Color Space

Auto, RGB, YUV

Quantization Range

Auto, Full, Limit

– 21 –

Image Menu

ITEM

DESCRIPTION

Display Mode

Press the cursor ◄► button to enter and set the Display Mode.

Brightness

Press the cursor ◄► button to enter and adjust the display brightness.

Contrast

Press the cursor ◄► button to enter and adjust the display contrast.

Computer

Press (Enter) / ► to enter the Computer menu. See Computer Menu on page 23.

Auto Image

Press (Enter) / ► to automatically adjustment for phase, tracking, size and position.

Advanced

Press (Enter) / ► to enter the Advanced menu. See Advanced Feature on page

24.

Color Manager

Press (Enter) / ► to enter the color manager menu. See page 26 for more
information on Color Manager.

！

Attention !

All of display mode parameters when changed will be saved to user mode.

Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the Image
Menu. Press the cursor ▲▼ button to move up and down in the Image menu. Press ◄► to enter

and change values for settings.

— 22 —

Computer Menu

ITEM

DESCRIPTION

Horizontal Position

Press the cursor ◄► button to enter and adjust the display position to left or right.

Vertical Position

Press the cursor ◄► button to enter and adjust the display position to up or down.

Frequency

Press the cursor ◄► button to enter and adjust the A/D sampling clock.

Tracking

Press the cursor ◄► button to enter and adjust the A/D sampling dot.

Press the MENU button to open the OSD menu. Press ◄► to move to the Image menu. Press ▲▼
to move to the Computer menu and then press Enter or ►. Press ▲▼ to move up and down in the
Computer menu.

– 23 –

Advanced Feature

ITEM

DESCRIPTION

Brilliant Color

Press the cursor ◄► button to enter and adjust the Brilliant Color value.

Sharpness

Press the cursor ◄► button to enter and adjust the display Sharpness.

Gamma

Press the cursor ◄► button to enter and adjust the gamma correction of the display.

Color Temperature

Press the cursor ◄► button to enter and adjust the color temperature.

Video AGC

Press the ◄► buttons to enter and enable or disable the Automatic Gain Control for
video source.

Video Saturation

Press the ◄► buttons to enter and adjust the video saturation.

Video Tint

Press the ◄► buttons to enter and adjust the video tint/hue.

White Balance

Press the ENTER/ ► button to enter the White Balance sub menu.
See White Balance on page 25

Press the Menu button to open the OSD menu. Press ◄► to move to the Image menu. Press ▼▲
to move to the Advanced menu and then press Enter or ►. Press ▼▲ to move up and down in the
Advanced menu.

— 24 —

White Balance

ITEM

DESCRIPTION

R Gain

Press the ◄► buttons to adjust the Red Gain.

G Gain

Press the ◄► buttons to adjust the Green Gain.

B Gain

Press the ◄► buttons to adjust the Blue Gain.

R Offset

Press the ◄► buttons to adjust the Red Offset.

G Offset

Press the ◄► buttons to adjust the Green Offset.

B Offset

Press the ◄► buttons to adjust the Blue Offset.

Press the ENTER button to enter the White Balance sub menu.

– 25 –

Color Manager

ITEM

DESCRIPTION

Red

Select to enter the Red Color Manager.
Press the ◄► buttons to adjust the Hue, Saturation, and Gain.

Green

Select to enter the Green Color Manager.
Press the ◄► buttons to adjust the Hue, Saturation, and Gain.

Blue

Select to enter the Blue Color Manager.
Press the ◄► buttons to adjust the Hue, Saturation, and Gain.

Cyan

Select to enter the Cyan Color Manager.
Press the ◄► buttons to adjust the Hue, Saturation, and Gain.

Magenta

Select to enter the Magenta Color Manager.
Press the ◄► buttons to adjust the Hue, Saturation, and Gain.

Yellow

Select to enter the Yellow Color Manager.
Press the◄► buttons to adjust the Hue, Saturation, and Gain.

White

Select to enter the White Color Manager.
Press the ◄► buttons to adjust the Red, Green, and Blue.

Press the Menu button to open the OSD menu. Press ◄► to move to the Image menu. Press ▼▲
to move to the Color Manager menu and then press Enter or ►. Press ▼▲ to move up and down in
the Color Manager menu.

— 26 —

Settings 1 Menu

ITEM

DESCRIPTION

Source

Press the cursor ◄► button to enter the Source menu. Reference input Source
select (IR / Keypad).

Projection

Press the cursor ◄► button to enter and choose from four projection methods:

Aspect Ratio

Press the cursor ◄► button to enter and adjust the video aspect ratio.

Keystone

Press the cursor ◄► button to enter and adjust the display keystone.

Digital Zoom

Press the cursor ◄► button to enter and adjust the Digital Zoom menu.

Audio

Press (Enter) / ► to enter the Audio menu. See Audio on page 28.

Advanced 1

Press (Enter) / ► to enter the Advanced 1 menu. See Advanced 1 Feature on
page 29.

Advanced 2

Press (Enter) / ► to enter the Advanced 2 menu. See Advanced 2 Feature on
page 31.

Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the

Settings 1 menu. Press the cursor ▲▼ button to move up and down in the Settings 1 menu. Press
◄► to enter and change values for settings.

– 27 –

Audio

ITEM

DESCRIPTION

Volume

Press the ◄► buttons to enter and adjust the audio volume.

Mute

Press the ◄► buttons to enter and turn on or off the speaker.

Press the Menu button to open the OSD menu. Press ◄► to move to the Settings 1 menu. Press

▼▲ to move to the Audio menu and then press Enter or ►. Press ▼▲ to move up and down in the
Audio menu.

— 28 —

Advanced 1 Feature

ITEM

DESCRIPTION

Language

Press the cursor ◄► button to enter and select a different localization Menu.

Security Lock

Press the cursor ◄► button to enter and enable or disable security lock function.

Blank Screen

Press the cursor ◄► button to enter and select different color to blank the screen.

Splash Logo

Press the cursor ◄► button to enter and select splash logo.

Closed Captioning

Press the ◄► buttons to enter and enable or disable Closed Captioning.

Keypad Lock

Press the cursor ◄► button to enter and enable or disable keys can be work on
keypad.

3D Setting

Press Enter/ ► to enter the 3D menu. See page 30 for more information on 3D

Setting.

Press the Menu button to open the OSD menu. Press ◄► to move to the Settings 1 menu. Press
▲▼ to move to the Advanced 1 menu and then press Enter or ►. Press ▲▼ to move up and down
in the Advanced 1 menu. Press ◄► to enter and change values for setting.

Note:

To enjoy the 3D function, first enable the Play Movie in 3D setting found in your DVD device under the
3D Disc Menu.

– 29 –

3D Setting

ITEM

DESCRIPTION

3D

Press the cursor ◄► button to enter and select different 3D mode.

3D Sync Invert

Press the cursor ◄► button to enter and enable or disable 3D Sync Invert.

3D Format

Press the cursor ◄► button to enter and enable or disable different 3D Format.

Note:

1. The 3D OSD menu item is gray if there is no appropriate 3D source. This is the default setting.

2. When the projector is connected to an appropriate 3D source, the 3D OSD menu item is enabled for
selection.

3. Use 3D glasses to view a 3D image.

4. You need 3D content from a 3D DVD or 3D media file.

5. You need to enable the 3D source (some 3D DVD content may have a 3D on-off selection feature).

6. You need DLP link 3D or IR 3D shutter glasses. With IR 3D shutter glasses, you need to install a
driver on your PC and connect a USB emitter.

7. The 3D mode of the OSD needs to match the type of glasses (DLP link or IR 3D).

8. Power on the glasses. Glasses normally have a power on -off switch.
Each type of glasses has their own configuration instructions. Please follow the configuration
instructions that come with your glasses to finish the setup process.

Note:

Since different types of glass (DLP link or IR shutter glass) have their own setting instructions,

Please follow the guide to finish the setup process.

— 30 —

Advanced 2 Feature

ITEM

DESCRIPTION

Test Pattern

Press the cursor ◄► button to enter and select internal test pattern.

H Image Shift

Press the cursor ◄► button to enter and select H Image Shift.

V Image Shift

Press the cursor ◄► button to enter and select V Image Shift.

Press the Menu button to open the OSD menu. Press ◄► to move to the Settings 1 menu. Press
▲▼ to move to the Advanced 2 menu and then press Enter or ►. Press ▲▼ to move up and down
in the Advanced 2 menu. Press ◄► to enter and change values for setting.

– 31 –

Settings 2 Menu

ITEM

DESCRIPTION

Auto Source

Press the cursor ◄► button to enter and enable or disable automatic source
detection.

No Singal Power
Off (min.)

Press the cursor ◄► button to enter and enable or disable automatic shutdown of
lamp when no signal.

Auto Power On

Press the cursor ◄► button to enter and enable or disable automatic power On when
AC power is supplied.

Lamp Mode

Press the cursor ◄► button to enter and select the lamp mode for higher brightness
or lower brightness to save lamp life.

Reset All

Press (Enter) / ► to reset all settings to default values.

Status

Press (Enter) / ► to enter the Status menu. See page 33 for more information on

Status.

Advanced 1

Press (Enter) / ► to enter the Advanced 1 menu. See Advanced 1 Feature on
page 34.

Advanced 2

Press (Enter) / ► to enter the Advanced 2 menu. See Advanced 2 Feature on
page 45.

Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the
Settings 2 menu. Press the cursor ▲▼ button to move up and down in the Settings 2 menu.

Note :

“Dynamic ECO”: Press BLANK button, or without any signal input in 30sec, Lamp will dim to 30%
automatically.

— 32 —

Status

ITEM

DESCRIPTION

Active Source

Display the activated source.

Video Information

Displays resolution/video information for RGB source and color standard for Video
source.

Lamp Hours
(ECO, Normal)

Lamp hour used information is displayed. ( ECO and Normal )

Software Version

Showing system software version.

Press the cursor ▲▼ button to move up and down in the Settings 2 menu. Select the Status menu
and press Enter or ► to enter.

– 33 –

Advanced 1 Feature

ITEM

DESCRIPTION

Menu Position

Press ◄► button to enter and select different OSD location.

Translucent Menu

Press ◄► button to enter and select OSD background translucent level.

Low Power Mode

Press ◄► to enter and turn Low Power Mode Off, On or On By Lan.

Fan Speed

Press the cursor ◄► button to enter and toggle between Normal and High fan
speeds.
Note: We recommend selecting high speed in high temperatures, high humidity, or
high altitude (higher than 1500m/4921ft) areas.

Lamp Hour Reset

After replacing the lamp, this item should be reset. See page 35 for more information
on Lamp Hour Reset.

Projector ID

Press the cursor ◄► button to enter and adjust a two digit projector ID from 0
through 98.

Network

Press (Enter) / ► to enter the Network menu. See page 35 for more information
on Network.

Press the Menu button to open the OSD menu. Press ◄► to move to the Settings 2 menu. Press
▲▼ to move to the Advanced 1 menu and then press Enter or ►. Press ▲▼ to move up and down
in the Advanced 1 menu. Press ◄► to enter and change values for setting.

Note:
About “On By Lan”, RJ45 will support to be waked up in this mode(Under 6W) but scalar won’t.

— 34 —

Lamp Hour Reset

ITEM

DESCRIPTION

Network State

Displays the network connection status.

DHCP

Press the cursor ◄► button to turn DHCP On or Off.
Note: If you select DHCP Off, complete the IP Address, Subnet Mask, Gateway,
and DNS fields.

IP Address

Enter a valid IP address if DHCP is turned off.

Subnet Mask

Enter a valid Subnet Mask if DHCP is turned off.

Gateway

Enter a valid Gateway address if DHCP is turned off.

DNS

Enter a valid DNS name if DHCP is turned off.

Apply

Press (Enter) / ► to confirm settings.

Please refer to Resetting the Lamp on page 50 to reset the lamp hour counter.

Network

– 35 –

LAN_RJ45

Wired LAN Terminal functionalites

Remote control and monitoring of a projector from a PC (or Laptop) via wired LAN is also possible.
Compatibility with Crestron / AMX (Device Discovery) / Extron control boxes enables not only
collective projector management on a network but also management from a control panel on a PC (or
Laptop) browser screen.

* Crestron is a registered trademark of Crestron Electronics, Inc. of the United States.
* Extron is a registered trademark of Extron Electronics, Inc. of the United States.
* AMX is a registered trademark of AMX LLC of the United States.

Supported External Devices

This projector is supported by the specified commands of the Crestron Electronics controller and
related software (ex, RoomView ® ).

http://www.crestron.com/

This projector is supported by AMX ( Device Discovery ).

http://www.amx.com/

This projector is compliant to support Extron device(s) for reference.

http://www.extron.com/

For more detail of information about the diverse types of external devices which can be connected to
the LAN/RJ45 port and remote/control the projector, as well as the related control commands
supporting for each external device, kindly please get contact with the Support-Service team directly.

— 36 —

LAN RJ45

1. Connect an RJ45 cable to RJ45 ports on the projector and the PC (Laptop).

2. On the PC (Laptop), select Start → Control Panel →Network and Internet.

– 37 –

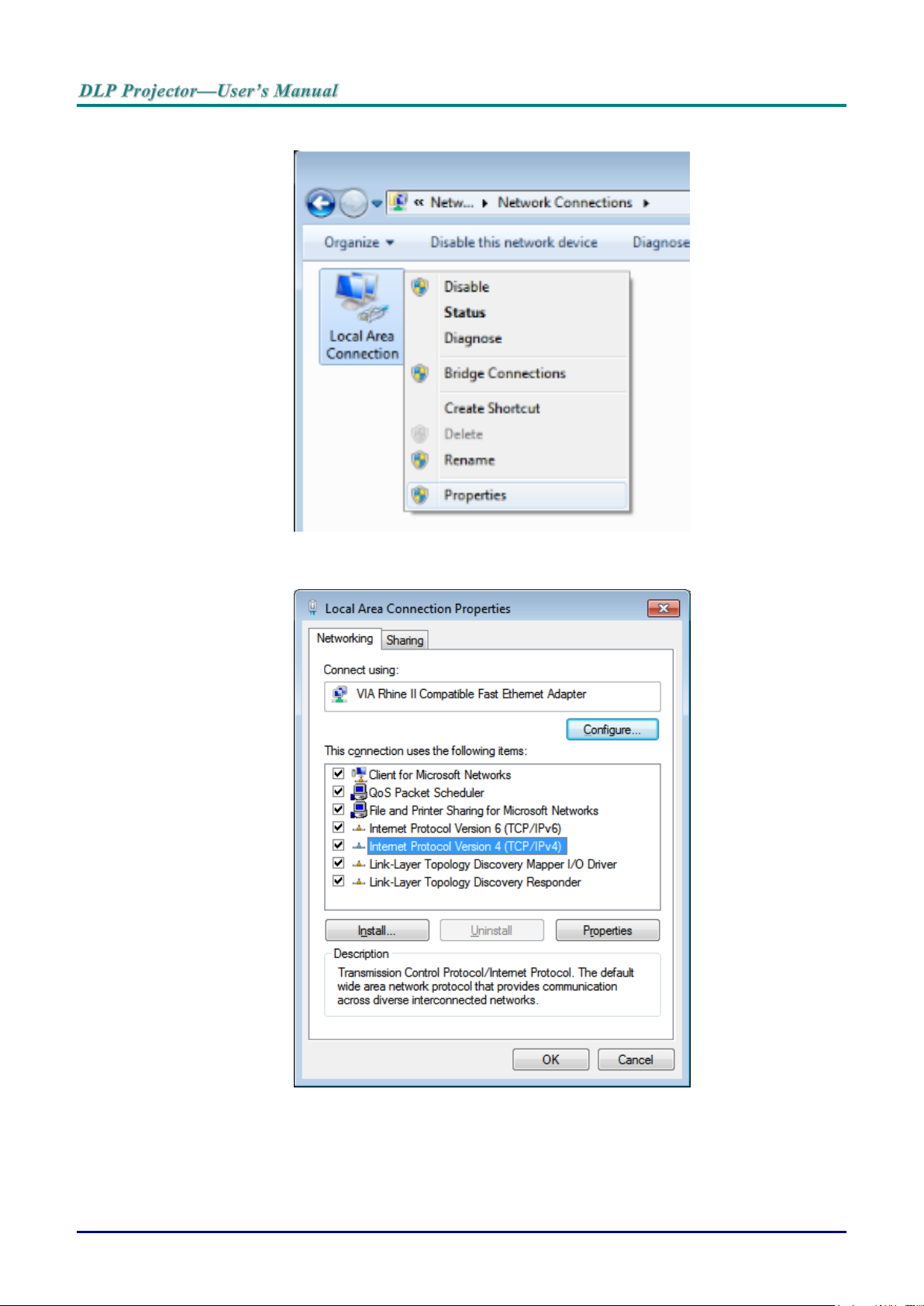

3. Right-click on Local Area Connection, and select Properties.

4. In the Properties window, select the Networking tab, and select Internet Protocol (TCP/IP).

5. Click Properties.

— 38 —

6. Click Use the following IP address and fill in the IP address and Subnet mask, then click OK.

7. Press the Menu button on the projector.

8. Select Settings2→ Advanced1 → Network

9. After getting into Network, input the following:

 DHCP: Off
 IP Address: 10.10.10.10
 Subnet Mask: 255.255.255.0
 Gateway: 0.0.0.0
 DNS Server: 0.0.0.0

10. Press (Enter) / ► to confirm settings.

11. Open a web browser (for example, Microsoft Internet Explorer with Adobe Flash Player 9.0 or higher).

– 39 –

12. In the Address bar, input the IP address: 10. 10. 10. 10.

13. Press (Enter) / ►.
The projector is setup for remote management. The LAN/RJ45 function displays as follows.

— 40 —

CATEGORY

ITEM

INPUT-LENGTH

Crestron Control
IP Address

15

IP ID

3

Port

5

Projector
Projector Name

10

Location

10

Assigned To

10

Network Configuration

DHCP (Enabled)

(N/A)

IP Address

15

Subnet Mask

15

Default Gateway

15

DNS Server

15

User Password
Enabled

(N/A)

New Password

10

Confirm

10

Admin Password
Enabled

(N/A)

New Password

10

Confirm

10

For more information, please visit http://www.crestron.com/.

– 41 –

RS232 by Telnet Function

Besides projector connected to RS232 interface with “Hyper-Terminal” communication by dedicated
RS232 command control, there is alternative RS232 command control way, so called “RS232 by
TELNET” for LAN/RJ45 interface.

Quick Start-Guide for “RS232 by TELNET”

Check and get the IP-Address on OSD of the projector.
Make sure that laptop/PC can access the web-page of the projector.

Make sure that “Windows Firewall” setting to be disabled in case of “TELNET” function filtering out by

laptop/PC.

Start => All Programs => Accessories => Command Prompt

— 42 —

Input the command format like the below:
telnet ttt.xxx.yyy.zzz 23 (“Enter” key pressed)
(ttt.xxx.yyy.zzz: IP-Address of the projector)
If Telnet-Connection ready, and user can have RS232 command input, then “Enter” key pressed, the

RS232 command will be workable.

How to have TELNET enabled in Windows VISTA / 7

By default installation for Windows VISTA, “TELNET” function is not included. But end-user can have
it by way of “Turn Windows features On or Off” to be enabled.

Open “Control Panel” in Windows VISTA

Open “Programs”

– 43 –

Select “Turn Windows features on or off” to open

Have “Telnet Client” option checked, then press “OK” button.

Specsheet for “RS232 by TELNET” :

1. Telnet: TCP

2. Telnet port: 23 (for more detail, kindly please get contact with the service agent or team)

3. Telnet utility: Windows “TELNET.exe” (console mode)

4. Disconnection for RS232-by-Telnet control normally: Close Windows Telnet utility directly after
TELNET connection ready

5. Limitation 1 for Telnet-Control: there is only one connection for Telnet-Control in one projector
Limitation 2 for Telnet-Control: there is less than 50 bytes for successive network payload for

Telnet-Control application.
Limitation 3 for Telnet-Control: there is less than 26 bytes for one complete RS232 command for

Telnet-Control.
Limitation 4 for Telnet-Control: Minimum delay for next RS232 command must be more than 200

(ms).
(*, In Windows built-in “TELNET.exe” utility, “Enter” key pressed will have “Carriage-Return” and

“New-Line” code.)

— 44 —

Advanced 2 Feature

ITEM

DESCRIPTION

Sleep Timer

Press the cursor ◄► buttons to enter and set Sleep timer. The projector
automatically turns off after the preset period of time.

Source Filter

Press Enter/ ► to enter the Source Filter menu. See page 46 for more information on

Source Filter.

Wall Color

Press the cursor ◄► button to enable or disable the wall color function.

Color Space

Press the cursor ◄► button to enter and adjust the Color Space

Quantization
Range

Press the cursor ◄► button to enter and adjust the Quantization Range

Press the Menu button to open the OSD menu. Press ◄► to move to the Settings 2 menu. Press
▲▼ to move to the Advanced 2 menu and then press Enter or ►. Press ▲▼ to move up and down
in the Advanced 2 menu. Press ◄► to enter and change values for setting.

– 45 –

Source Filter

ITEM

DESCRIPTION

VGA

Press the ◄► buttons to enter and enable or disable the VGA source.

Composite Video

Press the ◄► buttons to enter and enable or disable the Composite Video source.

S-Video

Press the ◄► buttons to enter and enable or disable the S-Video source.

HDMI 1 / MHL

Press the ◄► buttons to enter and enable or disable the HDMI1/ MHL-compatible
source.

HDMI 2

Press the ◄► buttons to enter and enable or disable the HDMI source.

HDMI 3

Press the ◄► buttons to enter and enable or disable the HDMI source.

Press the ENTER button to enter the Source Filter sub menu.

— 46 —

MAINTENANCE AND SECURITY

1.

Remove two screws on the
lamp compartment cover.

！！！

！

Replacing the Projection Lamp

The projection lamp should be replaced when it burns out. It should only be replaced with a certified
replacement part, which you can order from your local dealer.

Important:

a. The projection lamp used in this product contains a small amount of mercury.
b. Do not dispose this product with general household waste.
c. Disposal of this product must be carried out in accordance with the regulations of your local

authority.

Warning:

Be sure to turn off and unplug the projector about one hour before replacing the lamp. Failure to do
so could result in a severe burn.

Caution:

In rare cases the lamp bulb may burn out during normal operation and cause glass dust or shards
to be discharged outward from the rear exhaust vent.

Do not inhale or do not touch glass dust or shards. Doing so could result in injury.
Always keep your face away from the exhaust vent so that you do not suffer from the gas and

broken shards of the lamp.
When removing the lamp from a ceiling-mounted projector, make sure that no one is under the

projector. Glass fragments could fall if the lamp has been burned out.

IF A LAMP EXPLODES

If a lamp explodes, the gas and broken shards may scatter inside the projector and they may come
out of the exhaust vent. The gas contains toxic mercury.

Open windows and doors for ventilation.
If you inhale the gas or the shards of the broken lamp enter your eyes or mouth, consult the doctor

immediately.

– 47 –

2.

Remove the lamp
compartment cover.

3.

Disconnect the lamp
connector

4.

Remove the two screws
from the lamp module.

5.

Lift the module handle up.

6.

Pull firmly on the module
handle to remove the lamp
module.

1

2

— 48 —

7.

Reverse steps 1 to 6 to
install the new lamp
module.
While installing, align the
lamp module and ensure it
is level to avoid damage.

Note:
The lamp module must sit
securely in place before
tightening the screws.

The lamp connector must
be connected properly and
place as drawing before
Lamp compartment cover
installation back.

！

No Gap Gap

Correct Incorrect

Warning:

Lamp Connector must be installed flush with the connector base as shown in the image below.
A gap between the Lamp Connector and the connector base will cause damage to the projector.
The following images illustrate correct and incorrect Lamp Connector installations.

– 49 –

Resetting the Lamp

1.

Press the MENU button to open
the OSD menu.

2.

Press the cursor ◄► button to
move to the Settings 2 menu.
Press the cursor button to move
down to Advanced 1 and press
enter.

3.

Press the cursor ▼▲ button to
move down to Lamp Hour Reset.

4.

Press the cursor ► or Enter

button.
A message screen appears.

5.

Press ▼▲◄► buttons to reset
the lamp hour.

6.

Press the MENU button to get
back to Settings 2.

After replacing the lamp, you should reset the lamp hour counter to zero. Refer to the following:

— 50 —

Cleaning the Projector

！

！

！

Cleaning the projector to remove dust and grime will help ensure trouble-free operation.

Warning:

1. Be sure to turn off and unplug the projector about one hour before cleaning. Failure to do so

could result in a severe burn.

2. Use only a dampened cloth when cleaning. Do not allow water to enter the ventilation openings
on the projector.

3. If a little water gets into the projector interior while cleaning, leave unplugged in a well-ventilated
room for several hours before using.

4. If a lot of water gets into the projector interior when cleaning, have the projector serviced.

Cleaning the Lens

You can purchase optic lens cleaner from most camera stores. Refer to the following to clean the
projector lens.

1. Apply a little optic lens cleaner to a clean soft cloth. (Do not apply the cleaner directly to
the lens.)

2. Lightly wipe the lens in a circular motion.

Caution:

1. Do not use abrasive cleaners or solvents.

2. To prevent discoloration or fading, avoid getting cleaner on the projector case.

Cleaning the Case

Refer to the following to clean the projector case.

1. Wipe off dust with a clean dampened cloth.

2. Moisten the cloth with warm water and mild detergent (such as used to wash dishes), and
then wipe the case.

3. Rinse all detergent from the cloth and wipe the projector again.

Caution:

To prevent discoloration or fading of the case, do not use abrasive alcohol-based cleaners.

– 51 –

Using the Kensington® Lock

Using the Kensington® Lock

If you are concerned about security, attach the projector to a permanent object with the Kensington
slot and a security cable.

Note:

Contact your vendor for details on purchasing a suitable Kensington security cable.
The security lock corresponds to Kensington’s MicroSaver Security System. If you have any

comment, contact: Kensington, 2853 Campus Drive, San Mateo, CA 94403, U.S.A. Tel: 800-535­4242, http://www.Kensington.com.

Using the Security Bar

In addition to the password protection function and the Kensington lock, the Security Bar helps
protect the projector from unauthorized removal. See the following picture.

— 52 —

TROUBLESHOOTING

Common problems and solutions

These guidelines provide tips to deal with problems you may encounter while using the projector. If
the problem remains unsolved, contact your dealer for assistance.

Often after time spent troubleshooting, the problem is traced to something as simple as a loose
connection. Check the following before proceeding to the problem-specific solutions.

 Use some other electrical device to confirm that the electrical outlet is working.
 Ensure the projector is turned on.
 Ensure all connections are securely attached.
 Ensure the attached device is turned on.
 Ensure a connected PC is not in suspending mode.
 Ensure a connected notebook computer is configured for an external display.

(This is usually done by pressing an Fn-key combination on the notebook.)

Tips for Troubleshooting

In each problem-specific section, try the steps in the order suggested. This may help you to solve the
problem more quickly.

Try to pin point the problem and thus avoid replacing non-defective parts.
For example, if you replace batteries and the problem remains, put the original batteries back and go
to the next step.

Keep a record of the steps you take when troubleshooting: The information may be useful when
calling for technical support or for passing on to service personnel.

– 53 –

LED Error Messages

ERROR CODE MESSAGES

POWER LED

GREEN

LAMP LED

RED

TEMP LED

RED

System Initial

Flash

OFF

OFF

Ready to Power on (Standby)

ON

OFF

OFF

System Power on

Flash

OFF

OFF

Lamp Lit , System stable

ON

OFF

OFF

Cooling

Flashing

OFF

OFF

1W MCU detects scaler stops working (initial fail)

2 blinks

OFF

OFF

Over Temperature

ON

OFF

ON

Thermal Break Sensor error

4 blinks

OFF

OFF

Lamp Fail

5 blinks

ON

OFF

Lamp Temperature shut down

5 blinks

1 blinks

OFF

Lamp Short circuit in output detected

5 blinks

2 blinks

OFF

Lamp End of lamp life detected

5 blinks

3 blinks

OFF

Lamp did not ignite

5 blinks

4 blinks

OFF

Lamp extinguished normal

5 blinks

5 blinks

OFF

Lamp extinguished run-up

5 blinks

6 blinks

OFF

Lamp voltage two low

5 blinks

7 blinks

OFF

Lamp ballast fail

5 blinks

8 blinks

OFF

Lamp ballast Communication error

5 blinks

10 blinks

OFF

Fan-1 error

6 blinks

1 blinks

OFF

Fan-2 error

6 blinks

2 blinks

OFF

Fan-3 error

6 blinks

3 blinks

OFF

Fan-4 error

6 blinks

4 blinks

OFF

Case Open

7 blinks

OFF

OFF

DAD1000 error

8 blinks

OFF

OFF

Color wheel error

9 blinks

OFF

OFF

In the event of an error, please disconnect the AC power cord and wait for one (1) minute before restarting
the projector. If the Power or Lamp LEDs are still blinking or any other situation that isn't listed in the chart
above, please contact your service center.

Image Problems

Problem: No image appears on the screen

1. Verify the settings on your notebook or desktop PC.

2. Turn off all equipment and power up again in the correct order.

Problem: The image is blurred

1. Adjust the Focus on the projector.

2. Press the Auto button on the remote control.

3. Ensure the projector-to-screen distance is within the specified range.

4. Check that the projector lens is clean.

Problem: The image is wider at the top or bottom (trapezoid effect)

— 54 —

1. Position the projector so it is as perpendicular to the screen as possible.

2. Use the Keystone button on the remote control to correct the problem.

Problem: The image is reversed

Check the Projection setting on the Settings 1 menu of the OSD.

Problem: The image is streaked

1. Set the Frequency and Tracking settings on the Image->Computer menu of the OSD to
the default settings.

2. To ensure the problem is not caused by a connected PC’s video card, connect to another

computer.

Problem: The image is flat with no contrast

Adjust the Contrast setting on the Image menu of the OSD.

Problem: The color of the projected image does not match the source image.

Adjust the Color Temperature and Gamma settings on the Image->Advanced menu of the
OSD.

Lamp Problems

Problem: There is no light from the projector

1. Check that the power cable is securely connected.

2. Ensure the power source is good by testing with another electrical device.

3. Restart the projector in the correct order and check that the Power LED is on.

4. If you have replaced the lamp recently, try resetting the lamp connections.

5. Replace the lamp module.

6. Put the old lamp back in the projector and have the projector serviced.

Problem: The lamp goes off

1. Power surges can cause the lamp to turn off. Re-plug power cord. When the Power LED
is on, press the power button.

2. Replace the lamp module.

3. Put the old lamp back in the projector and have the projector serviced.

Remote Control Problems

Problem: The projector does not respond to the remote control

1. Direct the remote control towards remote sensor on the projector.

2. Ensure the path between remote and sensor is not obstructed.

3. Turn off any fluorescent lights in the room.

4. Check the battery polarity.

5. Replace the battery.

6. Turn off other Infrared-enabled devices in the vicinity.

7. Have the remote control serviced.

– 55 –

Audio Problems

Problem: There is no sound

1. Adjust the volume on the remote control.

2. Adjust the volume of the audio source.

3. Check the audio cable connection.

4. Test the source audio output with other speakers.

5. Have the projector serviced.

Problem: The sound is distorted

1. Check the audio cable connection.

2. Test the source audio output with other speakers.

3. Have the projector serviced.

Having the Projector Serviced

If you are unable to solve the problem, you should have the projector serviced. Pack the projector in
the original carton. Include a description of the problem and a checklist of the steps you took when
trying to fix the problem: The information may be useful to service personnel. For servicing, return the
projector to the place you purchased it.

— 56 —

HDMI Q & A

Q. What is the difference between a “Standard” HDMI cable and a “High-Speed” HDMI
cable?

Recently, HDMI Licensing, LLC announced that cables would be tested as Standard or High­Speed cables.

˙Standard (or “category 1”) HDMI cables have been tested to perform at speeds of 75Mhz or

up to 2.25Gbps, which is the equivalent of a 720p/1080i signal.

˙High Speed (or “category 2”) HDMI cables have been tested to perform at speeds of 340Mhz

or up to 10.2Gbps, which is the highest bandwidth currently available over an HDMI cable
and can successfully handle 1080p signals including those at increased color depths and/or
increased refresh rates from the Source. High-Speed cables are also able to accommodate
higher resolution displays, such as WQXGA cinema monitors (resolution of 2560 x 1600).

Q. How do I run HDMI cables longer than 10 meters?

There are many HDMI Adopters working on HDMI solutions that extend a cable’s effective
distance from the typical 10 meter range to much longer lengths. These companies
manufacture a variety of solutions that include active cables (active electronics built into
cables that boost and extend the cable’s signal), repeaters, amplifiers as well as CAT5/6 and
fiber solutions.

Q. How can I tell if a cable is an HDMI certified cable?

All HDMI products are required to be certified by the manufacturer as part of the HDMI
Compliance Test Specification. However, there may be instances where cables bearing the
HDMI logo are available but have not been properly tested. HDMI Licensing, LLC actively
investigates these instances to ensure that the HDMI trademark is properly used in the
market. We recommend that consumers buy their cables from a reputable source and a
company that is trusted.

For more detail information check http://www.hdmi.org/learningcenter/faq.aspx#49

– 57 –

Specifications

Model

DX883ST

DW884ST

Display Type

TI DMD 0.55” XGA

TI DMD 0.65” WXGA

Resolution

XGA 1024 x 768

WXGA 1280 x 800

Projection Distance

0.5m~3.8m

(The best distance range is

between 0.763m~1.273m)

0.4m~3.2m

(The best distance range is

between 0.779m~1.127m)

Projection Screen Size

40"~300"

(The Best Size is 60” ~ 100”)

40"~300"

(The Best Size is 70” ~ 100”)

Projection Lens

Manual Focus/Fix Zoom

Zoom Ratio

Fix

Vertical Keystone Correction

+/- 40 Degrees

Projection Methods

Front, Rear, Desktop/Ceiling (Rear, Front)

Data Compatibility

VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA@60hz, Mac

Sdtv/Edtv/ Hdtv

480i, 576i, 480p, 576p, 720p, 1080i, 1080p

Video Compatibility

NTSC, PAL, SECAM

H-Sync

15, 31~91.4KHz

V-Sync

24~30Hz, 47~120Hz

Safety Certification

FCC-B, cUL, UL

Operation Temperature

5° ~ 40°C

Dimensions

314 mm (W) x 216 mm (D) x 126 mm (H)

Ac Input

AC Universal 100-240V

Power Consumption

310W (Normal), 250W (ECO), <0.5W (Standby), <6W (on by Lan)

Lamp

240W (Normal) / 190W (Eco)

Audio Speaker

10W mono speaker x 1

Input Terminals

VGA in x 1

Composite Video x 1

S-Video x 1

HDMI 1.4b x 2, HDMI (with MHL) x 1

Mini-jack stereo x 1

RCA Stereo Audio LR x 1

Output Terminals

VGA out x 1

Microphone (mini-jack) x1

PC audio out (mini-jack) x 1

USB type A power Only x1

Control Terminals

RS-232C

RJ45

DC 12V trigger (3.5mm Jack)

USB (Type mini B) - service only

Security

Kensington lock

SPECIFICATIONS

Note: For questions regarding product specifications, please contact your local distributor.

— 58 —

Projection Distance vs. Projection Size

DX883ST

IMAGE DIAGONAL

IMAGE WIDTH

IMAGE HEIGHT

PROJECTION DISTANCE

OFFSET-A

INCH

CM

INCH

CM

INCH

CM

INCH

MM

40

81.3

32.0

61.0

24.0

50.9

20.0

85

60

121.9

48.0

91.4

36.0

76.3

30.0

127

100

203.2

80.0

152.4

60.0

127.2

50.1

212

150

304.8

120.0

228.6

90.0

190.8

75.1

318

200

406.4

160.0

304.8

120.0

254.4

100.2

424

250

508.0

200.0

381.0

150.0

318.0

125.2

530

300

609.6

240.0

457.2

180.0

381.6

150.2

635

DW884ST

IMAGE DIAGONAL

IMAGE WIDTH

IMAGE HEIGHT

PROJECTION DISTANCE

OFFSET-A

INCH

CM

INCH

CM

INCH

CM

INCH

MM

40

86.2

33.9

53.8

21.2

53.9

21.2

61

70

150.8

59.4

94.2

37.1

94.4

37.2

107

100

215.4

84.8

134.6

53.0

134.8

53.1

153

150

323.1

127.2

201.9

79.5

202.3

79.6

229

200

430.8

169.6

269.2

106.0

269.7

106.2

305

250

538.5

212.0

336.5

132.5

337.1

132.7

382

300

646.2

254.4

403.9

159.0

404.5

159.3

458

A

Projection Distance and Size Table

XGA

WXGA

– 59 –

Timing Mode Table

SIGNAL

RESOLUTION

H-SYNC

(KHZ)

V-SYNC

(HZ)

COMPOSITE

/ S-VIDEO

COMPONENT

RGB

DVI/

HDMI

NTSC

－

15.734

60.0

O

－ － －

PAL/SECAM

－

15.625

50.0

O

－ － －

VESA

720 x 400

37.9

85.0

－

－

O

O

640 x 480

31.5

60.0

－

－

O

O

640 x 480

37.9

72.8

－

－

O

O

640 x 480

37.5

75.0

－

－

O

O

640 x 480

43.3

85.0

－

－

O

O

800 x 600

35.2

56.3

－

－

O

O

800 x 600

37.9

60.3

－

－

O

O

800 x 600

46.9

75.0

－

－

O

O

800 x 600

48.1

72.2

－

－

O

O

800 x 600

53.7

85.1

－

－

O

O

800 x 600

76.3

120.0

－

－

O

O

1024 x 768

48.4

60.0

－

－

O

O

1024 x 768

56.5

70.1

－

－

O

O

1024 x 768

60.0

75.0

－

－

O

O

1024 x 768

68.7

85.0

－

－

O

O

1024 x 768

97,6

120.0

－

－

O

O

1280 x 720

45.0

60.0

－

－

O

O

1280 x 720

91.5

119.9

－

－

O

O

1280 x 800

49.7

59.8

－

－

O

O

1280 x 800

62.8

74.9

－

－

O

O

1280 x 800

71.6

84.8

－

－

O

O

1280 x 800

101.6

119.9

－

－

O

O

1280 x 1024

64.0

60.0

－

－

O

O

1280 x 1024

80.0

75.0

－

－

O

O

1280 x 1024

91.1

85.0

－

－

O

O

1280 x 960

60.0

60.0

－

－

O

O

— 60 —

SIGNAL

RESOLUTION

H-SYNC

(KHZ)

V-SYNC

(HZ)

COMPOSITE

/ S-VIDEO

COMPONENT

RGB

DVI/

HDMI

1280 x 960

85.9

85.0

－

－

O

O

1400 x 1050

65.3

60.0

－

－

O

O

1440 x 900

70.6

75.0

－

－

O

O

1440 x 900

55.9

60.0

－

－

O

O

1600 x1200

75.0

60

－

－

O

O

Apple Mac

640 x 480

35.0

66.7

－

－

O

O

832 x 624

49.7

74.5

－

－

O

O

1024 x 768

60.2

74.9

－

－

O

O

1152 x 870

68.7

75.1

－

－

O

O

SDTV

480i

15.734

60.0

－

O － O

576i

15.625

50.0

－

O － O

EDTV

576p

31.3

50.0

－

O － O

480p

31.5

60.0

－

O － O

HDTV

720p

37.5

50.0

－

O － O

720p

45.0

60.0

－

O － O

1080i

33.8

60.0

－

O － O

1080i

28.1

50.0

－

O － O

1080p

67.5

60.0

－

O － O

1080p

56.3

50.0

－

O － O

1080p

27

24.0

－

O － O

1080p

28

25.0

－

O － O

1080p

33.7

30.0

－

O － O

O：Frequency supported
—：Frequency not supported
*：SVGA native resolution of the panel is 800 x 600

XGA native resolution of the panel is 1024 x 768
Resolution others than native resolution may be display with uneven size of text or line.

*：The color of mean Displayable only. (4:3 only)
*：The color of mean may have a little noise is acceptable
*：HDTV timing main check tool is DVD player, VG828 is secondary.

– 61 –

Projector Dimensions

126mm
[4.961"]

111.5mm
[4.39"]

216mm
[8.504"]

314mm

[12.362"]

— 62 —

REGULATORY COMPLIANCE

FCC Warning

This equipment has been tested and found to comply with the limits for a Class B digital device
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his/her own expense.

Changes or modifications not expressly approved by the parties responsible for compliance could
void the user’s authority to operate the equipment.

Canada

This class B digital apparatus complies with Canadian ICES-003.

Safety Certifications

FCC-B, cUL, UL

– 63 –

RS-232C Protocol

Baud rate:

9600

Parity
check:

None

Data bit:

8

Stop bit:

1

Flow
Control

None

Header code

Command code

Data code

End code

HEX

Command

Data

0Dh

ASCII

‘V’

Command

Data

CR

Command Group 00

ASCII

HEX

Function

Description

Return

Result

VXXS0001

56h Xh Xh 53h 30h 30h 30h 31h 0Dh

Power On

P/F

VXXS0002

56h Xh Xh 53h 30h 30h 30h 32h 0Dh

Power Off

P/F

VXXS0003

56h Xh Xh 53h 30h 30h 30h 33h 0Dh

Resync

P/F

VXXG0004

56h Xh Xh 47h 30h 30h 30h 34h 0Dh

Get Lamp Hours

Pn/F

VXXS0005n

56h Xh Xh 53h 30h 30h 30h 35h nh 0Dh

Set Air filter timer

n=0~999999

P/F

VXXG0005

56h Xh Xh 47h 30h 30h 30h 35h 0Dh

Get Air filter timer

n=0~999999

Pn/F

VXXS0006

56h Xh Xh 53h 30h 30h 30h 36h 0Dh

System Reset

P/F

VXXG0007

56h Xh Xh 47h 30h 30h 30h 37h 0Dh

Get System Status

0:Reset
1:Standby
2:Operation
3:Cooling

Pn/F
VXXG0008

56h Xh Xh 47h 30h 30h 30h 38h 0Dh

Get F/W Version

Pn/F

VXXG0009

56h Xh Xh 47h 30h 30h 30h 39h 0Dh

Get Alter EMail

Pn/F

VXXS0009n

56h Xh Xh 53h 30h 30h 30h 39h nh 0Dh

Set Alter Email

n=[e-mail]

P/F

RS232 Setting

Minimum delay for next command: 1ms

Control Command Structure

Operation Command

Note:
"CR" mean Carriage Return

APPENDIX I

XX=00-98, projector's ID, XX=99 is for all projectors
Return Result P=Pass / F=Fail
n: 0:Disable/1: Enable/Value(0~9999)

— 64 —

Command Group 01

ASCII

HEX

Function

Description

Return

Value

VXXG0101

56h Xh Xh 47h 30h 31h 30h 31h 0Dh

Get Brightness

n=0~100

Pn/F

VXXS0101n

56h Xh Xh 53h 30h 31h 30h 31h nh 0Dh

Set Brightness

n=0~100

P/F

VXXG0102

56h Xh Xh 47h 30h 31h 30h 32h 0Dh

Get Contrast

n=0~100

Pn/F

VXXS0102n

56h Xh Xh 53h 30h 31h 30h 32h nh 0Dh

Set Contrast

n=0~100

P/F

VXXG0103

56h Xh Xh 47h 30h 31h 30h 33h 0Dh

Get Color

n=0~100

Pn/F

VXXS0103n

56h Xh Xh 53h 30h 31h 30h 33h nh 0Dh

Set Color

n=0~100

P/F

VXXG0104

56h Xh Xh 47h 30h 31h 30h 34h 0Dh

Get Tint

n=0~100

Pn/F

VXXS0104n

56h Xh Xh 53h 30h 31h 30h 34h nh 0Dh

Set Tint

n=0~100

P/F

VXXG0105

56h Xh Xh 47h 30h 31h 30h 35h 0Dh

Get Sharpness

0~31

Pn/F

VXXS0105n

56h Xh Xh 53h 30h 31h 30h 35h nh 0Dh

Set Sharpness

0~31

P/F

VXXG0106

56h Xh Xh 47h 30h 31h 30h 36h 0Dh

Get Color
Temperature

0:Warm
1:Normal
2:Cold

Pn/F

VXXS0106n

56h Xh Xh 53h 30h 31h 30h 36h nh 0Dh

Set Color
Temperature

0:Warm
1:Normal
2:Cold

P/F

VXXG0107

56h Xh Xh 47h 30h 31h 30h 37h 0Dh

Get Gamma

0:1.8
1:2.0
2:2.2
3:2.4
4:B&W
5:Linear

Pn/F

VXXS0107n

56h Xh Xh 53h 30h 31h 30h 37h nh 0Dh

Set Gamma

0:1.8
1:2.0
2:2.2
3:2.4
4:B&W
5:Linear

P/F

Command Group 02

ASCII

HEX

Function

Description

Return

Value

VXXS0201

56h Xh Xh 53h 30h 32h 30h 31h 0Dh

Select RGB

P/F

VXXS0202

56h Xh Xh 53h 30h 32h 30h 32h 0Dh

Select RGB2

P/F

VXXS0203

56h Xh Xh 53h 30h 32h 30h 33h 0Dh

Select DVI

P/F

VXXS0204

56h Xh Xh 53h 30h 32h 30h 34h 0Dh

Select Video

P/F

VXXS0205

56h Xh Xh 53h 30h 32h 30h 35h 0Dh

Select S-Video

P/F

VXXS0206

56h Xh Xh 53h 30h 32h 30h 36h 0Dh

Select HDMI

P/F

VXXS0207

56h Xh Xh 53h 30h 32h 30h 37h 0Dh

Select BNC

P/F

VXXS0208

56h Xh Xh 53h 30h 32h 30h 38h 0Dh

Select Component

P/F

VXXS0209

56h Xh Xh 53h 30h 32h 30h 39h 0Dh

Select HDMI
2(MEDIA)

P/F

VXXS0210

56h Xh Xh 53h 30h 32h 31h 30h 0Dh

Select HDMI 3

P/F

– 65 –

Command Group 02

ASCII

HEX

Function

Description

Return

Value

VXXG0220

56h Xh Xh 47h 30h 32h 32h 30h 0Dh

Get Current Source

Return
1:RGB
2:RGB2
3:DVI
4:Video
5:S-Video
6:HDMI
7:BNC
8:Component
9:HDMI 2(MEDIA)
10:HDMI 3

Pn/F

Command Group 03

ASCII

HEX

Function

Description

Return

Value

VXXG0301

56h Xh Xh 47h 30h 33h 30h 31h 0Dh

Get Scaling

0:Fill
1:4:3
2:16:9
3:Letter Box
4:Native
5:2.35:1

Pn/F

VXXS0301n

56h Xh Xh 53h 30h 33h 30h 31h nh 0Dh

Set Scaling

0:Fill
1:4:3
2:16:9
3:Letter Box
4:Native
5:2.35:1

P/F

VXXG0302

56h Xh Xh 47h 30h 33h 30h 32h 0Dh

Blank

Pn/F

VXXS0302n

56h Xh Xh 53h 30h 33h 30h 32h nh 0Dh

Blank

P/F

VXXG0303

56h Xh Xh 47h 30h 33h 30h 33h 0Dh

Auto Keystone On

Pn/F

VXXS0303n

56h Xh Xh 53h 30h 33h 30h 33h nh 0Dh

Auto Keystone On

P/F

VXXG0304

56h Xh Xh 47h 30h 33h 30h 34h 0Dh

Freeze On

Pn/F

VXXS0304n

56h Xh Xh 53h 30h 33h 30h 34h nh 0Dh

Freeze On

P/F

VXXG0305

56h Xh Xh 47h 30h 33h 30h 35h 0Dh

Volume

n=0~30

Pn/F

VXXS0305n

56h Xh Xh 53h 30h 33h 30h 35h nh 0Dh

Volume

n=0~30

P/F

VXXG0306

56h Xh Xh 47h 30h 33h 30h 36h 0Dh

Treble

n=0~16

Pn/F

VXXS0306n

56h Xh Xh 53h 30h 33h 30h 36h nh 0Dh

Treble

n=0~16

P/F

VXXG0307

56h Xh Xh 47h 30h 33h 30h 37h 0Dh

Bass

n=0~16

Pn/F

VXXS0307n

56h Xh Xh 53h 30h 33h 30h 37h nh 0Dh

Bass

n=0~16

P/F

VXXG0308

56h Xh Xh 47h 30h 33h 30h 38h 0Dh

Projection Mode

0:Front
1:Rear
2:Ceiling
3:Rear+Ceiling

Pn/F

VXXS0308n

56h Xh Xh 53h 30h 33h 30h 38h nh 0Dh

Projection Mode

0:Front
1:Rear
2:Ceiling
3:Rear+Ceiling

P/F
VXXG0309

56h Xh Xh 47h 30h 33h 30h 39h 0Dh

Set vertical keystone
value

n=-40~+40

Pn/F

VXXS0309n

56h Xh Xh 53h 30h 33h 30h 39h nh 0Dh

Set vertical keystone
value

n=-40~+40

P/F

— 66 —

Command Group 03

ASCII

HEX

Function

Description

Return

Value

VXXG0310

56h Xh Xh 47h 30h 33h 31h 30h 0Dh

Set horizontal
keystone value

n=-20~+20

Pn/F

VXXS0310n

56h Xh Xh 53h 30h 33h 31h 30h nh 0Dh

Set horizontal
keystone value

n=-20~+20

P/F

VXXG0311

56h Xh Xh 47h 30h 33h 31h 31h 0Dh

Adjust the zoom

n=-10~+10

Pn/F

VXXS0311n

56h Xh Xh 53h 30h 33h 31h 31h nh 0Dh

Adjust the zoom

n=-10~+10

P/F

VXXG0312

56h Xh Xh 47h 30h 33h 31h 32h 0Dh

Adjust the focus

n=-20~+20

Pn/F

VXXS0312n

56h Xh Xh 53h 30h 33h 31h 32h nh 0Dh

Adjust the focus

n=-20~+20

P/F

VXXG0313

56h Xh Xh 47h 30h 33h 31h 33h 0Dh

Adjust the vertical
lens shift

n=-20~+20

Pn/F

VXXS0313n

56h Xh Xh 53h 30h 33h 31h 33h nh 0Dh

Adjust the vertical
lens shift

n=-20~+20

P/F

VXXG0314

56h Xh Xh 47h 30h 33h 31h 34h 0Dh

Adjust the horizontal
lens shift

n=-20~+20

Pn/F

VXXS0314n

56h Xh Xh 53h 30h 33h 31h 34h nh 0Dh

Adjust the horizontal
lens shift

n=-20~+20

P/F

VXXG0315

56h Xh Xh 47h 30h 33h 31h 35h 0Dh

Adjust the 3D Mode

n=0~2

Pn/F

VXXS0315n

56h Xh Xh 53h 30h 33h 31h 35h nh 0Dh

Adjust the 3D Mode

0:Off
1:DLP
2: IR

P/F

VXXG0316

56h Xh Xh 47h 30h 33h 31h 36h 0Dh

Adjust the 3D sync
inverter

n=0~1

Pn/F

VXXS0316n

56h Xh Xh 53h 30h 33h 31h 36h nh 0Dh

Adjust the 3D sync
inverter

0:Off
1:On

P/F

VXXG0317

56h Xh Xh 53h 30h 33h 31h 37h 0Dh

Adjust the 3D format

n=0~3

P/F

VXXS0317n

56h Xh Xh 47h 30h 33h 31h 37h nh 0Dh

Adjust the 3D format

0:FS
1:TB
2:SBS
3:FP

Pn/F
VXXG0319

56h Xh Xh 47h 30h 33h 31h 39h 0Dh

Adjust the Lamp
mode

n=0~2

Pn/F

VXXS0319n

56h Xh Xh 53h 30h 33h 31h 39h nh 0Dh

Adjust the Lamp
mode

0:Eco
1:Normal
2:Dynamic

P/F

VXXG0322

56h Xh Xh 47h 30h 33h 32h 32h 0Dh

Adjust the vertical
lens shift

n=0~1

Pn/F

VXXS0322n

56h Xh Xh 53h 30h 33h 32h 32h nh 0Dh

Adjust the vertical
lens shift

0:Normal
1:High Speed

P/F

VXXG0331

56h Xh Xh 47h 30h 33h 33h 31h 0Dh

Get the R gain

n=0~200

Pn/F

VXXS0331n

56h Xh Xh 53h 30h 33h 33h 31h nh 0Dh

Set the R gain

n=0~200

P/F

VXXG0332

56h Xh Xh 47h 30h 33h 33h 32h 0Dh

Get the G gain

n=0~200

Pn/F

VXXS0332n

56h Xh Xh 53h 30h 33h 33h 32h nh 0Dh

Set the G gain

n=0~200

P/F

VXXG0333

56h Xh Xh 47h 30h 33h 33h 33h 0Dh

Get the B gain

n=0~200

Pn/F

VXXS0333n

56h Xh Xh 53h 30h 33h 33h 33h nh 0Dh

Set the B gain

n=0~200

P/F

VXXG0334

56h Xh Xh 53h 30h 33h 31h 37h 0Dh

Get the R offset

n=-100~100

P/F

VXXS0334n

56h Xh Xh 47h 30h 33h 31h 37h nh 0Dh

Set the R offset

n=-100~100

Pn/F

VXXG0335

56h Xh Xh 47h 30h 33h 31h 39h 0Dh

Get the G offset

n=-100~100

Pn/F

VXXS0335n

56h Xh Xh 53h 30h 33h 31h 39h nh 0Dh

Set the G offset

n=-100~100

P/F

VXXG0336

56h Xh Xh 47h 30h 33h 32h 32h 0Dh

Get the B offset

n=-100~100

Pn/F

VXXS0336n

56h Xh Xh 53h 30h 33h 32h 32h nh 0Dh

Set the B offset

n=-100~100

P/F

– 67 –

Command Group 03

ASCII

HEX

Function

Description

Return

Value

VXXG0337

56h Xh Xh 47h 30h 33h 33h 37h 0Dh

Get the white R gain

n=0~100

Pn/F

VXXS0337n

56h Xh Xh 53h 30h 33h 33h 37h nh 0Dh

Set the white R gain

n=0~100

P/F

VXXG0338

56h Xh Xh 47h 30h 33h 33h 38h 0Dh

Get the white G gain

n=0~200

Pn/F

VXXS0338n

56h Xh Xh 53h 30h 33h 33h 38h nh 0Dh

Set the white G gain

n=0~200

P/F

VXXG0339

56h Xh Xh 47h 30h 33h 33h 39h 0Dh

Get the white B gain

n=0~200

Pn/F

VXXS0339n

56h Xh Xh 53h 30h 33h 33h 39h nh 0Dh

Set the white B gain

n=0~200

P/F

VXXG0340

56h Xh Xh 53h 30h 33h 34h 30h 0Dh

Get the Red Hue

n=-100~100

P/F

VXXS0340n

56h Xh Xh 47h 30h 33h 34h 30h nh 0Dh

Set the Red Hue

n=-100~100

Pn/F

VXXG0341

56h Xh Xh 47h 30h 33h 34h 31h 0Dh

Get the Red
Saturation

n=-100~100

Pn/F

VXXS0341n

56h Xh Xh 53h 30h 33h 34h 31h nh 0Dh

Set the Red
Saturation

n=-100~100

P/F

VXXG0342

56h Xh Xh 47h 30h 33h 34h 32h 0Dh

Get the Red Gain

n=-100~100

Pn/F

VXXS0342n

56h Xh Xh 53h 30h 33h 34h 32h nh 0Dh

Set the Red Gain

n=-100~100

P/F

VXXG0343

56h Xh Xh 53h 30h 33h 34h 33h 0Dh

Get the Green Hue

n=-100~100

P/F

VXXS0343n

56h Xh Xh 47h 30h 33h 34h 33h nh 0Dh

Set the Green Hue

n=-100~100

Pn/F

VXXG0344

56h Xh Xh 47h 30h 33h 34h 34h 0Dh

Get the Green
Saturation

n= -100~100

Pn/F

VXXS0344n

56h Xh Xh 53h 30h 33h 34h 34h nh 0Dh

Set the Green
Saturation

n= -100~100

P/F

VXXG0345

56h Xh Xh 47h 30h 33h 34h 35h 0Dh

Get the Green Gain

n= -100~100

Pn/F

VXXS0345n

56h Xh Xh 53h 30h 33h 34h 35h nh 0Dh

Set the Green Gain

n= -100~100

P/F

VXXG0346

56h Xh Xh 53h 30h 33h 34h 36h 0Dh

Get the Blue Hue

n= -100~100

P/F

VXXS0346n

56h Xh Xh 47h 30h 33h 34h 36h nh 0Dh

Set the Blue Hue

n= -100~100

Pn/F

VXXG0347

56h Xh Xh 47h 30h 33h 34h 37h 0Dh

Get the Blue
Saturation

n= -100~100

Pn/F

VXXS0347n

56h Xh Xh 53h 30h 33h 34h 37h nh 0Dh

Set the Blue
Saturation

n= -100~100

P/F

VXXG0348

56h Xh Xh 47h 30h 33h 34h 38h 0Dh

Get the Blue Gain

n= -100~100

Pn/F

VXXS0348n

56h Xh Xh 53h 30h 33h 34h 38h nh 0Dh

Set the Blue Gain

n= -100~100

P/F

VXXG0349

56h Xh Xh 53h 30h 33h 34h 39h 0Dh

Get the Cyan Hue

n= -100~100

P/F

VXXS0349n

56h Xh Xh 47h 30h 33h 34h 39h nh 0Dh

Set the Cyan Hue

n= -100~100

Pn/F

VXXG0350

56h Xh Xh 47h 30h 33h 35h 30h 0Dh

Get the Cyan
Saturation

n=-100~100

Pn/F

VXXS0350n

56h Xh Xh 53h 30h 33h 35h 30h nh 0Dh

Set the Cyan
Saturation

n=-100~100

P/F

VXXG0351

56h Xh Xh 47h 30h 33h 35h 31h 0Dh

Get the Cyan Gain

n=-100~100

Pn/F

VXXS0351n

56h Xh Xh 53h 30h 33h 35h 31h nh 0Dh

Set the Cyan Gain

n=-100~100

P/F

VXXG0352

56h Xh Xh 53h 30h 33h 35h 32h 0Dh

Get the Magenta
Hue

n=-100~100

P/F

VXXS0352n

56h Xh Xh 47h 30h 33h 35h 32h nh 0Dh

Set the Magenta Hue

n=-100~100

Pn/F

VXXG0353

56h Xh Xh 47h 30h 33h 35h 33h 0Dh

Get the Magenta
Saturation

n=-100~100

Pn/F

VXXS0353n

56h Xh Xh 53h 30h 33h 35h 33h nh 0Dh

Set the Magenta
Saturation

n=-100~100

P/F

VXXG0354

56h Xh Xh 47h 30h 33h 35h 34h 0Dh

Get the Magenta
Gain

n=-100~100

Pn/F

VXXS0354n

56h Xh Xh 53h 30h 33h 35h 34h nh 0Dh

Set the Magenta

n=-100~100

P/F

— 68 —

Command Group 03

ASCII

HEX

Function

Description

Return

Value

Gain

VXXG0355

56h Xh Xh 53h 30h 33h 35h 35h 0Dh

Get the Yellow Hue

n=-100~100

P/F

VXXS0355n

56h Xh Xh 47h 30h 33h 35h 35h nh 0Dh

Set the Yellow Hue

n=-100~100

Pn/F

VXXG0356

56h Xh Xh 47h 30h 33h 35h 36h 0Dh

Get the Yellow
Saturation

n=-100~100

Pn/F

XXS0356n

56h Xh Xh 53h 30h 33h 35h 36h nh 0Dh

Set the Yellow
Saturation

n=-100~100

P/F

VXXG0357

56h Xh Xh 47h 30h 33h 35h 37h 0Dh

Get the Yellow Gain

n=-100~100

Pn/F

VXXS0357n

56h Xh Xh 53h 30h 33h 35h 37h nh 0Dh

Set the Yellow Gain

n=-100~100

P/F

VXXG0358

56h Xh Xh 47h 30h 33h 35h 38h 0Dh

Get IR On/Off Status

n= 0~3

Pn/F

VXXS0358n

56h Xh Xh 53h 30h 33h 35h 38h nh 0Dh

Get IR On/Off Status

0:Both on
1:Front on
2:Back on
3:Both off

P/F

– 69 –
