Page 1
D8 Series
User Manual
ϡΊ
⫼᠋ݠ
Manual del usuario
Manuel de l'utilisateur
Benutzerhandbuch
㇠㟝㣄 ㉘⮹㉐
Ɋɭɤɨɜɨɞɫɬɜɨɩɨɥɶɡɨɜɚɬɟɥɹ
Gebruikershandleiding
,QVWUXNFMDREVáXJL
8åLYDWHOVNiSĜtUXþND
ǼȖȤİȚȡȓįȚȠȤȡȒıȘȢ
.XOODQÕP.ÕODYX]X
Manuale d'uso
Handbok
%UXJHUYHMOHGQLQJ
%UXNHUYHLOHGQLQJ
Käyttöohje
)HOKDV]QiOyLNp]LN|Q\Y
ΩϝϱϝϝϡαΕΥΩϡ
0DQXDOGR8VXiULR
Page 2
Copyright
This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be
reproduced without written consent of the author.
© Copyright 2010
Disclaimer
The information in this document is subject to change without notice. The manufacturer makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied
warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to
revise this publication and to make changes from time to time in the content hereof without obligation of
the manufacturer to notify any person of such revision or changes.
Trademark Recognition
Kensington is a U.S. registered trademark of ACCO Brand Corporation with issued registrations and pending applications in other countries throughout the world.
All other product names used in this manual are the properties of their respective owners and are acknowledged.
— i —
Page 3
DLP Projector—User’s Manual
Important Safety Information
Important:
It is strongly recommended that you read this section carefully before using the projector. These
safety and usage instructions will ensure that you enjoy many years of safe use of the projector.
Keep this manual for future reference.
Symbols Used
Warning symbols are used on the unit and in this manual to alert you of hazardous situations.
The following styles are used in this manual to alert you to important information.
Note:
Provides additional information on the topic at hand.
Important:
Provides additional information that should not be overlooked.
Caution:
Alerts you to situations that may damage the unit.
Warning:
Alerts you to situations that may damage the unit, create a hazardous environment, or cause personal injury.
Throughout this manual, component parts and items in the OSD menus are denoted in bold font as in this
example:
“Push the Menu button on the remote control to open the Main menu.”
General Safety Information
¾ Do not open the unit case. Aside from the projection lamp, there are no user-serviceable parts in
the unit. For servicing, contact qualified service personnel.
¾ Follow all warnings and cautions in this manual and on the unit case.
¾ The projection lamp is extremely bright by design. To avoid damage to eyes, do not look into the
lens when the lamp is on.
¾ Do not place the unit on an unstable surface, cart, or stand.
¾ Avoid using the system near water, in direct sunlight, or near a heating device.
¾ Do not place heavy objects such as books or bags on the unit.
— ii —
Page 4
Projector Installation Notice
¾ Place the projector in a horizontal position
The tilt angle of the projector should not exceed 15 degrees, nor should the projector be installed in
any way other than the desktop and ceiling mount, otherwise lamp life could decrease dramatically.
¾ Allow at least 50 cm clearance around the exhaust vent.
Preface
¾ Ensure that the intake vents do not recycle hot air from the exhaust vent.
¾ When operating the projector in an enclosed space, ensure that the surrounding air temperature
within the enclosure does not exceed 5 – 35°C while the projector is running, and the air intake and
exhaust vents are unobstructed.
¾ All enclosures should pass a certified thermal evaluation to ensure that the projector does not
recycle exhaust air, as this may cause the device to shutdown even if the enclosure temperature is
with the acceptable 5 – 35°C range.
– iii –
Page 5
DLP Projector—User’s Manual
Power Safety
¾ Only use the supplied power cord.
¾ Do not place anything on the power cord. Place the power cord where it will not be in the way of
foot traffic.
¾ Remove the batteries from the remote control when storing or not in use for a prolonged period.

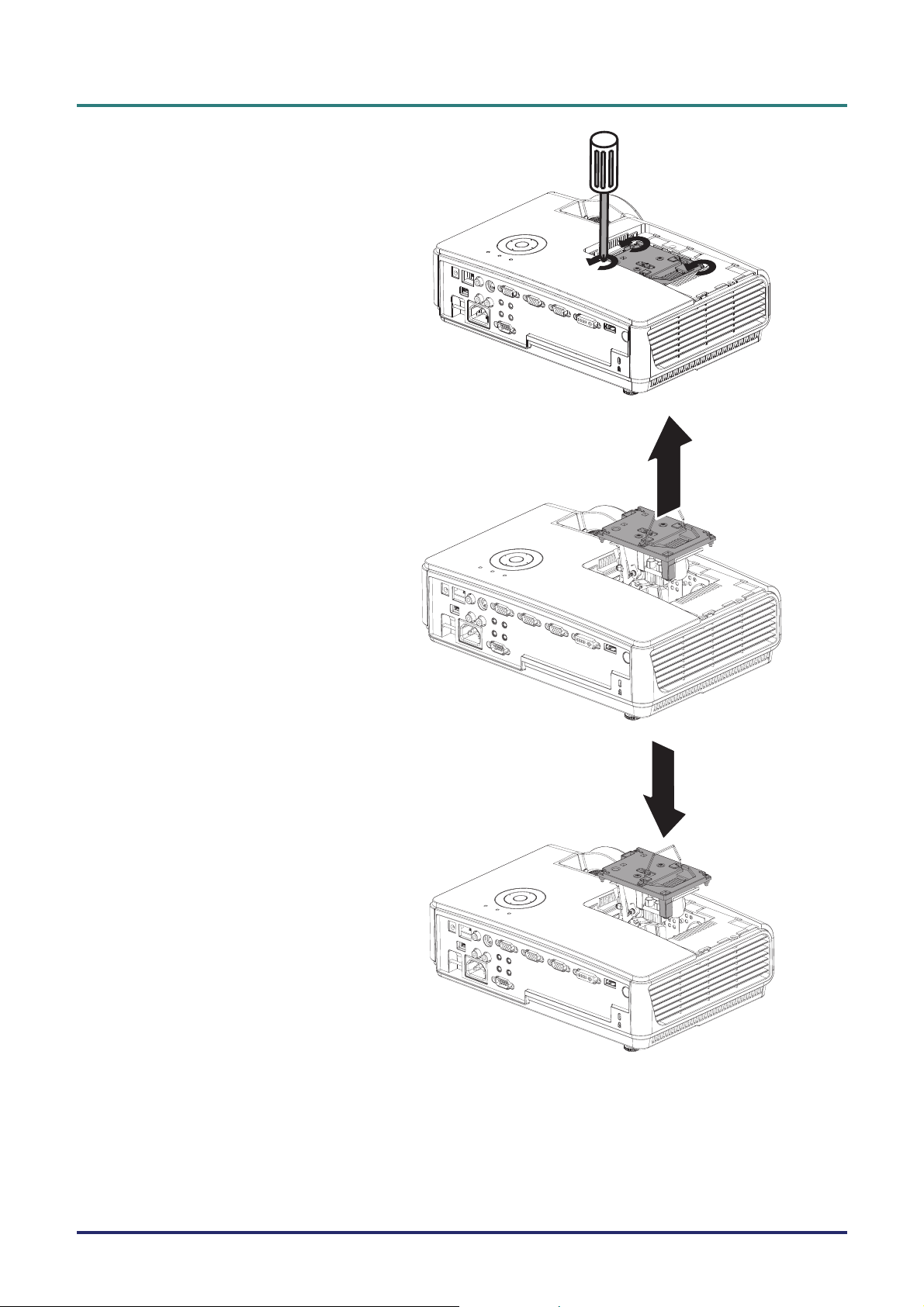

Replacing the Lamp
Replacing the lamp can be hazardous if done incorrectly. See
for clear and safe instructions for this procedure. Before replacing the lamp:
¾ Unplug the power cord.
¾ Allow the lamp to cool for about one hour.
Replacing the Projection Lamp on page 41
Cleaning the Projector
¾ Unplug the power cord before cleaning. See Cleaning the Projector page 44.
¾ Allow the lamp to cool for about one hour.
Regulatory Warnings
Before installing and using the projector, read the regulatory notices in the Regulatory Compliance on
55.
page
Important Recycle Instructions:
Hg
Lamp(s) inside this product contain mercury. This product may contain other electronic waste that
can be hazardous if not disposed of properly. Recycle or dispose in accordance with local, state, or federal
Laws. For more information, contact the Electronic Industries Alliance at
specific disposal information check WWW.LAMPRECYCLE.ORG.
WWW.EIAE.ORG. For lamp
Symbol Explanations
DISPOSAL: Do not use household or municipal waste collection services for
disposal of electrical and electronic equipment. EU countries require the use
of separate recycling collection services.
— iv —
Page 6
Main Features
• Lightweight unit, easy to pack away and transport.
• Compatible with all major video standards including NTSC, PAL, and SECAM.
• A high brightness rating allows for presentations in daylight or in lit rooms.
• Supports resolutions up to UXGA at 16.7 million colors to deliver crisp, clear images.
• Flexible setup allows for front, rear projections.
• Line-of-vision projections remain square, with advanced keystone correction for angled
projections.
• Input source automatically detected.
About this Manual
This manual is intended for end users and describes how to install and operate the DLP projector. Wherever possible, relevant information—such as an illustration and its description—has been kept on one
page. This printer-friendly format is both for your convenience and to help save paper, thereby protecting
the environment. It is suggested that you only print sections that are relevant to your needs.
Preface
– v –
Page 7
DLP Projector—User’s Manual
Table of Contents
GETTING STARTED.......................................................................................................................................................... 1
PACKING CHECKLIST ........................................................................................................................................................... 1
VIEWS OF PROJECTOR PARTS............................................................................................................................................... 2
Front-right View ............................................................................................................................................................. 2
Top view—On-screen Display (OSD) buttons and LEDs ............................................................................................... 3
Rear view ........................................................................................................................................................................ 3
Bottom view..................................................................................................................................................................... 5
REMOTE CONTROL PARTS ................................................................................................................................................... 6
REMOTE CONTROL OPERATING RANGE ............................................................................................................................... 8
PROJECTOR AND REMOTE CONTROL BUTTONS.................................................................................................................... 8
SETUP AND OPERATION................................................................................................................................................. 9
INSERTING THE REMOTE CONTROL BATTERIES ................................................................................................................... 9
CONNECTING INPUT DEVICES ............................................................................................................................................ 10
STARTING AND SHUTTING DOWN THE PROJECTOR............................................................................................................. 11

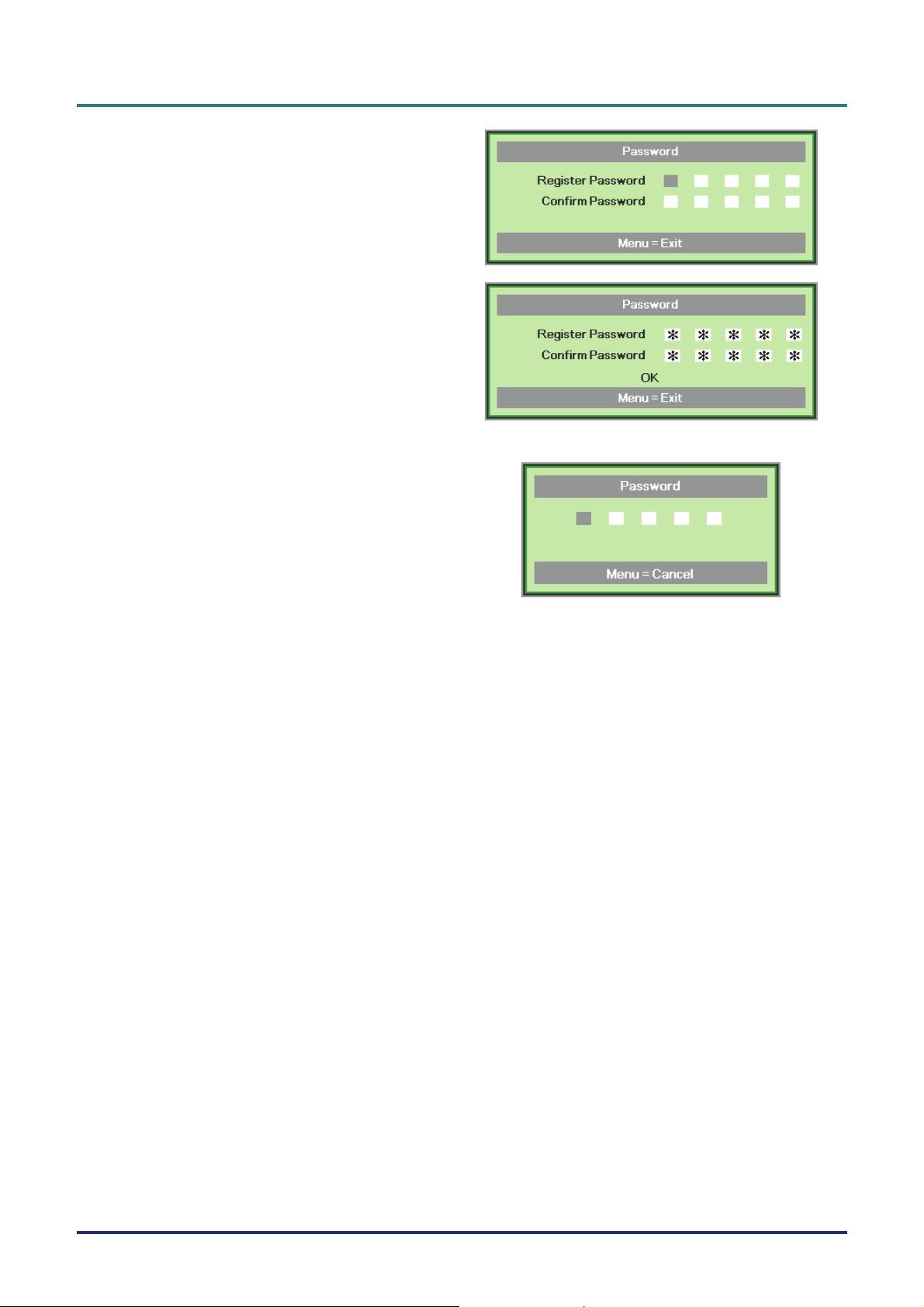

SETTING AN ACCESS PASSWORD (SECURITY LOCK) .......................................................................................................... 13
ADJUSTING THE PROJECTOR LEVEL ................................................................................................................................... 15

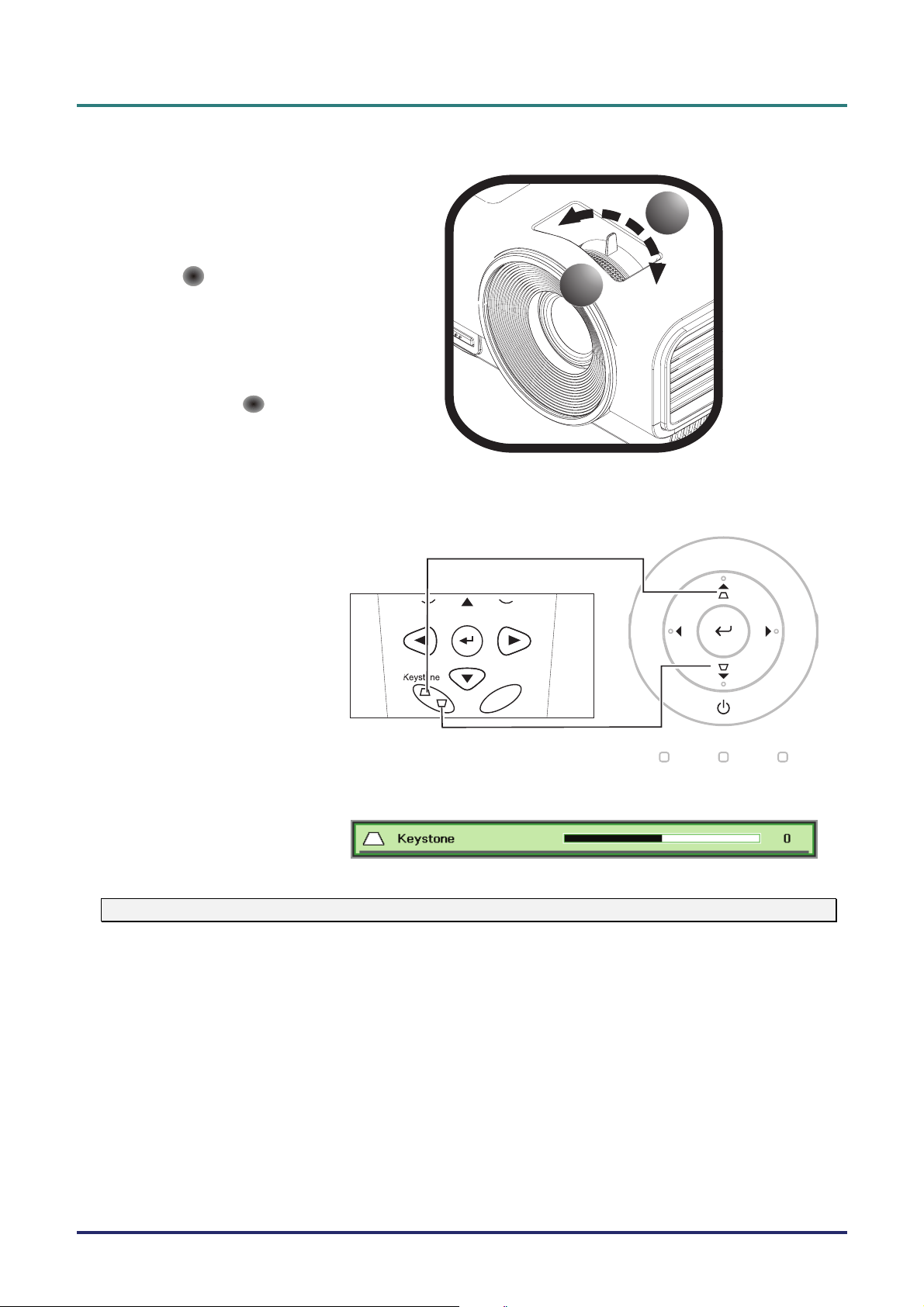

ADJUSTING THE ZOOM, FOCUS AND KEYSTONE ................................................................................................................ 16

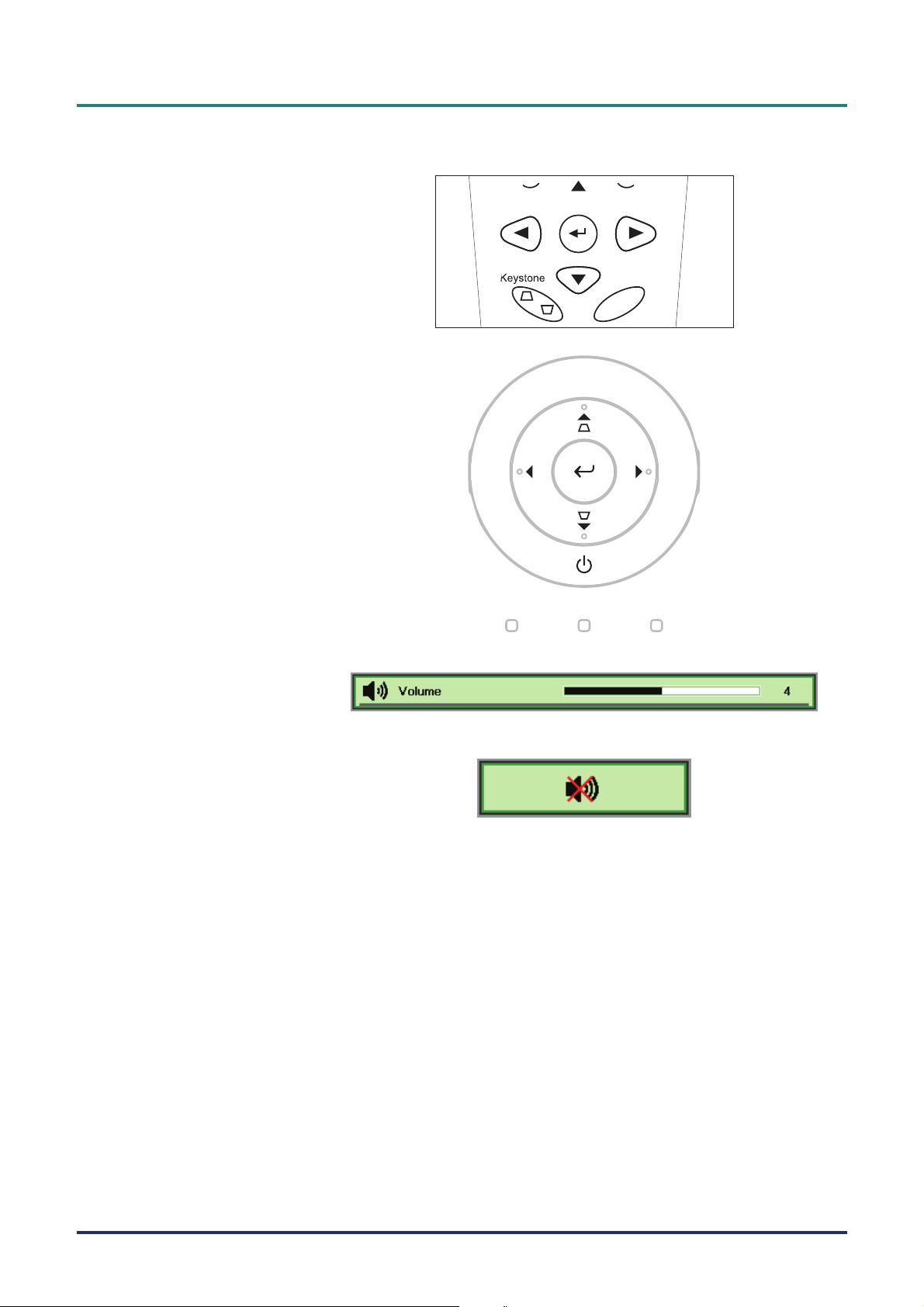

ADJUSTING THE VOLUME .................................................................................................................................................. 17
ON-SCREEN DISPLAY (OSD) MENU SETTINGS....................................................................................................... 18
OSD MENU CONTROLS ..................................................................................................................................................... 18
Navigating the OSD ...................................................................................................................................................... 18
SETTING THE OSD LANGUAGE .......................................................................................................................................... 19
OSD MENU OVERVIEW ..................................................................................................................................................... 20

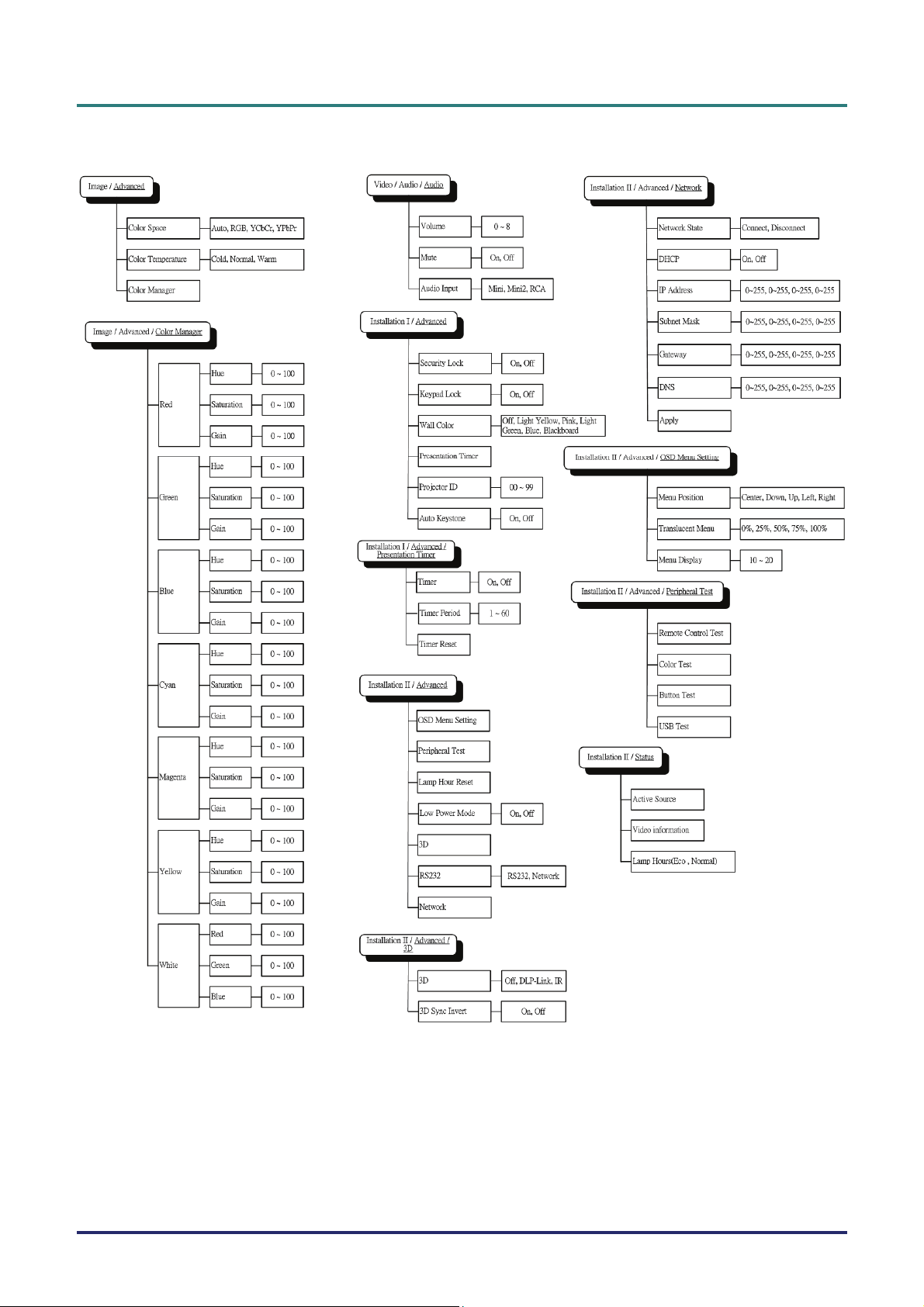

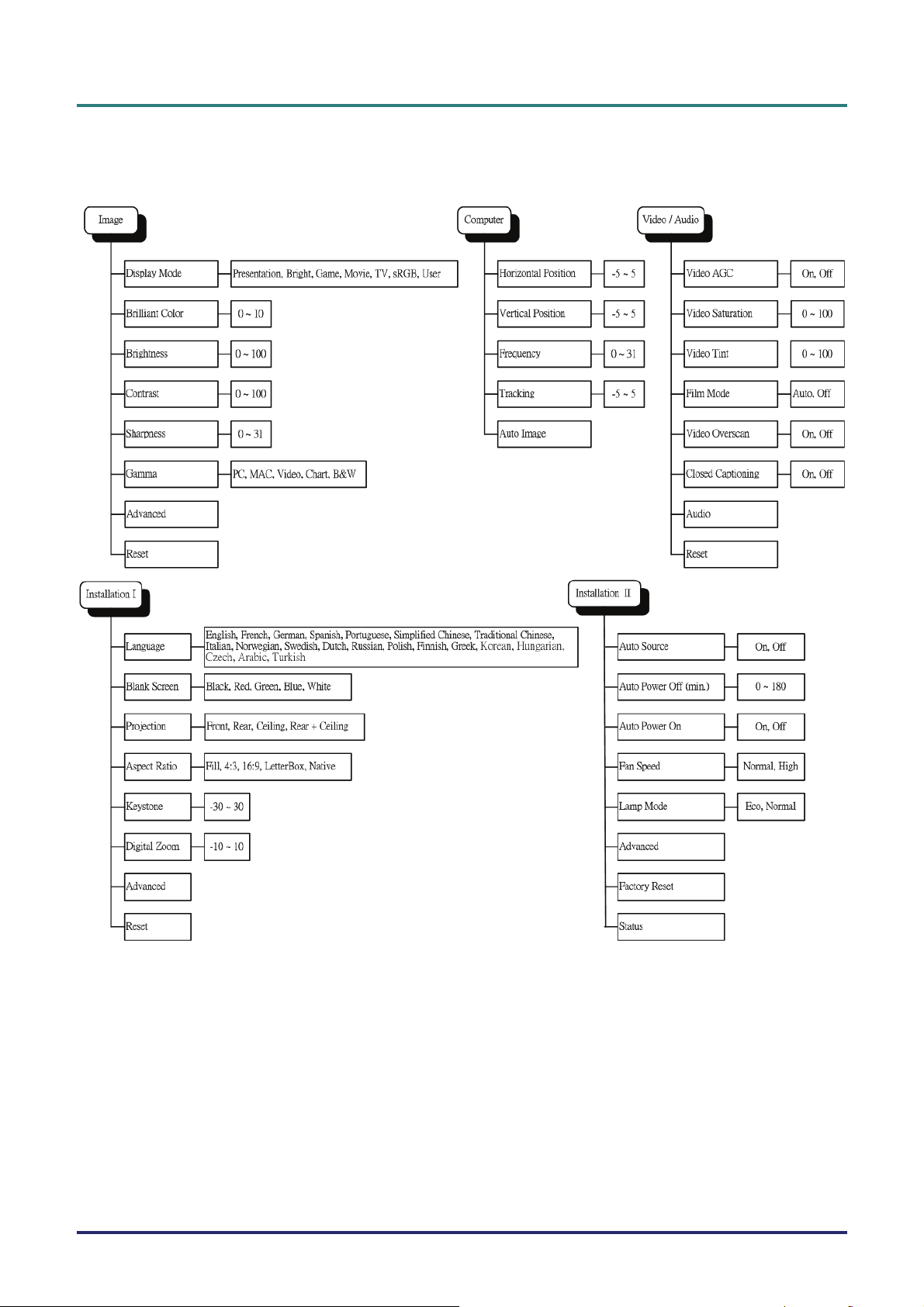

OSD SUB-MENU OVERVIEW ............................................................................................................................................. 21

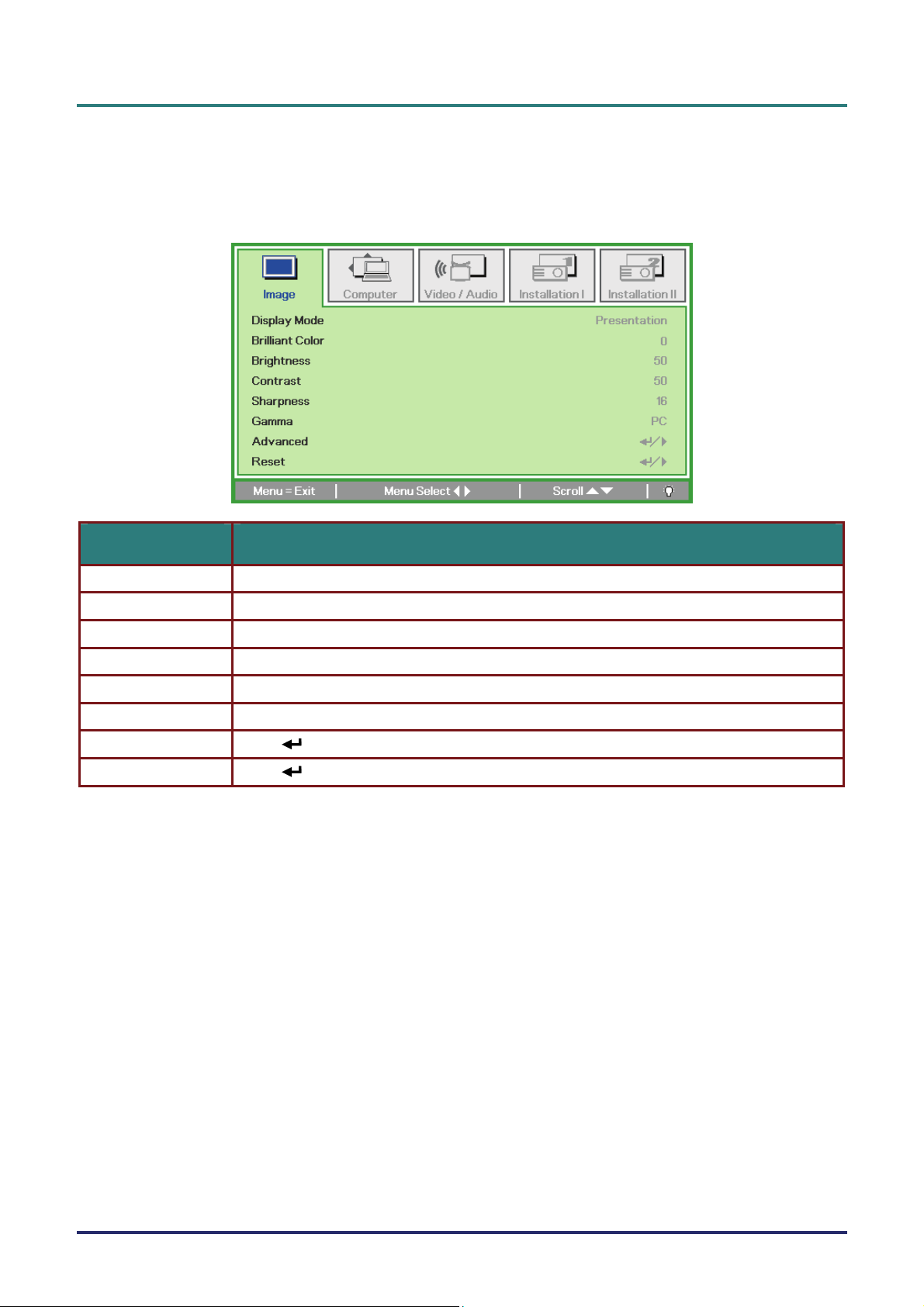

IMAGE MENU..................................................................................................................................................................... 22

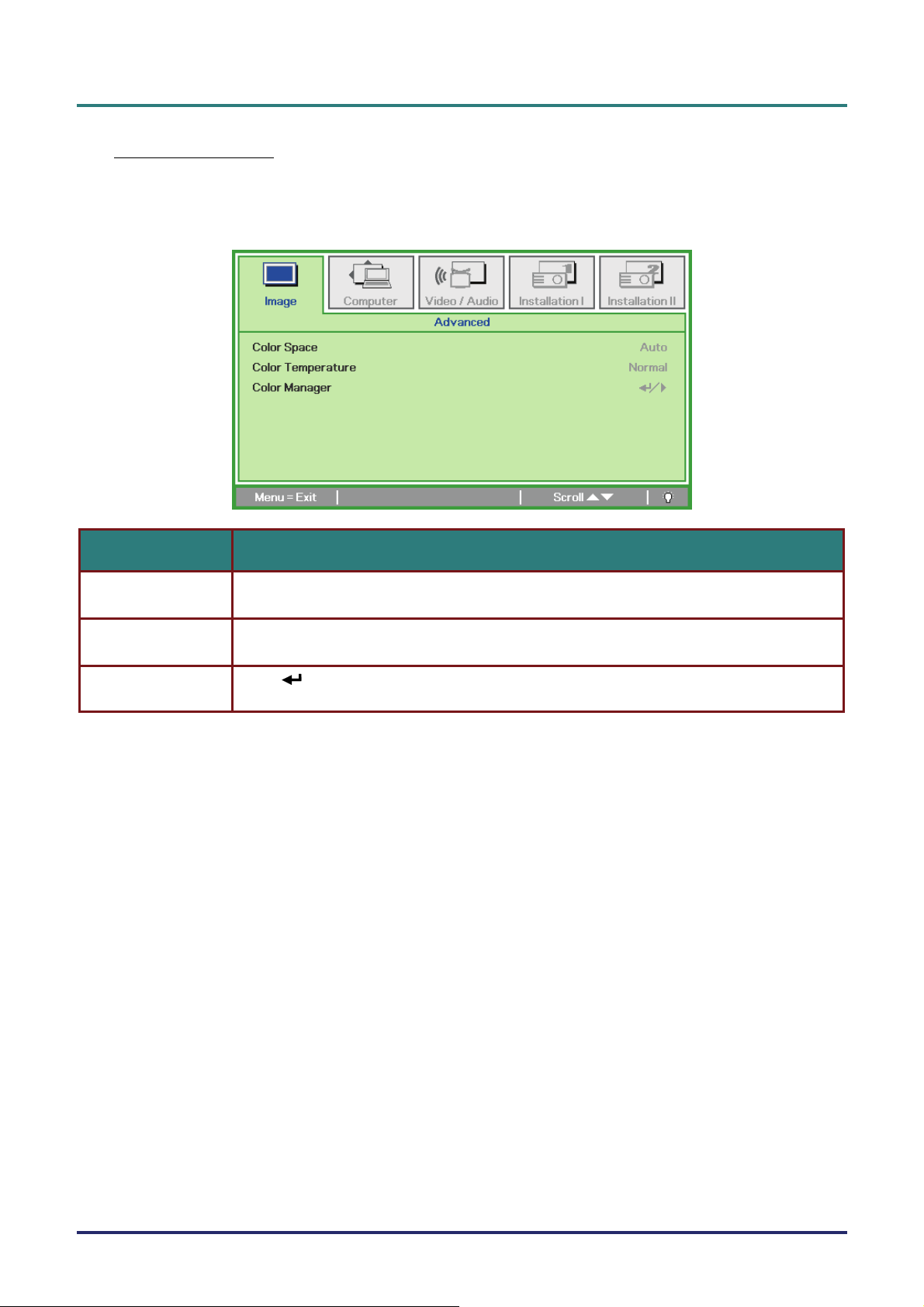

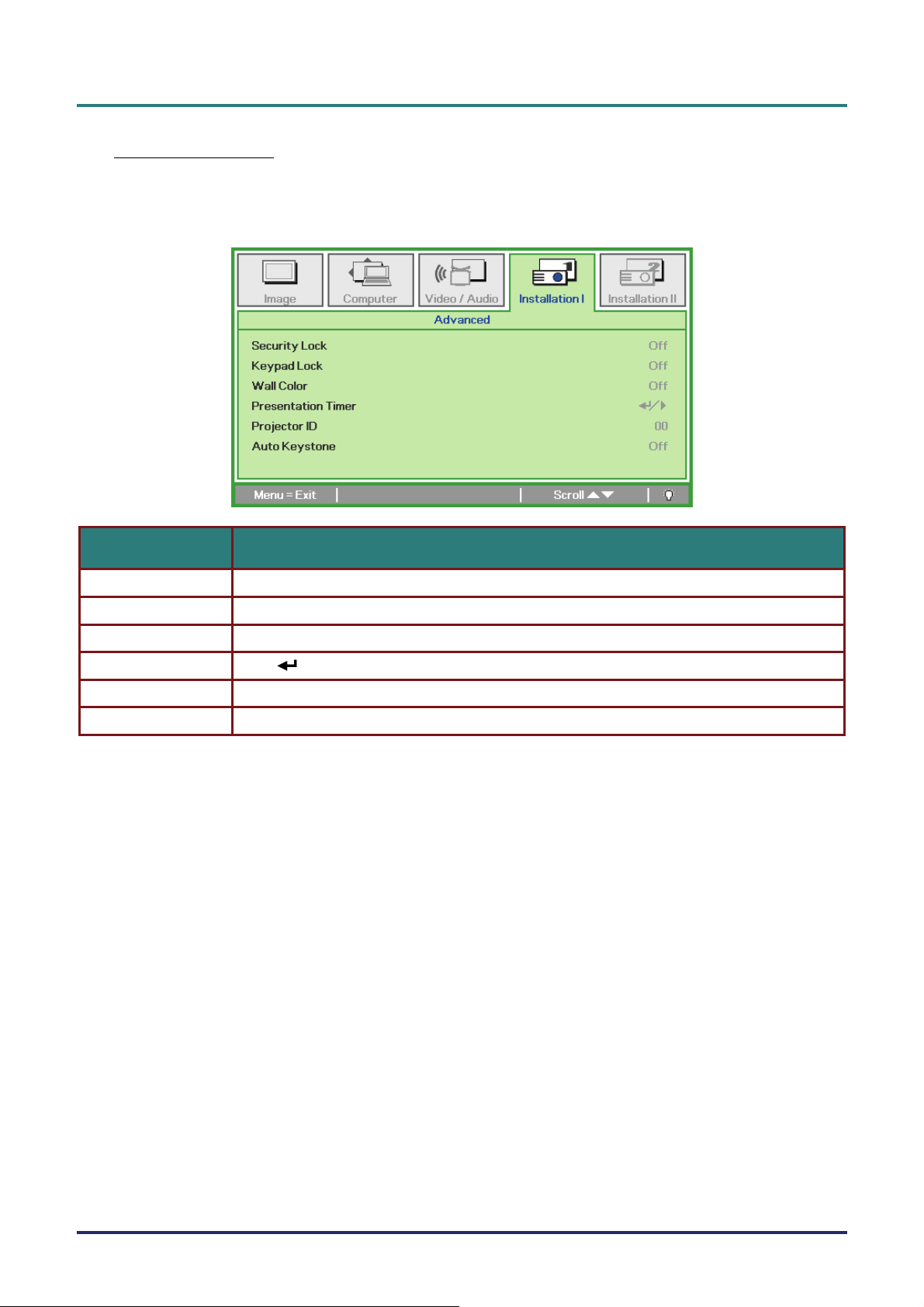

Advanced Feature......................................................................................................................................................... 23

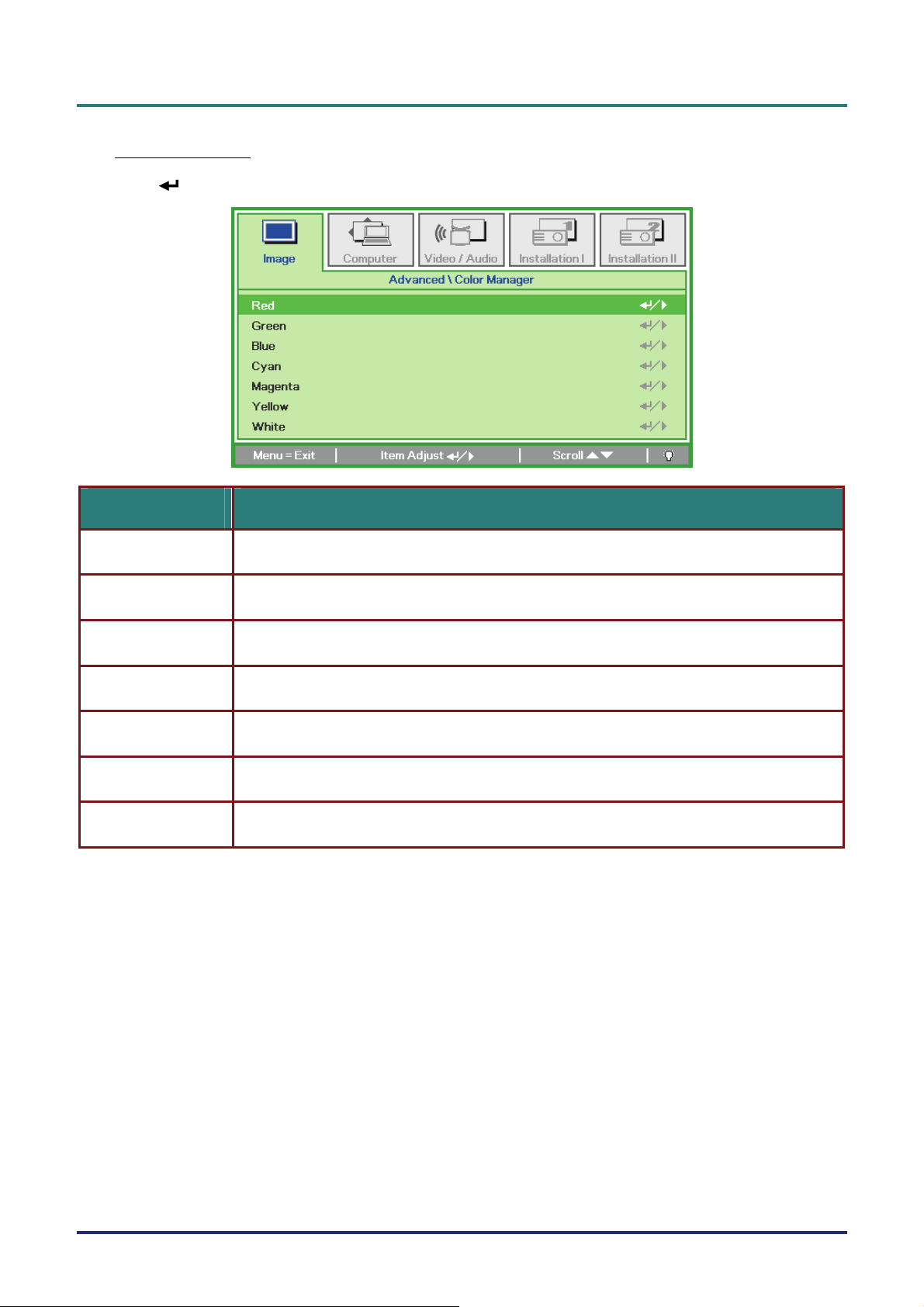

Color Manager.............................................................................................................................................................. 24

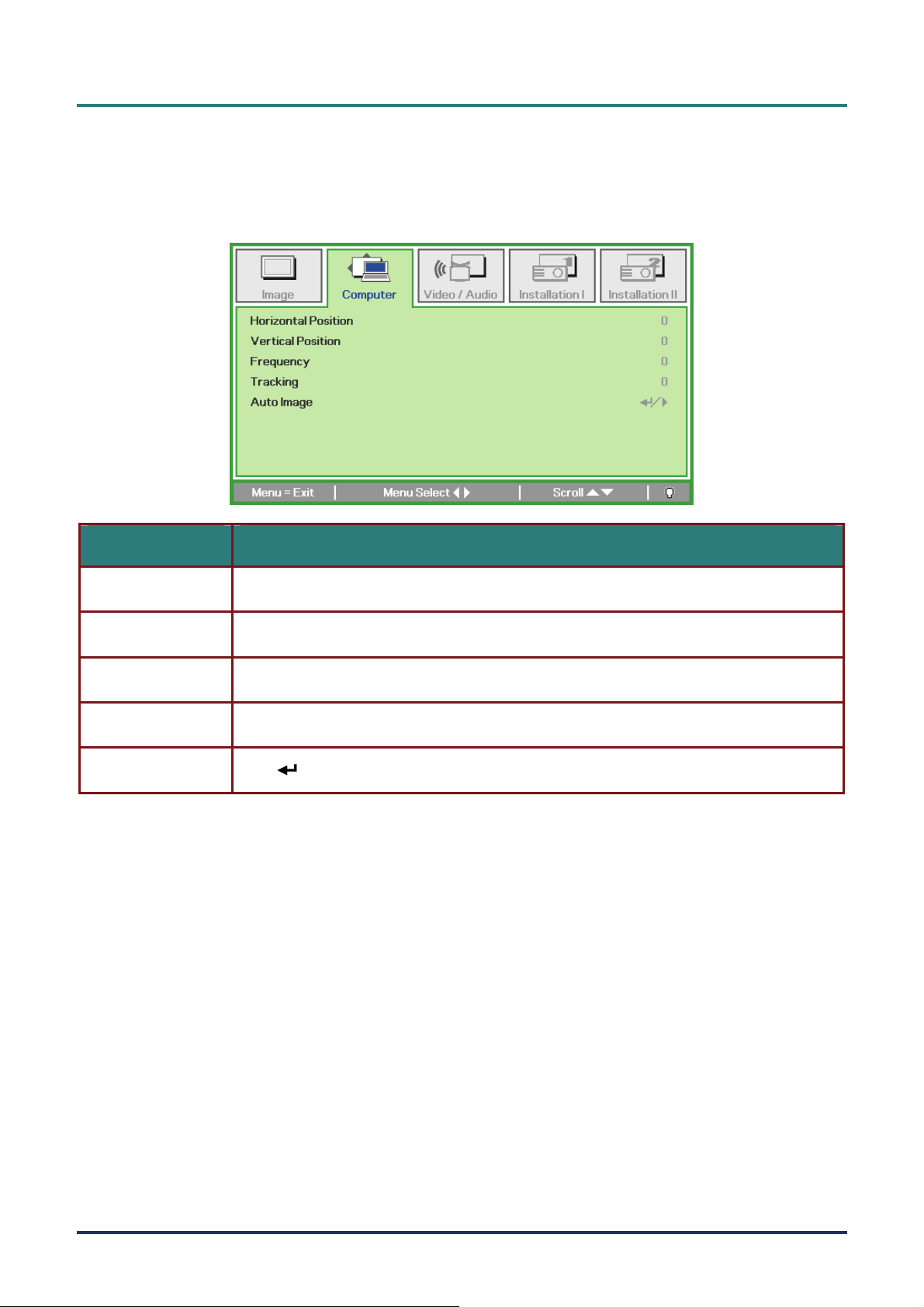

COMPUTER MENUU.............................................................................................................................................................. 25

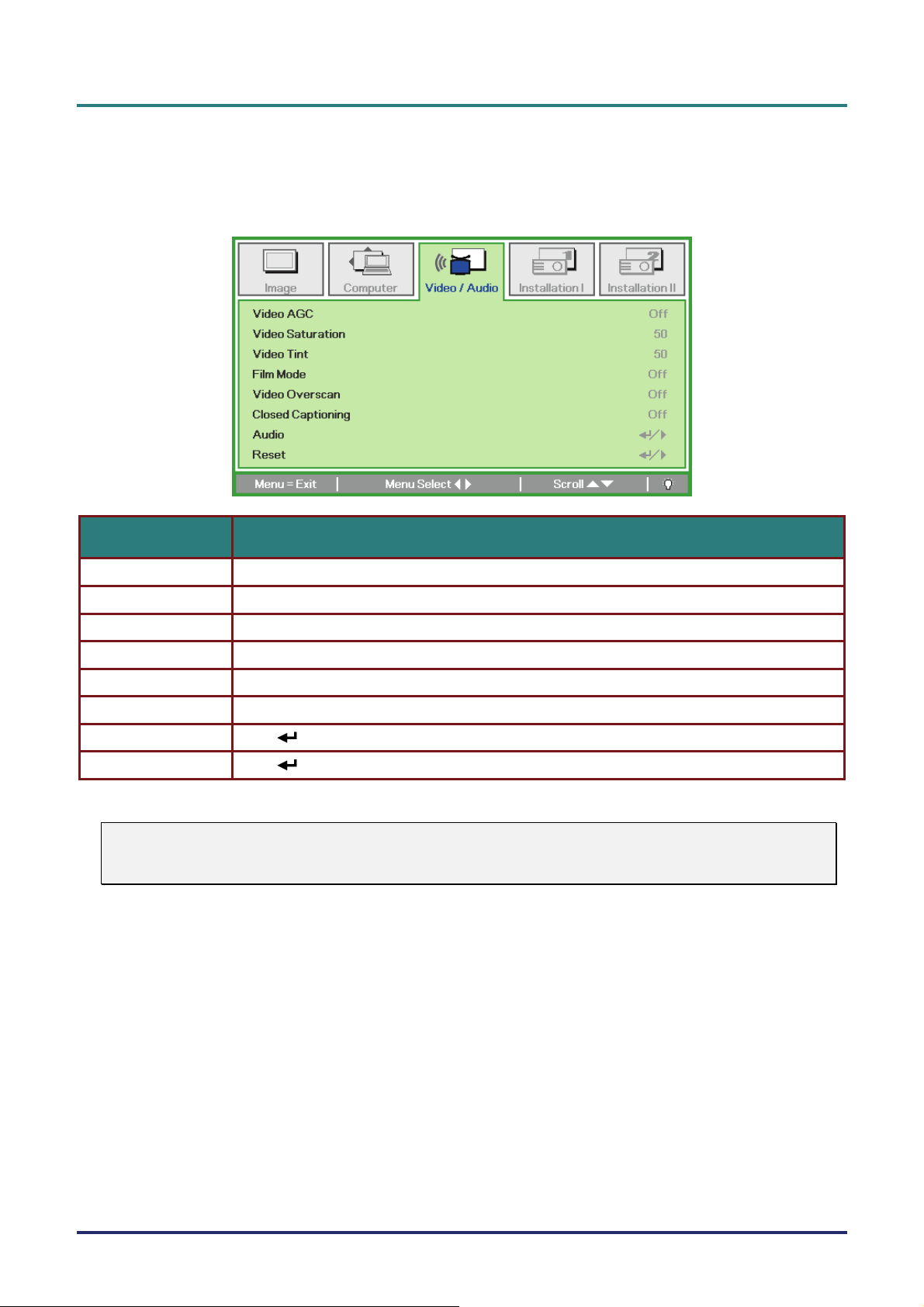

VIDEO/AUDIO MENU ......................................................................................................................................................... 26

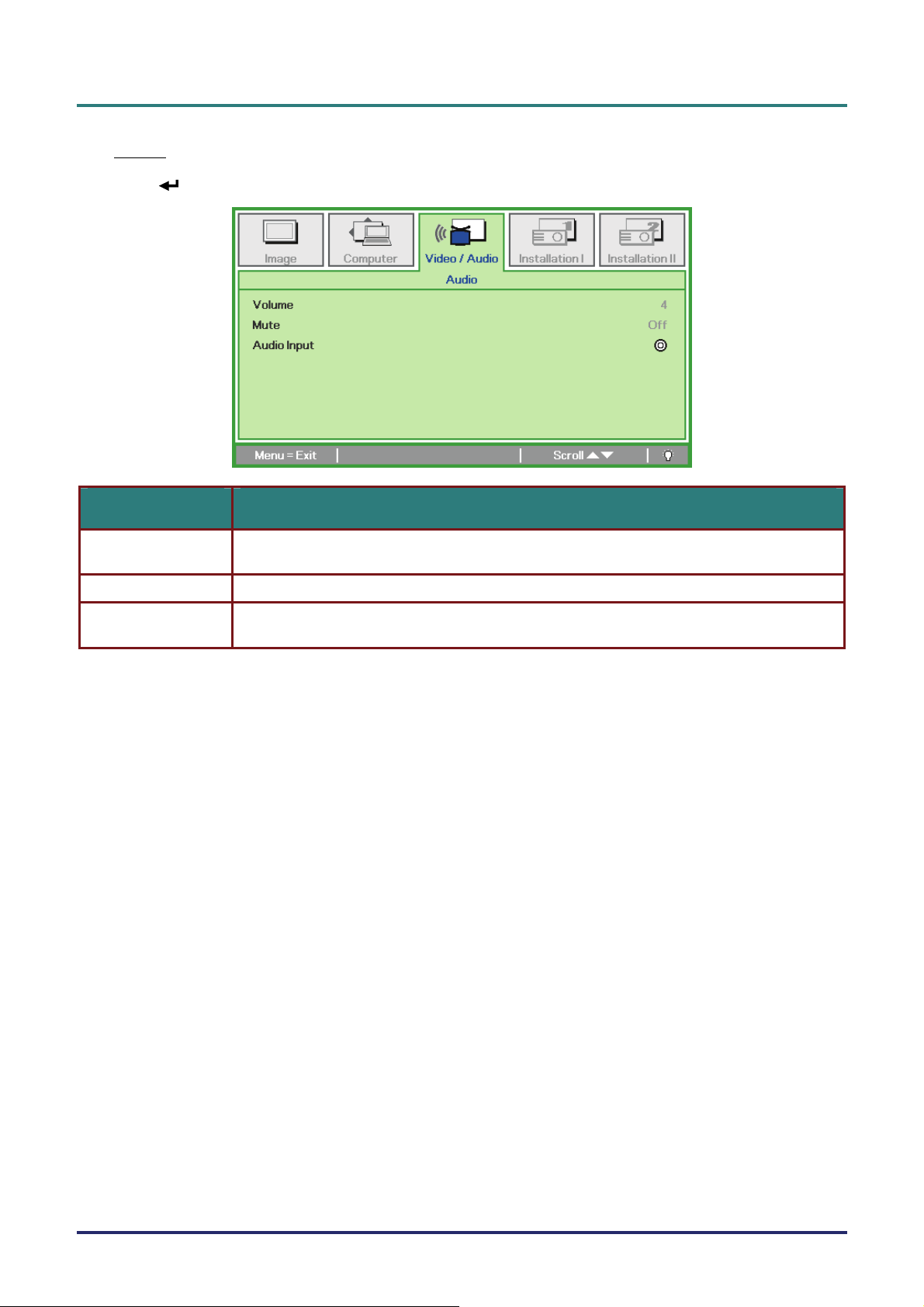

Audio............................................................................................................................................................................. 27

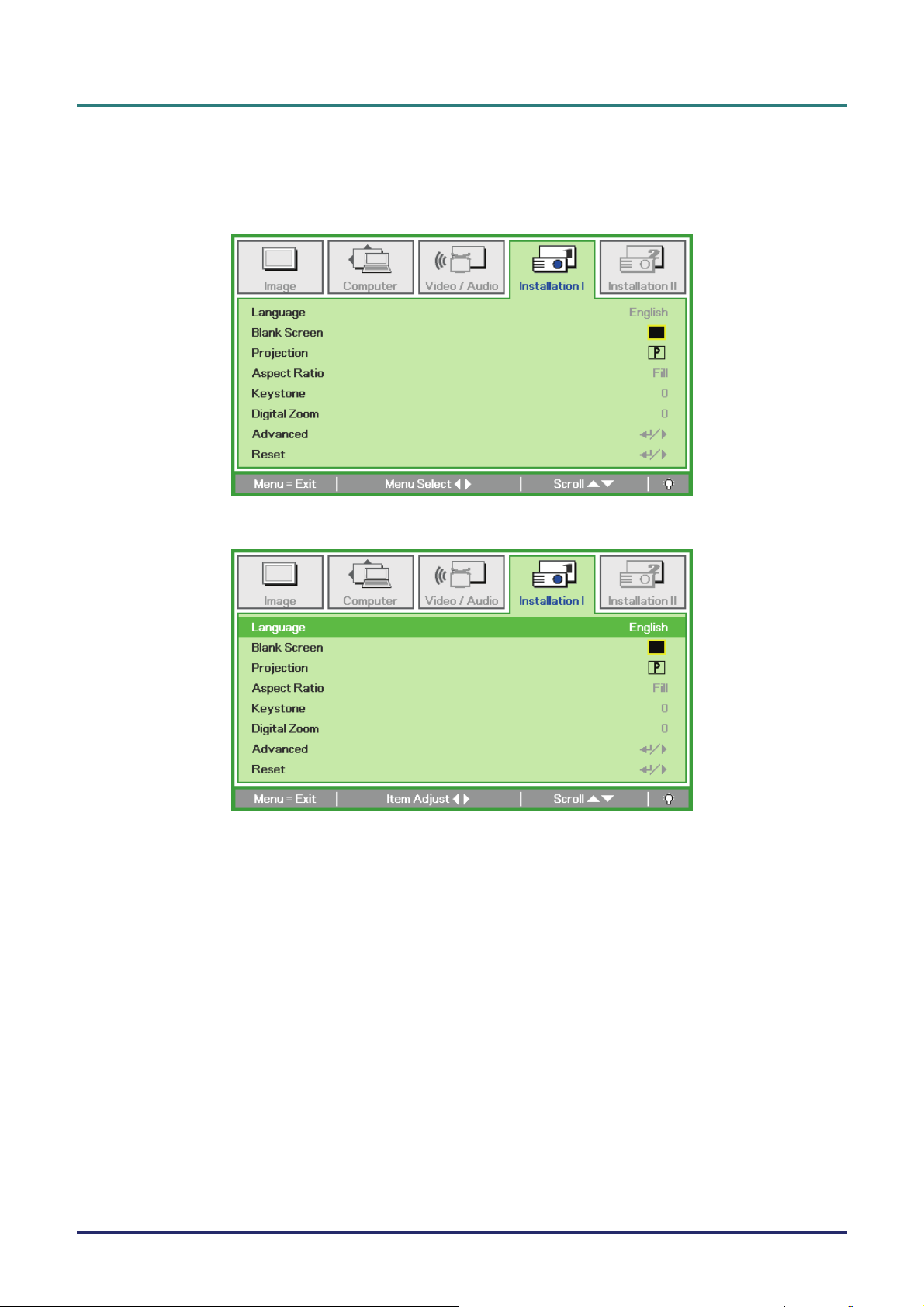

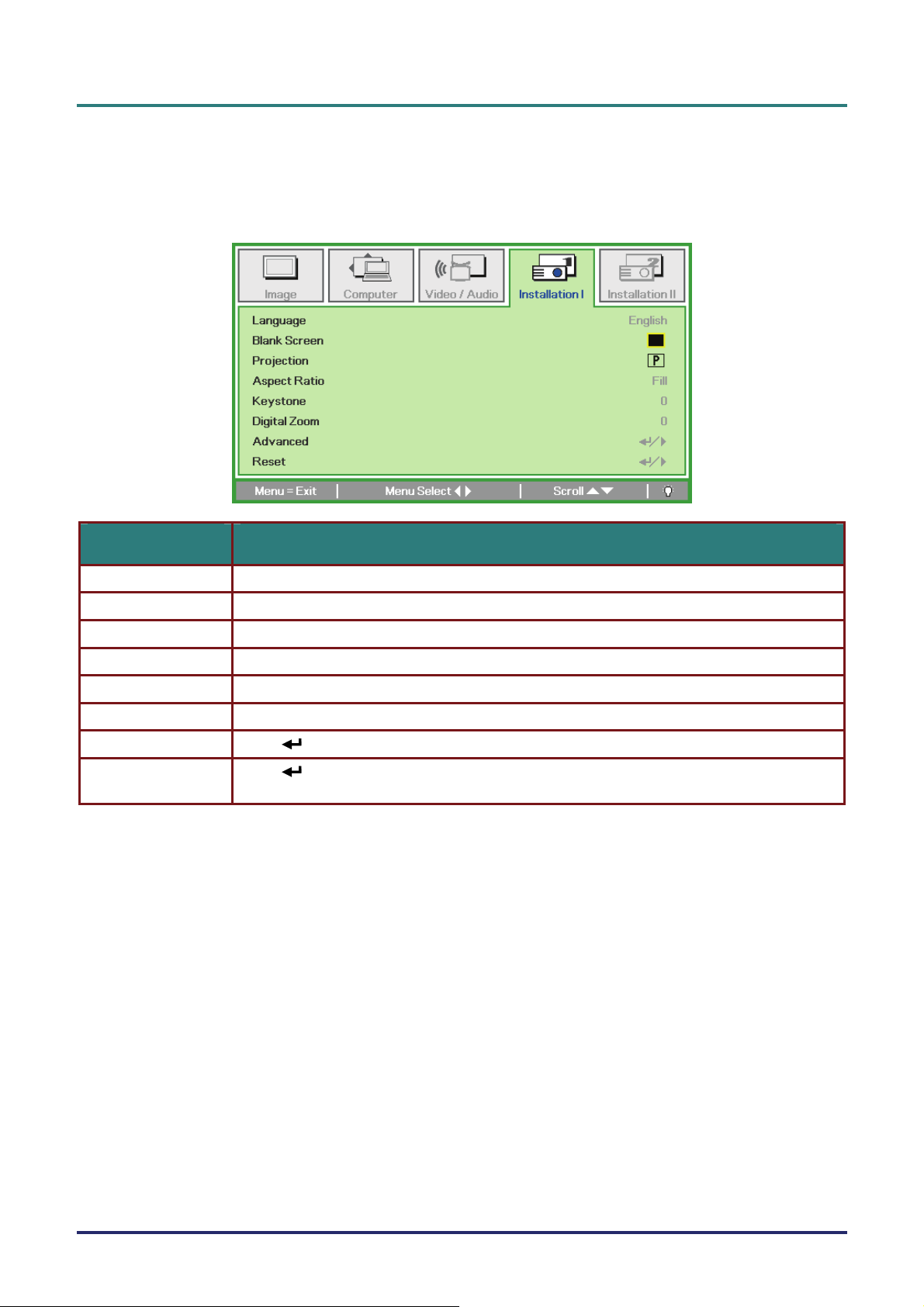

INSTALLATION I MENU ...................................................................................................................................................... 28
INSTALLATION II MENU..................................................................................................................................................... 31

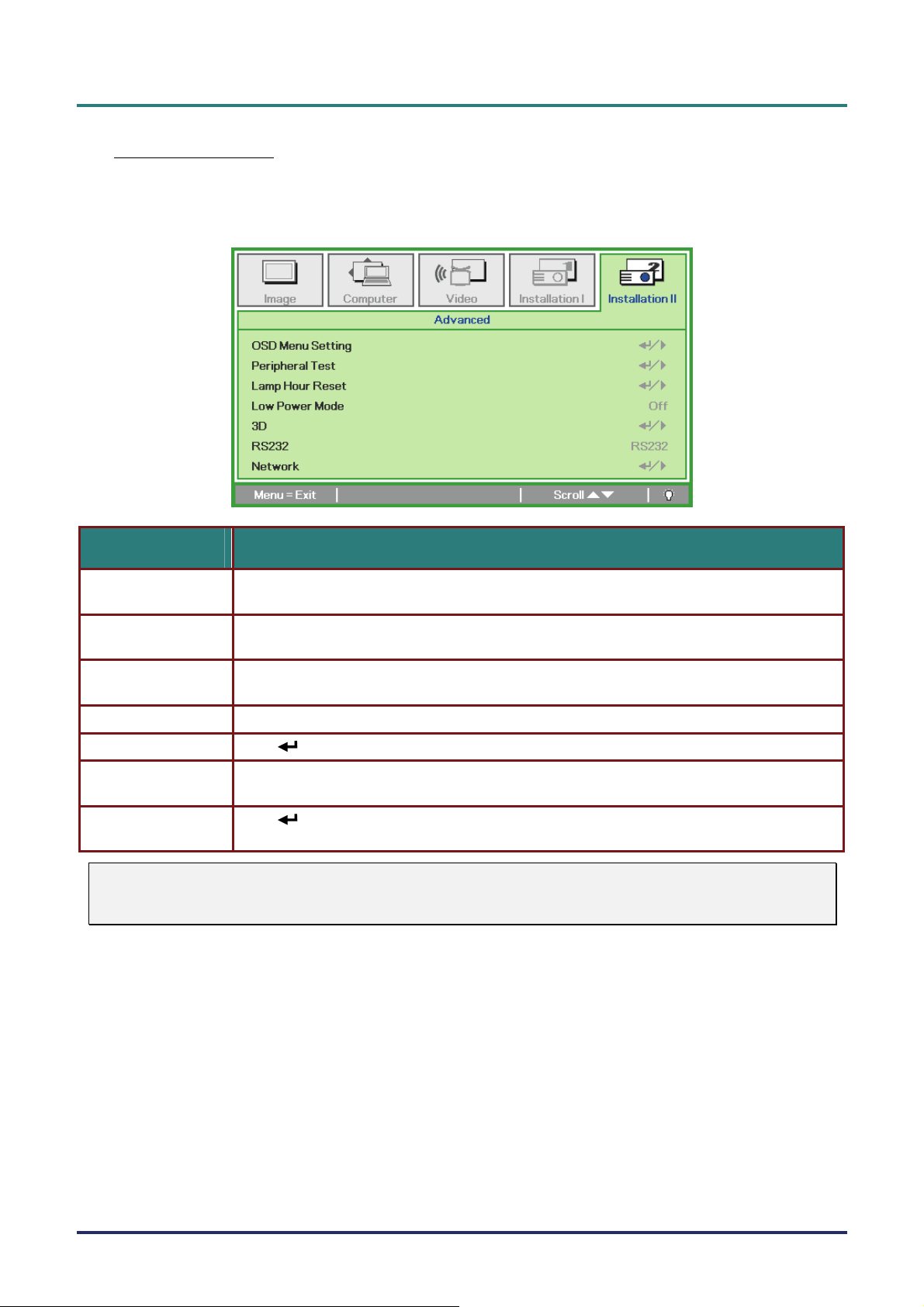

Advanced Feature......................................................................................................................................................... 32

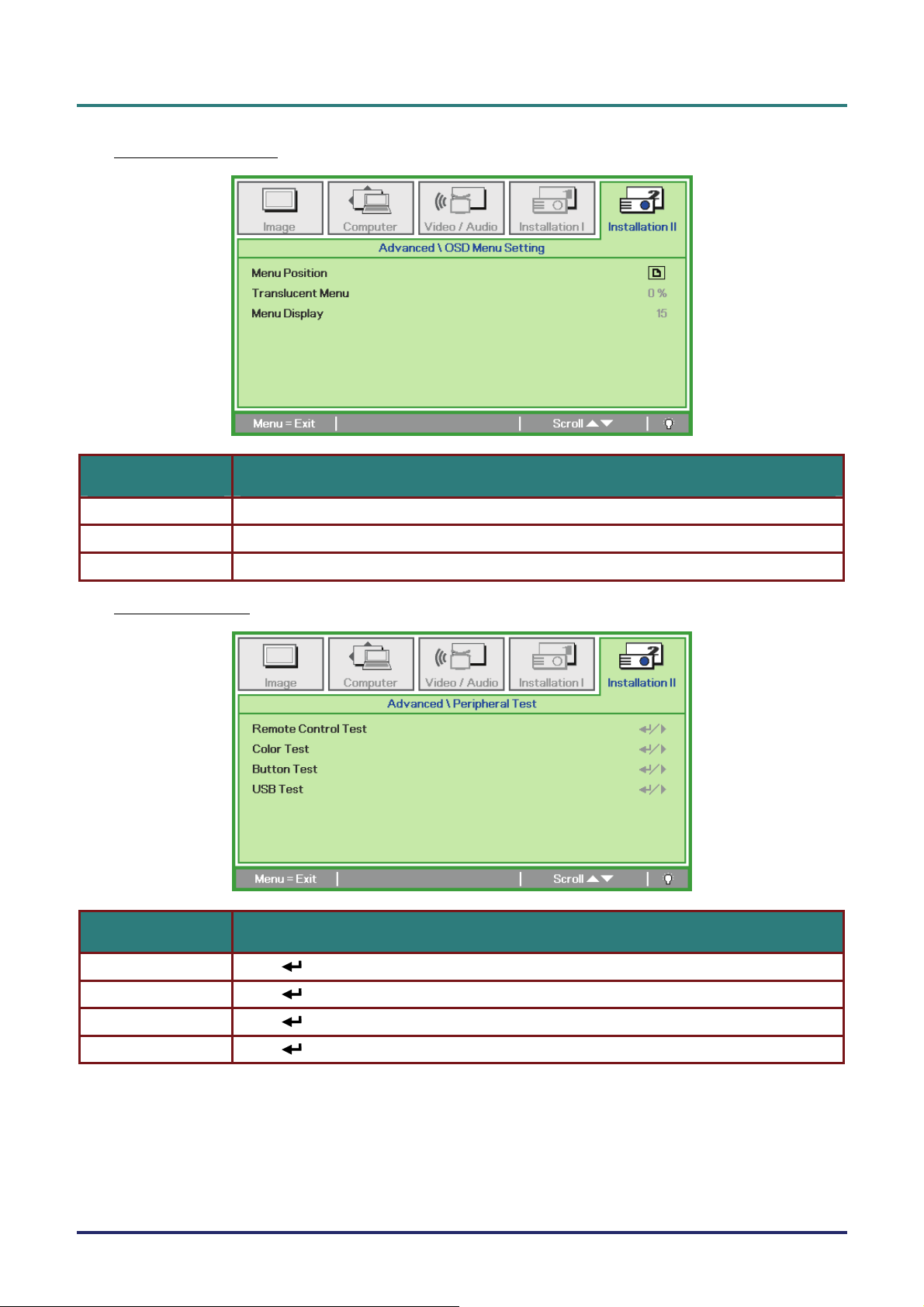

OSD Menu Setting......................................................................................................................................................... 33
Peripheral Test.............................................................................................................................................................. 33

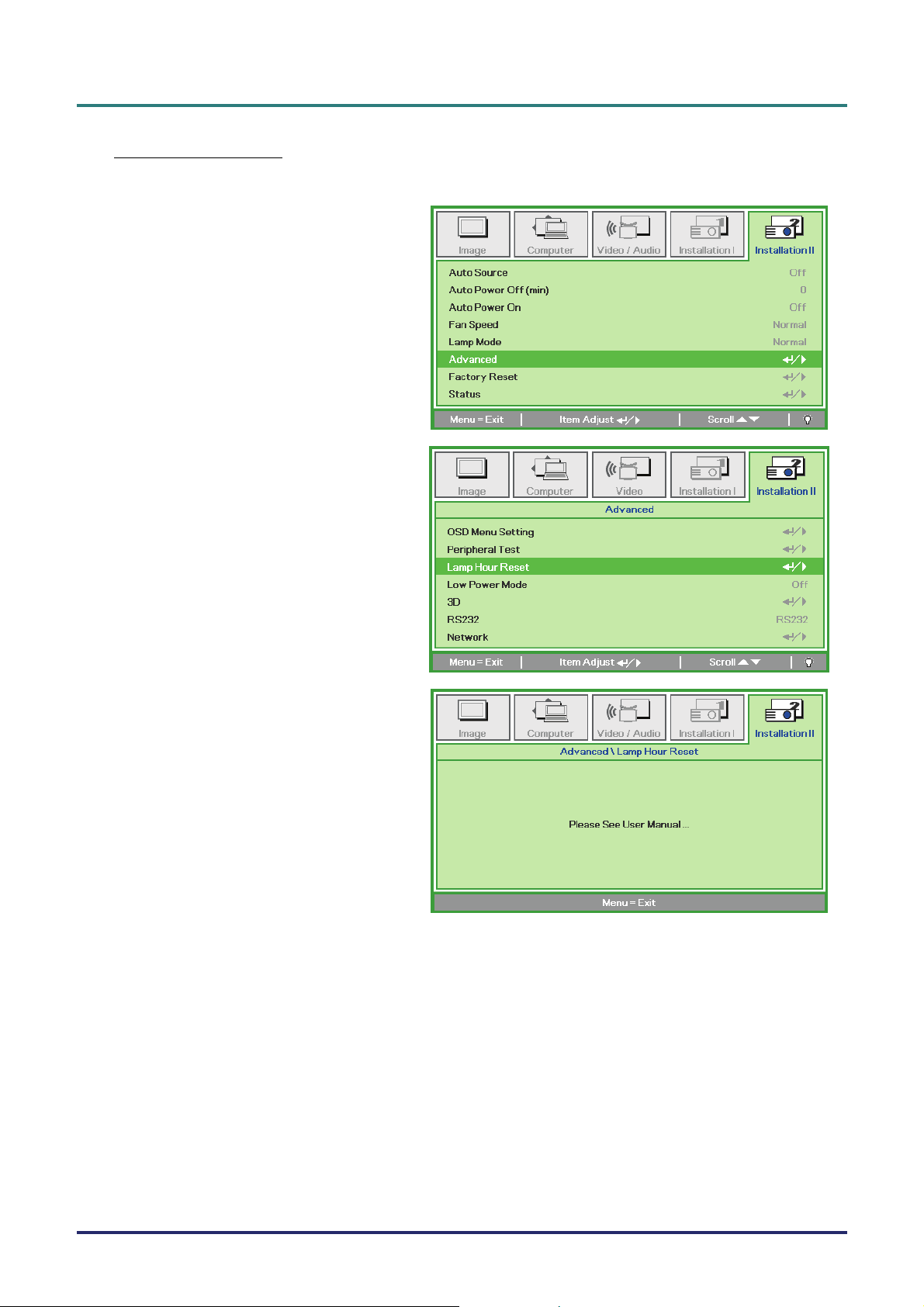

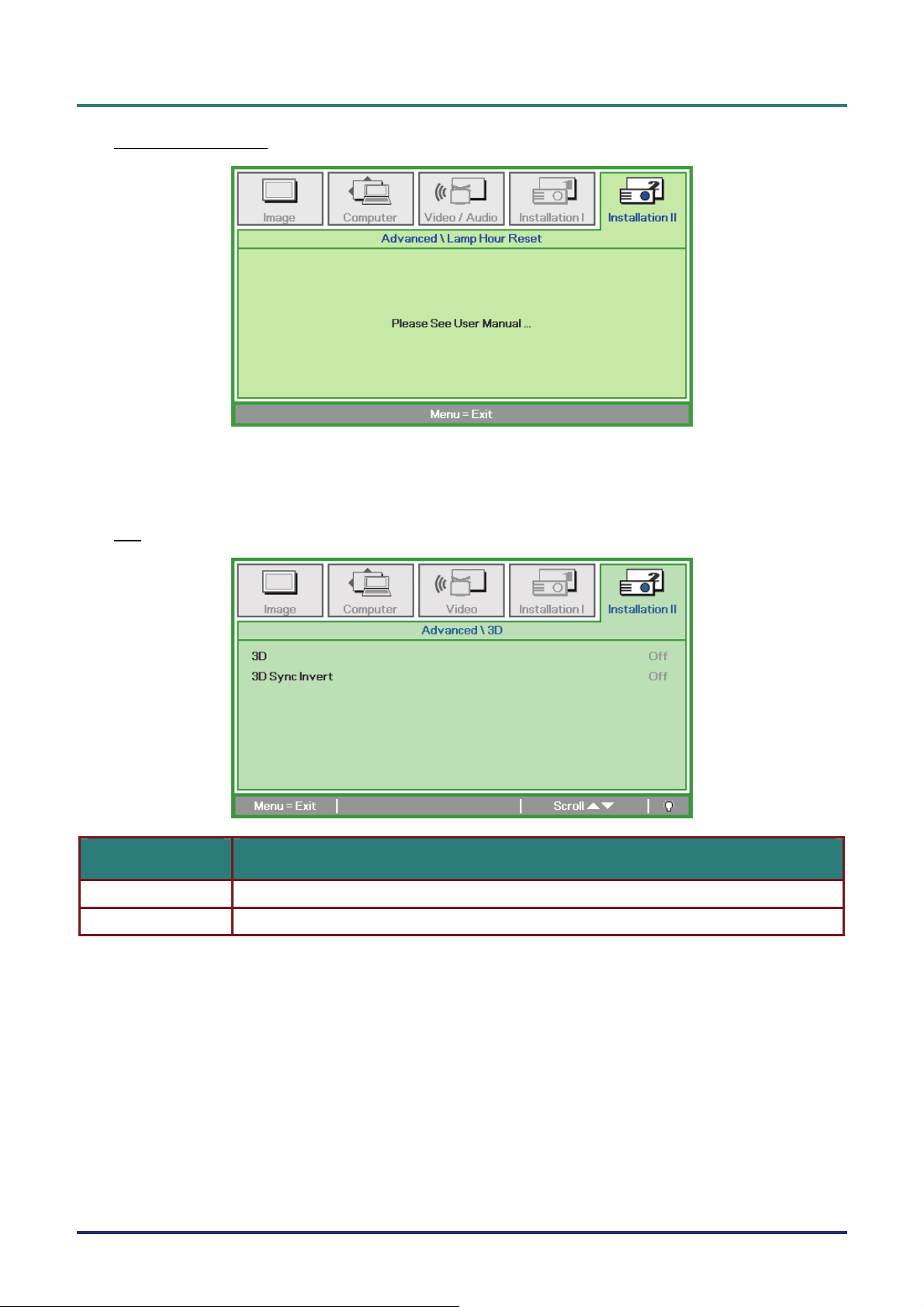

Lamp Hour Reset .......................................................................................................................................................... 34

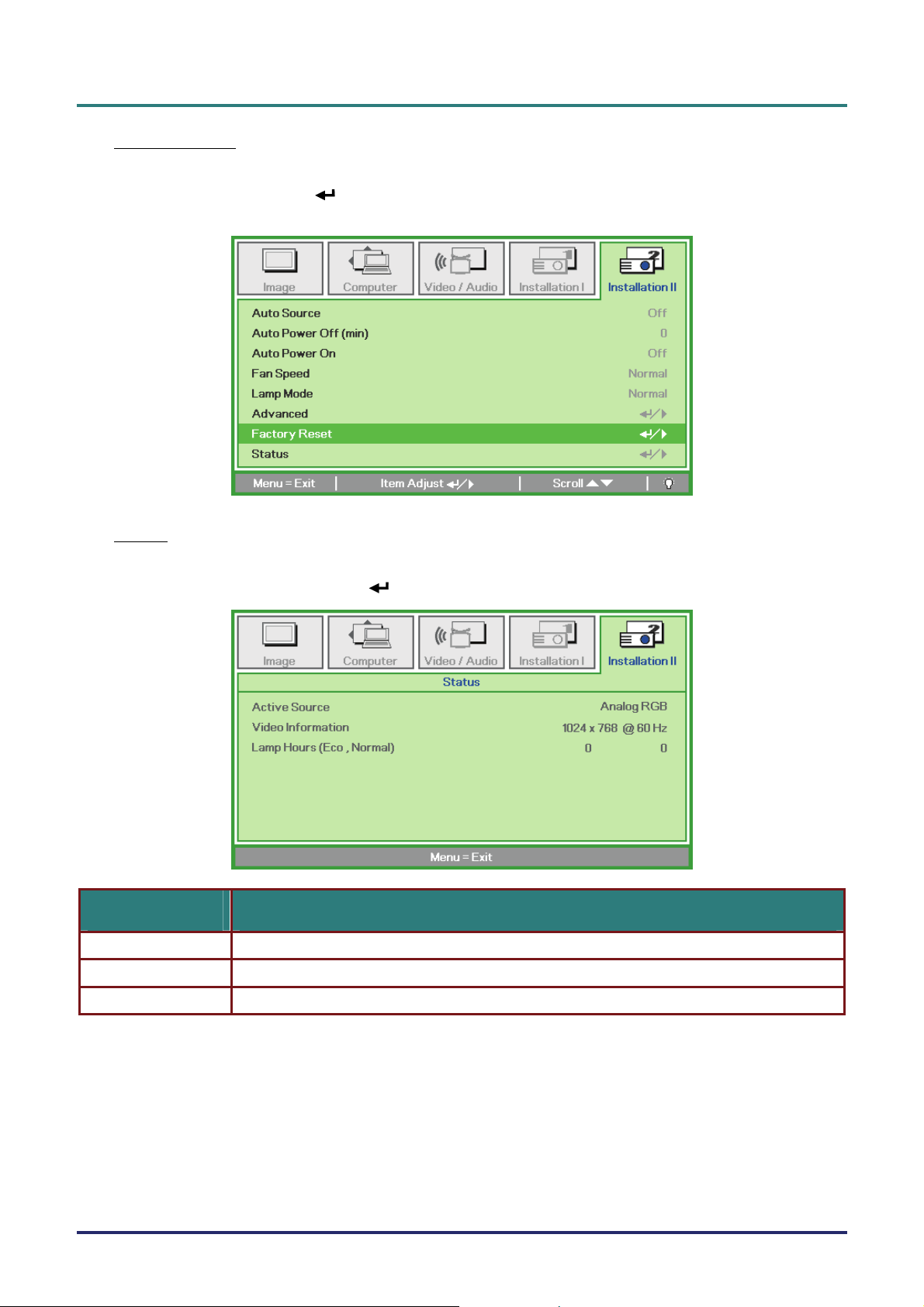

Factory Reset ................................................................................................................................................................ 40
Status............................................................................................................................................................................. 40
MAINTENANCE AND SECURITY................................................................................................................................. 41

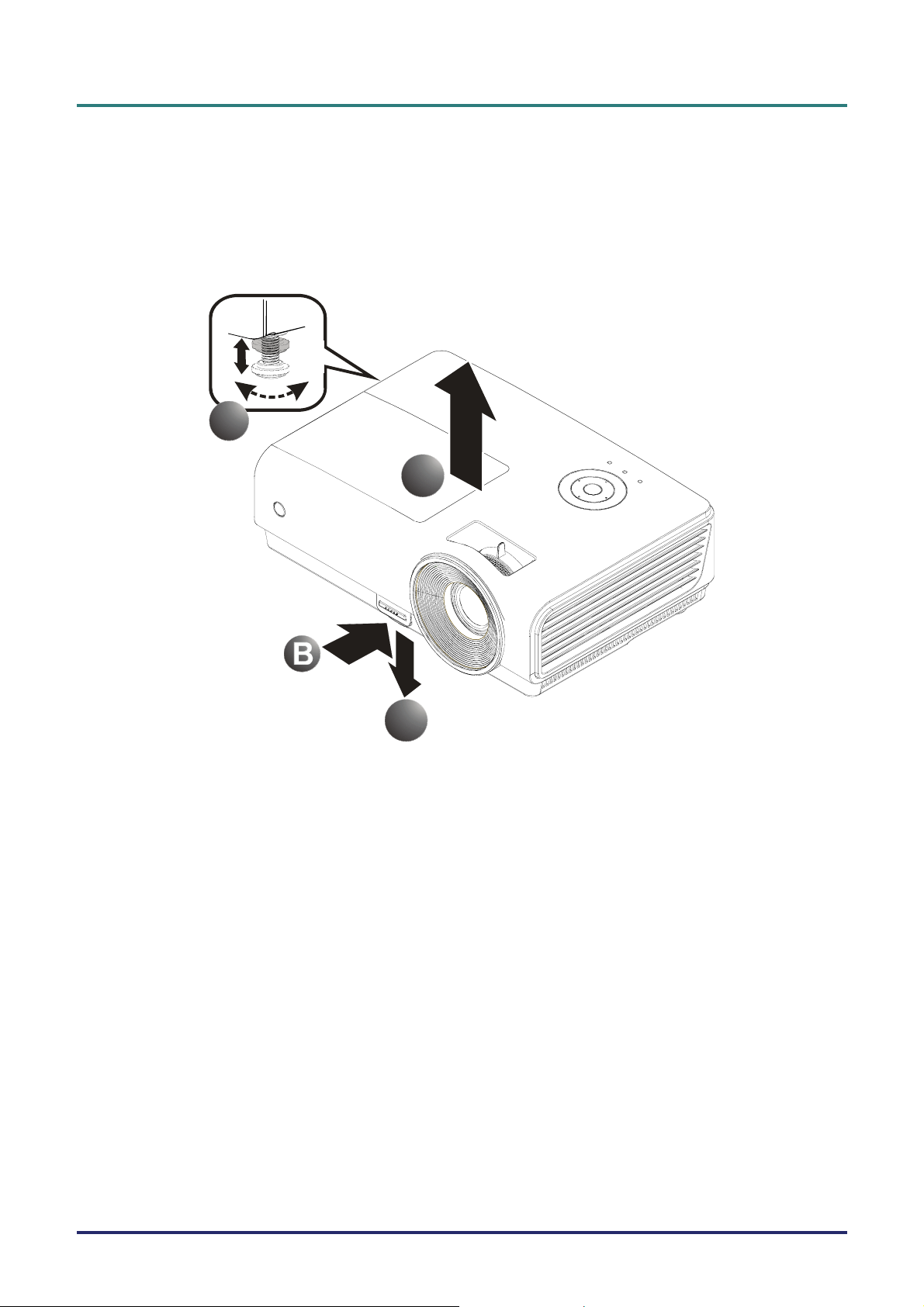

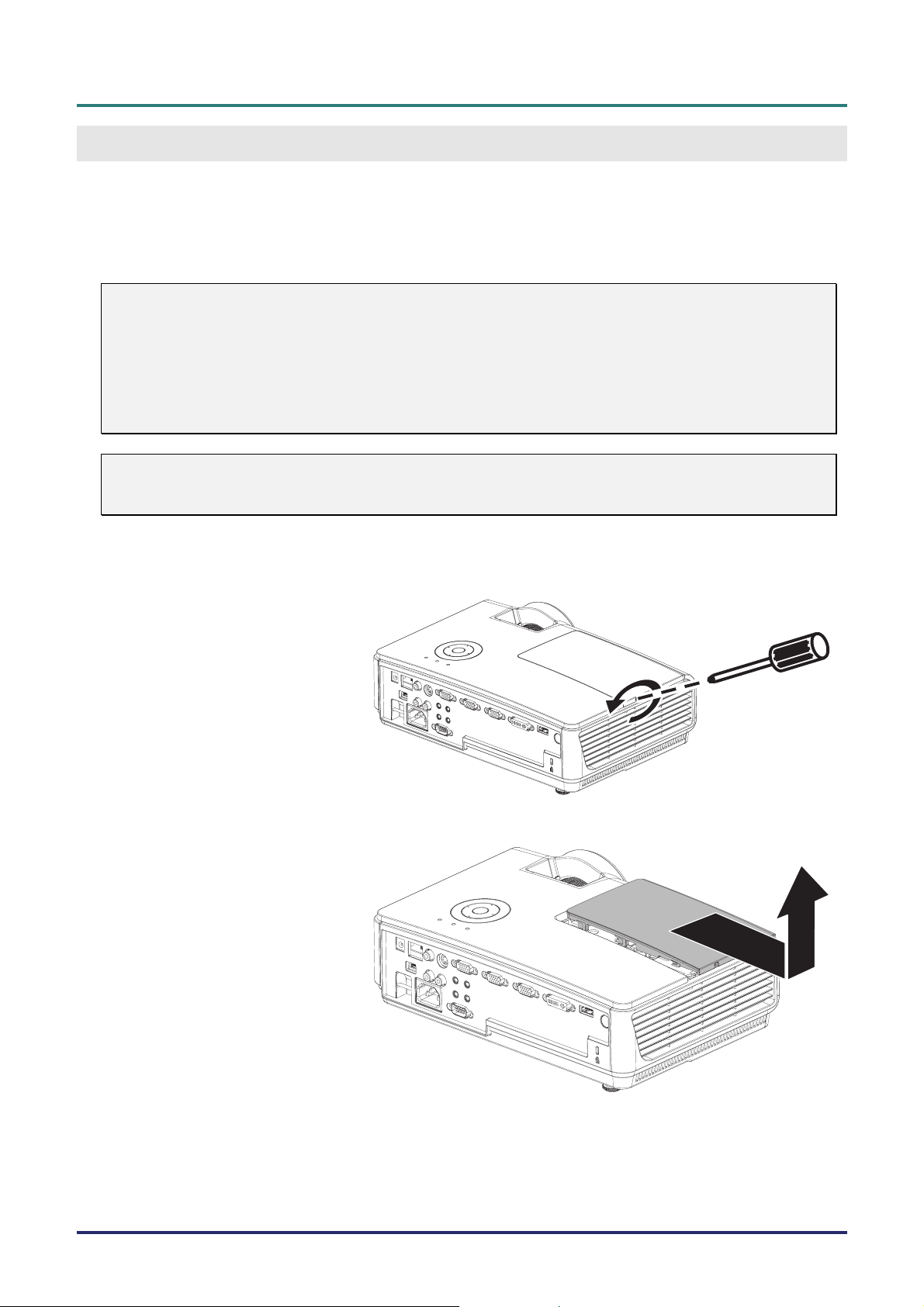

REPLACING THE PROJECTION LAMP................................................................................................................................... 41
Resetting the Lamp........................................................................................................................................................ 43
CLEANING THE PROJECTOR................................................................................................................................................ 44
Cleaning the Lens ......................................................................................................................................................... 44
Cleaning the Case......................................................................................................................................................... 44

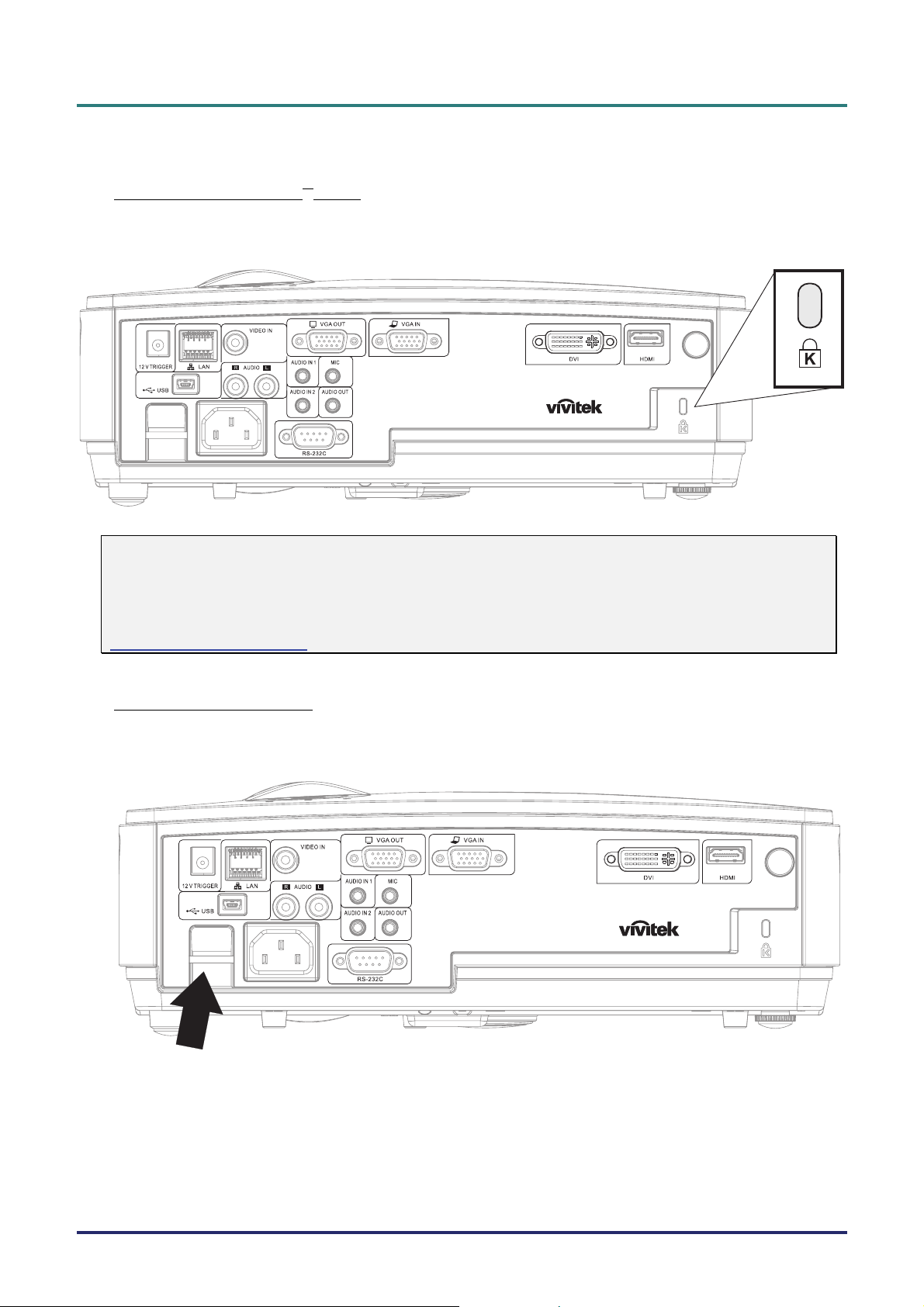

USING THE KENSINGTON
®
LOCK ....................................................................................................................................... 45
TROUBLESHOOTING ..................................................................................................................................................... 46
COMMON PROBLEMS AND SOLUTIONS ............................................................................................................................... 46
TIPS FOR TROUBLESHOOTING ............................................................................................................................................ 46
LED ERROR MESSAGES..................................................................................................................................................... 47
IMAGE PROBLEMS.............................................................................................................................................................. 47
LAMP PROBLEMS ............................................................................................................................................................... 48
REMOTE CONTROL PROBLEMS .......................................................................................................................................... 48
AUDIO PROBLEMS ............................................................................................................................................................. 48
HAVING THE PROJECTOR SERVICED .................................................................................................................................. 48
— vi —
Page 8
HDMITM Q & A……………………………….……………………………………………………………………….48
SPECIFICATIONS............................................................................................................................................................. 50
SPECIFICATIONS................................................................................................................................................................. 50

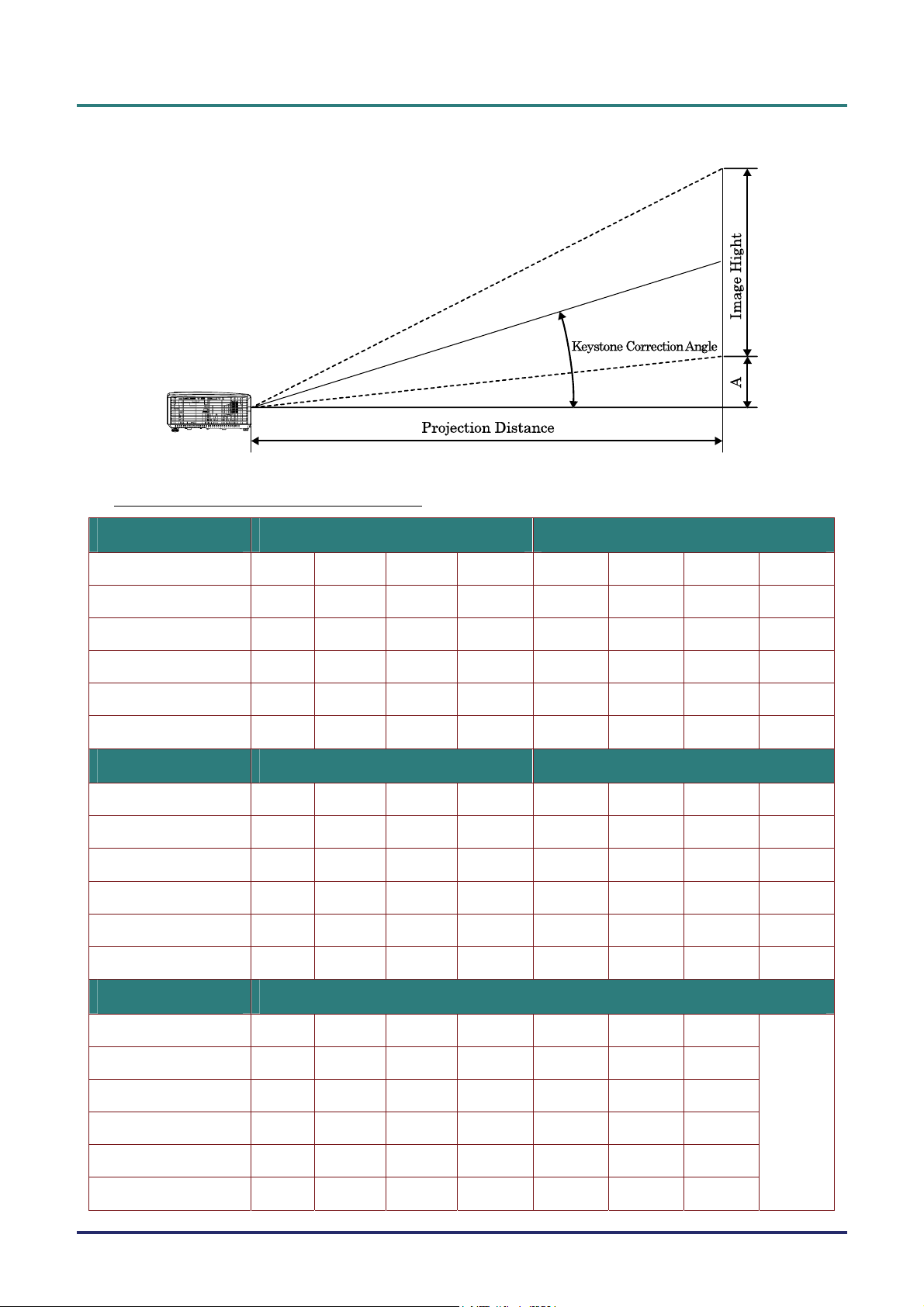

PROJECTION DISTANCE VS. PROJECTION SIZE.................................................................................................................... 51
Projection Distance and Size Table.............................................................................................................................. 51
TIMING MODE TABLE ........................................................................................................................................................ 51

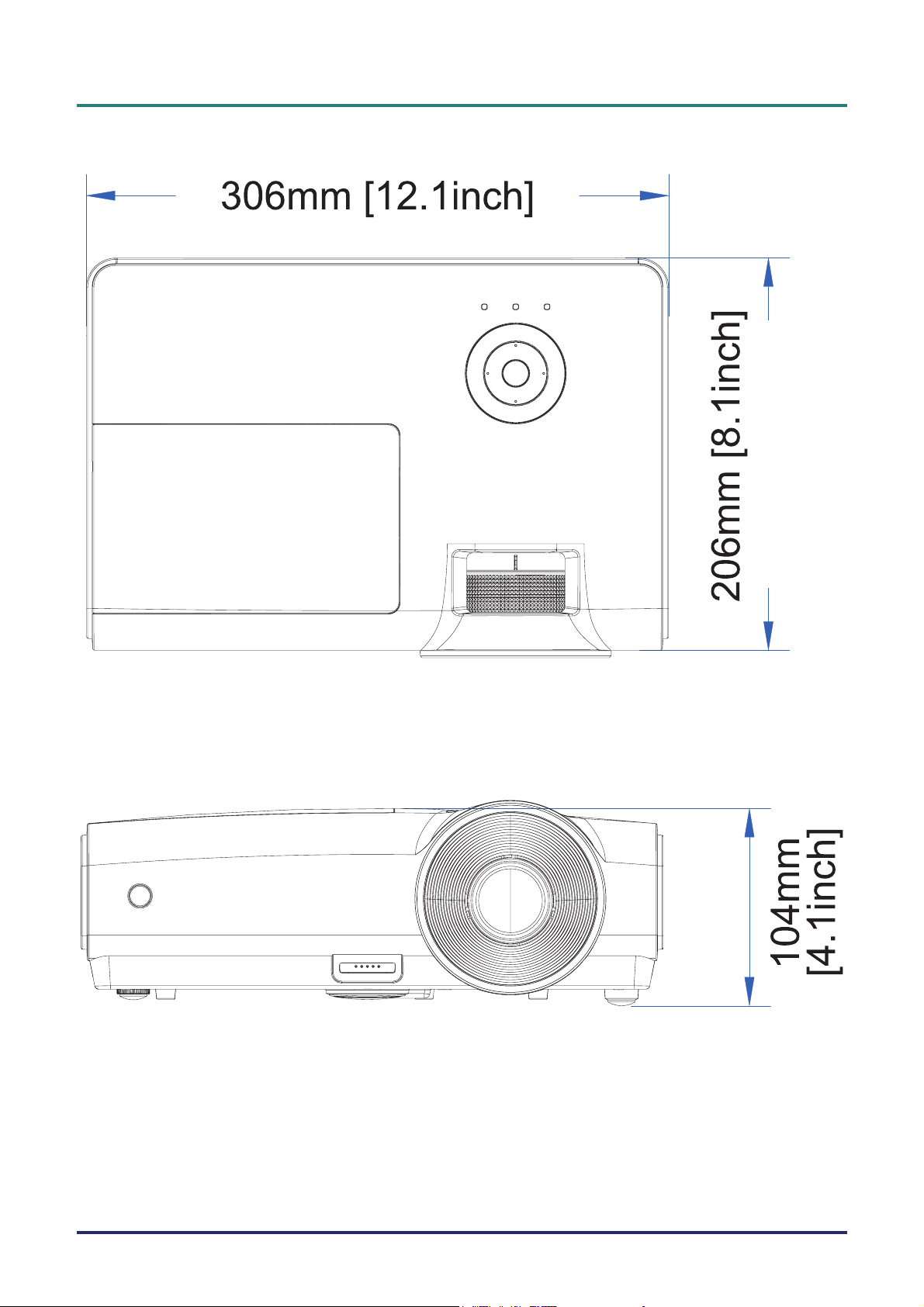

PROJECTOR DIMENSIONS ................................................................................................................................................... 54
REGULATORY COMPLIANCE ..................................................................................................................................... 55
FCC WARNING .................................................................................................................................................................. 55
CANADA ............................................................................................................................................................................ 55
SAFETY CERTIFICATIONS ................................................................................................................................................... 55
Preface
– vii –
Page 9
DLP Projector – User’s Manual
G
ETTING STARTED
Packing Checklist
Carefully unpack the projector and check that the following items are included:
DLP PROJECTOR WITH LENS CAP
EMOTE CONTROL
R
WITH TWO AAA BATTERIES)
C
(
ARRYING CASE CD-ROM
HIS USER’S MANUAL)
(T
RGB CABLE POWER CORD
UICK START GUIDE WARRANTY CARD
Q
Contact your dealer immediately if any items are missing, appear damaged, or if the unit does not work. It
is recommend that you keep the original packing material should you ever need to return the equipment
for warranty service.
Caution:
Avoid using the projector in dusty environments.
– 1 –
Page 10
DLP Projector—User’s Manual
Views of Projector Parts
Front-right View
1
3
2
5
4
67
ITEM LABEL DESCRIPTION SEE PAGE:
2.
IR receiver Receive IR signal from remote control
Height-adjuster button Push to release height adjuster
61.
15
3.
4.
5.
Height adjuster Adjusts level of projector
Lens Projection Lens
Focus ring Focuses the projected image
16
6.
7.
Note: (*)N
Important:
Ventilation openings on the projector allow for good air circulation, which keeps the projector lamp
cool. Do not obstruct any of the ventilation openings.
Zoom ring (*) Enlarges the projected image
Function keys
ot available in
D855ST.
See Top view—On-screen Display (OSD) buttons
and LEDs.
3
– 2 –
Page 11
DLP Projector – User’s Manual
Top view—On-screen Display (OSD) buttons and LEDs
10
M
4
E
C
R
2
U
O
S
11
TEMP
POWER
6
5
N
E
U
A
U
T
3
O
12
9
1
LAMP
8
7
ITEM LABEL DESCRIPTION
(POWER)
SOURCE Detects the input device
Turns the projector On or Off
SEE
PAGE:
111.
102.
3.
4.
5.
6.
7.
8.
9.
10.
11.
AUTO Optimizes image size, position, and resolution
▲ (Up cursor) /
KEYSTONE
Navigates and changes settings in the OSD
Quick Menu – For Keystone
► (Right cursor) Navigates and changes settings in the OSD
On System over temperature
TEMP LED
Off Normal State
On Lamp Error.
LAMP LED
Off Normal State
Green Power On
POWER LED
Off Power Off (AC Off)
Flashing System Initialized / Cooling / Error code
▼ (Down cursor) /
KEYSTONE
Navigates and changes settings in the OSD
Quick Menu – For Keystone
MENU Open and exits the OSD buttons
◄ (Left cursor) Navigates and changes settings in the OSD
18
18
Enter
Changes settings in the OSD
– 3 –
1812.
Page 12
DLP Projector—User’s Manual
Rear view
1
ITEM LABEL DESCRIPTION SEE PAGE:
1. AC IN Connect the POWER CABLE 11
2. (USB) Connect the USB CABLE from a computer
3. 12V TRIGGER Connect the DC 12V OUT
2
3
4
567
12
8
13
9
10 11
14 15 16
17
4. LAN Connect a LAN CABLE from Ethernet
5. VIDEO IN Connect the COMPOSITE CABLE from a video device
6. AUDIO IN (L and R) Connect the AUDIO CABLES from a audio device
7. AUDIO IN – 1 Connect an AUDIO CABLE from the input device
8. VGA OUT Connect the RGB CABLE to a display
10
9. VGA IN Connect the RGB CABLE from a computer and components
10. DVI Connect the DVI CABLE to a display
11. HDMI
12. AUDIO IN – 2 Connect an AUDIO CABLE from the input device
13. RS-232C Connect RS-232 serial port cable for remote control
14. AUDIO OUT Connect an AUDIO CABLE for audio loop through
15. MIC Connect the Microphone input device
16. Kensington Lock Secure to permanent object with a Kensington® Lock system 45
TM
Connect the HDMITM CABLE from a HDMITM device
17. IR receiver Receive IR signal from remote control
– 4 –
Page 13
Bottom view
DLP Projector – User’s Manual
1
2
1
ITEM LABEL DESCRIPTION SEE PAGE:
1.
3.
4.
Note:
When installing, ensure that you use only UL Listed ceiling mounts.
For ceiling installations, use approved mounting hardware and M4 screws with a maximum screw
depth of 12 mm (0.47 inch).
The construction of the ceiling mount must be of a suitable shape and strength. The ceiling mount
load capacity must exceed the weight of the installed equipment, and as an additional precaution
be capable of withstanding three times the weight of the equipment (not less than 5.15 kg) over a
period of 60 seconds.
Ceiling support holes Contact your dealer for information on mounting the projector on a ceiling
Tilt adjustor Rotate adjuster lever to adjust angle position.
Height adjustor Adjuster drops down when adjuster button is pushed.
Height adjustor button Push to release adjustor.
43
152.
15
– 5 –
Page 14
DLP Projector—User’s Manual
Remote Control Parts
Important:
1. Avoid using the projector with bright fluorescent lighting turned on. Certain high-frequency fluo-
rescent lights can disrupt remote control operation.
2. Be sure nothing obstructs the path between the remote control and the projector. If the path between the remote control and the projector is obstructed, you can bounce the signal off certain
reflective surfaces such as projector screens.
3. The buttons and keys on the projector have the same functions as the corresponding buttons on
the remote control. This user’s manual describes the functions based on the remote control.
– 6 –
Page 15
DLP Projector – User’s Manual
ITEM LABEL DESCRIPTION SEE PAGE:
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
IR transmitter Transmits signals to projector
Status LED Lights when the remote control is used
Laser Press to operate the on-screen pointer
Up Up arrow when connected through USB to a PC
Right Right arrow when connected through USB to a PC
Down Down arrow when connected through USB to a PC
Page Down Page down when connected through USB to a PC
Up cursor
Right cursor
Down cursor
Volume +/- Adjusts volume
Mute Mutes the built-in speaker
Zoom+ Zoom in
Navigates and changes settings in the OSD
18
17
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
Zoom- Zoom out
Freeze Freeze/unfreezes the on-screen picture
Blank Makes the screen blank
Source Detects the input device
Auto Auto adjustment for phase, tracking, size, position
Menu Opens the OSD
Status Opens the OSD Status menu (the menu only opens when an
input device is detected)
Keystone top/bottom Corrects image-trapezoid (wider top/bottom) effect
Left cursor Navigates and changes settings in the OSD
Enter
Page Up Page up when connected through USB to a PC
Left Left arrow when connected through USB to a PC
Enter Enter key when connected through USB to a PC
Changes settings in the OSD
18
40
16
18
27.
28.
Power Turns the projector on or off
Laser Use as on-screen pointer. DO NOT POINT IN EYES.
– 7 –
11
Page 16
DLP Projector—User’s Manual
Remote Control Operating Range
The remote control uses infrared transmission to control the projector. It is not necessary to point the
remote directly at the projector. Provided you are not holding the remote perpendicular to the sides or
the rear of the projector, the remote will function well within a radius of about 7 meters (23 feet) and
15 degrees above or below the projector level. If the projector does not respond to the remote control,
move a little closer.
Projector and Remote Control Buttons
The projector can be operated using the remote control or the buttons on the top of the projector. All
operations can be carried out with the remote control; however, the buttons on the projector are limited in use.
– 8 –
Page 17
Inserting the Remote Control Batteries
Remove the battery compartment cover
1.
by sliding the cover in the direction of
the arrow.
Insert the battery with the positive side
2.
facing up.
DLP Projector – User’s Manual
S
ETUP AND OPERATION
Replace the cover.
3.
Caution:
1. Only use AAA batteries (Alkaline batteries are recommended).
2. Dispose of used batteries according to local ordinance regulations.
3. Remove the batteries when not using the projector for prolonged periods.
– 9 –
Page 18
DLP Projector—User’s Manual
Connecting Input Devices
A PC or notebook computer and video devices can be connected to the projector at the same time. Video
devices include DVD, VCD, and VHS players, as well as movie camcorders and digital still cameras.
Check the user manual of the connecting device to confirm it has the appropriate output connector.
A
B C
D
F
E
G
L
K
H
M
N
I
ITEM LABEL DESCRIPTION
J
A
B
C
D
E
F
G
H
I
J
K
L
(USB)
12V TRIGGER Connect the DC 12V OUT
LAN Connect a LAN CABLE from Ethernet
VIDEO IN Connect the COMPOSITE CABLE from a video device
AUDIO IN (L and R) Connect the AUDIO CABLES from a audio device
AUDIO IN -1 Connect an AUDIO CABLE from the input device
VGA OUT Connect the RGB CABLE to a display (Loop Thru only for VGA IN-1)
VGA IN Connect the RGB CABLE from a computer and components
DVI Connect the DVI CABLE to a display
HDMITM Connect the HDMITM CABLE from a HDMITM device
AUDIO IN -2 Connect an AUDIO CABLE from the input device
RS-232C Connect the RS-232 serial cable for remote control
Connect the USB CABLE from a computer
M
N
Warning:
As a safety precaution, disconnect all power to the projector and connecting devices before making
connections.
AUDIO OUT Connect an AUDIO CABLE for audio loop through
MIC Connect the Microphone input device
– 10 –
Page 19
Starting and Shutting down the Projector
Connect the power cord to the projector.
1.
Connect the other end to a wall outlet.
The
light.
POWER LED on the projector
DLP Projector – User’s Manual
Turn on the connected devices.
2.
Ensure the LAMP LED not a flashing
3.
orange. Then press the
button to turn on the projector.
The projector splash screen displays and
connected devices are detected.
See Setting an Access Password
(Security Lock) on page 13 if security
lock is enabled.
If more than one input device is con-
4.
nected, press the SOURCE button and
use ▲▼ to scroll among devices.
(Component is supported through the
RGB to COMPONENT ADAPTER.)
POWER
• VGA: Analog RGB
Component: DVD input YCbCr / YPbPr, or
HDTV input YPbPr via HD15 connector
• Composite Video: Traditional composite video
• DVI: Analog RGB, DVI
HDMI: HDMI
•
– 11 –
Page 20
DLP Projector—User’s Manual
When the “Power Off? /Press Power
5.
again” message appears, press the
POWER button. The projector turns
off.
Caution:
1. Be sure to remove the lens cap before starting projector.
2. Do not unplug the power cord until the POWER LED stops flashing–indicating the projector has
cooled down.
– 12 –
Page 21
DLP Projector – User’s Manual
Setting an Access Password (Security Lock)
You can use the four (arrow) buttons to set a password and prevent unauthorized use of the projector.
When enabled, the password must be entered after you power on the projector. (See
on page 18 and on page 19 for help on using OSD menus.) Setting the OSD Language
OSD
Important:
Keep the password in a safe place. Without the password, you will not be able to use the projector.
If you lose the password, contact your reseller for information on clearing the password.

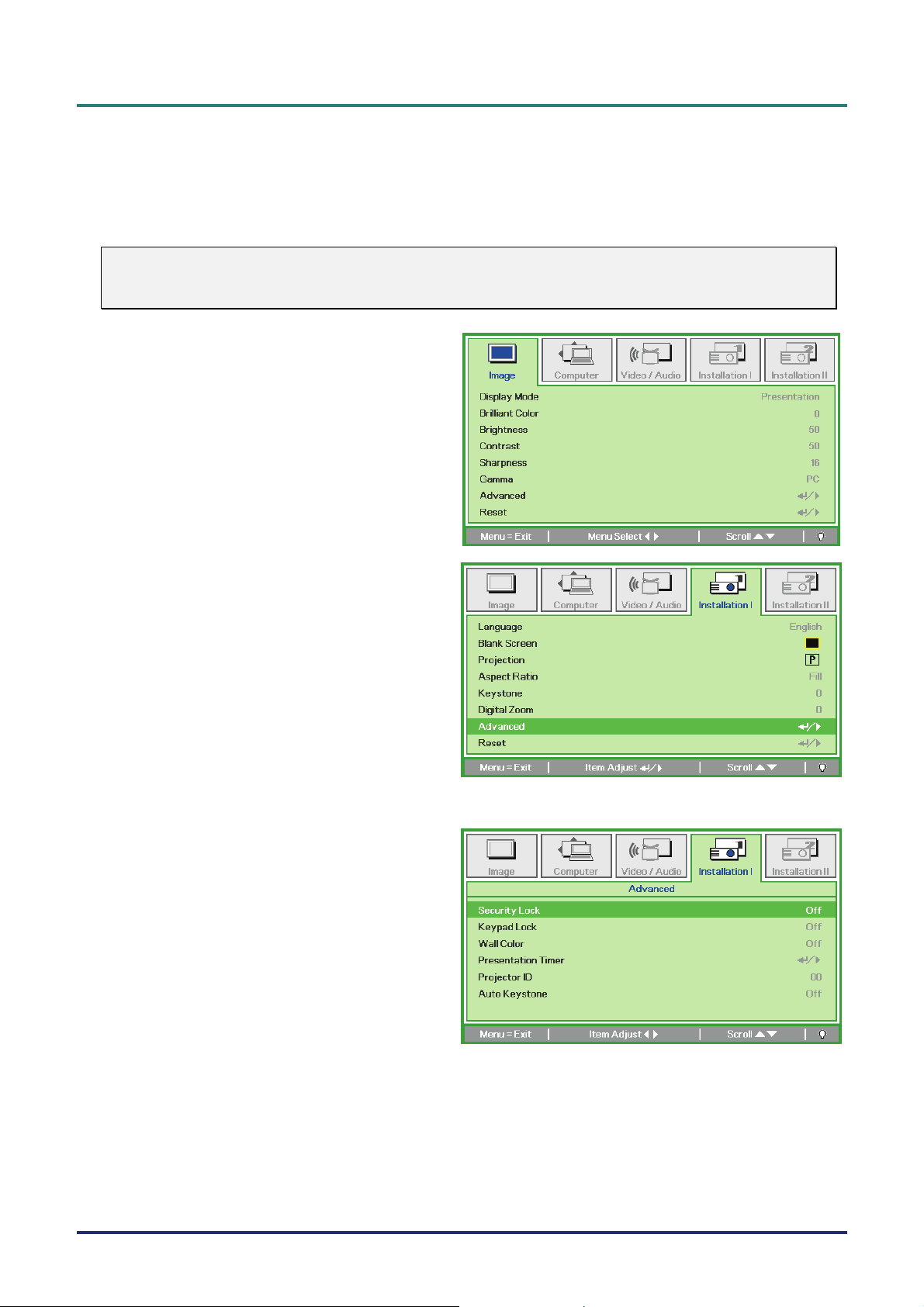

Press the MENU button to open the OSD
1.
menu.
Press the cursor ◄► button to move to
2.
the Installation I menu, press the cursor
▲▼ button to select Advanced.
Navigating the
Press the cursor ▲▼ button to select
3.
Security Lock.
Press the cursor ◄► button to enable or
4.
disable security lock function.
A password dialog box automatically
appears.
– 13 –
Page 22
DLP Projector—User’s Manual
You can use the cursor buttons ▲▼◄►
5.
either on keypad or IR remote control for
password entry. You can use any
combination including the same arrow five
times, but not less than five.
Press the cursor buttons in any order to set
the password. Push the MENU button to
exit the dialog box.
The password confirm menu appears when
6.
user presses the power-on key in case the
Security Lock is enabled.
Enter the password in the order you set it
at step 5. In case you forget the password,
please contact the service center.
The service center will validate the owner
and help reset the password.
– 14 –
Page 23
Adjusting the Projector Level
Take note of the following when setting up the projector:
• The projector table or stand should be level and sturdy.
• Position the projector so that it is perpendicular to the screen.
• Ensure the cables are in a safe location. You could trip over them.
D
A
DLP Projector – User’s Manual
C
1.
2.
3.
To raise the level of the projector, lift the projector [A] and press the height-adjuster
button [B].
The height adjuster drops down [C].
To lower the level of the projector, press the height-adjuster button and push down
on the top of the projector.
To adjust the angle of the picture, turn the tilt-adjuster [D] right or left until the
desired angle has been achieved.
– 15 –
Page 24
DLP Projector—User’s Manual
Adjusting the Zoom, Focus and Keystone
Use the Image-zoom
1.
control (on the projector
only) to resize the projected image and screen
B
size
Use the Image-focus
2.
control (on the projector
only) to sharpen the projected image
.(*)
.
A
B
A
Use the KEYSTONE
3.
buttons (on the projector
or the remote control) to
correct image-trapezoid
(wider top or bottom)
effect.
The keystone control
4.
appears on the display.
Note: (*)N
ot available in
D855ST.
C
-
Volume
+
N
E
U
M
E
C
R
U
O
S
TEMP
POWER
Remote control and OSD panel
LAMP
A
U
T
O
– 16 –
Page 25
Adjusting the Volume
Press the Volume +/-
1.
buttons on the remote
control.
The volume control
appears on the display.
DLP Projector – User’s Manual
Volume
+
-
N
E
U
M
Press the Left or Right
2.
Cursor buttons on the
keypad to adjust Volume
+/-.
Press the MUTE button to
3.
turn off the volume (This
feature is available only
on the remote).
E
C
R
U
O
S
TEMP
POWER
LAMP
A
U
T
O
– 17 –
Page 26
DLP Projector—User’s Manual
ON-S
CREEN DISPLAY
(OSD) M
ENU SETTINGS
OSD Menu Controls
The projector has an OSD that lets you make image adjustments and change various settings.

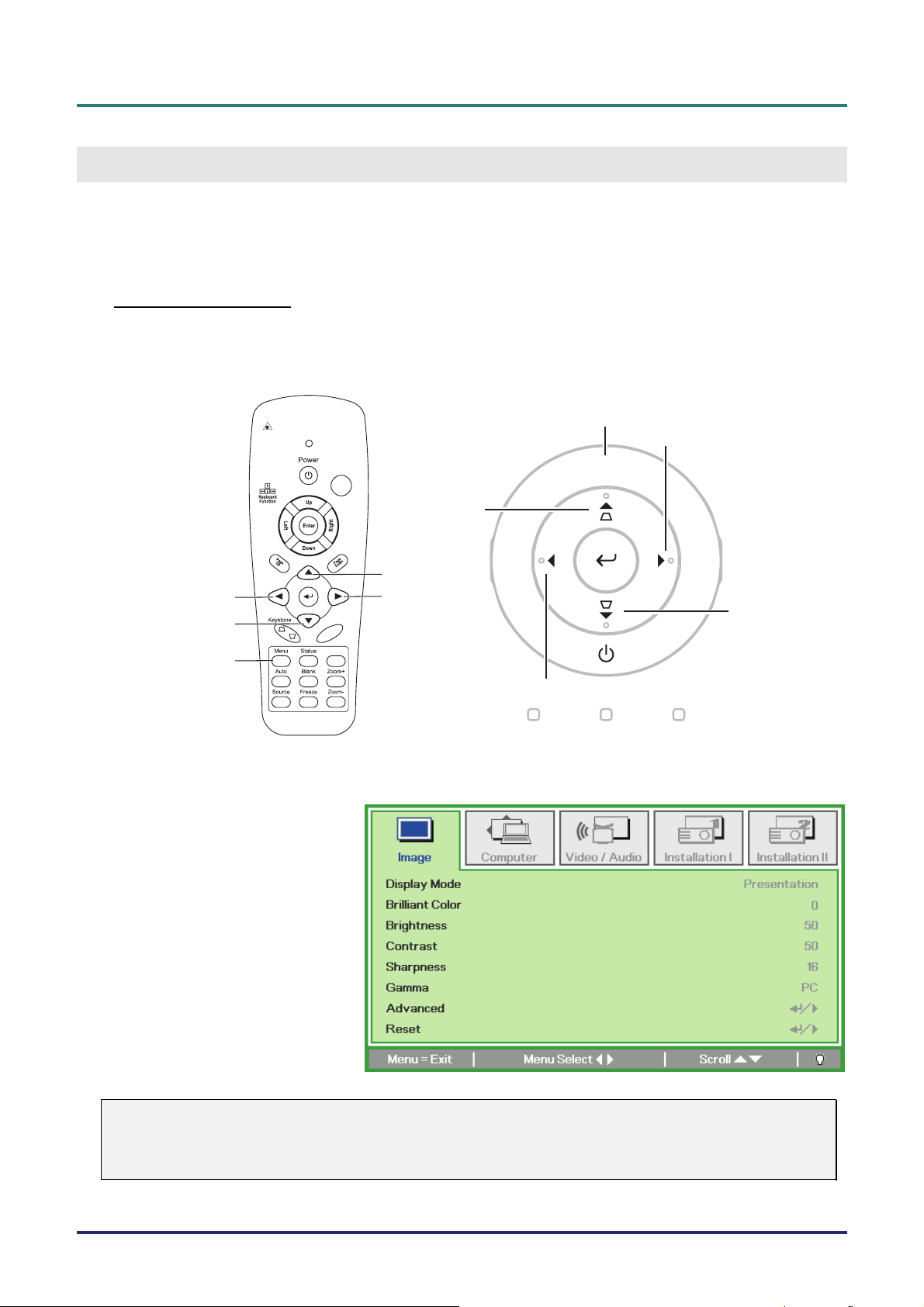

Navigating the OSD
You can use the remote control cursor buttons or the buttons on the top of the projector to navigate
and make changes to the OSD. The following illustration shows the corresponding buttons on the
projector.
5
4
N
E
U
M
1
E
C
R
1
3
2
5
-
Volume
+
Mute
4
U
O
S
A
U
T
O
2
3
TEMP
POWER
LAMP
1. To enter the OSD, press the
MENU button.
2. There are five menus. Press
the cursor ◄► button to
move through the menus.
3. Press the cursor ▲▼ button
to move up and down in a
menu.
4. Press ◄► to change values
for settings.
5. Press MENU to close the
OSD or leave a submenu.
Note:
Depending on the video source, not all items in the OSD are available. For example, the Horizontal/Vertical Position items in the Computer menu can only be modified when connected to a PC.
Items that are not available cannot be accessed and are grayed out.
– 18 –
Page 27
Setting the OSD Language
Set the OSD language to your preference before continuing.
1. Press the MENU button. Press the cursor ◄► button to navigate to Installation I.
2. Press the cursor ▲▼ button until Language is highlighted.
DLP Projector – User’s Manual
3. Press the cursor ◄► button until the language you want is highlighted.
4. Press the MENU button twice to close the OSD.
– 19 –
Page 28
DLP Projector—User’s Manual
OSD Menu Overview
Use the following illustration to quickly find a setting or determine the range for a setting.
– 20 –
Page 29
OSD Sub-Menu Overview
DLP Projector – User’s Manual
– 21 –
Page 30
DLP Projector—User’s Manual
Image Menu
Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the Image
Menu. Press the cursor ▲▼ button to move up and down in the Image menu. Press ◄► to change
values for settings.
ITEM DESCRIPTION
Display Mode Press the cursor ◄► button to set the Display Mode.
Brilliant Color Press the cursor ◄► button to adjust the Brilliant Color value.
Brightness Press the cursor ◄► button to adjust the display brightness.
Contrast Press the cursor ◄► button to adjust the display contrast.
Sharpness Press the cursor ◄► button to adjust the display sharpness level.
Gamma Press the cursor ◄► button to adjust the gamma correction of the display.
Advanced Press (Enter) / ► to enter the Advanced menu. See Advanced Feature on page 23.
Reset Press (Enter) / ► to reset all settings to default values.
– 22 –
Page 31
DLP Projector – User’s Manual
Advanced Feature
Press the Menu button to open the OSD menu. Press ◄► to move to the Image menu. Press ▼▲
to move to the Advanced menu and then press Enter or ►. Press ▼▲ to move up and down in the
Advanced menu.
ITEM DESCRIPTION
Color Space
Color Temperature
Color Manager
Press the cursor
(Range: Auto – RGB – YPbPr – YCbCr)
Press the cursor
(Range: Cold – Normal – Warm)
Press
Magenta-Yellow-White). See page
◄► button to adjust the color space.
◄► button to adjust the color temperature.
(Enter) / ► to enter the color manager menu. (Range: Red-Green-Blue-Cyan-
24 for more information on Color Manager.
– 23 –
Page 32
DLP Projector—User’s Manual
Color Manager
(Enter) / ► to enter the Color Manager sub menu. Press
ITEM DESCRIPTION
Red
Green
Blue
Cyan
Magenta
Yellow
White
Select to enter the Red Color Manager.
Press the ◄► buttons to adjust the Hue, Saturation, and Gain.
Select to enter the Green Color Manager.
Press the ◄► buttons to adjust the Hue, Saturation, and Gain.
Select to enter the Blue Color Manager.
Press the ◄► buttons to adjust the Hue, Saturation, and Gain.
Select to enter the Cyan Color Manager.
Press the ◄► buttons to adjust the Hue, Saturation, and Gain.
Select to enter the Magenta Color Manager.
Press the ◄► buttons to adjust the Hue, Saturation, and Gain.
Select to enter the Yellow Color Manager.
Press the◄► buttons to adjust the Hue, Saturation, and Gain.
Select to enter the White Color Manager.
Press the ◄► buttons to adjust the Red, Green, and Blue.
– 24 –
Page 33
DLP Projector – User’s Manual
Computer Menu
Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the Computer menu. Press the cursor ▲▼ button to move up and down in the computer menu. Press ◄► to
change values for settings.
ITEM DESCRIPTION
Horizontal Position Press the cursor ◄► button to adjust the display position to left or right.
Vertical Position Press the cursor ◄► button to adjust the display position to up or down.
Frequency Press the cursor ◄► button to adjust the A/D sampling clock.
Tracking Press the cursor ◄► button to adjust the A/D sampling dot.
Auto Image Press (Enter) / ► to automatically adjustment for phase, tracking, size and position.
– 25 –
Page 34
DLP Projector—User’s Manual
Video/Audio Menu
Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the
Video/Audio menu. Press the cursor ▲▼ button to move up and down in the Video/Audio menu.
Press ◄► to change values for settings.
ITEM DESCRIPTION
Video AGC Press the ◄► buttons to enable or disable the Automatic Gain Control for video source.
Video Saturation Press the ◄► buttons to adjust the video saturation.
Video Tint Press the ◄► buttons to adjust the video tint/hue.
Film Mode Press the ◄► buttons to select a different film mode.
Video Overscan Press the ◄► buttons to enable or disable video over scan.
Closed Captioning Press the ◄► buttons to enable or disable Closed Captioning
Audio Press (Enter) / ► to enter the Audio menu. See Audio on page 27.
Reset Press (Enter) / ► to reset all settings to default values.
Note:
Video jagging may occur when playing interlace video. To overcome this issue, open the
Video / Audio menu and adjust the Film Mode feature.
– 26 –
Page 35
Audio
(Enter) / ► to enter the Audio sub menu. Press
ITEM DESCRIPTION
DLP Projector – User’s Manual
Volume
Mute Press the ◄► buttons to turn on or off the speaker.
Audio Input
Press the ◄► buttons to adjust the audio volume.
(Range: 0~8)
Press the cursor ◄► button to select audio input.
(Range: Mini ~ RCA)
– 27 –
Page 36
DLP Projector—User’s Manual
Installation I Menu
Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the Installation I menu. Press the cursor ▲▼ button to move up and down in the Installation I menu. Press
◄► to change values for settings.
ITEM DESCRIPTION
Language Press the cursor ◄► button to select a different localization Menu.
Blank Screen Press the cursor ◄► button to select different color to blank the screen.
Projection Press the cursor ◄► button to choose from four projection methods:
Aspect Ratio Press the cursor ◄► button to adjust the video aspect ratio.
Keystone Press the cursor ◄► button to adjust the display keystone.
Digital Zoom Press the cursor ◄► button to adjust the Digital Zoom menu. (Range: -10 ~ +10)
Advanced Press (Enter) / ► to enter the Advanced menu. See Advanced Feature on page 32.
Reset
Press
(expect Language and Security Lock).
(Enter) / ► to reset all settings to default values
– 28 –
Page 37
DLP Projector – User’s Manual
Advanced Feature
Press the Menu button to open the OSD menu. Press ◄► to move to the Installation I menu. Press
▲▼ to move to the Advanced menu and then press Enter or ►. Press ▲▼ to move up and down in
the Advanced menu. Press ◄► to change values for setting.
ITEM DESCRIPTION
Security Lock Press the cursor ◄► button to enable or disable security lock function.
Keypad Lock Press the cursor ◄► button to enable or disable keypad lock function.
Wall Color Press the cursor ◄► button to select different wall color setting.
(Enter) / ► to enter the Presentation menu. See Presentation Timer on page Presentation Timer Press 30.
Projector ID Press the cursor ◄► button to adjust a two digit projector ID from 0 through 99.
Auto Keystone Press the cursor ◄► button to enable or disable auto keystone function.
– 29 –
Page 38
DLP Projector—User’s Manual

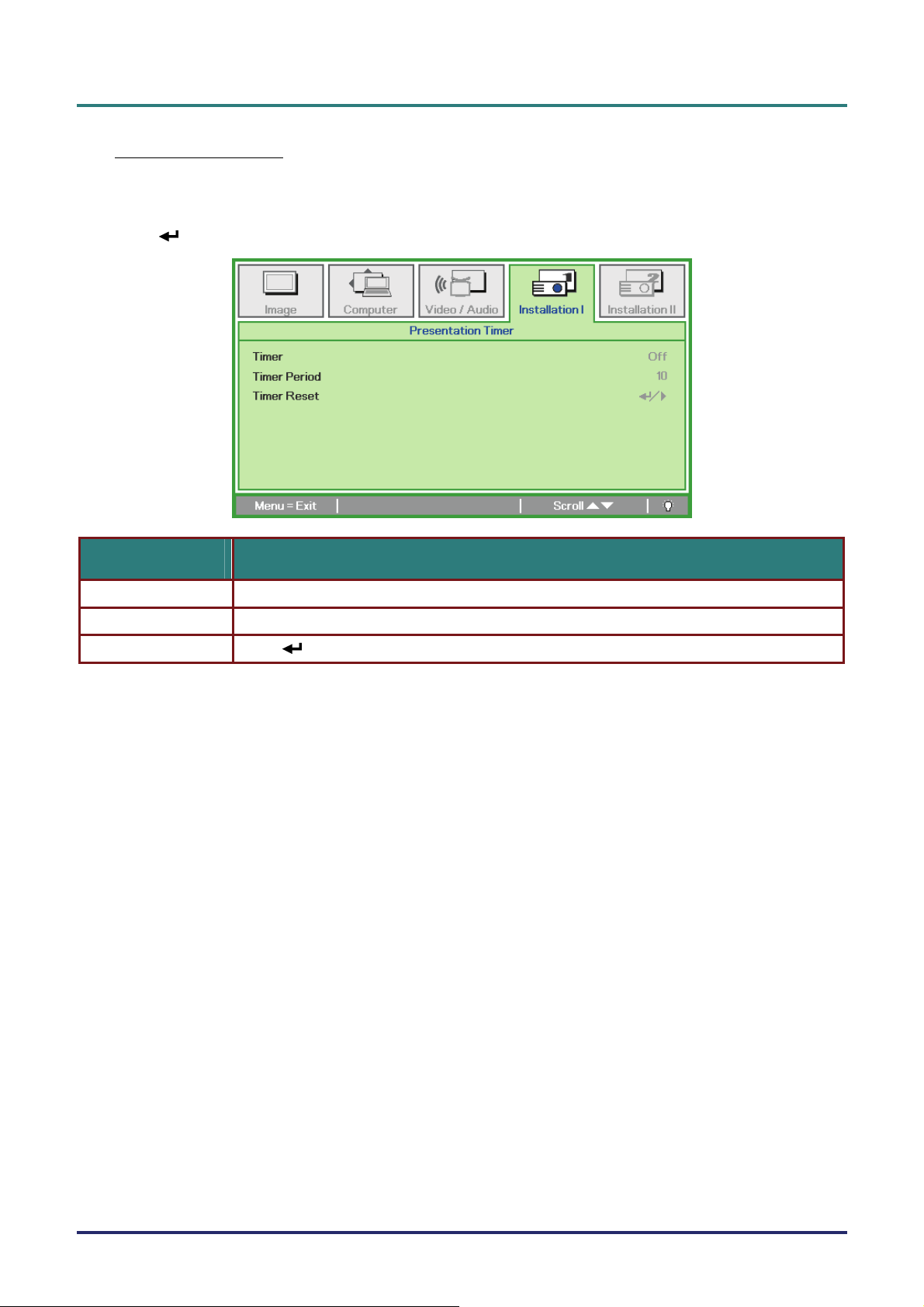

Presentation Timer
The Presentation Timer function can indicate the presentation time on the screen to help you achieve
better time management when giving presentations.
Press
(Enter) / ► to enter the Presentation Timer sub menu.
ITEM DESCRIPTION
Timer Press the cursor ◄► button to enable or disable presentation timer function.
Timer Period Press the cursor ◄► button to adjust the display timer period.
Timer Reset Press (Enter) / ► to reset presentation timer counter.
– 30 –
Page 39
DLP Projector – User’s Manual

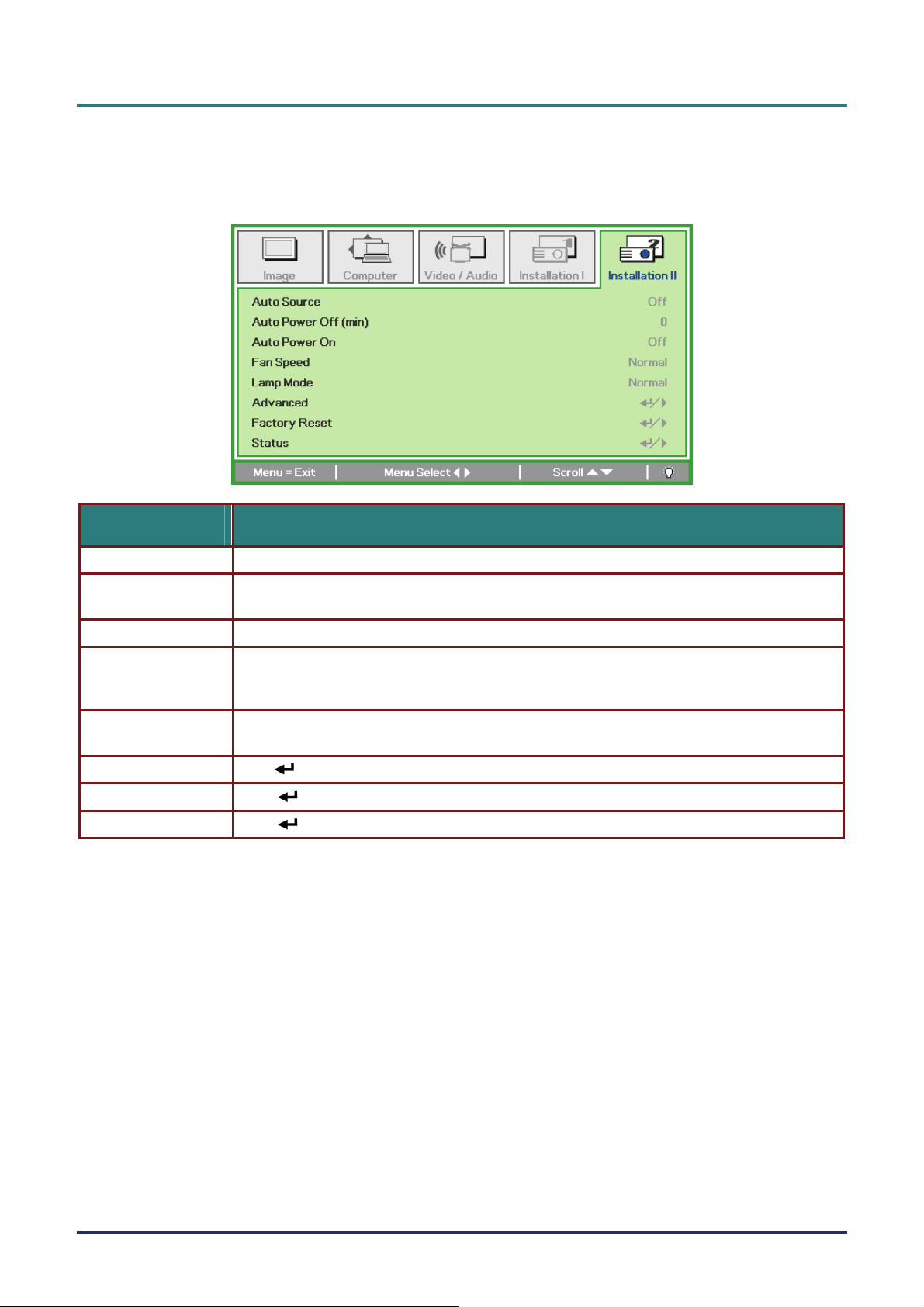

Installation II Menu
Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the Installation II menu. Press the cursor ▲▼ button to move up and down in the Installation II menu.
ITEM DESCRIPTION
Auto Source Press the cursor ◄► button to enable or disable automatic source detection. (Range: On ~ Off)
Auto Power Off
(min.)
Auto Power On Press the cursor ◄► button to enable or disable automatic power On when AC power is supplied.
Fan Speed
Lamp Mode
Advanced Press (Enter) / ► to enter the Advanced menu. See Advanced Feature on page 32.
Factory Reset Press (Enter) / ► to reset all items to factory preset values.
Status Press (Enter) / ► to enter the Status menu. See page 40 for more information on Status.
Press the cursor ◄► button to enable or disable automatic shutdown of lamp when no signal.
Press the cursor ◄► button to toggle between Normal and High fan speeds.
Note: We recommend selecting high speed in high temperatures, high humidity, or high
altitude areas.
Press the cursor ◄► button to select the lamp mode for higher brightness or lower brightness
to save lamp life.
– 31 –
Page 40
DLP Projector—User’s Manual
Advanced Feature
Press the Menu button to open the OSD menu. Press ◄► to move to the Installation II menu.
Press ▲▼ to move to the Advanced menu and then press Enter or ►. Press ▲▼ to move up and
down in the Advanced menu. Press ◄► to change values for setting.
ITEM DESCRIPTION
OSD Menu Setting
Peripheral Test
Lamp Hour Reset
Low Power Mode Press ◄► to turn Low Power Mode on or off.
3D Press Enter/ ► to enter the 3D menu. See page 34 for more information on 3D setting..
RS232
Network
Press Enter / ► to enter the OSD setting menu. See page
Menu Setting
Press Enter/ ► to enter the Peripheral Test menu. See page
Peripheral Test.
After replacing the lamp, this item should be reset. See page
Hour Reset
Press ◄► to select RS232 (remote) or Network (LAN) mode depending on projector connection method.
Press
Network.
.
.
(Enter) / ► to enter the Network menu. See page 35 for more information on
Note:
To enjoy the 3D function, first enable the Play Movie in 3D setting found in your DVD
device under the 3D Disc Menu.
33 for more information on OSD
33 for more information on
34 for more information on Lamp
– 32 –
Page 41
DLP Projector – User’s Manual
OSD Menu Setting
ITEM DESCRIPTION
Menu Position Press ◄► button to select different OSD location.
Translucent Menu Press ◄► button to select OSD background translucent level.
Menu Display Press ◄► button to select OSD timeout delay.
Peripheral Test
ITEM DESCRIPTION
Remote Control Test Press (Enter) / ► to test the IR remote controller for diagnostic.
Color Test Press (Enter) / ► to select different colors on screen.
Button Test Press (Enter) / ► to test the button on keypad.
USB Test Press (Enter) / ► to test the USB connection with connected PC.
– 33 –
Page 42
DLP Projector—User’s Manual
Lamp Hour Reset
Please refer to on page 43 to reset the lamp hour counter. Resetting the Lamp
3D
ITEM DESCRIPTION
3D Press ◄► to select Off, DLP-Link or IR.
3D Sync Invert Press ◄► to turn 3D Sync Invert On or Off.
– 34 –
Page 43

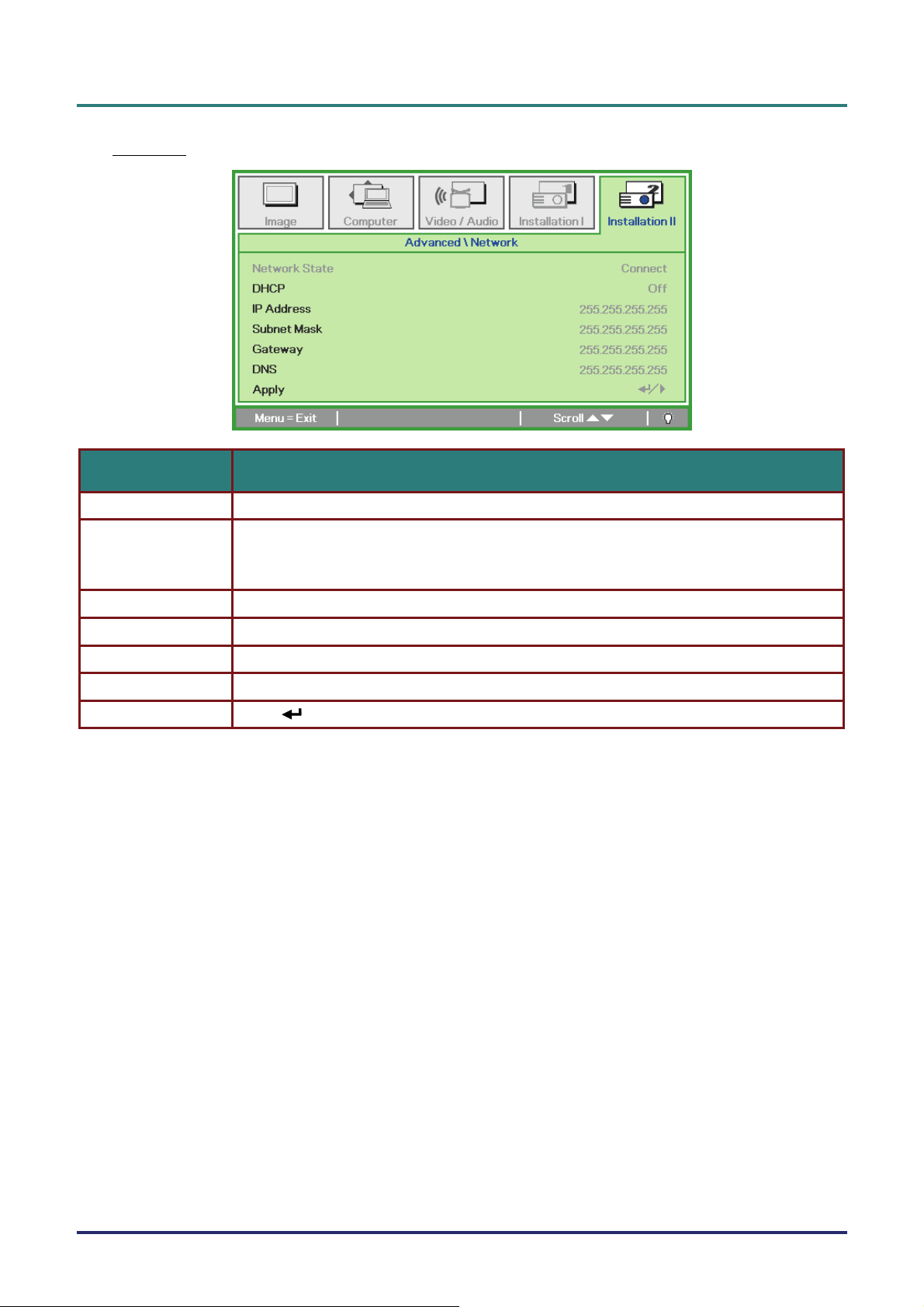

Network
ITEM DESCRIPTION
Network State Displays the network connection status.
Press ◄► to turn DHCP On or Off.
DHCP
Note: If you select DHCP Off, complete the IP Address, Subnet Mask, Gateway, and DNS
fields.
DLP Projector – User’s Manual
IP Address Enter a valid IP address if DHCP is turned off.
Subnet Mask Enter a valid Subnet Mask if DHCP is turned off.
Gateway Enter a valid Gateway address if DHCP is turned off.
DNS Enter a valid DNS name if DHCP is turned off.
Apply Press (Enter) / ► to confirm settings.
– 35 –
Page 44
DLP Projector—User’s Manual
For simplicity and ease of operation, the projector provides diverse networking and remote management
features.
The LAN/RJ45 function of the projector through a network, such as remotely manage: Power On/Off,
Brightness and Contrast settings. Also, projector status information, such as: Video-Source, Sound-Mute,
.
etc

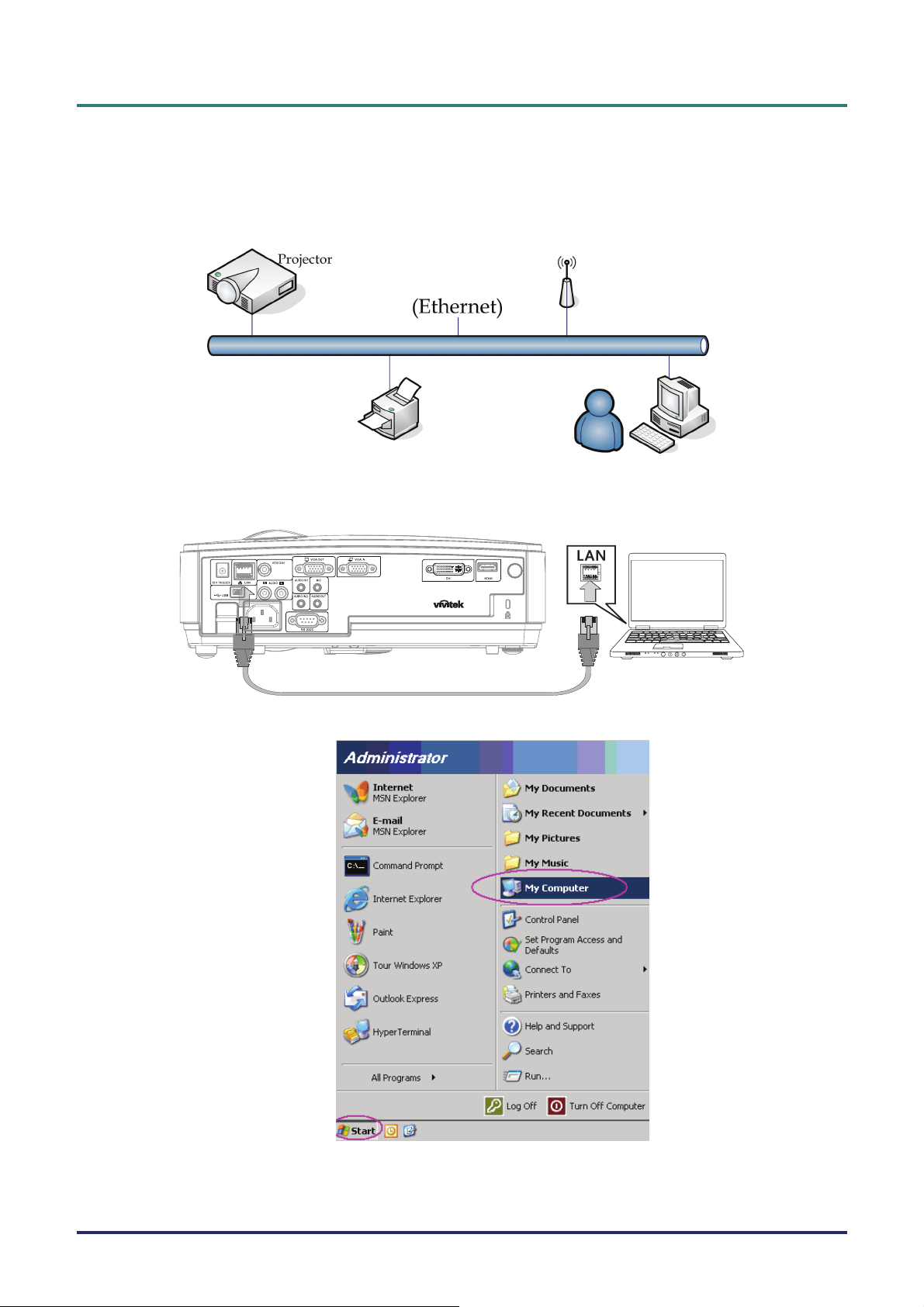

LAN_RJ45
1. Connect an RJ45 cable to RJ45 ports on the projector and the PC (Laptop).
2. On the PC (Laptop), select Start → Control Panel → Network Connections.
– 36 –
Page 45
DLP Projector – User’s Manual

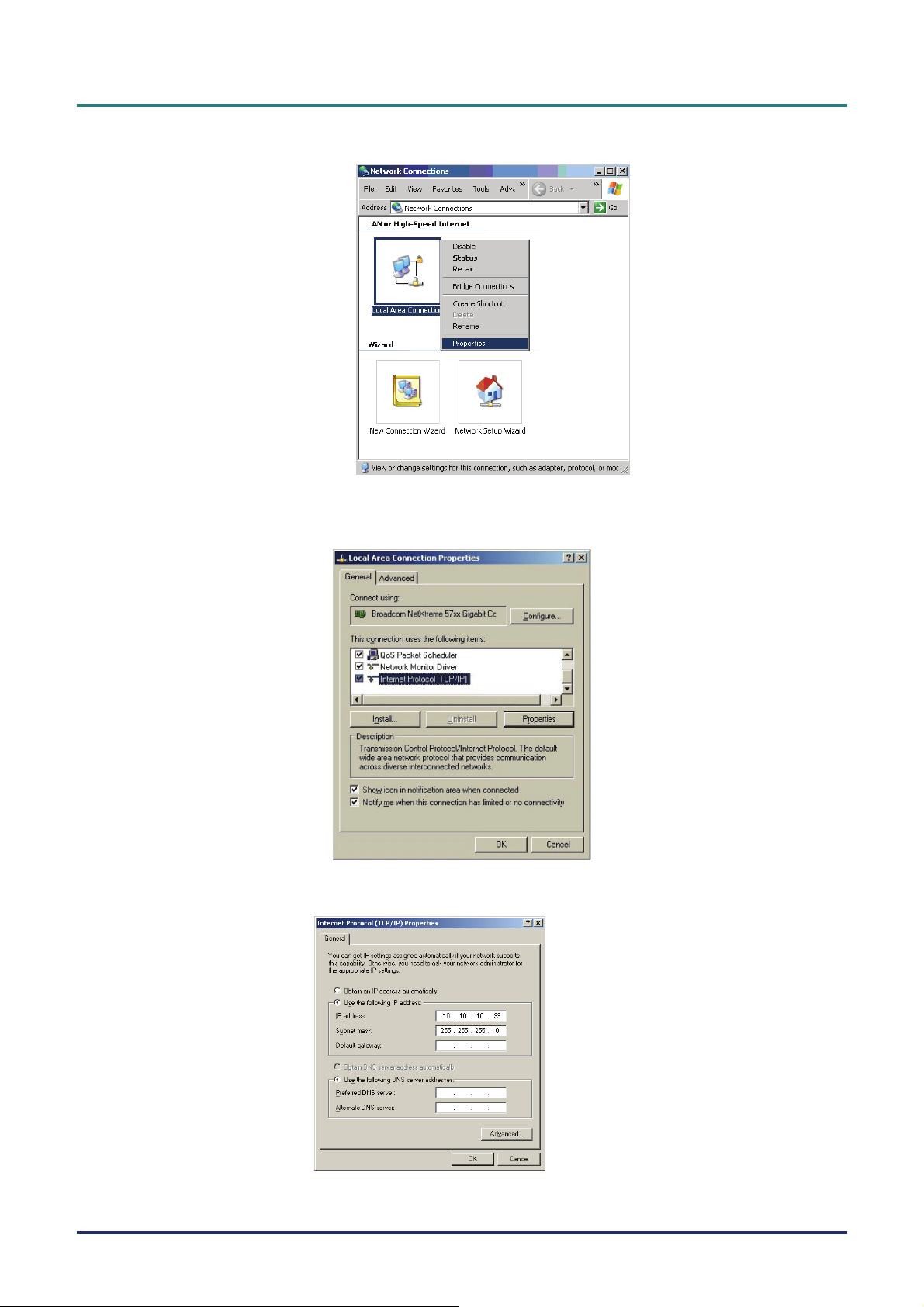

3. Right-click on Local Area Connection, and select Properties.
4. In the Properties window, select the General tab, and select Internet Protocol (TCP/IP).
5. Click Properties.
6. Click Use the following IP address and fill in the IP address and Subnet mask, then click OK.
– 37 –
Page 46
DLP Projector—User’s Manual
7. Press the Menu button on the projector.
8. Select Installation II → Advanced → Network.
9. After getting into Network, input the following:
` DHCP: Off
` IP Address: 10.10.10.10
` Subnet Mask: 255.255.255.0
` Gateway: 0.0.0.0
` DNS Server: 0.0.0.0
10. Press

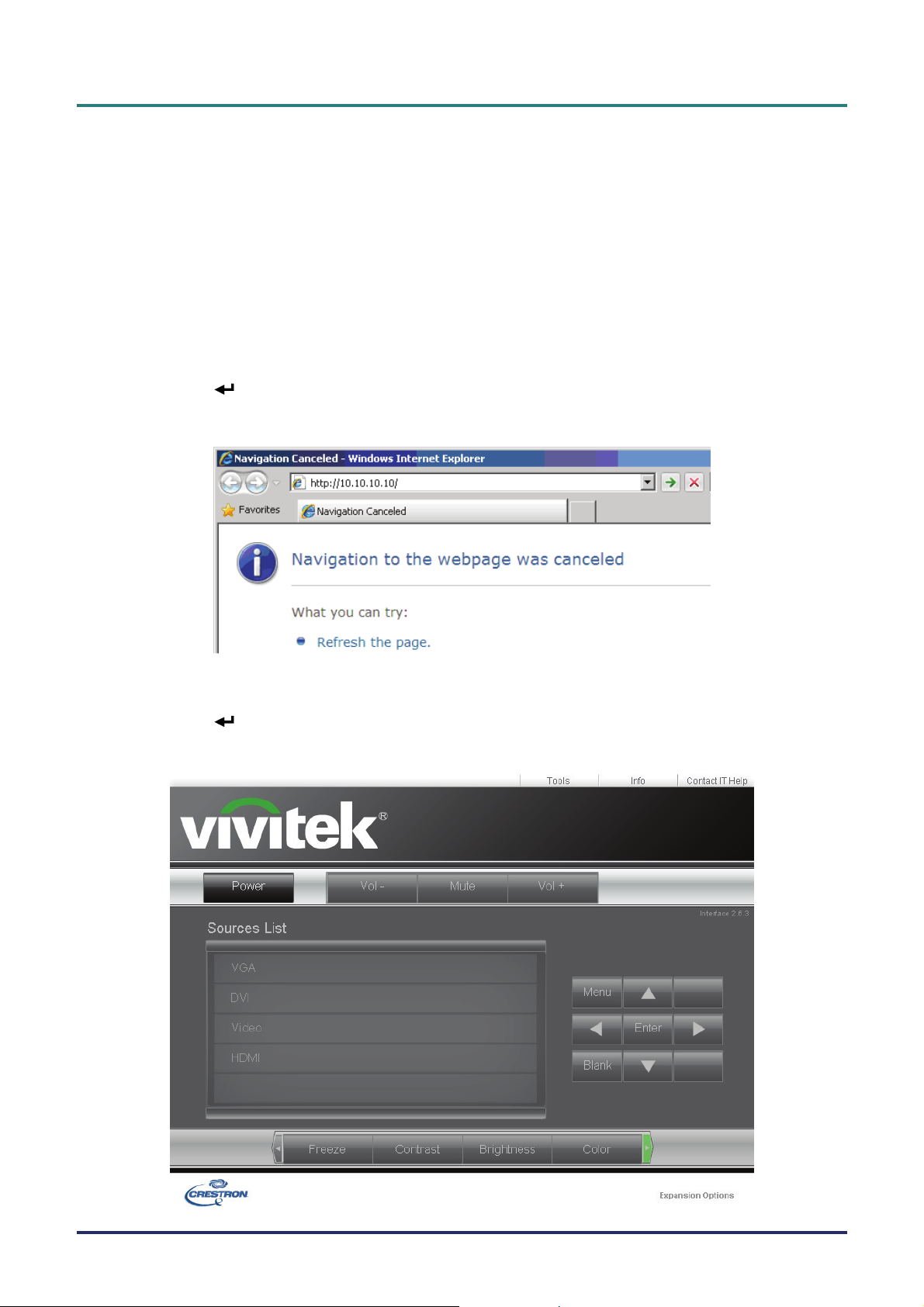

Open a web browser
(for example, Microsoft Internet Explorer with Adobe Flash Player 9.0 or higher).
11. In the Address bar, input the IP address: 10.10.10.10.
12. Press
The projector is setup for remote management. The LAN/RJ45 function displays as follows.
(Enter) / ► to confirm settings.
(Enter) / ►.
– 38 –
Page 47
DLP Projector – User’s Manual

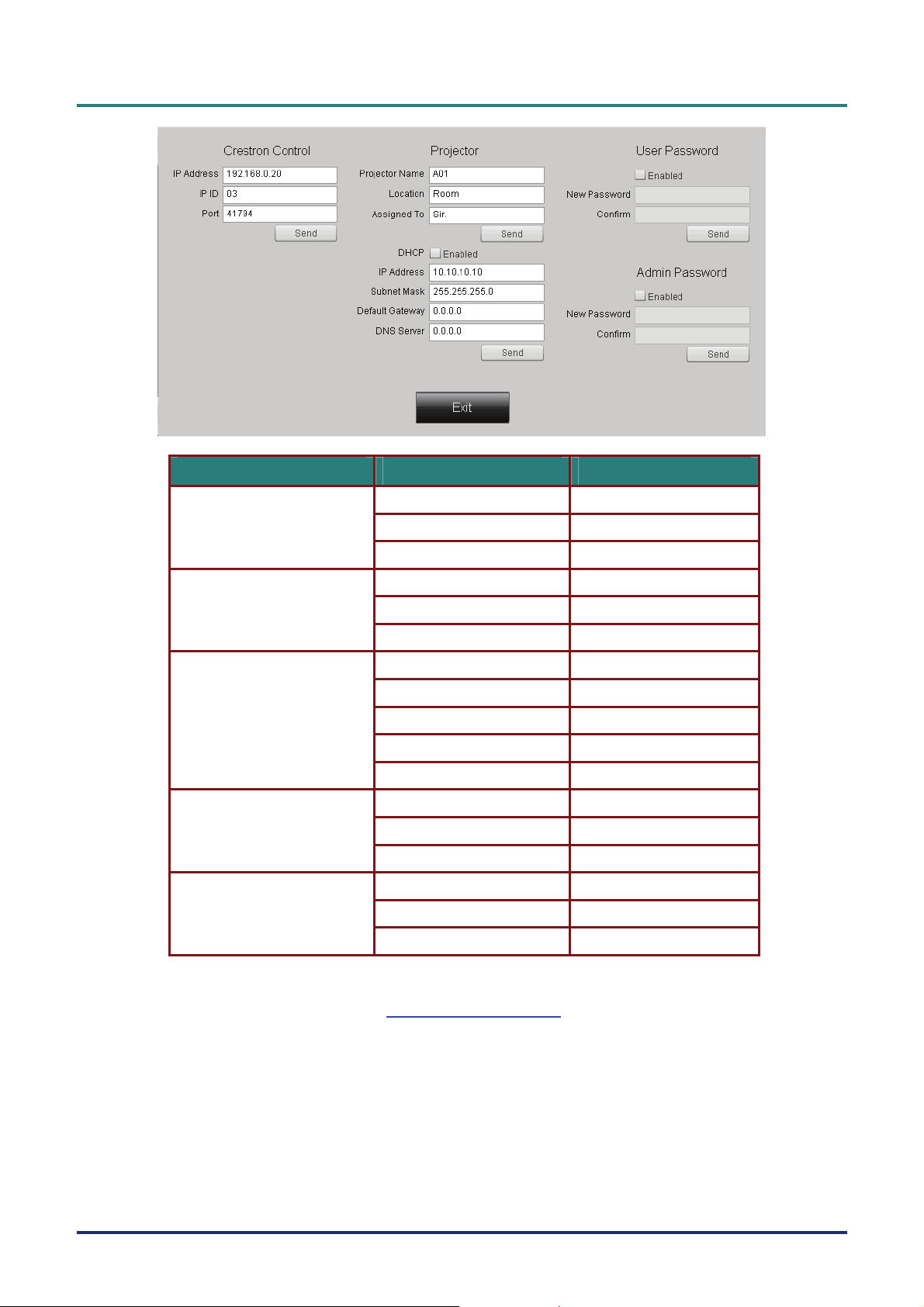

CATEGORY ITEM INPUT-LENGTH
IP Address 14
Crestron Control
Projector
Network Configuration
User Password
Admin Password
IP ID 2
Port 5
Projector Name 10
Location 9
Assigned To 8
DHCP (Enabled) (N/A)
IP Address 15
Subnet Mask 15
Default Gateway 15
DNS Server 15
Enabled (N/A)
New Password 15
Confirm 15
Enabled (N/A)
New Password 15
Confirm 15
For more information, please visit http://www.crestron.com.
– 39 –
Page 48
DLP Projector—User’s Manual
Factory Reset
Press the cursor ▲▼ button to move up and down in the Installation II menu. Select the Factory
Reset sub menu and press
(expect Language and Security Lock).
(Enter) / ► to reset all the menu items to the factory default values
Status
Press the cursor ▲▼ button to move up and down in the Installation II menu. Select the
Installation II sub menu and press
(Enter) / ► to enter the Status sub menu.
ITEM DESCRIPTION
Active Source Display the activated source.
Video Information Displays resolution/video information for RGB source and color standard for Video source.
Lamp Hours Lamp hour used information is displayed. Eco and Normal counters are separated.
– 40 –
Page 49
DLP Projector – User’s Manual
M
AINTENANCE AND SECURITY
Replacing the Projection Lamp
The projection lamp should be replaced when it burns out. It should only be replaced with a certified
replacement part, which you can order from your local dealer.
Important:
a. The projection lamp used in this product contains a small amount of mercury.
b. Do not dispose this product with general household waste.
c. Disposal of this product must be carried out in accordance with the regulations of your local
authority.
Warning:
Be sure to turn off and unplug the projector at least 30 minutes before replacing the lamp. Failure to
do so could result in a severe burn.
Loosen the single screw on
1.
the lamp compartment cover.
Remove the lamp compart-
2.
ment cover.
– 41 –
Page 50
DLP Projector—User’s Manual
G
Remove the three screws
3.
from the lamp module.
Lift the module handle up.
4.
Pull firmly on the module
5.
handle to remove the lamp
module.
Reverse steps 1 to 5 to install
6.
the new lamp module.
While installing, align the
lamp module with the
connector and ensure it is
level to avoid damage.
Note: The lamp module must
sit securely in place and the
lamp connector must be connected properly before
tightening the screws.
– 42 –
Page 51
DLP Projector – User’s Manual
Resetting the Lamp
After replacing the lamp, you should reset the lamp hour counter to zero. Refer to the following:
Press the MENU button to open the
1.
OSD menu.
Press the cursor ◄► button to move
2.
to the Installation II menu. Press the
cursor button to move down to
Advanced.
Press the cursor ▼▲ button to move
3.
down to Lamp Hour Reset.
Press the cursor ► or Enter button.
4.
A message screen appears.
Press ▼▲◄► buttons to reset the
5.
lamp hour.
Press the MENU button to get back
6.
to Installation II.
– 43 –
Page 52
DLP Projector—User’s Manual
Cleaning the Projector
Cleaning the projector to remove dust and grime will help ensure trouble-free operation.
Warning:
1. Be sure to turn off and unplug the projector at least 30 minutes before cleaning. Failure to do so
could result in a severe burn.
2. Use only a dampened cloth when cleaning. Do not allow water to enter the ventilation openings
on the projector.
3. If a little water gets into the projector interior while cleaning, leave unplugged in a well-ventilated
room for several hours before using.
4. If a lot of water gets into the projector interior when cleaning, have the projector serviced.
Cleaning the Lens
You can purchase optic lens cleaner from most camera stores. Refer to the following to clean the projector lens.
1. Apply a little optic lens cleaner to a clean soft cloth. (Do not apply the cleaner directly to the lens.)
2. Lightly wipe the lens in a circular motion.
Caution:
1. Do not use abrasive cleaners or solvents.
2. To prevent discoloration or fading, avoid getting cleaner on the projector case.
Cleaning the Case
Refer to the following to clean the projector case.
1. Wipe off dust with a clean dampened cloth.
2. Moisten the cloth with warm water and mild detergent (such as used to wash dishes), and then wipe
the case.
3. Rinse all detergent from the cloth and wipe the projector again.
Caution:
To prevent discoloration or fading of the case, do not use abrasive alcohol-based cleaners.
– 44 –
Page 53
Using the Kensington® Lock
DLP Projector – User’s Manual
Using the Kensington
If you are concerned about security, attach the projector to a permanent object with the Kensington
slot and a security cable.
Note:
Contact your vendor for details on purchasing a suitable Kensington security cable.
The security lock corresponds to Kensington’s MicroSaver Security System. If you have any comment, contact: Kensington, 2853 Campus Drive, San Mateo, CA 94403, U.S.A. Tel: 800-535-4242,
http://www.Kensington.com.
®
Lock
Using the Security Bar
In addition to the password protection function and the Kensington lock, the Security Bar helps protect the projector from unauthorized removal. See the following picture.
– 45 –
Page 54
DLP Projector—User’s Manual
T
ROUBLESHOOTING
Common problems and solutions
These guidelines provide tips to deal with problems you may encounter while using the projector. If
the problem remains unsolved, contact your dealer for assistance.
Often after time spent troubleshooting, the problem is traced to something as simple as a loose connection. Check the following before proceeding to the problem-specific solutions.
• Use some other electrical device to confirm that the electrical outlet is working.
• Ensure the projector is turned on.
• Ensure all connections are securely attached.
• Ensure the attached device is turned on.
• Ensure a connected PC is not in suspending mode.
• Ensure a connected notebook computer is configured for an external display.
(This is usually done by pressing an Fn-key combination on the notebook.)
Tips for Troubleshooting
In each problem-specific section, try the steps in the order suggested. This may help you to solve the
problem more quickly.
Try to pin point the problem and thus avoid replacing non-defective parts.
For example, if you replace batteries and the problem remains, put the original batteries back and go
to the next step.
Keep a record of the steps you take when troubleshooting: The information may be useful when calling for technical support or for passing on to service personnel.
– 46 –
Page 55
LED Error Messages
DLP Projector – User’s Manual
ERROR CODE MESSAGES
Standby mode ON 0 0
Over temperature 0 ON 0
Thermal break status error 4 0 0
Lamp error 0 0 ON
Fan1 error 6 0 1
Fan2 error 6 0 2
Fan3 error 6 0 3
Lamp door open 7 0 0
DMD error 8 0 0
Color wheel error 9 0 0
In the event of an error, please disconnect the AC power cord and wait for one (1) minute before restarting the projector. If the Power or Lamp LEDs are still blinking or the Over Temp LED is lit, contact
your service center.
POWER LED
BLINK
OVER TEMP
LED
LAMP LED
BLINK
Image Problems
Problem: No image appears on the screen
1. Verify the settings on your notebook or desktop PC.
2. Turn off all equipment and power up again in the correct order.
Problem: The image is blurred
1. Adjust the Focus on the projector.
2. Press the Auto button on the remote control or projector.
3. Ensure the projector-to-screen distance is within the 10-meter (33-feet) specified range.
4. Check that the projector lens is clean.
Problem: The image is wider at the top or bottom (trapezoid effect)
1. Position the projector so it is as perpendicular to the screen as possible.
2. Use the Keystone button on the remote control or projector to correct the problem.
Problem: The image is reversed
Check the Projection setting on the Installation I menu of the OSD.
Problem: The image is streaked
1. Set the Frequency and Tracking settings on the Computer menu of the OSD to the de-
fault settings.
2. To ensure the problem is not caused by a connected PC’s video card, connect to another
computer.
Problem: The image is flat with no contrast
Adjust the Contrast setting on the Image menu of the OSD.
Problem: The color of the projected image does not match the source image.
Adjust the Color Temperature and Gamma settings on the Image menu of the OSD.
– 47 –
Page 56
DLP Projector—User’s Manual
Lamp Problems
Problem: There is no light from the projector
1. Check that the power cable is securely connected.
2. Ensure the power source is good by testing with another electrical device.
3. Restart the projector in the correct order and check that the Power LED is green.
4. If you have replaced the lamp recently, try resetting the lamp connections.
5. Replace the lamp module.
6. Put the old lamp back in the projector and have the projector serviced.
Problem: The lamp goes off
1. Power surges can cause the lamp to turn off. Re-plug power cord. When the Power LED
is on, press the power button.
2. Replace the lamp module.
3. Put the old lamp back in the projector and have the projector serviced.
Remote Control Problems
Problem: The projector does not respond to the remote control
1. Direct the remote control towards remote sensor on the projector.
2. Ensure the path between remote and sensor is not obstructed.
3. Turn off any fluorescent lights in the room.
4. Check the battery polarity.
5. Replace the batteries.
6. Turn off other Infrared-enabled devices in the vicinity.
7. Have the remote control serviced.
Audio Problems
Problem: There is no sound
1. Adjust the volume on the remote control.
2. Adjust the volume of the audio source.
3. Check the audio cable connection.
4. Test the source audio output with other speakers.
5. Have the projector serviced.
Problem: The sound is distorted
1. Check the audio cable connection.
2. Test the source audio output with other speakers.
3. Have the projector serviced.
Having the Projector Serviced
If you are unable to solve the problem, you should have the projector serviced. Pack the projector in
the original carton. Include a description of the problem and a checklist of the steps you took when
trying to fix the problem: The information may be useful to service personnel. For servicing, return the
projector to the place you purchased it.
– 48 –
Page 57
HDMITM Q & A
DLP Projector – User’s Manual
Q. What is the difference between a “Standard” HDMITM cable and a “High-Speed”
TM
HDMI
cable?
Recently, HDMITM Licensing, LLC announced that cables would be tested as Standard or
High-Speed cables.
TM
․Standard (or “category 1”) HDMI
cables have been tested to perform at speeds of 75Mhz
or up to 2.25Gbps, which is the equivalent of a 720p/1080i signal.
․High Speed (or “category 2”) HDMI
340Mhz or up to 10.2Gbps, which is the highest bandwidth currently available over an
TM
HDMI
cable and can successfully handle 1080p signals including those at increased color
TM
cables have been tested to perform at speeds of
depths and/or increased refresh rates from the Source. High-Speed cables are also able to
accommodate higher resolution displays, such as WQXGA cinema monitors (resolution of
2560 x 1600).
Q. How do I run HDMITM cables longer than 10 meters?
There are many HDMITM Adopters working on HDMITM solutions that extend a cable’s effective
distance from the typical 10 meter range to much longer lengths. These companies
manufacture a variety of solutions that include active cables (active electronics built into
cables that boost and extend the cable’s signal), repeaters, amplifiers as well as CAT5/6 and
fiber solutions.
Q. How can I tell if a cable is an HDMITM certified cable?
All HDMITM products are required to be certified by the manufacturer as part of the HDMITM
Compliance Test Specification. However, there may be instances where cables bearing the
TM
HDMI
investigates these instances to ensure that the HDMI
logo are available but have not been properly tested. HDMITM Licensing, LLC actively
TM
trademark is properly used in the
market. We recommend that consumers buy their cables from a reputable source and a
company that is trusted.
For more detail information check http://www.hdmi.org/learningcenter/faq.aspx#49
– 49 –
Page 58
DLP Projector—User’s Manual
Specifications
S
PECIFICATIONS
Model
Display type
Resolution
Projection distance
Projection screen size
Projection lens
Zoom ratio
Vertical keystone correction
Projection methods
Data compatibility
SDTV/EDTV/ HDTV
Video compatibility
H-Sync
V-Sync
Safety certification
Operation temperature
D851 D853W D855ST
TI DMD 0.55” TI DMD 0.65” TI DMD 0.65”
XGA
1024x768
1 ~ 10 m 1.5 ~ 10 m 0.5 ~5 m
25.6” ~ 307.6” 40” ~ 306” 37.3” ~ 373”
Manual Focus/Manual Zoom
1.2x 1.15x Fix
Front, Rear, Desktop/Ceiling (Rear, Front)
VGA, SVGA, XGA, SXGA, SXGA+, UXGA, Mac
480i, 480p, 720p, 1080i, 1080p
NTSC/NTSC 4.43, PAL (B/G/H/I/M/N/60), SECAM
FCC-B, cUL, UL, CE, C-tick, CCC, KC, CB, GOST, NOM, SASO,
WXGA 1280x800
+/- 15 degrees
15, 30 – 90 kHz
43 – 85 Hz
TBD, Taiwan Green Mark
5° ~ 35°C
WXGA 1280x800
Manual Focus/
Fix Zoom
Dimensions
AC Input
Power consumption
Stand By
Lamp
Audio speaker
Input Terminals
Output Terminals
Control Terminals
306 mm (W) x 206 mm (D) x 104 mm (H)
AC Universal 100-240, Typical @ 110VAC (100-240)/+-10%
Typical 280W (Normal) / Typical 240W (Eco)
<1 watts
220W (Normal) / 190W (Eco)
10W mono speaker
VGA x 1
DVI-I x 1
Composite video x 1
HDMITM x 1
AUDIO RCA x 2
Audio Mini-jack x 2
VGA x 1
Audio Mini-jack x 1
RS-232C
RJ45
MIC mini-jack x 1
Security
DC 12V screen trigger
USB
Kensington lock / Security Bar
– 50 –
Page 59
Projection Distance vs. Projection Size
Projection Distance and Size Table
D851 TELE WIDE
DLP Projector – User’s Manual
Distance (m)
Diagonal (inches)
Keystone (degree)
Image Height (mm)
Image Width (mm)
A (mm)
1.00 3.12 3.90 9.75 1.30 2.60 3.25 10.00
25.6 80 100 250 40 80 100 307.6
14.04 14.04 14.04 14.04 16.70 16.70 16.70 16.70
390.1 1219.2 1524.0 3810.0 609.6 1219.2 1524.0 4687.8
520.2 1625.6 2032.0 5080.0 812.8 1625.6 2032.0 6250.4
54.6 170.7 213.4 533.4 85.3 170.7 213.4 656.3
D853W TELE WIDE
Distance (m)
Diagonal (inches)
Keystone (degree)
Image Height (mm)
Image Width (mm)
A (mm)
1.52 3.04 3.80 7.59 1.31 2.62 3.27 10.01
40 80 100 200 40 80 100 306
12.31 12.31 12.31 12.31 14.20 14.20 14.20 14.20
538.5 1077.0 1346.2 2692.4 538.5 1077.0 1346.2 4119.4
861.6 1723.1 2153.9 4307.8 861.6 1723.1 2153.9 6591.0
61.9 123.9 154.8 309.6 61.9 123.9 154.8 473.7
D855ST TELE
Distance (m)
Diagonal (inches)
Keystone (degree)
Image Height (mm)
Image Width (mm)
A (mm)
0.50 0.67 1.34 2.68 4.02 5.00 0.50
37.3 50 100 200 300 373 37.3
36.13 36.13 36.13 36.13 36.13 36.13 36.13
568.5 762.0 1524.0 3048.0 4572.0 5684.5 568.5
757.9 1016.0 2032.0 4064.0 6096.0 7579.4 757.9
81.0 108.6 217.2 434.3 651.5 810.0 81.0
– 51 –
Page 60
DLP Projector—User’s Manual
Timing Mode Table
SIGNAL RESOLUTION
NTSC
PAL/SECAM
VESA
－
－
720 x 400 37.9 85.0
640 x 480 31.5 60.0
640 x 480 37.9 72.0
640 x 480 37.5 75.0
640 x 480 43.3 85.0
800 x 600 35.2 56.0
800 x 600 37.9 60.0
800 x 600 48.1 72.0
800 x 600 46.9 75.0
H-SYNC
(KHZ)
15.734 60.0
15.625 50.0
V-SYNC
(HZ)
COMPOSITE
/ S-VIDEO
O
O
－ －
－ －
－ －
－ －
－ －
－ －
－ －
－ －
－ －
COMPONENT
－ － －
－ － －
RGB
O O
O O
O O
O O
O O
O O
O O
O O
O O
DVI/
HDMI
TM
800 x 600 53.7 85.0
1024 x 768 48.4 60.0
1024 x 768 56.5 70.0
1024 x 768 60.0 75.0
1024 x 768 68.7 85.0
1280 x 800 49.7 59.8
1280 x 800 62.8 74.9
1280 x 800 71.6 84.8
1280 x 1024 63.98 60.0
1280 x 1024 79.98 75.0
1280 x 1024 91.10 85.0
1280 x 960 60.0 60.0
1280 x 960 85.9 85.0
－ －
－ －
－ －
－ －
－ －
－ －
－ －
－ －
－ －
－ －
－ －
－ －
－ －
O O
O O
O O
O O
O O
O O
O O
O O
O O
O O
O O
O O
O O
1400 x 1050 65.3 60.0
1440 x 900 70.6 75.0
1440 x 900 55.6 60.0
– 52 –
－ －
－ －
－ －
O O
O O
O O
Page 61
DLP Projector – User’s Manual
SIGNAL RESOLUTION
1600 x 1200 75.0 60.0
640 x 480 35.0 66.68
832 x 624 49.725 74.55
Apple Mac
1024 x 768 60.24 75.0
1152 x 870 68.68 75.06
480i 15.734 60.0
SDTV
576i 15.625 50.0
480p 31.469 60.0
EDTV
576p 31.25 50.0
720p 37.5 50.0
720p 45.0 60.0
1080i 33.8 60.0
HDTV
1080i 28.1 50.0
H-SYNC
(KHZ)
V-SYNC
(HZ)
COMPOSITE
/ S-VIDEO
－ －
－ －
－ －
－ －
－ －
－
－
－
－
－
－
－
－
COMPONENT
O
O
O
O
O
O
O
O
RGB
DVI/
HDMI
TM
O O
O O
O O
O O
O O
－
－
－
－
－
－
－
－
O
O
O
O
O
O
O
O
1080p 67.5 60.0
1080p 56.3 50.0
－
－
O
O
O: Frequency supported
—: Frequency not supported
* : Displayable level
The resolution of the panel is listed below:
D851
D853W, D855ST
– 1024 x 768
– 1280 x 800
Resolution other than native resolution may display with uneven size of text or lines.
－
－
O
O
– 53 –
Page 62
DLP Projector—User’s Manual
Projector Dimensions
– 54 –
Page 63
DLP Projector – User’s Manual
R
EGULATORY COMPLIANCE
FCC Warning
This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his/her own expense.
Changes or modifications not expressly approved by the parties responsible for compliance could
void the user’s authority to operate the equipment.
Canada
This class B digital apparatus complies with Canadian ICES-003.
Safety Certifications
FCC-B, cUL, UL, CE, C-tick, CCC, KC, CB, GOST, NOM, SASO and Taiwan Green Mark.
– 55 –
Page 64
2010 Vivitek Corporation. All rights reserved. All trademarks are the property of
their respective owners. All specifications are subject to change without prior notice.
201009
Loading...
