D7180 & H7080HD
Page 2
Copyright
This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be
reproduced without written consent of the author.
© Copyright 2012
Disclaimer
The information in this document is subject to change without notice. The manufacturer makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied
warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to
revise this publication and to make changes from time to time in the content hereof without obligation of
the manufacturer to notify any person of such revision or changes.
Trademark Recognition
Kensington is a U.S. registered trademark of ACCO Brand Corporation with issued registrations
and pending applications in other countries throughout the world.
HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing LLC in the United States and other countries.
All other product names used in this manual are the properties of their respective owners and are acknowledged.
— i —
Page 3
DLP Projector – User’s Manual
— ii —
Important Safety Information
Important:
It is strongly recommended that you read this section carefully before using the projector. These
safety and usage instructions will ensure that you enjoy many years of safe use of the projector.
Keep this manual for future reference.
Symbols Used
Warning symbols are used on the unit and in this manual to alert you of hazardous situations.
The following styles are used in this manual to alert you to important information.
Note:
Provides additional information on the topic at hand.
Important:
Provides additional information that should not be overlooked.
Caution:
Alerts you to situations that may damage the unit.
Warning:
Alerts you to situations that may damage the unit, create a hazardous environment, or cause personal injury.
Throughout this manual, component parts and items in the OSD menus are denoted in bold font as in this
example:
“Push the Menu button on the remote control to open the Main menu.”
General Safety Information
¾ Do not open the unit case. Aside from the projection lamp, there are no user-serviceable parts in
the unit. For servicing, contact qualified service personnel.
¾ Follow all warnings and cautions in this manual and on the unit case.
¾ The projection lamp is extremely bright by design. To avoid damage to eyes, do not look into the
lens when the lamp is on.
¾ Do not place the unit on an unstable surface, cart, or stand.
¾ Avoid using the system near water, in direct sunlight, or near a heating device.
¾ Do not place heavy objects such as books or bags on the unit.
Page 4
Preface
– iii –
Projector Installation Notice
¾ Place the projector in a horizontal position
The tilt angle of the projector should not exceed 15 degrees, nor should the projector be installed in any way other than the desktop and ceiling mount, otherwise lamp life could decrease
dramatically, and may lead to other unpredictable damages.
¾ Allow at least 50 cm clearance around the exhaust vent.
¾ Ensure that the intake vents do not recycle hot air from the exhaust vent.
¾ When operating the projector in an enclosed space, ensure that the surrounding air temperature
within the enclosure does not exceed operation temperature while the projector is running, and the
air intake and exhaust vents are unobstructed.
¾ All enclosures should pass a certified thermal evaluation to ensure that the projector does not
recycle exhaust air, as this may cause the device to shutdown even if the enclosure temperature is
with the acceptable operation temperature range.
Verify Installation Location
¾ To supply power, the 3-blade (with earthing lead) socket should be used to ensure proper
grounding and equalized ground potential for all of the equipment in the Projector System.
¾ The power code provided with the Projector should be used. In case of any missing item, other
qualified 3-blade (with earthing lead) power cord can be used as substitution; however, do not use
2-blade power cord.
¾ Verify if the voltage is stable, grounded properly and there is no electricity leakage.
¾ Measure total power consumption which should not higher the safety capacity and avoid safety
issue and short circuit.
¾ Turn on Altitude Mode when located in high altitude areas
¾ The projector can only be installed upright or inverted.
¾ When installation the bracket, make sure the weight limit is not exceed and firmly secured.
¾ Avoid installing near air conditioner duct or subwoofer.
¾ Avoid installing at high temperature, insufficient cooling and heavy dust locations.
¾ Keep your product away from fluorescent lamps to avoid malfunction
caused by IR interference
¾ The VGA IN connector should be connected to the VGA IN port. Note that it should be inserted
tightly, with the screws on both sides securely fastened to ensure proper connection of the signal
wire for achieving optimal display effect.
¾ The AUDIO IN connector should be connected to the AUDIO IN port and CANNOT be connected
to AUDIO OUT or other ports like BNC, RCA; otherwise, it will lead to mute output and even
DAMAGE the port.
¾ Install the projector above 200cm to avoid damage.
¾ The power cord and signal cable should be connected before power on the projector. During the
projector starting and operating process, DO NOT insert or remove the signal cable or the power
cord to avoid damaging the projector.
Page 5
DLP Projector – User’s Manual
— iv —
Cooling notes
Air outlet
¾ Make sure the air outlet is 50cm clear of any obstruction to ensure proper cooling.
¾ Air outlet location should not be in front of the lens of other projector to avoid causing illusions.
¾ Keep the outlet at least 100cm away from the inlets of other projectors
¾ The projector generates a massive amount of heat during use. The internal fan dissipates the heat
of the projector when shutting down, and such process may continue for a certain period. After the
project enters STANDBY MODE status, press the AC power button to turn off the projector and
remove the power cord. DO NOT remove the power cord during the shutdown process, as it may
cause damage to the projector. In the meantime, the delayed heat radiating will also affect the
service life of the projector. The shutdown process may vary depending on the model used.
Whatever the case may be, be sure to disconnect the power cord till after the projector enters the
STANDBY status.
Air inlet
¾ Make sure there is no object blocking air input within 30 cm.
¾ Keep the inlet away from other heat sources
¾ Avoided heavy dust area
Page 6
Preface
Power Safety
¾ Only use the supplied power cord.
¾ Do not place anything on the power cord. Place the power cord where it will not be in the way of
foot traffic.
¾ Remove the batteries from the remote control when storing or not in use for a prolonged period.

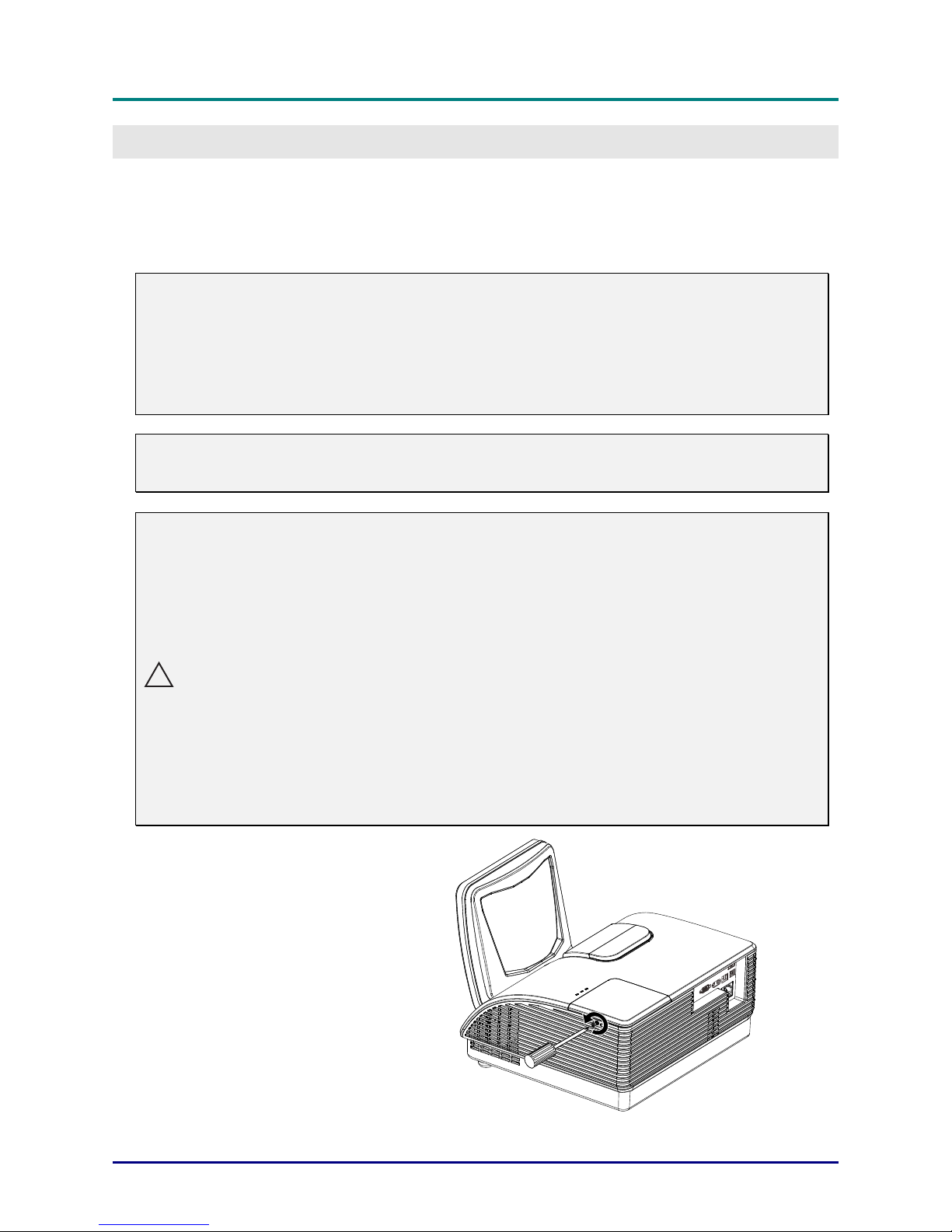

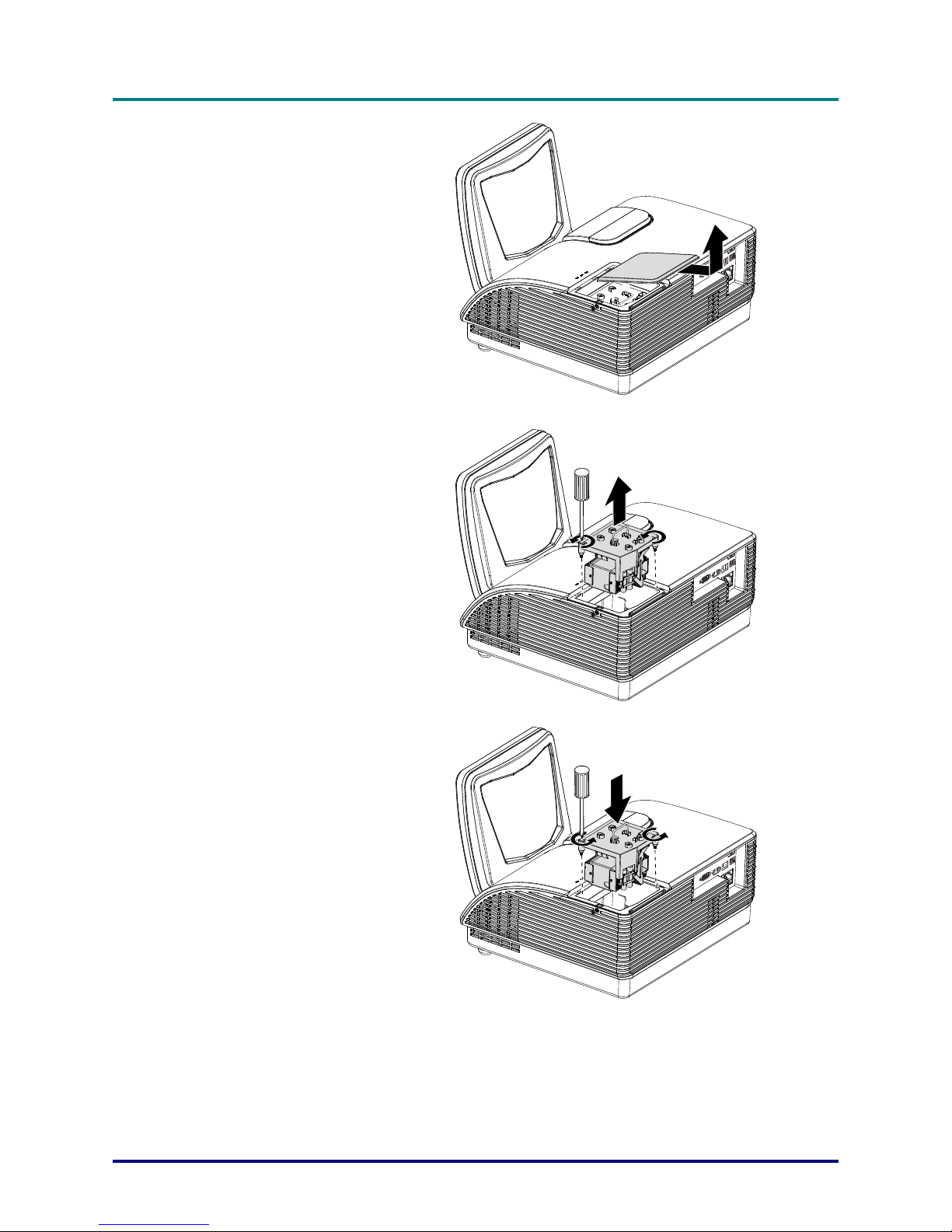

Replacing the Lamp
Replacing the lamp can be hazardous if done incorrectly. See Replacing the Projection Lamp on page 38
for clear and safe instructions for this procedure. Before replacing the lamp:
¾ Unplug the power cord.
¾ Allow the lamp to cool for about one hour.
Caution:
In rare cases the lamp bulb may burn out during normal operation and cause glass dust or shards
to be discharged outward from the rear exhaust vent.
Do not inhale or do not touch glass dust or shards. Doing so could result in injury.
Always keep your face away from the exhaust vent so that you do not suffer from the gas and broken shards of the lamp.
Cleaning the Projector
¾ Unplug the power cord before cleaning. See Cleaning the Projector page 40.
¾ Allow the lamp to cool for about one hour.
Regulatory Warnings
Before installing and using the projector, read the regulatory notices in the Regulatory Compliance on
page 55.
Important Recycle Instructions:
Lamp(s) inside this product contain mercury. This product may contain other electronic waste that
can be hazardous if not disposed of properly. Recycle or dispose in accordance with local, state, or federal
Laws. For more information, contact the Electronic Industries Alliance at WWW.EIAE.ORG
. For lamp
specific disposal information check WWW.LAMPRECYCLE.ORG.
– v –
Page 7
DLP Projector – User’s Manual
Symbol Explanations
DISPOSAL: Do not use household or municipal waste collection services for
disposal of electrical and electronic equipment. EU countries require the use
of separate recycling collection services.
Main Features
• A high brightness rating allows for presentations in daylight or in lit rooms.
• Supports resolutions up to UXGA at 16.7 million colors to deliver crisp, clear images.
• Flexible setup allows for front, rear projections.
• Line-of-vision projections remain square, with advanced keystone correction for angled
projections.
• Input source automatically detected.
About this Manual
This manual is intended for end users and describes how to install and operate the DLP projector. Wherever possible, relevant information—such as an illustration and its description—has been kept on one
page. This printer-friendly format is both for your convenience and to help save paper, thereby protecting
the environment. It is suggested that you only print sections that are relevant to your needs.
— vi —
Page 8
Preface
– vii –
Table of Contents
GETTING STARTED.......................................................................................................................................................... 1
PACKING CHECKLIST ........................................................................................................................................................... 1
VIEWS OF PROJECTOR PARTS............................................................................................................................................... 2
Front-right View ............................................................................................................................................................. 2
Rear view ........................................................................................................................................................................ 3
Bottom view..................................................................................................................................................................... 4
REMOTE CONTROL PARTS ................................................................................................................................................... 5
REMOTE CONTROL OPERATING RANGE ............................................................................................................................... 7
PROJECTOR AND REMOTE CONTROL BUTTONS.................................................................................................................... 7
SETUP AND OPERATION................................................................................................................................................. 8
INSERTING THE REMOTE CONTROL BATTERIES ................................................................................................................... 8
STARTING AND SHUTTING DOWN THE PROJECTOR............................................................................................................... 9
ADJUSTING THE PROJECTOR LEVEL ................................................................................................................................... 10
ADJUSTING THE KEYSTONE ............................................................................................................................................... 11
ADJUSTING THE VOLUME .................................................................................................................................................. 11
ON-SCREEN DISPLAY (OSD) MENU SETTINGS....................................................................................................... 12
OSD MENU CONTROLS ..................................................................................................................................................... 12
Navigating the OSD ...................................................................................................................................................... 12
SETTING THE OSD LANGUAGE .......................................................................................................................................... 13
OSD MENU OVERVIEW ..................................................................................................................................................... 14

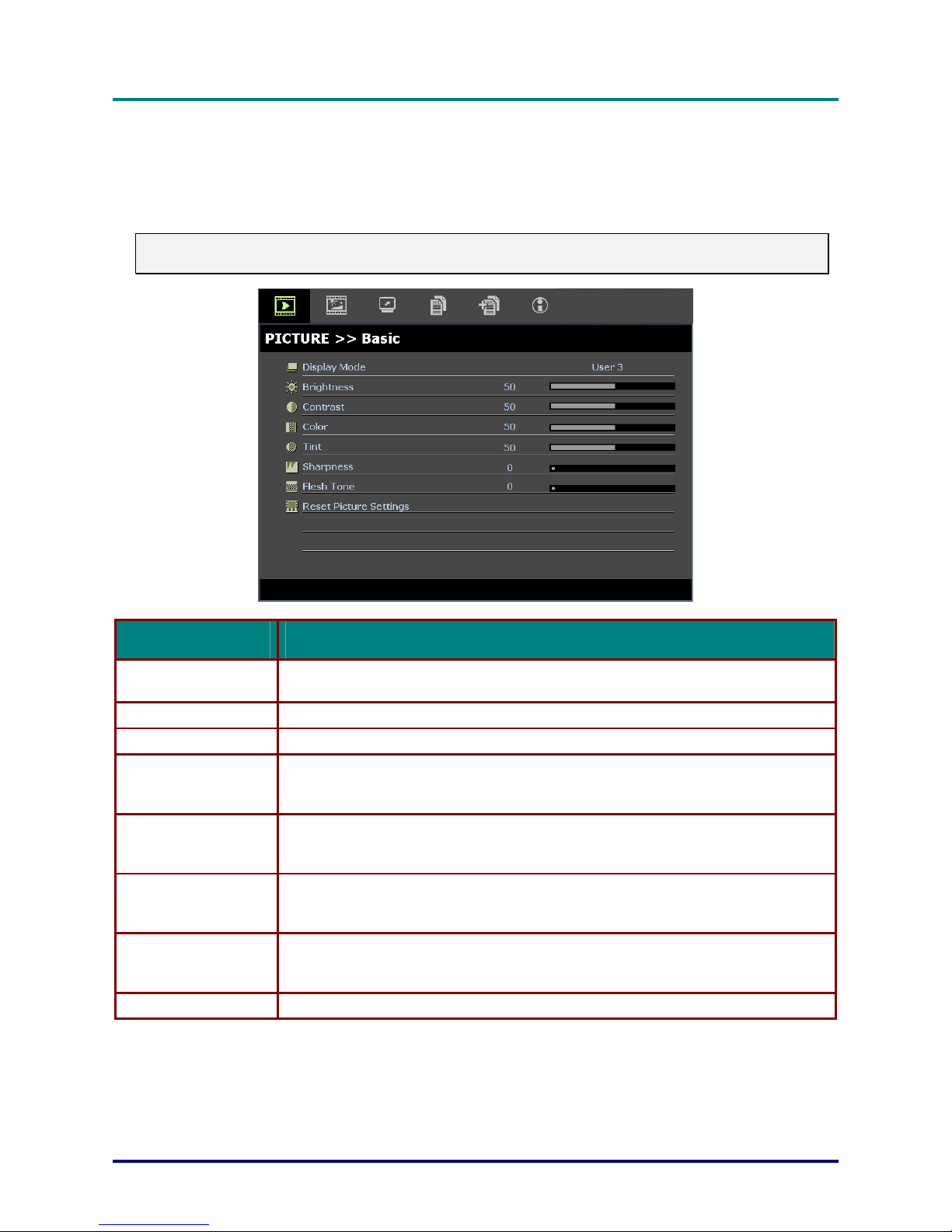

PICTURE>>BASIC MENU................................................................................................................................................. 15

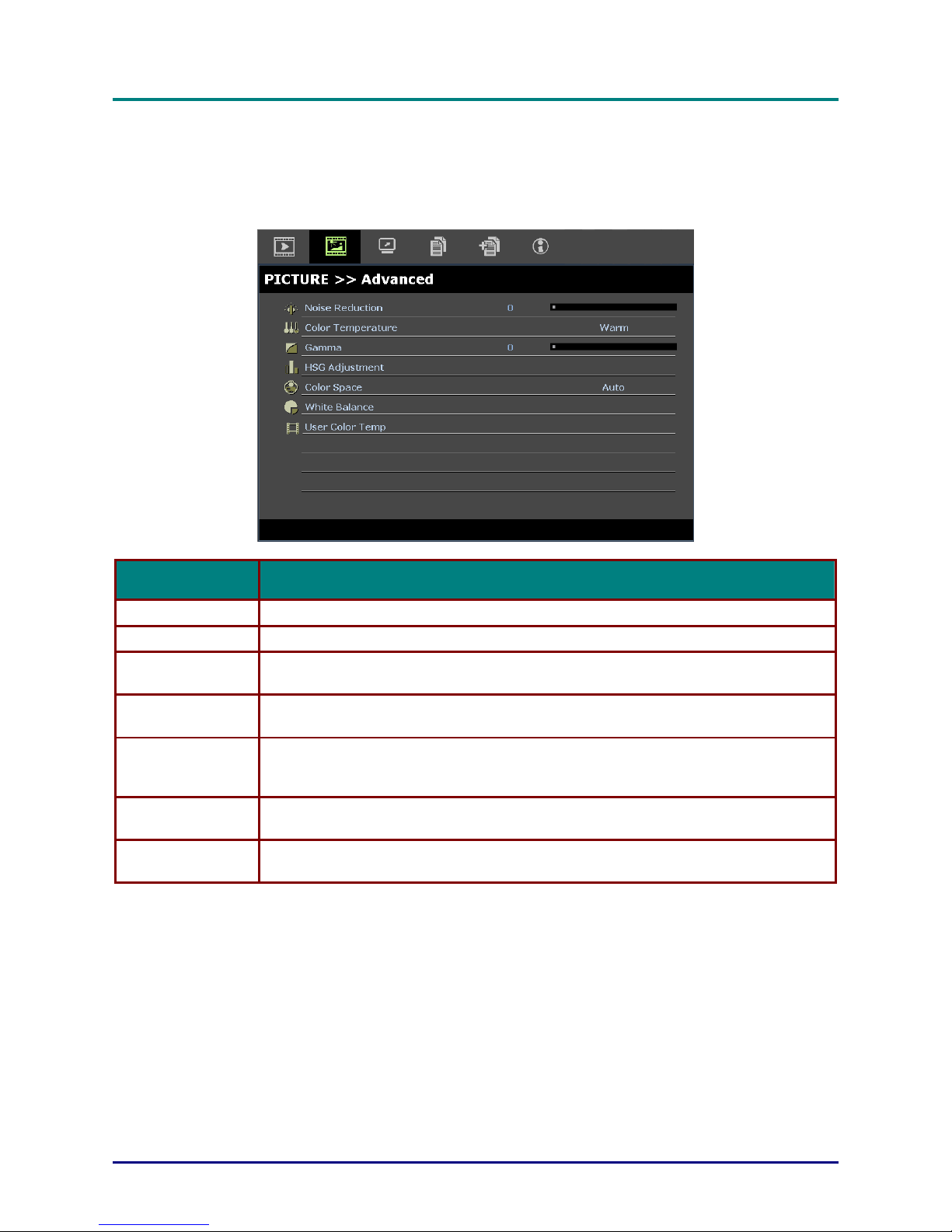

PICTURE>>ADVANCED MENU ........................................................................................................................................ 16

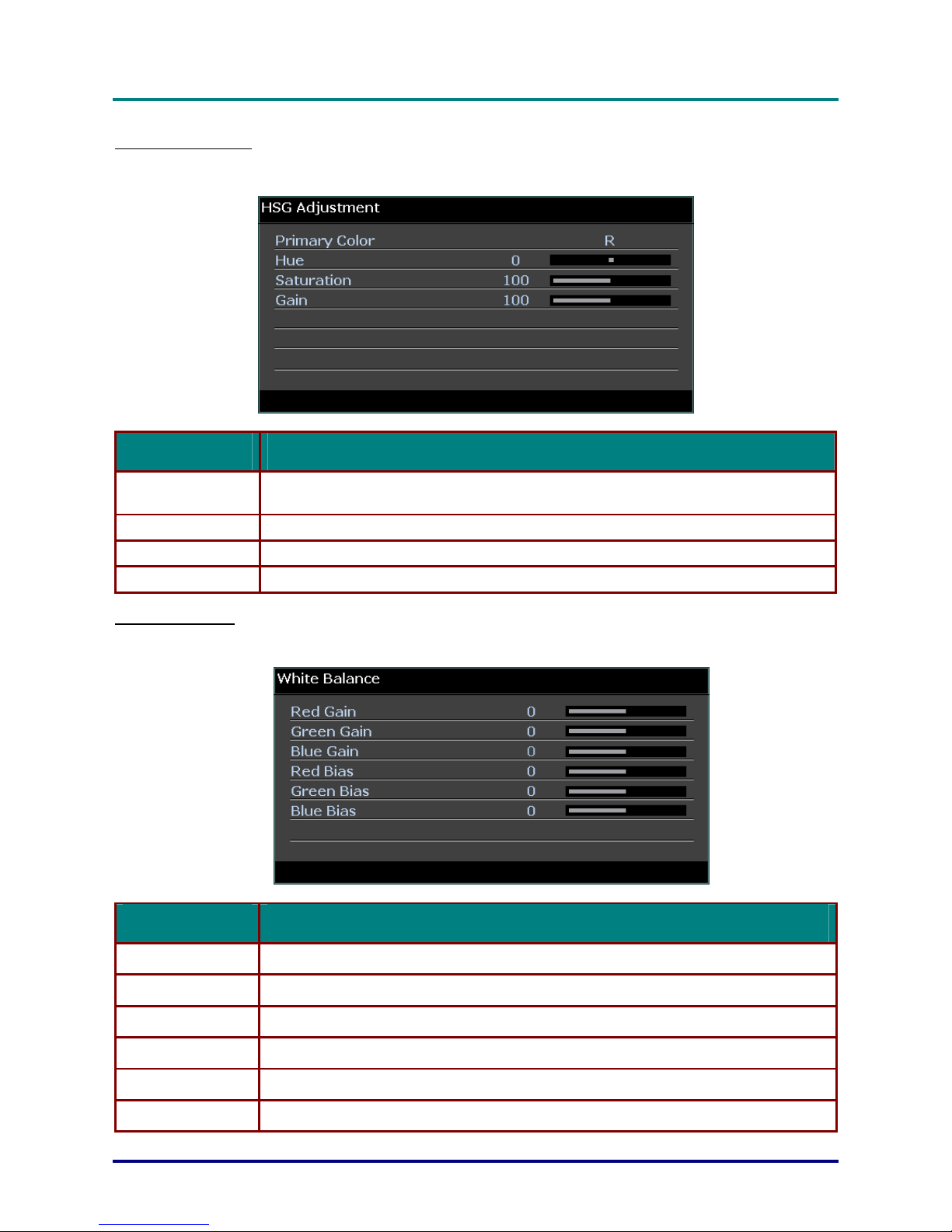

HSG Adjustment............................................................................................................................................................ 17
White Balance ............................................................................................................................................................... 17

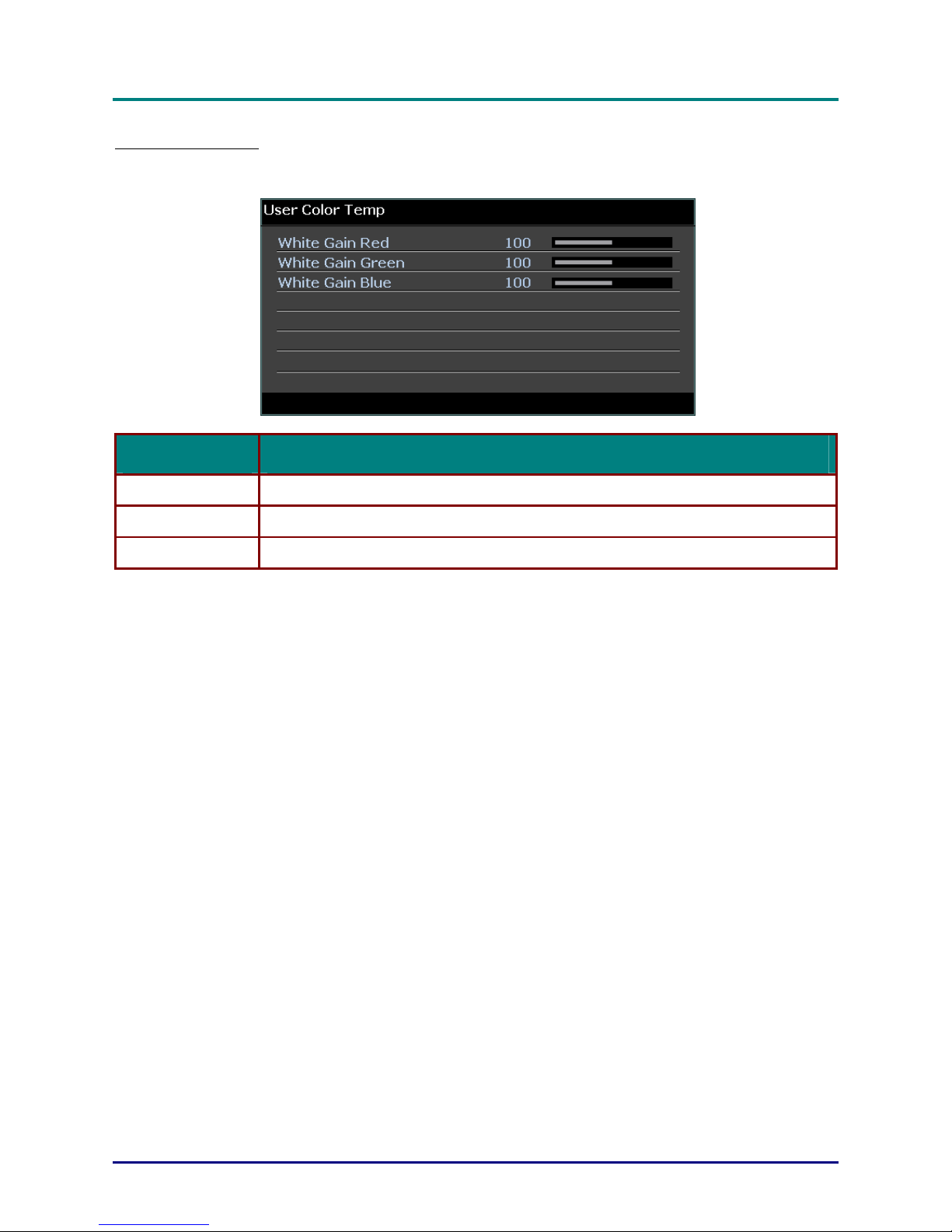

User Color Temp........................................................................................................................................................... 18

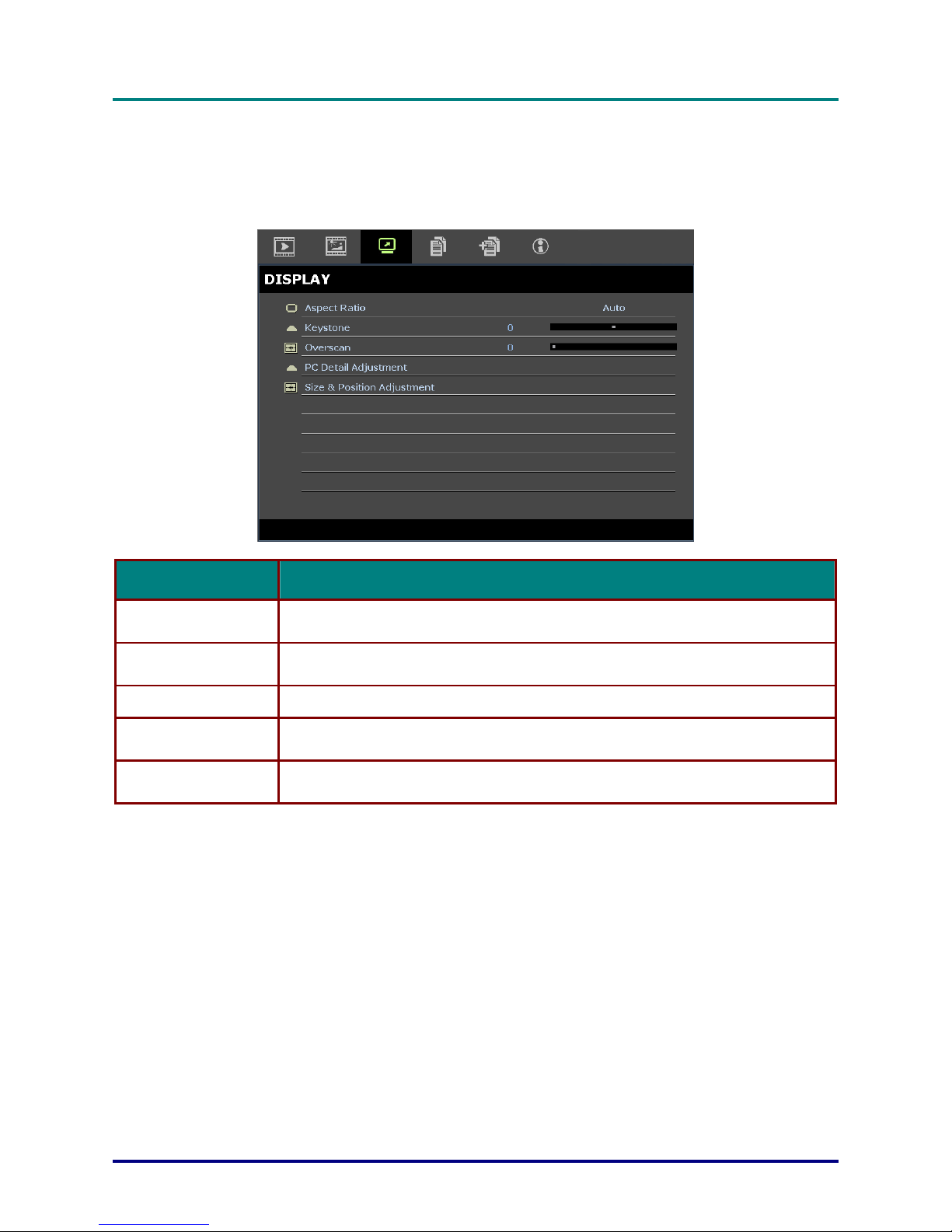

DISPLAY MENU............................................................................................................................................................... 19

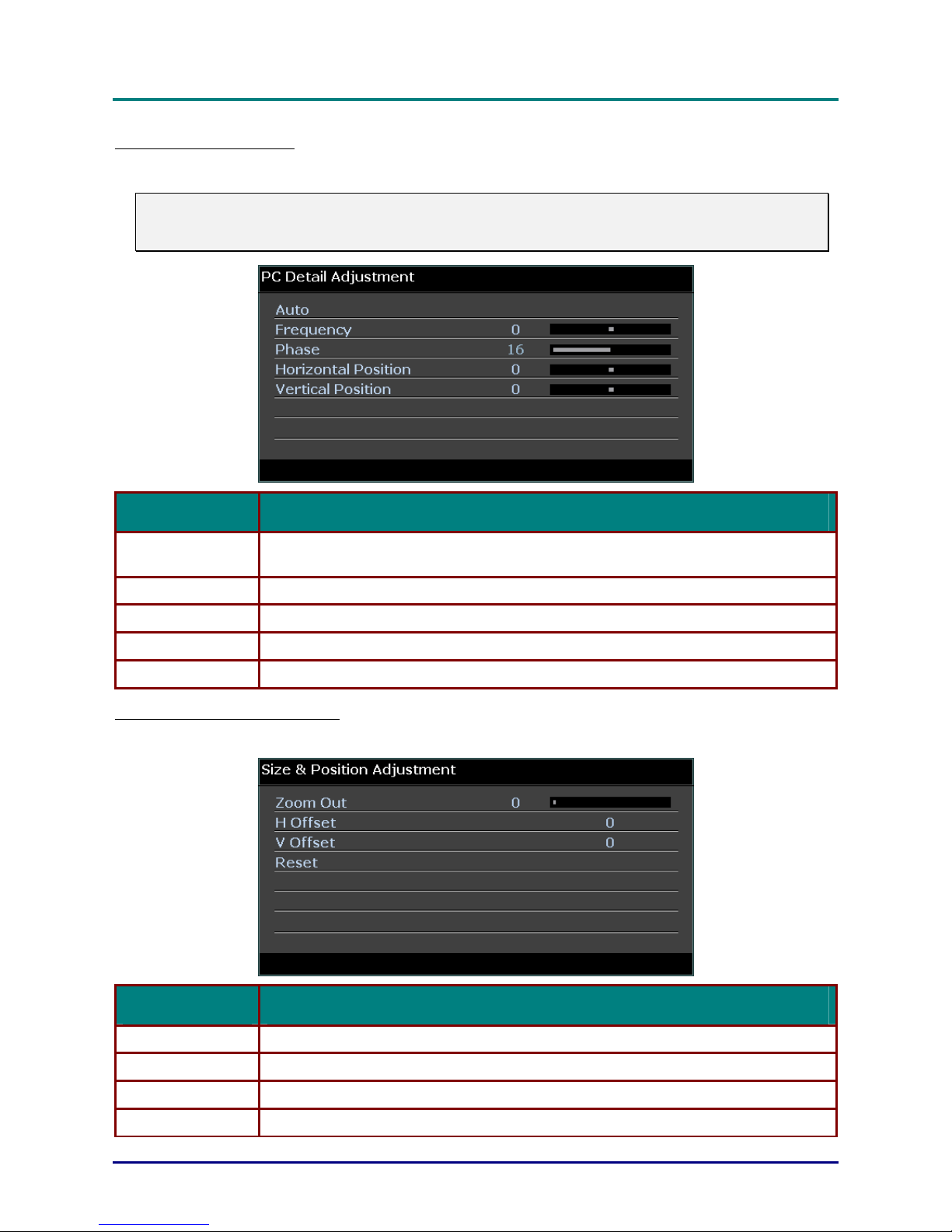

PC Detail Adjustment.................................................................................................................................................... 20
Size & Position Adjustment........................................................................................................................................... 20

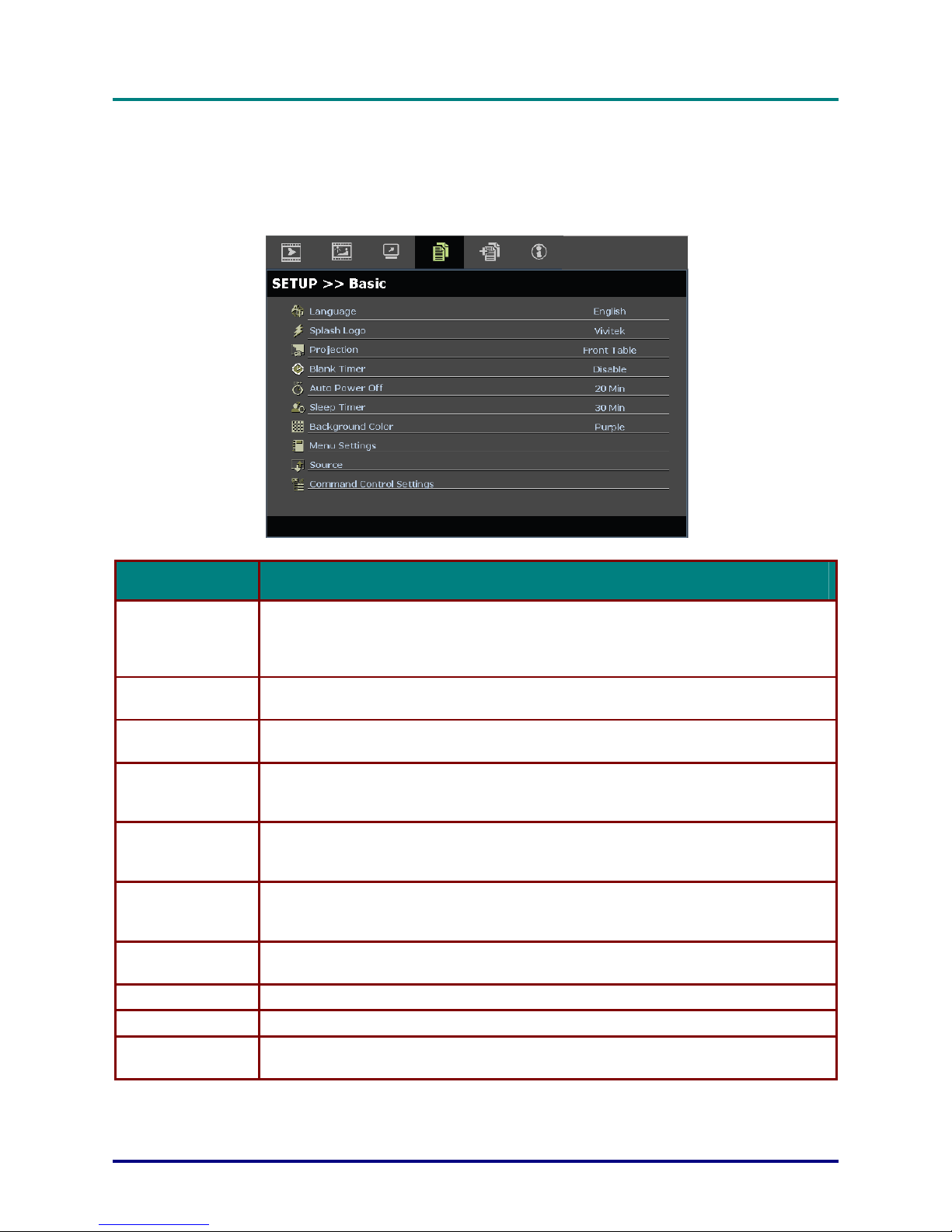

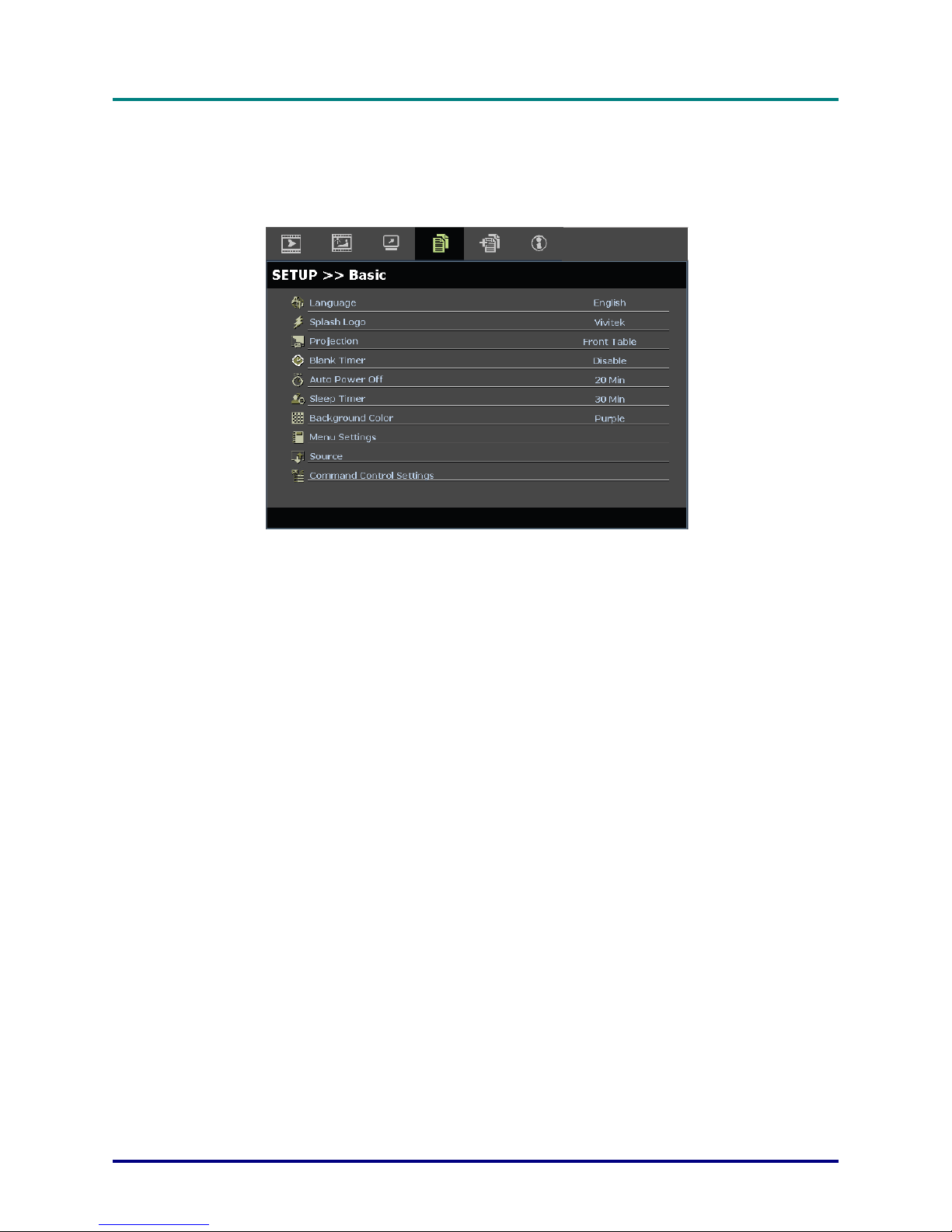

SETUP>>BASIC MENU ..................................................................................................................................................... 21

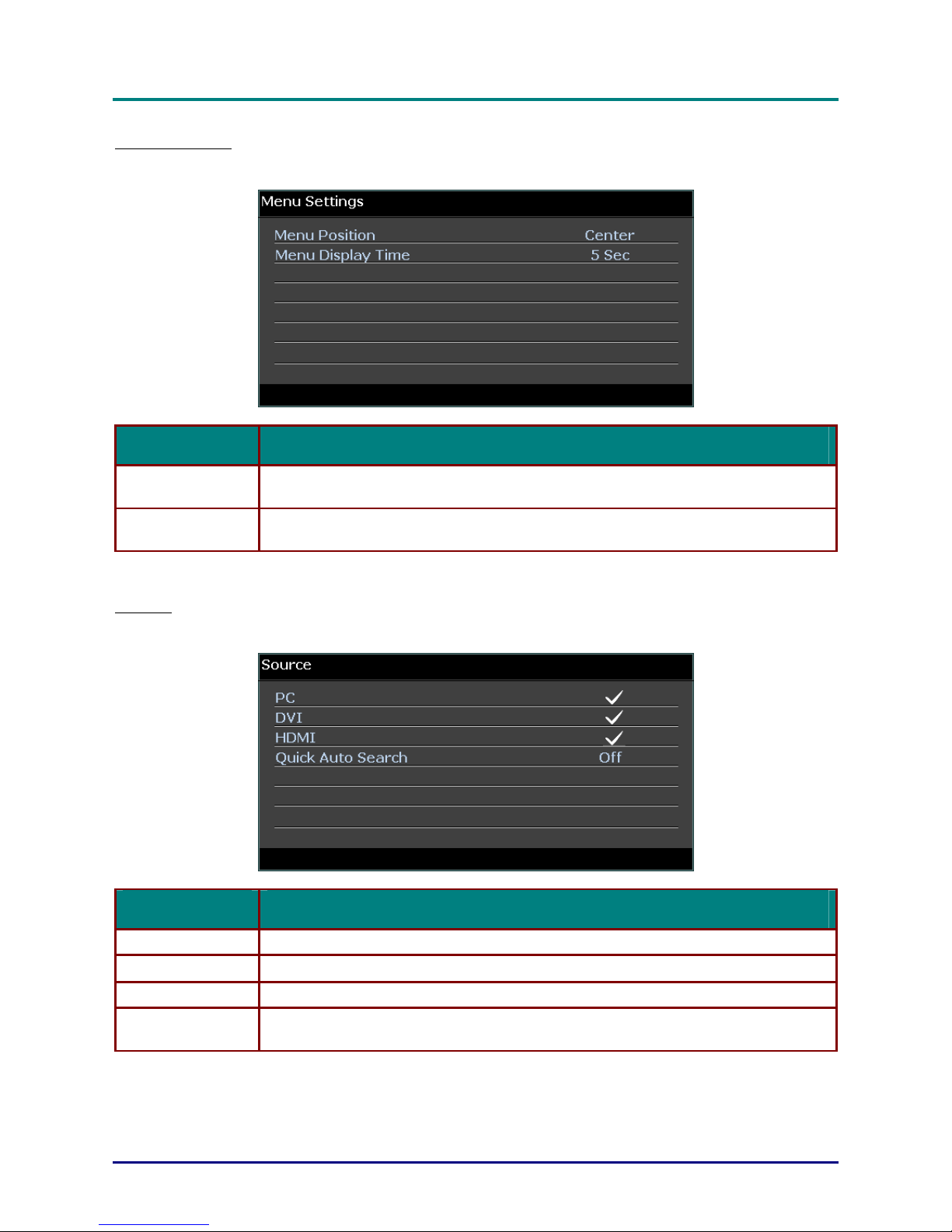

Menu Settings................................................................................................................................................................ 22
Source ........................................................................................................................................................................... 22

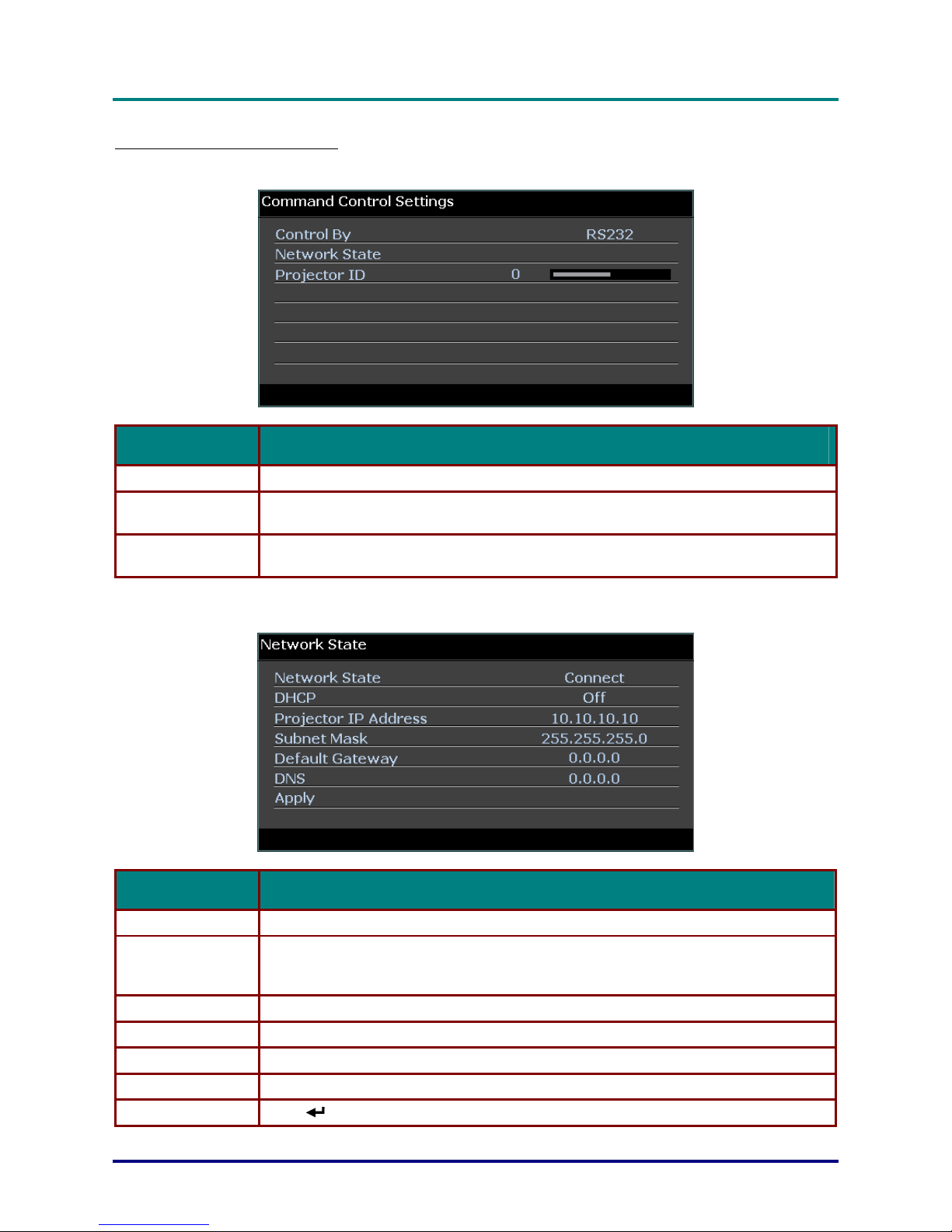

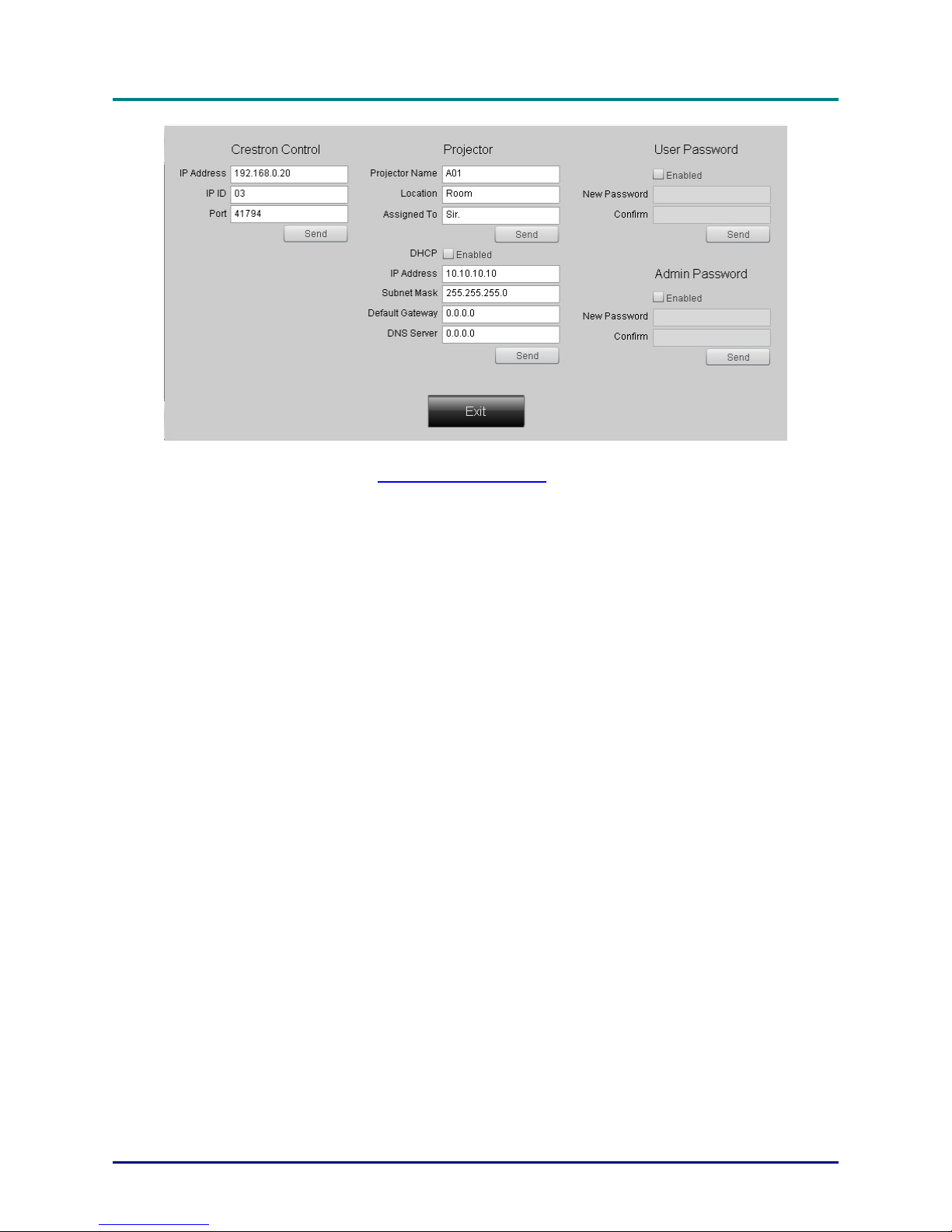

Command Control Settings ........................................................................................................................................... 23

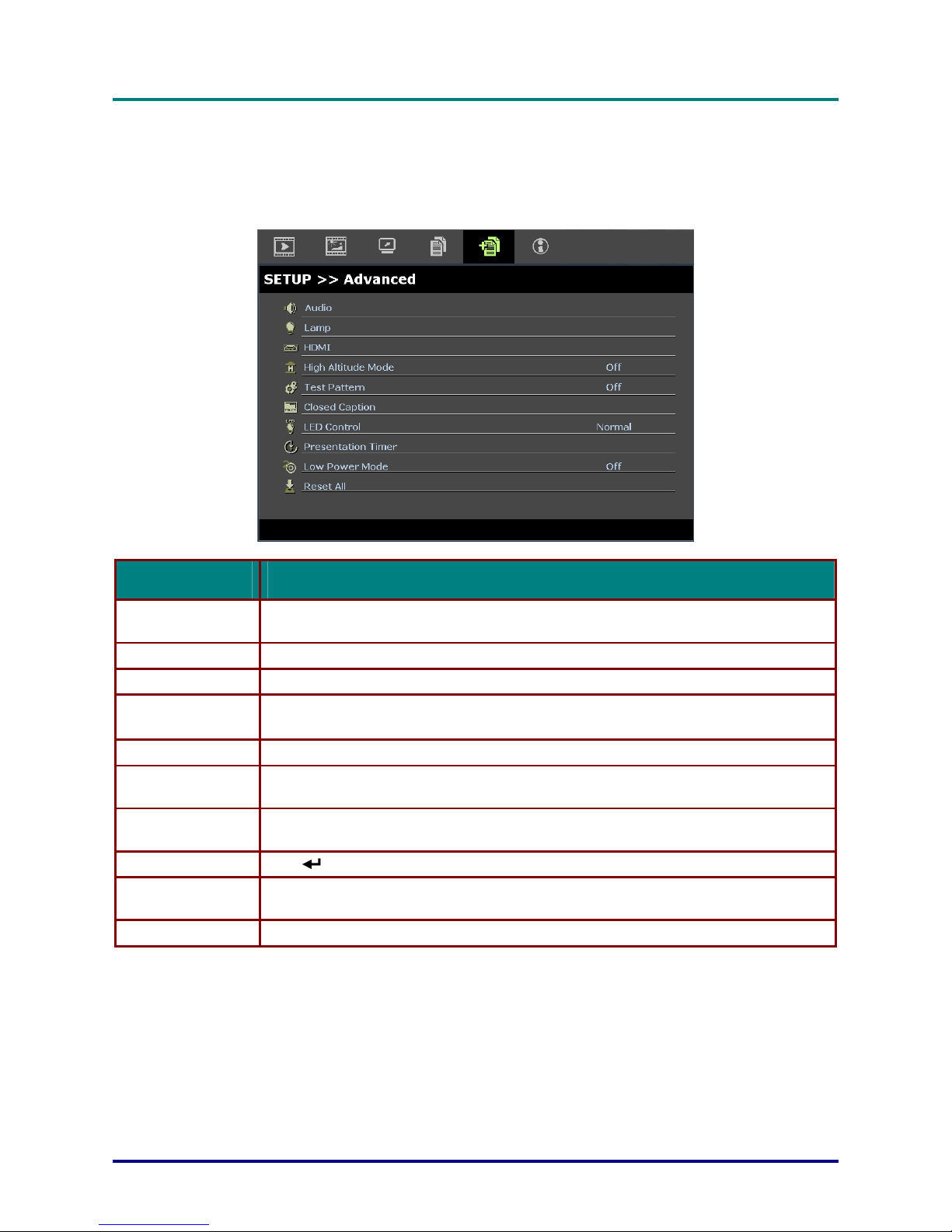

SETUP>>ADVANCED MENU ............................................................................................................................................ 33

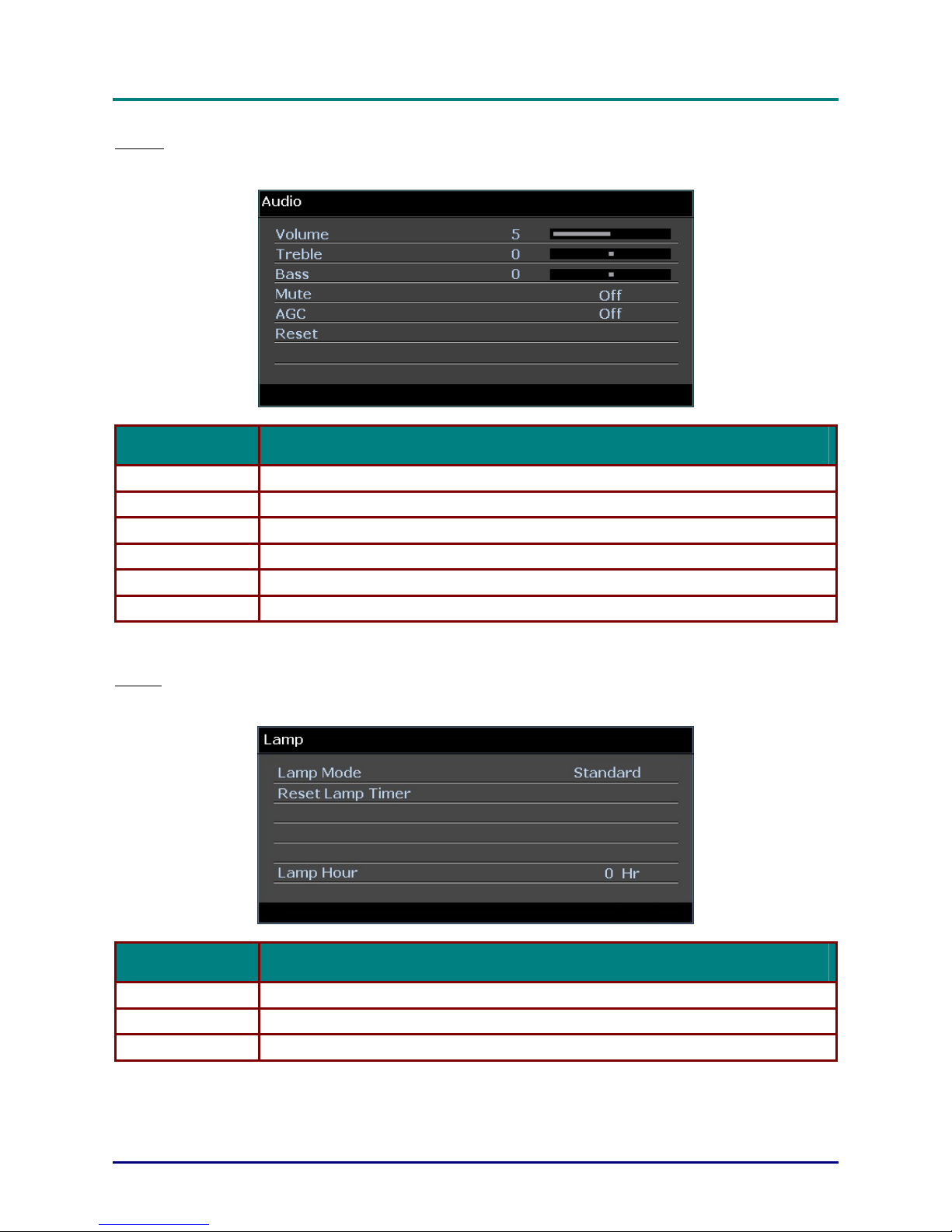

Audio............................................................................................................................................................................. 34
Lamp ............................................................................................................................................................................. 34

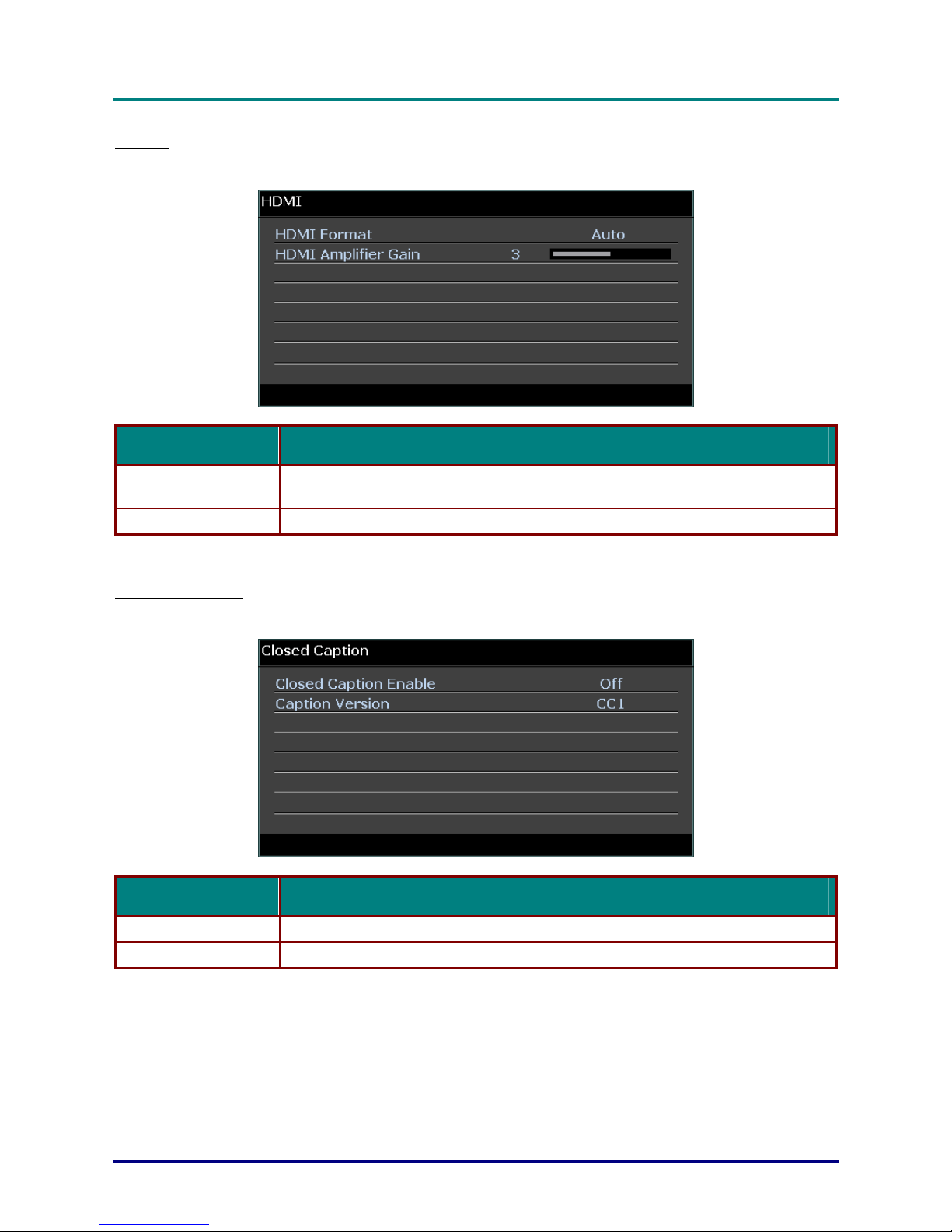

HDMI............................................................................................................................................................................ 35
Closed Caption.............................................................................................................................................................. 35

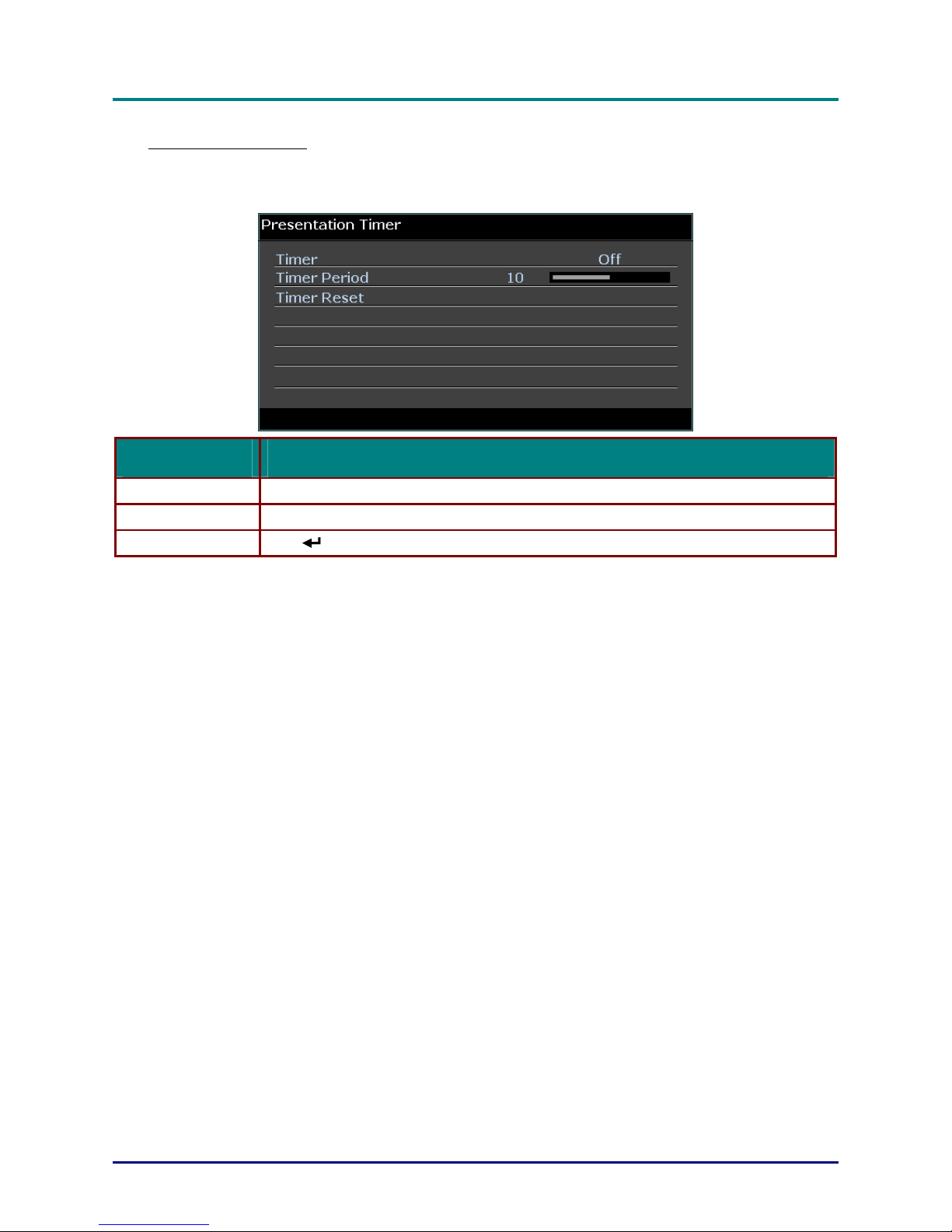

Presentation Timer........................................................................................................................................................ 36

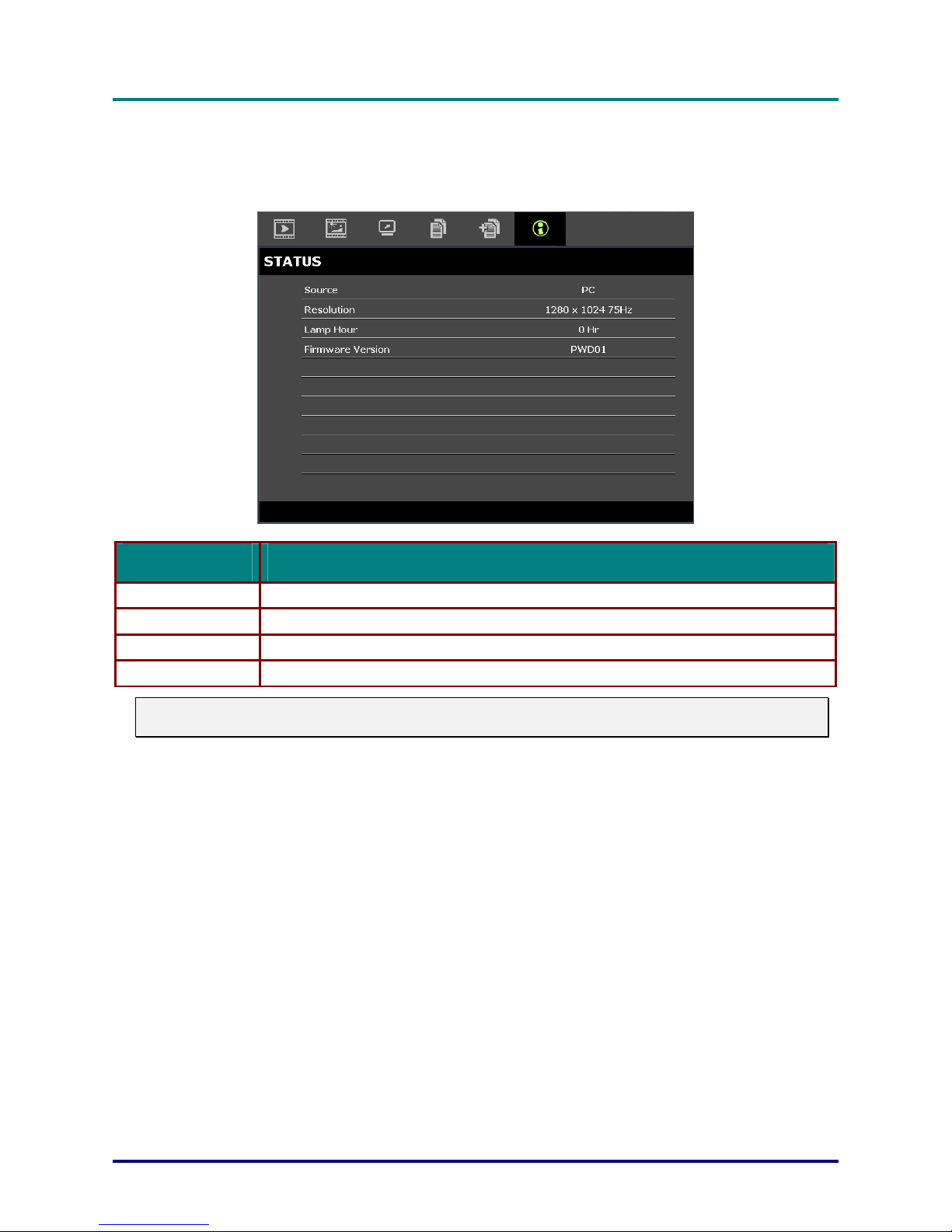

STATUS MENU ................................................................................................................................................................ 37
MAINTENANCE AND SECURITY................................................................................................................................. 38
REPLACING THE PROJECTION LAMP................................................................................................................................... 38
CLEANING THE PROJECTOR................................................................................................................................................ 40

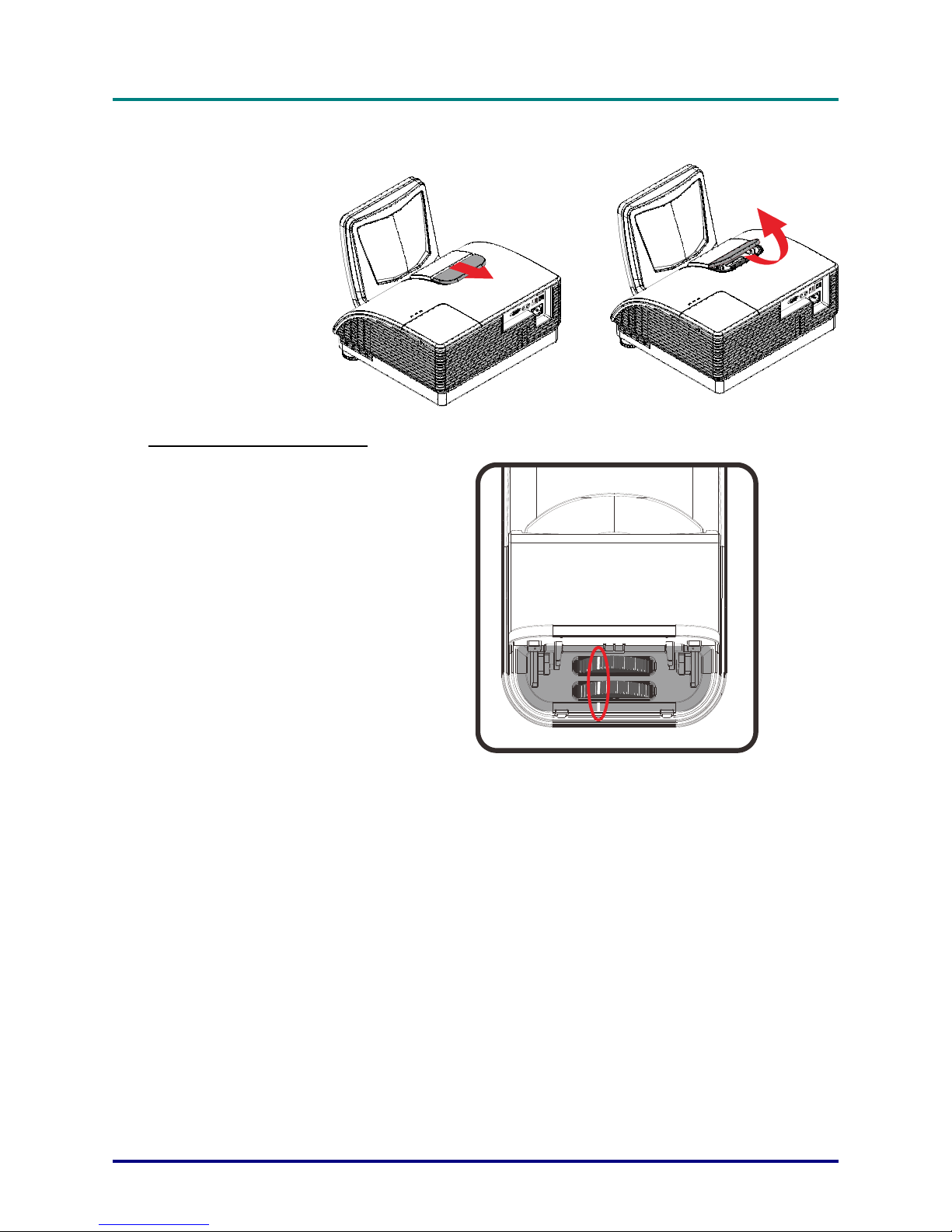

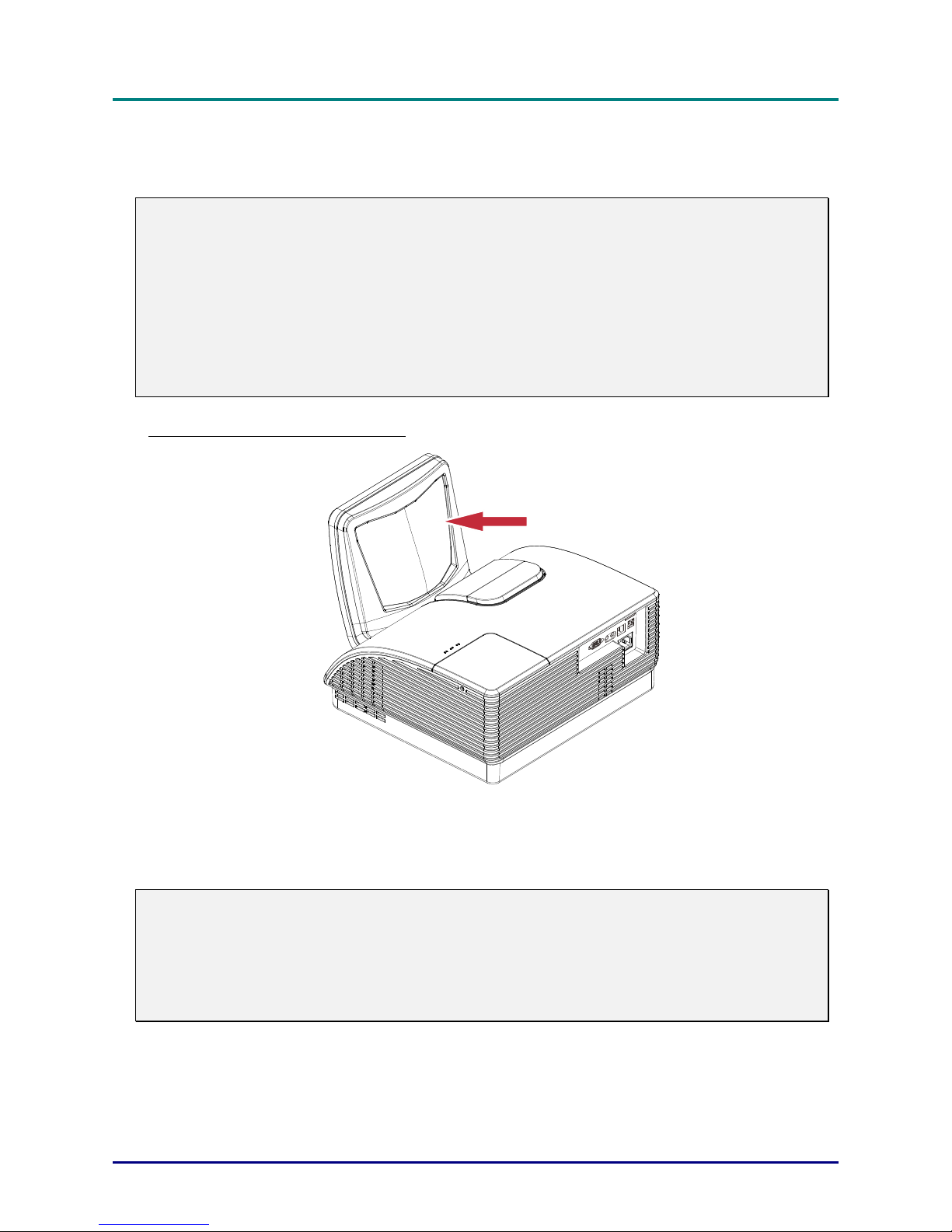

Cleaning the Projector Mirror: .................................................................................................................................... 40
Cleaning the Lens ......................................................................................................................................................... 41
Cleaning the Case......................................................................................................................................................... 41

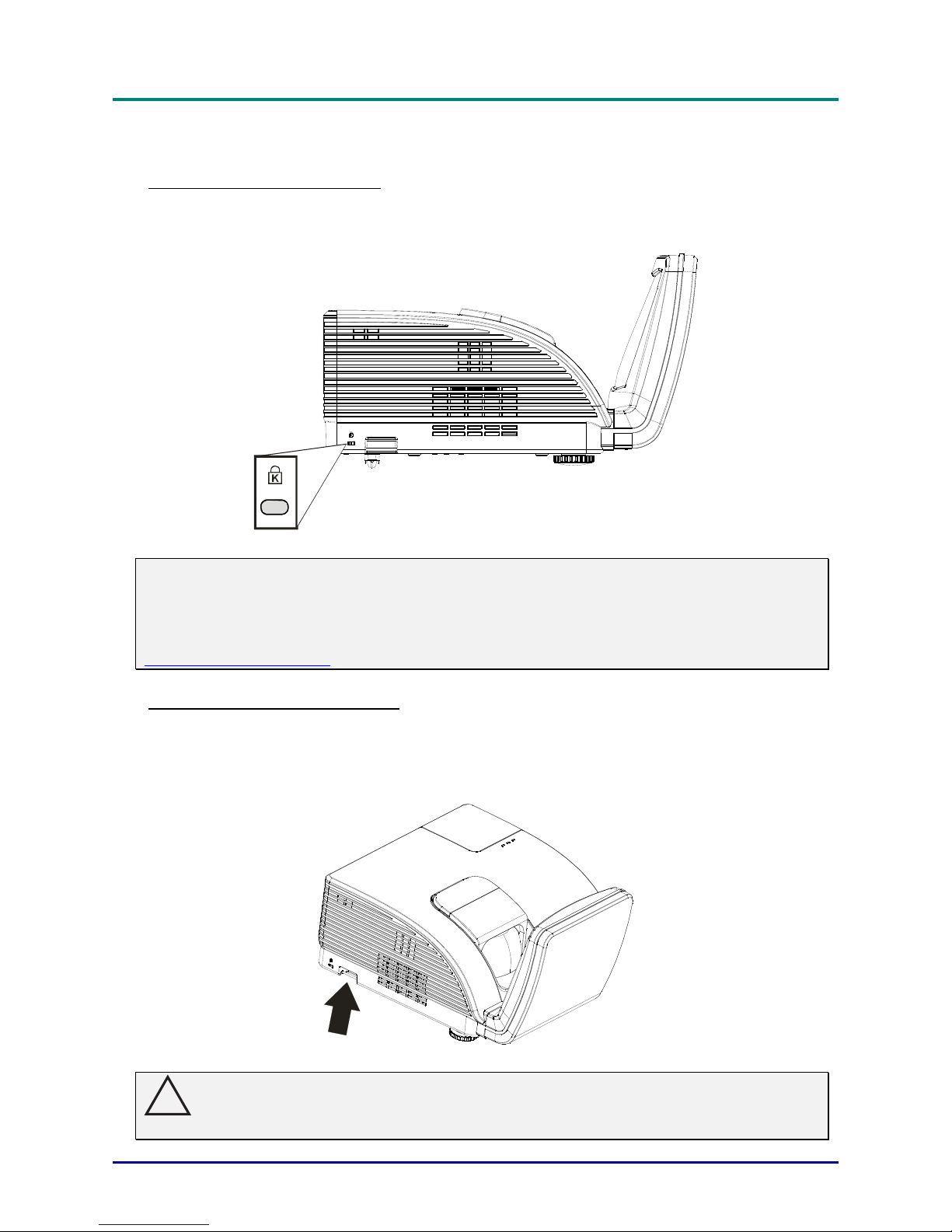

USING THE PHYSICAL LOCK .............................................................................................................................................. 42
Using the Kensington® Lock ......................................................................................................................................... 42
Using the Security Chain Lock...................................................................................................................................... 42

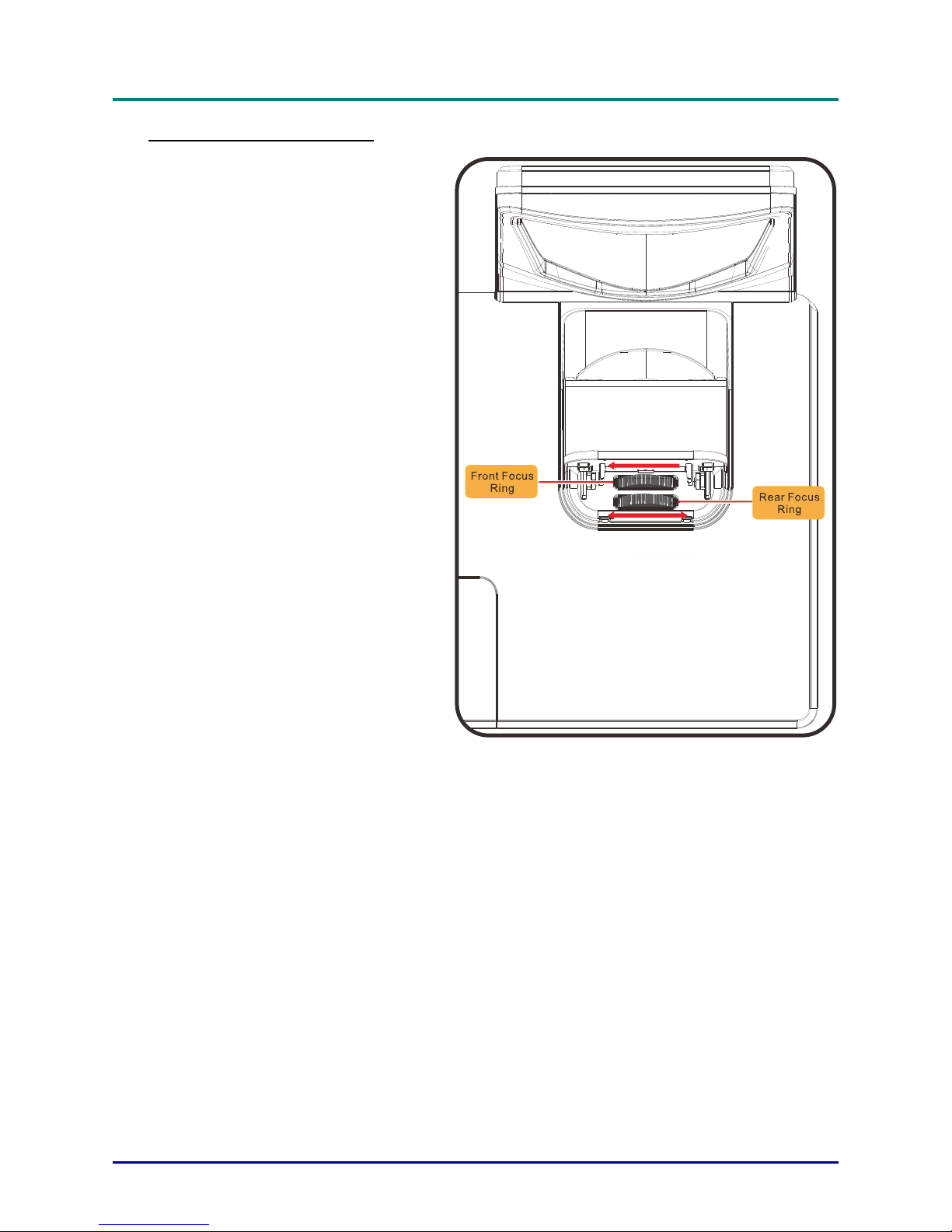

ADJUSTING THE FOCUS ...................................................................................................................................................... 43
Focusing Procedure ( I )............................................................................................................................................ 43
Focusing Procedure ( II )........................................................................................................................................... 44
TROUBLESHOOTING ..................................................................................................................................................... 45
COMMON PROBLEMS AND SOLUTIONS ............................................................................................................................... 45
TIPS FOR TROUBLESHOOTING ............................................................................................................................................ 45
Page 9
DLP Projector – User’s Manual
— viii —
LED ERROR MESSAGES..................................................................................................................................................... 46
IMAGE PROBLEMS.............................................................................................................................................................. 46
LAMP PROBLEMS ............................................................................................................................................................... 47
REMOTE CONTROL PROBLEMS .......................................................................................................................................... 47
AUDIO PROBLEMS ............................................................................................................................................................. 48
HAVING THE PROJECTOR SERVICED .................................................................................................................................. 48
HDMI Q & A .................................................................................................................................................................... 49
SPECIFICATIONS............................................................................................................................................................. 50
SPECIFICATIONS................................................................................................................................................................. 50

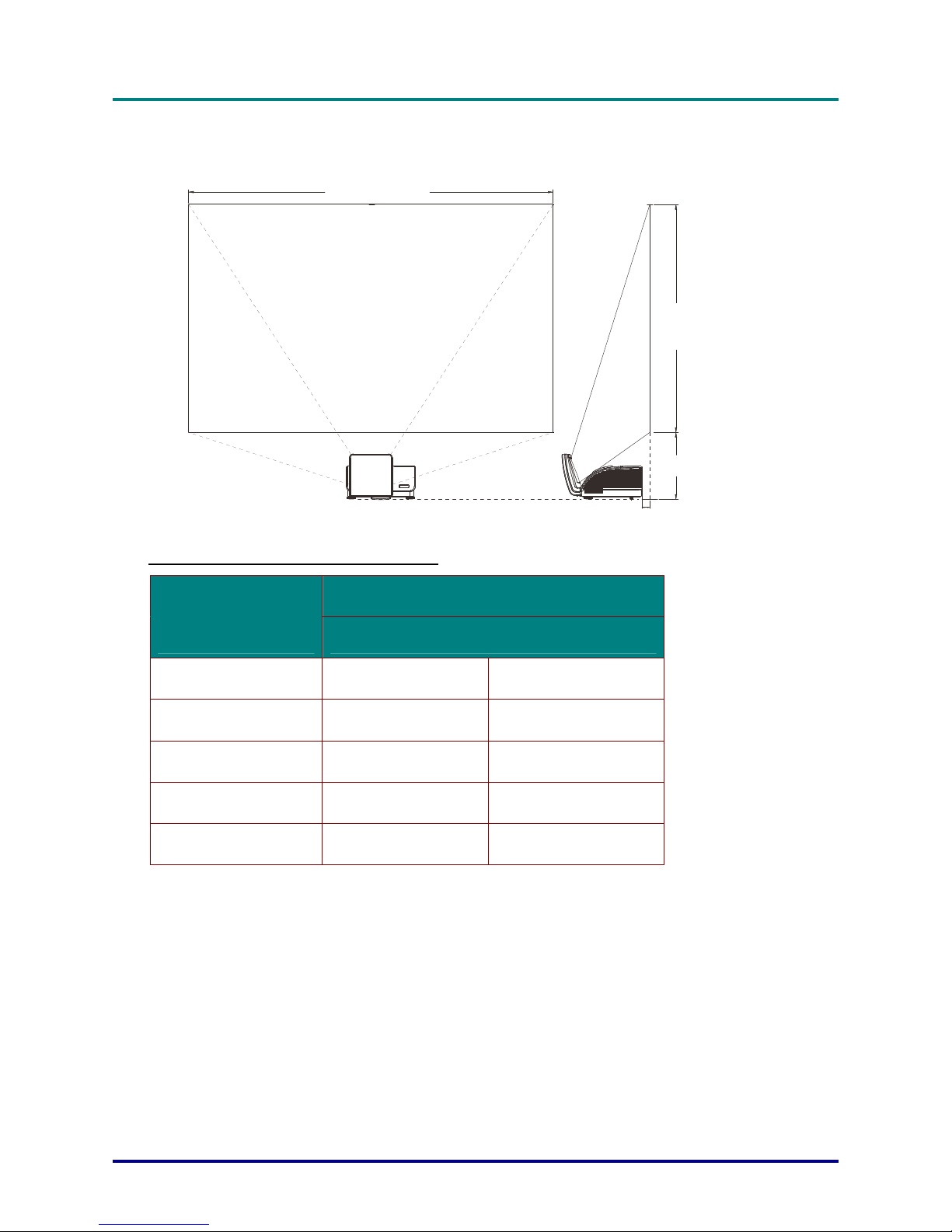

PROJECTION DISTANCE VS. PROJECTION SIZE.................................................................................................................... 51
Projection Distance and Size Table.............................................................................................................................. 51
TIMING MODE TABLE ........................................................................................................................................................ 52

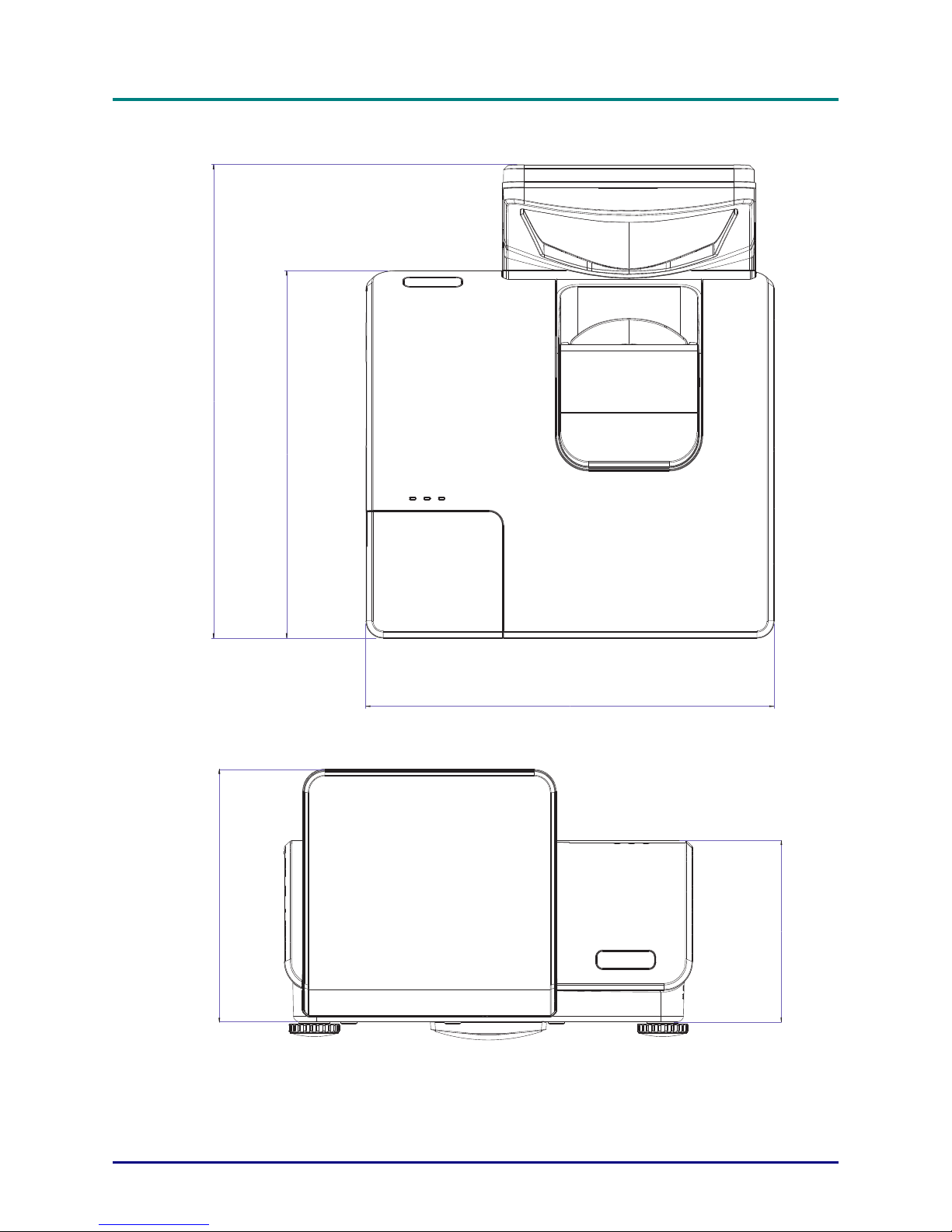

PROJECTOR DIMENSIONS (MM) .......................................................................................................................................... 54
REGULATORY COMPLIANCE ..................................................................................................................................... 55
FCC WARNING .................................................................................................................................................................. 55
CANADA ............................................................................................................................................................................ 55
SAFETY CERTIFICATIONS ................................................................................................................................................... 55
APPENDIX I ....................................................................................................................................................................... 56
RS-232C PROTOCOL.......................................................................................................................................................... 56
Page 10
DLP Projector – User’s Manual
– 1 –
G
ETTING STARTED
Packing Checklist
Carefully unpack the projector and check that the following items are included:
DLP PROJECTOR
R
EMOTE CONTROL
(WITH TWO AAA BATTERIES)
VGA CABLE POWER CORD
CD-ROM
(T
HIS USER’S MANUAL)
Q
UICK START GUIDE WARRANTY CARD
Contact your dealer immediately if any items are missing, appear damaged, or if the unit does not work. It
is recommend that you keep the original packing material should you ever need to return the equipment
for warranty service.
Caution:
Avoid using the projector in dusty environments.
Page 11
DLP Projector – User’s Manual
Views of Projector Parts
Front-right View
12345
6
ITEM LABEL DESCRIPTION SEE PAGE:
1.
Lamp cover Removes cover to replace lamp
2.
Kensington lock
Secure to permanent object with a Kensington®
Lock system
42
3.
Security bar For security and authorized usage
42
4.
Lens Projection Lens
5.
Aspheric mirror Reflects images
WARNING LED Red
Over Temperature
LAMP LED Flashing Error code 6.
POWER LED Flashing Error code
46
Important:
Ventilation openings on the projector allow for good air circulation, which keeps the projector lamp
cool. Do not obstruct any of the ventilation openings.
— 2 —
Page 12
DLP Projector – User’s Manual
Rear view
123
4
5
678
910
ITEM LABEL DESCRIPTION SEE PAGE:
1.
VGA OUT
Connect the RGB cable to a display
(Loop Thru only for VGA IN)
2.
VGA IN Connect the RGB cable from a computer and components.
3.
DVI Connect the DVI cable from a device.
4.
HDMI Connect the HDMI cable from a HDMI device
5.
USB Connect the USB cable from a computer
6.
RJ – 45 Connect a LAN cable from Ethernet
7.
AC IN Connect the POWER cable
9
8.
AUDIO OUT Connect an audio cable to the audio device
9.
AUDIO IN Connect an audio cable from the audio device
10.
RS-232 Connect RS-232 serial port cable for remote control
Note:
If your video equipment has various input sources, it is recommended to connect in priority of
HDMI/DVI, component (thru VGA), for better picture quality.
！
Warning:
As a safety precaution, disconnect all power to the projector and connecting devices before making
connections.
– 3 –
Page 13
DLP Projector – User’s Manual
Bottom view
ITEM LABEL DESCRIPTION SEE PAGE:
1.
Security bar Helps protect the projector from unauthorized use
42
2.
Tilt adjustors Rotate adjusters lever to adjust angle position
3.
Ceiling support holes Contact your dealer for information on mounting the projector on a ceiling
Note:
When installing, ensure that you use only UL Listed ceiling mounts.
For ceiling installations, use approved mounting hardware and M4 screws with a maximum screw
depth of 12 mm (0.47 inch).
The construction of the ceiling mount must be of a suitable shape and strength. The ceiling mount
load capacity must exceed the weight of the installed equipment, and as an additional precaution
be capable of withstanding three times the weight of the equipment (not less than 5.15 kg) over a
period of 60 seconds.
— 4 —
Page 14
DLP Projector – User’s Manual
Remote Control Parts
Important:
1. Avoid using the projector with bright fluorescent lighting turned on. Certain high-frequency fluo-
rescent lights can disrupt remote control operation.
2. Be sure nothing obstructs the path between the remote control and the projector. If the path between the remote control and the projector is obstructed, you can bounce the signal off certain
reflective surfaces such as projector screens.
3. The buttons and keys on the projector have the same functions as the corresponding buttons on
the remote control. This user’s manual describes the functions based on the remote control.
– 5 –
Page 15
DLP Projector – User’s Manual
— 6 —
ITEM LABEL DESCRIPTION SEE PAGE:
1.
IR transmitter Transmits signals to projector
2.
Status LED Lights when the remote control is used
3.
Laser Press to operate the on-screen pointer
4.
Up Up arrow when connected through USB to a PC
5.
Right Right arrow when connected through USB to a PC
6.
Down Down arrow when connected through USB to a PC
7.
Page Down Page down when connected through USB to a PC
8.
Up cursor
9.
Right cursor
10.
Down cursor
Navigates and changes settings in the OSD
12
11.
Volume +/- Adjusts volume
11
12.
Mute Mutes the built-in speaker
13.
Zoom+ Zoom in
14.
Zoom- Zoom out
15.
Freeze Freeze/unfreezes the on-screen picture
16.
Blank Makes the screen blank
17.
Source Detects the input device
18.
Auto Auto adjustment for phase, tracking, size, position
19.
Menu Opens the OSD
12
20.
Status
Opens the OSD Status menu (the menu only opens when an input device is detected)
21.
Keystone top/bottom Corrects image-trapezoid (wider top/bottom) effect
11
22.
Left cursor Navigates and changes settings in the OSD
23.
Enter Changes settings in the OSD
24.
Page Up Page up when connected through USB to a PC
25.
Left Left arrow when connected through USB to a PC
26.
Enter Enter key when connected through USB to a PC
12
27.
Power Turns the projector on or off
9
28.
Laser Use as on-screen pointer. DO NOT POINT IN EYES.
Page 16
DLP Projector – User’s Manual
– 7 –
Remote Control Operating Range
The remote control uses infrared transmission to control the projector. It is not necessary to point the
remote directly at the projector. Provided you are not holding the remote perpendicular to the sides or
the rear of the projector, the remote will function well within a radius of about 7 meters (23 feet) and
15 degrees above or below the projector level. If the projector does not respond to the remote control,
move a little closer.
Projector and Remote Control Buttons
The projector can be operated using the remote control or the buttons on the top of the projector. All
operations can be carried out with the remote control; however, the buttons on the projector are limited in use.
Page 17
DLP Projector – User’s Manual
— 8 —
S
ETUP AND OPERATION
Inserting the Remote Control Batteries
1.
Remove the battery compartment cover
by sliding the cover in the direction of
the arrow.
2.
Insert the battery with the positive side
facing up.
3.
Replace the cover.
Caution:
1. Only use AAA batteries (Alkaline batteries are recommended).
2. Dispose of used batteries according to local ordinance regulations.
3. Remove the batteries when not using the projector for prolonged periods.
Page 18
DLP Projector – User’s Manual
Starting and Shutting down the Projector
1.
Connect the power cord to the projector.
Connect the other end to a wall outlet.
The POWER LED will be on.
2.
Turn on the connected devices.
3.
Ensure the POWER LED displays a
solid amber and not a flashing amber.
Then press the
POWER button on
the remote control to turn on the projector.
The projector splash screen displays and
connected devices are detected.
4.
If more than one input device is connected, press the SOURCE button to
scroll among devices.
(Component is supported through
the RGB to COMPONENT
ADAPTER.)
5.
When the POWER OFF window appears, press the
POWER button on
the remote control. The projector turns
off.
Caution:
Do not unplug the power cord until the POWER LED change to amber–indicating the projector
has cooled down.
– 9 –
Page 19
DLP Projector – User’s Manual
Adjusting the Projector Level
Take note of the following when setting up the projector:
• The projector table or stand should be level and sturdy.
• Position the projector so that it is perpendicular to the screen.
• Remove the Back Foot Holder on the rear adjuster foot before adjusting the projection
angle.
• Ensure the cables are in a safe location. You could trip over them.
1.
To lower the level of the projector, twist
the adjusters clockwise.
2.
To raise the level of the projector, lift
the projector and twist the adjusters
counter clockwise.
— 10 —
Page 20
DLP Projector – User’s Manual
Adjusting the Keystone
1.
Use the KEYSTONE
buttons on the remote
control to correct imagetrapezoid (wider top or
bottom) effect.
2.
The keystone control
appears on the display.
Adjusting the Volume
1.
Press the Volume +/-
buttons on the remote
control.
The volume control
appears on the display.
2.
Press the MUTE button to
turn off the volume
– 11 –
Page 21
DLP Projector – User’s Manual
— 12 —
ON-S
CREEN DISPLAY
(OSD) M
ENU SETTINGS
OSD Menu Controls
The projector has an OSD that lets you make image adjustments and change various settings.
Navigating the OSD
You can use the remote control cursor buttons or the buttons on the top of the projector to navigate
and make changes to the OSD. The following illustration shows the corresponding buttons on the
projector.
1. To enter the OSD, press the MENU button.
2. There are six menus. Press the cursor
◄► button to move through the menus.
3. Press the cursor ▲▼ button to move up
and down in a menu.
4. Press ◄► to change values for settings.
5. Press MENU to close the OSD or leave a
sub menu.
Note:
Depending on the video source, not all items in the OSD are available. For example, the PC Detail
Adjustment item in the Display menu can only be modified when connected to a PC. Items that
are not available cannot be accessed and are grayed out.
Page 22
DLP Projector – User’s Manual
Setting the OSD Language
Set the OSD language to your preference before continuing.
1. Press the MENU button. Press the cursor ◄► button to navigate to SETUP>>Basic.
2. Press the cursor ▲▼ button until Language is highlighted.
3. Press the cursor ◄► button until the language you want is selected.
4. Press the MENU button to close the OSD.
– 13 –
Page 23
DLP Projector – User’s Manual
OSD Menu Overview
Use the following illustration to quickly find a setting or determine the range for a setting.
Sharpness
Tint
Color
Contrast
Brightness
PICTURE>> Basic
Flesh Tone
PICTURE>> Advanced
Color Temperature
Gamma
Color Space
Lamp Native/Warm/Normal/Cool/Cooler/High Cool
Auto/RGB/STDV/HDTV
DISPLAY
Aspect Ratio
Keystone
Overscan
PC Detail Adjustment Auto/Frequency/Phase/Hori zontal Position/Vertical Position
Auto/16:9/4:3/Letter Box/Real
Background Color
Sleep Timer
Auto Power Off
Blank Timer
Projection
Splash Logo
SETUP >> Basic
Language
Menu Settings
Source
Vivitek/Blue/Black
Front Table/Front Ceiling/Rear Table/Rear Ceiling
Disable / 5 Min / 10 Min / 15 Min / 20 Min / 25 Min / 30 Min
Disable / 5 Min / 10 Min / 15 Min / 20 Min / 25 Min / 30 Min
Disable / 30 Min / 1 Hr / 2 Hr / 3 Hr / 4Hr / 8Hr / 12 Hr
Purple/Black/Blue
Menu position
PC
check/uncheck
Top-Left/Top-Right/Center/Bottom-Left/Bottom-Right
DVI check/uncheck
HDMI
check/uncheck
Quick Auto Search On
Off
HSG Adjustment
Hue
Sturation
Gain
Reset Picture Setting Enter
Yes/No
English/ Danish/ Dutch/ Finnish/ Français/ Deutsch/ Italiano/ Korean / Norsk/ Polish/ Português (Latin
American)/ Russian/ Simplified Chinese/ Traditi onal Chinese/ Spanish/ Swedish/ Czech/ Greek/ Turkish/
Hungarian/ Vietnamese/ Arabic/ Thai
Zoom Out/H Offset/V Offset/RestSize & Position Adjustment
5 Sec / 10 Sec / 15 Sec / 20 Sec / 25 Sec / 30 Sec
Menu Display Time
RS232/RJ45(RS232)
Network State Network State
Control ByCommand Control Settings
LED Control
Closed Caption
Test Pattern
HDMI
Lamp
Lamp Mode
HDMI Format
Off/ Blank/ Solid Field/ Hori Ramp/ Vert Ramp/ Hori Lines/ Diagnoal / Vert Lines/Grid /CheckBoard /Ansi /Red /Green /Blue /White
Closed Caption Enable
Off/ Normal
Off
Treble
Bass
AGC On /Off
Yes/NoReset
Yes/NoReset Lamp Timer
High Altitude Mode Yes/NoOff/ On
Caption Version CC1/CC2/CC3/CC4
Boost/Standard
Lamp Hour
HDMI Amplifier Gain
Auto/PC Signal/Video Signal
STATUS
Source
Resolution
Lamp Hour
Firmware Version
Presentation Timer
Timer
Timer Period
On/Off
Timer Reset ENTER
Reset / CancelEnterReset All
Mute On /Off
Movie/Bright/Normal/User 1/User 2/User 3
PICTURE>> Advanced|HSG
Adjustment
Primary Color R/G/B/Y/C/M
VolumeAudioSETUP >> Advanced
White Balance Red Gain/Green Gain/Blue Gain/Red Bias/Green Bias/Blue Bias
User Color Temp White Gain Red/White Gain Green/White Gain Blue
DHCP(On/Off)
Projector IP Address
Subnet Mask
Default Gateway
DNS
Apply
Display Mode
Noise Reduction
Low Power Mode Off/ On
Projector ID
— 14 —
Page 24
DLP Projector – User’s Manual
PICTURE>>Basic Menu
Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the
PICTURE>>Basic menu. Press the cursor ▲▼ button to move up and down in the
PICTURE>>Basic menu. Press ◄► to change values for settings.
Note:
Customizing the settings in PICTURE>>Basic menu is only available in User 1/ 2/ 3 mode.
ITEM DESCRIPTION
Display Mode
Press the cursor ◄► buttons to set the Display Mode.
(Range: Movie/ Bright/ Normal/ User 1/ User 2/ User 3)
Brightness Press the cursor ◄► buttons to adjust the display brightness.
Contrast Press the cursor ◄► buttons to adjust the display contrast.
Color
Press the cursor ◄► buttons to adjust the video saturation.
Notes: This function is only available when SOG/YUV from VGA or HDMI mode from
HDMI input source is selected and Display Mode set to User 1/ User 2/ User 3.
Tint
Press the cursor ◄► buttons to adjust the video tint/hue.
Notes: This function is only available when SOG/YUV from VGA or HDMI mode from
HDMI input source is selected and Display Mode set to User 1/ User 2/ User 3.
Sharpness
Press the cursor ◄► buttons to adjust the display sharpness.
Notes: This function is only available when SOG/YUV from VGA or HDMI mode from
HDMI input source is selected and Display Mode set to User 1/ User 2/ User 3.
Flesh Tone
Press the cursor ◄► buttons to adjust the display flesh tone.
Notes: This function is only available when SOG/YUV from VGA or HDMI mode from
HDMI input source is selected and Display Mode set to User 1/ User 2/ User 3.
Reset Picture Settings Press the ENTER button to reset all settings to default values.
– 15 –
Page 25
DLP Projector – User’s Manual
PICTURE>>Advanced Menu
Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the
PICTURE>>Advanced menu. Press the cursor ▲▼ button to move up and down in the
PICTURE>>Advanced menu. Press ◄► to change values for settings.
ITEM DESCRIPTION
Noise Reduction Press the cursor ◄► button to adjust the Noise Reduction.
Color Temperature Press the cursor ◄► button to set the Color Temperature.
Gamma
Press the cursor ◄► button to adjust the gamma correction of the display.
Notes: This function is only available in User 1/ 2/ 3 mode.
HSG Adjustment
Press the ENTER button to enter the HSG Adjustment sub menu.
See HSG Adjustment on page 17.
Color Space
Press the cursor ◄► button to set the Color Space.
(Range: Auto/ RGB/ SDTV/ HDTV)
Notes: This function is only available when HDMI input source is selected.
White Balance
Press the ENTER button to enter the White Balance sub menu.
See White Balance on page 17
User Color Temp
Press the ENTER button to enter the User Color Temp sub menu.
See User Color Temp on page 18
— 16 —
Page 26
DLP Projector – User’s Manual
HSG Adjustment
Press the ENTER button to enter the HSG Adjustment sub menu.
ITEM DESCRIPTION
Primary Color
Press the ◄► buttons to set the Primary Color.
Notes: There are six sets (R/ G/ B/ C/ M/ Y) of colors to be customized.
Hue Press the ◄► buttons to adjust the Hue.
Saturation Press the ◄► buttons to adjust the Saturation.
Gain Press the ◄► buttons to adjust the Gain.
White Balance
Press the ENTER button to enter the White Balance sub menu.
ITEM DESCRIPTION
Red Gain Press the ◄► buttons to adjust the Red Gain.
Green Gain Press the ◄► buttons to adjust the Green Gain.
Blue Gain Press the ◄► buttons to adjust the Blue Gain.
Red Bias Press the ◄► buttons to adjust the Red Bias.
Green Bias Press the ◄► buttons to adjust the Green Bias.
Blue Bias Press the ◄► buttons to adjust the Blue Bias.
– 17 –
Page 27
DLP Projector – User’s Manual
User Color Temp
Press the ENTER button to enter the User Color Temp sub menu.
ITEM DESCRIPTION
White Gain Red Press the ◄► buttons to adjust the White Gain Red.
White Gain Green Press the ◄► buttons to adjust the White Gain Green.
White Gain Blue Press the ◄► buttons to adjust the White Gain Blue.
— 18 —
Page 28
DLP Projector – User’s Manual
DISPLAY Menu
Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the
DISPLAY menu. Press the cursor ▲▼ button to move up and down in the DISPLAY menu.
Press ◄► to change values for settings.
ITEM DESCRIPTION
Aspect Ratio
Press the cursor ◄► button to set the Aspect Ratio.
(Range: Auto/ 16:9/ 4:3/ Letter Box/ Real)
Keystone Press the cursor ◄► button to adjust the Keystone.
Overscan Press the cursor ◄► button to adjust the Overscan.
PC Detail Adjustment
Press the ENTER button to enter the PC Detail Adjustment sub menu.
See PC Detail Adjustment on page 20.
Size & Position Adjustment
Press the ENTER button to enter the Size & Position Adjustment sub menu.
See Size & Position Adjustment on page 20.
– 19 –
Page 29
DLP Projector – User’s Manual
PC Detail Adjustment
Press the ENTER button to enter the PC Detail Adjustment sub menu.
Note:
Customizing the settings in PC Detail Adjustment menu is only available when PC input source
(analog RGB) is selected.
ITEM DESCRIPTION
Auto
Press the ENTER/AUTO button on the control panel or the ENTER/AUTO button on the
remote control to automatically adjust frequency, phase, and position.
Frequency Press the ◄► buttons to adjust the A/D sampling number.
Phase Press the ◄► buttons to adjust the A/D sampling clock.
Horizontal Position Press the ◄► buttons to adjust the display position right or left.
Vertical Position Press the ◄► buttons to adjust the display position up or down.
Size & Position Adjustment
Press the ENTER button to enter the Size & Position Adjustment sub menu.
ITEM DESCRIPTION
Zoom Out Press the ◄► buttons to adjust the Zoom Out factor.
H Offset Press the ◄► buttons to adjust the horizontal image shift.
V Offset Press the ◄► buttons to adjust the vertical image shift.
Reset Press the ENTER button to reset Size & Position Adjustment settings to default values.
— 20 —
Page 30
DLP Projector – User’s Manual
SETUP>>Basic Menu
Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the
SETUP>>Basic menu. Press the cursor ▲▼ button to move up and down in the
SETUP>>Basic menu. Press ◄► to change values for settings.
ITEM DESCRIPTION
Language
Press the cursor ◄► buttons to select a different localization menu.
(Range: English/ Danish/ Dutch/ Finnish/ Français/ Deutsch/ Italiano/ Korean/ Norsk/ Polish/
Português (Latin American)/ Russian/ Simplified Chinese/ Traditional Chinese/ Spanish/
Swedish/ Czech/ Greek/ Turkish/ Hungarian/ Vietnamese/ Arabic/ Thai)
Splash Logo
Press the cursor ◄► buttons to select a different startup screen.
(Range: Vivitek/ Blue/ Black)
Projection
Press the cursor ◄► buttons to choose from four projection methods:
Front Table/ Front Ceiling/ Rear Table/ Rear Ceiling.
Blank Timer
Press the cursor ◄► buttons to set the Blank Screen timer. The projected image is automatically restored after the set time.
(Range: Disable/ 5 min/ 10 min/ 15 min/ 20 min/ 25 min/ 30 min)
Auto Power Off
Press the cursor ◄► buttons to set the Auto Power Off timer. The projector automatically
turns off if no input source is detected after the preset period of time.
(Range: Disable/ 5 min/ 10 min/ 15 min/ 20 min/ 25 min/ 30 min)
Sleep Timer
Press the cursor ◄► buttons to set Sleep timer. The projector automatically turns off after the
preset period of time.
(Range: Disable/ 30 min/ 1hr/ 2hr/ 3hr/ 4hr/ 8hr/ 12hr)
Background Color
Press the cursor ◄► buttons to select the background color when no input source is detected.
(Range: Purple/ Black/ Blue)
Menu Settings Press the ENTER button to enter the Menu Settings sub menu. See Menu Settings on page 22.
Source Press the ENTER button to enter the Source sub menu. See Source on page 22.
Command Control
Settings
Press the ENTER button to enter the Command Control Settings sub menu.
See Command Control Settings on page 23.
– 21 –
Page 31
DLP Projector – User’s Manual
Menu Settings
Press the ENTER button to enter the Menu Settings sub menu.
ITEM DESCRIPTION
Menu Position
Press the ◄► buttons to select from five OSD locations:
Top-Left/ Top-Right/ Center/ Bottom-Left/ Bottom-Right.
Menu Display Time
Press the ◄► buttons to set the Menu Display timer before the OSD times out.
(Range: 5sec/ 10sec/ 15sec/ 20sec/ 25sec/ 30sec)
Source
Press the ENTER button to enter the Source sub menu.
ITEM DESCRIPTION
PC Press the ◄► buttons to enable or disable the PC source.
DVI
Press the ◄► buttons to enable or disable the DVI source.
HDMI Press the ◄► buttons to enable or disable the HDMI source.
Quick Auto Search
Press the ◄► buttons to enable or disable Quick Auto Search for available input source.
Notes: When the desired source is selected, the Quick Auto Search function will be turn off.
— 22 —
Page 32
DLP Projector – User’s Manual
Command Control Settings
Press the ENTER button to enter the Command Control Settings sub menu.
ITEM DESCRIPTION
Control By Press the ◄► buttons to select projector remote command control. (Range: RS232/ RJ45)
Network State
Press the ENTER button to enter the Network State sub menu.
See Network State on page 23.
Projector ID
Press the cursor ◄► button to set Projector ID number for projector control by RS232 command.
Network State
ITEM DESCRIPTION
Network State Displays the network connection status.
DHCP
Press ◄► to turn DHCP On or Off.
Note: If you select DHCP Off, complete the IP Address, Subnet Mask, Gateway, and DNS
fields.
Projector IP Address Enter a valid IP address if DHCP is turned off.
Subnet Mask Enter a valid Subnet Mask if DHCP is turned off.
Default Gateway Displays the default Gateway address on the network.
DNS Enter a valid DNS name if DHCP is turned off.
Apply Press (Enter) / ► to confirm settings.
– 23 –
Page 33
DLP Projector – User’s Manual

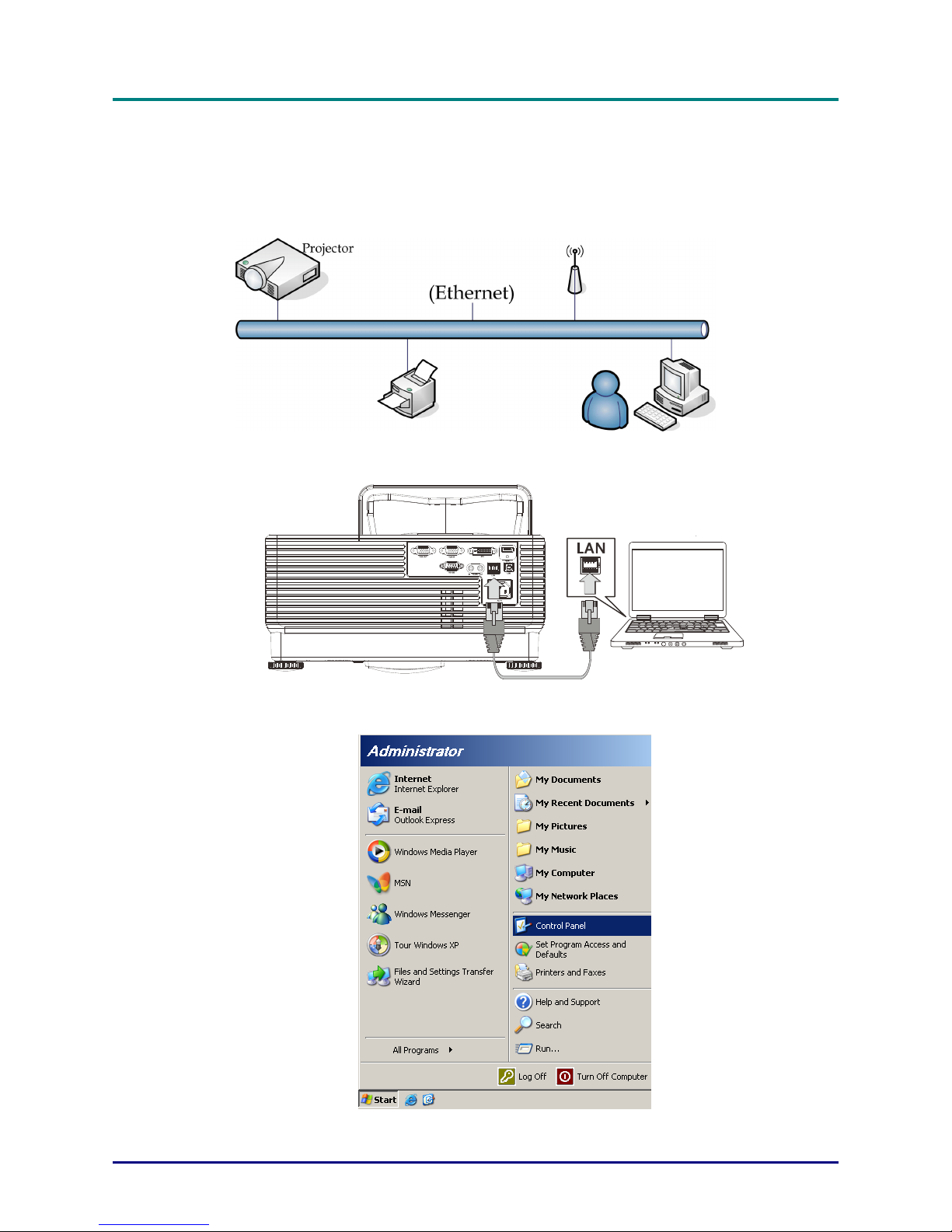

For simplicity and ease of operation, the projector provides diverse networking and remote management features.
The LAN/RJ45 function of the projector through a network, such as remotely manage: Power On/Off,
Brightness and Contrast settings. Also, projector status information, such as: Video-Source, SoundMute, etc.
1. Connect an RJ45 cable to RJ45 ports on the projector and the PC (Laptop).
2. On the PC (Laptop), select Start ´ Control Panel ´ Network Connections.
— 24 —
Page 34
DLP Projector – User’s Manual

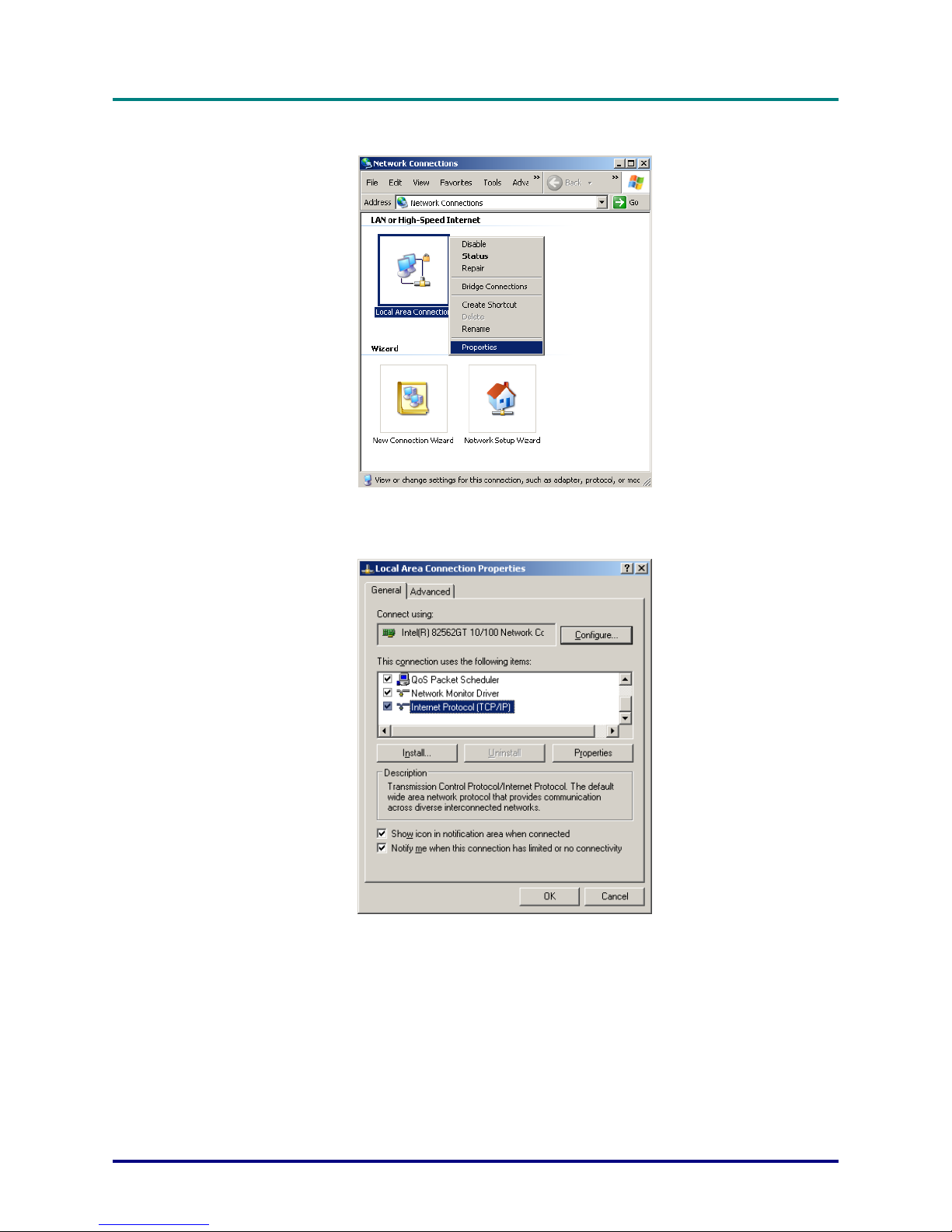

3. Right-click on Local Area Connection, and select Properties.
4. In the Properties window, select the General tab, and select Internet Protocol (TCP/IP).
5. Click Properties.
– 25 –
Page 35
DLP Projector – User’s Manual

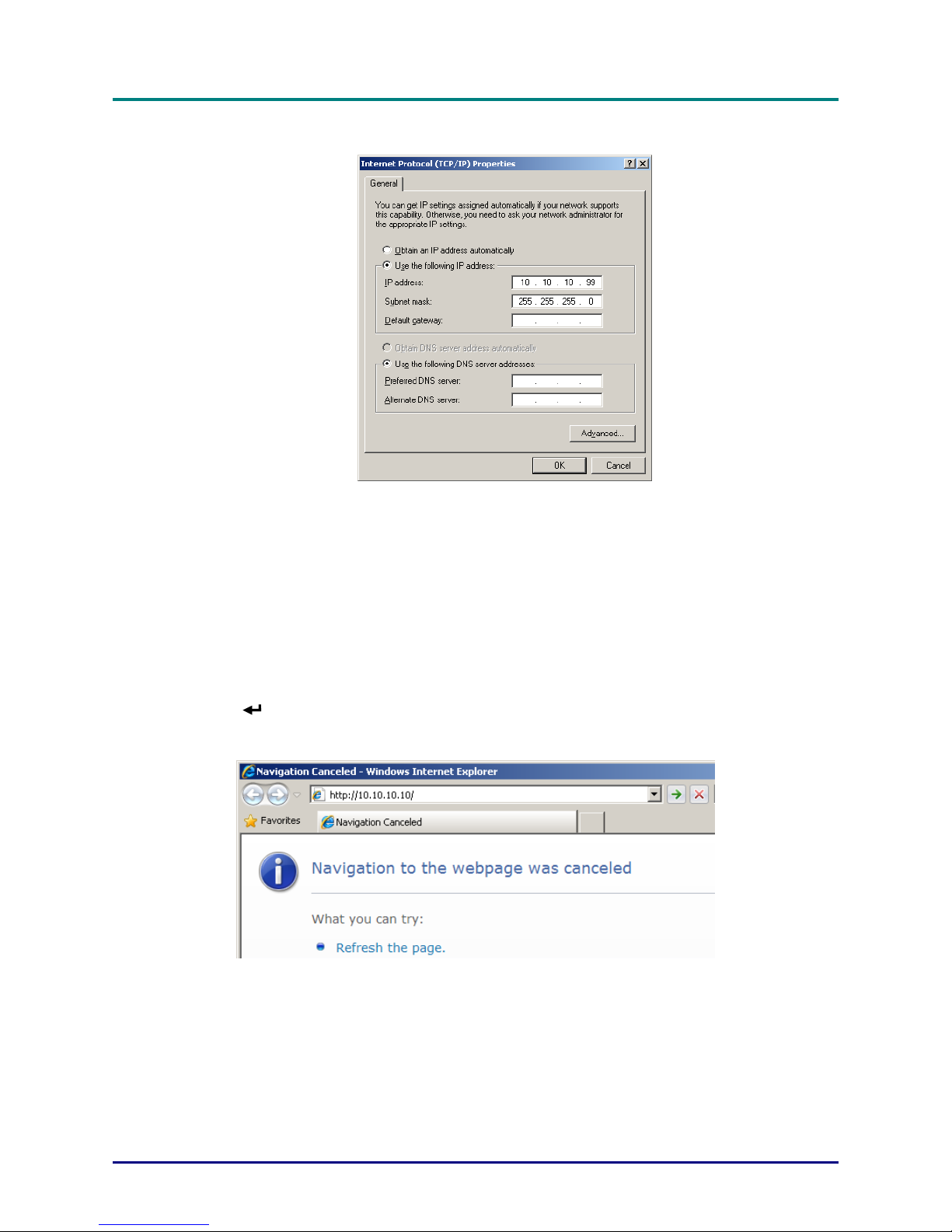

6. Click Use the following IP address and fill in the IP address and Subnet mask, then click OK.
7. Press the Menu button on the projector.
8. Select OSD ´SETUP>>Basic Menu →Command Control Settings→Network State.
9. After getting into Network, input the following:
` DHCP: Off
` IP Address: 10. 10. 10. 10
` Subnet Mask: 255.255.255.0
` Gateway: 0.0.0.0
` DNS Server: 0.0.0.0
10. Press (Enter) / ► to confirm settings.
11. Open a web browser (for example, Microsoft Internet Explorer with Adobe Flash Player 9.0 or higher).
12. In the Address bar, input the IP address: 10. 10. 10. 10.
— 26 —
Page 36
DLP Projector – User’s Manual
13. Press (Enter) / ►.

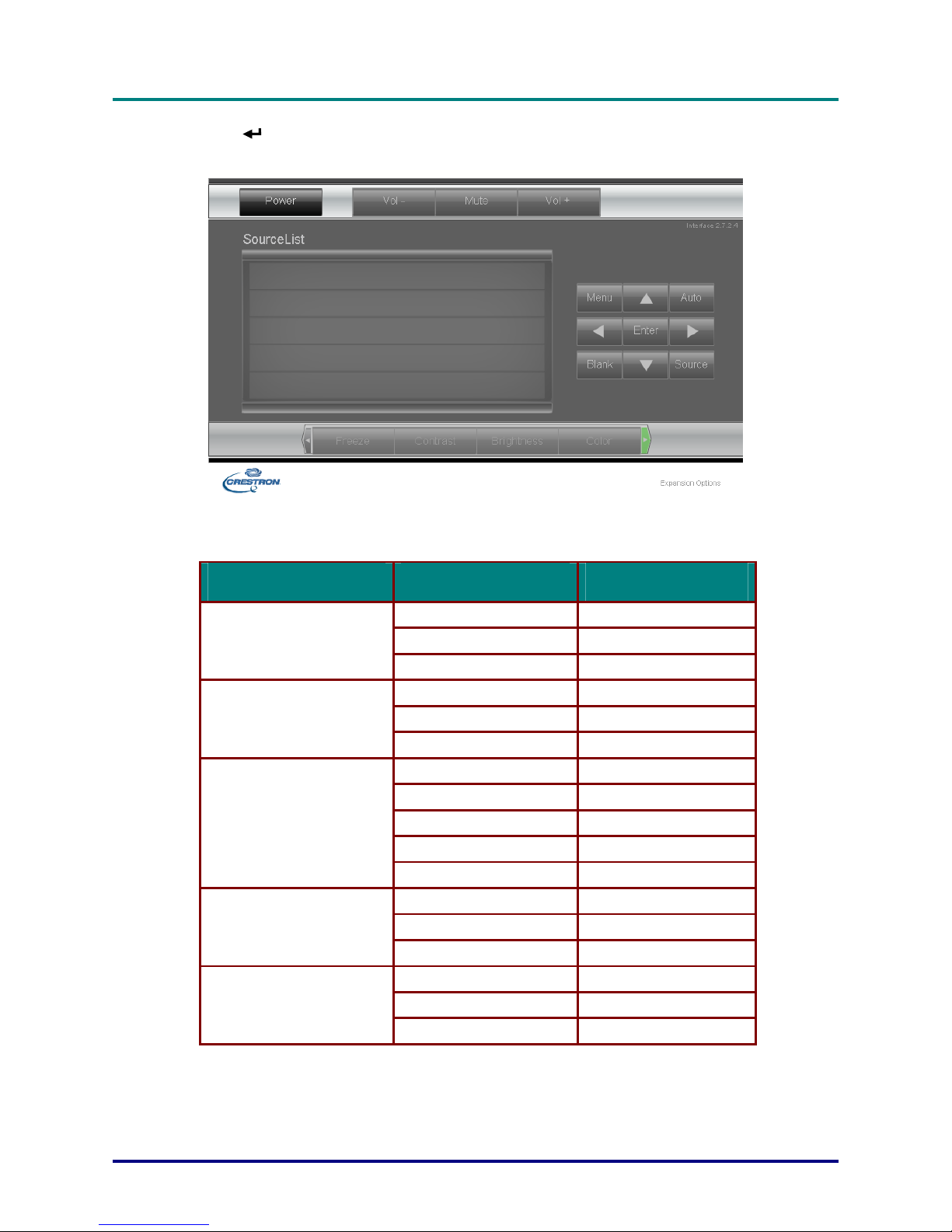

The projector is setup for remote management. The LAN/RJ45 function displays as follows.
Based on network web-page for the input-string in tools tab, the limitation for Input-Length is
in the below list (“space” and the other punctuation key included):
CATEGORY ITEM INPUT-LENGTH
IP Address 15
IP ID 3
Crestron Control
Port 5
Projector Name 10
Location 9
Projector
Assigned To 8
DHCP (Enabled) (N/A)
IP Address 15
Subnet Mask 15
Default Gateway 15
Network Configuration
DNS Server 15
Enabled (N/A)
New Password 15
User Password
Confirm 15
Enabled (N/A)
New Password 15
Admin Password
Confirm 15
– 27 –
Page 37
DLP Projector – User’s Manual

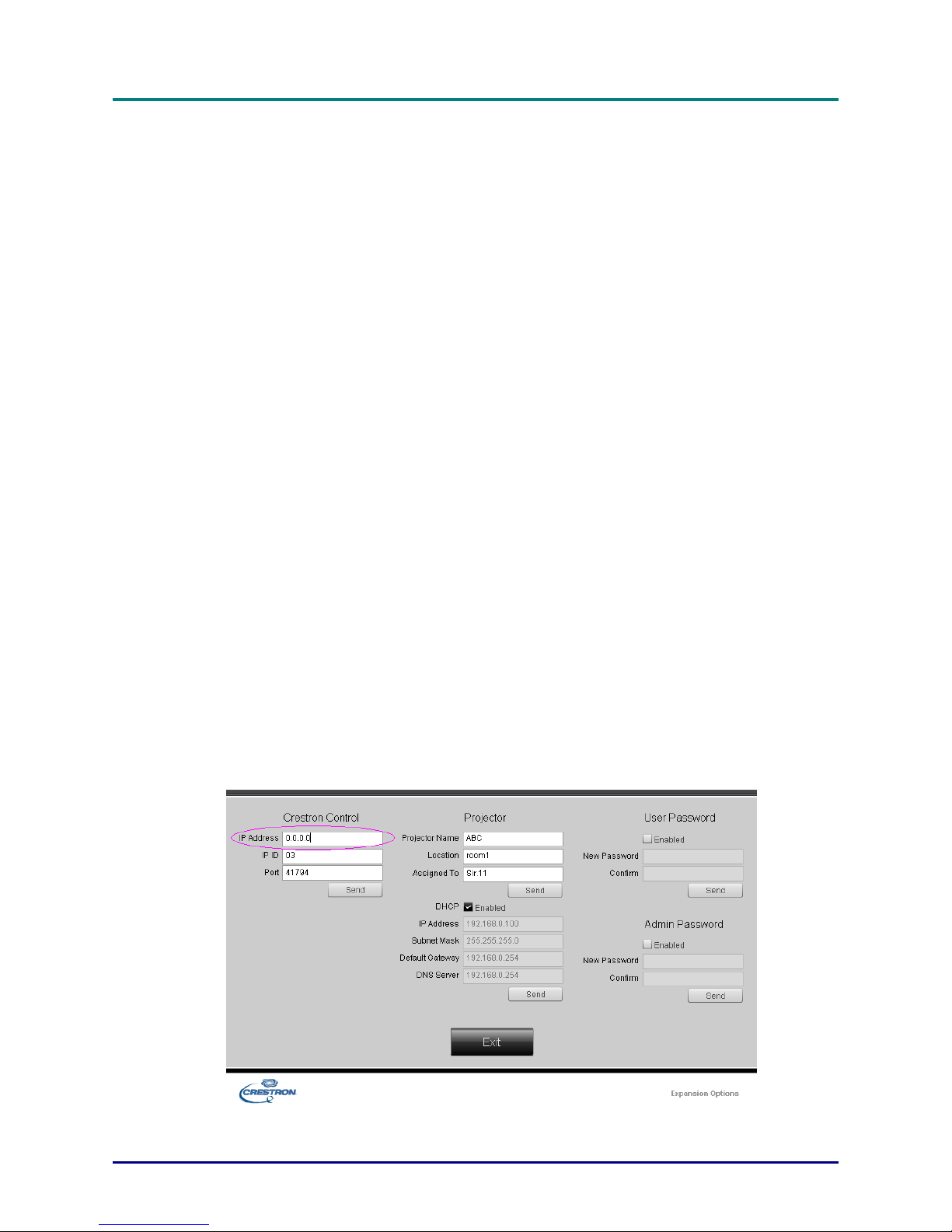

For more information, please visit http://www.crestron.com/.
— 28 —
Page 38
DLP Projector – User’s Manual
RS232 by Telnet Function
Besides projector connected to RS232 interface with “Hyper-Terminal” communication by dedicated
RS232 command control, there is alternative RS232 command control way, so called “RS232 by
TELNET” for LAN/RJ45 interface.
Quick Start-Guide for “RS232 by TELNET”
Check and get the IP-Address on OSD of the projector.
Make sure that laptop/PC can access the web-page of the projector.
Make sure that “Windows Firewall” setting to be disabled in case of “TELNET” function filtering out by
laptop/PC.

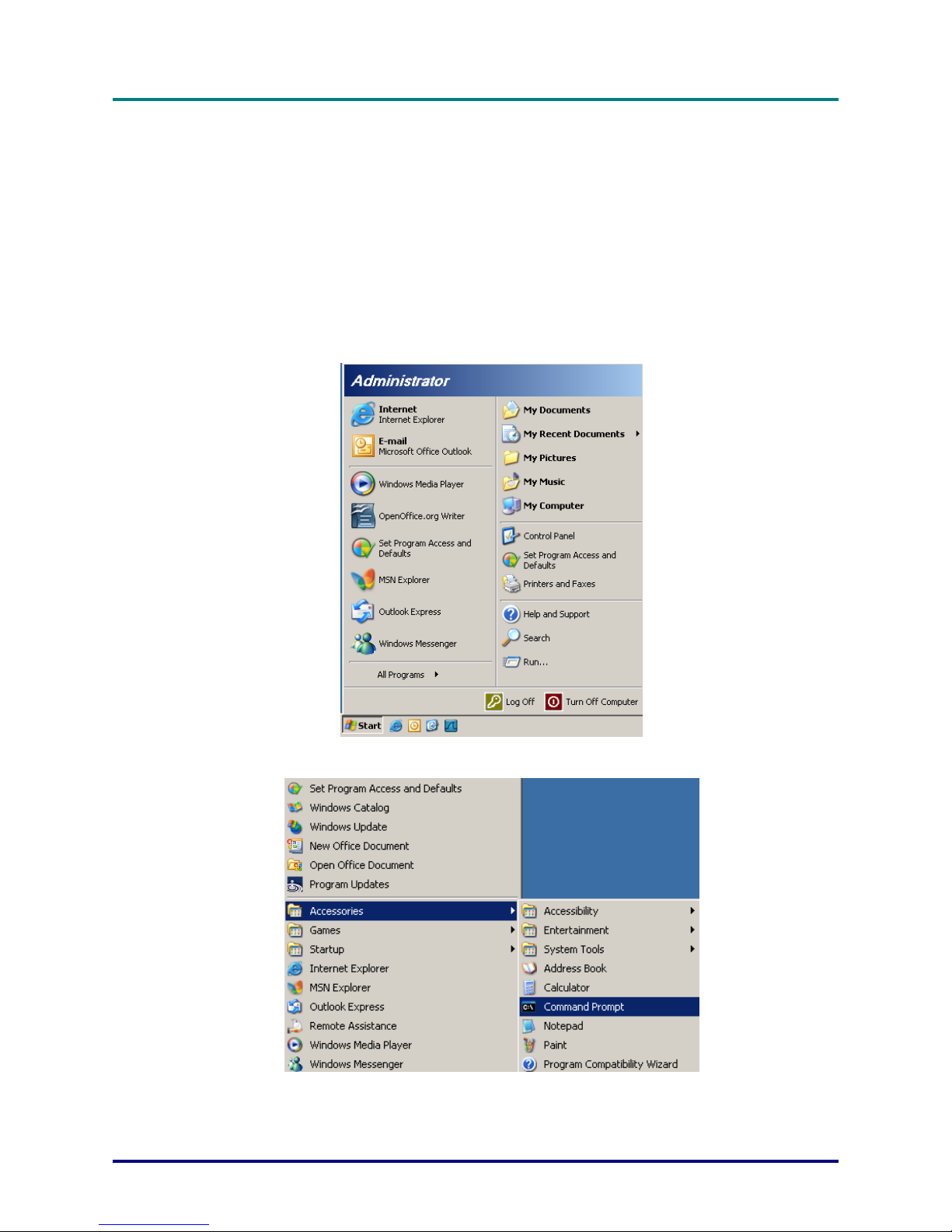

Start => All Programs => Accessories => Command Prompt
– 29 –
Page 39
DLP Projector – User’s Manual
Input the command format like the below:
telnet ttt.xxx.yyy.zzz 23 (“Enter” key pressed)
(ttt.xxx.yyy.zzz: IP-Address of the projector)
If Telnet-Connection ready, and user can have RS232 command input, then “Enter” key pressed, the
RS232 command will be workable.

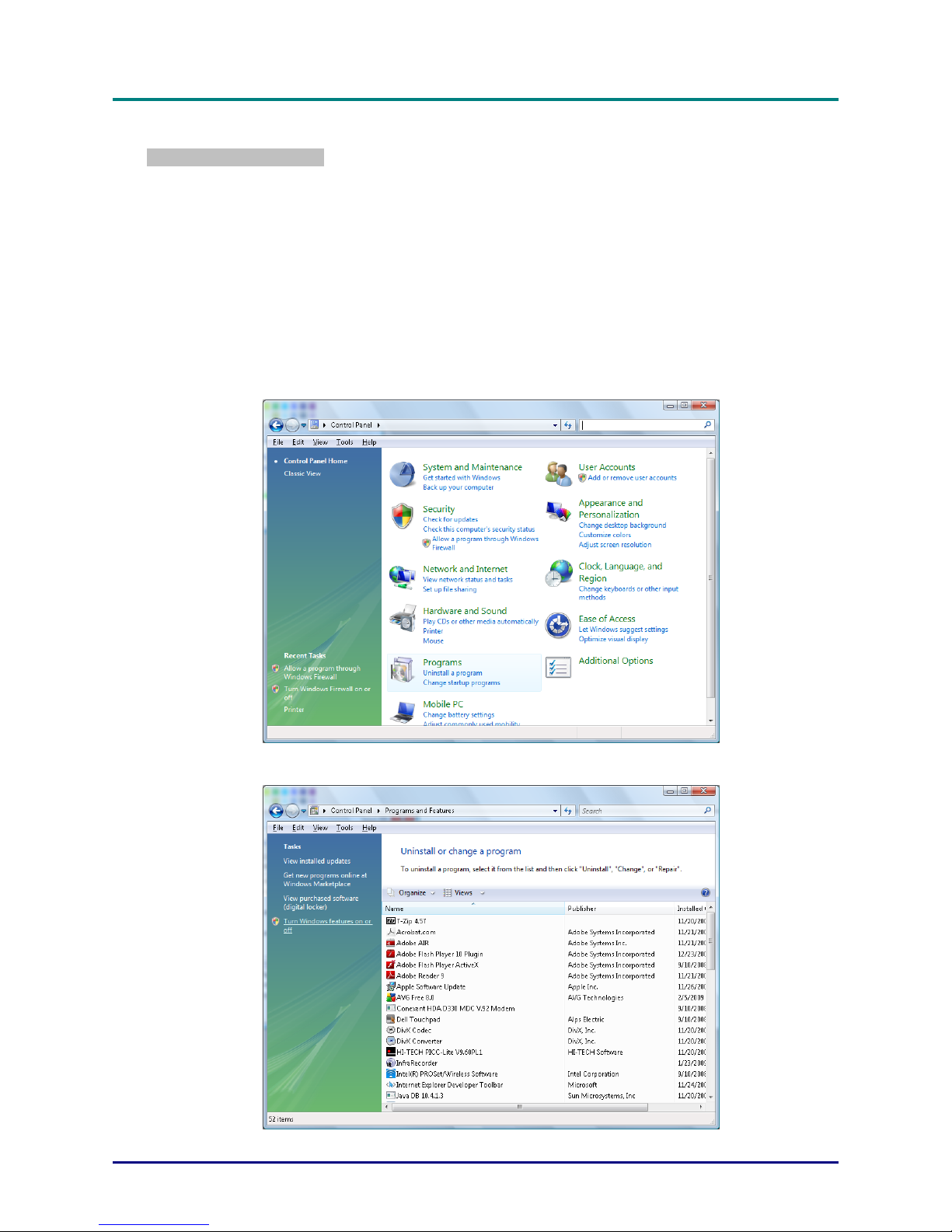

How to have TELNET enabled in Windows VISTA / 7
By default installation for Windows VISTA, “TELNET” function is not included. But end-user can have
it by way of “Turn Windows features On or Off” to be enabled.
Open “Control Panel” in Windows VISTA
Open “Programs”
— 30 —
Page 40
DLP Projector – User’s Manual

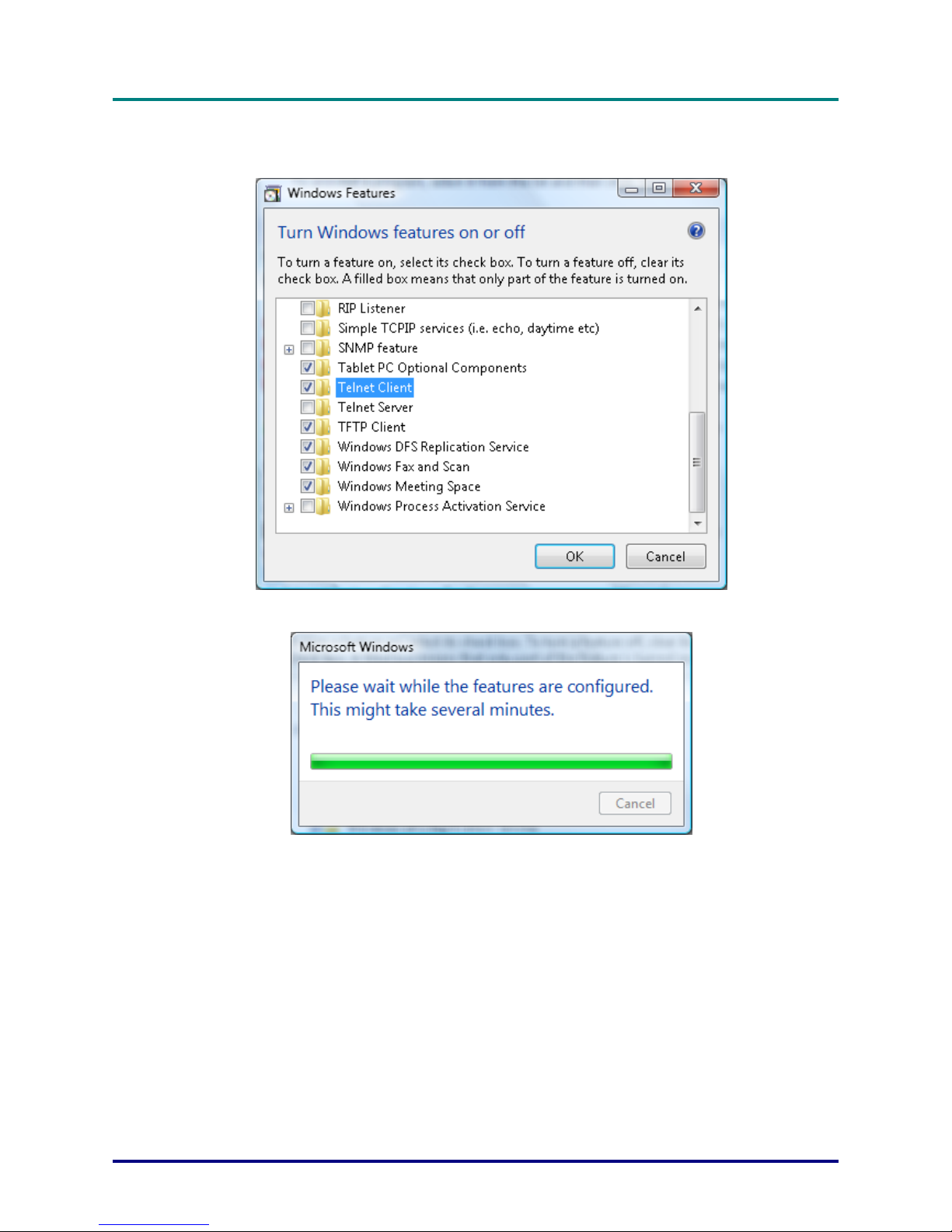

Select “Turn Windows features on or off” to open
Have “Telnet Client” option checked, then press “OK” button.
– 31 –
Page 41
DLP Projector – User’s Manual
Specsheet for “RS232 by TELNET” :
1. Telnet: TCP
2. Telnet port: 8000
3. Telnet utility: Windows “TELNET.exe” (console mode)
4. Disconnection for RS232-by-Telnet control normally: Close Windows Telnet utility directly after
TELNET connection ready
5. Limitation 1 for Telnet-Control: there is only one connection for Telnet-Control in one projector
Limitation 2 for Telnet-Control: there is less than 50 bytes for successive network payload for
Telnet-Control application.
Limitation 3 for Telnet-Control: there is less than 26 bytes for one complete RS232 command for
Telnet-Control.
Limitation 4 for Telnet-Control: Minimum delay for next RS232 command must be more than 200
(ms).
(*, In Windows XP built-in “TELNET.exe” utility, “Enter” key pressed will have “Carriage-Return”
and “New-Line” code.)
6. The IP-Address setting/modification on OSD would be ‘tempo-DISABLED’, while RS232-byTelnet connected running.
7. There is either/or option concerned for the RS232-by-Telnet, Crestron RoomView-Connected
functions.
8. The Crestron RoomView-Connected is enabled by default. Once the RS232-by-Telnet enabled,
the Crestron RoomView-Connected and IP-Address changing(re-configuration) function would be
disabled silently.
9. Once the RS232-by-Telnet disconnected normally, the Crestron RoomView-Connected would be
re-start in 5 seconds for control of manual re-connection in LAN.
10. Before the RS232-by-Telnet connection running, kindly please have the IP Address field to be
“0.0.0.0” setting of“Crestron Control”in the Crestron web-FLASH UI to ease the bulky massive
Crestron-Type packets.
— 32 —
Page 42
DLP Projector – User’s Manual
SETUP>>Advanced Menu
Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the
SETUP>>Advanced menu. Press the cursor ▲▼ button to move up and down in the
SETUP>>Advanced menu.
ITEM DESCRIPTION
Audio
Press the ENTER button to enter the Audio sub menu.
See Audio on page 34.
Lamp Press the ENTER button to enter the Lamp sub menu. See Lamp on page 34.
HDMI Press the ENTER button to enter the HDMI sub menu. See HDMI on page 35.
High Altitude Mode
Press the cursor ◄► buttons to turn on or off High Altitude Mode.
Recommended to turn on when the altitude of the environment is higher than 1500m (4921ft).
Test Pattern Press the cursor ◄► buttons to turn on or off the grid test pattern.
Closed Caption
Press the ENTER button to enter the Closed Caption sub menu.
See Closed Caption on page 35.
LED Control
Press the cursor ◄► buttons to select the LED control.
Select Normal for normal LED display and Off to disable LED display.
Presentation Timer Press (Enter) / ► to the Presentation Timer menu. See Presentation Timer on page 36.
Low Power Mode
Press the cursor ◄► buttons to set Low Power Mode whether is on or off. When Low Power
Mode set to off, it means VGA output port can output signal on power down status.
Reset All Press the ENTER button to enter reset all settings to default values.
– 33 –
Page 43
DLP Projector – User’s Manual
Audio
Press the ENTER button to enter the Audio sub menu.
ITEM DESCRIPTION
Volume Press the ◄► buttons to adjust the audio Volume.
Treble Press the ◄► buttons to adjust the audio Treble.
Bass Press the ◄► buttons to adjust the audio Bass.
Mute Press the ◄► buttons to turn on or off the speaker.
AGC Press the ◄► buttons to turn on or off the AGC setting.
Reset Press the ENTER button to reset all settings to default values.
Lamp
Press the ENTER button to enter the Lamp sub menu.
ITEM DESCRIPTION
Lamp Mode Press the ◄► buttons to adjust lamp brightness.
Reset Lamp Timer Press the ENTER button to reset the Lamp Hour after the lamp is replaced.
Lamp Hour Displays the number of hours the lamp has been in use.
— 34 —
Page 44
DLP Projector – User’s Manual
HDMI
Press the ENTER button to enter the HDMI sub menu.
ITEM DESCRIPTION
HDMI Format
Press the ◄► buttons to select from three HDMI display formats:
Auto/ PC signal/ Video signal.
HDMI Amplifier Gain Press the ◄► buttons to adjust HDMI Amplifier Gain.
Closed Caption
Press the ENTER button to enter the Closed Caption sub menu.
ITEM DESCRIPTION
Closed Caption Enable Press the ◄► buttons to turn on or off Closed Caption.
Caption Version Press the ◄► buttons to select the Caption Version.
– 35 –
Page 45
DLP Projector – User’s Manual
Presentation Timer
The Presentation Timer function can indicate the presentation time on the screen to help you achieve
better time management when giving presentations.
ITEM DESCRIPTION
Timer Press the cursor ◄► button to enable or disable presentation timer.
Timer Period Press the cursor ◄► button to select timer period (1 ~ 60 minutes)
Timer Reset Press (Enter) / ► to reset the timer settings.
— 36 —
Page 46
DLP Projector – User’s Manual
STATUS Menu
Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the
STATUS Menu.
ITEM DESCRIPTION
Source Displays the activated input source.
Resolution Displays the native resolution of input source.
Lamp Hour Displays the number of hours the lamp has been in use.
Firmware Version Displays the firmware version of the projector.
Note:
Status displayed in this menu is for viewing only and cannot be edited.
– 37 –
Page 47
DLP Projector – User’s Manual
— 38 —
M
AINTENANCE AND SECURITY
Replacing the Projection Lamp
The projection lamp should be replaced when it burns out. It should only be replaced with a certified
replacement part, which you can order from your local dealer.
Important:
a. The projection lamp used in this product contains a small amount of mercury.
b. Do not dispose this product with general household waste.
c. Disposal of this product must be carried out in accordance with the regulations of your local
authority.
Warning:
Be sure to turn off and unplug the projector at least 30 minutes before replacing the lamp. Failure to
do so could result in a severe burn.
Caution:
In rare cases the lamp bulb may burn out during normal operation and cause glass dust or shards
to be discharged outward from the rear exhaust vent.
Do not inhale or do not touch glass dust or shards. Doing so could result in injury.
Always keep your face away from the exhaust vent so that you do not suffer from the gas and broken shards of the lamp.
！
IF A LAMP EXPLODES
If a lamp explodes, the gas and broken shards may scatter inside the projector and they may come
out of the exhaust vent. The gas contains toxic mercury.
Open windows and doors for ventilation.
If you inhale the gas or the shards of the broken lamp enter your eyes or mouth, consult the doctor
immediately.
1.
Remove the single screw on
the lamp compartment cover.
Page 48
DLP Projector – User’s Manual
2.
Remove the lamp compartment cover.
3.
Remove the two screws from
the lamp module.
4.
Lift the module handle up.
5.
Pull firmly on the module
handle to remove the lamp
module.
6.
Reverse steps 1 to 5 to install
the new lamp module.
While installing, align the
lamp module with the
connector and ensure it is level
to avoid damage.
Note: The lamp module must
sit securely in place and the
lamp connector must be connected properly before
tightening the screws.
– 39 –
Page 49
DLP Projector – User’s Manual
Cleaning the Projector
Cleaning the projector to remove dust and grime will help ensure trouble-free operation.
Warning:
1. Be sure to turn off and unplug the projector at least 30 minutes before cleaning. Failure to do so
could result in a severe burn.
2. Use only a dampened cloth when cleaning. Do not allow water to enter the ventilation openings
on the projector.
3. If a little water gets into the projector interior while cleaning, leave unplugged in a well-ventilated
room for several hours before using.
4. If a lot of water gets into the projector interior when cleaning, have the projector serviced.
Cleaning the Projector Mirror:
1. Remove dust with a “Bellows/Lens Blower” readily available from Camera shops to prevent
scratching the mirror when subsequently wiped.
2. Gently wipe with a lens cleaning cloth or alternatively, use a lens cleaning tissue in conjunction with a small amount of lens cleaning fluid.
Cautions:
1. Always turn the projector off and allow to cool for at least 30 minutes prior to cleaning.
2. Never touch the projector mirror or Lens directly by hand.
3. Do not use hard fibre cloths.
4. Do not use abrasive cleaners, solvents or other harsh chemical cleaners.
— 40 —
Page 50
DLP Projector – User’s Manual
– 41 –
Cleaning the Lens
You can purchase optic lens cleaner from most camera stores. Refer to the following to clean the projector lens.
1. Apply a little optic lens cleaner to a clean soft cloth. (Do not apply the cleaner directly to the lens.)
2. Lightly wipe the lens in a circular motion.
Caution:
1. Do not use abrasive cleaners or solvents.
2. To prevent discoloration or fading, avoid getting cleaner on the projector case.
Cleaning the Case
Refer to the following to clean the projector case.
1. Wipe off dust with a clean dampened cloth.
2. Moisten the cloth with warm water and mild detergent (such as used to wash dishes), and then wipe
the case.
3. Rinse all detergent from the cloth and wipe the projector again.
Caution:
To prevent discoloration or fading of the case, do not use abrasive alcohol-based cleaners.
Page 51
DLP Projector – User’s Manual
Using the Physical Lock
Using the Kensington® Lock
If you are concerned about security, attach the projector to a permanent object with the Kensington
slot and a security cable.
Note:
Contact your vendor for details on purchasing a suitable Kensington security cable.
The security lock corresponds to Kensington’s MicroSaver Security System. If you have any comment, contact: Kensington, 2853 Campus Drive, San Mateo, CA 94403, U.S.A. Tel: 800-535-4242,
http://www.Kensington.com.
Using the Security Chain Lock
In addition to the password protection function and the Kensington lock, the Security Chain Opening
helps protect the PROJECTOR from unauthorized use.
See the following picture.
！
Caution:
Do NOT touch the aspheric mirror.
— 42 —
Page 52
DLP Projector – User’s Manual
Adjusting the Focus
Open the Focus Cover
in the direction as
shown.
Focusing Procedure ( I )
When alignment lines are clearly marked on
the focus rings the following presets are
available:
z For 88.5” ActivBoard, adjust the focus
rings until the white lines align
– 43 –
Page 53
DLP Projector – User’s Manual
— 44 —
Focusing Procedure ( II )
1. With the projector mounted and operator facing ActivBoard, turn the
Front Focus Ring all the way to the
left.
2. Adjust the Rear Focus Ring to ob-
tain the best overall focus of the
image.
3. If unable to focus the whole image,
turn the Front Focus Ring slightly to
the right.
4. Again, adjust the Rear Focus Ring
to obtain the best overall focus of the
image.
5. If still unable to focus the whole image, turn the Front Focus Ring
slightly to the right again.
6. Repeat steps 4 and 5 until an evenly
focused image is obtained .
Page 54
DLP Projector – User’s Manual
– 45 –
T
ROUBLESHOOTING
Common problems and solutions
These guidelines provide tips to deal with problems you may encounter while using the projector. If
the problem remains unsolved, contact your dealer for assistance.
Often after time spent troubleshooting, the problem is traced to something as simple as a loose connection. Check the following before proceeding to the problem-specific solutions.
• Use some other electrical device to confirm that the electrical outlet is working.
• Ensure the projector is turned on.
• Ensure all connections are securely attached.
• Ensure the attached device is turned on.
• Ensure a connected PC is not in suspending mode.
• Ensure a connected notebook computer is configured for an external display.
(This is usually done by pressing an Fn-key combination on the notebook.)
Tips for Troubleshooting
In each problem-specific section, try the steps in the order suggested. This may help you to solve the
problem more quickly.
Try to pin point the problem and thus avoid replacing non-defective parts.
For example, if you replace batteries and the problem remains, put the original batteries back and go
to the next step.
Keep a record of the steps you take when troubleshooting: The information may be useful when calling for technical support or for passing on to service personnel.
Page 55
DLP Projector – User’s Manual
— 46 —
LED Error Messages
POWER LED LAMP LED
WARNING
LED
ERROR CODE MESSAGES
BLUE AMBER RED RED
Lamp Ready ON
－ － －
Start
－
flashing
－ －
Cooling
－
flashing
－ －
Over Temperature
－ － －
ON
Thermal Break Sensor error
－
7 blinks
－ －
Lamp Error 5 blinks
－ － －
Burner Fan error 6 blinks
－
1 blinks
－
System Fan error 6 blinks
－
2 blinks
－
Power and Ballast Fan error 6 blinks
－
3 blinks
－
Case Open
－
7 blinks
－ －
DMD error 8 blinks
－ － －
Color wheel error 9 blinks
－ － －
In the event of an error, please disconnect the AC power cord and wait for one (1) minute before restarting the projector. If the Power or Lamp LEDs are still blinking or the Over Temp LED is lit, or any
other situation that isn't listed in the chart above
, please contact your service center.
Image Problems
Problem: No image appears on the screen
1. Verify the settings on your notebook or desktop PC.
2. Turn off all equipment and power up again in the correct order.
Problem: The image is blurred
1. Adjust the Focus on the projector.
2. Press the Auto button on the remote control or projector.
3. Ensure the projector-to-screen distance is within the 10-meter (33-feet) specified range.
4. Check that the projector lens is clean.
Problem: The image is wider at the top or bottom (trapezoid effect)
1. Position the projector so it is as perpendicular to the screen as possible.
2. Use the Keystone button on the remote control or projector to correct the problem.
Problem: The image is reversed
Check the Projection setting on the SYSTEM SETUP : Basic > Projection menu of the
OSD.
Page 56
DLP Projector – User’s Manual
– 47 –
Problem: The image is streaked
1. Set the Frequency and Phase settings on the Display menu of the OSD to the default
settings.
2. To ensure the problem is not caused by a connected PC’s video card, connect to another
computer.
Problem: The image is flat with no contrast
Adjust the Contrast setting on the Image menu of the OSD.
Problem: The color of the projected image does not match the source image.
Adjust the Color Temperature and Gamma settings on the Image menu of the OSD.
Lamp Problems
Problem: There is no light from the projector
1. Check that the power cable is securely connected.
2. Ensure the power source is good by testing with another electrical device.
3. Restart the projector in the correct order and check that the Power LED is Blue.
4. If you have replaced the lamp recently, try resetting the lamp connections.
5. Replace the lamp module.
6. Put the old lamp back in the projector and have the projector serviced.
Problem: The lamp goes off
1. Power surges can cause the lamp to turn off. Re-plug power cord. When the Power LED
is on, press the power button.
2. Replace the lamp module.
3. Put the old lamp back in the projector and have the projector serviced.
Remote Control Problems
Problem: The projector does not respond to the remote control
1. Direct the remote control towards remote sensor on the projector.
2. Ensure the path between remote and sensor is not obstructed.
3. Turn off any fluorescent lights in the room.
4. Check the battery polarity.
5. Replace the batteries.
6. Turn off other Infrared-enabled devices in the vicinity.
7. Have the remote control serviced.
Page 57
DLP Projector – User’s Manual
— 48 —
Audio Problems
Problem: There is no sound
1. Adjust the volume on the remote control.
2. Adjust the volume of the audio source.
3. Check the audio cable connection.
4. Test the source audio output with other speakers.
5. Have the projector serviced.
Problem: The sound is distorted
1. Check the audio cable connection.
2. Test the source audio output with other speakers.
3. Have the projector serviced.
Having the Projector Serviced
If you are unable to solve the problem, you should have the projector serviced. Pack the projector in
the original carton. Include a description of the problem and a checklist of the steps you took when
trying to fix the problem: The information may be useful to service personnel. For servicing, return the
projector to the place you purchased it.
Page 58
DLP Projector – User’s Manual
– 49 –
HDMI Q & A
Q. What is the difference between a “Standard” HDMI cable and a “High-Speed” HDMI
cable?
Recently, HDMI Licensing, LLC announced that cables would be tested as Standard or HighSpeed cables.
․Standard (or “category 1”) HDMI cables have been tested to perform at speeds of 75Mhz or
up to 2.25Gbps, which is the equivalent of a 720p/1080i signal.
․ High Speed (or “category 2”) HDMI cables have been tested to perform at speeds of
340Mhz or up to 10.2Gbps, which is the highest bandwidth currently available over an
HDMI cable and can successfully handle 1080p signals including those at increased color
depths and/or increased refresh rates from the Source. High-Speed cables are also able to
accommodate higher resolution displays, such as WQXGA cinema monitors (resolution of
2560 x 1600).
Q. How do I run HDMI cables longer than 10 meters?
There are many HDMI Adopters working on HDMI solutions that extend a cable’s effective
distance from the typical 10 meter range to much longer lengths. These companies
manufacture a variety of solutions that include active cables (active electronics built into
cables that boost and extend the cable’s signal), repeaters, amplifiers as well as CAT5/6 and
fiber solutions.
Q. How can I tell if a cable is an HDMI certified cable?
All HDMI products are required to be certified by the manufacturer as part of the HDMI
Compliance Test Specification. However, there may be instances where cables bearing the
HDMI logo are available but have not been properly tested. HDMI Licensing, LLC actively
investigates these instances to ensure that the HDMI trademark is properly used in the
market. We recommend that consumers buy their cables from a reputable source and a
company that is trusted.
For more detail information check http://www.hdmi.org/learningcenter/faq.aspx#49
Page 59
DLP Projector – User’s Manual
— 50 —
S
PECIFICATIONS
Specifications
Note:
For questions regarding product specifications, please contact your local distributor.
Model
D7180 H7080HD
Display type
TI DMD 0.65" 1080P
Resolution
1080P 1920 x 1080 Native
Projection distance
22.4 mm ~ 62.3 mm(+/-10mm)
Projection screen size
88.5 to 99 inches
Projection lens
Fix
Vertical keystone correction
+/- 40 steps
Projection methods
Front, Rear, Desktop/Ceiling (Rear, Front)
Data compatibility
VGA, SVGA, XGA, SXGA, SXGA+, UXGA, Mac
SDTV/EDTV/ HDTV
480i, 576i, 480p, 576p, 720p, 1080i, 1080p
Video compatibility
－
H-Sync
15, 30 – 91.4 kHz
V-Sync
43 – 87 Hz
Safety certification
FCC-B, UL, CB, CE FCC-B, cUL, UL, CCC, China ECO
Operation temperature
5° ~ 35°C
Dimensions
354 mm (W) x 219 mm (H) x 411 mm (D)
AC Input
AC Universal 100 – 240, Typical @ 110VAC (100 – 240)/+-10%
Power consumption
370W / 310W (ECO Type)
Stand By
<1 watts
Lamp
280W
Audio speaker
10W mono speaker
VGA x 1
DVI x 1
Audio jack x 1
Input Terminals
HDMI x 1
VGA x 1
Output Terminals
Audio jack x 1
RS-232C
RJ45
Control Terminals
USB (Service only)
Security
Kensington lock
Page 60
DLP Projector – User’s Manual
Projection Distance vs. Projection Size
D
L
H
Image Heigh
t
W
Image Width
Projection Distance and Size Table
1080P
16:9
Distance (D) 62.3+/-10mm 22.4+/-10mm
Diagonal 99" 88.5"
Image Width (W) 2193mm 1961mm
Image height (L) 1233mm 1103mm
H 404.3+/-50mm 373.8+/-50mm
– 51 –
Page 61
DLP Projector – User’s Manual
— 52 —
Timing Mode Table
The projector can display several resolutions. The following table outlines the resolutions that can be
displayed by the projector.
SIGNAL RESOLUTION
H-SYNC
(KHZ)
V-SYNC
(HZ)
VGA
(RGBHV)
VGA
(YUV /SOG)
HDMI
(DIGITAL)
720 x 400 37.9 85.0 O — O
640 x 480 31.5 60.0 O — O
640 x 480 37.9 72.8 O — O
640 x 480 37.5 75.0 O — O
640 x 480 43.3 85.0 O — O
800 x 600 35.2 56.3 O — O
800 x 600 37.9 60.3 O — O
800 x 600 46.9 75.0 O — O
800 x 600 48.1 72.2 O — O
800 x 600 53.7 85.1 O — O
1024 x 768 48.4 60.0 O — O
1024 x 768 56.5 70.1 O — O
1024 x 768 60.0 75.0 O — O
1024 x 768 68.7 85.0 O — O
1280 x 800 49.7 59.8 O — O
1280 x 800
62.8 74.9 O — O
1280 x 800
71.6 84.8 O — O
1280 x 1024 64.0 60.0 O — O
1280 x 1024 80.0 75.0 O — O
1280 x 1024 91.1 85.0 O — O
1400 x 1050 65.3 60.0 O — O
1440 x 900 55.9 60.0 O — O
1600 x1200 75.0 60 O — O
VESA
1920 x1080 67.2 60 O — O
640 x 480 35.0 66.7 O — O
832 x 624 49.7 74.5 O — O
1024 x 768 60.2 74.9 O — O
Apple
Macintosh
1152 x 870 68.7 75.1 O — O
480i 15.734 60.0 —
O
O
SDTV
576i 15.625 50.0
—
O
O
576p 31.3 50.0
—
O
O
EDTV
480p 31.5 60.0
—
O
O
Page 62
DLP Projector – User’s Manual
– 53 –
SIGNAL RESOLUTION
H-SYNC
(KHZ)
V-SYNC
(HZ)
VGA
(RGBHV)
VGA
(YUV /SOG)
HDMI
(DIGITAL)
720p 37.5 50.0
—
O
O
720p 45.0 60.0
—
O
O
1080i 33.8 60.0
—
O
O
1080i 28.1 50.0
—
O
O
1080p 67.5 60.0
—
O
O
HDTV
1080p 56.3 50.0
—
O
O
O: Frequency supported
—: Frequency not supported
The native resolution of the panel is1920 x 1080 Resolution other than native resolution may display with
uneven size of text or lines.
Page 63
DLP Projector – User’s Manual
Projector Dimensions (mm)
319.00
354.00
411.00
219.00
157.00
— 54 —
Page 64
DLP Projector – User’s Manual
– 55 –
R
EGULATORY COMPLIANCE
FCC Warning
This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his/her own expense.
Changes or modifications not expressly approved by the parties responsible for compliance could
void the user’s authority to operate the equipment.
Canada
This class B digital apparatus complies with Canadian ICES-003.
Safety Certifications
FCC-B, UL, CB, CE
Page 65
DLP Projector – User’s Manual
— 56 —
A
PPENDIX
I
RS-232C Protocol
RS232 Setting
Baud rate: 9600
Parity check: None
Data bit: 8
Stop bit: 1
Flow Control None
Control Command Structure
Header code Command code Data code End code
HEX Command Data 0Dh
ASCII ‘V’ Command Data CR
Operation Command
Note:
XX=00-98, projector's ID, XX=99 is for all projectors
Return Result P=Pass / F=Fail
n: 0:Disable/1: Enable/Vaule(0~9999)
Command Group 00
ASCII HEX Function Description Return Result
VXXS0001 56h Xh Xh 53h 30h 30h 30h 31h 0Dh Power On P/F
VXXS0002 56h Xh Xh 53h 30h 30h 30h 32h 0Dh Power Off P/F
VXXS0003 56h Xh Xh 53h 30h 30h 30h 33h 0Dh Resync P/F
VXXG0004 56h Xh Xh 47h 30h 30h 30h 34h 0Dh Get Lamp Hours Pn/F
VXXS0005n 56h Xh Xh 53h 30h 30h 30h 35h nh 0Dh Set Air filter timer n=0~999999 P/F
VXXG0005 56h Xh Xh 47h 30h 30h 30h 35h 0Dh Get Air filter timer n=0~999999 Pn/F
VXXS0006 56h Xh Xh 53h 30h 30h 30h 36h 0Dh System Reset P/F
VXXG0007 56h Xh Xh 47h 30h 30h 30h 37h 0Dh Get System Status
0:Reset
1:Standby
2:Operation
3:Cooling
Pn/F
VXXG0008 56h Xh Xh 47h 30h 30h 30h 38h 0Dh Get F/W Version Pn/F
VXXG0009 56h Xh Xh 47h 30h 30h 30h 39h 0Dh Get Alter EMail Pn/F
VXXS0009n 56h Xh Xh 53h 30h 30h 30h 39h nh 0Dh Set Alter Email
n=xxxxxx@xxx
x.xxx.xx
P/F
Command Group 01
ASCII HEX Function Description Return Value
VXXG0101 56h Xh Xh 47h 30h 31h 30h 31h 0Dh Get Brightness n=0~100 Pn/F
VXXS0101n 56h Xh Xh 53h 30h 31h 30h 31h nh 0Dh Set Brightness n=0~100 P/F
VXXG0102 56h Xh Xh 47h 30h 31h 30h 32h 0Dh Get Contrast n=0~100 Pn/F
VXXS0102n 56h Xh Xh 53h 30h 31h 30h 32h nh 0Dh Set Contrast n=0~100 P/F
VXXG0103 56h Xh Xh 47h 30h 31h 30h 33h 0Dh Get Color n=0~100 Pn/F
Page 66
DLP Projector – User’s Manual
– 57 –
Command Group 01
ASCII HEX Function Description Return Value
VXXS0103n 56h Xh Xh 53h 30h 31h 30h 33h nh 0Dh Set Color n=0~100 P/F
VXXG0104 56h Xh Xh 47h 30h 31h 30h 34h 0Dh Get Tint n=0~100 Pn/F
VXXS0104n 56h Xh Xh 53h 30h 31h 30h 34h nh 0Dh Set Tint n=0~100 P/F
VXXG0105 56h Xh Xh 47h 30h 31h 30h 35h 0Dh Get Sharpness 0~31 Pn/F
VXXS0105n 56h Xh Xh 53h 30h 31h 30h 35h nh 0Dh Set Sharpness 0~31 P/F
VXXG0106 56h Xh Xh 47h 30h 31h 30h 36h 0Dh
Get Color Temperature
0:Warm
1:Normal
2:Cool
3:Cooler
4:High Cool
5:Lamp Native
Pn/F
VXXS0106n 56h Xh Xh 53h 30h 31h 30h 36h nh 0Dh
Set Color Temperature
0:Warm
1:Normal
2:Cool
3:Cooler
4:High Cool
5:Lamp Native
P/F
VXXG0107 56h Xh Xh 47h 30h 31h 30h 37h 0Dh Get Gamma
0:1.6
1:1.8
2:2.0
3:2.2t
4:2.4
5:2.6
6:2.8
Pn/F
VXXS0107n 56h Xh Xh 53h 30h 31h 30h 37h nh 0Dh Set Gamma
0:1.6
1:1.8
2:2.0
3:2.2t
4:2.4
5:2.6
6:2.8
P/F
Command Group 02
ASCII HEX Function Description Return Value
VXXS0201 56h Xh Xh 53h 30h 32h 30h 31h 0Dh Select RGB P/F
VXXS0202 56h Xh Xh 53h 30h 32h 30h 32h 0Dh Select RGB2 P/F
VXXS0203 56h Xh Xh 53h 30h 32h 30h 33h 0Dh Select DVI P/F
VXXS0204 56h Xh Xh 53h 30h 32h 30h 34h 0Dh Select Video P/F
VXXS0205 56h Xh Xh 53h 30h 32h 30h 35h 0Dh Select S-Video P/F
VXXS0206 56h Xh Xh 53h 30h 32h 30h 36h 0Dh Select HDMI P/F
VXXS0207 56h Xh Xh 53h 30h 32h 30h 37h 0Dh Select BNC P/F
VXXS0208 56h Xh Xh 53h 30h 32h 30h 38h 0Dh Select YPbPr P/F
VXXS0209 56h Xh Xh 53h 30h 32h 30h 39h 0Dh Select HDMI 2 P/F
VXXS0210 56h Xh Xh 53h 30h 32h 31h 30h 0Dh Select HDMI 3 P/F
VXXS0211 56h Xh Xh 53h 30h 32h 31h 31h 0Dh Select DP P/F
VXXG0220 56h Xh Xh 47h 30h 32h 32h 30h 0Dh
Get Current
Source
Return
1:RGB
2:RGB2
3:DVI
4:Video
5:S-Video
6:HDMI
7:BNC
8:YPbPr
9:HDMI 2
10:HDMI 3
11:DP
Pn/F
Page 67
DLP Projector – User’s Manual
— 58 —
Command Group 03
ASCII HEX Function Description Return Value
VXXG0301 56h Xh Xh 47h 30h 33h 30h 31h 0Dh Get Scaling
0: Fill
1: 4:3
2: 16:9
3 :Letter Box
4 :Native
5:Auto
6:16:10
Pn/F
VXXS0301n 56h Xh Xh 53h 30h 33h 30h 31h nh 0Dh Set Scaling
0: Fill
1: 4:3
2: 16:9
3 :Letter Box
4 :Native
5:Auto
6:16:10
P/F
VXXG0302 56h Xh Xh 47h 30h 33h 30h 32h 0Dh Blank Pn/F
VXXS0302n 56h Xh Xh 53h 30h 33h 30h 32h nh 0Dh Blank P/F
VXXG0303 56h Xh Xh 47h 30h 33h 30h 33h 0Dh Auto Keystone On Pn/F
VXXS0303n 56h Xh Xh 53h 30h 33h 30h 33h nh 0Dh Auto Keystone On P/F
VXXG0304 56h Xh Xh 47h 30h 33h 30h 34h 0Dh Freeze On Pn/F
VXXS0304n 56h Xh Xh 53h 30h 33h 30h 34h nh 0Dh Freeze On P/F
VXXG0305 56h Xh Xh 47h 30h 33h 30h 35h 0Dh Volume n=0~10 Pn/F
VXXS0305n 56h Xh Xh 53h 30h 33h 30h 35h nh 0Dh Volume n=0~10 P/F
VXXG0306 56h Xh Xh 47h 30h 33h 30h 36h 0Dh Treble n=0~16 Pn/F
VXXS0306n 56h Xh Xh 53h 30h 33h 30h 36h nh 0Dh Treble n=0~16 P/F
VXXG0307 56h Xh Xh 47h 30h 33h 30h 37h 0Dh Bass n=0~16 Pn/F
VXXS0307n 56h Xh Xh 53h 30h 33h 30h 37h nh 0Dh Bass n=0~16 P/F
VXXG0308 56h Xh Xh 47h 30h 33h 30h 38h 0Dh Projection Mode
0:Front
1:Rear
2: Ceiling
3: Rear+Ceiling
Pn/F
VXXS0308n 56h Xh Xh 53h 30h 33h 30h 38h nh 0Dh Projection Mode
0:Front
1:Rear
2: Ceiling
3: Rear+Ceiling
P/F
VXXG0309 56h Xh Xh 47h 30h 33h 30h 39h 0Dh
Set vertical keystone value
n=-40~+40 Pn/F
VXXS0309n 56h Xh Xh 53h 30h 33h 30h 39h nh 0Dh
Set vertical keystone value
n=-40~+40 P/F
VXXG0310 56h Xh Xh 47h 30h 33h 31h 30h 0Dh
Set horizontal keystone value
n=-20~+20 Pn/F
VXXS0310n 56h Xh Xh 53h 30h 33h 31h 30h nh 0Dh
Set horizontal keystone value
n=-20~+20 P/F
VXXG0311 56h Xh Xh 47h 30h 33h 31h 31h 0Dh Adjust the zoom n=-10~+10 Pn/F
VXXS0311n 56h Xh Xh 53h 30h 33h 31h 31h nh 0Dh Adjust the zoom n=-10~+10 P/F
VXXG0312 56h Xh Xh 47h 30h 33h 31h 32h 0Dh Adjust the focus n=-20~+20 Pn/F
VXXS0312n 56h Xh Xh 53h 30h 33h 31h 32h nh 0Dh Adjust the focus n=-20~+20 P/F
VXXG0313 56h Xh Xh 47h 30h 33h 31h 33h 0Dh
Adjust the vertical
lens shift
n=-20~+20 Pn/F
VXXS0313n 56h Xh Xh 53h 30h 33h 31h 33h nh 0Dh
Adjust the vertical
lens shift
n=-20~+20 P/F
VXXG0314 56h Xh Xh 47h 30h 33h 31h 34h 0Dh
Adjust the horizontal lens shift
n=-20~+20 Pn/F
VXXS0314n 56h Xh Xh 53h 30h 33h 31h 34h nh 0Dh
Adjust the horizontal lens shift
n=-20~+20 P/F
Page 68
DLP Projector – User’s Manual
– 59 –
Command Group 04 (Remote Control)
ASCII HEX Function Description Return Value
VXXS0401 56h Xh Xh 53h 30h 34h 30h 31h 0Dh UP arrow P/F
VXXS0402 56h Xh Xh 53h 30h 34h 30h 32h 0Dh DOWN arrow P/F
VXXS0403 56h Xh Xh 53h 30h 34h 30h 33h 0Dh LEFT arrow P/F
VXXS0404 56h Xh Xh 53h 30h 34h 30h 34h 0Dh RIGHT arrow P/F
VXXS0405 56h Xh Xh 53h 30h 34h 30h 35h 0Dh POWER P/F
VXXS0406 56h Xh Xh 53h 30h 34h 30h 36h 0Dh EXIT P/F
VXXS0407 56h Xh Xh 53h 30h 34h 30h 37h 0Dh INPUT P/F
VXXS0408 56h Xh Xh 53h 30h 34h 30h 38h 0Dh AUTO P/F
VXXS0409 56h Xh Xh 53h 30h 34h 30h 39h 0Dh KEYSTONE+ P/F
VXXS0410 56h Xh Xh 53h 30h 34h 31h 30h 0Dh KEYSTONE- P/F
VXXS0411 56h Xh Xh 53h 30h 34h 31h 31h 0Dh MENU P/F
VXXS0412 56h Xh Xh 53h 30h 34h 31h 32h 0Dh STATUS P/F
VXXS0413 56h Xh Xh 53h 30h 34h 31h 33h 0Dh MUTE P/F
VXXS0414 56h Xh Xh 53h 30h 34h 31h 34h 0Dh ZOOM+ P/F
VXXS0415 56h Xh Xh 53h 30h 34h 31h 35h 0Dh ZOOM- P/F
VXXS0416 56h Xh Xh 53h 30h 34h 31h 36h 0Dh BLANK P/F
VXXS0417 56h Xh Xh 53h 30h 34h 31h 37h 0Dh FREEZE P/F
VXXS0418 56h Xh Xh 53h 30h 34h 31h 38h 0Dh VOLUME+ P/F
VXXS0419 56h Xh Xh 53h 30h 34h 31h 39h 0Dh VOLUME- P/F
VXXS0420 56h Xh Xh 53h 30h 34h 32h 30h 0Dh Enter P/F
Page 69
Loading...
