Vivitek D7 User Manual
D7 Series
User Manual
用戶手冊
用户手册
Manual del usuario
Manuel de l'utilisateur
Benutzerhandbuch
사용자 설명서
Руководство пользователя
Gebruikershandleiding
Instrukcja obsługi
Uživatelská příručka
Εγχειρίδιο χρήσης
Kullanım Kılavuzu
Manuale d'uso
Handbok
Brugervejledning
Brukerveiledning
Käyttöohje
Felhasználói kézikönyv
ﺩﻝﻱﻝ ﺍﻝﻡﺱﺕﺥﺩﻡ
Manual do Usuário
Copyright
This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be
reproduced without written consent of the author.
© Copyright 2010
Disclaimer
The information in this document is subject to change without notice. The manufacturer makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied
warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to
revise this publication and to make changes from time to time in the content hereof without obligation of
the manufacturer to notify any person of such revision or changes.
Trademark Recognition
Kensington is a U.S. registered trademark of ACCO Brand Corporation with issued registrations and pending applications in other countries throughout the world.
All other product names used in this manual are the properties of their respective owners and are acknowledged.
— i —
DLP Projector – User’s Manual
Important Safety Information
Important:
It is strongly recommended that you read this section carefully before using the projector. These
safety and usage instructions will ensure that you enjoy many years of safe use of the projector.
Keep this manual for future reference.
Symbols Used
Warning symbols are used on the unit and in this manual to alert you of hazardous situations.
The following styles are used in this manual to alert you to important information.
Note:
Provides additional information on the topic at hand.
Important:
Provides additional information that should not be overlooked.
Caution:
Alerts you to situations that may damage the unit.
Warning:
Alerts you to situations that may damage the unit, create a hazardous environment, or cause personal injury.
Throughout this manual, component parts and items in the OSD menus are denoted in bold font as in this
example:
“Push the Menu button on the remote control to open the Main menu.”
General Safety Information
¾ Do not open the unit case. Aside from the projection lamp, there are no user-serviceable parts in
the unit. For servicing, contact qualified service personnel.
¾ Follow all warnings and cautions in this manual and on the unit case.
¾ The projection lamp is extremely bright by design. To avoid damage to eyes, do not look into the
lens when the lamp is on.
¾ Do not place the unit on an unstable surface, cart, or stand.
¾ Avoid using the system near water, in direct sunlight, or near a heating device.
¾ Do not place heavy objects such as books or bags on the unit.
— ii —
Projector Installation Notice
¾ Place the projector in a horizontal position
The tilt angle of the projector should not exceed 15 degrees, nor should the projector be installed in
any way other than the desktop and ceiling mount, otherwise lamp life could decrease dramatically.
¾ Allow at least 50 cm clearance around the exhaust vent.
Preface
¾ Ensure that the intake vents do not recycle hot air from the exhaust vent.
¾ When operating the projector in an enclosed space, ensure that the surrounding air temperature
within the enclosure does not exceed 5 – 40°C while the projector is running, and the air intake and
exhaust vents are unobstructed.
¾ All enclosures should pass a certified thermal evaluation to ensure that the projector does not
recycle exhaust air, as this may cause the device to shutdown even if the enclosure temperature is
with the acceptable 5 – 40°C range.
– iii –
DLP Projector – User’s Manual
Power Safety
¾ Only use the supplied power cord.
¾ Do not place anything on the power cord. Place the power cord where it will not be in the way of
foot traffic.
¾ Remove the batteries from the remote control when storing or not in use for a prolonged period.
Replacing the Lamp
Replacing the lamp can be hazardous if done incorrectly. See Replacing the Projection Lamp on page 40
for clear and safe instructions for this procedure. Before replacing the lamp:
¾ Unplug the power cord.
¾ Allow the lamp to cool for about one hour.
Cleaning the Projector
¾ Unplug the power cord before cleaning. See Cleaning the Projector page 43.
¾ Allow the lamp to cool for about one hour.
Regulatory Warnings
Before installing and using the projector, read the regulatory notices in the Regulatory Compliance on
54.
page
Important Recycle Instructions:
Lamp(s) inside this product contain mercury. This product may contain other electronic waste that
can be hazardous if not disposed of properly. Recycle or dispose in accordance with local, state, or federal
Laws. For more information, contact the Electronic Industries Alliance at
WWW.EIAE.ORG. For lamp
specific disposal information check WWW.LAMPRECYCLE.ORG.
Symbol Explanations
DISPOSAL: Do not use household or municipal waste collection services for
disposal of electrical and electronic equipment. EU countries require the use
of separate recycling collection services.
— iv —
Main Features
• Lightweight unit, easy to pack away and transport.
• Compatible with all major video standards including NTSC, PAL, and SECAM.
• A high brightness rating allows for presentations in daylight or in lit rooms.
• Supports resolutions up to UXGA at 16.7 million colors to deliver crisp, clear images.
• Flexible setup allows for front, rear projections.
• Line-of-vision projections remain square, with advanced keystone correction for angled
projections.
• Input source automatically detected.
About this Manual
This manual is intended for end users and describes how to install and operate the DLP projector. Wherever possible, relevant information—such as an illustration and its description—has been kept on one
page. This printer-friendly format is both for your convenience and to help save paper, thereby protecting
the environment. It is suggested that you only print sections that are relevant to your needs.
Preface
– v –
DLP Projector – User’s Manual
Table of Contents
GETTING STARTED.......................................................................................................................................................... 1
PACKING CHECKLIST ........................................................................................................................................................... 1
VIEWS OF PROJECTOR PARTS............................................................................................................................................... 2
Front-right View ............................................................................................................................................................. 2
Rear view ........................................................................................................................................................................ 3
Bottom view..................................................................................................................................................................... 4
REMOTE CONTROL PARTS ................................................................................................................................................... 5
REMOTE CONTROL OPERATING RANGE ............................................................................................................................... 7
PROJECTOR AND REMOTE CONTROL BUTTONS.................................................................................................................... 7
SETUP AND OPERATION................................................................................................................................................. 8
INSERTING THE REMOTE CONTROL BATTERIES ................................................................................................................... 8
CONNECTING INPUT DEVICES .............................................................................................................................................. 9

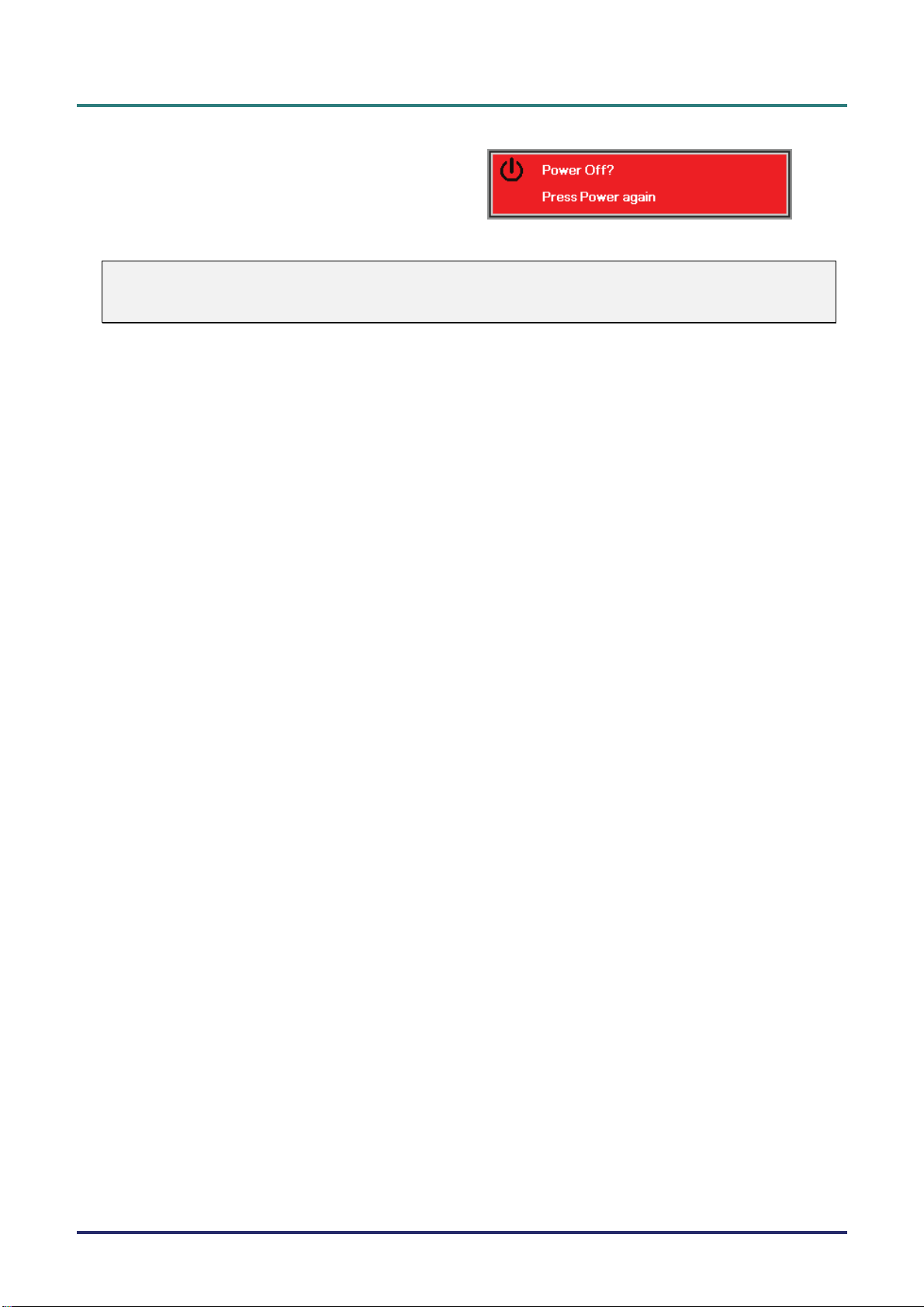

STARTING AND SHUTTING DOWN THE PROJECTOR............................................................................................................. 11

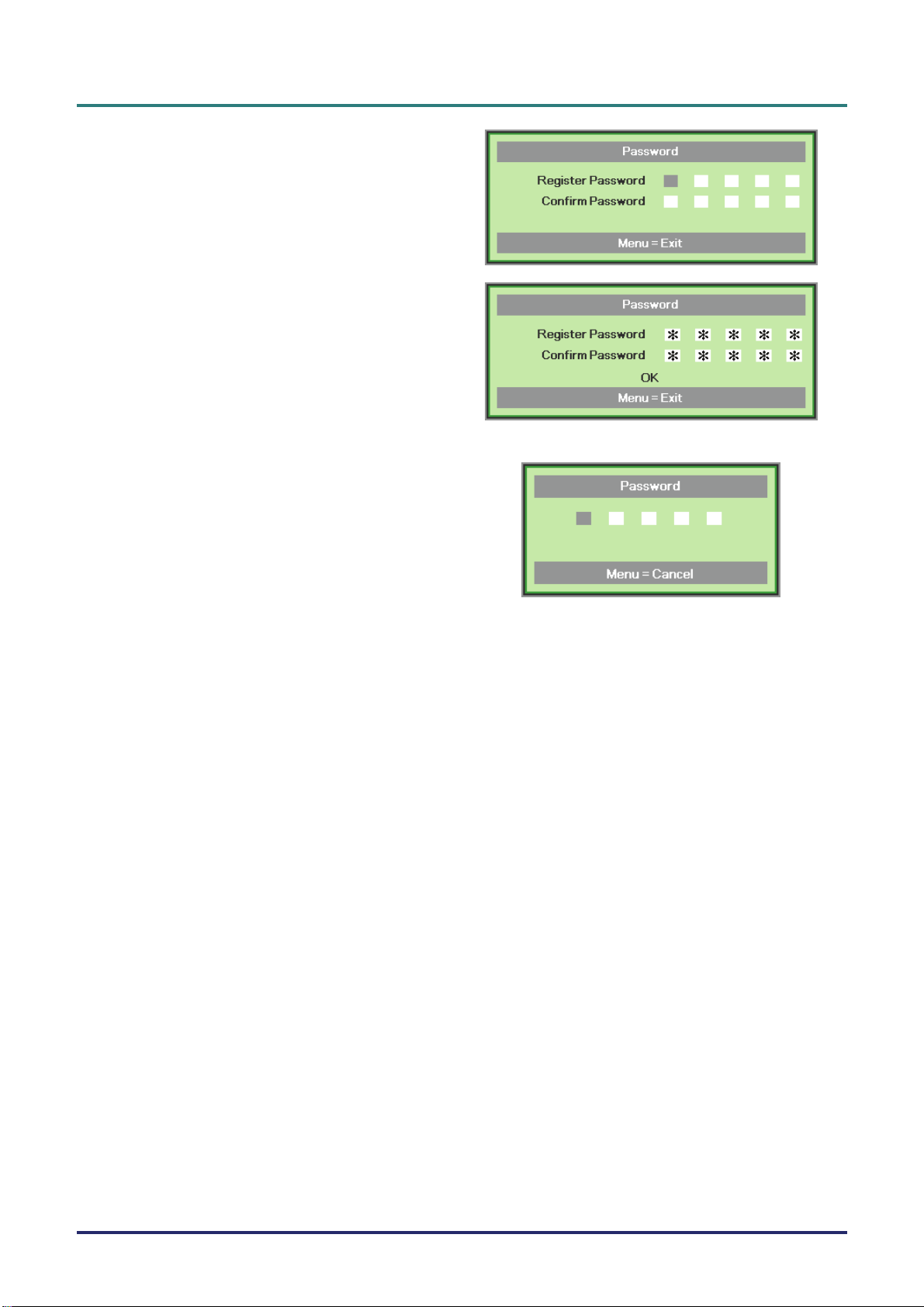

SETTING AN ACCESS PASSWORD (SECURITY LOCK) .......................................................................................................... 13
ADJUSTING THE PROJECTOR LEVEL .................................................................................................................................... 15

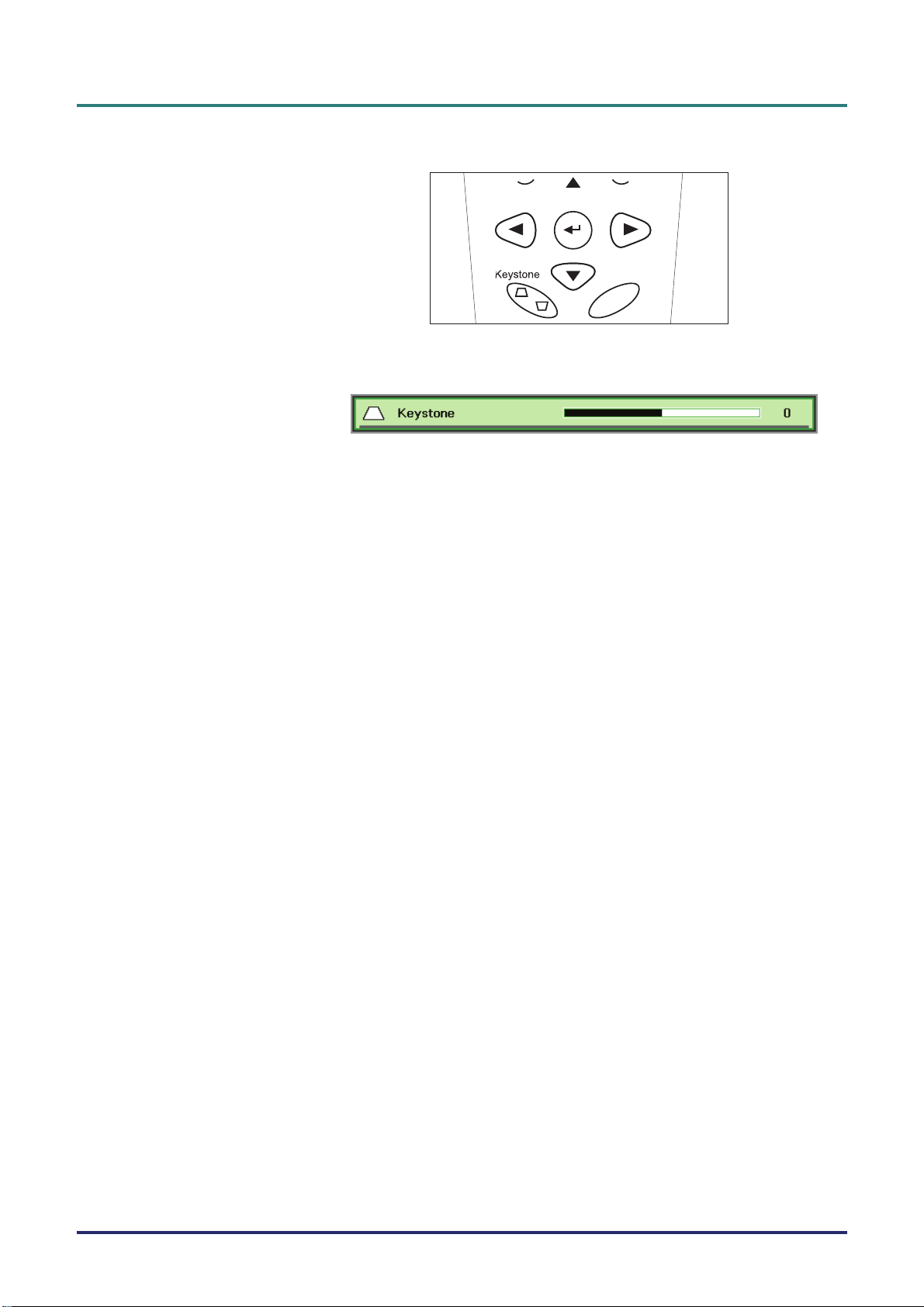

ADJUSTING THE FOCUS AND KEYSTONE ............................................................................................................................ 16

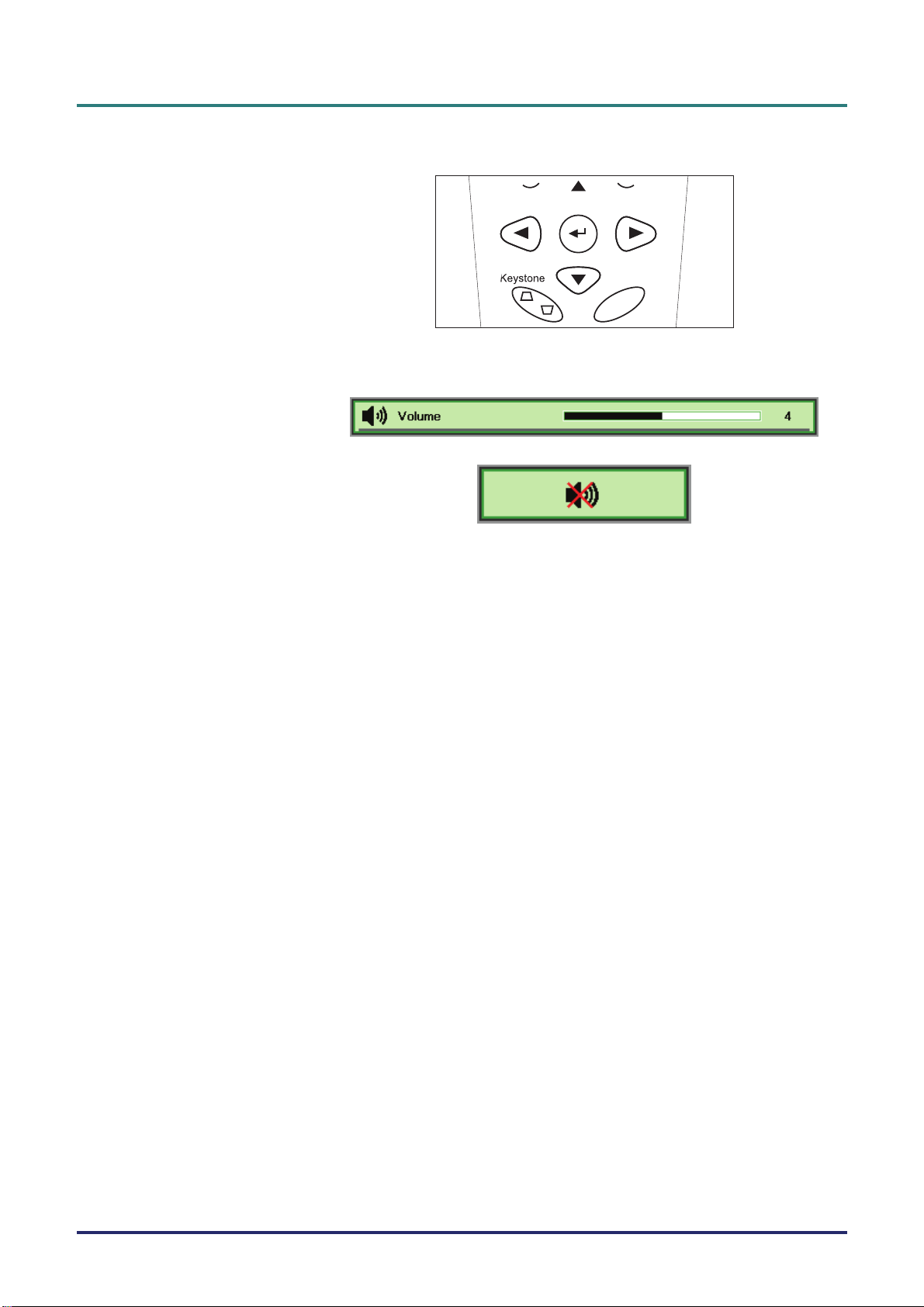

ADJUSTING THE VOLUME ................................................................................................................................................... 17
ON-SCREEN DISPLAY (OSD) MENU SETTINGS....................................................................................................... 18
OSD MENU CONTROLS ..................................................................................................................................................... 18
Navigating the OSD ...................................................................................................................................................... 18

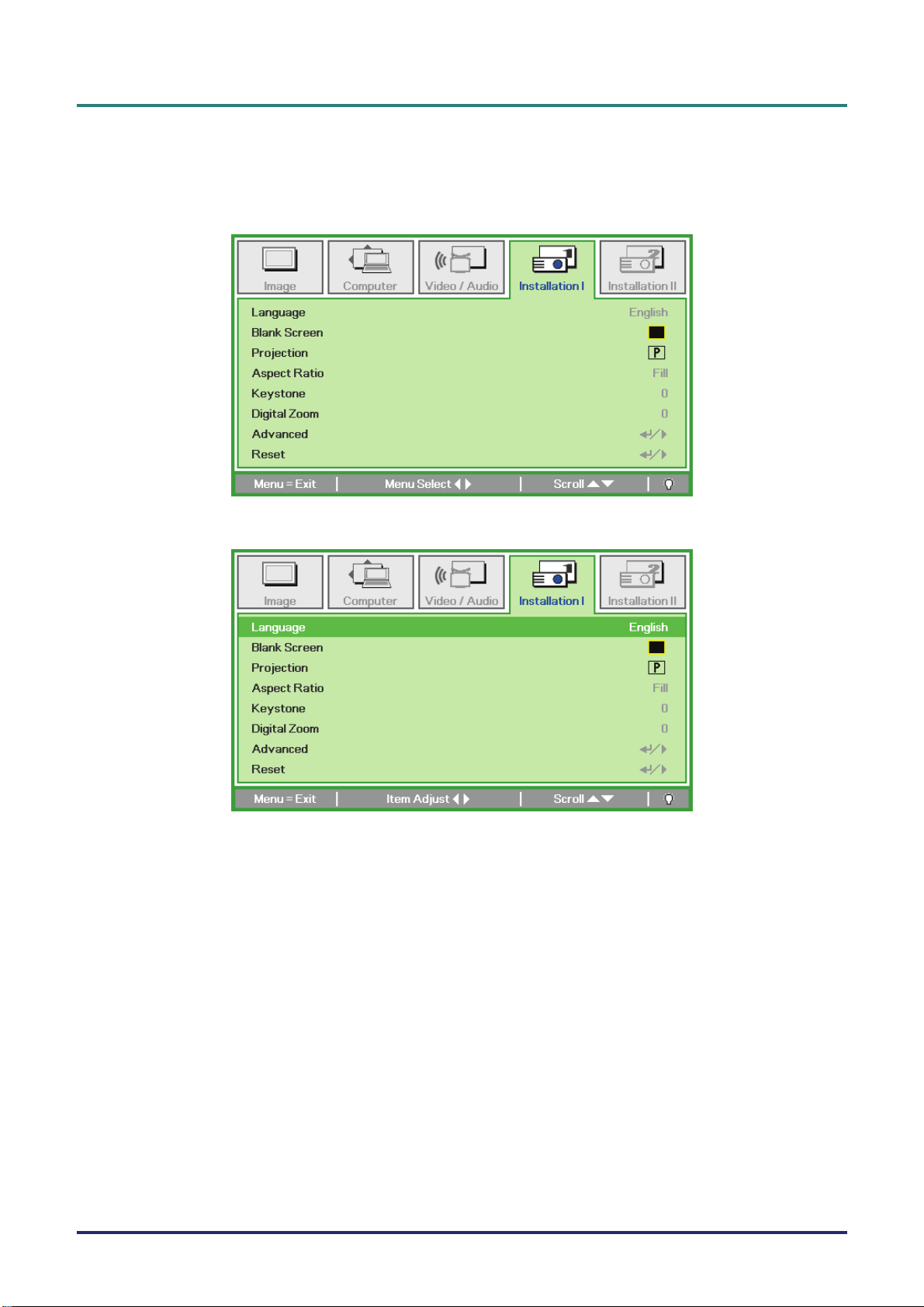

SETTING THE OSD LANGUAGE .......................................................................................................................................... 19

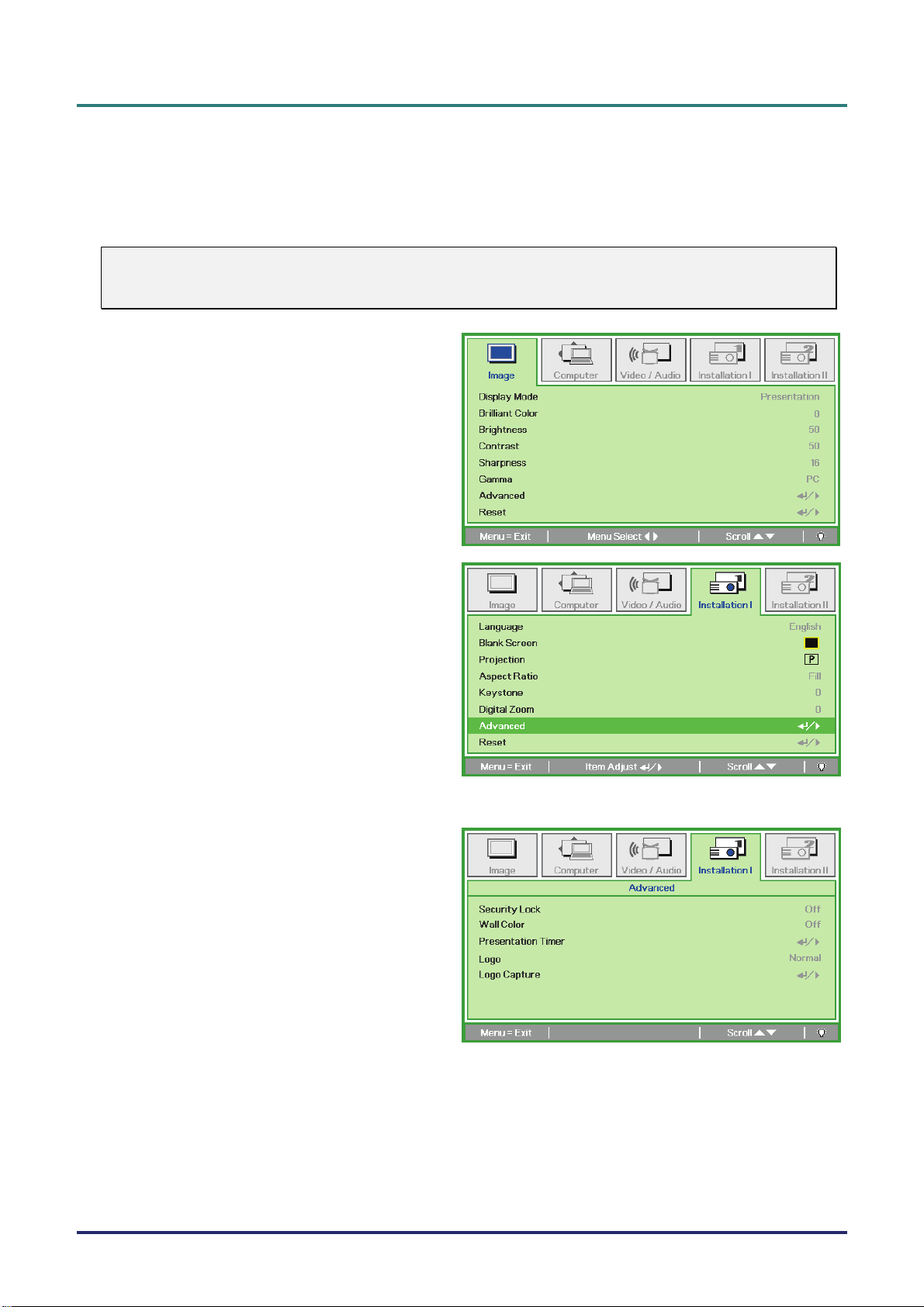

OSD MENU OVERVIEW ..................................................................................................................................................... 20

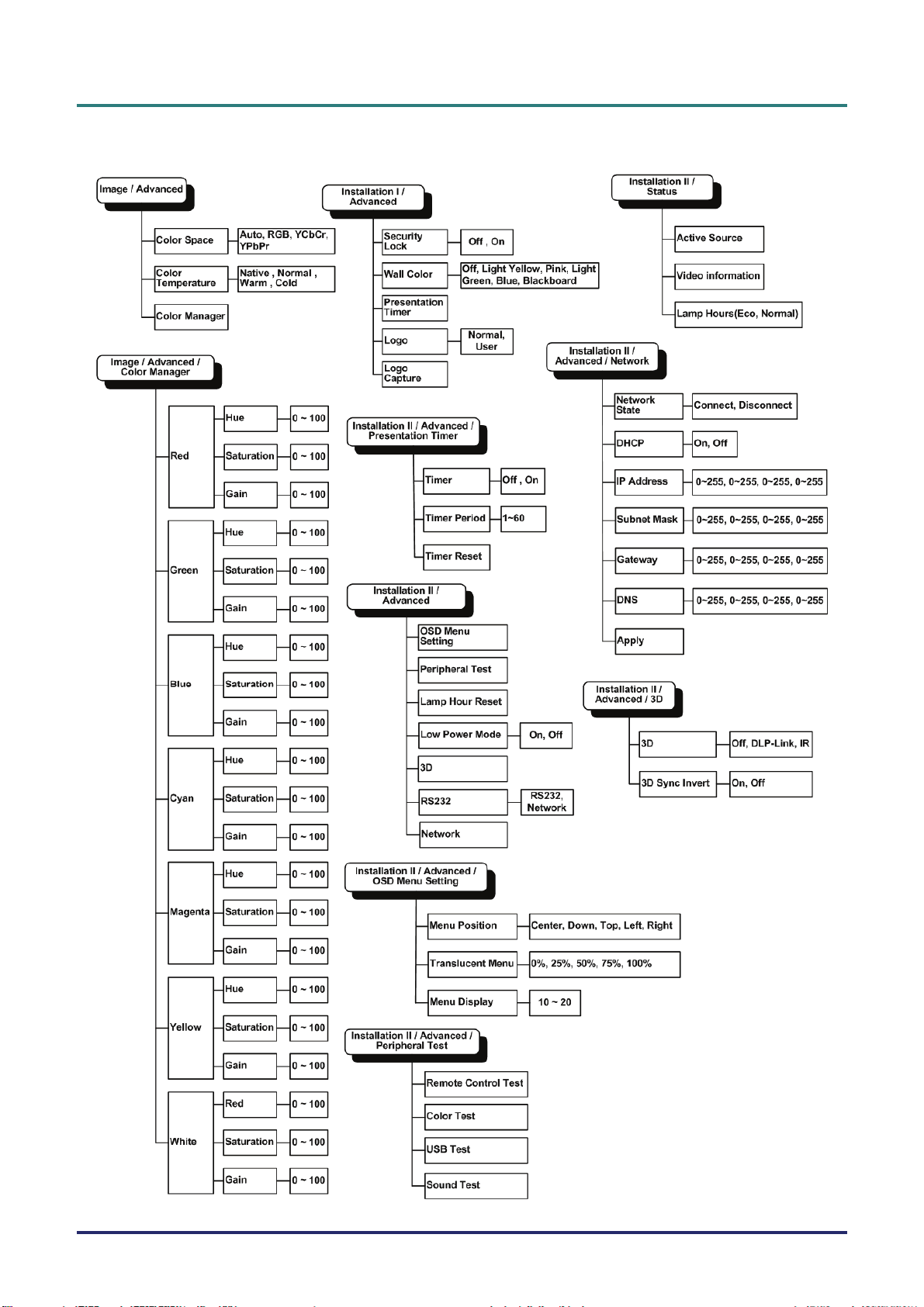

OSD SUB-MENU OVERVIEW ............................................................................................................................................. 21

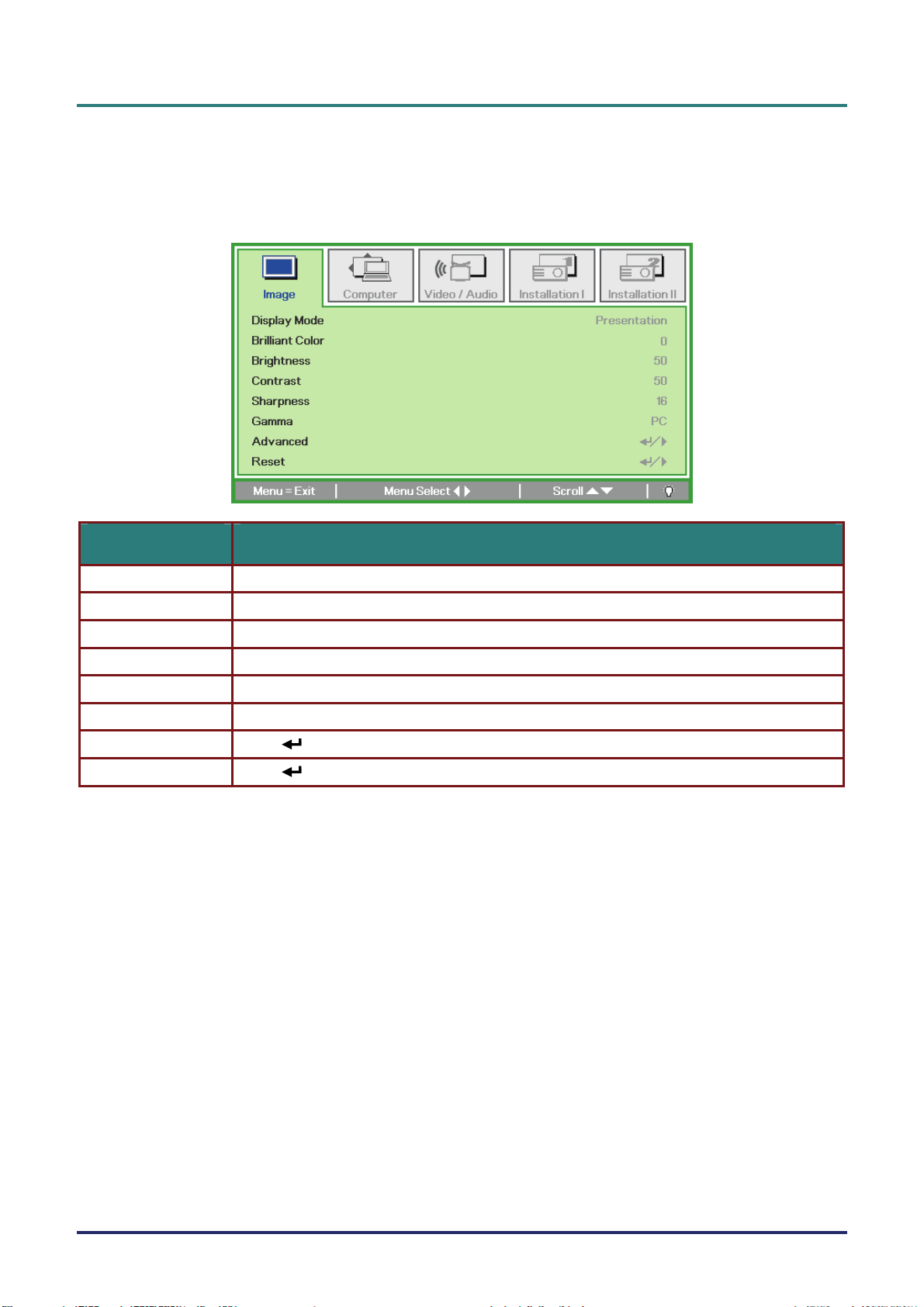

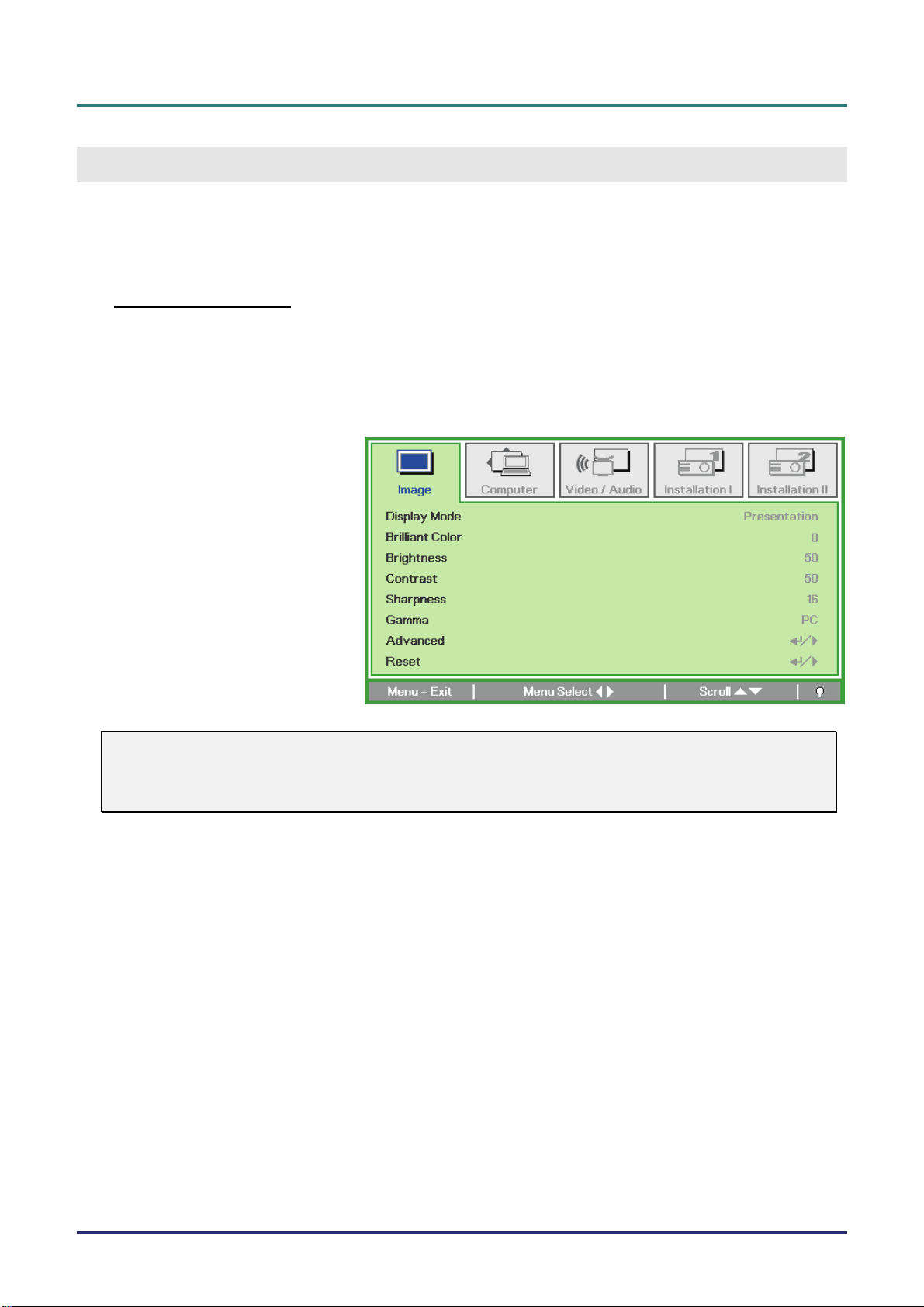

IMAGE MENU..................................................................................................................................................................... 22

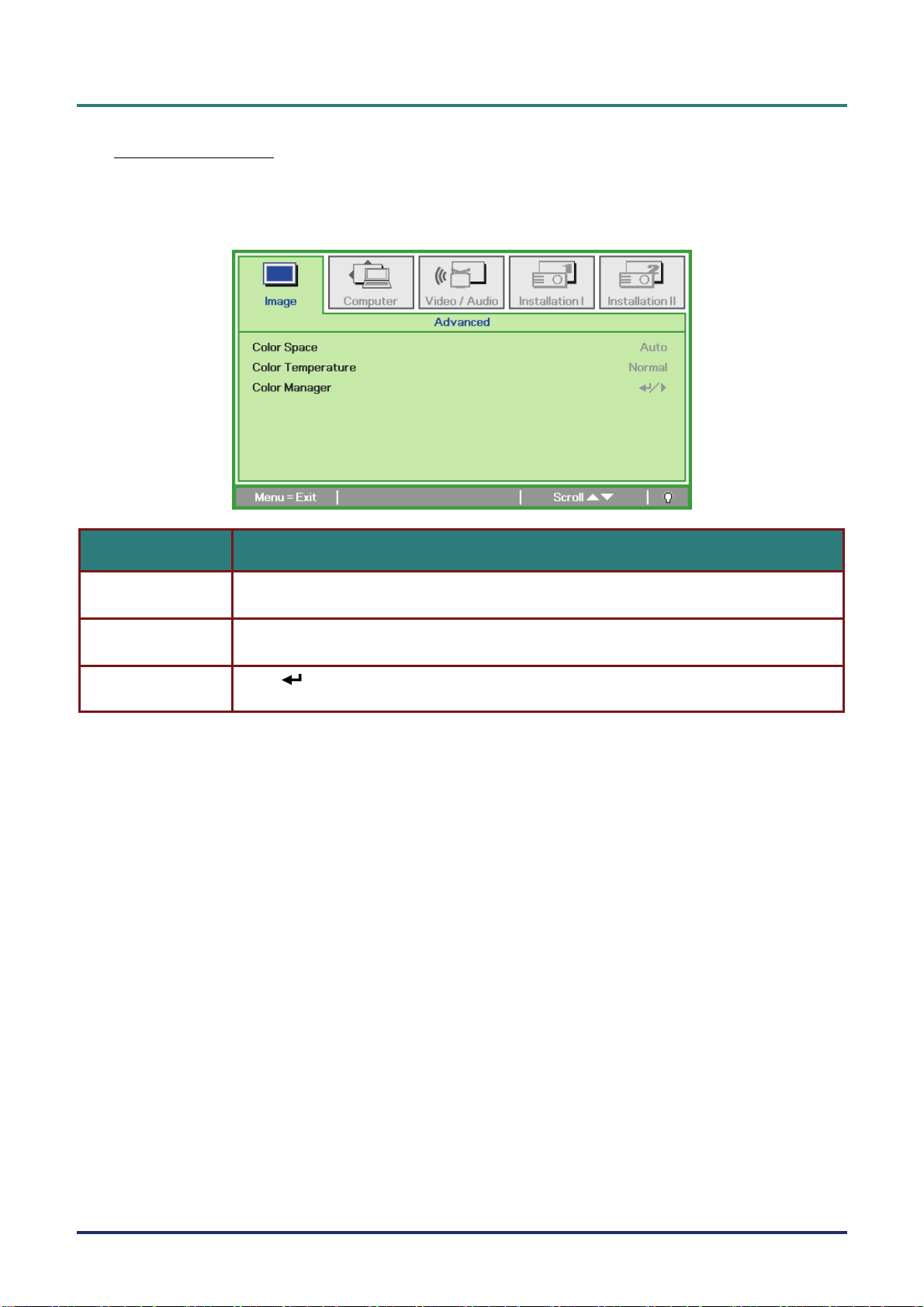

Advanced Feature......................................................................................................................................................... 23

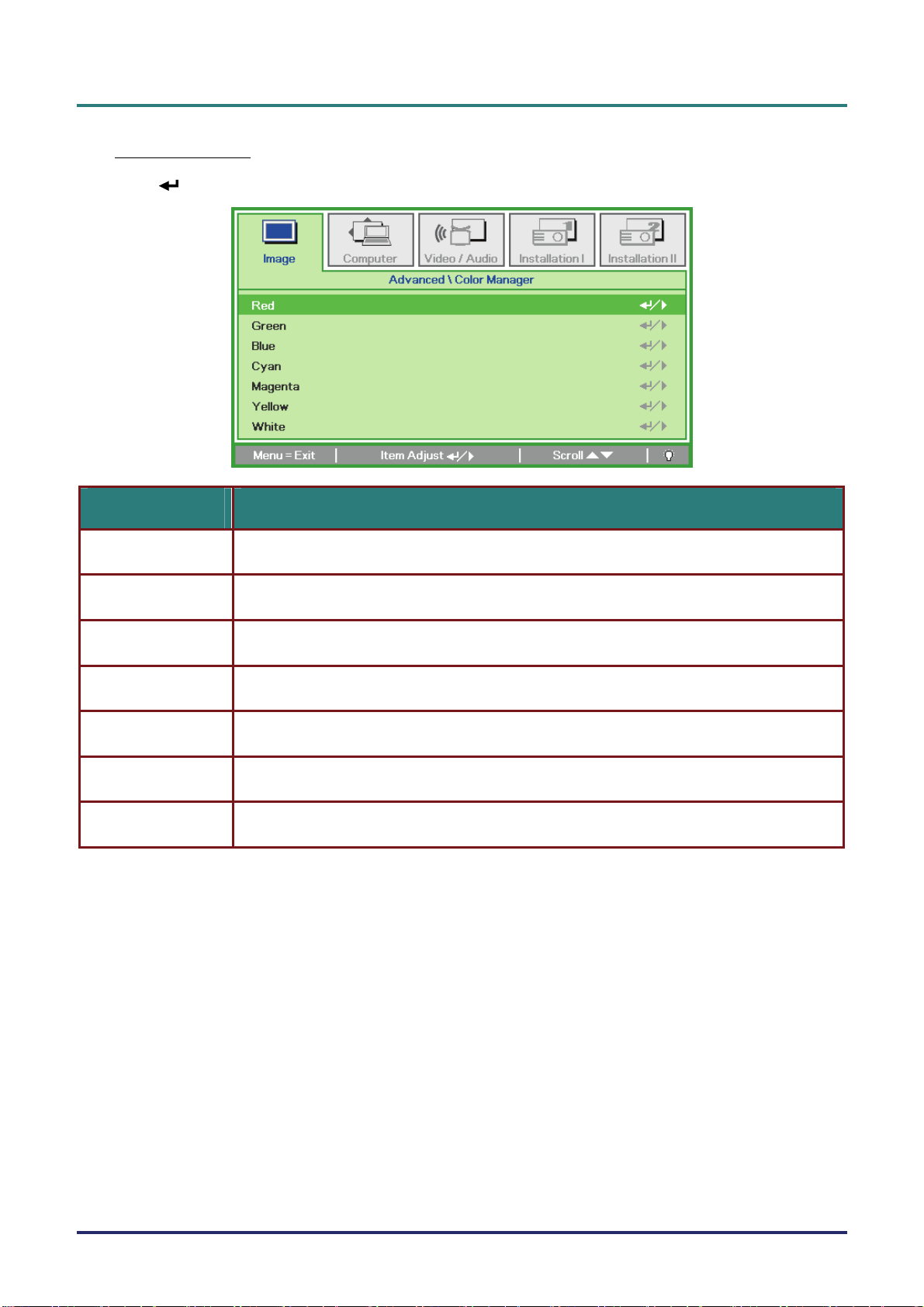

Color Manager.............................................................................................................................................................. 24

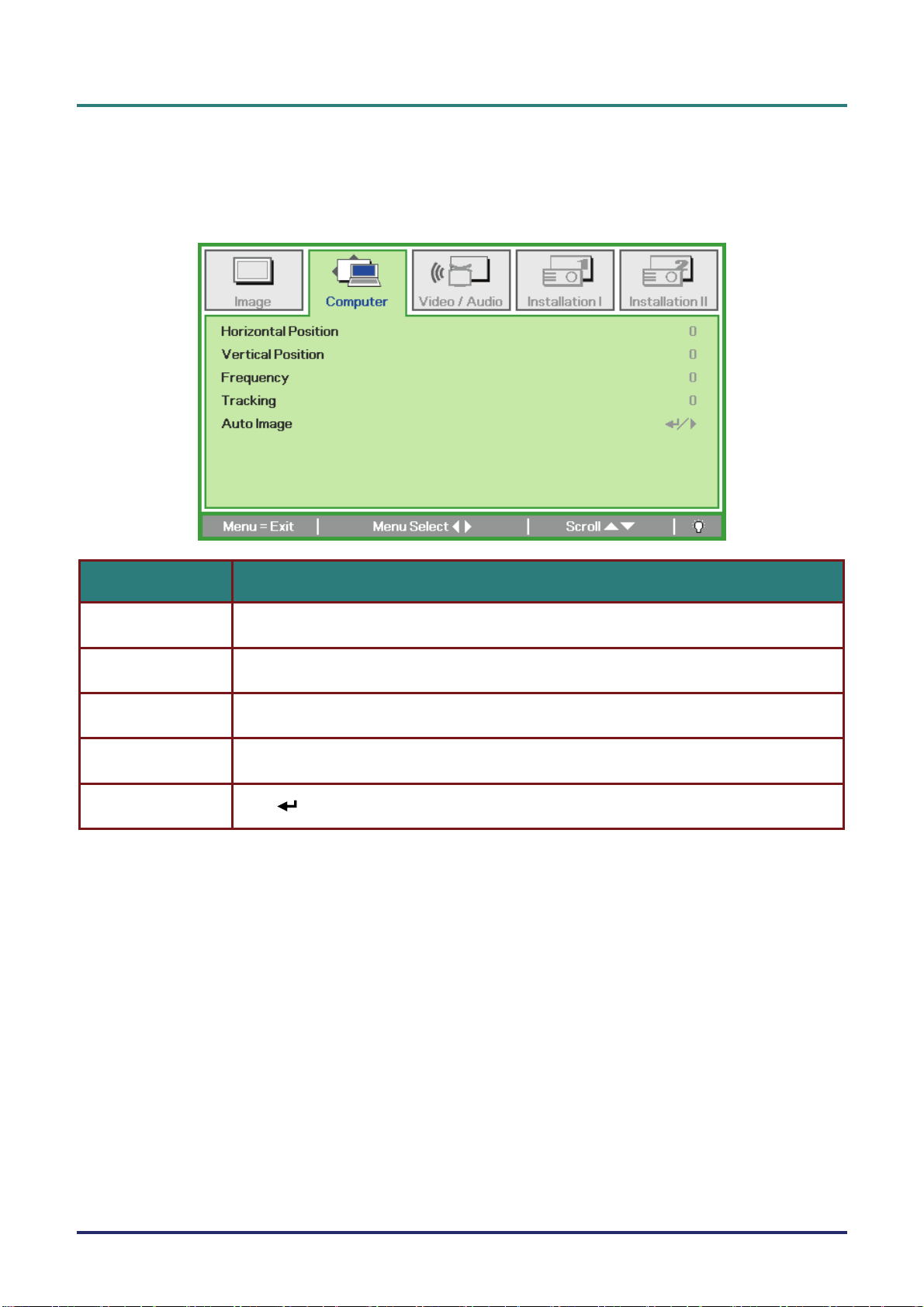

COMPUTER MENU.............................................................................................................................................................. 25 U

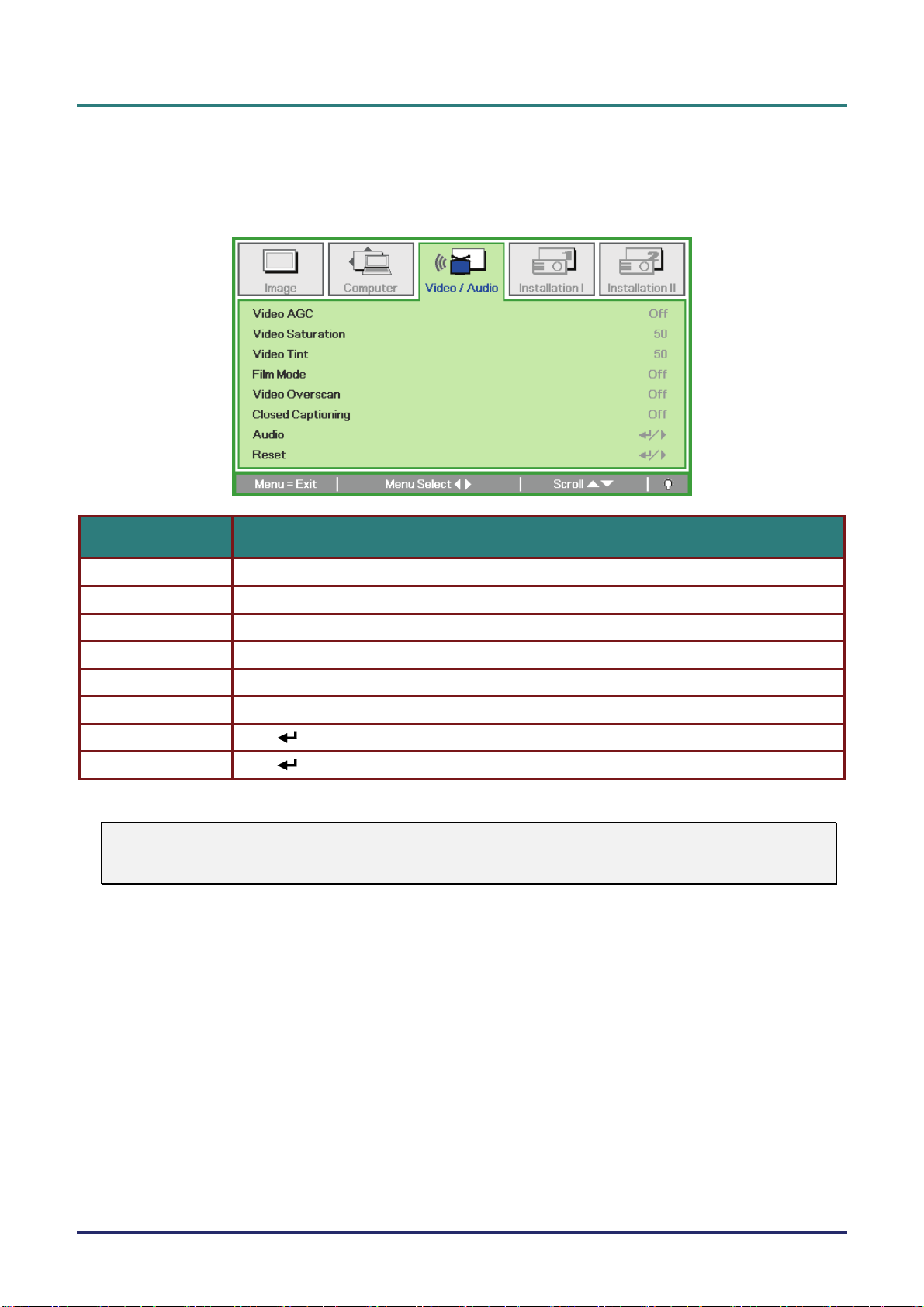

VIDEO/AUDIO MENU ......................................................................................................................................................... 26

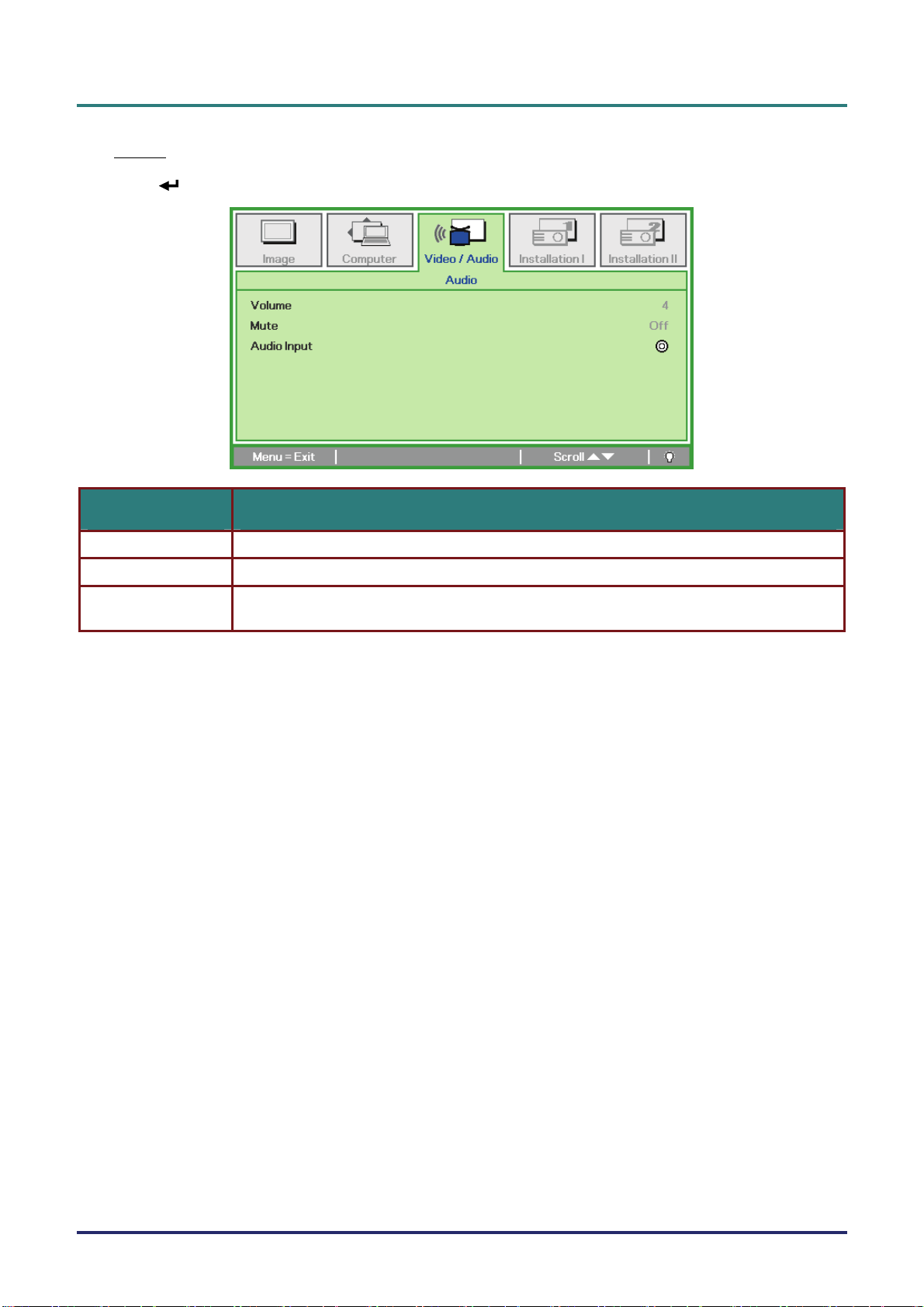

AUDIO ............................................................................................................................................................................... 27

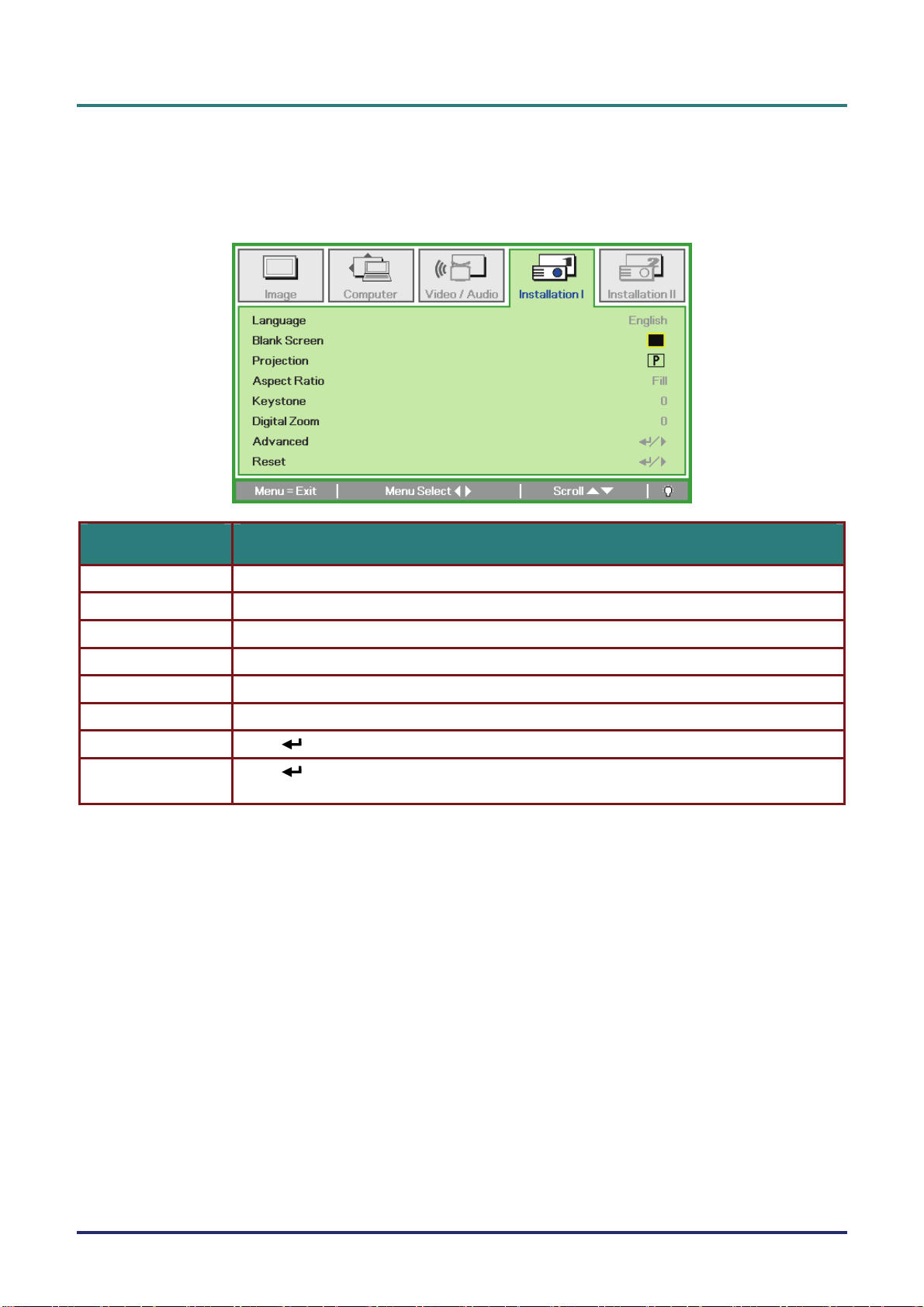

INSTALLATION I MENU ...................................................................................................................................................... 28

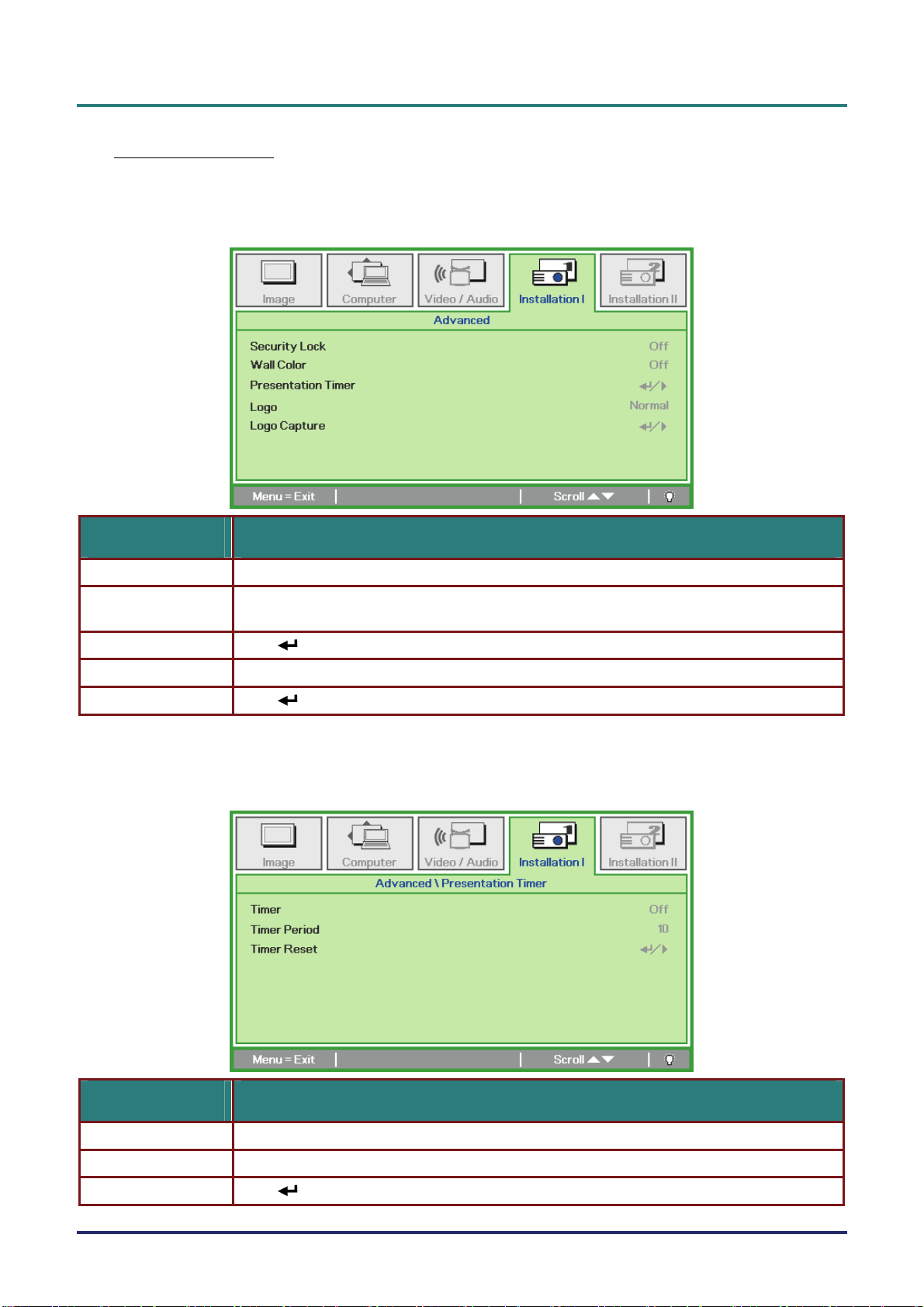

Advanced Feature......................................................................................................................................................... 29
Presentation Timer........................................................................................................................................................ 29

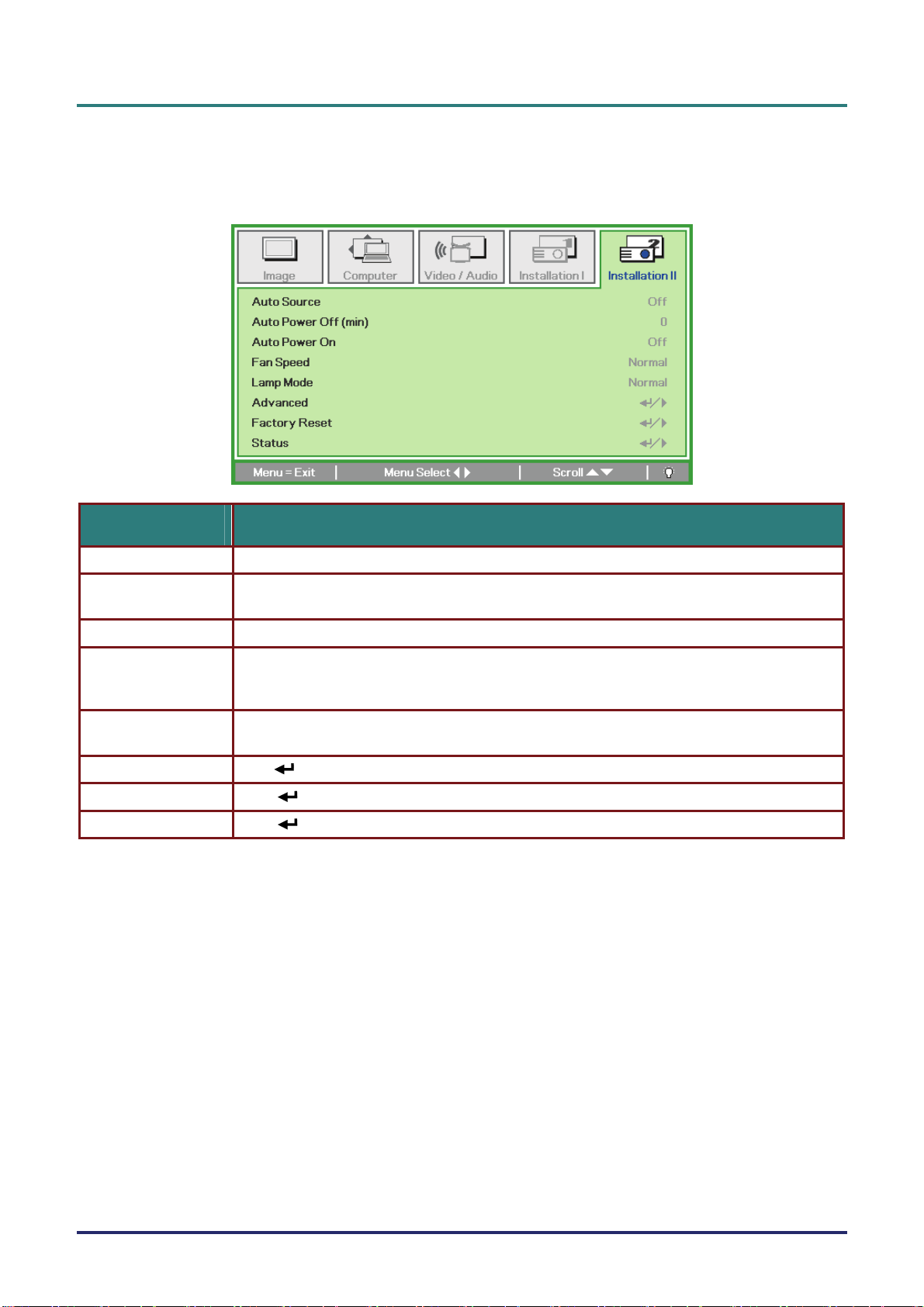

INSTALLATION II MENU..................................................................................................................................................... 30

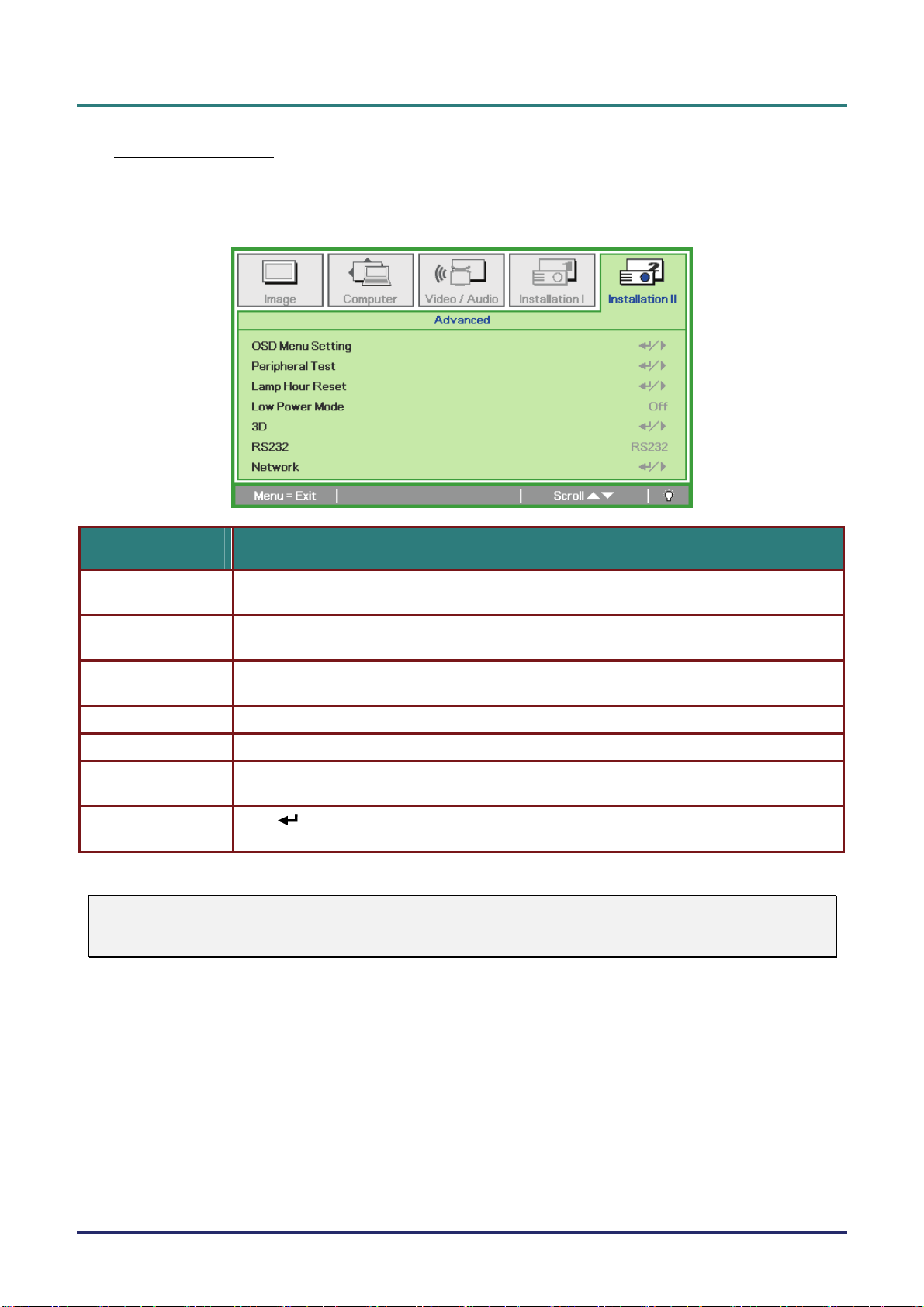

Advanced Feature......................................................................................................................................................... 31

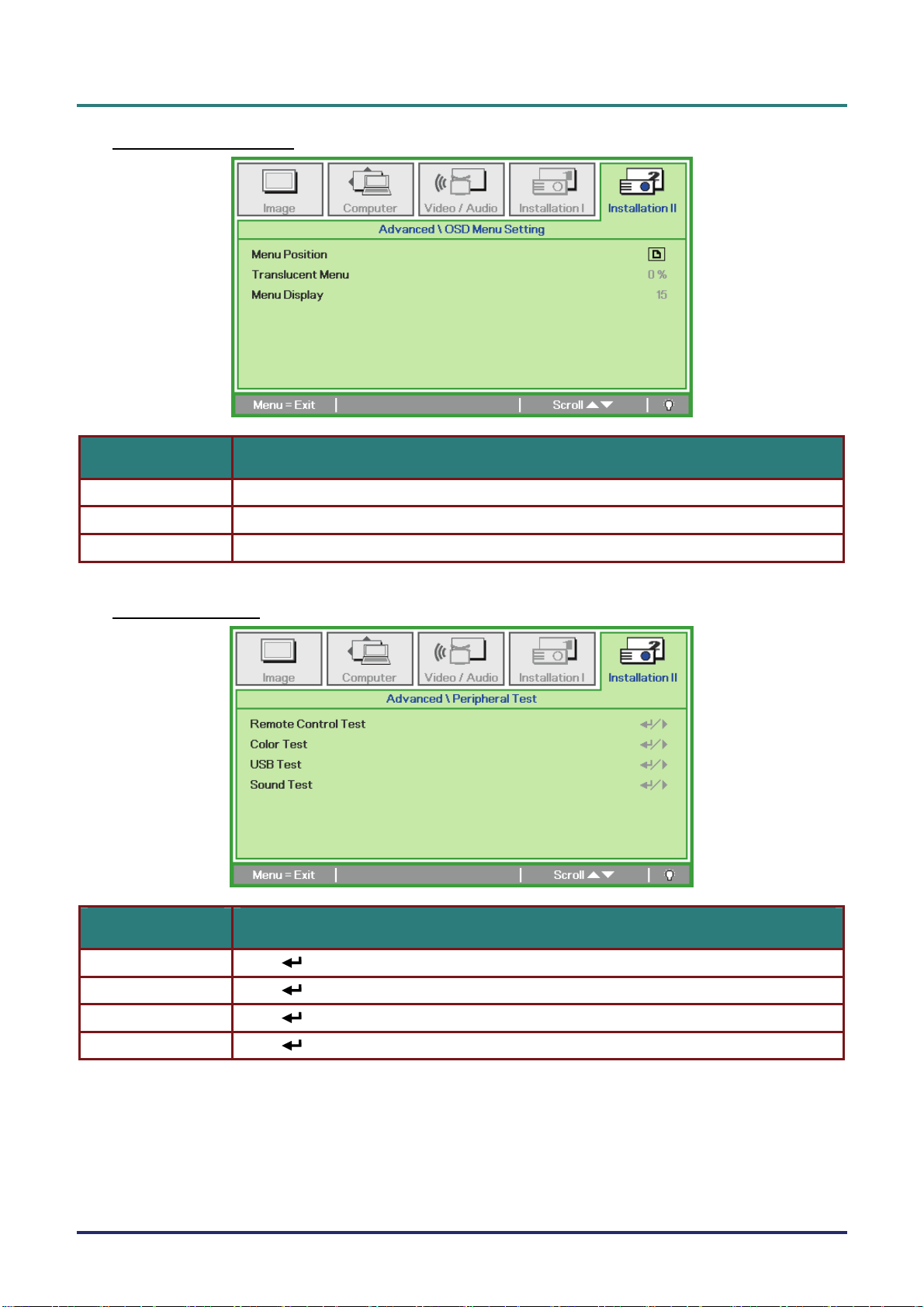

OSD Menu Setting......................................................................................................................................................... 32
Peripheral Test.............................................................................................................................................................. 32

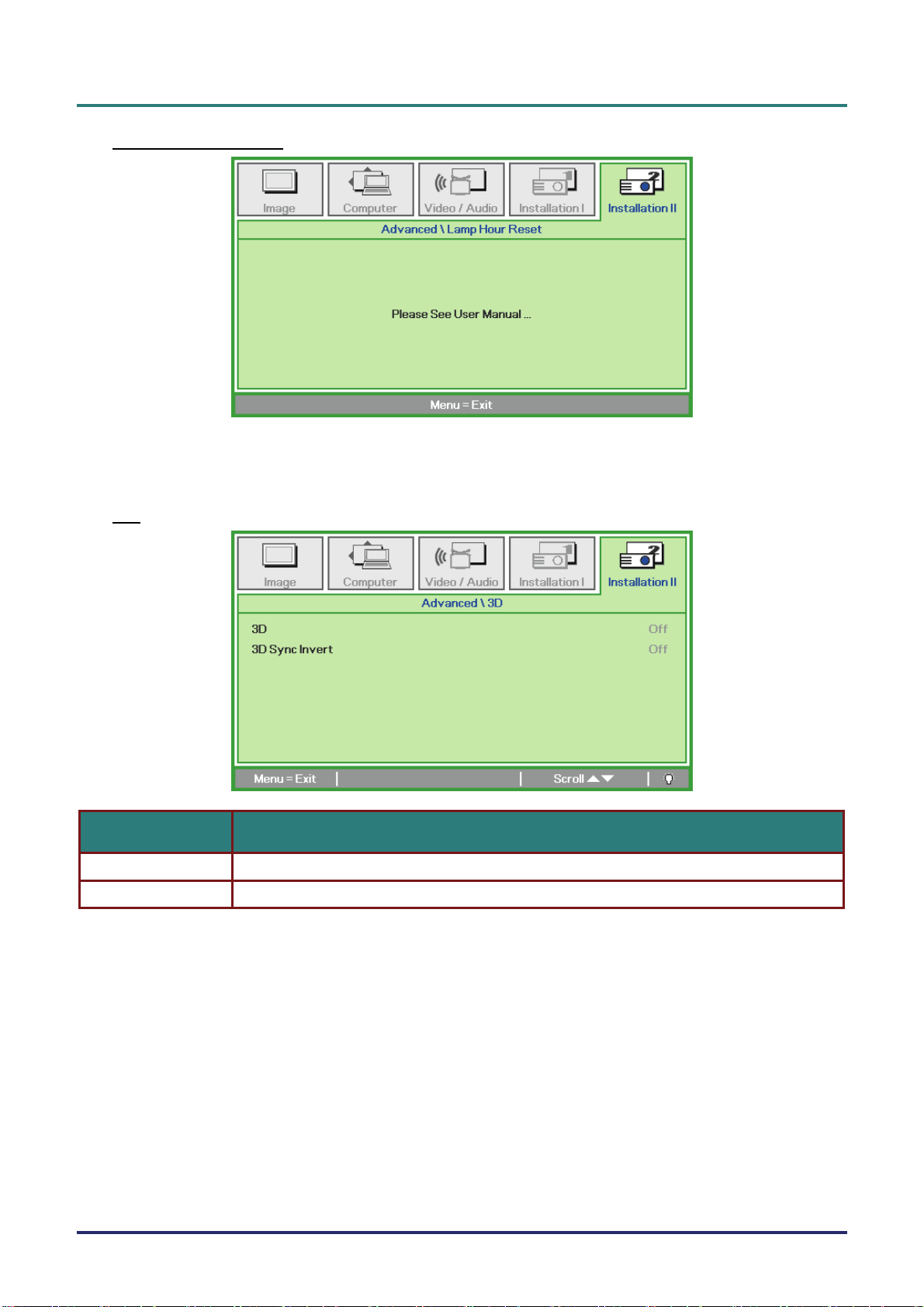

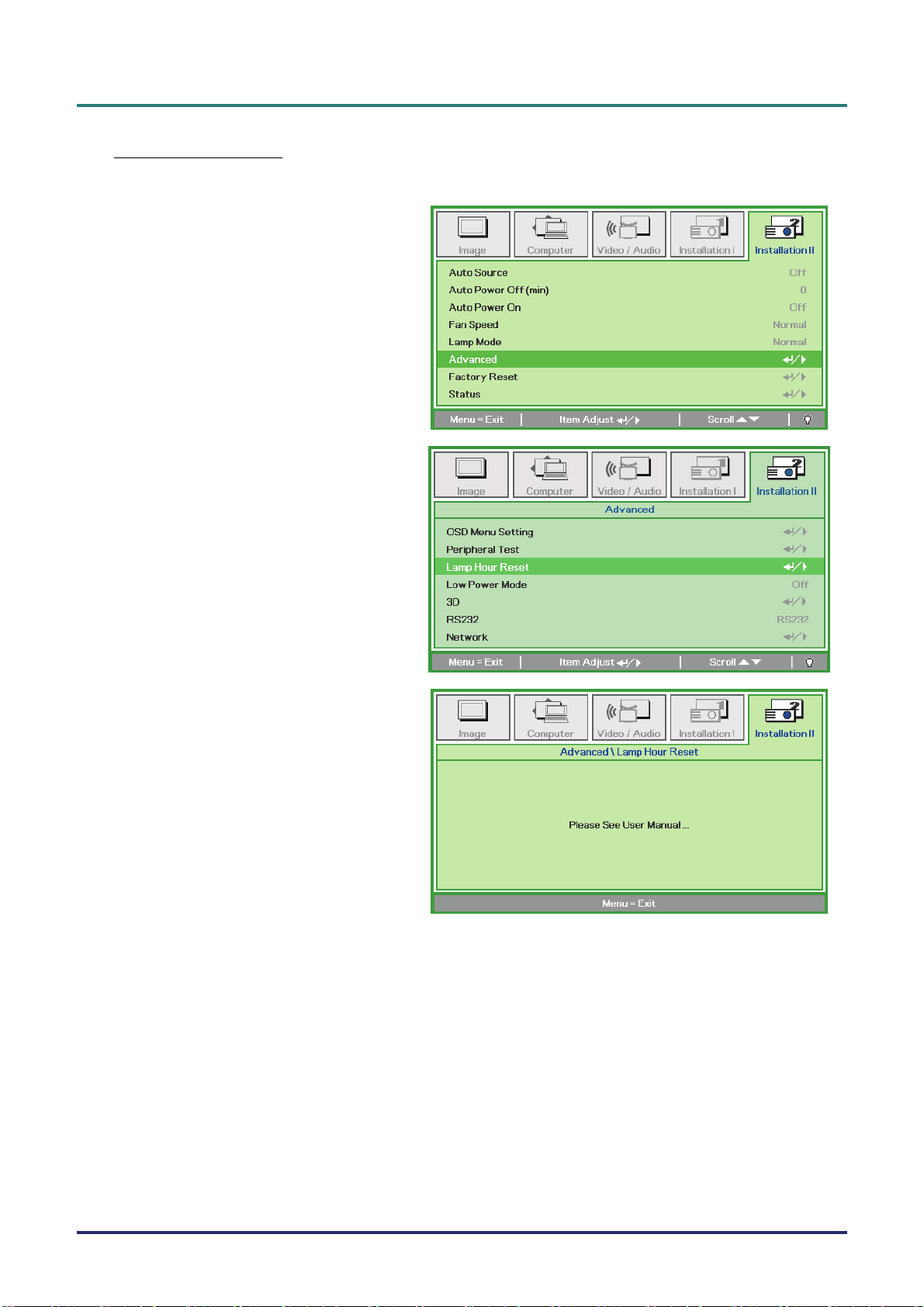

Lamp Hour Reset .......................................................................................................................................................... 33
3D ................................................................................................................................................................................. 33

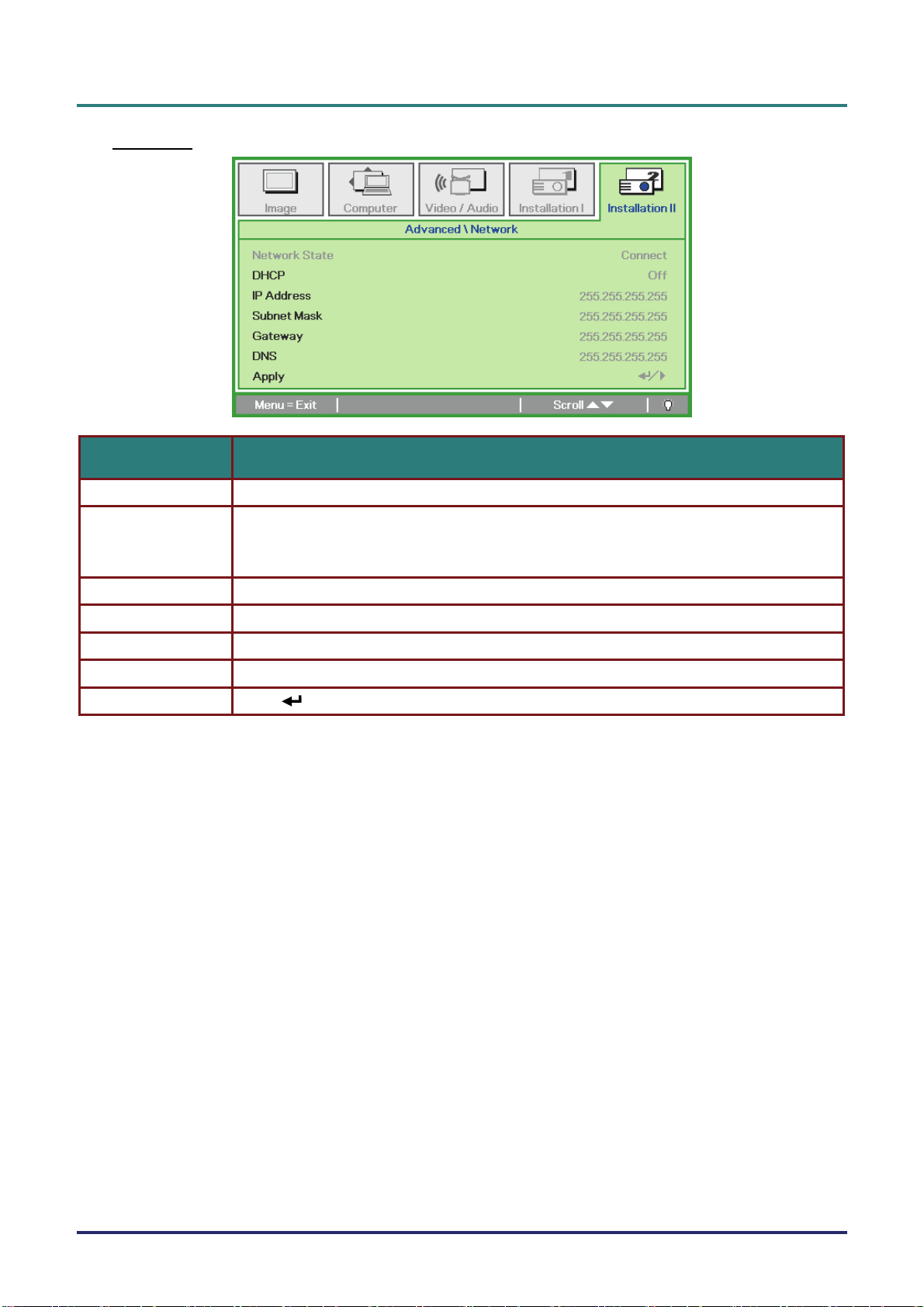

Network......................................................................................................................................................................... 34

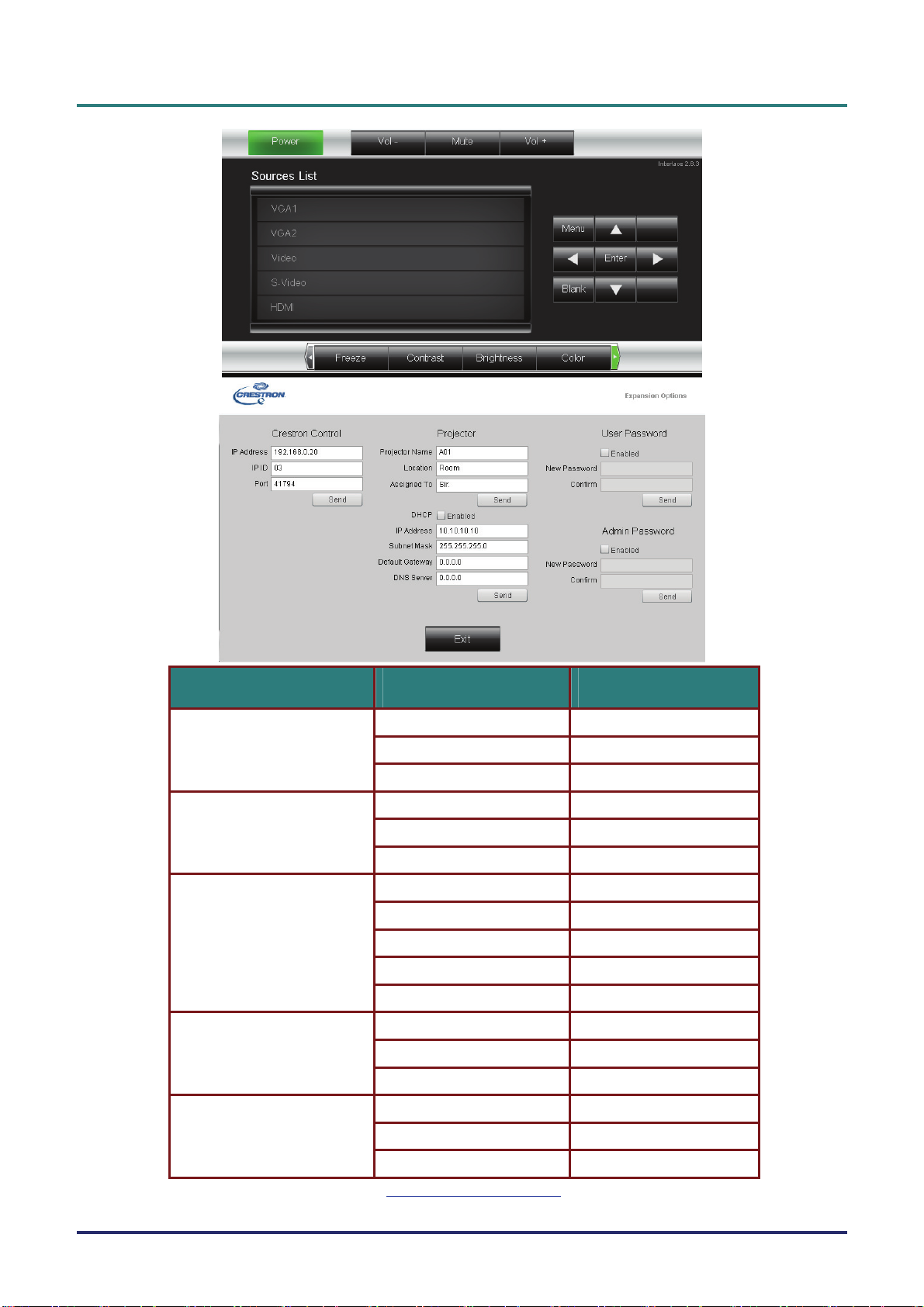

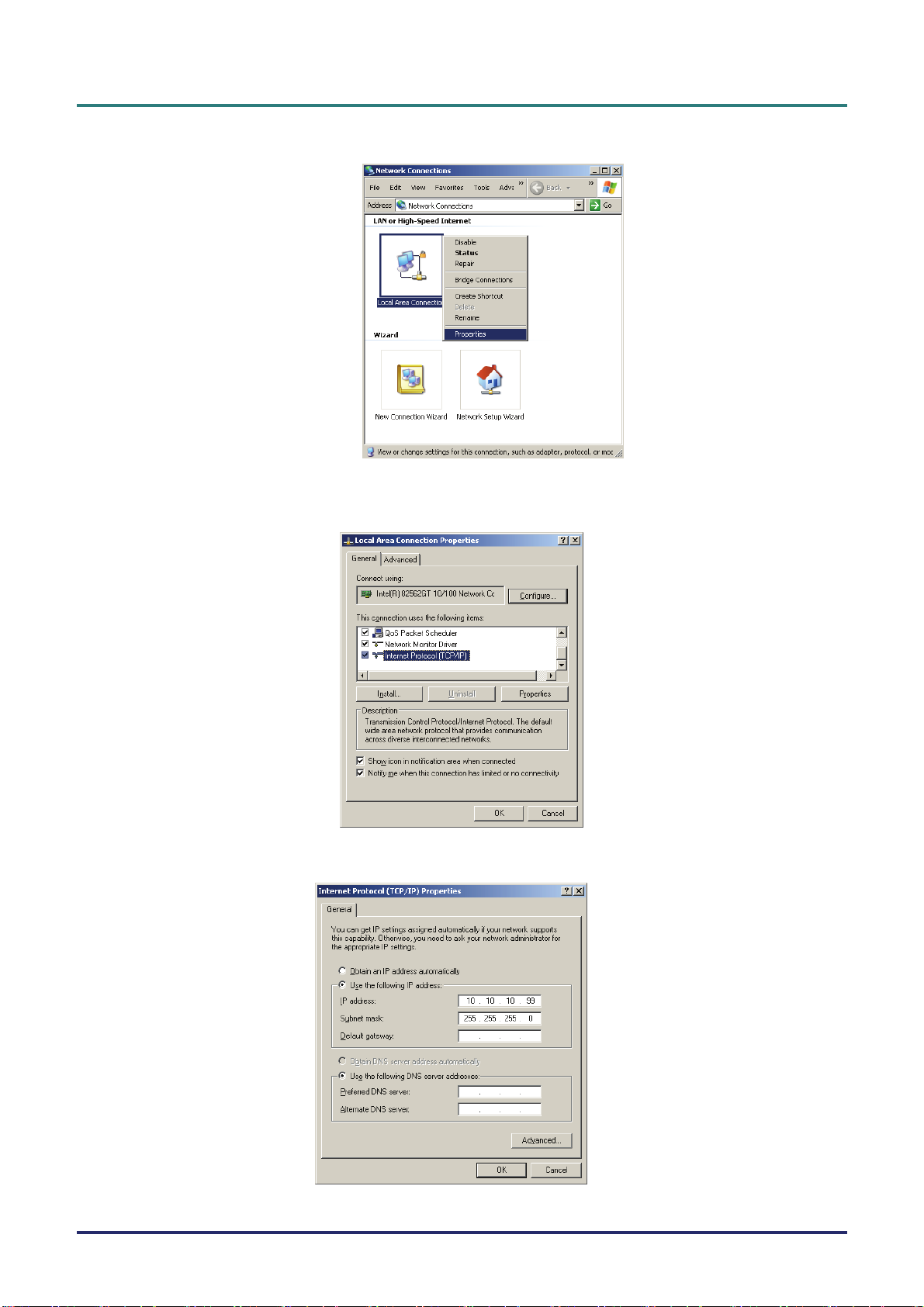

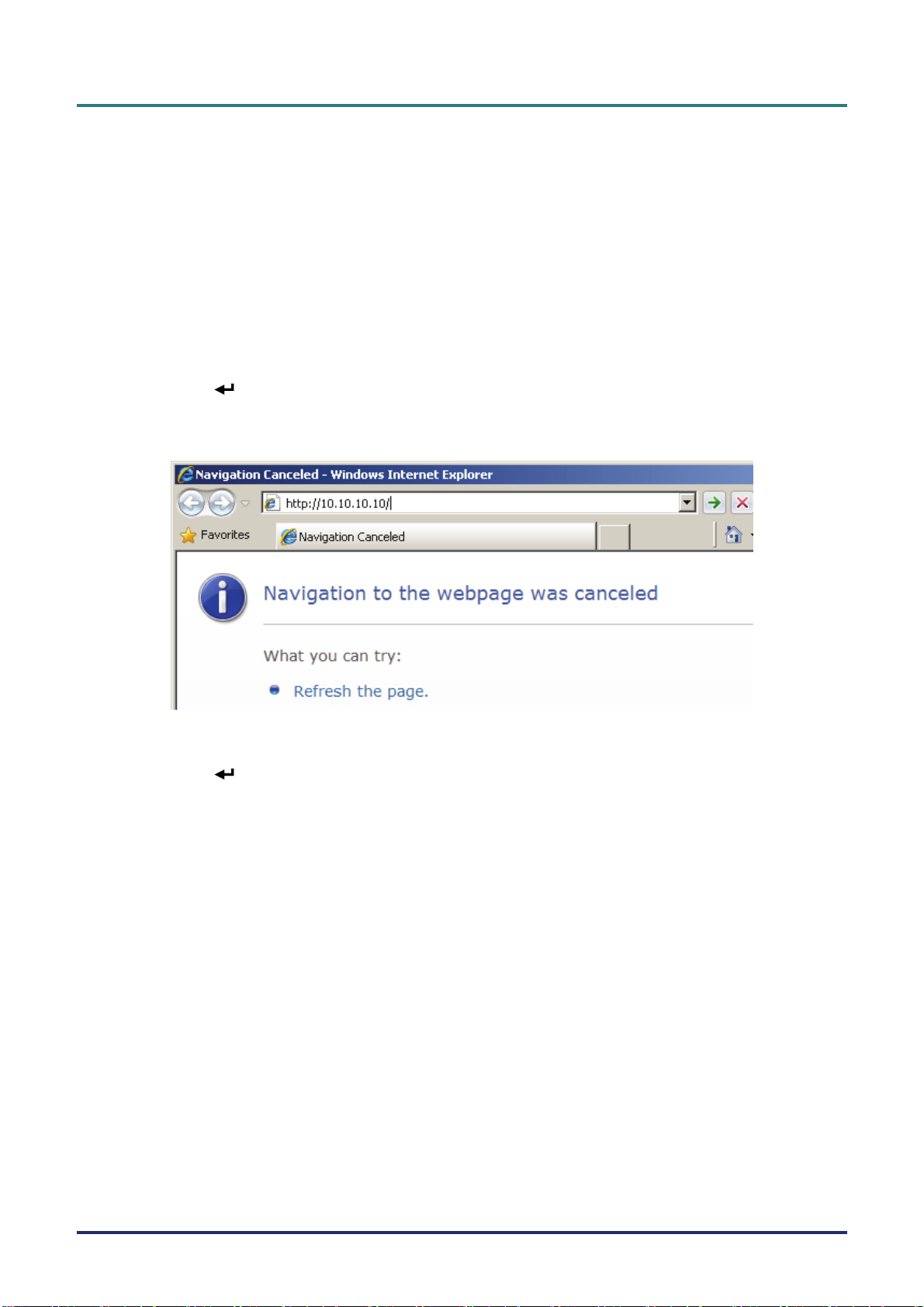

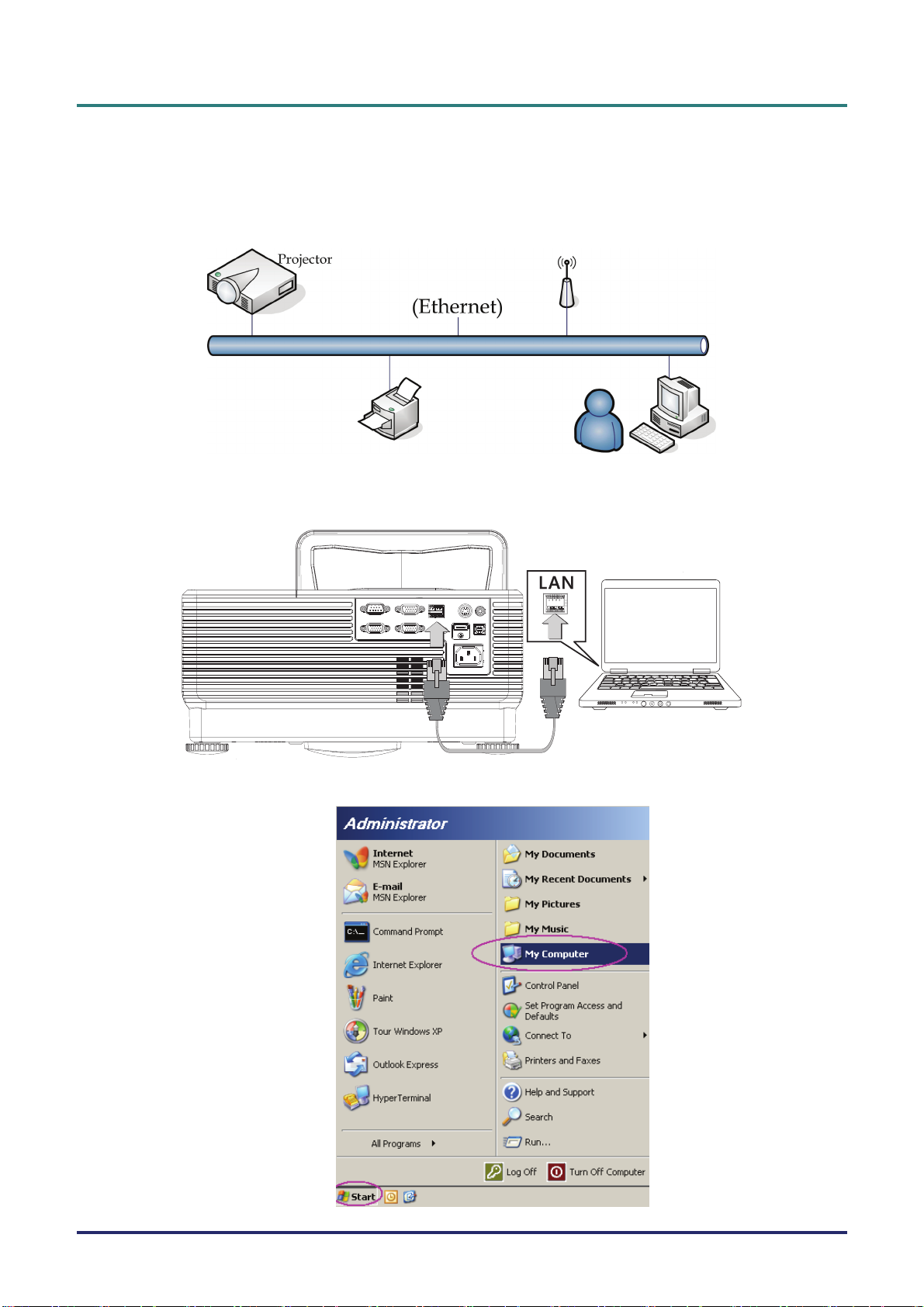

LAN-RJ45...................................................................................................................................................................... 35

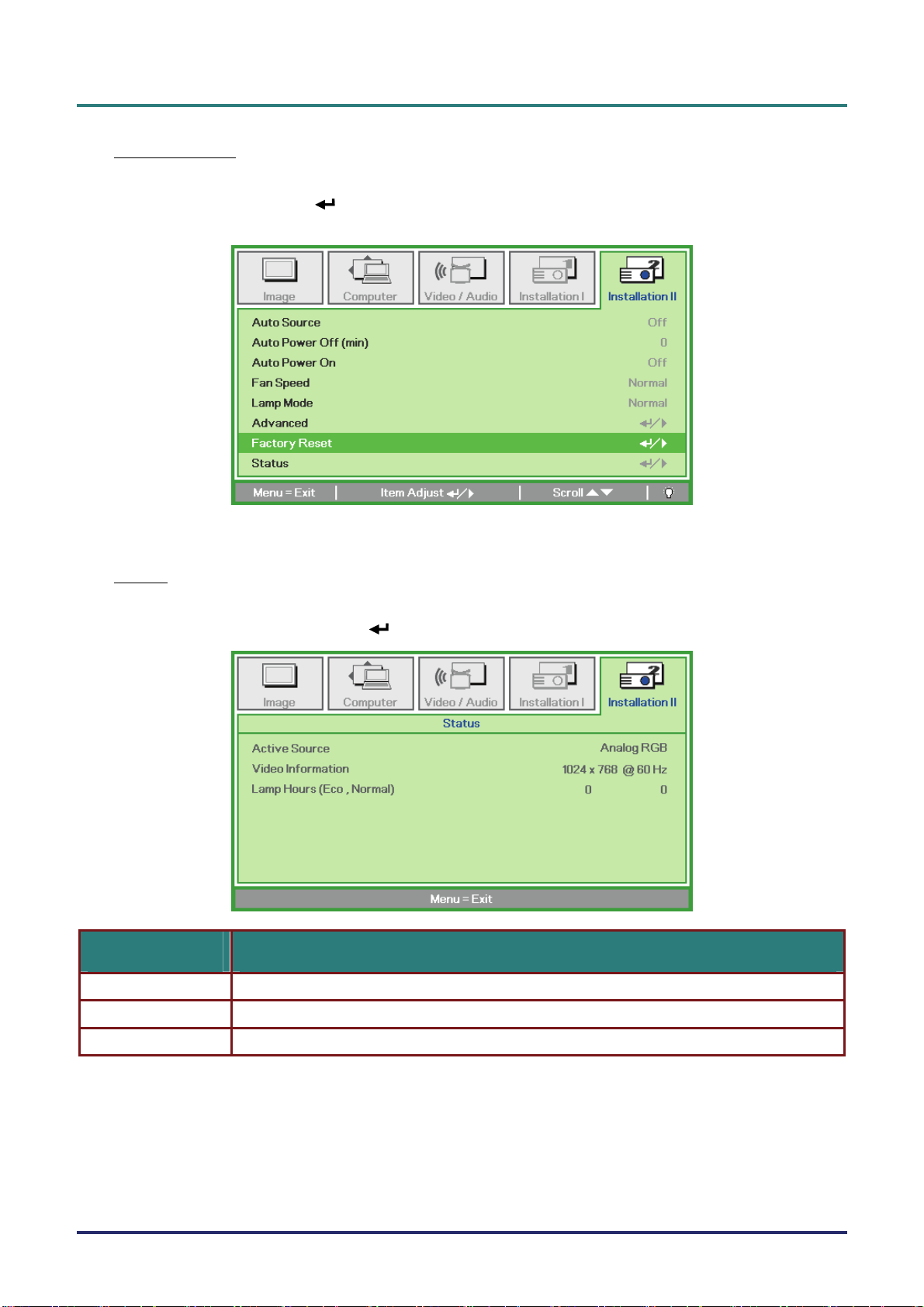

Factory Reset ................................................................................................................................................................ 39
Status............................................................................................................................................................................. 39
MAINTENANCE AND SECURITY................................................................................................................................. 40

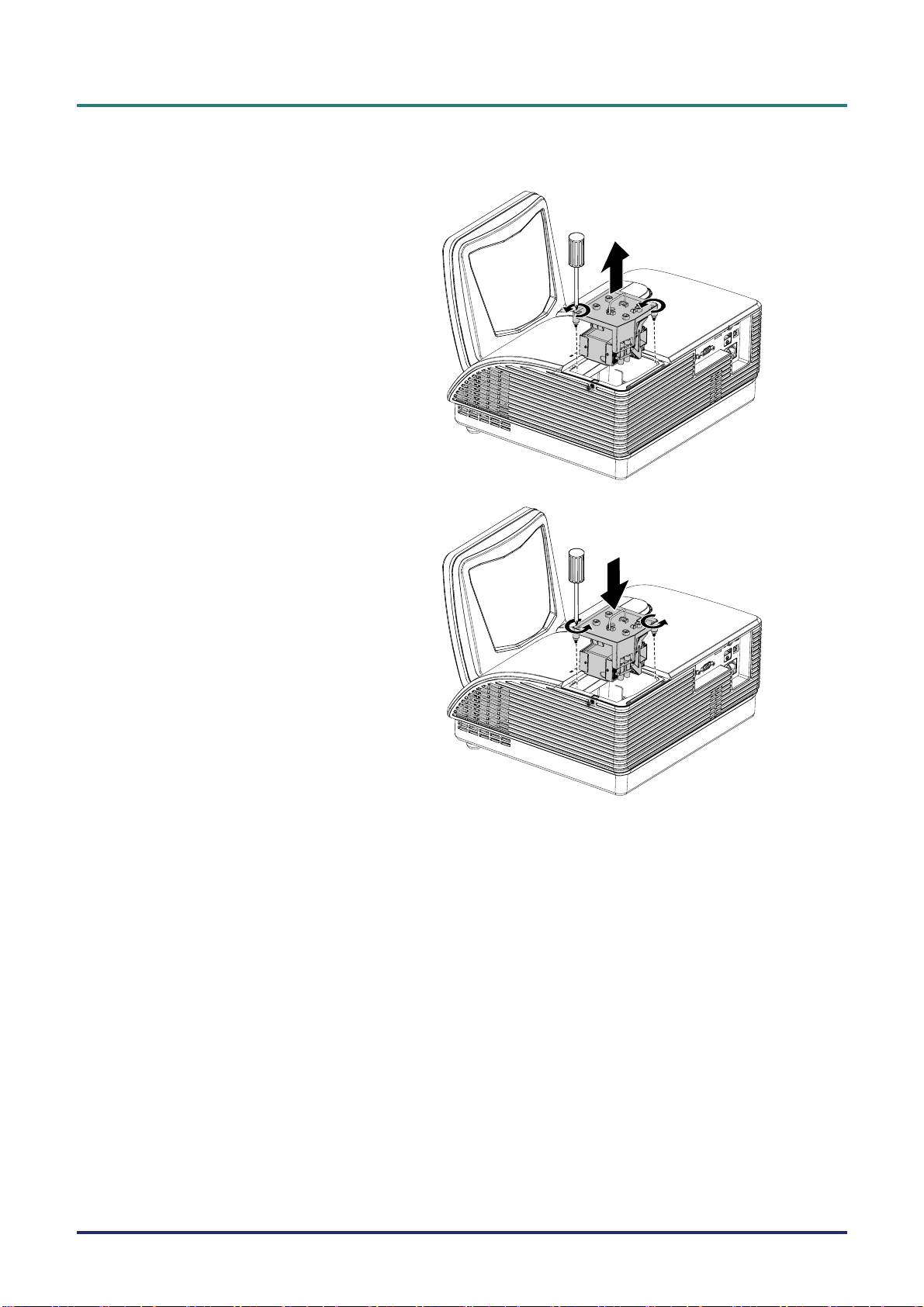

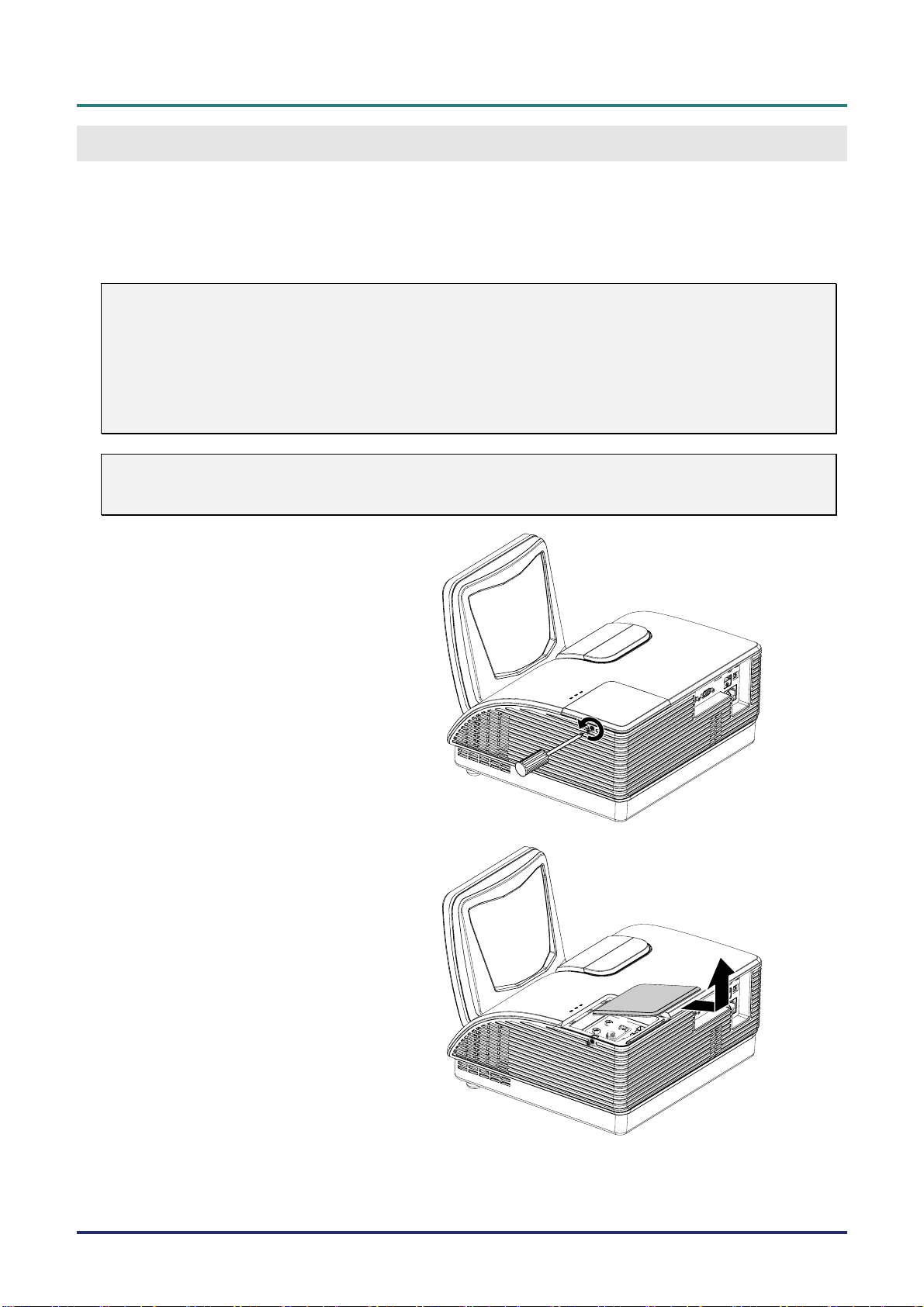

REPLACING THE PROJECTION LAMP................................................................................................................................... 40
Resetting the Lamp........................................................................................................................................................ 42
CLEANING THE PROJECTOR................................................................................................................................................ 43
Cleaning the Lens ......................................................................................................................................................... 43
Cleaning the Case......................................................................................................................................................... 43

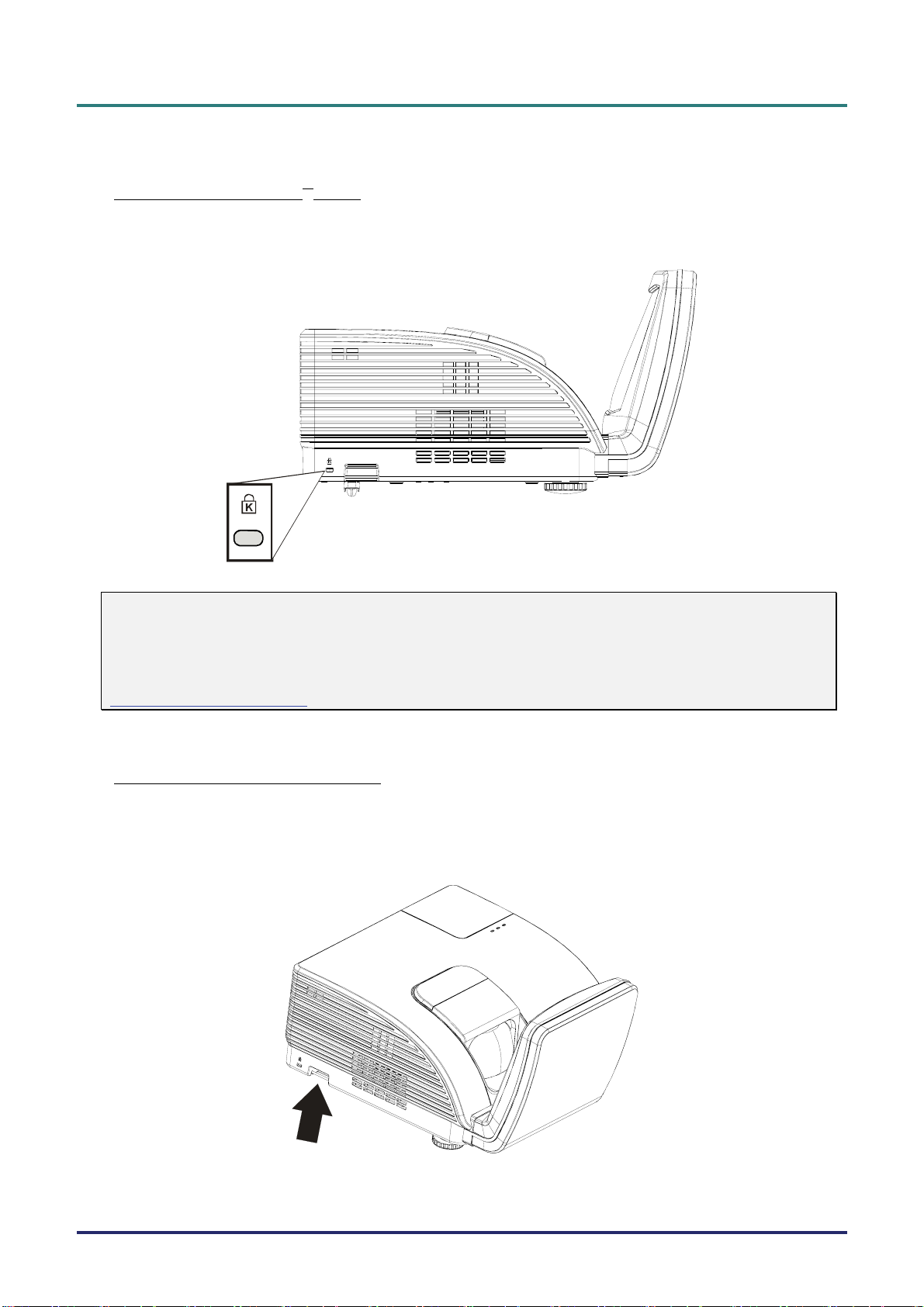

USING THE PHYSICAL LOCK .............................................................................................................................................. 44
Using the Kensington® Lock ......................................................................................................................................... 44
Using the Security Bar .................................................................................................................................................. 44
TROUBLESHOOTING ..................................................................................................................................................... 45
COMMON PROBLEMS AND SOLUTIONS ............................................................................................................................... 45
TIPS FOR TROUBLESHOOTING ............................................................................................................................................ 45
— vi —
Preface
LED ERROR MESSAGES..................................................................................................................................................... 46
IMAGE PROBLEMS.............................................................................................................................................................. 46
LAMP PROBLEMS ............................................................................................................................................................... 47
REMOTE CONTROL PROBLEMS .......................................................................................................................................... 47
AUDIO PROBLEMS ............................................................................................................................................................. 47
HAVING THE PROJECTOR SERVICED .................................................................................................................................. 47
TM
HDMI
SPECIFICATIONS............................................................................................................................................................. 49
SPECIFICATIONS................................................................................................................................................................. 49

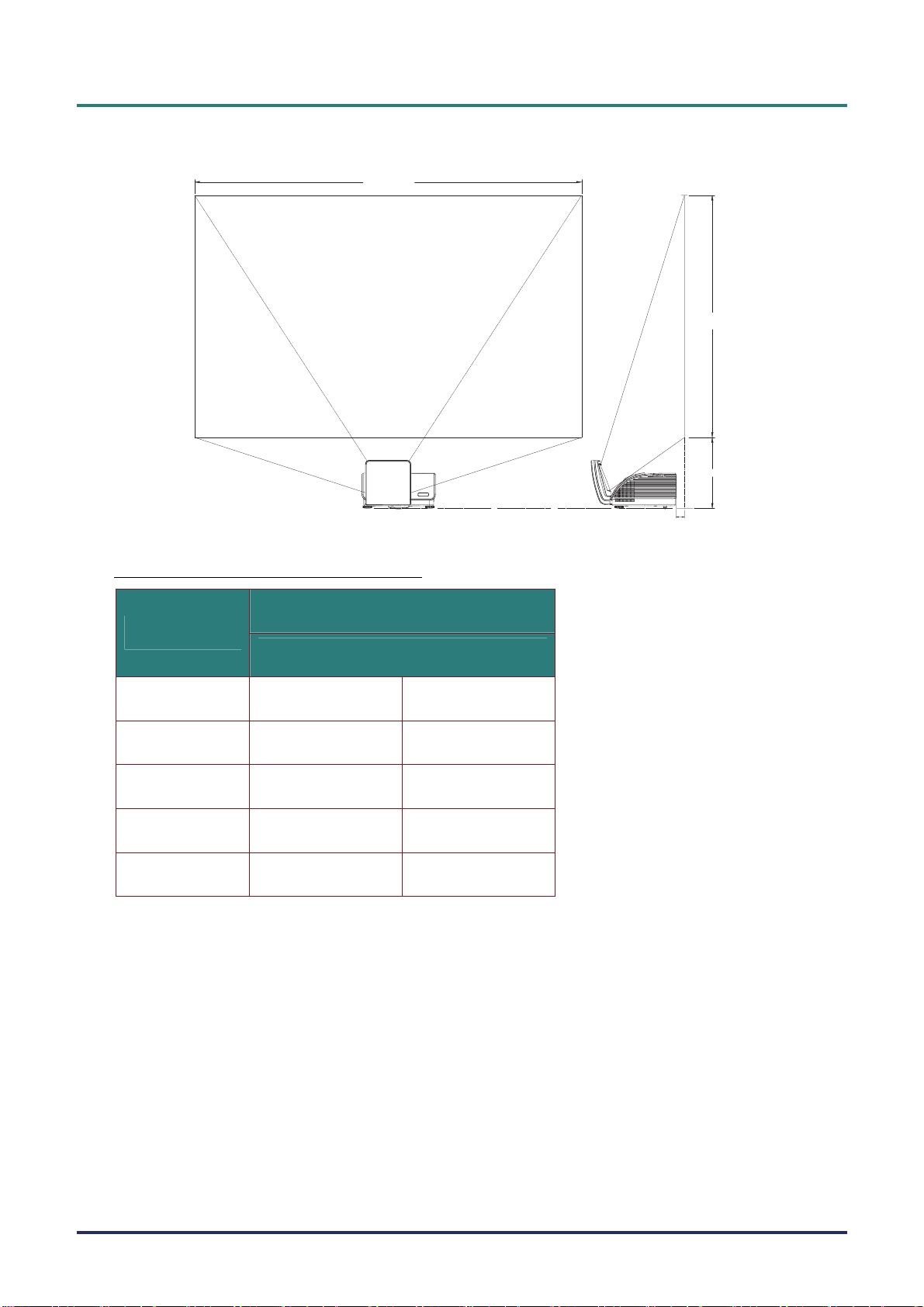

PROJECTION DISTANCE VS. PROJECTION SIZE.................................................................................................................... 49
TIMING MODE TABLE ........................................................................................................................................................ 51

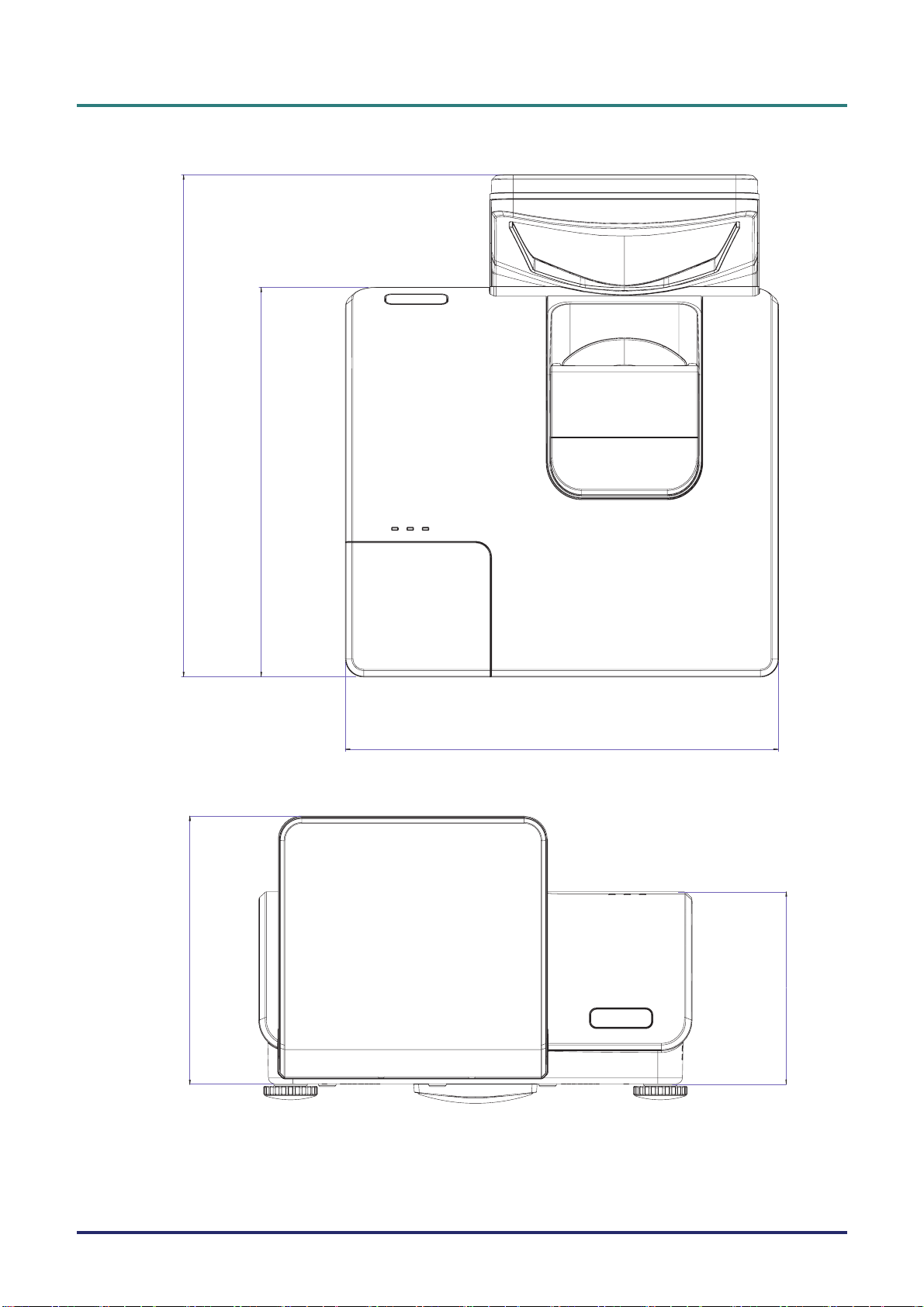

PROJECTOR DIMENSIONS ................................................................................................................................................... 53
REGULATORY COMPLIANCE ..................................................................................................................................... 54
FCC WARNING .................................................................................................................................................................. 54
CANADA ............................................................................................................................................................................ 54
SAFETY CERTIFICATIONS ................................................................................................................................................... 54
Q & A ................................................................................................................................................................. 48
Projection Distance and Size Table.............................................................................................................................. 50
– vii –
DLP Projector – User’s Manual
G
Packing Checklist
Carefully unpack the projector and check that the following items are included:
ETTING STARTED
DLP PROJECTOR
EMOTE CONTROL
R
(WITH TWO AAA BATTERIES)
CD-ROM
HIS USER’S MANUAL)
(T
VGA CABLE POWER CORD
UICK START CARD WARRANTY CARD
Q
Contact your dealer immediately if any items are missing, appear damaged, or if the unit does not work. It
is recommend that you keep the original packing material should you ever need to return the equipment
for warranty service.
Caution:
Avoid using the projector in dusty environments.
– 1 –
DLP Projector – User’s Manual
12345
Views of Projector Parts
Front-right View
6
ITEM LABEL DESCRIPTION SEE PAGE:
1.
2.
3.
4.
5.
6.
Important:
Ventilation openings on the projector allow for good air circulation, which keeps the projector lamp
cool. Do not obstruct any of the ventilation openings.
Lamp cover Removes cover to replace lamp or color wheel
Kensington lock
Security bar For security and authorized usage
Lens Projection Lens
Aspheric mirror Reflects images
WARNING LED Red Error code
LAMP LED
POWER LED Flashing Error code
Secure to permanent object with a Kensington®
Lock system
Red Error code
Flashing
Lamp not ready (Warm-up/shutting down/cooling)
LED Error Messages on page 46)
(see
44
– 2 –
Rear view
DLP Projector – User’s Manual
5
111
6
7
0
89
4
2
1
3
12
ITEM LABEL DESCRIPTION SEE PAGE:
1.
VGA OUT
Connect the RGB CABLE to a display
(Loop Thru only for VGA IN-1)
2.
3.
4.
5.
6.
7.
8.
10.
11.
12.
RS-232 Connect RS-232 serial port cable for remote control
VGA – 1
VGA – 2
RJ – 45 Connect a LAN CABLE from Ethernet
S-VIDEO IN Connect the S-VIDEO CABLE from a video device
VIDEO IN Connect the COMPOSITE CABLE from a video device
USB Connect the USB CABLE from a computer
AC IN Connect the POWER CABLE
TM TM
HDMI Connect the HDMI
AUDIO IN Connect an audio cable from the input device
AUDIO OUT Connect an audio cable from the output device
Connect the RGB CABLE from a computer and
components
Connect the RGB CABLE from a computer and
components
CABLE from a HDMITM device
119.
Note:
If your video equipment has various input sources, it is recommended to connect in priority of
HDMITM/DVI, component (thru VGA), S-Video, Composite for better picture quality.
9
9
– 3 –
DLP Projector – User’s Manual
Bottom view
1
2
126.00
3
70.00
3
110.00
20.00
228.00
3
2
56.00
146.00
236.00
ITEM LABEL DESCRIPTION SEE PAGE:
Security bar Helps protect the projector from unauthorized use
2.
3.
Note:
When installing, ensure that you use only UL Listed ceiling mounts.
For ceiling installations, use approved mounting hardware and M4 screws with a maximum screw
depth of 12 mm (0.47 inch).
The construction of the ceiling mount must be of a suitable shape and strength. The ceiling mount
load capacity must exceed the weight of the installed equipment, and as an additional precaution
be capable of withstanding three times the weight of the equipment (not less than 5.15 kg) over a
period of 60 seconds.
Tilt adjustors Rotate adjusters lever to adjust angle position
Ceiling support holes Contact your dealer for information on mounting the projector on a ceiling
100.0 240.0
441.
– 4 –
Remote Control Parts
DLP Projector – User’s Manual
Important:
1. Avoid using the projector with bright fluorescent lighting turned on. Certain high-frequency fluo-
rescent lights can disrupt remote control operation.
2. Be sure nothing obstructs the path between the remote control and the projector. If the path between the remote control and the projector is obstructed, you can bounce the signal off certain
reflective surfaces such as projector screens.
3. The buttons and keys on the projector have the same functions as the corresponding buttons on
the remote control. This user’s manual describes the functions based on the remote control.
– 5 –
DLP Projector – User’s Manual
ITEM LABEL DESCRIPTION SEE PAGE:
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
IR transmitter Transmits signals to projector
Status LED Lights when the remote control is used
Laser Press to operate the on-screen pointer
Up Up arrow when connected through USB to a PC
Right Right arrow when connected through USB to a PC
Down Down arrow when connected through USB to a PC
Page Down Page down when connected through USB to a PC
Up cursor
Right cursor
Down cursor
Volume +/- Adjusts volume
Mute Mutes the built-in speaker
Zoom+ Zoom in
Navigates and changes settings in the OSD
18
17
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
Zoom- Zoom out
Freeze Freeze/unfreezes the on-screen picture
Blank Makes the screen blank
Source Detects the input device
Auto Auto adjustment for phase, tracking, size, position
Menu Opens the OSD
Status
Keystone top/bottom Corrects image-trapezoid (wider top/bottom) effect
Left cursor Navigates and changes settings in the OSD
Enter
Page Up Page up when connected through USB to a PC
Left Left arrow when connected through USB to a PC
Enter Enter key when connected through USB to a PC
Opens the OSD Status menu (the menu only opens when an
input device is detected)
Changes settings in the OSD
18
30
16
18
27.
28.
Power Turns the projector on or off
Laser Use as on-screen pointer. DO NOT POINT IN EYES.
– 6 –
11
DLP Projector – User’s Manual
Remote Control Operating Range
The remote control uses infrared transmission to control the projector. It is not necessary to point the
remote directly at the projector. Provided you are not holding the remote perpendicular to the sides or
the rear of the projector, the remote will function well within a radius of about 7 meters (23 feet) and
15 degrees above or below the projector level. If the projector does not respond to the remote control,
move a little closer.
Projector and Remote Control Buttons
The projector can be operated using the remote control or the buttons on the top of the projector. All
operations can be carried out with the remote control; however, the buttons on the projector are limited in use.
– 7 –
DLP Projector – User’s Manual
Inserting the Remote Control Batteries
Remove the battery compartment cover
1.
by sliding the cover in the direction of
the arrow.
Insert the battery with the positive side
2.
facing up.
S
ETUP AND OPERATION
Replace the cover.
3.
Caution:
1. Only use AAA batteries (Alkaline batteries are recommended).
2. Dispose of used batteries according to local ordinance regulations.
3. Remove the batteries when not using the projector for prolonged periods.
– 8 –
DLP Projector – User’s Manual
Connecting Input Devices
A PC or notebook computer and video devices can be connected to the projector at the same time. Video
devices include DVD, VCD, and VHS players, as well as movie camcorders and digital still cameras.
Check the user manual of the connecting device to confirm it has the appropriate output connector.
A
B
C D
E
G
F
L
ITEM LABEL DESCRIPTION
A
B
C
D
E
F
G
H
I
VGA OUT
RS-232 Connect RS-232 serial port cable for remote control
VGA – 1
VGA – 2
RJ – 45 Connect a LAN CABLE from Ethernet
HDMITM Connect the HDMITM CABLE from a HDMITM device
S-VIDEO IN Connect the S-VIDEO CABLE from a video device
VIDEO IN Connect the COMPOSITE CABLE from a video device
USB Connect the USB CABLE from a computer
Connect the RGB CABLE to a display
(Loop Thru only for VGA IN-1)
Connect the RGB CABLE from a computer and
components
Connect the RGB CABLE from a computer and
components
K
J
HI
J
AC IN Connect the POWER CABLE
– 9 –
DLP Projector – User’s Manual
ITEM LABEL DESCRIPTION
K
L
！
As a safety precaution, disconnect all power to the projector and connecting devices before making
connections.
AUDIO IN Connect an audio cable from the input device
AUDIO OUT Connect an audio cable from the output device
Warning:
– 10 –
Starting and Shutting down the Projector
Connect the power cord to the projector.
1.
Connect the other end to a wall outlet.
The POWER LED on the projector
light.
DLP Projector – User’s Manual
Turn on the connected devices.
2.
Ensure the POWER LED displays a
3.
solid orange. Then press the POWER
button
jector.
The projector splash screen displays and
connected devices are detected.
See Setting an Access Password
(Security Lock) on page 13 if security
lock is enabled.
If more than one input device is con-
4.
nected, press the SOURCE button
the remote
among devices.
(Component is supported through the
RGB to COMPONENT ADAPTER.)
of the remote to turn on the pro-
and use ▲▼ to scroll
of
• VGA 1/VGA 2: Analog RGB
Component: DVD input YCbCr / YPbPr, or
HDTV input YPbPr via HD15 connector
• Composite Video: Traditional composite video
• S-Video: Super video (Y/C separated)
HDMITM: HDMITM, DVI
•
– 11 –
Loading...
