ViviCam 8690Digital Camera
User‟s Manual
© 2009 Sakar International, Inc. All rights reserved. Windows and the Windows logo are registered trademarks of Microsoft Corporation. All other trademarks are the property of their respective companies.
1
Table of content
Introduction ......................................................................................................................................... 2
Key Features ...................................................................................................................................... 2
What Your Camera Includes ............................................................................................................... 3
Computer System Requirements for Windows XP .............................................................................. 3
Computer System Requirements for Windows Vista ........................................................................... 4
Computer System Requirements for Macintosh .................................................................................. 4
Quick Look at Your Camera ................................................................................................................ 5
Prepare Your Camera for use.............................................................................................................. 6
Starting Your Digital Camera ............................................................................................................... 9
Main Icons on the LCD ...................................................................................................................... 11
Camera mode ................................................................................................................................... 13
Video Mode ...................................................................................................................................... 29
Playback Mode ................................................................................................................................. 31

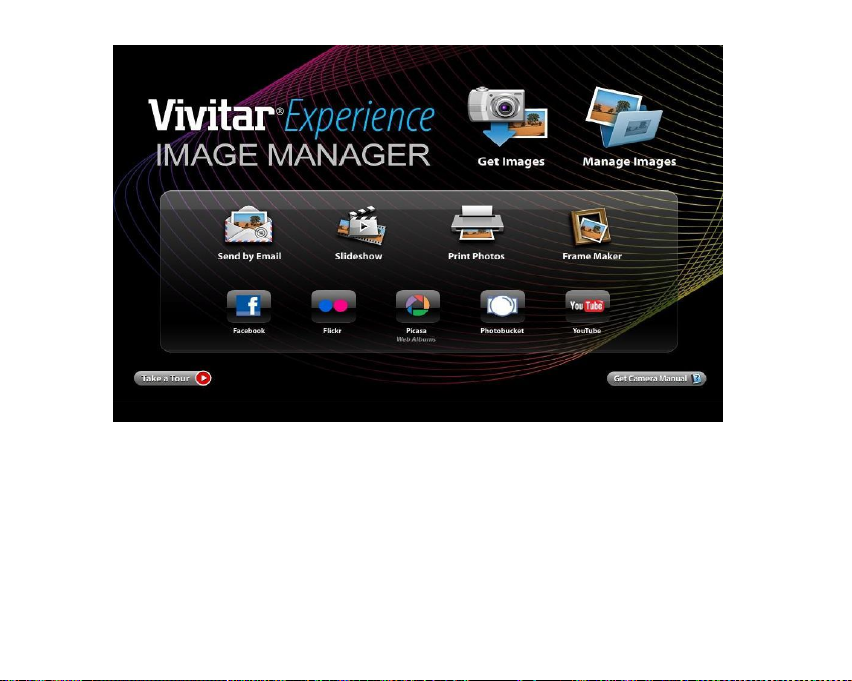

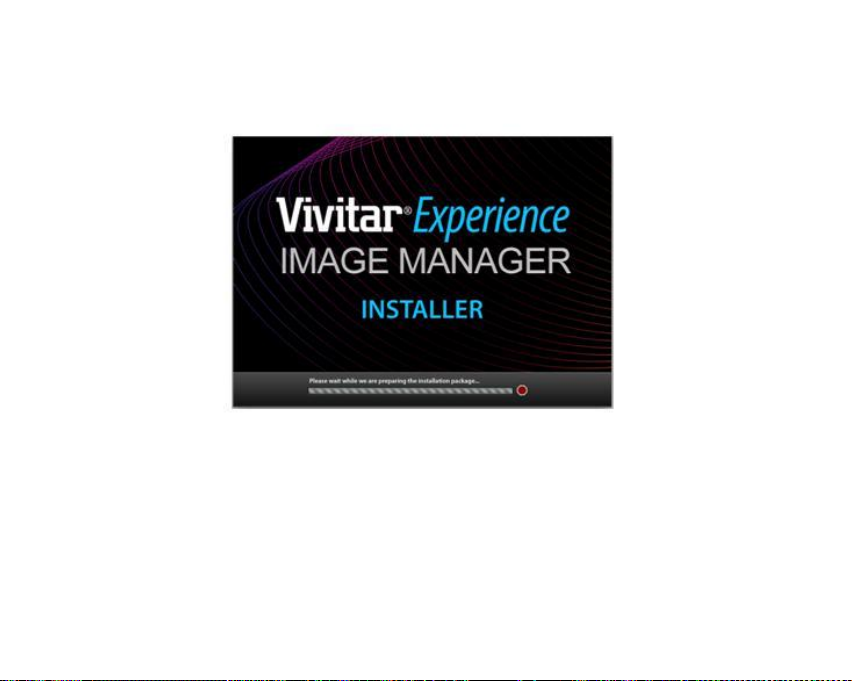

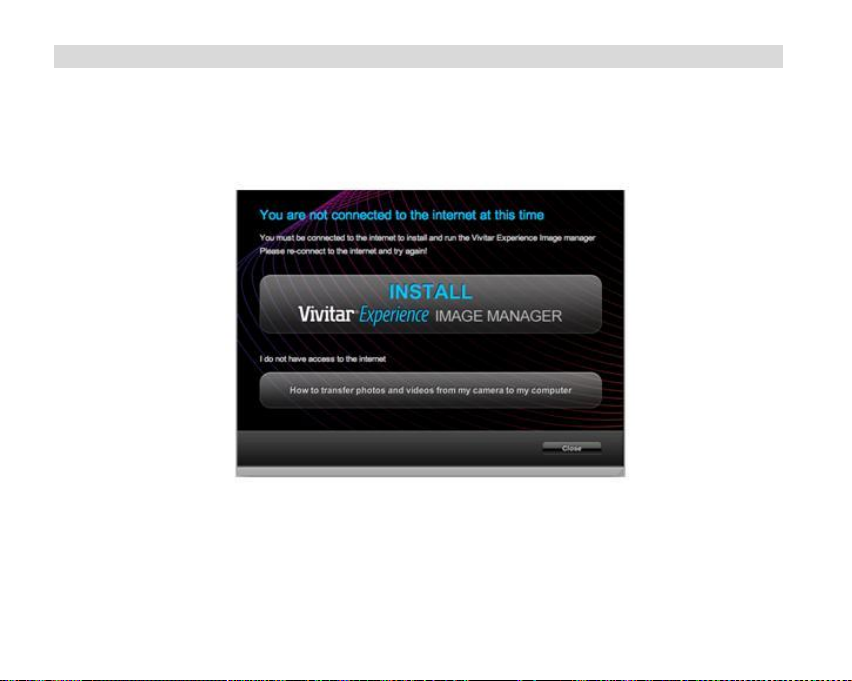

Install the Vivitar Experience Image Manager Software ..................................................................... 40
Connect your camera to the computer .............................................................................................. 42
Get photos and videos from your camera to your computer .............................................................. 42
Get started! ....................................................................................................................................... 44
Transfer media from my camera to my computer manually (Using Windows) .................................... 44
Transfer media from my camera to my computer manually (Using Macintosh) .................................. 45
Maintenance of Your Digital Camera ................................................................................................. 45
Sakar Warranty Card ........................................................................................................................ 45
Technical Support ............................................................................................................................. 46
Appendix A: Technical Specifications ................................................................................................ 47
Appendix B: Troubleshooting .......................................................................................................... 48
2
Introduction
Thank you for purchasing the ViviCam 8690 Digital Camera. Everything you need to take quality digital photos and videos is included with your camera. Your digital camera can also be used as a removable disk. It enriches your life. Vivitar makes capturing those special moments so easy. Please read this manual carefully first in order to get the most out of your digital camera.
Key Features

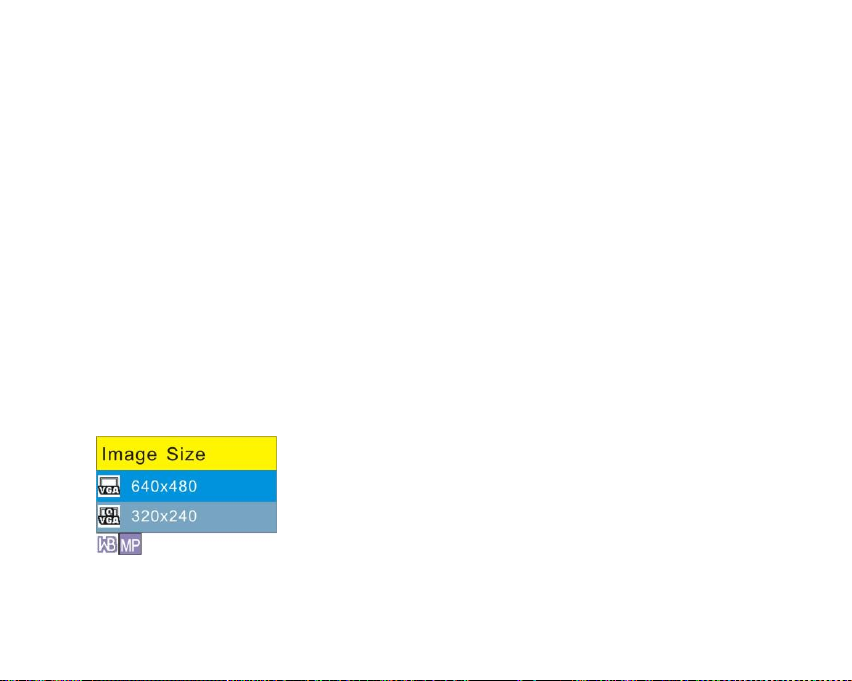

Digital Video resolutions - 320x240 Pixels, 640x480 Pixels. 8.1 mega pixels camera with choice of 6 digital camera resolutions-
3264X2448(8MP), 2560X1920(5MP), 2048x1536 (3M), 1600x1200 (2M), 1280x960 (1MP),
640x480 (VGA) pixels.
2.4 inch TFT LCD 4X digital zoom SD memory card slot accepts SD compatible memory card up to 8GB. Built in Flash Vivitar Experience Image Manager software for uploading and managing photos and videos to or
from the most popular photo sharing and social network websites.
3
What Your Camera Includes
Digital Camera Vivitar Experience Image Manager software Installation CD USB cable Quick Start Guide Strap
Computer System Requirements for Windows XP
To be able to download photos and videos to your PC, you will need the following minimum configuration:
Pentium 4 processor or above with Windows XP service pack 2 512 MB RAM, with 100MB of free disk space 1024 x 768 Recommended screen resolution 16-bit color or higher display adaptor CD-ROM Drive QuickTime 6 or higher Microsoft Internet Explorer 7 or higher Windows Media Player 10 or higher Internet connection required
4
Computer System Requirements for Windows Vista
To be able to download photos to your PC your will need the following minimum configuration:
Windows Vista 800MHz processor and 512 MB of system memory 20GB hard drive with at least 15GB of available space Support for Super VGA graphics
Available USB Interface CD-ROM drive QuickTime 6 or higher Microsoft Internet Explorer 7 or higher Internet connection required
Computer System Requirements for Macintosh
Macintosh with Intel processor running Mac OS X v10.4.6 or later 256 MB RAM, 100 MB free disk space Display: 1024 x 768 or higher-resolution monitor QuickTime 6 or higher Internet connection required
5
Quick Look at Your Camera
6
Prepare Your Camera for use
Install batteries
Your camera requires three AAA batteries (alkaline batteries recommended). Please refer to the following installation instructions:
1. Open the battery compartment on the side of the camera.
2. Insert the alkaline batteries correctly, with the correct polarity as shown on the battery cover.
3. Close the battery compartment.
When the Low Battery icon and Low Battery message flashes on the LCD screen, you need to replace your camera‟s batteries. If you do not have an SD memory card in the camera, you will need to download the test photos you have on the camera before switching off the camera.
7
WARNING: Unless you are using an SD memory card, opening the battery compartment and
removing the battery will erase the test photo currently stored in the camera. Download your photo as often as possible. The test photo will be lost when the camera switches-off or when the batteries run low. Do not open the battery door before switching off the camera.
Note:
1. Please remove your batteries when you dont intend to use your camera for a long time to prevent leakage and corrosion.
2. Please take care that you do not take out the batteries or power off your camera at will, otherwise the test photos in the built-in memory will be lost before they are either downloaded or copied to the SD memory card inserted.
3. Do not mix old and new batteries.
4. Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium metal hydride) batteries.
Install SD memory card
This camera needs an SD Memory card for normal use. This camera supports any compatible SD memory card up to 8GB. Limited internal memory is only for you to take one test photo. The photo will be lost when the camera turns off or if the batteries are removed.
Please refer to the below diagram for correct installation method:
8
Locate the SD memory card slot on the bottom of the camera and insert an SD memory card as above. You will feel and hear a Click sound. When the icon appears on the LCD screen this indicates
that your SD card is installed correctly. Note:
1. After you insert the SD memory card, a Copy to Card? message will appear on the LCD. To save the photo, press the Right/Left button to select Yes and press the Menu/OK button to save the test photo to the SD memory card. Select No and press the Menu/OK button if you do not want to save the test photo.
2. After the SD memory is inserted successful, the photos/videos you take will be stored on the SD memory card.

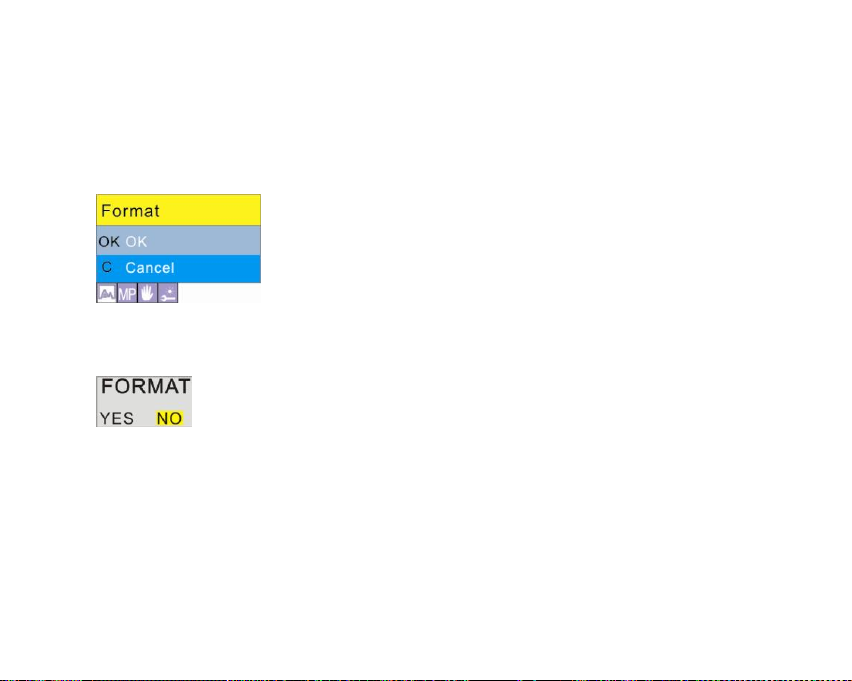

3. Formatting will delete all data on the SD memory card including protected data.
4. Dont remove the SD card during formatting as this may damage the card and render it unusable.
5. An SD memory card formatted on a PC or device other than the camera should not be used. Be sure to format the card with your camera.
9
Starting Your Digital Camera
Power on
Press the Power button once to turn on your camera. The LCD will light up and the camera will emit a beep to indicate that your camera is turned on and ready for use.
Power off
Press the Power button once to turn off your camera. When there is insufficient battery power, a “Low Battery message will appear on the LCD screen and the camera will power off automatically after a
few seconds.
MODE switch
Your digital camera has 3 modes - Camera mode, Video mode and Playback mode. Move the mode switch between the 3 modes to select the one that you want to use.
Camera Mode (Left): Take still photos

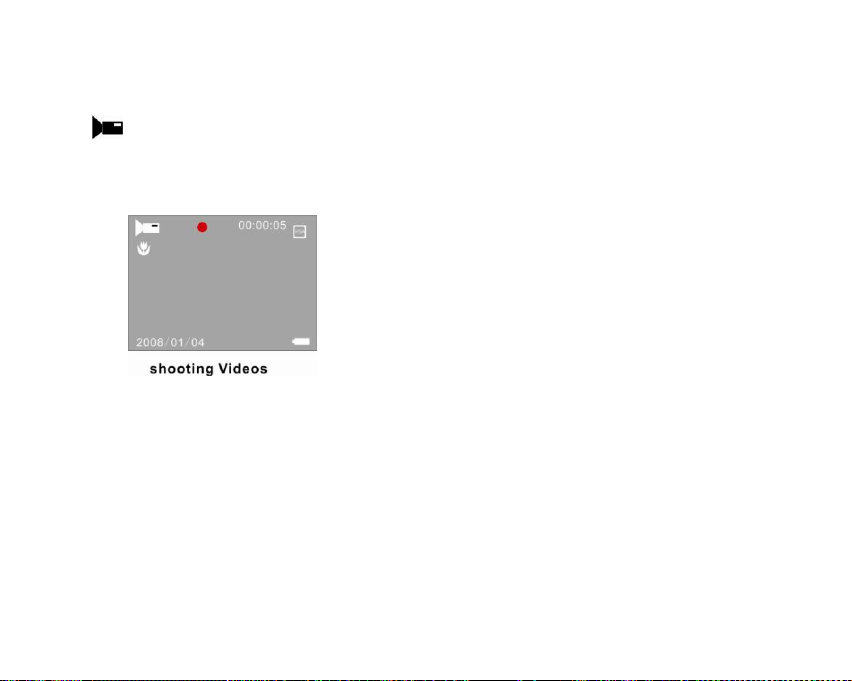

Video Mode (Middle): Capture video files
Playback Mode (Right): View, print and edit photos and view videos
10
The Camera mode is for you to take still photos. You can shoot video files while in Video mode. In Playback mode you can preview the photos/videos you captured, rotate, protect, delete, crop and print your photos.
Main buttons on the camera
11
Main Icons on the LCD
12
Battery power level
Full battery power
Medium battery power Low battery power

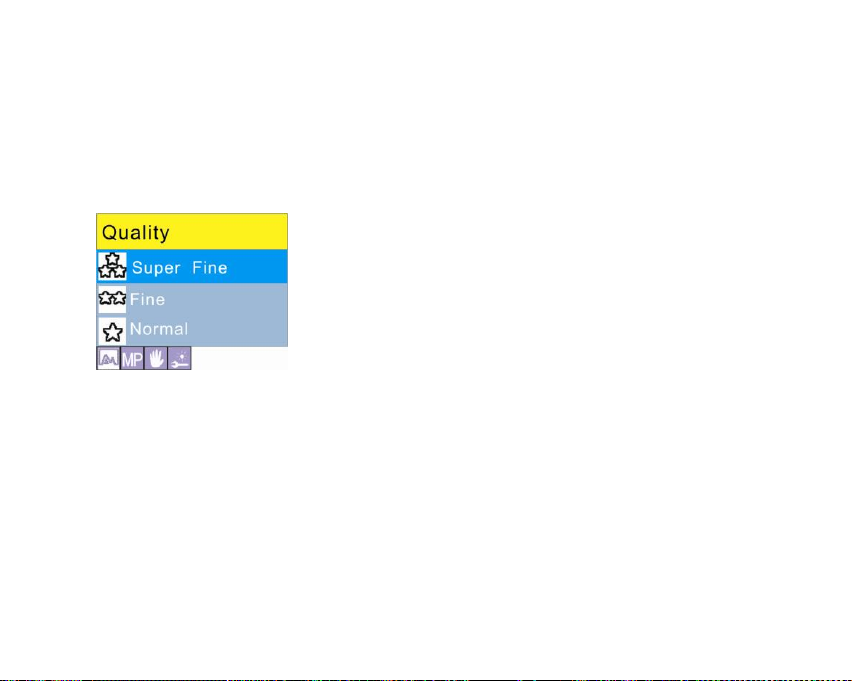

Photo quality
Normal quality
Fine quality
Super quality
Flash
Force Flash
Auto
No Flash
Modes
Camera Playback
Video
SD card inserted
SD card inserted (Locked)

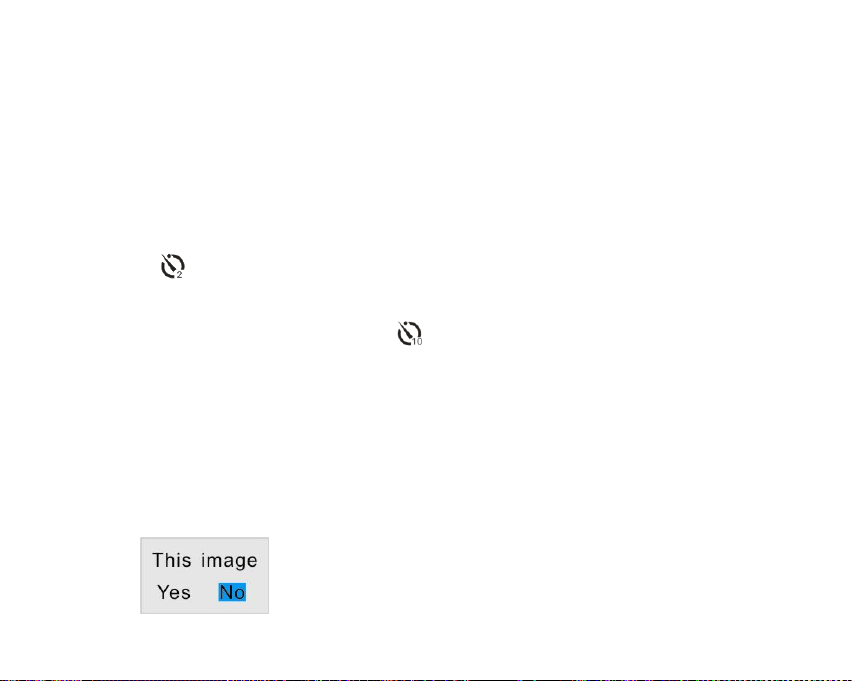

Self-timer On 10 seconds
Self-timer On 2 seconds
Normal Capture
Macro Capture

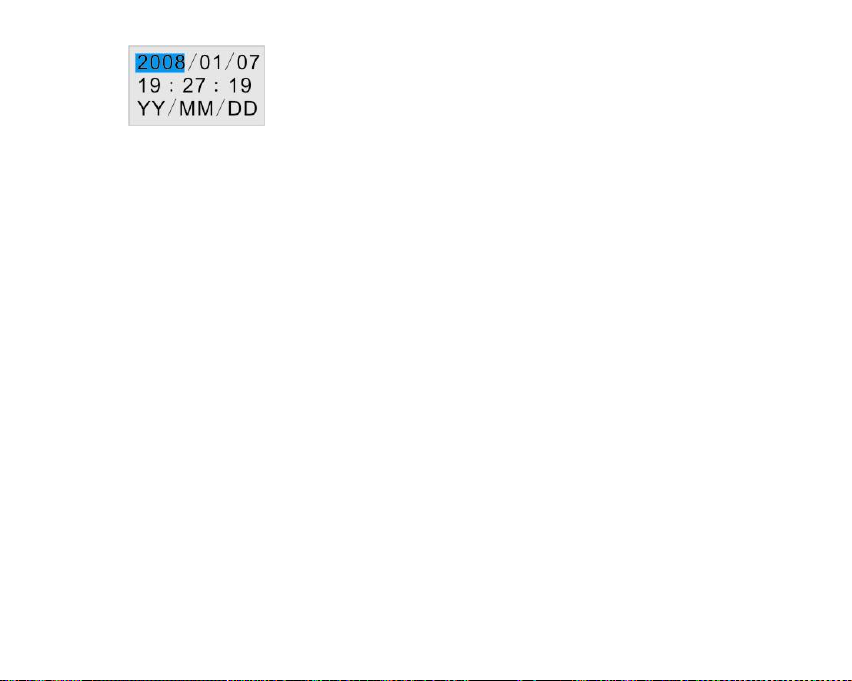

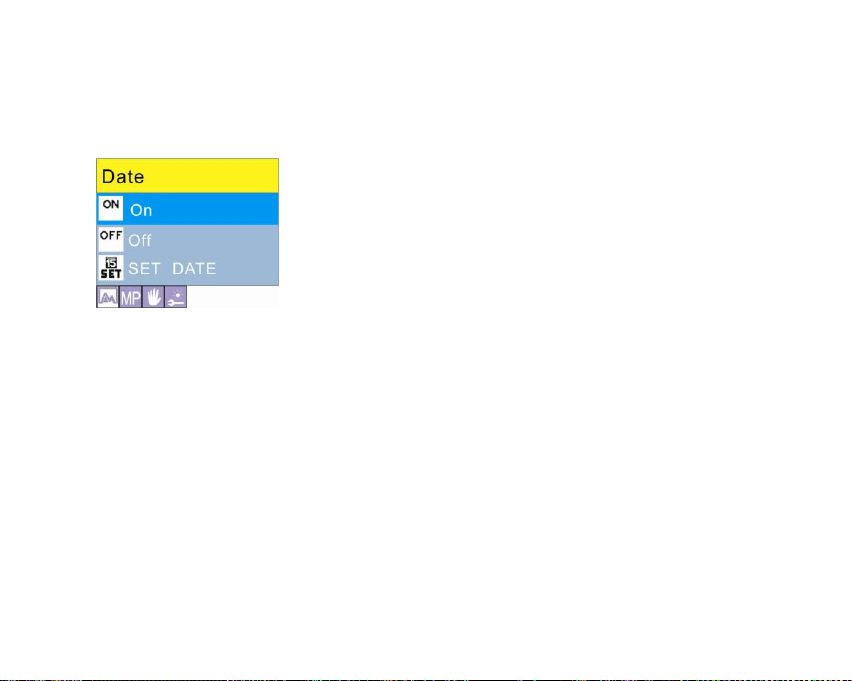

Date on photo
Digital Zoom

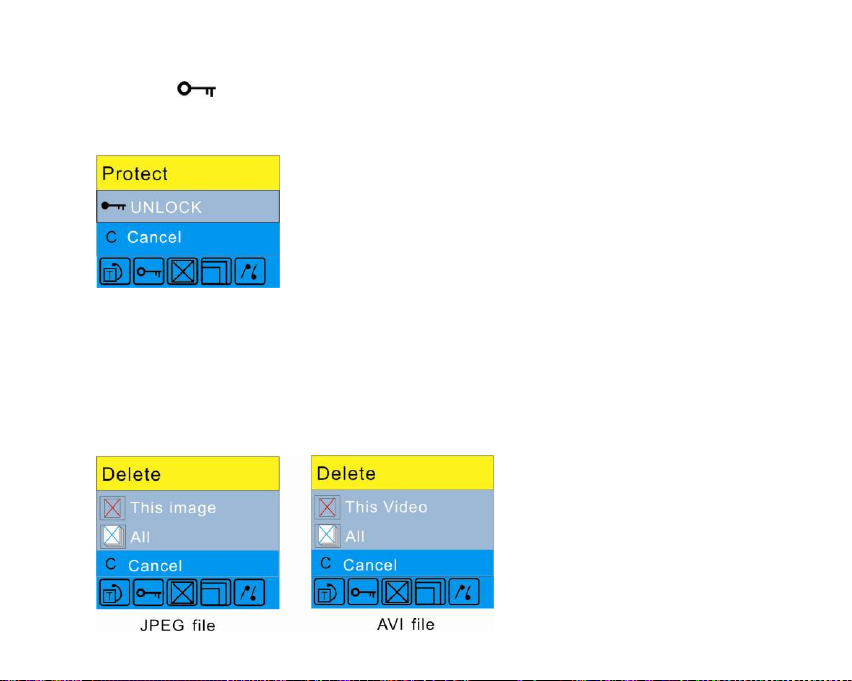

Protect
Protect On

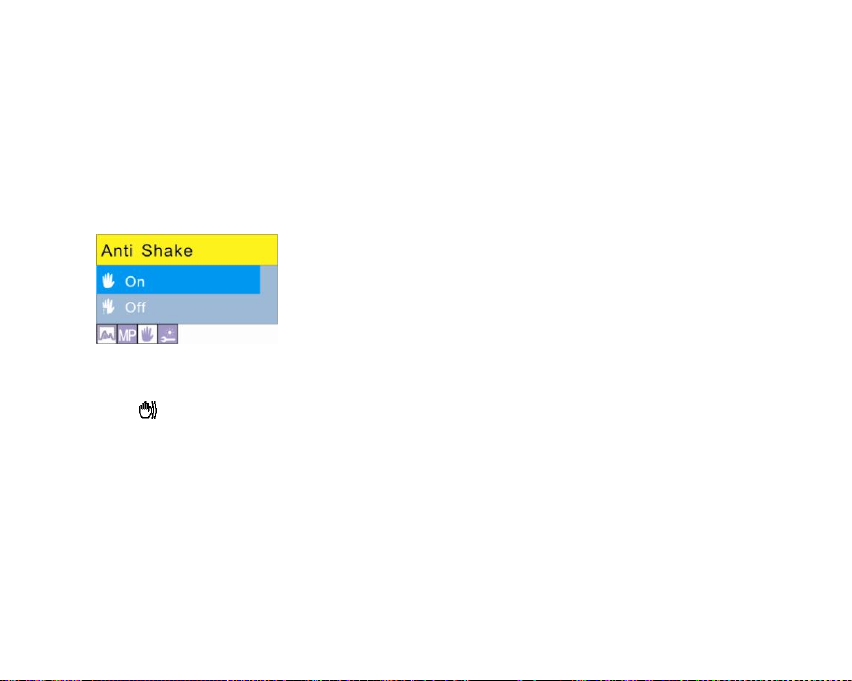

Anti-Shake
Anti-Shake on Anti-Shake off

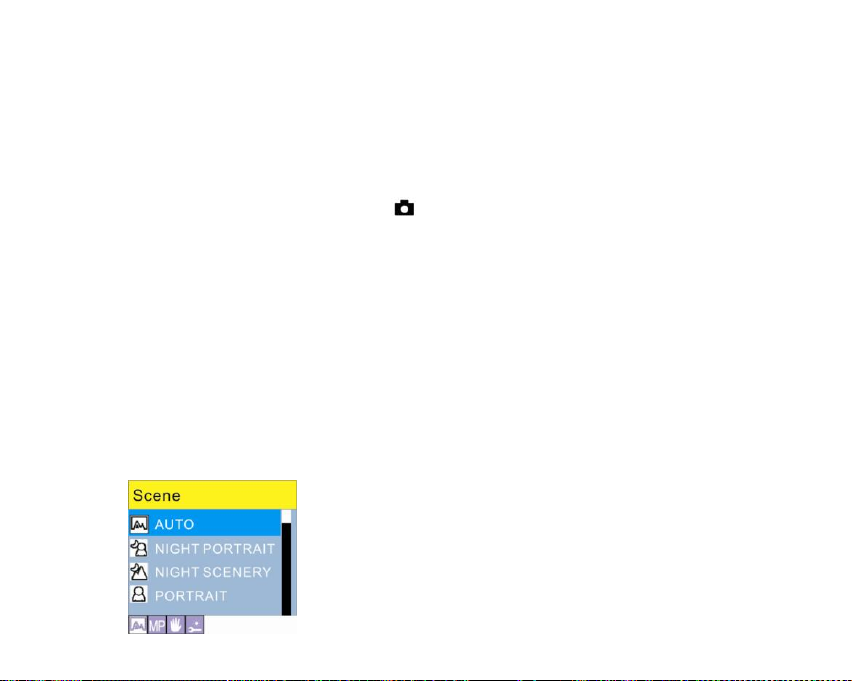

Scenes
Auto Night Portrait Night Scenery Portrait Scenery Sport
Party Beach High Sensitivity
13
Camera mode
Set the mode switch to Camera Mode – the icon will appear on the top right corner of the LCD screen.
Taking Photos
1. Hold the camera steady and compose your object as appears in the LCD screen.
2. Press the Shutter button and wait a moment for the photo to be taken and saved to memory.
3. After each photo is shot and the camera returns to icon mode, the numbers of photos left to
Note: When the memory is full, the LCD screen will display Disk Full” If you attempt to take a photo when the camera‟s internal memory is full, the camera will beep continuously. Please download the test images to your computer as soon as possible using the Vivitar Experience Image Manager software as described below in the section “Transfer photos and videos to your computeror insert an SD memory card in order to take more images!
Short-cut buttons on the camera
Digital Zoom function
In the Photo, Video and Playback modes, you can magnify your subject using the 4X digital zoom.
1. Use the T and W buttons to adjust the zoom.
2. The icon will appear on the LCD screen.
3. Press the T button to zoom in on your subject.
4. Push the W button to zoom back out.
shoot at this resolution is displayed on the top right of the LCD screen.
14
Macro/Far shooting
The camera has the function that allows you to capture objects at very near (macro) or very far distances per your request.
1. Slide the Macro/Far switch on the left side of the camera up to the position.
2. The icon will appear on the left hand side of the LCD screen and indicates that the macro
shooting is on.
3. For far shooting slide the Macro/Far switch down to the position.
4. The icon appears on the LCD screen to indicate that the far shooting is on.
Note: The flash will not work if the camera is in the Macro setting.
Flash
Your camera has a built in flash function which enables you to take photos when the light condition is not good. The flash can only be activated in the photo mode.
1. Press the Up button on the Menu dial to activate the flash.
2. Press the Up button once until you see the icon appear on the LCD screen. This
indicates that the Auto flash is on. Auto flash will operated the flash if the lighting conditions are too dark when you take a photo.
3. Press the Up button again to change to the force flash function.
4. The icon will appear on the LCD indicating that the force flash is turned on and ready to
use.
5. To turn off the flash function, press the Up button again until the icon is displayed on
the LCD.
