ViviCam 8027 Digital Camera

User’s Manual

© 2009 Sakar International, Inc. All rights reserved. Windows and the Windows logo are registered trademarks of Microsoft Corporation. All other trademarks are the property of their respective companies.

Table of Contents

Introduction ..................................................................................................................................................2

Key Features ................................................................................................................................................2

What your camera package includes ................................................................................................ ............3

Computer System Requirements for Windows XP ........................................................................................3

Computer System Requirements for Windows Vista .....................................................................................4

Computer System Requirements for Macintosh ............................................................................................4

A Quick Look at Your Camera.......................................................................................................................5

Preparing Your Camera for Use ....................................................................................................................6

Install lithium battery .....................................................................................................................................6

Installing SD Memory Card ...........................................................................................................................7

How to hold your camera correctly when capturing images ..........................................................................9

Starting Your Digital Camera ....................................................................................................................... 10

Camera Mode ......................................................................................................................................... 11

Video Mode ............................................................................................................................................ 32

Playback Mode ....................................................................................................................................... 35

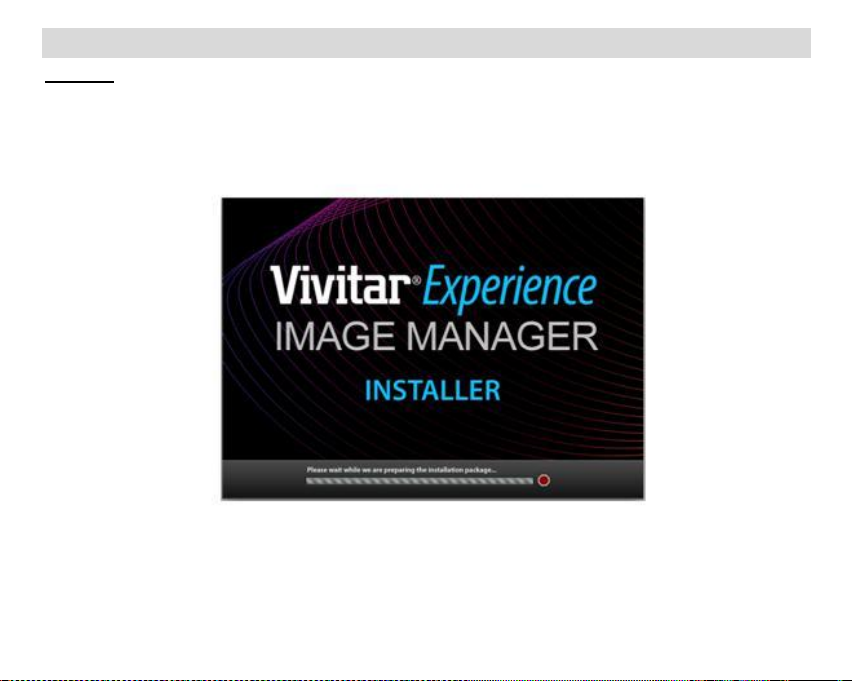

Install the Vivitar Experience Image Manager Software .............................................................................. 46

Connect your camera to the computer ........................................................................................................ 48

Get photos and videos from your camera to your computer ........................................................................ 49

Get started! ................................................................................................................................................ 50

Transfer media from my camera to my computer manually (Using Windows) ............................................. 51

Transfer media from my camera to my computer manually (Using Macintosh) ........................................... 51

Maintenance of Your Digital Camera .......................................................................................................... 52

Sakar Warranty Card .................................................................................................................................. 52

Appendix A: Technical Specifications .......................................................................................................... 54

Appendix B: Troubleshooting ...................................................................................................................... 55

Introduction

Thank you for purchasing the ViviCam 8027 8.1 Mega-Pixel Digital Camera with Auto Focus Zoom Lens. Everything you need to take quality digital photos and videos is included with your camera. Your digital camera can also be used as a removable disk when an SD card of up to 8GB is inserted into the camera. Vivitar makes capturing those special moments so easy. It enriches your life. Please read this manual carefully first in order to get the most out of your digital camera.

Key Features

 Digital Video resolutions-640x480 Pixels (VGA), 320x240 Pixels (QVGA).  8.1 mega pixels camera with choice of 6 digital camera resolutions -

(8M) 3264x2448pixels, (7M HD) 3648x2048 pixels, (5M) 2592x1944 pixels, (3M) 2048x1536 pixels, (2M HD) 1920x1080 pixels and (VGA) 640x480 pixels.

 2.4 inch TFT LCD  3x Optical Zoom Function  8x Digital Zoom Function  Anti-Shake  Face Detect  SD memory card slot compatible with memory card up to 8GB.  Built in Flash  Vivitar Experience Image Manager software for uploading and managing photos and videos to or from

the most popular photo sharing and social network websites.

What your camera package includes

 Digital Camera  Vivitar Experience Image Manager software Installation CD  USB cable  Quick Start Guide  Strap

Computer System Requirements for Windows XP

To be able to download photos and videos to your PC, you will need the following minimum configuration:

 Pentium 4 processor or above with Windows XP service pack 2  512 MB RAM, with 100MB of free disk space  1024 x 768 Recommended screen resolution  16-bit color or higher display adaptor  CD-ROM Drive  QuickTime 6 or higher  Microsoft Internet Explorer 7 or higher  Windows Media Player 10 or higher  Internet connection required

Computer System Requirements for Windows Vista

To be able to download photos and videos to your PC you will need the following minimum configuration:

 Windows Vista  800MHz processor and 512 MB of system memory  20GB hard drive with at least 15GB of available space  Support for Super VGA graphics  Available USB Interface  CD-ROM drive  QuickTime 6 or higher  Microsoft Internet Explorer 7 or higher  Internet connection required

Computer System Requirements for Macintosh

 Macintosh with Intel processor running Mac OS X v10.4.6 or later  256 MB RAM, 100 MB free disk space  Display: 1024 x 768 or higher-resolution monitor  QuickTime 6 or higher  Internet connection required

A Quick Look at Your Camera

Preparing Your Camera for Use

Install lithium battery

Your digital camera needs a lithium Li-ion battery in order to operate. The battery is found separately in the packaging. To install it correctly see the diagram below:

1. Slide and open the battery door on the bottom of the camera.

2. Insert the battery correctly with the correct polarity facing up.

3. Use the battery clip found in the battery compartment to make sure that the battery is sitting firmly.

4. Close the battery door.

5. On powering on your camera the battery icon will appear on the bottom right of the LCD screen.

Full battery power Medium battery power Low battery power

Note:

1. A “Low battery” message will flash on the LCD when the battery power is insufficient. Shortly thereafter your camera will power off.

2. Please remove your battery when you don’t intend to use your camera for a long time.

3. The test photo taken with the camera should be downloaded otherwise they will be lost when the camera loses power and turns off or when the battery door is opened to replace the battery.

4. In order to charge your lithium battery, make sure the battery is inserted correctly and then connect your camera to an on and running PC with the USB cable provided. The red LED situated above the T/W Zoom buttons will light up indicating that your camera is in charging mode. The LED will switch off when your camera is fully charged.

Installing SD Memory Card

Your camera has a memory card slot that enables you to insert any “SD” compatible memory card up to 8GB. An SD memory card is needed for normal use. Adding a memory card will allow you to increase the capacity of your camera before you have to transfer photos and videos to your PC.

1. Locate the Memory Card slot within the battery compartment.

2. Insert the Memory card into the slot in the correct direction.

3. Push the card in until you feel it “click” into position. The top of the card should be flushed with the surface of the camera. An SD icon will appear on the LCD screen after you turn on your camera.

4. Once the external memory card is inserted into the camera all the images taken with the camera will be stored on the card.

Note:

1. Limited internal memory is provided for one test photo. The photo will be deleted when the camera`s power is turned off or if the battery is removed. Please download the photos before powering off.

2. An external memory card is required for normal use. Your camera supports any compatible SD memory card (up to 8GB).

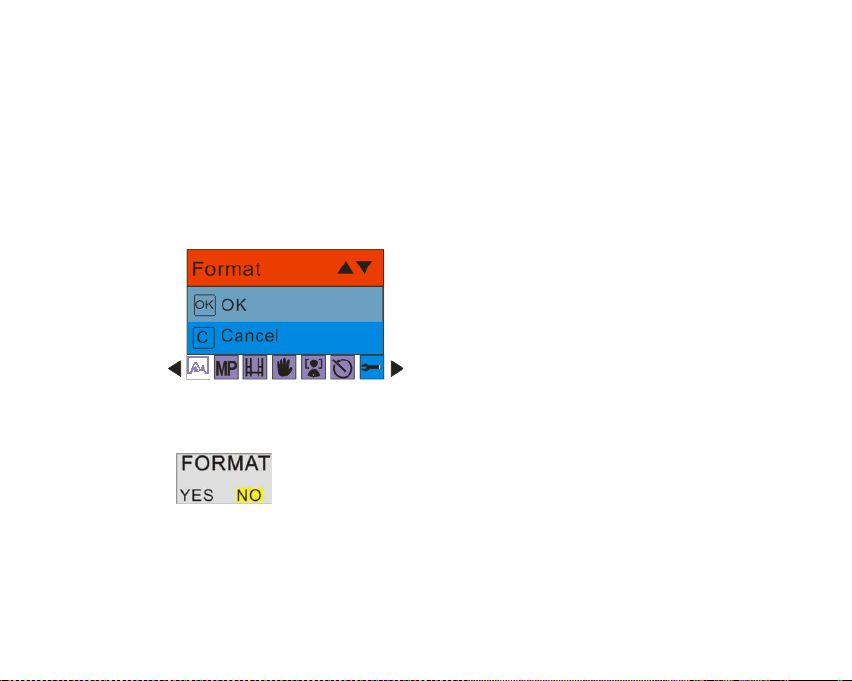

3. Formatting will delete all data on the SD memory card including protected data.

4. Don’t remove the SD card during formatting as this may damage the card and render it unusable.

5. When your card is full, download the media on the SD card to your PC and delete the photos and videos from it in order to continue using your camera to capture more high quality photos and videos

How to hold your camera correctly when capturing images

Turning on the Power button will activate the lens to open out like a periscope. Hold the camera steady and correctly as shown in the diagram below. Note: Do not touch or move the lens once it opens and in use. This will cause damage to the

camera.

Starting Your Digital Camera

Power on

Press the Power button on the top of the camera to turn on your camera. The LCD will light up and the Auto-Focus zoom lens will extend out indicating that your camera is on and ready for use.

Power off

Press the Power button to turn off your camera. When there is insufficient battery power a red icon will appear on the LCD screen. Your camera will automatically power off after a few seconds.

Mode selection

Your digital camera has 3 main modes - Camera mode, Video mode and Playback mode.

 The Camera mode is for you to take still photos, adjust the camera settings and

change the way the camera is setup.

 You can shoot video files while in Video mode.

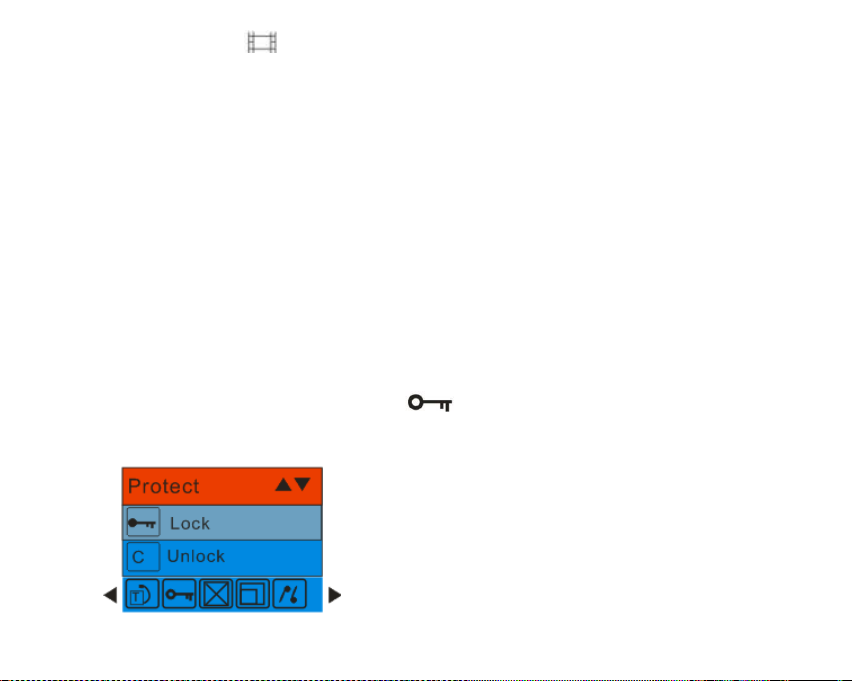

 In Playback mode you can preview photos and videos as well as being able to delete,

rotate, protect, crop and print your photos.

In order to select the mode, please follow the below steps:

1. By default the Camera mode appears first on powering on the camera.

2. Press the MODE button to toggle between the 3 modes.

3. The Camera mode will have an icon in the top left corner of the LCD screen. The Video mode will have an icon and the Playback mode an icon will appear in the top left corner of the screen.

Camera Mode

This is the default mode when turning on your camera.

Taking Photos

1. Compose your shot using the LCD screen.

2. Hold the camera steady and press the Shutter button to take the photo.

3. Keep your finger on the Shutter button and wait for the camera to focus in on the object.

4. Center your object with the white frame that appears on the LCD.

5. When the frame turns green lift your finger and the image will be captured.

6. There will be a short delay while the camera saves the JPEG photo to memory.

After each photo is taken (when the camera returns to icon mode) the numbers of photos left to shoot at the selected resolution is displayed on the top right of the LCD screen.

 When the camera's memory (photo capacity) is full, the LCD screen will display a message -

“Memory Full, Insert a SD memory card to Transfer and Take More Photos!”

 Either download the photos to your computer using the Vivitar Experience Image Manager

software as described below in the section “Transfer photos and videos to your computer” or

insert another SD card to continue taking more photos.

Note: This camera needs a SD memory card to operate normally. The limited internal memory allows you to take one test photo that will be erased when the camera powers off.

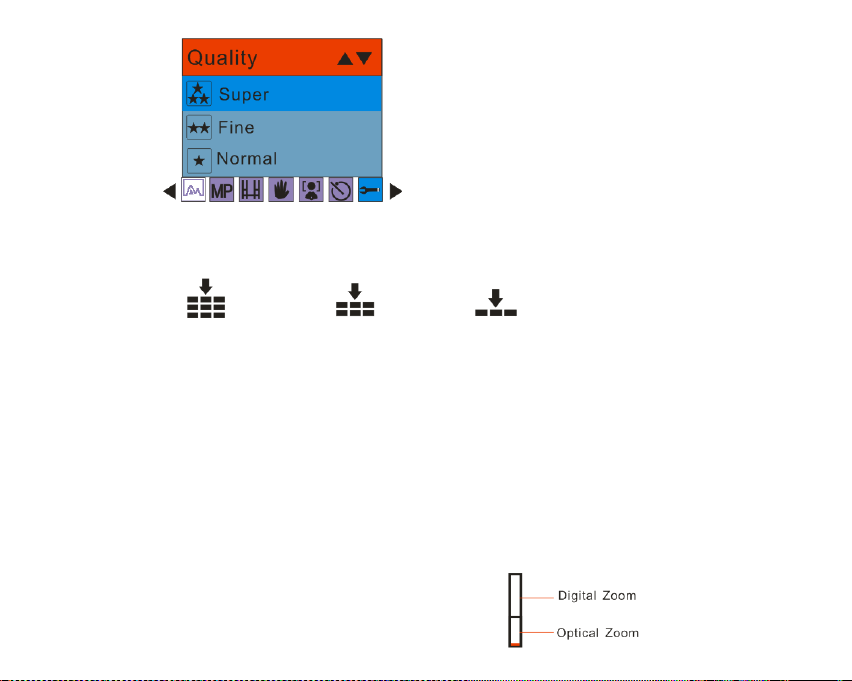

Optical Zoom

You can magnify your subject up to 3 times using the optical zoom by pressing the T button or press the W button to zoom back out.

Note: When using this function, the camera will automatically adjust the lens. Be careful not to touch the lens while the camera is adjusting.

Digital Zoom

You can magnify your subject up to 4 times using the digital zoom. Press the T button to zoom in on the object and press the W button to zoom back out.

The following icon will appear on your LCD screen.

Flash

In low light conditions it is best to use the built-in flash. You can also use the flash to compensate for backlight conditions.

Force Flash, Auto, Red eye reduction, No Flash

To set the flash: Note: Please move the Macro/Far setting to Far mode. The flash can only be use when the camera is in Far mode. If you are in the Macro close up mode and try to use the flash, a message will appear on the LCD to remind you that you are in “Macro Mode”. Select the Macro setting option to change to the Far mode in order to use the flash.

1. Press the Flash/Up button.

2. The icon appears on the LCD screen. This will activate the automatic flash.

3. The icon as well as the red LED will begin to flash indicating that the flash is charging.

4. Press the Flash button again for the icon to appear on the LCD screen. This means the flash

function has been "forced on" (manual flash). If the flash is not ready, a red LED will light up and the icon will flash repeatedly- wait until the flash is ready before taking a photo. Note: A “low battery” warning will appear on the LCD screen if there is insufficient battery power to operate the flash.

5. Press the Flash button until the icon appears on the LCD indicating that the Red-Eye

reduction is on.

6. Press the Flash button until the icon appears again. This will turn off the flash function. This is

the default flash setting.

Short cut buttons on the OK dial

The camera has 3 short cut buttons on the OK dial to make for quick access to the following settings:

Scene (Left button), Self-timer (Down button) and Delete (Right button)

Pressing the relevant button will activate the setting options.

 Scene – the 9 scene options appear on the LCD for you to select:

Auto, Night Portrait, Night Scenery, Portrait, Scenery, Sport, Party, Beach, High Sensitivity

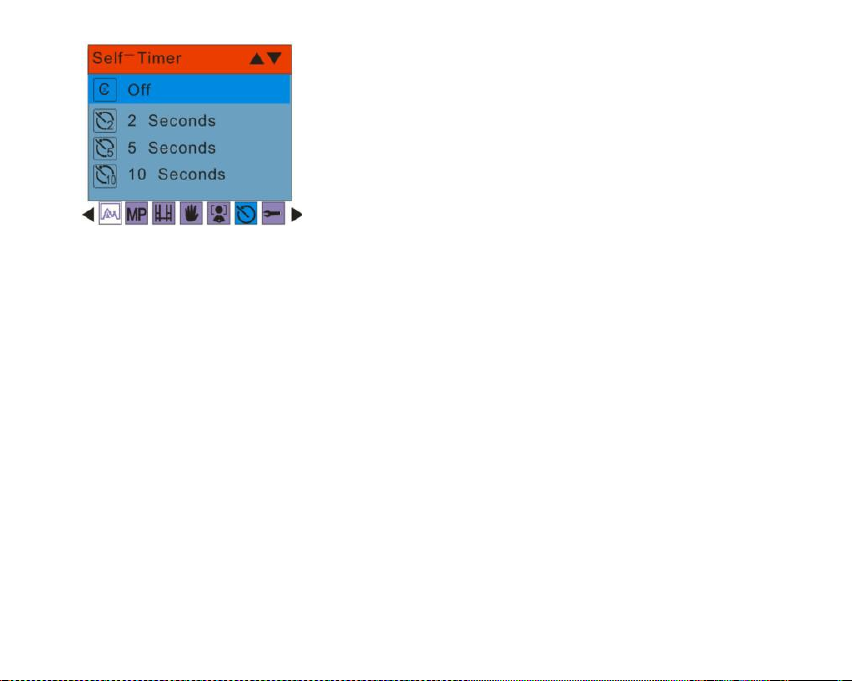

 Self-timer – Press the Self-timer button to toggle through the 4 self-timer options that appear on

the top of the LCD:

2 sec, 5 sec, 10 sec or Off

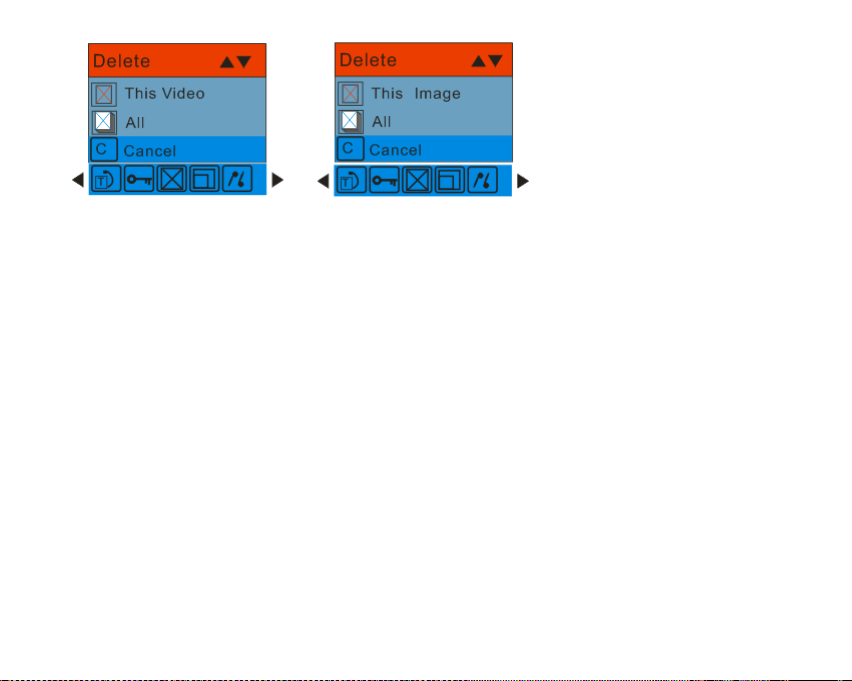

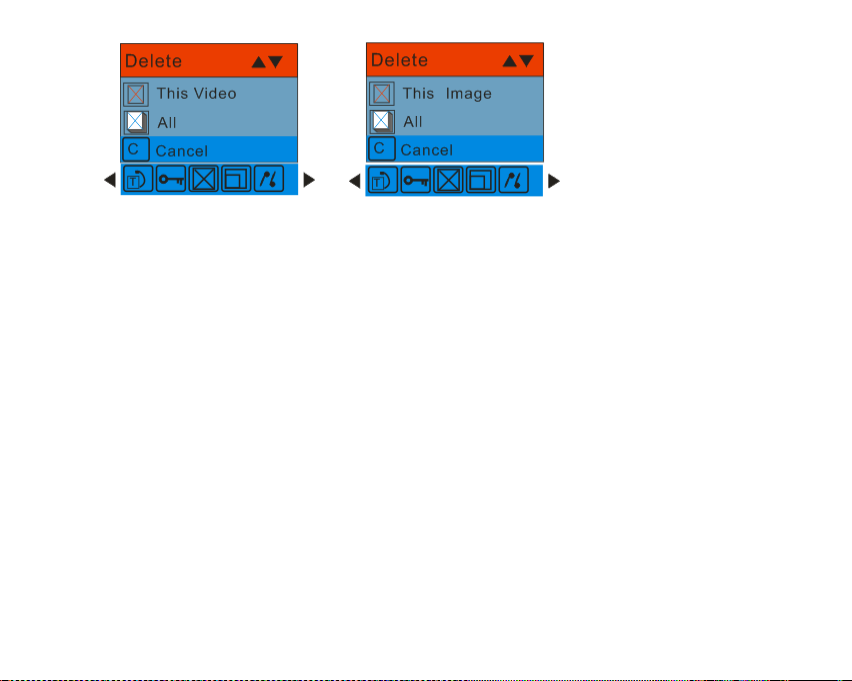

 Delete – Pressing this button will delete the last image (Photos or Videos) captured.

1. Press the Delete (Right) button.

2. A “This Image” delete confirmation message appears on the LCD with “Yes” or “No” options.

3. Press the Left/Right button to choose “Yes” to delete the photo or “No” to cancel the delete.

4. Press the OK button to confirm.

5. If you selected “Yes”, the last image is deleted.

Each setting will be explained in its own section below.

Scene

Your camera comes supplied with many scenes for you to take photos in accordance with the light and environmental conditions prevailing at the time of taken the photo. Scenes included with your camera are

- Auto, Night Portrait, Night Scenery, Portrait, Scenery, Sport, Party, Beach or High Sensitivity.

1. Press the OK button.

2. Press the Right/Left button to select the Scene icon.

3. The Scene menu appears in the center of the LCD.

4. Press the Up/Down buttons to select the scene you want to use.

Auto Night Portrait Night Scenery

Portrait Scenery Sport Party Beach High Sensitivity

5. Press the OK button to confirm, save your choice and exit to the camera standby mode.

6. The selected icon appears next to the camera icon on the top left of the LCD screen.

Image Size

The image size settings determine the quality and number of photos that can be saved and the amount of memory required for each photo. The higher the photo quality the more memory it will take. The image size and quality will also affect the maximum size you can effectively print your photo. To set the Image size:

1. Press the OK button.

2. Press the Right/Left button to select the icon.

3. The Image Size menu appears in the center of the LCD.

4. Press the Up/Down buttons to select the image size you want to use.

(8M) 3264x2448, (7M HD) 3648x2048, (5M) 2592x1944, (3M) 2048x1536, (2M HD) 1920x1080 and (VGA) 640x480

5. Press the OK button to confirm, save and exit to the camera standby mode.

6. The selected image size icon will appear on the top of the LCD screen.

Note:

1. For Image sizes higher than 3M a SD card need to be inserted into the camera.

2. Your camera has two HD “7M” and “2M” high definition image sizes.

Anti-Shake

Your Digital Camera has a function that prevents photos coming out blurry as a result of trembling or
