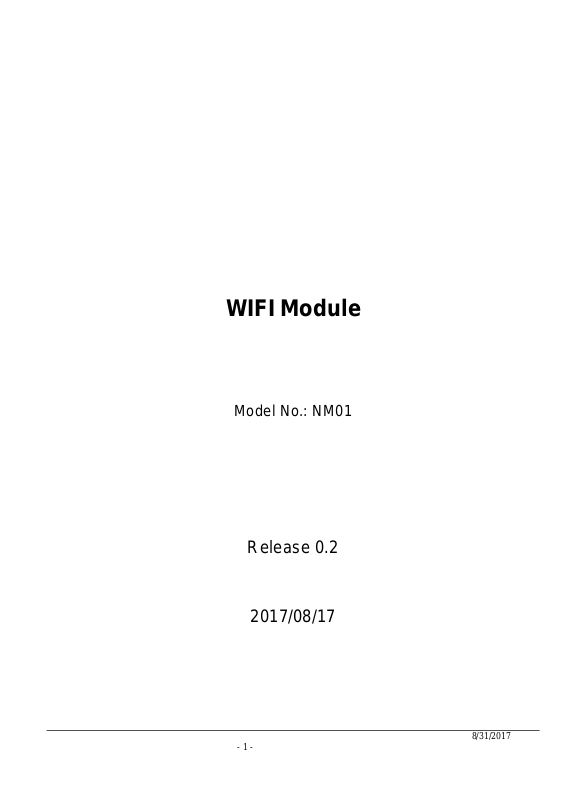

Vivint NM01 Users Manual

WIFI Module

Model No.: NM01

Release 0.2

2017/08/17

- 1 -

8/31/2017

1. I

NTRODUCTION

1.1. P

URPOSE

This document contains the product specification of 802.11 a/b/g/n/ ac Dual Band WiFi
Module for Vivint

2. S

PECIFICATION

2.1.

SYSTEM AND HARDWARE SPECIFICATION

H.1 Processor
H.2 System ROM
H.3 System RAM
H.4 Host Interface

• MTK WiFi soc

• 8MB SPI Flash

• 128MB DDR 2

• MII

• I2C

• SPI

• UARTx2

• USB

NM01

H.5 WiFi Interface
H.6 Environment

H.7 Certification

H.9 Frequency range

• JTAG

• IPEX connector x2

• Operation: Temp: 0℃ ~ 40℃ Humidity: 20% ~ 85% non-condensing

• Storage: Temp: -25℃ ~ 70℃ Humidity: 5% ~ 95% non-condensing

• FCC/IC class B

Wireless

• Frequency
FCC Frequency range: 2412~2462MHz,
FCC Frequency range: 5180~5240MHz, 5260~5320MHz, 5500~5700MHz,
5745~5825MHz

ISED Frequency range: 2412~2462MHz,
ISED Frequency range: 5180~5240MHz, 5260~5320MHz, 5500~5580MHz,
5660~5700MHz, 5745~5825MHz

- 2 -

8/31/2017

Output Power

(FCC)

Output Power

(ISED)

H.12 Sensitivity

• 802.11b (2.4GHz) : -76dBm

• 802.11g (2.4GHz) : -65dBm

• 802.11n (2.4GHz) : -61dBm

• 802.11a (5GHz) : -65dBm

• 802.11n (5GHz) : -61dBm

• 802.11ac (5GHz): -51dBm

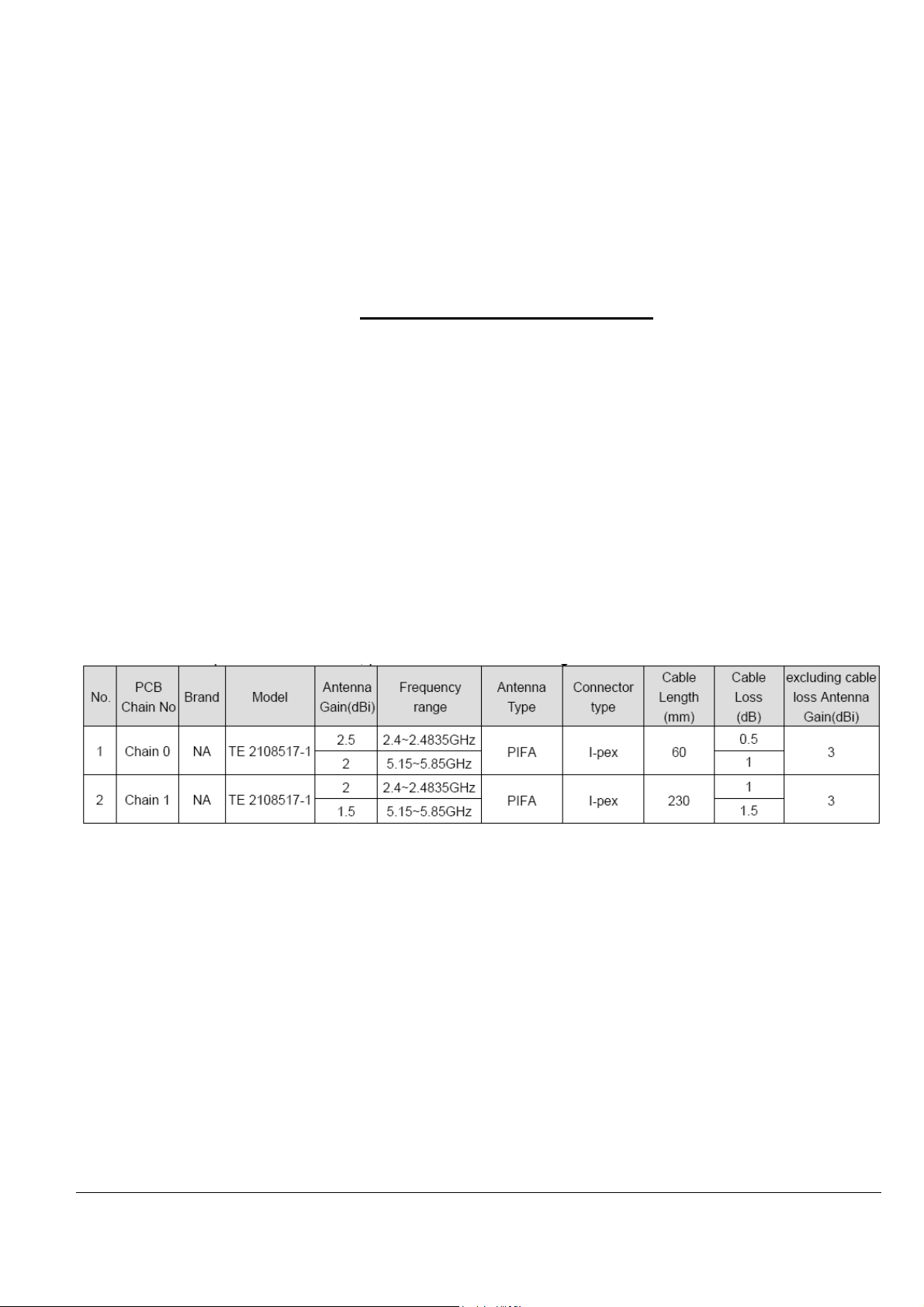

Antenna Spec.

2.2. S

OFTWARE REQUIREMENTS

F.1 OS
F.2 Test features

- 3 -

• OpenWRT Barrier Breaker 14.07

• Active Rx mode: independently selectable for 2.4 GHz and 5 GHz

• Constant Tx: unmodulated carrier independently selectable for 2.4 GHz and 5 GHz

(MTK driver will support constant Tx w/ modulated but un-modulated in test mode if

8/31/2017

possible).

• Constant Tx: modulated Carrier independently selectable for 2.4 GHz and 5 GHz

• Select fixed Tx Channel: all TX channels for 2.4 GHz and 5 GHz operation

• Select fixed bit rate: independently selectable for 2.4 GHz and 5 GHz transmit only

• Select fixed Tx Mode: b/g/n/ac

• Select fixed Tx power level: independently selectable for 2.4 GHz and 5 GHz

• Select communication to pass through only antenna 1 or antenna 2

• Enable/disable wired and/or wireless modes and connections

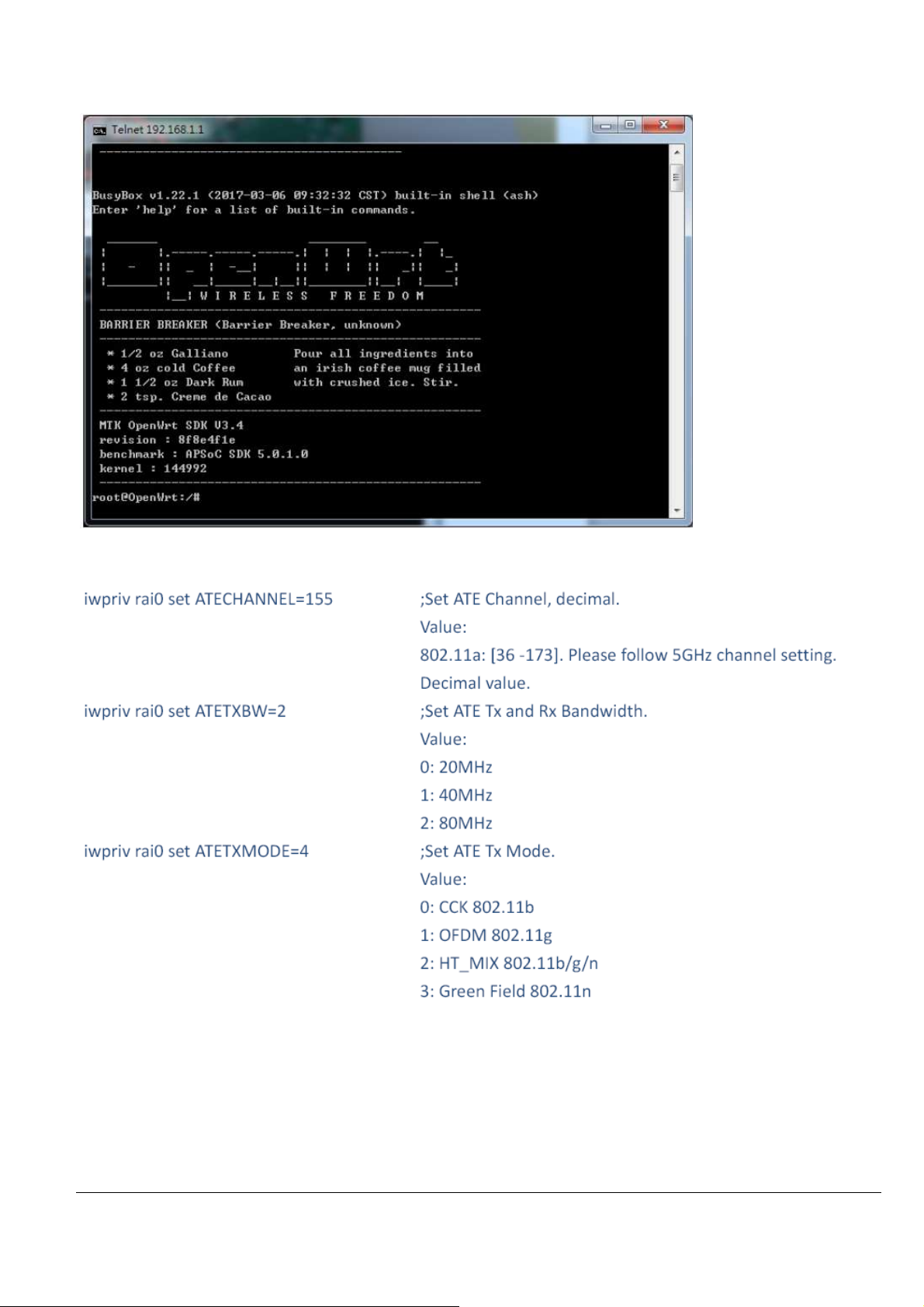

F.4 netv script

netv_manual.pdf

8/31/2017

- 4 -

3. C

ERTIFICATIONS/TEST REPORTS REQUIREMENT

EMC/RF Certificates and Test Reports (All Certification require to meet latest version)

3.1 Emission & Immunity for EMI/EMS

Required

EMI/EMC Test Report

CE Report (EMC Directive of 2004/108/EC) for

ITE(Information Technology Equipment)
EN 55022 & EN 55024
EN 61000-3-2
EN 61000-3-3
EN
61000-4-2/3/4/5/6/8/11

FCC report

FCC CFR 47 Part 15 Subpart B & ANSI C63.4
(including ITE & Home Plug)

IC report

ICES-003 (ITE)

(ESD/RS/FET/Surge/CS/Magentic/Dip)

Class A Class

Region

B

Europea
n Union

US
Canada

C-Tick Report

AS/NZS CISPR 22 (ITE)

VCCI Report

V-3 & V4

KCC report

KN22/24 (ITE)

Note:

Anatel
BSMI
CCC

Others

1. All regulation will be followed the latest edition.

3.2 Radio Frequency & Human Exposure/SAR

Required

CE Report (R&TTE Directive of

RF Test Report Categories Region

802.11 ac/b/g/n

New
Zealand
&
Australia
JAPAN

KOREA

Brazil
Taiwan
China

European

1999/5/EC)

Union

EN 300 328 for wireless 2.4GHz
