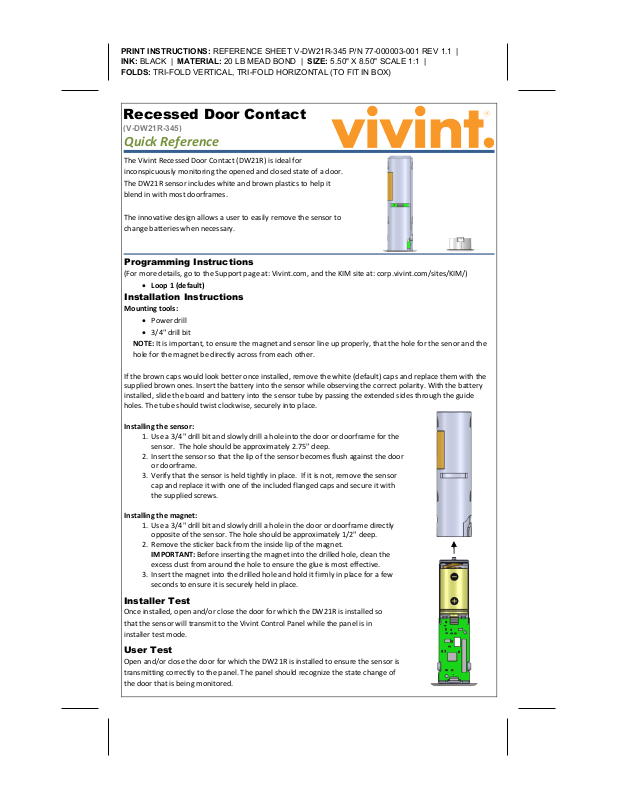

Vivint DW01 Users Manual

Recessed Door Contact

(V-DW21R-345)

Quick Reference

Programming Instructions

(For more details, go to the Support page at: Vivint.com, and the KIM site at: corp.vivint.com/sites/KIM/)

Loop 1 (default)

Installer Test

Once installed, open and/or close the door that installer test mode

User Test

Open and/or close transmitting correctly to the panel. The panel should recognize the state change of the door that is being monitored.

PRINT INSTRUCTIONS: REFERENCE SHEET V-DW21R-345 P/N 77-000003-001 REV 1.1 | INK: FOLD

Installation Instructions

Mounting

If the brown caps would look better once installed, remove the white (default) caps and replace them with the su i holes. The tube should twist clockwise, securely into place.

The Vivint Recessed Door Contact (DW21R) is ideal for inconspicuously monitor The blend in with most doorframes

The innovative design allo change batteries when necessary

Installing the sensor:

Installing the magnet:

BLACK | MATERIAL: 20 LB MEAD BOND | SIZE: 5.50" X 8.50" SCALE 1:1 |

S: TRI-FOLD VERTICAL, TRI-FOLD HORIZONTAL (TO FIT IN BOX)

ing the opened and closed state of a door.

DW21R sensor includes white and brown plastics to help it

ws a user to easily remove the sensor to

•

tools:

• Power drill

• 3/4" drill bit

NOTE: It is important, to ensure the magnet and sensor line up properly, that the hole for the senor and the hole for the magnet be directly across from each other.

pplied brown ones. Insert the battery into the sensor while observing the correct polarity. With the battery

nstalled, slide the board and battery into the sensor tube by passing the extended sides through the guide

1. Use a 3/4" drill bit and slowly drill a hole into the door or doorframe for the

sensor. The hole should be approximately 2.75" deep.

2. Insert the sensor so that the lip of the sensor becomes flush against the door

or doorframe.

3. Verify that the sensor is held tightly in place. If it is not, remove the sensor

cap and replace it with one of the included flanged caps and secure it with the supplied screws.

1. Use a 3/4" drill bit and slowly drill a hole in the door or doorframe directly

opposite of the sensor. The hole should be approximately 1/2" deep.

2. Remove the sticker back from the inside lip of the magnet.

IMPORTANT: Before inserting the magnet into the drilled hole, clean the excess dust from around the hole to ensure the glue is most effective.

3. Insert the magnet into the drilled hole and hold it firmly in place for a few

seconds to ensure it is securely held in place.

for which the DW21R is installed so

the sensor will transmit to the Vivint Control Panel while the panel is in

the door for which the DW21R is installed to ensure the sensor is

Battery Installation

To replace the battery, twist the sensor counterclockwise while pulling back. The sensor allowing access to the battery. Re move the old battery and insert the

FCC and Industry Canada Regulatory Declarations*

CAUTION:

This device has been license

These limits a re designed to provide rea sonable protection agains t harmful interference in a residential installati on. This equipment generates harmful interfe rence to radio communica tions. However, there is no guarantee that interferen ce will not occur in a pa rticular equipment does cause harm ful interference to radio or television rece ption, which can be determ is encouraged to try to correct the interference by one or more of t he following measures:

PRUDENCE!

Conformément à la réglem entation d'Industrie Canada, le présent ém etteur radio peut fonctionner avec une antenne d'un type et (ou inférieur) approuv é pour l'émetteur par Industrie Canada. utilisateurs, il faut cho isir le type d'antenne et son gain de so rte que la puissance isotrope rayonnée é quivalente (p.i.r.e. nécessaire à Le présent appareil es t conforme aux CNR d’Industrie Canada applicable s aux appareils radio exempts de licence. L ’exploitation est autorisée aux deux conditions su ivantes: subi, même si le broui llage est susceptible d ’en compromettre le fonctionnement. Ces limites sont conçues pour fournir une protection raisonnable c ontre l génère, utilise et peut émettre une énergie de radiofréquence et, s'il n'est pas installé et utilisé conformément aux instruc interférences nuisibles au installation pa rticulière. Si cet équipem ent provoque des inter férences nuisibles à la réc eption radio ou télévisio n, ce qui mettant l'équipement hors e t sous tension, l'utilisateur est encourag é à essayer de corriger l'interférence pa r une ou plusieurs des mesures suivantes:

FCC ID:

*For more compliance and warranty information, visit:

Batteries must not be recharged, disassembled or

with the waste recovery and recycling regulations in yo ur area. Keep away from small children. If ba tteries are swallowed,

Specifications

Wireless Signal Range

350 feet (106.7 m), open air

Battery

Panasonic CR2 3V

Transmitter Frequency

345 MHz

Code Outputs

Open, Close, Tamper, Low Battery, Loss of Supervision

Supervisory Interval

70 minutes per signal (12 hours for panel to report supervision failure)

Operating Temperature Limits

32° to 120°F (0° to 49°C)

Relative Humidity

5‐95% Non‐Condensing
