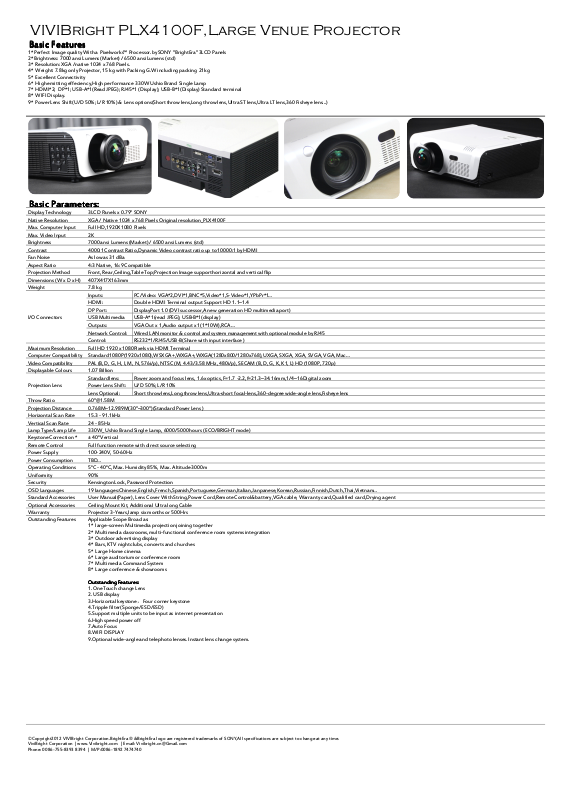

ViviBright PLX4100F Product Sheet
VIVIBright PLX4100F,Large Venue Projector
Basic
Basic
Basic
Basic
Features
Features
Features
Features
1* Perfect Image quality With a Pixelworks ™ Processor.by SONY "BrightEra" 3LCD Panels
2* Brightness: 7000 ansi Lumens (Market) / 6500 ansi Lumens (std)
3* Resolution: XGA /native 1024 x 768 Pixels.
4* Weight: 7.8kg only Projector, 15 kg with Packing,G.W including packing 21kg
5* Excellen t Connectivity
6* High emitting effeciency,High performance 330W Ushio Brand Single Lamp
7* HDMI*2; DP*1; USB - A*1(Read JPEG); RJ45*1 (Display); USB - B*1(Display) Standard te rminal
8* WIFI Display.
9* Power Lens Shift(U/D 50% ; L/R 10%) & Lens options (Short throw lens, Long throw lens,Ultra ST lens,Ultra LT lens,36 0 Fisheye lens...)
Basic
Basic
Basic
Basic
Parameters:
Parameters:
Parameters:
Parameters:
Display Technology
3LCD Panels x 0.79" SON Y
Native Resolution
XGA / Native 1024 x 768 Pixels Original resol ution_PLX4100F
Max. Computer Input
Full HD,1920X1080 Pixels
Max. Video Input
2K
Brightness
7000 ansi Lumens (Market) / 6500 ansi Lumens (std)
Contrast
4000:1 Contrast Ratio, Dynamic Video contrast ratio up t o 10000:1 by HDMI
Fan Noise
As low as 31 dBa
Aspect R atio
4:3 Native, 16:9 Compatible
Projection Method
Front, Rear,Ceiling,Table Top;Projection Image support horizontal and vertical flip
Dimensions (W x D x H)
407X417X163mm
Weight
7.8 kg
I/O Connectors
Inputs:
PC/Video: VGA*2, DVI*1,BNC*5,Video*1,S - Video*1,YPbPr*1 …
HDMI:
Double HDMI Terminal output Support HD 1.1~1.4
DP Port:
DisplayPort 1.0 (DVI successor,A new generation HD multimedia port)
USB Multimed ia
USB - A*1(read JPEG); USB - B*1( display)
Outputs:
VGA Out x 1,Audio out put x 1(1*10W) ,RCA …
Network Control:
Wired LAN monitor & control and system manage ment w ith optional module by RJ45
Control:
RS232*1/RJ45/USB - B(Share with input inte rface )
Maximum Resolution
Full HD 1920 x 1080Pixels via HDMI Terminal
Computer Compatibility
Standard 1080P(1920x108 0),WSXGA+,WXGA+,WXGA(1280x 800/1280x768),UXGA, SXGA, XGA, SVGA, VGA , Mac …
Video Compatibility
PAL (B, D, G, H, I, M, N, 576i/p), NTSC (M, 4.43/3.58 MHz, 480i/p), SECAM (B, D, G, K, K1, L) HD (1080P, 720p)
Displayable Colours
1.07 Billion
Projection Lens
Standard lens:
Power zoom and focus lens, 1.6 x op tics, F=1.7 - 2.2, f=21.3~34.16mm,1/4~16Digital zoom
Power Lens Shift:
U/D 50% ; L/R 10%
Lens Optional:
Short throw lens,Long throw lens,Ultra - short focal - lens,360 - degree wide - angle lens,Fishe ye lens
Throw Ratio
60"@1.58M
Projection Distance
0.768M~12.989M(30"~300 ")(Standard Power Lens )
Horizontal Scan Rate
15.3 - 9 1.1kHz
Vertical Scan R ate
24 - 85Hz
Lamp Type/Lamp Life
330W_ Ushio Brand Single Lamp, 6000/5000 hours (ECO/BRIGHT mode)
Keystone Correction *
± 40 ° Vertical
Remote C ontrol
Full function remote w ith direct source selecting
Power Supply
100 - 240V, 50 - 60Hz
Power Consumption
TBD …
Operating Conditions
5 ° C - 40 ° C, Max. Humidity 85%, Max. Altitud e 300 0m
Uniformity
90%
Security
Kensington Lock, Pas sword P rotection
OSD Languages
19 languages:Chines e,English,French,Spanish,Portuguese,German, Italian,Janpanese,Korean,Russian,Fi nnish,Dutch,Thai,Vietnam …
Standard Accessories
User Manual(Paper), Lens Cover With String,Powe r Cord,Rem ote Control&battery,VGA cable, Warranty card,Qualified card,Drying agent
Optional A ccessories
Ceiling Mount Kit, Ad ditional Ultra long Cable
Warranty
Projector 3 - Yea rs,lamp six months or 500Hrs
Outstanding Features
Applicable Scope Broad a s:
1* large - screen M ultimedia projection joining together
2* Multime dia classrooms, m ulti - functional conference room systems integration
3* Outdoor advertising display
4* Bars, KTV night clubs , concerts a nd churches
5* Large Home cinema
6* Large auditorium or conference room
7* Multime dia Command System
8* Large conference & showrooms
Outstanding
Outstanding
Outstanding
Outstanding
Features:
Features:
Features:
Features:
1. One Touch change Lens
2. USB display
3.Horizontal keystone，Four corner k eystone
4.Tripple filte r(Sponge/ESD/ESD)
5.Support multiple units to be input as internet presentation
6.High spe ed pow er off
7.Auto Focus
8.WIFI DISPLAY
9.Optional wide - angle and telephoto lens es. Instant lens change system.
© Copyright2012 VIVIBright Corporati on.BrightEra ® &BrightEra logo are registered trademarks of SONY,All specifica tions are subject to change at any time.
ViviBright Corporation | www.Vivibright.com | Email: Vivibright.cn@Gmail .com
Phone: 0086 - 755 - 8393 8394 | M/P:0086 - 1892 7474740
