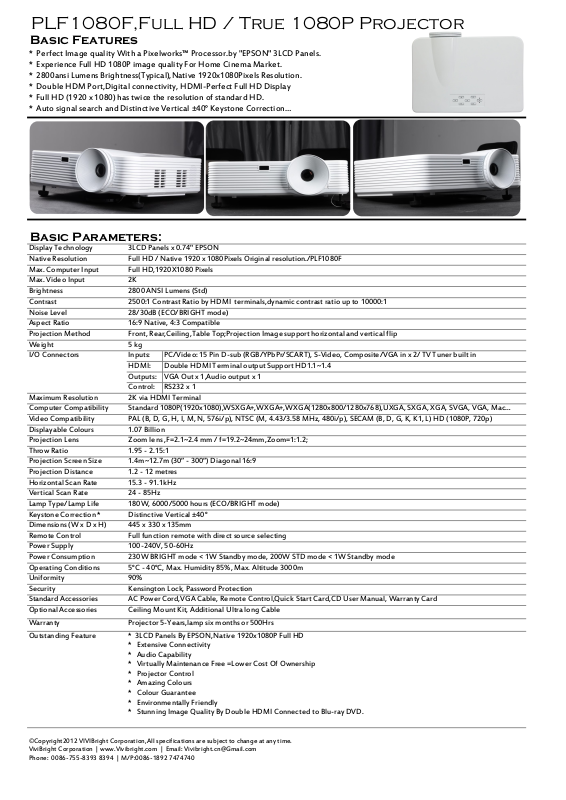

ViviBright PLF-1080F Product Sheet

Basic Parameters:

PLF1080F,Full HD / True 1080P Projector

Basic Features

* Perfect Image quality With a Pixelworks™ Processor.by "EPSON" 3LCD Panels.
* Experience Full HD 1080P image quality For Home Cinema Market.
* 2800ansi Lumens Brightness(Typical),Native 1920x1080Pixels Resolution.
* Double HDM Port,Digital connectivity, HDMI-Perfect Full HD Display
* Full HD (1920 x 1080) has twice the resolution of standard HD.
* Auto signal search and Distinctive Vertical ±40° Keystone Correction…

Display Technology
Native Resolution
Max. Computer Input
Max. Video Input
Brightness

Contrast
Noise Level
Aspect Ratio
Projection Method
Weight
I/O Connectors

Maximum Resolution
Computer Compatibility
Video Compatibility
Displayable Colours
Projection Lens
Throw Ratio
Projection Screen Size
Projection Distance
Horizontal Scan Rate
Vertical Scan Rate
Lamp Type/Lamp Life
Keystone Correction *
Dimensions (W x D x H)
Remote Control
Power Supply
Power Consumption
Operating Conditions
Uniformity
Security
Standard Accessories
Optional Accessories

Warranty

Outstanding Feature

3LCD Panels x 0.74" EPSON
Full HD / Native 1920 x 1080Pixels Original resolution./PLF1080F
Full HD,1920X1080 Pixels
2K
2800 ANSI Lumens (Std)

2500:1 Contrast Ratio by HDMI terminals,dynamic contrast ratio up to 10000:1
28/30dB (ECO/BRIGHT mode)
16:9 Native, 4:3 Compatible
Front, Rear,Ceiling,Table Top;Projection Image support horizontal and vertical flip
5 kg
Inputs: PC/Video: 15 Pin D-sub (RGB/YPbPr/SCART), S-Video, Composite/VGA in x 2/ TV Tuner built in
HDMI: Double HDMI Terminal output Support HD1.1~1.4
Outputs: VGA Out x 1,Audio output x 1
Control: RS232 x 1
2K via HDMI Terminal
Standard 1080P(1920x1080),WSXGA+,WXGA+,WXGA(1280x800/1280x768),UXGA, SXGA, XGA, SVGA, VGA, Mac…
PAL (B, D, G, H, I, M, N, 576i/p), NTSC (M, 4.43/3.58 MHz, 480i/p), SECAM (B, D, G, K, K1, L) HD (1080P, 720p)

1.07 Billion
Zoom lens ,F=2.1~2.4 mm / f=19.2~24mm,Zoom=1:1.2;

1.95 - 2.15:1

1.4m~12.7m (30” - 300”) Diagonal 16:9

1.2 - 12 metres

15.3 - 91.1kHz
24 - 85Hz
180W, 6000/5000 hours (ECO/BRIGHT mode)
Distinctive Vertical ±40°
445 x 330 x 135mm
Full function remote with direct source selecting
100-240V, 50-60Hz
230W BRIGHT mode < 1W Standby mode, 200W STD mode < 1W Standby mode
5°C - 40°C, Max. Humidity 85%, Max. Altitude 3000m
90%
Kensington Lock, Password Protection
AC Power Cord,VGA Cable, Remote Control,Quick Start Card,CD User Manual, Warranty Card
Ceiling Mount Kit, Additional Ultra long Cable

Projector 5-Years,lamp six months or 500Hrs

* 3LCD Panels By EPSON,Native 1920x1080P Full HD
* Extensive Connectivity
* Audio Capability
* Virtually Maintenance Free =Lower Cost Of Ownership
* Projector Control
* Amazing Colours
* Colour Guarantee
* Environmentally Friendly
* Stunning Image Quality By Double HDMI Connected to Blu-ray DVD.

©Copyright2012 VIVIBright Corporation,All specifications are subject to change at any time.
ViviBright Corporation | www.Vivibright.com | Email: [e-mail]
Phone: [phone] | M/P:0086-1892 7474740

About VIVIBright PLF1080F

*Thickening of dustproof nets.

In the projector profile, equipped with removable dustproof nets, sponge thickness is greater than 5 mm, isolate effectively smoke, dust invaded, more
may at any time convenient to remove, cleaning, maintenance more easily…
* Zoom lens Design,Experience Full HD 1080P image quality at Home
* Full HD Home Entertainment - 1080P for detail and clarity
* Bright projection anytime – 2800 ANSI Lumens
* Digital connectivity, Double HDMI – perfect Full HD display
* 8W speaker – all-in-one multimedia set-up
* Low ownership costs – up to 6000hrs lamp life
* Portable – carry bag provided for easy transportation
* Environmentally friendly design <1W standby mode
* VIVIBright PLF1080F Filter-free Design – virtually no maintenance
* Enjoy the big cinema experience in your home with the VIVIBright PLF1080F. Project stunning, bright images with this Full HD projector. Easy to set up
using a HDMI cable from a HD source such as a blu-ray player or games console for big images anywhere in your home.
* Great to use at anytime of the day, the VIVIBright PLF1080F home entertainment projector with 2800 lumens brightness,2500:1 Contrast Ratio by
HDMI terminals,dynamic contrast ratio up to 10000:1, and built-in 8W speakers is supplied with a luxury carry case so you can project anywhere,
anytime.

* Perfect 3LCD technology By 1080P "EPSON" LCD Panel!

3LCD technology is the use of the dichroic mirror decomposition of white light emitted red, green and blue color beams, three-color beam through the
prism through their own LCD panels synthesis projected onto the screen. Compared with other projection systems, 3LCD projection system, a wider color
gamut, the projected image is richer real.
