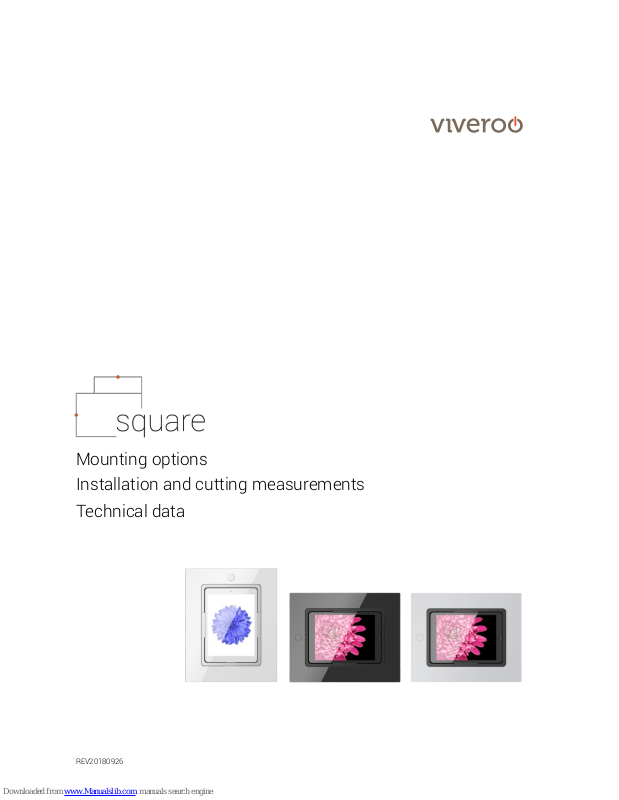

Page 1
!
Mounting options
Installation and cutting measurements
Technical data
REV20180926
Page 2
Install square in … 1. Furniture
For installation in furniture, cabinets, wooden materials displays etc., in mm!

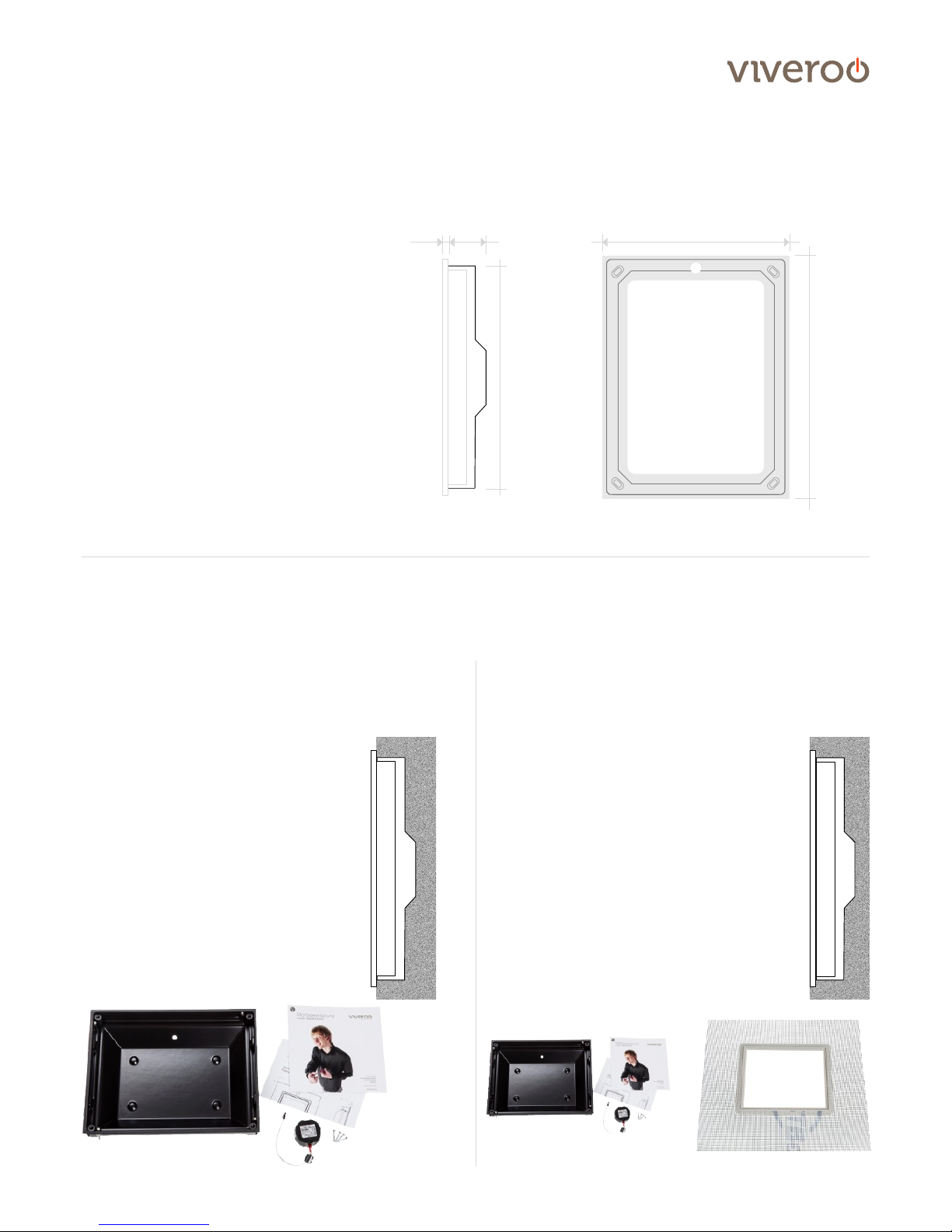

Mounting options …
Techni cal deta ils squa re
page of 2 6
Installation without flush
mount box. !
Direct screw-mounting.
Power supply: 12Vdc
7
29
336x266
… overlying mounting
… flush mounting
What do you need?
MountingSet Furniture
Article 210300
incl. power supply and
mounting materials
293,50
364
Page 3
Install square in … 2. Walls
Installation in drywall, stone or solid wall, in mm
Mounting options …"
Techni cal deta ils squa re
page of 3 6
Installation with flush mount box.
Attach square to flush mount box.
Power supply: 110-230Vac
7
70
344x271
… overlying mounting
What do you need?
MountingSet Inwall
Article 220200
incl. flush mount box, power
supply and mounting material
… perfect „flush to the wall“
installation
What do you need?
MountingSet Inwall ZERO
Article 220221
Incl. MountingSet Inwall
incl. flush mount frame and
reinforcing grid
293,50
364
Page 4

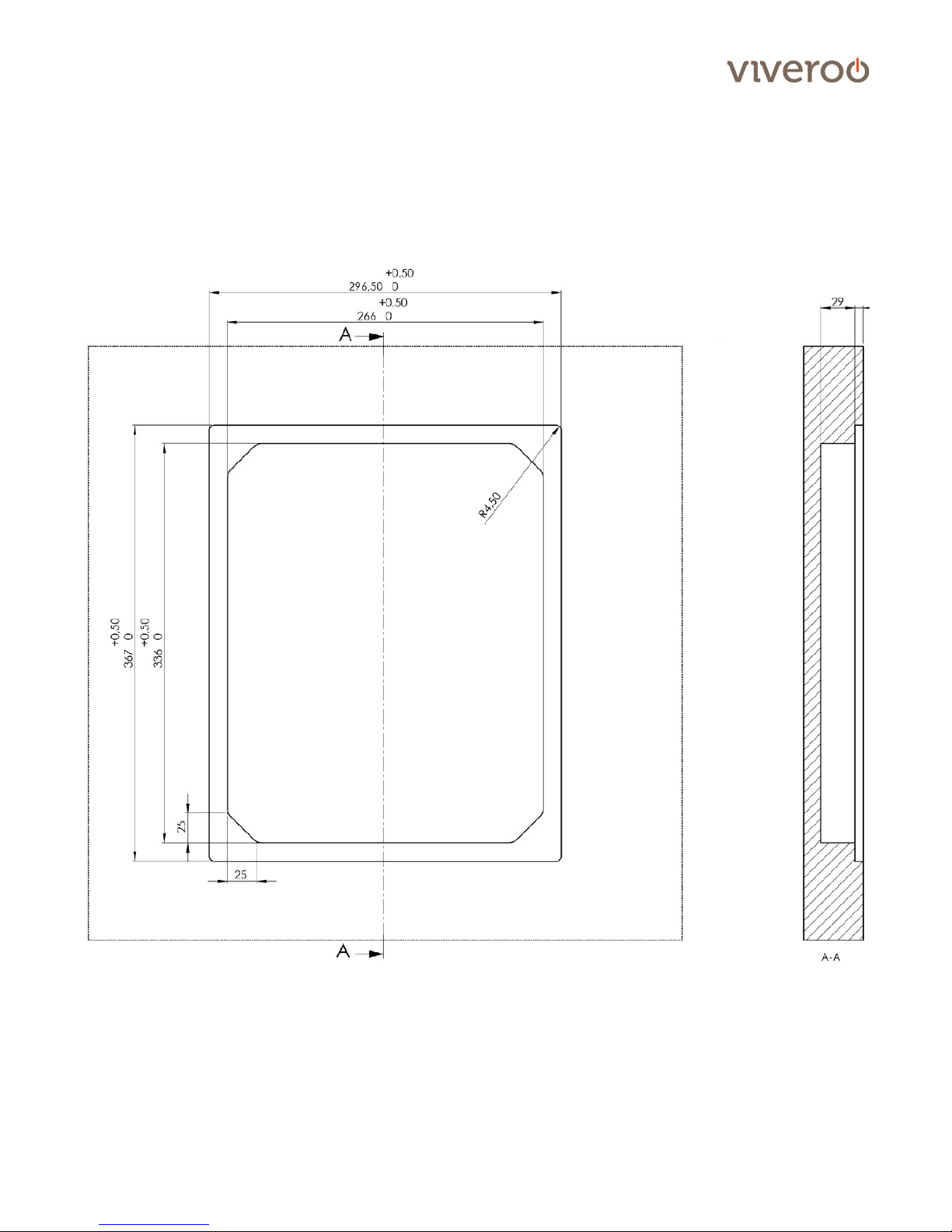

Cutting measurements: Furniture
For installation in furniture, cabinets, wooden materials displays etc., in mm
Techni cal deta ils squa re
page of 4 6
a
a = 7 for overlying mounting
a = 0 for flush mounting
Page 5

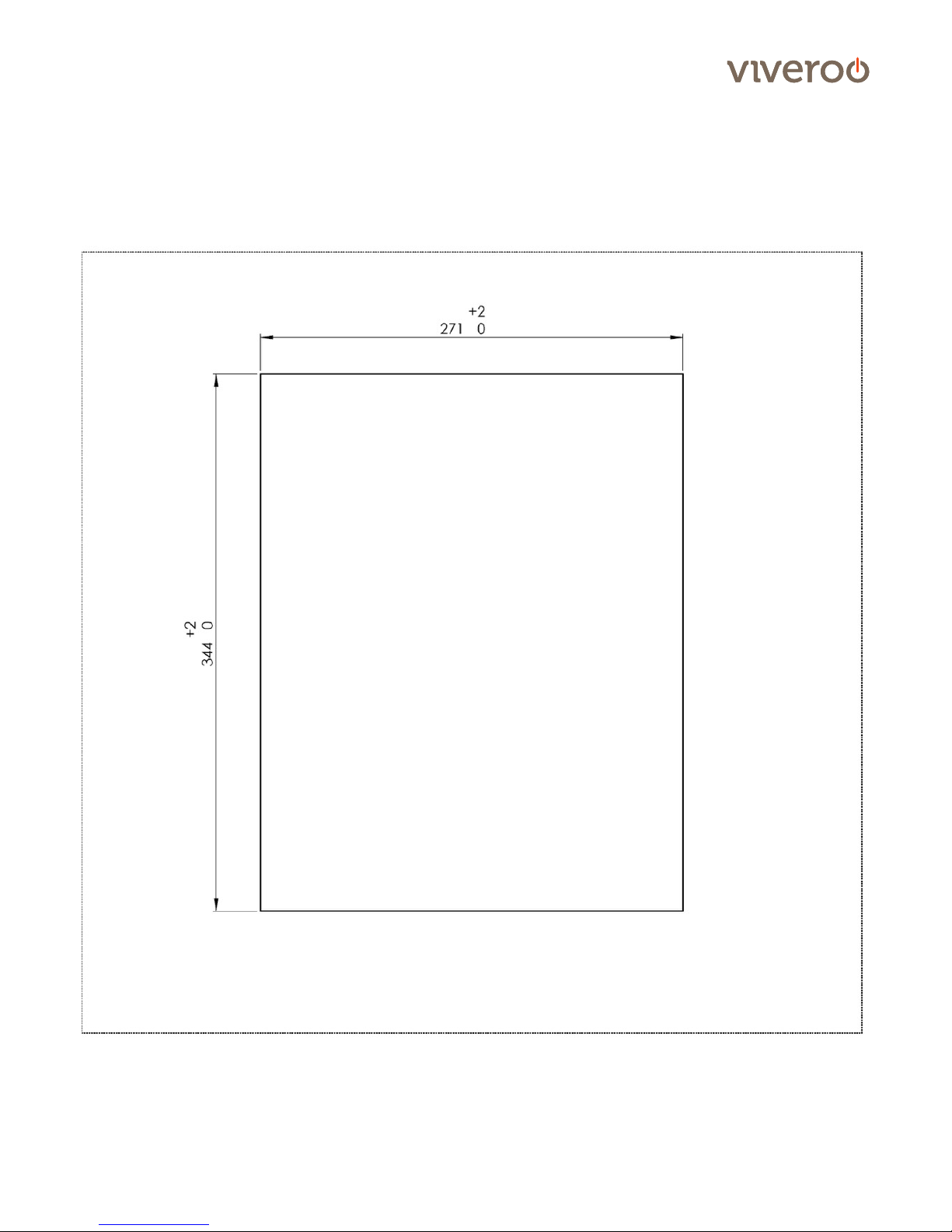

Cutting measurements: Walls
For installation in drywall, stone or solid wall, in mm
!
"
Techni cal deta ils squa re
page of 5 6
Page 6
Technical data
square
MountingSet Furniture
MountingSet Inwall / MountingSet Inwall ZERO
Techni cal deta ils squa re
page of 6 6
Product contents
- Installation guide Inwall
- square flush mounting box
- Power supply (IN 100-240 Vac, 50 - 60 Hz, OUT 12 Vdc) with pre-installed square power cable (including
usage guidelines and installation guide)
- Fastening screw packet (for attaching square) with various length screws (see „Installation“ section)
For MountingSystem ZERO: Installation guide, flush mount frame with reinforcing grid
Electrical connections
Voltage: 230 Vac, 50-60 Hz
Power consumption: 18 Watt
Please note the operating instructions of the power supply.
Product contents
- Cutting measurements for installation in furniture
- Power supply (IN 200-240 Vac, 50 Hz, OUT 12 Vdc) especially for furniture installation, incl. separate
instruction manual
- 5m connection cable (to connect power supply and square)
- 1m power supply cable (to connect power supply and wall socket)
- Spax-S back panel screws: 4 pieces 3x25 and 4 pieces 3,5x25
Electrical connections
Voltage: 200-240 Vac, 50 Hz
Power consumption: 15 Watt
Please note the operating instructions of the power supply.
Product contents
- User manual square
- square
Please note! External cable, power supply and mounting screws are included in square MountingSet.
Compatibility
Electrical operation of square is permitted only in connection with square Mounting Set
and power supply and cable included in the Mounting Set. Operation of square without a
Mounting Set will lead to immediate loss of guarantee and warranty.
Weight
3,8 kg
Electrical connections
Low voltage: 10-18 Vdc
Power consumption: 15 Watt
Disconnect from power
supply
The square can be disconnected from the main voltage through the ground wire of the room.
CE & Co.
All squares have CE certification. square is quality "Made in Germany". We use only high-quality parts and
components produced by market leaders. square customers are proud of their iPad Garage.
*) Technical changes and mistakes are excepted.
