Page 1

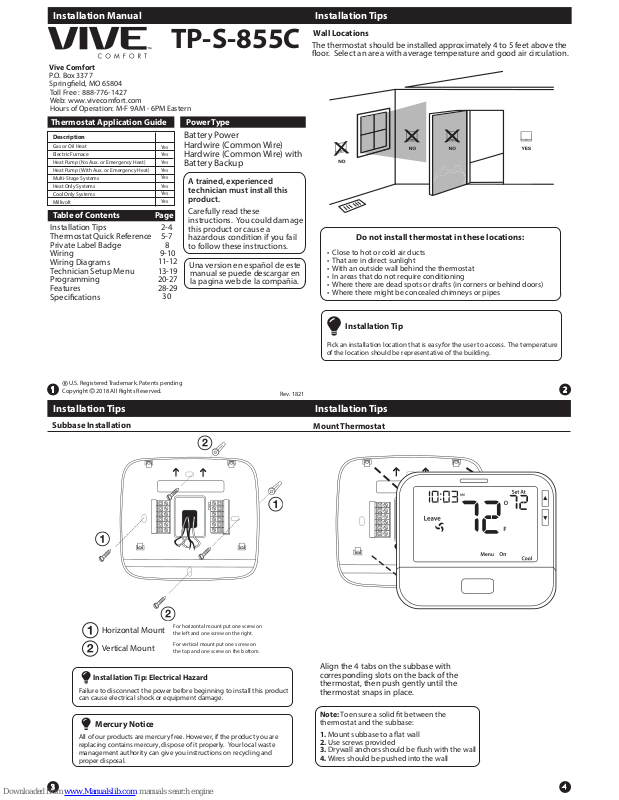

Installation Manual

Thermostat Application Guide

Description

Gas or Oil Heat

Electric Furnace Heat Pump (No Aux. or Emergency Heat) Heat Pump (With Aux. or Emergency Heat)

Multi-Stage Systems

Heat Only Systems Cool Only Systems

Millivolt

Yes

Yes Yes

Yes

Power Type

Battery Power Hardwire (Common Wire) Hardwire (Common Wire) with Battery Backup

Table of Contents

Installation Tips Thermostat Quick Reference Private Label Badge Wiring Wiring Diagrams Technician Setup Menu Programming Features Specications

Page

A trained, experienced technician must install this product.

Carefully read these instructions. You could damage this product or cause a hazardous condition if you fail to follow these instructions.

Una version en español de este

manual se puede descargar en la pagina web de la compañia.

Rev. 1821

5-7

13-19

2-4

Yes Yes

20-27

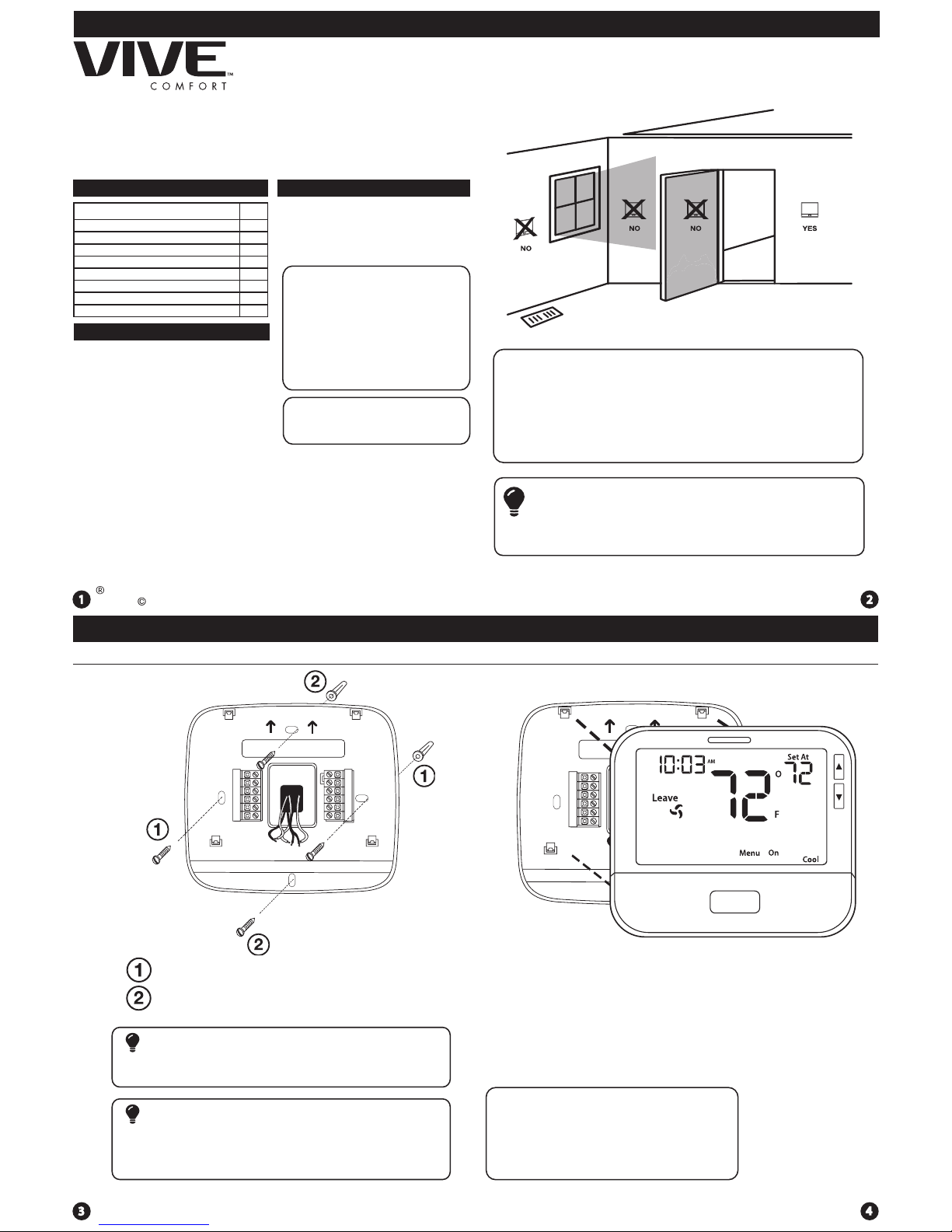

Mount Thermostat

Align the 4 tabs on the subbase with corresponding slots on the back of the thermostat, then push gently until the thermostat snaps in place.

Installation Tips

Note: To ensure a solid t between the

thermostat and the subbase:

1. Mount subbase to a at wall

2. Use screws provided

3. Drywall anchors should be ush with the wall

4. Wires should be pushed into the wall

Installation Tips

The thermostat should be installed approximately 4 to 5 feet above the oor. Select an area with average temperature and good air circulation.

• Close to hot or cold air ducts

• That are in direct sunlight

• With an outside wall behind the thermostat

• In areas that do not require conditioning

• Where there are dead spots or drafts (in corners or behind doors)

• Where there might be concealed chimneys or pipes

Wall Locations

Pick an installation location that is easy for the user to access. The temperature of the location should be representative of the building.

Installation Tip

Do not install thermostat in these locations:

Installation Tips

28-29

Vertical Mount

Horizontal Mount

For horizontal mount put one screw on the left and one screw on the right.

All of our products are mercury free. However, if the product you are replacing contains mercury, dispose of it properly. Your local waste management authority can give you instructions on recycling and proper disposal.

Mercury Notice

Failure to disconnect the power before beginning to install this product can cause electrical shock or equipment damage.

Installation Tip: Electrical Hazard

For vertical mount put one screw on the top and one screw on the bottom.

Subbase Installation

11-12

9-10

Vive Comfort

Toll Free : 888-776-1427 Web: www.vivecomfort.com Hours of Operation: M-F 9AM - 6PM Eastern

TP-S-855C

P.O. Box 3377 Springeld, MO 65804

Page 2

Terminal Designations

This thermostat is shipped from the factory to operate a conventional heating and cooling system. This thermostat may also be congured for a heat pump system. See the “heat pump” conguration step on page 17 of this manual to congure the thermostat for heat pump applications.

Wiring

Terminal

2 Heat 2 Cool Conventional

System

2 Heat 2 Cool

Heat Pump

System

3 Heat 2 Cool

Heat Pump

System

W/E

Transformer power

(cooling)

Transformer power

(heating)

Transformer common

Energized in heating

Energized in cooling

Fan relay

First stage of heat

First stage of cool

Second stage of cool

Second stage of heat

Transformer power

(cooling)

Transformer power

(heating)

Transformer common

Heat pump changeover

valve energized in heating

Fan relay

First stage of

emergency heat

First stage of heat & cool

Second stage of cool

Auxiliary heat relay,

second stage of heat

Heat pump changeover

valve energized in cooling

Transformer power

(cooling)

Transformer power

(heating)

Transformer common

Heat pump changeover

valve energized in heating

Fan relay

First stage of

emergency heat

First stage of heat & cool

Second stage of cool

& second stage of heat

Auxiliary heat relay,

third stage of heat

Heat pump changeover

valve energized in cooling

Wiring

Caution: Electrical Hazard

All components of the control system and the thermostat installation must conform to Class II circuits per the NEC Code.

Warning:

Do not overtighten terminal block screws, as this can damage the terminal block. A damaged terminal block can keep the thermostat from tting on the subbase correctly or cause system operation issues.

Installation Tip

Max Torque = 6in-lbs.

Wiring

If you are replacing a thermostat, make note of the terminal connections on the thermostat that is being replaced. In some cases the wiring connections will not be color coded. For example, the green wire may not be connected to the G terminal.

Loosen the terminal block screws. Insert wires then retighten the terminal block screws.

Place nonammable insulation into the wall opening to prevent drafts.

Wiring Tips

C Terminal

The C (common wire) terminal does not have to be connected when the thermostat is powered by batteries.

Wire Specications

Use shielded or non-shielded 18-22 gauge thermostat wire.

Failure to disconnect the power before beginning to install this product can cause electrical shock or equipment damage.

Note:

In many heat pump systems with no emergency heat relay, a jumper can be installed between E and W2 to turn thermostat into a single stage control for Emergency Heat Operation.

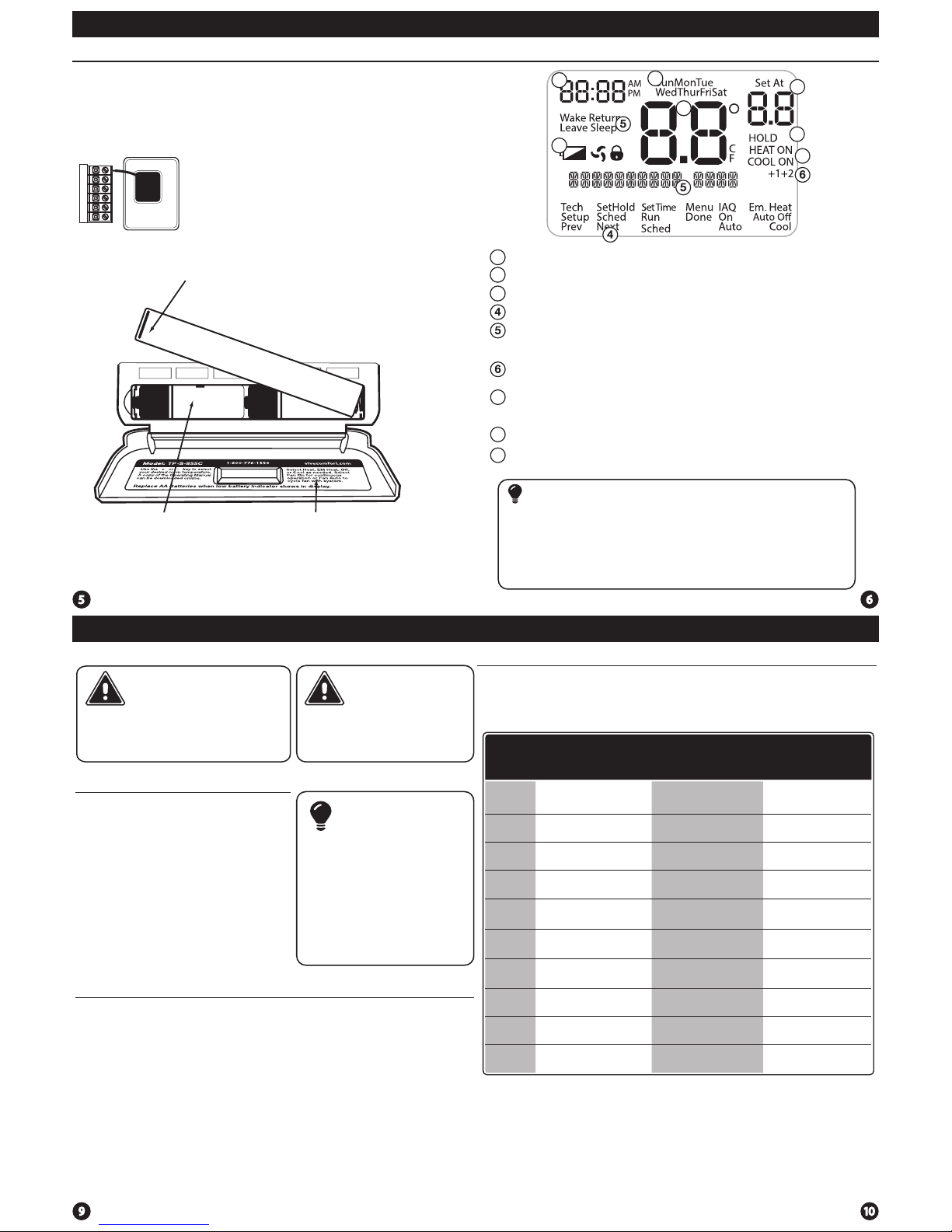

Thermostat Quick Reference

The low battery indicator is displayed when the AA battery power is low. If the user fails to replace the battery within 21 days, the screen will only show the low battery indicator but maintain all functionality. If the user fails to replace the batteries after an additional 21 days (days 22-42 since rst “low battery” display) the setpoints will change to 55˚F (Heating) and 85˚F (Cooling). If the user adjusts the setpoint away from either of these, it will hold for 4 hours then return to either 55˚F or 85˚F. After day 63 the batteries must be replaced immediately to avoid freezing or overheating because the thermostat will shut the unit o until the batteries are changed.

Important

Indicates the current room temperature

Time and day of the week

Staging Indicators: +1 will appear in the display when second stage of

heat or cool is on. +2 will appear for the third stage of heat.

Setpoint: Displays the user selectable setpoint temperature.

Hold: is displayed when the thermostat program is permanently overridden.

System Operation Indicators:

If these or the Fan indicator are ashing, it means that the system is in a delay of some type (compressor delay, cooling fan delay, staging delay).

Low Battery Indicator: Replace batteries when this indicator is shown.

Program Menu Options: Show dierent options during programming.

Program Time Periods - Residential: Uses 4 time periods - WAKE, RETURN,

LEAVE & SLEEP. Commercial: Uses 2 or 4 time periods that appear in the text eld - Occupied & Unoccupied.

Getting to know your thermostat

Thermostat Quick Reference

Battery Installation

Battery installation is recommended even if the thermostat is hardwired (C terminal connected). When the thermostat is hardwired and batteries are installed, the thermostat will activate a compressor delay of 5 minutes when it detects a power outage from the hardwired power supply.

Important:

High quality alkaline batteries are recommended. Rechargeable batteries or low quality batteries do not guarantee a 1-year life span.

Insert 2 AA Alkaline batteries (included). High quality alkaline batteries are recommended.

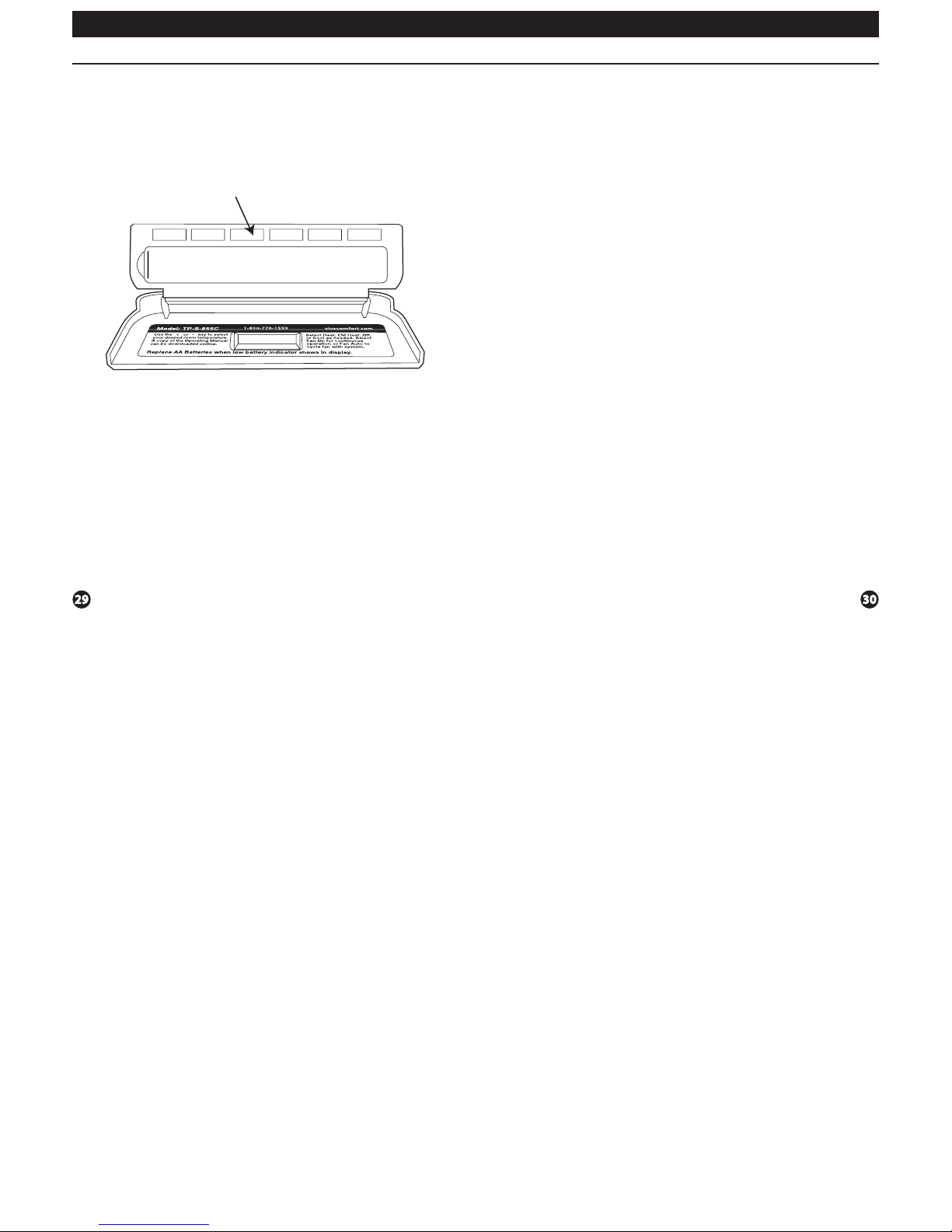

Simple operating instructions are found on the back of the battery door.

To release battery cover press nger bevel on the left side and lift the cover to access batteries.

Page 3

Getting to know your thermostat

Glow in the dark light button

Setpoint buttons

Program buttons

Menu button

Fan button

LCD Display

4-6

System button

Button/battery access door

Battery cover

Gently slide a screwdriver into the bottom edge of the badge. Gently turn the screwdriver counter clockwise. The badge is held on by a magnet in the well of the battery door. The badge should pry o easily. DO NOT USE FORCE.

About The Badge

All of our thermostats use the same universal magnetic badge. Visit the company website to learn more about our free private label program.

Private Label Badge

Magnet in door

Use the bevel on lower ridge

Thermostat Quick Reference

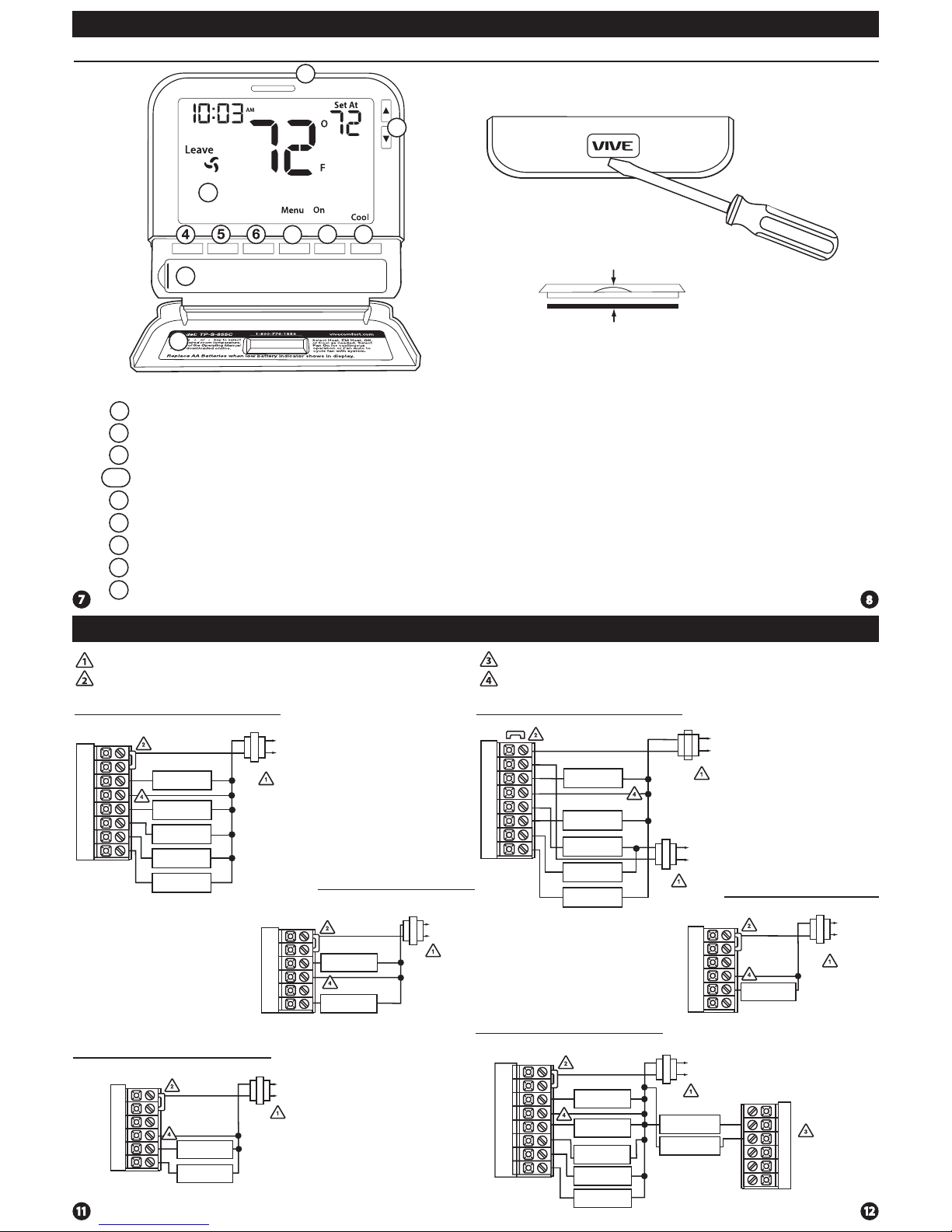

Wiring Diagrams Wiring Diagrams

Typical 2H/2C System: 1 Transformer Typical 2H/2C System: 2 Transformer

Typical 3H/2C or 2H/1C Heat Pump System

Typical Heat-Only System

Typical Heat Only System With Fan

Typical Cool-Only System

HEAT RELAY

RC RH

Y C

W/E

L2 L1(HOT)

FAN RELAY

HEAT RELAY

RC RH

Y C

W/E

L2 L1(HOT)

FAN RELAY

COMPRESSOR

RELAY

L2 L1(HOT)

RC RH

Y C

Power supply

Factory-installed jumper. Remove only when installing on 2-transformer systems

Use either O or B terminals for changeover valve

Optional 24 VAC common connection when thermostat is used in battery power mode

W/E

RC RH

Y C

W/E

COMPRESSOR

RELAY

FAN RELAY

AUXILIARY

HEAT RELAY

COMPRESSOR

RELAY 2

EMERGENCY

HEAT RELAY

COOL CHANGE

OVER VALVE

HEAT CHANGE

OVER VALVE

L2 L1(HOT)

REMOVE JUMPER

RC RH

Y C

W/E

L2 L1(HOT)

COMPRESSOR

RELAY

HEAT RELAY

FAN RELAY

HEAT RELAY 2

COMPRESSOR

RELAY 2

RC RH

Y C

W/E

COMPRESSOR

RELAY

FAN RELAY

HEAT RELAY 2

COMPRESSOR

RELAY 2

HEAT RELAY

L2 L1(HOT)

O B

Page 4

This allows you to select the minimum number of minutes that the fan will run per IAQ mode cycle. The thermostat will keep track of fan runtime from normal heat and cool operation. If additional fan runtime is needed, the thermostat will run the fan to satisfy the IAQ mode minutes.

IAQ Mode

Minutes

Select 1, 5, 10, 15, 20, 30 or 45 minutes.

When IAQ fan mode is enabled, it will ensure the fan runs at least the selected number of minutes per IAQ Mode Cycle.

This step will not appear if previous step is set to “OFF”.

This feature allows a delay to occur if an additional stage is needed. This allows the previous stage extra time to satisfy the setpoint.

Staging

Delay

Use the or key to turn on or o.

OFF

IAQ MODE MINUT

Satisfy

Setpoint

This feature allows the thermostat to keep multiple stages of heat or cool energized until the setpoint is satised.

SS STAGING

Use the or key to select OFF, 5, 10, 15, 30, 45, 60, or 90 minutes.

OFF

STAGING dl

The cooling fan delay setting will delay the fan from coming on in cool mode and keep it running after the compressor shuts o for a short time to save energy in some systems.

Cooling Fan

Delay

OFF

You can set the cooling fan delay to OFF, 15, 30, 60 or 90 seconds. If 15, 30, 60, or 90 is selected the fan will not turn on for that many seconds when there is a call for cool and will run for that many seconds after satisfying a call for cool.

COOL FAN DL

IAQ Mode

Cycle

This feature will congure the fan to run a selected number of cycles per hour. Note: This mode can be enabled or disabled at anytime during normal operation by selecting IAQ mode with the fan key.

Select OFF, 1, 2, 3 or 4 with the or keys. This sets the number of cycles per hour that the IAQ fan mode will operate.

OFF

IAQ MODE CYCLE

Tech Setup Steps Adjustment Options Default

LCD Will Show

Technician Setup Menu

For Dual Fuel applications (Gas/ Fossil fuel Auxiliary Heat), turn this setting ON to LOCKOUT the Heat Pump (Y) when Auxiliary Heat (W2) is on. If desired - This can also be used with Electric Auxiliary.

You can congure the system switch for the particular application. Heat - O - Cool, Heat - O, Cool O, Heat - O - Cool - Auto Note: EM. Heat will show if in heat pump mode.

System Set

Use the or key until the desired application is ashing.

AUTO = Auto changeover

You can congure the thermostat to operate a 3 stage heat pump system. 2H 2C = 2 heat, 2 cool 3H 2C = 3 heat, 2 cool This feature is shown only if the HEAT PUMP technician setup step is ON.

Stages of

Heat

Use the or key to change between 2 or 3 stages of heat. 2 heat will use Y1 as rst stage and W2 as auxiliary. 3 heat will use Y1 as the rst stage, Y2 as the second stage and W2 as the auxiliary.

Dual Fuel

Auxiliary for

Heat Pump

Will only appear if

Heat Pump setting is

turned ON

OFF Will allow Y(1st stage of Heat) and W2 (Aux Heat) to run together if called for.

ON Will de-energize Y terminal 45 seconds after a call for Auxiliary Heat (W2).

Heat Pump

When turned on the thermostat will operate a heat pump.

1. EM. Heat will show as an option in the system switch.

2. Y will be rst stage of heat & cool, W/E will be emergency heat relay & W2 will be auxiliary heat relay.

OFF congures the thermostat for non heat pump systems.

ON congures the thermostat for heat pump systems.

OFF

HEAT

OFF

COOL

OFF

2H2C

STAGES

Tech Setup Steps

Adjustment Options

Default

LCD Will Show

Technician Setup Menu

This feature allows the installer to change the calibration of the room temperature display. For example, if the thermostat reads 70˚ and you would like it to read 72˚ then select +2.

OFF

This feature will ash a reminder after the elapsed run time to remind the user to change the lter. A setting of “OFF” will disable this feature.

Filter Change

Reminder

You can adjust the lter change reminder from “OFF” to 2000 hours of runtime in 50 hour increments.

Tech Setup Steps

Room

Temperature

Calibration

0˚F

This feature allows the installer to select the minimum run time for the compressor. For example, a setting of 4 will force the compressor to run for at least 4 minutes every time the compressor turns on, regardless of the room temperature.

You can set the minimum compressor run time to “OFF”, “3”, “4”, or “5” minutes. If 3,4 or 5 is selected, the compressor will run for at least the selected time before turning o.

Minimum

Compressor

On Time

OFF

You can adjust the room temperature display to read up to 4˚above or below the factory calibrated reading.

Adjustment Options Default

LCD Will Show

OFF

CAL

OFF

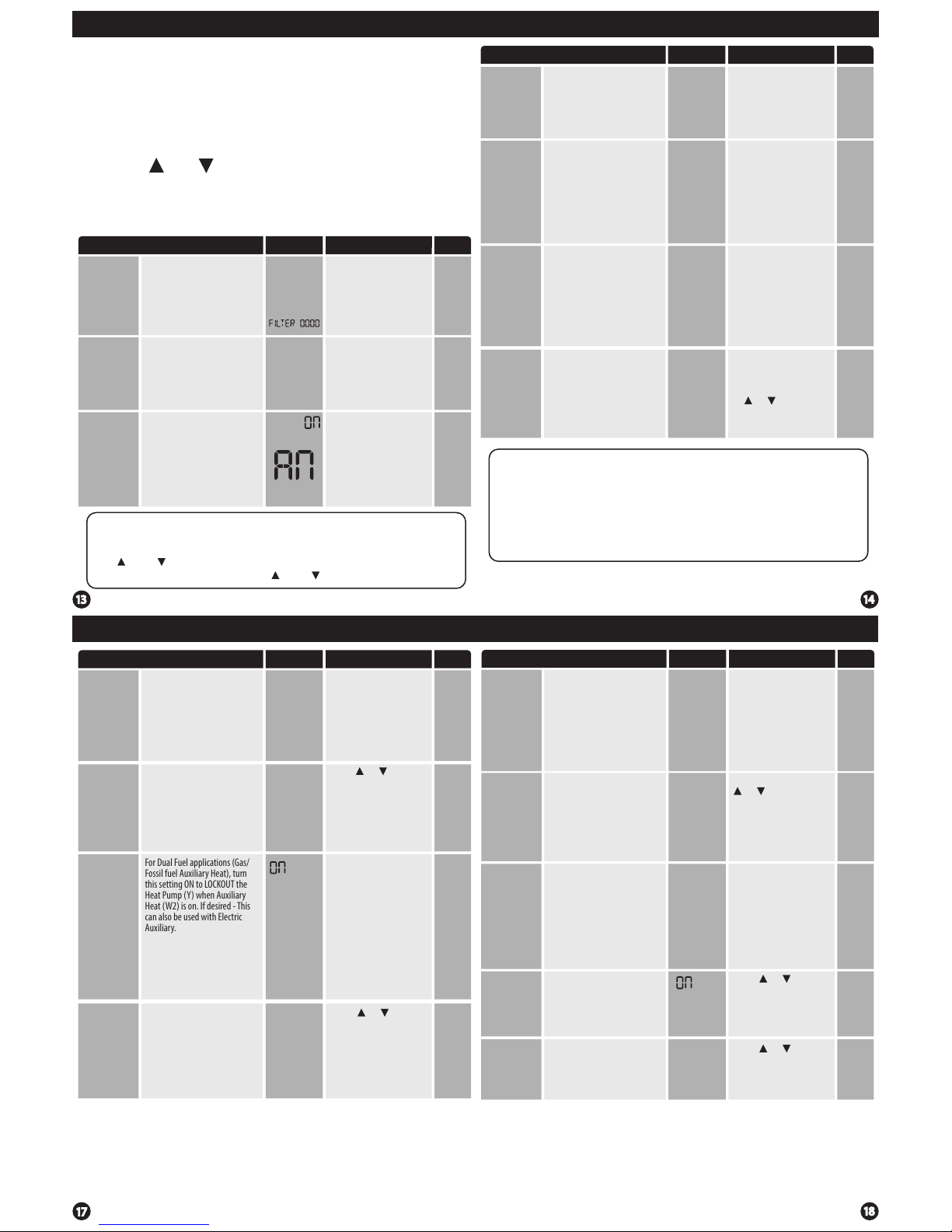

Technician Setup Menu

This thermostat has a technician setup menu for easy installer conguration. To set up the thermostat for your particular application:

1. Press the MENU button.

2. Press and hold the TECH SET button for 3 seconds. This 3 second delay is designed so that homeowners do not accidentally access the installer settings.

3. Congure the installer options as desired using the table below.

Use the or keys to change settings and the NEXT STEP or PREV STEP key to move from one step to another. Note: Only press the DONE key when you want to exit the Technician Setup options.

4. Press the DONE key to exit.

Keypad Lockout Note: The selected keypad lockout functionality must be activated after exiting tech setup. If you do not perform this procedure, all keys will function freely. To lock the keypad hold down the and keys for 3 seconds. You will see a lock in the display. To unlock the display hold down the and keys for 3 seconds.

The compressor short cycle delay protects the compressor from “short cycling”. This feature will not allow the compressor to be turned on for 5 minutes after it was last turned o.

Compressor

Short Cycle

Delay

Selecting “ON” will not allow the compressor to be turned on for 5 minutes after the last time the compressor was on. Select “OF” to remove this delay.

ON OF

Tech Setup Steps Adjustment Options Default

LCD Will Show

Keypad

Lockout

Keypad lockout allows you to congure the thermostat so that some or all of the keys don’t function.

OF= keypad lockout has been disabled. PA= partial keypad lockout, which locks all the keys except the or keys. FU= full keypad lockout, which locks out all the keys.

See Keypad Lockout Note

The swing setting often called “cycle rate”, “dierential” or “anticipation” is adjustable. A smaller swing setting will cause more frequent cycles and a larger swing setting will cause fewer cycles.

Cooling

Swing

The cooling swing setting is adjustable from 0.2˚ to 2˚. For example: A swing setting of 0.5˚ will turn the cooling on at approximately

0.5˚ above the setpoint and turn the cooling o at approximately 0.5˚ below the setpoint.

The swing setting often called “cycle rate”, “dierential”, or “anticipation” is adjustable. A smaller swing setting will cause more frequent cycles and a larger swing setting will cause fewer cycles.

Heating

Swing

0.5

dFCO

0.5˚

The heating swing setting is adjustable from 0.2˚ to 2˚. For example: A swing setting of 0.5˚ will turn the heating on at approximately 0.5˚ below the setpoint and turn the heating o at 0.5˚ above the setpoint.

0.4˚

0.4

dFHE

Swing Setting Tip

The second stage will turn on at 2x the swing setting. The second stage will turn o when 1x the swing is reached. For example, if the swing setting is .5 degrees for heating and the thermostat is set at 70˚F, the rst stage will turn on at approximately 69.5˚F. The second stage will turn on at 69˚F. The second stage will turn o at 69.5˚F and the rst will turn o at 70.5˚F. If the third stage is used, it will turn on at 68.5˚F and turn o at approximately 69˚F.

Technician Setup Menu

HEAT OFF COOL

CALIBRATE

MIN COMP

HEAT PUMP

SYSTEM SET

COMP DELAY

COOL SWING

HEAT SWING

KEY LOCK

OFF

Page 5

Reminders

Once a reminder has been turned on and set, the elapsed time can be checked by navigating to its tech setup step. The elapsed time will then appear in the text eld. It can also be reset at that time by holding down the set time/run sched button for 3 seconds. Resetting an expired reminder can be done without entering tech setup, by holding down the set time/run sched button for 3 seconds from the home screen.

A Note about IAQ Mode

This programmable/selectable mode will operate the fan 1-4 cycles per hour, 1-45 minutes per cycle. Once programmed in tech setup, to enable this mode select “IAQ” with the fan key. Disable this mode by selecting “ON” or “AUTO” with the fan key.

Enables a reminder for the user to change the humidity pad.

Humidity Pad

Reminder

Enables a reminder for the user to change the UV light bulb.

UV Lamp

Reminder

OFF

Use the or key to select OFF, 600, 1000, 1500, or 2000. These represent hours of heat operation.

Enables a reminder for the user to change the PHI Cell after 25,000 hrs.

IAQ Cell

Reminder

Use the or key to select OFF, or 250 (stands for 25,000 hours).

OFF

HUM PAD 2000

OFF

UVLAMP 00000

Use the or key to select OFF, 1YEAR, 2YEAR.

OFF

250

Tech Setup Steps Adjustment Options Default

LCD Will Show

Technician Setup Menu

Programming

Set Time

Follow the steps below to set the day of the week and current time:

1. Press the MENU button.

2. Press SET TIME.

3. Day of the week is ashing. Use the or key to

select the current day of the week.

4. Press NEXT.

5. The current hour is ashing. Use the or key to

select the current hour. When using 12-hour time, make sure the correct a.m. or p.m. choice is selected.

6. Press NEXT.

7. Minutes are now ashing. Use the or key to

select current minutes.

8. Press DONE when completed.

(If using programming)

All our programmable thermostats are shipped with an energy saving default program. You can customize this default program by following the instructions in the set program schedule section starting on page 24.

Programming

Your thermostat can be programmed to have each day of the week programmed uniquely (7 days), all the weekdays the same with a separate program for Saturday and a separate program for Sunday (5+1+1), or non-programmable. For the 7-day and 5+1+1 programming modes, there are three time period options.

1. “4” Residential (WAKE, LEAVE, RETURN, SLEEP)

2. “2C” Commercial (OCCUPIED, UNOCCUPIED)

3. “4C” Commercial (OCCUPIED 1, UNOCCUPIED 1, OCCUPIED 2, UNOCCUPIED 2)

This thermostat has a programmable fan feature, which allows you to run the fan continually during any time period.

This feature allows you to set a minimum cooling setpoint limit. The setpoint temperature cannot be lowered below this value.

This feature allows you to set a maximum heating setpoint limit. The setpoint temperature cannot be raised above this value.

Heating

Temperature

Setpoint

Limit

Use the or key to select the maximum heat setpoint.

This feature allows you to display temperatures in either Fahrenheit or Celsius.

˚F or ˚C

˚F

˚F for Fahrenheit ˚C for Celsius

You can select either a 12 or 24 hour clock setting.

12 or 24

Hour Clock

Select GAS for systems that control the fan during a call for heat. Select ELEC to have the thermostat control the fan during a call for heat.

Fan

Operation

12H

HOUR CLOCK

GAS

ELE

Cooling

Temperature

Setpoint

Limit

Use the or key to select the minimum cool setpoint.

44˚F

90˚F

Use the or key to select 12 or 24 hour clock.

GAS or ELEC

This feature will start heating early to bring the building temperature to its programmed setpoint by the beginning of the WAKE, OCCUPIED time period.

Morning

Recovery

Use the or key to turn on or o.

You can congure this thermostat to have a 7 day program, a 5+1+1 program or as nonprogrammable.

Program

Options

Use the or key to select 7d for 7 day, 5d for 5+1+1, or 0d for nonprogrammable.

The display light can be congured to stay on all the time or come on when any key is pressed. NOTE: HARDWIRE ONLY Keeping the display light continually “ON” will greatly reduce battery life.

The pre-occupancy fan settings will energize the fan before the occupied time to provide ventilation prior to scheduled occupancy. This feature only shows if the technician setup step for time periods is set to 2C or 4C.

Pre-Occupancy

Fan

You can select the pre-occupancy fan from OFF, 1, 2, or 3 hours.

If 1, 2, or 3 is selected, the fan will turn on that many hours prior to the scheduled occupied time period.

Tech Setup Steps

Allows you to put your phone number in the display.

You can choose ON or OFF.

Contractor

Call Number

If selected ON, you will see the input screen after pressing NEXT STEP. Use the or key to select the desired number and the FAN or SYSTEM key to move from one character to another. See note below for operation.

Adjustment Options Default

LCD Will Show

When any key is pressed an audible beep will sound.

You can choose ON or OFF.

Beep

PRE OCCUPY FAN

Display Light

Use the or key to to turn on or o. OFF congures the display light to come on when the light key or any button is pressed. ON congures the display light to stay on.

Time Periods

You can congure this thermostat to have 2 or 4 programmable time periods per day. 4 time periods are Wake, Leave, Return & Sleep. 2C time periods are Occupied & Unoccupied. 4C time periods are Occupied 1, Unoccupied 1, Occupied 2, & Unoccupied 2.

Use the or key to select 4, 2c, or 4c time periods per day.

OFF

If ON is selected the beep will sound.

If OFF is selected there is no sound.

OFF

Tech Setup Steps Adjustment Options Default

LCD Will Show

Contractor Call Number Note

If contractor call number is selected ON, the phone number entered will show in the display if there has been a continuous call for heating or cooling for 24 hours or if the light button is held down for 3 seconds. To remove the phone number from the display, hold the light button down for 3 seconds.

Technician Setup Menu Technician Setup Menu

OFF

MORN RECOV

PROGRAM

TIME PERIOD

Page 6

Programming Programming

Set Program Schedule For Two Time Periods

1. Select HEAT or COOL with the SYSTEM key. Note: You have to program heat and cool each separately.

2. Press the MENU button (If menu does not appear rst, press RUN SCHED).

3. Press SET SCHED. Note: Monday-Friday is displayed and the

OCCUPIED text is shown. You are now programming the OCCUPIED time period for the weekday setting.

4. Time is ashing. Use the or key to make your time selection for the weekday OCCUPIED time period. Note: If you want the fan to run continuously during this time period, select ON with the FAN key. If you want to use IAQ mode during this time period, select IAQ with the fan key.

5. Press NEXT.

6. The setpoint temperature is ashing. Use the or key

to make your setpoint selection for the weekday OCCUPIED period.

7. Press NEXT.

8. Repeat steps 4 through 7 for the weekday UNOCCUPIED time period.

To customize your 5+1+1 Program schedule, follow these steps:

Weekday:

Repeat steps 4 through 7 for the Saturday OCCUPIED time period and for the Saturday UNOCCUPIED time period.

Saturday:

Repeat steps 4 through 7 for the Sunday OCCUPIED time period, and for the Sunday UNOCCUPIED time period.

Sunday:

(OCCUPIED, UNOCCUPIED)

1. Select HEAT or COOL with the SYSTEM key. Note: You have to program heat and cool each separately.

2. Press the MENU button (If menu does not appear rst, press RUN SCHED).

3. Press SET SCHED. Note: Monday is displayed and the

WAKE/OCC1 icon is shown. You are now programming the WAKE/OCC1 time period for that day.

4. Time is ashing. Use the or key to make your time selection for that day’s WAKE/OCC1 time period. Note: If you want the fan to run continuously during this time period, select ON with the FAN key. If you want to use IAQ mode during this time period, select IAQ with the FA N key.

5. Press NEXT.

6. The setpoint temperature is ashing. Use the or key

to make your setpoint selection for that day’s WAKE/OCC1 period.

7. Press NEXT.

8. Repeat steps 4 through 7 for that day’s LEAVE/UNOCC1 time period, for that day’s RETURN/OCC2 time period, and for that day’s SLEEP/UNOCC2 time period.

To customize your 7 day 4 time period Program schedule, follow these steps:

Monday:

Repeat steps 4 through 8 for the remaining days of the week.

A Note About Auto Changeover:

In Auto you have the ability to switch between Auto Heat or Auto Cool by pressing the system key. This can be done once the current mode has reached its setpoint. For example: if in Auto Heat, the heat setpoint must be satised before the thermostat will allow you to switch to Auto Cool. You can switch out of Auto by holding down the system key. To get back into Auto, you must toggle the system key to Auto.

Default Programming

Factory Default Program

Day of

the Week

Events Time

Setpoint

Temperature

(HEAT)

Setpoint

Temperature

(COOL)

Weekday

Saturday

Sunday

Wake/OCC1

Leave/UNOCC1

Return/OCC2

Sleep/UNOCC2

Wake/OCC1

Leave/UNOCC1

Return/OCC2

Sleep/UNOCC2

Wake/OCC1

LeaveUNOCC1

Return/OCC2

Sleep/UNOCC2

6 AM

8 AM

6 PM

10 PM

6 AM

8 AM

6 PM

10 PM

6 AM

8 AM

6 PM

10 PM

70˚F (21˚C)

62˚F (17˚C)

70˚F (21˚C)

62˚F (17˚C)

70˚F (21˚C)

62˚F (17˚C)

70˚F (21˚C)

62˚F (17˚C)

70˚F (21˚C)

62˚F (17˚C)

70˚F (21˚C)

62˚F (17˚C)

75˚F (24˚C)

83˚F (28˚C)

75˚F (24˚C)

78˚F (26˚C)

75˚F (24˚C)

83˚F (28˚C)

75˚F (24˚C)

78˚F (26˚C)

75˚F (24˚C)

83˚F (28˚C)

75˚F (24˚C)

78˚F (26˚C)

Programming

Factory Default Program for 2 Time Periods

Day of

the Week

Events Time

Setpoint

Temperature

(HEAT)

Setpoint

Temperature

(COOL)

Weekday

Saturday

Sunday

OCCUPIED

UNOCCUPIED

OCCUPIED

UNOCCUPIED

OCCUPIED

UNOCCUPIED

8 AM

6 PM

8 AM

70˚F (21˚C)

64˚F (18˚C)

72˚F (22˚C)

80˚F (27˚C)

8 AM

70˚F (21˚C)

64˚F (18˚C)

70˚F (21˚C)

64˚F (18˚C)

72˚F (22˚C)

80˚F (27˚C)

72˚F (22˚C)

80˚F (27˚C)

You can use the table on the next page to plan your customized program schedule if using 5+1+1.

Programming

Page 7

Programming

Programming Features

A Note About Programmable Fan:

The programmable fan feature will run the fan continuously during any time period it is programmed to be on. This is the best way to keep the air circulated and to eliminate hot and cold spots in your building. If using IAQ mode, set fan to IAQ for any time period.

1. Select HEAT or COOL with the SYSTEM key. Note: You have to program heat and cool each seperately.

2. Press the MENU button (If menu does not appear rst press RUN SCHED).

3. Press SET SCHED. Note: Monday is displayed and the OCCUPIED text is shown. You are now programming the OCCUPIED time period for that day.

4. Time is ashing. Use the or key to make your time selection for that day’s OCCUPIED time period. Note: If you want the fan to run continuously during this time period, select ON with the FAN key. If you want to use IAQ mode during this time period, select IAQ with the fan key.

5. Press NEXT.

6. The setpoint temperature is ashing. Use the or key

to make your setpoint selection for that day’s OCCUPIED period.

7. Press NEXT.

8. Repeat steps 4 through 7 for that day’s UNOCCUPIED

time period.

Monday:

Repeat steps 4 through 8 for the remaining days of the week.

To customize your 7 day 2 time period program schedule, follow these steps:

Temporary Hold: The thermostat will display HOLD and RUN SCHED

on the bottom of the screen when you press the or key. If you do nothing, the temperature will remain at this setpoint temporarily for 4 hours. The program setpoint will then replace the temporary setpoint.

Permanent Hold: With a temporary hold set, If you press the HOLD key at the bottom of your screen, you will see HOLD appear below the setpoint temperature in the display. The thermostat will now permanently stay at this setpoint and can be adjusted using the or keys.

To Return To Program: Press the RUN SCHED key at the bottom of the screen to exit temporary and permanent holds.

Temporary & Permanent Hold Feature

Custom Program

Day of

the Week

Events Time

Setpoint

Temperature

(HEAT)

Setpoint

Temperature

(COOL)

Weekday

Saturday

Sunday

Wake/OCC1

Leave/UNOCC1

Return/OCC2

Sleep/UNOCC2

Wake/OCC1

Leave/UNOCC1

Return/OCC2

Sleep/UNOCC2

Wake/OCC1

LeaveUNOCC1

Return/OCC2

Sleep/UNOCC2

Occupied

Unoccupied

Occupied

Unoccupied

Occupied

Unoccupied

Set Program Schedule For Four Time Periods

1. Select HEAT or COOL with the system switch. Note: You have to program heat and cool each separately.

2. Press the MENU button (If menu does not appear rst press RUN SCHED).

3. Press SET SCHED. Note: Monday-Friday is displayed and the

WAKE/OCC1 icon is shown. You are now programming the WAKE/OCC1 time period for the weekday setting.

4. Time is ashing. Use the or key to make your time selection for the weekday WAKE/OCC1 time period. Note: If you want the fan to run continuously during this time period, select ON with the FAN key. If you want to use IAQ mode during this time period, select IAQ with the FA N key.

5. Press NEXT.

6. The setpoint temperature is ashing. Use the or key

to make your setpoint selection for the weekday WAKE/OCC1 period.

7. Press NEXT.

8. Repeat steps 4 through 7 for the weekday LEAVE/UNOCC1 time period, for the weekday RETURN/OCC2 time period, and for the weekday SLEEP/UNOCC2 time period.

To customize your 5+1+1 Program schedule, follow these steps:

Weekday:

Repeat steps 4 through 7 for the Saturday WAKE/OCC1 time period, LEAVE/UNOCC1 time period, RETURN/OCC2 time period, and for the Saturday SLEEP/UNOCC2 time period.

Saturday:

Repeat steps 4 through 7 for the Sunday WAKEOCC1 time period, LEAVE/UNOCC1 time period, RETURN/OCC2 time period, and for the Sunday SLEEP/UNOCC2 time period.

Sunday:

(WAKE, LEAVE, RETURN, SLEEP or OCCUPIED 1, UNOCCUPIED1, OCCUPIED 2, UNOCCUPIED 2)

Programming

Page 8

Specications

The display range of temperature ... 41˚F to 95˚F (5˚C to 35˚C)

The control range of temperature.... 44˚F to 90˚F (7˚C to 32˚C)

Load Rating............................................... 1 amp per terminal, 1.5 amp

maximum all terminals combined

Swing (cycle rate or dierential) ...... Heating is adjustable from 0.2˚ to 2.0˚

Cooling is adjustable from 0.2˚ to 2.0˚

Power source ...........................................18 to 30 VAC, NEC Class II, 50/60 Hz

for hardwire Battery power from 2 AA Alkaline batteries

Operating ambient ............................... 32˚F to +105˚F (0˚C to +41˚C)

Operating humidity .............................. 90% non-condensing maximum

Dimensions of thermostat ................. 4.7” W x 4.3” H x 0.9” D

Specications

Features

If the lter change reminder is enabled, you will see a reminder in the display when your air lter needs changed. The reminder will be shown in the display after your system has run long enough to require an air lter change.

Resetting The Filter Change Reminder: When the reminder is displayed, you should change your air lter and reset the reminder by holding down the 3rd button from the left side of the thermostat for 3 seconds.

This thermostat also has other maintenance reminders (Humidity Pad, UV lamp, and IAQ Cell), that are reset with the same procedure.

Filter Change & Other Reminders
