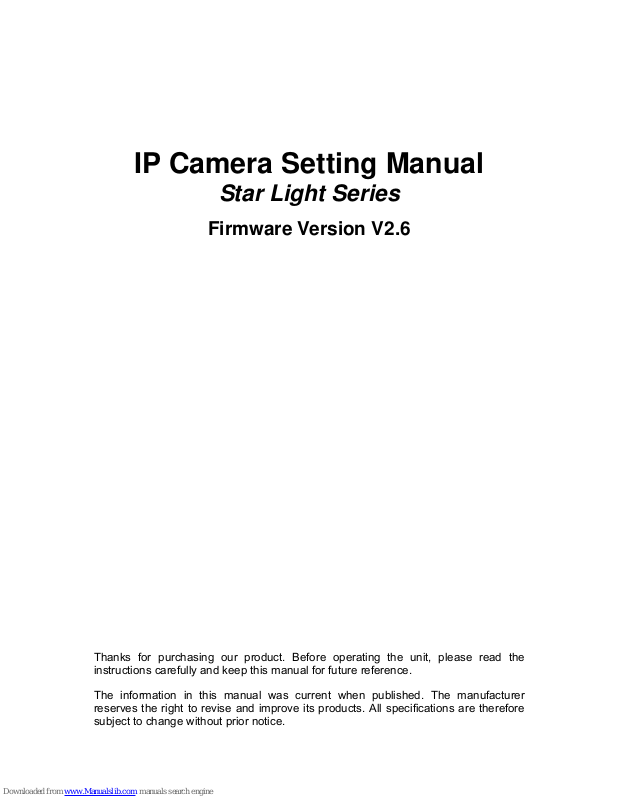

IP Camera Setting Manual
Star Light Series
Firmware Version V2.6
Thanks for purchasing our product. Before operating the unit, please read the
instructions carefully and keep this manual for future reference.
The information in this manual was current when published. The manufacturer
reserves the right to revise and improve its products. All specifications are therefore
subject to change without prior notice.
Table of Contents
1. INSTALLATION...................................................................................................................................................................... 1
1.1 INSTALLATION FLOW CHART ............................................................................................................................................... 1
1.2 DIRECT LINK...................................................................................................................................................................... 2
1.3 LINK VIA HUB / POE HUB.................................................................................................................................................... 2
2. USER INTERFACE................................................................................................................................................................ 3
2.1 LOGIN ...............................................................................................................................................................................3
2.2 INTERFACE OVERVIEW ....................................................................................................................................................... 4
1. Live View ............................................................................................................................................... 5
2. Video ..................................................................................................................................................... 6
3. Image .................................................................................................................................................... 8
4. Audio ..................................................................................................................................................... 9
5. DateTime ............................................................................................................................................. 10
6. Network ................................................................................................................................................11
7. Alarm................................................................................................................................................... 13
8. Face Detection ..................................................................................................................................... 14
9. Storage................................................................................................................................................ 16
10. Maintain ............................................................................................................................................... 17
11. PTZ/OSD ............................................................................................................................................. 18
130820-STAR UI-V2.6-V1
1
1. Installation
1.1 Installation Flow Chart
Default Settings of IP CAM
IP Address : 192.168.1.168
User Name : admin
Password : 9999
Suggested IP Address For PC/NB
IP Address : 192.168.1.200
Subnet Mask : 255.255.255.0
Gateway : 192.168.1.1
NOTE:
Use PoE device for power supply is only available to cameras with PoE function. Cameras without PoE
function need to be connected directly to the power supply.
Power Type
DC
Check the power of PoE
Plug the Power Adapter
Connect the RJ-45 LAN cable to the IP CAM
PoE
IP setting for PC/NB
(Please see the suggested IP address)
Disable the anti-virus software and firewall
Turn on the PC/NB and log-in Windows OS
Run IE browser (IE 8.0 or above)
Type the URL http://192.168.1.168
and get into IP CAM setting window
FI N IS H
Get into the IP CAM setting window
User Name: admin / Password: 9999
Make sure PC installed with JAVA Version 6
Update 27 or above when installing IP CAM for the
first time
START
130820-STAR UI-V2.6-V1
2
1.2 Direct Link
Make sure PC installed with JAVA Version 6 Update 27 or above
(1) Plug the power adapter to IP CAM.
(2) Run the IE browser with http://192.168.1.168
(3) When the log-in window pop-up, please input the User Name and Password.
(4) Whenever the connection is ready, the main page (setting window) of IP CAM will show
on.
1.3 Link via Hub / PoE Hub
(“Link via PoE Hub” applied only to models with PoE function)
Make sure PC installed with JAVA Version 6 Update 27 or above
(1) Run the IE browser with http://192.168.1.168
(2) When the log-in window pop-up, please input the User Name and Password.
(3) Whenever the connection is ready, the main page (setting window) of IP CAM will show
on.
Adapter
Cat-5 LAN cable
PoE / Hub
Cat-5 LAN cable
Cat-5 LAN cable
130820-STAR UI-V2.6-V1
3
2. USER INTERFACE
2.1 Login
1. Start the browser, and input
http://192.168.1.168/ in the address field, then press Enter.
NOTE:
It is strongly suggested that the user browse with Internet Explorer. Browsers other than
Internet Explorer are NOT fully supported when the manual published, hence, the
manufacturer WILL NOT BE LIABLE FOR ANY LOSS OR DAMAGE CAUSED.
2. Enter User Name and Password In the prompt window, and click OK.
The default User Name and Password is admin and 9999. You will need to enter the account and password
every time whenever you restart the application or reconnect.
130820-STAR UI-V2.6-V1
4
2.2 Interface Overview
After login to the system, the screen will be displayed as below:
On the left side are the buttons of the function pages. The functions each page performs are listed
in the table below. More information will be given in the following sections. Whenever the
adjustment completed, click Submit to save the settings.
Note：
The content of the function pages may vary by model.
Live View
Video
Audio
DateTime
Network
Alarm
Storage
Maintain
PTZ/OSD
130820-STAR UI-V2.6-V1
5
1. Live View
Main page. Display the image captured by the camera.
Language:
English / 日本语 / 繁中 / 简体中文 / Россия / Magyar / Deutsch /
اناﺮﻳ / España / Polska / Nederlands / Portuguese / Francais
(Language options may vary by region)
Full Screen
Zoom in
Snapshot
Zoom out
Record & Save
Restore
Stop Recording
Information
Motion Detect
Audio On
Audio Off
Face Detect
PTZ Control (Applied only to models with PTZ function):
Stop (center button) / 8-direction Keys (outer buttons)
Zoom Out Zoom In
Wide Te l e
130820-STAR UI-V2.6-V1
6
2. Video
Modify the settings of IP video settings, stream type and local display.
Shutter / Quality / IRIS
Shutter Speed (Min)(Second)
1/2, 1/4, 1/8, 1/15, 1/25(PAL), 1/30(NTSC), 1/50(PAL),
1/60(NTSC), 1/100(PAL), 1/120(NTSC), 1/250, 1/500, 1/750,
1/1,000, 1/1,500, 1/2,000, 1/10,000, 1/100,000 sec.
Shutter Speed (Max)(Second)
1/30, 1/60, 1/120, 1/250, 1/500, 1/750, 1/1000, 1/1500,
1/2000, 1/10000, 1/100000
Shutter Speed (Level) 0~7
Quality (Level) 0~7
Auto IRIS Manual / Auto
FLC / WB / BLC
Flicker Control 60hz NTSC / 50hz PAL
White Balance
AUTO_WIDE / AUTO_NORMAL / SUNNY / SHADOW /
INDOOR / LAMP / FL1 / FL2
Back Light Compensation Off / On
Back Light Level Min / Mid / Max
WDR / IR-Cut
WDR Enhancement Off / On
WDR Level 0~7
IR-Cut Setting Auto / BW / Color / External
DNR OFF / 2D DNR / 3D DNR
Sensor Mode
LINEAR / WDR
With WDR mode, Shutter Speed Max can only set to 1/250.
130820-STAR UI-V2.6-V1
7
Stream Type
Video Streams
Single / Dual / Tri-stream
Face Detection is only available with Single video streams.
Codec Profiles H.264 / MPEG4 / MegaPixel JPEG
Resolution
H.264: 720P(1M), H.264: D1, H.264: SXGA(1.3M),
H.264:1080P(2M), H.264: 3M
Stream1 M-JPEG
Frame rate 1 / 3 / 5 / 10 / 15 / 20 / 25 / 30 fps
Quality 25 / 50 / 75
(NOTE: The content may vary by model)
130820-STAR UI-V2.6-V1
8
3. Image
Modify the settings of image, OSD and advanced image settings.
Brightness 0 ~ 255 (Default 128)
Contrast 0 ~ 255 (Default 128)
Saturation 0 ~ 255 (Default 128)
Sharpness 0 ~ 255 (Default 128)
DeNoise 0 ~ 255 (Default 128)
EV Compensation 0 ~ 255 (Default 128)
GrayScale 0 ~ 255 (Default 128)
Default Restore to the default values
ReLoad Load the previous values
Stream1 / Stream2 / Stream3 OSD
Mode Date / Time / Text
Text Position Top-Left / Top-Right
Local Display
Date Position Bottom-Right / Bottom-Left
Time Position Bottom-Right / Bottom-Left
Local Display OFF / NTSC / PAL
Rotation OFF / HORIZONTAL / VERTICAL / BOTH
Size 5 sec / 10 sec
Format H.264 (1920 x 1080)
130820-STAR UI-V2.6-V1
9
4. Audio
Modify the settings of audio.
Audio
Enable Audio Enable / Disable
Audio Mode MIC / SPEAKER / BOTH
Input volume 0~100
Sample Rate/Bitrate 8Khz/64Kbps / 16Khz/128Kbps
Output Volume 0~100
(NOTE: The content may vary by model)
130820-STAR UI-V2.6-V1
10
5. DateTime
Modify the settings of date and time.
DateTime
TimeZone Select the time zone
Day light Enable / Disable
Set Manual Date / Time Manual set the date and time
Sync Current PC Date / Time Synchronization the date and time with current PC
Sync with SNTP Server Synchronization the date and time with SNTP Server
Date Format Select the format of date
Time Format Select the format of time
130820-STAR UI-V2.6-V1
11
6. Network
Modify the settings of network and IP address.
DHCP / Static IP / PPPoE
Use DHCP Select to use DHCP for connection
Static IP Select to use static IP for connection
IP Address Domain name of IP address
Mask Domain name of mask
Gateway Domain name of gateway
DNS Domain name of DNS
PPPoE Select to use PPPoE for connection
Account Enter account
Password Enter password
Multicast
Enable Multicast Enable / Disable
H264 Main / Sub Port Communication port for H.264
MPEG4 Main / Sub Port Communication port for MPEG4
MJPEG Port Communication port for M-JPEG
130820-STAR UI-V2.6-V1
12
SMTP
SMTP Auth Enable / Disable SMTP authentication
Account Enter account
Password Enter password
Sender Assign mail address of Sender
Server Domain name of SMTP server
Mail list List of mail account
FTP Server
FTP Server Domain name of FTP server
Port 21
Account Enter account
Password Enter password
Upload Path Assign upload path
DDNS
DDNS Enable / Disable
Domain Domain name of DDNS server
Account Enter account
Password Enter password
Service DDNS service provider
Http / Onvif
Http Port Domain name of HTTP port
OnvifPort 8080 (Using Onvif must sync PC time)
SNTP Server
SNTP Server Domain name of SNTP server
SNMP Server
SNMP Server Domain name of SNTP server
130820-STAR UI-V2.6-V1
13
7. Alarm
Modify the settings of alarm trigger and actions.
Alarm
Enable Alarm Enable / Disable
Alarm Duration The duration of alarm
Alarm Trigger
Motion Motion trigger alarm (None support for single M-JPEG)
Ethernet Lost Trigger alarm on Ethernet loss
DI1 Mode Trigger mode for DI
DI1 Level Alarm level of DI
Face Detect Advanced Set
Click to enter the sub menu for further settings.
To activate Face Detect Advanced Set, make sure the video
streams is set to Single. (Refer to the section of Video.)
Alarm Action
Upload via FTP Upload via FTP on receiving alarm signal
Upload via SMTP Upload via SMTP on receiving alarm signal
Local Storage Save Save to local storage on receiving alarm signal
Play Sound
Play sound on receiving alarm signal
(Need to enable Speaker in Audio Mode)
DO1 Mode Trigger mode for DO
DO1 Level Alarm level of DO
130820-STAR UI-V2.6-V1
14
8. Face Detection
Modify the settings of face detection settings.
Face Detection Sub Menu
Face Detect
Off / On
Set On to enable Face Detect function.
Fdx Axis
0~1280
The default is 0, the largest detection area (whole screen).
To narrow down the detection area, add the value by
dragging the bar or click on +/- icon.
Fdy Axis
0~960
The default is 0, the largest detection area (whole screen).
To narrow down the detection area, add the value by
dragging the bar or click on +/- icon.
FdConfLevel
0~75
The default is 75, the highest detection sensitivity.
To decrease the detection sensitivity, subtract the value by
dragging the bar or click on +/- icon.
Reload Load the previous values
Fd Direction
UP / LEFT / RIGHT
The default is UP, the normal upward direction.
To change the detection direction, switch to LEFT
(counterclockwise) or RIGHT(clockwise).
130820-STAR UI-V2.6-V1
15
Check the settings in the preview window.
Check the face detection function in Live View page.
If the face detection function is on, Face Detect icon will be flashing and the snapshots will be
automatically saved to the assigned folder every 30 seconds.
130820-STAR UI-V2.6-V1
16
9. Storage
Modify the settings of storage and files upload.
Storage
Upload via FTP File format for upload via FTP
Local Storage Save File format for save files
Schedule Set the storage schedule time of a week
130820-STAR UI-V2.6-V1
17
10. Maintain
Maintain the user name, password and update the firmware.
Maintain
Current Version Current version of the firmware
Mac Address Mac address assigned by production
Firmware Update
Browse and select the firmware downloaded from official site,
and click Update to update the firmware
IP CAM Restart Reboot this IP camera after firmware updated
Snapshot Record Folder
Click select to select a folder to save snapshots and
real-time recording data
Name / Password Change the login User Name and Password
Authority Change the authority level of users
User List User list of this IP camera
Add / Del User Add / Delete the user
Log List Login list of this IP camera
SD format Format the SD in use
130820-STAR UI-V2.6-V1
18
11. PTZ/OSD
Define the commands of PTZ (Pan/Tile/Zoom)/OSD. The default protocol is Pelco D and Pelco
P. Use protocols other than Pelco D and Pelco P, define the commands in the field of
Customize.
General
Full Screen PTZ Enable / Disable Full Screen PTZ
ID 0~255
Baud 1200 / 2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200
Pelco D / Pelco P
Zoom
0~3
Pan
0~63
Tilt
0~63
Customer
Stop
Up / Down
Left / Right
Zoom in / Zoom out
Wide / Tele
SET: Create and define commands
Loading...
