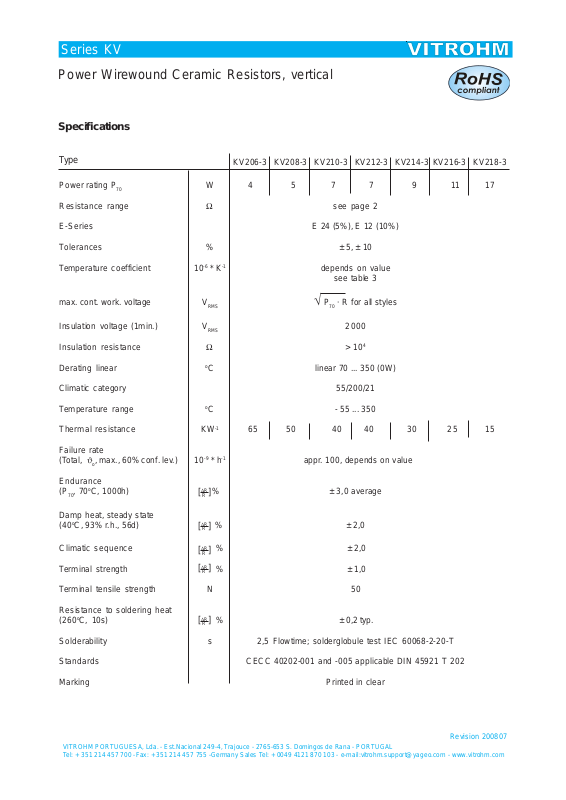

Page 1
Series KV
Power Wirewound Ceramic Resistors, vertical
Specifications
Type
Power rating P
70
KV206-3 KV208-3 KV210-3 KV212-3 KV214-3 KV216-3 KV218-3
W4 5 77 91117
Resistance range Ω see page 2
E-Series E 24 (5%), E 12 (10%)
Tolerances % ± 5, ± 10
Temperature coefficient 10-6 * K
-1
depends on value
see table 3
√ P
max. cont. work. voltage V
Insulation voltage (1min.) V
RMS
RMS
Insulation resistance Ω > 10
Derating linear
o
C linear 70 ... 350 (0W)
· R for all styles
70
2000
4
Climatic category 55/200/21
Temperature range
Thermal resistance KW
o
C - 55 ... 350
-1
65 50 40 40 30 25 15
Failure rate
(Total, ϑo, max., 60% conf. lev.) 10-9 * h
-1
appr. 100, depends on value
Endurance
(P70, 70oC, 1000h) % ± 3,0 average
Damp heat, steady state
o
(40
C, 93% r.h., 56d) % ± 2,0
Climatic sequence % ± 2,0
Terminal strength % ± 1,0
[∆R]
R
[∆R]
R
[∆R]
R
[∆R]
R
Terminal tensile strength N 50
Resistance to soldering heat
(260oC, 10s) % ± 0,2 typ.
[∆R]
R
Solderability s 2,5 Flowtime; solderglobule test IEC 60068-2-20-T
Standards CECC 40202-001 and -005 applicable DIN 45921 T 202
Marking Printed in clear
Revision 200807
VITROHM PORTUGUESA, Lda. - Est.Nacional 249-4, Trajouce - 2765-653 S. Domingos de Rana - PORTUGAL
Tel: + 351 214 457 700 -Fax: + 351 214 457 755 -Germany Sales Tel: + 0049 4121 870 103 - e-mail:[email protected] - www.vitrohm.com
Page 2
Series KV
Dimensions in mm:
Temperature coefficient:
Type TC +400 ±50 ppm K
206-3...210-3
212-3...218-3
Type Resistance range
Min Max L
10% 5%
1
KV206-3 0R056 0R1 9K1 20 ±1,0
KV208-3 0R075 0R15 15K 25 ±1,0
KV210-3 0R11 0R33 33K 38 ±1,0
KV212-3 0R075 0R15 15K 25 ±1,0
KV214-3 0R11 0R33 33K 38 ±1,0
KV216-3 0R15 0R51 47K 50 ±1,5
KV218-3 0R27 0R91 82K 75 ±2,0
-1
TC 0 ±40 ppm K
-1
TC 0 ±10 ppm K
-1
Packaging:
KV206 0R056 ...0R2 0R22 ... 300R 330R ... 9K1
KV208 0R075 ... 0R3 0R33 ... 470R 510R ... 15K
KV210 0R11 ... 0R68 0R75 ... 910R 1K0 ... 33K
KV212 0R075 ... 0R3 0R33 ... 470R 510R ... 15K
KV214 0R11 ... 0R68 0R75 ... 910R 1K0 ... 33K
KV216 0R15 ... 1R 1R1 ... 1K3 1K5 ... 47K
KV218 0R27 ... 1R6 1R8 ... 2K4 2K7 ... 82K
Type Packaging Pieces Pack.-Code
KV206-3 bulk 2 00 B
KV208-3 bulk 2 00 B
KV210-3 bulk 2 00 B
KV212-3 bulk 2 00 B
KV214-3 bulk 2 00 B
KV216-3 bulk 2 00 B
KV218-3 bulk 1 00 B
Ordering example: KV206-3 5 B 1 K3
VITROHM PORTUGUESA, Lda. - Est.Nacional 249-4, Trajouce - 2765-653 S. Domingos de Rana - PORTUGAL
Tel: + 351 214 457 700 -Fax: + 351 214 457 755 -Germany Sales Tel: + 0049 4121 870 103 - e-mail:[email protected] - www.vitrohm.com
Type Tolerance Pack.-Code R-Value
Revision 200807
