Page 1

www.vishay.com

Power Metal Film Leaded Resistors

PR01, PR02, PR03

Vishay BCcomponents

FEATURES

• High power in small packages (1 W / 0207 size to 3 W / 0617 size)

• Defined fusing characteristics

• Technology: metal film

• Meets active and passive flammability requirements as defined in IEC 60115-1

• AEC-Q200 qualified (PR01 and PR02)

• Material categorization: for definitions of compliance please see www.vishay.com/doc?99912

DESCRIPTION

A homogeneous film of metal alloy is deposited on a high grade ceramic body. After a helical groove has been cut in the resistive layer, tinned connecting wires of electrolytic copper or copper-clad iron are welded to the end-caps. The

APPLICATIONS

• All general purpose power applications

• Automotive electronics

• Lighting ballast

resistors are coated with a red, non-flammable lacquer which provides electrical, mechanical and climatic protection. This coating is not resistant to aggressive fluxes and cleaning solvents. The encapsulation is resistant to all cleaning solvents in accordance with IEC 60068-2-45.

TECHNICAL SPECIFICATIONS

DESCRIPTION PR01

DIN size 0207 0411 0411 0617 0617

Resistance range

Resistance tolerance

Temperature coefficient ± 250 ppm/K ± 250 ppm/K ± 250 ppm/K ± 250 ppm/K ± 250 ppm/K

Rated dissipation, P 1  R 1 W 2 W 1.3 W 3 W 2.5 W

R < 1  0.6 W 1.2 W - 1.6 W -

Thermal resistance (R

Operating voltage, U

E-series E24, E96 (± 1 %); E24 (± 5 %)

Basic specification IEC 60115-1

Stability after:

Endurance test (1000 h, P

Damp heat test (56 days) R max.: ± (3 % R + 0.1 )

Soldering (10 s, 260 °C) R max.: ± (1 % R + 0.05 )

Notes

(1)

R value is measured with probe distance of 24 mm ± 1 mm using 4-terminal method.

(2)

1 % tolerance is available for Rn-range from 1  upwards.

(1)

(2)



) 135 K/W 75 K/W 115 K/W 60 K/W 75 K/W

AC/DC 350 V 500 V 500 V 750 V 750 V

max.

) R max.: ± (5 % R + 0.1 )

0.22  to 1 M 0.33  to 1 M 1  to 1 M 0.68  to 1 M 1  to 1 M

± 1 %; ± 5 % ± 1 %; ± 5 % ± 1 %; ± 5 % ± 1 %; ± 5 % ± 1 %; ± 5 %

PR02

Cu-lead

PR02

FeCu-lead

PR03

Cu-lead

PR03

FeCu-lead

Revision: 01-Mar-16

For technical questions, contact: [email protected]

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

Document Number: 28729

Page 2

PR01, PR02, PR03

www.vishay.com

TERMINATION WIRE TYPES

PRODUCT TYPE PACKAGING CODE STYLE MATERIAL WIRE DIAMETER PITCH

A1, A5, R5 Axial Cu 0.58 mm n/a

N4 Radial Cu 0.58 mm 4.8 mm

PR01

PR02

PR03

L1 Radial Cu 0.58 mm 17.8 mm

L1 Radial FeCu 0.58 mm 17.8 mm

K1 Radial FeCu 0.58 mm 12.5 mm

A1, R5 Axial Cu 0.78 mm n/a

A1 Axial FeCu 0.58 mm n/a

N3, R2 Radial Cu 0.78 mm 4.8 mm

L1 Radial Cu 0.78 mm 17.8 mm

L1 Radial FeCu 0.58 mm 17.8 mm

B1 Radial FeCu 0.78 mm 15 mm

AC Axial Cu 0.78 mm n/a

AC Axial FeCu 0.58 mm n/a

DC Radial Cu 0.78 mm 25.4 mm

DC Radial FeCu 0.58 mm 25.4 mm

PC Radial FeCu 0.78 mm 20 mm

Vishay BCcomponents

APPLICATION INFORMATION

The power dissipation on the resistor generates a temperature rise against the local ambient, depending on the heat flow support of the printed-circuit board (thermal resistance). The rated dissipation applies only if the permitted film temperature is not exceeded. Furthermore, a high level of ambient temperature or of power dissipation may raise the temperature of the solder joint, hence special solder alloys or board materials may be required to maintain the reliability of the assembly.

These resistors do not feature a limited lifetime when operated within the permissible limits. However, resistance value drift increasing over operating time may result in exceeding a limit acceptable to the specific application, thereby establishing a functional lifetime. The designer may estimate the performance of the particular resistor application or set certain load and temperature limits in order to maintain a desired stability.

OPERATION MODE POWER

PR01 1 W

Rated dissipation

Applied maximum film temperature,

Max. resistance change at rated dissipation for resistance range:

|R/R|

(at P70) after: 1000 h 5.0 % R + 0.1 

max.



F max.

PR02 2 W

PR03 3 W

250 °C

PR01 0.22  to 1 M

PR02 0.33  to 1 M

PR03 0.68  to 1 M

Revision: 01-Mar-16

For technical questions, contact: [email protected]

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

Document Number: 28729

Page 3

PR01, PR02, PR03

www.vishay.com

PART NUMBER AND PRODUCT DESCRIPTION

Part Number: PR02000201001JA100

R02000201P 01JA1000

TYPE/SIZE VARIANT WIRE TYPES TCR/MATERIAL RESISTANCE TOLERANCE PACKAGING SPECIAL

PR0100 PR0200 PR0300

Product Description: PR02 5 % A1 1K0

0 = neutral

Z = value

overflow (special)

PR02 5 % A1 1K0

1 = Cu 0.58

(PR01)

2 = Cu 0.78

(PR02, PR03)

3 = FeCu 0.58

(PR01, PR02,

PR03)

4 = FeCu 0.78

(PR02, PR03)

0 = standard 3 digit value

1 digit multiplier

Multiplier

-3

7 = *10

-2

8 = *10

-1

9 = *10

0 = *10

1 = *10

2 = *10

3 = *10

4 = *10

F = ± 1 % J = ± 5 %

Vishay BCcomponents

N4 N3 A5

A1 AC R5

R2 L1

K1 B1

00 =

standard

TYPE TOLERANCE PACKAGING RESISTANCE VALUE

PR01 PR02 PR03

Note

• The products can be ordered using either the PRODUCT DESCRIPTION or the PART NUMBER.

1 % 5 %

N4 N3 A5 A1 AC R5

R2 L1

K1 B1

PACKAGING

PRODUCT TYPE

PR01

PR02

PR03

CODE QUANTITY DESCRIPTION PITCH

A5 5000 Ammo pack acc. to IEC 60286-1 5 mm 52 mm 75 mm x 114 mm x 260 mm

A1 1000 Ammo pack acc. to IEC 60286-1 5 mm 52 mm 78 mm x 31 mm x 260 mm

N4 4000 Ammo pack acc. to IEC 60286-2 - - 45 mm x 262 mm x 330 mm

L1 1000 Loose in bulk - - 105 mm x 70 mm x 205 mm

K1 1000 Loose in bulk - - 105 mm x 70 mm x 205 mm

R5 5000 Reel pack acc. to IEC 60286-1 5 mm 52 mm 93 mm x 300 mm x 298 mm

A1 1000 Ammo pack acc. to IEC 60286-1 5 mm 52 mm 72 mm x 60 mm x 258 mm

N3 3000 Ammo pack acc. to IEC 60286-2 - - 45 mm x 262 mm x 330 mm

L1 1000 Loose in bulk - - 105 mm x 70 mm x 205 mm

B1 1000 Loose in bulk - - 105 mm x 70 mm x 205 mm

R5 5000 Reel pack acc. to IEC 60286-1 5 mm 52 mm 100 mm x 375 mm x 375 mm

R2 2000 Reel pack acc. to IEC 60286-2 - - 90 mm x 375 mm x 375 mm

AC 500 Ammo pack acc. to IEC 60286-1 5 mm 63 mm 83 mm x 58 mm x 256 mm

DC 500 Loose in bulk - - 105 mm x 70 mm x 205 mm

PC 500 Loose in bulk - - 105 mm x 70 mm x 205 mm

TAPE

WIDTH

1K0 = 1 k

4K75 = 4.75 k

DIMENSION

Revision: 01-Mar-16

For technical questions, contact: [email protected]

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

Document Number: 28729

Page 4

www.vishay.com

PR01, PR02, PR03

Vishay BCcomponents

DESCRIPTION

Production is strictly controlled and follows an extensive set of instructions established for reproducibility. A homogeneous film of metal alloy is deposited on a high grade ceramic body and conditioned to achieve the desired temperature coefficient. Plated steel termination caps are firmly pressed on the metalized rods. Mostly, a special laser is used to achieve the target value by smoothly cutting a helical groove in the resistive layer without damaging the ceramics. Connecting wires of electrolytic copper plated with 100 % pure tin are welded to the termination caps. The resistor elements are covered by a light blue protective coating designed for electrical, mechanical, and climatic protection. Four or five color code rings designate the resistance value and tolerance in accordance with IEC 60062.

The result of the determined production is verified by an extensive testing procedure performed on 100 % of the individual resistors. Only accepted products are stuck directly on the adhesive tapes in accordance with

IEC 60286-1 or for the radial versions in accordance to IEC 60286-2.

MATERIALS

Vishay acknowledges the following systems for the regulation of hazardous substances:

• IEC 62474, Material Declaration for Products of and for the Electrotechnical Industry, with the list of declarable substances given therein

• The Global Automotive Declarable Substance List (GADSL)

(2)

• The REACH regulation (1907/2006/EC) and the related list of substances with very high concern (SVHC) supply chain

The products do not contain any of the banned substances as per IEC 62474, GADSL, or the SVHC list, see

www.vishay.com/how/leadfree

Hence the products fully comply with the following directives:

• 2000/53/EC End-of-Life Vehicle Directive (ELV) and Annex II (ELV II)

• 2011/65/EU Restriction of the Use of Hazardous Substances Directive (RoHS) with amendment 2015/863/EU

• 2012/19/EU Waste Electrical and Electronic Equipment Directive (WEEE)

Vishay pursues the elimination of conflict minerals from its supply chain, see the Conflict Minerals Policy at

www.vishay.com/doc?49037.

(1)

(3)

for its

.

ASSEMBLY

The resistors are suitable for processing on automatic insertion equipment and cutting and bending machines. Excellent solderability is proven, even after extended storage. They are suitable for automatic soldering using wave or dipping.

The resistors are completely lead (Pb)-free, the pure tin plating provides compatibility with lead (Pb)-free and lead-containing soldering processes. The immunity of the plating against tin whisker growth, in compliance with IEC 60068-2-82, has been proven under extensive testing.

The encapsulant is resistant to cleaning solvent specified in IEC 60115-1. The suitability of conformal coatings, if applied, shall be qualified by appropriate means to ensure the long-term stability of the whole system.

APPROVALS

These resistors meet the safety requirements of:

• UL1676 (510 k to 11 M); file no: E171160

• IEC 60065, clause 14.2

• DIN EN 60065, clause 14.1.a)

• VDE 0860, clause 14.1.a)

• CQC, China

RELATED PRODUCTS

For a correlated range of Metal Film Resistors see the datasheet:

“High Ohmic / High Voltage Metal Film Leaded Resistors”,

www.vishay.com/doc?30260

For product that offers high power dissipation and metal oxide film technology see the datasheet:

“High Power Metal Oxide Leaded Resistors”, 

www.vishay.com/doc?20128

        

Notes

(1)

The IEC 62474 list of declarable substances is maintained in a dedicated database, which is available at http://std.iec.ch/iec62474.

(2)

The Global Automotive Declarable Substance List (GADSL) is maintained by the American Chemistry Council, and available at

www.gadsl.org

(3)

The SVHC list is maintained by the European Chemical Agency (ECHA) and available at http://echa.europa.eu/candidate-list-table.

Revision: 01-Mar-16

For technical questions, contact: [email protected]

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

Document Number: 28729

Page 5

Ambient Temperature in °C

Power in %

05070100 200

Derating

-55 150

100

Ø 0.58 mm Cu-leads Minimum distance from resistor body to PCB = 1 mm

Ø 0.58 mm FeCu-leads Minimum distance from resistor body to PCB = 1 mm

15 mm

20 mm

25 mm

(K)

(W)

Ø 0.58 mm FeCu-leads Minimum distance from resistor body to PCB = 1 mm

Ø 0.78 mm Cu-leads Minimum distance from resistor body to PCB = 1 mm

100

www.vishay.com

FUNCTIONAL PERFORMANCE

The power that the resistor can dissipate depends on the operating temperature.

PR01, PR02, PR03

Vishay BCcomponents

Maximum dissipation (P

(K)

0 0.4 1.2

) in percentage of rated power as a function of the ambient temperature (T

max.

15 mm

20 mm 25 mm

0.8

(W)

PR01 Temperature rise (T) at the lead end (soldering point)

function of dissipated power at various lead lengths after mounting.

as a

)

amb

(K)

0 0.4 1.2

0.8

15 mm

20 mm

25 mm

(W)

PR01 Temperature rise (T) at the lead end (soldering point)

function of dissipated power at various lead lengths after mounting.

∆

(K)

15 mm

20 mm

as a

PR02 Temperature rise (T) at the lead end (soldering point)

function of dissipated power at various lead lengths after mounting.

Revision: 01-Mar-16

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

0 2

as a

PR02 Temperature rise (T) at the lead end (soldering point)

function of dissipated power at various lead lengths after mounting.

For technical questions, contact: [email protected]

25 mm

(W)

Document Number: 28729

as a

Page 6

www.vishay.com

(K)

(W)

15 mm 20 mm 25 mm

0 1.8 2.20.60.2 0.4 0.8 1.2 1.6 2.01.41.0

Ø 0.78 mm FeCu-leads Minimum distance from resistor body to PCB = 1 mm

Ø 0.78 mm Cu-leads Minimum distance from resistor body to PCB = 1 mm

100

01 3

∆

(K)

(W)

15 mm

20 mm

25 mm

Ø 0.58 mm FeCu-leads Minimum distance from resistor body to PCB = 1 mm

01 32

(K)

(W)

15 mm

10 mm

20 mm

25 mm

Ø 0.78 mm FeCu-leads Minimum distance from resistor body to PCB = 1 mm

0 1.6 3.22.40.8

(K)

(W)

15 mm

20 mm

PR01, PR02, PR03

Vishay BCcomponents

PR02 Temperature rise (T) at the lead end (soldering point)

function of dissipated power at various lead lengths after mounting.

PR03 Temperature rise (T) at the lead end (soldering point)

function of dissipated power at various lead lengths after mounting.

as a

PR03 Temperature rise (T) at the lead end (soldering point)

function of dissipated power at various lead lengths after mounting.

PR03 Temperature rise (T) at the lead end (soldering point)

function of dissipated power at various lead lengths after mounting.

as a

Revision: 01-Mar-16

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

For technical questions, contact: [email protected]

Document Number: 28729

Page 7

www.vishay.com

(W)

0 0.2 1.00.4 0.6 0.8

120

(K)

Ø 0.58 mm Cu-leads

(K)

(W)

0 0.4 0.60.2 0.8

120

Ø 0.58 mm FeCu-leads

160

120

(K)

(W)

0 2.00.80.4 1.2 1.6

Ø 0.78 mm Cu-leads

(K)

(W)

160

120

1.41.21.00.80.60.40.20

Ø 0.78 mm FeCu-leads

(K)

(W)

0 0.40.2 0.8 1.41.0 1.20.6

160

120

Ø 0.58 mm FeCu-leads

(K)

(W)

200

120

160

012

Ø 0.58 mm FeCu-leads

PR01, PR02, PR03

Vishay BCcomponents

PR01 Hot-spot temperature rise (T) as a function

of dissipated power.

PR02 Hot-spot temperature rise (T) as a function

of dissipated power.

PR01 Hot-spot temperature rise (T) as a function

of dissipated power.

PR02 Hot-spot temperature rise (T) as a function

of dissipated power.

PR02 Hot-spot temperature rise (T) as a function

Revision: 01-Mar-16

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

of dissipated power.

For technical questions, contact: [email protected]

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

PR03 Hot-spot temperature rise (T) as a function

Document Number: 28729

Page 8

www.vishay.com

200

01 3

120

160

∆

(K)

(W)

Ø 0.78 mm Cu-leads

Ø 0.78 mm FeCu-leads

PR01, PR02, PR03

Vishay BCcomponents

200

(K)

160

120

012

(W)

PR03 Hot-spot temperature rise (T) as a function

of dissipated power.

PR03 Hot-spot temperature rise (T) as a function

of dissipated power.

Revision: 01-Mar-16

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

For technical questions, contact: [email protected]

Document Number: 28729

Page 9

1.00

0.75

0.50

0.25

(W)

amb

= 40 °C

70 °C

100 °C

125 °C

155 °C

205 °C

(°C)

0.1 %0.20.5

1.0

2.05.0

100 000 h

< 1 k

10 000 h

1000 h

< 30 k

> 30

(W)

2.00

1.50

1.00

0.50

amb

= 40 °C

70 °C

100 °C

125 °C

155 °C

220 °C

100 000 h

< 1 kΩ

5.0

2.0 1.0 0.5 0.2 0.1 %

(°C)

< 39 kΩ

> 39 kΩ

10 000 h

1000 h

(°C)

3.00

2.25

1.50

0.75

amb

= 40 °C

100 °C 125 °C

155 °C

250 °C

100 000 h

> 51 kΩ

10 5.0 2.0

1.0 0.5

0.2

0.1 %

(W)

70 °C

≤ 51 kΩ

< 1 kΩ

10 000 h

1000 h

PR01, PR02, PR03

www.vishay.com

The maximum permissible hot-spot temperature is 205 °C for PR01, 220 °C for PR02 and 250 °C for PR03.

PR01 Drift nomogram

Vishay BCcomponents

PR02 Drift nomogram

For technical questions, contact: [email protected]

Revision: 01-Mar-16

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

PR03 Drift nomogram

Document Number: 28729

Page 10

www.vishay.com

-1

-2

-3

-4

-5

-6

-1

(s)

max.

(W)

100

200

500

tpt

= 1000

-5

-4

-3

-2

-1

max.

(W)

(s)

-6

-1

100

/ i = 1000

500

200

PR01, PR02, PR03

Vishay BCcomponents

PR01 Pulse on a regular basis; maximum permissible peak pulse power (

1200

max.

(V)

1000

800

600

400

200

-6

-5

-4

-3

PR01 Pulse on a regular basis; maximum permissible peak pulse voltage (Û

) as a function of pulse duration (ti)

max.

-2

) as a function of pulse duration (ti)

max.

-1

(s)

PR02 Pulse on a regular basis; maximum permissible peak pulse power (

) as a function of pulse duration (ti)

max.

Revision: 01-Mar-16

Document Number: 28729

For technical questions, contact: [email protected]

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

Page 11

www.vishay.com

1700

500

-6

-5

-4

-3

-2

-1

1300

1500

1100

700

900

max.

(V)

(s)

-5

-4

-3

-2

-1

max.

(W)

(s)

-6

100

200

500

/ i = 1000

PR01, PR02, PR03

Vishay BCcomponents

PR02 Pulse on a regular basis; maximum permissible peak pulse voltage (Û

PR03 Pulse on a regular basis; maximum permissible peak pulse power (

2400

max.

(V)

2000

1600

) as a function of pulse duration (ti)

max.

) as a function of pulse duration (ti)

max.

Revision: 01-Mar-16

1200

800

400

PR03 Pulse on a regular basis; maximum permissible peak pulse voltage (Û

-6

-5

-4

-3

-2

) as a function of pulse duration (ti)

max.

-1

(s)

Document Number: 28729

For technical questions, contact: [email protected]

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

Page 12

www.vishay.com

-1

4020 30

overload

(W)

(s)

- 1

40 20 30

overload

(W)

(s)

-1

40 20 30

overload

(W)

(s)

-1

100

120

80 40 60

overload

(W)

(s)

PR01, PR02, PR03

Vishay BCcomponents

PR01 Time to interruption as a function of overload power

This graph is based on measured data under constant voltage

for range: 0.22   R

 1 

conditions; the data may deviate according to the applications.

PR01 Time to interruption as a function of overload power

This graph is based on measured data under constant voltage

for range: 1   R

 15 

conditions; the data may deviate according to the applications.

(s)

PR01 Time to interruption as a function of overload power

This graph is based on measured data under constant voltage

for range: 16   R

 560 

conditions; the data may deviate according to the applications.

PR02 Time to interruption as a function of overload power

This graph is based on measured data under constant voltage

for range: 0.33   R

 5 

conditions; the data may deviate according to the applications.

(s)

-1

PR02 Time to interruption as a function of overload power

for range: 5   R

This graph is based on measured data under constant voltage conditions; the data may deviate according to the applications.

Revision: 01-Mar-16

80 40 60

 68 

100

overload

(W)

120

PR02 Time to interruption as a function of overload power

This graph is based on measured data under constant voltage conditions; the data may deviate according to the applications.

-1

for range: 68   R

80 40 60

100

120

(W)

overload

 560 

Document Number: 28729

For technical questions, contact: [email protected]

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

Page 13

PR01, PR02, PR03

www.vishay.com

(s)

-1

0 200 100 150

overload

PR03 Time to interruption as a function of overload power for range: 0.68   Rn  560 

This graph is based on measured data under constant voltage conditions; the data may deviate according to the applications.

(W)

250

Vishay BCcomponents

Revision: 01-Mar-16

Document Number: 28729

For technical questions, contact: [email protected]

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

Page 14

www.vishay.com

10 1

-1

-2

f (MHz)

n = 24 Ω

= 12 kΩ

= 1 Ω

= 100 kΩ

101

-1

-2

f (MHz )

= 18 Ω

= 1.3 kΩ

= 20 kΩ

= 1.5 Ω

= 100 k Ω

PR01, PR02, PR03

Vishay BCcomponents

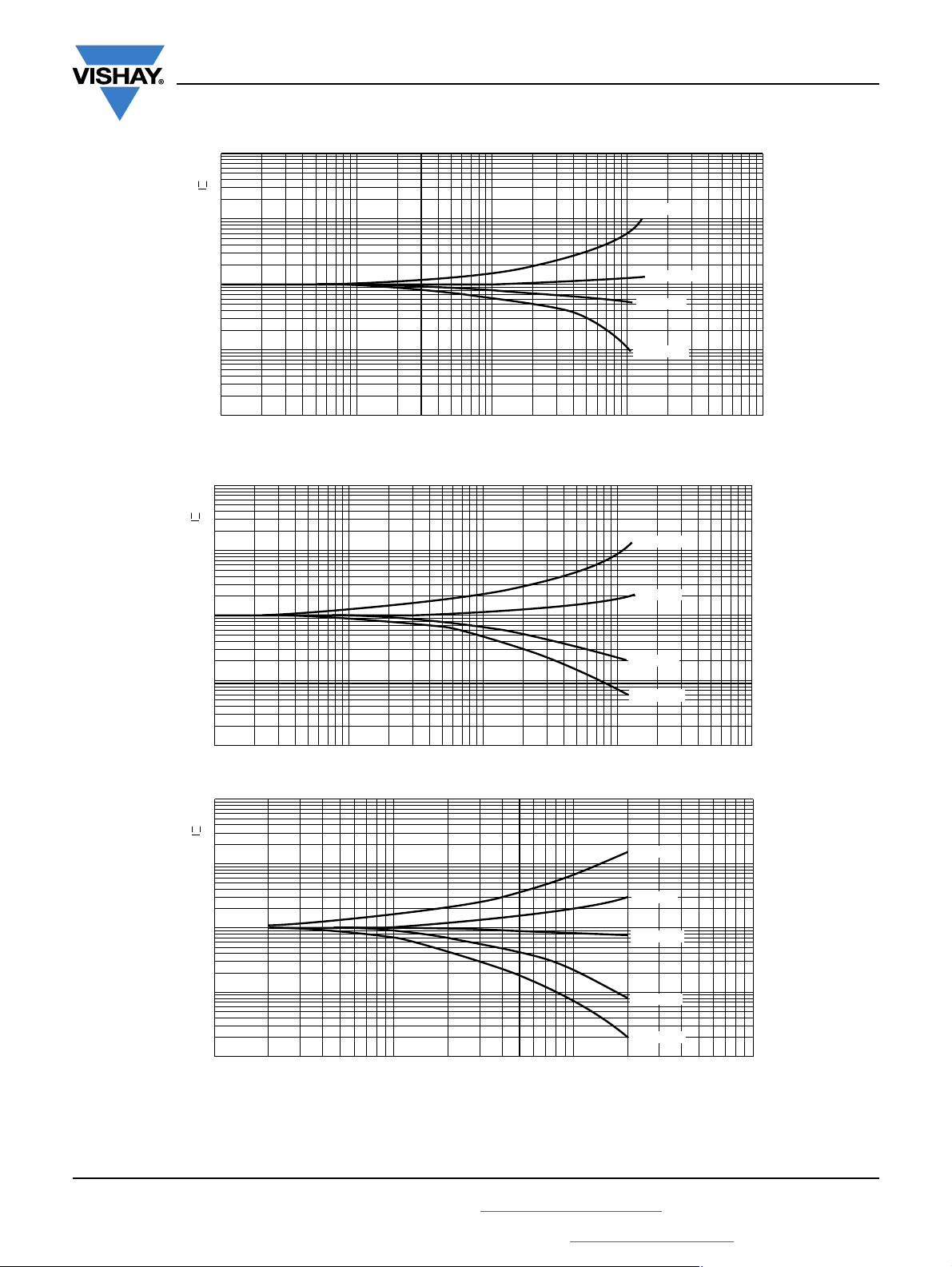

PR01 Impedance as a function of applied frequency

-1

-2

-1

10 1

= 1.2 Ω

n = 10 Ω

= 22 kΩ

= 124 kΩ

f (MHz)

PR02 Impedance as a function of applied frequency

PR03 Impedance as a function of applied frequency

Revision: 01-Mar-16

Document Number: 28729

For technical questions, contact: [email protected]

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

Page 15

www.vishay.com

TESTS PROCEDURES AND REQUIREMENTS

PR01, PR02, PR03

Vishay BCcomponents

All tests are carried out in accordance with the following specifications:

• IEC 60115-1, generic specification (includes tests)

The test and requirements table contains only the most

Unless otherwise specified the following values apply:

• Temperature: 15 °C to 35 °C

• Relative humidity: 45 % to 75 %

• Air pressure: 86 kPa to 106 kPa (860 mbar to 1060 mbar).

important tests. For the full test schedule refer to the documents listed above.

The tests are carried out in accordance with IEC 60068-2-xx test method and under standard atmospheric conditions in accordance with IEC 60068-1, 5.3.

Climatic category LCT / UCT / 56 (rated temperature range: lower category temperature, upper category temperature; damp heat, steady state, test duration: 56 days) is valid.

For performing some of the tests, the components are mounted on a test board in accordance with IEC 60115-1,

4.31.

In test procedures and requirements table, only the tests and requirements are listed with reference to the relevant clauses of IEC 60115-1 and IEC 60068-2-xx test methods. A short description of the test procedure is also given.

TEST PROCEDURES AND REQUIREMENTS

IEC

60115-1

CLAUSE

4.4.1 - Visual examination No holes; clean surface; nodamage

4.4.2 - Dimensions (outline) Gauge (mm)

IEC

60068-2-

TEST

METHOD

TEST PROCEDURE

REQUIREMENTS PERMISSIBLE

SeeStraight and Kinked Dimensions

CHANGE

(R

max.

tables

)

4.5 - Resistance ± 5 % R

4.6.1.1 - Insulation resistance

4.7 - Voltage proof U

4.8 -

21 (Ua

)

4.16

4.17 20 (Ta) Solderability

4.18.2 20 (Tb)

4.19 14 (Na)

4.20 29 (Eb) Bump 3x1500bumps in three directions; 40g

4.22 6 (Fc) Vibration

21 (Ub) 21 (Uc)

Temperature

coefficient

Robustness of

terminations

Resistance to

soldering heat

Rapid change of

temperature

Maximum voltage (DC) after 1min;

metal block method

= U

RMS

At (20 / -55 / 20) °C

and (20 / 155 / 20) °C

Tensile, bending, and torsion

+235°C; 2 s;

solder bath method; SnPb40

+245°C; 3s;

solder bath method; SnAg3Cu0.5

Unmounted components

(260 ± 5) °C; (10 ± 1) s

30min at -55 °C and

30min at +200 °C; 5cycles

10 sweep cycles per direction;

10Hz to2000Hz;

1.5mm or 200 m/s

; 60 s No breakdown or flashover

ins

: 104M

ins min.

 ± 250 ppm/K

R

( 95 % covered, no visible damage)

PR01: R PR02: R PR03: R

R

No damage

:± (0.5 %R +0.05)

max.

Good tinning

R

:± (1 %R +0.05)

max.

No visual damage

:± (1 %R +0.05)

max.

:± (1 %R +0.05)

max.

:± (2 %R +0.05)

max.

No damage

:± (0.5 %R +0.05)

max.

No damage

:± (0.5 %R +0.05)

max.

Revision: 01-Mar-16

For technical questions, contact: [email protected]

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

Document Number: 28729

Page 16

P70 x R

www.vishay.com

TEST PROCEDURES AND REQUIREMENTS

IEC

60115-1

CLAUSE

4.23 Climatic sequence:

4.23.2 2 (Ba) Dry heat 200 °C; 16 h

IEC

60068-2-

TEST

METHOD

TEST PROCEDURE

PR01, PR02, PR03

Vishay BCcomponents

REQUIREMENTS PERMISSIBLE

CHANGE

(R

max.

)

4.23.3 30 (Db)

4.23.4 1 (Aa) Cold -55 °C; 2 h

4.23.5 13 (M) Low air pressure

4.23.6 30 (Db)

4.24 78 (Cab)

4.25.1 -

4.26 - Active flammability Accidental overload test

4.29 45 (Xa)

4.35 - Passive flammability Needle flame test

Damp heat,

cyclic

Damp heat,

cyclic

Damp heat

(steady state)

Endurance

(at70 °C)

Component solvent

resistance

95% to100 %RH; 5 cycles

1.5 h on; 0.5 h off; 70 °C; 1000 h

Isopropyl alcohol (used in industrial application)

55 °C; 24 h;

90 % to 100 % RH; 1 cycle

8.5 kPa; 2 h;

15 °C to 35 °C

55°C; 5days;

(40± 2) °C;56days;

(93± 3 )% RH

U= or U = U

+23 °C; toothbrush method

max.

: 103M

ins min.

R

: ± (1.5 % R +0.1)

max.

R

:± (3 %R +0.1)

max.

;

R

:± (5 %R +0.1)

max.

no flamming of gauze cylinder

Marking legible; no visible damage

burning time is less than 30 s

No damage,

No ignition of product,

no ignition of under layer

Revision: 01-Mar-16

For technical questions, contact: [email protected]

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

Document Number: 28729

Page 17

Ø D

P1 ± 0.5

Ø B

± 0.07

Ø d

4.5

+ 1

8 + 2

P2 ± 3

± 0.5

Type with double kink Dimensions in millimeters

PR01, PR02, PR03

www.vishay.com

DIMENSIONS

Type with straight leads

DIMENSIONS - Straight lead type and relevant physical dimensions; see straight leads outline

TYPE

Ø D

(mm)

MAX.

1 MAX.

(mm)

2 MAX.

(mm)

PR01 2.5 6.5 8.0

PR02 3.9 10.0 12.0

PR03 5.2 16.7 19.5

TERMINATION WIRE MATERIAL (Cu OR FeCu)

AND WIRE DIAMETER (Ø d)

MATERIAL

Cu 0.58 ± 0.05 212

FeCu 0.58 ± 0.05 207

Cu 0.78 ± 0.05 504 FeCu 0.58 ± 0.05 455 FeCu 0.78 ± 0.05 496

Cu 0.78 ± 0.05 1192 FeCu 0.58 ± 0.05 1079 FeCu 0.78 ± 0.05 1185

Vishay BCcomponents

Ø d

(mm)

MASS

(mg)

DIMENSIONS - Double kink lead type and relevant physical dimensions; see double kinked outline

TERMINATION WIRE

MATERIAL

TYPE

Ø D

(mm)

MAX.

1 MAX.

(mm)

2 MAX.

(mm)

PR01 2.5 6.5 8.0

PR02 3.9 10.0 12.0

PR03 5.2 16.7

Revision: 01-Mar-16

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

19.5

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

(Cu OR FeCu) AND

WIRE DIAMETER (Ø d)

MATERIAL

FeCu

± 0.05

For technical questions, contact: [email protected]

Ø d

(mm)

0.58

0.78

0.58

0.78

0.58

0.78

MASS

(mg)

212 17.8

207 12.5

207 17.8

504 17.8

455 17.8

496 15.0

1192 25.4

1079 25.4

1185 20

PITCH

(mm)

17.8

± 0.5

12.5

± 0.5

17.8

± 0.5

17.8

± 0.5

17.8

± 0.5

15.0

± 0.5

25.4

± 0.5

25.4

± 0.5

22.0

± 0.5

(mm)

17.8 ± 3

12.5 ± 3

17.8 ± 3

15.0 ± 3

25.4 ± 3

20.0 ± 3

(mm)

1.10

+ 0.25 / - 0.20

1.10

+ 0.25 / - 0.20

1.10

+ 0.25 / - 0.20

1.10

+ 0.25 / - 0.20

1.10

+ 0.25 / - 0.20

1.30

+ 0.25 / - 0.20

1.10

+ 0.25 / - 0.20

1.10

+ 0.25 / - 0.20

1.30

+ 0.25 / - 0.20

(mm)

1.45

+ 0.25 / - 0.20

1.45

+ 0.25 / - 0.20

1.45

+ 0.25 / - 0.20

1.45

+ 0.25 / - 0.20

1.45

+ 0.25 / - 0.20

1.65

+ 0.25 / - 0.20

1.65

+ 0.25 / - 0.20

1.65

+ 0.25 / - 0.20

2.15

+ 0.25 / - 0.20

MAX.

(mm)

Document Number: 28729

Ø B

(mm)

0.8

± 0.07

0.8

± 0.07

0.8

± 0.07

1.0

± 0.07

0.8

± 0.07

1.0

± 0.07

1.0

± 0.07

1.0

± 0.07

1.0

± 0.07

Page 18

www.vishay.com

α = 30° to 40°

PR01, PR02 WITH RADIAL TAPING

PR01 - Height for insertion (max.) = 32 mm

PR01, PR02, PR03

Vishay BCcomponents

DIMENSIONS in millimeters

Pitch of components P 12.7 ± 1.0 Feed-hole pitch P Feed-hole centre to lead 

at topside at the tape Feed-hole center to body center P Lead spacing F 4.8 +0.7/-0 Width of carrier tape W 18.0 ± 0.5 Minimum hold down tape width W Height for insertion (max.) H1 32 Lead wire clinch height H Body to hole center H 19.5 ± 1 Feed-hole diameter D Height for cutting (max.) L 11.0 Minimum lead wire (tape portion)

shortest lead

12.7 ± 0.2

3.85 ± 0.5

6.35 ± 1.0

5.5

16.5 ± 0.5

4.0 ± 0.2

2.5

PR02 - Height for insertion (max.) = 29 mm

DIMENSIONS in millimeters

Pitch of components P 12.7 ± 1.0 Feed-hole pitch P Feed-hole centre to lead 

at topside at the tape Feed-hole center to body center P

12.7 ± 0.2

3.85 ± 0.5

6.35 ± 1.0

Lead spacing F 4.8 +0.7/-0 Width of carrier tape W 18.0 ± 0.5 Minimum hold down tape width W

5.5 Height for insertion (max.) H1 29 Lead wire clinch height H

16.5 ± 0.5

Body to hole center H 19.5 ± 1 Feed-hole diameter D

4.0 ± 0.2 Height for cutting (max.) L 11.0 Minimum lead wire (tape portion)

shortest lead

2.5

MARKING

The nominal resistance and tolerance are marked on the resistor using four or five colored bands in accordance with IEC 60062, marking codes for resistors and capacitors.

Revision: 01-Mar-16

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

For technical questions, contact: [email protected]

Document Number: 28729

Page 19

www.vishay.com

12NC INFORMATION FOR HISTORICAL CODING REFERENCE

PR01, PR02, PR03

Vishay BCcomponents

The resistors have a 12-digit numeric code starting with 23 For 5 % tolerance:

• The next 7 digits indicate the resistor type and packing

• The remaining 3 digits indicate the resistance value:

- The first 2 digits indicate the resistance value

- The last digit indicates the resistance decade

For 1 % tolerance:

• The next 6 digits indicate the resistor type and packing

• The remaining 4 digits indicate the resistance value:

- The first 3 digits indicate the resistance value

- The last digit indicates the resistance decade

12NC - Resistor Type and Packaging

TYPE

PR01 Cu 0.58

PR02

PR03

Notes

• Preferred types in bold.

(1)

Other packaging versions are available on request.

LEAD ØmmTOL.

Cu 0.78

FeCu 0.58 5 - - - 22 194 54... - - -

Cu 0.78

FeCu 0.58 5 - - - - 22 195 54... --

(%)

1- -22 196 1.... 06 191 2.... - 06 191 5.... -

5 06 197 03... - 22 193 14... 06 197 53... - 06 197 23... -

1 - 22 197 2.... - 22 197 1.... --2322 197 5....

5 - 06 198 03... - 06 198 53... --2322 198 04...

5----22 195 14... -- 1----06 199 6... --

RADIAL TAPED

4000 UNITS 3000 UNITS 5000 UNITS 1000 UNITS 500 UNITS 5000 UNITS 2000 UNITS

(1)

AMMOPACK REEL

52mm 52mm 63mm 52mm

Last Digit of 12NC Indicating Resistance Decade

RESISTANCE DECADE LAST DIGIT

0.22 to0.91 7 1 to9.76 8

10 to97.6 9

100 to976 1

1 to9.76k 2

10 to97.6k 3

100to976k 4

1M 5

12NC Example

The 12NC for resistor type PR02 with Cu leads and a value of 750  with 5 % tolerance, supplied on a bandolier of 1000 units in ammopack, is: 2306 198 53751.

23.......... (BANDOLIER)

STRAIGHT LEADS

RADIAL TAPED

12NC - Resistor Type and Packaging

23.. ... ..... (LOOSE IN BOX)

TYPE

PR01

PR02

PR03

Notes

• Preferred types in bold.

(2)

PR01 pitch 12.5 mm.

(3)

PR02 pitch 15.0 mm.

(4)

PR03 pitch 20.0 mm, with reversed kinking direction as opposed to the drawing for the type with double kink figure.

Revision: 01-Mar-16

LEAD ØmmTOL.

Cu 0.58 5 22 193 03... - - -

FeCu 0.58 5 22 193 43... - 22 193 53...

Cu 0.78 5 22 194 23... - - FeCu 0.58 5 22 194 83... - - FeCu 0.78 5 - - 22 194 63...

Cu 0.78 5 - 22 195 23... - FeCu 0.58 5 - 22 195 83... - FeCu 0.78 5 - - - 22 195 63...

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

(%)

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

PITCH = 17.8 mm PITCH = 25.4 mm PITCH

1000 UNITS 500 UNITS 1000 UNITS 500 UNITS

For technical questions, contact: [email protected]

DOUBLE KINK

(2)(3)(4)

(2)

(3)

Document Number: 28729

(4)

Page 20

Legal Disclaimer Notice

www.vishay.com

Vishay

Disclaimer

ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.

Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, “Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other disclosure relating to any product.

Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special, consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability.

Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular product with the properties described in the product specification is suitable for use in a particular application. Parameters provided in datasheets and/or specifications may vary in different applications and performance may vary over time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase, including but not limited to the warranty expressed therein.

Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining applications or for any other application in which the failure of the Vishay product could result in personal injury or death. Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.

Material Category Policy

Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as RoHS-Compliant fulfill the definitions and restrictions defined under Directive 2011/65/EU of The European Parliament and of the Council of June 8, 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment (EEE) - recast, unless otherwise specified as non-compliant.

Please note that some Vishay documentation may still make reference to RoHS Directive 2002/95/EC. We confirm that all the products identified as being compliant to Directive 2002/95/EC conform to Directive 2011/65/EU.

Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as Halogen-Free follow Halogen-Free requirements as per JEDEC JS709A standards. Please note that some Vishay documentation may still make reference to the IEC 61249-2-21 definition. We confirm that all the products identified as being compliant to IEC 61249-2-21 conform to JEDEC JS709A standards.

Revision: 02-Oct-12

Document Number: 91000
