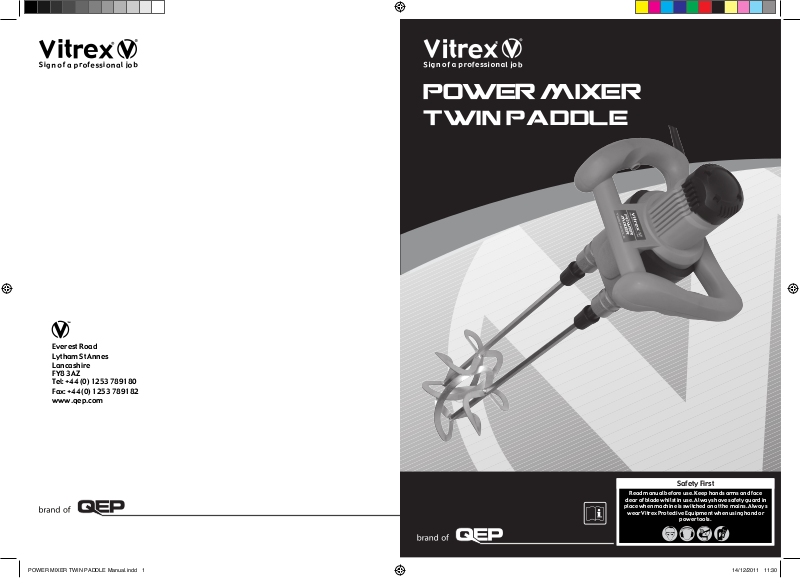

Vitrex MIXTWIN User Manual

Everest Road
Lytham St Annes
Lancashire

FY8 3AZ
Tel: [phone]

Fax: [phone]
www.qep.com

POWER MIXER

TWIN PADDLE

Safety First

Read manual before use. Keep hands arms and face

clear of blade whilst in use. Always have safety guard in

place when machine is switched on at the mains. Always

wear Vitrex Protective Equipment when using hand or

POWER MIXER TWIN PADDLE Manual.indd 1 14/12/2011 11:30

power tools.

POWER MIXER TWIN PADDLE

POWER MIXER

TWIN PADDLE

Owner’s Safety and Operating Manual

Contents

Safety Instructions ...............................................3-4

Assembly & Operating Instructions ..........................5

Maintenance & Warranty ........................................6

Machine Specication..............................................7

Safety Instructions

PRODUCT DESCRIPTION

The machine has been designed to mix liquid and
powdery building materials such as paint, adhesives,
plaster mortar and similar substances. Up to 200Ltr
mixing volume. The relevant mixing action (which
depends on the consistency of the materials and the
quantity that has to be mixed) must be set up for the
appropriate mixing tool.

This manual must be kept in a safe place so that the
information that it contains is always available. This
operating manual must accompany the equipment if it
is transferred to somebody else.

We do not accept any liability for accidents or
damage arising from ignoring this manual and the
safety instructions.

SAFETY INSTRUCTIONS

When using power tools, you must observe the
following basic safety precautions in order to ensure

protection from electric shocks, injury and re.

Read and follow all the instructions before using this
power tool. Look after the notes on safety.

The machine has been double-insulated in accordance
with EN60745: therefore, an earth wire is not necessary

USE CORRECT SUPPLY VOLTAGE:
The power supply voltage must match the information
quoted against the tools.

Use of an approved RCD circuit breaker between
the machine and the electrical power point is highly
recommended.

USE PROPER EXTENSION CORD:
Only use an approved extension cable that is suitable
for the machine’s power.
When the extension cable is on a reel, unroll the cable
in its entirety.

SWITCH OFF THE MACHINE IMMEDIATELY IN CASE OF:

1. Malfunction in the mains plug, power cable or
damaging of cable.

2. Broken switch.

3. Smoke or strong smell of burning.

GENERAL SAFETY RULES

WARNING! Read all safety warnings and all
instructions. Failure to follow the warnings and

instructions may result in electric shock, re and/or

serious injury.
Save all warnings and instructions for future reference.

1) Work area safety

a) Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence

of ammable liquids, gases or dust. Power tools create

sparks which may ignite the
dust or fumes.
c) Keep children and bystanders away while
operating a power tool. Distractions can cause you to
lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools.

Unmodied plugs and matching outlets will reduce risk

of electric shock.
b) Avoid body contact with earthed surfaces, such as
pipes, radiators, ranges and refrigerators. There is an
increased risk of electric shock if your body is earthed.
c) Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
d) Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool. Keep
cord away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of
electric shock.
e) When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric
shock.
f) If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of
electric shock.

02 03

POWER MIXER TWIN PADDLE Manual.indd 2 14/12/2011 11:30

Tel: [phone] Tel: [phone]

POWER MIXER TWIN PADDLE

3) Personal safety

a) Stay alert, watch what you are doing and use common
sense when operating a power tool. Do not use a power

tool while you are tired or under the inuence of drugs,

alcohol or medication. A moment of inattention while
operating power tools may result in serious personal
injury.
b) Use personal protective equipment. Always wear eye
protection. Protective equipment such as dust mask, non­skid safety shoes, hard hat, or hearing protection used for
appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in

the off-position before connecting to power source and/or

battery pack, picking up or carrying the tool.

Carrying power tools with your nger on the switch or

energizing power tools that have the switch on invites
accidents.
d) Remove any adjusting key or spanner before turning
the power tool on. A spanner or a key left attached to a
rotating part of the power tool may result in personal
injury.
e) Do not overreach. Keep proper footing and balance at
all times. This enables better control of the power tool in
unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery.
Keep your hair, clothing and gloves away from moving
parts. Loose clothes, jewellery or long hair can be caught
in moving parts.
g) If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection can
reduce dust-related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool
for your application. The correct power tool will do the job
better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on
and off. Any power tool that cannot be controlled with the
switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or

the battery pack from the power tool before making any
adjustments, changing accessories, or storing power
tools. Such preventive safety measures reduce the risk of
starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do
not allow persons unfamiliar with the power tool or these
instructions to operate the power tool.
Power tools are dangerous in the hands of untrained
users.
e) Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and any other
condition that may affect the power tool’s operation. If
damaged, have the power tool repaired before use. Many
accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained
cutting tools with sharp cutting edges are less likely to bind
and are easier to control.

g) Use the power tool, accessories and tool bits etc. in
accordance with these instructions, taking into account
the working conditions and the work to be performed.
Use of the power tool for operations different from those
intended could result in a hazardous situation.

5) Service

a) Have your power tool serviced by a qualied repair

person using only identical replacement parts. This will
ensure that the safety of the power tool is maintained.

PRECAUTIONS ON USING MIXER

• The equipment must never be used in surroundings

where an explosive atmosphere exists. Never mix in

solvents or substances containing solvent that have ash

points below 21°C.

•Do not let the cable touch any parts of your body.

• Only use the extension cable approved for use in the

working area.

• The unit must only be started and stopped when it is

inside a mixing vessel. Ensure that the mixing vessel is
placed on a solid, secure base.

• Never reach into the mixing vessel with your hands or

any other object during the mixing process.

• We recommend that you always wear industrial safety

gloves and safety goggles when working with the mixer.

• Wearing close-tting clothes is mandatory.

• Always allow for reaction torque

• Always wear a dust mask

HOW TO USE THE MIXER

Before setting up, repair or maintenance of the appliance
you must always turn off the operating switch and pull out
the mains plug!

Before Initial Operation

• Check if the rated frequency of the mains supply

corresponds to the details of the type place.

• Before using the tool, read the instruction book carefully.

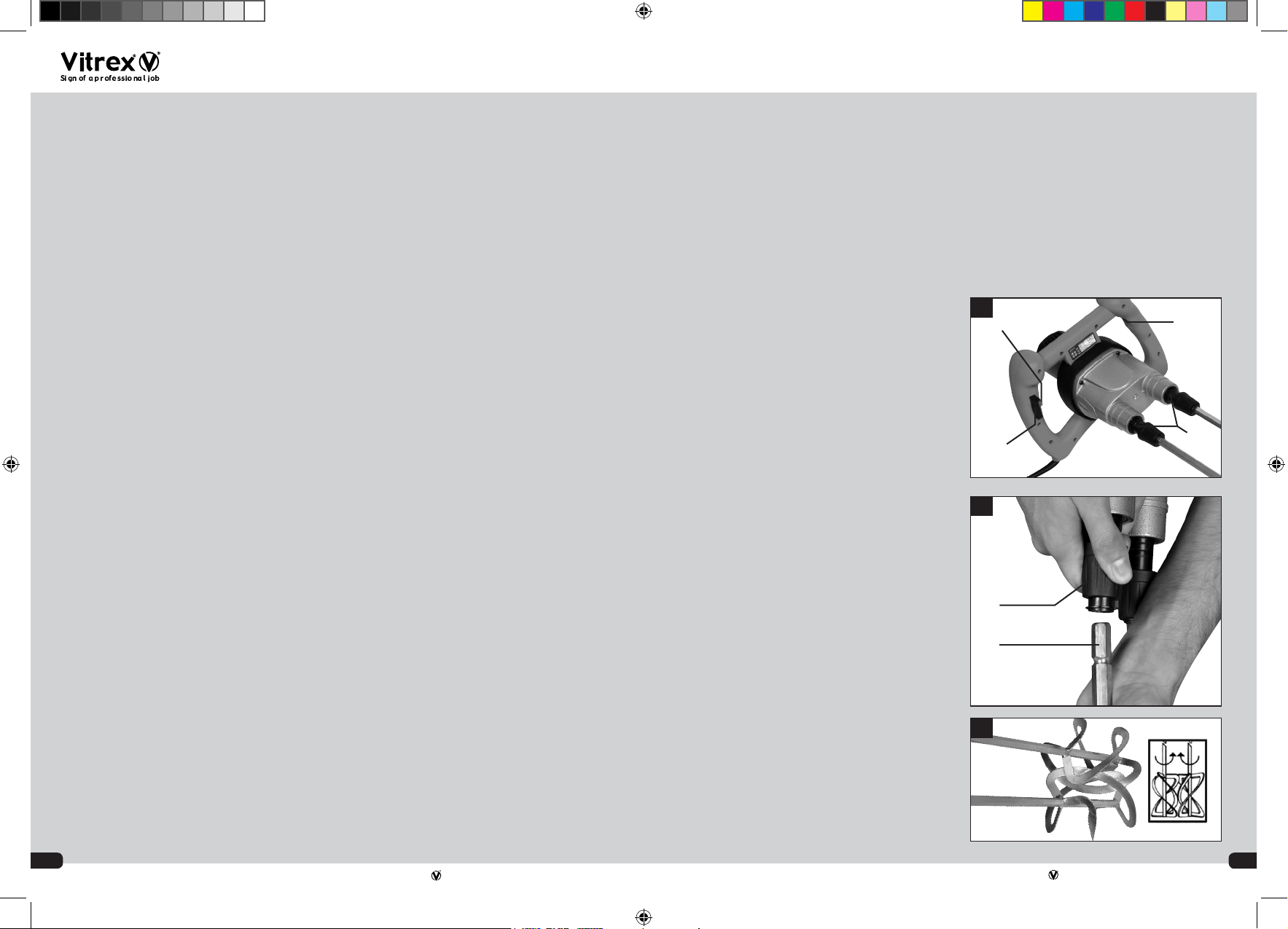

Mixer Assembly (Fig. 2a):

Pull up the coiled spring paddle holder (5) and push
the paddle (6) into the paddle holder (5). When in
place,release the coiled spring paddle holder (5) back
intoposition. Repeat for the second paddle (6).

Mixer Assembly (Fig. 2b):

To avoid ‘chatter’ & damage to the paddles, ensure the

paddles are correctly tted into the machine prior to

switch on. The two paddles must not touch when inserted.
Proceed in the reverse sequence to remove the paddles.
The paddle’s shape could be different and not necessarily
the same as in the illustrations.

Starting the machine

On/Off switch:

Switching on: Press the switch Fig 1(1)

Continuous running:

Press the locking knob on the switch Fig 1(1) (2) to lock it
in place

Switching off:

Press the switch Fig 1 (1) briey

Speed control:

Use the speed control Fig 1 (3) to select the speed. At the
lowest speed setting, the mixer speed is off. Increase
speed gradually.

Switching between 1st - 2nd gear Fig 1(4)

The switch position enables you to work at high or low
speeds. The gear switch position should only be changed
when the unit is stopped, in order to prevent the gearing
from being damaged.

• 1st gear

• 2nd gear

Working With the Paint and Mortar Mixer

The mains plug must be disconnected before the mixing
tool is changed.

The unit should be run at low speed before it is immersed
in or removed from the mixture. The speed should only be
increased to maximum after it has been fully immersed in
the mixture, in order to ensure that motor is kept as cool
as possible. The machine must be moved around inside
the mixing vessel during the mixing process. Continue the
mixing process until all of the mixing components have
been processed.

Always clean the mixer after you have nished using it.

1

2

1

2a

5

6

2b

3

4

04 05

Tel: [phone] Tel: [phone]

POWER MIXER TWIN PADDLE Manual.indd 3 14/12/2011 11:30

POWER MIXER TWIN PADDLE

CARE AND MAINTENANCE

Remove the plug from the socket before carrying out any adjustment, servicing or
maintenance.
Your power tool requires no additional lubrication or maintenance.
Always store your power tool in a dry place.
If the supply cord is damaged, it must be replaced by the manufacturer,

their service agent or similarly qualied persons in order to avoid a hazard.
If a fault can not be rectied, return the mixer to an authorised dealer for repair.

Cleaning

Keep the safety devices, ventilation slots and motor housing as free of dirt and dust
as possible.
Clean the unit by rubbing it with a clean cloth or blow it clean using
low-pressure compressed air.

We recommend that you always clean the unit immediately after using it.

• Clean the unit regularly by rubbing it with a damp cloth and a little soft soap.

Do not use cleaners or solvents; these will attack the plastic parts in the unit.
You must also ensure that water cannot get into the inside of the unit.

Carbon brushes

• If excessive sparking occurs you must have the carbon brushes checked by a
qualied electrician.

• Attention!
Only a qualied electrician is allowed to change the brushes.

Maintenance

• There are no parts tted inside the unit that require maintenance.

For your own safety, never remove parts or accessories of the electric tool during
operation. In case of fault or damage have the electric tool repaired only by a
specialist workshop or by the manufacturer.

Specifications

MIXTWININD MIXTWIN

Power Supply 110V 50Hz 230V 50Hz

Motor 1400W 1650W

RPM (no load) 100-600 rpm 100-600 rpm

Number of Gears 2 2

Mixing Paddle Diameter 120mm x2 120mm x2

Weight 16kg 16kg

• For further information or advice, please

call the Vitrex Technical Helpline on

[phone].

Q.E.P. Co UK Ltd is committed to a continuing program of
product improvement. Consequently, please be advised

that specications, performance, appearance, and
dimensions of QEP/Vitrex products are subject to change

without notice. For more up-to-date information about our
range of products, please contact our Customer Service

Ofce on [phone] or your local distributor.

This Power Mixer has been manufactured to a high quality standard. It is guaranteed against faulty materials and

workmanship for 12months from the date of purchase. Any claim must be accompanied by a valid till receipt as proof of purchase.

A faulty machine will either be repaired or replaced free of charge. If a direct replacement is not available, an alternative to the

a) Misuse, abuse or neglect, b) Trade, Professional or hire use, c) Repairs attempted by anyone other than our authorised repair

In the unlikely event of a fault occurring, contact should be made through the Vitrex Technical Helpline [phone]

The guarantor is Q.E.P. Co. UK Ltd., Everest Road, Lytham St. Annes, Lancashire, FY8 3AZ (Registered No. 04988177 England).

06 07

The above guarantee is only valid within the UK and does not affect your statutory rights.

Tel: [phone] Tel: [phone]

POWER MIXER TWIN PADDLE Manual.indd 4 14/12/2011 11:30

same or greater value/specication will be offered.

This guarantee does not cover machine defects caused by or resulting from:

agent, d) Ingress of foreign objects, substances or accident
