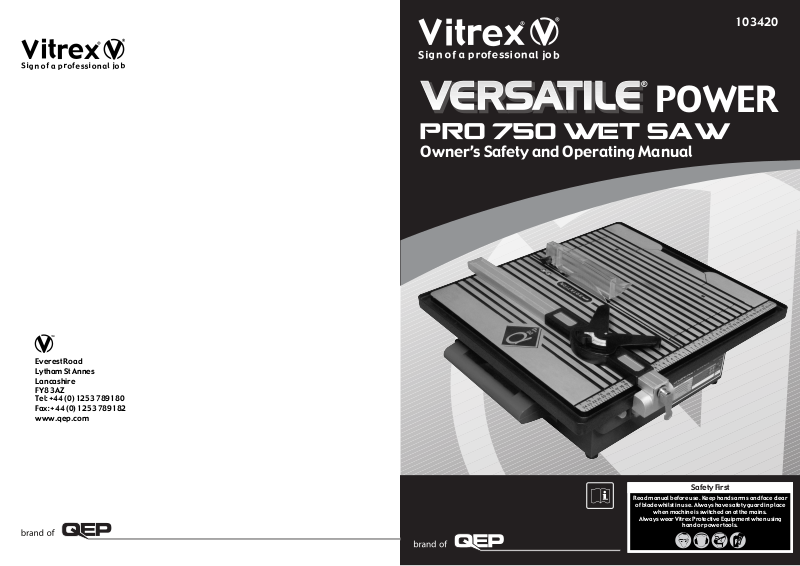

Vitrex 103421 User Manual

POWER

PRO 750 WET SAW

Owner’s Safety and Operating Manual

103420

Everest Road
Lytham St Annes
Lancashire

FY8 3AZ
Tel: [phone]

Fax: [phone]
www.qep.com

Safety First

Read manual before use. Keep hands arms and face clear

of blade whilst in use. Always have safety guard in place

when machine is switched on at the mains.

Always wear Vitrex Protective Equipment when using

hand or power tools.

POWER PRO 750 Wet Saw

POWER PRO 750 Wet Saw

Owner’s Safety and Operating Manual

Contents

Safety Instructions ...................................................3

Machine Specication & Electrical Requirements ......4

Assembly & Operating Instructions ...................... 5-6

Maintenance & Warranty .........................................7

Safety Instructions

To use this tool correctly, you must
observe the Safety Regulations, the
Assembly Instructions and the Operation
Instructions contained in this Manual.

All persons who use and service the
machine must be acquainted with this
Manual and must be informed about any
potential hazards.

Children and inrm people must not use

this tool. Children must be supervised at
all times if they are in the area in which
the tool is being used.

It is also imperative that you observe the
accident prevention regulations in force in
your area. The same applies for general
rules of occupational health and safety.

• Take suitable precautions to protect

your eyes, ears, lungs and hands
when operating the Wet Saw.

• Keep children and others away from

the machine whilst in use.

• Only use circular blades with

a continuous rim– DO NOT USE
segmented circular blades, saw blades

or abrasive disks.

• The machine should be used indoors

only, in a clean, dry,well lit area and

on a clutter free, at work surface.

• Do not leave the saw running

unattended or touch the blade whilst
in motion – always use the blade guard
when cutting.

• Replace damaged blades immediately
and ensure that new blades are tted

correctly to run in the direction
indicated on the blade.

• Only recommended replacement parts

should be used with this machine – use of
improper accessories could cause serious
injury

Automatic Overload
Protection

To prevent overheating this machine has
automatic overload protection which is
designed to cut power to the motor.

Should the automatic overload protection
trip, ensure that mains power supply and
machine switch are turned off.

After ten seconds press the breaker
button next to the main switch and restart
the machine.

• Avoid wearing loose clothing, ties,

rings, bracelets or other loose items
which may become caught in the
moving parts. Long hair should also

be tied back or contained.

• Always ensure that all loose tools and

components are removed from the

immediate working area.

• Switch machine off between cuts and

disconnect from mains supply before
carrying out any maintenance,
cleaning or changing the blade.

02 03

Tel: [phone] Tel: [phone]

POWER PRO 750 Wet Saw

Machine Specication & Electrical Requirements

Power Supply
Motor
RPM (No load)
Maximum Sound Level*
Maximum Depth of Cut (with new blade)
Maximum Depth of Cut at 45O (with new blade)
Mitre Cutting Angle
Cutting Angles

Machine & Accessories packed weight

*Note: If the sound intensity level exceeds 85 db (A) ear protection should be worn by the operator.

• Ensure that the mains voltage corresponds
to the instruction plate
– a single phase socket with two contacts
and an earth is obligatory.

• Use of an approved RCD circuit breaker
between the machine and the electrical
power point is highly recommended.

• To reduce the risk of unintentional starting,
make sure that the switch is in the OFF

position before plugging in.

• Repair or replace damaged or worn cable
immediately after rst disconnecting from

mains supply.

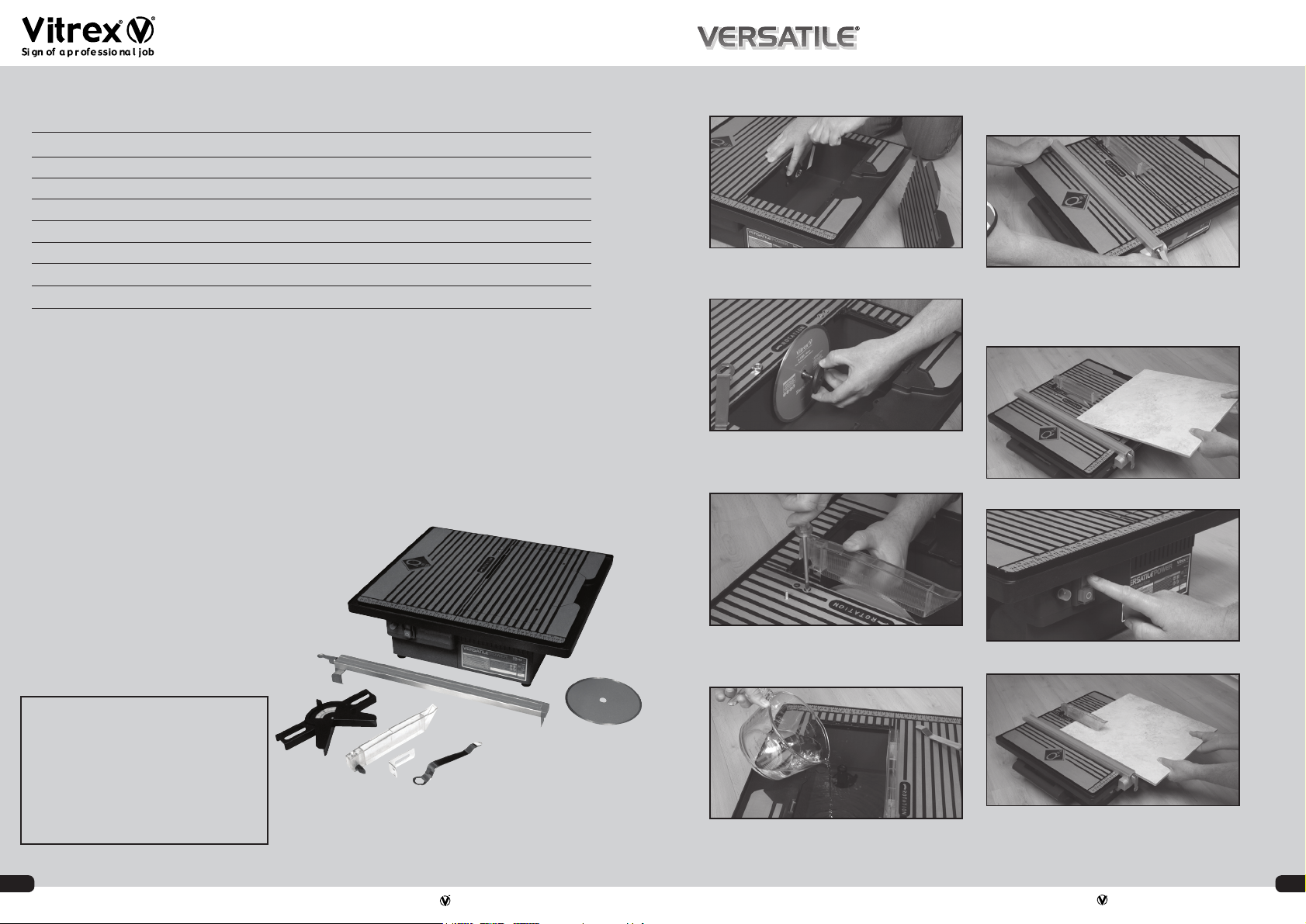

The contents of the box should include
the following (See pic below):

• PRO 750 Wet Saw

• 180mm Diamond Blade

• Blade guard set comprising of bolt, wing nut,

guard support and blade guard

• Rip Guide

• Variable Angle Mitre Guide

• Wrench

• Owner’s Safety & Operating Manual

240v 50Hz

750W

2800 RPM

95 dB (A)

25mm
17mm

degrees

0O-15O degrees

17.5 kg

Assembly & Operation Operating Instructions

Straight Cuts

To t or replace the Cutting Wheel, rst take out

the removable side of the cutting table. Remove
nut and washer using the wrench provided

Position blade against the black inner washer

ensuring that the directional arrow on the blade
matches that on the cutting table. Replace the
washer and nut. Do not over tighten.

Place the Rip Guide on the preferred side of the
table top and line up with the rule edge to the
required measurement of the tile to be cut. When

correctly aligned, lock in place by pushing the
adjuster rmly downwards.

Position the tile on the table top.

• Electrical faults must only be rectied by a
qualied electrician.

Before replacing table top, fasten guard support
in the slot behind the blade opening using the
screws provided. Attach blade guard to the
support using bolt and wing nut.

IMPORTANT
Your new Vitrex Versatile Power Pro
750 has a Super Quiet Induction Motor
for ultra smooth cuts. For best results

allow the blade to do the work, rather

than forcing the tile through the
machine. Should the blade stop, simply
ease the tile away and then continue
cutting using slightly less pressure.

04 05

Tel: [phone] Tel: [phone]

Fill the reservoir to a point just below the

overow opening at the top of the drain plug.
Replace cutting table. Check frequently during

use - do not allow the blade to run dry.

Switch on the machine.

Maintain an even pressure, hold the tile against
the cutting guide and push steadily through the
cutting wheel. When the cut is complete, switch
off the machine.

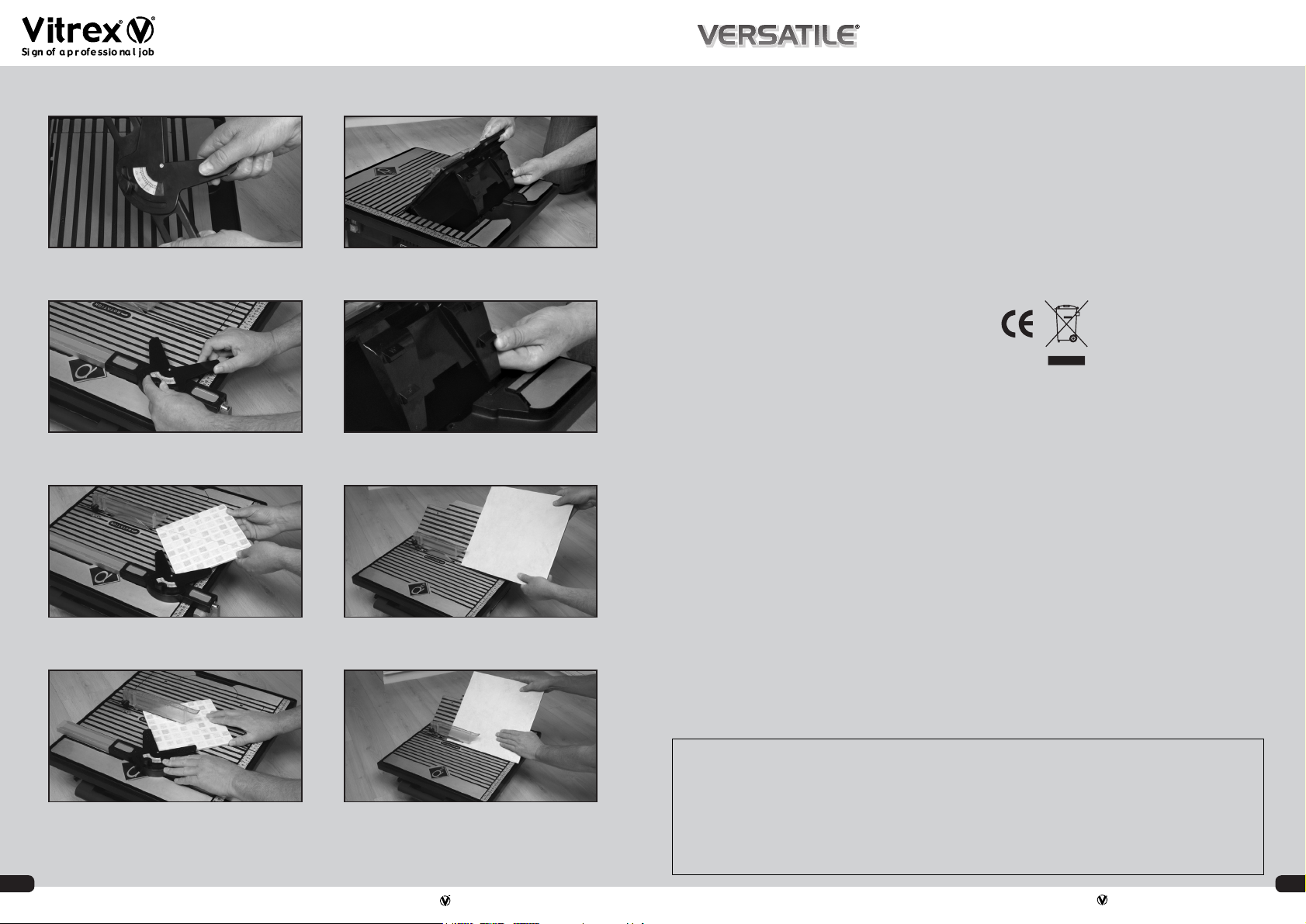

Angular Cuts Mitre Cuts

Maintenance

POWER PRO 750 Wet Saw

Consumer Advice

Slide the Mitre Guide into place on the Rip Guide. For Mitre cuts, raise the cutting table to the

Slacken the thumb screw and set the required

angle of cut.

required angle (15O, 30O or 45O degrees)

Locate the appropriate lugs into the slots
provided on the inside edge of the reservoir.

• Always check the blade before use for
cracks or signs of damage.

• Ensure that the reservoir is lled up to the
recommended level. Do not overll or

allow it to run dry.

• Always clean the machine after use, after
rst ensuring that it is disconnected from

the mains.

• Rinse out reservoir thoroughly to remove
all sludge and wipe down outside of
machine using a cloth or sponge.

• When not in use, store the electrical cable
and plug under the machine in the space
provided.

• No other servicing is required in normal
use. No attempt should be made to repair
or replace internal components as this will
invalidate any claim whilst the product is
under guarantee.

• Do not dispose of electrical products

with your normal household waste.

• Always use recycling facilities

whenever possible.

• Additional recycling information can

be found through your local Authority
or Retailer.

• For further information or advice,
please call the Vitrex Technical Helpline on

[phone].

Q.E.P. Co UK Ltd is committed to a continuing program of
product improvement. Consequently, please be advised

that specications, performance, appearance, and

dimensions of QEP/Vitrex products are subject to change
without notice. For more up-to-date information about our
range of products, please contact our Customer Service

Ofce on [phone] or your local distributor.

Re-tighten the knob and position the tile within

the jaws of the Mitre Guide.

Switch on the machine and while holding the tile

rmly in position, push the mitre guide steadily

along the rip guide, feeding the tile through the
cutting wheel. When the cut is complete, switch
off the machine.

06 07

Place the tile against the angled table top.

Switch on the machine and feed the tile through
the cutting wheel. When the cut is complete,
switch off the machine.

This electric tile cutter has been manufactured to a high quality standard. It is guaranteed against faulty materials and

workmanship for 12months from the date of purchase. Any claim must be accompanied by a valid till receipt as proof of purchase.

A faulty machine will either be repaired or replaced free of charge. If a direct replacement is not available, an alternative to the

a) Misuse, abuse or neglect, b) Trade, Professional or hire use, c) Repairs attempted by anyone other than our authorised repair

In the unlikely event of a fault occurring, contact should be made through the Vitrex Technical Helpline [phone]

The guarantor is Q.E.P. Co. UK Ltd., Everest Road, Lytham St. Annes, Lancashire, FY8 3AZ (Registered No. 04988177 England).

The above guarantee is only valid within the UK and does not affect your statutory rights.

same or greater value/specication will be offered.

This guarantee does not cover machine defects caused by or resulting from:

agent, d) Ingress of foreign objects, substances or accident
