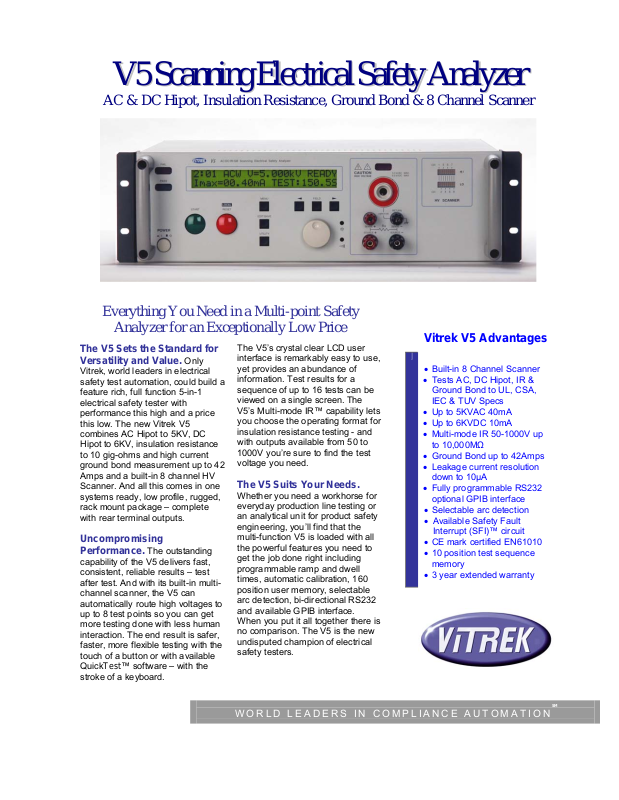

V55 SSccaannnniinngg EElleeccttrriiccaall SSaaffeettyy
V
Annaallyyzzeerr
A
AC & DC Hipot, Insulation Resistance, Ground Bond & 8 Channel Scanner
Everything You Need in a Multi-point Safety
Analyzer for an Exceptionally Low Price
The V5 Sets the Standard for
Versatility and Value. Only
Vitrek, world leaders in electrical
safety test automation, could build a
feature rich, full function 5-in-1
electrical safety tester with
performance this high and a price
this low. The new Vitrek V5
combines AC Hipot to 5KV, DC
Hipot to 6KV, insulation resistance
to 10 gig-ohms and high current
ground bond measurement up to 42
Amps and a built-in 8 channel HV
Scanner. And all this comes in one
systems ready, low profile, rugged,
rack mount package – complete
with rear terminal outputs.
Uncompromising
Performance.
capability of the V5 delivers fast,
consistent, reliable results – test
after test. And with its built-in multichannel scanner, the V5 can
automatically route high voltages to
up to 8 test points so you can get
more testing done with less human
interaction. The end result is safer,
faster, more flexible testing with the
touch of a button or with available
QuickTest™ software – with the
stroke of a keyboard.
The outstanding
WORLD LEADERS IN COMPLIANCE AUTOMATION
The V5’s crystal clear LCD user
interface is remarkably easy to use,
yet provides an abundance of
information. Test results for a
sequence of up to 16 tests can be
viewed on a single screen. The
V5’s Multi-mode IR™ capability lets
you choose the operating format for
insulation resistance testing - and
with outputs available from 50 to
1000V you’re sure to find the test
voltage you need.
The V5 Suits Your Needs.
Whether you need a workhorse for
everyday production line testing or
an analytical unit for product safety
engineering, you’ll find that the
multi-function V5 is loaded with all
the powerful features you need to
get the job done right including
programmable ramp and dwell
times, automatic calibration, 160
position user memory, selectable
arc detection, bi-directional RS232
and available GPIB interface.
When you put it all together there is
no comparison. The V5 is the new
undisputed champion of electrical
safety testers.
Vitrek V5 Advantages
• Built-in 8 Channel Scanner
• Tests AC, DC Hipot, IR &
Ground Bond to UL, CSA,
IEC & TUV Specs
• Up to 5KVAC 40mA
• Up to 6KVDC 10mA
• Multi-mode IR 50-1000V up
to 10,000MΩ
• Ground Bond up to 42Amps
• Leakage current resolution
down to 10µA
• Fully programmable RS232
optional GPIB interface
• Selectable arc detection
• Available Safety Fault
Interrupt (SFI)™ circuit
• CE mark certified EN61010
• 10 position test sequence
memory
• 3 year extended warranty
SM
V5 Performance Specifications
AC Hipot
Voltage Range: 100 to 5000 VAC RMS
Voltage Setting Resolution: 5V/step
Voltage Regulation: 1% of reading + 5V
Voltage Accuracy: 1% of reading + 10V
Voltage Monitoring: At Output Terminals
Output Current: 30mA to 40mA 180S
max, 0 to 30mA continuous. Below 500V
10mA max
Min/Max Current Limits: 0.1 to 40mA
Current Accuracy: 1% of reading + 50µA
DC Hipot
Voltage Range: 100 to 6000 VDC
Voltage Setting: Resolution: 5V/step
Voltage Regulation: 1% of reading + 5V
Voltage Accuracy: 1% of reading + 10V
Voltage Monitoring: At Output Terminals
Max Output Current: 10mA continuous,
below 500VDC 2mA continuous
Min/Max Current Limits: 0.01 to 10mA
Current Accuracy: 1% of reading + 50µA
Insulation Resistance
DC Output Voltage: 50, 100, 500 or
1000V
Resistance Range: 1 to 9999MΩ
Resistance Accuracy: (% of reading)
50, 100 VDC 1-50MΩ 5%
500, 1000 VDC 1-500MΩ 5%
Multi-Mode IR™: Select 1 of 3 modes test passes on good reading, test fails on
bad reading, pass/fail determined at end
of test time.
Ground Bond / Continuity
Test Current: 3A to 42 amps RMS
Terminal Configuration: 4 wire Kelvin
Resistance Range: 0 to 600mΩ
Resistance Resolution: 100µΩ
Resistance Accuracy: 1% reading ±3mΩ
Compliance Voltage: 8 volts at terminals
Current Resolution: 0.01A
Voltage Resolution: 0.01V
General
Test Database: 10 test sequences, up to
16 steps per test sequence
Front Panel Lockout: Prevents database
edit while in lockout mode
Arc Detect: 10 level trip select
Remote Interfaces:
RS232 - Fully interactive
PLC – Inputs: Start, Reset
Outputs: Testing, Pass, Fail
GPIB - Option GP-V5
Specifications subject to change without notice.
51-200MΩ 10%
201-1999MΩ 20%
501-2000MΩ 10%
2001-9999MΩ 20%
With its built-in HV Scanner, the V5 can automatically conduct both Hipot and IR
tests on up to 8 different points. Rear panel terminals provide convenient access
for Ground Bond testing, while PLC, RS232 and available GPIB interface
connectors allow for easy systems integration.
Timer Accuracy: 0.25% ± 50mS
Power Source: AC100V, 120V, 220V,
230V (±10% 50/60Hz), 350W max
Operating Environment: Indoor use,
altitude up to 6500ft (2000m). installation
category II. Pollution Degree 2
Operating Temperature: 0°C to 40°C,
80% RH
Storage Temperature: -10°C to 70°C,
70% RH
Enclosure: 3U x 19” Rack Mount
Package with front mount handles and
rear outputs
Dimension: 17”W x 17”D x 5.25”H,
432mm x 432mm x 133mm
Weight: 39lbs (18kg) net, 45 lbs (20 kg)
ship
Accessories: NIST cal cert, TL-20-60 &
K-2 test leads, instruction manual and
power cord
Accuracy: Stated specifications apply for
1 year at 23 °C ±5 °C
Calibration: ANSI/NCSL Z540 Certificate
of calibration with data traceable to NIST
Compliance: CE mark certified to
EN61010 and EMC directives EN50081-1
& EN50082-2
Warranty: 3-Year extended warranty with
registration and annual factory calibration,
1 year parts and labor standard
QuickTest
TM
Software
Option QT-V5: Bundled test automation
software and PC serial interface cable.
Easy to load graphical test sequence
development and operating environment.
Provides time/date, operator, test
parameters, test results and readings.
Results may be viewed, printed out or
exported to a database program
WORLD LEADERS IN COMPLIANCE AUTOMATION
Ordering Information
Prices are in US Dollars and reflect North
American pricing. For International pricing
please contact sales at Vitrek
V5 Scanning Electrical
$4990
Safety Analyzer
GP-V5 GPIB Interface
495
Option
TL-115-5 Hipot/GB
195
Outlet Test Adaptor
TL-10-60 High Volt
95
Probe Lead Set
TL-20-60 High Volt
85
Alligator Lead Set
TL-IEC5 IEC Socket
115
Lead Set
K-2 High Current, 4-
185
wire,2 Clip Kelvin Lead
Set
K-4 High Current, 4-wire,
195
4 Clip Kelvin Lead Set
SFI-2 Safety Fault
100
Interrupt Option
MHL-4U Mating HV
45
Lead 4 ft, unterminated
MHL-4A Mating HV
Lead with Alligator Clip
50
Represented by:
Vitrek Corporation
9880A Via Pasar, San Diego, CA 92126
For more information call:
858 689 2755 or Email Info@vitrek.com
Or visit our website at: www.vitrek.com
