Vitek VT-TR5HA1620, VT-TR5HA820, VT-TR5HA410 User Manual

VITEK
FEATURES:
• 4, 8, or 16 Channel HD-TVI / AHD / CVI / CVBS BNC Inputs Supporting up to 5 MegaPixel + IP Camera Support with ability to substitute up to 8 (VT-TR5HA820/ VT-TR5HA1620) 4 (VT-TR5HA410) HDA inputs for IP cameras
• 1-Channel IP Camera Support up to 3 MegaPixel (VT-TR5HA410) / 4-Channel IP Camera Support up to 4 MegaPixel (VT-TR5HA820 / VT-TR5HA1620)
• Live View: TVI/AHD: 5MP @ 10fps; 4MP, 3MP, 1080P, 720P, WD1 @ 30fps / CVI: 1080P, 720P @ 30fps
• Recording: 5MP: 10fps / 4MP/3MP: 15fps / 4MP lite/1080P/720P/WD1: 30fps
• HDMI (2560×1440,1920×1080,1280×1024), VGA (1080p), and BNC Spot Video Output (VT-TR5HA410 / VT-TR5HA820) / HDMI (4K - 3840×2160, 1920x1080, 1280×1024), VGA (1080p) / BNC Spot Video Output (VT-TR5HA1620)
• Simple plug and play, point-to-point connection from camera to DVR
• H.264 Compression
• 2-Way Audio
• PTZ Control over RS-485 / Control over Coax (CoC)
• 4 Alarm inputs / 1 Alarm Output
• Pentaplex: Live Display / Record / Playback / Backup / Remote Access
• 1 Internal SATA2/SATA3 HDD Slot supporting up to 8TB (1 x 8TB HDD) (VT-TR5HA410) / 2 Internal SATA2/SATA3 HDD Slot supporting up to 16TB (2 x 8TB HDD) (VT-TR5HA820 / VT-TR5HA1620)
• Applications for iOS & Android
• Remote Viewing over the Internet via Web Browser or LAN
• Mac OS® Client & CMS Central Management Software Included
• Supports both Dynamic and Static IP Addresses
• Control locally via USB Mouse or IR Remote control
VT-TR5HA Series
Transcendent Series 4, 8, or 16
Channel 5.0 MegaPixel 5-In-1
HD-TVI / AHD / CVI / CVBS / IP
Digital Video Recorders
Transcendent VT-TR5HA DVR Series
1
Notes
l Please read this user manual carefully to ensure that you can use the device correctly and
safely.
l There may be several technically incorrect places or printing errors in this manual. The
updates will be added into the new version of this manual. The contents of this manual are subject to change without notice.
l This device should be operated only from the type of power source indicated on the
marking label. The voltage of the power must be verified before using the same. Kindly remove the cables from the power source if the device is not to be used for a long period of time.
l Do not install this device near any heat sources such as radiators, heat registers, stoves or
other devices that produce heat.
l Do not install this device near water. Clean only with a dry cloth. l Do not block any ventilation openings and ensure proper ventilation around the machine. l Do not power off the device at normal recording condition. l This machine is for indoor use only. Do not expose the machine in rain or moist
environment. In case any solid or liquid get inside the machine’s case, please turn off the device immediately and get it checked by a qualified technician.
l Do not try to repair the device by yourself without technical aid or approval. l When this product is in use, the relevant contents of Microsoft, Apple and Google will be
involved in. The pictures and screenshots in this manual are only used to explain the usage of our product. The ownerships of trademarks, logos and other intellectual properties related to Microsoft, Apple and Google shall belong to the above-mentioned companies.
l This manual is suitable for many models. All examples and pictures used in the manual are
from one of the models for reference purpose.
Transcendent VT-TR5HA DVR Series
2
Contents
Contents ....................................................................................................................................... 2
1 Introduction ...................................................................................................................... 5
1.1 Summary ........................................................................................................................ 5
1.2 Features .......................................................................................................................... 5
1.3 Front Panel Descriptions ................................................................................................ 8
1.4 Rear Panel Descriptions ................................................................................................. 8
1.5 Connections .................................................................................................................. 11
2 Basic Operation Guide ................................................................................................... 13
2.1 Startup & Shutdown ..................................................................................................... 13
2.1.1 Startup ............................................................................................................... 13
2.1.2 Shutdown ........................................................................................................... 13
2.2 Remote Controller ........................................................................................................ 13
2.3 Mouse Control .............................................................................................................. 15
2.4 Text-input Instruction ................................................................................................... 15
2.5 Common Button Operation .......................................................................................... 16
3 Wizard & Main Interface .............................................................................................. 17
3.1 Startup Wizard .............................................................................................................. 17
3.2 Main Interface .............................................................................................................. 22
3.2.1 Main Interface Introduction ............................................................................... 22
3.2.2 Setup Panel ........................................................................................................ 24
3.2.3 Main Functions .................................................................................................. 26
4 Camera Management ..................................................................................................... 27
4.1 Camera Signal .............................................................................................................. 27
4.2 Add/Edit Camera .......................................................................................................... 28
4.2.1 Add Camera ....................................................................................................... 28
4.2.2 Edit Camera ....................................................................................................... 29
5 Live Preview Introduction ............................................................................................. 31
5.1 Preview Interface Introduction ..................................................................................... 31
5.2 Preview Mode ............................................................................................................... 32
5.2.1 Preview By Display Mode ................................................................................ 32
5.2.2 Quick Sequence View ....................................................................................... 33
5.2.3 Scheme View In Sequence ................................................................................ 34
5.2.4 Spot View .......................................................................................................... 35
5.3 Preview Image Configuration ...................................................................................... 36
5.3.1 OSD Settings ..................................................................................................... 36
5.3.2 Image Settings ................................................................................................... 36
5.3.3 Mask Settings .................................................................................................... 37
5.3.4 Water Mark Settings .......................................................................................... 38
5.3.5 Image Adjustment ............................................................................................. 38
6 PTZ .................................................................................................................................. 41
6.1 PTZ Control Interface Introduction .............................................................................. 41
6.2 Preset Setting ................................................................................................................ 45
Transcendent VT-TR5HA DVR Series
3
6.3 Cruise Setting ............................................................................................................... 45
6.4 PTZ Protocol Setting .................................................................................................... 46
7 Record & Disk Management ......................................................................................... 48
7.1 Record Configuration ................................................................................................... 48
7.1.1 Mode Configuration .......................................................................................... 48
7.1.2 Advanced Configuration ................................................................................... 50
7.2 Encode Parameters Setting ........................................................................................... 50
7.3 Schedule Setting ........................................................................................................... 51
7.3.1 Add Schedule .................................................................................................... 51
7.3.2 Record Schedule Configuration ........................................................................ 53
7.4 Record Mode ................................................................................................................ 54
7.4.1 Manual Recording ............................................................................................. 54
7.4.2 Timing Recording .............................................................................................. 54
7.4.3 Motion Based Recording ................................................................................... 54
7.4.4 Sensor Based Recording .................................................................................... 54
7.4.5 Intelligence Recording ...................................................................................... 54
7.5 Disk Management ......................................................................................................... 55
7.5.1 Storage Mode Configuration ............................................................................. 55
7.5.2 View Disk and S.M.A.R.T. Information ........................................................... 56
8 Playback & Backup ........................................................................................................ 57
8.1 Instant Playback ........................................................................................................... 57
8.2 Playback Interface Introduction ................................................................................... 57
8.3 Record Search, Playback & Backup ............................................................................. 60
8.3.1 Search, Playback & Backup by Time-sliced Image .......................................... 60
8.3.2 Search, Playback & Backup by Time ................................................................ 62
8.3.3 Search, Playback & Backup by Event ............................................................ 63
8.3.4 Search & Playback by Tag ............................................................................. 63
8.3.5 Image Management ........................................................................................... 64
8.3.6 View Backup Status .......................................................................................... 65
9 Alarm Management ....................................................................................................... 66
9.1 Sensor Alarm ................................................................................................................ 66
9.2 Motion Alarm ............................................................................................................... 67
9.2.1 Motion Configuration ........................................................................................ 67
9.2.2 Motion Alarm Handling Configuration ............................................................. 68
9.3 Intelligence Alarm ........................................................................................................ 68
9.3.1 Object Detection ................................................................................................ 68
9.3.2 Exception ........................................................................................................... 70
9.3.3 Tripwire (Line crossing) .................................................................................... 71
9.3.4 Intrusion Detection ............................................................................................ 73
9.4 Exception Alarm ........................................................................................................... 75
9.4.1 IPC Offline Settings .......................................................................................... 75
9.4.2 Video Loss Settings ........................................................................................... 75
9.4.3 Exception Handling Settings ............................................................................. 76
9.5 Alarm Event Notification ............................................................................................. 76
9.5.1 Alarm-out .......................................................................................................... 76
9.5.2 E-mail ................................................................................................................ 77
9.5.3 Display ............................................................................................................... 77
9.5.4 Buzzer ................................................................................................................ 77
Transcendent VT-TR5HA DVR Series
4
9.5.5 Push Message .................................................................................................... 77
9.6 Manual Alarm ............................................................................................................... 78
9.7 View Alarm Status ....................................................................................................... 78
10 Account & Permission Management .......................................................................... 80
10.1 Account Management ................................................................................................. 80
10.1.1 Add User .......................................................................................................... 80
10.1.2 Edit User .......................................................................................................... 81
10.2 User Login & Logout ................................................................................................. 82
10.3 Permission Management ............................................................................................ 82
10.3.1 Add Permission Group .................................................................................... 82
10.3.2 Edit Permission Group .................................................................................... 84
10.4 Block and Allow List ................................................................................................. 84
10.5 Preview On Logout .................................................................................................... 84
10.6 View Online User ....................................................................................................... 85
11 Device Management ..................................................................................................... 86
11.1 Network Configuration ............................................................................................... 86
11.1.1 TCP/IP Configuration ...................................................................................... 86
11.1.2 Port Configuration ........................................................................................... 86
11.1.3 PPPoE Configuration ...................................................................................... 87
11.1.4 DDNS Configuration ....................................................................................... 87
11.1.5 E-mail Configuration ....................................................................................... 90
11.1.6 UPnP Configuration ........................................................................................ 92
11.1.7 NAT Configuration ......................................................................................... 92
11.1.8 View Network Status ....................................................................................... 92
11.2 Basic Configuration .................................................................................................... 92
11.2.1 Common Configuration ................................................................................... 92
11.2.2 Date and Time Configuration .......................................................................... 93
11.3 Factory Default ........................................................................................................... 94
11.4 Device Software Upgrade .......................................................................................... 94
11.5 Backup and Restore .................................................................................................... 94
11.6 Restart Automatically ................................................................................................. 95
11.7 View Log .................................................................................................................... 95
11.8 View System Information .......................................................................................... 96
12 Remote Surveillance ..................................................................................................... 97
12.1 Mobile Client Surveillance ......................................................................................... 97
12.2 Web LAN Access ....................................................................................................... 97
12.3 Web WAN Access ...................................................................................................... 98
12.4 Web Remote Control .................................................................................................. 99
12.4.1 Remote Preview ............................................................................................ 100
12.4.2 Remote Playback ........................................................................................... 103
12.4.3 Remote Backup ............................................................................................. 104
12.4.4 Remote Configuration ................................................................................ 104
Transcendent VT-TR5HA DVR Series
5
1 Introduction
1.1 Summary
Based on the most advanced SOC technology and embedded system in the field, this series of DVR adopts the new designed human interface and supports smart management of analog cameras and IP cameras and the recorded search by time slice. These series of DVR’s which are powerful and easy to use are provided with an excellent image quality and stability. They are centralized monitoring management products with high performance and high quality specifically designed for video monitoring and recording.
1.2 Features
Basic Functions
l Supports local device and network device access including IP camera/dome and third party IP cameras
l Supports standard ONVIF protocol l Supports dual stream recording of each camera (max 5MP resolution) l Supports IP cameras to be added quickly or manually l Supports batch or single configuration of the cameras’ OSD, video parameters, mask,
motion and so on l Supports a maximum of 8 user permission groups including Administrator, Advanced and Ordinary which are the default permission groups of the system l Supports a maximum of 16 users to be created, multiple web clients login by using one username at the same time and the user’s permission control to be enabled or disabled l Supports a maximum of 10 web clients login at the same time
Live Preview
l Support 4K×2K/3840×2160/1920×1080/1280×1024 HDMI and 1920×1080/1280×1024 VGA high definition display
l Supports multi-screen modes l Supports auto adjustment of the camera’s image display proportion l Supports audio monitoring of the camera, can be enabled or disabled l Supports manual snapshot of the preview camera l Supports the sequence of the preview cameras, can be adjusted l Supports display mode to be added and saved and the saved modes can be called directly l Supports quick tool bar operation of the preview window l Supports scheme view in sequence, quick sequence view and dwell time setting l Supports motion detection and video mask l Supports multiple popular P.T.Z. control protocol and setup of the presets and cruise l Supports direct mouse control of the dome including rotating, zoom, focusing etc. l Supports single camera image to be zoomed by using the scroll wheel of the mouse l Supports any area of the image to be zoomed in to a maximum of 16 times of the current
size
Transcendent VT-TR5HA DVR Series
6
l Supports image and lens adjustment (only available for some cameras) l Supports quick camera adding in the camera window of the live preview interface l The live camera sequence of the web client will keep consistent with that of the DVR after
adjusting the live camera sequence of the DVR, but the live camera sequence of the DVR will not be changed if that of the web client is changed
Disk Management
l The DVRs with the 2U case can add a maximum of 8 SATA HDDs; a maximum of 4 SATA HDDs with the 1.5U case, a maximum of 2 SATA HDDs with the 1U case and a maximum of 1 SATA HDD with the small 1U case
l Each SATA interface of the DVR supports HDDs with max 8TB storage capacity l Supports disk group configuration and management and each camera can be added into
different disk groups with different storage capacity
l Supports disk information and disk working status viewing l Supports batch formatting of the disks
Record Configuration
l Supports main stream and sub stream recording at the same time and batch or single configuration of the recording stream
l Supports manual and auto record modes l Supports schedule recording, sensor alarm recording and motion detection recording, etc l Supports schedule recording and event recording settings with different record streams l Supports record schedule settings and recycle (overwrite) recording l Supports pre recording and post recording configuration for event recording
Record Playback
l Supports time scale operation in quick playback, the playback date and time can be set randomly by scrolling the mouse; the time interval of the time scale can be zoomed in
l Supports recording search by time slice/time/event/tag l Supports time view and camera view in searching by time slice mode l Supports time slice searching by month, day, hour and by minute and time slice to be
displayed with camera thumbnail
l Supports event searching by manual/motion/sensor/intelligent events l Supports tag searching by manual added tags l Supports instant playback of the selected camera in the live preview interface l Supports fast forward(maximum 32 times of the normal speed), slow motion (minimum
1/32 times of the normal speed) and 30s’ addition or reduction to current playing time
Record Backup
l Supports recording to be backed up through USB (U disk, mobile HDD) interface l Supports recording to be backed up by time/event/image searching l Supports recording cutting for backing up when playing back l Supports a maximum of 10 backup tasks in background and backup status viewing
Alarm Management
l Supports alarm schedule setting l Supports enabling or disabling of the motion detection, external sensor alarm input,
Transcendent VT-TR5HA DVR Series
7
intelligence alarm and exception alarms including IP address conflict alarm, disk IO error alarm, disk full alarm, no disk alarm, illegal access alarm, network disconnection alarm, IPC offline alarm and so on, alarm trigger configuration supportable
l Supports IPC offline alarm trigger configuration of PTZ, snap, pop-up video, etc. l Supports event notification modes of alarm-out, pop-up video, pop-up message box,
buzzer, e-mail
l The snapshot images can be attached into e-mails when alarm linkage is triggered l Supports alarm status view of alarm-in, alarm-out, motion detection and exception alarm l Supports alarm to be triggered and cleared manually l Supports system auto reboot when exception happens
Network Functions
l Supports TCP/IP and PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP protocol and so on l Supports allow and block list of IP address/IP segment/MAC address l Supports multiple browsers including IE8/9/10/11, Firefox, Opera, Chrome (Chrome
available only for versions lower than 45) and Safari in MAC system l Supports remote, configuration, import and export of the DVR parameters and other system maintenance operations including remote upgrading and system restart l Supports remote camera configuration of the DVR including video parameters, image quality etc.
l Supports remote search, playback and backup of the DVR l Supports manual alarm to be triggered and cleared remotely l The auto-focusing cameras can be adjusted through web client (supports zoom in/out, but
one key focus is not currently supported)
l Supports CMS or other platform management software to access the DVR and manage it l Supports NAT function and QRCode scanning for mobile phone and PAD l Supports mobile surveillance by phones or PADs with iOS or Android OS l Supports the DVR to be accessed remotely through telnet and the telnet function can be
enabled or disabled l If one camera recording is enabled or disabled manually through web client, it will be simultaneously enabled or disabled in the DVR
Other Functions
l The DVR can be controlled and operated by the remote controller and the mouse l Setting interfaces can be switched to one another conveniently by clicking the main menus
on the top of the setting interfaces l Supports DVR information viewing including basic, camera status, alarm status, record status, network status, disk and backup status l Supports factory default, import and export of the system configuration, log view and export and local upgrading by USB mobile device
l Supports auto recognition of the displayer’s resolution l You can click the right mouse button on any interface to go back to the upper interface l You can click the middle mouse button at any interface to go to the live view interface l The display language and video format of the DVR will not be changed and the system
logs will be reserved if you reset the DVR to factory default
Transcendent VT-TR5HA DVR Series
8
l Press and hold the right mouse button for 5 seconds in any interface to switch the output to VGA and the DVR will display the video at the lowest resolution which the DVR supports
1.3 Front Panel Descriptions
The following descriptions are for reference only. Type I:
Name
Descriptions
REC When recording, the light is blue
Net When connected to a network , the light is blue
Power Power indicator, when connected , the light is blue
Type II:
Name
Descriptions
Power Power Indicator, when connected, the light is blue
HDD Blue when reading/writing HDD
Net Blue when it is able to access the network
Backup Blue when backing up files and data
Play Blue when playing video
REC Power Indicator, when connected, the light is blue
AUDIO /+ 1. Adjust audio 2. Increase the value in setup
P.T.Z / -
1. Enter PTZ mode 2. Decrease the value in setup
MENU
Enter Menu in live
INFO
Check the information of the device
BACKUP Enter backup mode in live
SEARCH Enter search mode in live
Exit
Exit the current interface
Manually record
Play/Pause
Rewind
Fast forward
1-9
Input digital number and select camera
0/-- Input number 0, the number above 10
Direction Key Change direction
Multi-Screen Switch Change the screen mode
Enter
Confirm selection
USB
To connect external USB device like USB mouse or USB flash
1.4 Rear Panel Descriptions
Below images are for example purposes only. Actual product may very
Transcendent VT-TR5HA DVR Series
9
No.
Name
Descriptions
1 AUDIO IN Audio input
2 ALARM IN Alarm inputs for connecting sensors
3 ALARM OUT Relay output; connect to external alarm
4
GND
Grounding
5
VIDEO IN
4 CH video inputs
6
AUDIO OUT
Audio output
7
CVBS
CVBS video output; connect to monitor
8
VGA
Connect to monitor
9 HDMI Connect to high definition display device
10 LAN Network port
11 USB Connect USB storage device or USB mouse
12
DC12V
DC12V power input
13 RS485 Connect to keyboard or speed dome. A is TX+; B is TX-
No. Name Descriptions
Transcendent VT-TR5HA DVR Series
10
No. Name Descriptions
1
CVBS
CVBS video output; connect to monitor
2
ALARM IN
Alarm inputs for connecting sensors
3
GND
Grounding
4
AUDIO OUT
Audio output
5
AUDIO IN
Audio input
6
ALARM OUT
Relay output; connect to external alarm
7 VIDEO IN 8 CH video inputs
8 HDMI Connect to high definition display device
9
VGA
Connect to monitor
10 LAN Network port
11 RS485 Connect to keyboard or speed dome. A is TX+; B is TX-
12 USB Connect USB storage device or USB mouse
13
DC12V
DC12V power input
No.
Name
Descriptions
1
RS485
Connect to keyboard or speed dome. A is TX+; B is TX-
2 AUDIO IN Audio input
3 VIDEO IN 16 CH video inputs
4
HDMI
Connect to high definition display device
5 VGA Connect to monitor
6 LAN Network port
7 AUDIO OUT Audio output
8
CVBS
CVBS video output; connect to monitor
9
USB
Connect USB storage device or USB mouse
10
DC12V
DC12V power input
Transcendent VT-TR5HA DVR Series
11
1.5 Connections
l Video Connections
Video Output: Supports VGA/HDMI video output. Connect to a monitor through these video output interfaces simultaneously or independently.
l Audio Connections
Audio Input: Connect to microphone, pickup, etc. Audio Output: Connect to headphones, amplifier etc.
l Alarm Connections
Some models may support this function. Take 16 CH alarm inputs and 1 CH alarm output for example.
Alarm Input: Alarm IN 1~16 are 16 CH alarm input interfaces. There are no type requirements for sensors. NO type and NC type are both available. The way to connect sensor and the device is as shown below:
The alarm input is an open/closed relay. If the input is not an open/closed relay, please refer to the following connection diagram:
Transcendent VT-TR5HA DVR Series
12
Alarm Output: The way to connect alarm output device: Pull out the green terminal blocks and loosen the screws in the alarm-out port. Then insert the signal wires of the alarm output devices into the port of NO and COM separately. Finally, tighten the screws. Provided that the external alarm output devices need power, you can connect the power supply as per the following figures.
l RS485 Connection
There are two types of RS485 interfaces:
Type 1︶ ︵Type 2︶
Type 1: The P/Z interface is used to connect speed domes. A K/B interface is used to connect keyboards. Type 2: The RS485 interface is not only used to connect speed domes but also to connect keyboards. The way to connect a speed dome to the DVR: Type 1: Disconnect connecting block from the RS485 terminal block and then loosen the screws from the connecting block, insert signal cables into Y and Z port separately (Y is TX+; Z is TX-) and tighten the screws. Next, connect connecting block back into terminal block. Finally, connect the video cable of the speed dome to the video BNC of the DVR. Type 2: Disconnect connecting block from the RS485 terminal block and then loosen the screws from the connecting block, insert signal cables into A and B port separately (A is TX+; B is TX-) and tighten the screws. Next, connect connecting block back into terminal block. Finally, connect the video cable of the speed dome to the video BNC of the DVR.
Note:
The connecting block of some models may not be connected into the terminal block; the connecting
block will be with the accessories
Transcendent VT-TR5HA DVR Series
13
2 Basic Operation Guide
2.1 Startup & Shutdown
Please make sure all the connections are done properly before powering the unit. Proper startup and shutdown are crucial to extending the life of your device.
2.1.1 Startup
Connect the display device to the VGA/HDMI interface of the DVR. � Connect the mouse and power. The device will boot and the power LED will turn blue. A WIZARD window will pop up (you should select the display language the first time you
use the DVR). Refer to 3.1 Startup Wizard for details.
2.1.2 Shutdown
Power off the device by using the remote control or the mouse.
By remote control:
Press Power button. This will take you to a shutdown window. The unit will power off after clicking “OK” button. Disconnect the power.
By mouse:
Click StartàShutdown to pop up the Shutdown window. Select “Shutdown” in the window. The unit will power off after clicking the “OK” button. Disconnect the power.
2.2 Remote Controller
Uses two AAA size batteries. Open the battery cover of the remote control. � Insert batteries. Please observe the polarity (+ and -). Replace the battery cover.
Key points to check in case the remote doesn’t work.
1. Check batteries polarity.
2. Check the remaining charge in the batteries.
3. Check IR control sensor for any masking.
If it still doesn’t work, please try a new remote control, or contact your dealer. There are two kinds of remote controls. The interface of remote control is shown as below.
Button Function
Power Button
Turns unit on and off
Transcendent VT-TR5HA DVR Series
14
Record Button To start recording
-/-- /0-9 Input number or choose camera
Fn1 Button Not used
Multi Button To choose multi screen display mode
Next Button To switch the live image
SEQ To go to sequence view mode
Audio To enable audio output in live mode
Spot Not used
Direction button To move cursor in setup or pan/tilt PTZ
Enter Button To confirm the choice or setup
Menu Button To go to menu
Exit Button To exit the current interface
Focus/IRIS/Zoom/PTZ To control PTZ camera
Preset Button To enter into preset setting in PTZ mode
Cruise Button To go to cruise setting in PTZ mode
Track Button Not used
Wiper Button Not used
Light Button Not used
Clear Button Not used
Fn2 Button Not used
Info Button Get information about the device
To control playback. Play(Pause)/Stop/Previous Frame/Next Frame/Speed Down/Speed Up
Snap Button To take snapshots manually
Search Button To go to search mode
Cut Button Not used
Backup Button To go to backup mode
Zoom Button To zoom in the images
PIP Button Not used
Note:
Press P.T.Z button to enter PTZ setting mode, choose a channel and press P.T.Z button again to hide
the P.T.Z control panel.
Transcendent VT-TR5HA DVR Series
15
2.3 Mouse Control
Ø Mouse control in Live Display & Playback interface
In the live display & playback interface, double click on any camera window to show the window in single screen mode; double click the window again to restore it to the previous size.
In the live display & playback interface, if the interfaces display in full screen, move the mouse to the bottom of the interface to pop up a tool bar. The tool bar will disappear automatically after you move the mouse away from it; move the mouse to the right side of the interface to show a side panel and the panel will disappear automatically after you move the mouse away from it.
Ø Mouse control in text-input
Move the mouse to the text-input box and then click the box. The input keyboard will pop up automatically.
2.4 Text-input Instruction
Button Function
REC Record manually
Search To enter search mode
MEUN To enter menu
Exit To exit the current interface
ENTER To confirm the choice or setup
Direction button To move cursor in setup
ZOOM To zoom in
PIP Not used
To control playback. Play(Pause)/Next Frame/Speed Up/Stop/Previous Frame/Speed Down
Multi To choose multi screen display mode
Next To switch the live image
SEQ To go to sequence view mode
INFO Get information about the device
Note: Mouse is the default tool for all operations unless an exception is indicated.
Transcendent VT-TR5HA DVR Series
16
The system includes two input boxes. Refer to the above pictures. The left box is the number input box and the right box is the input box which provides inputs of numbers, letters and punctuation characters. The introductions of keys on the input boxes are shown below.
Button
Meaning
Button
Meaning
Backspace key
Switch key of punctuation character
Delete Key
Enter key
Switch key between upper and lower letter
Space key
Switch language
2.5 Common Button Operation
Button Meaning
Show the menu list.
Change the sequence of the list.
Change the camera displaying mode.
Close the current interface.
Click to go to the earliest date of camera recording.
Click to go to the latest date of camera recording.
Transcendent VT-TR5HA DVR Series
17
3 Wizard & Main Interface
3.1 Startup Wizard
The disk icons will be shown on the top of the startup interface. You can view the number and
status of each disk quickly and conveniently through these icons ( : no disk; : unavailable
disk; : RW available disk).
You can quickly configure the DVR by using the wizard setup. You must use the wizard setup
when you start the DVR for the first time (click “Skip” to cancel the wizard next time)
Click “Wizard Setup” to start wizard. The setting steps are as follows. System Login. Set your own password or use the default when you use the wizard for the first time (the default username of the system is admin and the default password of admin is
123456); select the login username and enter the corresponding password next time.
Click “Edit Security Question” to set questions and answers for password security of admin. If you forget the password, please refer to Q4 in Appendix A FAQ for details. Click “Next” to continue or click “Cancel” to exit the wizard.
Date and Time Configuration. The date and time of the system needs to be set up when you use the wizard for the first time. Refer to the following figure. Set the time zone, system time, date format and time format. The DST will be enabled by default if the time zone selected includes DST. Click “Next” to continue.
Transcendent VT-TR5HA DVR Series
18
Network Settings. Check “Obtain an IP address automatically” and “Obtain DNS automatically” to get the IP address and DNS automatically (the DHCP function of the router in the same LAN should also be enabled), or manually input them. Input the HTTP port, RTSP port and Server port (please see 11.1.2 Port Configuration for details). Click “Next” to continue.
QRCode. Enable the NAT function in the interface or set it in the network configuration after exiting the wizard (please refer to 11.1.7 NAT Configuration for details). You can scan the QRCode through the mobile client which is installed on the mobile phone or PAD
Transcendent VT-TR5HA DVR Series
19
Add Camera. Click “Refresh” to refresh the list of online IP cameras which are in the
same local network with the DVR and then click to add the found camera. Click “Add
All” to add all the cameras in the list. Click to delete the added camera. Click “Delete All” to delete all the added cameras.
Click to edit the searched IP camera as shown on the below left. Input the new IP address, subnet mask, gateway and the password of the camera. You can check “Sync to IPC” to modify the IP address of the IPC via different network segments for being in the same network segment with the DVR. Click “OK” to save the settings.
Click to edit the added camera as shown on the above right. Input the new camera name, IP address, port, username and the password of the camera. You can click “Test” to test the effectiveness of the inputted information. Click “OK” to save the settings. You can change the camera name only if it’s an analog camera or the added IPC is online. Click “Next” to continue.
Transcendent VT-TR5HA DVR Series
20
Disk Settings. You can view the disk number, disk capacity of the DVR and serial number, R&W status of the disk. Click “Format” to format the disk. Click “Next” to continue.
Record Settings. Two record modes are available: auto and manual. Auto: Select one auto mode in the interface as shown below and then click “OK” button to save
the settings. See 7.1.1 Mode Configuration for details.
For advanced features please click on the "Advanced" tab to open the following wind
Transcendent VT-TR5HA DVR Series
21
Please check which features that are needed for recording and click “Add”
Transcendent VT-TR5HA DVR Series
22
Manual: Set the “Sensor Record”, “Motion Record” and “Schedule Record” of each camera. Click “OK” to save the settings. See 7.1.1 Mode Configuration for details.
3.2 Main Interface
3.2.1 Main Interface Introduction
The buttons in area 1 are introduced in the table below.
Button Meaning
Start button. Click it to pop up area .
Transcendent VT-TR5HA DVR Series
23
Button Meaning
Full screen button. Click it to show full screen; click it again to exit the full screen.
Screen mode button.
Dwell button (see 5.2.2 Quick Sequence View and 5.2.3 Scheme View In Sequence for details).
Click to enable OSD; click to disable OSD.
Click to set the default playback time before starting instant playback (8.1 Instant Playback) or going to the playback interface for playback operations (8.2 Playback Interface
Introduction); click to go to the playback interface. For instance, if you choose “5 minutes ago” as the default playback time, you can playback the record from the past five minutes.
Manual record button. Click to enable/disable record.
Manual alarm button. Click to trigger or clear the alarm-out manually in the popup window.
Record status button. Click to view the record status.
Alarm status button. Click to view the alarm status.
Disk status button. Click to view the disk status and RAID status.
Network status button. Click to view the network status.
Information button. Click to view system information.
Introduction of area 2: Click “Camera” to view all the added cameras in the camera list. Select one camera window on the left side of the interface and then double click one IP camera in the list to preview the camera image in the selected window. Click “Customize Display Modes” to view all the display modes in the display mode list (refer to 5.2.1 Preview By Display Mode for detail configuration of the display mode). Double click one display mode in the list to switch to the display mode for previewing.
Introduction of area :
Icon / Button Meaning
It shows the current login user.
Click it to go to record search interface, see 8.3 Record Search, Playback & Backup for details.
Click it to go to playback interface (click on the tool bar at the bottom of the live preview interface to set the default playback time), see 8.2 Playback Interface Introduction for details.
Transcendent VT-TR5HA DVR Series
24
Icon / Button Meaning
Click it to pop up the setup panel, see 3.2.2 Setup Panel for details.
Click it to log out the system.
Click it and then select “Logout”, “Reboot” or “Shutdown” in the popup window.
3.2.2 Setup Panel
Click StartàSettings to pop up the setup panel as shown below.
The setup panel includes seven modules. Each module provides some function entries with links for convenient operation. Take the Camera module as an example. The Camera module provides convenient links such as “Add Camera”, “Edit Camera”, “Image Settings”, “Motion”, “Intelligent Detection” and “PTZ”. Click Camera to go to the camera management interface as shown below.
Transcendent VT-TR5HA DVR Series
25
There are some function items on the left side of the camera management interface. Click each item to go to corresponding interface or window. For instance, click “Add Camera” to pop up the window as shown below.
Click the main menus on the top of the camera management interface to go to corresponding interfaces. Refer to the picture below. For instance, you can go to system setup interface by clicking “System” tag.
Transcendent VT-TR5HA DVR Series
26
3.2.3 Main Functions
Ø Camera
This module covers the functions such as Camera Management (see Chapter 4 Camera Management for details), Image Settings (see 5.3 Preview Image Configuration for details), Motion (see 9.2.1 Motion Configuration for details) and PTZ (see Chapter 6 PTZ for details) and so on.
Ø Record
This module covers the functions such as Encode Parameters and Record Schedule and so on. Please see Chapter 7 Record & Disk Management for details.
Ø Disk
This module covers the functions such as Disk Management, Storage Mode and Disk Information and so on. Please see Chapter 7 Record & Disk Management for details.
Ø Alarm
This module covers the functions such as Sensor and Motion Alarm Handling and Alarm Out Settings. Please see Chapter 9 Alarm Management for details.
Ø Network
This module covers the functions such as TCP/IP, DDNS, Port, E-mail and Network Status and so on. Please see 11.1 Network Configuration for details.
Ø Account and Authority
This module covers the functions such as Account Management (see 10.1 Account Management for details) and Permission Management (see 10.3 Permission Management for details) and so on.
Ø System
This module covers the functions such as Basic Configuration (see 11.2 Basic Configuration for details), Device Information (see 11.8 View System Information for details), Log Information (see 11.7 View Log for details) and Configuration File Import&Export (see 11.5 Backup and Restore for details) and so on.
Transcendent VT-TR5HA DVR Series
27
4 Camera Management
4.1 Camera Signal
Click StartàSettingsàCameraàManage CameraàCamera Signal to go to the interface as shown below. The DVR supports hybrid access of TVI, AHD and CVI high definition cameras. If a TVI high definition camera is connected to the DVR, you should select TVI in the following interface to show the camera image; if you select AHD, then there will be no image or the image has no color. The default selection of the camera signal is Auto. If you select Auto, the image of the camera will be shown normally regardless of the camera type.
You can enable “Lite” in the interface if the DVR supports “Lite” recording. It will lower the recording resolution and increase the recording frame rate. Please enable or disable the Lite as you wish.
Analog / IP
While the DVR can add additional cameras through the use of IP cameras 1(3mp) on the 4ch
and 4(4mp) on the 8 & 16 channel units you are able to change the hard input channels into IP channels (4 + 1 on the 4ch and 8 + 4 on the 8 & 16 channel)
Transcendent VT-TR5HA DVR Series
28
4.2 Add/Edit Camera
4.2.1 Add Camera
The network of the DVR should be set before adding IP camera (see 11.1.1 TCP/IP Configuration for details).
Refer to the pictures below. Click Add Camera in the setup panel or in the top right corner of the preview window to pop up the “Add Camera” window as shown below. You can quickly add or add an IP camera manually.
Transcendent VT-TR5HA DVR Series
29
Ø Quickly Add
Check the cameras and then click “Add” to add cameras. Click to edit the camera’s IP address, username and password and so on. Click “Default Password” to set the default username and password of each camera.
Ø Add Manually
Input the IP address or domain name (click in the IP address column to pop up the domain name input window, input the domain name of the IPC in the window and then click “OK” button), port, username and password of the camera and then select the protocol. Click “Test” to test the effectiveness of the input information and then click “Add” button (you can input one camera’s information or above such as IP address, username and password before clicking
“Add” button). Click to delete the camera. Click “Default Password” to set the default username and password of each camera.
4.2.2 Edit Camera
Click “Edit Camera” in the setup panel to go to the interface as shown below. Click to
Transcendent VT-TR5HA DVR Series
30
view the live image of the camera in a popup window. Click to edit the camera (see Add
camera in 3.1 Startup Wizard for details). Click to delete the IP camera. Click in
the “Operation” header line and then click “Modify IPC Password” to pop up a window(check the IPCs in the window, set the new password and then click “OK” button; only the online IPCs’ passwords can be modified and a batch of IPCs’ passwords can be modified at the same
time). Click to upgrade an online IPC ( or click in the “Upgrade” header line and then click “IPC Batch Upgrade” to upgrade a batch of IPCs), select the device which stores the upgrade file in the “Device Name” item of the popup window and the upgrade file in the list(you should select the upgrade IPC model in the window if a batch of IPCs’ passwords need to be modified) and then click “Upgrade” button to start upgrading(the IPC will restart automatically after the upgrade is completed successfully).
Transcendent VT-TR5HA DVR Series
31
5 Live Preview Introduction
5.1 Preview Interface Introduction
The connected analog camera will be added automatically in the live preview interface for previewing. You need to add IP cameras manually for previewing (see 4.2.1 Add Camera for details). Refer to the interface as shown below, drag one camera in the preview window to another window for camera window exchanging. The record symbols with different colors in the live preview window refer to different record types when recording: green stands for manual record, red stands for sensor based record, yellow stands for motion based record, blue stands for schedule record and cyan stands for intelligence record.
Click the preview window to show the tool bar as shown in area 1; right click the preview window to show the menu list. The tool bar and menu list are introduced in the table below.
Button Menu List Meaning
-- Move toolbar. Click to move the toolbar anywhere.
Manually Record On Click to start recording.
Instant Playback
Click to playback the recording; click “Instant Playback” to select or self-define the instant playback time. See 8.1 Instant Playback for
details.
Enable Audio
Click to enable audio. You can listen to the camera audio by enabling audio.
Snap
Click to pop up the snap window. Click “Save” in the window to save the image. Click “Export” to export the image.
PTZ Control Click to go to PTZ control interface. See Chapter 6 PTZ for details.
Transcendent VT-TR5HA DVR Series
32
Button Menu List Meaning
Zoom In Click to go to single channel zoom interface.
--
Click to go to image adjustment interface. Refer to 5.3.5 Image Adjustment for details.
-- Camera Info Click it to view the IP camera information.
The single channel zoom interface is as shown below. Press and drag the blue box to select the
zoom in area. Click / to zoom in and out of the image. Click the camera selection box to select other cameras for zoom. Click “Back” to return to the live preview interface.
5.2 Preview Mode
5.2.1 Preview By Display Mode
Set different screen modes and camera display sequences as required and then save the display mode. Refer to the picture below. Double click one display mode in the display mode list to view the live images in this mode.
Transcendent VT-TR5HA DVR Series
33
Ø Add Display Mode
Method One:
Click “Customize Display Modes” in the above interface and then set the screen mode. Add the cameras and adjust the cameras’ display sequence as required. Click “Save” button under the display mode list and then enter the display mode name in
the popup window, click “OK” button to save the current display mode.
Method Two:
Click StartàSettingsàSystemàBasicàOutput SettingsàMain Output to go to the interface and then set the screen mode.
Double click the camera or camera group in the list to add them to the selected window.
Click to save the current display mode (refer to 5.2.3 Scheme View In Sequence for
detail configurations). The display mode will be saved and displayed in the display mode list in the live preview interface.
Ø Edit Display Mode
Click “Customize Display Modes” tab in the live preview interface and then select one display mode in the list. Click “Rename” to edit the display mode name; click “Delete” to delete the display mode.
5.2.2 Quick Sequence View
You can start quick sequence view if the scheme has not been created. If the scheme has been created, please refer to 5.2.3 Scheme View in Sequence for details.
Transcendent VT-TR5HA DVR Series
34
Go to the live preview interface and then click to pop up a little window. Set the dwell
time in the window and then click to view the live group by group according to the camera number of the current screen mode. Double click the sequence view interface to pause
the view; double click again to restore the view. Click to stop the view.
5.2.3 Scheme View In Sequence
Click StartàSettingsàSystemàBasicàOutput SettingsàMain Output to go to the interface as shown below. Area 1 displays all the dwell schemes; area 2 shows the detailed information of the scheme;
area 3 displays all the cameras; area 4 is the tool bar ( : clear button; : favorite button, click to pop up a window, enter the display mode name in the window and then click “OK” to save the current display mode; other buttons are screen mode buttons).
Transcendent VT-TR5HA DVR Series
35
Ø Add Scheme
Click in area 1 to create a new scheme. Click on the top right corner of the scheme to delete it.
Ø Configure Scheme
a) Select a scheme in area 1 and then click the screen mode button on the tool bar to set the screen mode of the scheme. b) Select a camera window in area 4 and then double click the camera in area 3. The camera will be added into the selected window. One camera in the same scheme cannot repeat. You
can right-click menu “Clear” in area 2 to remove a single camera or click to remove all the cameras. c) Click “Apply” to save the settings.
Ø Start Sequence View
Go to live preview interface and then click to pop up a window. Set the dwell time in the
window and then click to start scheme view in sequence. Double click the sequence view
interface to pause the view; double click again to restore the view. Click to stop the view.
5.2.4 Spot View
Click StartàSettingsàSystemàBasicàOutput SettingsàOutput 2 to go to the interface as shown below.
Click on the left to create a new scheme. Each scheme can only add one analog camera. Select a scheme on the left and then double click or drag a camera on the right to the scheme window in the middle of the interface. After finishing the settings of all the schemes, select the dwell time and click “Apply” to start playing the schemes in sequence in output 2.
Transcendent VT-TR5HA DVR Series
36
5.3 Preview Image Configuration
5.3.1 OSD Settings
Click StartàSettingsàCameraàImageàOSD Settings to go to the interface as shown below. Select the camera, input the camera name (or double click the camera name in the camera list to change the camera name), enable or disable the name and time OSDs (if enabled, drag the red name and time OSDs directly in the image view area to change the OSDs’ display position) and select the date and time formats. Click “Apply” to save the settings.
5.3.2 Image Settings
Click StartàSettingsàCameraàImageàImage Settings to go to the following interface. Select the camera and then set the brightness, contrast, saturation and hue of the camera. Click
Transcendent VT-TR5HA DVR Series
37
“Advanced” button or in the camera list on the right side of the interface to pop up “Image Adjust” interface and then set the relevant setting items. Please refer to 5.3.5 Image Adjustment for detailed introductions of these items. Click “Default” button to restore the image settings to the default factory settings.
5.3.3 Mask Settings
Some areas of the image can be masked for privacy. Up to four mask areas can be set for each camera. Click StartàSettingsàCameraàImageàMask Settings to go to the interface as shown below. Select the camera and enable the mask. Click “Draw” button and then drag the mouse on the image area to set the mask area; click “Delete” button to delete the mask areas; click “Apply” to save the settings.
Transcendent VT-TR5HA DVR Series
38
5.3.4 Water Mark Settings
Click StartàSettingsàCameraàImageàWater Mark Settings to go to the interface as shown below. Select the camera and enable water mark and then input the water mark information. Click “Apply” to save the settings.
5.3.5 Image Adjustment
Go to live preview interface and then click button on the tool bar under the camera window to go to the image adjustment interface.
Ø Image Adjustment
Transcendent VT-TR5HA DVR Series
39
Select the camera and then click “Image Adjustment” to go to image adjustment tab. Refer to the above picture. Drag the slider to set the camera’s brightness, contrast, saturation and hue value. Check sharpen, wide dynamic and denoise and then drag the slider to set the value. Click “Default” button to set these parameters to default values. The introductions of these parameters are as follows:
Parameter Meaning
Brightness The brightness level of the camera’s image.
Contrast The color difference between the brightest and darkest parts.
Saturation The degree of color purity. The color is purer, the image is brighter.
Hue Relates to the total color degree of the image.
Sharpen
Relates to the resolution level of the image plane and the sharpness level of the image edge.
Wide Dynamic
Wide Dynamic Range (WDR) function helps the camera provide clear images even under back light circumstances. When there are both very bright and very dark areas simultaneously in the field of view, WDR balances the brightness level of the whole image and provide clear images with details.
Denoise
Adopts the noise reduction technology to decrease the noise and make the image cleaner. Increasing the value will make the noise reduction effect better but it will reduce the image resolution.
White Balance
White balance is the white rendition function of the camera to adjust the color temperature according to the environment automatically.
Image Mirror Reverse the current video image right and left.
Image Flip Turn the current video image upside down.
Ø Lens Control (Camera dependent)
Select the camera and then click “Lens Control” to go to lens control tab. Click or to adjust the zoom and focus parameters of the camera’s lens. Click “Save” to save the settings.
Transcendent VT-TR5HA DVR Series
40
The parameters and buttons are as follows:
Button/Parameter Meaning
Click / to zoom in/out the image.
Focus Mode
If manual mode is selected, focus button & “One Key Focus” & “Day/night mode switch autofocus” will be available; if auto mode is selected, the time interval setup will be available.
Click / to increase/decrease the focal length.
Click it to focus instantly.
Day/night mode switch autofocus
If checked, the lens will focus automatically when the camera is switching day/night mode.
Time Interval
It is the time interval when camera lens is auto-focusing. The interval can be set in the drop-down list.
Note: This function is only available for the models with auto varifocal lens, or the settings here are ineffective.
Transcendent VT-TR5HA DVR Series
41
6 PTZ

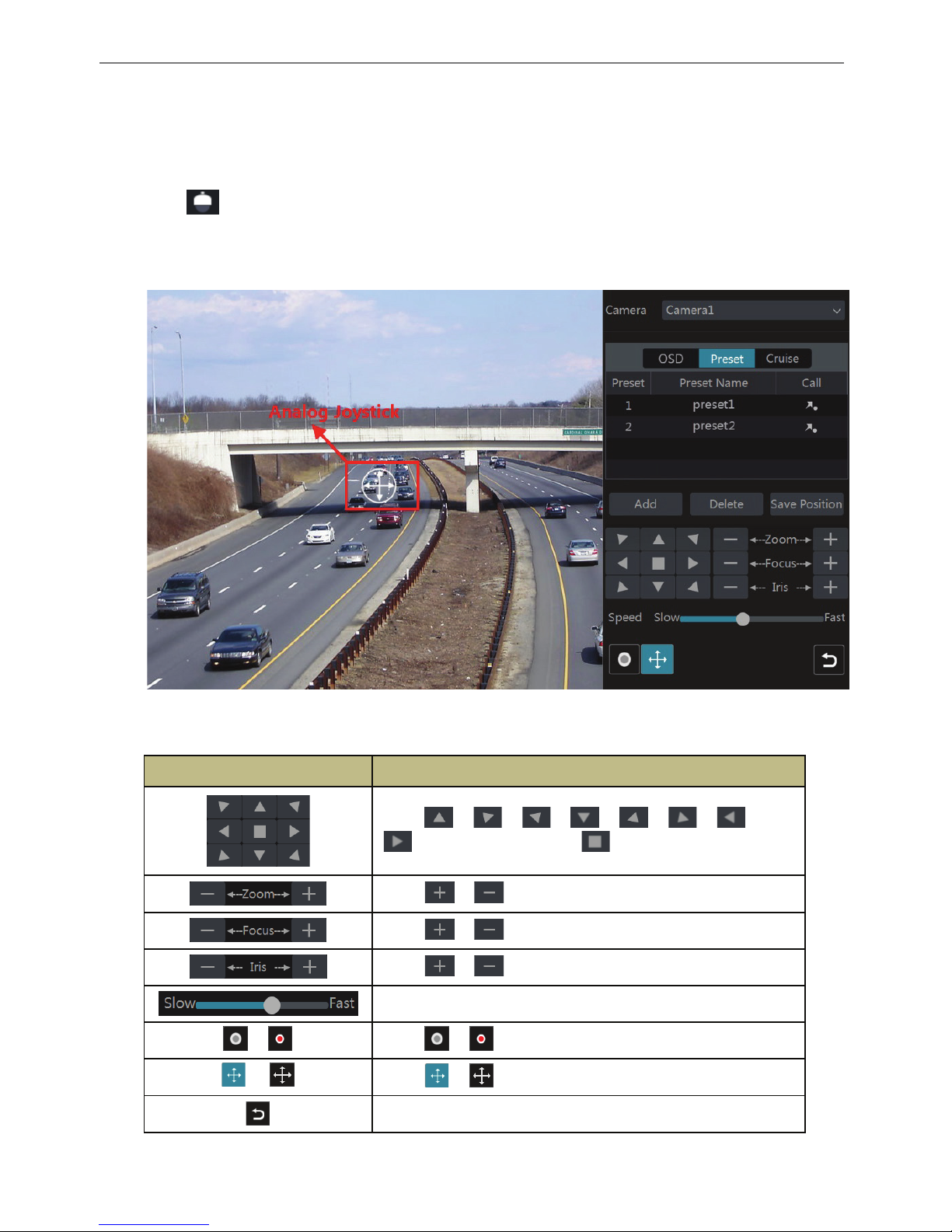

6.1 PTZ Control Interface Introduction
You can control the dome or PTZ which connects to the camera for PTZ control.
Click on the tool bar at the bottom of the live preview window to go to the PTZ control interface as shown below. You can select another dome or PTZ which connects to the camera on the top right of the interface for PTZ control.
The buttons on the bottom right of the interface:
Button Meaning
Click / / / / / / /
to rotate the dome. Click to stop rotating the dome.
Click / to zoom in / out the camera image.
Click / to increase / decrease the focal length.
Click / to increase / decrease the iris of the dome.
Drag the slider to adjust the rotating speed of the dome.
/ Click / to start / stop recording.
/
Click / to hide / show the analog joystick.
Click it to return to the live preview interface.
Transcendent VT-TR5HA DVR Series
42
Ø Analog Joystick Control
The analog joystick on the left side of the interface provides quick PTZ control. The dome or PTZ will rotate when you drag the analog joystick. The farther you drag the analog joystick from the middle of the image, the faster the dome or PTZ rotates. The dome or PTZ will stop rotating when you stop dragging the analog joystick.

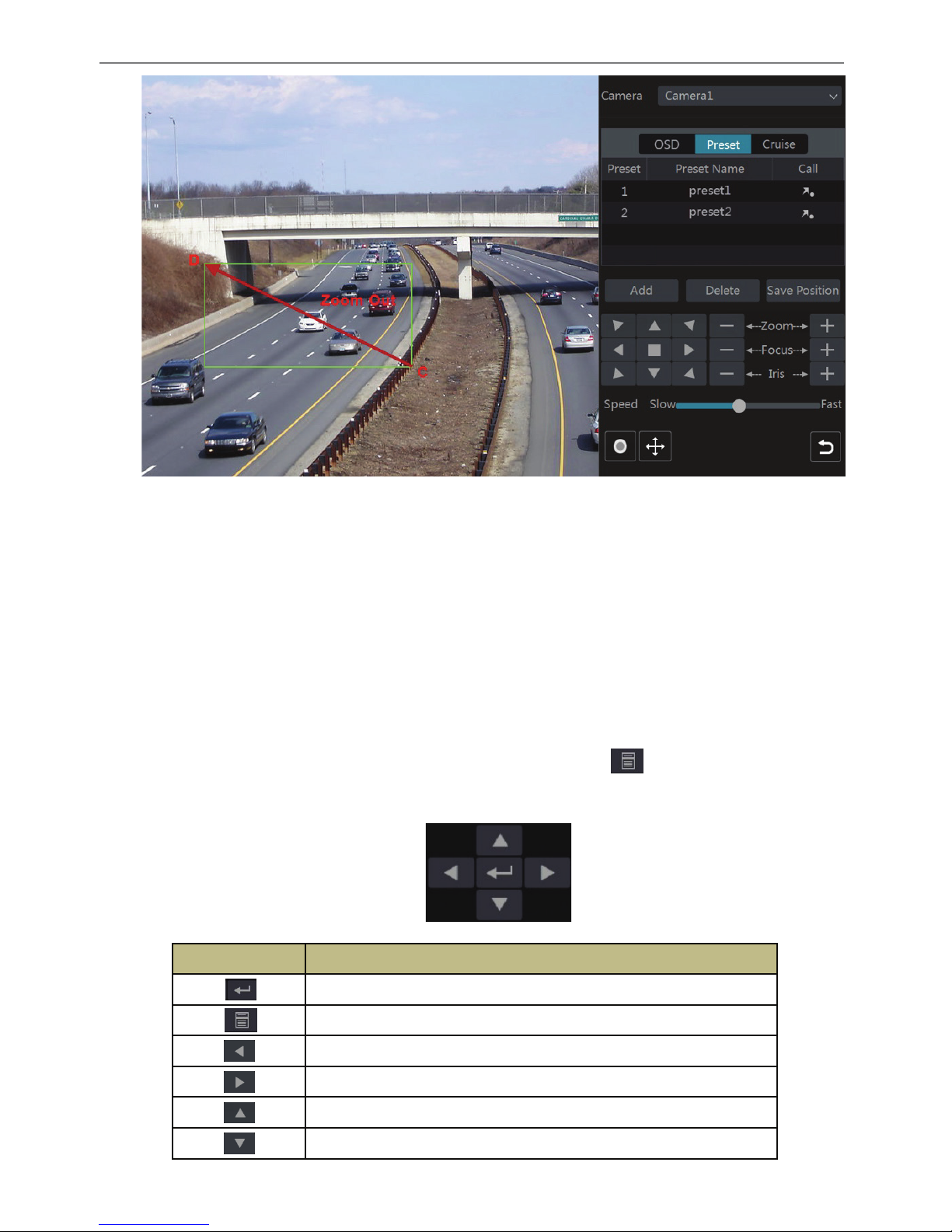

Ø 3D Control
Click the camera image on any area and then the image will be centered on the clicked point. Refer to the picture as shown below. Drag the mouse from A to B to get a green rectangle and the rectangle area will be zoomed in.
Refer to the picture as shown below. Drag the mouse from C to D to get a green rectangle and the rectangle area will be zoomed out.
Transcendent VT-TR5HA DVR Series
43
Ø Advanced 3D Control
Double click the left button of the mouse on any area of the camera image and then the image size will be doubled and centered on the clicked point. Press and hold the left button of the mouse on any area of the camera image to zoom in the image; press and hold the right button to zoom out the image. Move the cursor of the mouse to the camera image and then slide the scroll wheel of the mouse forward to zoom in the image, slide the scroll wheel of the mouse backward to zoom out the image.
Ø OSD Setting
Go to PTZ protocol setting interface and then set the protocol to COC before you call the OSD.
Click “OSD” to go to camera OSD setting interface. Click to start OSD setting. The meanings of the buttons are shown in the table below.
Button Meaning
Enter Button.
Button to open OSD
Click to change the menu mode or decrease the menu value.
Click to change the menu mode or increase the menu value.
Click to go to the previous menu.
Click to go to the next menu.
Transcendent VT-TR5HA DVR Series
44
Ø Preset Setting
Click “Preset” to go to preset operation tab and then click “Add” button to pop up a window as shown below. Select the preset and then input the preset name in the window; finally click “OK” button to save the settings. You can add over 200 presets for each dome.
Adjust the dome’s direction and then click “Save Position” to save the current preset position (you can also click another preset in the preset list and then save the preset position after
adjusting the dome’s direction); click in the preset list to call the preset; click “Delete” button to delete the selected preset. You can also go to preset setting interface for preset setting, see 6.2 Preset Setting for details.
Ø Cruise Setting
Click “Cruise” to go to cruise operation tab and then click “Add” button to pop up a window as shown below left. You can add 8 cruises for each dome at most.
Input the cruise name in the “Add Cruise” window and then click “Add preset” to pop up the “Add Preset” window (Before adding preset to the cruise, please add presets to the dome first). In the “Add Preset” window, select the preset name, preset time and preset speed and then click “OK” button.
In the “Add Cruise” window, you can click to edit the preset, then change the preset
time and speed. Click to delete the preset. Click “Add” button to save the cruise.
Click to start the cruise and click to stop the cruise in the cruise list of the cruise
Transcendent VT-TR5HA DVR Series
45
operation tab; click “Delete” button to delete the selected cruise. You can also go to cruise setting interface for cruise setting, see 6.3 Cruise Setting for details.
6.2 Preset Setting
Click StartàSettingsàCameraàPTZàPreset to go to the interface as shown below.
Ø Add preset
Select camera and then click “Add” button to add preset; or click in the camera list on the right side of the interface to display the preset information of the dome and then click
to add preset. The operations of the “Add Preset” window are similar to that of the
PTZ control interface; please see 6.1 PTZ Control Interface Introduction for details.
Ø Edit preset
Select camera and preset. You can input the new name of the preset and then click to save the new preset name. Adjust the rotating speed, position, zoom, focus and iris of the preset and then click “Save Position” to save the preset.
Ø Delete Preset
Select camera and preset and then click “Delete” to delete the preset.

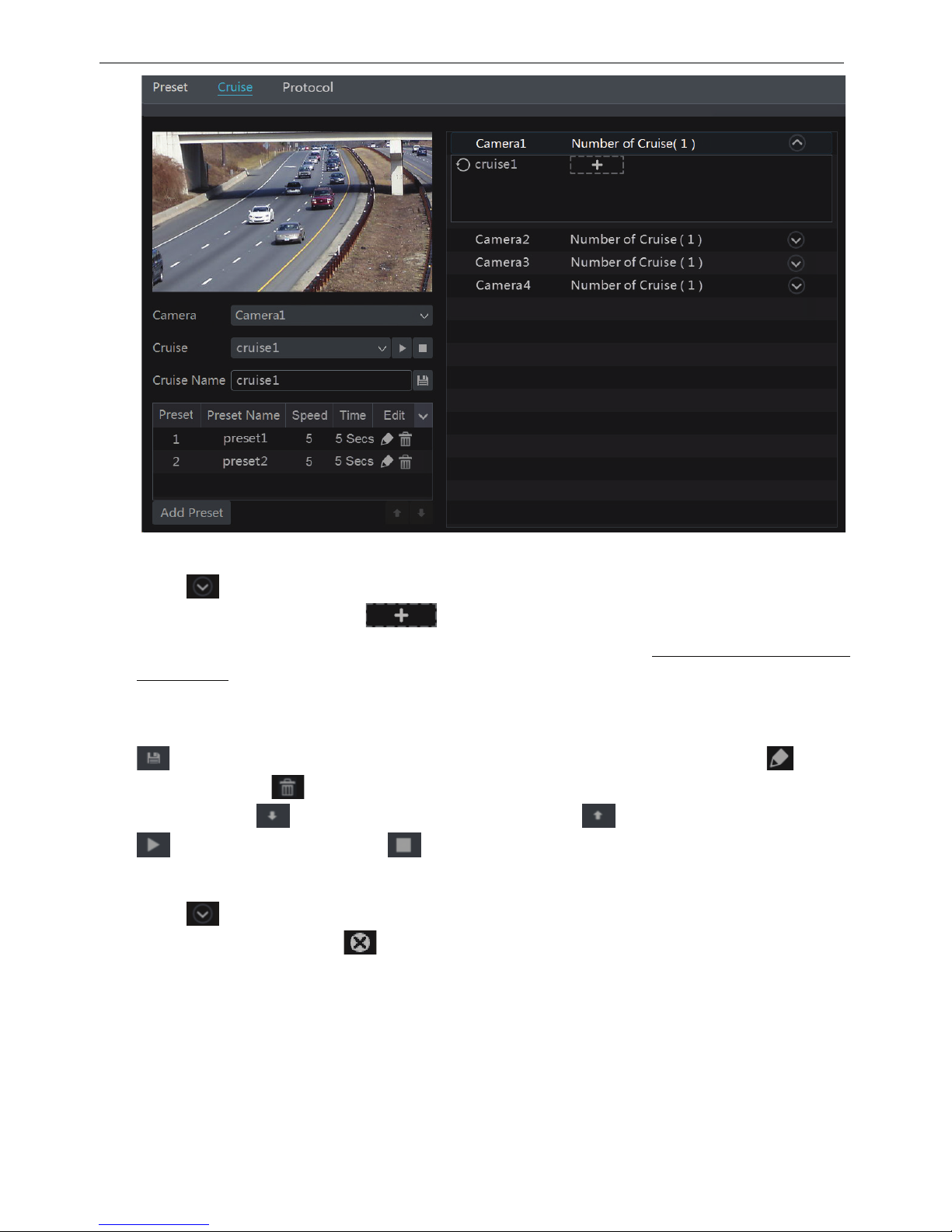

6.3 Cruise Setting
Click StartàSettingsàCameraàPTZàCruise to go to the interface as shown below.
Transcendent VT-TR5HA DVR Series
46
Ø Add Cruise
Click in the camera list on the right side of the interface to display the cruise information
of the dome and then click to add cruise. The operations of the “Add Cruise” window are similar to that of the PTZ control interface; please see 6.1 PTZ Control Interface Introduction for details.
Ø Edit Cruise
Select the camera and cruise in the “Cruise” interface. Input the new cruise name and then click
to save the cruise name. Click “Add Preset” to add preset to the cruise. Click to edit
the preset. Click to delete the preset from the cruise. Click one preset in the preset list
and then click to move down the preset and click to move up the preset. Click
to start the cruise and click to stop it.
Ø Delete Cruise
Click in the camera list on the right side of the interface to display the cruise information
of the dome and then click on the top right corner of the cruise to delete the cruise.
6.4 PTZ Protocol Setting
Click StartàSettingsàCameraàPTZàProtocol to go to the interface as shown below. You can enable or disable the PTZ and set the protocol, baud rate and address of the analog dome in the interface. Please make sure the analog speed dome camera is connected to the DVR before you control it.
Transcendent VT-TR5HA DVR Series
47
Select the camera and enable PTZ and then set the protocol, baud rate and address of the dome according to the settings of the dome. Protocol: The default communication protocol of the DVR is COC. Range from: PELCOP, PELCOD, LILIN, MINKING, NEON, STAR, VIDO, DSCP, VISCA, COC, etc.
Address: The address of the PTZ device.
Baud Rate: Baud rate of the PTZ device. Range from: 110, 300, 600, 1200, 2400, 4800, 9600,
19200, 34800, 57600, 115200, 230400, 460800, 921600.
Transcendent VT-TR5HA DVR Series
48
7 Record & Disk Management
7.1 Record Configuration
7.1.1 Mode Configuration
Please format the HDDs before recording (refer to 7.5 Disk Management for details). Click StartàSettingsàRecordàMode Settings to go to the mode settings interface. You can set the record time under “Manual Record Settings” and then click “Apply” button to save the settings. There are two record modes: auto mode and manual mode.
Ø Auto Mode
Motion Record: Motion alarm record will be enabled when motion alarm happens. Sensor Record: Sensor alarm record will be enabled when sensor alarm happens. Motion Record+Sensor Record: Motion/sensor alarm record will be enabled when
motion/sensor alarm happens.
Always (24
7) Record+Motion Record: Normal record is enabled all the time; motion alarm
record will be started when motion alarm happens. Always (24ⅹ7) Record+Sensor Record: Normal record is enabled all the time; sensor alarm
record will be started when sensor alarm happens.
Always (24
7) Record+Motion Record+Sensor Record: Normal record is enabled all the time;
motion/sensor alarm record will be enabled when motion/sensor alarm happens.
You can add more auto modes on intelligence record. Click “Advanced” button to pop up a window as shown below. Check the modes in the window and then click “Add” button to show the modes in the record mode list (in the window, the checked modes can be showed in the record mode list while the unchecked modes cannot; you can add 3 modes at most).
Transcendent VT-TR5HA DVR Series
49
Select one auto mode to pop up the corresponding window. Set the encode, resolution, FPS, bitrate type, quality, max bitrate and audio of each camera and then click “OK” to save the settings. Please adjust the parameters according to the actual condition.
Video Encode: the video encode format of the camera. Resolution: the higher the resolution is, the clearer the image is. FPS: the higher the frame rate is, the more fluid the video is. However, more storage will be
needed. Bitrate Type: CBR and VBR are options. CBR means that no matter how much the video changes, the compression bitrate stays the same. This will not only facilitate the image quality better in a constant bitrate but also helps to calculate the capacity of the recording. VBR means that the compression bitrate can be adjustable according to the changing of the video resources. This will help to optimize the network bandwidth. Quality: When VBR is selected, you need to choose image quality. The higher the image quality you choose, the more bitrate will be required. Max Bitrate: 32Kbps ~10240Kbps are options.
Ø Manual Mode
If the manual mode is selected, you need to set the encode parameters and record schedules of each camera. See 7.2 Encode Parameters Setting and 7.3 Schedule Setting for details.
Transcendent VT-TR5HA DVR Series
50
7.1.2 Advanced Configuration
Click StartàSettingsàRecordàAdvanced to go to the following interface. Enable or disable cycle record (cycle record: the earliest recorded data will be replaced by the latest when the disks are full). Set the pre-alarm record time, post-alarm record time and expiration time of each camera and then click “Apply” to save the settings.
Pre-alarm Record Time: set the time to record before the actual recording begins. Post-alarm Record Time: set the time to record after the actual recording is finished. Expiration Time: set the expiration time for recorded video. If the set date is overdue, the
recorded data will be deleted automatically.
7.2 Encode Parameters Setting
Click StartàSettingsàRecordàEncode Parameters to go to the interface as shown below. Set the encode, resolution, FPS, bitrate type, quality, max bitrate and audio of main stream for each camera in “Event Recording Settings” and “Schedule Recording Settings” interfaces. Click “Apply” to save the settings. You can set the record stream of each camera one by one or batch set them for all cameras.
Click StartàSettingsàRecordàStream Settings to go to “Sub Stream” interface. Set the encode, resolution, FPS, bitrate type, quality and max bitrate of sub-stream for each camera in the interface and then click “Apply” to save the settings.
Transcendent VT-TR5HA DVR Series
51
7.3 Schedule Setting
7.3.1 Add Schedule
Click StartàSettingsàRecordàRecord ScheduleàEdit Schedules to go to the interface as shown below. “24
7”, “245” and “242” are the default schedules; you cannot edit or
delete “24
7” while “245” and “242” can be edited and deleted. Click the schedule name
to display the detailed schedule information on the left side of the interface. The seven rows stand for the seven days in a week and each row stands for 24 hours in a day. Blue stands for the selected time and gray stands for unselected time.
Click to add a new schedule. Refer to the picture below.
Transcendent VT-TR5HA DVR Series
52
Set the schedule name and schedule time and then click “Add” to save the schedule. You can
set day schedule or week schedule. : add button; : erase button.
Ø Set Day Schedule
Click and then drag the cursor on the time scale to set record time; click and then drag the cursor on the time scale to delete the selected area.
You can manually set the record start time and end time. Click or and then click “Manual” on each day to pop up a window as shown below. Set the start and end time in the window and then click “OK” to save the settings.
Click “All” to set all day recording; click “Reverse” to swap the selected and unselected time in a day; click “Clear All” to clear all the selected area in a day. Click “Copy To” to copy the schedule of the day to other days. Refer to the picture below. Check the days in the window and then click “OK” to save the settings.
Transcendent VT-TR5HA DVR Series
53
Ø Set Week Schedule
Click or and then click “Manual” beside
to set the week schedule. Refer to
the picture below. Set the start and end time, check the days in the window and then click “OK” to save the settings.
Click “All” to set all week recording; click “Reverse” to swap the selected and unselected time in a week; click “Clear All” to clear all the selected area in a week.
7.3.2 Record Schedule Configuration
Click StartàSettingsàRecordàRecord ScheduleàSchedule Configuration to go to the interface as shown below. Set the schedule of sensor record, motion record, timed record and intelligence record. Click “None” in the drop-down menu to clear the schedule. Click “Apply” to save the settings.
Transcendent VT-TR5HA DVR Series
54
Go to “Edit Schedules” interface and then click to edit the schedule. The settings of “Edit
Schedule” are similar to that of the “Add Schedule”. Click to delete the schedule.
7.4 Record Mode
7.4.1 Manual Recording
Method One: Click on the tool bar at the bottom of the live preview interface to enable
recording of the cameras. Method Two: Go to live preview interface and then click the right-click menu “Manually
Record On” in the camera window or click on the tool bar under the camera window to start recording.
7.4.2 Timing Recording
Timing Recording: the system will record automatically according to the schedule.
Set the timing record schedule of each camera. See 7.3 Schedule Setting for details.
7.4.3 Motion Based Recording
Motion Based Recording: the system will start motion based recording when motion is
detected during the motion schedule. The setup steps are as follows: Set the motion based recording schedule of each camera. See 7.3 Schedule Setting for details. Enable the motion and set the motion area of each camera. See 9.2.1 Motion Configuration for details. The camera will start motion based recording once you finish the above settings.
7.4.4 Sensor Based Recording
Set the sensor based recording schedule of each camera. See 7.3 Schedule Setting for details. Set the NO/NC type of the sensor, enable the sensor alarm and then check and configure the “Record”. See 9.1 Sensor Alarm for details.
7.4.5 Intelligence Recording
Set the intelligence recording schedule of each IP camera. See 7.3 Schedule Setting for details. Enable the intelligence detection (object detection, exception, line crossing or intrusion detection) and draw alert surface or warning area of each IP camera. See 9.3 Intelligence Alarm for details. The camera will start intelligence recording once you finish the above settings. This function is only available for some IPCs.
Note: Click StartàSettingsàRecordàMode Settings and then set the manual record time in the
interface. Click “Apply” to save the settings.
Transcendent VT-TR5HA DVR Series
55
7.5 Disk Management
Click StartàSettingsàDiskàDisk Management to go to disk management interface. You can view the DVR’s disk number and disk status and so on in the interface. Click “Format” button to format the HDD.
7.5.1 Storage Mode Configuration
Click StartàSettingsàDiskàStorage Mode to go to the interface as shown below. There are four disk groups. By using disk group, you can correspond the camera to a disk (the recorded data of the camera in the group will be stored onto the disks in the same group). The DVR with e-SATA interface supports e-SATA recording.
The added disks and cameras will be added into group one automatically. The disks and
cameras in the groups can be deleted except group one (select a disk group and then click on the top right corner of the added disk or camera to delete it from the group). The deleted disks and cameras will be moved into group one automatically.
Each group can add the disks and cameras from other groups. Each disk and camera can only
be added into one group. Select a disk group and then click in the disk or camera row to pop up a window. Check the disks or cameras in the window and then click “Add”.
Note: 1. A new HDD should be formatted for normal use.
2. For normal use of the HDD which has been used in other DVR, if the DVR is of the same
model with the new DVR, please import the configuration file of the DVR to the new DVR or
format the HDD; if the models of the two DVRs are different, please format the HDD.
Transcendent VT-TR5HA DVR Series
56
7.5.2 View Disk and S.M.A.R.T. Information
Click StartàSettingsàDiskàView Disk Information to view the HDD information; click “S.M.A.R.T. Information” to view the working status of the HDD. Refer to the picture below.
Transcendent VT-TR5HA DVR Series
57
8 Playback & Backup
8.1 Instant Playback
Click on the tool bar at the bottom of the preview camera window to play back the
recording (click on the tool bar at the bottom of the live preview interface to set the default playback time). Refer to the picture below. Drag the playback progress bar to change the playback time. You can also click the right-click menu “Instant Playback” in the camera window and then set the instant playback time to play back the recording.
8.2 Playback Interface Introduction
Click on the tool bar at the bottom of the live preview interface or click StartàPlayback
to go to the playback interface as shown below (click on the tool bar at the bottom of the live preview interface to set the default playback time).
The added cameras will playback their recordings in the playback interface automatically. You
Transcendent VT-TR5HA DVR Series
58
can also add the playback camera manually. Click in the playback window to pop up the “Add Camera” window. Check the cameras in the window and then click “Add” to add playback camera.
The buttons on the tool bar (area ) at the bottom of the playback interface are introduced in
the table below.
Button Meaning
Start button. Click it to pop up area .
Full screen button. Click it to show full screen; click it again to exit the full screen.
Screen mode button.
OSD ON button. Click it to enable OSD; click to disable OSD.
Stop button.
Rewind button. Click it to play video backward.
Play button. Click it to play video forward.
Pause button.
Click it to decrease the playing speed.
Click it to increase the playing speed.
Previous frame button. It works only when playing is paused in single screen mode.
Next frame button. It works only when playing is paused in single screen mode.
Click to step backward 30s and click to step forward 30s.
Click it to show the water mark on the image; click to hide the water mark.
Event list/tag button. Click it to view the event recording of manual/schedule/sensor/ motion and the tag information.
Backup button. Drag the mouse on the time scale to select the time periods and cameras, and then click the button to back up the record.
Backup status button. Click it to view the backup status.
Back button. Click it to return.
Introduction of area �:
Button Meaning
Click to go to recording search interface; see 8.3 Record Search, Playback
& Backup for details.
Click to go to live preview interface; see Chapter 5 Live Preview Introduction for details.
Click on the playback window to show the tool bar as shown in area ; right click on the
window to show the menu list. The tool bar and menu list are introduced in the table below.
Transcendent VT-TR5HA DVR Series
59
Button Menu List Meaning
-- Move tool. Click to move the tool bar anywhere.
Enable Audio
Click to enable audio. You can listen to the camera audio by enabling audio.
Snap Click to take a snapshot.
Zoom In
Click to go to the zoom in interface. The zoom in interface is
similar to that of the camera window in the live preview interface.
Click to pause the record playing; click to play the recording. When the recording is paused in forward playing
mode, you can click to view the previous frame and click
to view the next frame.
Add Tag
Click to add tag. You can playback the recording by searching the
added tag. Click it and then input the tag name in the popup window. Click “Add” to add tag.
Switch Camera
Click to switch the playback camera. Click and then check the
camera in the popup window. Click “OK” to change the camera.
Close Camera Click to close the playback camera.
Introduction of area ④:
Click to set the date; click to set the time and then the playback camera will play the recording from the time you set. You can check the recording type as required for recording
playback; first you should click
on the tool bar at the bottom of the interface to clear all
the playback cameras, then check the recording type ( : manual record; : sensor based
record; : motion based record; : schedule record; : intelligence record)
Introduction of the record time scale (area ⑤):
A tool bar will appear after moving the mouse to the record time scale. Click / to
zoom the timeline; click to recover the timeline to 24 hour ratio. Drag the timeline or slide the scroll wheel of the mouse on the time scale to show the hidden time on the top or
bottom of the timeline. You can also click to show the hidden time on the top of the
timeline or click to show the hidden time on the bottom of the timeline. Drag the slider at the bottom of the time scale to show the hidden playback cameras. The recording time scale shows different recording types with different colors. The green block stands for manual recording, red block stands for sensor based recording, yellow block stands for motion based recording, blue block stands for schedule recording and cyan block stands for intelligence recording. Click the recording block to set the time and then the cameras will play the recording from the time you set. Drag the color block on the time scale to select the backup area and then right click the area or
click to pop up a backup information window. Click “Backup” button in the window to pop up the backup window. Select the device, backup path and backup format and then click “Backup” button to start the backup.
Transcendent VT-TR5HA DVR Series
60
8.3 Record Search, Playback & Backup
The record data and the snapped pictures can be backed up through network or USB (U disk or USB mobile HDD). The file system of the backup devices should be FAT32 format.
8.3.1 Search, Playback & Backup by Time-sliced Image
Click StartàSearch and BackupàBy Time-sliced Image to go to “By Time-sliced Image” tab. There are two view modes: by time and by camera. In the time view mode, a maximum of 64 camera thumbnails can be shown. If the camera thumbnail number is more than 64, the cameras will be listed directly by their camera name, not the thumbnail. A maximum of 196 camera names can be listed. If the camera name number is more than 196, the time view mode will be disabled and the camera view mode will be available only.
Select one camera in the interface and then click “Open” button. Click the image box to play the record in the small playback box on the left side of the
interface (the box which has image inside indicates that the recording data exist). Refer to the picture below. Drag the color blocks on the time scale to select the recorded data and then click “Backup” button to pop up the “Recording Backup” window as shown below. Select the device name, backup format and path and then click “Backup” button to start the backup.
Transcendent VT-TR5HA DVR Series
61
Click “Playback” button to play the record in the playback interface (refer to 8.2 Playback Interface Introduction for details). Click “Close” to close the interface.
Note: If you back up the recording in private format, the system will back up a RPAS player to USB
device automatically. The private format record can be played by RPAS player only.
Transcendent VT-TR5HA DVR Series
62
Time Slice Mode Selecting:
Method One: Click “Year”, “Month” or “Day” button under the record time scale to select the
time slice mode. In “Day” mode, click / on the left/right side of the time scale to view the record of the last/next day; click “Minute” in the “Picture” option under the time scale to select “Minute” mode (in “Minute” mode, click the time scale to change the time of the 60 display windows) and click “Hour” to select “Hour” mode.
Method Two: Click beside “Camera Thumbnail” on the left top corner of the interface to select the time slice mode. Method Three: Right-click the mouse on any area of the time-sliced interface to go back to the upper interface.
8.3.2 Search, Playback & Backup by Time
Click StartàSearch and BackupàBy Time to go to “By Time” tab as shown below.
Click on the bottom of the interface to add playback camera. Then select which
cameras to add for playback. Click “Modify” on the top right corner of the camera window to change the camera and click “Clear” to remove the camera. Click the camera window to play the recording in the small playback box on the left side of the interface. You can set the date on the top left of the interface, check the event type as
required and click the time scale or click under the time scale to set the time. The camera window will play the recording according to the time and event type you set. Drag the color blocks on the time scale to select the recorded data (or click “Set Backup Time” button on the bottom left corner of the interface to set the backup start time and end time) and then click “Backup” button for recording backup. Click “Playback” button to play the recording in the playback interface.
Transcendent VT-TR5HA DVR Series
63
8.3.3 Search, Playback & Backup by Event
Click StartàSearch and BackupàBy Event to go to “By Event” tab as shown below.
Check the event type in the interface as required.
Click to set the start time and end time on the top left of the interface. Check cameras on the left side of the interface or check “All” to select all the cameras and
then click to search the recording. The searched record will be displayed in the list.
Click in the list to play back the recording in a popup window. Click to back up one recorded data or check multiple recordings in the list and then click “Backup” button for recording batch backup. Select one record data in the list and then click “Playback” button to play the recording in the playback interface.
8.3.4 Search & Playback by Tag
Only if you add the tags can you play the record by tag search. Click StartàPlayback to go to
the playback interface and then click on the bottom of the camera window to add tag when you want to mark the playback time point of the selected camera. Click StartàSearch and BackupàTag Management to go to “Tag Management” tab.
Transcendent VT-TR5HA DVR Series
64
Click in the interface to play the recording. Click to edit the tag name. Click to delete the tag.
8.3.5 Image Management
Click StartàSearch and BackupàImage Management to go to “Image Management” tab. The system will display all the snapped images automatically in the list.
Click to delete the image. Click to pop up the “Export” window. Select the device name and save path in the window and then click “Save” button.
Click to pop up the “View Image” window. Click to export the image. Click
to view the previous image; click to view the next image; click to delete the image;
click to play all the images.
Transcendent VT-TR5HA DVR Series
65
8.3.6 View Backup Status
Click StartàSearch and BackupàBackup Status or click on the tool bar at the bottom of the playback interface to view the backup status.
Transcendent VT-TR5HA DVR Series
66
9 Alarm Management
9.1 Sensor Alarm
To complete the entire sensor alarm settings, you should enable the sensor alarm of each camera and then set up the alarm handling of each camera.
Click StartàSettingsàAlarmàSensor Alarm to go to the following interface.
Select the alarm type (NO or NC) according to trigger type of the sensor. Enable the sensor alarm of each camera. Set the Duration time Check the “Record”, “Snapshot”, Push, “Alarm-out” and “Preset” and enable or disable
the “Buzzer”, “Pop-up Video”, “Pop-up Message Box” and “E-mail” as required. Click “Apply” to save the settings.
The configuration steps of the above mentioned alarm linkages are as follows. Record: check it and then the “Trigger Record” window will pop up automatically (you can also click “Configure” button to pop up the window). Select camera on the left side and then
click to set the camera as the trigger camera. Select trigger camera on the right side and
then click to cancel the trigger camera. Click “OK” button to save the settings. The trigger cameras will record automatically when the sensor alarm is triggered. Snap: check it and then the “Trigger Snapshot” window will pop up automatically. Configure the trigger camera in the window. The trigger cameras will snap automatically when the sensor alarm is triggered. Alarm-out: check it and then the “Trigger Alarm-out” window will pop up automatically. Configure the trigger alarm-out in the window. The system will trigger the alarm-out automatically when the sensor alarm is triggered. You need to set the delay time and the schedule of the alarm outputs. See 9.5.1 Alarm-out for details. Preset: check it and then the “Trigger Preset” window will pop up automatically. Configure the trigger preset of each camera. To add presets, please see 6.2 Preset Setting for details. Buzzer: if enabled, the system will begin to buzz when the sensor alarm is triggered. To set the delay time of the buzzer, please see 9.5.4 Buzzer for details. Pop-up Video: After camera setting, the system will pop up the corresponding video automatically when the sensor alarm is triggered. To set the duration time of the video, please see 9.5.3 Display for details.
Transcendent VT-TR5HA DVR Series
67
Pop-up Message Box: if enabled, the system will pop up the corresponding alarm message box automatically when the sensor alarm is triggered. To set the duration time of the message box, please see 9.5.3 Display for details. E-mail: if enabled, the system will send an e-mail when the sensor alarm is triggered. Before you enable the email, please configure the recipient’s e-mail address first (see 11.1.5 E-mail Configuration for details).
9.2 Motion Alarm
Motion Alarm: when motion appears in the specified area, it will trigger the alarm. You should enable the motion of each camera first and then set the alarm handling of the camera to complete the whole configuration of motion alarm.
9.2.1 Motion Configuration
Click StartàSettingsàCameraàMotion to go to the following interface.
Select the camera, enable the motion and set the sensitivity and duration of the camera.
Sensitivity: the higher the value is, the more sensitive it is to motion. You should adjust the value according to the practical conditions since the sensitivity is influenced by color and time (day or night). Duration: it refers to the interval time between the adjacent motion detections. For instance, if the duration time is set to 10 seconds, once the system detects motion, it will go to alarm and would not detect any other motion (specific to camera) in 10 seconds. If there is another motion detected during this period, it will be considered as continuous movement; otherwise it will be considered as a single motion.
Transcendent VT-TR5HA DVR Series
68
Drag the camera image to set the motion area. You can set more than one motion area. Click “All” to set the whole camera image as the motion area. Click “Reverse” to swap the motion area and the non-motion area. Click “Clear” to clear all the motion areas. Click “Apply” to save the settings. Click “Processing Mode” to go to the alarm handling configuration interface of the motion alarm.
9.2.2 Motion Alarm Handling Configuration
Click StartàSettingsàAlarmàMotion Alarm to go to the following interface.
Enable or disable “Record”, “Snapshot”, “Push”, “Alarm-out”, “Preset”, “Buzzer”,
“Pop-up Video” and “E-mail”. The alarm handling setting of motion alarm is similar to that of the sensor alarm (see 9.1 Sensor Alarm for details). Click “Apply” to save the settings. You can click “Motion Settings” to go to the motion configuration interface.
9.3 Intelligence Alarm
9.3.1 Object Detection
Object Detection Configuration:
Click StartàSettingsàCameraàIntelligent DetectionàObject Detection to go to the following interface. Select the camera, enable the object detection and set the duration and detect type. There are two detect types: Abandon Object and Missing Object. Abandon Object: The relevant alarms will be triggered if there are articles left in the detection area drawn by the user. Missing Object: The relevant alarms will be triggered if there are articles missing in the detection area drawn by the user.
Select the warning area and input the area name. You can add 4 warning areas at most. Draw the warning area of the object detection. Refer to the interface as shown above.
Transcendent VT-TR5HA DVR Series
69
Check “Draw Warning Area” and then click around the area where you want to set as the warning area in the image (the warning area should be a closed area). Uncheck the “Draw Warning Area” if you finish the drawing. Click “Clear” button to delete the warning area.
Click “Apply” to save the settings. Click “Processing Mode” to go to the alarm handling configuration interface of object
detection.
Object Detection Alarm Handling Configuration: Click StartàSettingsàAlarmàIntelligence AlarmàObject Detection to go to the following interface.
Transcendent VT-TR5HA DVR Series
70
Enable or disable “Snapshot”, “Push” “Alarm-out”, “Preset”, “Buzzer”, “Pop-up Video” and “E-mail”. The alarm handling setting of object detection alarm is similar to that of the sensor alarm (see 9.1 Sensor Alarm for details). Click “Apply” to save the settings. You can click “Object Config” to go to the object detection configuration interface.
9.3.2 Exception
Exception Configuration:
Click StartàSettingsàCameraàIntelligent DetectionàException to go to the following interface.
Select the camera and enable the relevant detection as required.
Scene Change: The relevant alarms will be triggered if the scene has changed. Video Blurred: The relevant alarms will be triggered if the scene is blurred. Video Color Cast: The relevant alarms will be triggered if color cast happens to the video.
Set the duration and drag the slider to set the sensitivity of the exception detection.
The sensitivity value of Scene Change Detection: the higher the value is, the more sensitive the system responds to the amplitude of the scene change. The sensitivity value of Video Blur Detection: the higher the value is, the more sensitive the system responds to the focus shift of the device image. The sensitivity value of Video Color Cast Detection: the higher the value is, the more sensitive the system responds to the color cast of the device image. You should also consider other factors.
Click “Apply” to save the settings. Click “Processing Mode” to go to the alarm handling configuration interface of exception
detection.
Transcendent VT-TR5HA DVR Series
71
Exception Alarm Handling Configuration:
Click StartàSettingsàAlarmàIntelligence AlarmàException to go to the interface.
Enable or disable “Snapshot”, “Push” “Alarm-out”, “Preset”, “Buzzer”, “Pop-up Video”
and “E-mail”. The alarm handling setting of exception detection alarm is similar to that of the sensor alarm (see 9.1 Sensor Alarm for details). Click “Apply” to save the settings. You can click “Exception Config” to go to the exception detection configuration interface.
9.3.3 Tripwire (Line crossing)
Line Crossing Configuration:
The relevant alarms will be triggered if someone or something crosses the line drawn by the user. Click StartàSettingsàCameraàIntelligent DetectionàTripwire to go to the following interface.
Transcendent VT-TR5HA DVR Series
72
Select the camera, enable the line crossing detection and set the duration. Select the alert surface and direction. You can add 4 alert surfaces at most but only one
can be used at a time. Direction: A<->B, A->B and A<-B options. It is the crossing direction of the intruder who crosses over the alert line. A<->B: the alarm triggers when the intruder crosses over the alert line from B to A or from A to B.
A->B: the alarm triggers when the intruder crosses over the alert line from A to B. A<-B: the alarm triggers when the intruder crosses over the alert line from B to A.
Draw the alert surface. Refer to the interface as shown above. Check “Draw Alert Surface” and then drag the mouse in the image to draw an alert line. Uncheck the “Draw Alert Surface” if you finish the drawing. Click “Clear” button to delete the alert line.
Click “Apply” to save the settings. Click “Processing Mode” to go to the alarm handling configuration interface of line
crossing detection.
Tripwire (Line Crossing) Alarm Handling Configuration: Click StartàSettingsàAlarmàIntelligence AlarmàTripwire to go to the following interface.
Transcendent VT-TR5HA DVR Series
73
Enable or disable “Snap”, “Push”, “Alarm-out”, “Preset”, “Buzzer”, “Pop-up Video” and “E-mail”. The alarm handling setting of line crossing alarm is similar to that of the sensor alarm (see 9.1 Sensor Alarm for details). Click “Apply” to save the settings. You can click “Crossing Config” to go to the line crossing configuration interface.
9.3.4 Intrusion Detection
Intrusion Configuration:
The relevant alarms will be triggered if someone or something intrudes into the warning areas or moves in the warning areas drawn by the users. Click StartàSettingsàCameraàIntelligent DetectionàIntrusion Detection to go to the following interface.
Select the camera, enable the intrusion detection and set the duration. Select the warning area. You can add 4 warning areas at most but only one can be used at
any time. Draw the warning area of the intrusion detection. Refer to the interface as shown below. Check “Draw Area” and then click around the area where you want to set as the warning area in the image (the warning area should be a closed area). Uncheck the “Draw Warning Area” if you finish the drawing. Click “Clear” button to delete the warning area.
Click “Apply” to save the settings. Click “Processing Mode” to go to the alarm handling configuration interface of intrusion
detection.
Transcendent VT-TR5HA DVR Series
74
Intrusion Detection Alarm Handling Configuration:
Click StartàSettingsàAlarmàIntelligence AlarmàIntrusion Detection to go to the following interface.
Enable or disable “Snapshot”, “Push”, “Alarm-out”, “Preset”, “Buzzer”, “Pop-up Video” and “E-mail”. The alarm handling setting of intrusion detection alarm is similar to that of the sensor alarm (see 9.1 Sensor Alarm for details). Click “Apply” to save the settings. You can click “Invasion Config” to go to the intrusion detection configuration interface.
Transcendent VT-TR5HA DVR Series
75
9.4 Exception Alarm
9.4.1 IPC Offline Settings
Click StartàSettingsàAlarmàExceptionàIPC Offline Settings to go to the interface as shown below.
Enable or disable “Snapshot”, “Push”, “Alarm-out”, “Preset”, “Buzzer”, “Pop-up Video”, “Pop-up Message Box” and “E-mail”. The IPC Offline Settings are similar to that of the sensor alarm (see 9.1 Sensor Alarm for details). Click “Apply” to save the settings.
9.4.2 Video Loss Settings
Click StartàSettingsàAlarmàExceptionàVideo Loss Settings to go to the interface as shown below.
Enable or disable “Snapshot”, “Push”, “Alarm-out”, “Preset”, “Buzzer”, “Pop-up Video”, “Pop-up Message Box” and “E-mail”. The Video Loss Settings are similar to that of the sensor alarm (see 9.1 Sensor Alarm for details). Click “Apply” to save the settings.
Transcendent VT-TR5HA DVR Series
76
9.4.3 Exception Handling Settings
Click StartàSettingsàAlarmàExceptionàException Handling Settings to go to the interface as shown below. Enable or disable “Push”, “Alarm-out”, “Buzzer”, “Pop-up Message Box” and “E-mail”. The exception handling settings are similar to that of the sensor alarm (see 9.1 Sensor Alarm for details). Click “Apply” to save the settings.
9.5 Alarm Event Notification
9.5.1 Alarm-out
Click StartàSettingsàAlarmàEvent Notification to go to the following interface.
Set the delay time and the schedule of each alarm-out. You can click “Edit Schedules” to
Transcendent VT-TR5HA DVR Series
77
edit the schedules (see 7.3.1 Add Schedule for details). Click “Apply” to save the settings. You can click “Test” to test the alarm output.
9.5.2 E-mail
Click StartàSettingsàAlarmàEvent NotificationàE-mail to go to the e-mail configuration interface. Set the e-mail address of the recipients. See 11.1.5 E-mail Configuration for details.
9.5.3 Display
Click StartàSettingsàAlarmàEvent NotificationàDisplay to go to the display configuration interface. Set the duration time of the pop-up video and the pop-up message box. Click “Apply” to save the settings.
9.5.4 Buzzer
Click StartàSettingsàAlarmàEvent NotificationàBuzzer to go to the buzzer configuration interface. Set the delay time of the buzzer and then click “Apply” to save the setting. You can click “Test” to test the buzzer.
9.5.5 Push Message
Click StartàSettingsàAlarmàEvent NotificationàPush Message to go to the interface as shown below. Check “Enable” then set Push Schedule and then click “Apply” button to save the settings. If Push Server is online, it will push messages to the mobile clients.
Transcendent VT-TR5HA DVR Series
78
9.6 Manual Alarm
Click on the tool bar at the bottom of the live preview interface to pop up a window. Click “Trigger” to start alarm. Click “Clear” to stop alarm.
9.7 View Alarm Status
Click StartàSettingsàAlarmàAlarm Status or click on the tool bar at the bottom of the live preview interface to view the alarm status.
Click “Clear” button to stop the buzzer when the buzzer alarm happens. Click to view the detail information as shown below.
Transcendent VT-TR5HA DVR Series
79
If the exception information is more than one page, you can input the number in the box and
then click to jump to the specified page. Click / to view the exception alarm
information in the previous/next page. Click to play the alarm recording.
Transcendent VT-TR5HA DVR Series
80
10 Account & Permission Management
10.1 Account Management
Click StartàSettingsàAccount and AuthorityàAccountàEdit User to go to the interface as shown below.
Area ① displays the user permissions. Area ② displays the user list. Click the user in the list to display its user permissions in area .
There are three default permission groups (“Administrator”, “Advanced” and “Common”) available when adding accounts. You can manually add new permission group (see 10.3.1 Add Permission Group for details). Only admin and the users that have the “Account and Authority” permission can manage the system’s accounts. Group “Administrator” owns all the permissions displayed in area
except “Account and Authority” and its permissions cannot be changed while the permissions of “Advanced” and “Common” can be changed.
10.1.1 Add User
Click StartàSettingsàAccount and AuthorityàAccountàAdd User or click beside the search box to pop up the window as shown below.
Transcendent VT-TR5HA DVR Series
81
Set the username, password and Pattern Lock and group. Click “Add” to add the user.
10.1.2 Edit User
Click StartàSettingsàAccount and AuthorityàAccountàEdit User and then click in
the user list or double click the user to edit the user information. Click to delete the user (the user admin cannot be deleted).
Ø Edit Security Question
You can set password security only for admin. Click “Edit Security Question” and then set questions and answers in the popup window. The passwords of other users can be recovered by admin or the users that have the “Account and Authority” permission.
Ø Modify Password
Only the password of admin can be modified. Click “Modify Password” to pop up a window. Input the current password and then set new password. Click “OK” to save the settings.
Ø Recover Password
Click “Recover Password” to reset the password to 123456.
Transcendent VT-TR5HA DVR Series
82
Ø Edit User
Click “Edit User” to pop up the window as shown below. The admin is enabled, its permission control is closed and permission group cannot be changed by default. You can enable or disable other users (if disabled, the user will be invalid), open or close their permission control (if closed, the user will get all the permissions which admin has) and set their permission groups. Click “OK” to save the settings.
10.2 User Login & Logout
Login: Click StartàLogin or directly click the preview interface and then select username and enter the password in the popup window. Click “Login” button to log in the system. Logout: Click StartàLogout or click StartàShutdown to pop up the “Shutdown” window. Select “Logout” in the window and then click “OK” button to log out the system.
10.3 Permission Management
10.3.1 Add Permission Group
Click StartàSettingsàAccount and AuthorityàAccountàEdit Permission Group to go to the interface as shown below.
Transcendent VT-TR5HA DVR Series
83
Click to add permission group. Set the group name, check the permissions as required and then set the “Local” and “Remote” permissions. Click “Add” to save the settings.
Transcendent VT-TR5HA DVR Series
84
10.3.2 Edit Permission Group
Go to “Edit Permission Group” interface and then click in the group list to edit the permission group (the operations of the “Edit Permission Group” are similar to that of the “Add
Permission Group”, please see 10.3.1 Add Permission Group for details). Click to save
the group as another group. Click to delete the permission group. The three default permission groups (“Administrator”, “Advanced” and “Common”) cannot be deleted.
10.4 Block and Allow List
Click StartàSettingsàAccount and AuthorityàSecurity to go to the following interface.
Check “Enable” and then choose “Enable Allow List” or “Enable Block List” (the PC
client of which the IP address is in the allow list can access DVR remotely while the PC client in the block list cannot). Add IP/IP segment/MAC. Click “Add IP” or “Add MAC” button and then check “Enable” in the popup window (only if you check it can the IP/IP segment/MAC you add be effective).
Enter the IP/IP segment/MAC and then click “OK” button. In the above interface, click
to edit IP/IP segment/MAC, click to delete it. Click “Apply” to save the settings.
10.5 Preview On Logout
Click StartàSettingsàAccount and AuthorityàSecurityàPreview On Logout to go to the following interface. Set a camera and then enable or disable the preview permission on logout as required. If a camera’s preview permission on logout is “ON”, you can view the live image of the camera when the system is logged out, or the live image of the camera cannot be seen when logged out.
Transcendent VT-TR5HA DVR Series
85
10.6 View Online User
Click StartàSettingsàAccount and AuthorityàUser Status to view the online user information (you can view the online user name, login type, IP address and login time; click
to pop up a window showing the preview occupied channel number and playback occupied
channel number).
Transcendent VT-TR5HA DVR Series
86
11 Device Management
11.1 Network Configuration
11.1.1 TCP/IP Configuration
Click StartàSettingsàNetworkàTCP/IP to go to the following interface. Check “Obtain an IPv4 address automatically”, “Obtain an IPv6 address automatically” and “Obtain DNS automatically” to get the network addresses automatically, or manually input the network addresses. You can modify the MTU value according to the network condition (MTU, Maximum Transmission Unit, can be modified according to network condition for higher network transmission efficiency). Click “Apply” to save the settings.
11.1.2 Port Configuration
Click StartàSettingsàNetworkàPort to go to the interface as shown below. Input the HTTP, HTTPS port, server port and RTSP port of the DVR, enable “Watch video via anonymous login (user name and password not needed)” as required and then click “Apply” button to save the settings.
Transcendent VT-TR5HA DVR Series
87
HTTP Port: the default HTTP port of the DVR is 80. The port number can be changed to others like 81. The port is mainly used for IE remote access. If you want to access the DVR through IE, you should input IP address plus HTTP/HTTPS port in the IE address bar like http://192.168.11.61:81. Server Port: the default server port of the DVR is 6036. The server port number can be changed as required. The port is mainly used in network video management system. RTSP Port: RTSP real-time stream protocol can be used to control the sending of real-time data. By media player which supports the RTSP real-time stream protocol, the default RTSP port is 554 and it can be changed as required.
11.1.3 PPPoE Configuration
Click StartàSettingsàNetworkàPPPoE to go to the interface as shown below. Check “Enable” in “PPPoE Settings” and then input the username and password obtained from the dealer. Click “Apply” to save the settings.
11.1.4 DDNS Configuration
The DDNS is used to control the dynamic IP address through a domain name. You can access to the DVR easily if the DDNS is enabled and configured. Click StartàSettingsàNetworkàDDNS to go to the interface as shown below.
Note: The HTTP/HTTPS port and server port of the DVR should be mapped to the router before you
access the DVR via WAN.
Transcendent VT-TR5HA DVR Series
88
Check “Enable” and then select the DDNS type. Input the server address, domain name, username and password according to the selected DDNS type. Click “Test” to test the effectiveness of the information. Click “Apply” to save the settings.
You will have to input the server address and domain name if some DDNS types are selected. Go to the relative DNS website to register domain name and then input the registered domain information here). Now we take www.vitekivpddns.com for example.
Input www.vitekivpddns.com in the IE address bar to visit its DNS website.
Click Registration button to go to the interface as shown below. Set the DDNS account
information (username, password and so on) and then click Submit button to save the account.
Transcendent VT-TR5HA DVR Series
89
Create domain name and then click Request Domain.
After you successfully request your domain name, you will see your domain name
information in the list.
Transcendent VT-TR5HA DVR Series
90
Click StartàSettingsàNetworkàDDNS to go to DDNS setting interface. Enable DDNS and then select the www.vitekivpddns.com DDNS type. Input the registered username, password and domain name and then click “Apply”. Map the IP address and HTTP port in the router (you can skip this step if UPnP function is enabled). Input the registered domain name plus HTTP port like http://www.xxx.vitekivpddns.com:81 in the IE address bar and then press Enter key to go to the IE client.
11.1.5 E-mail Configuration
Click StartàSettingsàNetworkàE-mail to go to the following interface. Input the sender’s name, e-mail address, SMTP server and SMTP port (you can click “Default” to reset the SMTP port to the default value) and then enable or disable the SSL and attaching image. Select the username (the username list will be updated automatically according to the email address you input) and input the password of the sender and then click “Apply” to save the settings (you don’t have to input the username and password if “Anonymous Login” is enabled). Click “Test” to pop up a window. Input the e-mail address of the recipient in the window and then click “OK” button. The e-mail address of the sender will send an e-mail to the recipient. If the e-mail is sent successfully, it indicates that the e-mail address of the sender is configured correctly.
Transcendent VT-TR5HA DVR Series
91
Click “Edit Recipient” to go to the following interface.
Click “Add” and then input the recipient’s e-mail address and select the schedule (if a schedule is selected, the system will send the alarm email and the recipient will receive it only in the selected schedule time) in the popup window. Click “Add” in the window to add the recipient.
You can also change the recipient’s receiving schedule by clicking in the “Schedule”
column. Click to delete the recipient in the list. Click “Apply” to save the settings. Click “Edit Sender” to go to the e-mail configuration interface of the sender.
Transcendent VT-TR5HA DVR Series
92
11.1.6 UPnP Configuration
By UPnP you can access the DVR through IE client which is in a WAN via router without port mapping.
Click StartàSettingsàNetworkàUPnP to go to the following interface. Make sure the router supports UPnP function and the UPnP is enabled in the router. Set the DVR’s IP address, subnet mask and gateway and so on corresponding to the router. Check “Enable” in the interface as shown below and then click “Apply” button.
Click “Refresh” button to refresh the UPnP status. If the UPnP status were still “Invalid UPnP” after refreshing it for many times, the port number would be wrong. Please change the mapping
type to “Manual” and then click to modify the port until the UPnP status turns to “Valid UPnP”. Refer to the following picture. You can view the external IP address of the DVR. Input the external IP address plus port in the IE address bar to access the DVR such as http://183.17.254.19:81.
11.1.7 NAT Configuration
Click StartàSettingsàNetworkàNAT to go to the interface for NAT configuration. Check “Enable” and then select the NAT server address (nat.autonat.com by default). Click “Apply” to save the settings. You can scan the QRCode through the mobile client which is installed in the mobile phone or PAD to log into the mobile client instantly.
11.1.8 View Network Status
Click StartàSettingsàNetworkàNetwork Status to view the network status or click on the tool bar at the bottom of the live preview interface to view network status.
11.2 Basic Configuration
11.2.1 Common Configuration
Click StartàSettingsàSystemàBasicàGeneral Settings to go to the following interface. Set the device name, device No., language, video format and main output resolution. Enable or
Transcendent VT-TR5HA DVR Series
93
disable wizard, “Log In Automatically”, “Log Out Automatically” (if checked, you can set the wait time) and “App Live Self-Adaption”. Click “Apply” to save the settings.
Device Name: The name of the device. It may display on the client end or CMS that help user to recognize the device remotely.
Video Format: Two modes: PAL and NTSC. Select the video format according to the camera. Spot: If the DVR supports spot output, you can enable spot output. Connect the spot output
device to the DVR and then set the spot output (see 5.2.4 Spot View for details).
11.2.2 Date and Time Configuration
Click StartàSettingsàSystemàBasicàDate and Time to go to the interface as shown below. Set the system time, date format, time format and time zone of the DVR. The default time zone is GMT-08 Las Vegas, San Francisco, and Vancouver. If the selected time zone includes DST, the DST of the time zone should be checked. Click “Apply” to save the settings. You can manually set the system time or synchronize system time with network through NTP.
Manual: select “Manual” in the “Synchronous” option and then click after the “System Time” option to set the system time. NTP: select “NTP” in the “Synchronous” option and then input the NTP server.
Transcendent VT-TR5HA DVR Series
94
11.3 Factory Default
Click StartàSettingsàSystemàMaintenanceàFactory Default and then click “Reset to factory default” button in the interface to reset to the factory default settings.
11.4 Device Software Upgrade
You can click StartàSettingsàSystemàInformationàBasic to view MCU, kernel version and firmware version and so on. Before upgrading, please get the upgrade file from your dealer. The upgrade steps are as follows:
Copy the upgrade software onto a USB storage device. Insert the USB storage device into the USB interface of the DVR. � Click StartàSettingsàSystemàMaintenanceàUpgrade to go to “Upgrade” interface.
Select the USB device in “Device Name” option and go to the path where the upgrade software exists. Select the upgrade software and then click “Upgrade”. The system may automatically restart during upgrading. Please wait for a while and do not power down the DVR during upgrading.
11.5 Backup and Restore
You can back up the configuration file of the DVR by exporting the file to a USB device; you can load the configuration to other DVRs which are of the same model by importing the configuration file to other DVRs for time saving.
Insert the USB storage device into the USB interface of the DVR and then click
Note: The file system of the USB mobile device which is used for upgrading, backing up and
restoring should be FAT32 format.
Transcendent VT-TR5HA DVR Series
95
StartàSettingsàSystemàMaintenanceàBackup and Restore to go to the interface.
l Backup
Select the USB device in “Device Name” option; go to the path where you want to store the configuration backup file and then click “Backup” button; finally click “OK” button in the popup window.
l Recover
Select the USB device in “Device Name” option; find the configuration backup file and then click “Recover” button; finally click “OK” button in the popup window.
11.6 Restart Automatically
You can set an automatic restart time for the DVR to maintain it. Click StartàSettingsàSystemàMaintenanceàAuto Maintenance to go to the interface as shown below. Enable auto maintenance, set the interval days and point of time and then click “Apply” to save the settings. The DVR will restart automatically at the appointed time every interval days.
11.7 View Log
Click StartàSettingsàSystemàMaintenanceàView Log to go to the log view interface.
Select the log type, click to set start time and end time and then click “Search” button. The searched log files will be displayed in the list.
Transcendent VT-TR5HA DVR Series
96
Choose the log file in the list and then click “Export” button to export the log file. Click on the “Content” title bar to pop up a menu list. Check contents in the menu list and then the
log list will show the checked log contents only. Click to play the video log.
11.8 View System Information
Click StartàSettingsàSystemàInformation and then click the corresponding menu to view the “Basic”, “Camera Status”, “Alarm Status”, “Record Status”, “Network Status” and “Disk” information of the system.
Transcendent VT-TR5HA DVR Series
97
12 Remote Surveillance
12.1 Mobile Client Surveillance
Enable NAT in the DVR. Refer to 11.1.7 NAT Configuration for details. Download and install the mobile client “Transcendent DVR Viewer” into the mobile
device for Android or iOS system.
Run the mobile client, go to the “Add Device” interface and then click to scan the QRCode of the DVR (Go to StartàSettingsàSystemàInformationàBasic to view the QRCode of the DVR). After scanning the QRCode successfully, input the login password to log in mobile client.
12.2 Web LAN Access
Click StartàSettingsàNetworkàTCP/IP to go to the “TCP/IP” interface. Set the IP address, subnet mask, gateway, preferred DNS and alternate DNS of the DVR. Open IE browser on a computer, input the IP address of the DVR in the IE address bar and then press enter to go to the login interface as shown below. You can change the display language on the top right corner of the login interface. Input the username and password of the DVR in the interface and then click “Login” to go to the live preview interface.
Transcendent VT-TR5HA DVR Series
98
12.3 Web WAN Access
Ø NAT Access
Set the network of the DVR. Please refer to 11.1.1 TCP/IP Configuration for details. Enable NAT and then set the NAT server address. Please refer to 11.1.7 NAT
Configuration for details. Open IE browser on a computer, input the NAT server address www.autonat.com in the IE address bar and then press enter to go to the interface as shown below (download and install the relative plug-in according to the popup tip if you access the DVR through NAT for the first time).
Input the serial number (click on the tool bar at the bottom of the live preview interface to
Notes: 1. Please make sure that the IP address of the DVR and the computer are both in the same
local network segment. For example, supposing that the IP address of the computer is
192.168.1.41, the IP address of the DVR shall be set to 192.168.1.XXX.
2. If the HTTP port of the DVR is not 80, but other number instead, you need to input the IP
address plus port number in the IE address bar when accessing the DVR over network. For
example, the HTTP port is 81. You should enter http://192.168.1.42:81 in the IE address bar.
Transcendent VT-TR5HA DVR Series
99
see the serial number of the DVR), user name (the user name of the DVR, admin by default) and password (the password of the DVR, 123456 by default) of the DVR, select the display language on the top right corner of the interface and then click “Login” button to go to the web client interface.
Ø PPPoE Access
Click StartàSettingsàNetworkàPPPoE to go to the “PPPoE” interface. Check “Enable” in the “PPPoE settings” and then input the username and password you get from your ISP. Click “Apply” to save the settings.
Click StartàSettingsàNetworkàNetwork Status to view the IP address of the DVR. Open IE browser on a computer, input the IP address of the DVR like
http://210.21.229.138 in the IE address bar and then press enter to go to the login interface. Input the username and password of the DVR in the interface and then click “Login” to go to the live preview interface.
Ø Router Access
Click StartàSettingsàNetworkàTCP/IP to go to the “TCP/IP” interface. Set the IP address, subnet mask, gateway, preferred DNS and alternate DNS of the DVR. Set the HTTP port (it is suggested to modify the HTTP port because the default HTTP port 80 might be taken up) and enable UPnP function in both the DVR and the router. If the UPnP function is not available in the router, you need to forward the LAN IP address, HTTP port and server port of the DVR to the router. Port mapping settings may be different in different routers, so please refer to the user manual of the router for details. Get the WAN IP address of the DVR from the router. Open IE browser on a computer, input the WAN IP address plus HTTP port like http://116.30.18.215:100 in the IE address bar and then press enter to go to the login interface. Input the username and password of the DVR in the interface and then click “Login” to go to the live preview interface.
12.4 Web Remote Control
The supported browsers of the remote surveillance are IE8/9/10/11, Firefox, Opera and Chrome (available only for the versions lower than 45) in Windows system and Safari in MAC system. When you access the DVR through IE for the first time, you need to download and install the relative components for normal preview and playback. Please refer to the tips in the remote interfaces for details. The buttons and icons on the top right corner of the remote interface are introduced as follows.
admin: the current login username.
Note: If the WAN IP address is a dynamic IP address, it is necessary for you to use the domain name to
access the DVR. Click Start
à
SettingsàNetworkàDDNS to set DDNS (see 11.1.4 DDNS
Configuration for details). By using DDNS function you can use the domain name plus HTTP port like
http://sunshine.vitekivpddns:100 to access the DVR via internet.
