Vitek VT-TH2KT41TD, VT-THB2CKTFE, VT-THD2CKTFE-2, VT-THD2CKTFE, VT-THT2CKTFE-2 User Manual

VITEK

FEATURES

• 1/2.9” 2.1 Megapixel Progressive Scan CMOS Sensor

• HD-TVI, AHD, CVI, and CVBS Video Output

• 3.6mm & 2.8mm Fixed Lens Options

• Up to 70’ IR Range

• Digital Wide Dynamic Range (D-WDR)

• True Mechanical Day/Night function by ICR

• 3D-DNR Noise Reduction

• IP66 Weather Resistance

• Supports Up The COAX Control

• Over 1500’ HD Video Transmission (Depending on cable characteristics and integrity)

• Optional Junction Box Mounts Available

• 12VDC Operation

VTD-THD2RFE

VTC-THT2RFE

VTC-THB2RFE

2.1 Megapixel Indoor/Outdoor HD-TVI/
AHD/CVI/CVBS IR Cameras

Safety Precaution

To prevent electrical shock and risk of fire hazards, do not expose this unit
to rain or moisture and only use specified power source..

CAUTION: TO REDUCE THE RISK OF ELECTICAL
SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

The symbol is intended to alert the user to the presence of uninsulated
"dangerous voltage" within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electrical shock.

The symbol is intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the literature
accompanying the unit.

Warning :

This equipment has been tested and found to comply with the limits for a Class

A digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
their own expense.

Caution :
Any changes or modifications in construction of this device which are not expressly
approved by the party responsible for compliance could void the user's authority
to operate the equipment.
Main power quality should be that of a typical commercial environment. If the user
of the model requires continued operation during power interruptions, it is
recommended that the device be powered from an uninterruptible power supply
(UPS).

Limited Product Warranty

VITEK products carry a three (3) year limited warranty. VITEK warrants to
the purchaser that products manufactured by VITEK are free of any rightful
claim of infringement or the like, and when used in the manner intended,
will be free of defects in materials and workmanship for a period of three
(3) years, or as otherwise stated above, from the date of purchase by the
end user. This warranty is nontransferable and extends only to the original
buyer or end user customer of a VITEK Authorized Reseller.

The product must have been used only for its intended purpose, and not
been subjected to damage by misuse, willful or accidental damage, caused
by excessive voltage or lightning.

The product must not have been tampered with in any way or the
guarantee will be considered null and void.

This guarantee does not affect your statutory rights.

Contact your local VITEK Reseller should servicing become necessary.

VITEK makes no warranty or guarantee whatsoever with respect to
products sold or purchased through unauthorized sales channels. Warranty
support is available only if product is purchased through a VITEK
Authorized Reseller.

2

VTC-THB2RFE Components

Camera

Manual

Screws

Drill Template

Overview

This camera series supports both fixed and varifocal lenses. Please note
that the zoom and focus features mentioned below are only available on
the varifocal lens version.

Video Connection

Connect the BNC video connector to a BNC cable, then to a
recorder.

Monitor

1

2

3

4

1

2

3

Lens

Mount Lock

Mount Base

BNC Output

4

Power Cable

5

**NOTE:

This camera must be connected to a DVR that supports calling up the
camera’s OSD menu via CoC.

Power Connection

Connect the power connector to a regulated 12 VDC power adaptor.

5

Power

Video

12VDC

3

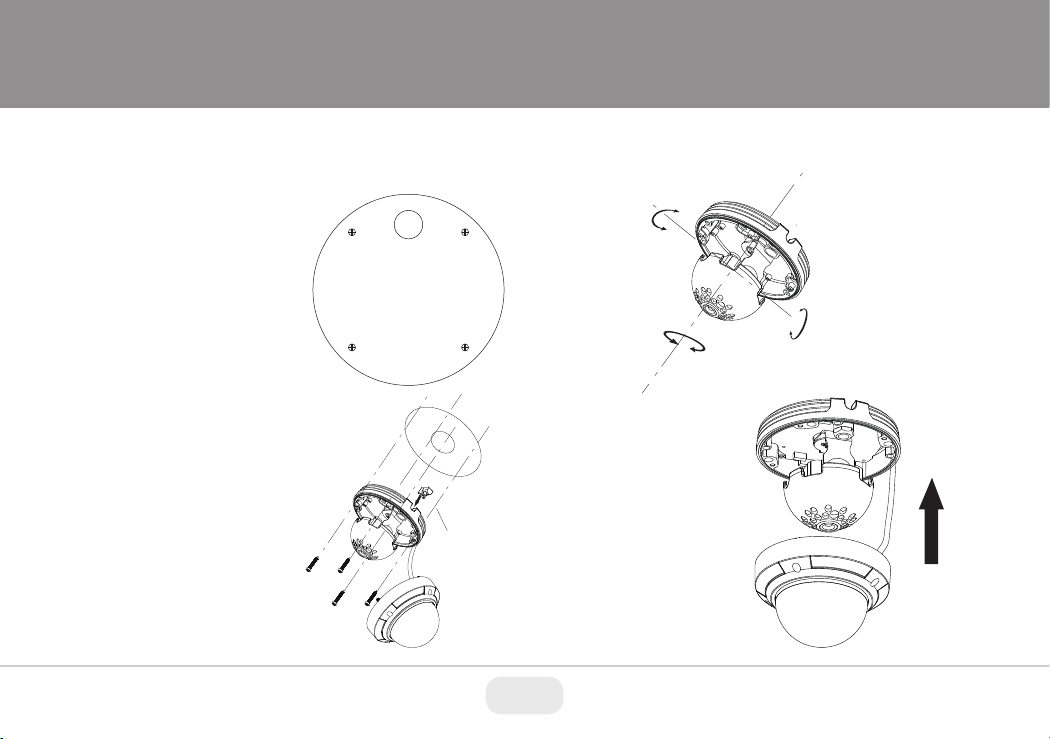

Installation

Before you begin, please make sure that the wall or ceiling is strong
enough to withstand 3 times the weight of the camera. The mounting
steps are as follows:

1. Attach the drill template to
the place where you want to
install the camera, then drill
3 screw holes and 1 cable
hole (if you want to route the
cables through the mounting
base) according to the drill
template

3. Loosen the mount lock to adjust the Pan and Tilt of the camera, then
tighten the mount lock to secure the viewing angle adjustments.

360° Pan

90° Tilt

2. Route the cables and connect the power & video cables, then
secure the mounting base to the ceiling or wall with screws.

Ceiling Mounted

Wall Mounted

4. Carefully remove the protective film from the lens to complete the
installation.

4

VTC-THT2RFE Components

Camera

Manual

Screws

Hex Wrench

Mounting Plate

Rubber Plug

Overview

This camera series supports both fixed and varifocal lenses. Please note
that the zoom and focus features mentioned below are not features of the
fixed lens version.

2

1

3

4

Video Connection

Connect the BNC video connector to a BNC cable, then to a recorder.

Monitor

Video

**NOTE:

This camera must be connected to a DVR that supports calling up the
camera’s OSD menu via CoC.

Power Connection

Connect the power connector to a regulated 12 VDC power adaptor.

1

2

Lens

Lock Screws

Power Cable

3

BNC Output

4

Power

12VDC

5

Installation

Before you begin, please make sure that the wall or ceiling is strong
enough to withstand 3 times the weight of the camera. The mounting
steps are as follows:

1. Attach the drill template to
the place where you want to
install the camera, then drill
3 screw holes and 1 cable
hole (if you want to route the
cables through the mounting
base) according to the drill
template

.

2. Route the cables and
connect the power & video
cables, then secure the
mounting base to the ceiling
or wall with screws.

3. Loosen the lock screws, then
adjust the camera to obtain
the optimium viewing angle.
Confirm the correct viewing
angle with a monitor. Next
insert then insert the rubber
plug.

Rubber Plug

4. Tighten the lock screws to secure the viewing angle adjustments.

5. Carefully remove the protective film from the lens to complete the
installation.

6

VTD-THD2RFE Components

Camera

Manual

Drill Template

Screws

Hex Wrench

Video Connection

Connect the BNC video connector to a BNC cable, then to a
recorder.

Monitor

Overview

1

1

2

3

Dome Cover

Lens

BNC Output

Video

**NOTE:

This camera must be connected to a DVR that supports calling up the
camera’s OSD menu via CoC.

2

3

Power Connection

Connect the power connector to a regulated 12 VDC power adaptor.

4

5

4

5

Power Cable

Mounting Base

Power

12VDC

7

Installation

Before you begin, please make sure that the wall or ceiling is strong
enough to withstand 3 times the weight of the camera. The mounting
steps are as follows:

1. Attach the drill template to
the place where you want to
install the camera, then drill
4 screw holes and 1 cable
hole (if you want to route the
cables through the mounting
base) according to the drill
template

.

2. Route the cables and
connect the power & video
cables, then secure the
mounting base to the ceiling
or wall with screws.

3. Route the cables and
connect the power & video
cables, then secure the
mounting base to the ceiling
or wall with screws. Next
insert then insert the rubber
plug.

Rubber Plug

4. Adjust the Three-axis camer bracket to obtain the optimium
viewing angle.

Pan 0°~240°

Rotation 0°~220°

5. Install the dome bubble on
the camera with the screws,
then carefully remove the
protective film to complete
the installation.

8

Tilt 0°~68°

Camera OSD Menu

The Transcendent 4-in1 camera series must be connected to a DVR
which supports HD-TVI/AHD video signal input and COC protocol to
access the OSD setup menu. Different DVRs manufacturers may have
different modes of menu operation.

The following menu toolbar will pop up by right-clicking the mouse
when using VITEK Transcendent Series HD DVRs.

You will see the following interface by clicking the button.

Click “Iris +” to go to the main menu. You can also select preset NO.
95, then click the button （call preset NO.95） to go to the
following main menu.

You can select the menu by clicking (U) or (D) key on the
direction area. Click (L) or (R) key to select the menu on the
left. The menu with arrow icon which means it has sub-menu. You
can select the menu and click “Iris +” or call preset NO.95 to enter
the sub-menu. To return to the previous menu or exit the main
menu, please select “RET” or “Save & END” by clicking U or D key
and then click “Iris +” or call preset NO.95.

9

Detailed Specifications VTC-THB2RFE VTC-THT2RFE VTD-THD2RFE

Image Sensor
Signal System
Effective Pixels
Resolution
Video Output
Lens
Day/Night
Min. IIIumination
IR LEDs
IR Distance
S/N Ratio
WDR
Digital Noise Reduction (DNR)
White Balance
BLC
Up the COAX Control (COC)
Transmission Distance
Power Input
Power Consumption (12VDC)
Weather Resistance
Operation Conditions
Weight
Dimensions

24

65’

Day : < 1W; Night : < 3W

10.93 oz. / 0.68 lbs. / 310g

2.76” x 6.14” (70 x 156mm) Dia x L

1/2.9” 2.1 Megapixel Progressive Scan CMOS Sensor

PAL/NTSC

1920(H) x 1080(V)

HD-TVI / HD-CVI / AHD: 1080p/720p (2.1 MegaPixel) / CVBS: 960H

HD-TVI / HD-CVI / AHD & CVBS (Selectable)

3.6 mm (2.8mm Also Available)
True Day/Night by ICR

0 Lux (LED ON)

30
70’

≥52dB (AGC Off)

Digtial WDR

YES

Auto (AWB)

YES
YES

Up to 1500’ (Depending on cable characteristics & integrity)

12VDC

Day : < 1W; Night : < 4W

IP66

-4~122 / 10%~90% Humidity

13.05 oz. / 0.82 lbs. / 370g

3.43” x 4.25” (87 × 108mm) Dia x H

21.34 oz. / 1.33 lbs. / 605g

4.57” x 3.58” (116mm×91mm) Dia x H

24

65’

Day : < 1W; Night : < 3W

10

VARIFOCAL TRANSCENDENT CAMERAS

VTC-TTAB36R2V

Transcendent Series 2.1 Megapixel
Outdoor HD-TVI/AHD/CVBS Camera
with 36 IR LED Illumination

VTC-TTAT2HR2V

Transcendent Series 2.1 Megapixel
Outdoor HD-TVI/AHD/CVBS Turret
Camera with 2 High Power IR LED
Illumination

VTD-TTAD30R2V

Transcendent Series 2.1 Megapixel
Outdoor HD-TVI / AHD / CVBS
Vandal Dome Camera with 30 IR LED
Illumination

OPTIONAL MOUNTS FOR FIXED TRANSCENDENT CAMERAS

VT-TJB01

Optional Junction Box for Cable
Management for use with all
Transcendent Bullet and Turret Style
Cameras

VT-TJB03

Junction Box for Cable Management
for use with Transcendent 24 IR LED

Fixed Lens Vandal Domes

11

28492 CONSTELLATION ROAD VALENCIA, CA 91355

WWW.VITEKCCTV.COM

Version 2.0

September 2017
