Vitek VT-SRL, VT-SRL916, VT-SRL908, VT-SRL904 User Manual

Download
Page 1

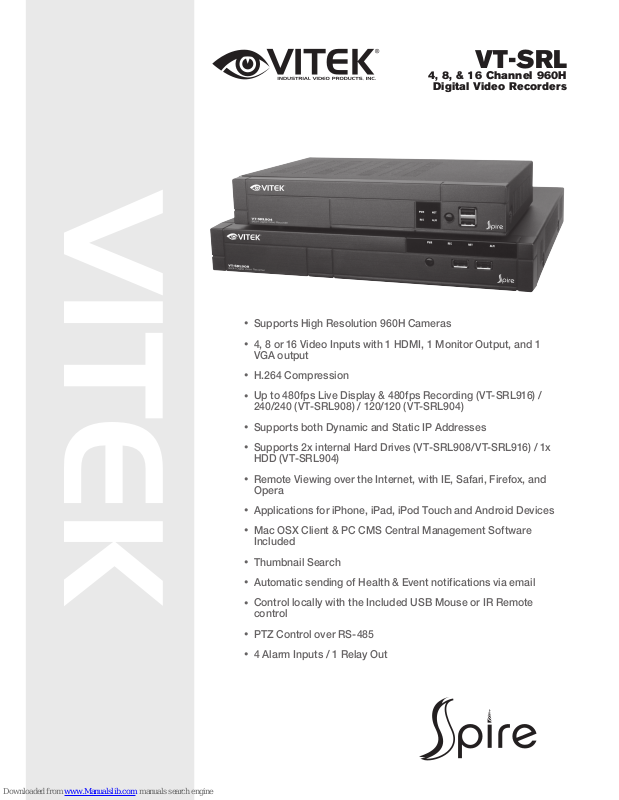

VT-SRL
4, 8, & 16 Channel 960H
Digital Video Recorders
•
Supports High Resolution 960H Cameras
•
4, 8 or 16 Video Inputs with 1 HDMI, 1 Monitor Output, and 1 VGA output
•
•
Up to 480fps Live Display & 480fps Recording (VT-SRL916) / 24 0/240 (VT-SRL908 ) / 120/120 ( VT-SRL9 0 4)
•
Supports both Dynamic and Static IP Addresses
•
Supports 2x internal Hard Drives (VT-SRL908/VT-SRL916) / 1x HDD (VT-SRL904)
•
Remote Viewing over the Internet, with IE, Safari, Firefox, and Opera
•
Applications for iPhone, iPad, iPod Touch and Android Devices
•
Mac OSX Client & PC CMS Central Management Software Included
•
Thumbnail Search
•
Automatic sending of Health & Event notifications via email
•
Control locally with the Included USB Mouse or IR Remote control
•
PTZ Control over RS-485
•
4 Alarm Inputs / 1 Relay Out
VITEK
Page 2
SYSTEM SETTING
30
RECORD SETTING
59
SEARCH
64
OVERVIEW
4
INSTALLATION
11
MONITORING
21
Page 3
SYSTEM SETTING
30
30 To Move to the System Setup
Menu
31 Camera Setting
35 Display Setting
40 Audio Setup
41 User Setting
43 Network Setup
46 System Setting
50 Storage
52 Event Setup
RECORD SETTING
59

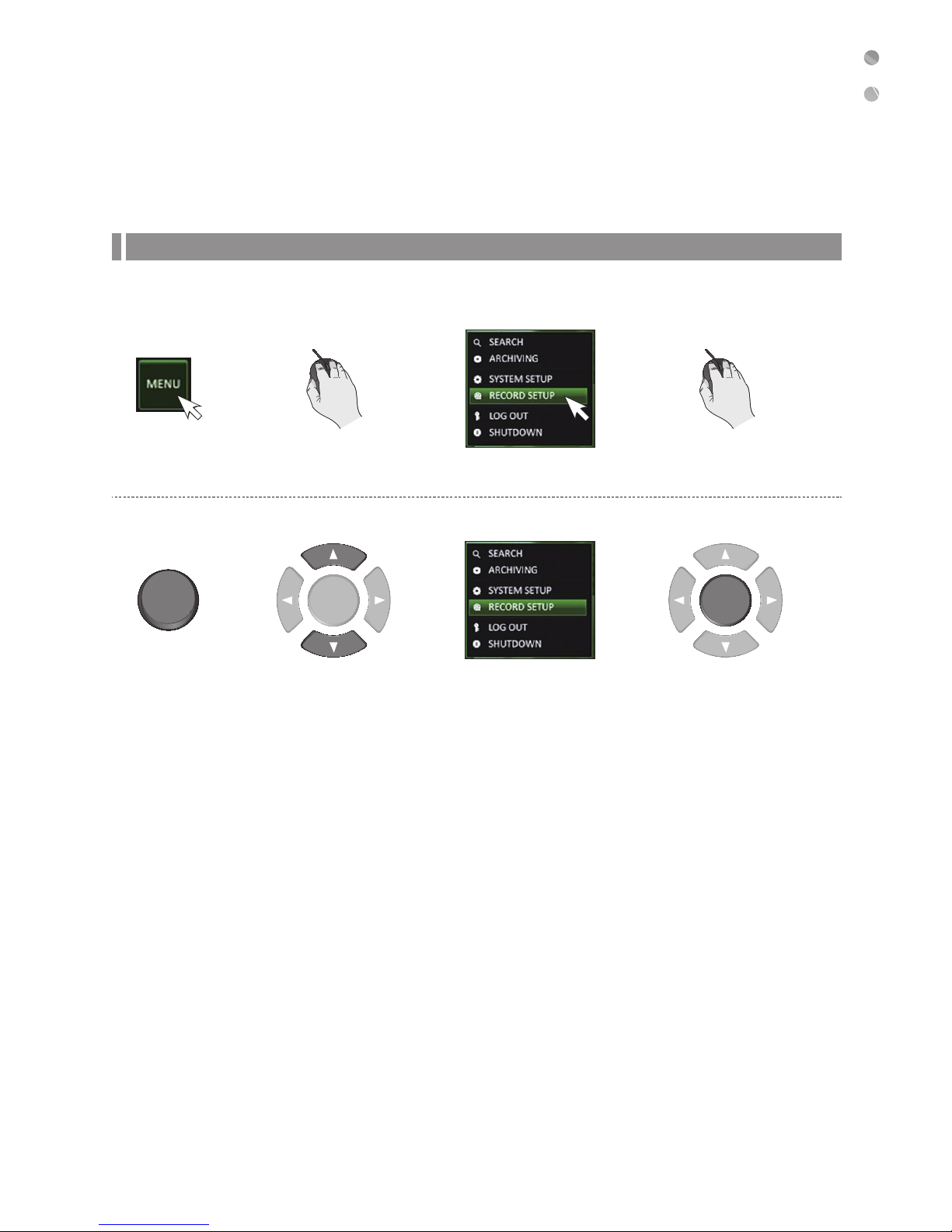

59 To start the Record Setup Menu
60 Record Setup
SEARCH
64
64 To Move to the Search Menu
while in Monitoring
64 To Move to the Search Menu

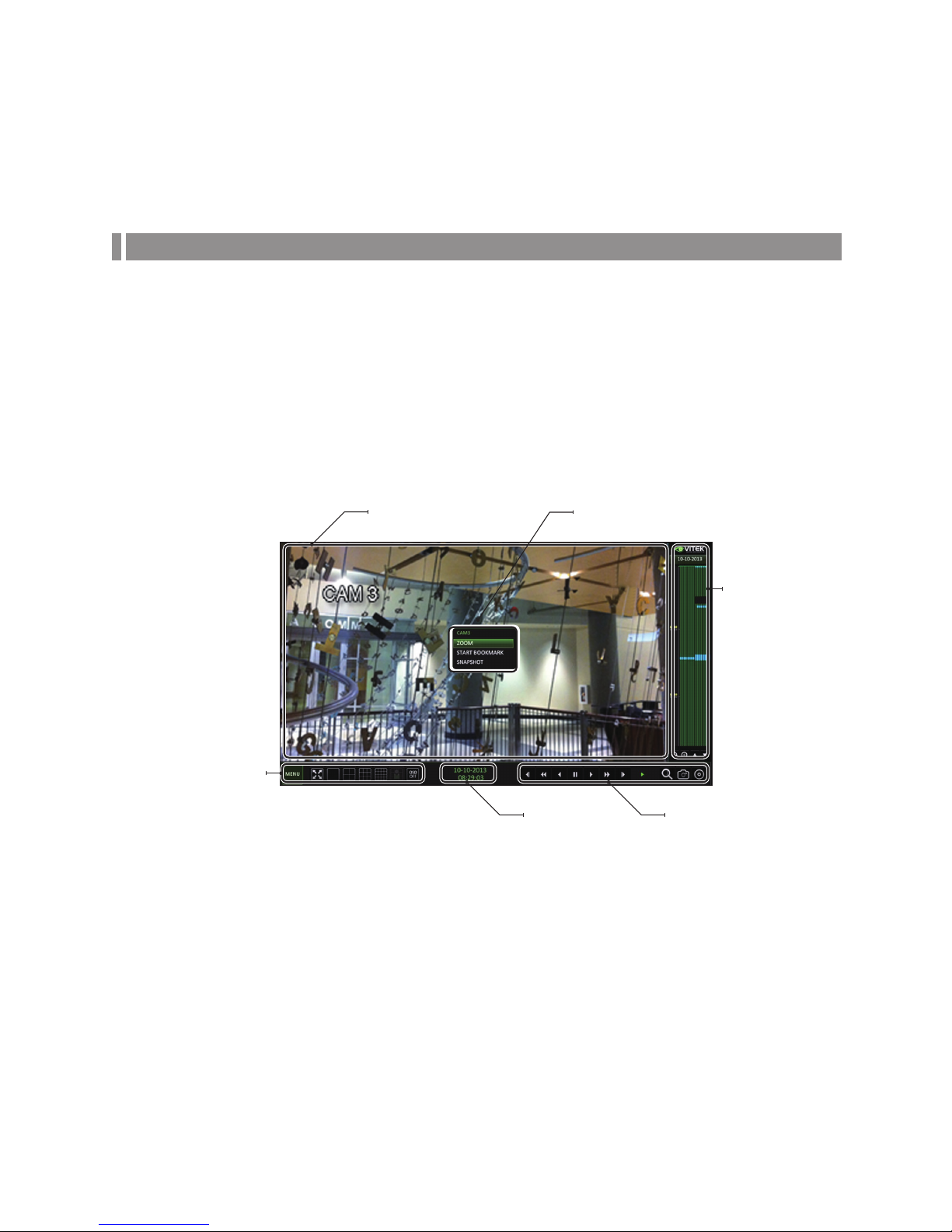

while in Playback Mode

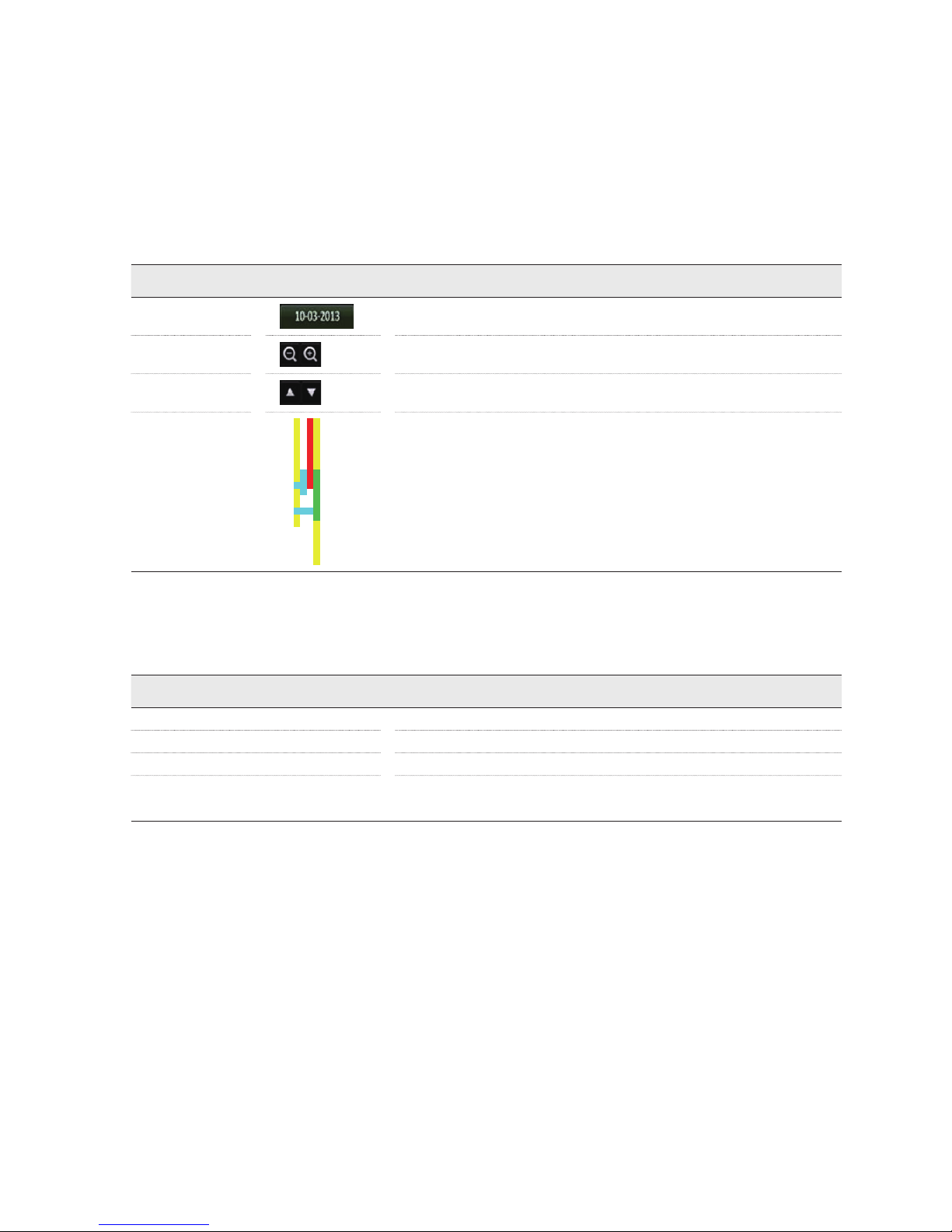

65 Search Settings
PLAY
68
68 If you Want to Play
WEB VIEWER
74
74 What is the Web Viewer?
76 Live
80 Search
82 Setup
ARCHIVING
71
71 To start the Archive Menu
MOBILE VIEWER
98
98 nViewer
ARCHIVE VIEWER
110
110 Getting Started with the
Backup Player
112 Backup Player At a Glance
APPENDIX
115
115 Specification
117 Compatible HDD Specifications
118 Troubleshooting (FAQ)
Content
OVERVIEW
4
4 Safety Instructions
5 Key Features
6 What's Included
7 Rear Panel
9 Remote Control at a Glance
INSTALLATION
11
11 Replacing the Hard Drive(s)
15 Basic Layout
16 Connecting to an External
Device
MONITORING
21

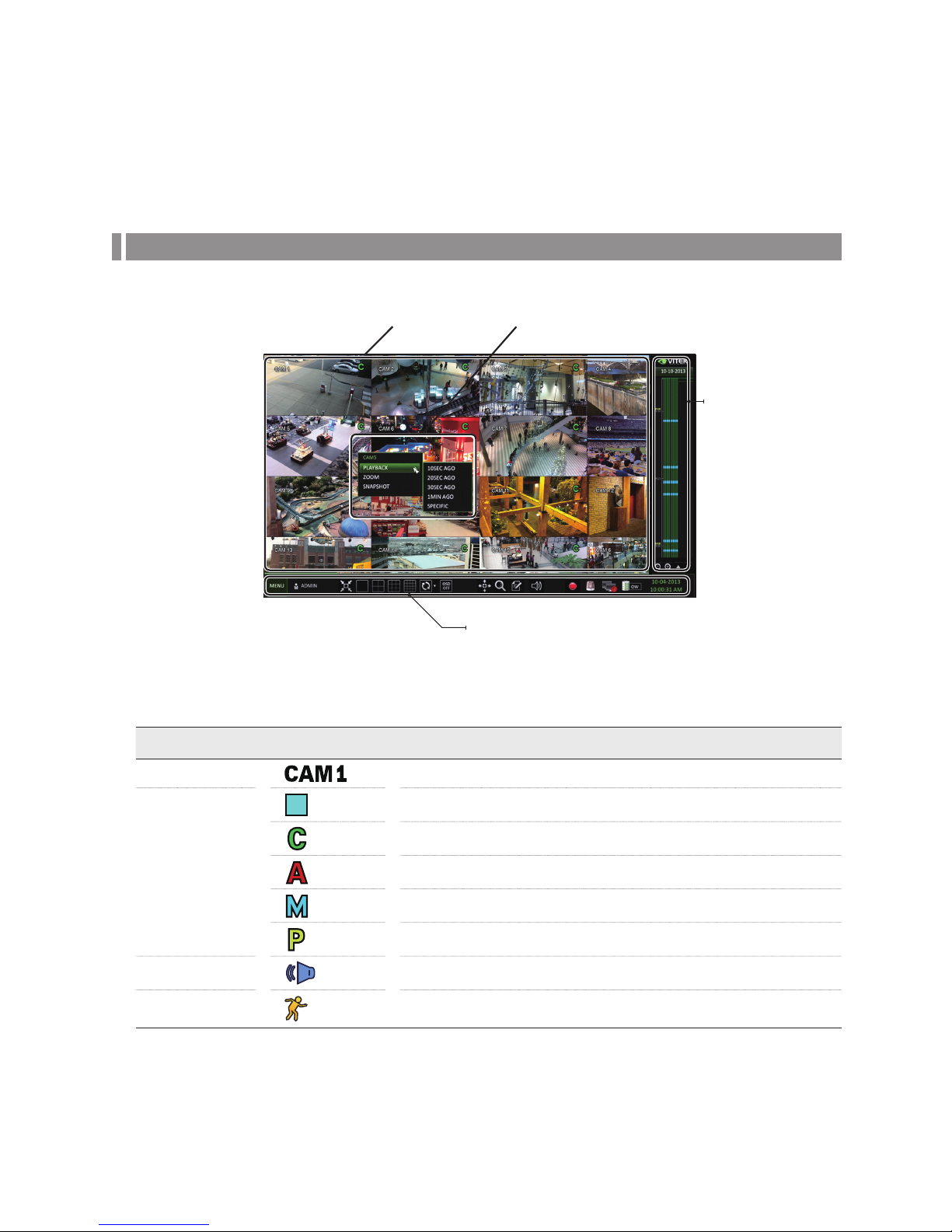

23 Live Screen At a Glance
Page 4
4
Overview
Safety Instructions
Vitek shall not have any responsibility for any accident or damage that may incur during the use of the product. For your safety, we provide the following instructions regarding installation, cleaning, assembly/disassembly of the product. Please read carefully, and comply with the instructions.
Before installation
Comply with the following instructions to prevent fire, explosion, system failure or electrical shock.
~
Remove the power supply module before proceeding.
~
Check the input voltage (AC100V–AC240V) to the power supply module before connecting it.
~
Keep the product away from humidity.
~
Ensure that all devices connected to the product are properly earth-grounded.
In operation mode
Comply with the following instructions to prevent fire, explosion, system failure or electric shock.
~
If you need to open the cover, consult with an authorized Vitek service technician.
~
Do not connect multiple devices to a single power outlet.
~
Keep the product away from dust or combustible substances (ex: propane gas).
~
Do not touch product with wet hands.
~
Do not insert anything into the vent of the ventilation system.
~
Do not apply excessive force when unplugging the power cord.
Disassembly & Cleaning
~
When cleaning the surface, use a dry cloth.
~
Do not wipe the product using water, paint thinner or organic solvents.
~
Do not dismantle, repair or modify the product on your own.
During installation
To prevent an accident or physical injury , please comply with the following:
~
Secure at least 6 inches of distance between cooling fan and wall for a proper ventilation.
~
Install the product on a flat surface.
~
Keep product away from direct sunlight or excessive temperature.
While in use
~
Do not apply force or shake product while using it.
~
Only use recommended hard drives. Check the compatibility list and use only compatible HDDs. {A system failure or data loss caused by an incompatible HDD will void your warranty.}
Page 5
5
Overview
Key Features
This product is capable of receiving up to 16 channels of 960H camera inputs of video and audio and recording onto a hard disk drive in real-time, as well as providing monitoring, playback and backup footage in 960H resolution. It also provides transferring video and audio data to the networked external devices, which allows remote monitoring environment for computers and mobile devices including cell phones.
•
Supports High Resolution 960H Cameras
•
4, 8 or 16 Video Inputs with 1 HDMI, 1 Monitor Output, and 1 VGA output
•
H.264 Compression
•
Up to 480fps Live Display & 480fps Recording (VT-SRL916) / 240/240 ( VT-SRL908) / 120/120 (VT-SRL904)
•
Supports both Dynamic and Static IP Addresses
•
Supports 2x internal Hard Drives (VT-SRL908/ VT-SRL916) / 1x HDD (VT-SRL904)
•
Remote Viewing over the Internet, with IE, Safari, Firefox, and Opera
•
Applications for iPhone, iPad, iPod Touch and Android Devices
•
Mac OSX Client & PC CMS Central Management Software Included
•
Thumbnail Search
•
Automatic sending of Health & Event notifications via email
•
Control locally with the Included USB Mouse or IR Remote control
•
PTZ Control over RS-485
•
4 Alarm Inputs / 1 Relay Out
Page 6
Overview
6

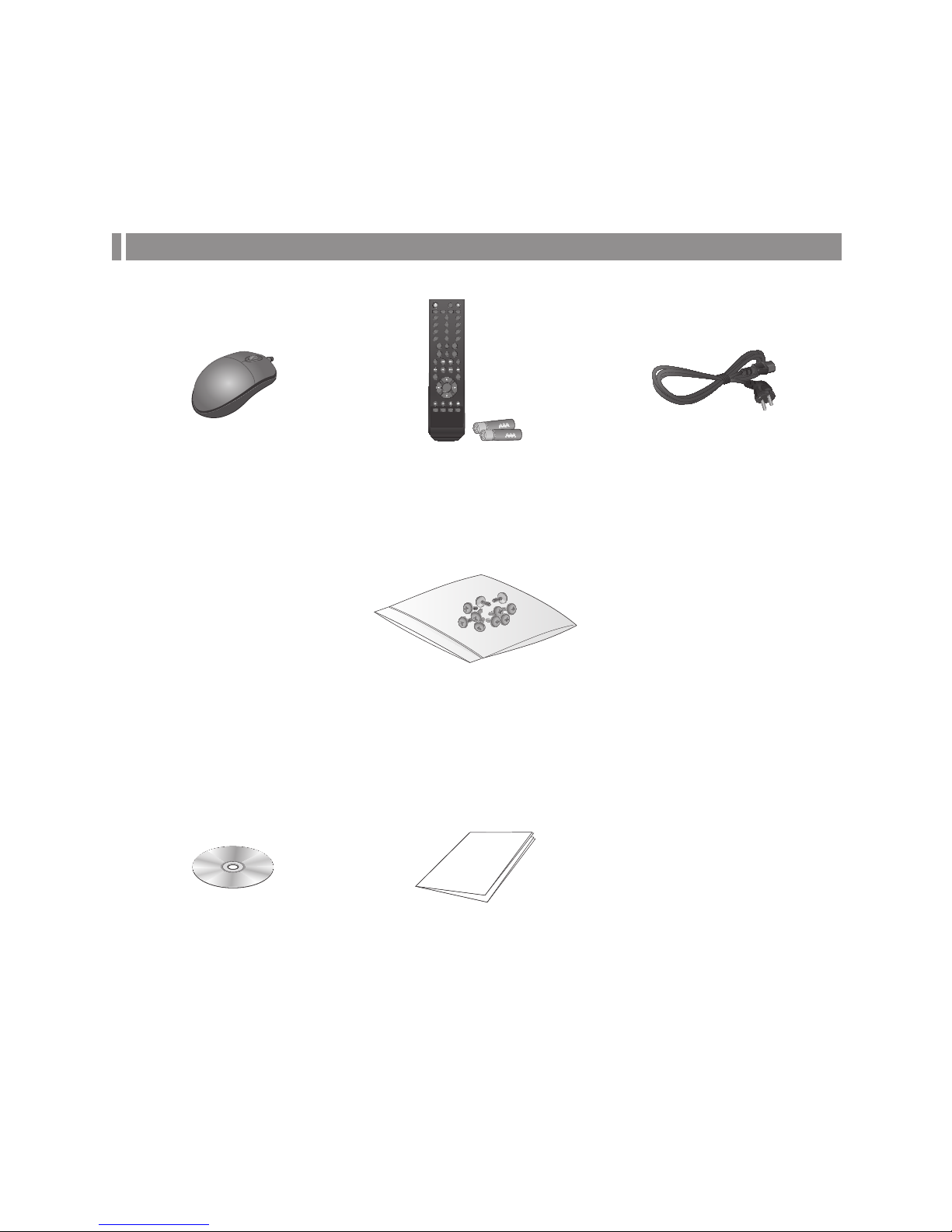

What's included
LOGOUT
SEARCH
DISPLAY
FREEZE
PREV / NEXT
SNAPSHOT
W
PRESET AF
T
ZOOM
ZOOM PTZ
FOCUS
N F
RESERVE
KEYLOCK AUDIO
SEQ LOG
ARCHIVE SETUP ALARM
PANIC
1 2 3
4 5 6
7 8 9
+10
0
ID
EXIT
MENU
ENTER
Mouse x1 Remote Control x1 & Batteries (A AA x2) Power Cable x1
DC 12V Adaptor x1 Screws Adapter cable retainer clip x1
User manual CD Quick Guide
Page 7
7
Overview

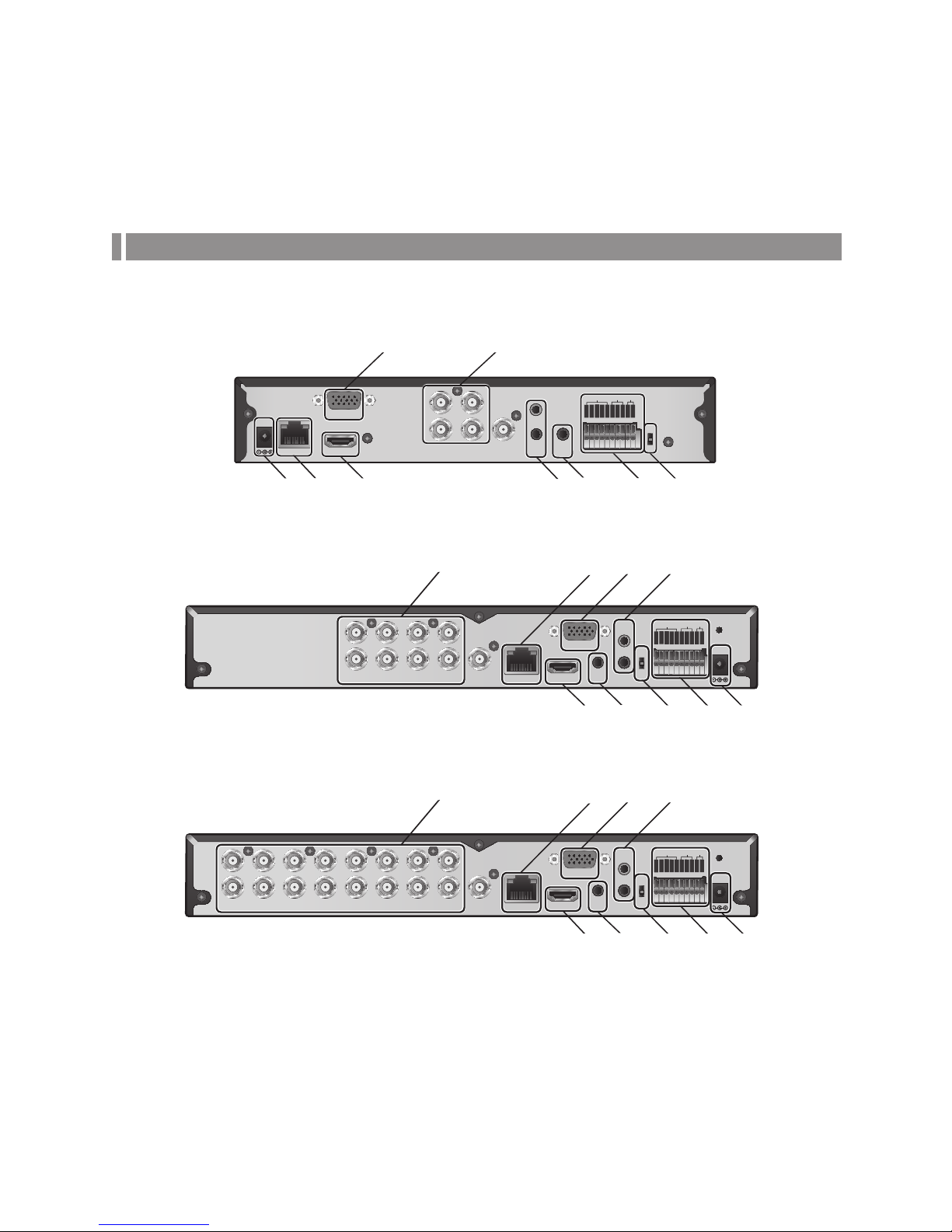

Rear Panel
4 channels
8 channels
16 channels
ETHERNET
1
2
3
4
VIDEO IN
AUX
DC 12V
VGA
HD MONITOR
1/2
3/4
AUDIOINAUDIO
OUT
IN 1
IN 2
GND
IN 3
IN 4
NO
COM
NC
D+
D-
ALARM IN RELAY RS485
PAL
NTSC
h ebf gi
ac
d
a b d
HD MONITOR
VGA
AUX
DC 12V
ETHERNET
VIDEO IN
IN 1
IN 2
GND
IN 3
IN 4
NO
COM
NC
D+
D-
ALARM IN RELAY RS485
PAL
NTSC
3
1
7
5
11
9
15
13
4
2
8
6
12
10
16
14
AUDIO
IN
AUDIO
OUT
1/2
3/4
i h g e f
c
a b d
HD MONITOR
VGA
AUX
DC 12V
ETHERNET
VIDEO IN
IN 1
IN 2
GND
IN 3
IN 4
NO
COM
NC
D+
D-
ALARM IN RELAY RS485
PAL
NTSC
3
1
7
5
4
2
8
6
AUDIO
IN
AUDIO
OUT
1/2
3/4
i h g e f
c
Page 8
Overview
8
No. Name Description
a
VIDEO IN Video input terminal for cameras.
b
ETHERNET Network port for connection to the Internet, router or hub.
c
VGA VGA monitor video output port.
d
AUDIO IN
1/2 : Audio input terminal that supports channels 1 and 2.
3/4 : Audio input terminal that supports channels 3 and 4.
e
ALARM IN Alarm input signal por t.
RE L AY Relay Terminal output port.
RS485 Por ts for communication with external devices such as PTZ camera and system keyboard.
f
DC 12V Power input port. Connect to a 12V adaptor.
g
DIP Switch Switch to select a video type or an output type.
h
AUDIO OUT Port for speaker connection.
i
HD MONITOR HD monitor video output port.
Select one from VGA/HD MONITOR before outputting the video.
Page 9
9
Overview

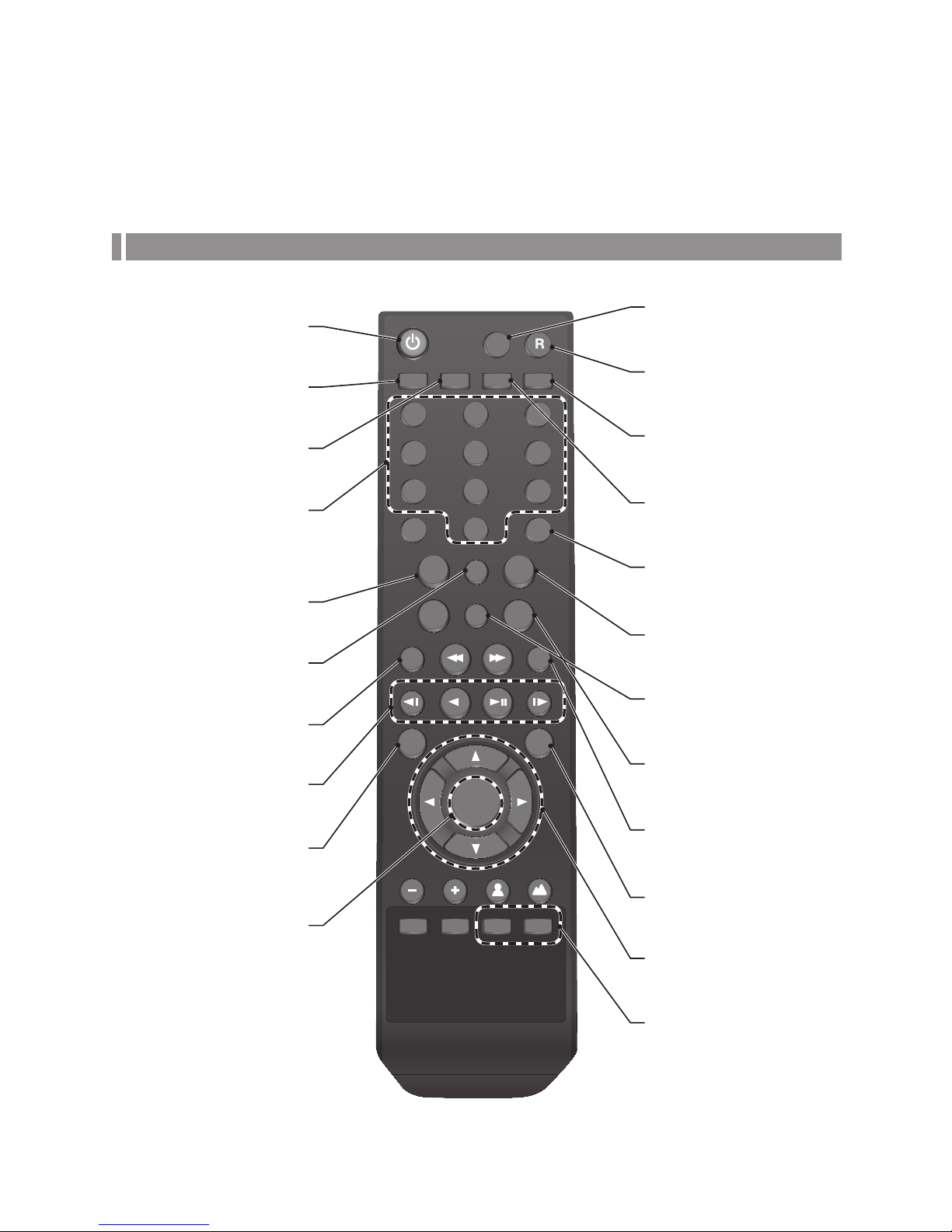

Remote Control At a Glance
LOGOUT
SEARCH
DISPLAY
FREEZE
PREV / NEXT
SNAPSHOT
W
PRESET AF
T
ZOOM
ZOOM PTZ
FOCUS
N F
RESERVE
KEYLOCK AUDIO
SEQ LOG
ARCHIVE SETUP ALARM
PANIC
1 2 3
4 5 6
7 8 9
+10
0
ID
EXIT
MENU
ENTER
POWER
LOGOUT Log out.
ARCHIVE
Display the backup window.
PANIC Start the emergency recording.
SEARCH
Display the search window.
ALARM Show the alarm status with a popup win dow.
DISPALY
Switch the split mode.
NUMBER BUTTONS
Channel selection buttons in live or
playback mode. Or used for entering
the password.
SETUP Display the system setup menu.
ID Set the remote control ID.
SEQ
Switch to sequence mode.
RESERVE Reserve the current video.
AUDIO Display the audio channel selection win dow.
LOG Display the log list.
SNAPSHOT
Take a snapshot of the video.
MENU Display the tool bar on the live screen.
PLAY CONTROLS
Used to change the direction or adjust
the play speed in playback mode.
KEYLOCK Lock any operation on the unit.
EXIT
Exit from the current screen and
return to the previous screen.
UP, DOWN, LEFT, RIGHT Use to move through the menus.
ENTER
Select a menu item or apply your
settings.
PTZ /ZOOM Enter the PTZ or digital zoom mode and control the operation.
Page 10
Overview
10
Change the remote control ID
The remote control will only function if the Remote Control ID matches with that specified on the DVR.
If multiple DVRs are installed at one location and you would like to have just a single remote control, use the ID button to set the remote control ID. Only the ID-matching DVR can be controlled.
1.
From <SYSTEM> - <CONTROL DEVICE> under the System Setup menu, set the <REMOTE CONTROLLER ID> and press <APPLY>. Select between 00 and 99. For more details, refer to <SYSTEM SETUP>.
2.
Press the [ID] button on the remote control. The default remote control ID is 00.
3.
Use the number buttons to provide a two-digit ID. If you want to enter 01, for instance, enter the number 0 and 1 in sequence. To check if the remote control ID is set properly, manipulate the remote control and see if the DVR responds.
4.
To reset the ID to 00, press and hold the [ID] button.
Page 11
11
Installation
Replacing HDD

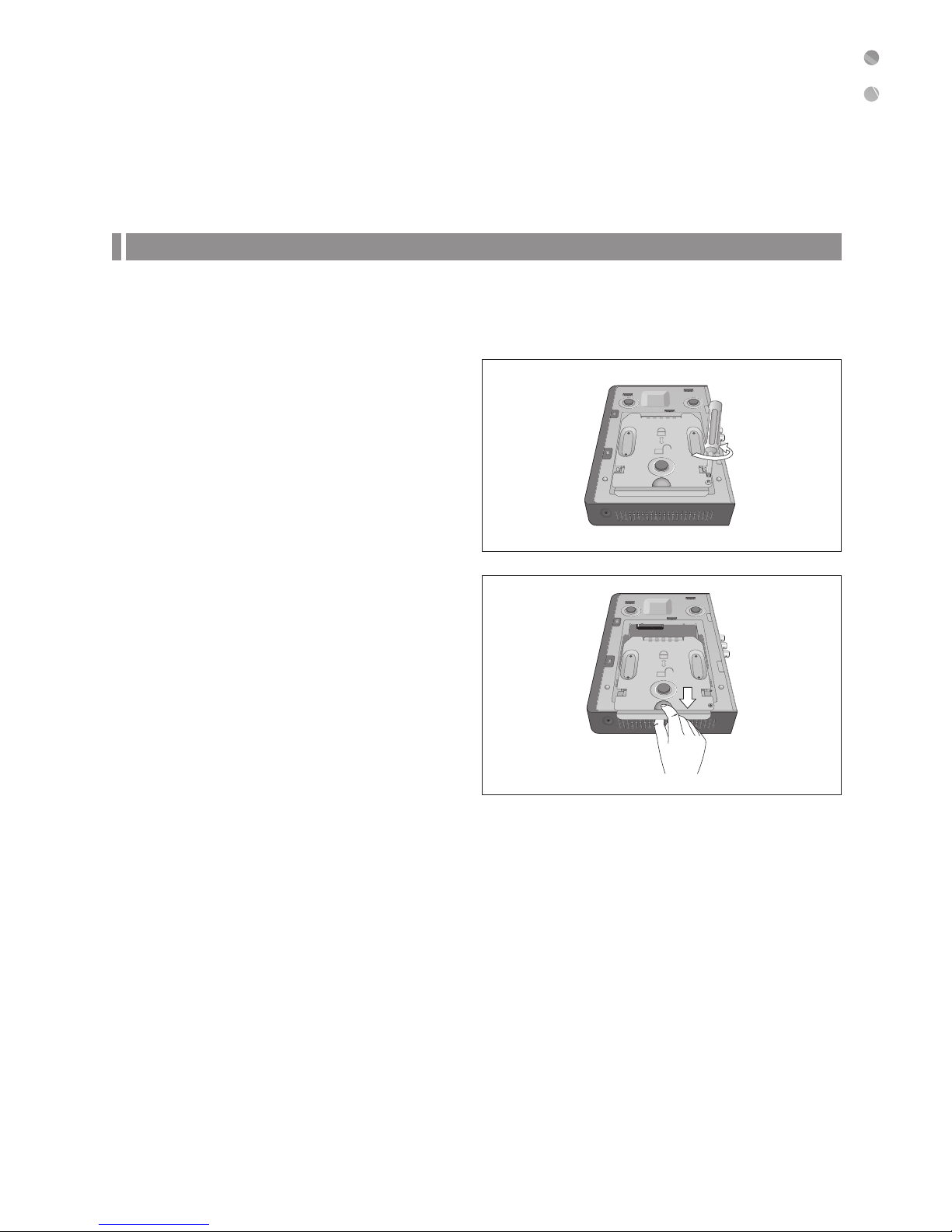

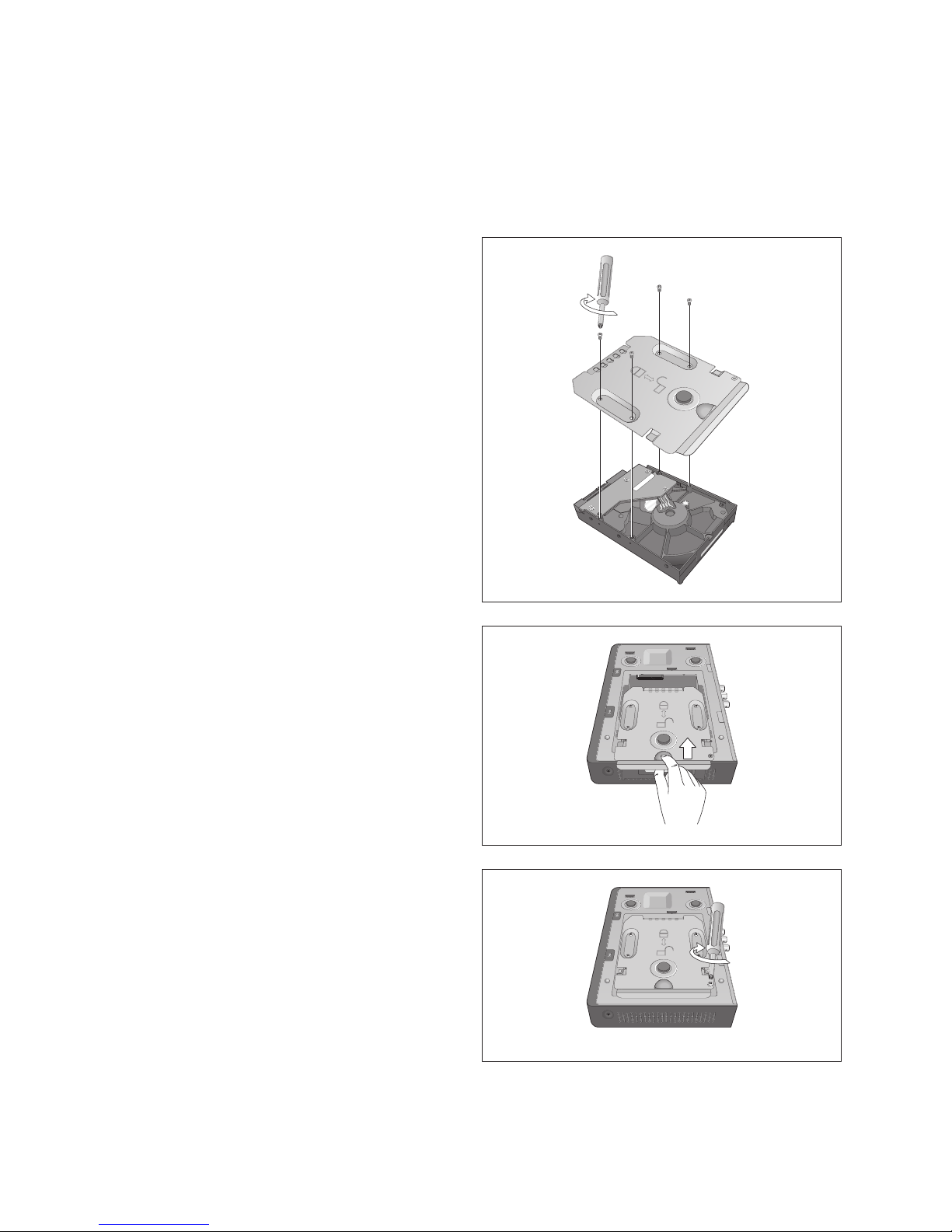

When a hard drive is full or problematic, it is possible to replace it yourself.
4-Channel Model
1.
Remove the screw from the bracket on the bottom of the DVR.
2.
Hold the HDD bracket with your finger as shown in the figure and pull it to separate it from the DVR.
Installation
Page 12
Installation
12
3.

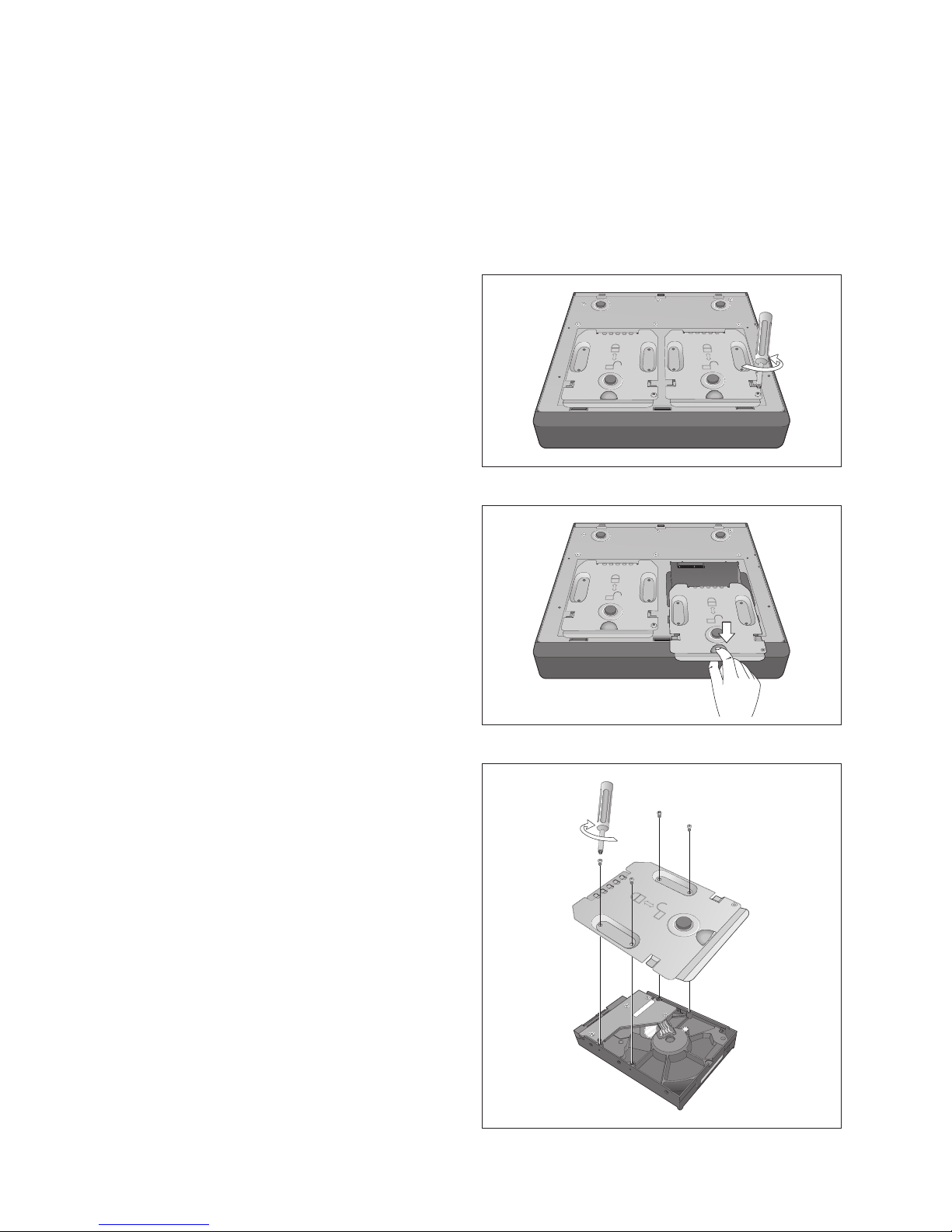

Install the HDD to the bracket (see figure).
When installing the HDD, make sure to install in the correct direction.
4.
Insert the bracket back into the DVR.
5.
Secure the bracket by fastening the screw.
Page 13
13
Installation
8/16-Channel Models
1.
Remove the screw from each bracket on the bottom of the DVR.
2.

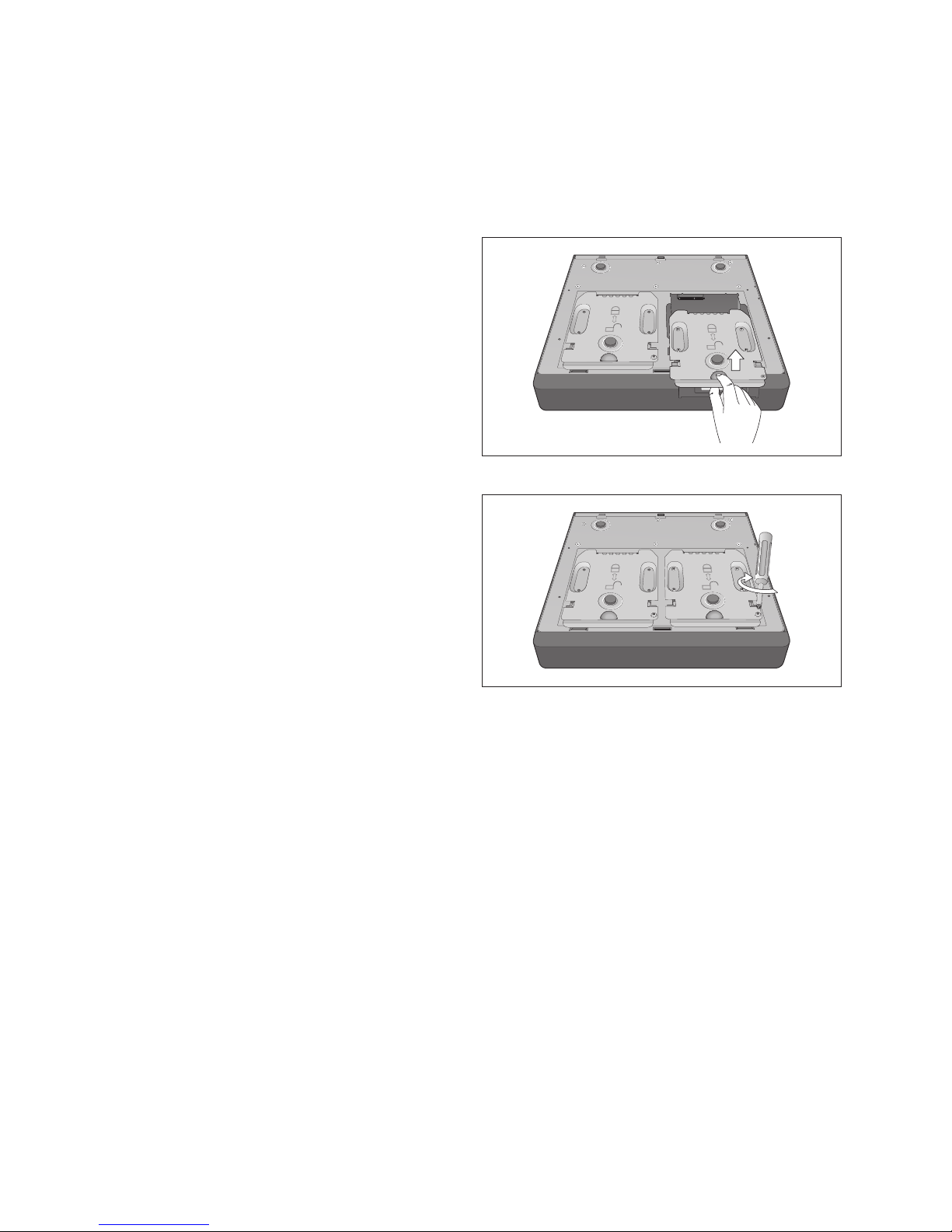

Hold the HDD bracket with your finger as shown in the figure and pull it to separate it from the DVR.
3.
Install the HDD to the bracket (see figure)
When installing the HDD, make sure to install in the correct direction.
Page 14
Installation
14
4.
Insert the bracket back into the DVR.
5.
Secure the bracket by fastening the screw.
Page 15
15
Installation
Basic Layout
•
Cable quality and distance can directly effect the video quality. it is recommended to consult an authorized installer when installing the DVR.
VGA
DC 12V
ETHERNET
HD MONITOR
IN 1
IN 2
GND
IN 3
IN 4
NO
COM
NC
D+
D-
ALARM IN RELAY RS485
NTSC
PAL
AUDIO
IN
AUDIO
OUT
1/2
3/4
AUX
VIDEO IN
DC 12V
Power
Control
Devices
Speaker MIC Alarm Sensor
Full HD
Monitor
SPOT
960H
Camera
Monitor
IP Router
or HUB
Page 16
Installation
16

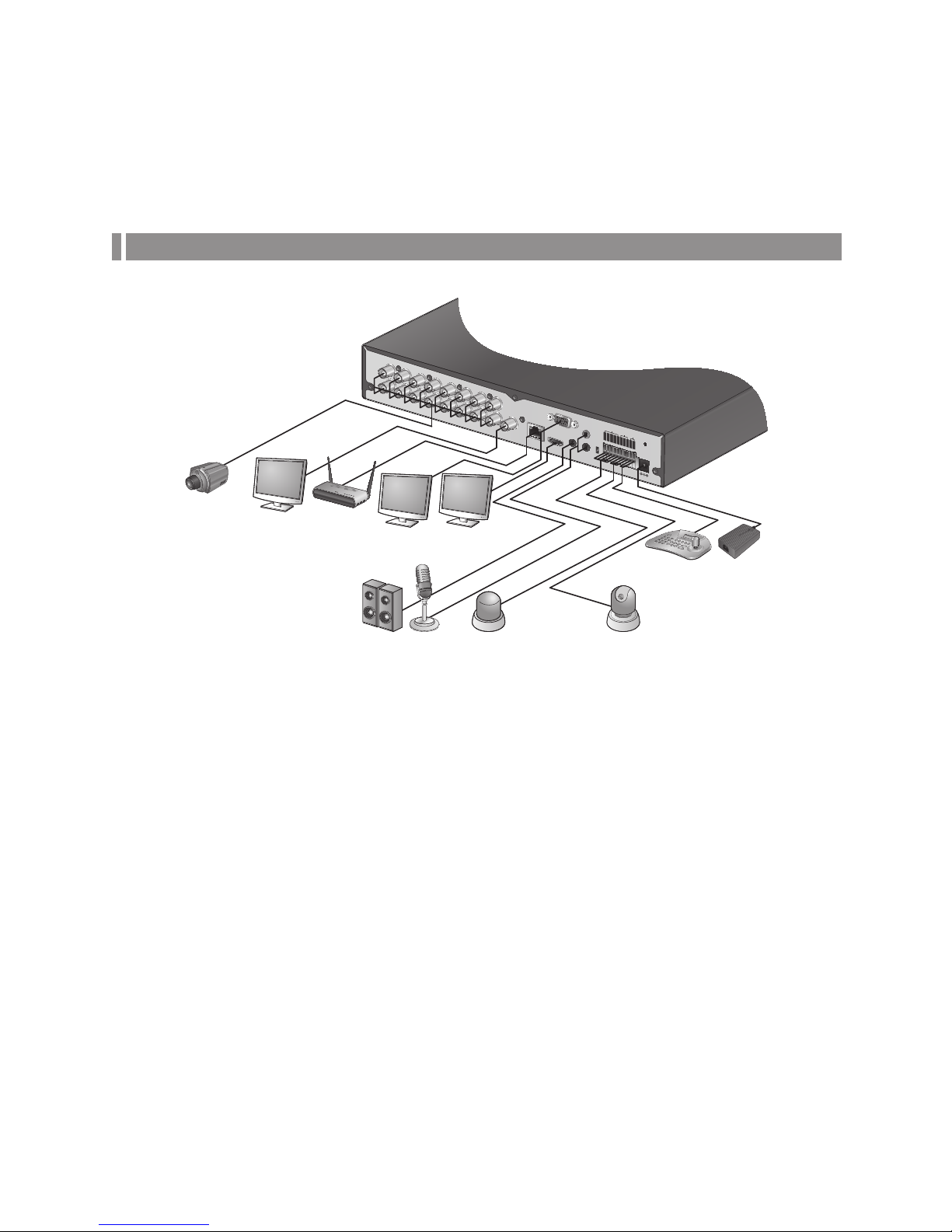

Connecting to an external device
Connecting to a Monitor
This product supports 1080p 60 Hz HDMI monitors and regular monitors that support DVI and VGA inputs. Use the switch on the product’s rear side to set it for HDMI or VGA monitor. Connect an HDMI cable to the port on the product’s rear bottom, or connect an HDMI-DVI converter cable to connect a DVI monitor. Or, use VGA cable to connect the product with a VGA monitor.
•
Once the product is set for NTSC or PAL output, connect cameras of the corresponding video standard for proper operations. Setting the product to NTSC or PAL decides available display output modes too.
The monitor’s displaying operates at 50Hz if the product has been set to PAL output and the connected monitor supports both 50Hz and 60 Hz inputs. For NTSC setting, it works at 60 Hz.
•
Make sure to connect the product to a monitor that supports 1920x1080 at 60Hz. (HDMI, DVI, VGA)

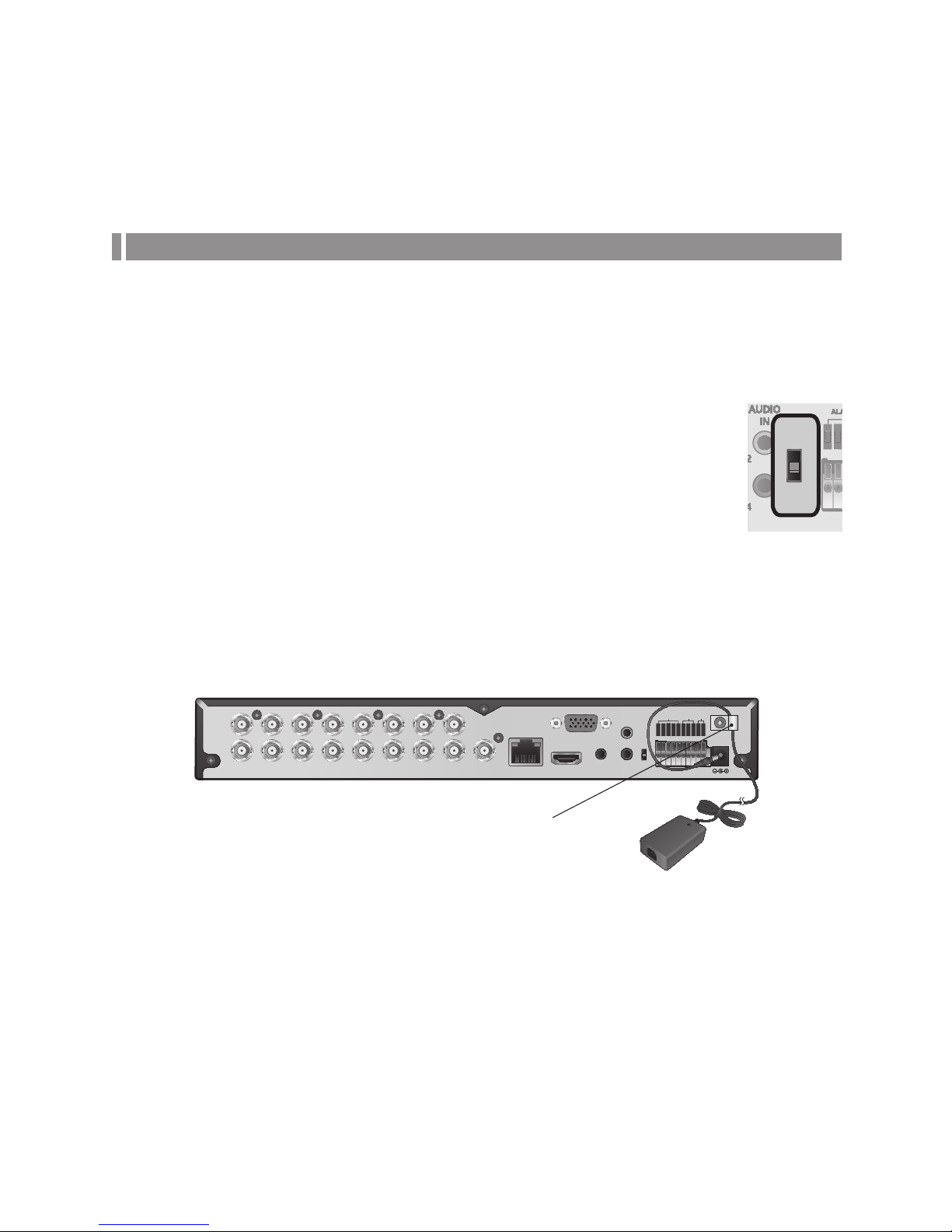

Power Connection
Plug the provided DC 12V adaptor in the rear power port of the DVR.
When done, attach the Adapter cable retainer clip to the rear panel and insert the cable in.
•
For stable operation of the product, it is recommended to use the provided adapter. (12V, 5A)
•
Make connection when the power is not applied yet.
•
Arrange the cables and be careful not to peel off the cable coating.
•
Do not place the power cord under the carpet or rug. The power cord is usually earth-grounded. However, even if it's not earth-grounded, do not modify it on your own for earth-grounding.
•
Do not plug multiple devices into single power outlet.
•
For stability, this product provides two separate adaptors and two corresponding AC cords by factory default. Make sure all cables are connected properly.
DC 12V
IN 1
IN 2
GND
IN 3
IN 4
NO
COM
NC
D+
D-
ALARM IN RELAY RS485
PAL
NTSC
AUDIO
IN
PAL
NTSC
AUDIO
IN
DC 12V
IN 1
IN 2
GND
IN 3
IN 4
NO
COM
NC
D+
D-
PAL
NTSC
HD MONITOR
VGA
AUX
DC 12V
ETHERNET
VIDEO IN
IN 1
IN 2
GND
IN 3
IN 4
NO
COM
NC
D+
D-
ALARM IN RELAY RS485
PAL
NTSC
3
1
7
5
11
9
15
13
4
2
8
6
12
10
16
14
AUDIO
IN
AUDIO
OUT
1/2
3/4
Adapter cable
retainer clip
DC 12V adaptor
Page 17
17
Installation

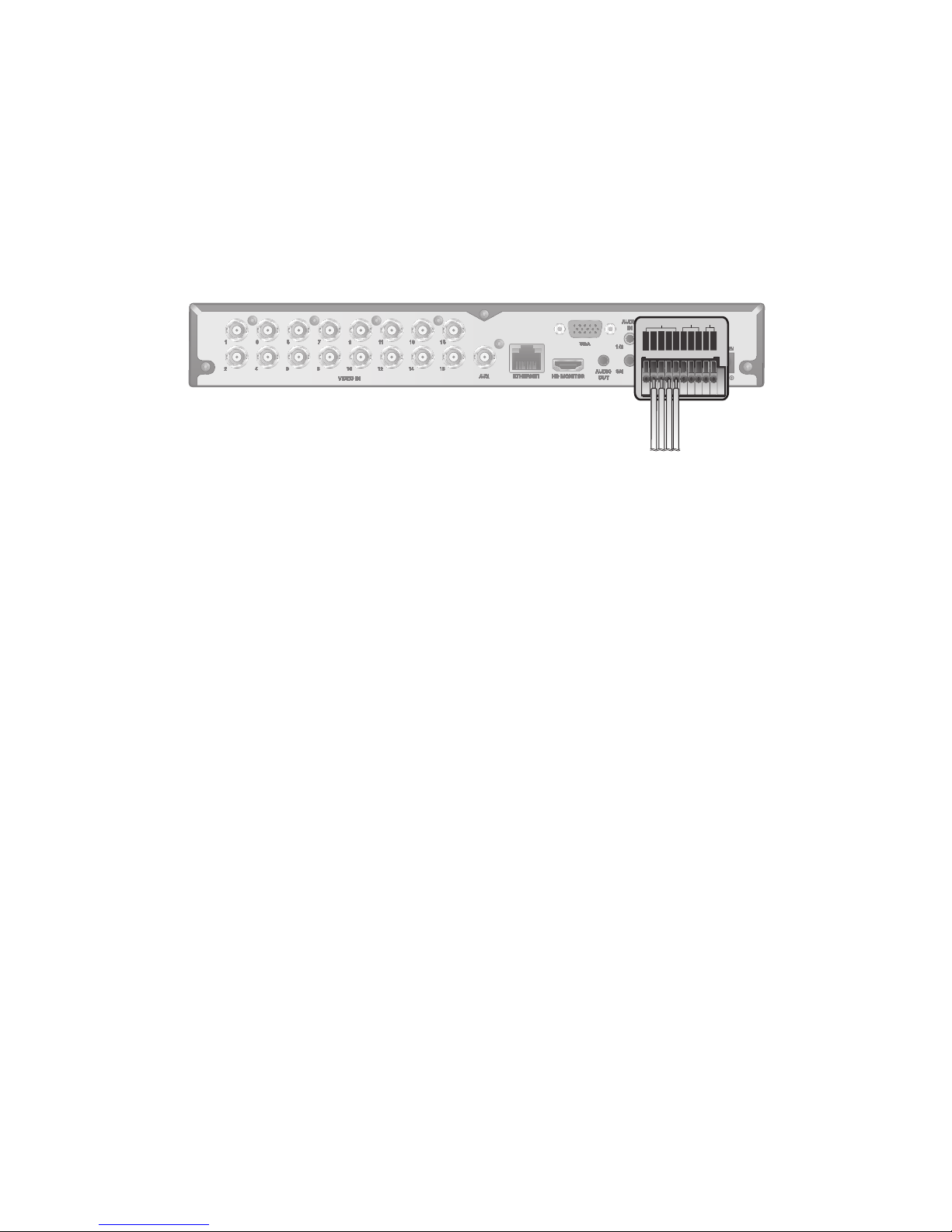

Alarm I/O Connection
To connect the alarm input signal
Connect the signal line of an alarm input device to the rear [ALARM IN] port.
1.
Push the Alarm In and [GND] terminals’ top side (orange color) with a sharp tipped tool such as screw driver.
2.
While pushing, insert one end of alarm signal cable into the hole of Alarm In terminal.
3.
While pushing, insert one end of ground cable into the hole of [GND] terminal.
4.
Check to be sure the cable has been inserted properly-- stop pushing and gently pull the cable to make sure it is secure. To disconnect a cable, push the top side of the terminal (orange color) and pull out the cable.
To connect the alarm output signal
Connect the signal cable of the alarm output device to the [RELAY] terminal on the product’s rear side.
1.
Push the [NO]/[NC]/[COM] terminal’s top side (orange color) with a sharp tipped tool such as screw driver.
2.
While pushing, insert one end of alarm signal cable into the desired terminal of [NO] or [NC].
NO(Normal Open) : Normally Open but switches to Closed if an alarm out occurs.
COM : Insert the grounding wire.
NC(Normal Closed) : Normally Closed but switches to Open if an alarm out occurs.
3.
Inser t the ground signal wire into the hole of the [COM] port.
4.
Check to be sure the cable has been inserted properly-- stop pushing and gently pull the cable to make sure it is secure. To disconnect a cable, push the top side of the terminal (orange color) and pull out the cable.
HD MONITOR
VGA
AUX
DC 12V
ETHERNET
VIDEO IN
IN 1
IN 2
GND
IN 3
IN 4
NO
COM
NC
D+
D-
ALARM IN RELAY RS485
PAL
NTSC
3
1
7
5
11
9
15
13
4
2
8
6
12
10
16
14
AUDIO
IN
AUDIO
OUT
1/2
3/4
HD MONITOR
VGA
AUX
DC 12V
ETHERNET
VIDEO IN
ALARM IN
RELAY
RS485
PAL
NTSC
3
1
7
5
11
9
15
13
4
2
8
6
12
10
16
14
AUDIO
IN
AUDIO
OUT
1/2
3/4
DC 12V
IN 1
IN 2
GND
IN 3
IN 4
NO
COM
NC
D+
D-
ALARM IN RELAY RS485
Page 18
Installation
18
5.
Communication Port
RS-485 Connection
Connect a PTZ Camera or Keyboard Controller. You can also connect a text-in device such as POS or ATM. After connecting the control device, be sure to match the connection settings between the DVR and the device. To change communication settings see <Control Device>. (page 49)
1.
Connect the positive (+) transmission signal cable of the PTZ camera/keyboard controller to the RS-485 [D+] communication port on the DVR’s rear panel.
1.
Connect the negative (-) transmission signal cable of the PTZ camera/keyboard controller to the RS-485 [D-] communication port on the DVR’s rear panel.
For RS-485 communication configuration, refer to the user’s manual of the applicable PTZ camera or keyboard controller.
Connection for POS and ATM (to be included in future firmware upgrade).
Audio Device Connection
Connect an audio input device such as a microphone to the rear Audio In port; connect an audio output device such as an amplified speaker to the Audio Out port.
Storage and Mouse Connection
USB Device
You can connect and use USB storage devices for backup of recorded video, saving snapshots, firmware updating, importing/exporting user configurations. In addition, the DVR will accept a USB mouse.
•
If you need to connect a USB HDD with a high power consumption, it is recommended to use a separate power source for that HDD.
HD MONITOR
VGA
AUX
DC 12V
ETHERNET
VIDEO IN
IN 1
IN 2
GND
IN 3
IN 4
NO
COM
NC
D+
D-
ALARM IN RELAY RS485
PAL
NTSC
3
1
7
5
11
9
15
13
4
2
8
6
12
10
16
14
AUDIO
IN
AUDIO
OUT
1/2
3/4
HD MONITOR
VGA
AUX
DC 12V
ETHERNET
VIDEO IN
ALARM IN
RELAY
RS485
PAL
NTSC
3
1
7
5
11
9
15
13
4
2
8
6
12
10
16
14
AUDIO
IN
AUDIO
OUT
1/2
3/4
DC 12V
IN 1
IN 2
GND
IN 3
IN 4
NO
COM
NC
D+
D-
ALARM IN RELAY RS485
Page 19
19
Installation

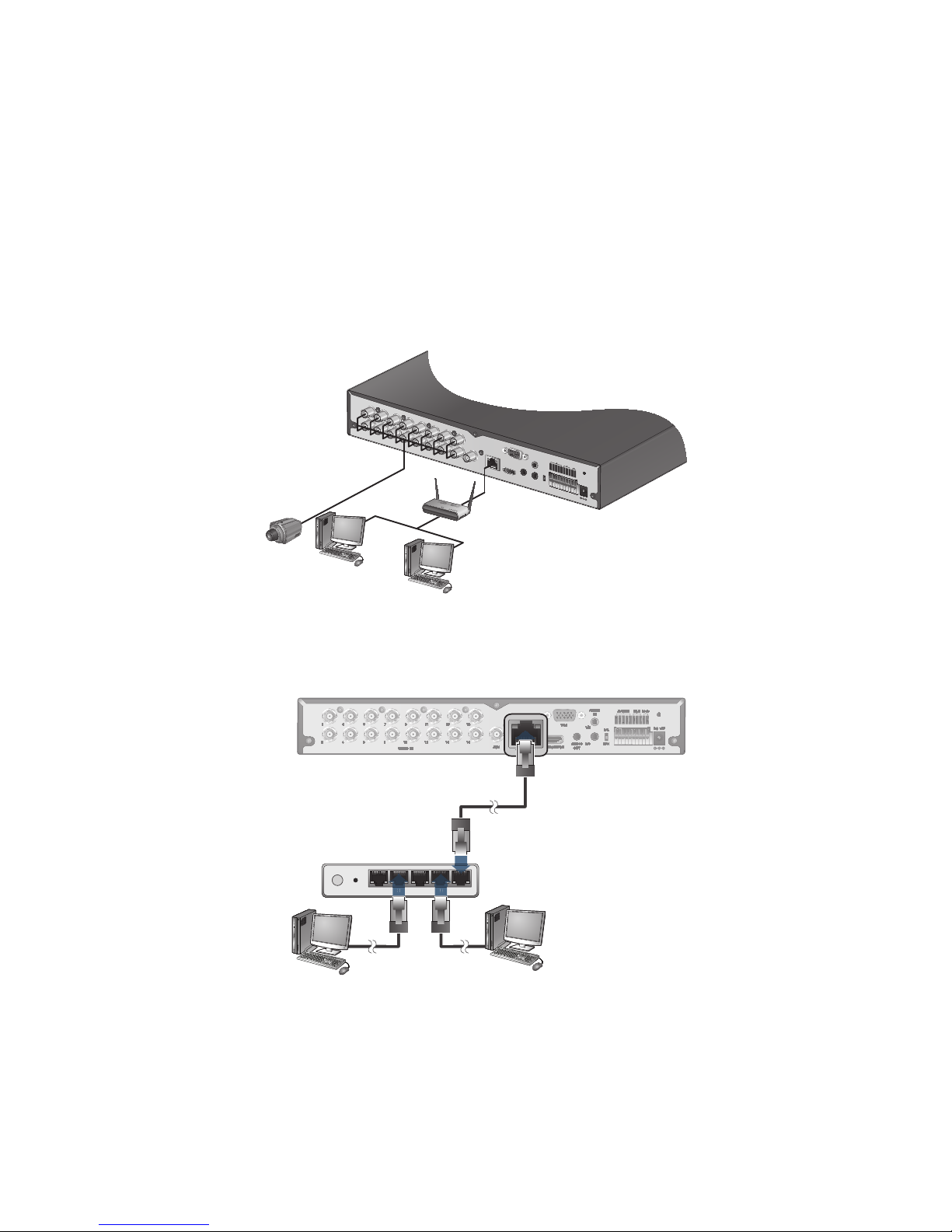

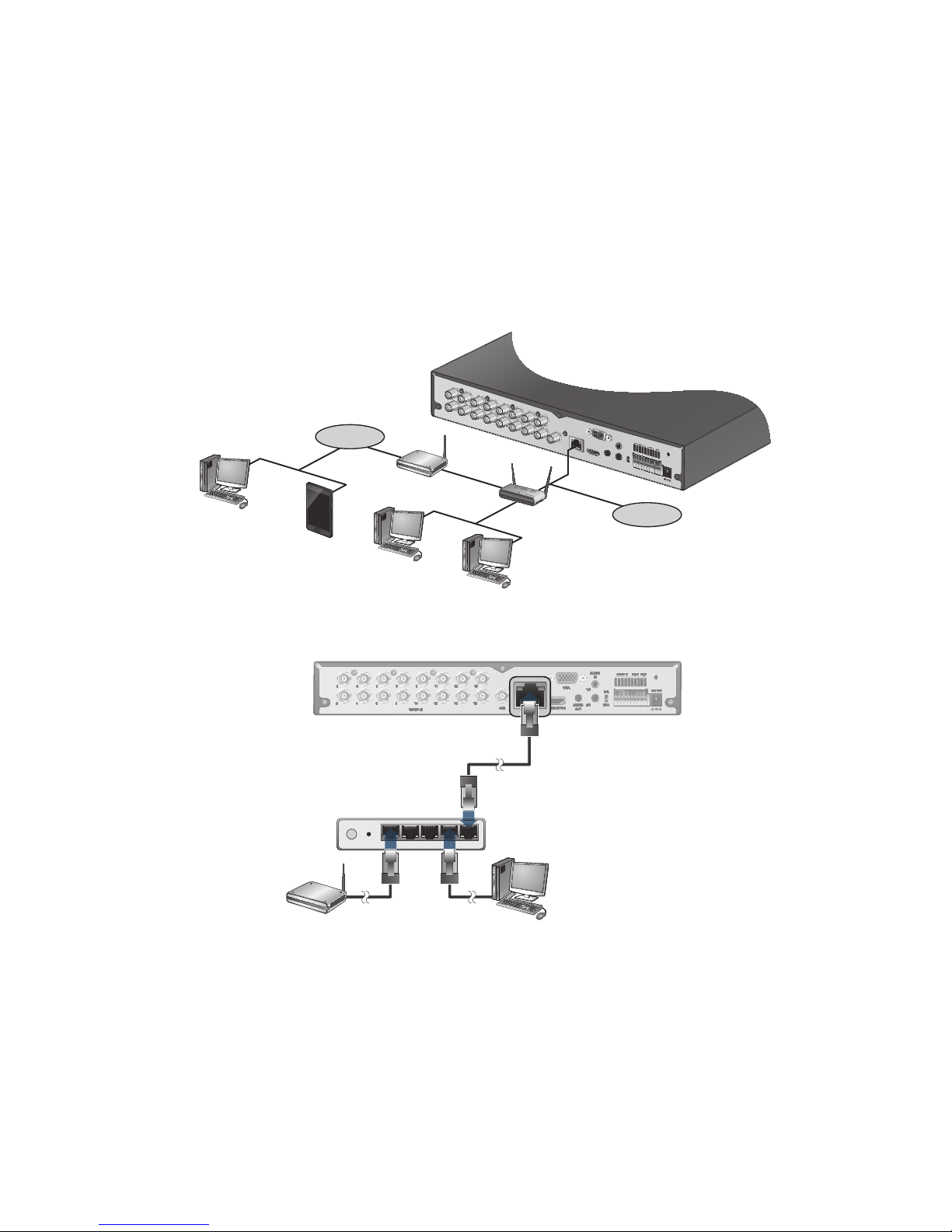

Network Connection
PC Connection - Local Network
You can connect the DVR to a PC in the same local area network.
1.
Connect a CAT-5 network cable to the DVR's [ETHERNET] port on the rear panel to a router or hub.
2.
Connect a local PC to the same router or hub.
3.

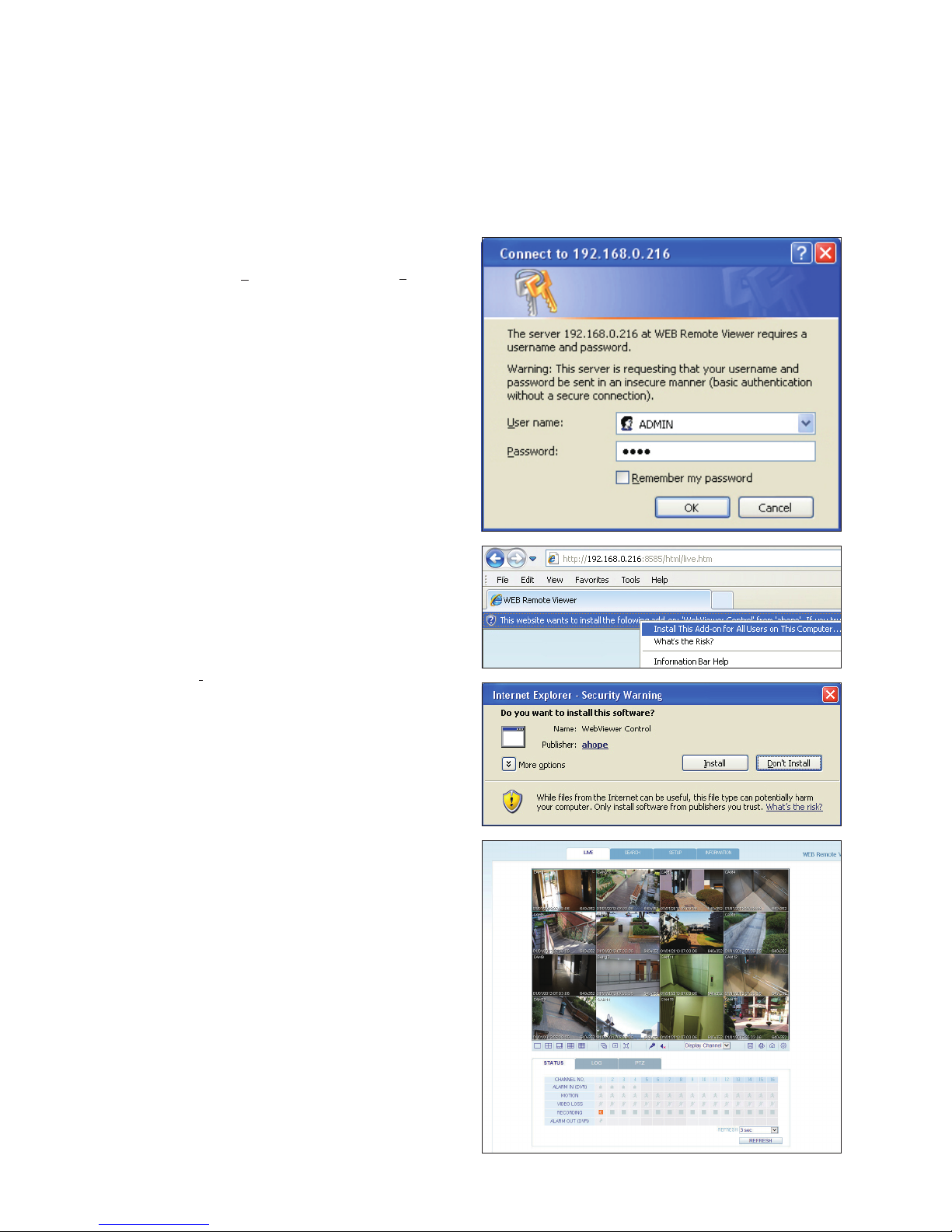

Enter the DVR's IP address in the Web browser in the format of: “http://IP address:Web service port” (Ex : http://192.168.0.23:8080) The web ser vice port is set to 8080 by default. From the Network Setup screen, you can change the port number.
If using the dedicated PC S/ W, refer to the user manual of the program.
4.
Enter the DVR's Username and Password to log in. Factory default: ADMIN / 1234.
PC Connection - Remote Network
You can connect to the DVR from a remote PC or mobile device.
VGA
DC 12V
ETHERNET
HD MONITOR
IN 1
IN 2
GND
IN 3
IN 4
NO
COM
NC
D+
D-
ALARM IN RELAY RS485
NTSC
PAL
AUDIO
IN
AUDIO
OUT
1/2
3/4
AUX
VIDEO IN
Local PC
Local PC
Broadband router
or hub
Camera
HD MONITOR
VGA
AUX
DC 12V
ETHERNET
VIDEO IN
IN 1
IN 2
GND
IN 3
IN 4
NO
COM
NC
D+
D-
ALARM IN RELAY RS485
PAL
NTSC
3
1
7
5
11
9
15
13
4
2
8
6
12
10
16
14
AUDIO
IN
AUDIO
OUT
1/2
3/4
VGA
AUX
DC 12V
VIDEO IN
ALARM IN
RELAY
RS485
NTSC
3
1
7
5
11
9
15
13
4
2
8
6
12
10
16
14
AUDIO
IN
AUDIO
OUT
1/2
3/4
HD MONITOR
VGA
ETHERNET
IN 1
IN 2
GND
IN 3
IN 4
NO
COM
NC
D+
D-
ALARM IN RELAY
PAL
NTSC
AUDIO
IN
AUDIO
OUT
1/2
3/4
4WANRESETPWR 3 2 1
2
4
Local PC Local PC
Broadband router
or hub
Page 20
Installation
20
1.
Connect a CAT-5 network cable to the DVR's [ETHERNET] port on the rear panel to a router or hub.
2.
Connect the [WAN(UPLINK)] por t of the router directly to the fixed IP L AN cable, or connect it to the ADSL modem.
3.
If using a router, make sure BOTH the Web Service Port and RTSP Port have been port forwarded.
4.
You can remotely access your DVR in the following ways: a. The DVR's MAC address b. The DVR's DDNS Host Name aka DVR NAME c. The external IP address of the network NOTE: See page 74 for more details
HD MONITOR
VGA
AUX
DC 12V
ETHERNET
VIDEO IN
IN 1
IN 2
GND
IN 3
IN 4
NO
COM
NC
D+
D-
ALARM IN RELAY RS485
PAL
NTSC
3
1
7
5
11
9
15
13
4
2
8
6
12
10
16
14
AUDIO
IN
AUDIO OUT
1/2
3/4
VGA
AUX
DC 12V
VIDEO IN
ALARM IN
RELAY
RS485
PAL
NTSC
3
1
7
5
11
9
15
13
4
2
8
6
12
10
16
14
AUDIO
IN
AUDIO
OUT
1/2
3/4
HD MONITOR
VGA
ETHERNET
IN 1
IN 2
GND
IN 3
IN 4
NO
COM
NC
D+
D-
ALARM IN RELAY
PAL
NTSC
AUDIO
IN
AUDIO
OUT
1/2
3/4
4WANRESETPWR 3 2 1
ADSL modem
Local PC
Broadband router
VGA
DC 12V
ETHERNET
HD MONITOR
IN 1
IN 2
GND
IN 3
IN 4
NO
COM
NC
D+
D-
ALARM IN RELAY RS485
NTSC
PAL
AUDIO
IN
AUDIO
OUT
1/2
3/4
VIDEO IN
AUX
Local PC
Local PC
Remote PC
Internet
ADSL modem
Broadband router
Smart Phone
Direct Connection
Internet
Page 21
21
Monitoring
Monitoring
START
1.
Connect the 12V power input to the rear panel of the DVR.
2.
The logo screen appears several seconds after the front LED turns on.
3.
When the booting process is completed, the login screen appears.

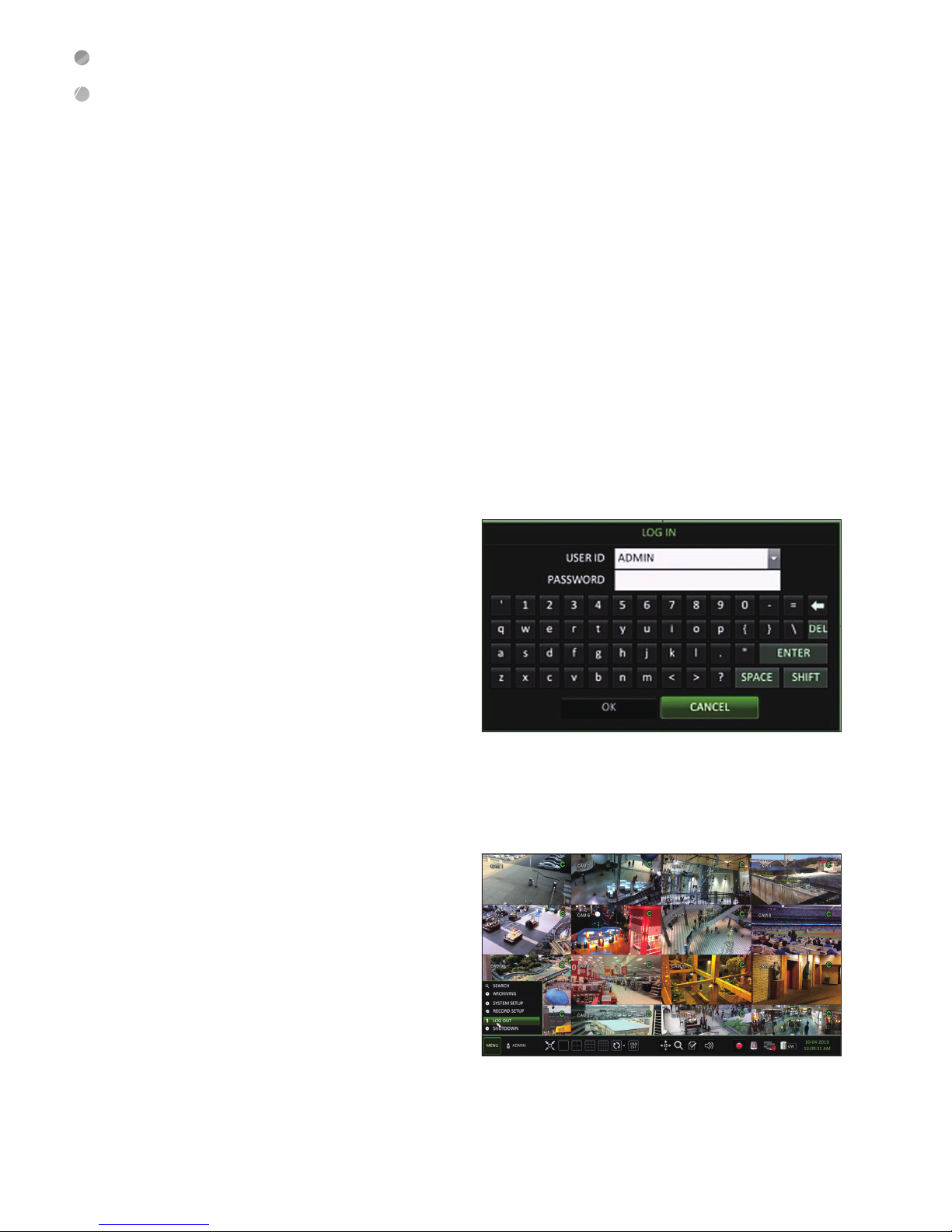

Log In
1.
When the system starts, the login screen appears.
2.
Select a user and provide the password. The default USER ID is: "ADMIN" and the PASSWORD is: "1234".
3.
Click <OK>.
•
For safe and secure use of the product, change the password after purchasing.
Log Out
To prevent unauthorized access, it is recommended to log out when you leave the screen.
1.
In the live monitoring screen, click <MENU> in the bottom left corner of the screen to <LOG OUT>, or press the [LOGOUT ] button on the remote control.
2.
While logged out, Search / Backup / System Settings / Record Settings / Exit menus are restricted.
Page 22
Monitoring
22

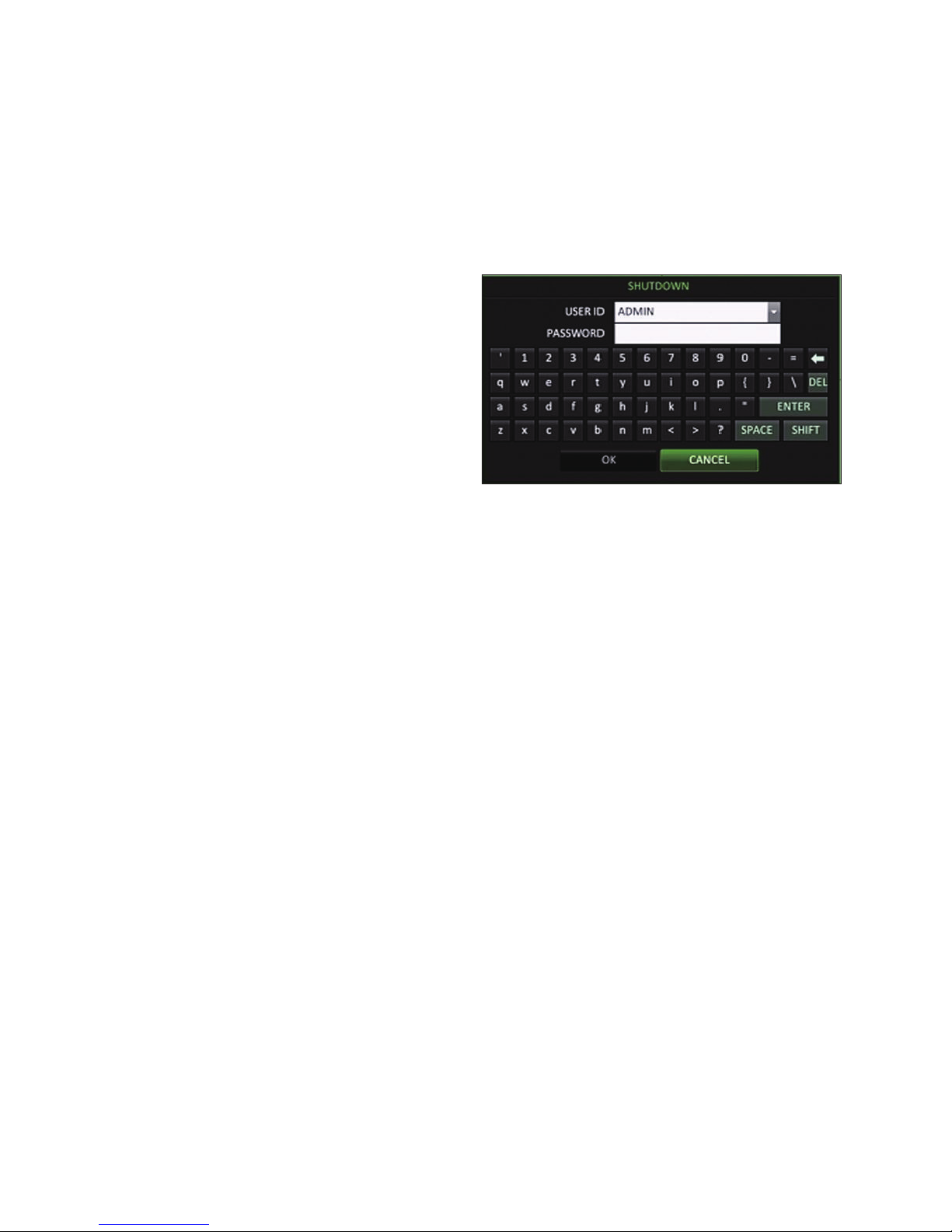

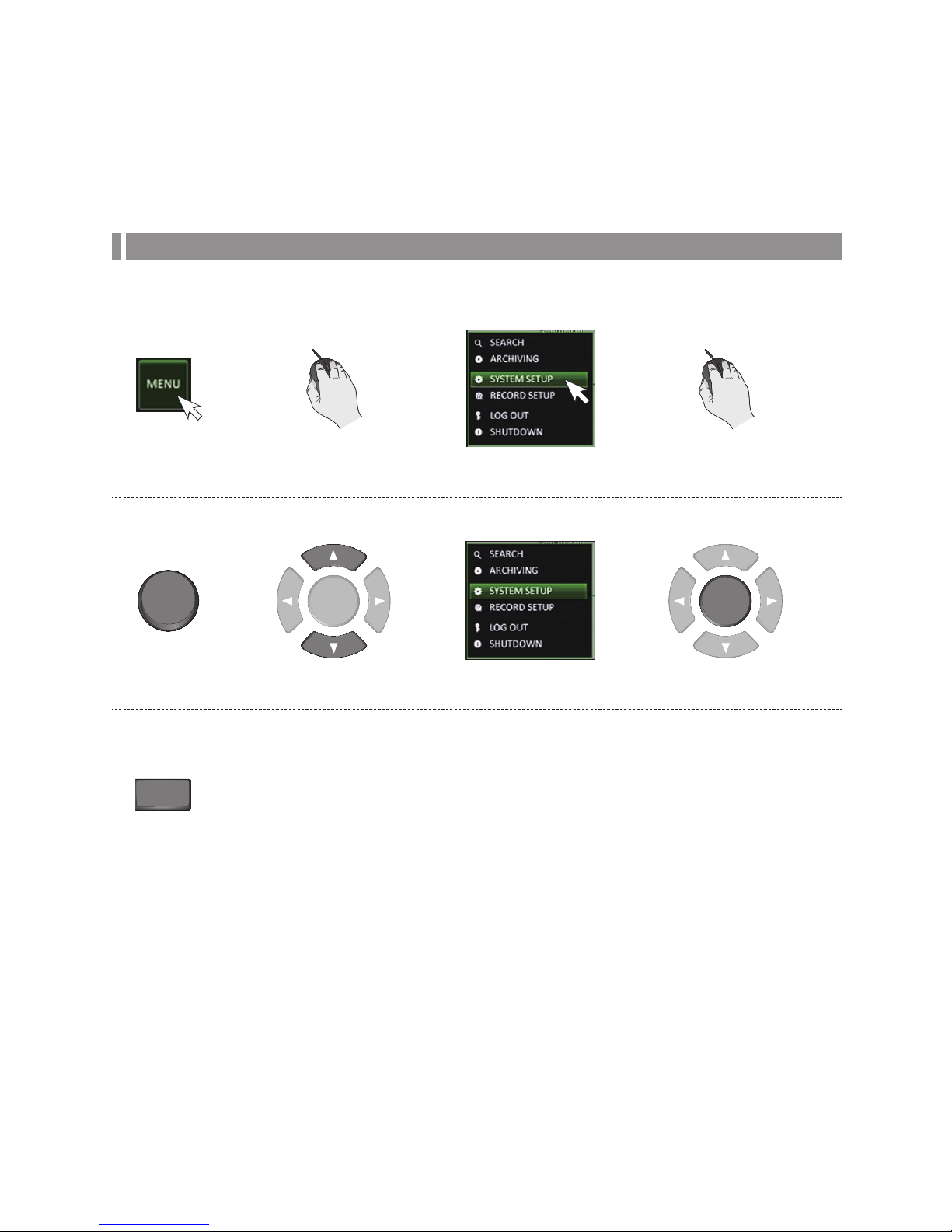

System Shutdown
1.
In the monitoring screen, click <MENU> in the bottom left corner of the screen to <SHUTDOWN> the system, or press the [POWER] button on the remote control.
•
If you turn off the system in an abnormal manner such as removing the power cord while the system is in operation, the disk can be damaged, causing data loss and shortened life cycle of the disk.
Page 23
23
Monitoring
Live Screen At a Glance
The live screen largely consists of three components: video window, status bar and timeline.
Video Window
Icons used in the video window.
Item Description
Camera ID
Show the camera ID.
Record Mode Icons
Displayed if an event recording is reserved.
Continuous Recording.
Alarm Recording.
Motion Recording.
Panic (Emergency) Recording.
Audio I/O Icons
Audio Output
Motion Detection Icon
Motion is detected by the connected camera.
Video Window Quick Menu
Status Bar
Timeline
Page 24
Monitoring
24
Status Bar
Press the [▼] button on the remote control, or place the mouse in the lower area of the screen to display the status bar.

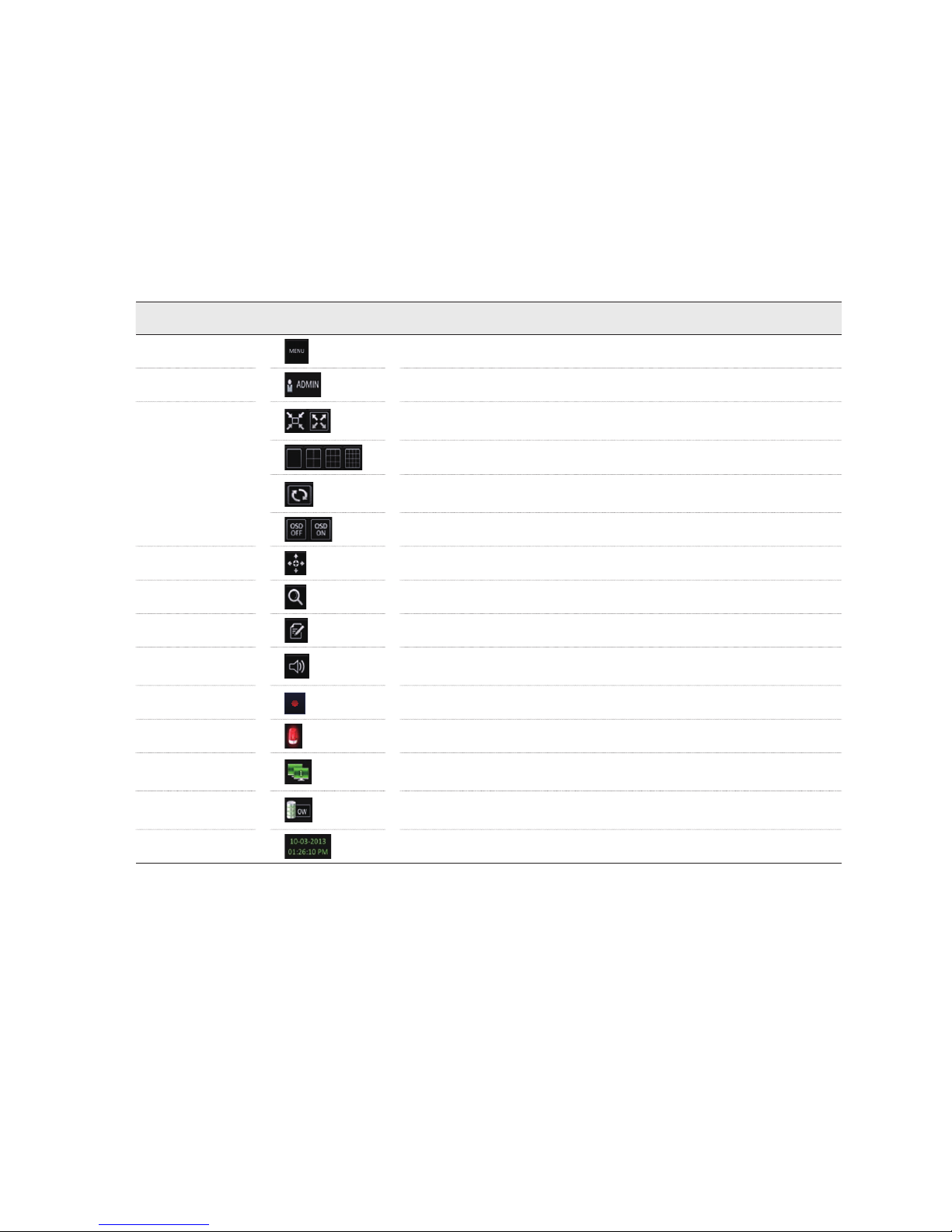

Item Description
Menu Button
Allows access to the DVR's menu system
User ID
Show the ID of the currently logged in user
Screen Control Buttons
Edit the screen layout to show the status bar and timeline at all times or only when the mouse cursor hovers on the status bar/timeline.
Select various display modes
Select Auto Sequence Mode.
Display or hide the OSD menu on the screen.
PTZ
Launches the PTZ control screen.
Zoom
Digital Zoom.
Quick Log
Displays the log list of the recent recording events.
Audio Channel Selection Button
Select the audio input to listen to.
Panic Record
Start/stop panic recording.
Alarm Indicator
Turns on if a predetermined alarm event occurs.
Network Connection Status
Click this to view the current users remotely logged into the DVR, and to check the network connection status. For more information, refer to "Network Setup". (page 43)
Disk Space
If you have set the disk overwrite mode, it will be displayed "OW" . Click this to view the details of the disk status. For more information, refer to "Record Setup". (page 60)
Date & Time Display the current time and date.
Timeline
Press the [▶] button on the remote control or move the cursor to the right of the screen to display the timeline. Double-click the timeline to move to the video screen. Drag and drop it to make backup or event search for the specified
Page 25
25
Monitoring
area.
Item Description
Timeline Date
Displays the date of the current timeline. Click this to select a desired date of the timeline.
Expand/Collapse the timeline
Expand or collapse the timeline.
Navigation through Timeline
Navigate through the timeline. You can also use the mouse wheel.
Timeline Bar
Displays the recording data with time. The color of each bar indicates the following:
~
Green : Continuous Recording
~
Red : Alarm Recording
~
Blue : Motion Recording
~
Yellow: Panic Recording
Quick Menu
Right click on a channel to display a quick menu popup window.
Item Description
Channel No Displays the number of the current channel.
Playback Starts playing the video of the selected channel from the specified time.
Zoom Operates (digital) zoom on the selected channel.
Snapshot
Captures the current live video and saves it in .jpeg format.
Page 26
Monitoring
26
Using the status bar in the live mode
Selecting a Split Mode

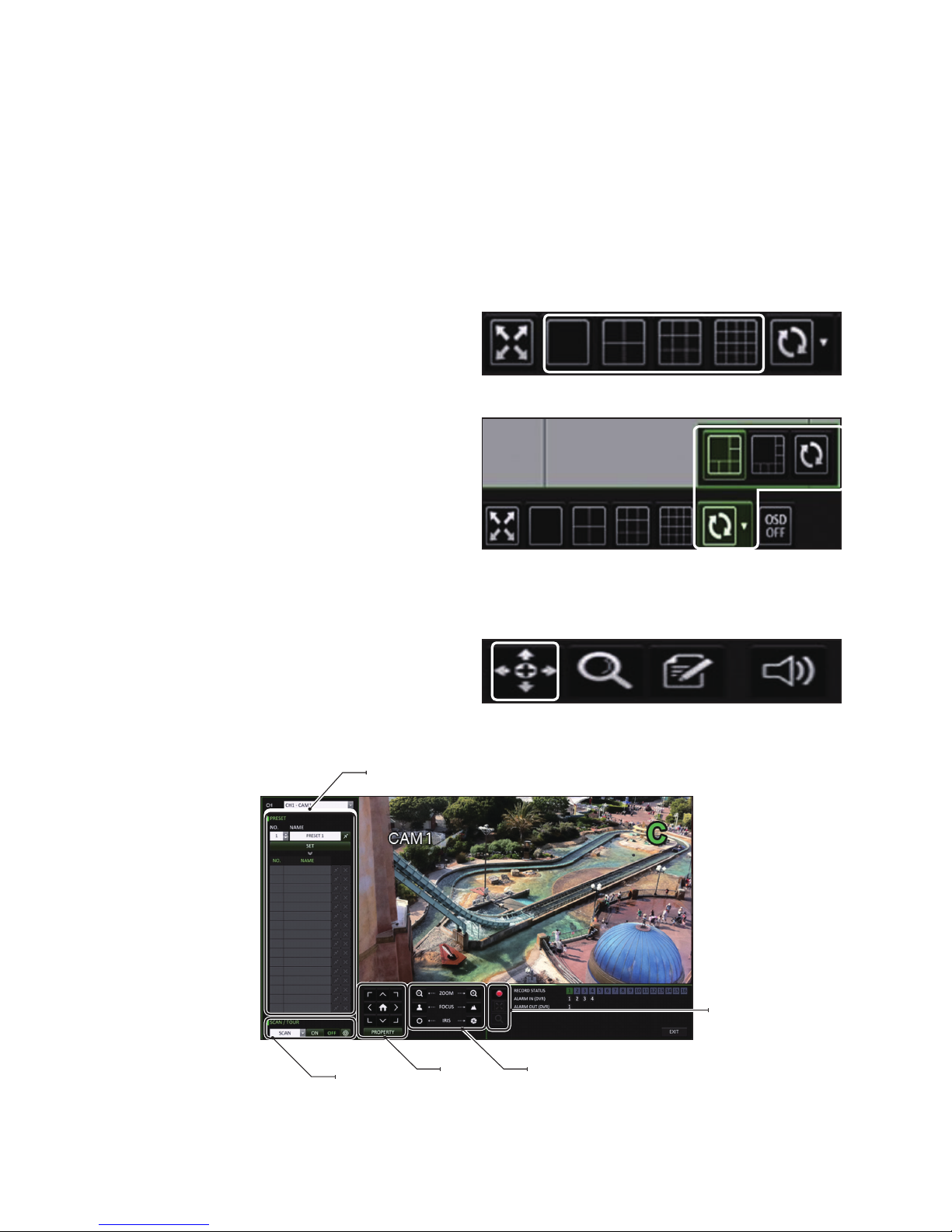

Click a desired split mode from 1, 4, 9 and 16 split screen. Or press the [DISPLAY] button on the remote control until a desired split mode is displayed.
Auto Sequence
Click the Sequence button in the status bar, or press the [SEQ] button on the remote control. You can configure the sequence settings in <SEQUENCE>. For details, refer to “Sequence”. (page 36)
Controlling a PTZ
To control a PTZ camera, select the channel, then click PTZ button on the status bar, or press the [PTZ] button of the remote control to. In PTZ mode, use the directional buttons to control the PTZ. Use [ZOOM], [FOCUS], [IRIS], [PRESET], and [SCAN/TOUR] to make adjustments to PTZ.
Select Preset
Zoom/Focus/Iris Adjustment
Record/Screen Control/ Zoom
Move
SCAN/ TOUR Settings
Page 27
27
Monitoring
Digital Zooming

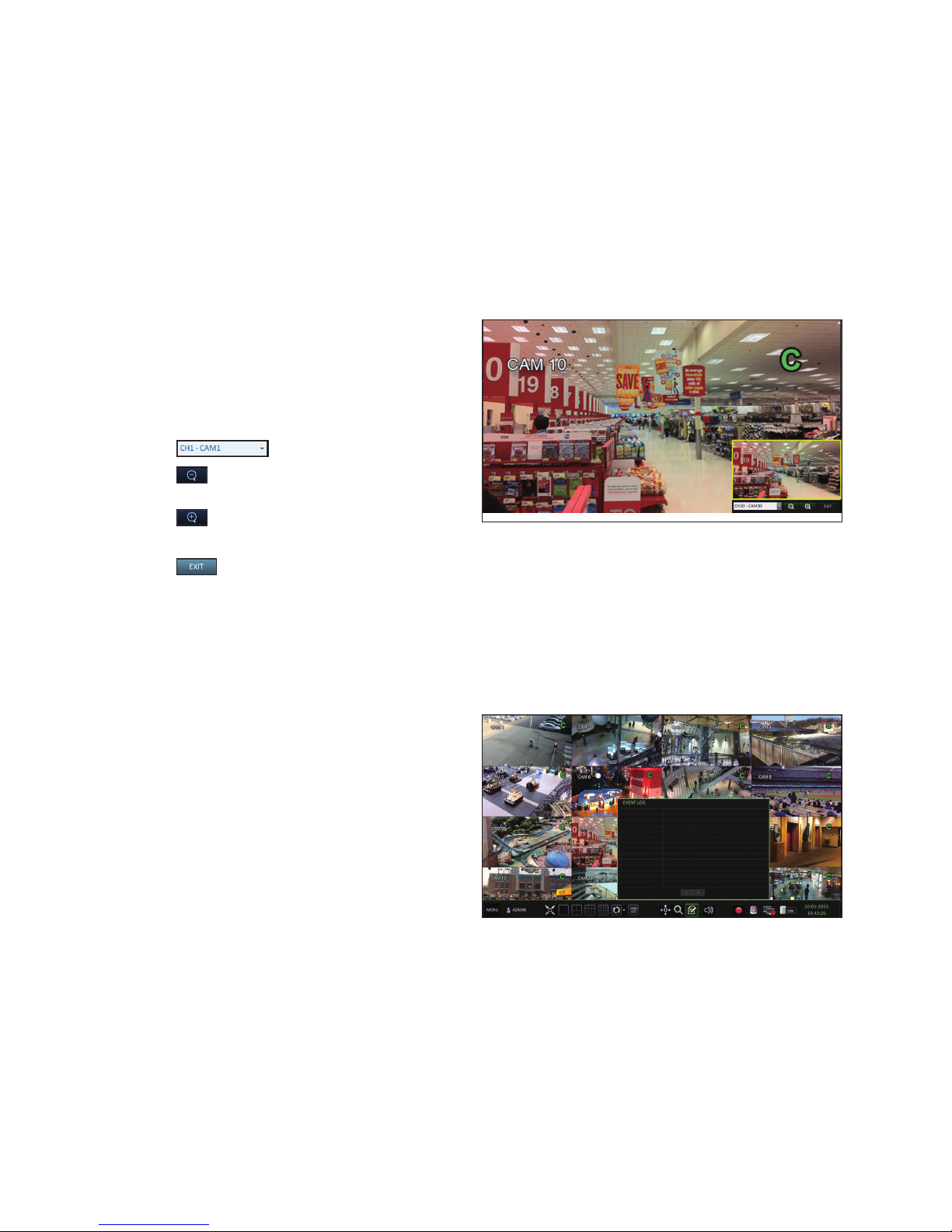

You can enlarge the monitoring screen for better view.
Zooming will enlarge the video of the selected channel. If no channel is selected, channel 1 will be zoomed.
1.
Click Zoom in the status bar or move the cursor to a desired channel and right-click it to display the context menu. Select <ZOOM>. You can also press the [ZOOM] button on the remote control.
2.
When the menu bar appears in the right bottom, use the buttons to control the zooming.
: Select a channel to zoom in/out.
: Zoom out the current (enlarged) image step
by step.
: Enlarge the current image step by step.
Zoom Box : Use the yellow box to move to or select a desired zooming area.
: Exit the zooming screen and return to the live screen.
Digital zooming magnifies the video image digitally and produces enlarged images that may not be sharp and clear. For sharper and clearer magnification, it is recommended to use cameras supporting optical zooming.
Event Log
You can check the log of the events that occurred.
1.

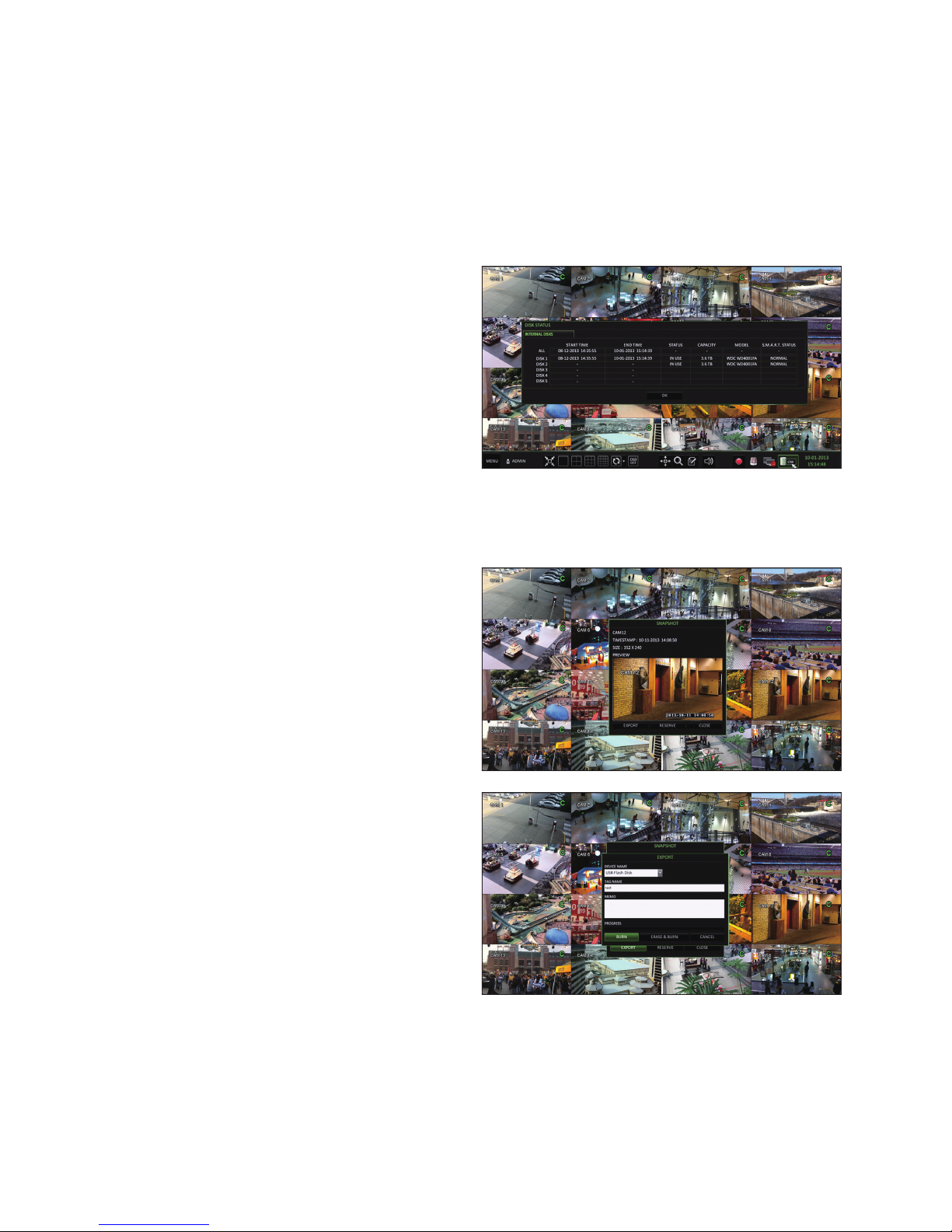

Click Log to display the “EVENT LOG” window. The log list is sor ted with the most recent event on top.
2.
Double-click a desired event to display the video.
Page 28
Monitoring
28
Select an Audio Input Channel
Select a channel from which the audio signal will be received.
CHANNEL : Produces the selected channel’s audio,
regardless of the split screen mode.
LINK TO FULL SCREEN : When switching the DVR
display mode to view one channel (Single Split), it produces the selected channel’s audio.
Check the Alarm Status

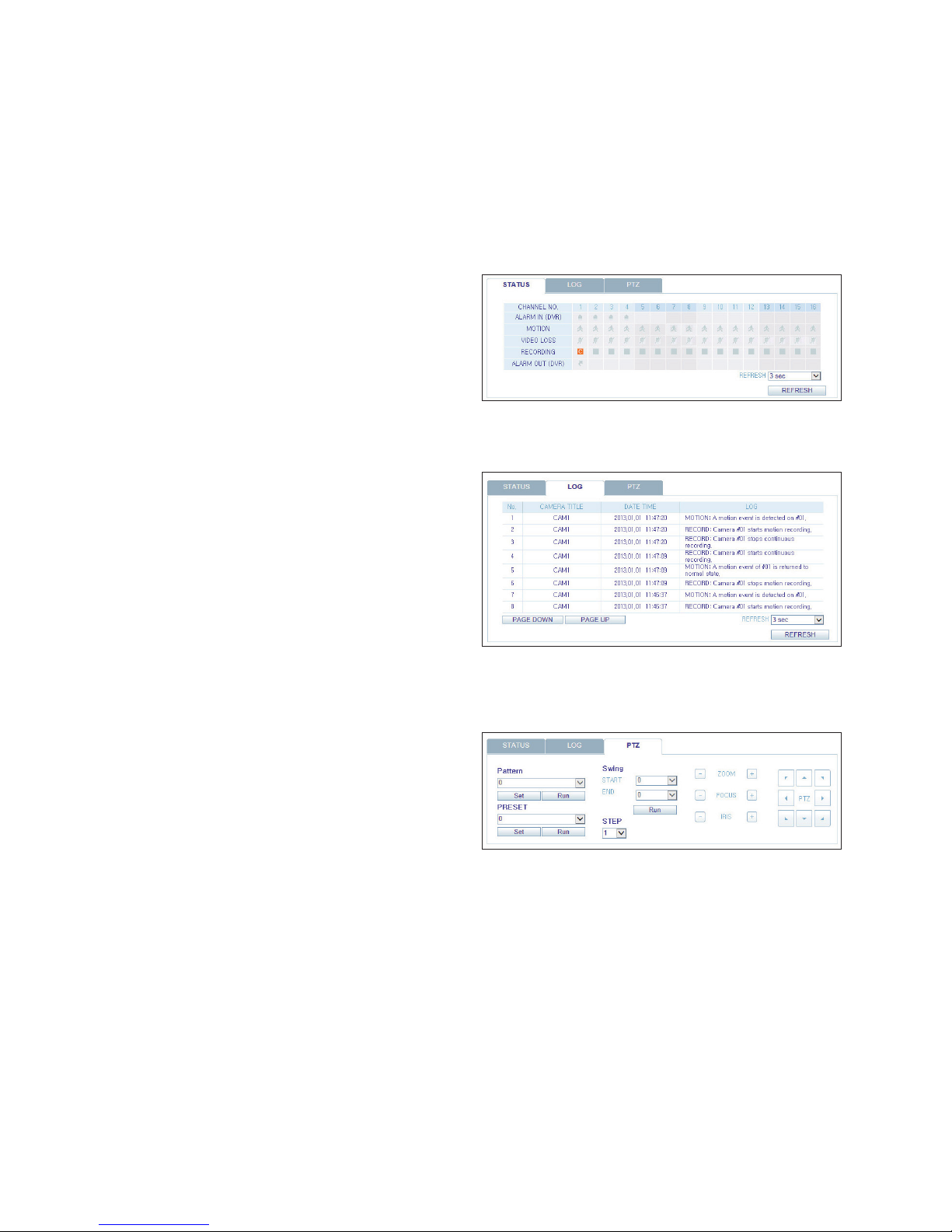

You can check alarms and events from each camera and the system. Click <OK> to close the window.
Check the Network Status

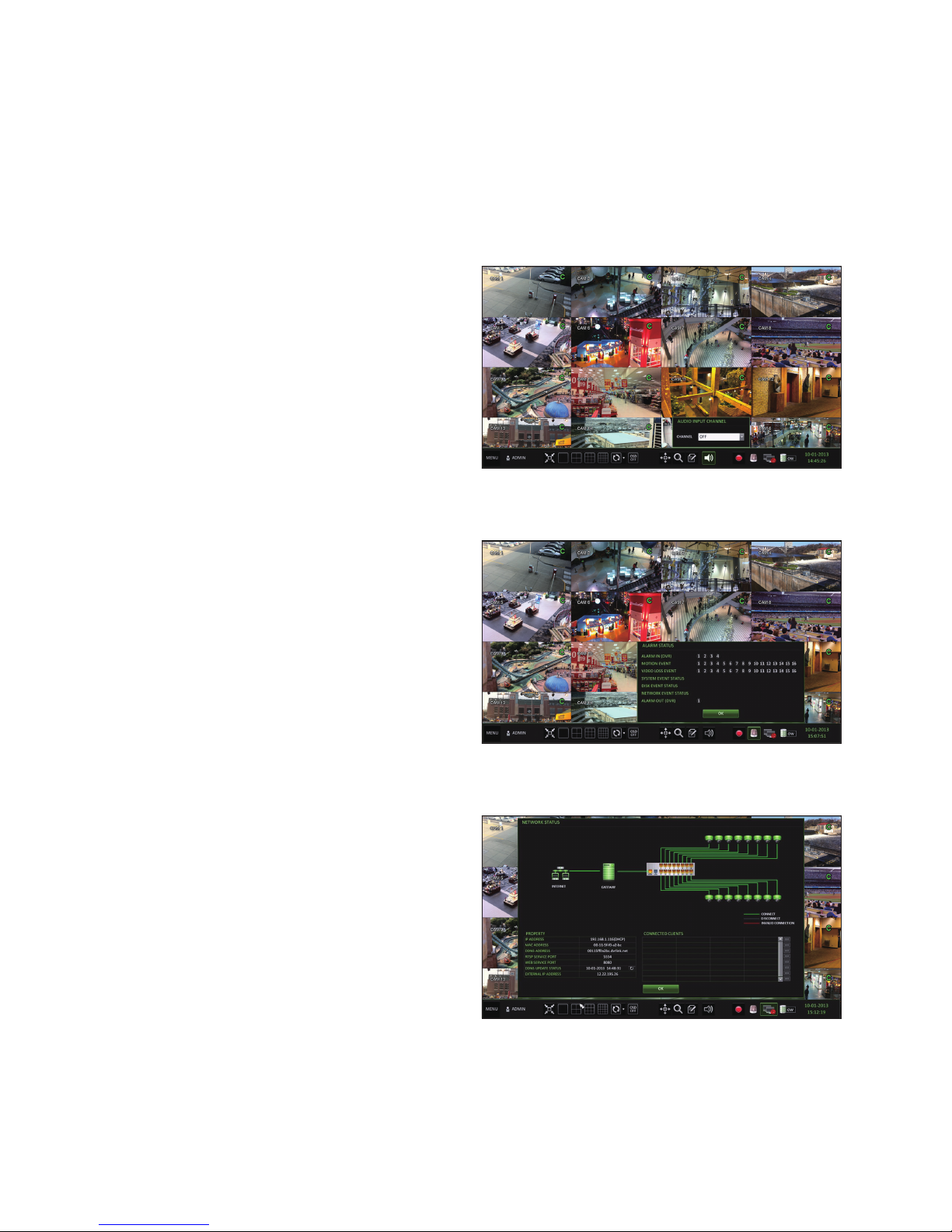

Shows the connection status of cameras and network devices. Click <OK> to close the window.
For more information, refer to "Network Status". (page 45).
Check the Disk Status
You can check status and information on storage devices
Page 29
29
Monitoring
currently connected to the system. Click <OK> to close the window.
For more information, refer to "Disk Information". (page 50).
Saving Captured Snapshots
You can capture the current video screen and save or export it to a connected storage device.
1.
Select a channel first, and right click to open popup menu, and select <SNAPSHOT> menu item, or press the [SNAPSHOT] button of the remote control.
2.
Connect a storage device, and click the <EXPORT> button. To save the captured image to the built-in HDD, press the <RESERVE> button.
Saved image can be found in the “Archive > Reserved data management” and can be backed up later. (Page 74)
3.
Enter the <TAG NAME> and <MEMO> and press <BURN> or <ERASE & BURN> button.
A progress bar appears and indicates the progress
of expor ting to storage device.
BURN : Snapshot is stored in the connected USB
storage device.
ERASE & BURN : Deletes all files in the connected
USB storage and then saves the snapshot.
•
Note that <ERASE & BURN> option erases all data on the USB storage device.
Page 30
30
System Setting

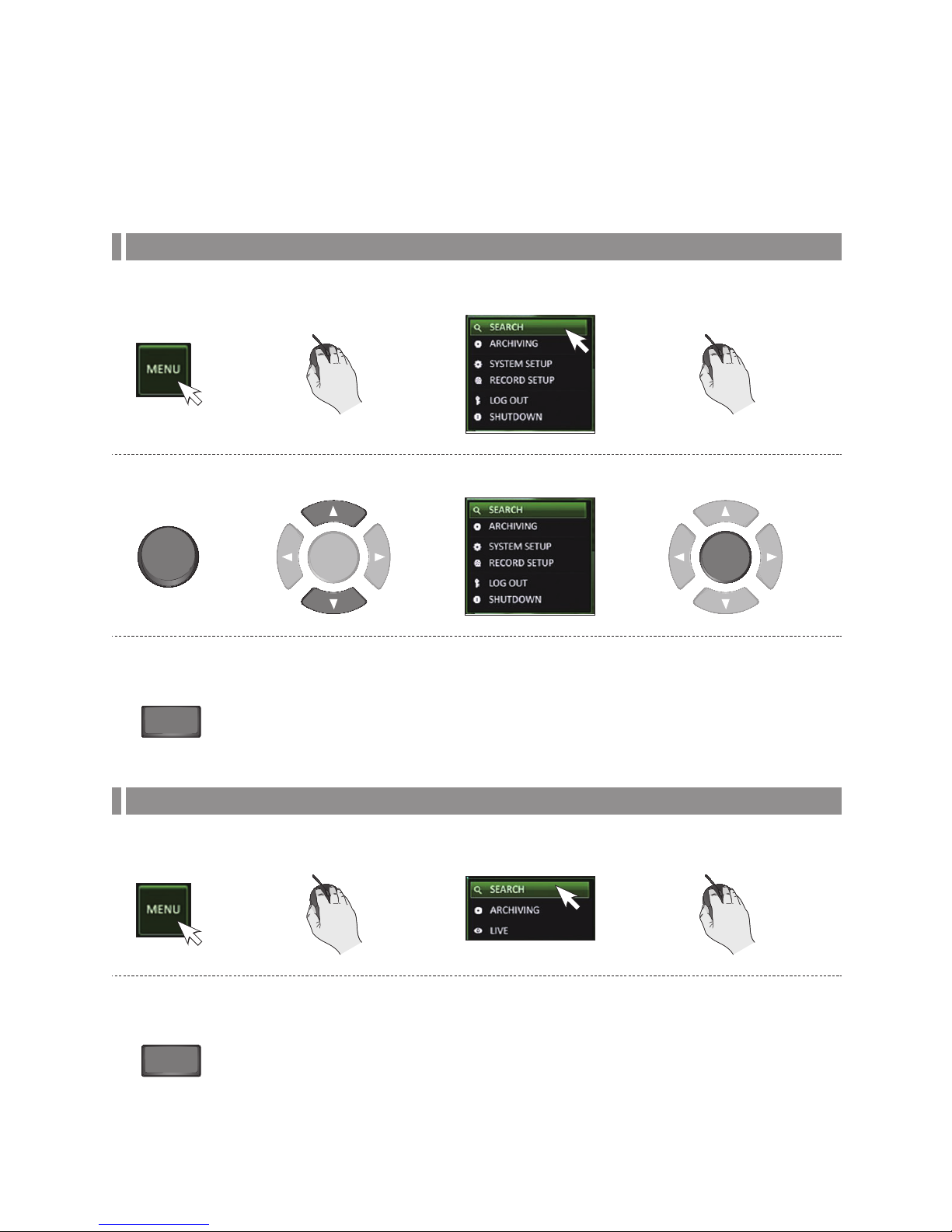

To move to the System Setup menu
How to use the mouse
➔ ➔
�
ENTER
ENTER
How to use the remote control 1
SEARCH SETUP
MENU
ENTER
ENTER
SEARCH SETUP
ENTER
ENTER
ENTER
SEARCH SETUP
ENTER
➔ ➔ ➔
How to use the remote control 2
Page 31
31
Camera Setting

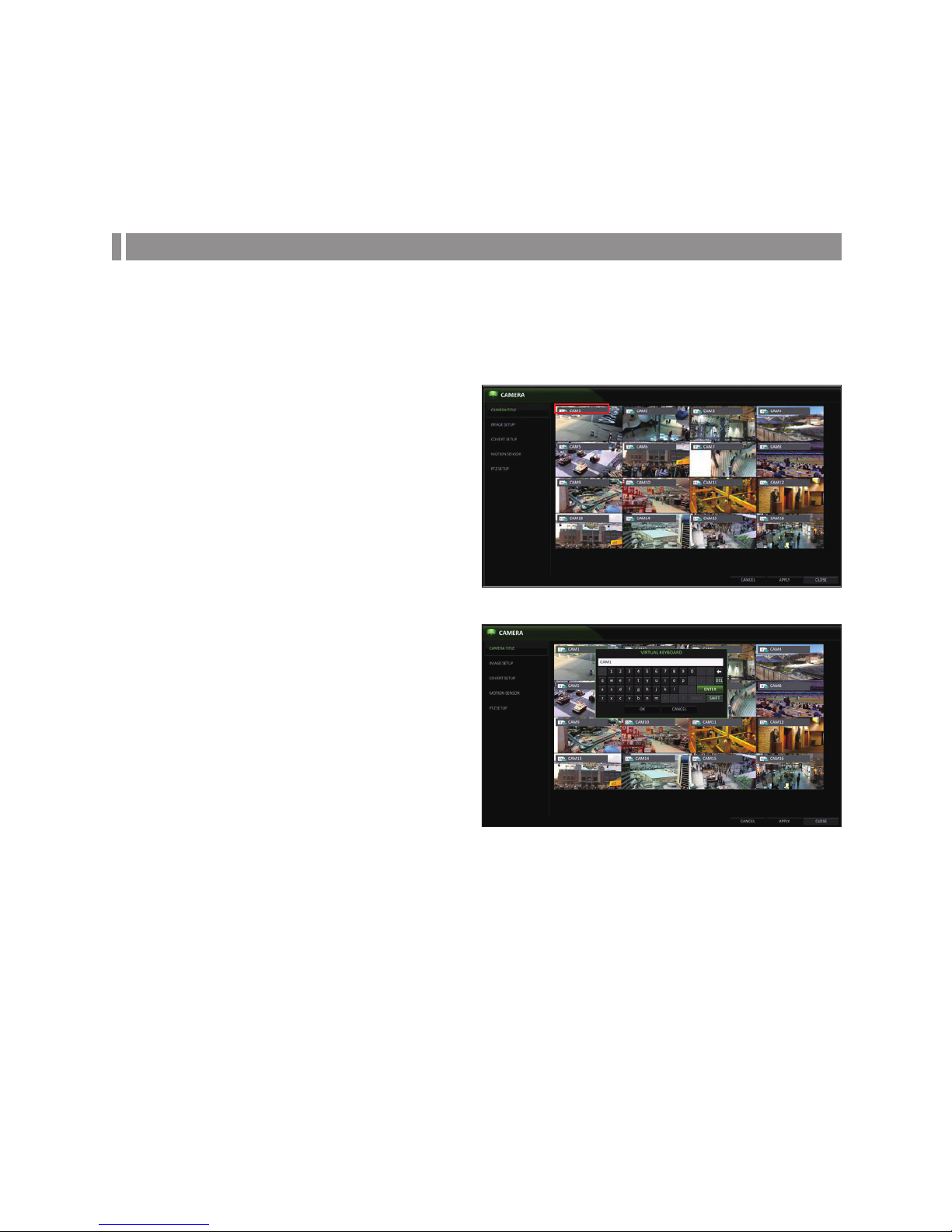

You can configure the display settings of: camera title, hidden option, motion and camera type.

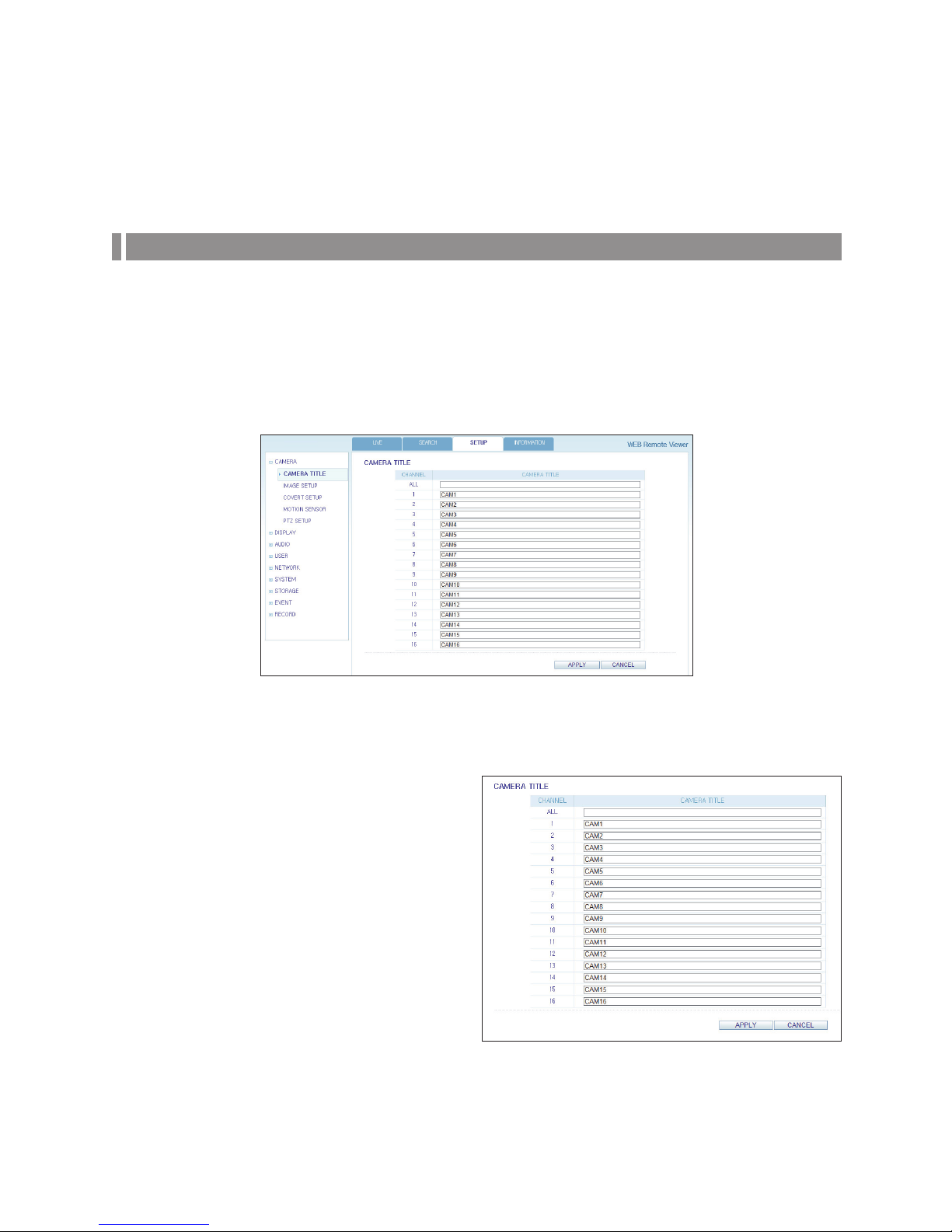

CAMERA TITLE
You can change the camera ID that is displayed on the screen.
1.
From <SYSTEM SETUP> - <CAMERA>, select <CAMERA TITLE>.
2.
Use the [▲▼◀▶/ENTER] buttons on the remote control or use the mouse to select a channel that you want to rename. Alternatively, simply double-click the camera to rename from the top left corner.
3.
Once the virtual keyboard appeared, select desired alphanumeric characters to complete your input, and press the <OK> button.
The <SHIFT> key toggles letter case.
4.
To apply the change, click <APPLY> at the bottom of the screen.
5.
When done, press the [EXIT] button on the remote control or click <CLOSE> in the lower screen. A confirmation message appears and you will return to the previous menu.
Camera titles can be up to 8 characters, combining numbers and upper/lower case letters.
System Setting
Page 32
System Setting
32

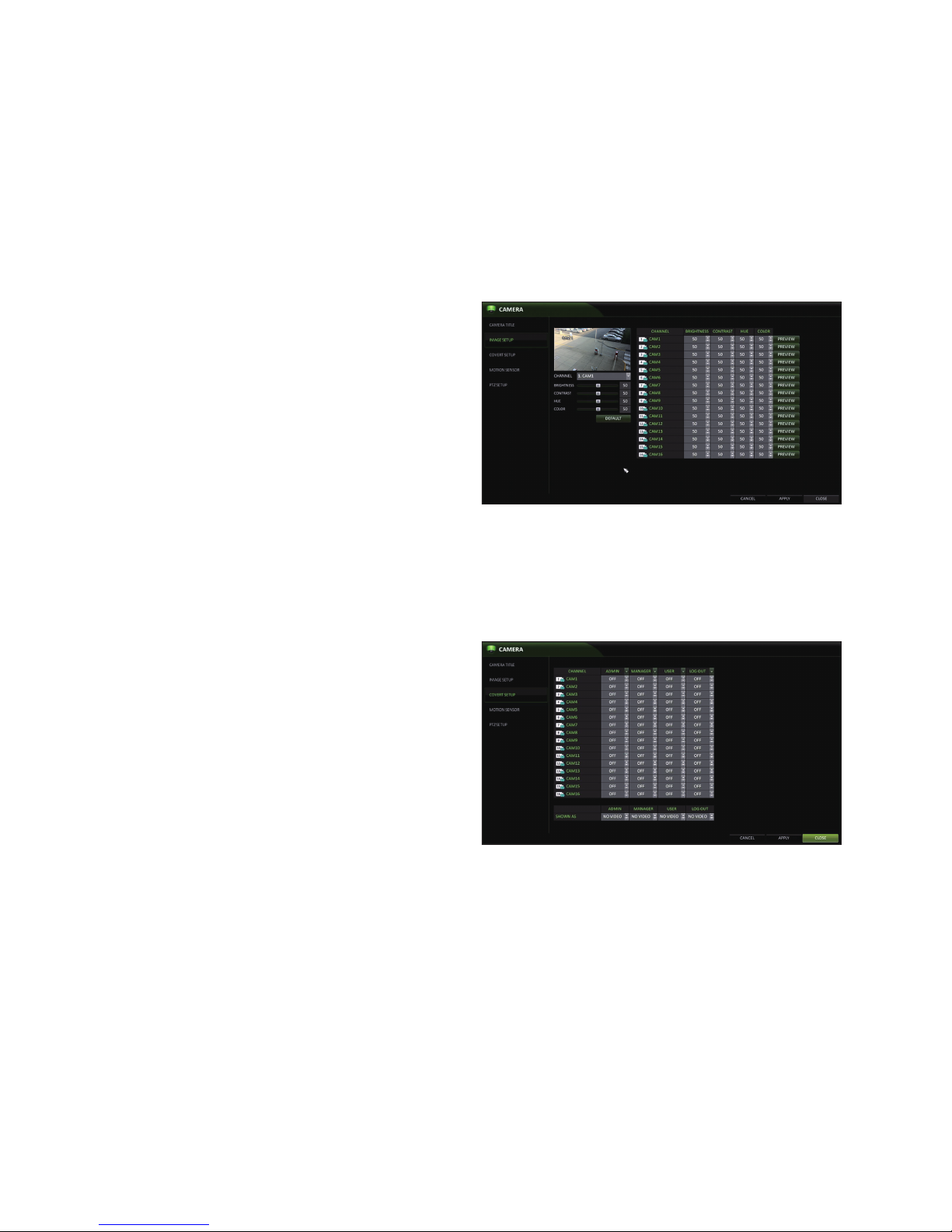

Image Setup
You can adjust the brightness, contrast, color, and quality setting of each channel’s camera.
1.
From <SYSTEM SETUP> - <CAMERA>, select <IMAGE SETUP>.
2.
Use [▲▼◀ ▶/ENTER] buttons of the remote control or mouse to edit settings.
3.
To apply your changes, click <APPLY> button.
4.
Once completed, press the [EXIT] button of the remote control or click the <CLOSE> button on the bottom of the screen. A confirmation dialog appears and returns to the previous menu.
Covert Setup
You can make selected cameras "covert" so that specific users or user groups can not view the camera images.
1.
From <SYSTEM SETUP> - <CAMERA>, select <COVERT SETUP>.
2.
Use the [▲▼◀▶/ENTER] buttons on the remote control or use the mouse to select a covert channel(s) for a specific user group.
ADMIN, MANAGER, USER : Set them to <ON>.
The selected channel(s) will be cover t from the applicable user account.
LOG OUT : Set it to <ON>. When the user logs out,
the current channel will be set to a covert channel.
3.
To apply the change, click <APPLY> in the bottom of the screen.
4.
When done, press the [EXIT] button on the remote control or click <CLOSE> in the lower screen. The confirmation message appears and you will return to the previous menu.
5.
To set specific channels to COVERT for specific users, go to [USER], [MANAGEMENT], and select a USER ID. On the EDIT screen, you can assign what cameas are COVERT.
Page 33
33

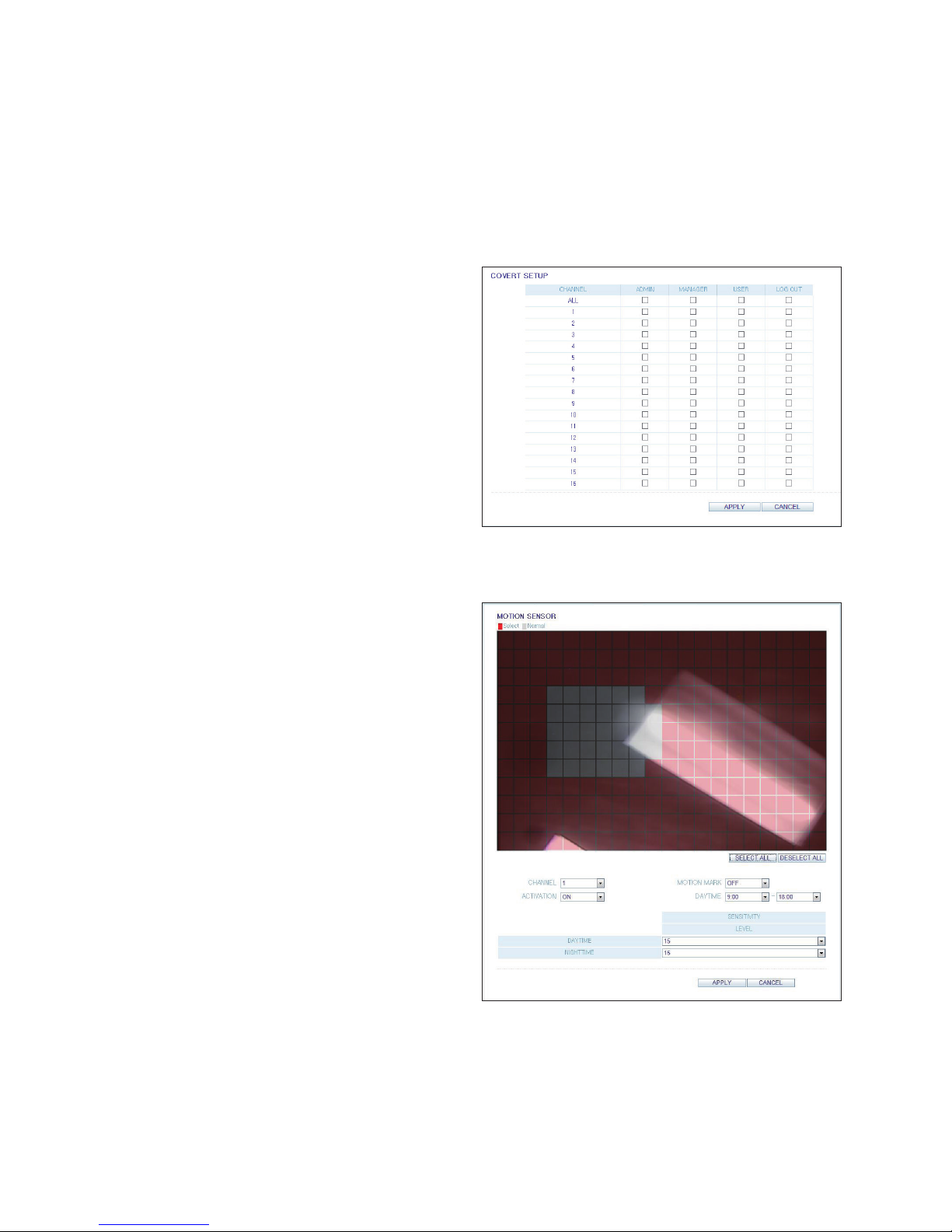

Motion Sensor
Set the motion sensor of the camera .
1.
From <SYSTEM SETUP> - <CAMERA>, select <MOTION SENSOR>.
2.
Use the [▲▼◀▶/ENTER] buttons on the remote control or use the mouse to specify the use of each option item.
ACTIVATION : turn on or off the motion sensor.
MARK : Set to <ON> to display the motion detection
indicator on each video tile.
SENSITIVITY : Set the sensitivity level of the motion
sensor to either Daytime or Nighttime.
EDIT AREA : Specify the motion detection area.
3.
To apply the change, click <APPLY> in the bottom of the screen.
4.
When done, press the [EXIT] button on the remote control or click <CLOSE> in the lower screen. The confirmation message appears and you will return to the previous menu.
•
The motion detection sensitivity may differ depending on the characteristics of the connected camera or the installation environment.
Motion Area Setup

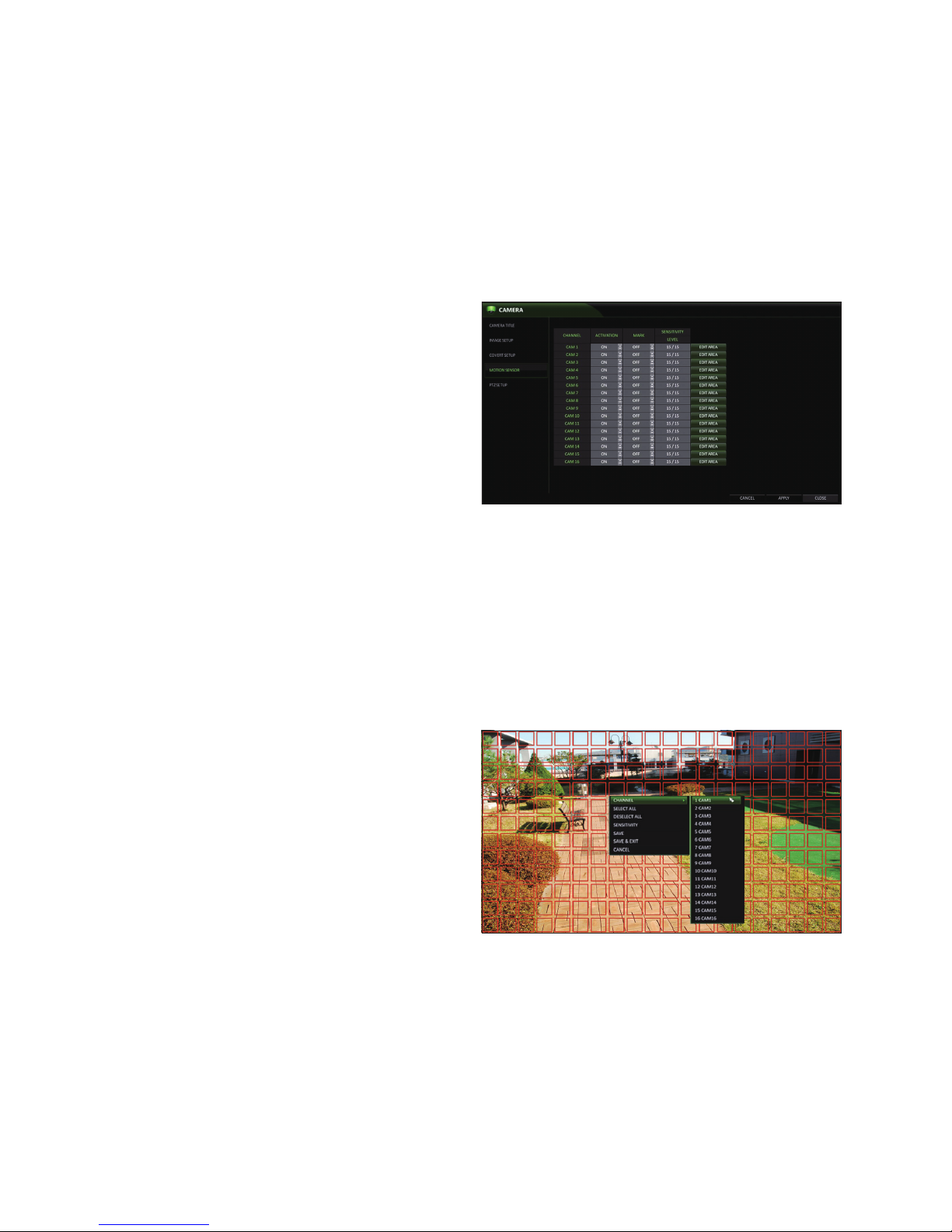

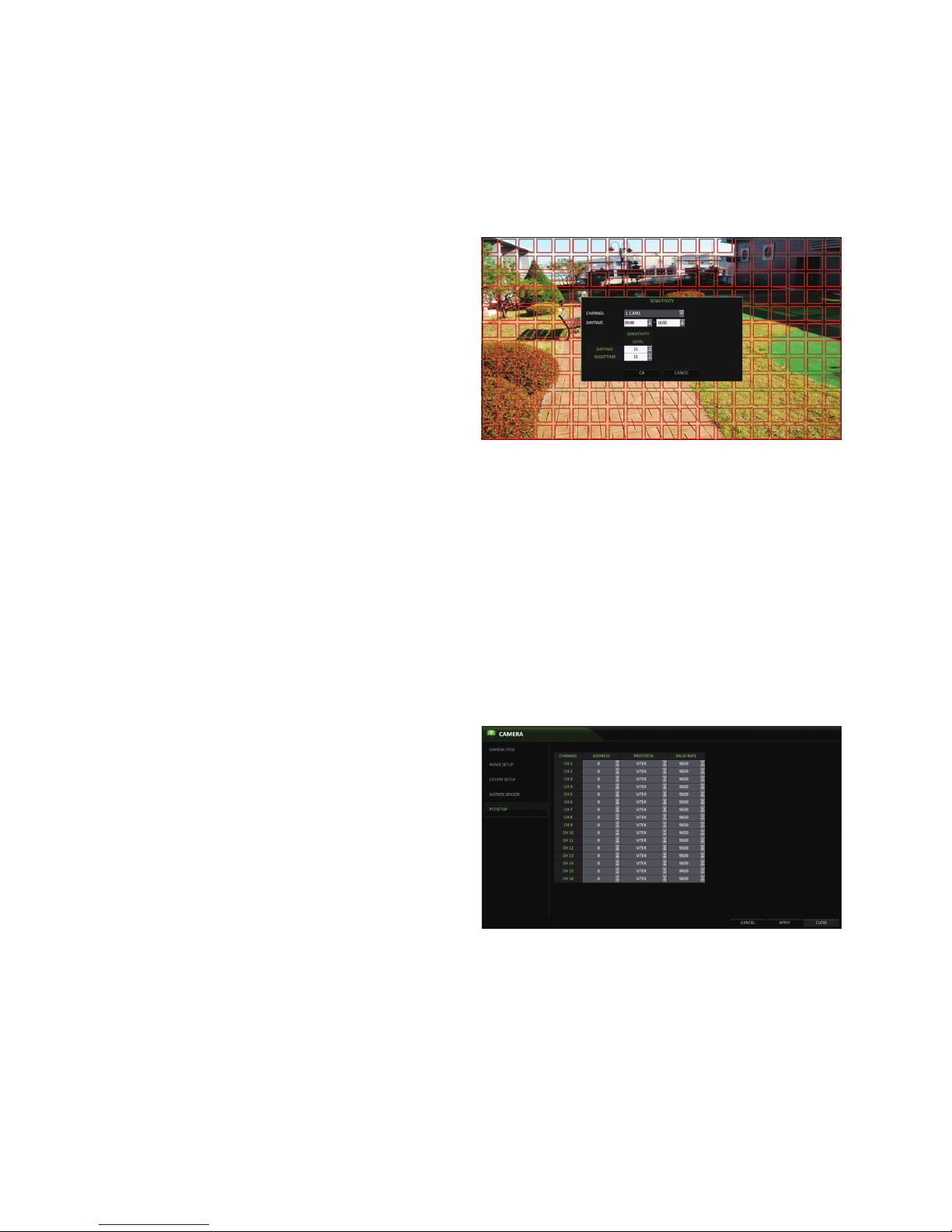

From the motion setup window, click <EDIT AREA> to display the area setup screen.
1.
Click <EDIT AREA> to move to the motion area setup screen.
2.
If using the remote control, press the [ENTER] button to initiate the process.
3.
Use the arrow buttons to move to a desired block and press [ENTER]. The area setup will begin. Then, use the arrow buttons to specify the area. Press [ENTER] to select/deselect the area.
Alternatively, when using a mouse you can use the drag­and-drop method to specify or release the area.
4.
If you select the specified area again, it will be released.
System Setting
Page 34
System Setting
34
5.
Press the [EXIT] button on the remote control or right­click any area to display the popup window as in the right picture.
6.
While the popup window is displayed, select <Sensitivity> to set the motion detection sensitivity of the channel currently selected.
Channel: Select the channel to set the motion
sensitivity.
-
SENSITIVITY : 1(Low) ~ 30(High) - The higher the number is, the higher the sensitivity level becomes.
DAYTIME : specify the time period that will be
considered as daytime.
-
DAYTIME : specify the <SENSITIVITY> for the daytime.
-
NIGHTTIME : specify the <SENSITIVIT Y> for the nighttime.
Images recorded in a low contrast scene such as at night can cause severe noise, which can trigger motion events too often.
If unwanted events occur frequently at night, you may want to reduce the motion sensitivity for the nighttime setting.

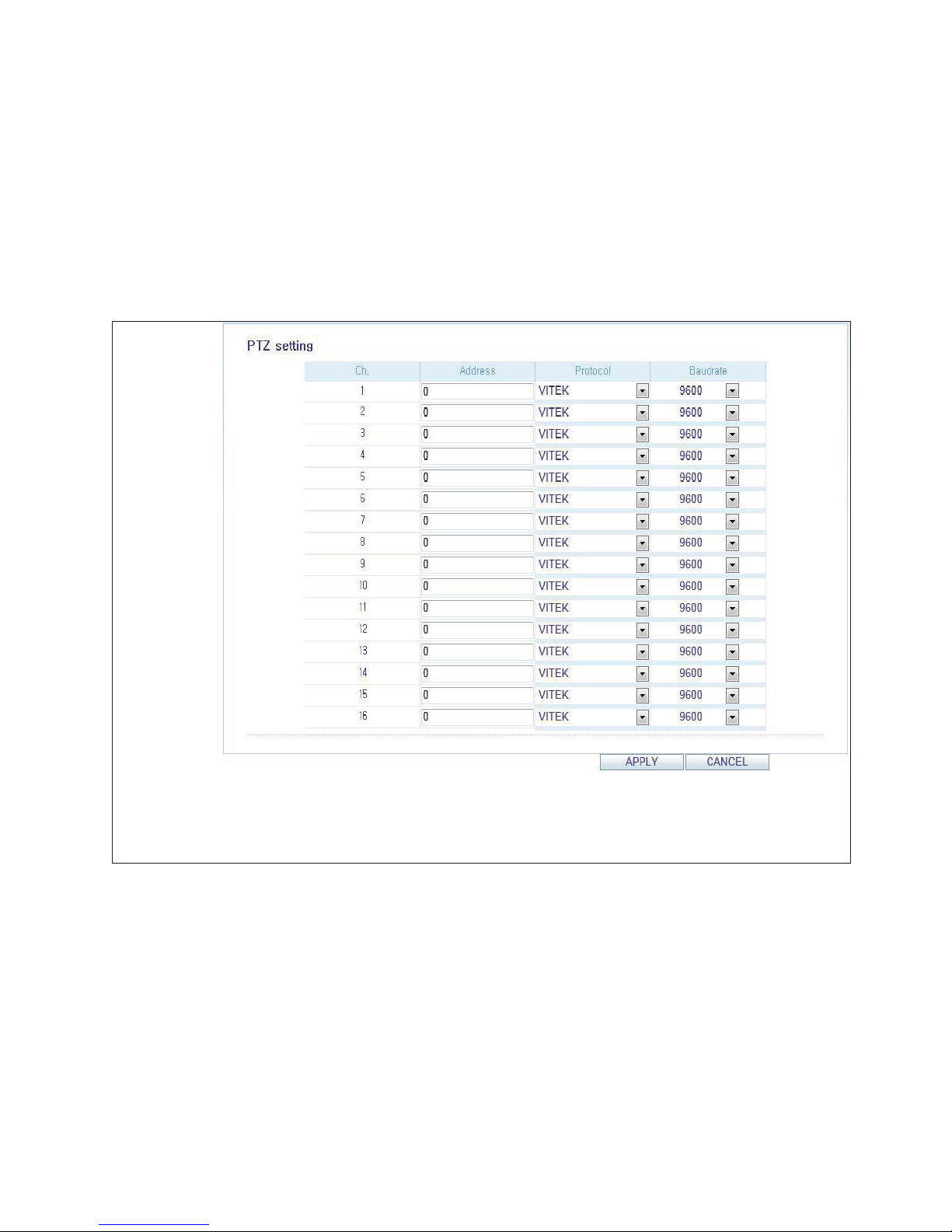

PTZ Settings
Set the camera ID, protocol, baud rate, and PTZ control speed for each channel.
1.
From <SYSTEM SETUP> - <CAMERA>, select <PTZ SETUP>.
2.
Use [▲▼◀ ▶/ENTER] buttons of the remote control or mouse to set protocol and baud rate of each channel.
Refer to the camera's manual or consult your installation technician for further information about your PTZ camera.
3.
To apply your changes, click the <APPLY> button.
4.
Once the setup has been completed, press the [EXIT ] button of the remote control or click <CLOSE> button on the bottom. Click <CANCEL> to return to the previous menu.
Page 35
35
Display Setting
You can configure screen display setup for the On-screen Display, Sequence, and SPOT Out.

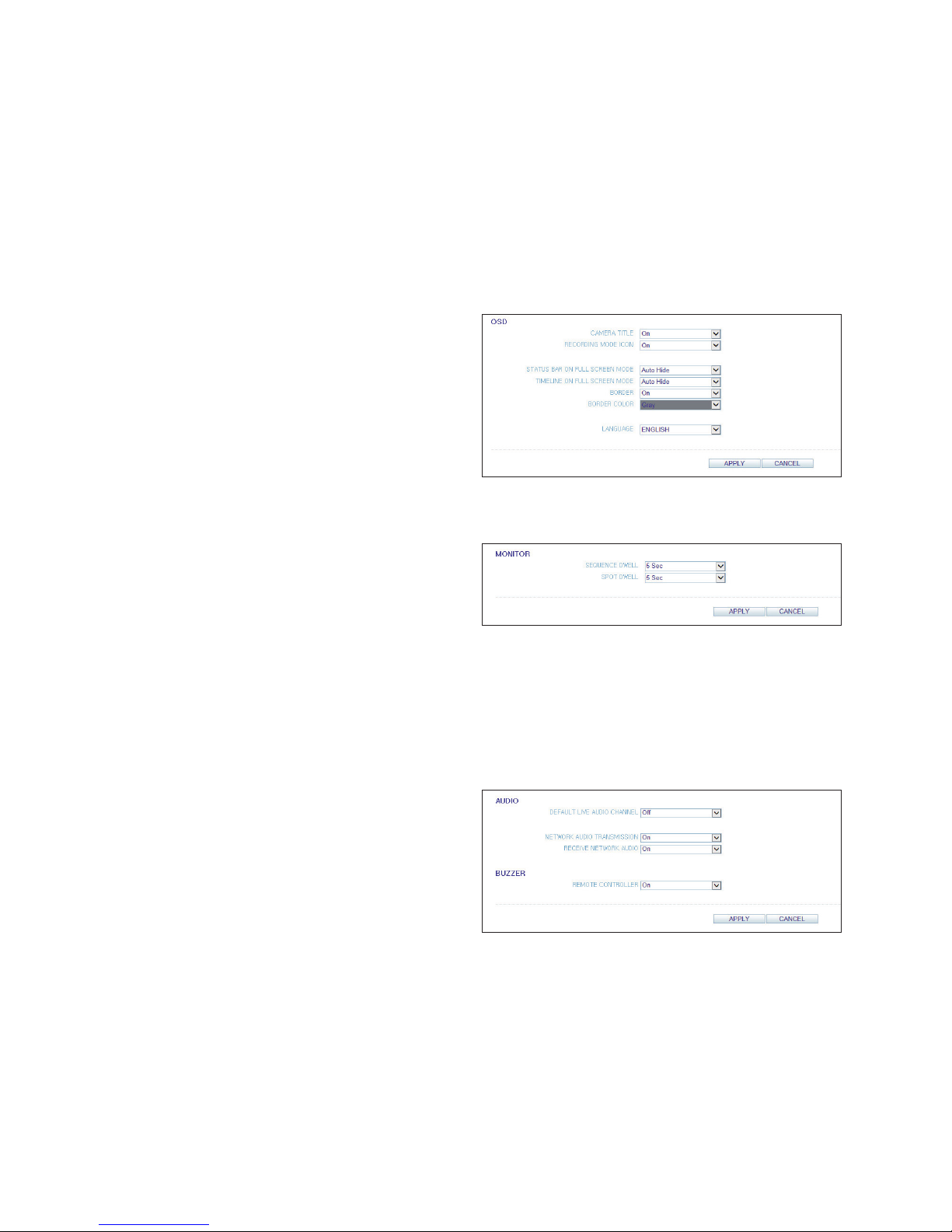

OSD
You can set the Camera Name, Icon, Status Bar, Timeline, Borderline, User Name and Language.
1.
From <SYSTEM SETUP> - <DISPLAY>, select <OSD>.
2.
Use the [▲▼◀▶/ENTER] buttons on the remote control or use the mouse to set each option of the OSD item.
CAMERA TITLE : specify the display of the camera
title on the screen.
RECORDING MODE ICON : shows/hides the record
mode icon on the screen.
STATUS BAR ON FULL SCREEN MODE : select to
show or hide the status bar in full screen mode.
-
AUTO HIDE : move the cursor to the lower area of the screen to display the status bar. When moving the cursor up, the status bar will disappear.
-
ALWAYS ON : The status bar will be displayed at all times.
-
5 SEC ~1 MIN : If no mouse movement is detected from 5 seconds to 1 minute, the status bar will disappear.
TIMELINE ON FULL SCREEN MODE : shows/hides the timeline in full screen mode.
-
AUTO HIDE : move the cursor to the right margin to display the timeline. Move the cursor to the left to hide the timeline.
-
ALWAYS ON : The timeline will be displayed at all times.
-
ALWAYS OFF : The timeline will not be displayed.
BORDER LINE : displays the cross-border between channels in split mode
BORDER COLOR : select a color for the border.
USER NAME : displays the currently logged-in users on the status bar.
LANGUAGE : select a menu display language.
3.
To apply the change, click <APPLY> in the bottom of the screen.
4.
When done, press the [EXIT] button on the remote control or click <CLOSE> in the lower screen. The confirmation message appears and you will return to the previous menu.
System Setting
Page 36
System Setting
36

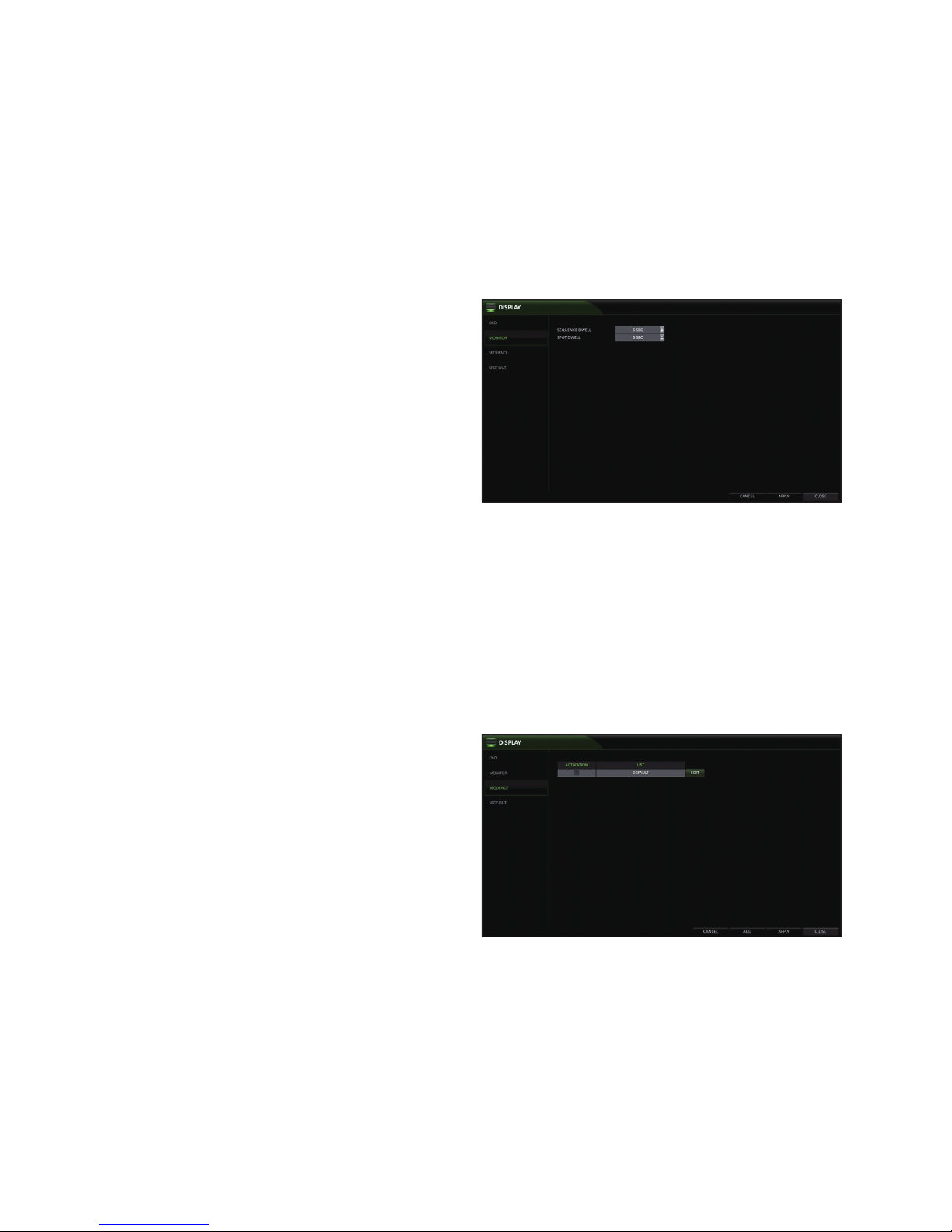

Monitor
Adjust the dwell times for Sequence and Spot.
1.
From <SYSTEM SETUP> - <DISPLAY>, select <MONITOR>.
2.
Use the [▲▼◀▶/ENTER] buttons of the remote control or mouse to set the dwell times for Sequence mode and SPOT Out.
SEQUENCE DWELL : Sets the time interval to the
next screen (Can set to 1 sec ~ 60 sec)
SPOT DWELL : Sets the time inter val to the next
view type. (Can set to 1 sec ~ 60 sec)
3.
To apply the change, click <APPLY> in the bottom of the screen.
4.
When done, press the [EXIT] button on the remote control or click <CLOSE> in the lower screen. The confirmation message appears and you will return to the previous menu.
Sequence
Configure the sequence feature.
1.
From <SYSTEM SETUP> - <DISPLAY>, select <SEQUENCE>.
2.
Use the [▲▼◀▶/ENTER] buttons on the remote control or use the mouse to add a sequence or change the settings of the existing sequence.
ACTIVATION : Activates the selected sequence.
ADD : Add a sequence.
3.
To apply the change, click <APPLY> in the bottom of the screen.
4.
When done, press the [EXIT] button on the remote control or click <CLOSE> in the lower screen. The confirmation message appears and you will return to the previous menu.
Page 37
37

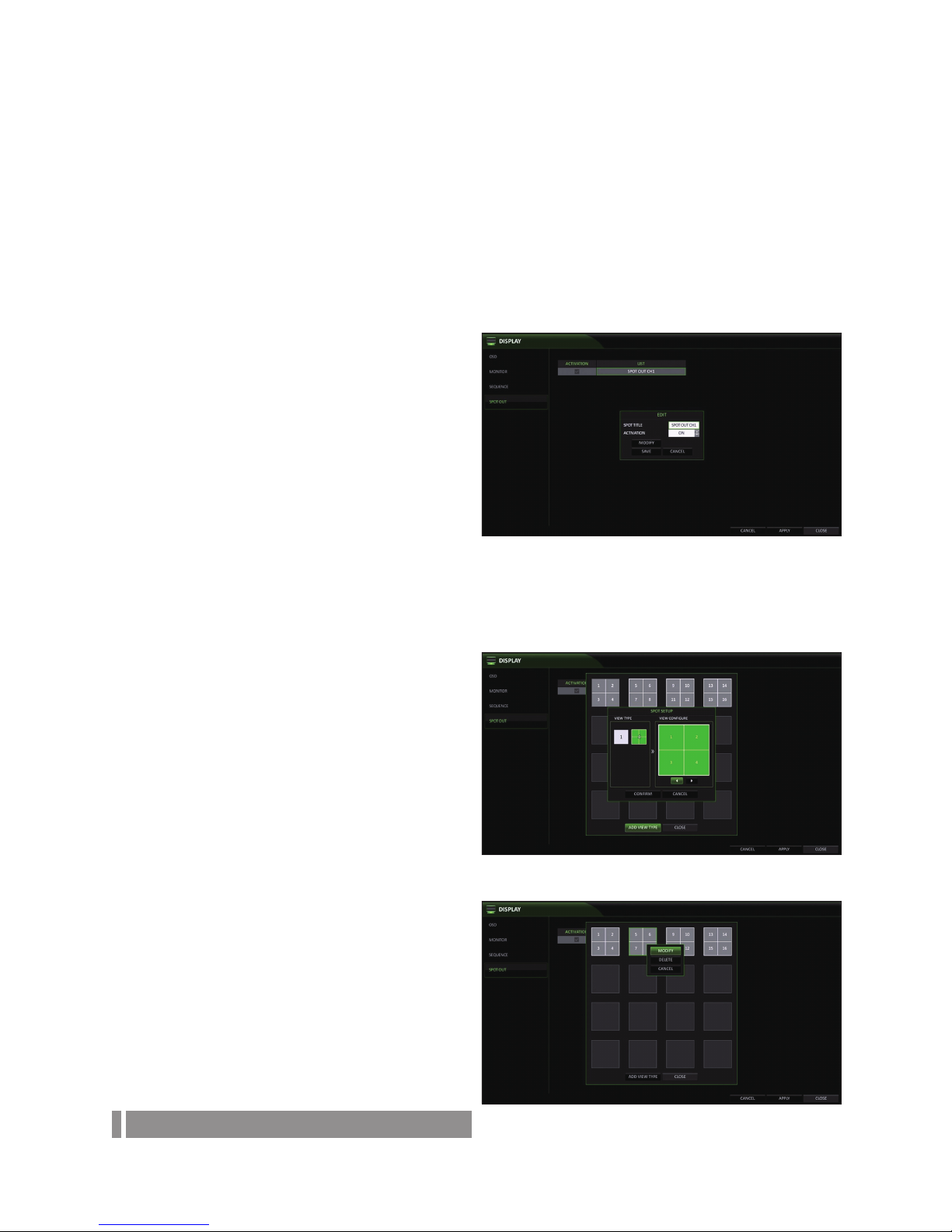

To add a sequence
1.
Click <ADD> in the bottom of the screen.
2.
When the "ADD" dialog appears, enter a title using the virtual keyboard.
3.
Enter the name of the sequence and click <SAVE>.
4.
Select <ADD VIEW TYPE> .
5.

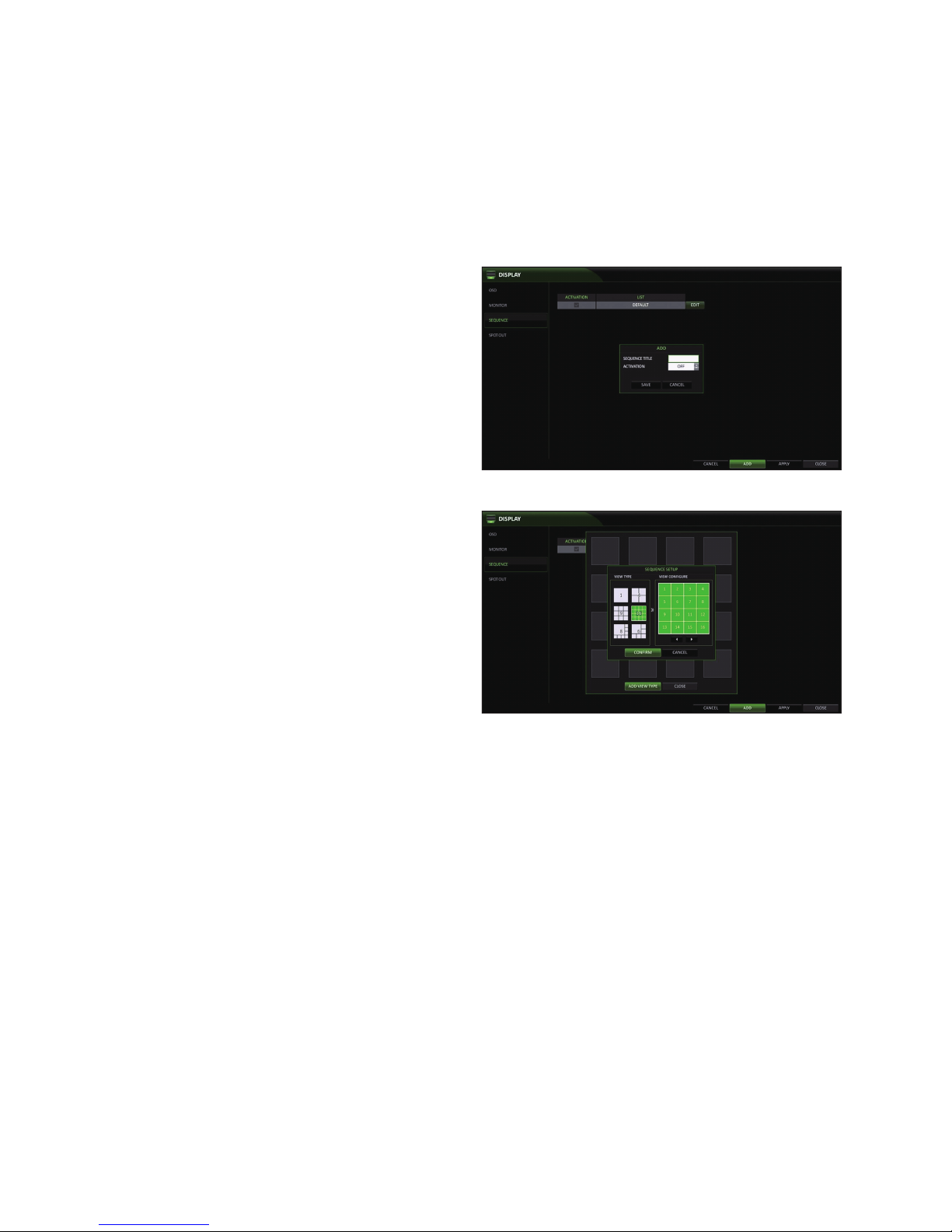

When the "SEQUENCE SETUP" dialog appears, select a split mode that you want to add from <VIEW T YPE>.
6.
When the selected split mode is displayed on <VIEW CONFIGURE>, select a channel you want to display in each split screen.
7.
Click <CONFIRM>. The set sequence mode is confirmed and will be added to the Sequence list
8.
When done, click <CLOSE> in the bottom of the screen. After the sequence type is saved, you will return to the previous screen.
System Setting
Page 38
System Setting
38
To edit a sequence
1.
Select a sequence that you want to edit in the list by clicking the <EDIT> button, or double-clicking the sequence title
2.
The "EDIT" dialog appears.
3.
Use the [▲▼◀▶/ENTER] buttons on the remote control or use the mouse to edit the selected sequence.
SEQUENCE TITLE : enter a new sequence name.
ACTIVATION : Activates/Deactivates the sequence.
MODIFY : change the sequence settings.
DELETE : delete the selected sequence.
CANCEL : cancel the changes.
4.
Pressing the <MODIFY> button will display the Modify Sequence window.
5.
To change the existing settings, select a screen mode that you want to edit and right-click to display the context menu. Then, select <MODIFY>.
6.
When done, click <CLOSE> to close the window.
7.
To apply your changes, click <APPLY>.
Page 39
39
SPOT OUT

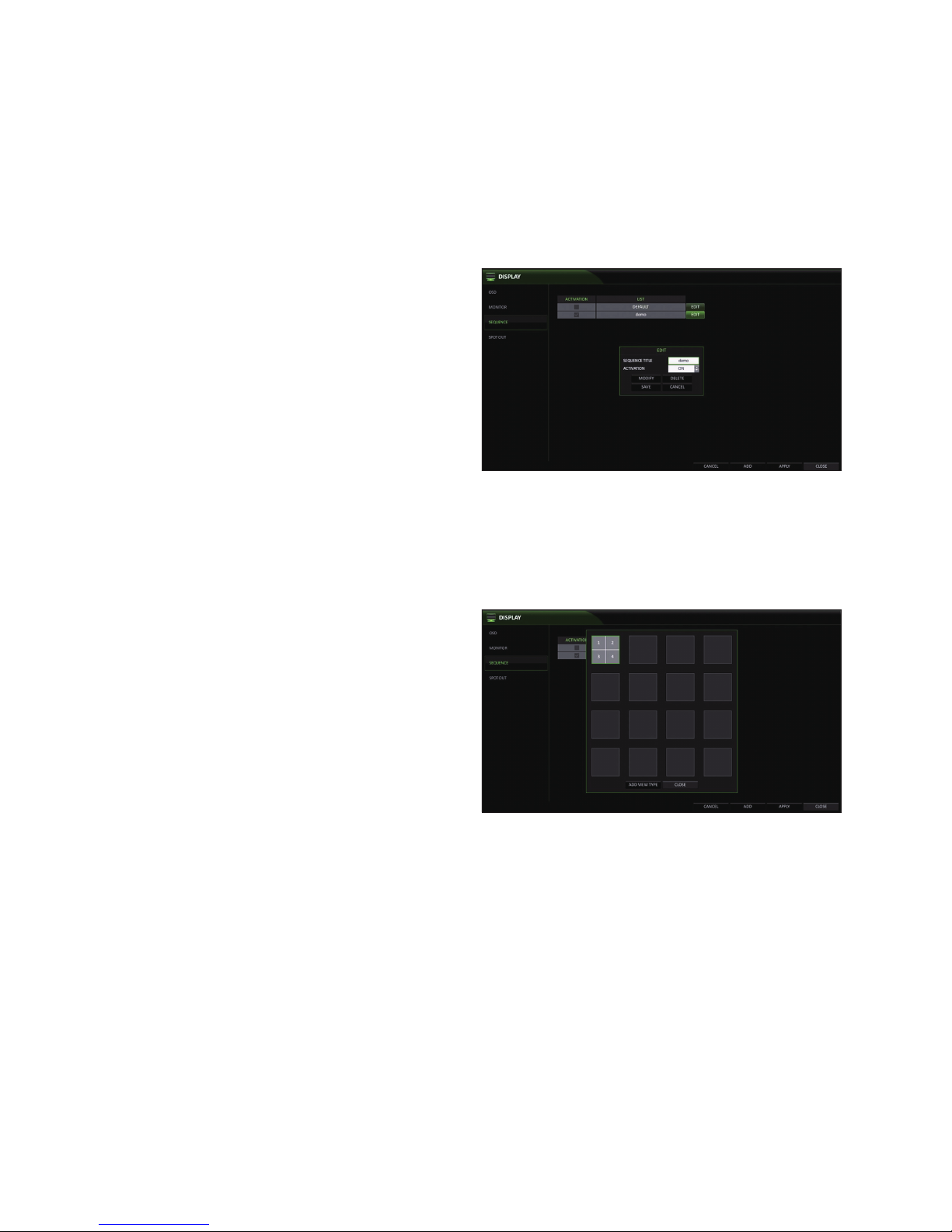

You can configure the Spot Out to display a Live channel in various live view types. From <SYSTEM SETUP> - <DISPLAY>, select <SPOT OUT>.
8.
Use [▲▼◀ ▶/ENTER] button of the remote control or mouse to edit Spot Out properties.
SPOT TITLE : Name the Spot Out.
ACTIVATION : Activates / deactivates the spot out.
MODIFY : Edit the view type of the spot output.
SAVE : Save the changes of spot output settings.
9.
To apply your changes, click <APPLY> button.
10.
Once completed with setup, press [EXIT] button of the remote control or click <CLOSE> button on the bottom of the screen. A confirmation dialog appears and returns to the previous menu.
To add a View Type to a Spot Out
1.
Select the SPOT Output from the list.
2.
The “EDIT” window appears, click <MODIF Y> button.
3.
When the View Type selection window appears, click <ADD VIEW TYPE> button.
4.
Select the desired View Type and configuration, and click <OK> button.
5.
Complete adding and click <CLOSE> to close the edit window
To edit or delete View Type of the SPOT
Output
1.
Select the SPOT Output from the list.
2.
The “EDIT” window appears, click <MODIF Y> button.
3.
When the View Type selection window appears, select the desired View Type to be edited or deleted, and press [ENTER] button of the remote control or right click on it.
MODIFY : Displays “SPOT SETUP” window for
editing View Type and other properties.
DELETE : Deletes the selected View Type.
4.
Complete editing and click <CLOSE> to close the
edit
win dow.
Audio Setup
You can configure audio related settings (channel and network transfer) and signal beep for remote control operations.
System Setting
Page 40
System Setting
40
Audio

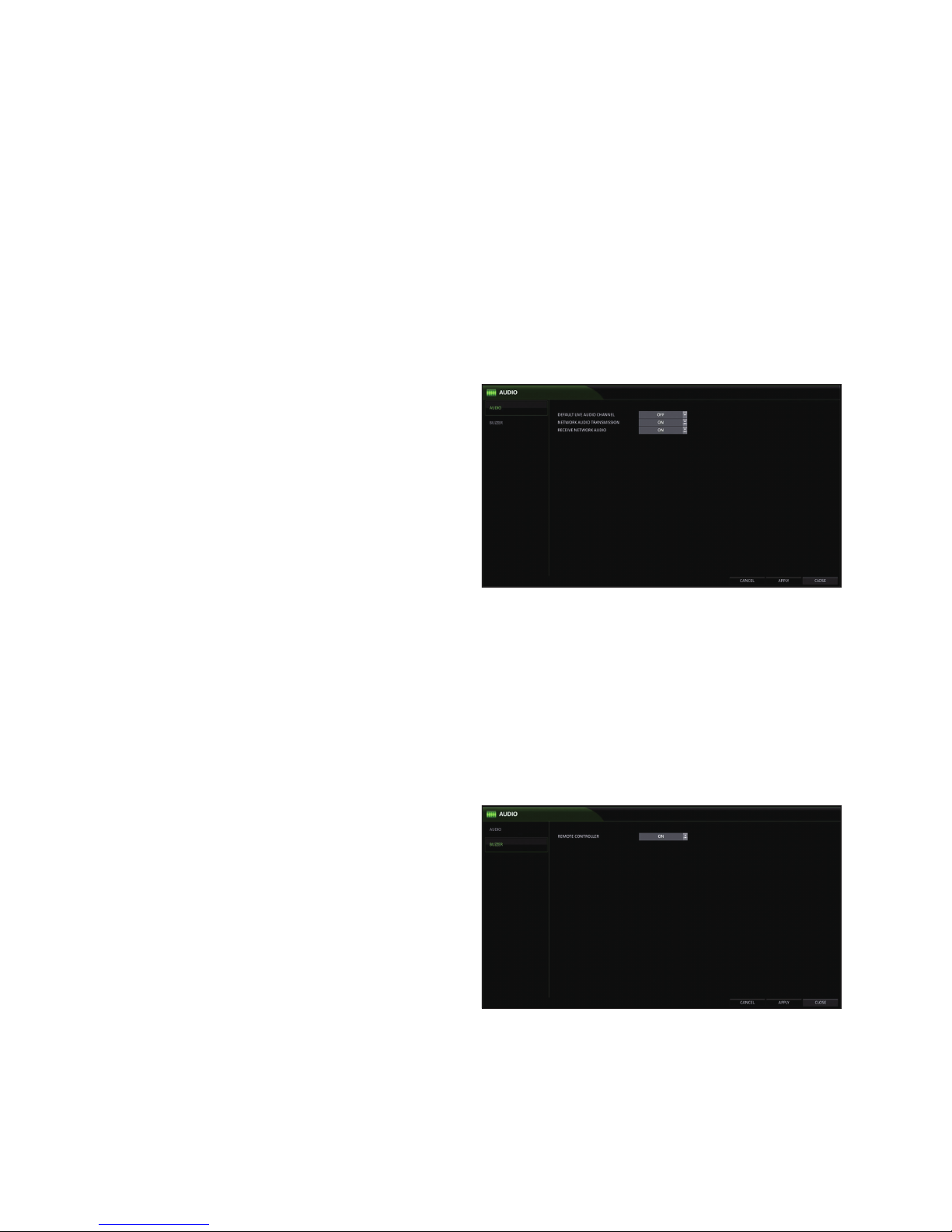

Choose whether to receive the live sound source and select an audio channel.
1.
From <SYSTEM SETUP> - <AUDIO>, select <AUDIO>.
2.
Use the [▲▼◀▶/ENTER] buttons on the remote control or use the mouse to select an item that you want to edit.
DEFAULT LIVE AUDIO CHANNEL : select an audio channel to monitor on the live screen.
NETWORK AUDIO TRANSMISSION : enables audio
transmission to a remote client (smart phone, PC, etc)
RECEIVE NETWORK AUDIO : enables audio
reception from a remote client (PC).
3.
To apply the change, click <APPLY> in the bottom of the screen.
4.
When done, press the [EXIT] button on the remote control or click <CLOSE> in the lower screen. The confirmation message appears and you will return to the previous menu.
Buzzer
Enables/disables a beeping sound when you manipulate the remote control.
1.
From <SYSTEM SETUP> - <AUDIO>, select <BUZZER>.
2.
Use the [▲▼◀▶/ENTER] buttons on the remote control or use the mouse to select an item that you want to edit.
REMOTE CONTROLLER : enable/disable a beeping sound when you press a button on the remote control.
3.
To apply the change, click <APPLY> in the bottom of the screen.
4.
When done, press the [EXIT] button on the remote control or click <CLOSE> in the lower screen. The confirmation message appears and you will return to the previous menu.
Page 41
41
User Settings
Configure user management as well as user and group permissions.
Management
You can add a user account(s) that can be edited at a later time.
1.
From <SYSTEM SETUP> - <USER>, select <MANAGEMENT>.
2.
Use the [▲▼◀▶/ENTER] buttons on the remote control or use the mouse to add a user account or select an item that you want to edit.
3.
To apply the change, click <APPLY> in the bottom of the screen.
4.
When done, press the [EXIT] button on the remote control or click <CLOSE> in the lower screen. The confirmation message appears and you will return to the previous menu.

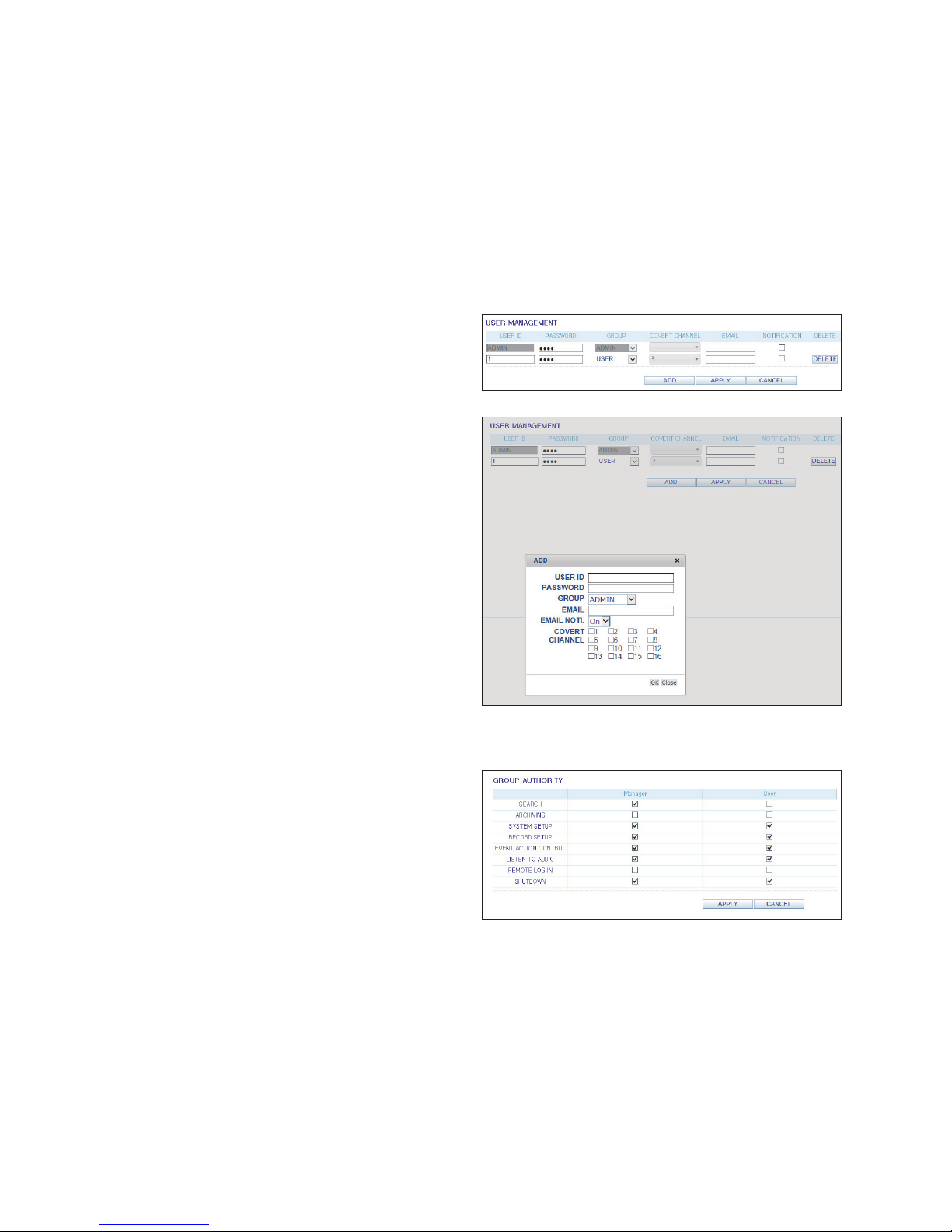

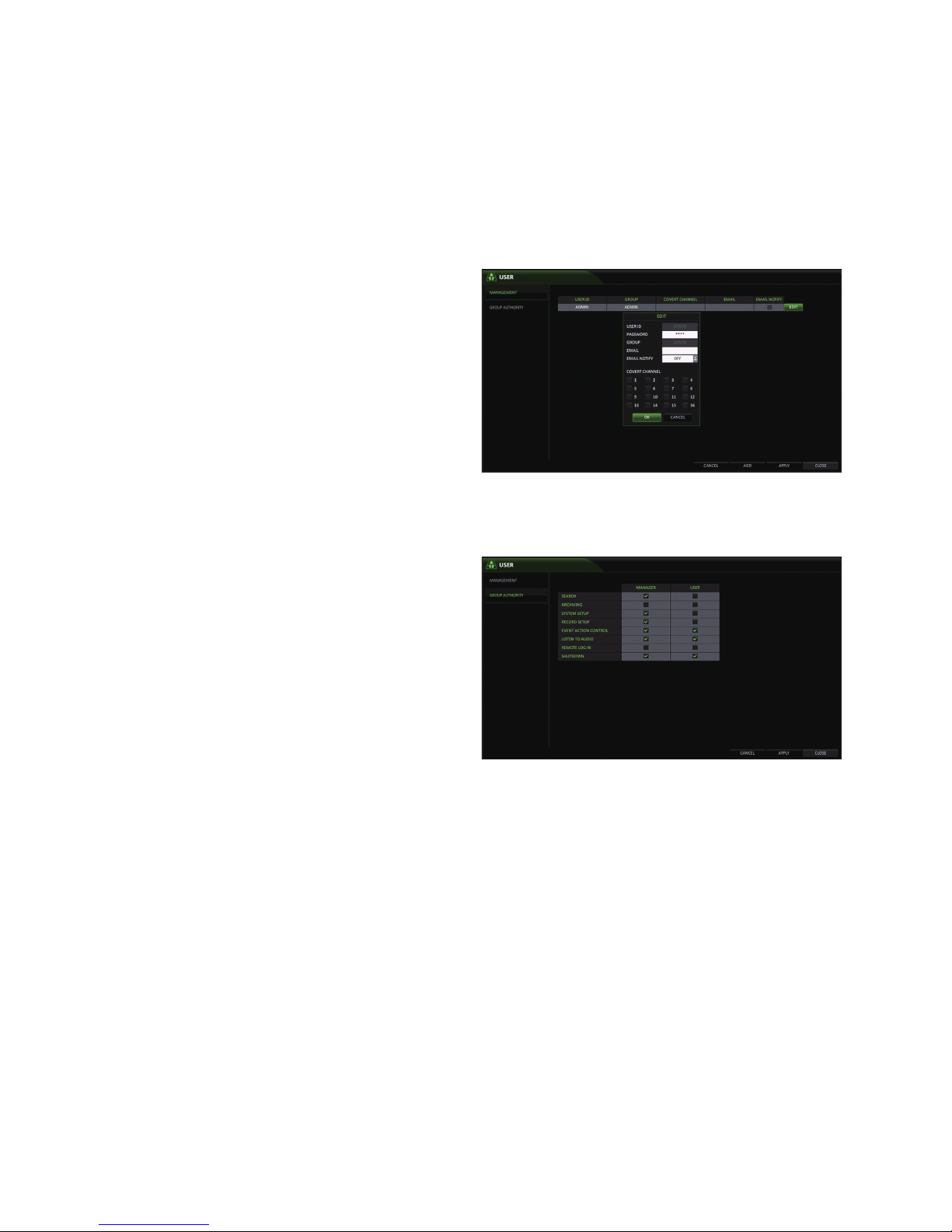

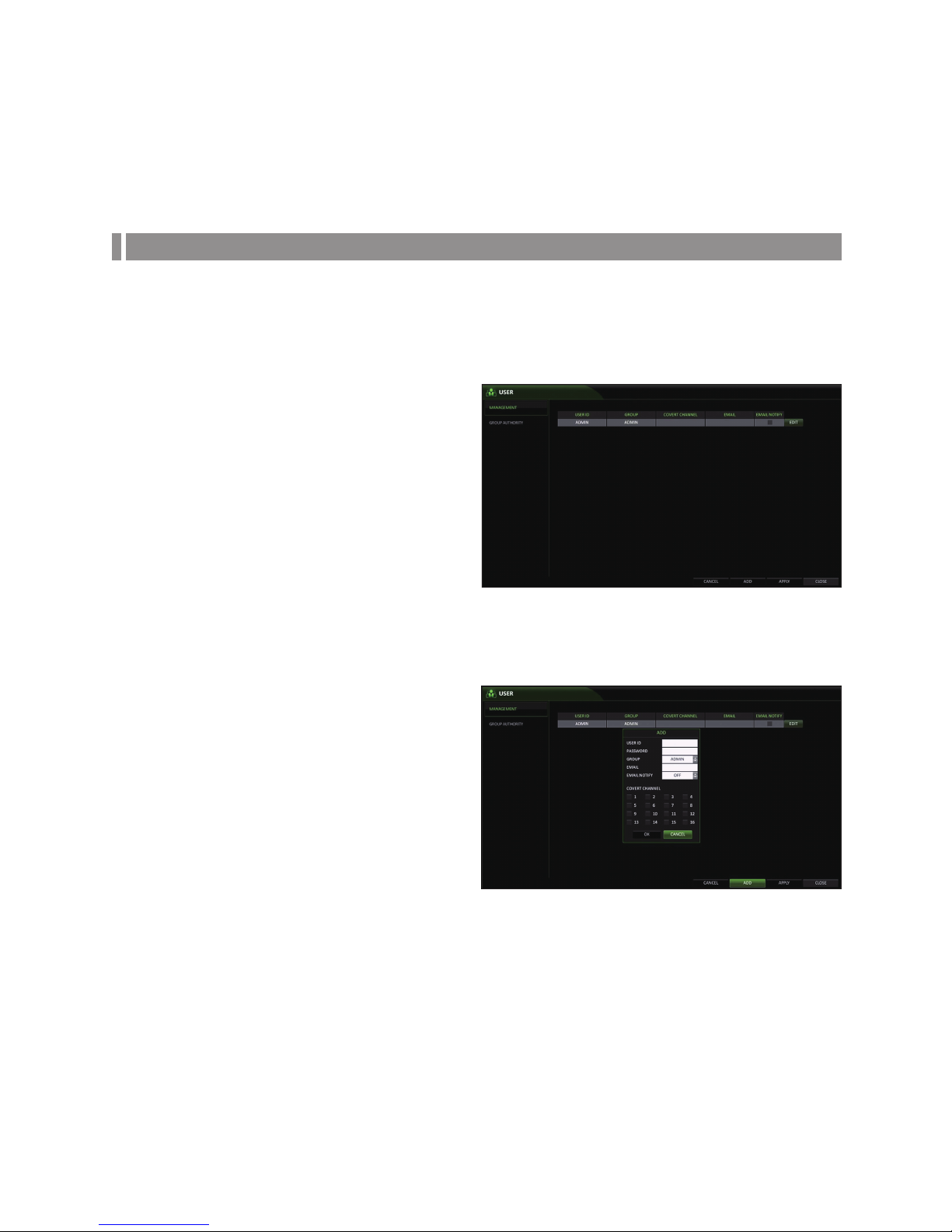

To add a user account
1.
Click <ADD> in the bottom of the screen.
2.
Use the [▲▼◀▶] buttons on the remote control and move to a desired item. Then, press [ENTER] to select the item.
USER ID : enter the user ID using the virtual keyboard.
PASSWORD : With the virtual keyboard, enter the
password.
GROUP : select a group that the user belongs to.
EMAIL : Type in the e-mail address to which you will
receive email notifications.
EMAIL NOTIFY : Choose whether you will receive
email notifications.
To use <EMAIL NOTIFY>, an email server must be configured previously in <NETWORK>, <EMAIL>.
COVERT CHANNEL : You can set specific channels to be covert for specific users.
<COVERT CHANNEL> this option hides the video of the selected channel from being displayed on the screen.
3.
When done, click <OK>. The added user account will be listed.
System Setting
Page 42
System Setting
42
To edit the user account information
1.
From the list of users, select a user account to edit and click <EDIT> next to it.
2.
From the Edit window, make necessary changes and click <OK>.
3.
To delete the user account, click <DELETE>.
The <ADMIN> account can not be changed or edited.
Group Authority
You can grant different user groups different permissions.
1.
From <SYSTEM SETUP> - <USER>, select <GROUP AUTHORITY>.
2.
Use the [▲▼◀▶/ENTER] buttons or use the mouse to set the permissions for both <MANAGER>and <USER> groups.
SEARCH
ARCHIVING
SYSTEM SETUP
RECORD SETUP
EVENT ACTION CONTROL
LISTEN TO AUDIO
REMOTE LOG IN
SHUTDOWN
The <ADMIN> account is the master account, and has ALL permissions.
3.
To apply the change, click <APPLY> in the bottom of the screen.
4.
When done, press the [EXIT] button on the remote control or click <CLOSE> in the lower screen. The confirmation message appears and you will return to the previous menu.
Page 43
43
Network Setup
You can configure the IP address, DDNS, E-mail settings, and check the network status.

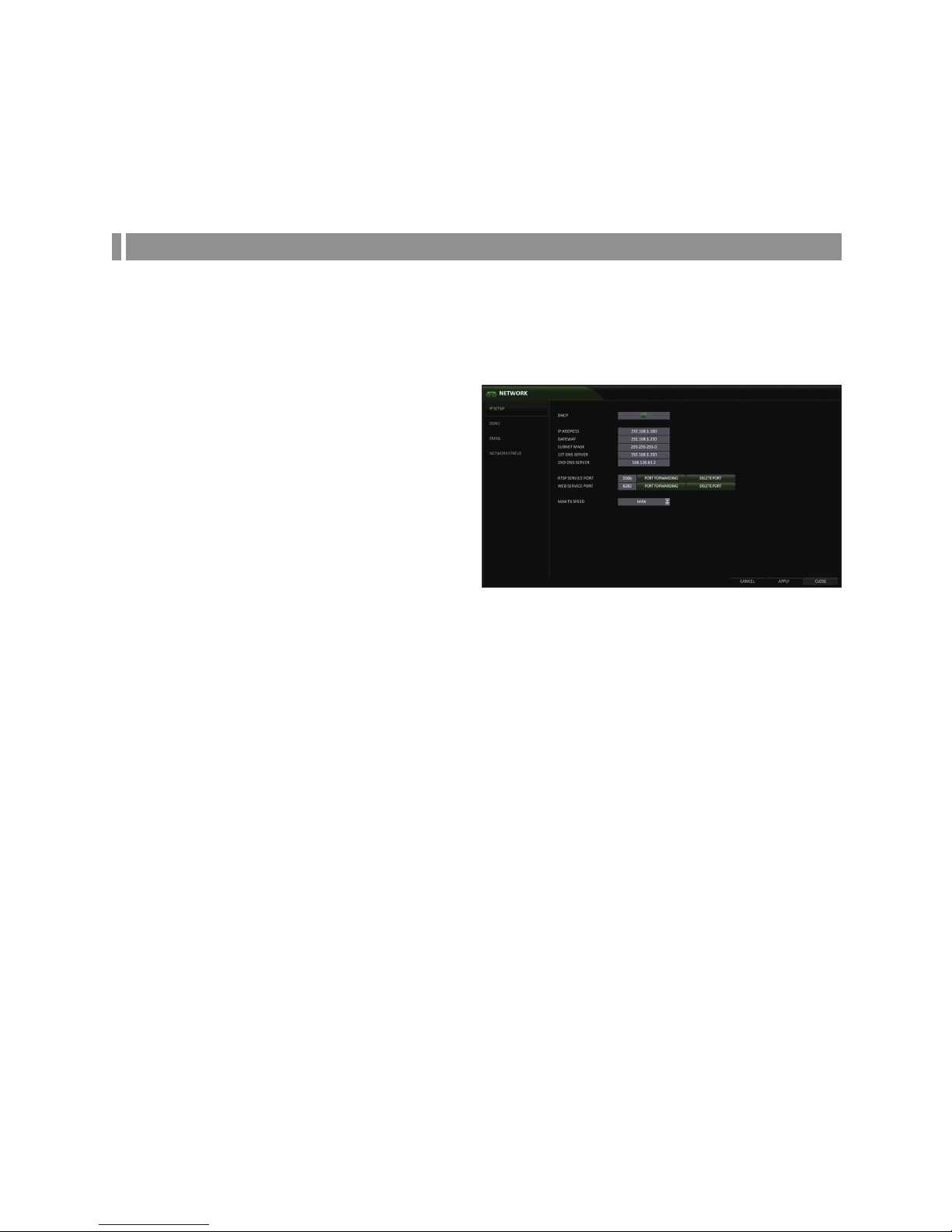

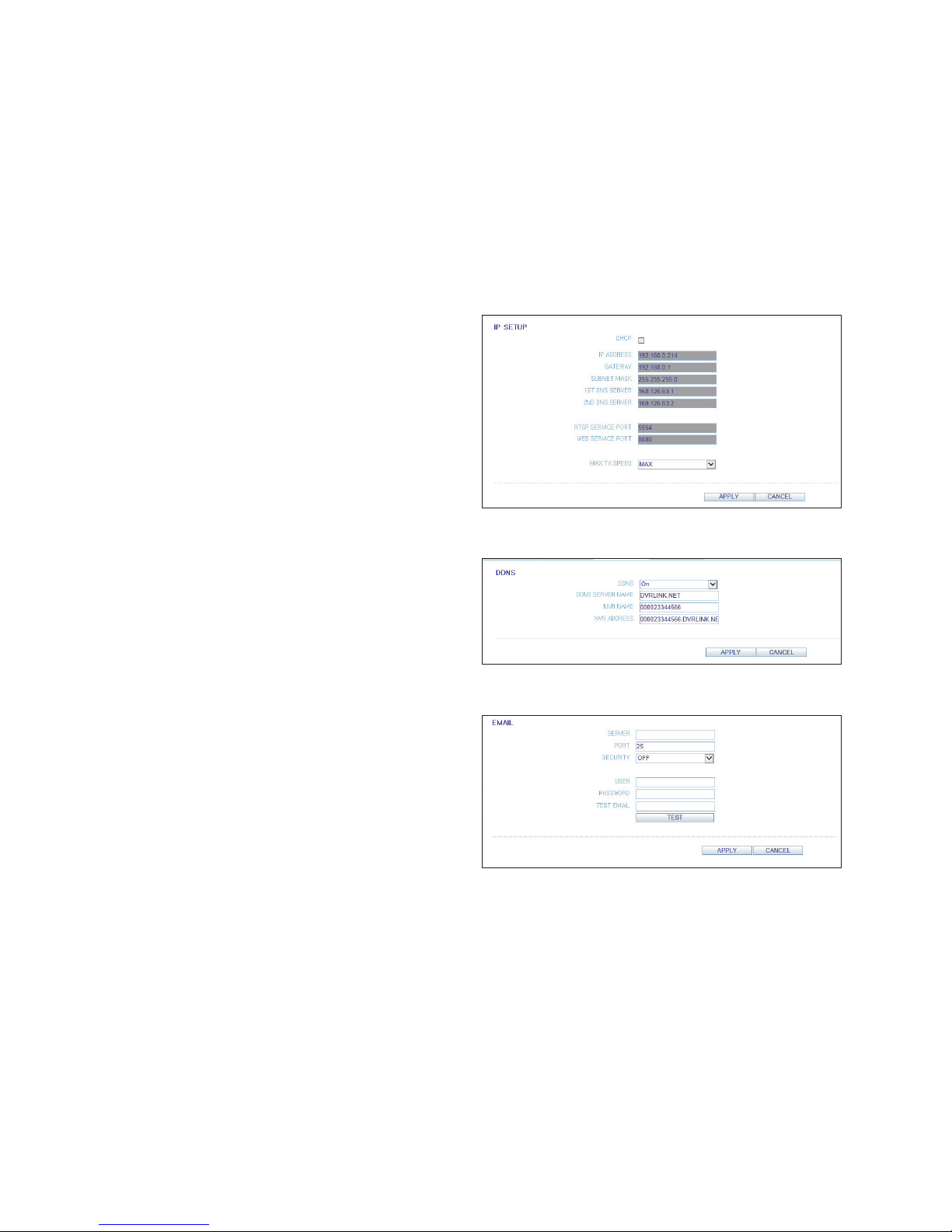

IP Setup
Configure the IP address and related properties for remote access.
1.
From <SYSTEM SETUP> - <NETWORK>, select <IP SETUP>.
2.
Use the [▲▼◀▶/ENTER] buttons on the remote control or use the mouse to specify each item of the network settings.
DHCP : When checked, the DVR will obtain an IP
address automatically if it is connected to a DHCP server or router.
3.
Deselect DHCP to manually set the IP address (Static address).
IP ADDRESS : DVR's IP address.
GATEWAY : gateway address.
SUBNET MASK : subnet mask address.
1ST DNS SERVER : Enter the address of the primary DNS server.
2ST DNS SERVER : Enter the address of the secondary DNS server.
RTSP SERVICE PORT : port number that the remote client receives the DVR video from.
WEB SERVICE PORT : port number used for connecting to the DVR .
PORT FORWARDING : If the DVR is connected to a router that supports UPnP (Universal Plug and Play), clicking
PORT FORWARDING will automatically forward the por t in your router.If the router does not support UPnP, you must complete the port forwarding manually. NOTE: In order to view your DVR remotely, you MUST port forward BOTH the Web Service Port and the RTSP Service Port. If you need assistance with por t forwarding, please refer to your router's manual or contact your Network Administrator/IT Professional.
DELETE PORT : release the port forwarding settings in the router.
MAX TX SPEED : Limits the network transfer rate of the DVR.
4.
To apply the change, click <APPLY> in the bottom of the screen.
5.
When done, press the [EXIT] button on the remote control or click <CLOSE> in the lower screen. The confirmation message appears and you will return to the previous menu.
System Setting
Page 44
System Setting
44

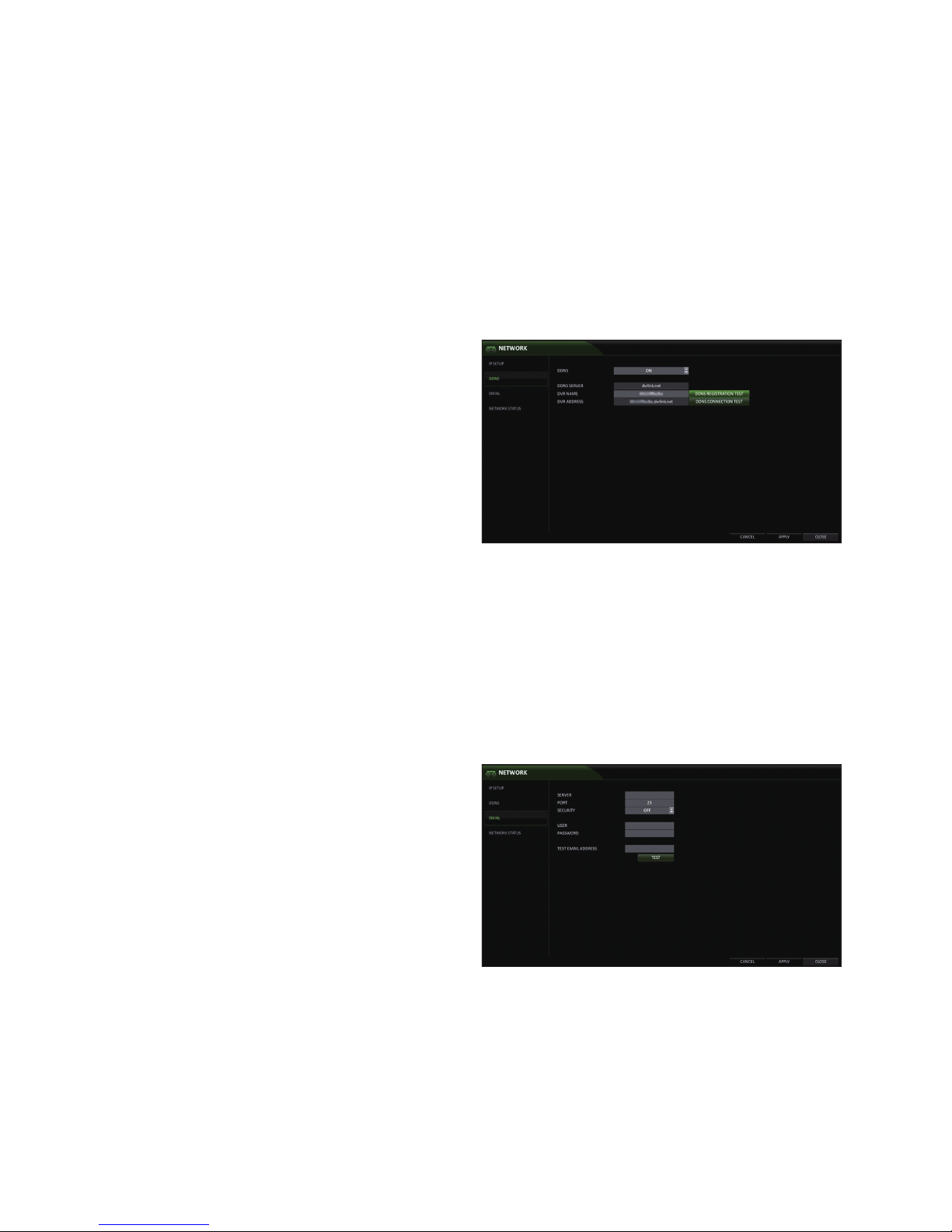

DDNS
You can configure the DDNS settings for remote access.
DDNS is an IP redirection service in a dynamic IP environment that redirects (maps) the new IP address to a registered domain name each time the IP address is changed. Simply, it allows users to remotely access the DVR with a static name instead of an IP address.
1.
From <SYSTEM SETUP> - <NETWORK>, select <DD NS>.
2.
Use the [▲▼◀▶/ENTER] buttons on the remote control or use the mouse to specify the use of DDNS and select a server.
DDNS : Enable/disable DDNS .
DDNS SERVER : Select a ser ver to connect to.
DVR NAME : Enter the DDNS name you would like
to use.
DDNS REGISTRATION TEST : Check if the <DVR
NAME> is available. If there is a duplicate name in the server, the registration will fail. If this is the case, rename the <DVR NAME> and press <DDNS REGISTRATION TEST> to re-check.
DVR ADDRESS : After a <DVR NAME> has been added successfully, the <DVR ADDRESS> will be added
automatically.
DDNS CONNECTION TEST : Test connection of DVR to DDNS server.
3.
To apply the change, click <APPLY> in the bottom of the screen.
4.
When done, press the [EXIT] button on the remote control or click <CLOSE> in the lower screen. The confirmation message appears and you will return to the previous menu.
Email
Configure and test an email address to use for sending emails to users if an event occurs.
1.
From <SYSTEM SETUP> - <NETWORK>, select <EM AIL>.
2.
Use the [▲▼◀▶/ENTER] buttons on the remote control or use the mouse to specify the use of email and select a server.
SERVER : The SMTP outbound email server.
PORT : Enter the mail server port.
SECURITY : If it is set to <ON>, the email will be
transferred in secure mode. If it is set to <OFF>, the email will be transferred to a server that does not support SSL.
USER : Provide the email account (ID) of the
sender.
PASSWORD : Provide the email account password.
TEST EMAIL ADDRESS : Enter an email address to send a test to.
TEST : Send a test email.
3.
To apply the change, click <APPLY> in the bottom of the screen.
4.
When done, press the [EXIT] button on the remote control or click <CLOSE> in the lower screen. The confirmation message appears and you will return to the previous menu.
Page 45
45
Network Status
From the network status screen, you can check the status of the network connection, as well as all connected cameras.
1.
From <SYSTEM SETUP> - <NETWORK>, select <NETWORK STATUS>.
2.
Use the [▲▼◀▶/ENTER] buttons on the remote control or use the mouse to select one between <NETWORK MAP> and <D ETAI L STATUS >.
3.
When done, press the [EXIT] button on the remote control or click <CLOSE> in the lower screen. The confirmation message appears and you will return to the previous menu.
Network Map
IP ADDRESS : Indicates the internal IP address of the DVR.
MAC ADDRESS : Indicates the internal MAC
address of the DVR.
DDNS ADDRESS : Indicates the DDNS address of
the DVR.
RTSP SERVICE PORT : Indicates RTSP port used
for remote access. For remote access, the RTSP port must be port forwarded in the router.
WEB SERVICE PORT : Indicates the web service
port used for remote access. For remote access, the web service port must be port forwarded in the router.
DDNS UPDATE STATUS : Shows if the DDNS
address was successfully registered to the DDNS server. Press < > to try to register the DDNS address forcibly.
EXTERNAL IP ADDRESS : Indicates the public IP address of the DVR, which can be used to access the DVR from a
remote network. For example: "http://<External IP Address>:<Web Service Por t>". NOTE: The IP address can var y in a dynamic IP environment.
CONNECTED CLIENTS : Shows the list of clients that are currently connected.
Press < > to terminate the connection of an unwanted client.
Termination is limited to only users in a lower group than the current user.
System Setting
Page 46
System Setting
46
System Setting
You can configure the date/time, system management, remote control ID, and keyboard controller.

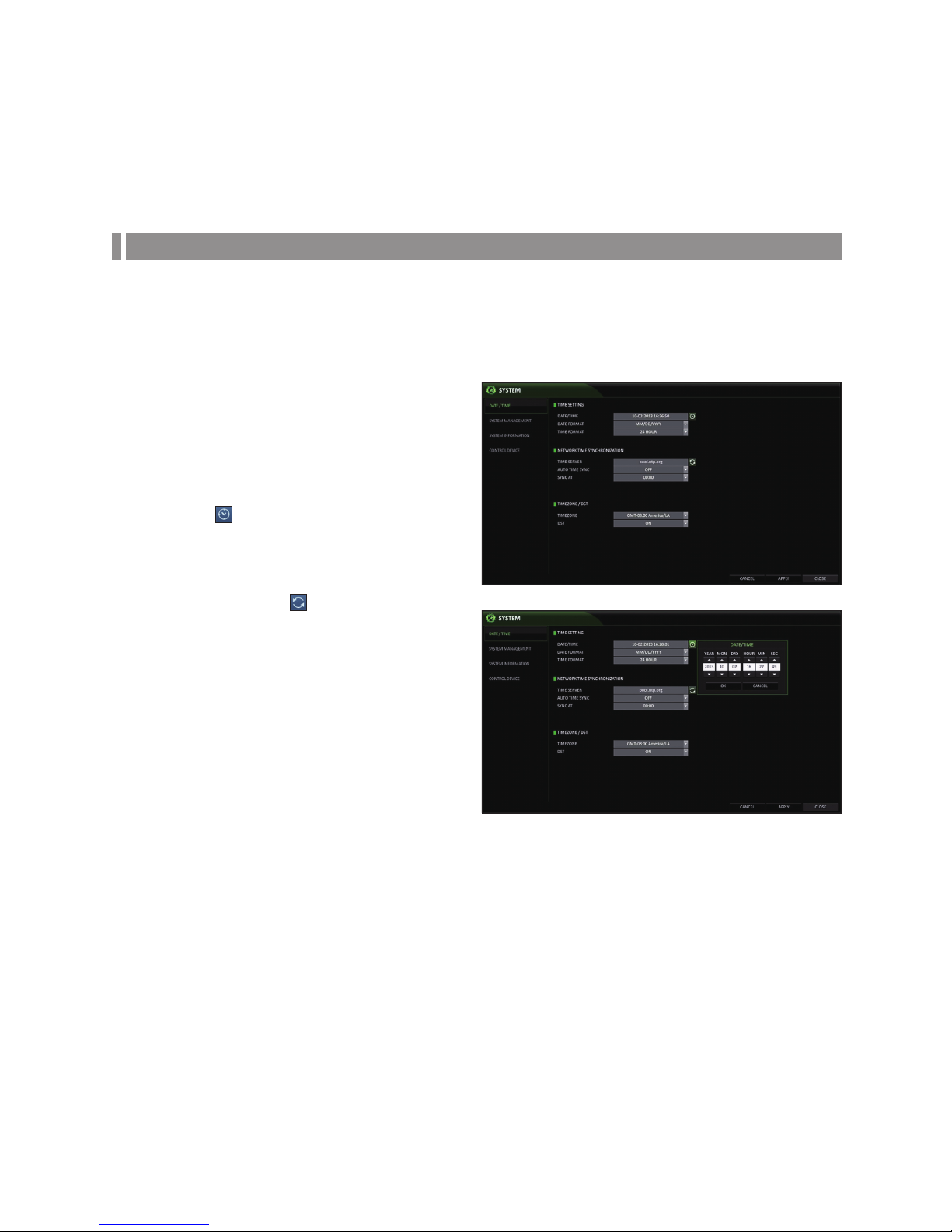

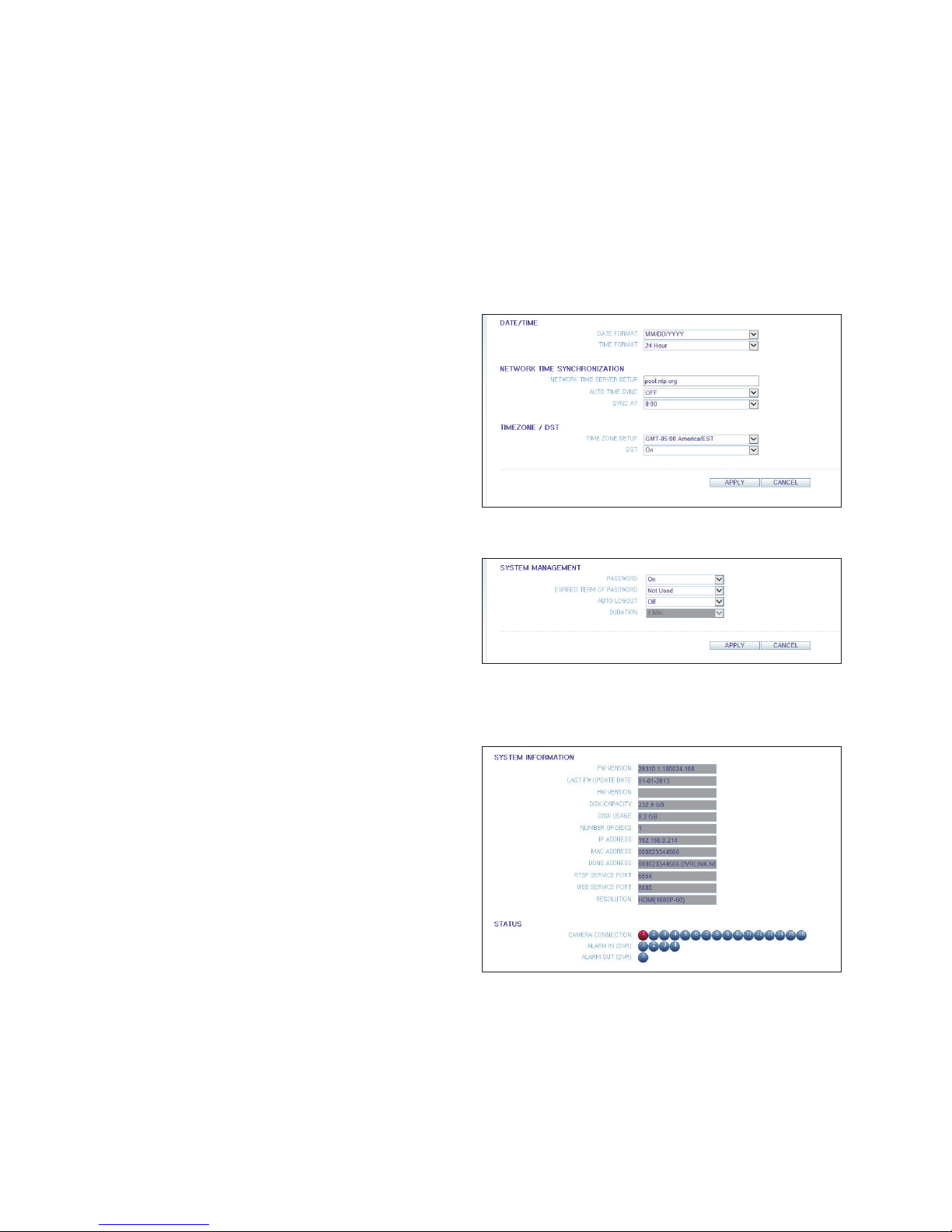

Date/Time
Specify the current date and time.
1.
From <SYSTEM SETUP> - <SYSTEM>, select <DATE/ TIME>.
2.
Use the [▲▼◀▶/ENTER] buttons on the remote control or use the mouse to change the time or set the options as necessary.
DATE/TIME : Set the current time and date.
Click< > to adjust the time manually.
DATE FORMAT : specify the date format.
TIME FORMAT : specify the time format.
TIME SERVER : obtain the current time from the
time server. Click <
> to get the current time.
AUTO TIME SYNC : automatically synchronize the
time with the time server at a specific time.
SYNC AT : Set the time to sync with the time server.
TIMEZONE : specify the GMT standard time for
your local area.
DST : You can set up or release the DST (Daylight
Saving Time).
Both <TIME SERVER> and <TIME SYNC> will be enabled only if the DVR is connected to the Internet.
3.
To apply the change, click <APPLY> in the bottom of the screen.
4.
When done, press the [EXIT] button on the remote control or click <CLOSE> in the lower screen. The confirmation message appears and you will return to the previous menu.
Page 47
47

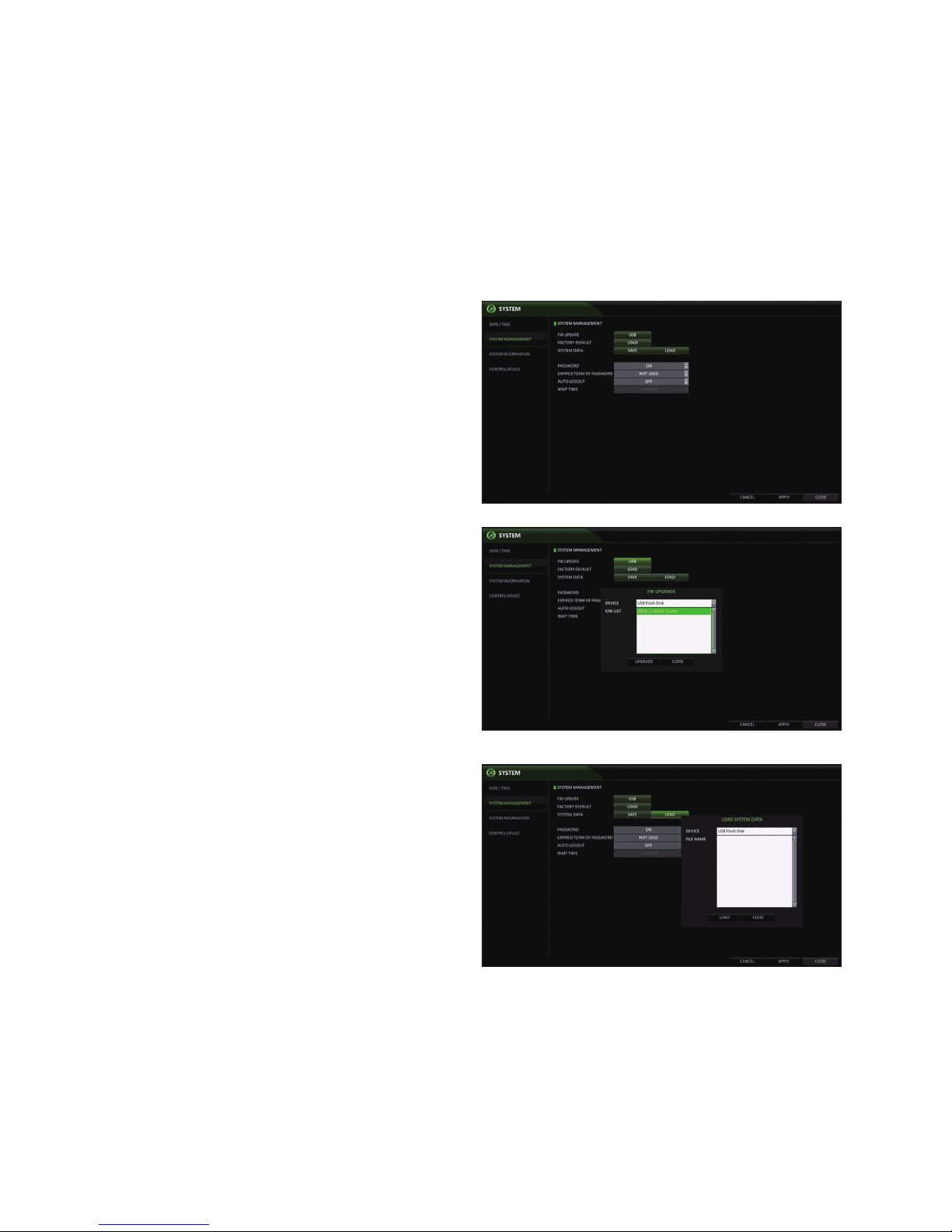

System Management

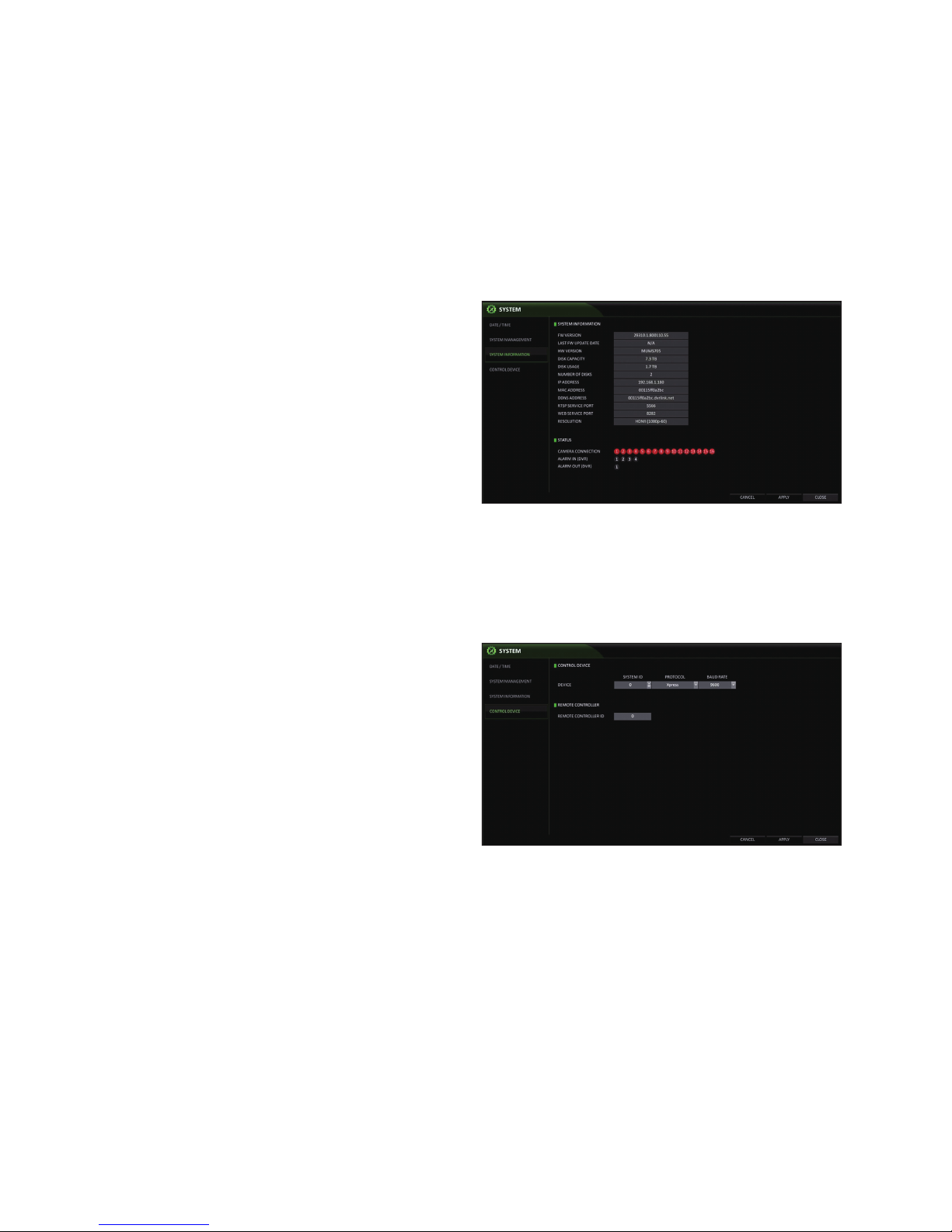

You can check, update or reset the system information.
1.
From <SYSTEM SETUP> - <SYSTEM>, select <SYSTEM MAN AGEM E NT>.
2.
Use the [▲▼◀▶/ENTER] buttons on the remote control or use the mouse to set each option of the system management.
FW UPDATE : you can update the current firmware
with the latest version.
FACTORY DEFAULT : Return the DVR settings to
the factory default.
•
If you proceed with the firmware upgrade or select to reset to the factory default, all current settings of the DVR will be erased. In such a case, you must configure the network, time and recording settings again.
SYSTEM DATA : Save the system settings or get
the system information from other device.
-
SAVE : Store the DVR settings to a USB storage device.
-
LOAD : Apply the settings of the USB storage device to the DVR.
PASSWORD : The DVR will prompt the user for a
password when accessing any of the menus: quit, system settings, record settings, backup, and search.
•
If it is set to <Off>, note that the ADMIN account is only effective and access to all menus will be restricted.
EXPIRED TERM OF PASSWORD : You will be
prompted to change the current password after a certain period of time.
AUTO LOGOUT : If there is no user input for a
certain period of time, you can set the DVR to log out automatically.
WAIT TIME : Specify the waiting time for Auto Logout.
3.
When done, press the [EXIT] button on the remote control or click <CLOSE> in the lower screen to return to the previous menu.
System Setting
Page 48
System Setting
48

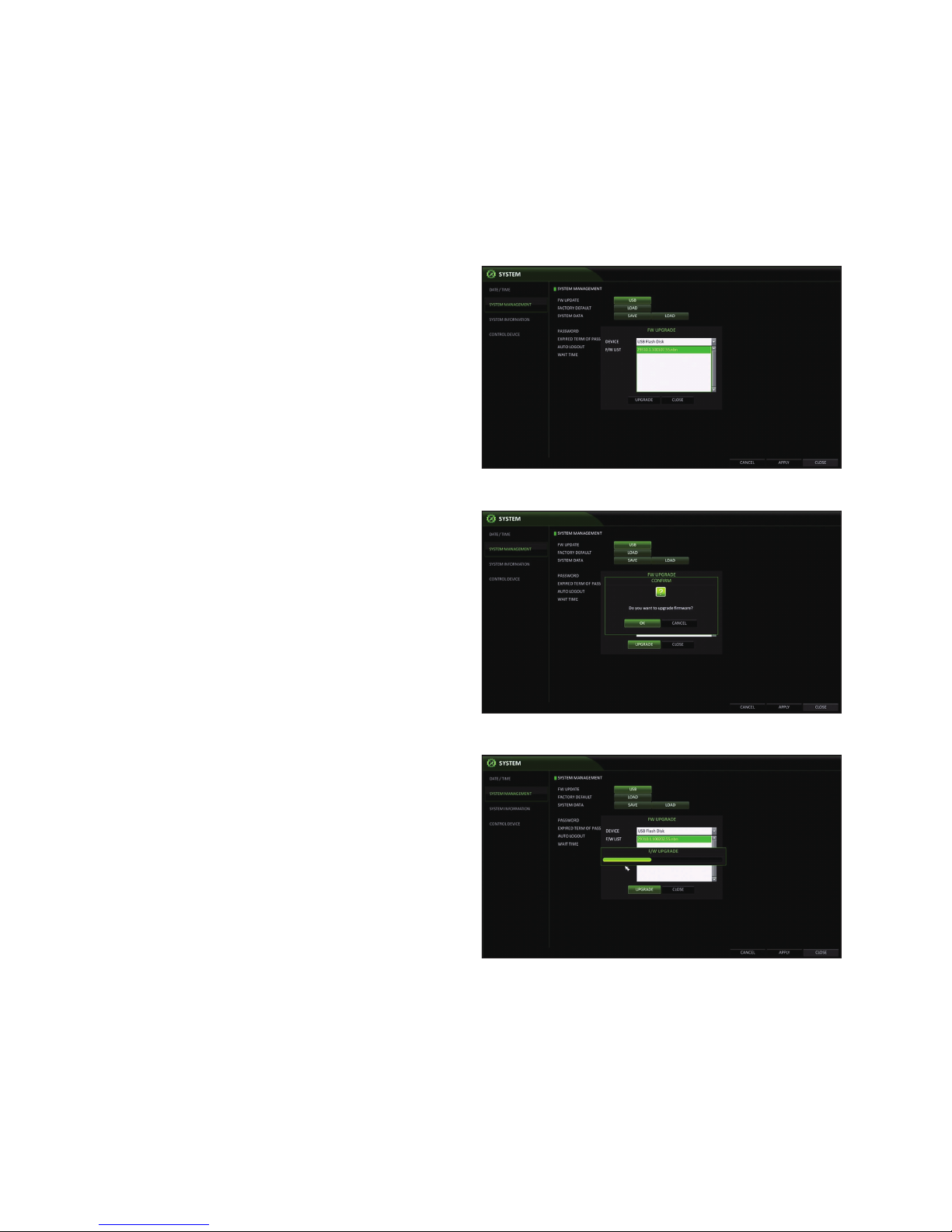

To perform an upgrade
1.
Connect the USB storage device that contains the updatable files.
2.
Click <USB>.
3.
Select the file listed in <F/W LIST>.
4.
Click <UPGRADE>.
5.
When the confirmation message appears, click <OK>.
6.
The progress bar displays the progress of the firmware upgrade.
7.
When the upgrade is complete, reboot the system.
•
During the updating, never turn off the DVR forcibly or disconnect the USB storage device to avoid serious damage to the product or data. If required, consult your nearest service center for professional assistance.
Page 49
49
System Information
You can check the current system version and system-related settings.
1.
From <SYSTEM SETUP> - <SYSTEM>, select <SYSTEM INFORMATION>.
2.
Check the status of the current system.
3.
When done, press the [EXIT] button on the remote control or click <CLOSE> in the lower screen to return to the previous menu.

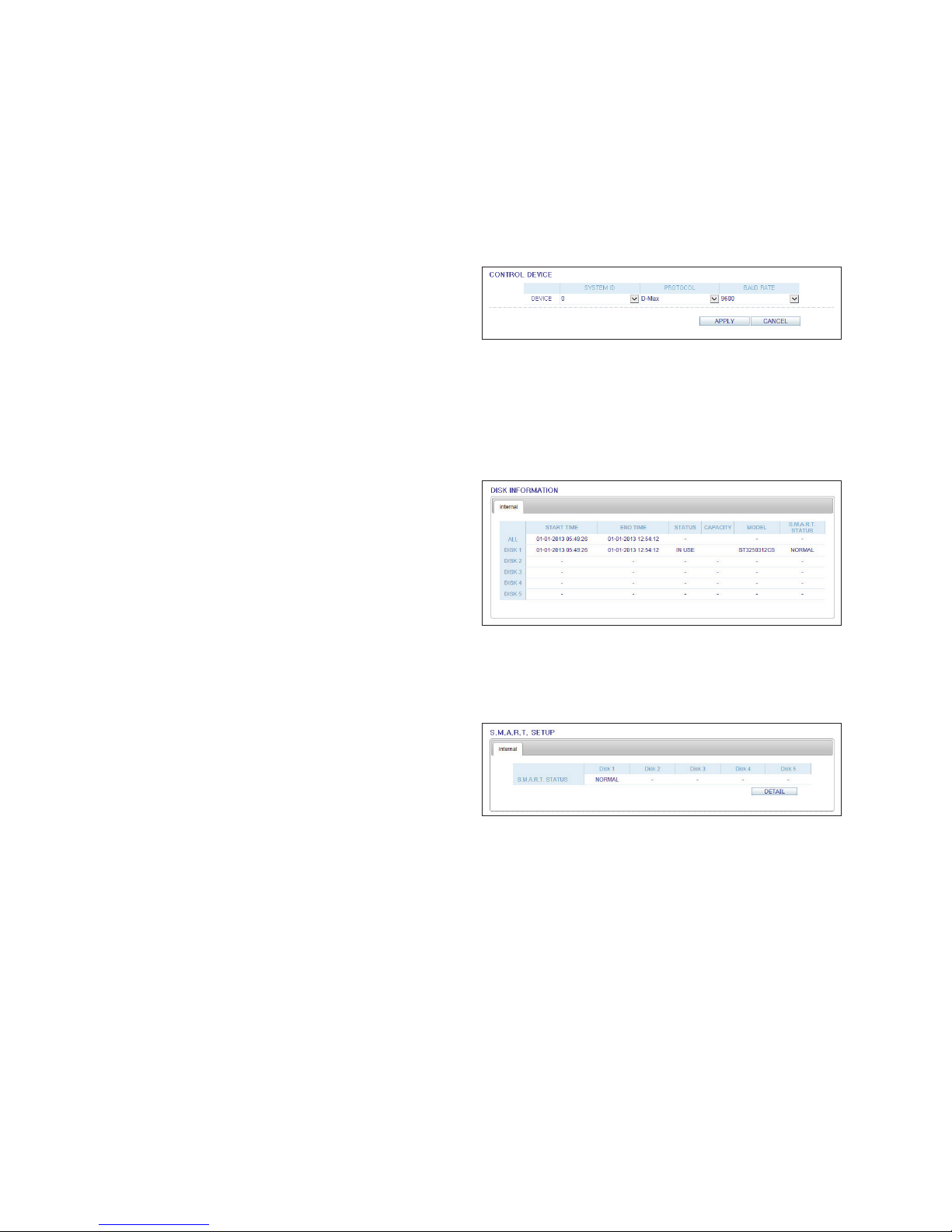

Control Device
Configure the settings of the keyboard and the remote control.
This function is provided for controlling individual DVRs separately using a control device or remote control, in case the site has multiple DVRs of the same model.
1.
From <SYSTEM SETUP> - <SYSTEM>, select <CONTROL DEVICE>.
2.
Use the [▲▼◀▶/ENTER] buttons on the remote control or use the mouse to set the connection options for the control device.
SYSTEM ID : Set the ID of the DVR so that the
keyboard controller can identify.
PROTOCOL : Set up the protocol of the keyboard
controller.
BAUD RATE : Specify the RS485 communication
speed.
REMOTE CONTROLLER ID : Set the ID of the remote control.
3.
To apply the change, click <APPLY> in the bottom of the screen.
4.
When done, press the [EXIT] button on the remote control or click <CLOSE> in the lower screen. The confirmation message appears and you will return to the previous menu.
System Setting
Page 50
System Setting
50
Storage
You can configure and view the disk settings.

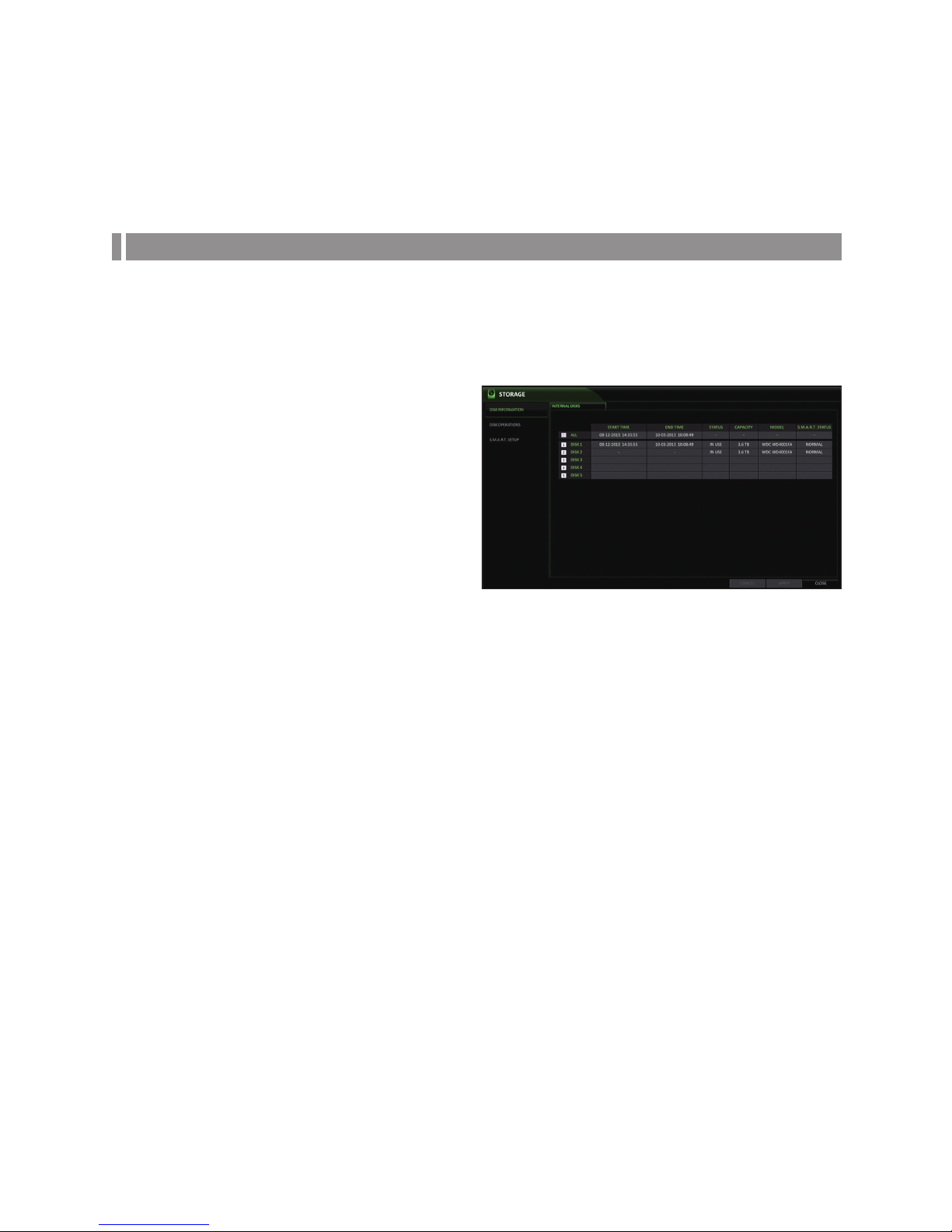

Disk Information
It will show information about the connected disk.
1.
From <SYSTEM SETUP> - <STORAGE>, select <DISK INFORMATION>.
2.
Use [▲▼◀ ▶/ENTER] buttons of the remote or the mouse to check each connected hard drive.
START / END TIME : show the start time and end
time of data stored on each disk.
STATUS : check if the connected disk is being used
by the DVR. If there is a problem with the disk, the DVR will terminate the connection to the disk and mark it as ‘Not In Use’.
CAPACITY : show the capacity of the disk.
MODEL : indicate the disk model.
S.M.A.R.T STATUS : Read the S.M.A.R.T information of the disk and displays disk status.
-
NORMAL : The disk is in a normal state.
-
CHECK : The disk has an error; check the disk and/or the connection cables. If you leave the problem unresolved, it may affect the recording; it is recommended that you replace the disk immediately.
-
ERROR : The disk has failed, and should be replaced immediately. Contact the retailer or service technician.
3.
When done, press the [EXIT] button on the remote control or click <CLOSE> in the lower screen to return to the previous menu.
Page 51
51

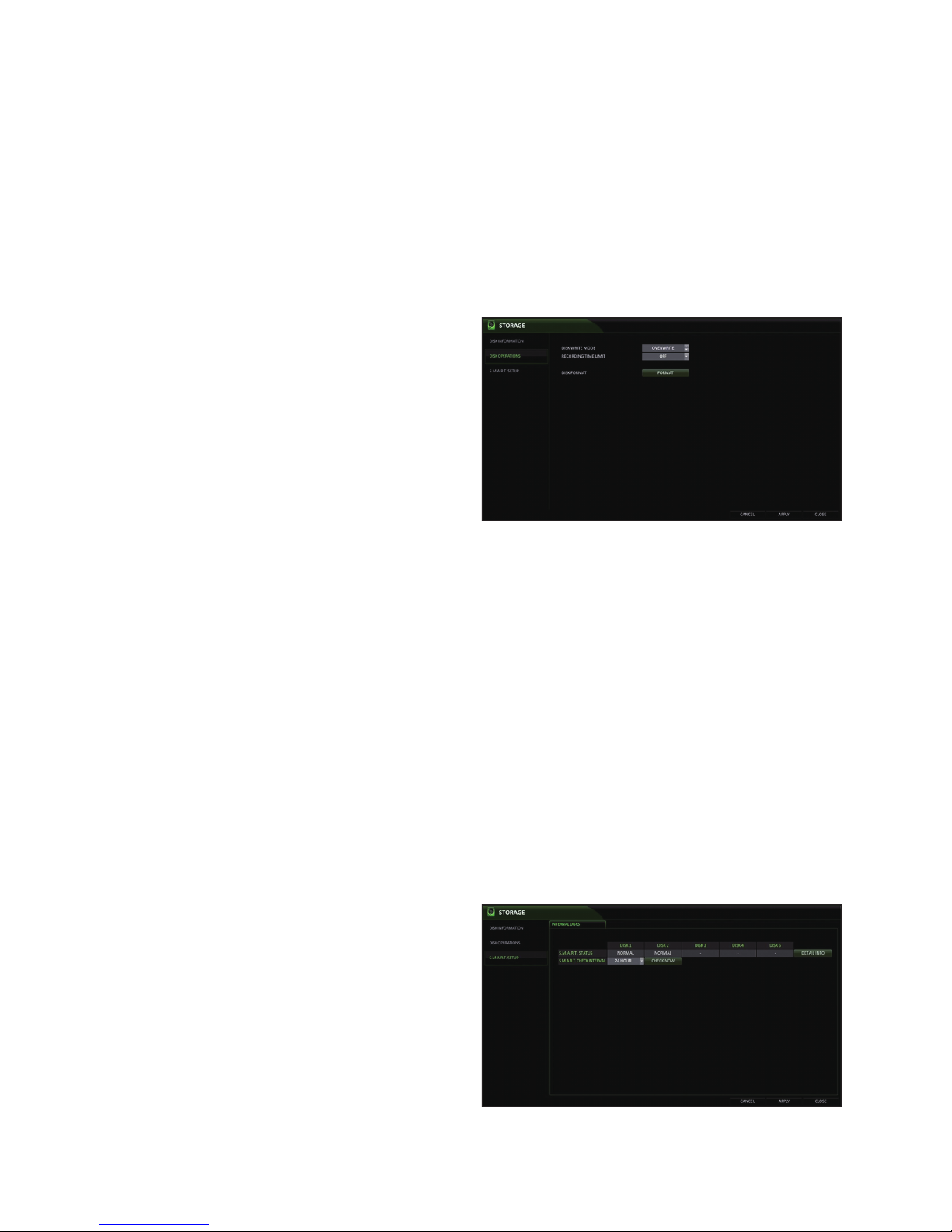

Disk Operations
You can configure the DVR to delete the HDD data automatically and set the overwrite options. You can also format the HDD.
1.
From <SYSTEM SETUP> - <STORAGE>, select <DISK OPERATIONS>.
2.
Use the [▲▼◀▶/ENTER] buttons on the remote control or use the mouse to set the operation conditions of the disk.
DISK WRITE MODE
-
If it is set to <OVERWRITE>, the oldest existing data will be overwritten by the newest recording data. This occurrs once the HDD is full.
-
If the option is set to <ONCE> and the HDD is full, the DVR will stop recording and beep, or trigger a pre-defined output alarm.
RECORDING TIME LIMIT : The recording data will be deleted after the specified time of reservation. If it is set to
<OFF>, this function will be disabled.
Ex) Record Time Limit : 1 day. Even if there is sufficient free space in the HDD, it records / keeps recording data for 1 day only.
DISK FORMAT : format the hard disk.
•
Formatting the HDD will delete all video data and logs.
3.
To apply the change, click <APPLY> in the bottom of the screen.
4.
When done, press the [EXIT] button on the remote control or click <CLOSE> in the lower screen. The confirmation message appears and you will return to the previous menu.
S.M.A.R.T settings
You can check the S.M.A.R.T information of the disk and specify the check frequency.
What is S.M.A.R.T? S.M.A.R.T (Self-Monitoring, Analysis and Report Technology) is a monitoring system used to detect and report a HDD that is likely to cause a problem in the future.
1.
From <SYSTEM SETUP> - <STORAGE>, select <S.M.A.R.T. SETUP>.
2.
Use the [▲▼◀▶/ENTER] buttons on the remote control or use the mouse to check the S.M.A.R.T operation and specify the check interval.
S.M.A.R.T STATUS : Read the S.M.A.R.T
information of the disk and check to display the disk status. Click <DETAIL INFO> to view the details.
System Setting
Page 52
System Setting
52
-
NORMAL : The disk is in a normal state.
-
CHECK : The disk has an error; check the disk and/or the connection cables. If you leave the problem unresolved, it may affect the recording; it is recommended that you replace the disk immediately.
-
ERROR : The disk has failed, and should be replaced immediately. Contact the retailer or service technician.
S.M.A.R.T CHECK INTERVAL : Specify the S.M. A.R.T check inter val.
Click <CHECK NOW> to start checking.
3.
To apply the change, click <APPLY> in the bottom of the screen.
4.
When done, press the [EXIT] button on the remote control or click <CLOSE> in the lower screen. The confirmation message appears and you will return to the previous menu.
Event Setup
Define various events, and specify the conditions to notify the user.

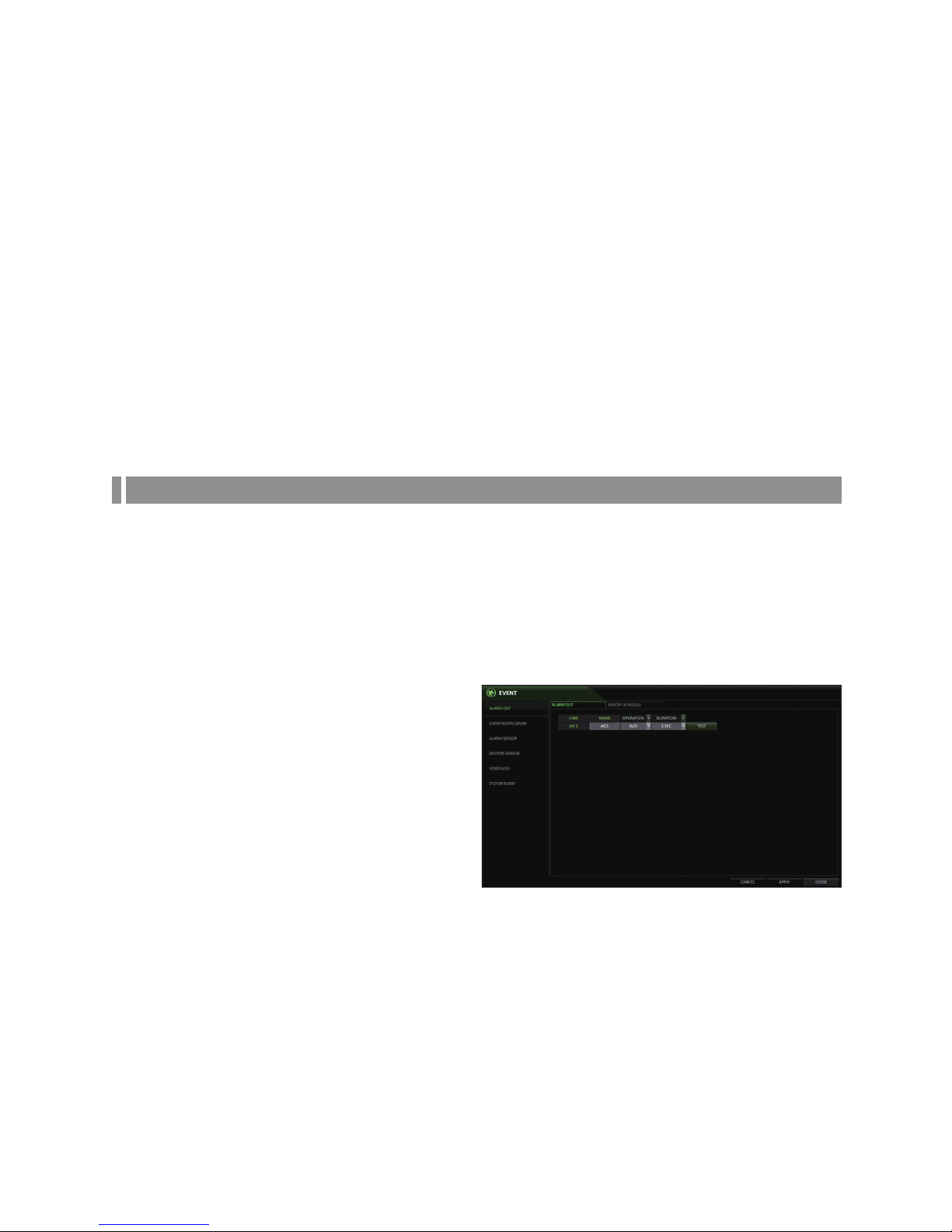

Alarm Out
Specify the alarm output conditions with the work schedule.
Alarm Out
1.
From <SYSTEM SETUP> - <EVENT>, select <ALARM OUT>.
2.
Use the [▲▼◀▶/ENTER] buttons on the remote control or use the mouse to select <ALARM OUT> and configure the related settings.
NAME : You can rename the alarm.
OPERATION : Set the alarm output mode.
-
N/O (Normal Open) : It normally stays Open. However, if an event occurs, it will switch to Closed.
-
N/C (Normal Closed) : It normally stays Closed. However, if an event occurs, it will switch to Open.
DURATION : Specif y the duration of the alarm output.
-
TRANSPARENT : Keep the alarm out for as long as the event occurs.
-
UNTIL KEY : Keep the alarm out until a mouse or remote control button is pressed.
-
5 ~ 300 SEC : Keep the alarm out for a specified time.
TEST : Forcibly output the alarm testing purposes.
3.
To apply the change, click <APPLY> in the bottom of the screen.
4.
When done, press the [EXIT] button on the remote control or click <CLOSE> in the lower screen. The confirmation message appears and you will return to the previous menu.
Page 53
53

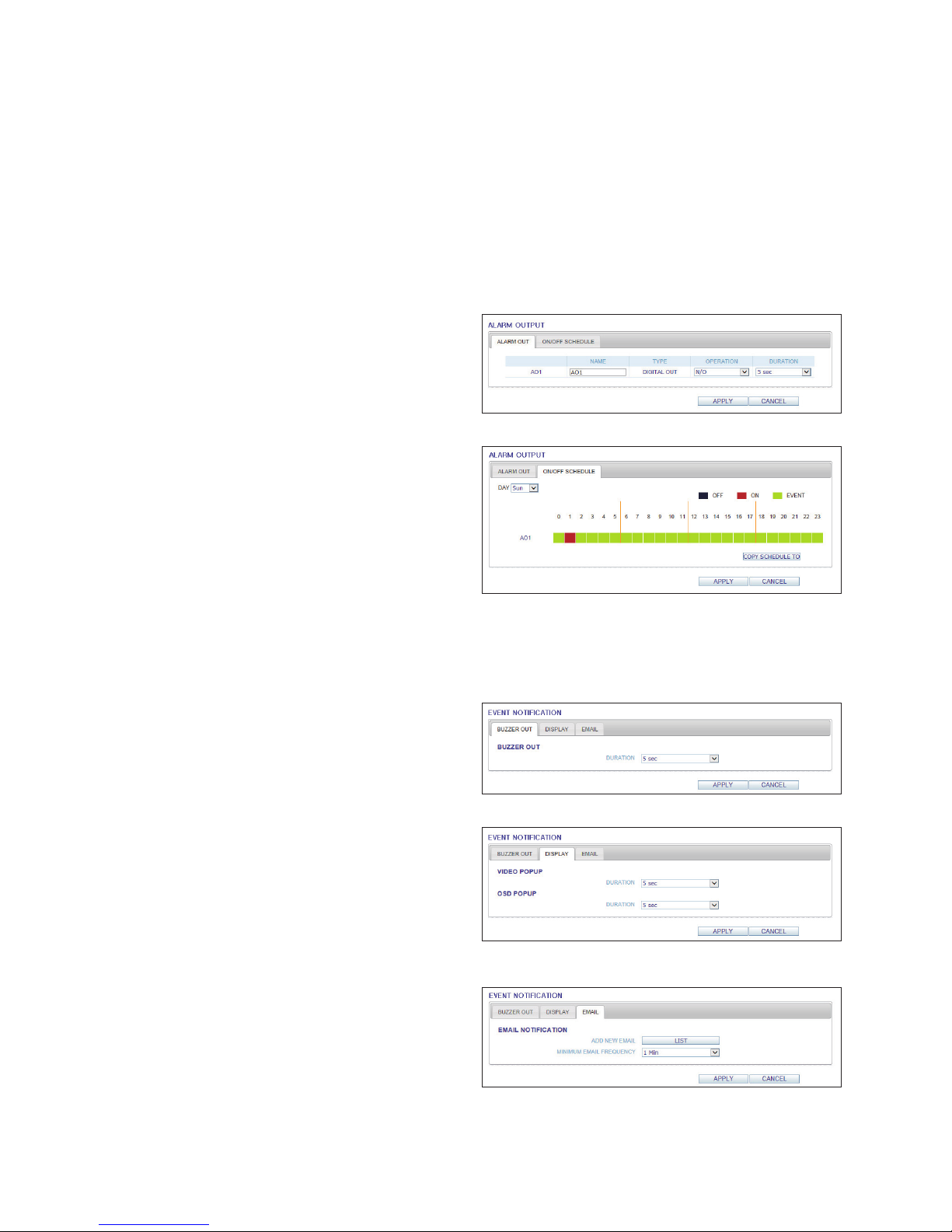

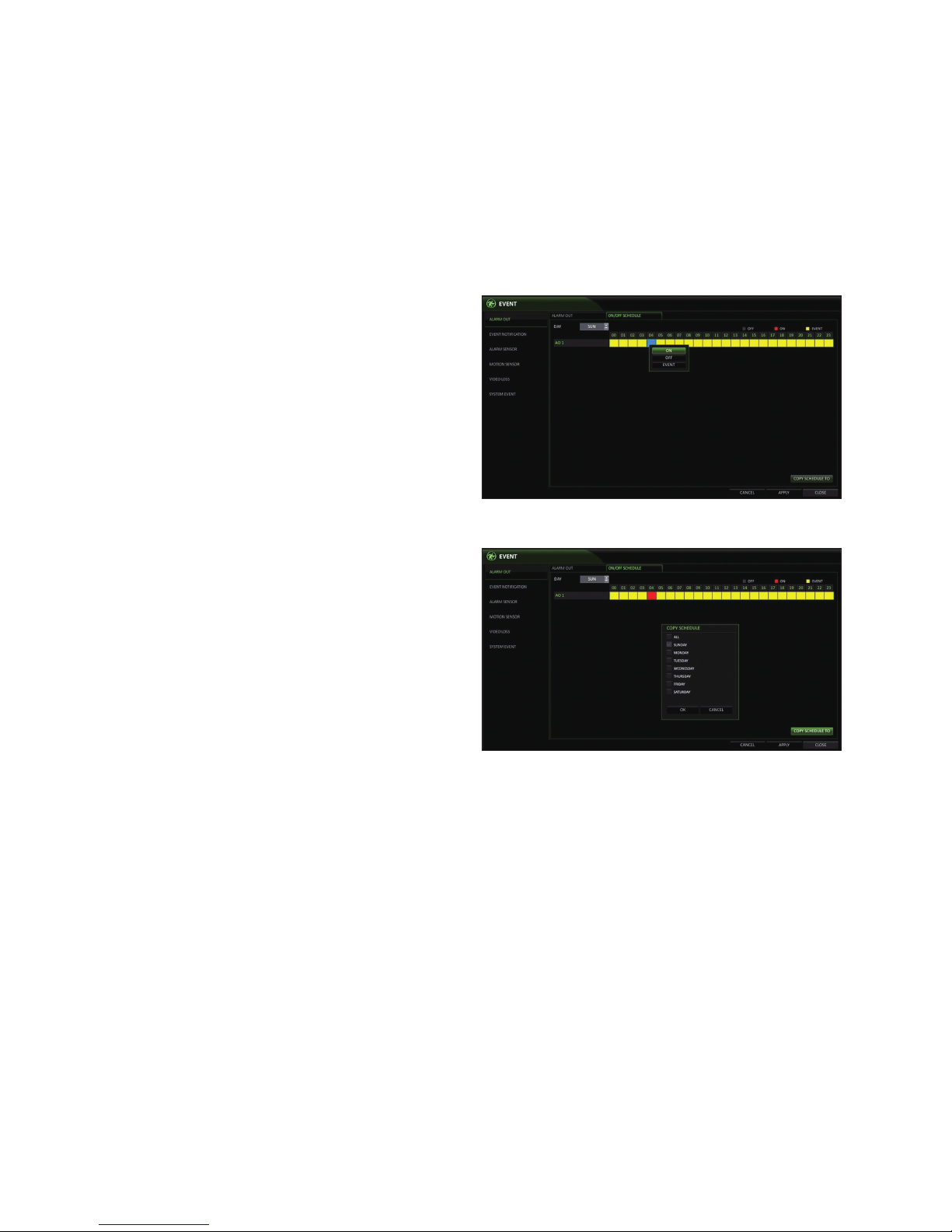

ON/OFF Schedule
You can activate or turn off the alarm output as scheduled.
1.
Use the [▲▼◀▶/ENTER] buttons on the remote control or use the mouse to select a <DATE> for the schedule.
2.
Drag the mouse to resize the cell or use the on the [▲▼◀ ▶] buttons to move to the cell, then press [ENTER].
3.
Select a desired alarm output mode.
ON : The alarm output is always turned on.
OFF : The alarm output is always turned off.
EVENT : Trigger the alarm output in sync with the
event.
4.
Click <COPY SCHEDULE> to copy the configured alarm schedule to the desired day(s).
5.
When done, click <OK> to apply the settings.
6.
To apply the change, click <APPLY> in the bottom of the screen.
7.
When done, press the [EXIT] button on the remote control or click <CLOSE> in the lower screen. The confirmation message appears and you will return to the previous menu.
Event Notication
Specify the methods of notification such as buzzer, video popup or email if an event occurs.
1.
From <SYSTEM SETUP> - <EVENT>, select <EVENT NOTIFICATION>.
2.
Use the [▲▼◀▶] buttons on the remote control or use the mouse to select one from <BUZZER>, <DISPLAY> and <EM AIL>.
3.
Use the [▲▼◀▶/ENTER] buttons on the remote control or use the mouse to set the output method and duration.
4.
To apply the change, click <APPLY> in the bottom of the screen.
5.
When done, press the [EXIT] button on the remote control or click <CLOSE> in the lower screen. The confirmation message appears and you will return to the previous menu.
System Setting
Page 54
System Setting
54

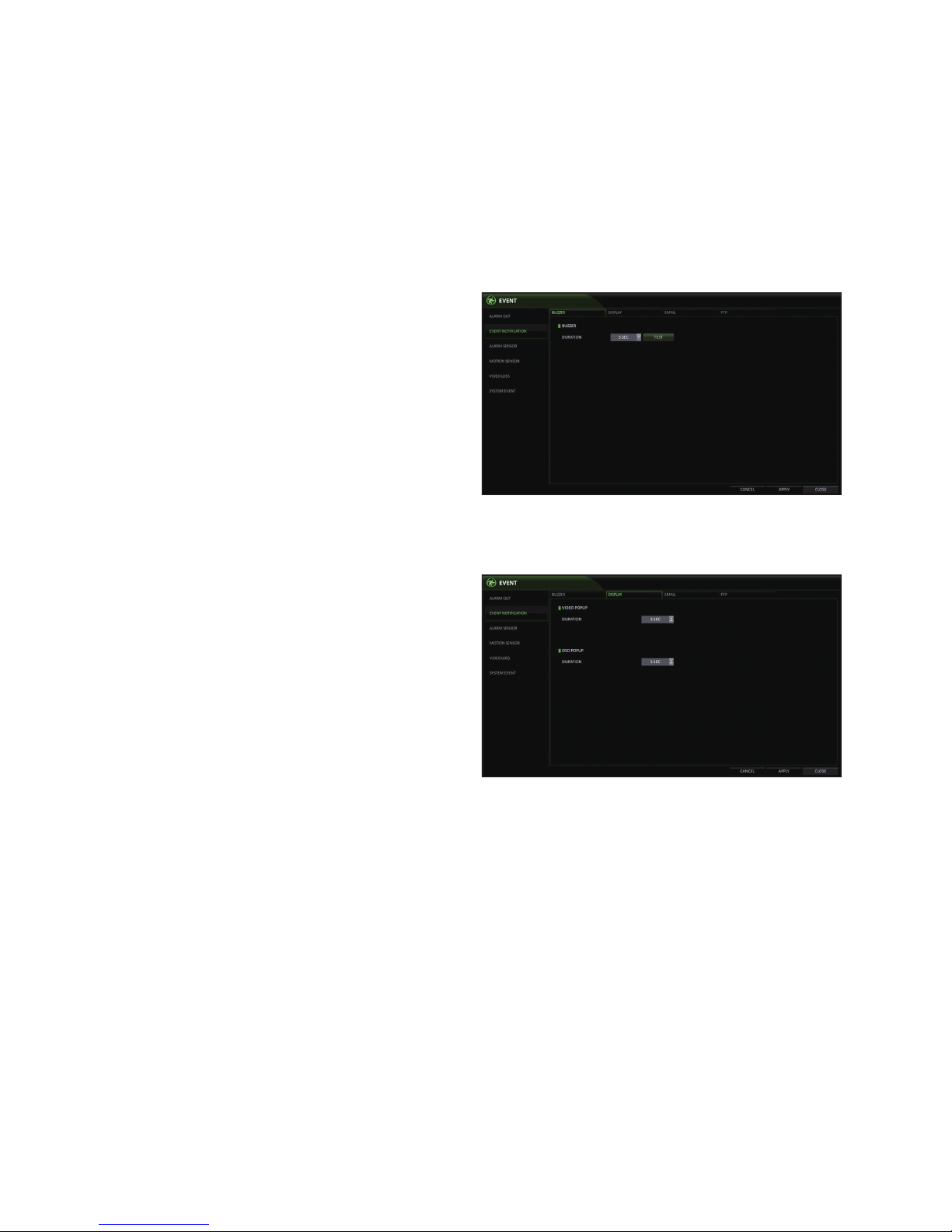

Buzzer output
You can notify the user of an event using the buzzer.
DU R ATIO N
-
TRANSPARENT : Keep the buzzer out for as long as the event occurs.
-
UNTIL KEY : Keep the buzzer out until a mouse or remote control button is pressed.
-
5 ~ 300 SEC : Keep the buzzer out for a specified time.
Display
If an event occurs, you can configure the video popup or a popup message to notify the user.
VIDEO POPUP : Display the video channel that is
synchronized with the event on a single split screen. Set the DURATION of the single split screen.
-
TRANSPARENT : Keep the video popup displayed as long as the event occurs.
-
UNTIL KEY : Keep the video popup displayed until a mouse or remote control button is pressed.
-
5 ~ 300 SEC : Keep the video popup displayed for a specified time.
If multiple events occur at the same time, or if multiple event-related video channels exist, the video popup will be displayed in the maximum split screen mode rather than the single split screen mode.
OSD POPUP : This will notify the user of an event with a popup message if an OSD popup event occurs.
You can adjust the duration of the popup message.
-
UNTIL KEY : Keep the OSD popup displayed until a mouse or remote control button is pressed.
-
5 ~ 300 SEC : Keep the OSD popup displayed for a specified time.
Page 55
55

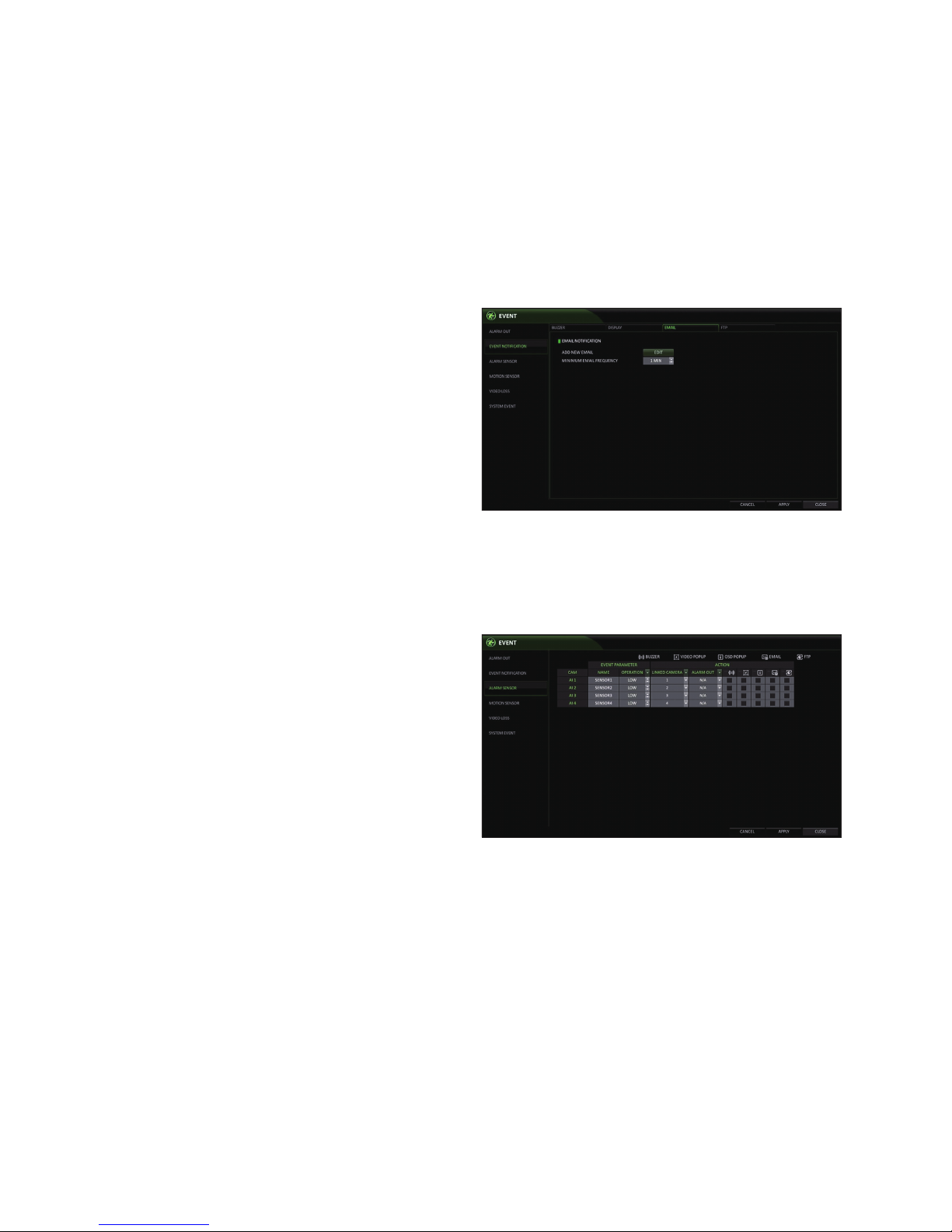

Email
If an event occurs, this will notify registered users of the event by email. If you do not want to receive the email, uncheck the <EMAIL NOTIFY> option in <MANAGEMENT>. (Page 41)
ADD NEW EMAIL
If you want to add a new mail recipient beside the existing ones, click this to add the recipient.
MINIMUM EMAIL FREQUENCY
Adjust the minimum frequency of sending emails. For example, even if you have set the minimum frequency to one minute and another event occurs less than one minute after the last email was sent, the email for the new event will be sent one minute af te r.
Some email ser vers can block this feature if the email delivery cycle is too short, and classify it as spam. Contact your email service provider to adjust the minimum deliver y cycle so that the server does not classify the email as spam.
Alarm Sensor
You can configure the settings of the alarm sensor and specify the operation if an event occurs.
1.
From <SYSTEM SETUP> - <EVENT>, select <ALARM SENSOR>.
2.
Use the [▲▼◀▶] buttons on the remote control or use the mouse to specify the sensor input method and operation.
NAME : You can specify the name of the alarm
sensor.
OPERATION : You can specify the type of the alarm
sensor.
-
N/O (Normal Open) : Normally the sensor is left Open. If the sensor switches to Close, an event will be triggered.
-
N/C (Normal Close) : Normally the sensor is left Close. If the sensor switches to Open, an event will be triggered.
LINKED CAMERA : Set the camera to sync with the alarm sensor if it is triggered. If you have programmed the alarm recording and the sensor triggered, all synchronized cameras will start alarm recording.
ALARM OUTPUT : Specify the alarm output channel
BUZZER : Enables the buzzer if an alarm is detected by the alarm sensor.
VIDEO POPUP : Enables the video popup if an alarm is detected by the alarm sensor. If there exist multiple <LINKED CAMERA>, the video popup will be displayed in the maximum split mode.
OSD POPUP : Enables a OSD popup message if it is detected by the alarm sensor.
EMAIL : Select to send an email if detected by the alarm sensor.
3.
To apply the change, click <APPLY> in the bottom of the screen.
4.
When done, press the [EXIT] button on the remote control or click <CLOSE> in the lower screen. The confirmation message appears and you will return to the previous menu.
System Setting
Page 56
System Setting
56

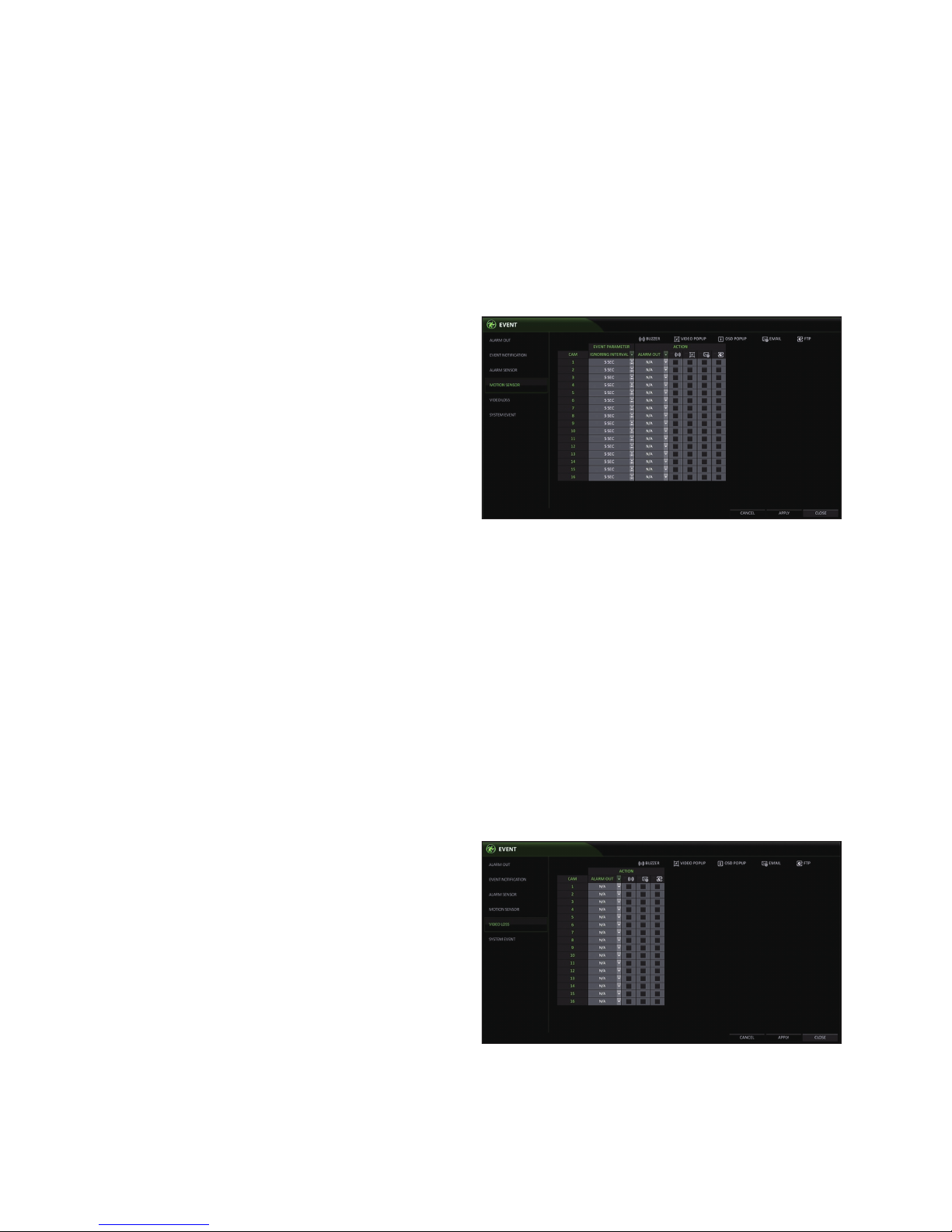

Motion Sensor
You can set an action to execute when motion is detected. To configure the motion sensor of each camera, see <CAMERA SETUP>.
1.
From <SYSTEM SETUP> - <EVENT>, select <MOTION SENSOR>.
2.
Use the [▲▼◀▶] buttons on the remote control or use the mouse to specify the ignoring inter val and operation.
IGNORING INTERVAL : Specify the minimum
interval of the motion event occurrence. For example, even if you have set the minimum frequency to 5 seconds and another motion event occurs less than 5 seconds after the last motion event occurred, the new event will be ignored.
Motion recording will be triggered immediately after the motion occurred regardless of the above settings.
ALARM OUTPUT : Enables the alarm output if motion is detected by the motion sensor.
BUZZER : Enables the buzzer if motion is detected by the motion sensor.
VIDEO POPUP : Enables the video popup if motion is detected by the motion sensor.
EMAIL : Select to send an email if motion is detected by the motion sensor.
3.
To apply the change, click <APPLY> in the bottom of the screen.
4.
When done, press the [EXIT] button on the remote control or click <CLOSE> in the lower screen. The confirmation message appears and you will return to the previous menu.
Video Loss
You can specify a reaction to the case where no video is received from the camera.
1.
From <SYSTEM SETUP> - <EVENT>, select <EVENT LOSS>.
2.
Use the [▲▼◀▶] buttons on the remote control or use the mouse to specify the reaction to a video loss
ALARM OUT : Enables the alarm output if video
loss occurs.
BUZZER : Enables the buzzer if video loss occurs.
EMAIL : Select to send an email if video loss
occurs.
3.
To apply the change, click <APPLY> in the bottom of the screen.
4.
When done, press the [EXIT] button on the remote control or click <CLOSE> in the lower screen. The confirmation message appears and you will return to the previous menu.
Page 57
57
5.

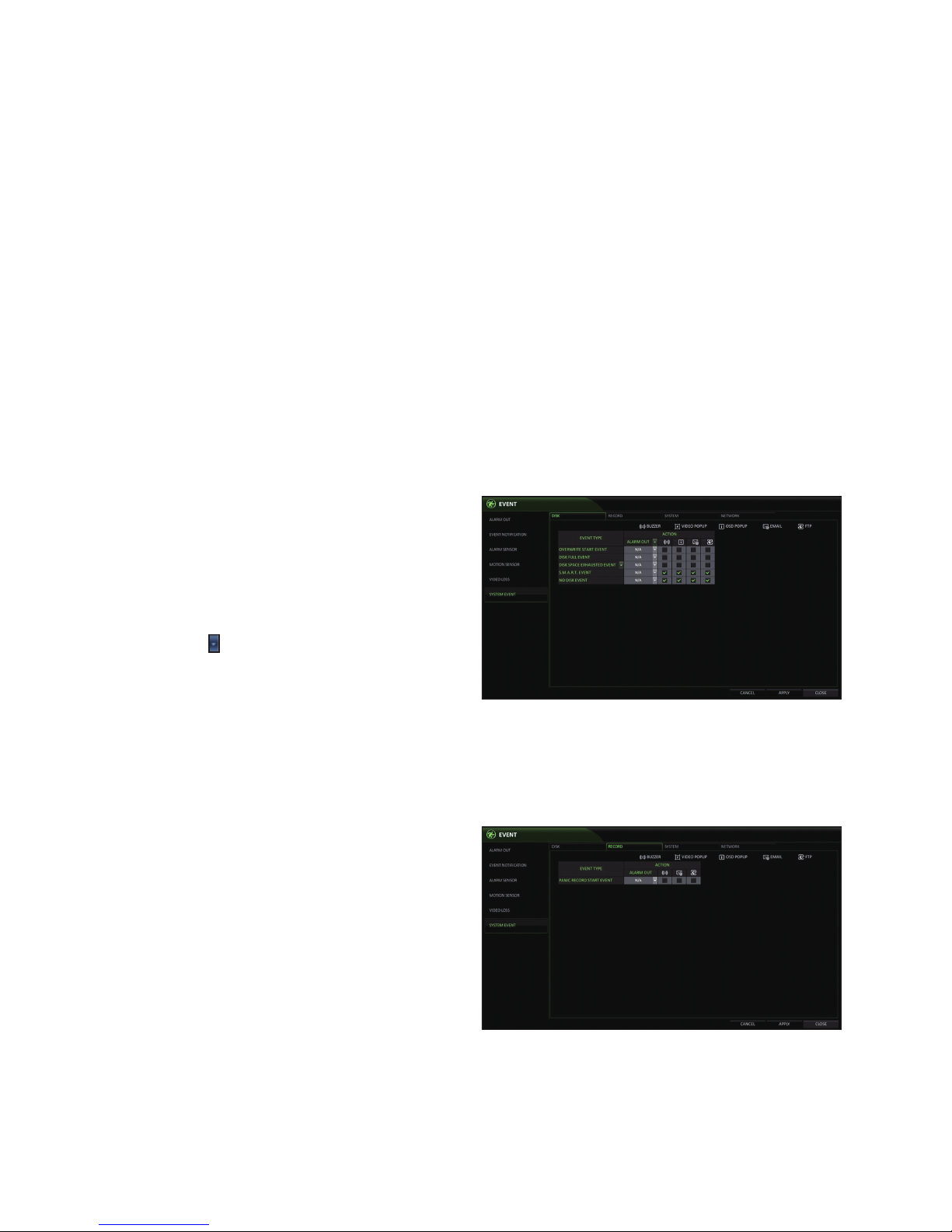

System Event
You can configure the DVR to send a notifiction if a system event occurrs (i.e. an event related to the disk, recording, network or system).
1.
From <SYSTEM SETUP> - <EVENT>, select <SYSTEM EVENT>.
2.
Use the [▲▼◀▶] buttons on the remote control or use the mouse to specify the reaction to each event.
3.
To apply the change, click <APPLY> in the bottom of the screen.
4.
When done, press the [EXIT] button on the remote control or click <CLOSE> in the lower screen. The confirmation message appears and you will return to the previous menu.
Disk
OVERWRITE START EVENT : if you set the disk
write mode to <OVERWRITE>, this event occurs when the disk is full and the overwriting begins.
DISK FULL EVENT : if you set the disk write mode
to <ONCE>, this event occurs when the disk is full (100%).
DISK SPACE EXHAUSTED EVENT : Event that is
triggered if the disk is almost full. Click to specify the threshold percentage of usage to trigger the event.
S.M.A.R.T EVENT : Occurs if the disk encounters a
S.M.A.R.T error.
NO DISK EVENT : Occurs due to a disk failure or cable problem.
•
To detect the disk error, it is recommended not to change the settings of the S.M.A.R.T event, no disk event and buzzer output.
Record
PANIC RECORD START EVENT : Specify the action to perform when the panic recording begins.
System Setting
Page 58
System Setting
58

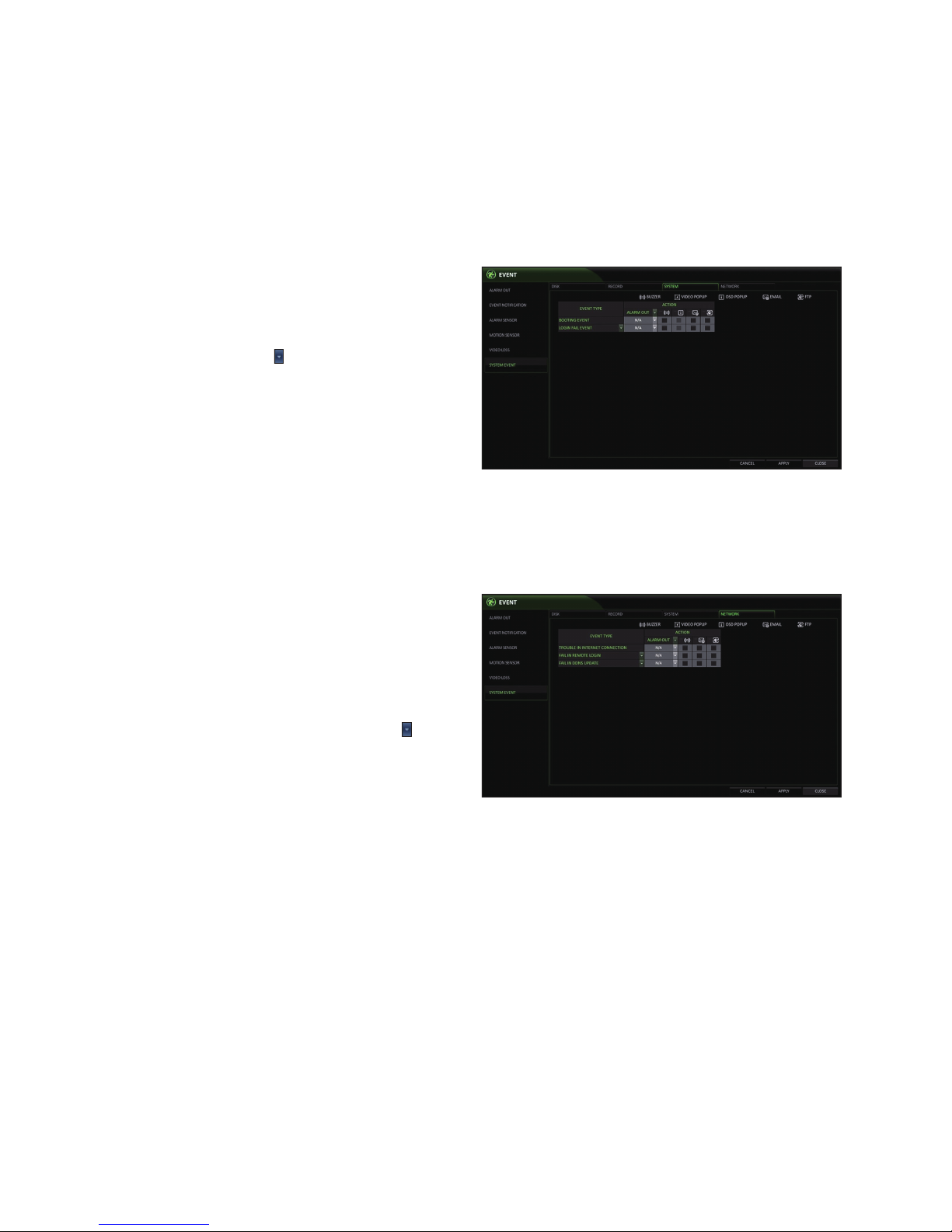

System
BOOTING EVENT: This event occurs when the DVR
is restarted or booting up..
LOGIN FAIL EVENT: This event occurs when a user
fails to log in to the DVR. You can specify the trigger threshold by selecting the drop down <
>.
Network
TROUBLE IN INTERNET CONNECTION : Occurs if
the Internet connection to the DVR fails. If you do not want to connect the DVR to the network, leave the <ACTION> item blank.
FAIL IN REMOTE LOGIN : This event occurs if a
remote client fails to log in due to an invalid ID or password. You can specify the number of failed log in attempts by selecting the drop down <
>.
FAIL IN DDNS UPDATE : This event occurs if the
DVR tried to update the DDNS address but failed.
Page 59
59
Record Setting
You can configure the record settings for the DVR. Only authorized users can access the Record Setup menu.
To start the Record Setup menu
How to use the mouse
➔ ➔ ➔
ENTER
ENTER
How to use the remote control
SEARCH SETUP
MENU
ENTER
ENTER
SEARCH SETUP
ENTER
ENTER
ENTER
SEARCH SETUP
ENTER
➔ ➔ ➔
Record Setting
Page 60
Record Setting
60

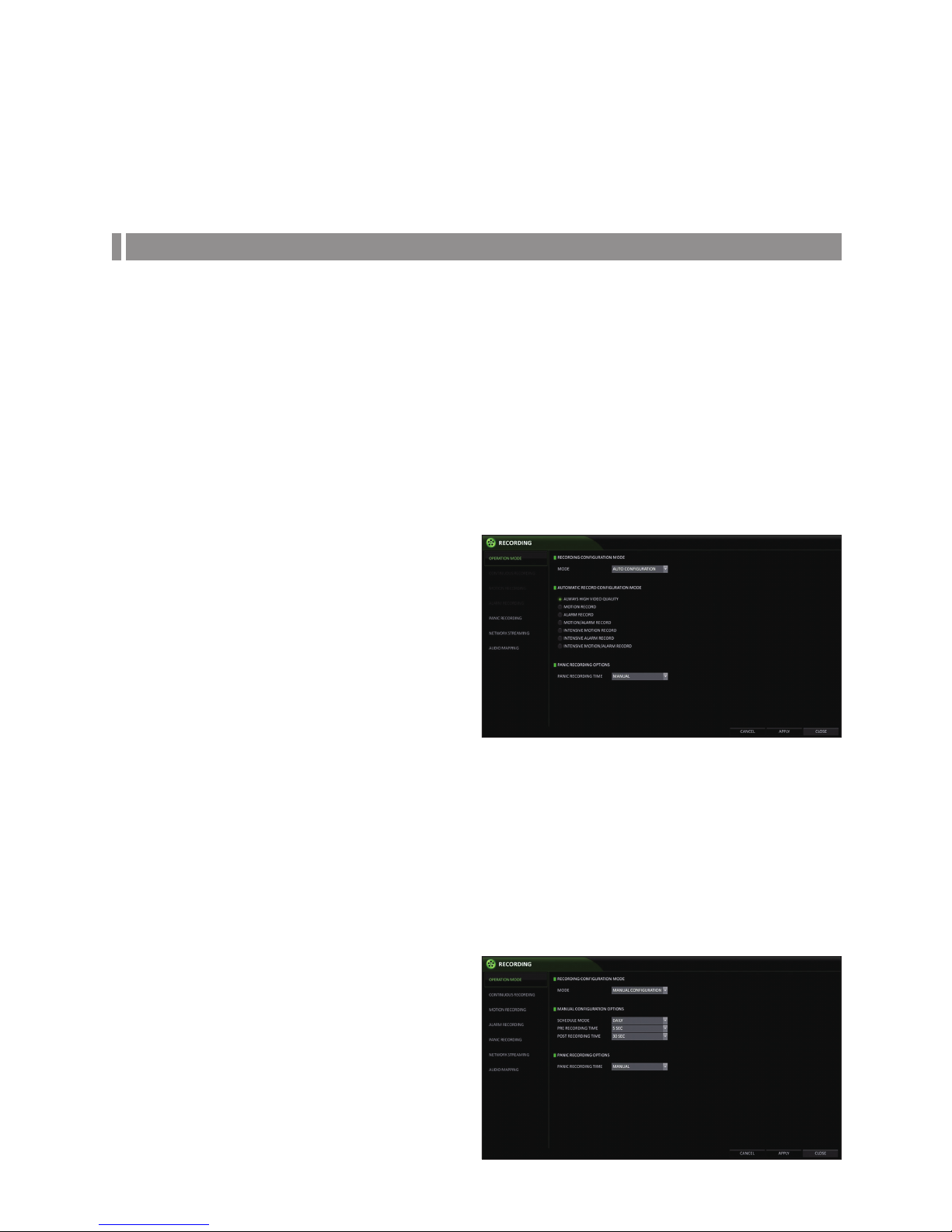

Record Setup

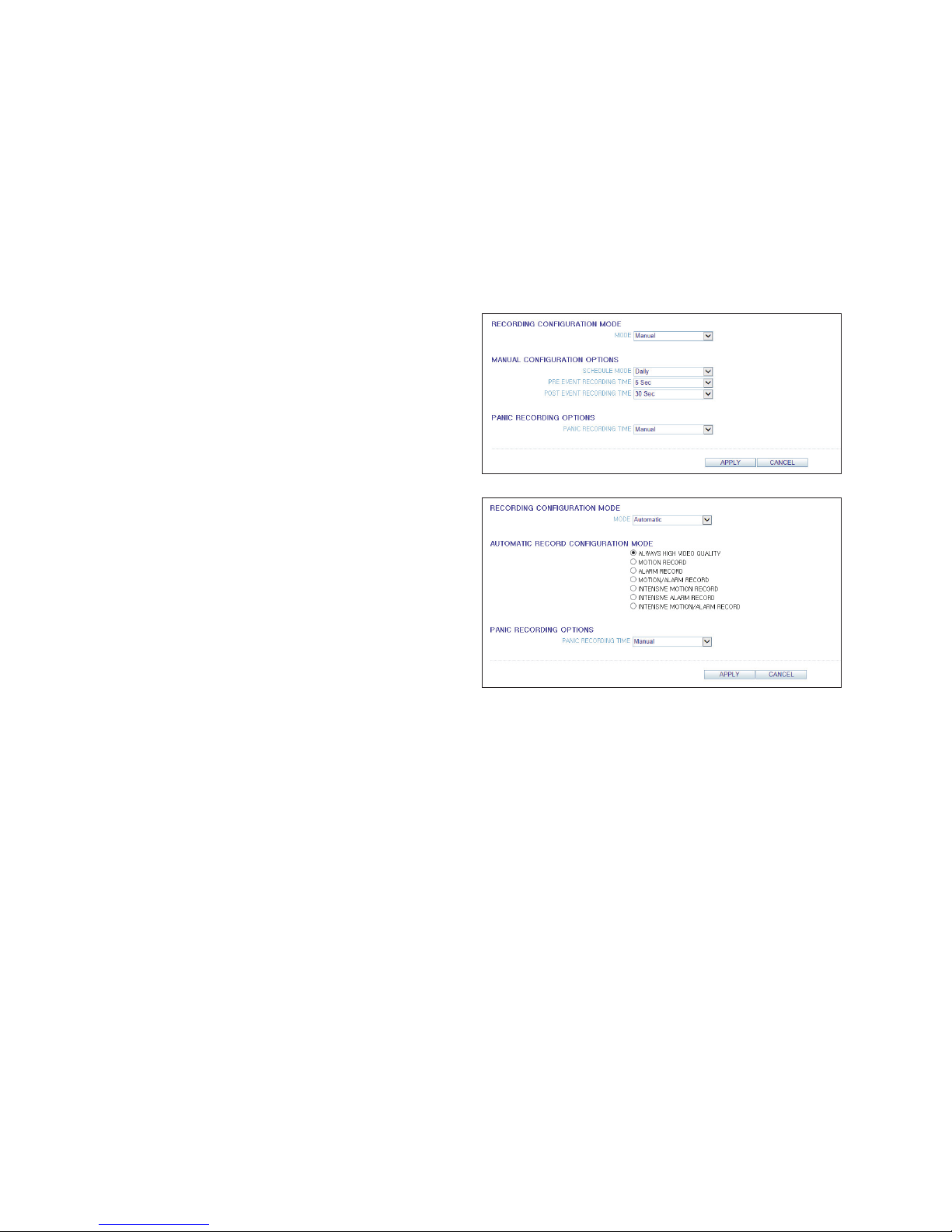

Operation Mode
You can set the recording options for Auto or Manual mode.
1.
From <RECORDING> menu, select <OPERATION MODE>.
2.
Use the [▲▼◀ ▶] buttons or use the mouse to set <RECORDING CONFIGURATION MODE> to <AUTO CONFIGURATION> or <MANUAL CONFIGURATION>.
3.
Set the recording options for each selected Record mode.
4.
To apply the change, click <APPLY> in the bottom of the screen.
5.
When done, press the [EXIT] button on the remote control or click <CLOSE> in the lower screen. The confirmation message appears and you will return to the previous menu.
Auto Conguration
The DVR will recommend the optimized settings for the selected record mode.
ALWAYS HIGH VIDEO QUALITY : Recording will
proceed in the best quality regardless of the event at all times. As this option will always make recording in the best quality, the recording period is the shortest compared to the other record modes.
MOTION RECORD : Recording will begin only if
motion is detected.
ALARM RECORD : Recording will begin only if an
alarm event occurs.
MOTION/ALARM RECORD : Recording will begin only
if motion is detected or an alarm event occurs.
INTENSIVE MOTION RECORD : DVR will record
continually in normal quality, However, the quality will switch to high if motion is detected.
INTENSIVE ALARM RECORD : DVR will record continually in normal quality. However, the quality will switch to high
if an alarm event occurs.
INTENSIVE MOTION/ALARM RECORD : DVR will record continually in normal quality. However, the quality will
switch to high if an alarm event occurs or motion is detected.
Motion : Normally, it means the movement of an object. However, it implies a change to the illumination in the context of the DVR. Ex) Vehicle lights (headlights), illumination change, etc.
Manual Conguration
If you set the record mode to <MANUAL CONFIGURATION>, the manual configuration window will appear where you can set the manual recording and panic recording options.
MANUAL CONFIGURATION OPTIONS : You can
configure the recording settings by the time, date, and channel.
-
SCHEDULE MODE : Set the recording schedule for a day (daily) or for a week (weekly).
-
PRE RECORDING TIME : Set the pre-recording time.
-
POST RECORDING TIME : Set the post­recording time.
PANIC RECORDING OPTIONS : Set the panic
recording duration. If it is set to <MANUAL CONFIGURATION>, recording will continue until you turn it off manually.
Page 61
61

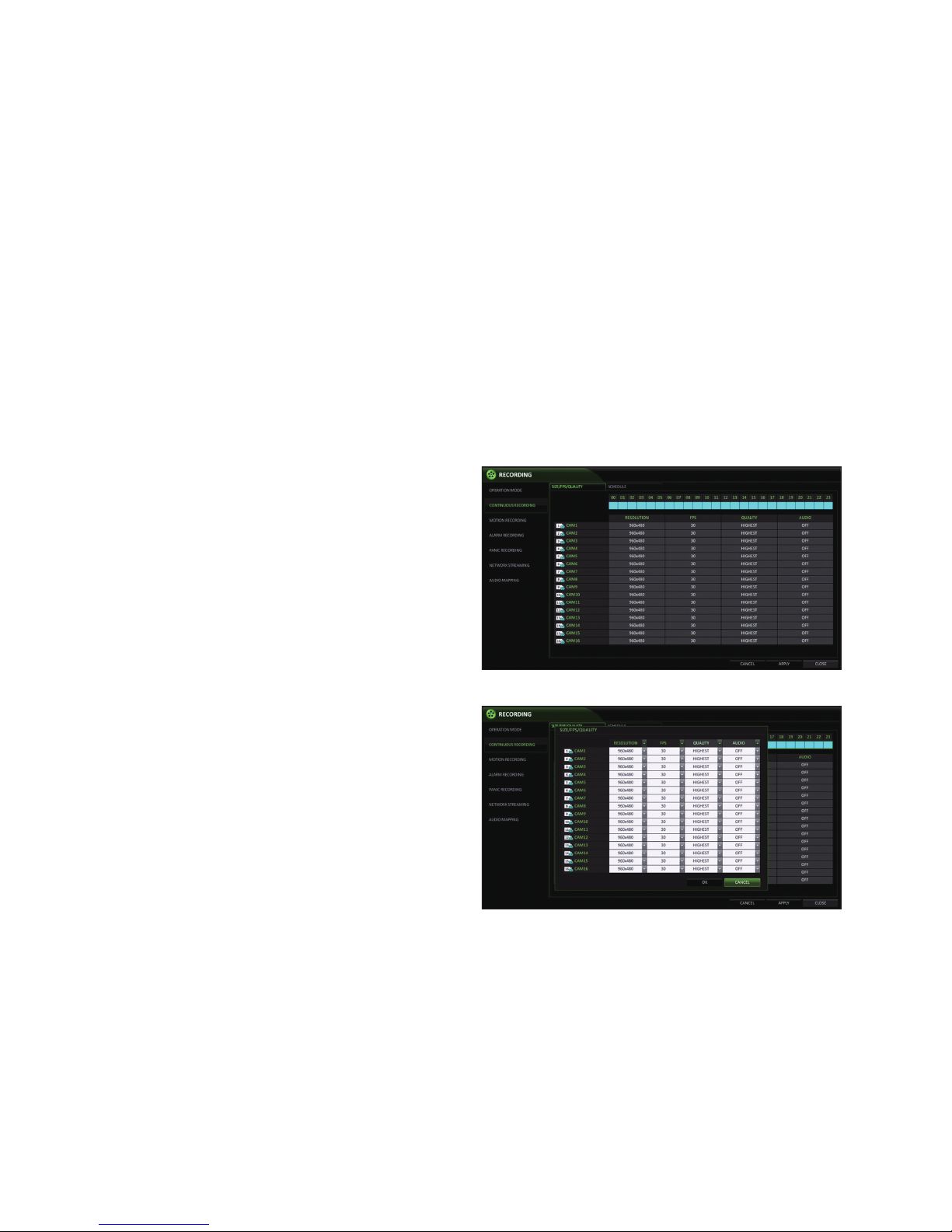

Continuous Recording
You can configure the settings of: continuous recording time, recording size, frame rate per second and quality.
1.
From the <RECORDING> menu, select <CONTINUOUS RECORDING>.
From <OPERATION MODE>, you must set <RECORDING CONFIGURATION MODE> to <MANUAL CONFIGURATION> before you can set the <CONTINUOUS RECORDING>.
2.
Use the [▲▼◀▶] buttons on the remote control or use the mouse to select either <SIZE/FPS/QUALITY> or <SCHEDULE>.
Size/FPS/Quality Setting
1.
Please select the day of the week to perform continuous recording. From <OPERATION MODE>, you must set the <SCHEDULE MODE> of the <MANUAL CONFIGURATION OPTIONS> to <WEEKLY> before you can specify the <DAY>. NOTE: If you want to configure every day with the same record settings set the <SCHEDULE MODE> to <DA I LY>
2.
Click a time cell from which you want to edit the SIZE/ FPS/Quality and drag it to a desired cell. Or use the [▲▼◀ ▶] buttons on the remote control to move to the cell and press [ENTER]. Then, use the [▲▼◀ ▶] buttons to move to a desired cell and press [ENTER] again.
3.
When the cell selection is complete, the "SIZE/FPS/ QUALITY" table appears.
•
Specify the <RESOLUTION>, <FPS>, <QUALITY> and use of the <AUDIO> recording for each channel.
RESOLUTION : set the size of the video recording.
FPS : set the frame rate per second.
QUALITY : set the recording quality.
AUDIO : specify the use of the audio recording.
4.
When done, click <OK>. You can check the recording size in the size table under the time selection bar.
•
The video resolution and the FPS option may differ depending on the specification of the camera.
Record Setting
Page 62
Record Setting
62

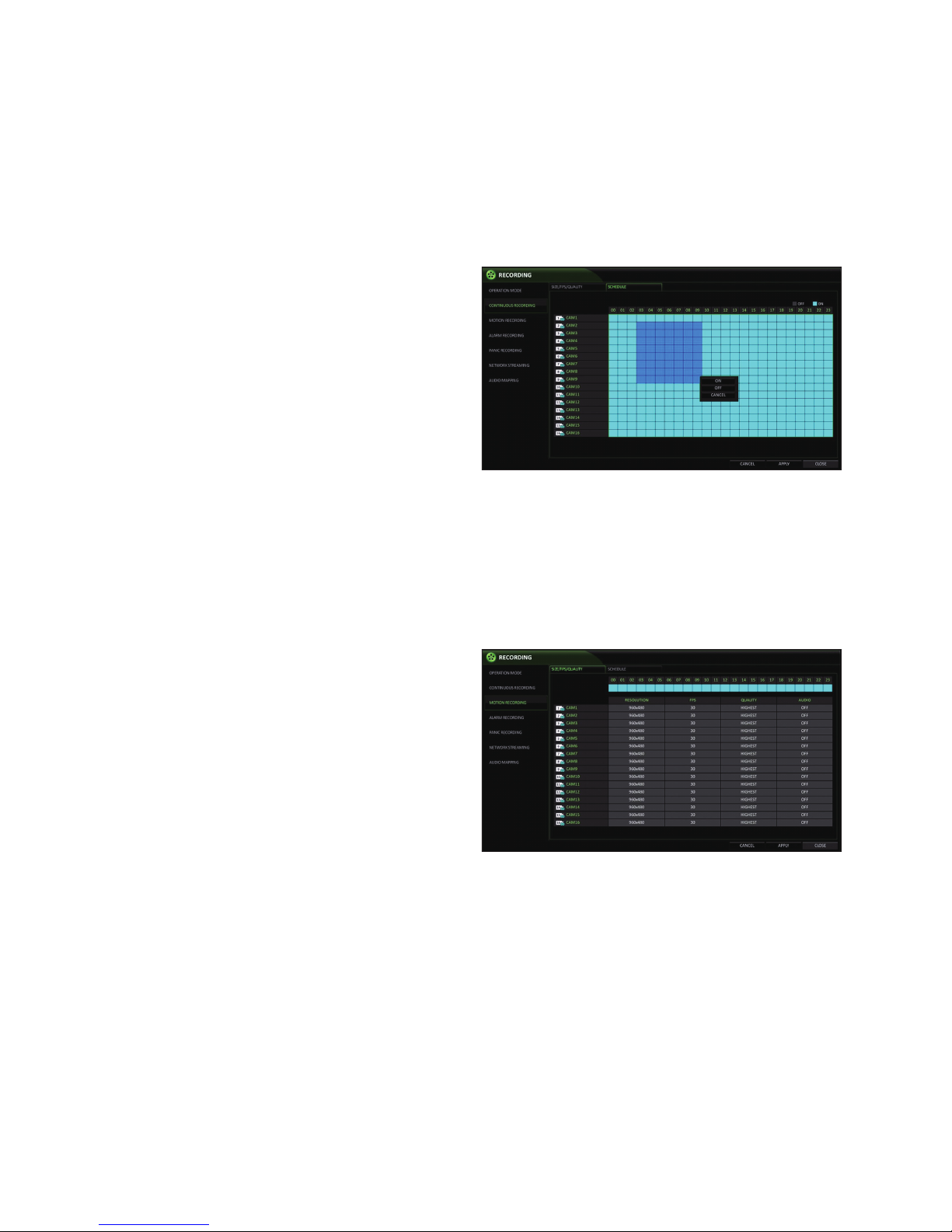

Schedule Setting
1.
Select a day of the week <DAY> to configure the recording schedule.
2.
Click a time cell from which you want to make the schedule and drag it to a desired cell. For example, to schedule recording between 8am and 5pm, click the cell in the "08" column (for the desired camera) and drag it to the cell in the "17" column. Or use the [▲▼◀ ▶] buttons on the remote control to move to the cell and press [ENTER]. Then, use the [▲▼◀ ▶] buttons to move to a desired cell and press [ENTER] again.
3.
When the time selection is complete, you will be prompted with three options: ON (enables the recording), OFF (disables the recording), CANCEL (cancels any changes).
4.
To apply the change, click <APPLY> in the bottom of the screen.
5.
When done, press the [EXIT] button on the remote control or click <CLOSE> in the lower screen. The confirmation message appears and you will return to the previous menu.
Motion Recording
You can configure the settings of: motion recording time, recording size, frame rate per second and quality
1.
From the <RECORDING> menu, select <MOTION RECORDING>.
2.
Use the [▲▼◀▶] buttons on the remote control or use the mouse to select either <SIZE/FPS/QUALITY> or <SCHEDULE>.
3.
Set each item of <RESOLUTION>, <FPS>, <QUALIT Y> and use of the <AUDIO> for the motion recording.
For more information, see the "Continuous Recording". (page 61)
4.
To apply the change, click <APPLY> in the bottom of the screen.
Page 63
63
5.
When done, press the [EXIT] button on the remote control or click <CLOSE> in the lower screen. The confirmation message appears and you will return to the previous menu.

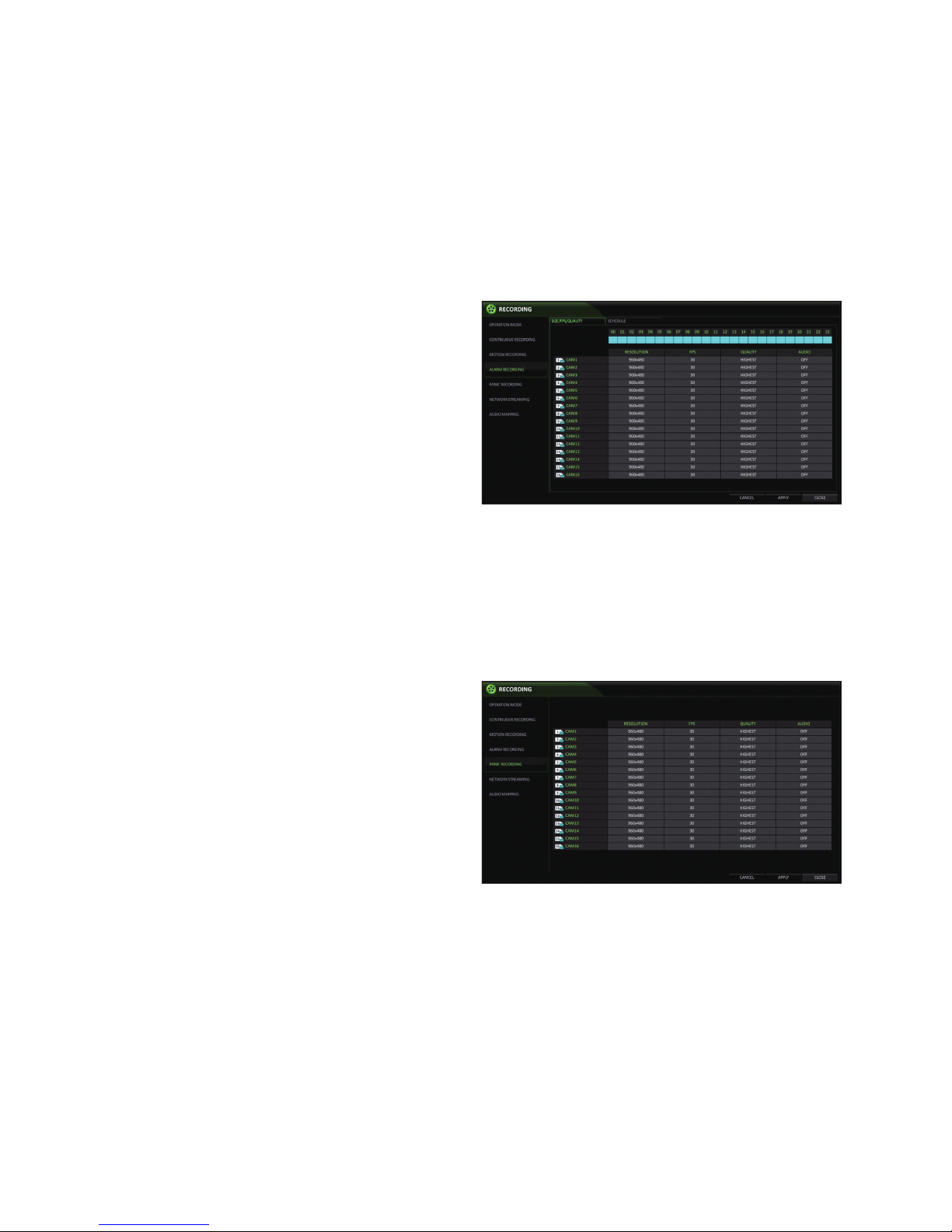

Alarm Recording
You can configure the settings of: alarm recording time, recording size, frame rate per second and quality
1.
From the <RECORDING> menu, select <ALARM RECORDING>
2.
Use the [▲▼◀▶] buttons on the remote control or use the mouse to select either <SIZE/FPS/QUALITY> or <SCHEDULE>.
3.
Set each item of <RESOLUTION>, <FPS>, <QUALIT Y> and use of the <AUDIO> for the alarm recording.
For more information, see the "Continuous Recording". (page 61)
4.
To apply the change, click <APPLY> in the bottom of the screen.
5.
When done, press the [EXIT] button on the remote control or click <CLOSE> in the lower screen. The confirmation message appears and you will return to the previous menu.
Panic Recording
You can configure the settings of: panic recording time, recording size, frame rate per second and quality
1.
From the <RECORDING> menu, select <PANIC RECORDING>.
2.
Set each item of <RESOLUTION>, <FPS>, <QUALIT Y> and use of the <AUDIO> for the panic recording.
For more information, see the "Continuous Recording". (page 61)
3.
To apply the change, click <APPLY> in the bottom of the screen.
4.
When done, press the [EXIT] button on the remote control or click <CLOSE> in the lower screen. The confirmation
Record Setting
Page 64
64
Search
You can search for the recorded video data in the HDD by time, thumbnail, event, etc.
To move to the Search menu while in monitoring
How to use the mouse
➔ ➔ ➔
ENTER
ENTER
How to use the remote control 1
➔ ➔ ➔
SEARCH SETUP
ENTER
ENTER
ENTER
SEARCH SETUP
ENTER
SEARCH SETUP
MENU
ENTER
ENTER
How to use the remote control 2
SEARCH SETUP
To move to the Search menu while in playback mode
How to use the mouse
➔ ➔ ➔
ENTER
ENTER
How to use the remote control
SEARCH SETUP
Page 65
65

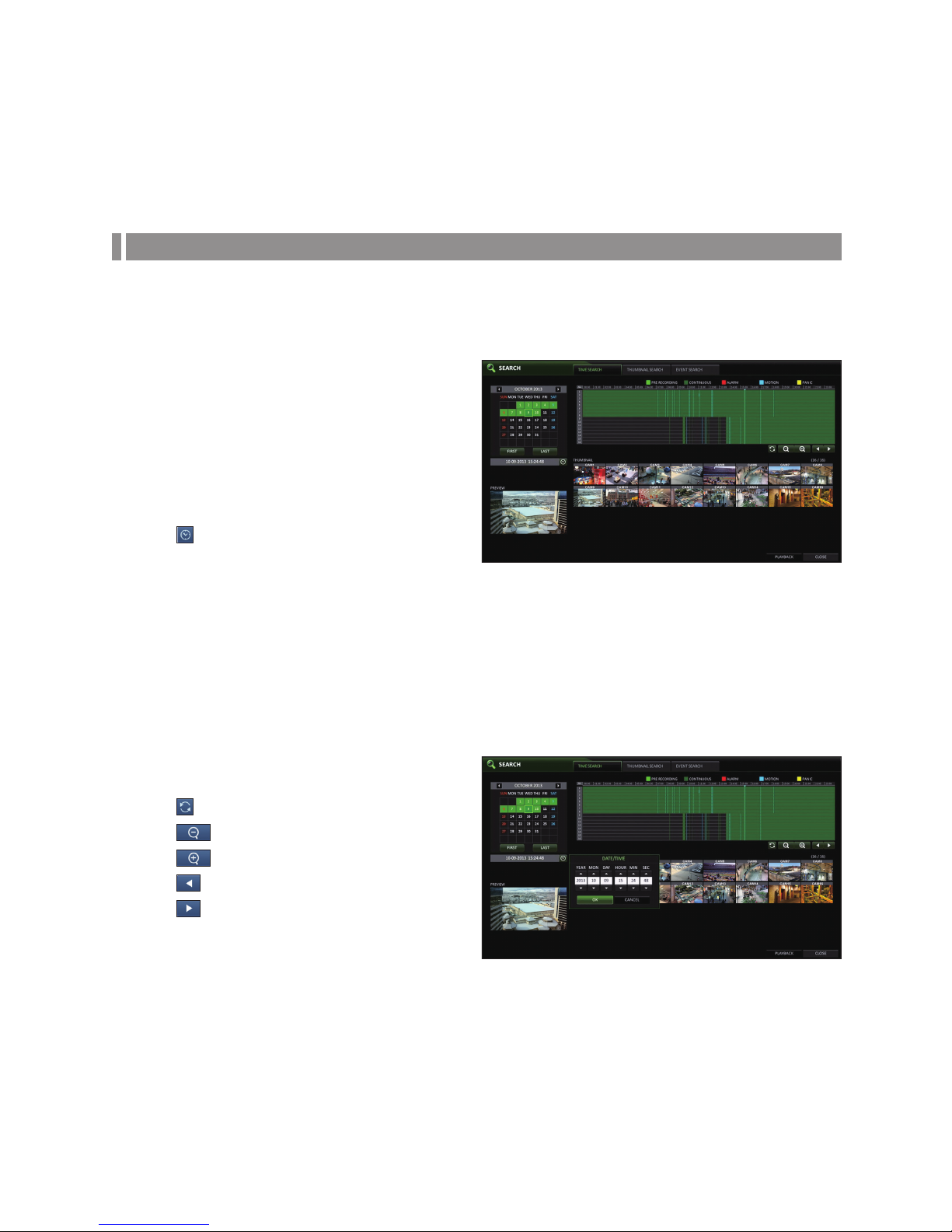

Search Settings
Time Search
Using the calendar, you can search by date.
1.
From the <SEARCH> menu, select <TIME SEARCH>.
2.
Use the [▲▼◀▶] buttons or use the mouse to specify the search date and time from the calendar in the left corner of the screen.
FIRST : The first date of recording is automatically
selected.
LAST : The last date of recording is automatically
selected.
 : Press this to display the time selection menu
where you can specify the time and date.
3.
You can identify the t ype of the recording data by the color in the bar.
Light Green (Pre recording) : The pre-recording (set the
<PRE RECORDING TIME> from <OPERATION MODE>)
Dark Green: Continuous Recording
Red: Alarm Recording
Blue: Motion Recording
Yellow: Panic Recording
4.
Click to move to a desired star t time in the time bar. Use the buttons at the bottom of the status bar as well.
 : Recall the recording data.
: Zoom in on the timeline.
: Zoom out on the timeline.
 : Move to a previous time on the time bar.
 : Move to a previous time on the time bar.
5.
Click a thumbnail channel or use the [▲▼◀▶] buttons on the remote control to move to a desired channel and press [ENTER]. You can check the video in <PREVIEW>.
•
Click to move to a desired time, or simply double-click a desired time in the time bar to play the video data for that time.
6.
Press the [ENTER] button again on the remote control. Or with the mouse, simply double-click on the channel. You will move to the playback screen.
Search
Page 66
Search
66
7.
If you want to stop playing and return to the search screen, press [EXIT] or [SEARCH] on the remote control. You can also click <MENU> in the lower left corner and select a desired menu.

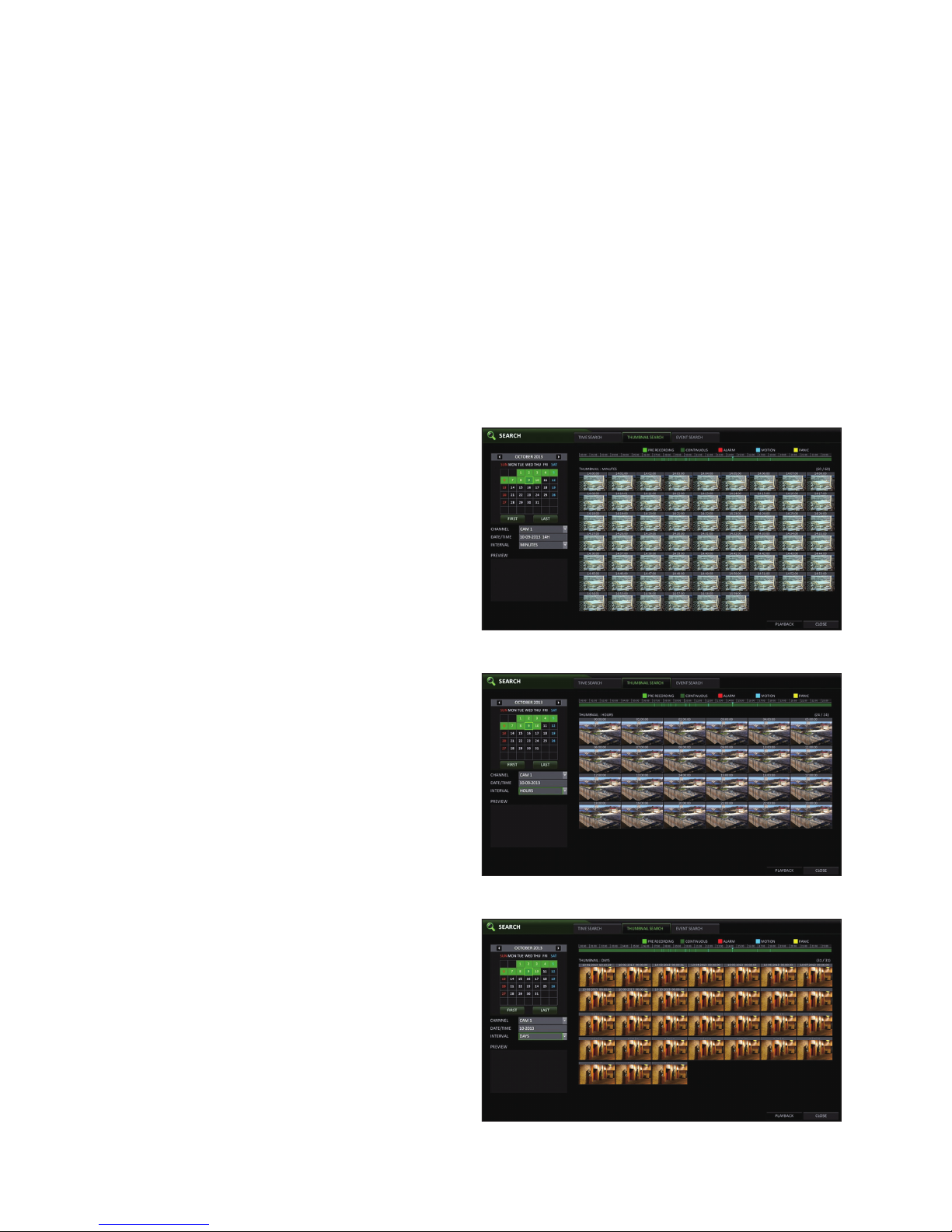

Thumbnail Search
To improve your search, you will be provided with a list of thumbnails. Select Day, Hour or Minute to narrow down the search results.
1.
From the <SEARCH> menu, select <THUMBNAIL SEARCH>.
2.
Use the [▲▼◀▶] buttons or use the mouse to specify the search date and time from the calendar in the left corner of the thumbnail search screen.
FIRST : The first date of recording is automatically
selected.
LAST : The last date of recording is automatically
selected.
CHANNEL : Select a channel to search for.
DATE/TIME : Specify the search date and time.
The menus available differ depending on the selected interval mode.
INTERVAL: Select a time interval of the thumbnail
view.
3.
Double-click a desired play time in the recording data bar, or double-click a desired time image from the thumbnail list. You will move to the playback screen.
4.
If you want to stop playing and return to the search screen, press [EXIT] or [SEARCH] on the remote control. You can also click <MENU> in the lower left corner and select a desired menu.
< "Minute" selection screen >
< "Hour" selection screen >
< "Day" selection screen >
Page 67
67

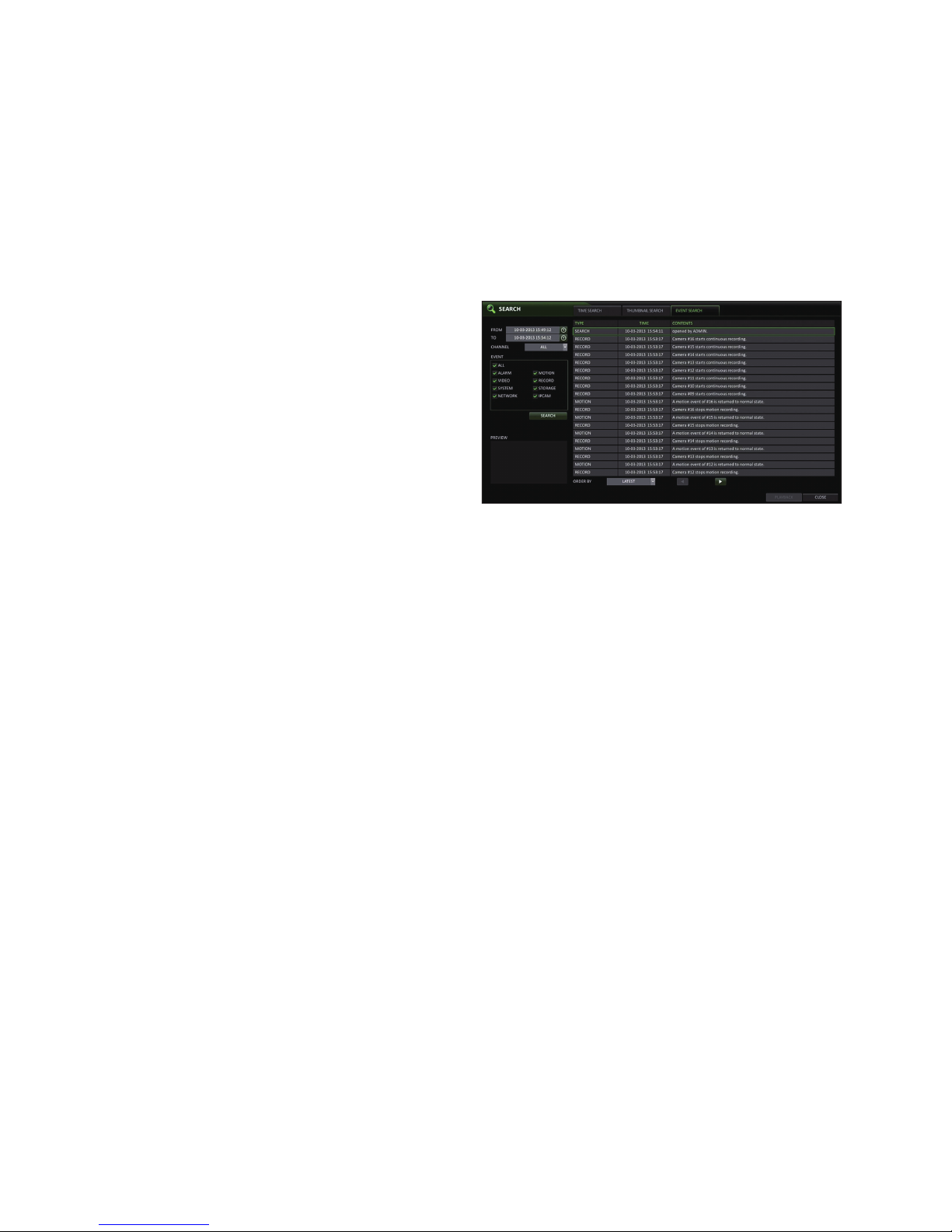

Event Search
Search for events that occurred at the specified time and select an event to play from the list.
1.
From the <SEARCH> menu, select <EVENT SE ARCH>.
2.
Use the [▲▼◀▶] buttons or use the mouse to specify the <START> and <END> times in the left of the event search list.
3.
Select a channel to search.
4.
Mark the checkbox of the event to search from the <EVENT> list.
5.
Press the <SEARCH> button. The search results will be listed as shown.
TYPE : displays the event type.
TIME : displays the recording start time.
CONTENTS : shows the details of the event found.
ORDER BY : If you select <OLDEST>, the list will be sorted with the earliest one on top.
6.
Double-click a desired event or click <PLAY> in the lower right corner to move to the play screen.
7.
If you want to stop playing and return to the search screen, press [EXIT] or [SEARCH] on the remote control. You can also click <MENU> in the lower left corner and select a desired menu.
Search
Page 68
68
Play
If you want to play
1.
To play recorded video from the live screen, move the cursor to the right margin to display the Timeline.
-
Simply double-click a desired time point the Timeline.
-
Select a desired channel in the live screen and right-click to select <PLAY> in the context menu. Then, select a desire play time.
Playback screen conguration
Video Window
Display the current video.
Timeline
The vertical bar in the timeline indicates the current point of playback. Double-click a desired point in the timeline to start playing the video from that point. Click and drag to specify a seleted time period--right-click the selected time range to Export/Archive, Event Search, or to Reserve Data.
Menu / split-screen selection menu
For more information about how to use each button, refer to "Using the status bar in the live mode". (page 26)
Play Bar
You can star t, stop, or change the play speed of the current video.
Video Window
Playback channel selection menu
Play Bar
Menu/split-screen selection menu
Play Time
Timeline
Page 69
69
Playback channel selection menu
Item Description
CAM1 Display the title of the selected channel.
Zoom
Zoom the video of the selected channel. (The zooming function is active only in '1' split screen.)
Start bookmarking
The "Set bookmark" popup appears, and you can bookmark a play point for the backup purpose.
Snapshot Capture Capture the current live video and save it in the .jpeg format.
Using the play bar
Item Description
Jump
Move forward or backward.
Reverse Fast Play
The video will be reversely played at the speed of x64 > 32> 16 > 8 > 4 > 2 in this order.
Reverse Play
Play the video in the reverse direction.
Pause
Stop playing forward or playback temporarily.
Play
Play the video forward.
Fast Forward
The video will be played forward at the speed of x2 < 4 < 8 < 16 < 32 < 64 in this order.
Zoom In
Move to the zoom in/out screen of the selected channel.
Snapshot
Capture the current live video and save it as a .jpeg You can save the captured snapshot to the HDD or export it to an external USB memory device. While taking a snapshot, the current video will stop playing.
Start/end bookmark
Add a bookmark for the current playback screen. Press this to display the "SET BOOKMARK" window. Provide each entry and click Star t. The arrow in the bookmark button blinks to indicates that the bookmarking is in process. If you press the Bookmark button again, the bookmarking stops and the current settings can then be reserved by pressing the RESERVE button The reserved data can be backed up in the Archive menu or can be played in the "RESERVED DATA MANAGEMENT" menu.
Play
Page 70
Play
70

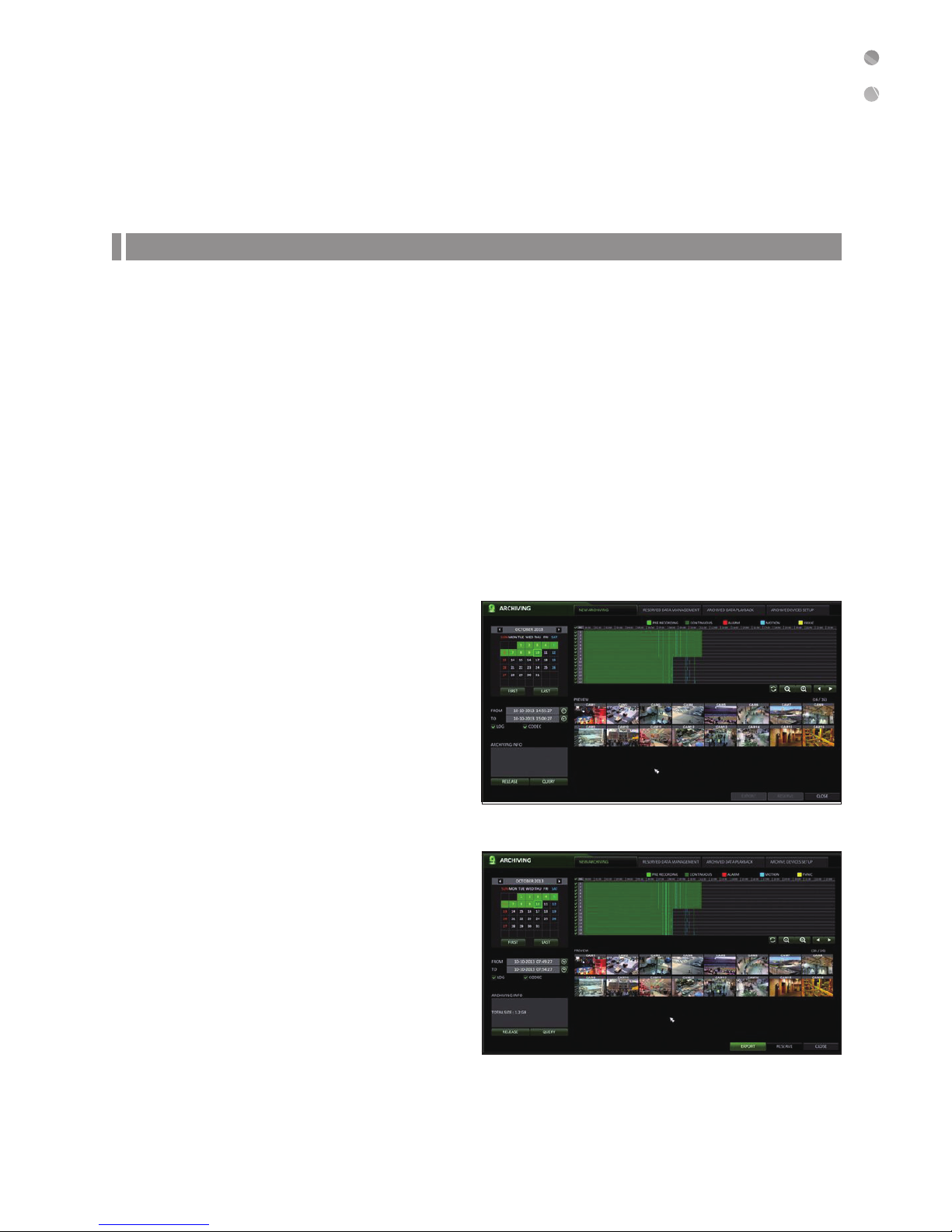

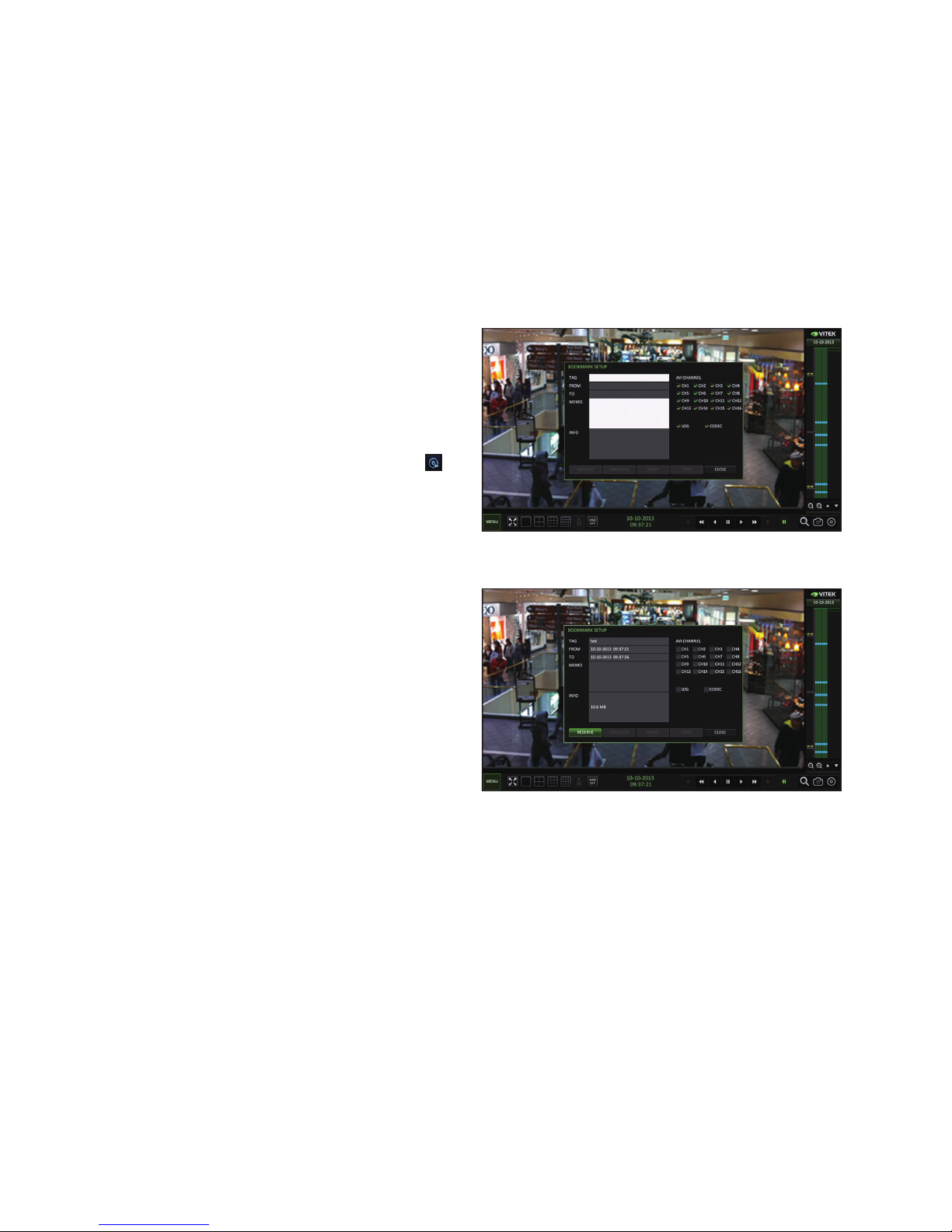

Bookmarking
During playback, you can add a bookmark for reserving the video data. You can view the bookmarked data in the Archive menu, it can also be saved to a connected USB device.
1.
Provide a tag name in the <TAG> box.
2.
Provide the details of the reserved data in the <MEMO> box.
3.
Click <START>. You will return to the play screen with the backup progress.
4.
To stop the bookmarking, click <BOOKMARK( )>.
5.
To quit the bookmarking, click <STOP>. To continue with bookmarking, just click <CONTINUE>.
6.
Click <RESERVE>. You can export the reserved data to a connected storage device using the <ARCHIVE> menu.
What is the <RESERVE> function? With the 'RESERVE' function, you can reserve data even in overwrite mode. This is useful if you want to backup data but you have no backup device available such as USB memory. When you have backed up the reserved data to an external device, it is recommended to delete the internal reserved data.
Page 71
71
Archiving
To start the Archive menu
Archive
You can archive the searched data or reserve it.
1.
From the <ARCHIVING> menu, select <NEW ARCHIVING>.
2.
Select a date for the archive from the calendar in the left.
Days containing recording data will be marked in a colored box.
-
FIRST : The first date of recording is automatically selected.
-
LAST : The last date of recording is automatically selected.
3.
Check the <FROM> and <TO> times.
You can also drag the timeline to specify the start and end time.
4.
Mark the <LOG> and <CODEC> checkboxes to include these with the archived media. NOTE: To view the video on a PC, you will need the CODEC.
5.
Click <QUERY>. The results will be listed in <ARCHIVING INFO>.
The maximum backup capacity for one time is 20GB.
If the archiving request exceeds 20GB, the end time will be adjusted to within 20GB.
6.
To export to a storage device, insert USB to the DVR and click <EXPORT>.
7.
If you just want to reserve the data, click <RESERVE>. When the <TAG NAME> dialog appears, enter the name and click <OK>. Click <RESERVE> to save it to the HDD.
Using <RESERVE> will compromise the recording days available.
8.
To exit the Archive menu, click <CLOSE>.
Archiving

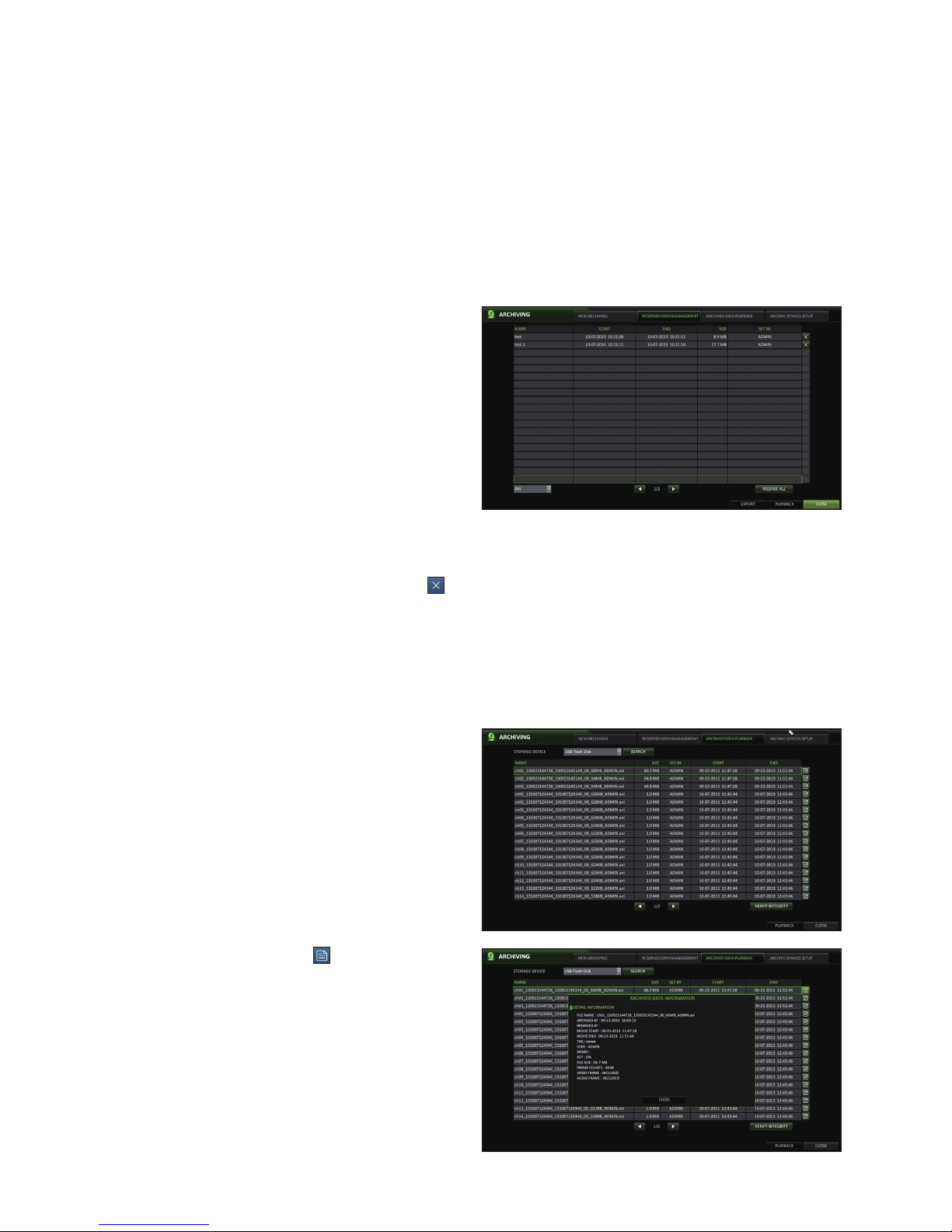

Page 72
Archiving
72
Reserved data management
You can search for the reserved data and delete or export it to a storage device.
1.
From the <ARCHIVING> menu, select <RESERVED DATA MA NAGEM ENT>. The reserved data will be listed.
2.
Select a data type from <AVI> and <Snapshot Capture>.
AVI : Searches AVI video files stored in the DVR.
SNAPSHOT CAPTURE : Searches captured
snapshots stored in the DVR.
3.
If you want to play the data, double-click a desired data item or click it and select <PLAYBACK>.
If selecting <Snapshot Capture>, the <PLAYBACK> button will be disabled--you cannot playback a snapshot.
4.
If you want to export to a storage device, connect it to the DVR and click <EXPORT>.
5.
If you want to delete the reser ved data, click < > next to the list. Click <CANCEL ALL> to cancel reserving the whole page at once.
6.
To exit the Archive menu, click <CLOSE>.
Playing the archived data
You can play archived data from a USB storage device. In addition, you can check the details and integrity of the data.
1.
While in <ARCHIVED DATA PLAYBACK> connect the USB storage device containing the archived data.
2.
When the storage device is recognized in <STORAGE DEVICE>, click <SEARCH>.
3.
To view the details, click < > next to the list.
Click <VERIFY INTEGRIT Y> to check if the data is corrupt or incomplete.
4.
Select an item to play from the list, either double-click an item, or select an item then click <PLAYBACK>.
5.
To exit the Archive menu, click <CLOSE>.
Page 73
73

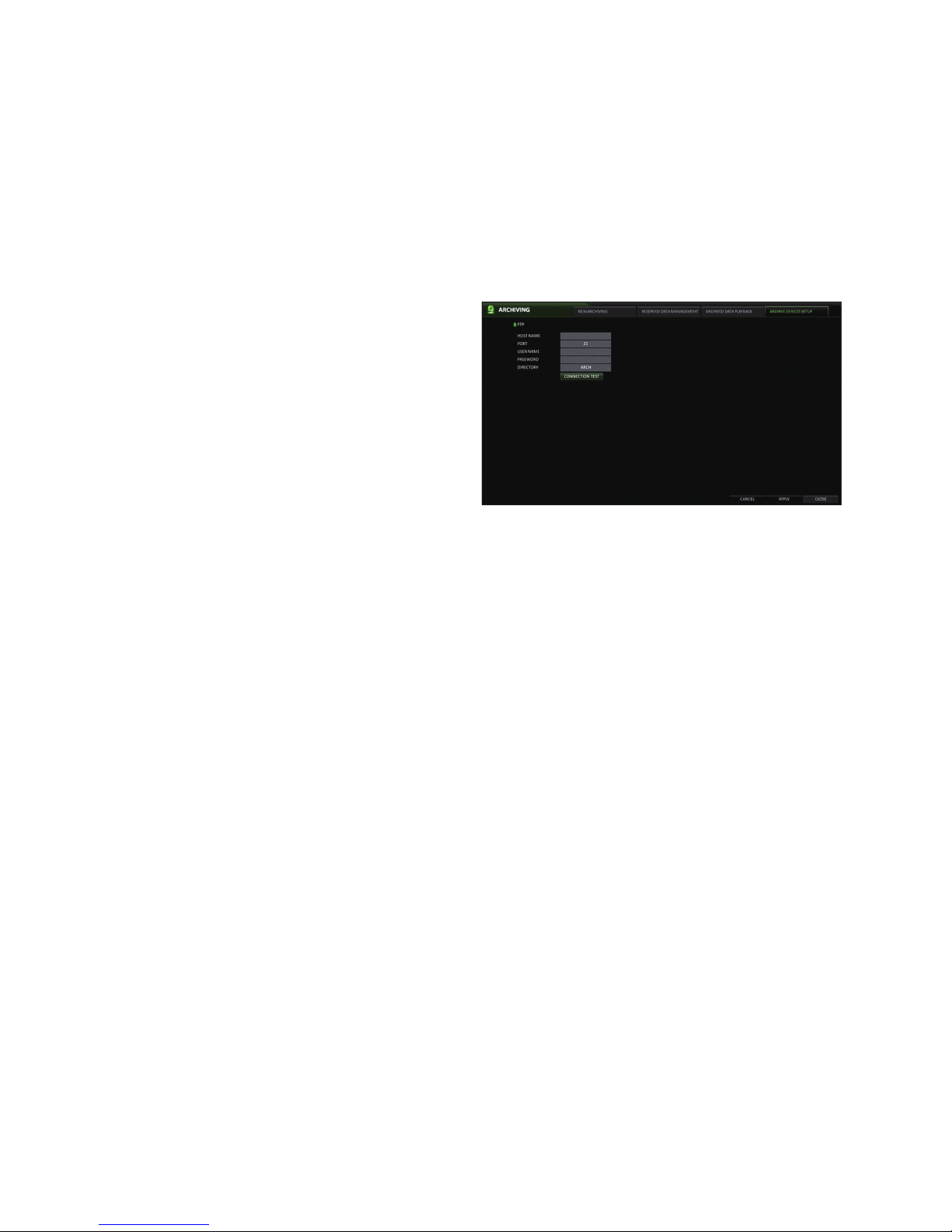

Archive Devices Setup
Provide the FTP server information for archiving data to an existing FTP site
1.
From the <ARCHIVING> menu, select <ARCHIVE DEVICES SETUP>.
2.
Move to the FTP information box.
3.
Fill in each item using a virtual keyboard.
HOST NAME : provide the FTP server address.
PORT : enter the port number.
USER NAME : enter the FTP user ID
PASSWORD : enter the FTP password.
DIRECTORY : specify the archiving path.
4.
When all information is filled, click <CONNECTION TEST> to check the connection status.
5.
To apply the change, click <APPLY> in the bottom of the screen.
6.
When done, press the [EXIT] button on the remote control or click <CLOSE> in the lower screen. The confirmation message appears and you will return to the previous menu.
Archiving
Page 74
74

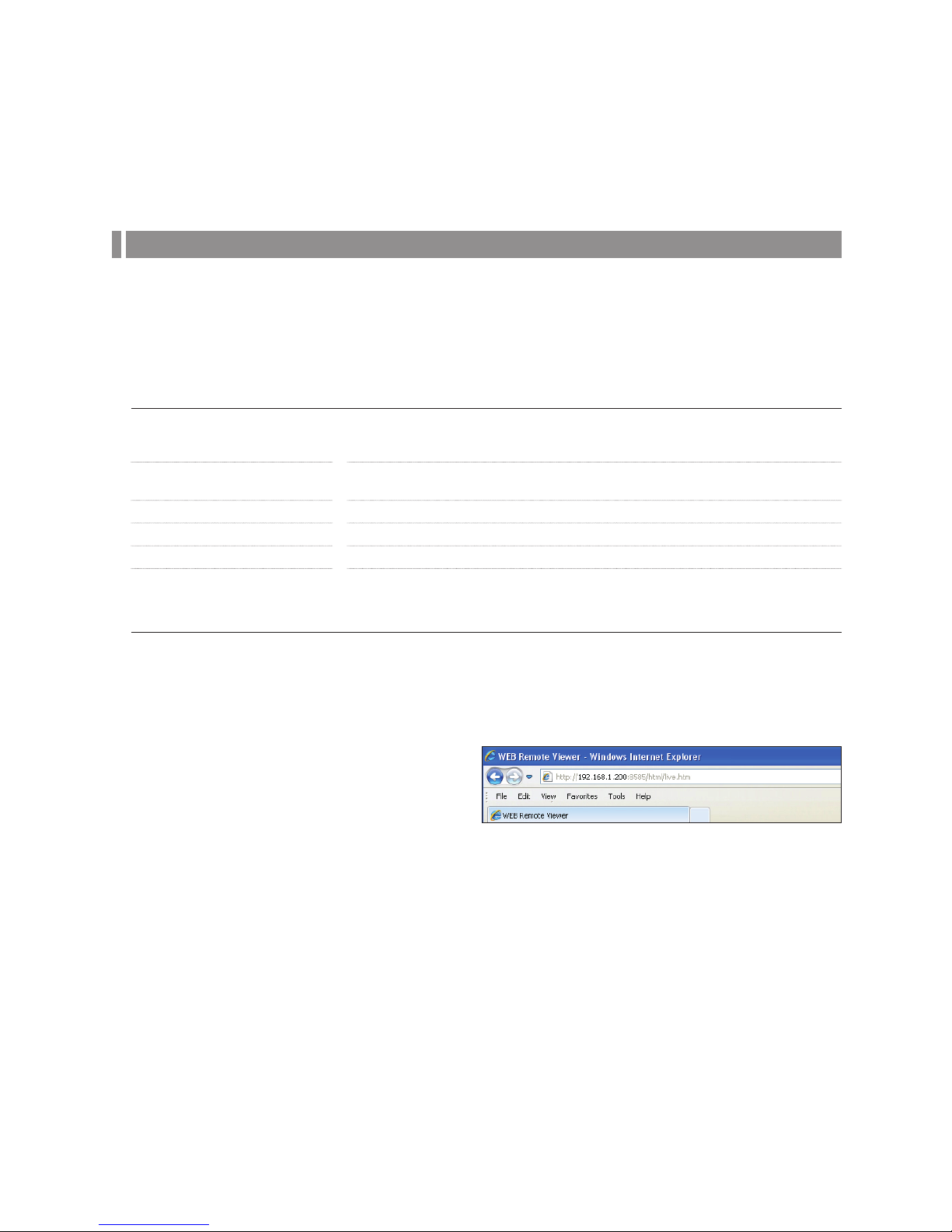

Web Viewer
What is the Web Viewer?
The Web Remote Viewer enables you to access the DVR remotely via a web browser.
NOTE: Vitek recommends using Internet Explorer 7.0 or later.
System Requirements
The following is the minimum hardware and operating system requirements to run Web RA.
Operating System
Windows XP Professional Windows Vista Home Baisc / Premium Window 7
Web browsers:
Internet Explorer 7.0 or later/Mozilla Firefox 3.6/Google Chrome 4.1/Opera 10 Some web browsers other than Internet Explorer may not fully function.
CPU Intel Pentium 4 / 2.0GHz or higher
Memory 512 MB
Display 16-bit 1024 x 768 High Color
Hard Disk Drive
50 MB (space required for installing the web viewer)
* Additional HDD space is required for saving your recording data.
The file size of your recording may differ depending on the specified quality.
Connection
Open a browser and enter the IP address of DVR, or type the DVR Address in the address bar.
To connect to the DVR from inside
-
Check the "Network Status" and verify the <IP ADDRESS> and <WEB SERVICE PORT> of the DVR. (page 45)
-
Enter the IP address and web service port in the address bar of the browser. Ex: http://192.168.1.200:8080
To connect to the DVR from outside
•
Using the IP address
-
Check the "Network Status" and verify the <EXTERNAL IP ADDRESS> and <WEB SERVICE PORT> of the DVR. (page
45)
-
If using a static (external) IP, enter the external IP that is specified in the DVR in the address bar of the web browser. NOTE: Contact the Internet Service Provider to determine if the external IP address is static or dynamic.
•
Using the URL
-
Check the "Network Status" and verify the <DDNS ADDRESS> and <WEB SERVICE PORT> of the DVR. (page 45)
-
Enter the DDNS address and web service port in the address bar of the browser. Ex: http://00115f123456.DVRLINK.NET:8080
If the DVR is connected to a router, you will need to make sure both the Web and RTSP Service Ports are Port Forwarded to allow access from outside. For help with Port Forwarding, refer to the router's user manual, or contact the manufacturer of the router.
Page 75
75
1.
Provide the User Name and Password.
The default User name : ADMIN; the default Password is 123 4.
2.
Click the upper warning bar to install the ActiveX.
If you fail to download the ActiveX control, go to Tools  Internet Options  Security  Custom Level  Download
unsigned ActiveX control, and change its setting from “Disable (recommended)” to “Enable”, and then click OK.
3.
Click <Install>.
4.
When the installation is complete, you will see the live screen.
Web Viewer
Page 76
Web Viewer
76

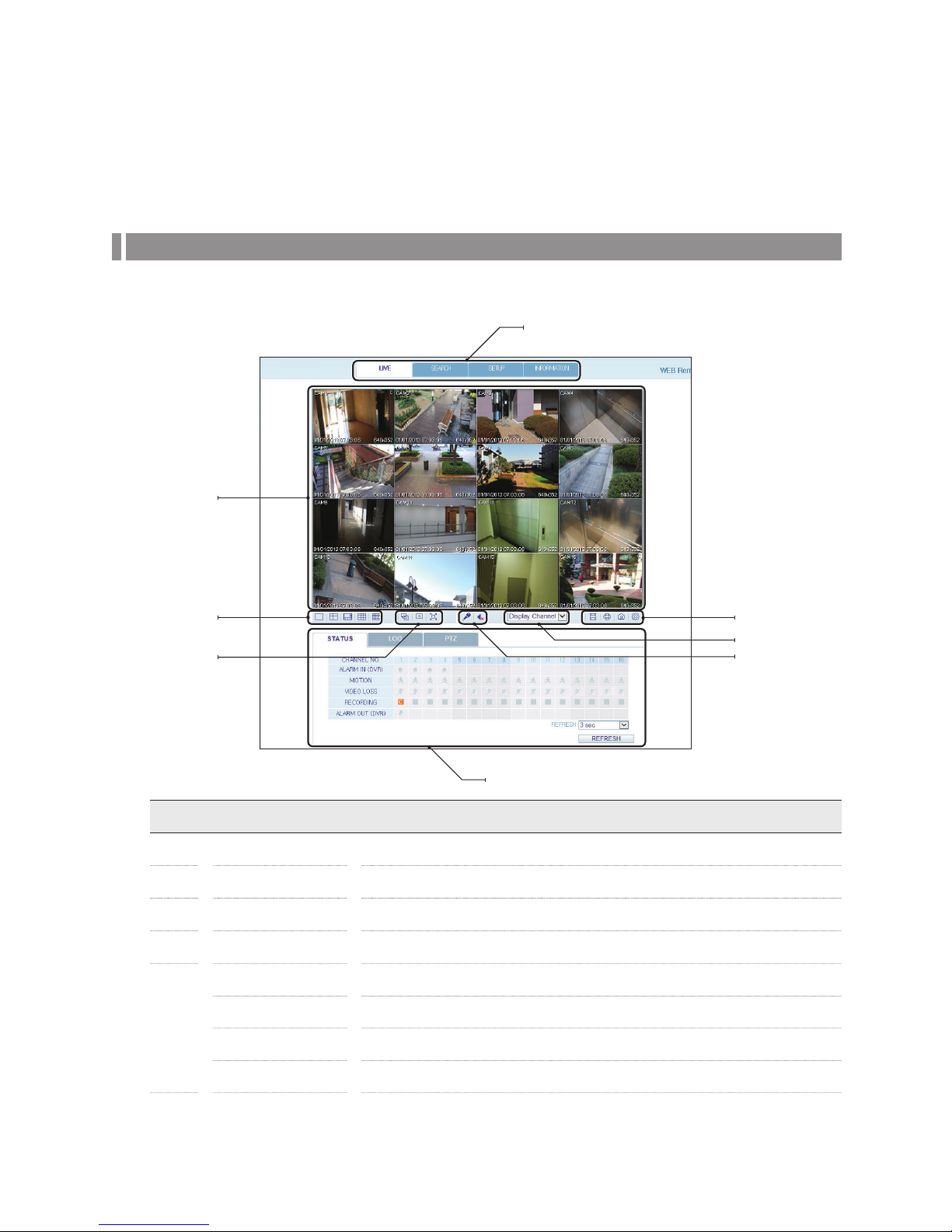

Live
Live Screen At a Glance
No. Item Description
a
View selection tab You can switch to the live, playback and setup screen and check the provided information.
b
Live Display the live screen of the currently connected DVR.
c
Split Mode Select and switch to a desired split-screen mode.
d
Sequence Set the sequence mode, switch to the next camera or select the full screen mode.
e
Status Show the connection status of each channel.
Log Show the log.
Refresh Time Set the interval at which the DVR Status is refreshed.
Refresh Load the DVR Status immediately.
e
f
d
g
h
c
b
a

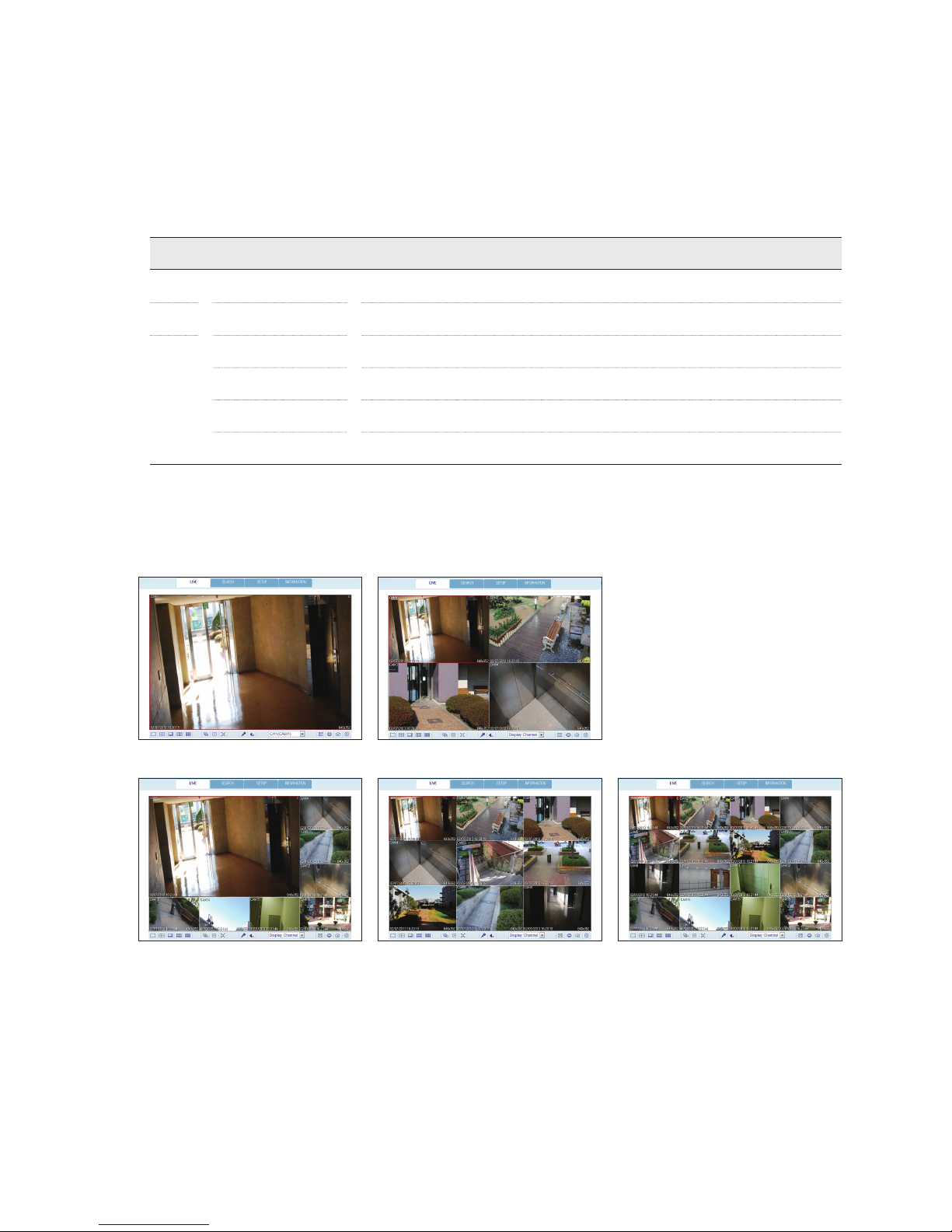

Page 77
77
No. Item Description
f
Voice transmission You can turn on or off the output of the voice signal.
g
Channel Select a channel to view.
h
Save Save the live video on the screen.
Print Print out the current screen.
Capture Capture the selected image.
ActiveX Settings Configure the ActiveX settings or specify the default save location for archiving.
Switching the split mode
Click the Switch button to switch the mode as follows:
Web Viewer
<4-split Mode><1-split Mode>
<9-split Mode> <16-split Mode><8-split Mode>

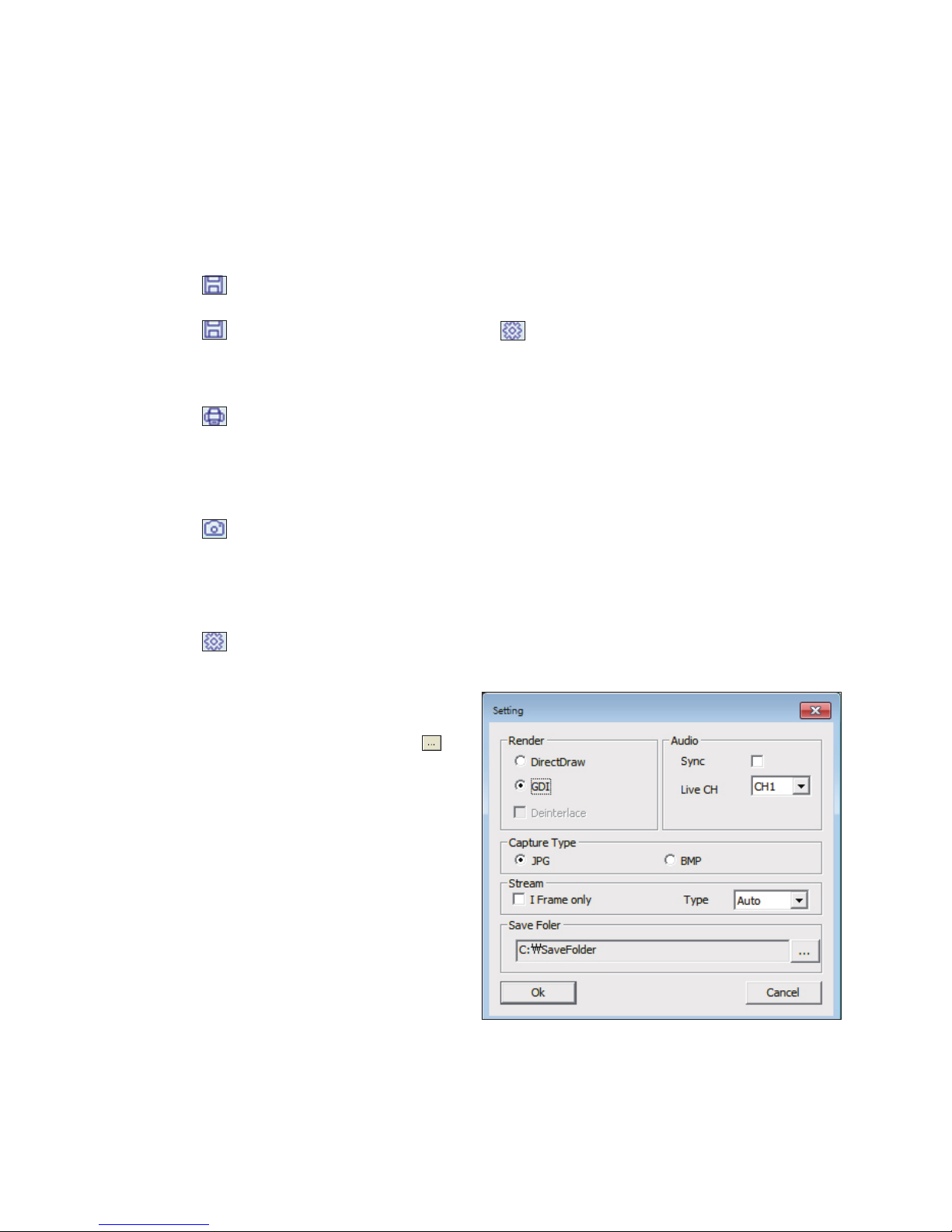

Page 78
Web Viewer
78
To save the video
1.
Click < > to start saving.
2.
The video from the selected channel will be saved to the PC in the AVI format. (Default path: C:\SaveFolder) Click < > again to stop saving. Click <ActiveX Setting ( )> to change the saving path.
Print
1.
Click < >.
2.
The current screen will be printed with the printer connected to the PC.
Screen capture
1.
Click < >.
2.
The current screen of the selected channel will be saved to the PC. (Default path: C:\SaveFolder)
ActiveX Settings
1.
Click < >.
2.
When the setup screen appears, you can change the settings of the render type, audio, capture and saving path as well as the video streaming.
Render : DirectDraw is recommended in order to
enable the hardware acceleration.
3.
If you want to change the saving path, click < > (Save Folder) and specify a new path. (User cannot change the save path in Windows Vista)
4.
Change the streaming settings according to the PC specification and network environment. Auto mode is recommended.
Sync : If this option is set, the audio signal will be
synchronized with the video signal. However, you may encounter a delay due to buffering for the synchronization.
Live CH : Set the audio signal to use in live
monitoring mode.
I Frame Only : Only the I frames (key frames) will be
transferred.
Typ e
-
Auto : The DVR will optimize the quality and FPS to the network status and specification of the connected PC before transferring the data.
-
Main : The video will be transferred in higher definition.
-
Second : The video will be transferred in a medium definition.
5.
When done, click <APPLY> to save your settings.
Page 79
79
Status tab
Click <STATUS > at the bottom of the screen. You can check the event occurrence for each channel.
Log tab
Click <LOG> at the bottom of the screen. You can check the log of the connected DVR.
PTZ tab
Click <PTZ> at the bottom of the screen. You can control the operations of a PTZ camera. Adjust the focus, zooming and iris of the camera. You can use the arrow buttons to control the operations of the camera.
Pattern : You can configure various settings of the
camera including the zooming and movement. (Applied to some PTZ cameras only)
PRESET : Move the camera in a predefined
direction.
Swing : The camera will move back and for th to a set position.
Web Viewer
Page 80
Web Viewer
80
Search
Click <SEARCH> to display the Search Viewer for the DVR.

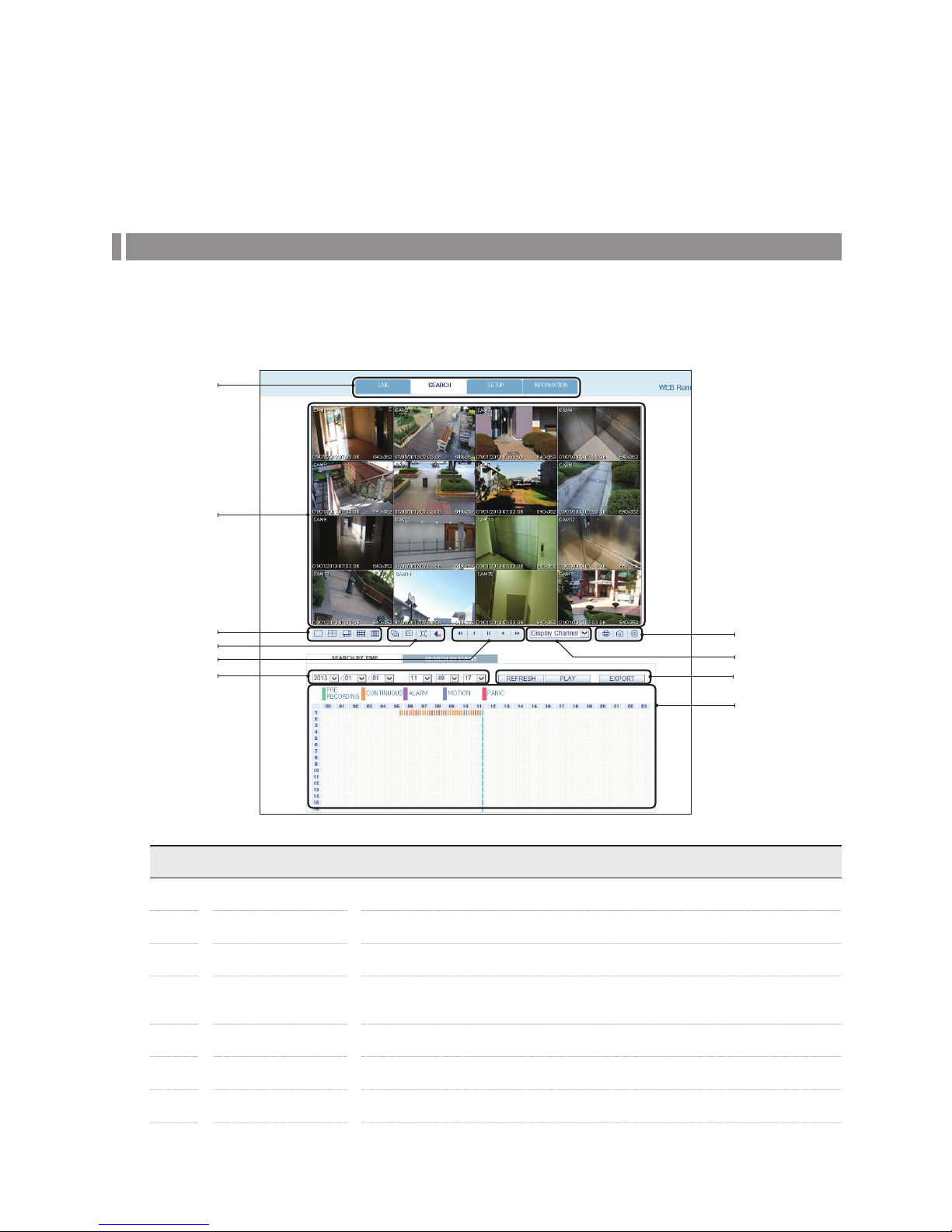

Search Viewer at a Glance
No. Item Description
a
View selection tab You can switch to the live, playback and setup screen and check the provided information.
b
Playback Screen Play the recording data.
c
Split Mode Select and switch to a desired split-screen mode.
d
Sequence
Set the sequence mode, switch to the next camera or select the full screen mode. You can turn on/off the audio.
e
Play button bar You can control the playback screen.
f
Time Selection Specify the start time of playback.
g
Time Line Indicates the status of the recorded data.
e
d
i
j
c
b
a
f
g
h

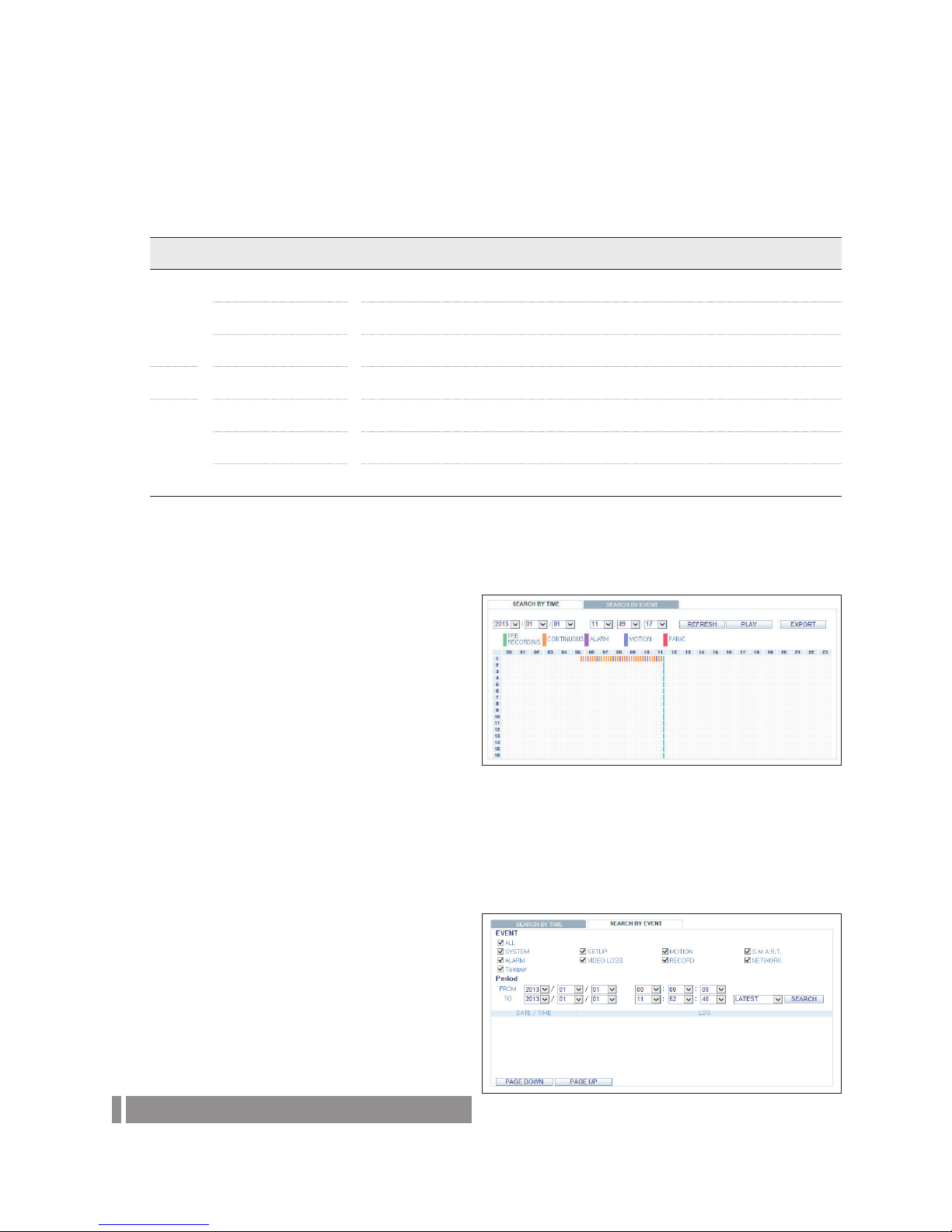

Page 81
81
No. Item Description
h
REFRESH Reload the time line.
PL AY Play the video that satisfies your search criteria.
Backup Archive the video that satisfies your search criteria.
i
Channel Selection Select a channel listed in the screen.
j
Screen Print out the current screen.
Image Capture Capture the selected image.
ActiveX Settings Configure the ActiveX settings or specify the default save location for archiving.
Search by time
Use the timeline to search for the data recorded in the DVR.
1.
Select a date that you want to search..
2.
Check the recording data in the bottom time line and specify the time range for your search.
You can specify
the start time by moving the time bar.
3.
Click <PLAY>.
REFRESH : Refreshes the search criteria to the
current date/time.
PLAY : Play the searched video.
Backup : Archive the recorded video.
Search by event
You can sort the recording data by event.
1.
Mark the checkbox of the event that you want to search for.
2.
Specify the start and end dates for your search.
3.
Set the display order of the items found.
LATEST : The most recent event will be listed on
top.
OLDEST : The earliest event will be listed on top.
4.
Click <SEARCH>.
5.
Select an item to play.
Web Viewer
Page 82
Web Viewer
82
Setup
Click <SETUP> to display the setup control screen for the DVR. When done, click <APPLY> to apply the changes.
If the DVR's menu is being configured locally, the remote setup will be disabled.
Setup Viewer at a Glance
Camera
Name the camera title
You can name the camera title that is displayed on each channel screen. Select a channel to name and provide a new title. Then, click <APPLY> to apply it.
You can enter up to 8 alphanumeric characters for the camera title.
Page 83
83
Covert Setting
You can hide video from a specific camera from specific user groups. Set to hide the camera video so that a specific user or user group can not view. NOTE: To hide video from specific users, move to the <USER> menu and make necessary changes. When done, click <APPLY> to apply the changes.
Motion Setting
Configure the motion detection feature of each camera. Set the detection areas, as well as the sensitivity levels for daytime and nighttime. Select a channel. Set the mask area and activation and specify the daytime range. When done, click <APPLY> to apply the changes.
For information about how to set the motion area, refer to "Motion Area Setup". (page 33)
Web Viewer
Page 84
Web Viewer
84
PTZ Setup
To allow the DVR to utilize camera’s PTZ functions, match the address, protocol and baud rate of connected cameras and DVR.
Page 85
85
Display
OSD Setting
Configure the settings for the camera titles, recording mode icons, boundary, icon and language that will be displayed on the screen. Make changes to each item of the OSD menu and click <APPLY> to apply the changes.
For details about each displayed item, refer to "OSD" (page
35)
Monitor Settings
You can set the interval of an active sequence. Specify the interval and click <APPLY> to apply it.
SEQUENCE DWELL : Switching time from one
channel to the next channel in single screen mode.
SPOT DWELL: The interval between the view types
when displaying the SPOT Out monitoring screen.
Audio
Audio/Buzzer
You can configure the settings of the voice and audio signal.
For details about each displayed item, refer to "Audio Setup". (page 44)
Web Viewer
Page 86
Web Viewer
86
User
User Management
You can add a user account and change the password.
For details about each displayed item, refer to "User Setting" (page 41)
To add a user, click <ADD> and provide the user information. If you want to delete the user click <DELETE> next to it. When done, click <APPLY> to apply the change.
Group Permission Setting
You can grant different user groups different permissions to a specific menu. Mark the checkboxes of the menu items accessible by the user group. When done, click <APPLY> to apply the changes.
For more information about the accessible menu items, refer to "Group Authority" (page 42)
Page 87
87
Network
Network Setting
You can check the network connection status and change the baud rate. Change the maximum transfer rate and click <APPLY> to apply it.
For more information about each network entry, refer to "IP Setup" (page 43)
DDNS Setting
You can configure the DDNS settings. Change the DDNS settings and click <APPLY> to apply the changes.
Email Setting
You can register and test an email address so that an email notification is delivered at a specific interval or if an event occurs. Provide the necessary information and click <APPLY> to apply it.
For more information, refer to "Email" (page 44)
Web Viewer
Page 88
Web Viewer
88
System
Date/Time Setting
Specify the current date and time. When done, click <APPLY> to apply the changes.
For more information about each of the time and date settings, refer to "Date/Time" (page 46)
System Management
You can configure the access settings of: log in, log out, and auto logout.
For more information , refer to "System Management" (page 47)
System Information
You can check the system firmware version, disk space, and network settings, as well as the camera connections and alarm I/O.
Page 89
89
Control Device Setting
Configure the keyboard controler. Change the communication settings and click <APPLY> to apply the changes.
For more information, refer to "Control Device". (page 49)
Storage
Device Information
Internal storage devices physically installed in the DVR and their recording time information are displayed.
S.M.A.R.T Status
The detailed S.M.A.R.T information of each internal storage device is displayed.
What is S.M.A.R.T? This is a sort of HDD self-diagnosis tool that detects any error on the system and alerts the user if an error occurs.
For more information, refer to "S.M.A.R.T." on page 51
Web Viewer
Page 90
Web Viewer
90
Sensor
Alarm Output
Specify the alarm output conditions. When done, click <APPLY> to apply the changes.
For more information about the alarm output and ON/OFF schedule, refer to "Alarm Out" (page 52)
Event Notication
Specify the notification method for <BUZZER OUT>, <DISPLAY> and <EMAIL>. Specify the buzzer output time, display time and email notification, and click <APPLY> to apply the changes.
For more information about the event notification, refer to "Event Notification" (page 53)

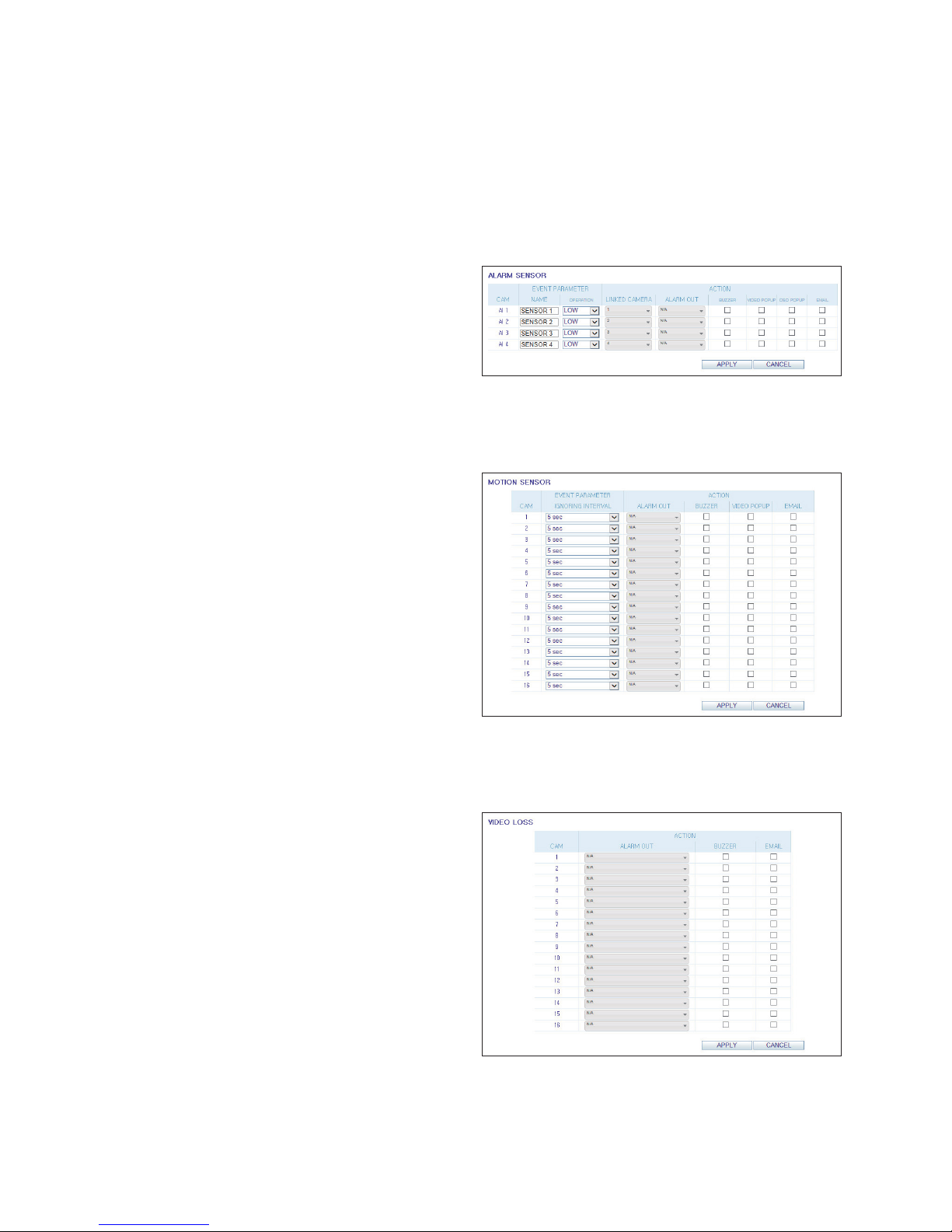

Page 91
91
Alarm Sensor
You can configure the settings of the alarm sensor. When done, click <APPLY> to apply the changes.
For more information about each of the alarm sensor actions, refer to "Alarm Sensor" (page 55)
Motion Sensor
You can set an action to execute when motion is detected. When done, click <APPLY> to apply the changes.
For more information on how to set the motion sensor, refer to "Motion Sensor" (page 56)
Video Loss
You can select an action to execute when there is video loss. Select <BUZZER> and/or <EMAIL>. When done, click <APPLY> to apply the changes.
Web Viewer
Page 92
Web Viewer
92

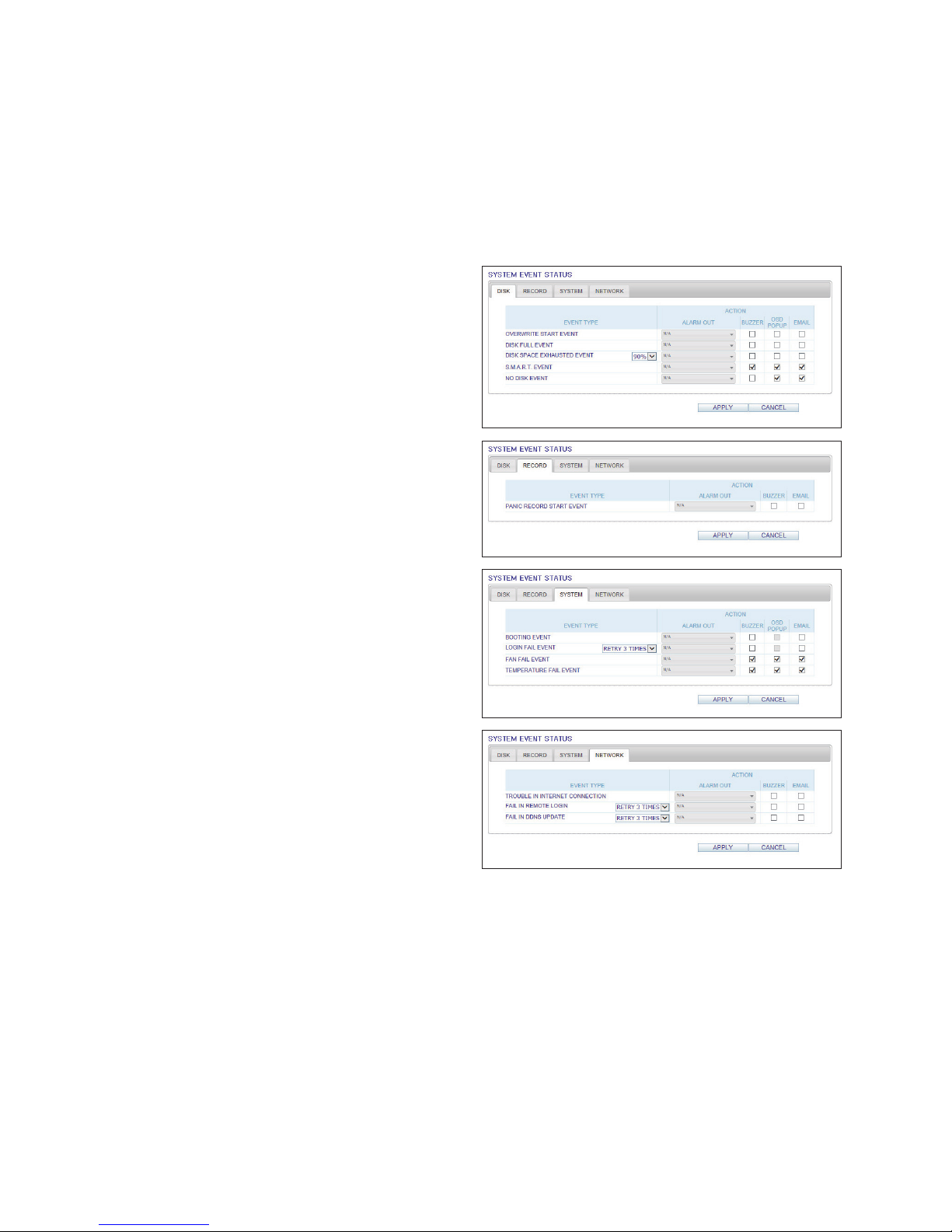

System Event
You can set which action to perform if an event related to the disk, recording, network or system happens. You can notify the user of the event using the alarm output, buzzer, OSD popup and email.
When done, click <APPLY> to apply the changes.
For more information about how to set the system event, refer to "System Event" (page 57)
Page 93
93
Record Setup
Record Setting
You can set the recording options for Auto or Manual mode.
When done, click <APPLY> to apply the changes.
For more information about how to set each mode, refer to "Operation Mode" (page 60)
Web Viewer

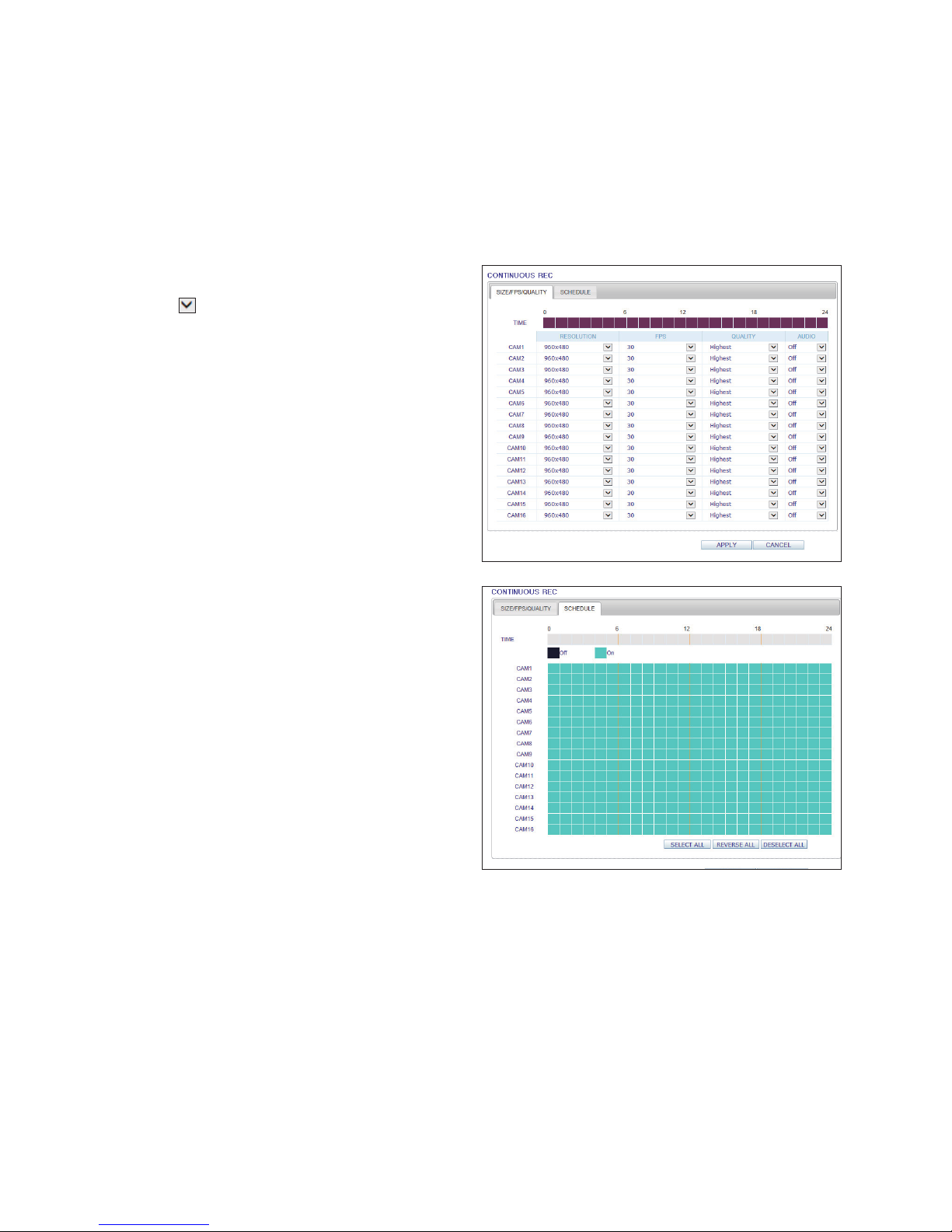

Page 94
Web Viewer
94
Continuous Recording
You can configure the settings of: continuous recording time, recording size, frame rate per second and quality. Click < > next to each item to display the list of values available.
When you complete the recording size and schedule settings, click <APPLY> to apply your settings.
For more information about the continuous recording size and schedule, refer to "Continuous Recording" (page 61)
Page 95
95
Motion Recording
Set the <SIZE/FPS/QUALIT Y/AUDIO> and the <SCHEDULE> to apply if a motion event occurs. Click < > next to each item to display the list of values available.
Complete setting the <SIZE/FPS/QUALITY/AUDIO> for the motion recording as well as the <SCHEDULE>, and click <APPLY> to apply the changes.
For more information about the motion recording size and schedule, refer to "Motion Recording" (page 62)
Web Viewer
Page 96
Web Viewer
96

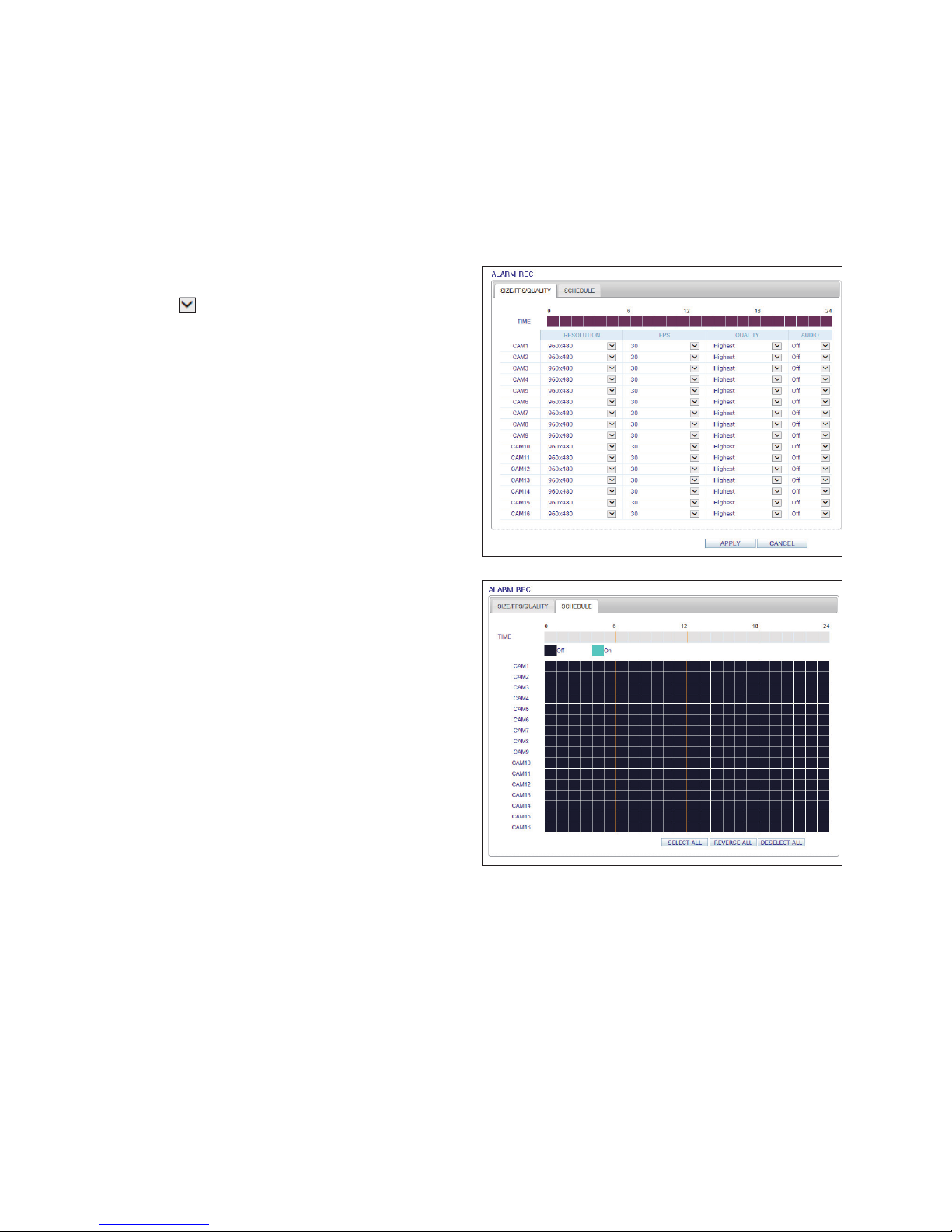

Alarm Recording
Set the <SIZE/FPS/QUALIT Y/AUDIO> and the <SCHEDULE> to apply if an alarm event occurs. Click < > next to each item to display the list of values available.
Complete configuring the <SIZE/FPS/QUALITY/AUDIO> for the alarm recording as well as the <SCHEDULE>, and click <APPLY>.
For more information about the alarm recording size and schedule, refer to "Alarm Recording" (page 63)
Page 97
97

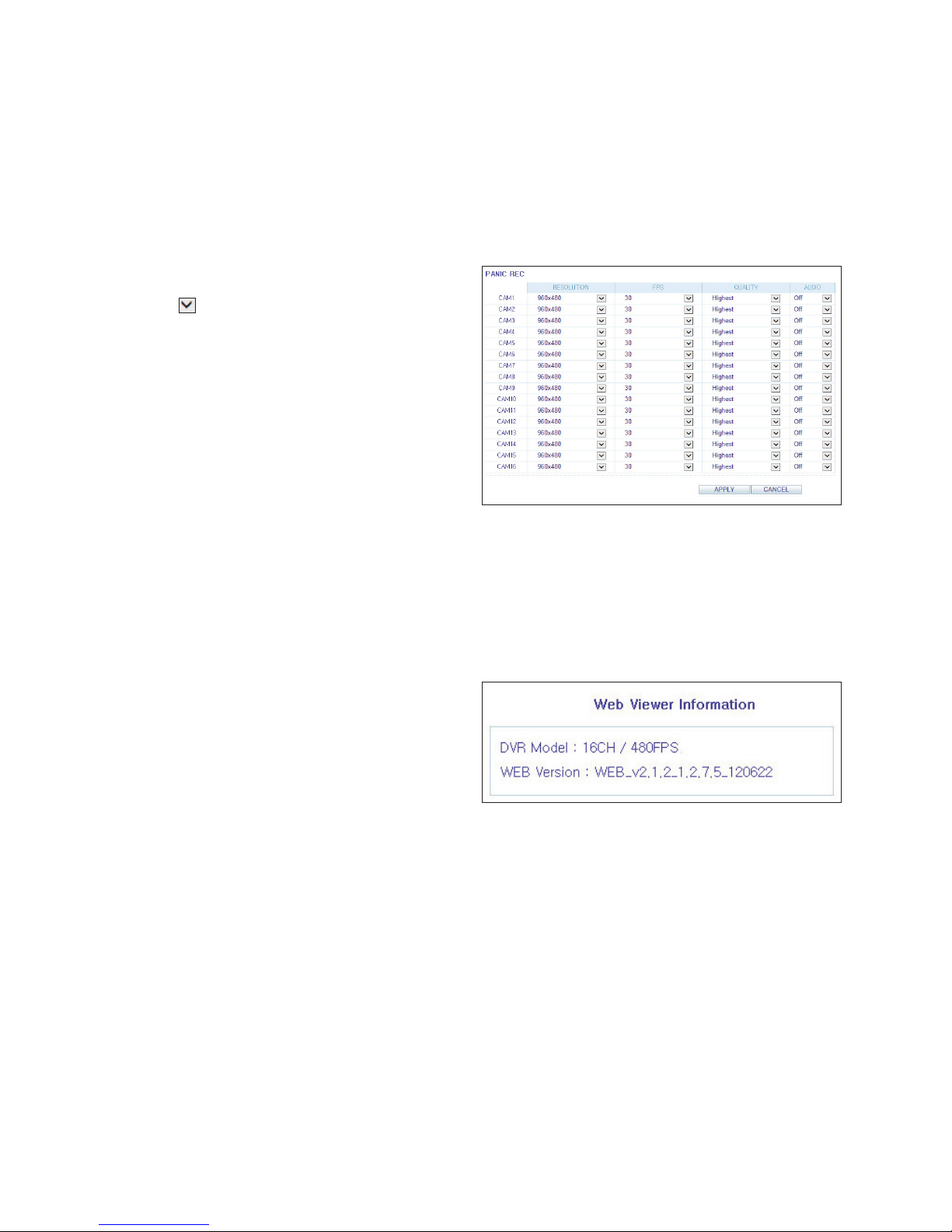

Panic Recording
From the <PANIC RECORD> menu, you can set the resolution, FPS, quality and audio settings. Click < > next to each item to display the list of values available. When you have finished, click <APPLY>.
For more information about the manual record settings, refer to "Panic Recording" (page 63)
About
Click the <INFORMATION> tab to check the model name of the DVR as well as the web viewer version.
Web Viewer
Page 98
98
Mobile Viewer
SPIRE DVR SMARTPHONE APP
You can use the EH / SPIRE Viewer app to connect to and view your DVR system anytime, anywhere.
EH / SPIRE Viewer specication
Minimum / recommended specication
OS Minimum specification Recommended specification
Android Phone
Processor :800 MHz or higher
Flash : 512 MB or higher
RAM : 512 MB or higher
SD Card : 4 GB or higher
OS : 2.0 or higher
Processor : 1 GHz or higher
Flash : 512 MB
RAM : 512 MB
SD Card : 16 GB or higher
OS : 2.1 or higher
iPhone
iPhone 3G,
iPod touch 3rd Generation
iPhone OS 3.1.3 or higher
iPhone 3GS or higher
iPhone OS 3.2 or higher

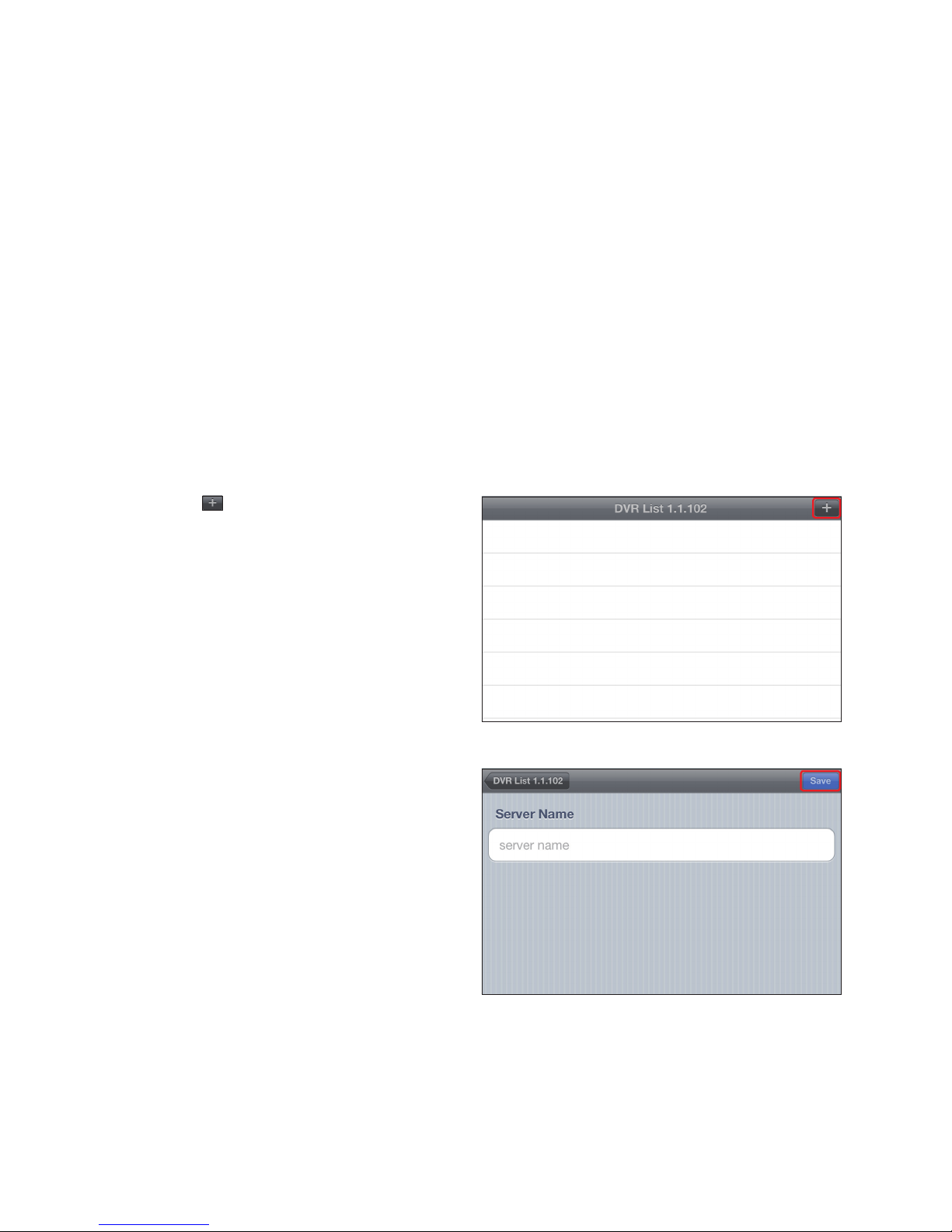

Page 99
99
Using the EH / SPIRE Viewer on the iPhone
How to download the iPhone-dedicated application
From your iPhone, access the App Store. Enter "Vitek SPIRE Viewer" in the search bar. Install the application on your iPhone.
The DVR Viewer supports the 1/4 split screen mode.
•
The nViewer Lite is a free application, and does not provide search, log view, PTZ control and system configuration functions.
To connect to the DVR with EH / SPIRE Viewer
1.
Select and run the EH / SPIRE Viewer.
2.
Click < > in the top right corner of the DVR List to select and add a DVR to the list.
3.
Enter the server name and click <Save>.
Mobile Viewer
Page 100
Mobile Viewer
100

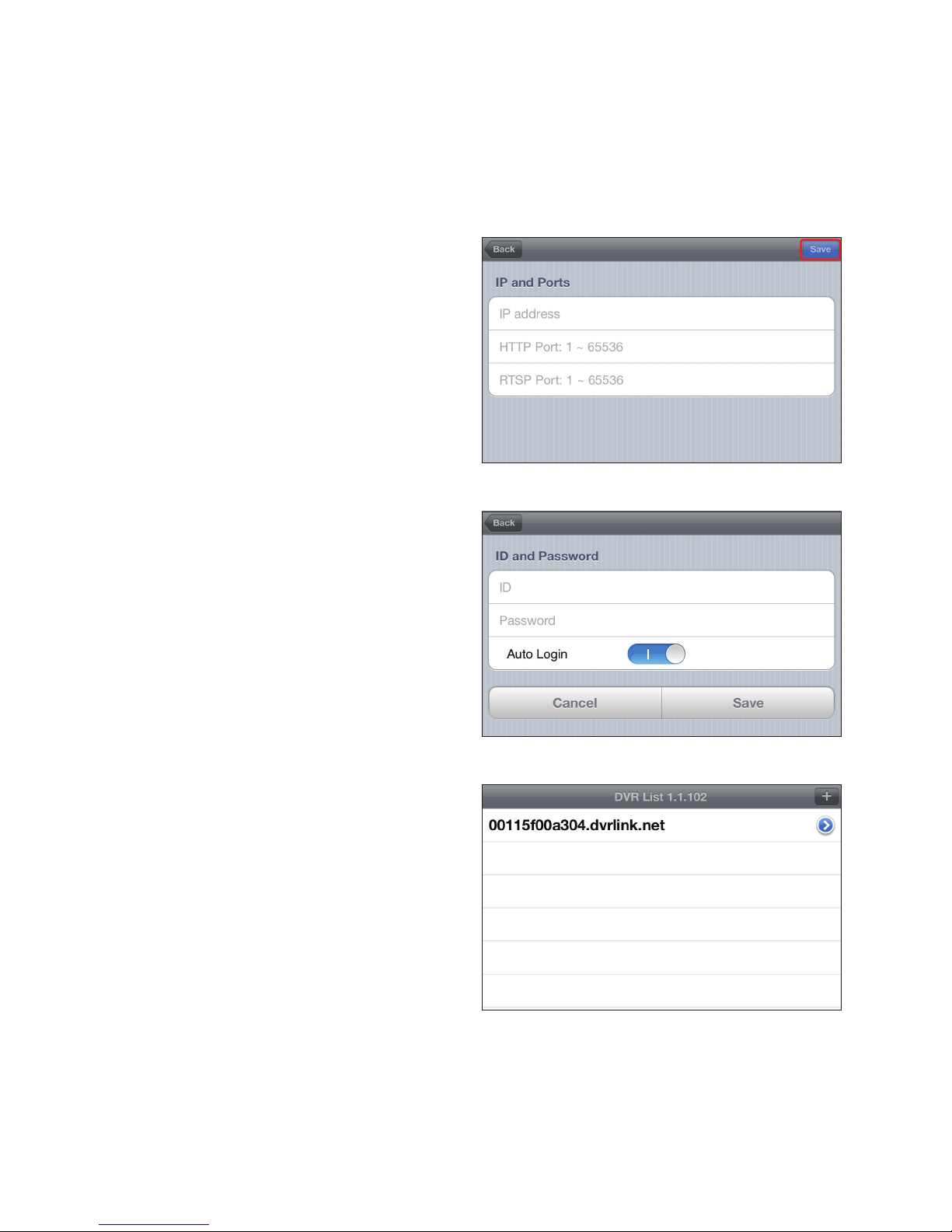

4.
Provide the IP address, HT TP port number and RTSP port number, and click <Save>.
5.
Provide the access ID of the DVR as well as the password.
6.
Specify the use of the Auto Login.
7.
Click <Save>.
8.
Select the site that you added in the DVR List.
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
