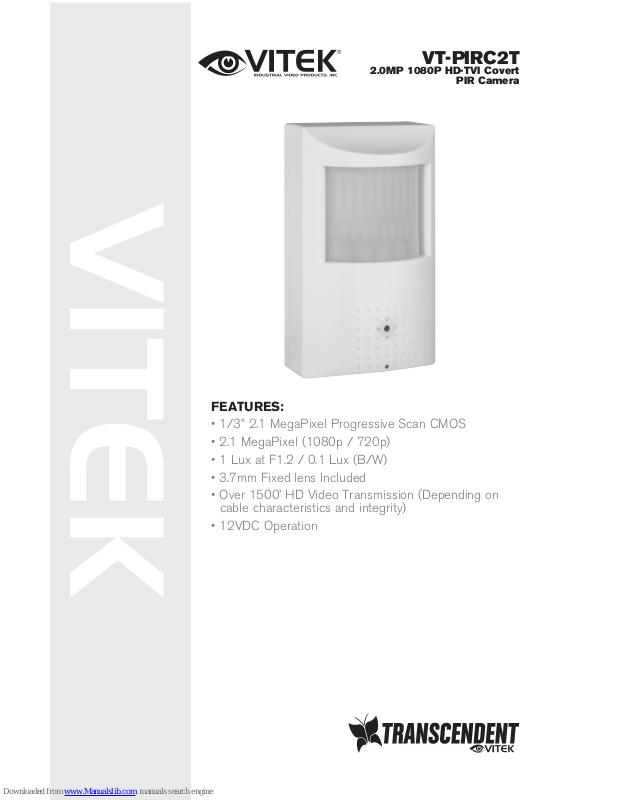

Page 1
VITEK
VT-PIRC2T
2.0MP 1080P HD-TVI Covert
PIR Camera
FEATURES:
• 1/3” 2.1 MegaPixel Progressive Scan CMOS
• 2.1 MegaPixel (1080p / 720p)
• 1 Lux at F1.2 / 0.1 Lux (B/W)
• 3.7mm Fixed lens Included
• Over 1500’ HD Video Transmission (Depending on
cable characteristics and integrity)
• 12VDC Operation
Page 2
Safety Precaution
CAUTION: TO REDUCE THE RISK OF ELECTIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
To prevent fire or shock hazard, do not expose the unit to rain or moisture.
To prevent electric shocks and risk of fire hazards, do NOT use other than
specific power source.
Warning :
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
his own expense.
Caution :
Any changes or modifications in construction of this device which are not expressly
approved by the party responsible for compliance could void the user's authority
to operate the equipment.
Mains power quality should be that of a typical commercial environment. If the user
of the model requires continued operation during power mains interruptions, it is
recommended that the model be powered from an uninterruptible power supply
(UPS) or a battery.
The symbol is intended to alert the user to the presence of important
operating and maintenance(servicing) instructions in the literature
accompanying the unit.
The symbol is intended to alert the user to the presence of uninsulated
"dangerous voltage" within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
2
Page 3
Detailed Specifications
Image Device
Resolution
Effective Pixels
S/N Ratio
Video Output
Built-In Lens
Minimum Illumination
Electronic Shutter
DNR
Gain Control
White Balance
HD Transmission Range
Power Source
Power Consumption
Operation Temperature
Dimensions
1/3” 2.1 MegaPixel Progressive Scan CMOS
2.1 MegaPixel (1080p / 720p)
1920x1080
48dB or more
1x HD-TVI (BNC) & SD CVBS (BNC)
Pinhole 3.7mm Fixed
1 Lux at F1.2 / 0.1 Lux (B/W)
Auto (1/30sec ~ 1/60,000sec)
3D-DNR
Auto
ATW
Over 1500’ (Depending on cable characteristics and integrity)
12VDC
100mA
14° ~ 122°F (-10° ~ 50°C) Less Than 80% RH
2.75” x 4.72” x 1.69” / 70mm x 120mm x 43mm
1. Connect the camera’s BNC video output to the video input on your monitor or digital
video recorder
2. Connect the camera’s 12 V DC power output to a power supply appropriate for your
installation
Connections
3
Page 4
VITEK
28492 CONSTELLATION ROAD VALENCIA, CA 91355
WWW.VITEKCCTV.COM
LIMITED PRODUCT WARRANTY
VITEK products carry a three (3) year limited warranty. VITEK warrants
to the purchaser that products manufactured by VITEK are free of any
rightful claim of infringement or the like, and when used in the manner
intended, will be free of defects in materials and workmanship for a
period of three (3) years, or as otherwise stated above, from the date of
purchase by the end user. This warranty is nontransferable and extends
only to the original buyer or end user customer of a VITEK Authorized
Reseller.
The product must have been used only for its intended purpose, and
not been subjected to damage by misuse, willful or accidental damage,
caused by excessive voltage or lightning.
The product must not have been tampered with in any way or the
guarantee will be considered null and void.
This guarantee does not affect your statutory rights.
Contact your local VITEK Reseller should servicing become necessary.
VITEK makes no warranty or guarantee whatsoever with respect to
products sold or purchased through unauthorized sales channels.
Warranty support is available only if product is purchased through a
VITEK Authorized Reseller.
Version 2.0
June 2016
