VT-NV Series

VITEK

• 4, 8, 16, or 32 Channel Stand-alone Real-time IP Network Video Recorders

• Full HD (720/1080p) Real-time recording

• Panorama (Thumbnail) Search

• HDMI, VGA, and BNC Outputs

• H.264 & MPEG4 Dual Streaming Compression Method

• Plug and Play & Auto configuration for ONVIF compliant and many leading IP Camera models

• P2P (Peer to Peer) camera connection supported by internal Hub

• Health monitoring: Temperature, Fan speed, HDD S.M.A.R.T

• Alarm In/Out

• Per channel Image Adjustment

• Internal PoE Switch

• 1 Gigabit LAN Port / 1 Gigabit WAN Port

• Video Analytics with Search Feature (Camera dependant)

• Linear Digital zoom / Automatic sequencing / Freezing

• Quadplex (Live / Record / playback / network)

• Remote Viewing via CMS Software, Internet Explorer, and Mobile Phones (iOS/ Android)

• Web-based remote configuration

• Supports up to 4TB Hard Drives

• eSATA for storage extension of up to 5 more HDD (does not apply to VT-NV400S)

• Bidirectional Audio Support

• Dual Recording and/or RAID 5 for data integrity

• RS485 Communication port

• Linear digital zoom for live and playback

• Embedded Web Server for Remote Setup & Viewing

• Up to 8 Simultaneous Network/ Remote Connections

• 64 Camera Remote Viewing via CMS Software

• RS485 Communication port

4, 8, 16, and 32 Channel

Network Video Recorders

VT-NV Series – On Cue IP

TABLE OF CONTENTS

1. BEFORE INSTALLING .................................................................................................................... 3

1.1 UPDATING SYSTEM F/W ......................................................................................................... 3

1.1.1 WITH THE USB THUMB DRIVE ........................................................................................ 3

1.1.2 UPDATING FROM THE WEB MENU ................................................................................ 5

1.2 DESCRIPTION OF FRONT PANEL .......................................................................................... 8

1.3 DESCRIPTION OF REAR PANEL ............................................................................................. 8

2. GETTING STARTED ..................................................................................................................... 10

2.1 CONNECT AND SWITCH ON ................................................................................................. 10

3. TOOL BAR ..................................................................................................................................... 12

3.1 LOG OFF ................................................................................................................................. 13

3.2 Main Menu POP-UP ................................................................................................................ 13

3.3 VA MENU POP-UP (Camera dependent) ................................................................................ 13

3.4 QUICK COPY MENU POP-UP ................................................................................................ 14

3.5 SEARCH MENU POP-UP ........................................................................................................ 14

3.6 DISPLAY POP-UP ................................................................................................................... 15

3.7 PTZ POP-UP ........................................................................................................................... 15

3.8 DIGITAL ZOOM ....................................................................................................................... 16

3.9 LOG LIST ................................................................................................................................. 18

4. SEARCH & PLAYBACK ................................................................................................................. 21

4.1 TIME / CALENDAR SEARCH .................................................................................................. 21

4.2 PANORAMA SEARCH ............................................................................................................ 23

4.2.1 BASIC OPERATION ......................................................................................................... 23

4.3 EVENT SEARCH ..................................................................................................................... 24

4.4 COPY ....................................................................................................................................... 27

5. QUICK MENU ................................................................................................................................ 28

6. HOW TO CONFIGURE .................................................................................................................. 31

6.1 CONFIGURING CAMERA ....................................................................................................... 31

6.1.1 TITLE ................................................................................................................................ 31

6.1.2 ADJUST ............................................................................................................................ 32

6.1.3 PTZ ................................................................................................................................... 32

6.1.4 CAM PORT ....................................................................................................................... 33

6.1.5 VIRTUAL PORT ............................................................................................................... 37

6.2 CONFIGURING DISPLAY ....................................................................................................... 37

6.2.1 OSD .................................................................................................................................. 37

6.2.2 MONITOR ......................................................................................................................... 39

6.2.3 SEQUENCE ..................................................................................................................... 40

6.3 CONFIGURING DISK .............................................................................................................. 41

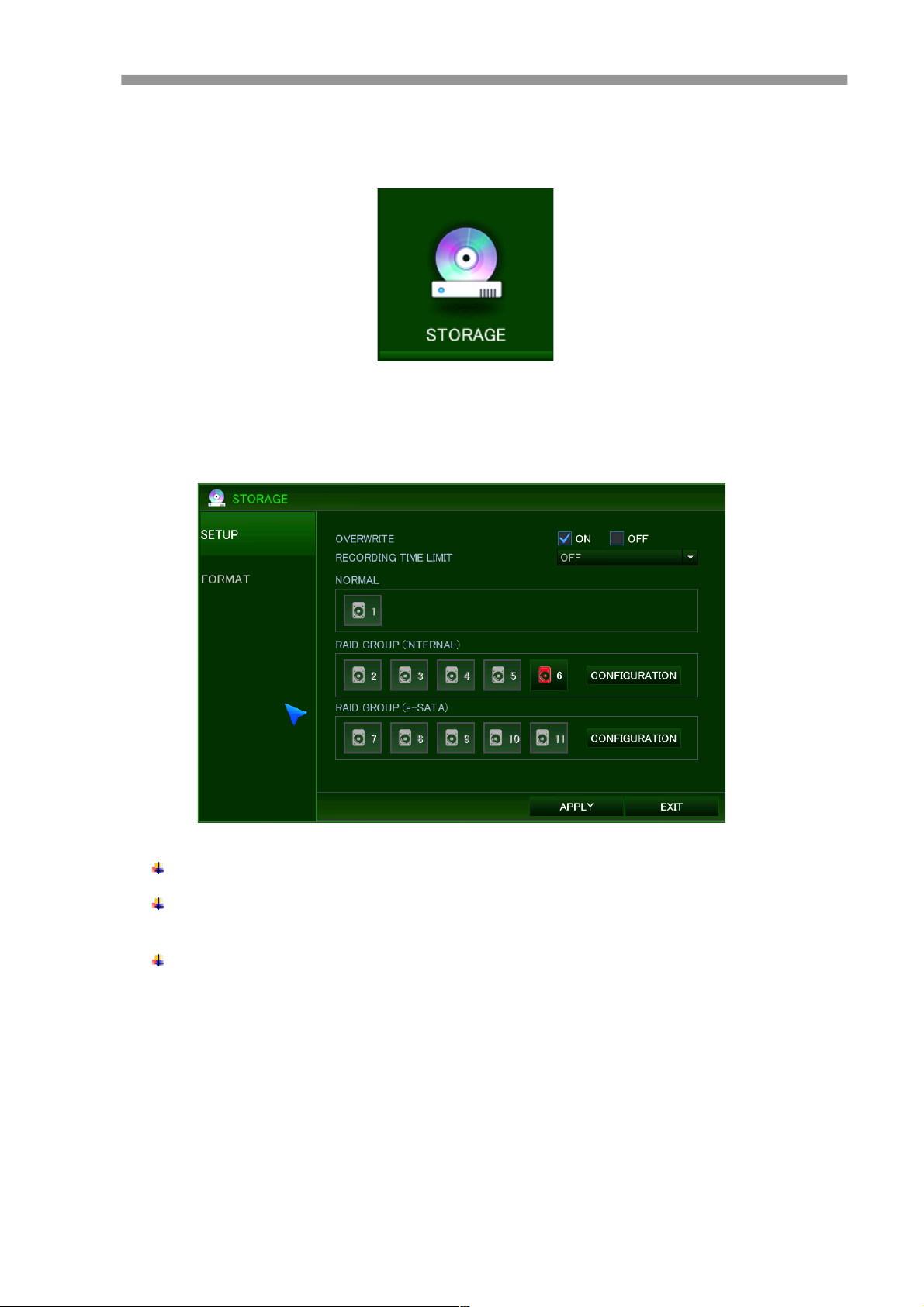

6.3.1 SETUP .............................................................................................................................. 41

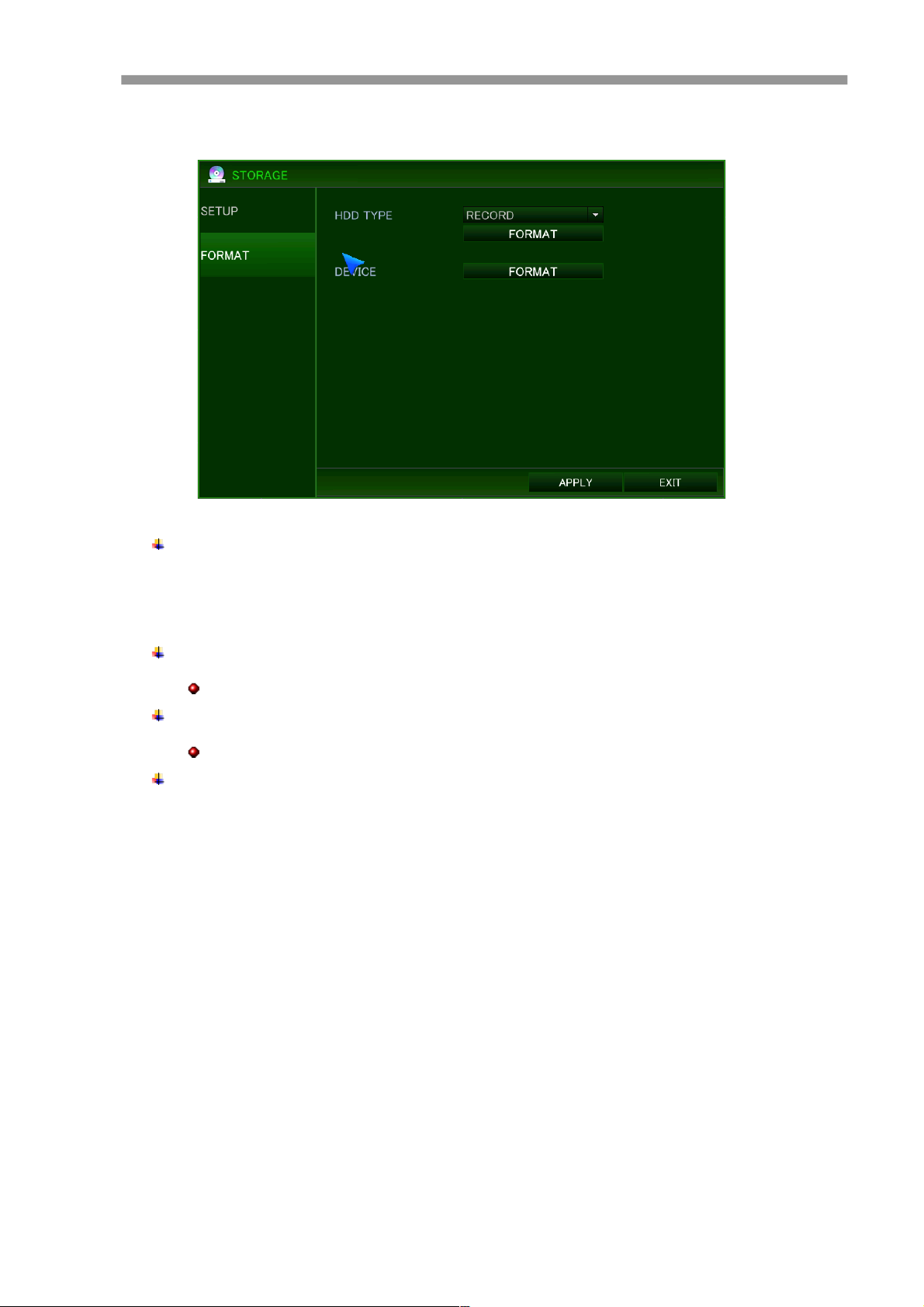

6.3.2 FORMAT .......................................................................................................................... 43

6.4 CONFIGURING SYSTEM ........................................................................................................ 44

6.4.1 DATE/TIME ...................................................................................................................... 44

6.4.2 MANAGEMENT ................................................................................................................ 45

6.4.3 SOUND ............................................................................................................................. 47

6.5 CONFIGURING EVENT / SENSOR ........................................................................................ 48

6.5.1 ALARM INPUT ................................................................................................................. 48

6.5.2 ALARM OUTPUT SETUP ................................................................................................ 49

6.5.3 BUZZER OUTPUT SETUP .............................................................................................. 50

6.5.4 E-MAIL SETUP ................................................................................................................. 51

6.6 CONFIGURING USER ............................................................................................................ 52

6.6.1 USER REGISTER ............................................................................................................ 52

6.6.2 USER AUTHORITY .......................................................................................................... 53

6.6.3 LOG-OUT ......................................................................................................................... 55

6.7 CONFIGURING RECORD ....................................................................................................... 56

6.7.1 SETUP .............................................................................................................................. 56

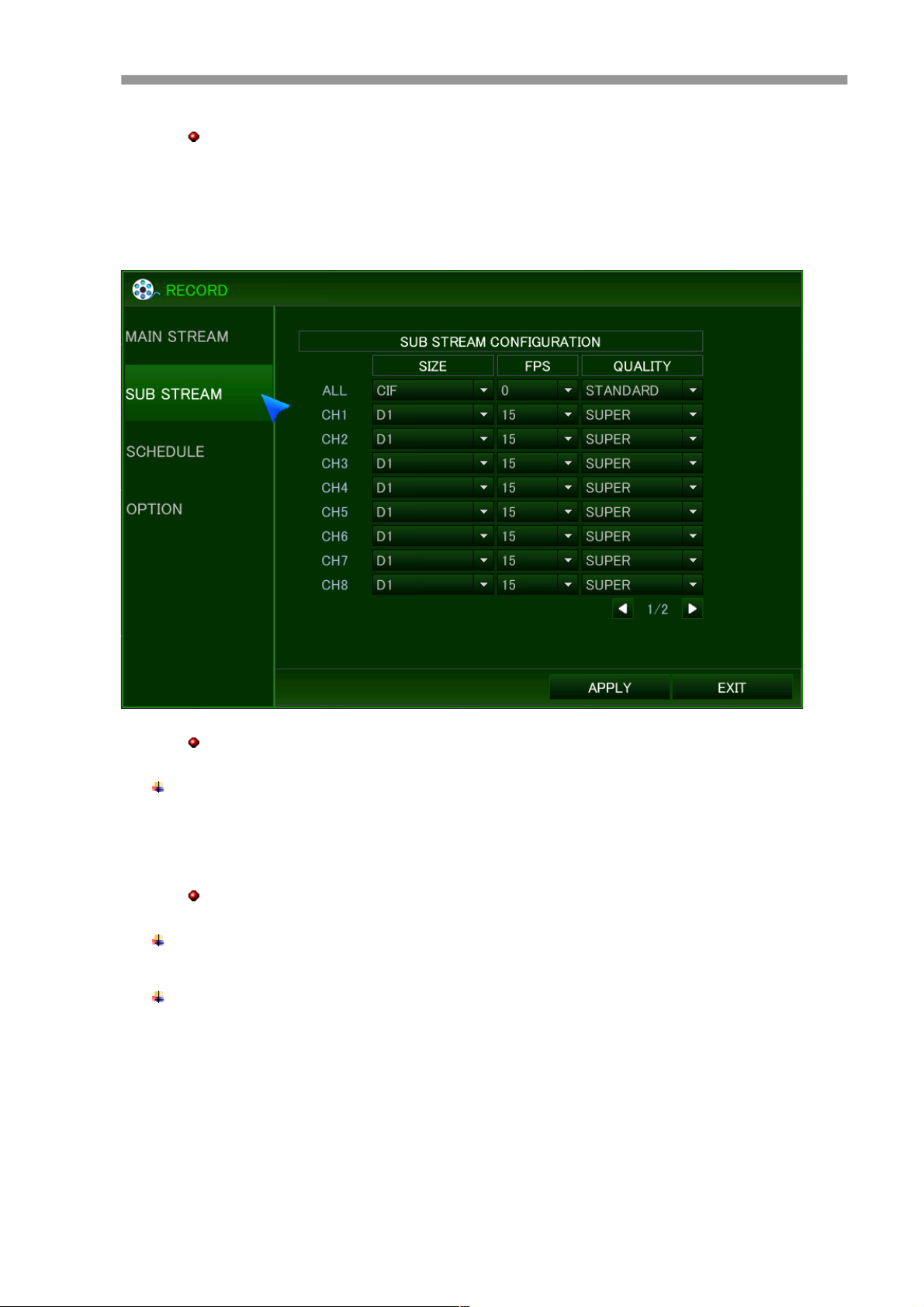

6.7.2 SUB STREAM .................................................................................................................. 57

6.7.3 SCHEDULE ...................................................................................................................... 58

6.7.4 OPTION ............................................................................................................................ 59

VT-NV Series – On Cue IP

6.8 CONFIGURING NETWORK .................................................................................................... 61

6.8.1 IP SETUP ......................................................................................................................... 61

6.8.2 LOCAL PORT ................................................................................................................... 62

6.8.3 DDNS ............................................................................................................................... 63

6.8.4 E-MAIL .............................................................................................................................. 63

7. REMOTE ........................................................................................................................................ 65

7.1 WEB SERVER ......................................................................................................................... 65

7.1.1 CONNECT TO WEB SERVER ......................................................................................... 66

7.1.2 WEB CONFIGURATION PAGE ....................................................................................... 67

7.1.3 WEB VIEWER (Active-X) ................................................................................................. 68

7.2 Android Viewer / iOS Viewer .................................................................................................... 79

7.2.1 How to use ........................................................................................................................ 79

7.3 DDNS SERVER ....................................................................................................................... 83

7.3.1 HOW TO REGISTER ....................................................................................................... 83

7.3.2 REGISTER ....................................................................................................................... 83

7.3.3 Input NVR information. ..................................................................................................... 84

7.4 OnCue Viewer .......................................................................................................................... 85

7.4.1 INSTALLATION ................................................................................................................ 85

7.4.2 EXECUTION ..................................................................................................................... 86

7.4.3 LIVE VIDEO MONITORING ............................................................................................. 86

7.4.4 CONNECTION MANAGER .............................................................................................. 87

7.4.5 LIVE VIDEO WINDOW ..................................................................................................... 89

7.4.6 PLAYER ........................................................................................................................... 93

VT-NV Series – On Cue IP

1. BEFORE INSTALLING

• Installation should be carried out only by qualified personnel and in accordance with electrical regulations in force.

• The NVR must be placed on a stable surface or mounted in an approved cabinet. Adequate ventilation must be provided, taking particular care not to block any of the air vents on the NVR.

• Adequate protection against lightning strikes and power surges must be installed to prevent damage to the NVR.

• Any safety warnings on the NVR and in these instructions must be adhered to.

• If cleaning is necessary, shutdown the NVR and disconnect the power source first. Use a soft dry cloth only – never use an abrasive cleaner.

• Do not attempt to service or repair the DVR as opening or removing cover may expose dangerous voltages or other hazards. Refer all servicing to qualified service personnel

1.1 UPDATING SYSTEM F/W

1.1.1 WITH THE USB THUMB DRIVE

User can upgrade the system firmware if required. F/W upgrading could be required to increase the stability and the reliability or apply the new updated features. The following steps are a progress to upgrade the f/w.

Verify t he current F/ W version

Prepare new F/ W in the USB thumb drive

Do the upgrading process

1.1.1.1 How to verify the F/W version

You may need to check the F/W version provided and the F/W version currently used in the system. From the MANAGEMENT section under the SYSTEM menu, you can see the current version of F/W.

From the filename of the provided F/W file, you can see the version number.

VT-NV Series – On Cue IP

Check the F/W version at http://vitekcctv.com/Downloads.asp .

NVR_FW_1.11H_UI_1.2.F_9016P.TGZ

! The ‘1.11H UI 1.2.F in the file name means the F/W version.

Please avoid updating if the version number of the F/W file is lower than the current F/W

version.

1.1.1.2 Preparing new F/W in a USB thumb driver

After downloading new Firmware copy ZIP file to an empty USB thumb drive

Do ‘Safe Remove Hardware and Eject Media’ from your Windows computer.

Note) F/W upgrade must be followed by manufacturer’s direction.

1.1.1.3 Upgrading System from the System Menu

The following steps will guide you in upgrading the system with the new F/W.

Plug the prepared USB thumb drive in the USB port of DVR.

In the main menu open System then Management.

Click on “UPGRADE” to the right of F/W UPGRADE and the following screen will

appear

VT-NV Series – On Cue IP

Click OK and the firmware will start to load

The whole upgrading process can take several minutes.

DO NOT remove the USB thumb driver during upgrade.

DO NOT turn off power to system during upgrade.

When the firmware upgrade is finished, system will auto re-boot. Remove thumb drive

at this time

Note) if the USB thumb drive exists during the reboot, the upgrading process will start

again. If so, you must wait one more upgrading cycle to avoid damaging to the unit.

1.1.2 UPDATING FROM THE WEB MENU

The web menu service prepared in the NVR provides a way to update the system F/W remotely. The following steps explain how to do this.

To learn how to access the internal web menu service, refer the section 7.1, ‘WEB

SERVER’ of this user’s guide.

Log into the web server in the NVR

Enter the ‘MANAGEMENT’ page under the ‘SYSTEM’ menu page. Refer to the below

picture.

VT-NV Series – On Cue IP

Click the button ‘UPGRADE’ and the update page will open.

In the update page, click the ‘BROWSE’ button and open the folder where the file was

saved.

Choose the F/W file which has the file extension ‘tar.gz or tgz’.

Click the ‘UPLOAD’ button and let the system upload the F/W into the system.

When uploading is finished, the system is going to be ready to update.

Click the ‘START’ button triggers the updating processes.

While updating, the progress steps will appear as below.

VT-NV Series – On Cue IP

System shows [COMPLETED] when finished and will reboot automatically.

When the whole update is completed, the NVR will restart.

Turning off the power in any process of f/w updating may cause damage to the system.

VT-NV Series – On Cue IP

1.2 DESCRIPTION OF FRONT PANEL

[Front panel of NV-400S & 800S / 1600S]

1.CUSTOMER’S BRAND LOCATION

Front Panel

2.STATUS LED

Displays the information of the DVR (Stand –By), Record / HDD read/write and Network transmission.

3.IR RECEIVER

Infrared signal receiver for the IR remote cont roller.

4.FRONT USB 2.0 PORT

USB 2.0 ports. Provides functions like ‘Copy to USB storage’, ‘F/W Upgrade’ and ‘mouse’ operation.

[Front panel of NV-800P & 1600P NVR]

1.IR RECEIVER

Infrared signal receiver for the IR remote con troller.

2.STATUS LED

Displays the information of the DVR (Stand – By), Record and Network transmission.

3.FRONT USB 1/2 2.0 PORT

Left: USB 2.0 ports. Provides functions like ‘Copy t o USB storage’, and Etc Right: USB 2.0 ports. Provides functions like ‘Copy to USB storage’, ‘F/W Upgrade’ and Etc

1.3 DESCRIPTION OF REAR PANEL

10 13

4567

1112

[Rear panel of 4/8/16S NVR]

VT-NV Series – On Cue IP

[Rear panel of 8 & 16 & 32P NVR]

1.Power Switch(Only the 4CH NVR)

Switch to turn the DVR ON & OFF.

2.VGA Output (Video Graphic Array)

15-pin D-sub connector for the analogue VGA

output.

3.Audio Input

RCA connector for the audio signal input. (Line In)

4.Power In

12V DC Power socket.

5.Alarm(Sensor) Inputs, RS-485, and Relay Output

• Alarm inputs x 4

• RS-485 Signals. (G: Ground, D+: RX/TX +

signal, D-: RX/TX- signal)

• 4CH NVR: Relay output for the relay 1 (NO: Normal Open, NC: Normal Closed, CM: Common)

• 8&16CH NVR: Relay output for the relay 2 (NO: Normal Open, NC: Normal Closed, CM: Common)

6.Rear USB 2.0(Only the 4CH NVR)

USB 2.0 ports. Provides functions like ‘Copy to USB storage’, ‘Mouse’ Etc.

7.DIGITAL VIDEO OUT

Digital video output (HDMI) for the main monitor.

8. CVBS Monitor Output

Composite video output for spot monitor (BNC)

9.RJ-45 Network Port( 1G Base-T)

WAN Network Port

10.RJ-45 Local Port( 1G Base-T)

LAN Network Port

11.RJ-45 Cam(PoE) Port (100M Base-T)

P2P IP Camera connection (4CH NVR: 4port / 8&16 NVR: 8port)

12.Audio Output

RCA connector for the audio signal output. (Line

out)

13.POE Power In (48V)

DC Power socket for POE Power.

14.eSATA Connection Port(Option)

Connection for e-SATA storage to expand HDD

VT-NV Series – On Cue IP

2. GETTING STARTED

Controlling and programming of the NVR is limited with IR remote, it is recommended to use a mouse for all functions.

2.1 CONNECT AND SWITCH ON

" Connect all IP Cameras to NVR. " Connect one or more monitors to NVR using Digital Video output (HDMI), VGA and CVBS. " Connect power to NVR. Press the power button on the back panel of NVR to begin operation. " The following screens will appear after NVR is turned on.

Depending on the Monitor you connect to the NVR, initial logo may not display because

your monitor does not support low resolution, this is not a defect.

Default resolution is 1024 x 768

When loading the screen might flash on and off, this is to optimize screen resolution

After loading screen is displayed, recording starts according to pre-set condition. All

operations of the NVR are ready as seen in screen below

VT-NV Series – On Cue IP

After start-up diagnostics are completed, the operator must log-in to the system. You need to type the default user name as “ADMIN” and the default password as “1234” and press the enter button.

Logging in with IR remote controller

! Using direction buttons, move to user’s selected menu, press “enter” on remote

controller and move to user account selection mode.

! Using Up/Down keys, select account, and press “Enter” on remote controller for

selecting user’s account

! Using numeric keys, input pin code,

! If required, using direction key and move to virtual keyboard and input pin code.

! After inputting pin code, using direction keys, move to ‘enter’ or ‘confirm’ over virtual

keyboard and press ‘enter’ ( ) to log-in

VT-NV Series – On Cue IP

[live mode of 4 channels]

[live mode of 16 channels]

3. TOOL BAR

To view the Tool-Bar move mouse pointer to the bottom of the screen and the following will appear. The Tool-Bar display will disappear after pre-defined time set in Display settings or exit with exit button

( ).

Network connection status

Back up storage connection status

Automatic screen sequencing

HDD installation Default audio channel

Log on/off for NVR operation

Setup menu

VA Video Analytics (camera dependent)

Easy copy button

Screen display selection

Pan/tilt

VT-NV Series – On Cue IP

Digital zoom

System log

3.1 LOG OFF

There are two ways to logoff. One is manual logoff and the other one is automatic log off after configured time.

[Log-Off by using TOOL BAR]

Once Logoff selected as above, current account can be logged off.

Once user logs out, you can view the login window . You can set up the logout menu in Main menu for automatic logoff. Once you logoff, you can not operate the NVR , you must log in again.

3.2 Main Menu POP-UP

Press main menu button, main menu will POP-UP.

3.3 VA MENU POP-UP (Camera dependent)

This menu is for using IP camera which supports Video Analytics.

NVR doesn't support VA configuration of IP camera. All VA configuration must be done

on camera side

[VA MENU]

VT-NV Series – On Cue IP

VCA EVENT RECORD: Configure record schedule once VA event is activated from IP

camera.

! VCA ONLY: NVR records only VA event.

! VCA OFF: NVR doesn't recognize VA event as real event.

! VCA+MD: NVR recognize VA event and motion event both as real event.

SEND E-MAIL: NVR sends email once VA event recognized.

ATTACH SNAPSHOT: Activate VCA SNAPSHOT an image of the event will be

attached to an email (SEND E-MAIL must be activated)

VCA POPUP DWELL: If VCA popup mode is "On", you can configure the duration time

for full screen display.

VCA ICON DISPLAY: Activate VCA icon display menu as "ON", NVR displays VA icon

on live screen.

VCA BOX DISPLAY: Activate VCA box display menu as "ON", NVR display VA box on

live screen.

VCA ZONE DISPLAY: Activate VCA zone display menu as “ON”, NVR display VCA

zone on live screen.

BUZZER: Configure buzzer on /off for VA events triggered.

RELAY: Configure relay on/off for VA events triggered.

3.4 QUICK COPY MENU POP-UP

Clicking following icon, instant Backup menu will pop up. You can save the last 10 minutes from the current time.

3.5 SEARCH MENU POP-UP

To search a particular time of recorded footage, press the SEARCH button. To protect unauthorized viewing of footage, only authorized users can playback footage.

VT-NV Series – On Cue IP

3.6 DISPLAY POP-UP

Configure display mode by pressing display button of Tool bar.

You can select Quad / Single/ Auto sequence by selecting item in pop-up menu.

: Single Screen Mode

: Quad Screen Mode.

: 9-split Mode.

: 16-split Mode.

: Auto Sequence Mode.

3.7 PTZ POP-UP

When the display mode is in quad, the PTZ control panel will open for the selected camera which is previously highlighted by mouse click. If there is no highlighted camera, the PTZ control panel is opened for controlling camera 1. In single display mode, the PTZ control panel is opened for the currently displayed camera.

Support only after PTZ IP camera integration with NVR is completed.

[PTZControllerScreen]

10 11

1: Select channel for PTZ control.

2: Display PTZ control parameters which are set under ‘DETAIL’ of PTZ menu settings

VT-NV Series – On Cue IP

3: Number to configure Preset.

4: Save current screen as Preset.

5: Move to configured Preset Number.

6: Control the value of Zoom/ Focus/ Iris.

7: Move the PTZ camera Left/ Right/Tom/Bottom

8: Move to the Home position of PTZ camera.

9: Number to configure Tour

10: Start to configured Tour Number

11: Stop to configure Tour.

3.8 DIGITAL ZOOM

There are two ways to digitally zoom:

• Select the Zoom button on the Tool bar.

• Click and drag with the mouse

[Zoom by using the TOOL BAR]

Desired camera should be at Full screen mode, and then select the Zoom button. NOTE: When selecting the Zoom button while on multi display mode, channel 1 is automatically displayed.

Once selected, screen will convert to a single screen, shown below digital zoom control window.

: You can move Zoom Box

: press this button, you can control zoom box by 5 levels.

VT-NV Series – On Cue IP

[Zoom by using Mouse]

At full screen mode, you can select the area to zoom in/out by clicking left button of Mouse and drag, Clicking on the zoomed screen, the display returns to the original screen.

Digital Zoom supported in Live / Playback mode

Digital Zoom supported in Full screen mode only.

VT-NV Series – On Cue IP

3.9 LOG LIST

View the log list by selecting log list button in Tool bar.

2 3

1 : Display number from currently triggered ( Max 10,000 list can be recorded)

2 : Date / Time

3 : Log list

Items listed in log list.

! Power ON/OFF

! Backup Start

! Disk Format

! Factory Default

! Camera Menu Change

! PTZ Menu Change

! OSD Menu Change

! Monitor Menu Change

! Sequence Menu Change

! Date/Time Menu Change

! System Management Menu Change

! Sound Menu Change

! User Management Menu Change

! Authority Menu Change

VT-NV Series – On Cue IP

! Logout Menu Change

! Network Menu Change

! DDNS Menu Change

! Alarm In Menu Change

! Alarm Out Menu Change

! Buzzer Out Menu Change

! E-Mail Notification Menu Change

! Disk Management Menu Change

! Record Configuration Change

! Record Schedule Change

! IP Camera Menu Change

! Firmware Upgrade Success

! Firmware Upgrade Fail

! Admin(User 1 ~ 10) Auto Login

! Admin(User 1 ~ 10) Login

! Admin(User 1 ~ 10) Password Fail

! HDD 1(1 ~ 5) Error For Write

! HDD 1(1 ~ 5) Fail For Write

! HDD 1(1 ~ 5) Error For Read

! HDD 1(1 ~ 5) Fail For Read

! Network Connected

! Time Adjust

! Network Disconnected

! DVR Watchdog Reset

! Menu Data Backup Succeeded

! Menu Data Load Succeeded

! Menu Data Backup Failed

! Menu Data Load Failed

! Camera Menu Changed by Remote

! PTZ Menu Changed by Remote

! OSD Menu Changed by Remote

! Monitor Menu Changed by Remote

VT-NV Series – On Cue IP

! Sequence Menu Changed by Remote

! Date & Time Menu Changed by Remote

! System Management

! User Management Menu Changed by Remote

! Authority Menu Changed by Remote

! To Logout Menu Changed by Remote

! Network Menu Changed by Remote

! DDNS Menu Changed by Remote

! E-Mail Menu Changed by Remote

! Alarm input Menu Changed by Remote

! Alarm Output Menu Changed by Remote

! Buzzer Menu Changed by Remote

! E-Mail Event Menu Changed by Remote

! Disk Menu Changed by Remote

! Continuous Record Menu Changed by Remote

! Schedule Record Menu Changed by Remote

! Record Misc Menu Changed by Remote

! FAN Error

! Copy Success

! Copy Fail

! Backup Start

! Backup Stop

! Power OFF

VT-NV Series – On Cue IP

4. SEARCH & PLAYBACK

4.1 TIME / CALENDAR SEARCH

Search the recorded data by a calendar and timeline for quick access to recorded footage.

1: Select Search Mode:

! TIME: The recorded data can be searched using the calendar.

! PANORAMA: If you select a channel for panorama view, search mode will be changed

to PANORAMA Mode

! EVENT: The recorded data can be searched using the event list.

2 : SEARCH HDD : Select the HDD to search

! RECORD: Search HDD which is selected as Record.

! MIRRORING: Search HDD which is selected as Mirroring.

3: CALENDAR: Dates with recorded data will appear in BLUE.

! If you select the date having recorded data, the Hour time bar will fill-in.

4. Select Split screen

! : Single screen playback mode

! : Quad screen playback mode

! : 9-split screen playback mode

VT-NV Series – On Cue IP

! : 16-split screen playback mode

! : Playback at full screen mode

In playback mode control playback speed and direction.

In single screen, digital zoom function can be used.

: Return to Search menu.

: Close playback screen and return to live screen

5: PLAY CONTROL: Playback speed and direction control.

! : Reverse Fast Play

! : Reverse Slow Play

! : Reverse Play

! : Pause

! : Play (x1)

! : Slow Play

! : Fast Play

6: COPY: Copy the data to external storage.

7: VIDEO WINDOW: Searched video will be displayed

8: Return to live menu from Search Menu

VT-NV Series – On Cue IP

9: HOUR SELECT LINE: Select the data by hour. If certain time has recorded data, blue color

will be displayed.

10: Minutes / seconds display information for the unit: Minutes / seconds for display to help in

selection.

11: MINUTE SELECT LINE: Search the data by minute. If certain minute has recorded data,

Green color will be displayed.

12: RECORD DATA STATUS: You can view recording status of each channel. Green color

shows recorded data.

13: SECOND SELECT LINE: Select the data by second after starting playback by choosing

the desired second.

4.2 PANORAMA SEARCH

By using Panorama Search, user can search, playback, copy by hour/minute/second in16ch view mode.

4.2.1 BASIC OPERATION

If you select the Panorama, search mode will be changed to PANORAMA Mode.

Select the date on calendar; panorama playback will be started from the first recorded data in

selected date.

Select hour and display will be in minutes within that hour.

Select minutes and display will be in seconds within the minute.

! : Select PLAY to play video from selected time

! : If you select HOUR, hours will be displayed. (ex: if currently playback is

VT-NV Series – On Cue IP

by minutes, will then move back to HOUR search)

! : If you select MIN, minutes will be displayed (ex: if currently playback is

by hour, will then move back to minute search)

! : If you select SEC, seconds will be displayed (ex: if currently playback is

by minutes, will then move to second search)

! : Shows previous panorama. (ex: if current playback is 17~33 sec,

then will move back to 1~16sec)

! : Shows next panorama. (ex: if currently playback is 1~15sec,

then move to 17~33sec)

! : Selected channel for panorama view.

4.3 EVENT SEARCH

If you want to search an Event, you need to select date and event menu tab.

Event list shows 20 events per page, 25pages can be searched (max. 500 event)

VT-NV Series – On Cue IP

1 2

475

1. Select date which you want to search.

2: Preview: Event selected in the list (#3) displays a preview of the video.

3. Search result: Event list displayed.

! NO: Event number, most recent event display as No.1

! DATE/TIME: Event triggered time.

! CHANNEL: Event channel

! EVENT TYPE: Event type.

In event list, below list displayed only when VCA is selected.

VCA function supported only when ip camera have VCA function.

! Status (VA only): displays VA event’s start or end.

! ZONE (VA only): displays which area (zone) VA event occurred.

! Value (VA only): In VA event, displays event information requiring value.

! Name(VA only): In IP camera, displays registered name of VA event

Event list displays 20 events per page, total 25pages(max 500 event)

4: Select Event Type to be displayed in Event list.

! ALL: Displays all events.

! SENSOR: Display Sensor Events.

! VIDEO LOSS: Display Video loss Events.

! MOTION DETECTION: Display motion Events.

! VCA: Display VCA Events (in case of using UDP camera).

VCA function only supported when you use VCA supported IP camera.

VT-NV Series – On Cue IP

5. Search condition of VCA event set up in detail.

! 1: TYPE: Select which Type of VA will be displayed in VA list.

! 2: STATUS: Select start/end time of VA events.

! 3: ZONE: Select the zone of VA events.

! 4: INEQUALITY: Select the range of the value of VA events.

! 5: VALUE: Select the value of VA events.

! 6: NAME: Input ID of VA events which is “Object classifier" possible.

6: Search for events by hours / minutes can be selected.

! : Event search by hour

! : Event search by minute

7: Select channel which will be displayed in Event list.

8: Switch Events List page. A total 500 events are shown on 25 pages.

VT-NV Series – On Cue IP

4.4 COPY

FROM: Select the stat time to copy.

TO: Select the end time to copy.

TAG NAME: Name the video clip.

TYPE: Select .avi or .nvr for file type.

CHANNEL: Select the channel to copy.

: You can select Start/ End Time at Calendar search on Time line

to copy by right clicking the time and selecting start or end time.

PASSWORD: Input password for ‘.nvr’ format.

Copy: After all info is entered into COPY area, select COPY and a status box will appear and

show the progress of the offloading.

VT-NV Series – On Cue IP

5. QUICK MENU

If you are using a USB mouse to control the NVR, pressing the right button of mouse will bring up the Quick Menu. Here you can use display pause, PTZ control, zoom control, IP camera scan and ALARM RESET.

FREEZE ON: If you press Freeze button, the live display will stop.

FREEZE OFF: Release Freeze mode by pressing Freeze Off.

VT-NV Series – On Cue IP

PTZ: Selecting PTZ will bring up PTZ control screen. PTZ can only be controlled by an

authorized user. PTZ mode will be activated in the channel you selected.

ZOOM: This will execute digital zoom control screen. Zoom mode will be activated in the

channel you selected.

IP SCAN: You can scan the IP cameras currently connected to NVR. The IP camera

connected to NVR through peer to peer connection or local / Ethernet port both can be scanned.

IP camera connected by plug and play automatically connects to the NVR.

VT-NV Series – On Cue IP

6. HOW TO CONFIGURE

To view the setup menu in each section, press menu button on toolbar. Following screen will be displayed.

6.1 CONFIGURING CAMERA

To set-up the various camera options, highlight CAMERA and press ENTER.

6.1.1 TITLE

TITLE: Up to 18 characters can be set by using the virtual keyboard.

VT-NV Series – On Cue IP

6.1.2 ADJUST

The ADJUST menu is for adjusting the BRIGHTNESS, CONTRAST, SHARPNESS and SATURATION per camera

6.1.3 PTZ

There are two ways to control a PTZ camera.

RS-485 port.

Network.

If you use Network to control PTZ, there is no additional configuration in NVR

VT-NV Series – On Cue IP

ADDRESS: The unique ID of the PTZ camera.

PROTOCOL: The protocol of the PTZ camera.

BAUD RATE: The baud rate of the PTZ camera.

PTZ properties can also be adjusted for each channel by selecting DETAIL. Auto Focus, Auto

IRIS, P/T speed, zoom speed, focus speed, IRIS speed

Note: that some settings, such as AUTO FOCUS, may not be compatible with particular

PTZ cameras. If this is the case, changing this value will have no effect on PTZ control.

6.1.4 CAM PORT

This menu is to set up IP cameras to the NVR. Before connecting IP cameras to NVR, it is recommended that you configure IP camera menu first.

VT-NV Series – On Cue IP

TYPE: You can select AUTO, MANUAL or RTSP to make a connection between the NVR

and the IP Camera.

! AUTO: When you try to make a connection between IP Camera and NVR through peer

to peer by using the built in HUB, user can use this menu.

# If the IP camera is connected to NVR through Peer to Peer connection, The Default IP address will be allocated

192.168.172.101 ~ 104(4ch) / 192.168.172.101 ~ 108(8 & 16ch) automatically.

# In case of using "Auto" connection with IP camera, NVR changes and saves default value of IP camera in ID,

Password, RTSP Port, HTTP port, HTTP type)

# If the USER ID and password of the IP camera is not the default value, the NVR cannot change the configuration

of the IP camera in "Auto" connection mode.

# If the configured value of USER ID and password of the IP camera is different than the default value, you need to

assign the right value by using the "Detail" menu.

If the message above does not appear, please check camera power and connection to the NVR

! MANUAL: When making a connection between IP cameras and the NVR using

cameras already installed, you can use this menu.

# In case of "Manual" connection with IP camera, you can make a connection through the Ethernet (WAN) or Local

(LAN) port.

# ETHERNET: Select Ethernet for the camera connection through Ethernet (WAN) port.

# LOCAL: Select Local for the camera connection through Local (LAN) port.

# CANCEL: Cancel the manual connection.

The IP range of Local or Ethernet PORT for the connection between IP cameras and

NVR should be same when both are on the same network.

# Ex) if the IP of the ETHERNET PORT is 192.168.123.xxx, the IP address of the IP camera should be

192.168.123.xxx.

# Ex) if the IP of the LOCAL PORT is 192.168.123.xxx, the IP address of the IP camera should be 192.168.123.xxx.

# When making a connection between the NVR and IP cameras in manual mode, you must use ‘Detail menu

VT-NV Series – On Cue IP

’ to configuration IP cameras.

! RTSP URL: Use RTSP URL to make a connection with IP camera which is not listed in

supported IP cameras of NVR.

# IP ADDRESS: Input IP address of IP camera.

# RTSP PORT: Input the info of RTSP port of IP camera.

# INPUT RTSP URL: Input the info of RTSP URL of IP camera.

# APPLY: Save the configuration.

# CANCEL: Cancel the configuration.

You can be connected to IP camera through RTSP, but you cannot configure the IP

camera which is not supported in the IP camera protocol from NVR.

DETAIL ( ): Selecting manual mode, you need to configure the information of IP

cameras already installed on the local network.

IF IP camera connecting to NVR, is not configured with factory default for ip address,

RTSP port/HTTP port/ HTTP format/ ID / Pin code, then you should modify it through the NVR.

! IP ADDRESS (in case of using manual mode): Input IP address of IP camera.

# Default(When using Ethernet port): 4ch 192.168.0.201 ~ 204 / 8 & 16ch 192.168.0.201 ~ 208

# Default(When using local port): 4ch 192.168.172.101 ~ 104 / 8 & 16ch 192.168.172.101 ~ 108

! RTSP PORT (in case of using manual mode): Input RTSP port info.

# Default: 554

If RTSP port value is not matched with IP camera, below message will appear on screen.

VT-NV Series – On Cue IP

! HTTP PORT: Input HTTP port

# Default : 80

If HTTP port is different in the IP camera the following message will appear on the screen.

! HTTP TYPE: Select HTTP type of camera.

# Default: HTTP

! USER ID: Input ID of IP camera.

# Default : root

! PASSWORD: Input password of IP camera.

# Default: root

You can change the configuration of IP cameras only when the ID/PASSWORD info

already configured is correct.

! MODEL (in case of using manual mode): User can select the model which will be

connected to NVR.

SCAN: User can scan IP cameras currently installed on the Local network.

NVR currently supports (VITEK/UDP/SAMSUNG/SHANY/TRUEN/CNB/COMART/EOC)

Note) a few models from the same IP camera manufacturer may not be compatible.

Scan the info of IP cameras already installed on the local network which NVR is

connected to.

! MODEL: Display the model of scanned IP camera.

! MAC: Display MAC info of scanned IP camera.

! IP: Display IP address of scanned IP camera.

! CH: Channel information

VT-NV Series – On Cue IP

! Assign To: Assign channel number of scanned IP camera.

6.1.5 VIRTUAL PORT

This menu is to set up IP cameras on channels 9~16 of NVR. Before connection IP cameras to NVR, configure IP set up menu.

Virtual port menu is same as the cam port menu.

Virtual port menu does not support the “AUTO” mode.

6.2 CONFIGURING DISPLAY

To set-up the various display options, highlight DISPLAY and press ENTER.

6.2.1 OSD

To set-up the various display options, highlight DISPLAY and press ENTER. Configure camera title / border/ language here.

VT-NV Series – On Cue IP

TOOLBAR DISPLAY TIME: Set the time for Toolbar to be displayed

LIVE TIME DISPLAY: Live time display On / Off

CAMERA TITLE: Determines whether the camera title is displayed.

RECORDING MODE ICON: Determines whether the recording status is shown at the top

right of each channel display window.

BORDER: Determines whether there is a border around each channel in multi screen display

mode.

BORDER COLOR: If the border is ON, you can choose the color.

EVENT ICON: Determines whether the event (Alarm, V-loss) icon is displayed.

CAMERA INFORMATION: currently connected camera’s resolution display can be selected.

LANGUAGE: Select the language of display.

! ENGLISH / KOREAN / GERMAN / POLISH / JAPANESE / FINNISH / CHINESE /

RUSSIAN

VT-NV Series – On Cue IP

6.2.2 MONITOR

ALARM POP-UP MODE: When set to ON, an alarm input will cause the associated channel

to display full screen.

ALARM POP-UP DWELL: Determines how long the full screen popup is displayed after an

alarm input.

MOTION POP-UP MODE: When set to ON, motion detection will cause the associated

channel to display full screen.

MOTION POP-UP DWELL: Determines how long the full screen pop-up is displayed after

motion detection.

! If motion continues, the popup screen is displayed constantly.

VIDEO OUTPUT RESOLUTION(MAIN VIDEO OUTPUT MODE) : Configure video output

resolution of main monitor 1024x768 / 1280x1024 / 720p / 1080P

! OK: Press OK button to confirm configured video output.

If monitor does not support HD resolution, then configure VGA resolution on NVR.

If using a VGA monitor, connect monitor first then power up the NVR.

Factory default resolution is 1024x 768, so you should use monitor supporting at least

1024 x 768.

VGA HORIZONTAL OFFSET: You can change the horizontal position of VGA

VGA Vertical OFFSET: You can change the vertical position of VGA

VT-NV Series – On Cue IP

6.2.3 SEQUENCE

SEQUENCE DWELL: The time that each screen is displayed in a sequence operation.

SPOT SEQUENCE DWELL: Set sequence interval time for spot monitor

(5/10/15/20/30/40/60 seconds)

VT-NV Series – On Cue IP

6.3 CONFIGURING DISK

6.3.1 SETUP

You can configure DISK operation like Recording Time Limit / Overwrite / HDD Type / HDD Configuration.

OVERWRITE: IF you select “ON”, overwrite mode will be activated.

RECORDING TIME LIMIT: You can configure the data from current time to configured

time (12hr – 2 month).

Recording HDD setup: HDD connected to NVR, can be configured as recording or

mirroring drive, click Red marked HDD to configure operation mode.

VT-NV Series – On Cue IP

! RECORD: You can select HDD as record HDD.

! MIRRORING: You can select HDD as mirroring HDD.

! S.M.A.R.T: View HDD health condition

! GOOD: It shows current HDD condition is good.

! BAD: It shows current HDD condition is bad.

HDD’s S.M.A.R.T information may not be supported, depending on HDD Mfg.

VT-NV Series – On Cue IP

6.3.2 FORMAT

HDD TYPE: Select HDD type to format.

! RECORD: will format all HDD’s assigned to record.

! MIRRORING: will format all HDD’s assigned to mirror.

FORMAT: Start formatting selected HDD type

Formatting HDD time on NVR will differ depending on size of HDD.

Device: Format device connected to USB.

Some USB devices may not work in the NVR

FORMAT: format USB Device.

VT-NV Series – On Cue IP

6.4 CONFIGURING SYSTEM

6.4.1 DATE/TIME

DATE&TIME: Allows the operator to set or modify the current date & time.

After changing data/ time, be sure to press ( ) to confirm

After setting Date & Time formatting HDD is recommended.

DATE FORMAT: Determines how the date is displayed.

YYYY/MM/DD(Default), MM/DD/YYYY, DD/MM/YYYY

TIME FORMAT: Determines how the time is displayed.

24 Hour(Default), AM/PM

NETWORK TIME SERVER SETUP: If the NVR is connected to the Internet, you can

synchronize the time and date with sever.

Default Server: pool.ntp.org

ADJUST PERIOD (INTERVAL): Configuration synchronize interval with Network Time

server.

Network time server synchronization starts after NVR configuration is set.

TIME ZONE SETUP: Should be set according to the region that the NVR is installed.

D.S.T: Set to ON, the NVR will automatically adjust the time by one hour on the relevant

VT-NV Series – On Cue IP

date in spring and autumn

! FROM: D.S.T Start time of DST

! End : D.S.T End Time of DST

6.4.2 MANAGEMENT

SYSTEM INFORMATION: Select INFO to display following window.

! F/W VERSION: Shows the firmware version of the NVR.

! H/W VERSION: Shows the hardware version of the NVR.

! UI VERSION : Shows the UI version of the NVR

! VIDEO SIGNAL TYPE: NTSC or PAL

! HDD NUMBER: Shows the hard drive capacity installed.

! IP ADDRESS 1(Ethernet Port): Shows either the manual IP address entered in

NETWORK setup or the IP address assigned by a DHCP server if enabled.

! IP ADDRESS 2(Local Port): Shows either the manual IP address entered in

NETWORK setup or the default IP address.

VT-NV Series – On Cue IP

NVR display two IP addresses one for Ethernet and one for Local port.

Do not use same IP address range for Local Port and Ethernet Port.

! MAC address 1(Ethernet port): shows Mac address configured by manufacturer.

! Mac address 2 (local port): shows Mac address configured by manufacturer.

! DDNS SERVER ADDRESS: If DDNS is enabled, the host DDNS server is specified

here.

! NVR SERVICE PORT: Port number for NVR network operation

! WEB SERVER PORT: Port number that the NVR uses to support remote

connections.

! FAN STATUS: Display FAN Speed of installed fan (RPM).

Cooling fan’s speed is monitored, if stopped or slowed, alarm will occur.

! TEMPERATURE: Display internal temperature of NVR (/).

SYSTEM NAME: A system name of up to 15 characters can be defined. It is used so that

notification emails can be identified.

F/W UPGRADE: Firmware updates may be released periodically to enhance system

performance and add extra features. The operator can upgrade the firmware using a USB memory stick.

FACTORY DEFAULT: If settings have been changed which causes erratic behavior, the

factory default settings can be loaded.

SYSTEM DATA: System settings can be saved to a USB memory stick. The settings can

be reloaded in case of accidental factory reset or can be transferred to another NVR.

Caution) 4ch NVR: USB port is used in front panel.

8/16ch NVR: Left USB port in Front should be used.

VIDEO OUTPUT: Select NTSC or PAL.

Changing the video signal will reboot NVR.

AUTO LOGIN (PASSWORD): Selects if a password is required ‘ON / OFF’.

Note) Password must be selected to ‘ON’ if USER MANGEMENT options are required.

MAKE RESCUE DISK: Create Rescue Disk.

! How to Create a RESCUE Disk

# Plug a USB thumb drive in the USB port of NVR

# Click the ‘create’

! How to recover

# Disconnect the HDD’s of NVR

# Plug the rescue disk USB thumb drive into the USB port of NVR

# Turn on the NVR. NVR will load the system from rescue disk.

VT-NV Series – On Cue IP

6.4.3 SOUND

LIVE AUDIO: Select “on”, Audio output is available in live mode.

DEFAULT AUDIO CHANNEL: Specify which one of the AUDIO INPUTS is routed to the

AUDIO OUTPUT when the NVR is in multi-screen mode.

KEYPRESS: This setting will turn the IR Remote confirmation beep on or off.

VT-NV Series – On Cue IP

6.5 CONFIGURING EVENT / SENSOR

6.5.1 ALARM INPUT

Configure Alarm input .

OPERATION: Configure activation when Sensor is triggered.

! DISABLE: When Sensor input is triggered, Event is not working.

! ENABLE: When Sensor input is triggered, Event is working.

TYPE: If the operation is enabled.

! N/O: Activates when input is closed.

! N/C: Activates when input is opened

TEXT: If event is triggered from Sensor input, text will be displayed. Double click on text

to edit

VT-NV Series – On Cue IP

6.5.2 ALARM OUTPUT SETUP

Configure activation of Relay output.

ALARM OUT : Select Relay for the operation to be configure

4ch NVR : 1 relay , 8/16ch NVR: 2 relays

OPERATION: Configure output status of Relay.

! DISABLE: Relay is not working

! ENABLE: Relay is working once event is triggered.

MODE: Configure activation of Relay output.

! TRANSPARENT: Keep Relay output until event trigger has stopped.

! LATCHED: Keep relay output for duration time from the event last triggered.

DURATION: If the alarm output mode is configured as Latched. Configure duration time

for relay output.

TYPE : Define the transition of the signal of Alarm output

! N/O (Active Low): When event is triggered, the relay will go to ‘Closed’ state from

‘Open’.

! N/C(Active High): When event is triggered, the relay will go to ‘Open’ state from

‘Closed’

HDD EVENT: Select “ON”, when HDD related Event is triggered, relay output will be

triggered.

SENSOR: When sensor input is triggered, relay output will be triggered.

VIDEO LOSS: When video loss occurs, relay output will be triggered.

MOTION: When motion is triggered, replay output will be triggered.

VT-NV Series – On Cue IP

6.5.3 BUZZER OUTPUT SETUP

Configure Buzzer output when event is triggered.

OPERATION: Configure the output status of Buzzer.

! DISABLE: Buzzer is not working when event is triggered.

! ENABLE: Buzzer is working when event triggered.

HDD EVENT: If HDD related event is triggered, Buzzer output will be started.

MODE: You can configure operation mode of Buzzer output.

! TRANSPARENT: Keep buzzer output until event operation is stopped.

! LATCHED: Keep buzzer output for the duration time from event last triggered.

DURATION: You can configure duration time for buzzer output in latched mode.

SENSOR: When sensor is triggered, buzzer output will be started.

VIDEO LOSS: When video loss occurs, buzzer output will be started.

MOTION: When motion is triggered, buzzer output will be started.

VT-NV Series – On Cue IP

6.5.4 E-MAIL SETUP

Configure E-mail notificatin when event is triggered.

NOTIFICATION: Select “ON”, E-mail will be sent when event triggered.

SETUP CHANGE: Select “ON”, E-mail will be sent when menu configuration is changed.

HDD EVENT: Select “ON”, E-mail will be sent when HDD related event is triggered.

BOOT EVENT: Select “ON”, E-mail will be sent when NVR boots-up.

ALARM: E-mail will be sent, when sensor is triggered.

VIDEO LOSS: Email will be sent, when video loss occurs.

MOTION: Email will be sent, when motion is triggered.

FREQUENCY: Configure E-Mail notification period.

VT-NV Series – On Cue IP

6.6 CONFIGURING USER

To set-up the User Authority options, highlight USER and press ENTER

6.6.1 USER REGISTER

By default, the NVR is configured with a USER ID of ADMIN belonging to the ADMIN group and with a password of 1234.

Using this, max 8 user accounts can be registered and configured.

To modify user details, highlight the user with the blue cursor or press ENTER. The EDIT screen appears.

VT-NV Series – On Cue IP

USER ID: Edit the user ID using the virtual keyboard. (Max 10 characters).

PASSWORD: Change the password using the virtual keyboard. (Max 8 characters)

Note: To delete the existing password, use “ ”on the virtual keyboard.

E-MAIL: Enter the user’s email address if email notifications are required.

E-MAIL SEND: Enable or disable email notification for the particular user.

Note) Maximum 8 users can be registered.

NOTE) any user can be deleted except the default ADMIN user.

6.6.2 USER AUTHORITY

User authority.

Search & Play : Able to enter Search Menu/ Instant Playback

Copy : Able to enter backup menu

PTZ CONTROL: Able to control PTZ functions

VT-NV Series – On Cue IP

Power OFF : Right to Power Off

VT-NV Series – On Cue IP

6.6.3 LOG-OUT

AUTO LOGOUT: Select if auto log-out is ON or OFF.

DURATION: If auto log is set to ON, this determines the time. (in 1 - 10 Min)

VT-NV Series – On Cue IP

6.7 CONFIGURING RECORD

To set-up the various recording options, highlight RECORD and press ENTER.

6.7.1 SETUP

Recording configuration is set up here. Only direct connection (plug and play) between NVR and IP cameras can be set.

SIZE: Select what resolution of video will be recorded.

! Resolution : FULL HD(1080p) / HD(720p) / D1

! ALL: Set the resolution for all channels

Note) The resolution setting value is represented with the ratio of the connected IP

camera’s recording resolution.

FPS: Select recording frame rate as 0 / 1 / 2 / 4 / 5 / 8 / 10 / 15 /30 at NTSC mode or 0 / 1

/ 2 / 4 / 5 / 7 / 10 / 13 / 25 at PAL mode.

QUALITY : Select recording video quality from 5 levels; Low / Standard / High / Highest /

Super

! LOW : 2Mbps / Standard : 3Mbps / High : 4Mbps / Highest : 5Mbps / Super :

6Mbps

VT-NV Series – On Cue IP

! According to H.264 profile format, maximum bit rate is recommended.

High profile: 4Mbps/ Main profile: 4M bps, Baseline profile: 6M bps.

6.7.2 SUB STREAM

“Manual”/”RTSP” mode stream configuration needs to be setup in camera interface

directly by PC.

SIZE: Select what resolution of video will be recorded as follows.

! Resolution : D1 / CIF

! ALL: Set the resolution for all channels.

Note) The resolution setting value is represented with the ratio of the connected IP

camera’s recording resolution.

FPS: Select recording frame rate 0 / 1 / 2 / 4 / 5 / 8 / 10 / 15 / 30 in NTSC mode or 0 / 1 / 2

/ 4 / 5 / 7 / 10 / 13 / 25 in PAL modes.

QUALITY: Select recording video quality from 5 levels; Standard / Highest / Super

! Standard : 256Kbps / Highest : 512Kbps / Super : 1024Kbps

VT-NV Series – On Cue IP

6.7.3 SCHEDULE

Configure schedule recording mode either Day / Week.

Daily: set up one schedule and apply to every day.

Weekly: set up 7 schedules from Monday to Sunday, and use it for every week.

Select daily ,weekly in menu(record-> option)

DAILY: Configure the recording type by hour and by a channel. This mode is for all days

having the same recording schedule regardless of the day of the week.

WEEKLY: In this mode, you can configure the recording type by hour, by channel and by

the day of the week. This mode is suitable for the user who wants to configure a separate schedule according to the day of the week.

TYPE: Select recording mode out of total 8 modes. Refer to the below picture

! No record.

! Continuous record

! Motion record.

! Alarm record

! Continuous & Motion Record

! Continuous & Alarm Record

! Motion & Alarm Record

! Continuous & Motion & Alarm Record

VT-NV Series – On Cue IP

6.7.4 OPTION

SCHEDULE MODE: Either DAILY (one schedule will apply to every day of the week) or

WEEKLY (each day of the week has its own schedule).

PRE-EVENT RECORDING TIME: When the NVR is not in continuous recording mode,

this setting determines the amount of footage that is always recorded before an event occurs (VA, motion detection, alarm input etc.)

POST-EVENT RECORDING TIME: When the NVR is not in continuous recording mode,

this setting determines the amount of footage that is always recorded after an event occurs (VA, motion detection, alarm input etc.)

AUDIO RECORDING: If you select “ON”, audio data will be recorded.

! ON: audio transmitted to NVR record with video, will also display on live view.

! OFF: audio transmitted to NVR off on live view.

LIVE STREAM: You can select either Main or Sub stream for live display.

RECORD STREAM: You can select either Main or Sub stream for recording.

Mirroring: You can enable mirroring recording mode or not.

! ON: Select mirroring.

# EVENT: Just event data will be recorded to mirroring HDD.

# ALL: Same data will be recorded to mirroring HDD same as current recording data.

! OFF: Mirroring record off

SELECT CHANNEL FOR MIRRORING: You can check which channel will be recorded to

mirroring HDD.

! All: all channel with mirroring record.

! Channel 1~16: selected channels will record with mirroring.

VT-NV Series – On Cue IP

6.8 CONFIGURING NETWORK

To set-up the Network options, highlight NETWORK and press ENTER. Configure the network.

6.8.1 IP SETUP

IP set up menu is used when you use PC software and mobile software which NVR support.

DHCP: When selected the NVR will obtain an Ethernet IP address automatically if

connected to a DHCP server or router.

IP ADDRESS: If DHCP is not being used the IP address can be manually set.

GATEWAY: If DHCP is not being used the Gateway can be manually set.

SUBNET MASK: If DHCP is not being used the subnet mask can be set manually.

1ST DNS SERVER: If DHCP is not being used the 1st DNS server can be manually set.

2ND DNS SERVER: If DHCP is not being used the 2nd DNS server can be manually set.

NVR PORT: The port number that the NVR uses to support remote software.

WEB SERVER PORT: The port number that the NVR uses to support remote connection

from Internet Explorer or other web browsers.

VT-NV Series – On Cue IP

When connecting more than one NVR to the internet, make sure the NVR and the

WEB port are different on each unit.

MAX TX SPEED: Specifies the maximum bandwidth that the NVR can use during a

remote connection.

Note) Both NVR & WEB SERVER PORT will need a firewall rule created for remote

Connection

Note) uPNP (Auto Port Forwarding) is always activated in background.

Note) Upnp function for automatic forwarding setup may not be compatible depending

on router and hub, in this case user should configure port forwarding manually.

6.8.2 LOCAL PORT

Configure same range of IP address of camera port when using Peer to peer connection.

Used for IP setup of IP camera when connected to NVR directly (plug and play)

Used for when IP camera in LAN network is connect to NVR.

When connecting IP cameras manually, configure same range of IP address with IP

camera.

IP ADDRESS: IP Address of Local port and P2P ports.

GATEWAY: For local port and P2P ports.

SUBNET MASK: Subnet of local port and P2P ports.

Subnet mask changes only available when connecting cameras manually.

VT-NV Series – On Cue IP

6.8.3 DDNS

DDNS: When enabled the NVR can be accessed through a dynamic DNS server.

Commonly used if a broadband connection does not have a static IP address.

DDNS SERVER: DDNS server Name.

AUTO DDNS: Set to on to use Auto DDNS.

6.8.4 E-MAIL

USE DEFAULT SERVER: Select On or OFF. If you make Default sever as ON, mail will

be sent by OnCue mail server.

SERVER: The SMTP outbound email server that should be used to send email

notifications.

VT-NV Series – On Cue IP

PORT: The outbound email port number.

SECURITY: Set to OFF if the SERVER does not require a username and password to

connect.

USER: Enter a username to identify the NVR in email messages.

PASSWORD: If SECURITY is set to ON, enter the password here.

FROM: Input an email address or text.

TEST E-MAIL: Send a test e-mail with the specified server information to verify the

delivery.

Test: it is to confirm that Pre-set email is right. Test email is transmitted using pre-set

information.

To use email function, you have to configure ‘user’s menu’ and ‘event/sensor menu $

email menu’.

VT-NV Series – On Cue IP

7. REMOTE

7.1 WEB SERVER

This server consists of two services. One is for the remote configuration of NVR setup and the other is for the client viewer based on Active-X. Using the remote configuration, you can configure all feature sets of NVR. And the live preview, search and PTZ control can be served by the ‘Web Viewer’.

The table below shows the recommended PC specification for the proper operation.

[Minimum & Recommended Specification of PC]

Minimum

Recommended

Operating System

Windows XP

Windows 7

CPU

Core2Duo @2.53GHz or Equivalent

Core i5 @3.3GHz or Higher

Memory

1 GB

2 GB

Video Card Memory

512MB

HDD Capacity

50MB

2GB

VGA Resolution

1280x1024x16

1920x1080x32

Direct-X

DirectX 7.0

DirectX 9.0c

Network

Ethernet 10/100B-TX

VT-NV Series – On Cue IP

7.1.1 CONNECT TO WEB SERVER

Enter the IP address of NVR into the ULR bar referring to the below picture.

LOCAL NETWORK ACCESS: To find the IP address of the DVR, go to the ‘INFO’

section under the SYSTEM/MANAGEMENT of the DVR’s menu. If you are on the same network as the DVR, you can use the DVR’s IP address to access it.

REMOTE NETWORK ACCESS: NOTE) to access the DVR from a remote

network, you need to use the WAN IP address of the network the DVR is connected to. (Sometimes this address is referred to as the LIVE, PUBLIC, or OUTSIDE IP). In order to view your DVR remotely you MUST port forward BOTH the DVR PORT and the WEB SERVER PORT. To find the DVR and Web Server ports, go to the NETWORK SETUP page.

If you need assistance with port forwarding, please visit our website and review our

tutorial videos: http://vitekcctv.com/videotutorials.asp. If you need further assistance, please reference your router’s manual or contact your Network Administrator/IT Professional. If your router supports the ‘uPNP’ feature, there is no need to manually configure ‘Port Forwarding’ because the DVR supports the ‘Auto Port Forwarding’ function using the ‘uPNP’ protocol.

[The initial screen of Web Server]

1: Enter the IP address of your NVR. If you don’t use the default port number of HTTP,

80, you may add the port number following the IP address. Ex. http://192.168.123.63:80

2: Input the administrator’s password in ‘ADMIN PASSWORD’. Only administrator can

3: ActiveX based Web Viewer: Clicking the link will execute the ‘Web Viewer’ or initiate

the installation of ActiveX plug-in.

VT-NV Series – On Cue IP

7.1.2 WEB CONFIGURATION PAGE

In the web configuration page, you can set the NVR operations remotely.

Tested Web Browser List

" Microsoft Internet ExplorerR " Mozilla FirefoxR " Google Chrome BrowserR " Opera BrowserR " Apple SafariR

Features

Configuring the NVR setup remotely

After entering the ADMIN password and clicking ‘LOGIN’, you can navigate to the page where you can configure the setup menu of NVR.

NOTE) Default Password for ADMIN: 1234

NOTE) Only ADMIN account can access the menu configuration pages.

NOTE) with no operation for more than 5 minutes the configuration page will be

logged out automatically.

7.1.2.1 Initial Page of Web Configuration

1: log out from the configuration page

2: version number of this web configuration

3: Top menu of NVR

4: Sub menu of NVR

5: Setting or Information section

6: Canceling or applying the modification

APPLY: the modified setting is applied to NVR and saved

In order to apply or save, you should click the ‘APPLY’ button. Otherwise all

changes will be lost.

VT-NV Series – On Cue IP

For detail description of the NVR configuration, please refer the ‘5.HOW TO CONFIGURE’ section of this manual. Clicking the following link will guide you to the proper section which explains each setup.

CAMERA

DISPLAY

SYSTEM

USER

NETWORK

EVENT/SENSOR

DISK

RECORD

Search, Playback & Copy functions are not supported from the web server. To user

these, please use the ‘Web Viewer’ instead.

7.1.3 WEB VIEWER (Active-X)

Though the ‘Web Viewer’, you can see live video, search and playback of recordings in the NVR and copy recordings from the NVR.

Tested Web Browser

Microsoft Internet ExplorerR

Mozilla FirefoxR

Google Chrome BrowserR

Features

This ‘Web Viewer’ is based on ActiveX

Monitoring live videos from the NVR.

Searching & Playback of recordings in the NVR

Copy recorded data in the NVR to a PC remotely

PTZ camera control remotely

7.1.3.1 Installation and Execution

[Microsoft IE]

Click the ‘ActiveX WEB Viewer’ to initiate the installation of the ‘Web Viewer’ (if not installed previously). If the ‘Web Viewer’ is installed already in your IE browser; clicking ‘ActiveX WEB Viewer’ will launch the WEB Viewer.

NOTE) to install properly, your PC should be connected to the internet.

NOTE) ‘Web Viewer’ is certificated with the name ‘NEOXENTEC SYSTEMS

CO, .LTD’, who designs the application.

NOTE) First execution of ‘Web Viewer’ will install the application.

VT-NV Series – On Cue IP

NOTE) if new updated version of ‘Web Viewer’ is found, updating starts

automatically before execution.

[Google Chrome]

In order to execute the ActiveX plug-in, you have to install the ‘IE TAB’ from Google web store referring the following steps.

Execute the Chrome browser

Go to https://chrome.google.com/webstore/category/home

Enter the word ‘IE TAB’ into the ‘Search the store’ box and press enter.

‘Searching’ shows the results such as below.

Click the ‘ADD TO CHROME’ and then you can see the IE symbol on the right side of

URL Bar

There are two ways to execute the ‘Web Viewer’ from the Chrome.

1. Click the ICON ( ) on the right side of URL bar. It opens new URL bar to get the URL. Entering the required IP address of NVR will connect the web server.

2. Just entering the IP address of NVR into the URL bar of Chrome and press enter

[Mozilla Firefox]

In order to execute the ActiveX plug-in, you have to install the ‘IE TAB’ from the add-on page of Firefox referring the following steps

Execute the Firefox browser

Go to https://addons.mozilla.org/en-US/firefox/addon/ie-tab. And then the following page

will show the way to install the ‘IE TAB’.

VT-NV Series – On Cue IP

Click the ‘Add to Firefox’ will enable supporting Active-X plug-in.

Way to execute the ‘Web Viewer’ from the Firefox

Enter the IP of NVR into the URL bar of Firefox.

Right-click the link ‘AcitveX WEB Viewer’ will show the pop-up menu such as below.

Select the ‘Open Link in IE TAB’. ActiveX

First execution will install the ActiveX plug-in. And the application will be executed if

installed already.

7.1.3.2 Initial Screen of Web Viewer

Executing the ‘Web Viewer’ opens the application separated from the web browser and show the login window such as below picture.

7.1.3.3 Log In

VT-NV Series – On Cue IP

: Enter the USER name registered in the NVR

: Enter the password for the selected user.

The user authority and allowed functions, live preview, search & playback, PTZ

control and etc., are controlled by the setting USER AUTHORITY setting of NVR setup

USER ID and password is case-sensitive.

VT-NV Series – On Cue IP

7.1.3.4 Live Preview

After login, the live preview screen will be shown such as below.

Features

User log-in/out feature (RECONNECT)

Monitoring the live preview

Snapshot and save as JPEG

(Admin Only) Control the resolution and quality for transferred video stream directly

The yellow rectangle around video shows the currently selected camera

1: IP of NVR connected remotely

2: display split mode selection

! : Single camera view

! : Quad split view

! : 6 split view

! : 9 split view

! : 16 split view

3: WEB Viewer Minimize/Maximize/Close

! : Minimize the window

! : Maximize the window

VT-NV Series – On Cue IP

! : Exit the ‘Web Viewer’

4: Reconnect/Live & Play/Full Screen

: Log out and Reconnect

: Switching between the live preview and search & playback screen

: Full screen video view. Press ‘ESC’ to return

: Configuration menu for Web Viewer.

5: Date & Time of Camera from the NVR

6 : Channel Title and the resolution of the video

VT-NV Series – On Cue IP

7.1.3.5 JPEG Snapshot/ PTZ control / Video Configuration /Live Audio

In the Web Viewer, you can save a snapshot as a JPEG file, control the PTZ camera and hear audio from the NVR. You can configure and transfer video directly from the viewer. Right-click on the video window shows the pop-up menu such as following picture.

: Save a snapshot of the selected channel with the yellow border

into the PC as a JPEG file.

: Opens the PTZ control panel.

1: Camera Channel number which is currently selected.

2: PRESET OPERATION OF PTZ

3: ZOOM/FOCUS/IRIS CONTROL

4: DIRECTION CONTROL (PAN & TILT)

5: TOUR OPERATION OF PTZ

VT-NV Series – On Cue IP

: Select stream for Live view (Main or Sub stream)

: This function is for two way audio. If you press the ‘live audio send’

audio will be sent from the PC to NVR.

7.1.3.6 Search & Playback

Entering to the search & playback window or Returning to the live preview

Features

User log-in/out feature (CONNECT)

Switching between the live preview and search & playback

Search & Playback

Copy the recordings in the NVR to the PC remotely

1 2

1: Show the IP address of NVR currently connected

2: Split mode selection.

! : Single camera view

! : Quad split view

! : 6 split view

! : 9 split view

VT-NV Series – On Cue IP

! : 16 split view

3: Playback speed control

! : Reverse Fast

! : Reverse Slow

! : Reverse Normal Speed

! : Pause

! : Forward Normal Speed

! : Forward Slow

! : Forward Fast

Steps for fast playback : x2, x4, x8, x16,x30, x60, x120

Steps for slow playback : 1/2, 1/4, 1/8, 1/16, 1/30, 1/60, 1/120

4: Fast Playback Speed & Direction Control Bar

! Mouse wheel up: faster in forward direction

! Mouse wheel down: reversely faster

! Center click: normal speed playback

! Click on the right half of bar : fast forward

! Click on the left half of bar: fast reverse

! 7 level speed control for each direction

5: View window control

! : Minimize the window

! : Maximize the window

! : Exit the ‘Web Viewer’

6: Reconnect/Live&Play/Full Screen

! : Log out and Reconnect

! : Switching between the live preview and the search & playback

! : Full screen video view. Press ‘ESC’ to return to the window

! : Configuration menu for Web Viewer.

7: Calendar Panel: show the selected date for searching. The green color indicates that

the recording data exist. Click the date will trigger the search for the selected day. The search result is displayed on the time selection table (10).

8 : Copy the recorded video in the NVR to the PC

VT-NV Series – On Cue IP

! TAG name: Folder name where the copied AVI file to be saved.

! Channel: Choose the channel required to be copied

! From: The start time of the recorded data to be copied

! To: The end time of the recorded data to be copied

! Copy Start: executing the copy operation

TAG name and Channel have to be defined in order to copy.

9: Choose search type between ‘EVENT’ and ‘TIME’.

! : select the search mode to ‘Time Search’.

! Yellow colored cell indicates the currently selected hour and minute.

! Green colored cell means that there is the recorded data by continuous recording.

! Red colored cell means that there is event recorded data.

! Click or double-click on the cell in the minutes bar and playback will start from the

selected time.

! : Right click on the minute bar will show a pop-up

VT-NV Series – On Cue IP

menu.

! : Clicking ‘COPY START TIME’ from the selected time cell and

input it into the ‘From’ of COPY control panel.

! : Clicking ‘COPY END TIME’ from the selected time cell and input

it into the ‘To’ of COPY control panel.

! : Taking the time for ‘EVENT SEARCH start time’.

By clicking on the ‘second’ bar will start the playback video to the selected second.

This is only available during playback.

Each cells in the time selection table indicates whether the recording data exists or

not for that time and channel.

! : Select the search mode to ‘EVENT Search’.

! Event Type(Search Condition)

# All: For all kinds of recording event

# Sensor: sensor input event

# Video Loss: lost video event

! Motion Detection : motion detection event

! ALL: Searching on all channels

! CH1/CH2/CH3/CH4..: choose the channel to be searched

! Search: execute the event search again

10: Time selection & recording indication table / Event search result window

11: display the playback video as a result of searching.

VT-NV Series – On Cue IP

7.2 Android Viewer / iOS Viewer

On Cue Viewer is the name of smart phone viewer for Android iOn Cue Viewer is the name of smart phone viewer for IOS.

You can access the NVR system through 3G/4G phone or Wi-Fi connection.

Main feature

Live View

Full-Screen

Multi Screen Display (4 channel split)

PTZ Control (Pan-Tilt, Zoom, Preset configure and Move)

Live Zoom & Web Menu connection of NVR will be supported through upgraded version.

7.2.1 How to use

Start “On Cur Viewer/iOn Cur Viewer”, you will see the above screen.

Quick Connect: If you don’t want to save the NVR info to mobile phone, just for one

time connection usage.

NVR List: If you want to save the NVR info to mobile phone and control the list of NVR.

7.2.1.1 Quick Connect

VT-NV Series – On Cue IP

Press Quick Connect button, the above image will be displayed.

NVR Address : input IP Address of NVR

Port Number: input NVR port number that you configured in Network menu of NVR.

User ID: input ID that you configured in NVR. ( default password of Admin is 1234)

Password : input password ( default password of Admin is 1234)

Connect: Connect to NVR to view the video by pressing Connect button.

Cancel: Close Quick Connect.

7.2.1.2 NVR LIST

Press NVR list button, following window will be displayed.

New: create new NVR to be added to List.

VT-NV Series – On Cue IP

Edit: edit list currently stored.

Delete: delete currently selected NVR stored.

Close : close NVR list menu

Connect: connect to selected NVR.

Menu: You can connect to Web menu of NVR after selecting one of the NVR’s from the

List.

7.2.1.3 How to add NVR to the List

Press New button, following window will be displayed.

NVR Name: Name the newly added NVR to the List.

NVR IP/DDNS: Input IP address or DDNS info of NVR.

Port Number: Input NVR port number.

WEB Port: Input HTTP port info of NVR that you configured in NVR network menu.

Note) this menu is for connection with Web Menu of NVR. Which will be

supported in upgraded version

User ID: Input ID that is configured in NVR menu.

Password: Input password that is configured in NVR menu.

Save: Store the info that you input pressing Save button.

Cancel : Close adding List

7.2.1.4 How to connect

VT-NV Series – On Cue IP

Select one from the list that you what to view to make a connection. Then press Connect

VT-NV Series – On Cue IP

7.3 DDNS SERVER

Domain Name Service through DDNS server.

7.3.1 HOW TO REGISTER

You need to input http://oncueddns.com at URL in Web Brower.

PASSWORD: Input Password.

Logon: Press Log-in button to log-in

7.3.2 REGISTER

Create user account by using register menu.

PASSWORD: Create Password.

CONFIRM PASSWORD: Input password again to confirm the password.

VT-NV Series – On Cue IP

7.3.3 Input NVR information.

1 : List number of registered NVR

2 : Mac address of registered NVR

3: Domain name of registered NVR.

4: IP address of registered NVR.

5: Last time NVR sent info to DDNS server.

6: Modify NVR info

7: Delete Domain name registered in DDNS server.

8: Input Mac Address of NVR that you want to register into DDNS server.

9: Input Domain name of NVR that you want to register into DDNS server.

The Domain name type is “user.ns.oncueddns.com”.

ADD: Register NVR to the DDNS server pressing ADD button.

LIST: The NVR list registered will be displayed.

LOGOUT : User can log out

Note) it will take around 10 to 15 minutes to confirm the registration at the Server.

VT-NV Series – On Cue IP

7.4 OnCue Viewer

OnCue Viewer is a ‘Remote Client NVR Viewer’ which can provide the functions such as ‘Monitoring live video’, ‘Search & Playback for Recorded Video in NVR’ and ‘Download the Recorded Video in NVR (Remote COPY).

The following table shows the PC requirement for this application S/W.

[Minimum & Recommended Specification of PC]

Minimum

Recommended

Operating System

Windows XP

Windows 7

CPU

Core2Duo @2.53GHz or Equivalent

Core i5 @3.3GHz or Higher

Memory

1 GB

2 GB

Video Card Memory

512MB

HDD Capacity

50MB

2GB

VGA Resolution

1280x1024x16

1920x1080x32

Direct-X

DirectX 7.0

DirectX 9.0c

Network

Ethernet 10/100B-TX

7.4.1 INSTALLATION

Install the ‘DVR Manager using the ‘setup’ program which is provided in the bundled CD. Executing the ‘DVRManager_setup.exe’ in the OnCue Viewer folder will guide you to install this.

: Setup program of DVR Manager

: Introduction of Setup

: Specify the folder location for installation.

VT-NV Series – On Cue IP

: Complete Message Window

7.4.2 EXECUTION

The shortcut of ‘OnCue Viewer’ is created after the successful installation. Clicking this icon

executes the OnCue Viewer.

: Shortcut and icon of OnCue Viewer

7.4.3 LIVE VIDEO MONITORING

The initial window of OnCue Viewer is composed of the picture below.

1 2

1: CONNECTION MANAGER: for registering or deleting a NVR to/from the NVR List.

2: FULL SCREEN: Fill and fit only the video windows into the PC monitor.

3 :CONFIG :

VT-NV Series – On Cue IP

! FOLDER SELECT: Choose or make a folder for the data which is copied from the

NVR remotely.

! LANGUAGE: Select Language

! EVENT POPUP TIME: Selectable time for Event POP-UP

! EVENT SOUND: If Event is Detected a voice will say “Event detected”

! SAVE: Apply and save the current modification.

! CLOSE: exit the ‘Config’ pop-up.

4: FILE SEARCH: Execute the File Player for the backup playback.

5: SPLIT MODE SELECTION: choose the number of cameras which will be shown in

the live preview window.

! 1 / 4 / 9 / 16 / 25 / 36 / 49 / 64

6 : Minimize/Maximize/Close OnCue Viewer

! : Minimize the window

! : Maximize the window

! : Exit the ‘OnCue Viewer

7: Live View Window: show the live video of the connected NVR.

8: NVR List Window: list the registered NVRs and indicate the connection status. When

the NVR is linked, the cameras connected on that NVR are listed under the NVR.

9: NVR Information: Show information of NVR selected.

7.4.4 CONNECTION MANAGER

This provides the way to register the NVRs into the NVR list, remove the NVR from the NVR list and editing the NVR connection information.

VT-NV Series – On Cue IP

DVR Name: The name which you give to the NVR which has the following connection

information.

DVR Address : specify the IP address of the NVR

DVR Port: The port number programmed into the NVR.

USER : user ID to be used to login

PASSWORD: password for the selected user.

User name and password is case-sensitive.

NVR SCAN: scan the local network and show the detected NVRs.

! MAC Address :Shows the MAC address’ of NVR’s found from scanning

! IP Address: Shows the IP address’ of NVR’s found from scanning.

! PORT: Shows the PORT number of the NVR’s found from scanning.

! NVR Name: Shows the name of the NVR’s found from scanning. This is the name

given in ‘SYSTEM NAME’ under the ‘MANAGEMENT’ page of ‘SYSTEM’ menu.

! SCAN: execute scanning the LAN again.

! ADD SELECTED: Register the selected NVR into the NVR list of CONNECTION

MANAGER.

! Add All: Register all the scanned NVR’s into the NVR list of CONNECTION

MANAGER.

! Close: Close the NVR SCAN window.

Add: Add new NVR into the NVR list.

Edit: Edit the connection information of the selected NVR.

Remove: Remove the selected NVR from the NVR list.

Close : Close the CONNECTION MANANGER

VT-NV Series – On Cue IP

7.4.5 LIVE VIDEO WINDOW

Features of LIVE VIDEO WINDOW

Monitoring live camera video

Swap the position of two cameras

Snapshot and save it into the PC as JPEG file.

PAN/TILT Control remotely

Configure the quality and resolution for live video.(ADMIN account only)

Live audio from NVR

Digital Zoom In

7.4.5.1 Monitoring live video stream

Live videos from multiple NVRs are displayed in the ‘LIVE VIDEO WINDOW’. You can configure the number of camera to be shown by the ‘Multi MODE SELECTION’ button.

Double click image to bring that image up full screen, double click again to return to

multi way screen

7.4.5.2 Swap Camera Position

Swap the display location of cameras by drag and drop.

VT-NV Series – On Cue IP

The swapped camera position will go back to the original location in case that the

OnCue Viewer restarts or the connection is re-established.

7.4.5.3 Digital Zoom on the Live View

When in full screen mode on selected channel right click and drag to create a box to zoom in Clicking anywhere in image will return to previous screen.

7.4.5.4 JPEG Snapshot/ PTZ control / Video Configuration /Live Audio

Right click on screen will open dropdown box for the following features.

VT-NV Series – On Cue IP

: Saves the current selected channel as a JPEG snapshot

: Open the PTZ control panel, which controls the PTZ camera of the

selected channel.

1: Camera Channel number which is currently selected.

2: PRESET OPERATION OF PTZ

3: ZOOM/FOCUS/IRIS CONTROL

4: DIRECTION CONTROL (PAN & TILT)

5: TOUR OPERATION OF PTZ

VT-NV Series – On Cue IP

: Select stream for Live view (Main or Sub stream)

: Hear audio from the selected camera.

: This function is ‘two way audio function’. If you press the ‘live audio

send’ send audio from the PC to NVR.

7.4.5.5 NVR List

The ‘NVR List’ shows the NVR’s registered using the ‘CONNECTION MANAGER’. In the NVR List panel, you can connect/disconnect the NVR, execute the Player for the remote searching and playback, and see the status information of NVR.

SYSTEM ID – REC: HDD1: [The name of NVR]: [HDD number], HDD number means

the HDD index currently be accessed for recording.

: Show the recording type or status.

Right clicking the NVR name in the NVR list pops up the menu to connect/disconnect

NVR or execute the Player for search & playback such as below picture.

! CONNECT: Connect the selected NVR

! DISCONNECT: Dis-connect the OnCue Viewer from the NVR

! RUN PLAYER: Execute the Player for remote search & playback.

! DVR WEB MENU: Connect to Web menu of NVR after selection one of NVR in the

List.

7.4.5.6 NVR Information

This panel shows information of NVR which is currently highlighted from the NVR List.

VT-NV Series – On Cue IP

7.4.6 PLAYER

The Player supports the features such as followings.

Features of Player

Live video monitoring for the connected NVR

Remote search and playback for the connected NVR

Download the recorded data from the NVR(remote copy)

Control a PAN/TILT camera movement

OnCue IP “S” NVR Series

Detailed Specifications VT-NV400S VT-NV800S VT-NV1600S

Channels Max Recording Rate Max.Bitrate (Per Camera) IP Camera Support Video Output Display Mode (Channels) CVBS (BNC) Outputs Video Compression Audio Recording Audio (External) Local Audio Inputs Search Mode Panorama Search WAN Port LAN Port P2P Port (PoE Hub) PoE Power Live Streaming Remote Viewing No of HDDs Max HDD Size RAID Mode e-SATA Media Type Copy Format Backup Video Loss Alarm In/Out Motion Detection VCA/Meta data GUI Control Health Checking Serial Com. Language System PoE Power WxDxH (mm) Operation Temp.

5Mbps (720p) / 4Mbps (1080p) @ 30fps

4 CH

120fps@1080p

120 fps @ 1080p

1 / 4

1 x 10/100

1 x G-Net

2 (SATA-II)

N/A

8 CH

240fps@1080p

8Mbps (720/1080p) @ 30fps

Vitek / Samsung / UDP / CNB / Comart / Truen / Shany / SecuBest / OnViF

120 fps @ 1080p

1 / 4 / 9

MAIN w/o GUI

H.264 Baseline/Main/High Priofile, MPEG4

1 Per Camera Using audio streams from camera

Using audio streams from camera (G.711, ADPCM, PCM)

1CH Line-in

Time / Calendar / Panorama / Event / VCA Metadata

Support with 16 split view window

1 x G-NET 1 x G-Net

4 x 10/100

4, 72W

1st or 2nd stream selectable

RMS for Windows, Web Viewer(ActiveX), iOS Viewer, Android Viewer

3 (SATA-II)

4TB

Dual Recording

USB Memory or USB HDD

AVI

DVR format (with the embedded file player)

Connection Lost Detection

4 In / 1 Out (Relay)

Indicated from Camera

Camera dependent

IR Remote Control / USB Mouse

HDD S.M.A.R.T/ Fan Speed / Watchdog / Record Integrity

RS-485 for PTZ and Controller

Multi-Language (English/Russian/German/Korean/Japanese/Chinese/Polish/Etc.)

DC 12V/3A

72W(DC 48V/1.5A)

14.57” x 10.04” x 2.36 (370 x 302 x 60mm) 32º~104ºF (0º~40ºC) / 10~90% RH

6Mbps (720/1080p) @ 30fps

16 CH

480fps@1080p

120 fps @ 1080p

1 / 4 / 9 / 16

1 x G-NET 1 x G-Net

3 (SATA-II)

OnCue IP “P” NVR Series

Detailed Specifications VT-NV800P VT-NV1600P VT-NV3200P

8Mbps (720/1080p) @ 30fps

240 fps (D1 / 720P / 1080P)

8 CH

240fps@1080p

1 / 4 / 9

16 CH

480fps@1080p

6Mbps (720/1080p) @ 30fps

Vitek / Samsung / UDP / CNB / Comart / Truen / Shany / SecuBest / OnViF

480 fps (D1 / 720P / 1080P)

1 / 4 / 9 / 16

SPOT/MAIN

H.264 Baseline/Main/High Priofile, MPEG4

1 Per Camera Using audio streams from camera

Using audio streams from camera (G.711, ADPCM, PCM)

1CH Line-in

Time / Calendar / Panorama / Event / VCA Metadata

Support with 16 split view window

1 x G-NET

1 x G-Net

8 x 10/100

8, 120W

1st or 2nd stream selectable

RMS for Windows, Web Viewer(ActiveX), iOS Viewer, Android Viewer

6 (SATA-II)

4TB

Dual Recording and/or RAID 5

USB Memory or USB HDD

AVI

DVR format (with the embedded file player)

Connection Lost Detection

8 In / 1 Out (Relay)

Indicated from Camera

Camera dependent

IR Remote Control / USB Mouse

HDD S.M.A.R.T/ Fan Speed / Watchdog / Record Integrity

RS-485 for PTZ and Controller

Multi-Language (English/Russian/German/Korean/Japanese/Chinese/Polish/Etc.)

DC 12V/10A

120W(DC 48V/2.5A or 50V/2.4A)

16.93” x 17.44” x 3.46” (430 x 443 x 88mm) 32º~104ºF (0º~40ºC) / 10~90% RH

480fps@1080p / 960fps@720p

4Mbps (720p) / 4Mbps (1080p) @ 15fps

960 fps (D1 / 720P) / 480 fps (1080P)

32 CH

1 / 4 / 9 / 16 / 32

VITEK LIMITED PRODUCT WARRANTY

VITEK products carry a three (3) year limited warranty. Digital recording and storage products are also warranted for 3 years except for the hard drives which carry their own independent factory warranty from the hard drive manufacturer. VITEK warrants to the purchaser that products manufactured by VITEK are free of any rightful claim of infringement or the like, and when used in the manner intended, will be free of defects in materials and workmanship for a period of three (3) years, or as otherwise stated above, from the date of purchase by the end user. This warranty is non-transferable and extends only to the original buyer or end user customer of a Vitek Authorized Reseller.

This warranty shall not apply to repairs or replacements necessitated by any cause beyond the control of VITEK, including but not limited to, acts of nature, improper installation, excess moisture, misuse, lack of proper maintenance, accident, voltage ﬂuctuations, or any unauthorized tampering, repairs or modiﬁcations. This warranty becomes VOID in the event of alteration, defacement, or removal of serial numbers.

Within the ﬁrst 6 months of purchase, VITEK will replace or credit any defective product at the request of the customer (subject to availability) with a new product that equals or exceeds the performance of the original product purchased.

Within the ﬁrst 6 months of purchase, at its sole discretion, VITEK may issue an advance replacement for a defective product; however, all related costs including, but not limited to shipping and/ or delivery charges will be the responsibility of the customer. If upon return inspection a product is determined to be in good working order or shows evidence of misuse, the customer will be responsible for full payment of the original product purchased as well as the replacement product.

Beyond the ﬁrst 6 month period for the remainder of the warranty, VITEK’S responsibility shall be limited to repairing the defective product, including all necessary parts and related labor costs. At its sole discretion, VITEK may choose to either exchange a defective product or issue a merchandise credit towards future product purchases. Any replacement parts furnished in connection with this warranty shall be warranted for a period not to exceed the remaining balance of the original equipment warranty.

A Return Authorization number or “RA” number must be obtained prior to the return of any item for repair, replacement, or credit. VITEK requires that this “RA” number be clearly printed on the outside of the shipping carton to avoid refusal of said shipment. The Return Authorization number expires after 30 days. Products returned after the 30 day period will be subject to refusal. Shipping charges, if any, must be prepaid. A copy of the bill of sale (or invoice of purchase), together with a complete written explanation of the problem must accompany all returns.

Vitek makes no warranty or guarantee whatsoever with respect to products sold or purchased through unauthorized sales channels. Warranty support is available only if product is purchased through a Vitek Authorized Reseller.

28492 Constellation Road ValenCia, Ca 91355

WWW.ViteKCCtV.CoM

Vitek VT-NV800S-12T, VT-NV800P-12T, VT-NV1600S-6T, VT-NV1600S-8T, VT-NV3200P-36T User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
