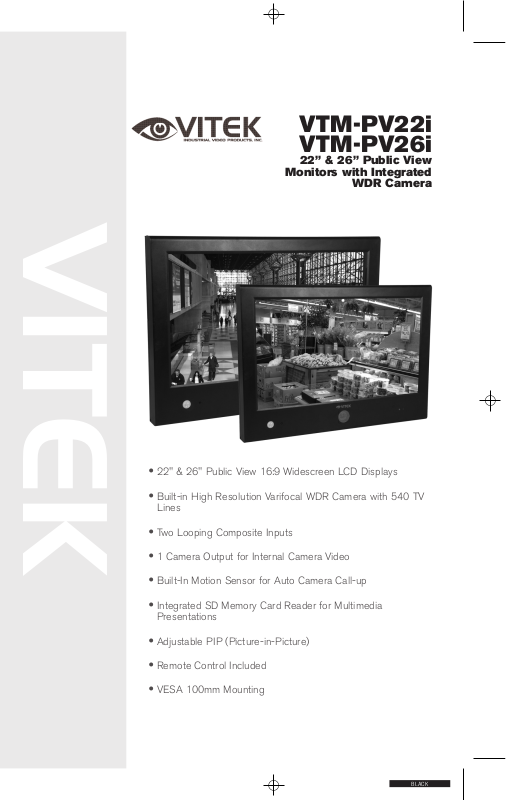

Vitek VTM-PV26I, VTM-PV22I User Manual

VTM-PV22i
VTM-PV26i

22” & 26” Public View

Monitors with Integrated

WDR Camera

VITEK

• 22" & 26" Public View 16:9 Widescreen LCD Displays

• Built-in High Resolution Varifocal WDR Camera with 540 TV

Lines

• Two Looping Composite Inputs

• 1 Camera Output for Internal Camera Video

• Built-In Motion Sensor for Auto Camera Call-up

• Integrated SD Memory Card Reader for Multimedia

Presentations

• Adjustable PIP (Picture-in-Picture)

• Remote Control Included

• VESA 100mm Mounting

Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2222

Imprtant Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . .3333

Regulatory Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6666

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7777

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8888

Rear Panel Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9999

Front Panel Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11110000

Installing Remote Control Batteries . . . . . . . . . . . . . . . . . . . . . .11111111

Remote Control Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11112222

OSD Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11113333

Menu Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11114444

Camera Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11117777

Media Mode (USB and SD card) . . . . . . . . . . . . . . . . . . . . . . . . .22224444

Media-Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22225555

Media-Movie . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22227777

Media-Music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22228888

Media-Photo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22229999

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33330000

1. Use at the rated power voltage.
Use of non-rated voltage may cause fire, electric shock and breakdown.

2. Do not open the cabinet and external cover.
The high voltage inside of this product may cause the electric shock.

3. Do not remodel or disassemble this product.
Remodeling or disassembling in wrong method may cause fire, electric shock or breakdown.

4. Do not insert or drop any foreign substance such as metals or flammable object inside from the air hole.
It may cause fire, electric shock or breakdown.
If any foreign substance is inserted inside of this product, turn off the power, pull the plug out of the socket and contact
the sales department. Do not use the product with the foreign substance in.

5. Do not place any vase, potted plant, cup, medicine and any container with water on this product.
If the liquid is spilt, it may cause the fire, electric shock or breakdown.

6. Do not place this product with water nor moisten it.
If water flows in it, it may cause the fire, electric shock or breakdown.
If there is water inside of the product, turn off the power immediately, pull the plug out of the socket and contact the
sales department. Do not use the product with water in it.

7. Never touch the antenna lie or power plug if it stars to thunder.
It may cause the electric shock.

8. If any impact is applied, the parts inside of the product may be fallen out or broken to be the cause of fire, electric shock
or breakdown.

9. Clean the dust on the power plug periodically.
The dusty power plug may cause the poor insulation due to the moisture to be the reason of fire.

10. Do not destroy, process, make closer to heating device, bend or twist forcibly, place any heavy object on nor bind the
power cord or power plug. If it is used in the broken condition, it may cause fire or electric shock.

11. Do not touch the power plug with wet hands.
If you pull in or out the power plug with wet hands, it may cause electric shocks.

12. Put the power plug in firmly.
Putting the plug incompletely may cause the electric shock or fire by the generation of heat.

13. Do not use any non-rated power socket with numerous devices jointed on one power socket or cable device.
The wire of non-designated capacity may cause the fire due to the generation of heat.

14. In case of malfunction, turn off the power switch immediately and pull out the power plug.
If this product is used in the abnormal condition such as damage to it, foreign substance inside of the product, generation
of joints, smelling, smoking, overheating and non production of signal, it may cause fire, electric shock or breakdown.
Turn off the power switch immediately, pull the power plug out of the socket and contact to the sales store..

15. Leave space 10 cm or more from the wall for the installation of the device.
Do not install it close to the wall nor block the ventilation of the air.
Insufficient ventilation or accumulated heat inside of the product may cause the fire.

16. Do not install it at the unstable location such as on the bouncing prop or tilted place.
It may be tipped over as it loses balance or damaged as it is fallen down.

17. Do not install at the place with moisture or dust.
It may cause the fire or the electric shock.

18. Do not install it at the place with poisonous gas.
It may cause the fire.

19. Do not install it at the location with continuous vibration.
It may be tipped over as it loses balance or damaged as it is fallen down.

20. Do not install it at the place on the strong magnetic field or current field.
It may cause fire, electric shock or break down.
This equipment may be observed deterioration of the picture by electromagnetic radiation in electromagnetic environment.

21. Fasten the wheel of the product or shelf with wheels when installing this product.
If it moves or is tipped over, it may be damaged.

22. Do not leave it in the car under the burning sun for a long time.
The high temperature may distort the cabinet or the parts inside may be broken down or heated.
If you use this product in this condition, it may cause the fire, electric shock or breakdown due to the short circuit or poor

insulation.

23. Do not place any fire source such as candlelight close to this product or place it on this product.
If it is tipped over or fallen down, it may cause damage or fire.

24. Do not sprinkle water drops or water on this product.
It may cause the fire, the electric shock or breakdown.

25. Do not place heavy objects on this product.
It may be tipped over as it loses balance or damaged as it is fallen down.

26. Do not transport it with the power cord or the connection cable connected.
If you move this product with the power cord or the connection cable connected, the damaged power cord, connection
cable or connection terminal may cause the fire, the electric shock or breakdown.

27. Pull the power cord out while holding the plug portion.
If you pull the power cord out by force, the cord may the fire or the electric shock.

28. Do not use it outdoor.
Dust or rainstorm may cause the fire, electric shock or breakdown.

29. Do not climb on this product.
If you climb on it, it may damage or hurt it.

30. 2 persons or more shall transport the device, which is heavier than 18 kg.
If you drop or tip over the device, it may damage it.
The weight is indicated on the user's manual.

31. Use the this unit shall be connected to a mains socket outlet with a protective earthing connection.

And connection cable, or those, which are indicated on the user's manual.

If you do not use the designated power cord and connection cable, it may cause the electric shock or breakdown.

32. Turn off the power switch when connecting the power cord or connection cable.
If you not turn off when connecting it, it may cause the electric shock or breakdown.

33. Do not use any chemical such as the paint thinner or benzine to clean the cabinet.
It may scratch the surface or disappear the indication to cause wrong operation, whch can be the reason for disorder.

34. Clean the cabinet with 5~6 time diluted neutral detergent water on smooth cloth as stirring to remove the contamination.
After that, clean it with dry cloth to remove any stain.

Explanation of Safety Related Symbols

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION : TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK).
NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.

Shock Hazard Marking and Associated Graphical Symbols

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

This symbol is intended to alert the user to the presence of uninsulated "danger­ous voltage" within the product's enclosure
constitute a risk of electric shock to persons.

that may be of sufficient magnitude to

This symbol is intended to alert the user to the presence of important operat­ing and maintenance (servicing) instructions in the literature accompanying
the appliance.

WARNING-To Reduce The Risk Of Fire Or Electric Shock, Do Not Expose This Apparatus To

Rain Or Moisture.

This marking shown on the product or its literature, indicates that it should not be disposed with other
household wastes at the end of its working life. To prevent possible harm to the environment or
human health from uncontrolled waste disposal, please separate this from other types of wastes and
recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local
government office, for details of where and how they can take this item for environmentally safe recy­cling.

Business users should contact their supplier and check the terms and conditions of the purchase
contract. This product should not be mixed with other commercial wastes for disposal.

This device complies with Part 15 of the FCC Rules and Regulations. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must tolerate any
interference encountered, including interference that may cause improper operation.
The equipment has been tested and found to comply with the requirements stipulated in Part 15 of FCC
regulations for a Class A digital device. These requirements are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
strict compliance with the instructions, may disrupt radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause detrimental interfer­ence with radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by taking one or more of the following measures:

Reorienting or relocating the receiving antenna.
Increasing the separation between the equipment and the receiver.
Connecting the equipment into an outlet on a circuit different from that to which the

receiver is connected.

Consulting the dealer or an experienced radio/TV technician for help.

Shielded interconnected cables and shielded power cords must be used with this equipment to ensure
compliance with the pertinent RFD emission limits governing this device.
Changes or modifications not expressly approved by the manufacturer could void the user's right to oper­ate the equipment.
Notice of Compliance with Canadian Interference-causing Equipment Regulations.
This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment
Regulations.
Cet appareil numerique de classe A satisfait toutes les exigences des reglementations canadiennes inher­entes aux equipements generant des interferences.

Q'ty Description

1 22/26-inch LCD public view monitor with WDR camera
1 Remote control unit
2 AAA batteries
1 Installation/ Operation manual
1 Power Cord

Mounting

The monitor accommodates mounts that adhere to the VESA 100x100 standard.

with VESA MOUNTED BRKT(100X100)

SCREWS M4X0.5, L=12mm(4EA)

1. VESA mounted bracket at the screw holes (4 places) located in the middle part of the rear LCD MONITOR,
with screws.

Do not use longer screw than 12mm length except mount parts
when you use vesa mount bracket.

Rear Panel Connectors

1. AC POWER:

2. VIDEO1(loop through):

3. VIDEO2(loop through):

4. CAMERA OUT:

5. MEDIA CARD IN:

Power receptacle, which can be connected to a 100-240 VAC, 60/50 Hz source
Input connections from DVD players or time-lapseVCRs.
Video loops through the BNC video output.
Input connections from DVD players or time-lapseVCRs.
Video loops through the BNC video output.
Output signal of internal camera video
Input media card(USB , SD card).

Front and Side Panel Controls

MENU:

Displays the main on-screen menu (monitor).

SOURCE:

Power :

Motion Sensor :

Photo Sensor :

Remote control signal receiver :

Power indicator :

Selects the input source and confirms your choice in menu.

and :

Navigates through the on-screen menu.

/Vol+ and /Vol-:

Turns on/off the monitor.

Increases or decreases the volume. Also selects or adjusts items on the on-screen menu.

Motion detection sensor.

Brightness detection sensor.

Indicates power status. Red means the power is off, green means the power is on.

Receives remote control signal.
