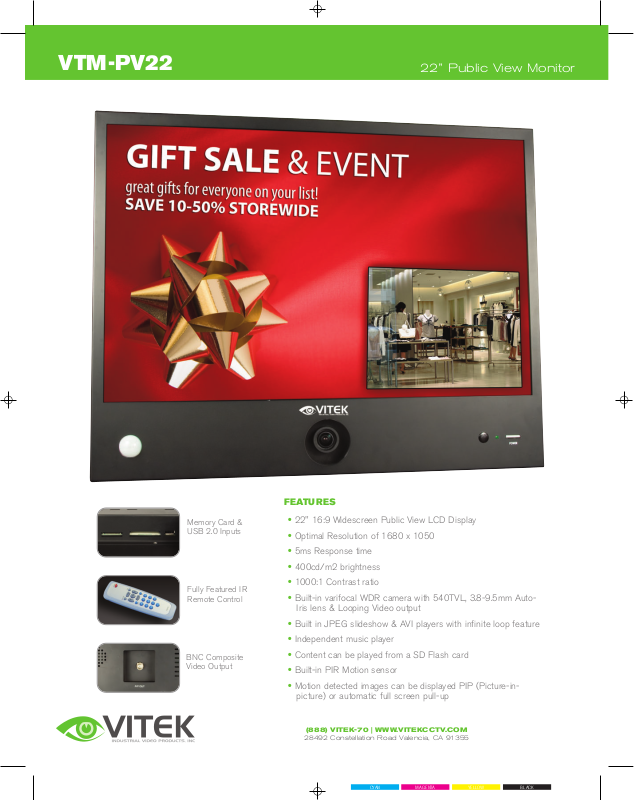

VTM-PV22
22” Public View Monitor
Memory Card &
USB 2.0 Inputs
Fully Featured IR
Remote Control
BNC Composite
Video Output
FEATURES
• 22" 16:9 Widescreen Public View LCD Display
• Optimal Resolution of 1680 x 1050
• 5ms Response time
• 400cd/m2 brightness
• 1000:1 Contrast ratio
• Built-in varifocal WDR camera with 540TVL, 3.8-9.5mm Auto-
Iris lens & Looping Video output
• Built in JPEG slideshow & AVI players with infinite loop feature
• Independent music player
• Content can be played from a SD Flash card
• Built-in PIR Motion sensor
• Motion detected images can be displayed PIP (Picture-in-
picture) or automatic full screen pull-up
(888) VITEK-70 | WW W.VITEKCCTV.COM
28492 Constellation Road Valencia, CA 91355
VTM-PV22
Detailed Specifications
22” Public View Monitor
Panel Type
Display Colors
Ptxel Pitch
Recommended Resolution
Contrast Ratio
Brightness
Response Time
Veiwing Angle
Display Modes
Screen Control
Integrated Camera
Effective Pixels
Sensitivity
Lens
Audio Output
Media Card Inputs
Media Formats
22" TFT Color LCD
16.7 Million
0.282mm x 0.282mm
1680 x 1050
1000:1
400cd/m
5ms
H: 80 degrees V: 80 degrees
Full Screen / PIP (Picture-in-Picture)
6 Language OSD (On Screen Display) Menu
1/3" Color WDR CCD
720 (H) x 540 (V)
0.8 lux (F1.2 @ 40 IRE)
3.8~9.5mm Auto-Iris
2 Watts (Mono)
CF Card / MMC Card
MPEG1, MPEG2, MPEG4, MP3, JPEG, MJPEG
USB Input
Integrated PIR Sensor
Video Output
Power Consumption
Weight
Dimensions
1x USB 2.0
Motion Sensor can Trigger PVM Features
1x BNC Composite
62 Watts
17.64 lbs. (8kg)
19.76" x 15.58" x 2.68" (502mm x 395.8mm x 68mm)
(888) VITEK-70 | WW W.VITEKCCTV.COM
28492 Constellation Road Valencia, CA 91355
