Vitek VTM-LED190P, VTM-LED170P User Manual

17” & 19” Professional LED Monitor

w/HDMI, VGA, and Dual Looping BNC’s

VITEK

VTM-LED170P
VTM-LED190P

• 17” / 19” LED Display Panel

• HDMI, VGA, and Dual Looping BNC Composite Video Inputs & Stereo Audio Input

• Resolution up to 1280 x 1024 (SXGA)

• Contrast Ratio of 10,000:1

• <5ms Response time

• 170° Horizontal Viewing Angle

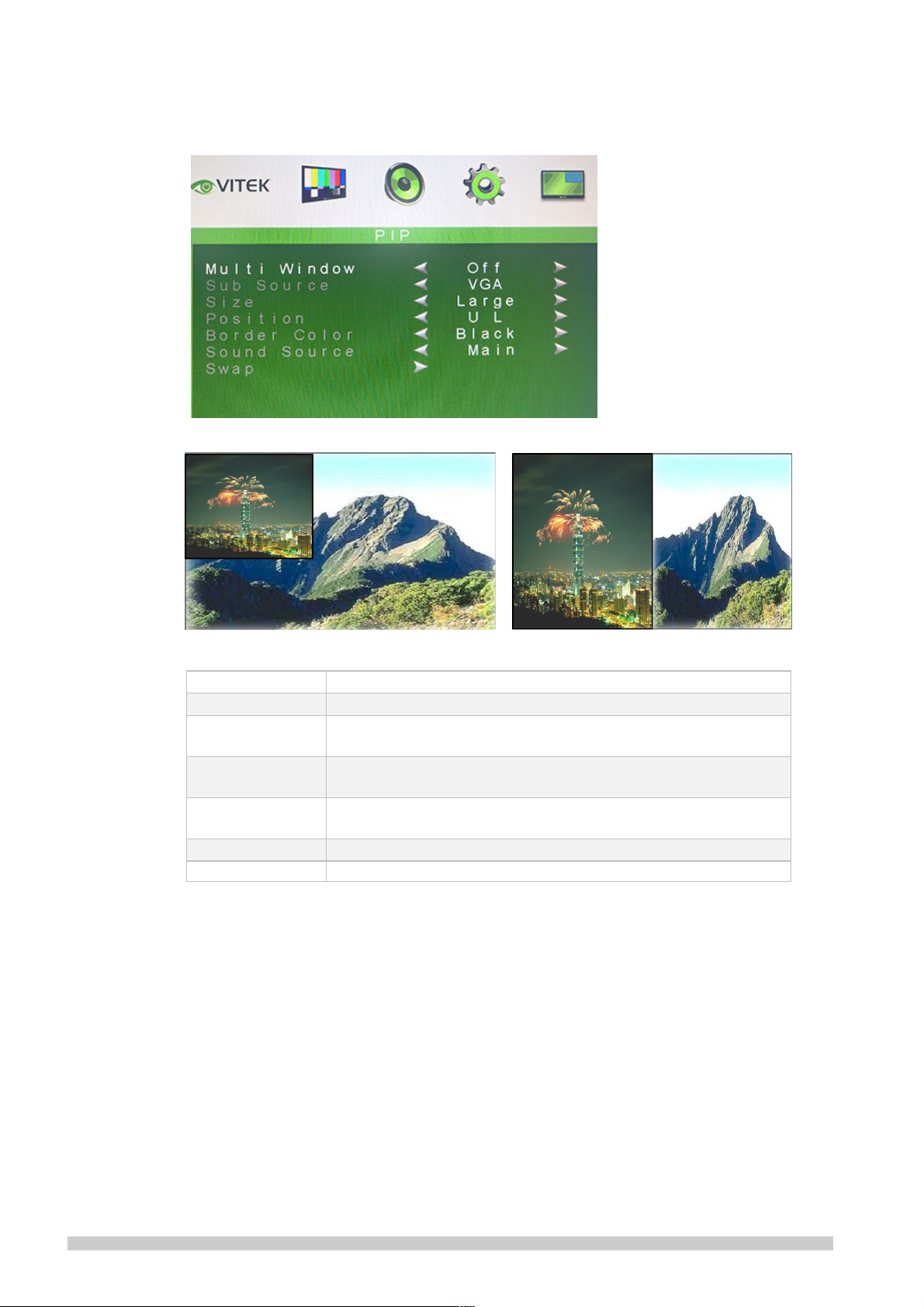

• Picture In Picture (PIP) / POP (Picture On Picture) Display Options

• Front Panel Controls

• VESA 75mm Standard Mounting

• 50,000 Hour Panel Life

• Swivel Rack Mountable with optional VT-LCD17SRM / VT-LCD19SRM Rack Kit

1DU00L7B-A.1

1

1

Introduction and Package Contents

Introduction

Congratulations on your VITEK LED Monitor purchase. You can expect
only the sharpest and most brilliant color images from this monitor.
Featuring OSD controls and built in speakers, you will find this monitor
both easy to use and a pleasure to view.

Please unpack your monitor with care, and verify that all the parts
listed below are included. If any parts are missing, please contact
your distributor immediately.

Please save the packing box for possible future return for service.

Package Contents

• LED Monitor – VTM-LED170P or VTM-LED190P

• 12 Volt DC Power Adapter / Power cord

• D-Sub 15-pin VGA connector Cable

• User's Guide

Hardware Installation

The following sections in this guide give clear, step-by-step
descriptions of the installation process and explain how to use the
monitor for optimum results.

Please pay attention to the Regulations and Warnings Section of this
user’s manual before setting up the display monitor. Failure to do so
may inadvertently result in personal injuries or product damage.

1DU00L7B-A.1

2

Specifications

VTM-LED170P

VTM-LED190P

Screen Size

17"

19"

Display Type

LED

Aspect Ratio

4:3

Resolution

SXGA (1280x1024)

Response Time

<5ms

Contrast Ratio

10,000:1

Display Color

16.7 Million

Brightness

300cd/m²

Pixel Type

Active Matrix TFT

Pixel Pitch

0.264(H) x 0.264(V)

0.294(H) x 0.294(V)

Viewing Angle (H/V)

170° / 160°

Video System

NTSC/PAL

Video In/Out

2 BNC Inputs / 2 BNC Outputs (Looping)

VGA In

1 (15Pin D-Sub)

HDMI In

1

Audio Input

Stereo RCA & 1/8" PC

Built In speaker

Yes (1.5W x 2 )

PIP / POP

Analog / Digital

Remote

Optional

3D Comb Filter

YES

3D De-Interlace

YES

Noise Reduction

YES

Multi-Language

English, Spanish, German, French, Italian, Russia, Turkish, Japanese, Polish

Stand Tilt

-5°~15°

Vesa Mount Size

75mm x 75mm

Power Adapter

12VDC (AC100/240 [50/60])

Power Consumption

20W Max

25W Max

Certifications

UL, FCC-DOC, CE, ROHS

Operating Temperature

32° to 104° F (0° to 40° C)

Operating Humidity

10% to 90% relative, non-condensing

Dimensions (w/Stand)

15.16" x 15.12" x 6.50" (385 x 384 x 165mm)

16.69" x 16.34" x 6.50" (424 x 415 x 165mm)

Weight

6.98 lbs (3.17kgs)

7.09 lbs (3.22kgs)

1DU00L7B-A.1

3

VGA Timing

ITEM

RESOLUTION

H FREQ.(KHZ)

V FREQ.(HZ)

1

640x400@70

31.460

70.080

2

640x480@60

31.469

59.940

3

640x480@72

37.861

72.809

4

640x480@75

37.500

75.000

5

720x400@70

31.460

70.080

6

800x600@56

35.156

56.250

7

800x600@60

37.879

60.317

8

800x600@72

48.077

72.188

9

800x600@75

46.875

75.000

10

1024x768@60

48.363

60.004

11

1024x768@70

56.476

70.069

12

1024x768@75

60.023

75.029

13

1280x1024@60

63.981

60.020

14

1280x1024@75

79.976

75.025

Note:

1. Please note, selecting frequencies outside these ranges may result in an abnormal

Images.

2. The resolution will be showed on the screen while VGA mode be selected.

For example:

1DU00L7B-A.1

4

2

Monitor and OSD Control

The VITEK VTM-LED170P and VTM-LED190P LED color monitors have a
simple control layout for control and OSD (On Screen Display)
functions. The table below summarizes the control keys and their
related functions.

Keys

Function Description

Toggle the display between standby mode and on.

(Press “Power” and wait 6 sec., monitor will be activated for
display )

Automatically adjusts H-Position, V-Position, Pixel Clock
and Phase for an optimal image in PC mode only.

Switch function.
Increase the value of the chosen item.

Switch function.
Decrease the value of the chosen item.

Switch mode “PC”, ”AV1”, ”AV2”.

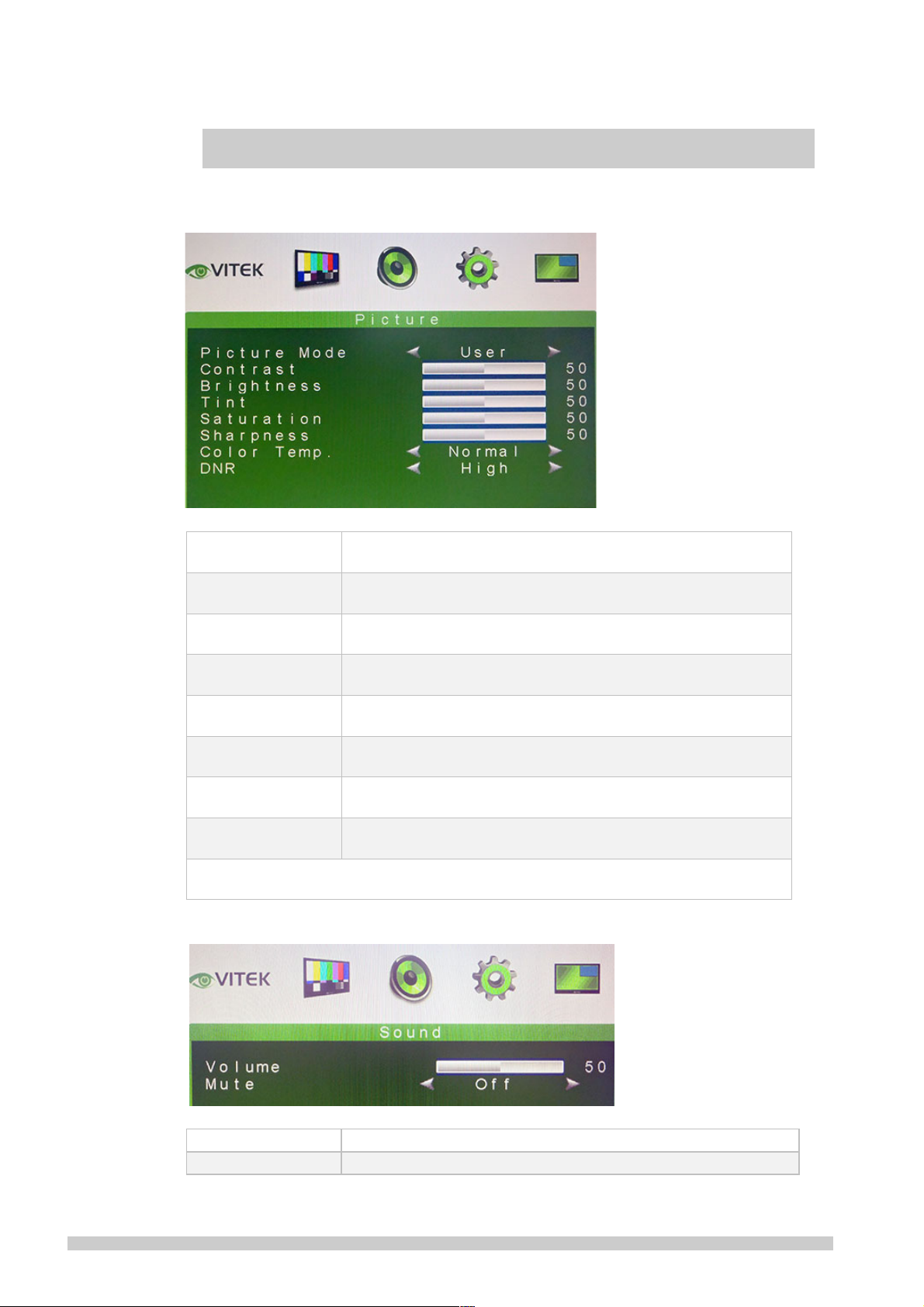

Enter the main menu of the on-screen display (OSD).

1DU00L7B-A.1

5

LED Status Display

The following table describes the various power states of the LED
monitor as represented by different LED colors.

Note: The LED will also be red if AV1, AV2 or HDMI is selected and there is no video
signal detected.

Power State

LED Color

On

Green

Standby

Red

No power

Blank
