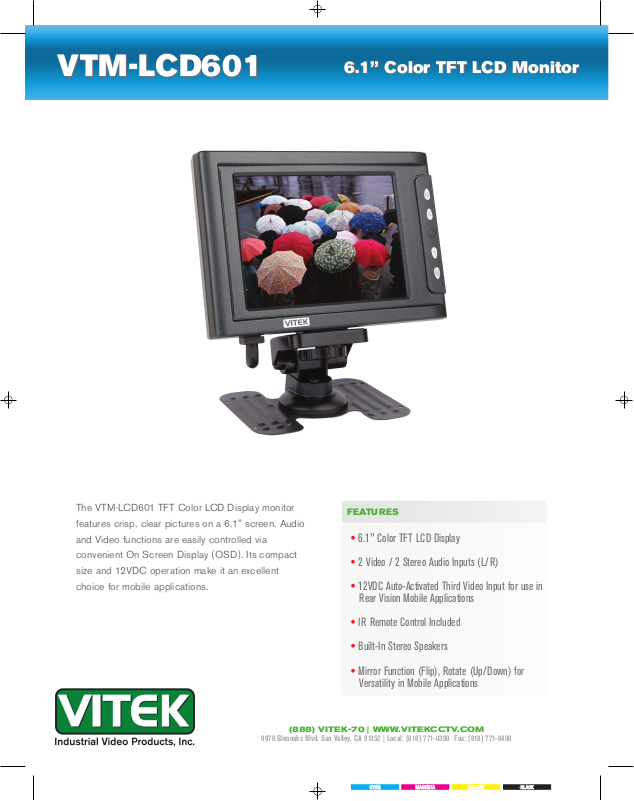

Vitek VTM-LCD601 User Manual

VTM-LCD601

6.1” Color TFT LCD Monitor

The VTM-LCD601 TFT Color LCD Display monitor

features crisp, clear pictures on a 6.1" screen. Audio

and Video functions are easily controlled via

convenient On Screen Display (OSD). Its compact

size and 12VDC operation make it an excellent

choice for mobile applications.

(888) VITEK-70 | WWW.VITEKCCTV.COM

9970 Glenoaks Blvd. Sun Valley, CA 91352 | Local: (818) 771-0300 Fax: (818) 771-0400

FEATURES

• 6.1" Color TFT LCD Display

• 2 Video / 2 Stereo Audio Inputs (L/R)

• 12VDC Auto-Activated Third Video Input for use in

Rear Vision Mobile Applications

• IR Remote Control Included

• Built-In Stereo Speakers

• Mirror Function (Flip), Rotate (Up/Down) for

Versatility in Mobile Applications

VTM-LCD601

Detailed Specifications

6.1” Color TFT LCD Monitor

Display Size Pixel Resolution Contrast Ratio Display System Input Signal Video Input Audio Input Audio Out Internal Speakers Power Input Power Consumption OSD Functions Included Accessories Dimensions (W x H x D) Weight

6.1" Color TFT 320 x 234

300:1 NTSC

1.0 Vp-p composite, 75 Ohm

2 x RCA / Plus 1 Auto-Activated by 12VDC (3 Total)

2 x RCA (Stereo)

1 x 3.5mm Mini-Stereo (Headphone Jack)

2 Internal Stereo Speakers

12VDC Power Supply (Included)

Brightness, Contrast, Saturation, Hue, Video Source, Image Flip / Image Rotate

IR Remote Control, Removable Stand, A/V Patch Cable, 12VDC Plug-In Transformer

7.13" x 4.96" x 1.41" (181mm x 126mm x 36mm)

22.5 Oz. (638g)
