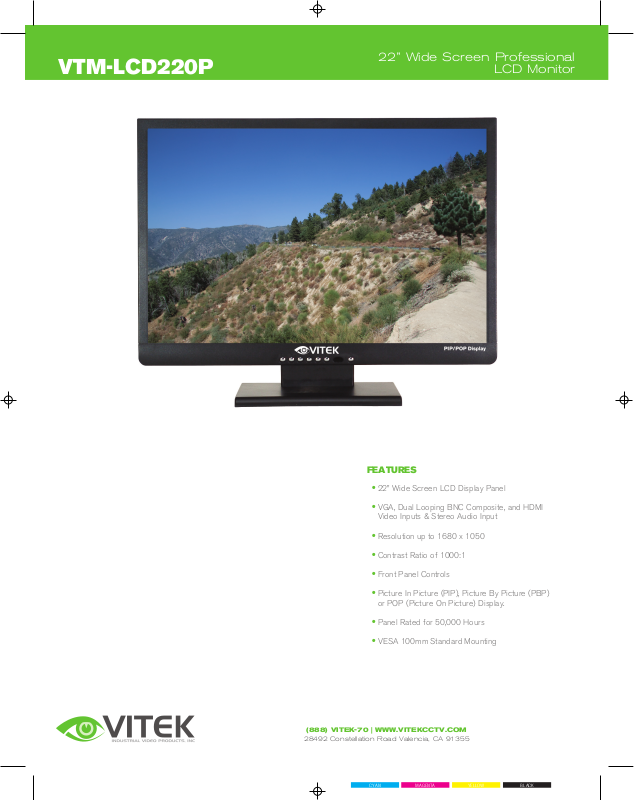

Vitek VTM-LCD220P User Manual

VTM-LCD220P

22” Wide Screen Professional

LCD Monitor

FEATURES

• 22” Wide Screen LCD Display Panel

• VGA, Dual Looping BNC Composite, and HDMI

Video Inputs & Stereo Audio Input

• Resolution up to 1680 x 1050

• Contrast Ratio of 1000:1

• Front Panel Controls

• Picture In Picture (PIP), Picture By Picture (PBP)

or POP (Picture On Picture) Display.

• Panel Rated for 50,000 Hours

• VESA 100mm Standard Mounting

(888) VITEK-70 | WWW.VITEKCCTV.COM

28492 Constellation Road Valencia, CA 91355

VTM-LCD220P

Detailed Specifications

22” Wide Screen Professional

LCD Monitor

Panel Type

Optimum Resolution

Display Colors

Pixel Pitch

Contrast Ratio

Brightness

Viewing Angle

Response Time

Scanning Frequency

Video Inputs

Digital Inputs

Video Input

Audio Inputs

Internal Speakers

Screen Control

LCD Lamp

Weight

22” TFT Color LCD

1680 x 1050

16.7 Million Colors

0.282 (H) x 0.282 (V) mm

1000:1

300 cd/m2

H: 170 degrees V: 160 degrees

5 ms

H: 31~65kHz V: 56~75Hz

Dual Looping BNC Composite

15 pin D-Sub (Analog RGB) / HDMI

2 x BNC (Looping)

Stereo RCA

2.5 Watts x 2

OSD (On Screen Display Menu)

50,000 Hours

15.43 lbs (7 kg)

Power Supply

Dimensions

AC 100~240V 50/60Hz

20.08” x 16.54” x 7.48” (510 x 420 x 190 mm)

VTM-LCD220P Rear Connections:

(888) VITEK-70 | WWW.VITEKCCTV.COM

28492 Constellation Road Valencia, CA 91355
