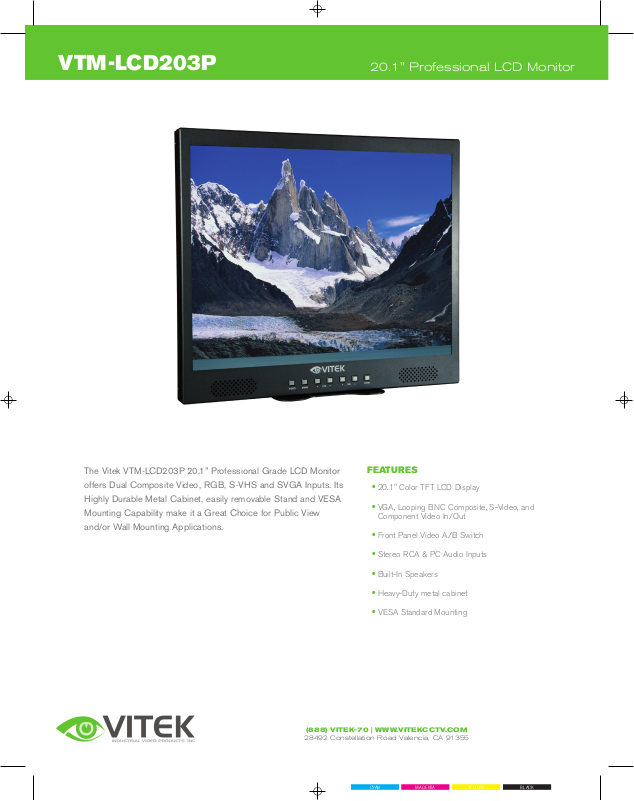

Vitek VTM-LCD203P User Manual
VTM-LCD203P
20.1" Professional LCD Monitor
The Vitek VTM-LCD203P 20.1” Professional Grade LCD Monitor
offers Dual Composite Video, RGB, S-VHS and SVGA Inputs. Its
Highly Durable Metal Cabinet, easily removable Stand and VESA
Mounting Capability make it a Great Choice for Public View
and/or Wall Mounting Applications.
(888) VITEK-70 | WWW.VITEKCCTV.COM
28492 Constellation Road Valencia, CA 91355
FEATURES
• 20.1" Color TFT LCD Display
• VGA, Looping BNC Composite, S-Video, and
Component Video In/Out
• Front Panel Video A/B Switch
• Stereo RCA & PC Audio Inputs
• Built-In Speakers
• Heavy-Duty metal cabinet
• VESA Standard Mounting
VTM-LCD203P
20.1" Professional LCD Monitor
Detailed Specifications
Panel Type 20.1" (51cm) TFT Color LCD
Display Area 16.08" x 12.06" (408mm x 306mm)
Display Colors 16.7 Million
Pixel Pitch 0.6375mm x 0.6375mm
Recommended Resolution 640 x 480 @ 85Hz
Contrast Ratio 400:1
Brightness 400cd/m
Viewing Angle H: 140 degrees V: 120 degrees
Scanning Frequency H: 31-69kHz V: 56-85Hz
PC Input 15 pin D-Sub (Analog RGB)
Video Inputs BNC Composite, S-Video, and Component
Audio In/Out Stereo RCA Inputs x 2 / 1 x 3.5mm Input and Output
Certifications FCC
Power Consumption 65 watts
Power Save Mode 3 watts
Screen Control OSD (On Screen Display Menu)
Weight 18.04 lbs. (8.2kg)
Power Supply 15 VDC
Dimensions (W x H x D) 17.34" x 14.89" x 5.375" (With Stand) / 17.34" x 14.89" x 2.375" (Without Stand)
Rear Connections: Rear BNC Connections:
(888) VITEK-70 | WWW.VITEKCCTV.COM
28492 Constellation Road Valencia, CA 91355
