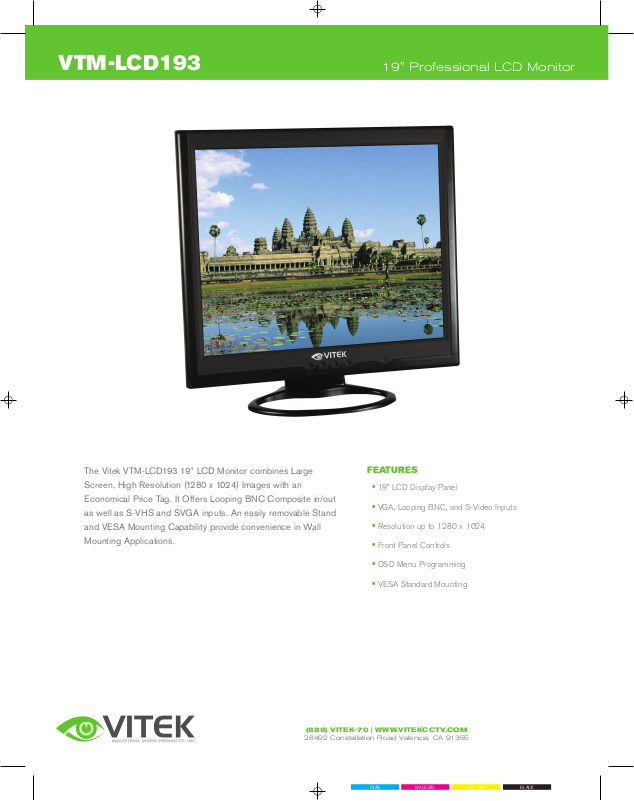

Vitek VTM-LCD193 User Manual
VTM-LCD193
19" Professional LCD Monitor
The Vitek VTM-LCD193 19” LCD Monitor combines Large
Screen, High Resolution (1280 x 1024) Images with an
Economical Price Tag. It Offers Looping BNC Composite in/out
as well as S-VHS and SVGA inputs. An easily removable Stand
and VESA Mounting Capability provide convenience in Wall
Mounting Applications.
(888) VITEK-70 | WWW.VITEKCCTV.COM
28492 Constellation Road Valencia, CA 91355
FEATURES
• 19” LCD Display Panel
• VGA, Looping BNC, and S-Video Inputs
• Resolution up to 1280 x 1024
• Front Panel Controls
• OSD Menu Programming
• VESA Standard Mounting
VTM-LCD193
19" Professional LCD Monitor
Detailed Specifications
Size 19" TFT LCD
Display Area 14.81" x 11.86" (376mm x 301mm)
Resolution 1,280x 1024
Contrast Ratio 700:1
Viewing Angle Hori: - 80 ~ + 85 / Vert: - 85 ~ + 85
Brightness 250 cd/m2
Response Time Tr: 15 ms / Tf: 10 ms.
Interface Looping BNC Composite in/out, Analog RGB, S-Video
Connectors R/L Audio, Earphone Jack, C-Video, S-Video
Front Panel Controls Power on/off, Menu, Select, Up/Down, Auto.
Power Input AC 90 ~ 264 V, 50~60 Hz.
Power Saving VESA DMPS Standard.
Power Consumption Less than 40 Watts.
Net Weight 15.4 lbs. (7 Kg.)
Dimensions (W x H x D) 17" x 17.125" x 6" (With Stand) / 17" x 15" x 2.375" (Without Stand)
Rear Connections:
(888) VITEK-70 | WWW.VITEKCCTV.COM
28492 Constellation Road Valencia, CA 91355
