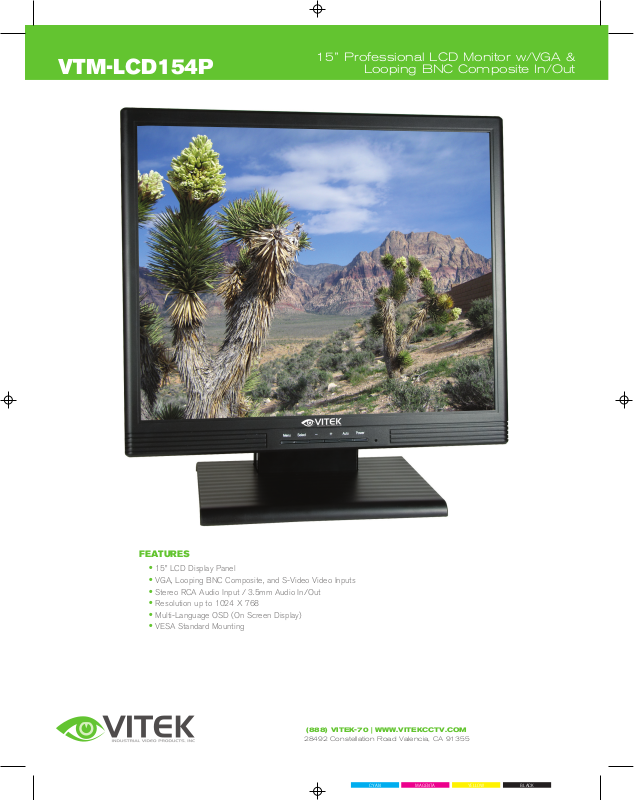

Vitek VTM-LCD154P User Manual

VTM-LCD154P

15” Professional LCD Monitor w/VGA &

Looping BNC Composite In/Out

FEATURES

• 15” LCD Display Panel

• VGA, Looping BNC Composite, and S-Video Video Inputs

• Stereo RCA Audio Input / 3.5mm Audio In/Out

• Resolution up to 1024 X 768

• Multi-Language OSD (On Screen Display)

• VESA Standard Mounting

(888) VITEK-70 | WWW.VITEKCCTV.COM

28492 Constellation Road Valencia, CA 91355

VTM-LCD154P

Detailed Specifications

15” Professional LCD Monitor w/VGA

& Looping BNC Composite In/Out

Panel Type

Display Colors

Pixel Pitch

Recommended Resolution

Contrast Ratio

Brightness

Viewing Angle

Response Time

Scanning Frequency

Video Inputs/Outputs

PC Inputs

Audio Input/Output

Screen Control

LCD Lamp

Weight

Power Supply

Dimensions (with Stand)

15” TFT Color LCD

16.2 Million Colors

0.297 mm

SXGA (1024x768)

350:1

260 cd/m2

H: 160 degrees V: 135 degrees

8ms

H: 31~65kHz V: 56~75Hz

Looping BNC Composite / S-Video

15 pin D-Sub (Analog RGB)

Stereo RCA In / 3.5mm In/Out

OSD (On Screen Display Menu)

25,000 hours

7.7 lbs. (3 Kg)

AC 100~240V 50/60Hz

14.57” x 13.39” x 7.48” (370 x 340 x 190 mm)
