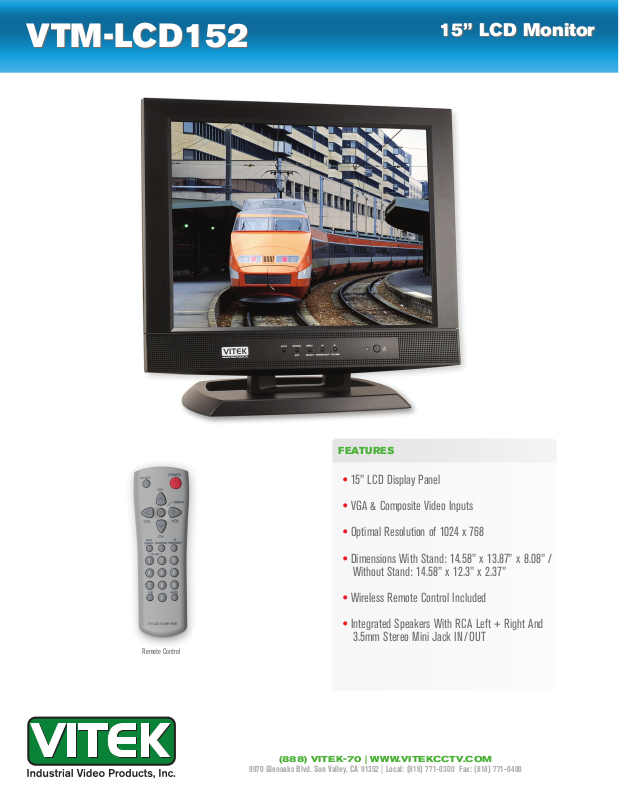

VTM-LCD152

15” LCD Monitor

Remote Control

FEATURES

• 15” LCD Display Panel

• VGA & Composite Video Inputs

• Optimal Resolution of 1024 x 768

• Dimensions With Stand: 14.58” x 13.87” x 8.08” /

Without Stand: 14.58” x 12.3” x 2.37”

• Wireless Remote Control Included

• Integrated Speakers With RCA Left + Right And

3.5mm Stereo Mini Jack IN/OUT

(888) VITEK-70 | WWW.VITEKCCTV.COM

9970 Glenoaks Blvd. Sun Valley, CA 91352 | Local: (818) 771-0300 Fax: (818) 771-0400

VTM-LCD152

Detailed Specifications

15” LCD Monitor

Panel Size Pixel Pitch Viewing Angle Contrast Ration Brightness Color Filter Frequency Video Bandwidth Resolution Display Colors Display Area PC Input Signal Sync PC Input Connection AV Video Connections AV Audio Connections Internal Speaker Plug and Play

15” Diagonal

0.297mm x 0.297mm 65˚ (Left/Right) / 55˚ (Up/Down) 400:1 250cd/m2 RGB Vertical Stripe 30 ~ 62 KHz (Horz.) / 50 ~ 75 Hz (Vert.) 80 MHz 1024 x 768 @ 75Hz (Max) 16 Million

304.1mm x 228.1mm H/V Separate (TTL) 15 Pin Mini D-Sub (Analog RGB) BNC IN/ OUT (Looping) RCA Left + Right, 3.5mm Stereo Mini Jack IN/OUT 2W (Left 1W & Right 1W)

VESA DDC Compatable Tilt Range Power Source Power Consumption Power Saving Operating Temperature Dimensions (W x H x D)

Weight (Net / Gross)

5∫ Forward / 30∫ Backward

100~240 VAC, 50/60 Hz (Auto Switching)

26W

EPA, VESA DPMS, Nutek Compliant

50˚ ~ 104˚

With Stand: 14.58” x 13.87” x 8.08” (370mm x 352mm x 205mm) /

Without Stand: 14.58” x 12.3” x 2.37” (370mm x 312mm x 60mm)

9.26 Lbs. / 12.1 Lbs.
