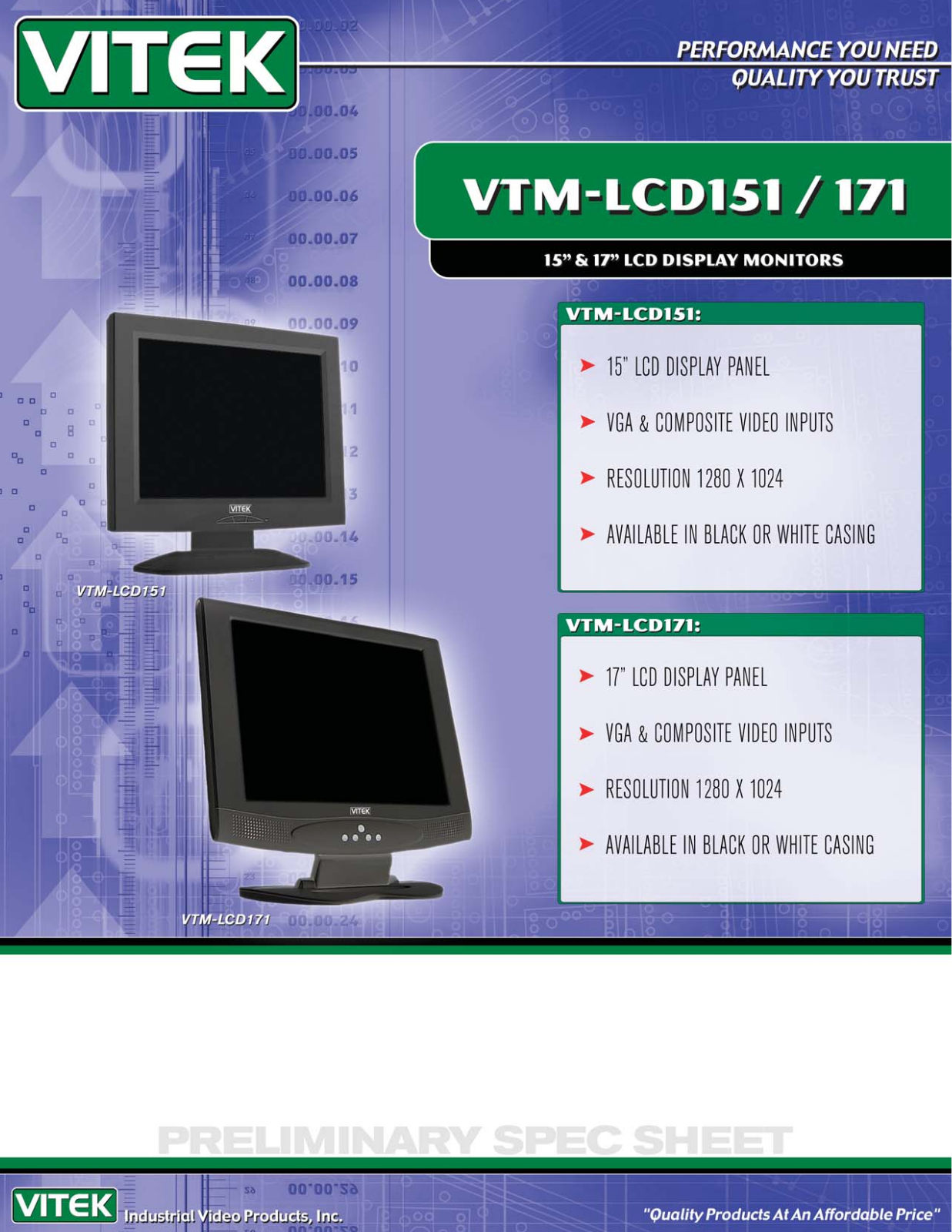

Vitek VTM-LCD151, VTM-LCD171 User Manual

PERFORMANCE YOU NEED

QUALITY YOU TRUST

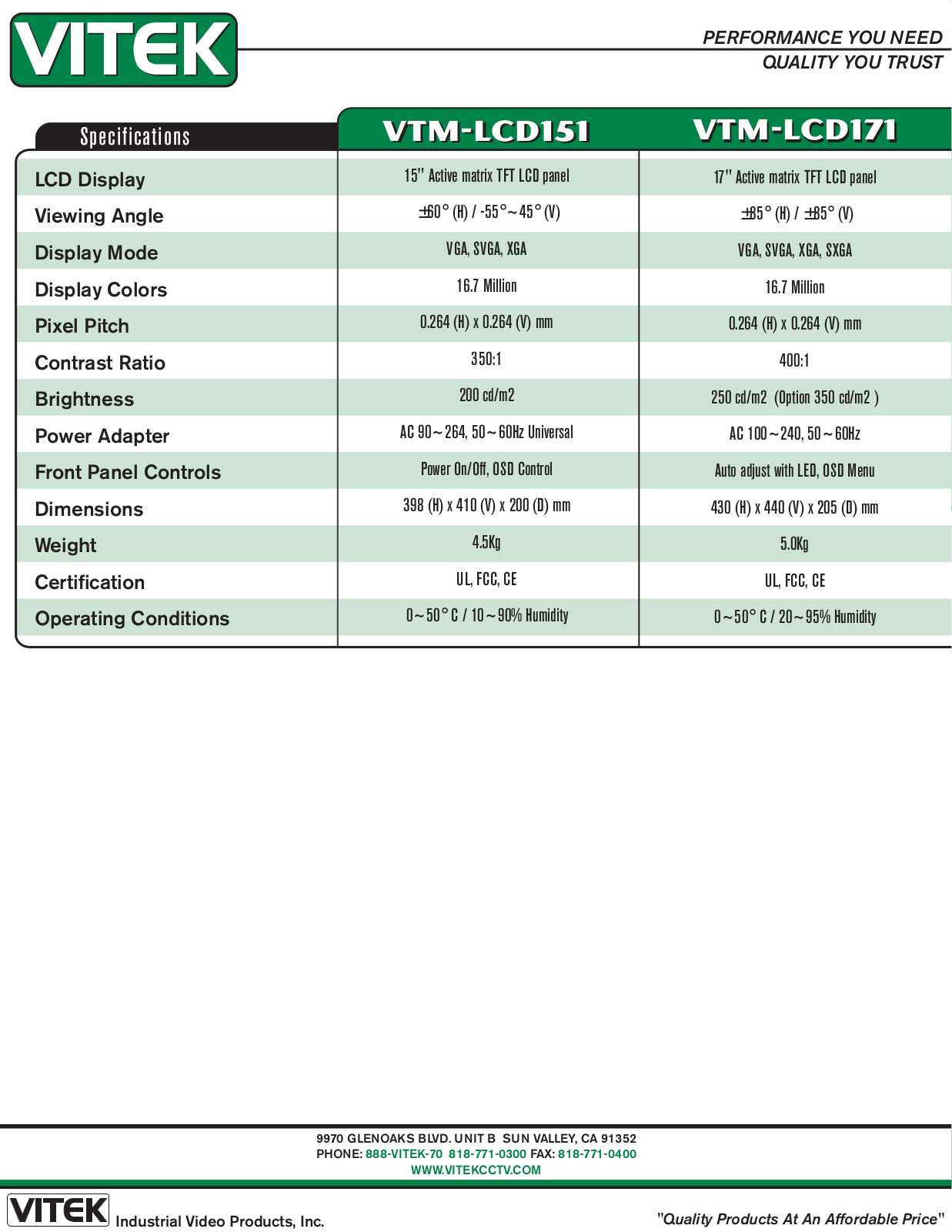

Specifications

LCD Display

Viewing Angle

Display Mode

Display Colors

Pixel Pitch

Contrast Ratio

Brightness

Power Adapter

Front Panel Controls

Dimensions

Weight

Certification

VTM-LCD151

15" Active matrix TFT LCD panel

±60° (H) / -55°~45° (V)

VGA, SVGA, XGA

16.7 Million

0.264 (H) x 0.264 (V) mm

350:1

200 cd/m2

AC 90~264, 50~60Hz Universal

Power On/Off, OSD Control

398 (H) x 410 (V) x 200 (D) mm

4.5Kg

UL, FCC, CE

VTM-LCD171

17" Active matrix TFT LCD panel

±85° (H) / ±85° (V)

VGA, SVGA, XGA, SXGA

16.7 Million

0.264 (H) x 0.264 (V) mm

400:1

250 cd/m2 (Option 350 cd/m2 )

AC 100~240, 50~60Hz

Auto adjust with LED, OSD Menu

430 (H) x 440 (V) x 205 (D) mm

5.0Kg

UL, FCC, CE

Operating Conditions

0~50° C / 10~90% Humidity

0~50° C / 20~95% Humidity
