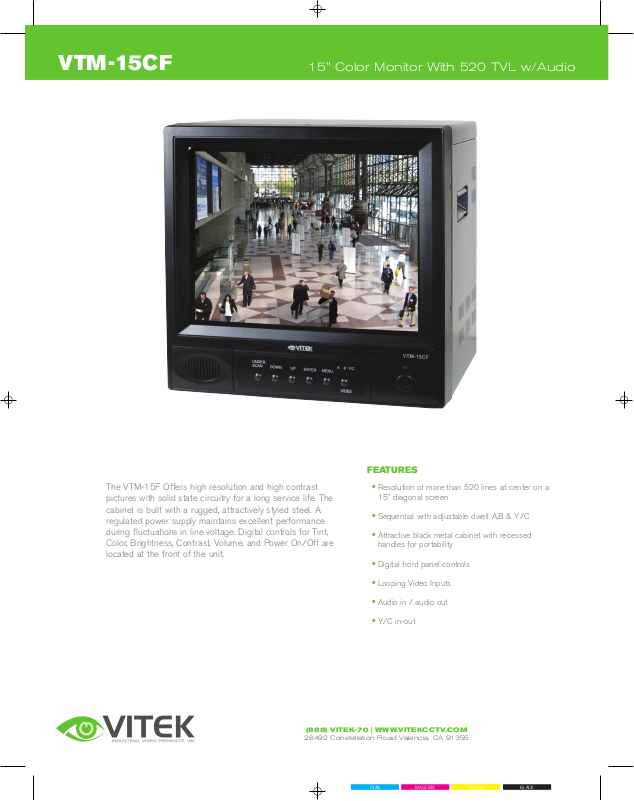

Vitek VTM-15CF User Manual
VTM-15CF
15" Color Monitor With 520 TVL w/Audio
The VTM-15F Offers high resolution and high contrast
pictures with solid state circuitry for a long service life. The
cabinet is built with a rugged, attractively styled steel. A
regulated power supply maintains excellent performance
during fluctuations in line voltage. Digital controls for Tint,
Color, Brightness, Contrast, Volume, and Power On/Off are
located at the front of the unit.
(888) VITEK-70 | WW W.VITEKCCTV.COM
28492 Constellation Road Valencia, CA 91355
FEATUR ES
• Resolution of more than 520 lines at center on a
15" diagonal screen
• Sequential with adjustable dwell A,B & Y/C
• Attractive black metal cabinet with recessed
handles for portability
• Digital front panel controls
• Looping Video Inputs
• Audio in / audio out
• Y/C in-out
VTM-15CF
Detailed Specifications
15" Color Monitor With 520 TVL w/Audio
Picture Tube
System
Front Panel Controls
Display Resolution
Input Signal
Input Impedance
Bandwidth
Video Gain
Linearity
Operating System
Video (In / Out)
Audio (In / Out)
Audio Input Signal
Audio Amplifier
Input Voltage
Power Consumption
Operation Temperature
15" Diagonal
NTSC / PAL Auto Detect
Power ON/OFF / VIDEO ( A / B / Y/C ) / MENU / ENTER / UP / DOWN / UNDERSCAN
520 TV lines
1Vp-p Composite Video
75 ohm (Auto Termination)
8MHz
30dB
Horizontal: 10%(Max), Vertical 10% (Max)
NTSC:525 lines / Frame; PAL:625 lines / Frame
BNC: Input x 2 / Output x 2 / S-Video Input x 1 / Output x1
RCA Jack: Input x 2 / Output x 2
1 Vp-p
1W / 8 ohm
AC 96~256V, 50Hz/ 60Hz
63 W
50~130°F (-10~55° )
Dimensions (W x D x H)
Weight (Net/Gross)
14.25" x 13.46" x 12.6" (362 x 342 x 320mm)
30.86 lbs. (14kg.)
VTM-15CF Rear Connections:
