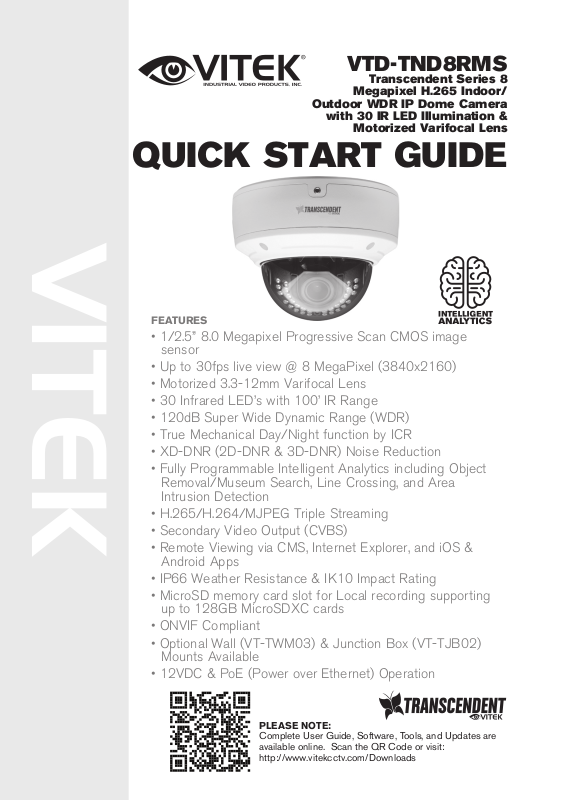

Vitek VTD-TND8RMS Quick Start Guide

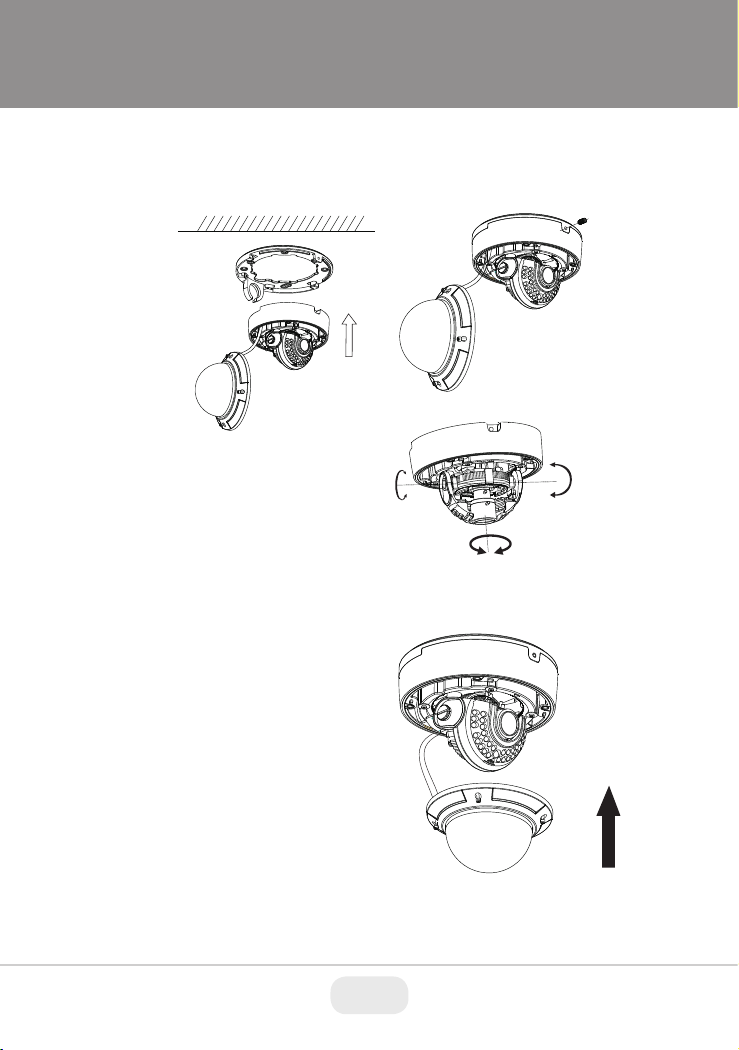

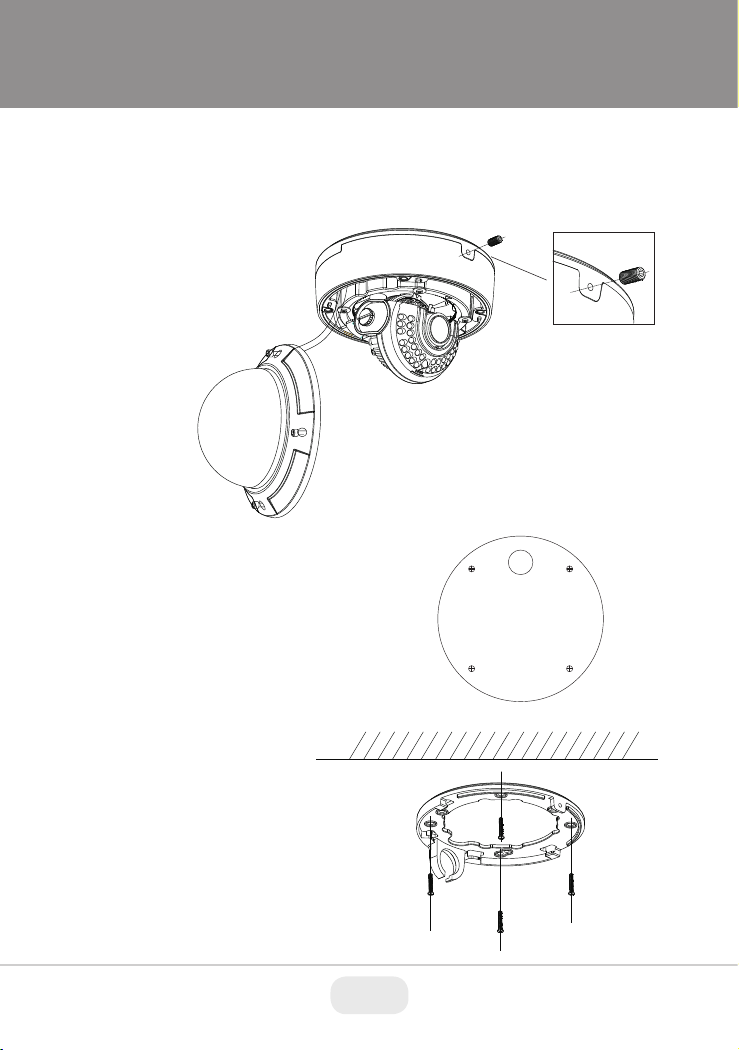

VTD-TND8RMS
Transcendent Series 8
Megapixel H.265 Indoor/
Outdoor WDR IP Dome Camera
with 30 IR LED Illumination &
Motorized Varifocal Lens
VITEK
QUICK START GUIDE
VITEK
FEATURES
• 1/2.5” 8.0 Megapixel Progressive Scan CMOS image
sensor
• Up to 30fps live view @ 8 MegaPixel (3840x2160)
• Motorized 3.3-12mm Varifocal Lens
• 30 Infrared LED’s with 100’ IR Range
• 120dB Super Wide Dynamic Range (WDR)
• True Mechanical Day/Night function by ICR
• XD-DNR (2D-DNR & 3D-DNR) Noise Reduction
• Fully Programmable Intelligent Analytics including Object
Removal/Museum Search, Line Crossing, and Area
Intrusion Detection
• H.265/H.264/MJPEG Triple Streaming
• Secondary Video Output (CVBS)
• Remote Viewing via CMS, Internet Explorer, and iOS &
Android Apps
• IP66 Weather Resistance & IK10 Impact Rating
• MicroSD memory card slot for Local recording supporting
up to 128GB MicroSDXC cards
• ONVIF Compliant
• Optional Wall (VT-TWM03) & Junction Box (VT-TJB02)
Mounts Available
• 12VDC & PoE (Power over Ethernet) Operation
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads
Components and Accessories
Camera
Quick Guide
Screws
Hex Wrench
Overview
Service Port Cable
10
Drill Template
Rubber Gasket
Waterproof Cap
8 9
RESET
LINK
TF
CVBS
DC IN
1
2
3
4
5
6
7
1
2
3
4
5
RJ-45 Ethernet
Audio In
Audio Out
CVBS Output
Alarm I/O
6
7
8
9
10
RS-485
Power Cable
Reset
Service Port
MicroSD Card Slot
2 3

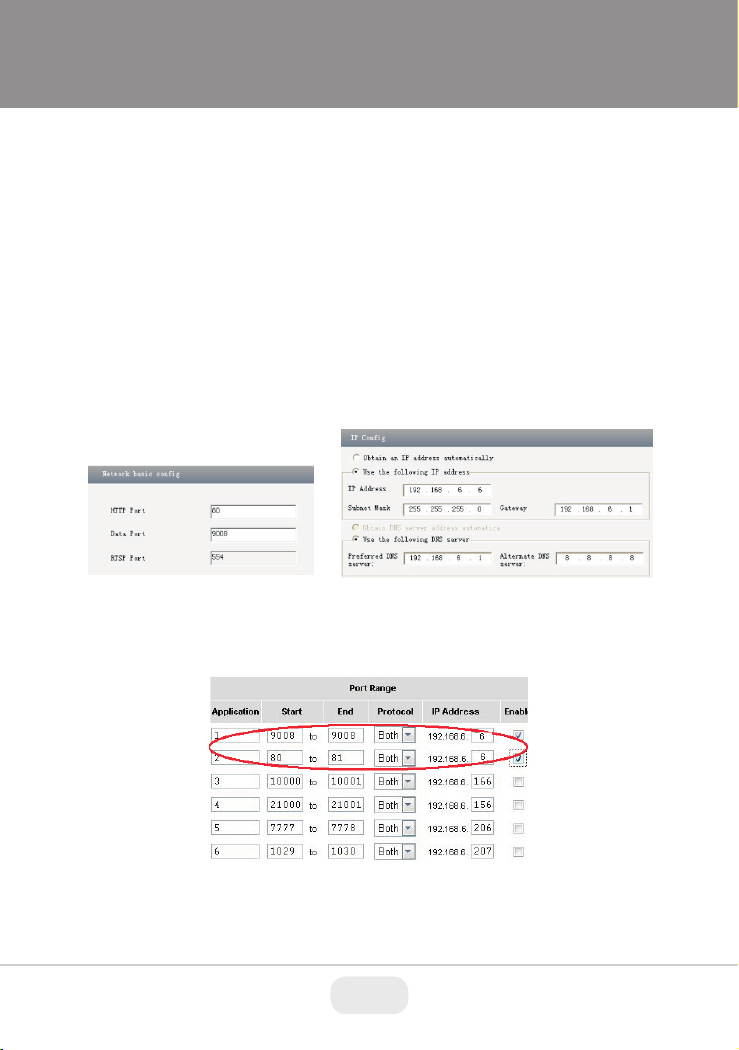

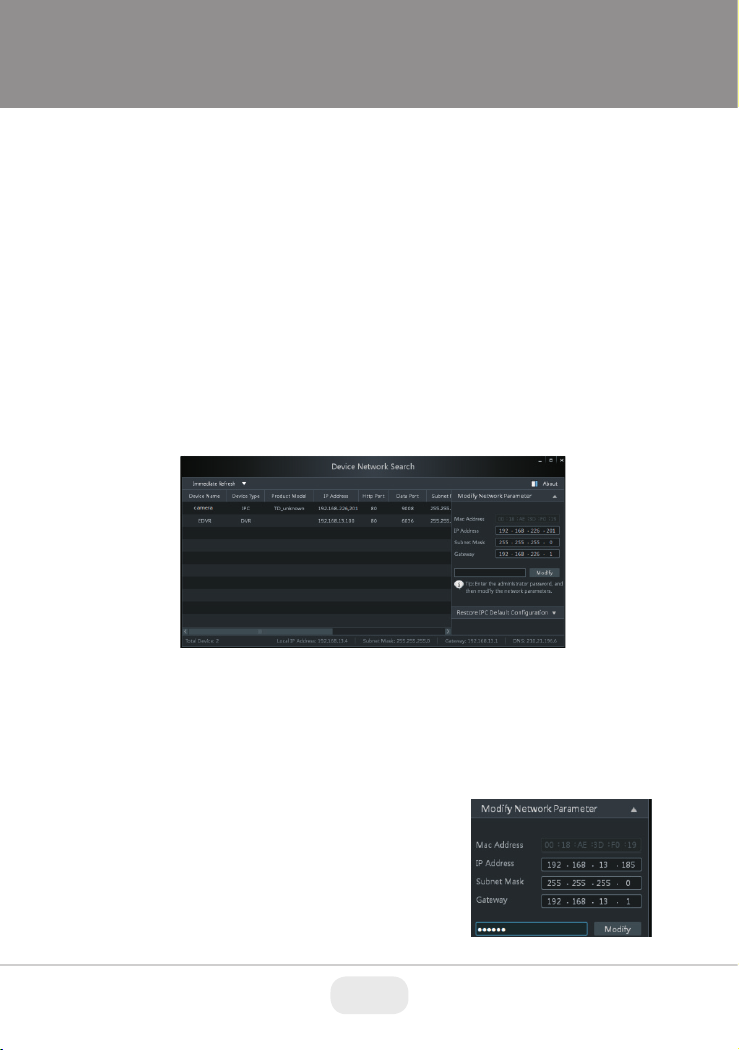

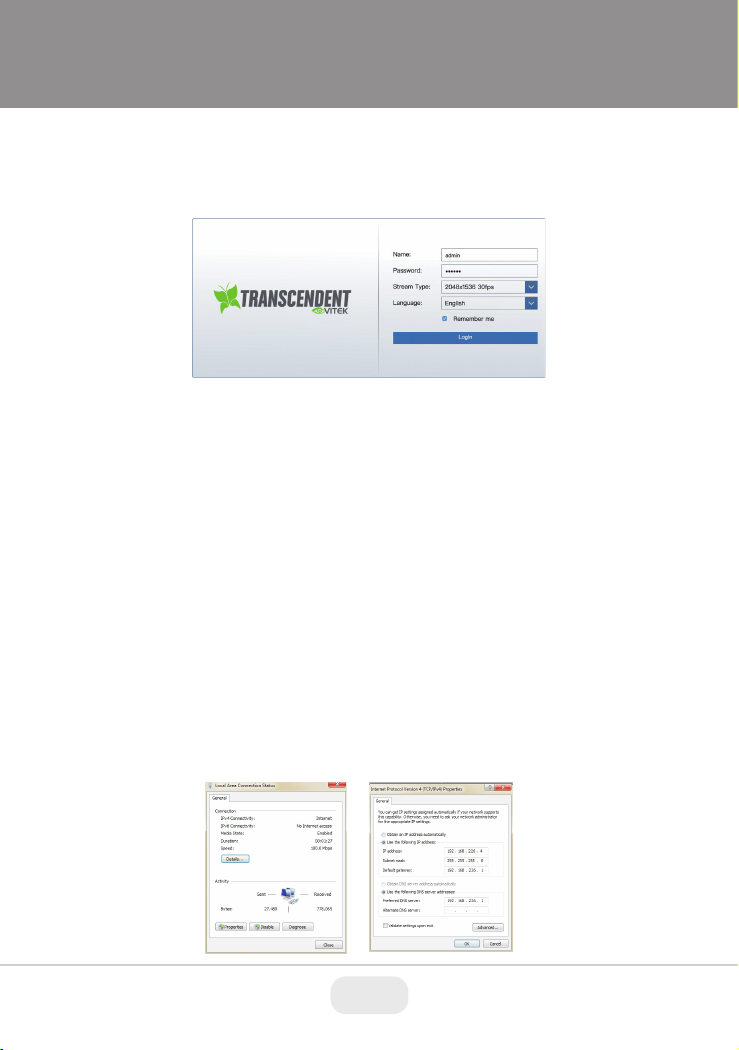

Network Cable & Power Connections
First connect the Waterproof Cap to an Ethernet patch cable, then
connect the cameras ethernet adaptor. If not powering the camera with
PoE, also connect the power Cable to an approved 12VDC Power
Supply.
Network Cable
ALM: COM
ALM: NO
ALM: IN
ALM: GND
Optional 12VDC
Power Connection.
Not needed with PoE
RS-485 +
RS-485 -
Weather Resistant Network Coupler
1. Loosen the nut from the Weather Resistant Network Coupler,
2. Run ethernet cable through coupler, then attach a RJ-45 connector.
3. Tighten the nut and coupler for a weather resistant seal.
