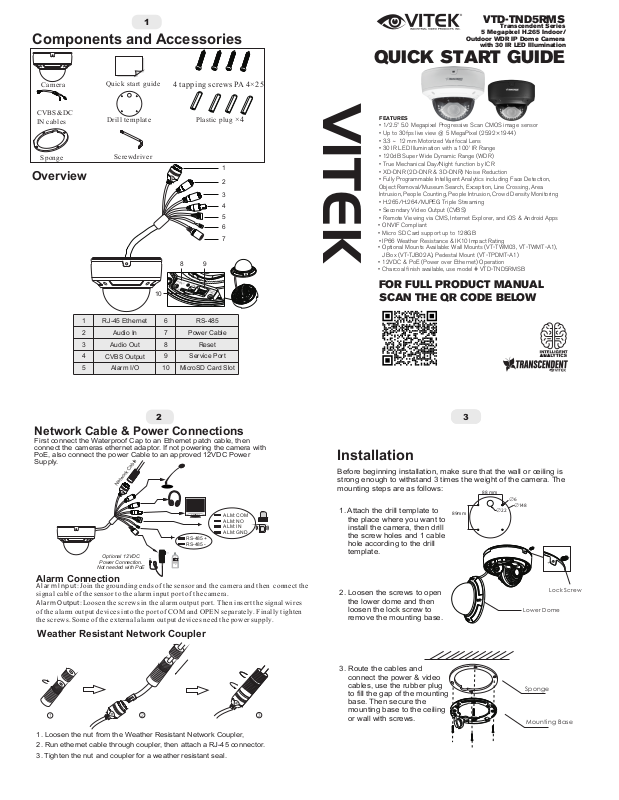

Vitek VTD-TND5RMSB Quick Start Guide

Network Cable & Power Connections

First connect the Waterproof Cap to an Ethernet patch cable, then connect the cameras ethernet adaptor. If not powering the camera with PoE, also connect the power Cable to an approved 12VDC Power Supply.

Weather Resistant Network Coupler

1. Loosen the nut from the Weather Resistant Network Coupler,

2. Run ethernet cable through coupler, then attach a RJ-45 connector.

3. Tighten the nut and coupler for a weather resistant seal.

Components and Accessories

Quick

Camer a

sta rt guid e

4 tappin g sc re ws PA 4×25

VTD-TND5RMS

Transcendent Series

5 Megapixel H.265 Indoor/

Outdoor WDR IP Dome Camera

with 30 IR LED Illumination

QUICK START GUIDE

CVBS& DC IN cabl es

Spong e

Overview

Drill templa te

Screw dr iv er

RJ-45 Ethernet

Audio In

Audio Out

CVBS Output

Alarm I/O

Plast ic

plu g ×4

8 9

RESET

LINK

DC IN

CVBS

RS-485

Power Cable

Reset

Service Port

MicroSD Card Slot

VITEK

FEATURES

• 1/2.5” 5.0 Megapixel Progressive Scan CMOS image sensor

• Up to 30fps live view @ 5 MegaPixel (2592×1944)

• 3.3 ~ 12 mm Motorized Varifocal Lens

• 30 IR LED Illumination with a 100’ IR Range

• 120dB Super Wide Dynamic Range (WDR)

• True Mechanical Day/Night function by ICR

• XD-DNR (2D-DNR & 3D-DNR) Noise Reduction

• Fully Programmable Intelligent Analytics including Face Detection, Object Removal/Museum Search, Exception, Line Crossing, Area Intrusion, People Counting, People Intrusion, Crowd Density Monitoring

• H.265/H.264/MJPEG Triple Streaming

• Secondary Video Output (CVBS)

• Remote Viewing via CMS, Internet Explorer, and iOS & Android Apps

• ONVIF Compliant

• Micro SD Card support up to 128GB

• IP66 Weather Resistance & IK10 Impact Rating

• Optional Mounts Available: Wall Mounts (VT-TWM03, VT-TWMT-A1), J Box (VT-TJB02A), Pedestal Mount (VT-TPDMT-A1)

• 12VDC & PoE (Power over Ethernet) Operation

• Charcoal finish available, use model # VTD-TND5RMSB

FOR FULL PRODUCT MANUAL SCAN THE QR CODE BELOW

Network Cable

ALM: COM ALM: NO ALM: IN

RS-485 + RS-485 -

Optional 12VDC

Power Connection.

Not needed with PoE

Alarm Connection

A lar m I nput: Jo in the ground in g en ds o f th e se nsor and the ca me ra a nd t he n co nnect the signa l ca bl e of t he s en sor to the alar m in pu t po rt o f th e camera. A lar m Output: Loosen the screw s in t he a la rm o utput port. The n in sert the signal w ir es of the al ar m ou tp ut d ev ices into the p or t of C OM a nd O PE N separatel y. Fi na lly tighten

the scr ew s. S om e of t he e xternal ala rm o ut pu t de vi ces need the po we r su pp ly.

ALM: GND

Installation

Before beginning installation, make sure that the wall or ceiling is strong enough to withstand 3 times the weight of the camera. The mounting steps are as follows:

1. Attach the drill template to the place where you want to install the camera, then drill the screw holes and 1 cable hole according to the drill template.

2. Loosen the screws to open the lower dome and then loosen the lock screw to remove the mounting base.

3. Route the cables and connect the power & video cables, use the rubber plug to fill the gap of the mounting base. Then secure the mounting base to the ceiling or wall with screws.

89mm

88 mm

∅22

∅6

∅148

Low er Dome

Spo ng e

Mou nt in g Ba se

Loc k Scr ew

Installation

Fix the camera to the mounting base with the lock screw.

Before adjusting the three-axis camera mount, preview the camera on a monitor, then adjust as necessary achieve the optimum viewing angle.

Tilt 0 °~77

Install the lower dome back to the camera with the screws. Tightening the screws will ensure greater water resistance. Carefully remove the protective film to complete the installation.

Rota tion 0° ~3 60°

Pan 0° ~360°

LAN Configuration

The camera can be accessed on the local network either using the IP-Tool or directly in a web browser.

Sw itc h

I P C

Accessing the Camera Using the IP-Tool

1. Make sure the camera and PC are connected to the LAN.

2. Locate the IP-Tool installer on the Vitek Website: vitekcctv.com/Downloads/Software/Transcendent-IPTool_v2.0.2.zip (also available via the QR code below)

Then install on the PC. Open the installed application.

3. Modify the IP address. The default IP address is 192.168.226.201. Click the information of the camera listed in the above table to show the network information on the right side. Modify the IP address and gateway of the camera and make sure its network address is in the same local network segment as the computer’s. Please modify the IP address of your device according to the practical situation.

For example, the IP address of your computer is 192.168.13.4. So the IP address of the camera shall be changed to 192.168.13.X. After modification, please input the password of the administrator and click “Modify” button to modify the setting.

** Default admin password: “123456".

Netw ork C abl e Netw ork C abl e

R out er

C ompu ter

4. Double-click the IP address and then the system will pop up the web browser to connect IP-CAM . IE browser will download the Active X control automatically. After downloading, a login window will pop up as shown below:

Input the user name and password to log in. Default user name: admin / Default password: 123456.

Directly Access Through a Web Browser

The default network settings are as shown below: IP address: 192.168.226.201 HTTP: 80 Subnet Mask: 255.255.255.0 Data Port: 9008 Gateway: 192.168.226.1 You may use the above default settings when you log in the camera for the first time.

1. Manually set the IP address of the PC and the network segment should be as the same as the default settings of IP-CAM. Open the network and share center. Click “Local Area Connection” to pop up the following window.

Select “Properties” and then select Internet protocol according to the actual situation (for example: IPV4). Next, click “Properties” button to set the network of the PC.

2. Open the IE Browser and input the default address of IP-CAM and confirm. The IE browser will download Active X control automatically.

3. After downloading Active X control, the login dialog box will pop up.

4. Input the default username and password and then enter to view.

WAN Configuration

Access the camera by the router or virtual server for example.

1. Make sure the camera is connected to the LAN; Then log into the

camera via LAN and go to System Congfig→Network Config→Port

menu to set up the port number.

2. Enter System Config→Network Config→IP Address menu to modify the IP address.

3. Go to the router’s management interface through IE browser to forward the IP address and port of IP-CAM in the “Virtual Server”.

4. Open the web browser and input its WAN IP and HTTP port to

access the IP-CAM.
