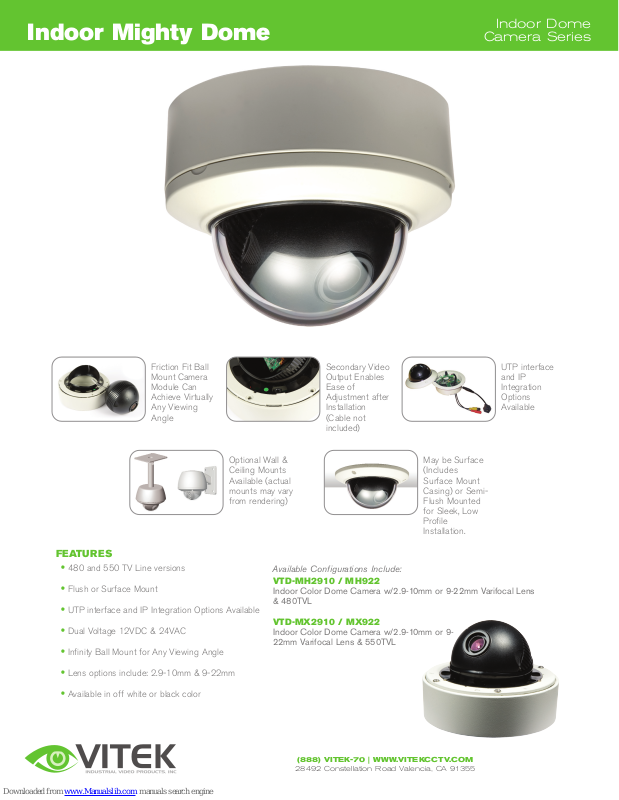

Vitek VTD-MH2910, VTD-MH922, VTD-MX2910, VTD-MX922 Specifications

Indoor Mighty Dome

Indoor Dome

Camera Series

Friction Fit Ball
Mount Camera
Module Can
Achieve Virtually
Any Viewing
Angle

Optional Wall &
Ceiling Mounts
Available (actual
mounts may vary
from rendering)

FEATURES

• 480 and 550 TV Line versions

• Flush or Surface Mount

• UTP interface and IP Integration Options Available

• Dual Voltage 12VDC & 24VAC

• Infinity Ball Mount for Any Viewing Angle

Secondary Video
Output Enables
Ease of
Adjustment after
Installation
(Cable not
included)

May be Surface
(Includes
Surface Mount
Casing) or Semi­Flush Mounted
for Sleek, Low
Profile
Installation.

Available Configurations Include:

VTD-MH2910 / MH922

Indoor Color Dome Camera w/2.9-10mm or 9-22mm Varifocal Lens
& 480TVL

VTD-MX2910 / MX922

Indoor Color Dome Camera w/2.9-10mm or 9­22mm Varifocal Lens & 550TVL

UTP interface
and IP
Integration
Options
Available

• Lens options include: 2.9-10mm & 9-22mm

• Available in off white or black color

(888) VITEK-70 | WWW.VITEKCCTV.COM

28492 Constellation Road Valencia, CA 91355

Indoor Mighty Dome

Indoor Dome

Camera Series

Detailed Specifications

Image Sensor

Sync System

Scanning system

Lens Options

Horizontal Resolution

Min. Illumination

S/N Ratio

Video Output

Effective Pixels

Electronic Shutter

White Balance

Operating Temperature

Operating Humidity

Power Consumption

Power Requirement

Dimensions (H x Dia.)

VTD-MH2910 / MH922 VTD-MX2910 / MX922

1/3 Sony New Structure Super HAD CCD

Internal

2:1 Interlace

2.9-10mm or 9-22mm

480 TV Lines 550 TV Lines

0.2Lux (F1.2@40IRE)

More than 52dB AGC OFF at 50IRE

1.0Vp-p composite, 75 Ohms

768(H) x 494(V)

1/60 ~ 1/100,000

2000~8000 K Automatic Tracking

14ºF ~ 122ºF (-10ºC ~ +50ºC)

Within 85% RH

3 Watts

12VDC/24VAC Dual Voltage (500 mA Minimum)

4.45" x 5.71" (113mm x 145mm)

(888) VITEK-70 | WWW.VITEKCCTV.COM

28492 Constellation Road Valencia, CA 91355
