Vitek VTD-MVS922DN, VTD-MVS922DN-B, VTD-MVS2810DN, VTD-MVS2810DN-B Specsheet

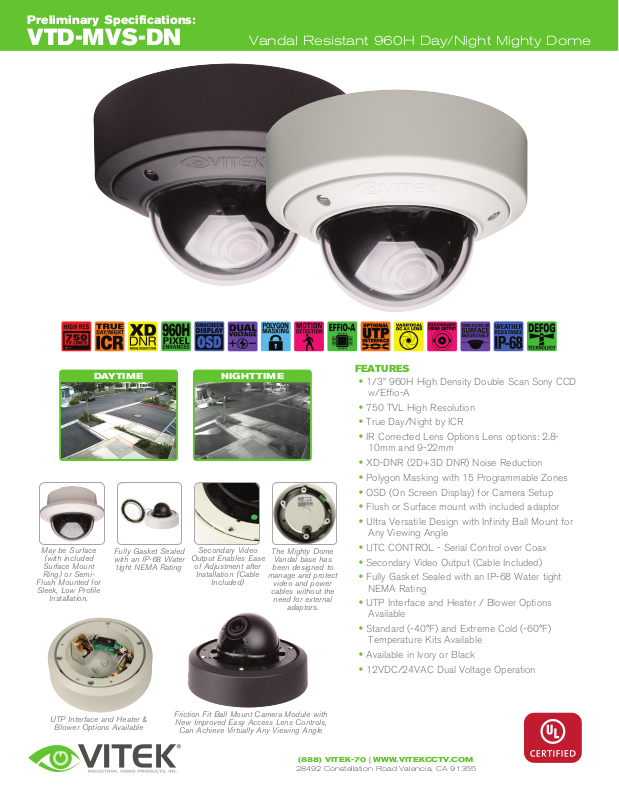

Preliminary Specifications:

VTD-MVS-DN

Vandal Resistant 960H Day/Night Mighty Dome

May be Surface

(with included Surface Mount Ring) or Semi-

Flush Mounted for Sleek, Low Proﬁ le

Installation.

Fully Gasket Sealed with an IP-68 Water

tight NEMA Rating

NIGHTTIMEDAYTIME

Secondary Video

Output Enables Ease

of Adjustment after

Installation (Cable

Included)

The Mighty Dome

Vandal base has

been designed to

manage and protect

video and power

cables without the

need for external

adaptors.

FEATURES

• 1/3” 960H High Density Double Scan Sony CCD

w/Effio-A

• 750 TVL High Resolution

• True Day/Night by ICR

• IR Corrected Lens Options Lens options: 2.8-

10mm and 9-22mm

• XD-DNR (2D+3D DNR) Noise Reduction

• Polygon Masking with 15 Programmable Zones

• OSD (On Screen Display) for Camera Setup

• Flush or Surface mount with included adaptor

• Ultra Versatile Design with Infinity Ball Mount for

Any Viewing Angle

• UTC CONTROL - Serial Control over Coax

• Secondary Video Output (Cable Included)

• Fully Gasket Sealed with an IP-68 Water tight

NEMA Rating

• UTP Interface and Heater / Blower Options

Available

• Standard (-40°F) and Extreme Cold (-60°F)

Temperature Kits Available

• Available in Ivory or Black

• 12VDC/24VAC Dual Voltage Operation

UTP Interface and Heater &

Blower Options Available

Friction Fit Ball Mount Camera Module with

New Improved Easy Access Lens Controls,

Can Achieve Virtually Any Viewing Angle

(888) VITEK-70 | WWW.VITEKCCTV.COM

28492 Constellation Road Valencia, CA 91355

Preliminary Specifications:

VTD-MVS-DN

Detailed Specifications

Image Device

Resolution

Effective Pixels

Minimum Illumination

Lens Options

Day/Night

WDR

Noise Reduction

Motion Detection

Privacy Mask

White Balance

FLIP

Synchronization

S/N Ratio

Vandal Resistant 960H Day/Night Mighty Dome

1/3” 960H High Density Sony® CCD w/Effio-A

750TV Lines

976(H) x 494(V)

0.0005Lux (Sens-up OFF)

2.8-10mm / 9-22mm

True Day/Night by ICR

D-WDR by ATR-EX2

XD-DNR (2D+3D DNR)

4 Programmable Zones

Polygon Masking with 15 Programmable Zones

ATW / PUSH / USER1 / USER2 / MANUAL / PUSH LOCK

H-Flip, V-Flip, H/V Flip

Internal

More than 52dB with AGC OFF at 50IRE

Electronic Iris

Digital Image Stabilazation

DSS

Digital Zoom

Water Resistance

Power Source

Power Consumption (12VDC)

Power Consumption (24VAC)

Operating Conditions

Dimensions (H x Dia.)

Weight

INSTALLATION ACCESSORIES (SOLD SEPARATELY):

1/60~1/100,000

YES

Up to X12 Digital Zoom

IP-68

UL Certified: 12VDC / 24VAC

2.64 W / 220 mA

2.64 W / 110 mA

-4°~122°F (-20°-50°C)

4.45” x 6.73” (110mm x 170mm)

2.3 lb / 1.04Kg

VT-MD/PLMT

Mighty Dome Pole

Mount

AVAILABL E CONFIG URATIONS

VTD-MVS2810WDR VTD-MVS2810WDR/B VTD-MVS922WDR VTD-MVS922WDR/B

960H - Outdoor Vandal Proof WDR Mighty Dome 750TVL Camera w/2.8-10mm Lens - Ivory 960H - Outdoor Vandal Proof WDR Mighty Dome 750TVL Camera w/2.8-10mm Lens - Black 960H - Outdoor Vandal Proof WDR Mighty Dome 750TVL Camera w/9-22mm Lens - Ivory 960H - Outdoor Vandal Proof WDR Mighty Dome 750TVL Camera w/9-22mm Lens - Black

VT-MD/CNMT

Mighty Dome Corner Mount

VT-MD/FMP

Flush Mount 4S Cover Plate

VT-MD/CMT

Mighty Dome Ceiling Mount

(888) VITEK-70 | WWW.VITEKCCTV.COM

28492 Constellation Road Valencia, CA 91355

VT-MD/WMT

Mighty Dome Wall Mount

BREAKDOWN OF MODEL NUMBERS: EXAMPLE: VTD-MVS2810WDR/B

{VTD}

VITEK

Camera

{MVS}

Mighty Vandal

Dome Series

VT-MD/2VOC

Secondary Video Output Cable (Included)

{B}

{WDR}

{2810}

2.8-

10mm

Lens

Wide

Dynamic

Range

Black
