WIWI INDUSTRIES LIMITED
BILL OF MATERIAL
MODEL VT-3648 (DVD7512)
Item Material Code Brief Description Qty Remarks
K02-DVD7512-270827-00A
C02-DVD7500-64104T-EU2
1 010-351MT22-2600A AMORPHOUS TOROID 350uH 6A 20% D22x14 H-TYPE
2 022-C101000-10000 PLUG TYPE FUSE 10A 32V RED COLOUR 1
3 029-B000100-00000 ANTENNA JACK DOUBLE SCREW ANGLE SOLDER
4 031-0050U00-15000 FFC 15PIN 1.25PT L=(3+50+3) 2896 ROHS FOR CD-
5 037-G030000-201A0 2xRCA SKT W/O HOUS'G 3PIN 300mm BLK W/CLIP
6 037-G030000-203A0 2xRCA SKT W/O HOUS'G 3PIN 300mm GRY W/CLIP
7 037-G032000-101B1 RCA SKT W/1xSH 320mm YELLOW W/CLIP-B FOR
8 209-7500000-K0000 RELEASE-SPRING(BLACK) CD-7500 D5.2XL3.0X0.5T 1
9 209-7500000-L0000 HOOK-SPRING CD-7500 D4.8XL2.8X0.35T 1
10 209-7500000-T0000 SHAFT-BASE-SPRING CD-7500 D3.35XL8.0X0.35T 2
DVD-7512 CAR DVD PLAY[VITEK VT-3648]-RU64104T FINISHED PRODUCT
DVD-7512 RDS/MW/FM/OIRT,MP3 ESP,40WX4,2N/2O,
BISO MAIN CASING ASSY
L=4MM
PLATE
7500
DVD7505
DVD7505
DVD-3000
1
1
1 L801
1
1
1 LINE-IN RCA
1 REAR LINE-OUT RCA
1 VODEO OUT RCA
11 217-7600A00-00000 CD-7600 DETECTING SWITCH SPRING-PLATE 1
12 212-2005000-03P00 FLAT-WASHER-AA ID2.0XOD5.0 W/OPEN CUTTING 1
13 212-5209000-14S00 SPRING WASHER ID=5.2x9.0x1.4T 1 SET:1
14 214-7505000-05F00 DVD-7505 MAIN-FIBRE [T=0.5mm] 1
15 216-7505B00-C0000 DVD-7505 HEAT-SINK W/SAND BLOWING [AL DIE
CASTING]
16 218-3988B00-E1000 CD-3988 BACK CHASSIS FOR ISO-CON [EGI-1.0] 1
17 218-7500F00-E1000 CD-7500 FRONT-BRACKET-{ LEFT } [EGI-1.0] 1
18 218-7500G00-E1000 CD-7500 FRONT-BRACKET-{ RIGHT } [EGI-1.0] 1
19 218-7505K00-E0600 DVD-7505 BOTTOM-COVER [EGI-0.6] 1
20 218-7505L00-E1000 DVD-7505 SIDE-CHASSIS - (LEFT) [EGI T=1.0] 1
21 218-7505R00-E1000 DVD-7505 SIDE-CHASSIS - (RIGHT) [EGI T=1.0] 1
22 219-7500000-A0000 CD-7500 STOP SHAFT [BRASS] 1
1
23 219-7500000-B0000 CD-7500 RELEASE-GEAR-SHAFT [BRASS D.Ni] 1
24 219-7500000-L0000 CD-7500 REL-BRACKET-SHAFT-(LEFT) [BRASS] 1
VT-3648 (DVD7512-270827) VITEK BOM PAGE 1 OF 14
Item Material Code Brief Description Qty Remarks
25 219-7500000-R0000 CD-7500 REL-BRACKET-SHAFT-(RIGHT) [BRASS] 1
26 222-7505J00-E0600 DVD-7505 TOP-COVER [EGI T=0.6] 1
27 225-0900700-40000 PAD CORK 9x7x4mm W/ADHESIVE 3
28 225-1000900-70000 PAD CORK 10x9x7mm W/ADHESIVE 1
29 227-8500A00-00000 CD-8500 EMI-CONDUCTIVE SPONGE 20X10X10MM 1
30 228-3888A00-00000 CD-3888 CD SLOT FELT [60g/m2 NON WOVEN
CLOTH]
31 228-7505A00-00000 DVD-7505 DUSTPROOF-FABRIC 1
32 233-N030W00-H0000 HEX NUT: M3 4 FOR IC:2
33 234-HEX5000-12000 HEX BOLT D5x12mm DOUBLE HEAD [CARBON ST
D.Zn]
34 234-MS03000-04000 SCREW: MS 3.0 X 4.0 (5.5x1x4) 3 BASE PANEL:3
35 234-PB02000-04000 SCREW PB 2.0 x 4.0 MM TS NICKLE 4 RELEASE BRACKET:4
36 234-PB02000-05000 SCREW PB 2.0 x 5.0 MM TS NICKLE 2 CONNECTOR PCB:2
37 234-PM02000-03000 MACHINE SCREW PM 2.0 x 3.0 MM NICKLE ROUND
HEAD
38 234-PM03000-06000 MACHINE SCREW PM 3.0 x 6.0 MM NICKLE ROUND
HEAD
39 234-PM03000-08000 MACHINE SCREW PM 3.0 x 8.0 MM NICKLE ROUND
HEAD
40 234-PT03000-05000 TAP TYPE SCREW TTP M3.0 x 5.0 MM NICKLE
ROUND HEAD
41 234-PT03000-08000 TAP TYPE"C" SCREW TTP M3.0 x 8.0 MM NICKLE
ROUND H
42 234-PT03000-10000 TAP TYPE"C" SCREW TTP M3.0 x 10 MM NICKLE
ROUND HE
43 234-PT03000-13000 TAPTITE SCREW MS 3x13 HARDEN ROHS 2 IC:2
1
1
2 DAMPER:2
2 IC:2
2 IC:2
7 MAIN-PCB+SIDECHAS:3 PECK
BRACKET+CHA:3 BET+MAIN
PCB:1
2
2
44 234-PTT3000-05000 SCREW TTP 3.0 x 5 TAP TYPE (B) 6 COVER+HEAT SINK;3
ANT+HEAT SINK:2 DECK
BKT+HEAT SINK:1
45 243-3099000-M0000 FF/REW COVER 1
46 243-3888000-A0000 CD-3888 CD-GUIDE PLATE [PVC-0.5T BLACK] 1
47 243-7600000-Q0000 CD-7600 VFD-SIDE-COVER BLACK 60X7MM[PAPER
0.1T]
48 402-7500A00-3BK00 CD-7500 BASE-PANEL [PC BLACK] 1
49 414-7500100-2CR00 CD-7500 CD-GUILD-REFLECTOR [PMMA CLEAR] 1 ACRYL CLEAR RED
50 430-7500A00-3CR00 CD-7500 EJ-KNOB [PC CLEAR] 1
51 440-7500A00-3BK00 CD-7500 HOOK [PC BLACK] 1
52 456-7500A00-1BK00 CD-7500 PANEL DETECTING KNOB [ABS] BLACK 1
VT-3648 (DVD7512-270827) VITEK BOM PAGE 2 OF 14
2
Item Material Code Brief Description Qty Remarks
53 462-2001A00-3BK00 MICRO DAMPER ASS'Y DPP01 14TQ (19-24) RED
COLOR
54 462-7500A00-9BK00 CD-7500 RELEASE-GEAR [POM BLACK] 1
55 462-7500B00-9BK00 CD-7500 RELEASE-GEAR-B [POM BLACK] 1
56 802-0703E00-WE000 SILICONE GLUE 45grm 0.03
D02-DVD7505-7500DD-200
57 203-DLC28D1-1200W CAR DVD DECK DL-C28D1 W/HOP1200W PICKUP
58 212-3006000-05F00 FIBER WASHER ID3.0 x OD6.0 x 0.5T 4 FOR PCB ISOLATION
59 214-3300000-B0000 CD-3300 DECK MOTOR-COVER-FIBRE [10x27mm]
60 214-DECK000-A0000 DECK FIBER 105x95x0.5mm 1
61 216-3300B00-C0000 HEAT-SINK-S CD-3300 [IRON PLATE] 1 FOR MOTOR DRIVER IC
62 218-3987C00-E1000 CD-3987 DECK-BRACKET-"FRONT" [EGI T=1.0] 1
63 218-7505X00-E1000 DVD-7505 DECK-BRACKET - (RIGHT) [EGI T=1.0] 1
DVD-7500 DVD SERVO [ZORAN] SHINWA DECK
ASSY
[SHINWA]
0.5T
1
1
1
1
64 218-7505Y00-E1000 DVD-7505 DECK-BRACKET - (LEFT) [EGI T=1.0] 1
65 234-BMT2000-05000 SCREW TTP 2.0 x 5.0 BM TAP TYPE 4 SUB PCB:4
66 234-PT02600-04000 SCREW: TS 2.6x4 TAP TYPE WHITE 5 DECK BRACKET:5
H05-7500D00-D20000-000
67 002-S111718-F003A IC S1117-18PI 1.8V 1A LDO REGULATOR [TO220F] 1 U502
68 004-SR23G00-00000 INFRARED EMITTING DIODE SR-23G/OSE-23G/OSE-
69 006-2700000-40000 CRYSTAL 27.000MHZ HC-49U/S 20P 30PPM 1 Y101
70 012-4226C00-30000 MINI E-CAP [4X5] 22uF 16V 20% 85C 1 C217.
71 012-4476C00-30000 MINI E-CAP [5X5] 47uF 16V 20% 85C 7 C324.229.228.209.159.158.319
72 012-5107C00-30000 MINI E-CAP [6x5] 100uF 16V 20% 85C 3 C201.504.503.
73 012-5227B00-30000 MINI E-CAP [6x5] 220uF 10V 20% 85C 5 C505.529.508.C244.17.
74 025-TA02000-33000 SWITCH 2P 3.3mm SW-111 HC-49S 1 SW1
DVD-7500 DVD SERVO BOARD [ZORAN] SHINWA
HAND ISERT ASSY
23F
1
2 LD1,LD2
75 031-F150100-22531 22PIN FFC CABLE L=150 PT=1.0 (5MM+3MM) UL
W/TAPE
76 037-C609000-3B000 H'ING 3PIN P=2.5mm 1X28 2XSH 90mm 1
S05-7500D00-D20000-000
77 001-7500D00-D2000 PCB DVD-7500 ZORAN DVD SERVO BOARD W/MP3
78 002-0111700-U3300 IC S1117-33Q 3.3V 1A LDO [SOT223] AUK 2 U501.503.
DVD-7500 DVD SERVO BOARD [ZORAN] SMT ASSY 1
[REV-1]
VT-3648 (DVD7512-270827) VITEK BOM PAGE 3 OF 14
1 CN7
1
Item Material Code Brief Description Qty Remarks
79 002-0455800-G0000 IC TJM4558-C DUAL OP-AMP [SO8] 1 U303
80 002-9VF1601-U048D IC SST39VF1601-70-4C-EK 16Mb FLASH ROM
[TSOP48]
81 002-BA5888F-D028A IC BA5888FP BTL DRIVER FOR CD/CD-ROM FOR
DVD-7505
82 002-K4S6416-U050D IC 64M(4MX16) SDRAM K4S641632H-TC(L)70
[TSOP50]
83 002-ZR36882-R208D IC ZR36882ELCG DVD SERVO MCU [LQFP208]
ZORAN
84 003-0390400-S0000 SMD TR-NPN UTC MMBT3904/2N3904 [SOT23] 3 Q312.313.303.
85 003-0390600-S0000 SMD TR-PNP UTC MMBT3906/2N3906 [SOT23] 2 Q304.305
86 003-STN2907-S0000 SMT TR-PNP STN2907S -60V,0.6A,HFE-
75,MK"GA"[SOT23]
87 004-0414800-S0000 CHIP-DIODE [0805] CD4148 3 D301.302.1.
88 004-SDB310W-SKD00 SMD 2XSCH-DIODE BAT54S OR SDB310WM 30V
0.2A[SOT23]
89 010-1R0KS08-00000 CHIP INDUCTOR [0805] 1uH 10% 50mA DCR<=0.4R 1 L501.
90 010-H010600-00000 CHIP-INDUCTOR [0805] 10uH 5% (15mA MAX) 2 L201.1
91 011-S000A00-20000 CHIP RES [0805] 0 OHM 5% 15 R239.160.164.166.275.272.259.2
1 U106
1 U202.
1 U102
1 U101
2 Q204.205.
3 D501.204.104.
52.2.133.11.10.1.FB110.FB106.
92 011-S010A00-20000 CHIP RES [0805] 1 OHM 5% 4 R274.273.256.255.
93 011-S100A00-20000 CHIP RES [0805] 10 OHM 5% 3 R224.221.202
94 011-S102A00-20000 CHIP RES [0805] 1K OHM 5% 9 R185.264.265.277.334.325.3.276.
277
95 011-S103A00-20000 CHIP RES [0805] 10K OHM 5% 13 R501.503.502.247.237.236.254.2
67.3861.3832.311.281.2A0
96 011-S104A00-20000 CHIP RES [0805] 100K OHM 5% 2 R312.115
97 011-S121A00-20000 CHIP RES [0805] 120 OHM 5% 1 R203.
98 011-S151A00-20000 CHIP RES [0805] 150 OHM ㊣5% 1 R9
99 011-S153A00-20000 CHIP RES [0805] 15K OHM ㊣5% 1 R104
100 011-S202A00-20000 CHIP RES [0805] 2.0K OHM 5% 2 R299.R314
101 011-S203A00-20000 CHIP RES [0805] 20K OHM ㊣5% 5 R101.3852.3851.12.3812
102 011-S221A00-20000 CHIP RES [0805] 220 OHM ㊣5% 3 R533.222.223.
103 011-S223A00-20000 CHIP RES [0805] 22K OHM ㊣5% 1 R292.
104 011-S224A00-20000 CHIP RES [0805] 220K OHM ㊣5% 1 R112.
105 011-S273A00-20000 CHIP RES [0805] 27K OHM ㊣5% 2 R127.128
106 011-S330A00-20000 CHIP RES [0805] 33 OHM ㊣5% 2 R382.217.
107 011-S331A00-20000 CHIP RES [0805] 330 OHM ㊣5% 1 R532.
VT-3648 (DVD7512-270827) VITEK BOM PAGE 4 OF 14
Item Material Code Brief Description Qty Remarks
108 011-S332A00-20000 CHIP RES [0805] 3.3K OHM ㊣5% 1 R318
109 011-S333A00-20000 CHIP RES [0805] 33K OHM ㊣5% 2 R278.R105
110 011-S390A00-20000 CHIP RES [0805] 39 OHM 5% 1 R279.
111 011-S391A00-20000 CHIP RES [0805] 390 OHM ㊣5% 1 R106.
112 011-S472A00-20000 CHIP RES [0805] 4.7K OHM ㊣5% 19 R338.337.330.339.333.384.324.
380.320.329.327.328.119.120.
126.168.125.308.103.
113 011-S473A00-20000 CHIP RES [0805] 47K OHM ㊣5% 5 R313.540.539.244.139.
114 011-S560A00-20000 CHIP RES [0805] 56 OHM 5% 1 R123.
115 011-S682A00-20000 CHIP RES [0805] 6.8K OHM 5% 1 R248
116 011-S750A00-20000 CHIP RES [0805] 75 OHM 5% 3 R110.129.113.
117 011-S910A00-20000 CHIP RES [0805] 91 OHM 5% 2 R283.270.
118 013-D106L00-50A00 TAN CHIP CAP 10uF 10V ㊣20% [A SIZE] 1 C317
119 013-D106M06-S2012 CHIP TAN CAP 10uF 6.3V 20% [2012] (0805) SIZE
REEL
120 013-D107J00-50C00 TAN CHIP CAP 100uF 6.3V 20% [B/C SIZE] 1 C122.
121 013-D226J00-50A00 TAN CHIP CAP 22uF 6.3V 20% [A SIZE] 1 C108.
122 013-D227J00-50C00 TAN CHIP CAP 220uF 6.3V 20% "C-Size" 2 C120.C318.
123 013-D476J00-50A00 CHIP TAN CAP 20% 47uF 6.3V [A-SIZE] 2 C16.124
124 014-S100C00-200NP CHIP CAP [0805] 10PF 50V +/-0.5P NPO 1 C520
125 014-S101C00-400NP CHIP CAP [0805] 100PF 50V +/-5% NPO 2 C218.247
126 014-S102C00-50000 CHIP CAP [0805] 102P (0.001uF) 50V ㊣10% 13 C166.167.179.165.105.104.102.2
127 014-S103C00-50000 CHIP CAP [0805] 103P (0.01uF) 50V +/-10% 28 C556.154.152.141.149.155.140.
128 014-S104B00-80000 CHIP CAP [0805] 104P (0.1uF) 25V +80-20% 16 C343.246.245.274.103.270.208.8.
129 014-S151C00-50000 CHIP CAP [0805] 151P (150PF) 50V 10% 2 C511.C521.
2 C2.3
12.168.110.109.178.9
139.150.142.136.162.130.554.
553.18.135.137.138.146.123.
196.121.555.147.112.119.163.
207.204.203.560.530.125.242.24
1.
130 014-S181C00-50000 CHIP CAP [0805] 180PF 50V 10% 2 C331.321.
131 014-S201C00-50000 CHIP CAP [0805] 201P (200PF) 50V 10% 2 C335.325
132 014-S220C00-400NP CHIP CAP [0805] 22PF 50V +/-5% NPO 2 C114.115.
133 014-S221C00-50000 CHIP CAP [0805] 221P (220PF) 50V 10% 1 C544.
134 014-S223C00-80000 CHIP CAP [0805] 223P (0.022uF) 50V +80-20% 2 C251.C1.
VT-3648 (DVD7512-270827) VITEK BOM PAGE 5 OF 14
Item Material Code Brief Description Qty Remarks
135 014-S273C00-50000 CHIP CAP [0805] 0.027UF 50V 10% 1 C101.
136 014-S330C00-400NP CHIP CAP [0805] 33PF 50V +/-5% NPO 16 C197.107.195.194.192.193.190.1
91.189.186.187.188.336.332.326.
322
137 014-S471C00-50000 CHIP CAP [0805] 471P (470PF) 50V 10% 2 C205.216
138 036-G00500A-242L0 SMT 24P FFC CONN PT=0.5 H-TYPE UPPER
CONTACT
139 057-121T000-S0200 CHIP BEAD [0603] R=120R/100MHz DCR=0.25,
0.5A(MAX)
H01-7512S00-M10000-EU1
140 002-0078L15-T003A IC LM78L15 15V 0.1A [TO92] 3PIN REGULATOR 1 IC802.
141 002-0455800-G0000 IC TJM4558-C DUAL OP-AMP [SO8] 2 IC902.901
142 002-0729100-A0000 IC TA7291S (SIP-9) BRIDGE MOTOR DRIVER 1 IC603
143 002-1923F00-G0700 IC BU1923F RDS DECODER 1 IC2
144 002-2313L00-B0000 IC PT2313L AUDIO PROCESSOR [SOP28] 1 IC401
145 002-78L0500-F0000 IC KIA78L05 5V 0.1A REGULATOR [TO92] KEC 1 U2
146 002-9256F00-G0200 IC TC9256AFG FM PLL [SOP16] TOSHIBA 1 IC101
147 002-LM2576T-F005A IC LM2576T-ADJ 3A STEP-DN POWER REG 5PIN
148 002-ST7FAUD-R064D IC ST7FAUDIO-AR6 DVD750X/RDS MCU
149 002-TDA7454-W025A IC TDA7454 4X35W CAR AUDIO AMP [FLEXIWATT25]ST1 C801
DVD-7512 MW/FM/RDS/OIRT,MP3,ESP,35X4,2LINEIN/
2OUT MAIN PCB HAND INSERT ASSY
[TO220]
[LQFP64]PHILCONIC
1 CN3
9 FB502.111.112.105.102.FB101.5
01.503.505.
1
1Q6
1U1
150 003-0130300-D0300 TR-NPN KTD-1303 [TO-92M] AUDIO MUTING (25V
0.3A)
151 003-0136800-C0000 TR-PNP KTB1368-O -80V -4A 25W [TO-220IS] 1 Q804.
152 003-1267Y00-A0000 TR-PNP KTA1267-Y [TO-92M] GENERAL USE (-50V
0.15A)
153 003-3199Y00-A0000 TR-NPN KTC3199-Y [TO-92M] GENERAL USE (50V
0.15A)
154 003-B1243Q0-J0700 TR-PNP 2SB1243-Q POWER -60V,3A,1W [ATV-ROHM] 4 Q109.814.812.806.
155 003-D1859Q0-J0700 TR-NPN 2SD1859-Q MED.POWER 80V,0.7A,1W [ATV-
ROHM]
156 004-0400100-00000 DIODE 1N4001 50V 1A 2 D802.807.
157 004-0414800-00000 DIODE 1N4148 8 D805.721.402.401.710.708.806.7
158 004-0581800-00000 SCHOTTKY DIODE 1N5818 30V 1A 1 D1
159 005-0004700-A0000 ZENER DIODE 4.7V 1/2W +/-5% 1
160 005-0005100-A0000 ZENER DIODE 5.1V 1/2W +/-5% 1
161 005-0005600-A0000 ZENER DIODE 5.6V 1/2W +/-5% 1 ZD804.
4 Q4.3.2.1
1 Q104
3 Q401.811.110.
2 Q5.809.
09.(OIRT D702.704.)
162 005-0006200-A0000 ZENER DIODE 6.2V 1/2W +/-5% 4 ZD705.706.704.703.
VT-3648 (DVD7512-270827) VITEK BOM PAGE 6 OF 14
Item Material Code Brief Description Qty Remarks
163 005-0008200-A0000 ZENER DIODE 8.2V 1/2W +/-5% 2 ZD1.ZD401
164 005-0009100-A0000 ZENER DIODE 1/2W 9.1V 1 ZD701.
165 005-0010000-A0000 ZENER DIODE 10.0V 1/2W 5% 1 ZD803.
166 006-0433200-40000 CRYSTAL 4.332MHz HC49US 30PPM CL=16PF 1 X702
167 006-0450000-40000 CRYSTAL 4.5MHz HC-49US 30P 30PPM H=3.5 1 X101
168 006-0864360-40000 CRYSTAL 8.6436MHz [HC49US] LC=20PF 30PPM 1 X701.
169 009-TC70200-A0200 1PACK TUNER TC-702 OIRT/AM/FM [TAEBONG] 1 TUNER
170 010-220KRAE-22200 POWER INDUCTOR 22uH 20% 2.2A [D10x14.5MM]
LEADFREE
171 010-221KT15-20500 TOROID 227uH 10% 2PIN D16x10mm (WIRE
0.5x70.5Ts)
172 010-330KA24-20000 INDUCTOR [EC24] 33uH 10% Q=50 AXIAL 2 L802.L103
173 010-3R3KA22-20000 INDUCTOR [EC22] 3.3uH 10% AXIAL TYPE 1 L101.
174 011-A100D00-20000 RES 1/4W ㊣5% 10 OHM 2 R815.188.
175 011-A103A00-20000 RES 1/16W ㊣5% 10K OHM 2 R810.813.
176 011-A151A00-20000 RES 1/16W ㊣5% 150 OHM 1 R405
177 011-A222A00-20000 RES 1/16W ㊣5% 2.2K OHM 2 R842.812.
178 011-A229A00-20000 RES 1/16W 5% 2.2 OHM 1 R37
179 011-A471A00-20000 RES 1/16W ㊣5% 470 OHM 1 R5
180 011-A474A00-20000 RES 1/16W ㊣5% 470K OHM 2 R807.808.
181 011-A479D00-20000 RES 1/4 W ㊣5% 4.7 OHM 1 R623
1L1
1L3
182 011-A479F00-20000 CF-RES 1/2 W 5% 4.7 OHM 1 R825B
183 011-A562A00-20000 RES 1/16W ㊣5% 5.6K OHM 2 R29.28.
184 012-1107C00-30000 MINI E-CAP [5x7] 100uF 16V 20% 85C 18 C828.825.832.824.8.120.121.117.
837.836.902.410.137.901.1.16.2.
703
185 012-1476C00-30000 MINI E-CAP [5x7] 47uF 16V 20% 85C 2 C409.810.
186 012-5227B00-30000 MINI E-CAP [6x5] 220uF 10V 20% 85C 1 C604.
187 012-B105F00-30000 MINI E-CAP [4x7] 1uF 50V 20% 85C 23 C904.424.838.531.532.802.803.4
16.414.903.906.412.905.413.411.
804.138.719.801.811.132.425.CE
203.
188 012-B106D00-30000 MINI E-CAP [4x7] 10uF 25V 20% 85C 5 C842.829.426.721.812.
189 012-B225F00-30000 MINI E-CAP [4x7] 2.2uF 50V 20% 85C 3 C821.108.107.
190 012-B475F00-30000 MINI E-CAP [4x7] 4.7uF 50V 20% 85C 4 C10.3.128.4
VT-3648 (DVD7512-270827) VITEK BOM PAGE 7 OF 14
Item Material Code Brief Description Qty Remarks
191 012-R228D00-30000 E-CAP [13x26] 2200uF 25V 20% 85C 1 C813
192 014-A103C00-60000 CER CAP 103P (0.01uF) 50V ㊣20% 1 C106.
193 023-A005000-RD000 LED RED DIA=5mm 2V/20mA 25-40mcd 1 D2
194 025-LF1120B-00000 MICRO DETECTOR SWITCH [1P1T] 1120B FOR
CD7600
195 025-TA04000-38500 4PIN TACT SW H=3.85 200G/F ANGLE TYPE KFC-
A06-05
196 033-D230000-BN000 3PIN DUAL.SHIELD WIRE #28 L=230MM (3+224+3)
BROWN
197 033-S100000-BN000 S.SHIELD WIRE #28 100MM(3+94+3) BROWN 1
198 035-E060000-RD100 JUMPER WIRE AWG#26 60mm RED(3+60+3) 1
199 035-E090000-RD100 JUMPER WIRE AWG#26 90mm RED (3+90+3) 1
200 036-D01000A-2220A 22P FFC CONN PT=1.0 L-DIP TYPE-A UPPER
CONTACT
201 221-S004000-04000 BARE WIRE D=0.4x40mm 130
S01-7512S00-M10000-EU1
202 001-7512S00-M1000 PCB DVD-7512 RDS H/P MAIN [REV-1] W/1PACK
203 003-0011400-S0700 SMT TR-NPN DTC-114TUA [SOT-23] 1 Q16.
204 003-0150400-B0300 SMT TR-PNP KTA1504S-GR/A1980S/F [SOT-23] 50V
205 003-0387500-G0000 SMT TR-NPN KTC3875S/2SC-5343S/F [SOT-23] 50V
206 004-0414800-S0000 CHIP-DIODE [0805] CD4148 2 D804.101.
DVD-7512
RDS/FM/MW/OIRT,MP3,ESP,35WX4,2LINEIN/
TUNER
0.15A
0.15A
1Q8
1 JP1
2
1
1
1
1 Q15.
14 Q803.813.808.102.103.106.108.1
01.802.703.7.606.605.105.
207 011-S000A00-20000 CHIP RES [0805] 0 OHM 5% 14 R4.3.2.10.36.35.34.6.RJ5.RJ9.R6
22.190.C101.C809.
208 011-S101A00-20000 CHIP RES [0805] 100 OHM 5% 3 R140.915.129
209 011-S102A00-20000 CHIP RES [0805] 1K OHM 5% 14 R111.117A.411.729.727.726.38.
725.120.119A.121.249.41.9
210 011-S103A00-20000 CHIP RES [0805] 10K OHM 5% 39 R25.24.23.853.134.840.839.721.7
07.138.137.117.132.122.139.20.1
26.125.124.827.830.811.805.
802.13.12.716.714.713.712.
711.115.705.40.750.751.752.39.6
24
211 011-S104A00-20000 CHIP RES [0805] 100K OHM 5% 4 R131.814.119.412.
212 011-S122A00-20000 CHIP RES [0805] 1.2K OHM 5% 2 R27.26.
213 011-S151A00-20000 CHIP RES [0805] 150 OHM ㊣5% 1 R723
214 011-S153A00-20000 CHIP RES [0805] 15K OHM ㊣5% 2 R11.14.
215 011-S220A00-20000 CHIP RES [0805] 22 OHM 5% 1 R142.
216 011-S222A00-20000 CHIP RES [0805] 2.2K OHM 5% 16 R108.107.133.113.112.404.403.1
03.101.128.829.409.127.102.114.
105.
VT-3648 (DVD7512-270827) VITEK BOM PAGE 8 OF 14
Item Material Code Brief Description Qty Remarks
217 011-S223A00-20000 CHIP RES [0805] 22K OHM ㊣5% 5 R724.701.819.722.913.
218 011-S224A00-20000 CHIP RES [0805] 220K OHM ㊣5% 3 R818.720.719.
219 011-S273A00-20000 CHIP RES [0805] 27K OHM ㊣5% 2 R837.914.
220 011-S331A00-20000 CHIP RES [0805] 330 OHM ㊣5% 4 R615.616.141.143.
221 011-S332A00-20000 CHIP RES [0805] 3.3K OHM ㊣5% 8 R519.518.135.136.8.109.17.601
222 011-S333A00-20000 CHIP RES [0805] 33K OHM ㊣5% 1 R806.
223 011-S472A00-20000 CHIP RES [0805] 4.7K OHM ㊣5% 9 R841.838.617.710.709.
626.820.621.708.
224 011-S473A00-20000 CHIP RES [0805] 47K OHM ㊣5% 17 R130.809.408.407.904.903.902.1
9.18.901.905.906.907.908.801.16
.118
225 011-S474A00-20000 CHIP RES [0805] 470K OHM ㊣5% 2 R33.32.
226 011-S562A00-20000 CHIP RES [0805] 5.6K OHM ㊣5% 11 R31.30.116.824.823.822.821.401.
402.516.517.
227 011-S681A00-20000 CHIP RES [0805] 680 OHM +/-5% 2 R110.826.
228 011-S682A00-20000 CHIP RES [0805] 6.8K OHM 5% 4 R912.911.910.909.
229 011-S684A00-20000 CHIP RES [0805] 680K OHM ㊣5% 1 R410
230 011-S753A00-20000 CHIP RES [0805] 75K OHM 5% 2 R1.731.
231 014-S101C00-400NP CHIP CAP [0805] 100PF 50V +/-5% NPO 4 C20.19.18.17.
232 014-S102C00-50000 CHIP CAP [0805] 102P (0.001uF) 50V ㊣10% 10 C808.136.534.533.135.113.112.8
05.806.807.
233 014-S103C00-50000 CHIP CAP [0805] 103P (0.01uF) 50V +/-10% 6 C114.725.726.123.124.122.
234 014-S104B00-80000 CHIP CAP [0805] 104P (0.1uF) 25V +80-20% 16 C7.422.421.405.730.822.208.621.
722.406.835.403.404.402.401.81
4.
235 014-S105A00-80000 CHIP CAP [0805] 105P (1uF) 16V +80-20% 2 C423.417.
236 014-S200C00-400NP CHIP CAP [0805] 20PF 50V +/-5% NPO 2 C708.709
237 014-S220C00-400NP CHIP CAP [0805] 22PF 50V +/-5% NPO 1 C701.
238 014-S222C00-50000 CHIP CAP [0805] 222P (0.0022uF) 50V 10% 2 C408.407.
239 014-S223C00-80000 CHIP CAP [0805] 223P (0.022uF) 50V +80-20% 24 C831.705.111.826.827.415.126.7
28.729.603.830.602.118.139.127.
131.133.110.103.704.134.104.10
9.105.
240 014-S270C00-400NP CHIP CAP [0805] 27PF 50V +/-5% NPO 1 C702.
241 014-S271C00-50000 CHIP CAP [0805] 271P (270PF) 50V 10% 1 C706
242 014-S300C00-400NP CHIP CAP [0805] 30PF 50V +/-5% NPO 2 C116.115.
243 014-S472C00-50000 CHIP CAP [0805] 472P (0.0047uF) 50V 10% 2 C11.9
VT-3648 (DVD7512-270827) VITEK BOM PAGE 9 OF 14
Item Material Code Brief Description Qty Remarks
244 014-S561C00-50000 CHIP CAP [0805] 561P (560PF) 50V 10% 1 C707.
H04-3300D00-A90000-000
245 001-3300D00-A9000 P.C.B ISO BOARD 1
246 004-1N5404A-00000 DIODE-RECTIFIER 1N5404, 400V 3A [DO-201AD]
247 036-K025000-12000 12Pin P=2.5mm PCB Connector Right Angle 1
248 263-3300000-A0000 TERMINAL-FUSE 2
249 263-3300000-B0000 CD-3300 ISO SOCKET - TERMINAL-CONTACT
250 263-3300001-C0000 CD-3300 ISO SOCKET-TERMINAL -{ 1 } [COPPER]
251 485-3300A00-8BK00 CD-3300 FIXED-ISO-CONNECTOR-NYLON 66
H0B-7512S00-C00000-000
252 001-7512S00-C0000 PCB DVD-7512 CONNECTOR BOARD [REV-1] 1
253 011-S561A00-20000 CHIP RES [0805] 560 OHM 5% 1 R1
254 023-A003000-RD300 LED D=1.8 RED(660nm)H.BRIGHT 220mcd 1.9V20MA
255 025-TA02000-26000 TACT-SW 2P TD-3603 3X6MM H=2.6MM DIP TYPE 1
CD-3300 ISO BOARD (W/POWER ANT) HAND INSERT
ASSY
PACKING
[COPPER]
0.6MM
(BLACK)
DVD-7512 CONNECTOR BOARD HAND INSERT
ASSY
52DEG
1
1
11
1
1
1
1D1
256 036-J020000-18000 DETACHABLE CON 18P P=2.0mm SOCKET 1
F02-DVD7512-000000-000
257 209-1188000-K0000 CD-1188 RELEASE SPRING 1
258 209-7500000-T0000 SHAFT-BASE-SPRING CD-7500 D3.35XL8.0X0.35T 1
259 227-7608G00-A0000 CD-7608 SENSOR SPONGE EVA OD7.0xH2.0
260 234-PA02000-08B00 SCREW PA 2.0 x 8.0 MM BLACK 4
261 261-7507A00-A0000 CD-7507 VOL KNOB RUBBER BAND 1
262 402-75120B0-1BK00 CCD-7512 NOSE-PIECE-BACK [ABS] BLACK 1
263 402-75120C0-1BK00 CCD-7512 NOSE-PIECE?[ ABS] BLACK 1
264 413-75120A0-2CR00 CCD-7512 WINDOW? [PMMA] CLEAR 1
265 418-75120A0-1NL00 CCD-7512 {TRACK-UP-SCAN} -KNOB?[ABS]
266 423-75120A0-1NL00 CCD-7512 {MODE-BAND}-KNOB?[ABS] NATURAL 1
DVD-7512 FRONT W/TA2103 LCD(WHE/BLU ILL)
REMOTE PANEL ASSY
W/ADHESIVE
NATURAL
1
1
1
267 427-75120A0-1NL00 CCD-7512 { POWER } -KNOB [ABS] NATURAL 1
268 428-7507A00-1BK00 CD-7507 {VOLUME} - KNOB [ABS BLACK] CHROME 1
269 429-75120A0-1NL00 CCD-7512 {TRK-DN/AS-PS}-KNOB?[ABS]
NATURAL???
VT-3648 (DVD7512-270827) VITEK BOM PAGE 10 OF 14
2
Item Material Code Brief Description Qty Remarks
270 431-75120A0-1NL00 CCD-7512 {MEMORY-1,3} -KNOB [ABS] NATURAL 1
271 431-75120B0-1NL00 CCD-7512 {MEMORY-2,4,6}-KNOB [ABS] NATURAL 3
272 436-75120A0-1NL00 CCD-7512?{ MUTE } -KNOB?[ABS] NATURAL 1
273 437-75120A0-1NL00 CCD-7512 { AF-DISP } -KNOB?[ABS] NATURAL 1
274 439-75120A0-1NL00 CCD-7512?{ RELEASE }-KNOB?[ABS] NATURAL 1
275 446-75120A0-1NL00 CCD-7512?{ PTY } -KNOB?[ABS] NATURAL 1
276 446-75120B0-1NL00 CCD-7512?{ TA } -KNOB?[ABS] NATURAL 1
277 454-75120A0-1BK00 CCD-7512 {CIRCLE-ORNAMENT} [ABS] BLACK 1
278 460-75120A0-3CR00 CCD-7512 { TA-AF } -KNOB BASE?[PC] CLEAR? 1
279 460-75120B0-3CR00 CCD-7512 {MEMORY} -KNOB-BASE [PC] CLEAR 1
280 460-75120C0-3CR00 CCD-7512 {TRK-UP-SCAN} -KNOB BASE?[PC]
CLEAR?
281 460-75120D0-3CR00 CCD-7512 { POWER } -KNOB BASE?[PC] CLEAR? 1
282 460-75120E0-3CR00 CCD-7512 { MODE-BAND} -KNOB BASE?[PC] CLEAR? 1
283 462-7500C00-9BK00 CD-7500 {LEFT} RELEASE-SHAFT-BASE [POM]
BLACK
284 483-75120A0-1BK00 CCD-7512 ORNAMENT?PART [ ABS] BLACK 1
285 483-75120B0-1BK00 CCD-7512 {AUX-IN} -ORNANENT [ABS] BLACK 1
H03-7512D00-K20000-000
286 001-7512D00-X1000 PCB CD-7512 FRONT AUX-IN BOARD [REV-1] 0.6THK
287 008-TA2103B-TN054 LCD DISPLAY TA2103BMTTN-P 54PIN FOR DVD-7505 1 LCD1
288 028-0350900-A5D00 3.5 STEREO PHONE JACK ST-3507 NO SW DIP TYPE 1
289 036-H020000-18000 DETACHABLE CON 18P P=2.0mm PLUG 1
290 044-RMS0380-30000 IR RECIVER 3PIN MINI L-TYPE H=3.6 FOR
291 049-E114100-05000 12MM ENCODER VOL W/SW 30DET/15PUS (H=17.5) 1

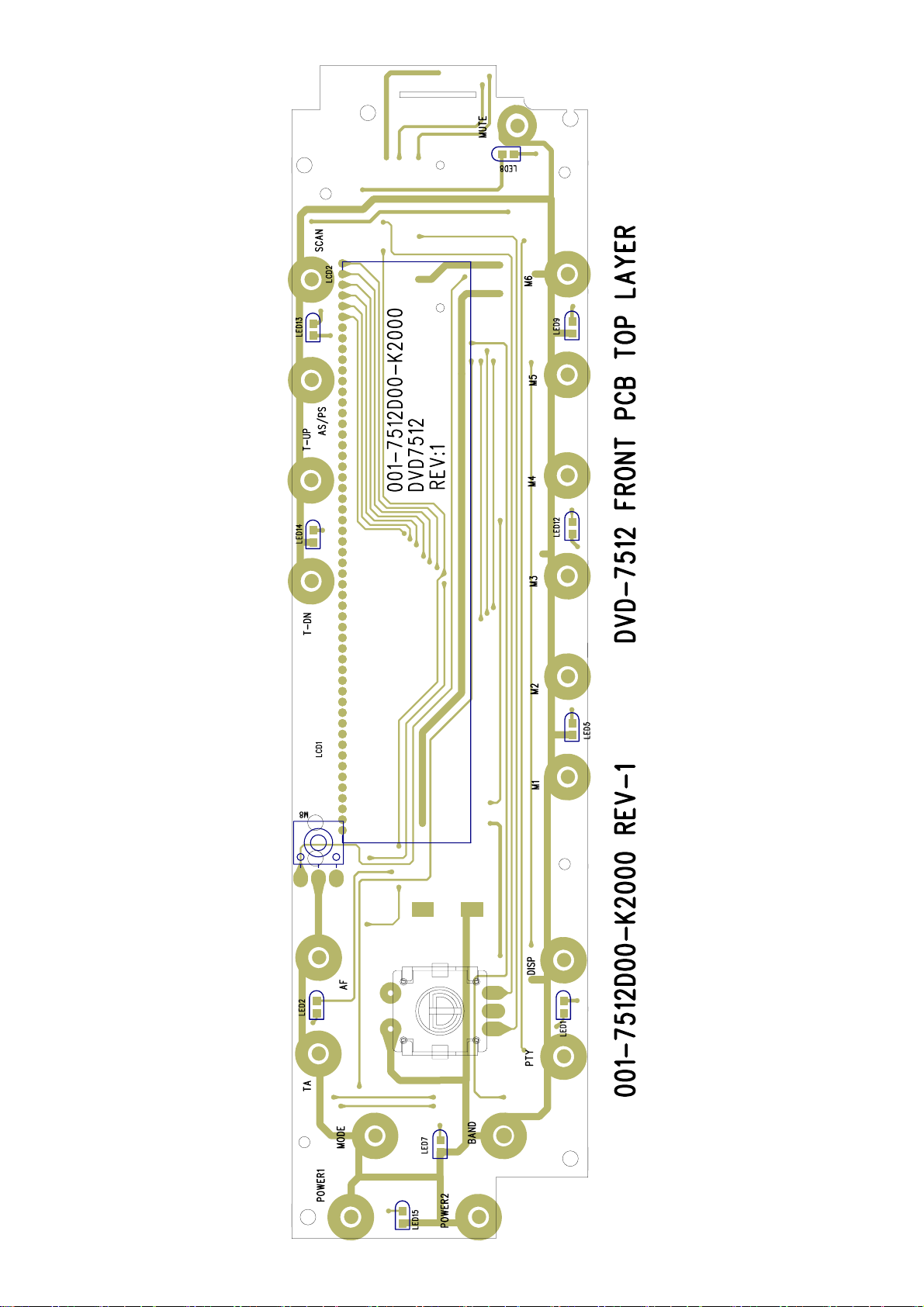

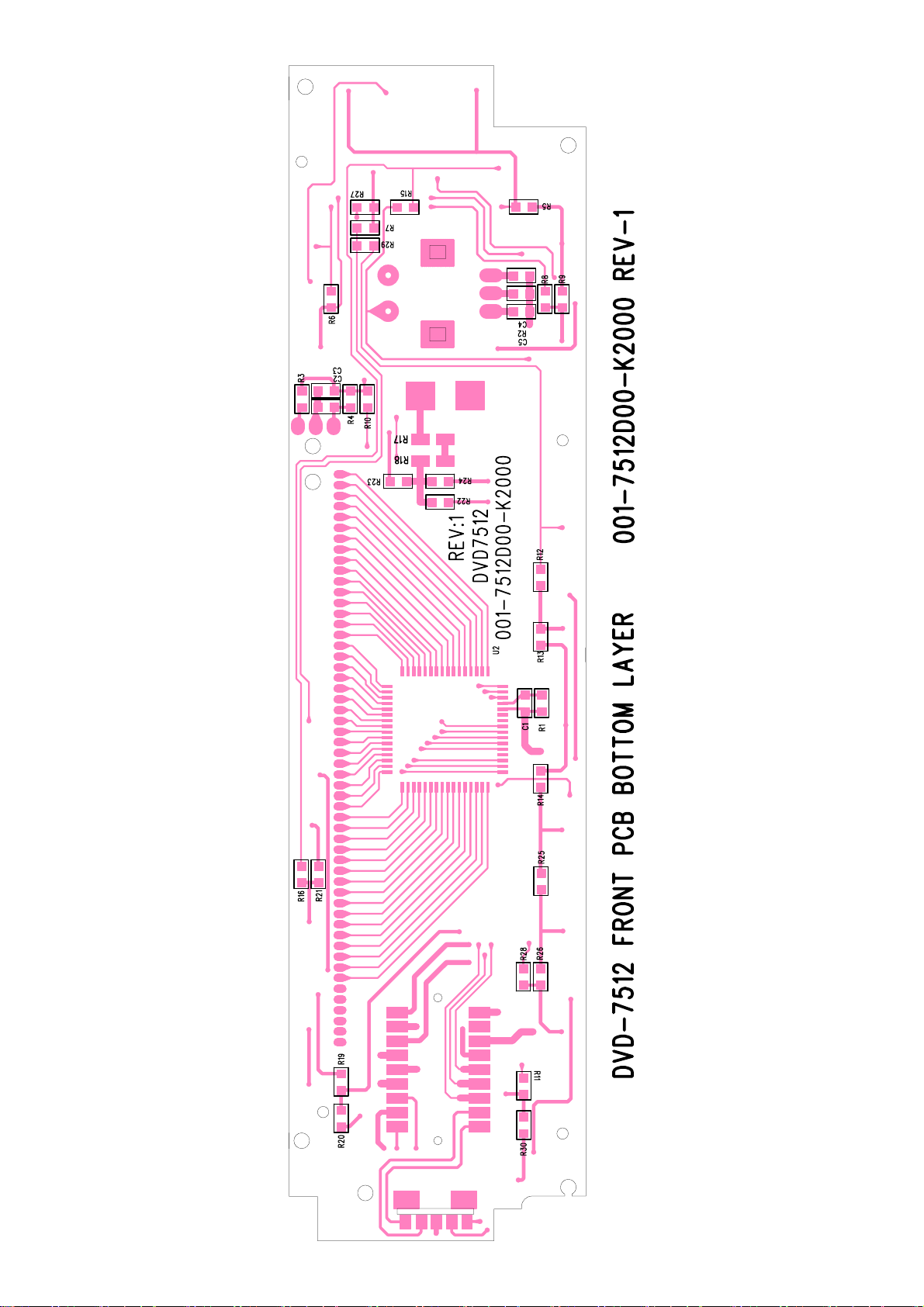

DVD-7512 FRONT PCB W/LCD TA2103B
(WHITE/BLUE ILL) REMOTE HAND INSERT ASSY
FR-4
CD7608/7609
1
1
1
1
1
292 050-7512C00-00000 CD-7512 19x KEY 300G/F CONTACT DOME SW
W/PVC PTE
293 245-1198000-BBK00 1198 CONNECTOR COVER SHEET 1 PVC T=0.1 BLACK
294 245-3300000-D0000 LED FILTER-"T-SHAPE" 20x12MM [0.1T/TRACING
FILM]
295 245-7606000-DWE00 CD-7606 LED-FILTER-SHEET (WHITE FILM 0.1T) 2
296 245-7606A00-P1000 CD-7606 LCD-FILTER [T=0.1 DRAW PAPER] 1
297 246-7606B00-P1000 CD-7606 REFLECTOR-PAPER [0.1 G.PAPER] 1
VT-3648 (DVD7512-270827) VITEK BOM PAGE 11 OF 14
1
2
Item Material Code Brief Description Qty Remarks
298 246-7606C00-P1000 CD-7606 SIDE-REFLECTIONAL-PAPER 2
299 250-7606000-A0100 CD-7606 LED-SIDE-COVER SHEET GLOSS SILIVER
TAPE
300 413-7606A00-2CR00 CD-7606 LCD-REFLECTOR [PMMA] CLEAR 1
301 461-75120A0-3CR00 CCD-7512 {SENSOR} -BRACKET [PC] CLEAR 1
S03-7512D00-K20000-000
302 001-7512D00-K2000 PCB DVD-7512 RDS FRONT [REV-1] FR-
303 001-7606D00-A6000 PCB CD-7606 LED BOARD REV-0 1
304 002-06523HQ-H0640 IC PT6523HQ(L) LCD DRIVER [LQFP-64] THK=1.4MM 1
305 011-C181D00-20000 CHIP RES [1206] 180 OHM 5% 1/4W 1 R18
306 011-C221A00-20000 CHIP RES [1206] 220 OHM ㊣5% 1 R17
307 011-S000A00-20000 CHIP RES [0805] 0 OHM 5% 1 R10
308 011-S101A00-20000 CHIP RES [0805] 100 OHM 5% 1 R2
309 011-S102A00-20000 CHIP RES [0805] 1K OHM 5% 2 R14.30
DVD-7512 FRONT PCB (WHITE/BLUE ILL) REMOTE
SMT ASSY
4,1.2THK,GOLD PL
1
1
1
310 011-S103A00-20000 CHIP RES [0805] 10K OHM 5% 1 R3
311 011-S123A00-20000 CHIP RES [0805] 12K OHM 5% 1 R16
312 011-S152A00-20000 CHIP RES [0805] 1.5K OHM ㊣5% 1 R25
313 011-S221A00-20000 CHIP RES [0805] 220 OHM ㊣5% 6 R4.19.20.22.23.24
314 011-S222A00-20000 CHIP RES [0805] 2.2K OHM 5% 1 R26
315 011-S332A00-20000 CHIP RES [0805] 3.3K OHM ㊣5% 1 R28
316 011-S333A00-20000 CHIP RES [0805] 33K OHM ㊣5% 1 R21
317 011-S391A00-20000 CHIP RES [0805] 390 OHM ㊣5% 2 R5.27
318 011-S471A00-20000 CHIP RES [0805] 470 OHM 5% 2 R7.9
319 011-S513A00-20000 CHIP RES [0805] 51K OHM ㊣5% 1 R1
320 011-S561A00-20000 CHIP RES [0805] 560 OHM 5% 2 R8.29
321 011-S562A00-20000 CHIP RES [0805] 5.6K OHM ㊣5% 1 R15
322 011-S681A00-20000 CHIP RES [0805] 680 OHM +/-5% 2 R6.12.
323 011-S821A00-20000 CHIP RES [0805] 820 OHM ㊣5% 2 R11.13
324 013-D226J00-50A00 CHIP TAN CAP 22uF 6.3V 20% [A SIZE] 1 C2
325 014-S104B00-80000 CHIP CAP [0805] 104P (0.1uF) 25V +80-20% 1 C3
VT-3648 (DVD7512-270827) VITEK BOM PAGE 12 OF 14
Item Material Code Brief Description Qty Remarks
326 014-S331C00-50000 CHIP CAP [0805] 331P (330PF) 50V 10% 2 C4.5
327 014-S681C00-50000 CHIP CAP [0805] 681P (680PF) 50V 10% 1 C1
328 023-D000000-BE000 SMT LED [0603] BLUE (470nm) 50mcd 3.2V 20MA
130DEG
329 023-F203032-WEK3A SMT LED 2.0x3.0x1.3 WHITE 1300mcd 3.2V 20mA
120deg
P02-DVD7512-270827-00A
330 034-A080400-10200 ISO CON 8P [A] PLUG W/ 4X300 POW WIRE
331 034-A080800-10400 ISO 8P[ B ]PLUG W/8X300 #20 SPK WIRE NORMAL
332 034-H020200-M15BK RCA TO RCA VIDEO CORD SET L=1.5M BLACK
333 060-7512223-270827A REMOTE DVD-7512 RDS/F/M/OIRT MP3[VITEK VT-
334 061-CR20250-B0000 BUTTON LITHIUM BATTERY CR2025-B 3.0V 1
335 212-5209000-14S00 SPRING WASHER ID=5.2x9.0x1.4T 2
336 212-5210000-05P00 PLATE WASHER (φ5.2) 2
337 217-1001E00-E1200 MOUNTING STRIP [EGI-1.2T] 1
338 222-3896S00-E0600 CD-3896 SLEEVE-CASE [EGI-0.6] 1
DVD-7512 RDS MW/FM/OIRT [VITEK VT-3648]-RU64104T PACKING ASSY
NORMAL/TOKAI
TOKAI
W/YEL PLUG
3648]
10
1
1
1
1
1
1
339 227-7803000-EA500 CD-7803 CASE CUSHION (BLACK W/ ADHESIVE
TAPE)
340 230-100BK00-10000 PLASTIC TIE l=100mm 3
341 233-N050W00-H0000 HEX NUT：M5 1
342 234-PA05000-16000 SCREW TS 5.0 x 16.0 MM PA NICKLE TYPE-A TIP 1
343 235-3896000-E1000 SET KEY 2
344 301-0C02500-08000 POLY BAG OPEN 2.5"x8"XT0.04 1
345 301-0C04000-09000 POLYBAG 4"X9"XT0.04 1 FOR VIDEO CORD
346 301-0C06600-10500 POLY BAG 6-5/8" X 10-1/2" X 0.04MM THK [PE] 1
347 301-0C11000-14000 POLY BAG 11"x14"XT0.04 1
348 303-MR30000-PS060 POLYFOAM MR-300 264x79.5x57 FOR CAR AUDIO 2
349 304-7512223-270827A GIFT BOX DVD-7512 MP3 RDS MW FM[VITEK VT-
3648]
350 305-7512223-270827A I/M(12 LANG)DVD-7512 RDS MW FM OIRT[VITEK VT-
3648]
351 306-7512223-270827A CARTON BOX 6PCS DVD-7512 RDS M/FOIRT[VITEK
VT-3648
352 308-7512223-270827A TOP LABEL DVD-7512 RDS MW FM OIRT[VITEK VT-
3648]
353 310-035X010-270827A BAR CODE LABEL 35X10 [DVD-7512 VITEK VT-3648 ] 1 FOR WARRANTY BOOK
1
1
1
0.17
1
VT-3648 (DVD7512-270827) VITEK BOM PAGE 13 OF 14
Item Material Code Brief Description Qty Remarks
354 310-035X020-270827A BAR CODE LABEL 35X20 [VITEK VT-3648] DVD-7512 2 FOR GIFTBOX
355 311-165X106-270827A WARRANTY BOOK 165X106 [VITEK VT-3648] FOR
DVD-7512
356 315-019X011-223001A OVAL EASY TAICEOUT 18.7X11.3 W/NEW 18MM FOR
VITEK
357 315-029X025-LSB001A LASER BEAM LABEL 29X25 YEL/BLK [LASER
SYMBOL]
358 315-050X025-CAS003A CLASS1 LABEL 50X25 YEL/BLK(6-LANG) 1
359 315-050X030-CAU001A LASER CAUTION LB 50x30 YEL/BLK(6-LANG) 1
360 315-054X013-SCR003A SCREW LABEL 54X13 RED W/WHE LETTER
COMMON USE
361 315-058X015-WRG017A WIRING LABEL WHE/BLK [ CD IN (L)] 1
362 315-058X015-WRG018A WIRING LABEL RED/BLK [ CD IN (R)] 1
363 315-058X015-WRG019A WIRING LABEL WHE/BLK [LINE OUT(L)] 1
364 315-058X015-WRG020A WIRING LABEL RED/BLK [LINE OUT(R)] 1
365 315-058X015-WRG025A WIRING LABEL YEL/BLK [ VIDEO OUT ] 1
366 315-067X806-270827A LABEL ON CARTON 67X80.6 FOR VITEK VT-3648
DVD-7512
367 315-134X030-WAR001A WARRANTY LABEL 134X30 GOLD W/BLK (5-LANG) 1
0.17
1
1
1
2
368 315-140X394-270827A GIFTBOX LABEL 140X39.4 FOR [VITEK VT-3648]DVD-
7512
369 402-7803S00-4BK00 CD-7803 NOSE PIECE CASE [PP] 1
370 441-7507A00-1BK00 CD-7507 TRIM-COVER [ABS] BLACK 1
*** [End of Report] ***
2
VT-3648 (DVD7512-270827) VITEK BOM PAGE 14 OF 14
Loading...
