SERVICE MANUAL
DISP
OPEN
LO
IR
MU
TUNE/TRACK
SCN
BND
LOUD
ST
PWR
A
SEL
U
D
I
O
MODE
C
O
N
T
R
O
L
CD/CD-R/RW PLAYER 4x40WATTS
1PAU 2SCN 3RPT 4SHF
5
6
DSP
A/PS
ILL
MODEL:VT-3622
2004-3-8
WiWiIndustries Limited
Buyer:
Model:
TITLE: VT-3622(CD3896) MOTORIZED SLIDE DOWN DETACHABLE PANEL,VFD,PLL AM/FM ORIT RADIO
ESP CD PLAYER W/40Wx4 POWER, 2 LINE OUT
Checked By:(Elect) C.K.HAN Checked By:(Mech)__________________Approved By:____________________
NO ITEM CODE DESCRIPTION QTY SYMBOL
VITEK
CD-3896
1 001-3897S-E80 P.C.B MAIN BOARD 1
2 001-0000S-B90 P.C.B FILTER BOX 1
3 001-3896S-A60 P.C.B CD-3896 LAMP 1
4 001-3896S-B10 P.C.B CD-3896 SWITCH SW-A 1
5 001-3896S-B11 P.C.B CD-3896 SWITCH SW-B 1
6 002-07384-J06 I.C TDA7384 1 IC3
Engineering Department
Bill of Materials
7 002-02313-B00 I.C TDA7313D/TD2313L 1 IC6
8 002-9256F-G02 I.C KIC9256F "SOP" 1 IC2
9 002-08734-S00 I.C RS8734 "QFP" 1 IC5
10 002-07291-A00 I.C TA7291S (SIP-9) BRIDGE MOTOR DRIVER 1 IC10
11 002-04558-G00 I.C TJM4558-C DUAL OP-AMP "SOP8" 2 IC7.8
12 002-7029P-T00 I.C KIA7029AP 1 Q49
13 002-78L05-F00 I.C KIA 78L05 1 Q46
14 003-BD435-B00 TRANSISTOR-NPN TO-126 BD435 2 Q1.2
15 003-1271Y-A03 TRANSISTOR KTA1271Y 1 Q17
16 003-8050C-D00 TRANSISTOR-NPN TO-92 8050 1 Q18
17 003-8550C-A00 TRANSISTOR-PNP TO-92 SS8550C PNP 1 Q45
18 003-1267Y-A00 TRANSISTOR-PNP A1267/A1175 <SMALL> 4 Q8.21.20.27
19 003-1281Y-A00 TRANSISTOR-PNP TO-92 KTA1281-Y 1 Q38
Q4.5.6.7.35.24.
20 003-3199Y-H03 TRANSISTOR-NPN C3199/C2785 <SMALL> 13
21 004-04001-000 DIODE IN4001 2 D1. FILTER BOX
22 004-04148-000 DIODE IN4148 22
23 005-00100-A00 ZENER DIODE 1/2W 10V 2 D16.6
9.37.48.11.25.26.3
D8.4.5.42.43.45.11.40.47.57.58.
30.37.39.36.19.34.33.17.25.22.6
PAGE 1 OF 14
NO ITEM CODE DESCRIPTION QTY SYMBOL
24 005-00051-A00 ZENER DIODE 1/2W 5.1V 6 D41.44.10.64.76.7
25 005-00091-A00 ZENER DIODE 1/2W 9.1V 2 D9.3
26 006-07200-000 CRYSTAL 7.2MHz 1 TX3
27 009-07020-A02 TUNER AM/FM (OIRT) CET-7020YC/E 1
28 010-C0106-000 MICOR INDUCTOR EC-24 +/-10% 10uH 2 L2.3
29 010-G0335-000 MICOR INDUCTOR EC-22 +/-10% 3.3uH 1 L1
30 010-A0222-000 CHOCK COIL 22mH 1 L4
31 011-A472A-200 RES +/-5﹪ 1/16W 4.7K OHM 1 R?
R51.108.181.157.163.149.156.1
32 011-S102A-200 0805 RES +/-5﹪ 1K OHM 12
44.113.114.111.112
R16.24.20.212.272.221.222.223.
241.219.217.218.233.9.17.68.8.1
33 011-S000A-200 0805 RES +/-5﹪ 0 OHM 28
5.12.65.64.67.70.173.23.25.66.9
34 011-S100A-200 0805 RES +/-5﹪ 10 OHM 4 R84.85.133.22
35 011-S104A-200 0805 RES +/-5﹪ 100K OHM 2 R61.5
R11.14.19.3.50.123.7.54.94.227.
36 011-S103A-200 0805 RES +/-5﹪ 10K OHM 16
228.225.226.152.150.C21
37 011-S122A-200 0805 RES +/-5﹪ 1.2K OHM 4 R235.98.237.238
38 011-S152A-200 0805 RES +/-5﹪ 1.5K OHM 1 R110
39 011-S151A-200 0805 RES +/-5﹪ 150 OHM 1 R62
40 011-S154A-200 0805 RES +/-5﹪ 150K OHM 3 R196.197.198
41 011-S153A-200 0805 RES +/-5﹪ 15K OHM 7 R2.107.162.252.264.265.266
42 011-S105A-200 0805 RES +/-5﹪ 1M OHM 5 R58.100.104.119.118
43 011-S022A-200 0805 RES +/-5﹪ 2.2 OHM 1 R6
44 011-S222A-200 0805 RES +/-5﹪ 2.2K OHM 5 R88.109.116.60.136
45 011-S272A-200 0805 RES +/-5﹪ 2.7K OHM 1 R90
46 011-S220A-200 0805 RES +/-5﹪ 22 OHM 4 R42.21.158.159
47 011-S221A-200 0805 RES +/-5﹪ 220 OHM 3 R200.86.145
48 011-S224A-200 0805 RES +/-5﹪ 220K OHM 1 R91
49 011-S223A-200 0805 RES +/-5﹪ 22K OHM 5 R259.256.170.167.102
50 011-S274A-200 0805 RES +/-5﹪ 270K OHM 1 R125
51 011-S225A-200 0805 RES +/-5﹪ 2.2M OHM 1 R89
PAGE 2 OF 14
NO ITEM CODE DESCRIPTION QTY SYMBOL
52 011-S332A-200 0805 RES +/-5﹪ 3.3K OHM 9 R75.76.77.78.4.153.154.199.167
53 011-S392A-200 0805 RES +/-5﹪ 3.9K OHM 2 R176.160
54 011-S330A-200 0805 RES +/-5﹪ 33 OHM 1 R171
55 011-S331A-200 0805 RES +/-5﹪ 330 OHM 2 R148.147
56 011-S334A-200 0805 RES +/-5﹪ 330K OHM 6 R117.105.186.185.204.207
R115.103.166.13.135.18.121.12
0.52.48.81.96.99.92.155.232.231
57 011-S472A-200 0805 RES +/-5﹪ 4.7K OHM 19
.230.229
R10.49.87.93.101.257.263.254.2
58 011-S473A-200 0805 RES +/-5﹪ 47K OHM 13
60.208.143.194.137
59 011-S562A-200 0805 RES +/-5﹪ 5.6K OHM 7 R79.80.209.206.205.184.183
60 011-S563A-200 0805 RES +/-5﹪ 56K OHM 1 R82
61 011-S561A-200 0805 RES +/-5﹪ 560 OHM 2 R106.32
62 011-S681A-200 0805 RES +/-5﹪ 680 OHM 2 R243.185
63 011-S822A-200 0805 RES +/-5﹪ 8.2K OHM 4 R258.255.262.261
64 011-S820A-200 0805 RES +/-5﹪ 82 OHM 2 R267.213
65 012-1107B-300 ELEC CAP 100uF 10V 5x7mm 5 C22.82.78.97.87
66 012-2107C-300 ELEC CAP 100uF 16V 6x7mm 2 C73.126
C104.106.99.100.79.80.71.72.10
67 012-B105F-300 ELEC CAP 1uF 50V 4x7mm 11
3.57.95
68 012-B106D-300 ELEC CAP 10uF 25V 4x7mm 1 C85
69 012-B225F-300 ELEC CAP 2.2uF 50V 4x7mm 7 C101.81.74.75.76.77.94
70 012-B226C-300 ELEC CAP 22uF 16V 4x7mm 1 C114
71 012-B224F-300 ELEC CAP 0.22uF 50V 4x7mm 4 C83.84.63.64
72 012-B334F-300 ELEC CAP 0.33uF 50V 4x7mm 2 C112.113
73 012-B475F-300 ELEC CAP 4.7uF 50V 4x7mm 2 C121.69
74 012-B476B-300 ELEC CAP 47uF 10V 4x7mm 8 C102.96.107.86.118.61.88.105
75 012-1476C-300 ELEC CAP 47uF 16V 5x7mm 1 C92
76 012-E227C-300 ELEC CAP 220uF 16V 6x12mm 1 C70
77 012-P108D-300 ELEC CAP 1000uF 25V 13x20mm 1 FILTER BOX
78 012-R338C-300 ELEC CAP 3300uF 16V 13x25mm 1 C56
80 013-D107J-50B Tantal Chip CAP 100uF 6.3V +-20% "B-Size" 1 C22
PAGE 3 OF 14
NO ITEM CODE DESCRIPTION QTY SYMBOL
81 014-S101C-500 0805 CHIP CAP +-10﹪ 100PF 50V 4 C51.49.48.50
82 014-S300C-500 0805 CHIP CAP +-10﹪ 30PF 50V 1 C10
83 014-S102C-500 0805 CHIP CAP +-10﹪ 0.001uF 50V 7 C42.43.41.40.25.9.26
84 014-S103C-500 0805 CHIP CAP +-10﹪ 0.01uF 50V 3 C44.33.23
C1.27.47.125.3.13.
85 014-S104C-500 0805 CHIP CAP +-10﹪ 0.1uF 50V 15
15.128.52.30.127.5.6.7.8
86 014-S153C-500 0805 CHIP CAP +-10﹪ 0.015uF 50V 2 C16.17
87 014-S222C-500 0805 CHIP CAP +-10﹪ 0.0022uF 50V 2 C36.38
88 014-S223C-500 0805 CHIP CAP +-10﹪ 0.022uF 50V 10 C4.31.32.12.14.20.66.29.28.19
89 014-S224C-500 0805 CHIP CAP +-10﹪ 0.22uF 50V 1 C11
90 014-S272C-500 0805 CHIP CAP +-10﹪ 0.0027uF 50V 2 C45.46
91 016-C0300-000 TRIMMER CAP 6mm 30PF 1 C98
92 022-C7000-000 FUSE 6x30mm 7A 1
93 023-A0030-RD0 LED 3mm RED 1
94 024-40140-300 LAMP 3mm 14V 40mA 1
95 025-DS200-000 SWITCH DOOR DS-20 4PIN 2 SW1.2
96 029-C0000-000 ANTENNA WIRE ASSEMBLY L=150mm 1
97 034-A1612-006 I.S.O 16P W/WIRE 12P 1
98 035-E0500-BK1 JUMPER WIRE AWG #26 50mm BLACK 1
99 035-E0700-RD1 JUMPER WIRE AWG #26 70mm RED 1
100 035-F0700-RD1 JUMPER WIRE AWG #28 70mm RED 1
101 035-F1700-BK1 JUMPER WIRE AWG #28 170mm BLACK 1
102 036-D0125-220 22P WAFER P=1.25mm 1 CON3
103 036-F0100-160 16P WAFER RIGHT ANGLE PITCH=1.0mm 1 CON4
104 036-A0200-090 9PIN WAFER P=2.0mm 1 CON2
105 037-A6130-9A0 9P H'ING P=2.0mm 7x60mm 2x130mm 1
106 037-G0300-203 RCA 2xSH L=300mm GREY W/O H'ING 1
107 040-AR030-A00 LAMP CAP 3mm AMBER 1
108 042-30010-000 FUSE HOLDER 2
109 055-050SH-060 MOTOR DC 6V 1
PAGE 4 OF 14
NO ITEM CODE DESCRIPTION QTY SYMBOL
110 201-EI240-000 CHOKE TRANS EI-24 1
111 221-S0040-040 BARE WIRE D=0.4x40mm 70
112 230-100BK-100 PLASTICTIE L=100mm 2
113 231-P0060-130 RUBBER TUBE PVC D=13 L=50mm 1.0mm 1
VFD POWER PCB
114 001-3896S-850 P.C.B POWER BOARD 1
115 003-3199Y-A00 TRANSISTOR-NPN C2785-Y/C3199-Y 1 Q401
116 003-BD435-B00 TRANSISTOR-NPN TO-126 BD435 1 Q402
117 004-04148-000 DIODE IN4148 3 D405.401.406
118 005-00068-A00 ZENER DIODE 1/2W 6.8V 2 D406.402
119 005-00120-A00 ZENER DIODE 1/2W 12V 1 D404
120 010-C0186-000 INDUCTOR EC-24 +/-10% 18uH 1 L401
121 011-A047D-200 RES 1/4W +-5﹪ 4.7 OHM 1 R409
122 011-A152A-200 RES 1/16W +-5﹪ 1.5K OHM 1 R402
123 011-A223A-200 RES 1/16W +-5﹪ 22K OHM 1 R403
124 011-A333A-200 RES 1/16W +-5﹪ 33K OHM 1 R404
125 011-A471A-200 RES 1/16W +-5﹪ 470 OHM 1 R408
126 011-A561A-200 RES 1/16W +-5﹪ 560 OHM 1 R407
127 011-A682A-200 RES 1/16W +-5﹪ 6.8K OHM 1 R405
128 012-E336F-300 ELEC CAP 33uF 50V 6x12mm 1 C402
129 012-C476C-300 ELEC CAP 47uF 16V 5x11mm 1 C401
130 012-C227C-300 ELEC CAP 220uF 16V 5x11mm 1 C405
131 013-A182A-400 MYLAR CAP +-10% 0.0018uF 1 C404
132 014-A104C-500 CER CAP +-10% 0.1uF 50V 1 C403
133 014-A473C-500 CER CAP +-10% 0.047uF 50V 1 C406
134 033-S350U-BK0 5PIN WIRE W/S.SHIELD WIRE L=350mm 1 "BLACK"
135 201-E113D-000 FERRITE TRANS EE-13 JBC-323-EE13 1 Z401
FRONT PCB
136 001-3896D-T50 P.C.B FRONT BOARD 1
PAGE 5 OF 14
NO ITEM CODE DESCRIPTION QTY SYMBOL
137 001-3896D-B40 P.C.B CONNECTOR CD-3896 D.SIDE 1
138 002-06311-H18 I.C PT6311 <ANGUS> 1 IC301
139 008-01402-V00 VFD DISPLAY VFD-1402FN 1 VFD301
140 010-C0106-000 MICOR INDUCTOR 10uH EC-24 1 L301
141 011-S101A-200 0805 RES +-5% 100 OHM 3 R326.324.325
142 011-S102A-200 0805 RES +-5% 1K OHM 2 R306.315
143 011-S103A-200 0805 RES +-5% 10K OHM 5 R330.331.332.333.334
144 011-S152A-200 0805 RES +-5% 1.5K OHM 2 R312.314
R347.344.349.345.346.
145 011-S121A-200 0805 RES +-5% 120 OHM 5
R347.344.349.345.346.
146 011-S151A-200 0805 RES +-5% 150 OHM 5
R347.344.349.345.346.
147 011-S181A-200 0805 RES +-5% 180 OHM 5
148 011-S181A-200 0805 RES +-5% 180 OHM 2 R320.321
149 011-S183A-200 0805 RES +-5% 18K OHM 2 R343.307
150 011-S221A-200 0805 RES +-5% 220 OHM 2 R319.305
151 011-S222A-200 0805 RES +-5% 2.2K OHM 2 R311.313
152 011-S331A-200 0805 RES +-5% 330 OHM 2 R303.318
153 011-S391A-200 0805 RES +-5% 390 OHM 1 R348
154 011-S332A-200 0805 RES +-5% 3.3K OHM 2 R340.310
155 011-S471A-200 0805 RES +-5% 470 OHM 2 R317.304
156 011-S472A-200 0805 RES +-5% 4.7K OHM 3 R341.322.309
157 011-S473A-200 0805 RES +-5% 47K OHM 1 R335
158 011-S563A-200 0805 RES +-5% 56K OHM 1 R329
159 011-S681A-200 0805 RES +-5% 680 OHM 2 R316.302
160 011-S822A-200 0805 RES +-5% 8.2K OHM 2 R342.308
161 011-S823A-200 0805 RES +-5% 82K OHM 1 R336
162 014-S104C-500 0805 CER +-10% 0.1uF 50V 1 C302
163 014-S151C-500 0805 CER +-10% 150PF 50V 4 C309.310.311.312
164 014-S471C-500 0805 CER +-10% 470PF 50V 6 C303.304.305.306.307.308
165 014-S474C-500 0805 CER +-10% 0.47uF 50V 4 C313.314.315.316
PAGE 6 OF 14
NO ITEM CODE DESCRIPTION QTY SYMBOL
166 023-A0030-BE3 LED Super Bright 3mm 3.6V 20mA BLUE 11 LED1-11
167 025-TA020-430 TACT 2P 4.3mm 12
168 025-TA02S-430 TACT 2P 4.3mm 180g SMD 9
169 036-L0255-150 15PIN DETACHABLE CONNECTOR PT=2.32mm 1
170 031-07930-160 FPC 16PIN L=79.3mm 1
171 049-E1221-030 VOL Encoder Switch E1221A3A-VIFE 05-00Q3 1
CDP BOARD ASSEMBLY
172 001-7800D-C20 P.C.B CDP BOARD 1
173 002-0016M-P00 I.C 16M DRAM 1
174 002-09226-S01 I.C SIL9226X 1
175 002-09291-H00 I.C S5L9291 1
176 002-04001-A01 I.C KA9259D/IP4001 1 U1
177 003-3203Y-D03 TRANSISTOR C3203 1 Q7
178 003-00103-S00 TRA C103S GR SR1203SF (SMD TYPE) 4 Q2.3.6.8
179 003-01504-B03 TR KTA1504S GR (SMD TYPE) 1 Q1
180 004-SR23G-000 PHOTO DIODE SR-23G 2 LED3.4
181 005-00036-A00 ZENER DIODE 3.6V 1 D1
182 005-00051-A00 ZENER DIODE 5.1V 1 D2
183 006-16934-000 RESONATOR 16.9344MHz (3PIN) 1 J1
PPND.GGND.MGND.SSND.DD
184 011-S000A-200 RES CHIP ±5% 0805 0 OHM 8
ND. R306.301.13
185 011-S015A-200 RES CHIP ±5% 0805 1.5 OHM 3 R18.56.21
186 011-S030A-200 RES CHIP ±5% 0805 3 OHM 1 R19
187 011-S100A-200 RES CHIP ±5% 0805 10 OHM 1 R201
188 011-S102A-200 RES CHIP ±5% 0805 1K OHM 3 R101.102.127
189 011-S103A-200 RES CHIP ±5% 0805 10K OHM 7 R219.2.209.3.10.11.217
190 011-S104A-200 RES CHIP ±5% 0805 100K OHM 3 R16.103.104
191 011-S105A-200 RES CHIP ±5% 0805 1M OHM 2 R215.20
192 011-S121A-200 RES CHIP ±5% 0805 120 OHM 1 R132
193 011-S153A-200 RES CHIP ±5% 0805 15K OHM 4 R221.213.130.122
PAGE 7 OF 14
NO ITEM CODE DESCRIPTION QTY SYMBOL
194 011-S154A-200 RES CHIP ±5% 0805 150K OHM 3 R220.207.202
195 011-S203A-200 RES CHIP ±5% 0805 20K OHM 1 R216
196 011-S204A-200 RES CHIP ±5% 0805 200K OHM 1 R126
197 011-S222A-200 RES CHIP ±5% 0805 2.2K OHM 1 R14
198 011-S223A-200 RES CHIP ±5% 0805 22K OHM 1 R222
199 011-S224A-200 RES CHIP ±5% 0805 220K OHM 4 R223.224.218.211
200 011-S303A-200 RES CHIP ±5% 0805 30K OHM 1 R225
201 011-S392A-200 RES CHIP ±5% 0805 3.9K OHM 1 R210
202 011-S393A-200 RES CHIP ±5% 0805 39K OHM 2 R12.9
203 011-S471A-200 RES CHIP ±5% 0805 470 OHM 2 R302.303
R212.8.4.5.115.111.114.113.112
204 011-S472A-200 RES CHIP ±5% 0805 4.7K OHM 11
.22.109
205 011-S473A-200 RES CHIP ±5% 0805 47K OHM 2 R227.129
206 011-S683A-200 RES CHIP ±5% 0805 68K OHM 2 R226.228
207 011-S820A-200 RES CHIP ±5% 0805 82 OHM 1 R208
208 011-S822A-200 RES CHIP ±5% 0805 8.2K OHM 5 R214.15.121.120.119
209 011-S823A-200 RES CHIP ±5% 0805 82K OHM 5 R204.206.203.205.131
210 011-S913A-200 RES CHIP ±5% 0805 91K OHM 1 R17
211 012-1107B-300 ELECT CAP 100uF 10V +-20% 5x7mm 1 C124
212 012-2107C-300 ELECT CAP 100uF 16V +-20% 6x7mm 1 C102
213 013-D106J-50B Tantal Chip CAP 10uF 6.3V +-20% "B-Size" 7 C222.7.5.13.105.110.109
214 013-D107A-50B Tantal Chip CAP 100uF 6.3V +-20% "B-Size" 1 C11
215 013-D476L-50B Tantal Chip CAP 47uF 10V +-20% "B-Size" 3 C232.1.52
216 014-S020C-500 CER CAP CHIP ±10% 0805 2PF 50V 1 C208
217 014-S080C-500 CER CAP CHIP ±10% 0805 8PF 50V 1 C231
218 014-S102C-500 CER CAP CHIP ±10% 0805 0.001uF 50V 2 C201.210
219 014-S103C-500 CER CAP CHIP ±10% 0805 0.01uF 50V 7 C4.221.220.205.204.108.216
C229.228.230.234.53.207.203.9.
8.116.214.215.212.115.106.120.
12.10.6.302.304.122.123.113.23
220 014-S104C-500 CER CAP CHIP ±10% 0805 0.1uF 50V 29
3.104.14.15.16
221 014-S152C-500 CER CAP CHIP ±10% 0805 0.0015uF 50V 2 C111.112
PAGE 8 OF 14
NO ITEM CODE DESCRIPTION QTY SYMBOL
222 014-S153C-500 CER CAP CHIP ±10% 0805 0.015uF 50V 1 C206
223 014-S222C-500 CER CAP CHIP ±10% 0805 0.0022uF 50V 4 C226.213.107.114
224 014-S224C-500 CER CAP CHIP ±10% 0805 0.22uF 50V 1 C224
225 014-S333C-500 CER CAP CHIP ±10% 0805 0.033uF 50V 1 C217
226 014-S391C-500 CER CAP CHIP ±10% 0805 390PF 50V 1 C227
227 014-S472C-500 CER CAP CHIP ±10% 0805 0.0047uF 50V 2 C225.209
228 014-S474C-500 CER CAP CHIP ±10% 0805 0.47uF 50V 2 C219.218
229 014-S683C-500 CER CAP CHIP ±10% 0805 0.068uF 50V 1 C223
230 025-TA020-330 SWITCH 2P 3.3mm SW-111 HC-49S 1 SW1 (small type)
231 031-0140U-221 FFC CABLE 22P 140mm 1.25P ITCH 1
232 032-E1000-031 RAINBOW WIRE 3P 1 3+100+3
233 036-B0200-041 4P SOCKET 53015-0410(ROHM) 1 J5
234 036-G0100-171 17P SMT SOCKET P=1.0mm 沒有锁 1
235 203-8008S-C2E CD DECK CDM-211 1
MECHANICAL PARTS
236 209-38960-M00 GUIDE-SPRING 2 SUS D=0.8
237 209-38960-N00 FRONT LOCK SPRING(BSBM T=0.3) 1 TUNER (TOOLING SAME AS)
238 209-38960-U00 PINCH-SPRING 1 SUS
239 212-17040-03P FLAT-WASHER-B 5 PVC T=0.3 BLACK
240 212-20000-000 SPRING WASHER φ22
241 212-22050-03P FLAT-WASHER-A 5 PVC T=0.3 BLACK
242 212-28020-03P PVC CUT SHEET 28x20x0.3mm 1 PVC T=0.3mm
243 212-52090-14S SPRING WASHER 5.2x9x1.4mm 2
244 212-52100-05P PLATE WASHER 5.2x10x0.5mm 2
245 212-65097-05F FLAT-WASHER-C 1 FIBER T=0.5
246 214-38960-A00 MAIN FIBER 1 FIBER T=0.5mm
247 214-DECK0-A00 CD FIBER 105x95x0.5mm 1 FOR CD KMC DECK
248 216-3896A-C00 HEAT SINK 1 AL (D.H)
249 216-3896B-C00 HEAT SINK-S 1 AL WHITE
PAGE 9 OF 14
NO ITEM CODE DESCRIPTION QTY SYMBOL
250 217-1001E-E12 MOUNTING STRIP 1 EG1 T=1.2
251 217-3896F-E08 SWITCH-BRACKET-F 1 EGI T=0.8mm
252 217-3896R-E08 SWITCH-BRACKET-R 1 EGI T=0.8mm
253 218-3896A-E10 MAIN BRACKET-R 1 EGI T=1.0mm
254 218-3896B-E10 SHAFT BRACKET-R 1 EGI T=1.0mm
255 218-3896F-E10 DECK-BRACKET-F 1 EGI T=1.0mm
256 218-3896G-E12 FRONT BRACKET 1 EGI T=1.2mm
257 218-3896R-E10 DECK-BRACKET-R 1 EGI T=1.0mm
258 220-38961-000 DRIVEN-SHAFT-1 1 BSBM
259 220-38962-000 DRIVEN-SHAFT-2 1 BSBM
260 220-3896A-000 REL-CHASSIS-POST-A 2 BSBM
261 220-3896B-000 REL-CHASSIS-POST-B 2 BSBM
262 220-3896C-000 REL-BRKT-POST 2 BSBM
263 220-3896E-000 BEVEL-WHEEL-SHAFT 1 BSBM
264 220-3896G-000 GUIDE-SHAFT 2 BSBM
265 220-3896L-000 LEADING-BLOCK-SHAFT-L 1 BSBM
266 220-3896R-000 LEADING-BLOCK-SHAFT-R 2 BSBM
267 222-3893N-E06 TOP-PANEL 1 EGI.(T0.6)
268 222-3893P-E06 BOTTOM-PANEL 1 EGI.(T0.6)
269 222-3896A-C05 NOSE PIECE COVER 1 AL T=0.5mm
270 222-3896B-E10 BOTTOM COVER 1 EGI T=1.0mm
271 222-3896S-E06 SLEEVE-CASE-3896 1 EGI T=0.6mm
272 222-3896T-E06 TOP COVER 1 EGI T=0.6mm
273 223-3896D-A10 RELEASE CHASSIS (D.H) 1 45# T=1.0mm
274 223-3896E-A10 MAIN RELEASE-BRACKET (D.HNI) 1 45# T=1.0mm
275 223-3896F-A10 RELEASE-BRACKET-L (D.HNI) 1 45# T=1.0mm
276 223-3896G-A10 RELEASE-BRACKET-R (D.HNI) 1 45# T=1.0mm
277 225-08008-400 RUBBER CUSHION 8x8x4mm 3 RUBBER
278 225-38970-A00 RUBBER-BAND 1 RUBBER BLACK
PAGE 10 OF 14
NO ITEM CODE DESCRIPTION QTY SYMBOL
279 227-78030-EA5 CASE CUSHION (BLACK) (WITH STIKER TAPE) 1 SPONGE T=15mm
281 227-38960-K20 BOX-CUSHION 1 SPONGE BLACK T=2.0mm
282 228-3892A-000 CD FELT 1 CLOTH BLACK
230-100WE-200 WIRE CLIP 1
283 233-E0060-000 E-RING φ31
284 233-N050W-H00 HEX NUT: M5 1 ACC:1
285 234-HEX50-120 HEX BOLT: M5x12mm DOUBLE HEAD 1 CARBON STEEL D.Zn(WHITE)
286 234-KB020-08B SCREW KB 2x8 BLACK 1 nose piece+nose piece back
287 234-KB026-06W SCREW TS 2.6x6 KB TAP TYPE (B) 2 top cover+heat sink
288 234-KA020-06W SCREW KA 2x6 WHITE 1 lamp pcb+base panel
289 234-PA020-08B SCREW PA 2x8 BLACK 3 nose piece+nose piece back
290 234-PA050-160 SCREW TS 5x16 PA 1 ACCESSORY:1
motor+front.bracket:2 tact
pcb+front-bracket:2 hook-l+relchassis:2 hook-r+rel-chassis:2
leading-Lock-f+rel-chassis:1
291 234-PM020-03B SCREW PM 2x3 BLACK (正差.加硬 )10
leading-block-a+front.bracket:1
292 234-BMT20-040 SCREW TTP 2x4 BM TAP TYPE (大头) 4 SUB:PCB.4
bottom-cover+front-
293 234-PM026-03W SCREW PM 2.6x3 PM WHITE 2
bracket:1,top-panel+bottom-
base panet+front-bracket:3
295 234-PT026-04B SCREW TTP 2.6x4 PM BLACK 7
deck+decd bracket:4
296 234-PT026-04W SCREW PT 2.6x4 WHITE 4 bottom cover+front-bracket:4
297 234-PT026-05W SCREW TTP 2.6x5 PM WHITE 4 deck-brkt+bottom cover:4
antenna-clamper+main-brkt.r:1
main.bracket+bottom.cover:4
main.bracket®+bottom.cover:2
bottom-cover+main-pcb:1HEAT
298 234-PT026-06W SCREW TTP 2.6x6 PM WHITE 8
SINK:2
cord clamper+main-bracket-r:2
299 234-PT026-08W SCREW TTP 2.6x8 PM WHITE 4
HEAT SINK:2
300 234-PT030-10W SCREW TTP 3x10 WHITE 2 heat-sink+main-bracket-r
301 234-PM030-16W SCREW PM 3x16 WHITE 2 heatsink+main bracket(ic)
302 234-PMS20-04B POST-SCREW-M2 (BLACK) 2 CARBON STEEL
303 234-PMS20-05W SCREW PMS 2x5 White Special Head φ3.3x1.1 1
rack+main-rel-bracket:3
304 234-PT020-04W SCREW TTP 2x4 (TAP TYPE) 4
shaft-brkt+front-brkt:1
PAGE 11 OF 14
NO ITEM CODE DESCRIPTION QTY SYMBOL
305 235-38960-E10 SET KEY 2 EGI T=1.0mm
306 236-3896A-E10 ANTENNA CLAMPER 1 EGI T=1.0mm
307 236-3896B-E10 CORD CLAMPER 1 EGI T=1.0mm
308 301-0C025-060 POLY BAG 1 OPEN 2.5"x6"xt0.04
309 301-0C070-105 POLY BAG 1 OPEN 7"x10.5"xt0.04
310 301-0C110-140 POLY BAG 1 OPEN 11"x14"xt0.04
311 303-0000A-A10 SNOW BOX 2
312 304-3896A-A10 GIFT BOX 1
313 305-3896A-A10 INST'S MANUAL 1
314 306-38960-A06 CARTON BOX (1/6) 1
315 313-20010-A00 CD GUIDE SHEET 1 P.V.C (BLACK) T1.0
316 313-38960-Q00 VFD-SIDE-COVER-L 1 PVC T=0.3 BLACK
317 313-38960-R00 VFD-SIDE-COVER-W 2 PVC T=0.3 BLACK
318 314-3896T-000 TOP LABEL 1
319 314-3896W-000 WARRANTY LABEL 1
320 319-00000-010 SILICA GEL 1 PACK 1gm
321 402-3896A-3BK BASE PANEL 1 PC BLACK
322 402-3896B-1BK NOSE PIECE 1 ABS BLACK
323 402-3896C-1BK NOSE PIECE BACK 1 ABS BLACK
324 402-7803S-4BK NOSE PIECE CASE 1 PP BLACK
325 413-3896A-2CR WINDOW 1 Acryl CLEAR
326 413-3896D-2BE SENSOR LENS 1 Acryl (SKY-BLUE)
327 414-3896A-2CR REFLECTOR-CIRCLE 1 Acryl CLEAR
328 414-3896B-2CR EJ-BAND-REFLECTOR 1 Acryl CLEAR
329 414-3896C-2CR CD-GUIDE-REFLECTOR 1 Acryl CLEAR
330 414-3896T-2CR REFLECTOR-KNOB 1 Acryl CLEAR
331 423-3896A-1CR BAND KNOB 1 ABS CLEAR
332 425-3896A-1CR EQ KNOB 1 ABS CLEAR
PAGE 12 OF 14
NO ITEM CODE DESCRIPTION QTY SYMBOL
333 427-3896A-2BE POWER KNOB 1 ACRYL SKY/BLUE
334 427-3896C-1NL POWER-KNOB ARM 1 ABS Natural
335 428-7801C-1BK VOLUME KNOB 1 ABS BLACK
336 430-3896A-1CR EJ KNOB 1 ABS CLEAR
337 431-38961-1CR MEMORY KNOB "1" 1 ABS CLEAR
338 431-38962-1CR MEMORY KNOB "2" 1 ABS CLEAR
339 431-38963-1CR MEMORY KNOB "3" 1 ABS CLEAR
340 431-38964-1CR MEMORY KNOB "4" 1 ABS CLEAR
341 431-38965-1CR MEMORY KNOB "5" 1 ABS CLEAR
342 431-38966-1CR MEMORY KNOB "6" 1 ABS CLEAR
343 431-3896B-1CR MEMERY-KNOB-BASE 1 ABS CLEAR
344 432-3896A-1CR SEL KNOB 1 ABS CLEAR
345 435-3896U-1CR LO-TRACK-UP-KNOB 1 ABS CLEAR
346 436-3896M-1CR MU-TRACK-DOWN-KNOB 1 ABS CLEAR
347 440-3896L-3BK HOOK-L-R 2 PC BLACK
348 440-3896M-1CR MONO KNOB 1 ABS CLEAR
349 441-3896B-1NL TRIM COVER 1 ABS Natural
350 443-3896A-1CR DSP KNOB 1 ABS CLEAR
351 443-3896B-1CR DSP-MONO-KNOB BASE 1 ABS CLEAR
352 445-3896A-1CR MODE KNOB 1 ABS CLEAR
353 445-3896S-1CR MODE-SEL-KNOB BASE 1 ABS CLEAR
354 451-3896A-3BK LOCK 1 PC BLACK
355 458-3896A-1CR AMS KNOB 1 ABS CLEAR
356 459-3896A-1CR OPEN KNOB 1 ABS CLEAR
357 460-3896A-3BK RACK 1 PC BLACK
358 462-3896A-9WE BEVEL-WHEEL 1 POM WHITE
359 462-3896C-9WE DRIVEN-GEAR-2A 1 POM WHITE
360 462-3896D-9WE DRIVEN-GEAR-2B 1 POM WHITE
361 463-0000C-4BK TILTER&TUSE BOX 1 PP BLACK
PAGE 13 OF 14
NO ITEM CODE DESCRIPTION QTY SYMBOL
362 472-3896A-1BK CONNECTOR-COVER 1 ABS BLACK
363 486-3896A-3BK LEADING-BLOCK-A 1 PC BLACK
364 486-3896F-3BK LEADING BLOCK-F 1 PC BLACK
365 486-3896L-3BK LEADING-BLOCK-L 1 PC BLACK
366 486-3896R-3BK LEADING-BLOCK-R 1 PC BLACK
367 487-3896A-9WE SCROLL-BAR 1 POM WHITE
368 489-3896A-9WE PINCH-SPR-ROLL 1 POM WHITE
369 490-3896A-300 RESET KNOB 1 PC
PAGE 14 OF 14

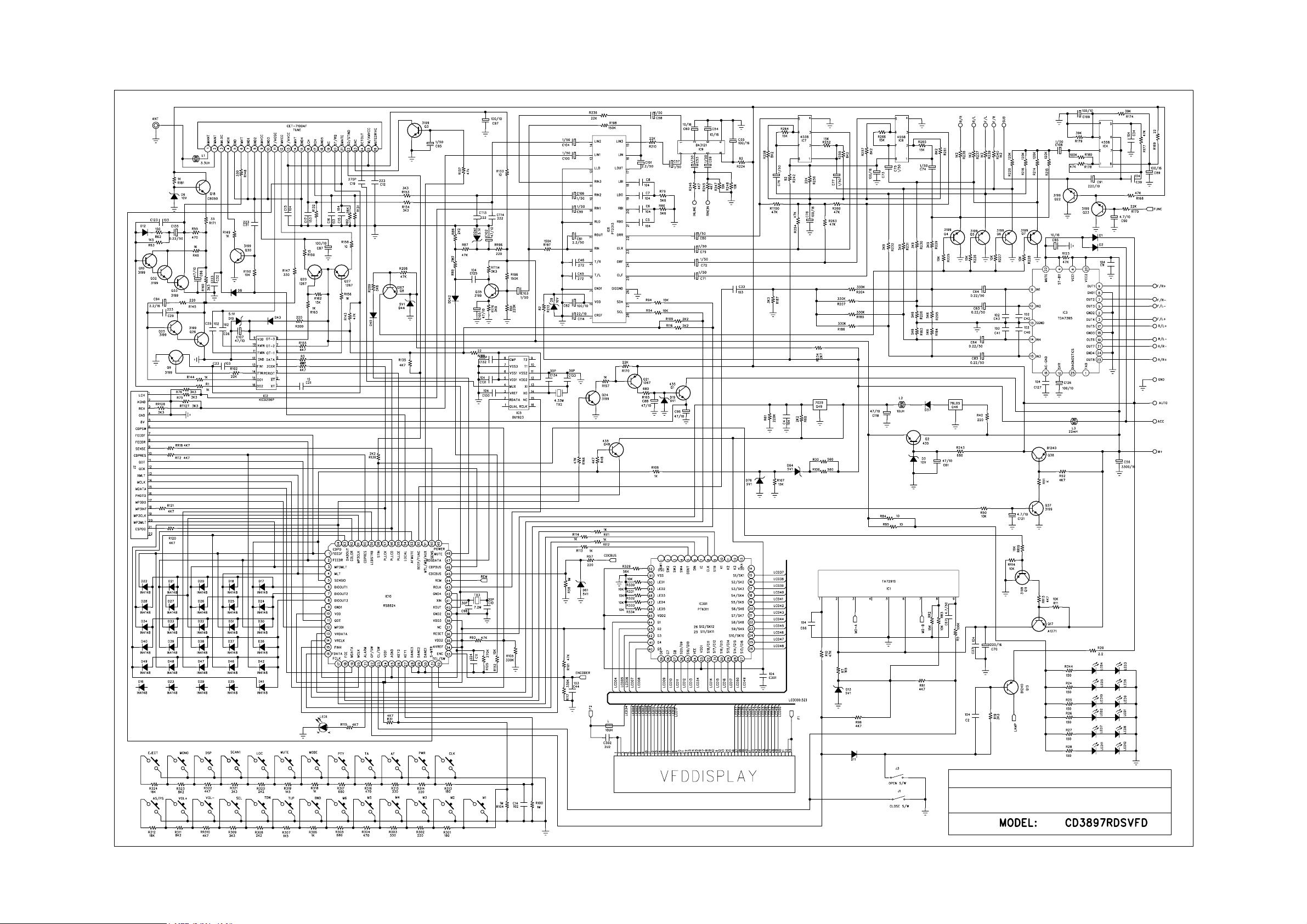

CD3897KRDS(NEW).sch-1 - Mon Aug 16 17:13:09 2004
Loading...
