Page 1
SERVICE MANUAL
45x4WATTS
MODEL:VT-3621
Page 2
_
2004-3-1
WiWi Industries Limited
Buyer:
Model: CD-3987
Title: VT-3621 PLL AM/FM OIRT RADIO CD-MP3 CAR CD PLAYER W/45Wx4 POWER,2-LINEOUT
Checked By:(Elect) C.K.HAN Checked By:(Mech)_________________Approved By:__________________
NO ITEM CODE DESCRIPTION QTY SYMBOL
VITEK
1 001-3984S-N80 P.C.B MAIN BOARD 1
2 001-0000S-B90 P.C.B FILTER BOX 1
3 002-07900-H00 I.C DSC-7900 1
4 002-2313L-B00 I.C PT2313L 1 必定用这个牌子IC
5 002-04558-G00 I.C TJM4558 2
6 002-01140-A09 I.C LA1140 1 IC201
Engineering Department
Bill of Materials
7 002-03370-A09 I.C LA3370 1 IC301
8 002-07384-J06 I.C TDA7384 1 U1
9 002-07035-T00 I.C KIA7035 1 Q30
10 002-78L05-F00 I.C KIA78L05 1 Q29
Q12.24.25.6.17.4
11 003-3199Y-H03 TRANSISTOR C3199 NPN TO-92S 14
12 003-01303-D00 TRANSISTOR D1303 4 Q1.8.9.10
13 003-01368-C00 TRANSISTOR B1368 1 Q23
14 003-01923-A00 TRANSISTOR C1923 1 Q2
15 003-0966Y-A02 TRANSISTOR A966 1 Q11
16 003-1267Y-A00 TRANSISTOR KTA1267Y 2 Q5.36
17 003-1271Y-A03 TRANSISTOR A1271 1 Q14
18 003-3203Y-D03 TRANSISTOR C3203 3 Q15.26.28
18.19.20.13.7.33.3.37
19 004-04001-000 DIODE IN4001 1 FILTER BOX
D1.4.6.7.10.11.41.25.27.
16.17.3.12.34.35.39.28.31.
20 004-04148-000 DIODE IN4148 23
21 005-00039-A00 ZENER DIODE 1/2W 3.9V 1 ZD7
22 005-00075-A00 ZENER DIODE 1/2W 7.5V 1 ZD6
23.21.8.13.14
PAGE 1 OF 11
Page 3
NO ITEM CODE DESCRIPTION QTY SYMBOL
23 005-00100-A00 ZENER DIODE 1/2W 10V 2 ZD5.3
24 005-00051-A00 ZENER DIODE 1/2W 5.1V 3 ZD1.2.?
25 006-04500-000 CRYSTAL 4.5MHz 1 ZT1
26 007-05046-7GY I.F.T 7x7mm K5046 GREY 1 T1
27 009-02027-A02 TUNER FM (OIRT) KCF-2027F/SV 1
28 009-1019A-A01 TUNER AM CET-1019A 1
29 010-A0222-000 CHOCK COIL 22mH 1 L1
30 011-A010F-200 RES 1/2W +-5% 1 OHM 1 R168
31 011-A220D-200 RES 1/4W +-5% 22 OHM 1 R54
32 011-A100A-200 RES 1/16W +-5% 10 OHM 2 R98.116
33 011-A101A-200 RES 1/16W +-5% 100 OHM 3 R118.119.120
D5.R37.38.26.96.81.
34 011-A102A-200 RES 1/16W +-5% 1K OHM 12
88.32.83.34.144.1
R86.101.77.64.141.
148.149.142.140.4.115.117.
35 011-A103A-200 RES 1/16W +-5% 10K OHM 20
33.60.61.56.73.41.150.70
36 011-A104A-200 RES 1/16W +-5% 100K OHM 3 R97.99.21
37 011-A105A-200 RES 1/16W +-5% 1M OHM 2 R103.107
38 011-A122A-200 RES 1/16W +-5% 1.2K OHM 2 R134.135
39 011-A123A-200 RES 1/16W +-5% 12K OHM 2 R153.66
40 011-A152A-200 RES 1/16W +-5% 1.5K OHM 4 R85.87.82.79
41 011-A153A-200 RES 1/16W +-5% 15K OHM 2 R12.11
42 011-A151A-200 RES 1/16W +-5% 150 OHM 1 R80
43 011-A182A-200 RES 1/16W +-5% 1.8K OHM 1 R3
44 011-A181A-200 RES 1/16W +-5% 180 OHM 1 R53
45 011-A221A-200 RES 1/16W +-5% 220 OHM 2 R90.22
46 011-A222A-200 RES 1/16W +-5% 2.2K OHM 4 R151.152.95.59
R15.19.114.8.9.10.74.
47 011-A223A-200 RES 1/16W +-5% 22K OHM 14
30.31.45.125.65.94.63
48 011-A224A-200 RES 1/16W +-5% 220K OHM 2 R102.18
49 011-A330A-200 RES 1/16W +-5% 33 OHM 4 R6.28.17.76
50 011-A331A-200 RES 1/16W +-5% 330 OHM 2 R7.5
PAGE 2 OF 11
Page 4
NO ITEM CODE DESCRIPTION QTY SYMBOL
51 011-A332A-200 RES 1/16W +-5% 3.3K OHM 2 R29.25
52 011-A333A-200 RES 1/16W +-5% 33K OHM 2 R20.40
53 011-A334A-200 RES 1/16W +-5% 330K OHM 3 R23.57.58
54 011-A471A-200 RES 1/16W +-5% 470 OHM 2 R84.91
55 011-A472A-200 RES 1/16W +-5% 4.7K OHM 3 R2.16.75
R89.50.49.69.43.47.154.
56 011-A473A-200 RES 1/16W +-5% 47K OHM 13
42.48.13.27.106.14
R109.127.35.36.128.110.108.
57 011-A562A-200 RES 1/16W +-5% 5.6K OHM 11
126.129.111.100
58 011-A561A-200 RES 1/16W +-5% 560 OHM 3 R156.157.105
59 011-A681A-200 RES 1/16W +-5% 680 OHM 2 R143.147
60 011-A822A-200 RES 1/16W +-5% 8.2K OHM 4 R51.55.46.44
61 011-A820A-200 RES 1/16W +-5% 82 OHM 1 R123
62 011-A821A-200 RES 1/16W +-5% 820 OHM 2 R62.67
63 012-2107C-300 ELEC CAP 100uF 16V 6x7mm 1 C82
64 012-C107C-300 ELEC CAP 100uF 16V 5x11mm 6 C55.74.104.99.52.125
C90.84.
65 012-C105F-300 ELEC CAP 1uF 50V 5x11mm 10
13.21.23.42.15.47.49.67
66 012-B106C-300 ELEC CAP 10uF 16V 4x7mm 1 C18
67 012-C106C-300 ELEC CAP 10uF 16V 5x11mm 5 C63.24.9.102.117
69 012-B335C-300 ELEC CAP 3.3uF 16V 4x7mm 1 C27
70 012-C335C-300 ELEC CAP 3.3uF 16V 5x11mm 1 C22
71 012-B474F-300 ELEC CAP 0.47uF 50V 4x7mm 5 C96.97.98.95.79
72 012-C475F-300 ELEC CAP 4.7uF 50V 5x11mm 11 C33.34.48.105.64.28.29.50.53.54.56
73 012-1476C-300 ELEC CAP 47uF 16V 5x7mm 1 C81
74 012-C476C-300 ELEC CAP 47uF 16V 5x11mm 6 C92.126.35.86.94.91
75 012-E477B-300 ELEC CAP 470uF 10V 6x12mm 1 C87
76 012-P108D-300 ELEC CAP 1000uF 25V 13x20mm 1 FILTER BOX
77 012-U228C-300 ELEC CAP 2200uF 16V 10x30mm 1 C62
78 013-A103A-400 MYLAR CAP +-10% 0.01uF 2 C19.78
79 013-A222A-400 MYLAR CAP +-10% 0.0022uF 1 C14
80 013-A223A-400 MYLAR CAP +-10% 0.022uF 2 C25.26
PAGE 3 OF 11
Page 5
NO ITEM CODE DESCRIPTION QTY SYMBOL
81 013-A272A-400 MYLAR CAP +-10% 0.0027uF 2 C30.36
82 013-B102A-400 POLY CAP 1000PF 1 C20
83 014-A101C-500 CRE CAP +-10% 100PF 3 C16.11.?
84 014-A102C-500 CRE CAP +-10% 0.001uF 4 C80.58.59.77
85 014-A103C-500 CRE CAP +-10% 0.01uF 5 C40.75.41.106.75
C43.44.45.46.37.38.110.
86 014-A104C-500 CRE CAP +-10% 0.1uF 16
111.65.89.107.66.85.2.127.12
87 014-A121C-500 CRE CAP +-10% 120PF 4 C100.103.31.32
88 014-A150C-500 CRE CAP +-10% 15PF 1 C10
89 014-A222C-500 CRE CAP +-10% 0.0022uF 2 C108.109
90 014-A223C-500 CRE CAP +-10% 0.022uF 6 C61.3.5.4.7.88
91 014-A200C-500 CRE CAP +-10% 20PF 2 C1.39
92 014-A330C-500 CRE CAP +-10% 33PF 1 C101
014-A472C-500 CRE CAP +-10% 0.0047uF 1 C60
93 014-A473C-500 CRE CAP +-10% 0.047uF 1 C6
94 015-H0103-E00 SEMIFIXED 10KB 1 VR3
95 015-H0203-E00 SEMIFIXED 20KB 2 VR2.4
96 015-H0503-E00 SEMIFIXED 50KB 1 VR1
97 016-C0300-000 TRIMMER CAP 30PF 1 C8
98 017-B0107-400 CER FILTER 10.7MJA 2 CF1.2
99 022-C7000-000 FAUSE 7A 1
100 023-A0050-RD0 LED RED 5mm 1 D20
101 025-TA040-385 4P TACT SW 3.85mm 169G/F 1
102 029-B0000-000 ANTENNA JACK DOUBLE SCREW 1
103 033-S1000-BN0 28# 1P SHIELD 100mm 1
104 035-B0400-BK1 JUMPER WIRE #20 40mm BLACK 1
105 035-B0500-RD1 JUMPER WIRE #20 50mm RED 1
035-B0600-BK1 JUMPER WIRE #20 60mm BLACK 1
106 034-A1612-006 I.S.O 16P W/WIRE 12P 1
107 036-D0125-250 25P CONNECTOR PITCH P=1.25mm 1
PAGE 4 OF 11
Page 6
NO ITEM CODE DESCRIPTION QTY SYMBOL
108 036-J0250-120 DETACHABLE CON 12P SOCKET 1
109 037-G0300-203 RCA 2xSH L=300mm GREY W/O H'ING 1
110 042-30010-000 FUSE HOLDER 2
111 201-EI240-000 CHOKE TRANS EI-24 1
112 221-S0040-040 BARE WIRE D=0.4x40mm 70
113 230-100BK-100 PLASTICTIE L=100mm 2
114 231-P0060-130 RUBBER TUBE PVC D=13 L=50mm 1.0mm 1
FRONT PCB
115 001-3987D-S20 P.C.B FRONT BOARD 1
116 002-75823-H00 I.C LC75823ED 1 U1
117 008-80235-C00 LCD DISPLAY 80235BMTTN 1
118 011-S000A-200 0805 RES CHIP +-5% 0 OHM 1 R33
119 011-S102A-200 0805 RES CHIP +-5% 1K OHM 2 R21.10
120 011-S152A-200 0805 RES CHIP +-5% 1.5K OHM 2 R22.11
121 011-S181A-200 0805 RES CHIP +-5% 180 OHM 2 R16.5
122 011-S221A-200 0805 RES CHIP +-5% 220 OHM 3 R3.6.17
123 011-S222A-200 0805 RES CHIP +-5% 2.2K OHM 2 R23.12
124 011-S331A-200 0805 RES CHIP +-5% 330 OHM 2 R7.18
125 011-S332A-200 0805 RES CHIP +-5% 3.3K OHM 2 R24.13
126 011-S471A-200 0805 RES CHIP +-5% 470 OHM 2 R8.19
127 011-S472A-200 0805 RES CHIP +-5% 4.7K OHM 4 R25.14.30.31
128 011-S513A-200 0805 RES CHIP +-5% 51K OHM 1 R15
129 011-S681A-200 0805 RES CHIP +-5% 680 OHM 8 R28.20.27.9.1.2.4.29
130 011-S822A-200 0805 RES CHIP +-5% 8.2K OHM 1 R26
131 014-S104C-500 0805 CRE CAP +-10% 0.1uF 2 C1.2
132 014-S681C-500 0805 CRE CAP +-10% 680PF 1 C3
133 023-D0000-BE0 0603 LED BJS170TS-JPH BLUE 10
134 023-B0234-WE2 LED Super Bright 2x3x4 MWB75TA-4E WHITE 2
135 025-TA020-430 TACT SW 2P 4.3mm 180G 12
PAGE 5 OF 11
Page 7
NO ITEM CODE DESCRIPTION QTY SYMBOL
136 025-TA02S-430 TACT SW 2P 4.3mm SMD 180G 6
137 036-H0250-120 DETACHABLE CON 12P PLUG P=2.5mm 1
VOL 12mm Encoder Sw 30DET 15PUS
138 049-E1141-050
E1141A3A L=11.5mm
1
CDP BOARD ASSEMBLY
139 001-3895D-C20 P.C.B CDP MP3 BOARD 1
140 002-0016M-P00 I.C 16M DRAM 1 U5
141 002-09226-S01 I.C SIL9226X 1
142 002-09276-H00 I.C S5L9276 1
143 002-09290-G01 I.C S5L9290 1
144 002-04001-A01 I.C KA9259D/IP4001 1
145 003-01504-B03 TRANSISTOR KTA1504S GR (SMD TYPE) 1 Q1
146 003-01576-S07 TRANSISTOR 2SA1576 SMD 5 Q2.5.6.3.4
147 004-04148-000 DIODE IN4148 5 D3.4.5.1.2
148 004-SR23G-000 PHOTO DIODE SR-23G 2 LED3.4
149 006-16934-000 CRYSTAL 16.9344MHz (2PIN) 1 晶振
150 011-S000A-200 RES CHIP ±5% 0805 0 OHM 1 R112
R127.111.56.113.114.
151 011-S102A-200 RES CHIP ±5% 0805 1K OHM 9
115.102.101.116
152 011-S103A-200 RES CHIP ±5% 0805 10K OHM 8 R125.124.105.107.106.219.129.130
R103.104.218.220.
153 011-S104A-200 RES CHIP ±5% 0805 100K OHM 8
228.223.226.227
154 011-S105A-200 RES CHIP ±5% 0805 1M OHM 5 R1.117.118.27.215
155 011-S124A-200 RES CHIP ±5% 0805 120K OHM 2 R202.207
156 011-S153A-200 RES CHIP ±5% 0805 15K OHM 4 R213.212.209.221
157 011-S184A-200 RES CHIP ±5% 0805 180K OHM 1 R211
158 011-S203A-200 RES CHIP ±5% 0805 20K OHM 1 R216
159 011-S204A-200 RES CHIP ±5% 0805 200K OHM 1 R126
160 011-S220A-200 RES CHIP ±5% 0805 22 OHM 1 R201
161 011-S222A-200 RES CHIP ±5% 0805 2.2K OHM 5 R119.120.121.122.123
162 011-S392A-200 RES CHIP ±5% 0805 3.9K OHM 1 R210
163 011-S473A-200 RES CHIP ±5% 0805 47K OHM 4 R131.222.217.128
PAGE 6 OF 11
Page 8
NO ITEM CODE DESCRIPTION QTY SYMBOL
164 011-S680A-200 RES CHIP ±5% 0805 68 OHM 1 R34
165 011-S683A-200 RES CHIP ±5% 0805 68K OHM 5 R204.206.203.205.225
166 011-S820A-200 RES CHIP ±5% 0805 82 OHM 1 R208
167 011-S822A-200 RES CHIP ±5% 0805 8.2K OHM 1 R214
168 011-S913A-200 RES CHIP ±5% 0805 91K OHM 1 R224
169 012-1107B-300 ELECT CAP 100uF 10V +-20% 5x7mm 3 C102.1.124
170 013-D106L-50A Tantal Chip CAP 10uF 10V ±20% "A-Size" 6 C109.110.211.222.?.?
171 013-D476L-50B Tantal Chip CAP 47uF 10V ±20% "B-Size" 2 Q7.C202
172 014-S050C-500 CER CAP CHIP ±10% 0805 5PF 50V 1 C208
173 014-S102C-500 CER CAP CHIP ±10% 0805 0.001uF 50V 4 C205.210.121.201
174 014-S103C-500 CER CAP CHIP ±10% 0805 0.01uF 50V 6 C206.204.216.221.220.108
C123.113.112.114.53.203.234.
214.215.212.229.228.115.104.
175 014-S104C-500 CER CAP CHIP ±10% 0805 0.1uF 50V 19
106.116.120.207.224
176 014-S152C-500 CER CAP CHIP ±10% 0805 0.0015uF 50V 2 C111.112
177 014-S222C-500 CER CAP CHIP ±10% 0805 0.0022uF 50V 4 C101.107.213.226
178 014-S330C-500 CER CAP CHIP ±10% 0805 33PF 50V 2 C117.118
179 014-S333C-500 CER CAP CHIP ±10% 0805 0.033uF 50V 2 C230.217
180 014-S391C-500 CER CAP CHIP ±10% 0805 390PF 50V 2 C225.227
181 014-S472C-500 CER CAP CHIP ±10% 0805 0.0047uF 50V 2 C209.233
182 014-S474C-500 CER CAP CHIP ±10% 0805 0.47uF 50V 2 C218.219
183 014-S560C-500 CER CAP CHIP ±10% 0805 56PF 50V 1 C231
184 014-S683C-500 CER CAP CHIP ±10% 0805 0.068uF 50V 1 C223
185 014-S821C-500 CER CAP CHIP ±10% 0805 820PF 50V 1 C119
186 025-TA020-330 SWITCH 2P 3.3mm SW-111 HC-49S 1 SW1 (small type)
187 031-0140U-250 FFC CABLE 25P 140mm 1.25P ITCH 1 140mm
188 032-E1000-031 RAINBOW WIRE 3P 1 3+100+3
189 036-B0200-041 4P SOCKET 53015-0410 (ROHM) 1 J4
190 036-G0100-171 17P SMD SOCKET P=1.0mm 1 J1
191 203-8008S-C2E CD DECK CDM-211 1
PAGE 7 OF 11
Page 9
NO ITEM CODE DESCRIPTION QTY SYMBOL
MECHANICAL PARTS
192 209-39870-T00 PULL-SPRING 1 SUS T0.35
193 209-20010-S00 DOOR BUTTON SPRING 1
194 209-30910-V00 HOOK-SPRING 1 SUS T=0.04
195 209-38960-N00 FRONT LOCK SPRING (BRASS) 1 TUNER TOOLING SAME AS
196 212-52090-14S SPRING WASHER (φ5.2) 2 ACC:2
197 212-52100-05P PLATE WASHER (φ5.2) 2 ACC:2
198 214-39850-A00 MAIN FIBER 170x148x0.5mm 1 FIBER T0.5
199 214-DECK0-A00 DECK FIBER 105x95x0.5mm 1 T=0.5 (FOR CD KMC DECK)
200 216-3988H-C00 HEAT-SINK 1 AL DIE CASTING
201 217-1001E-E12 MOUNTING STRIP 1 EGI T1.2
202 217-3987K-C05 AL-ORNAMENT 1 AL SILVER
203 218-3985R-E10 REAR-BRACKET 1 EGI T=1.0mm
204 218-3987C-E10 DECK-BRACKET-F 1 EGI T=1.0mm
205 218-3987L-E10 DECK-BRACKET-L 1 EGI T=1.0mm
206 218-3987R-E10 DECK-BRACKET-R 1 EGI T=1.0mm
207 222-2001B-E06 BOTTOM COVER 1 EGI T=0.6mm
208 222-3896S-E06 SLEEVE-CASE 1 EGI T=0.6mm
209 222-3987T-E06 TOP-COVER 1 EGI T=0.6mm
210 223-3909L-E10 SIDE-CHA-LEFT 1 EGI T=1.0mm
211 223-3909R-E10 SIDE-CHA-RIGHT 1 EGI T=1.0mm
212 225-38970-A00 RUBBER-BAND 1
213 227-30010-EA5 CASE CUSHION 2 SPONGE T15mm
214 227-30050-E60 CASE CUSHION (B) 2 SPONGE
215 228-3892A-000 CD-FELT 1 CLOTH BLACK
230-100WE-200 WIRE CLIP 1
216 233-N030W-H00 HEX NUT: M3 1 FOR IC:1
217 233-N050W-H00 HEX NUT: M5 1 ACC:1
218 234-BMT20-040 SCREW: TTP 2x4 BM TAP TYPE 4 CD PCB+DECK 4
PAGE 8 OF 11
Page 10
NO ITEM CODE DESCRIPTION QTY SYMBOL
219 234-HEX50-120 HEX BOLT: M5x12 1 CARBON STEEL D.ZN (WHITE)
F-PCB+REFLECTOR-RIGHT:2
220 234-KB017-040 SCREW: KB 1.7x4 5
F-PCB+MIDDLE-REFLECTOR"3
221 234-MS030-040 SCREW: MS 3x4 (5.5x1x4) 4 BASE PANEL:4
222 234-PA020-10B SCREW: TS 2x10 PA BLACK 4 N-PIECE BACK
223 234-PA050-160 SCREW: TS 5x16 PA 1 ACC:1
224 234-PT026-040 SCREW: TTP 2.6x4 TAP TYPE 5 DECK BKT+DECK5
DECK-BKT+CHA:3,M-PCB+CHA:2,
225 234-PT030-050 SCREW: TTP 3x5 TAP TYPE (C) 6
M-PCB+R-BKT:2,
COVER+R-BKT:4,ANT-SOCKET:2,
226 234-PTT30-050 SCREW: TTP 3x5 TAP TYPE (B) 7
DECK-BKT+R-BKT:1
HEAT-SINK+SIDE CHASSIS（LR):2 REAR-BRACKET+HEAT
227 234-PT030-080 SCREW: TTP 3x8 TAP TYPE (C) 3
SINK：1
228 234-PTT30-080 SCREW: TTP 3x8 TAP TYPE (B) 2 CORD CLAMPER:2
229 234-PM030-080 SCREW: PM 3x8 1 FOR IC:1
230 234-PM030-130 SCREW: 3x13 PM 2 IC:2
231 235-38960-H10 SET KEY 2 EGI T1.0
232 236-65220-E10 CORD CLAMPER (B) 1 EGI T=1.0mm
233 301-0C025-060 POLY BAG 1 OPEN 2.5"x6"Xt0.04
234 301-0C040-090 POLY BAG 1 OPEN 4x9xT0.04
235 301-0C070-105 POLY BAG 1 OPEN 7"x10.5"Xt0.05
POLY BAG OPEN 11"x14"Xt0.04
236 301-0C110-140
W/RECYCLE SYMBOL & WARNING
1
237 303-0000A-A10 SNOW BOX 1
238 304-3987A-A10 GIFT BOX 1
239 305-3987A-A10 INST'S MANUAL 1
240 306-39870-A00 CARTON BOX 1
241 313-20010-A00 CD-GUILD-SHEET 1 PVC BLACK T=1.0mm
242 313-3510A-G03 BASE-PANEL-PLATE-A 1 PVC BLACK T=0.3mm
243 313-38960-Q00 VFD-SIDE-COVER-L 1 PAPER T=0.1 BLACK
244 313-38960-R00 VFD-SIDE-COVER-W 2 PAPER T=0.1 BLACK
245 314-0000A-000 AZIMUTH LABEL 1
246 314-0000T-000 TOP LABEL 1
PAGE 9 OF 11
Page 11
NO ITEM CODE DESCRIPTION QTY SYMBOL
247 314-0000W-000 WARRANTY LABEL 1
248 315-39840-A00 LCD-REFLECTOR-PAPER "A" 1 T=0.1mm
249 315-39840-B00 LCD-FILTER-PAPER 1
250 315-39840-C00 LCD-REFLECTOR-PAPER 4
251 316-WE142-044 SIDE-REFLECTIONAL-PAPER 1 GLOSS SILVER
252 319-00000-010 SILICA GEL 1 PACK 1GM
253 402-1001S-4BK NOSE PIECE CASE 1 P.P BLACK
254 402-3987A-3BK BASE-PANLE 1 PC BLACK
255 402-3987B-1BK NOSE-PIECE 1 ABS BLACK
256 402-3987C-1BK NOSE-PIECE-BACK 1 ABS BLACK
257 413-3987A-2CR WINDOW 1 ACRYL CLEAR
258 414-3987P-2CR LCD-REFLECTOR 1 ACRYL CLEAR
259 414-7802A-1CR REFLECTOR-CIRCLE 1 ABS CLEAR
260 414-7802B-1CR REFLECTOR-RIGHT 1 ABS CLEAR
261 414-7802C-1CR MIDDLE-REFLECTOR 1 ABS CLEAR
262 414-7802D-1CR LEFT-REFLECTOR 1 ABS CLEAR
263 425-7802A-1NL EQ-KNOB 1 ABS NATURAL
264 425-7802B-3CR EQ-KNOB-BASE 1 PC CLEAR
265 426-3987A-3BK PUSH-KNOB 1 PC BLACK
266 427-7802A-1NL POWER-KNOB 1 ABS NATURAL
267 427-7802B-3CR POWER-KNOB-BASE 1 PC CLEAR
268 428-7801C-1BK VOLUME-KNOB 1 ABS BLACK
269 430-7802A-1NL EJECT-KNOB 1 ABS NATURAL
270 431-78021-1NL MEMORY-KNOB-1 1 ABS NATURAL
271 431-78022-1NL MEMORY-KNOB-2 1 ABS NATURAL
272 431-78023-1NL MEMORY-KNOB-3 1 ABS NATURAL
273 431-78024-1NL MEMORY-KNOB-4 1 ABS NATURAL
274 431-78025-1NL MEMORY-KNOB-5 1 ABS NATURAL
PAGE 10 OF 11
Page 12
NO ITEM CODE DESCRIPTION QTY SYMBOL
275 431-78026-1NL MEMORY-KNOB-6 1 ABS NATURAL
276 430-7802B-3CR EJECT-KNOB-BASE 1 PC CLEAR
277 439-3987B-3CR RELEASE-KNOB-ARM 1 PC CLEAR
278 440-3987A-3BK HOOK 1 PC BLACK
279 441-3909B-100 TRIM-COVER 1 ABS
280 442-7802A-1NL AS/PS-KNOB 1 ABS NATURAL
281 443-7802A-INL DISP-KNOB 1 ABS NATURAL
282 445-7802A-1NL MODE-KNOB 1 ABS NATURAL
283 445-7802B-3CR MODE-DISP-KNOB-BASE 1 PC CLEAR
284 446-7802A-2BE TA-KNOB 1 ACRYL (SKY BLUE)
285 446-7802B-1NL TA-AF-KNOB-ARM 1 ABS NATURAL
286 446-7802C-2BE AF-KNOB 1 ACRYL (SKY BLUE)
287 446-7802D-1NL PTY-KNOB 1 ABS NATURAL
288 446-7802E-3CR PTY-KNOB-BASE 1 PC CLEAR
289 457-7802B-3CR TRACK-UP-DOWN-KNOB-BASE 1 PC CLEAR
290 457-7802T-1NL TRACK-UP-DOWN-KNOB 1 ABS NATURAL
291 459-7802A-1NL OPEN-KNOB 1 ABS NATURAL
292 463-0000C-4BK FILTER-FUSE BOX 1 P.P BLACK
293 472-6522B-3BK CONNECTOR GUIDE (B) 1 P.C BLACK
294 488-7802A-1NL BND-KNOB 1 ABS NATURAL
PAGE 11 OF 11
Page 13

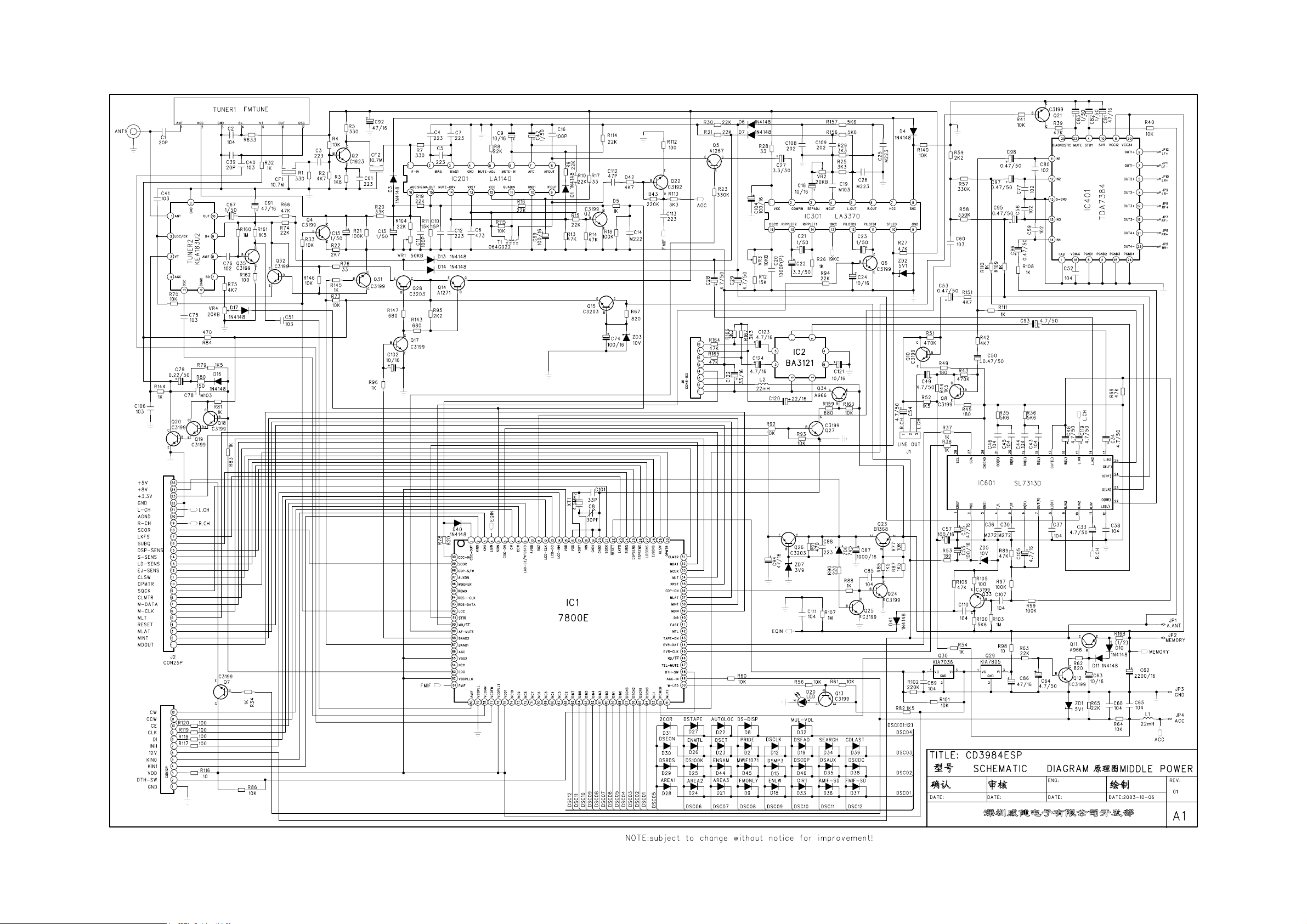

DSC-7800E.sch-1 - Mon Mar 01 15:55:46 2004
Page 14
Loading...
