Vita Spa GRAPHIC SERIES Owner's Manual

OWNER’S MANUAL

2320 N.W. 147th Street Miami, Florida 33054

health and relaxation for life

GRAPHIC SERIES

VITA INTERNATIONAL

GRAPHIC SERIES

OWNER’S MANUAL

VITA INTERNATIONAL

2320 N.W. 147th Street Miami, Florida 33054

OWNER’S RECORD

DATE PURCHASED: _____________________________________

DATE INSTALLED: _______________________________________

DEALER: _______________________________________________

A D D RESS: _____________________________________________

_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

T E L E PH O NE: ___________________________________________

❋

S E RIAL #: ______________________________________________

MODEL #: _____________________________________________

To contact our Technical Service Department, please write to Vita International, 2320 NW 147th Street, Miami, FL 33054 or call 1-305-685-2063, during normal business hours, Monday through Friday, 8:30 am to 5pm, EST.

The Serial Number is located along the base of the spa. Please verify that the

❋

serial number is noted on your dealer’s purchase contract.

TABLE OF CONTENTS

GENERAL INFORMATION

•

Owner's Record and Service Information

• Important Safety Instructions........................ 2-3

•

Manufacturer's Do's and Don'ts/WARNINGS

front piece

..

.... 3

SET UP AND INSTALLATION

• Electrical Information............................................... 4

• Cover Installation ...................................................... 5

OPERATION INSTRUCTIONS

• Initial Setup............................................................. 6-7

• Using Your Spa ..........................................................8

Mood Setting ........................................................ 8

Media Setting ....................................................... 9

Therapy Setting................................................... 10

Setup Setting.........................................................11

• Special Feature .......................................................12

My Spa Setting .....................................................12

Status Feature.......................................................13

• Advanced Feature ..................................................14

Maintenance Setting ..........................................14

• Jet Operation ...........................................................15

A. Select-A-Swirl Jet ......................................... 15

B. Pulsator Jet .................................................... 15

C. Quad Stream ................................................ 15

D. Turbo Jet ........................................................ 16

E. Three Way Power Diverter Valve ........... 16

F. Cluster ............................................................ 16

G. Tension Ease ................................................ 16

H. Air Control ..................................................... 17

I. Waterfall Operation ...................................... 17

J. Aromatherapy Injector ................................ 17

• VitAroma Therapy System ..................................18

• Water Purification System ...................................19

• Sparkle Clear ............................................................19

SPA MAINTENANCE

• Filter Maintenance .................................................20

• Draining Your Spa ..................................................20

• Winterizing Your Spa .............................................21

• Excel Plus™ Cabinet Maintenance....................21

• Cover Maintenance ................................................21

• Spa Light Colors & Lenses ..................................21

• Spa Light Bulb Replacement .............................21

• Care of Acrylic Surface and Spa Pillows .......21

• Diverter Valve Cleaning .......................................22

• Priming the Pump .................................................22

• Fountain Jet .............................................................22

WATER QUALITY & MAINTENANCE

• Sanitizing ................................................................. 23

• pH Control .............................................................. 23

• Important Maintenance Procedures ............. 24

• Balancing Spa Water .................................... 25-26

• Water Maintenance Do’s and Don'ts ........... 27

• Water Troubleshooting ................................ 28-29

DIAGNOSTICS & TROUBLESHOOTING

• Diagnostic Messages .......................................... 30

• Maintenance Log Recording Area ........... 31-33

Congratulations!

Thank you for the purchase of your new VITA SPA. You are now the proud owner of one of the most comfortable and therapeutic spas in the world.

This Owner’s Manual has been designed to familiarize you with your Vita Spa operations and general maintenance. We suggest that you take some time to carefully review it. Please keep this manual available for reference.

If you have any questions regarding your Vita Spa set-up, operations, or maintenance, please contact your Authorized Vita Spa Dealer.

Consumer satisfaction is important to us. We welcome your comments and suggestions. Please share them with us via telephone, letter, or E-mail us at

Sincerely,

[email protected]

.

Eric Dormoy,

President

DM Industries, Ltd.

PAGE 1

PA G E 2

IMPORTANT SAFETY INSTRUCTIONS

WHEN INSTALLING AND USING THIS ELECTRICAL EQUIPMENT, BASIC SAFETY

PRECAUTIONS SHOULD ALWAYS BE FOLLOWED, INCLUDING T

HE FOLLOWING:

WAR NING – To reduce the risk of injury, do not

permit children to use this product unless they are closely supervised at all times.

DANGER – RISK OF ACCIDENTAL DROWNING.

Extreme caution must be exercised to prevent unauthorized access by children. To avoid accidents, ensure that children can not use the spa unless they are supervised at all times.

A ground terminal

is provided on the control box inside the unit to permit connection of a minimum No. 8 AWG (8.4 mm2) solid copper bonding conductor between this point and any metal equipment, metal water pipe, metal enclosures of electrical equipment, or conduit within five feet (1.5m) of the unit.

DANGER – To reduce the risk of injury to persons, DO NOT remove suction fittings. The suction fittings on this spa are sized to match the specific water flow created by the pump. Should the need arise to replace the suction fittings or the pump, be sure that the flow rates are compatible. Never operate the spa if the suction fittings are broken or missing. Never replace a suction fitting with one rated less than the flow rate marked on the original suction fitting.

Install the spa–so proper drainage is provid-

ed

for the compartment containing electrical compo-

nents.

DANGER – RISK OF ELECTRICAL SHOCK – Install at least 5 feet (1.5 m) from all metal surfaces. (A spa may be installed within 5 feet of a metal surface if each metal surface is permanently connected by a minimum No. 8 AWG (8.42 mm2) solid copper conductor attached to the wire connector on the terminal box that is provided for this purpose). National Electrical Code ANSI/NMFP A70-1993.

(pressure wire connector)

DANGER – RISK OF ELECTRICAL SHOCK- Do not permit any electrical appliances, such as a light, telephone, radio, or television within 5 feet (1.5 m) of the spa.

WARNING – TO REDUCE THE RISK OF INJURY:

A.

The water in a spa should never exceed 40 degrees Celsius (104 degrees F). Water temperatures between 38 degrees C (100 F) and 40 degrees C (104 F) are considered safe for a healthy adult. Lower water temperatures are recommended for extended use (exceeding 10 minutes) and for young children.

B.

Since excessive water temperatures have a high potential for causing fetal damage during the early months of pregnancy, pregnant or possibly pregnant women should limit spa temperature to 38 degrees C (100 F).

C.

Before entering a spa, the user should measure the water temperature with an accurate thermometer, since the tolerances of water temperature regulating devices vary.

D.

The use of alcohol, drugs, or medication, before or during spa use, may lead to unconsciousness with the possibility of drowning.

E.

Persons suffering from obesity or with a medical history of heart disease, low or high blood pressure, circulation system problems, or diabetes, should consult a physician before using a spa.

F.

Persons using medication should consult a physician before using a spa since some medication may induce drowsiness, while other medication may affect heart rate, blood pressure and circulation.

SAVE THESE INSTRUCTIONS

PAGE 2

DO’S AND DON’TS

DO — Make sure the spa is connected to a Ground Fault Circuit Interrupter (GFCI)

protected circuit. This GFCI is required by the National Electrical Code (NEC ) and must be installed by a licensed electrician. Test the GFCI monthly.

DO — Test the water with your hand before entering the spa to be sure it is

c o m f o rt a b l e .

DO — Remember that wet surfaces can be slippery. Take care when entering and

exiting the spa. Only enter by way of the steps in the spa. Do not step on spa edges or filter lids.

DO — Use the thermal cover when the spa is not in use, empty or full. DO — Take steps to prevent the intrusion of sand and dirt into the spa. DO — Maintain proper water chemistry. DO — Clean the filter cartridge weekly. DON’T — Use the spa for long periods of time at temperatures over 104º F. DON’T — Operate the spa without water. Turn the circuit breaker off before emptying the

spa and while it is empty.

DON’T — Store chemicals in the spa’s equipment compart m e n t . DON’T — Open the electrical box. There are no user serviceable parts inside. DON’T — Operate the pump(s) on hi-speed for extended periods of time with the cover

on. Extended hi-speed pump operation will cause a slow heat build-up due to water friction, which could trip the spa’s hi-limit thermostat.

WARNINGS

Prolonged immersion in water that is warmer than normal body temperature can result in a dangerous condition known as HYPE RT HE RMIA. The causes, symptoms, and effects of hyperthermia may be described as follows: Hyperthermia occurs when the internal temperature of the body reaches a level several degr e e s above the normal body temperature of 98.6 degrees F. The symptoms of hyperthermia include dizziness, fainting, drowsiness, lethargy, and an increase in the internal temperature of the body. The effects of h y p e rthermia include (1) unawareness of impending hazard, (2) failure to perceive heat, (3) failure to recognize the need to exit the spa, (4) physical inability to exit the spa, (5) fetal damage in pregnant women, and (6) unconsciousness resulting in a danger of drowning.

WA RNING – The use of alcohol, drugs, or medication can greatly increase the risk of fatal hyperthermia in spas. Persons taking medications that induce drowsiness such as tranquilizers, antihistamines or anticoagulants should not use the spa. Pregnant women and persons with a medical history of heart disease, circulatory problems, diabetes or high blood pressure should consult their physician before using the spa.

Children are especially sensitive to hot water. At no time should children have unsupervised access to the spa. The use of elevated decking may encourage children to climb onto the thermal cover – IT IS NOT DESIGNED

AS A SA FETY OR CHILD RESIS TANT CO V ER !

Every Vita Spa comes with a thermal cover which is provided with locking straps. I n s tall the locks for your child’s safety.

PAGE 3

ALL WIRING TO THE SPA SHOULD BE IN ACCORDANCE WITH ALL

LOCAL AND NATIONAL ELECTRICAL CODES. ALL WIRING SHOULD BE

PERFORMED BY A LICENSED ELECTRICIAN KNOWLEDGEABLE IN THE

OPERATION AND WIRING OF A GFCI PROTECTED SYSTEM.

1 . The spa must be permanently connected

(hardwired) to the power supply. No extension cords or plug-type connections are to be used in conjunction with the operation of the spa. Failure to supply power to the spa that is not in accordance with these instructions could create a potential health hazard and will void both the manufacturer’s warranty and the independent testing agency l i s t i n g .

2 . The National Electrical Code (NEC )

requires that the power supply to this spa must be a dedicated, ground fault circuit (GFCI) prote c ted circuit with no other appliances or lights sharing power on this c i r c u i t .

3 . Refer to the wiring diagram posted inside

the electrical equipment door to determine the current, voltage, and wire size requirements for your spa.

5 . To ensure proper connections use copper

conductors only.

DO NOT USE ALUMINUMWIRE.

6 . The spas’ power terminal strip is located

within the electrical control box.

7. Feed supply conductors through power

supply inlets provided on the spa and install into the control box. Modifications to the electrical equipment box are not p e r m i t ted. Drilling holes in the electrical control box to provide access for wires in areas other than those provided for will void the manufacturer’s warranty and the independent testing agency listing.

8 . Connect wires to terminal block (TBI) color for

c o l o r. All wires must be connected or damage may result.

TIGHTEN SEC U RE LY !

4. T HHN type wire is recommended. The wire

size for the distance of the wire run must conform to NEC and local electrical codes.

PAGE 4

COVER INSTALLATION

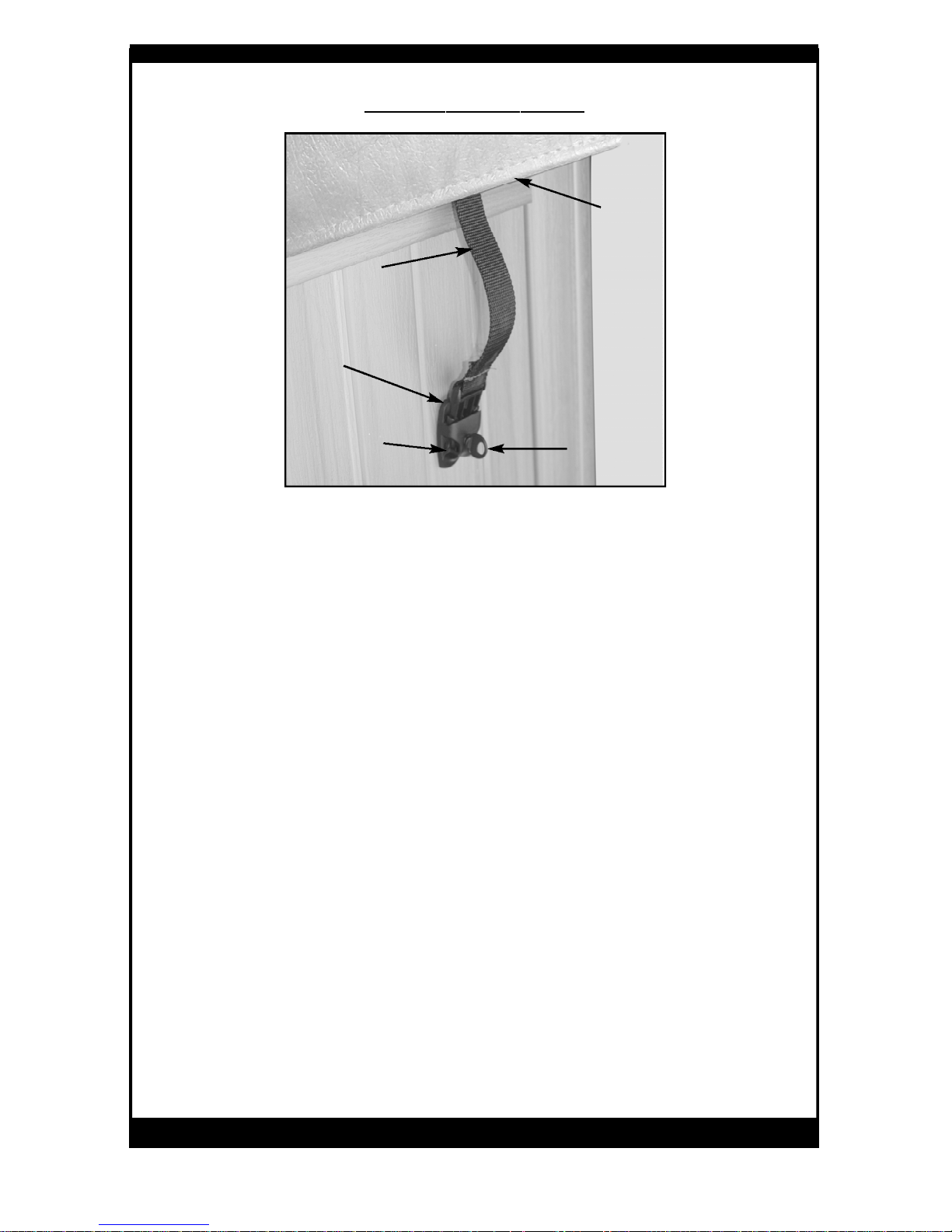

Tie Down

S t r a p

L o c k

C o v e r

S c r ews (2)

Ke y

INSTALLING THE SPA COVER

1. Position the cover squarely over the spa.

2. Position the locks for the tie-downs on the sides of the spa. You should allow approximately 1/2” to

3/4” slack in the straps for ease of insertion into the locks and to allow for material shrinkage during temperature changes.

3. Using the screws provided, attach the locks and insert the cover tie-down straps. Utilizing the cover

anytime the spa is not in use will reduce heat loss and thereby reduce the amount of running time required to make up that loss by the heating system.

Keep cover fastened down at all times when not in use.

DANGER - RISK OF INJURY

To reduce the risk of potential injury:

1. Never leave a spa uncovered or unattended.

2. Never leave a spa cover unlocked.

3. Do not stand, sit, or lie on the cover.

ALWAYS REMOVE SNOW FROM THE COVER. THE COVER HAS NOT BEEN

DESIGNED TO SUSPEND THE WEIGHT OF WET SNOW.

PAGE 5

OPERATING INSTRUCTIONS

Welcome and congratulations on your purchase of the newest a latest technological topside control for hot tub performance and personal comfort.

Before we start getting to know the operations of the topside control, let’s go over a few things. The six buttons alongside the display screen work in conjunction with the displayed boxes. Pressing any one of them will open or activate the item identified in each box.

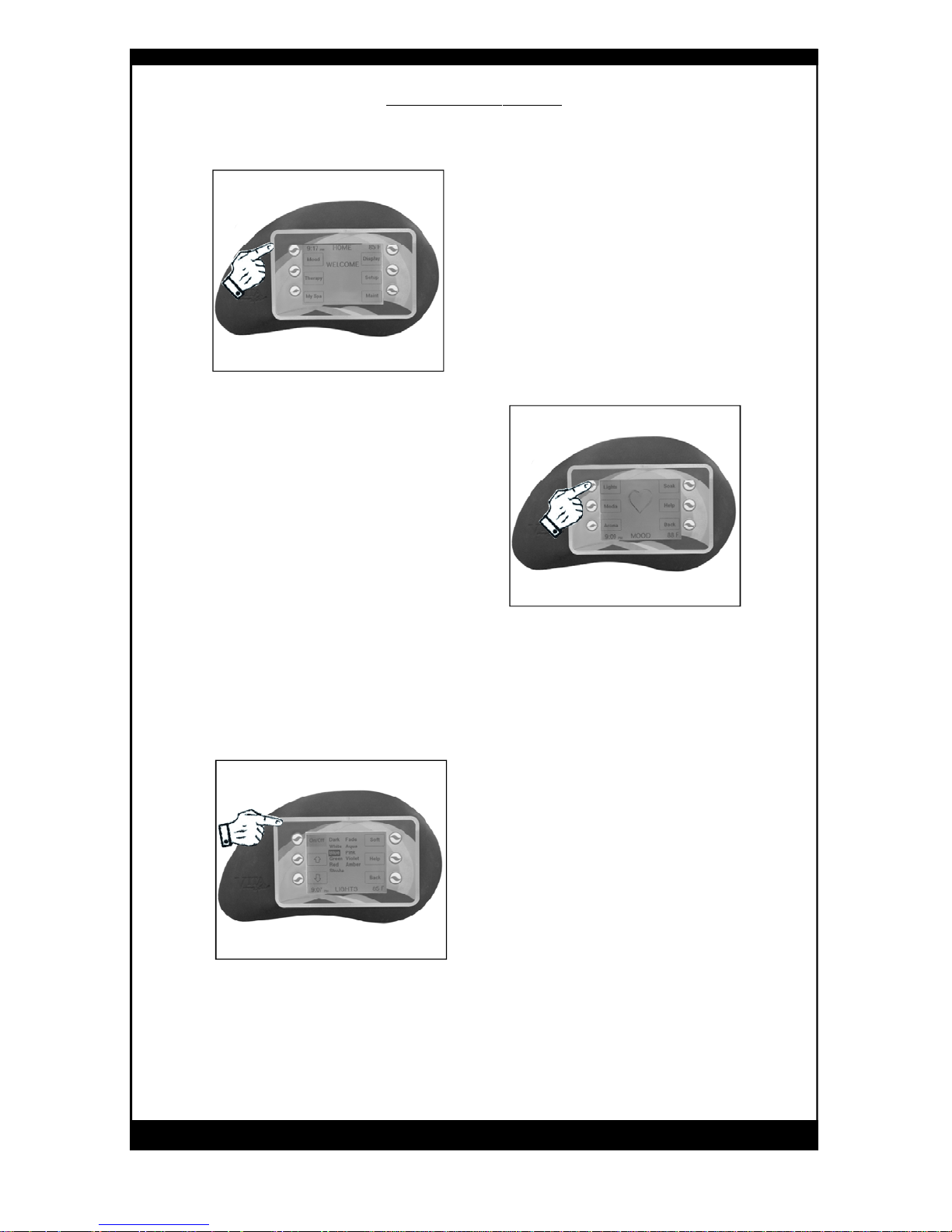

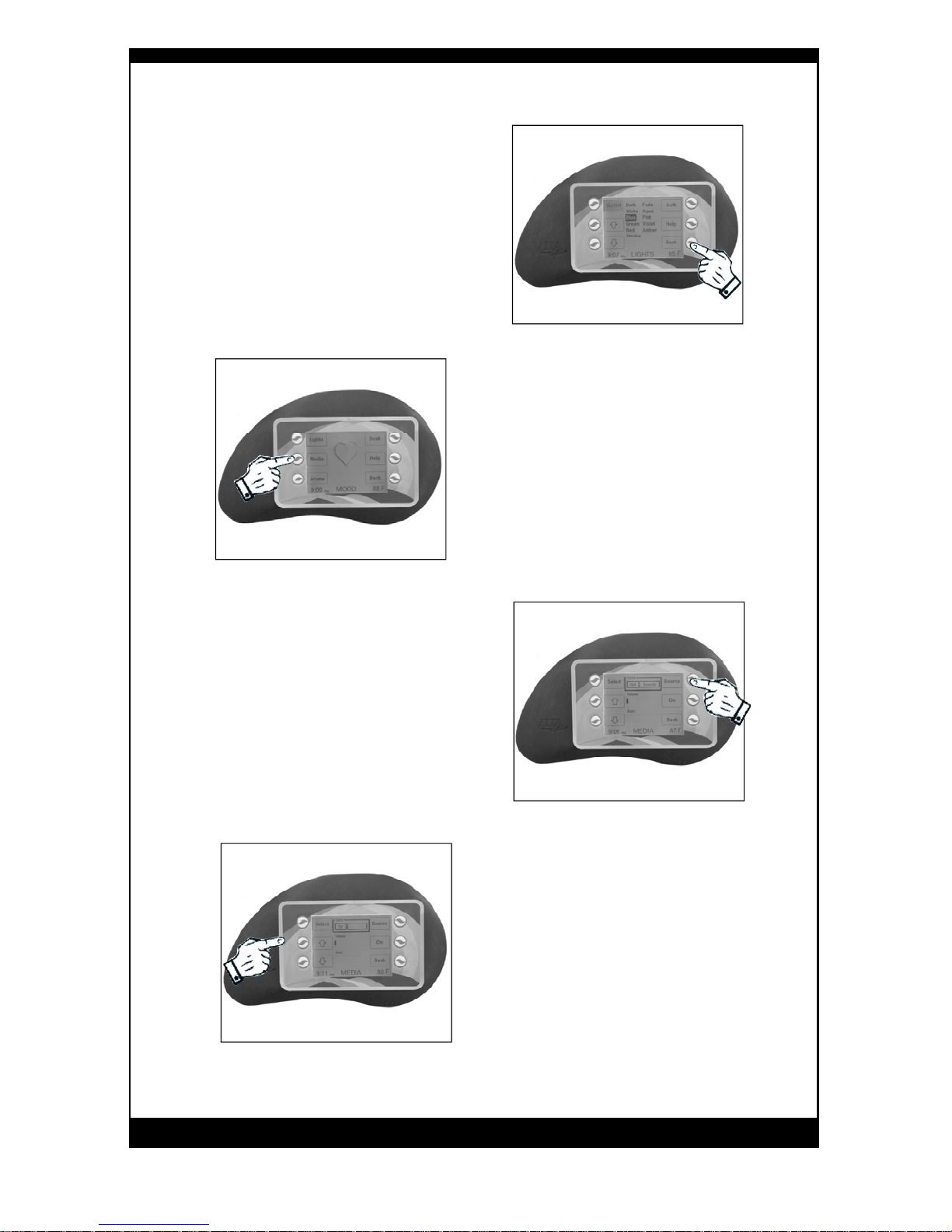

The first step is to touch the button next to the “DISPLAY” box. This will open a screen that allows you to brighten or darken the display.

Use the UP or DOWN arrows to adjust the display to your preferred level of viewing.

Once that is accomplished, you may want to invert the screen to make it easier to read from your position inside or out of the hot tub.

PAGE 6

If at anytime you choose to change your viewing setting to the factory default, merely press “RESET” to return to the default settings

Press the “INVERT” button and the screen will clear and reset itself. As with many computer screens, the change in display may take up to 30 seconds to be completed.

“Screen Saver” appears when display has been idling for more than 1 minute.

Press any button to restore d i s p l a y .

So now let’s go back to the beginning by pressing the “BACK” button.

PAGE 7

USING YOURSPA

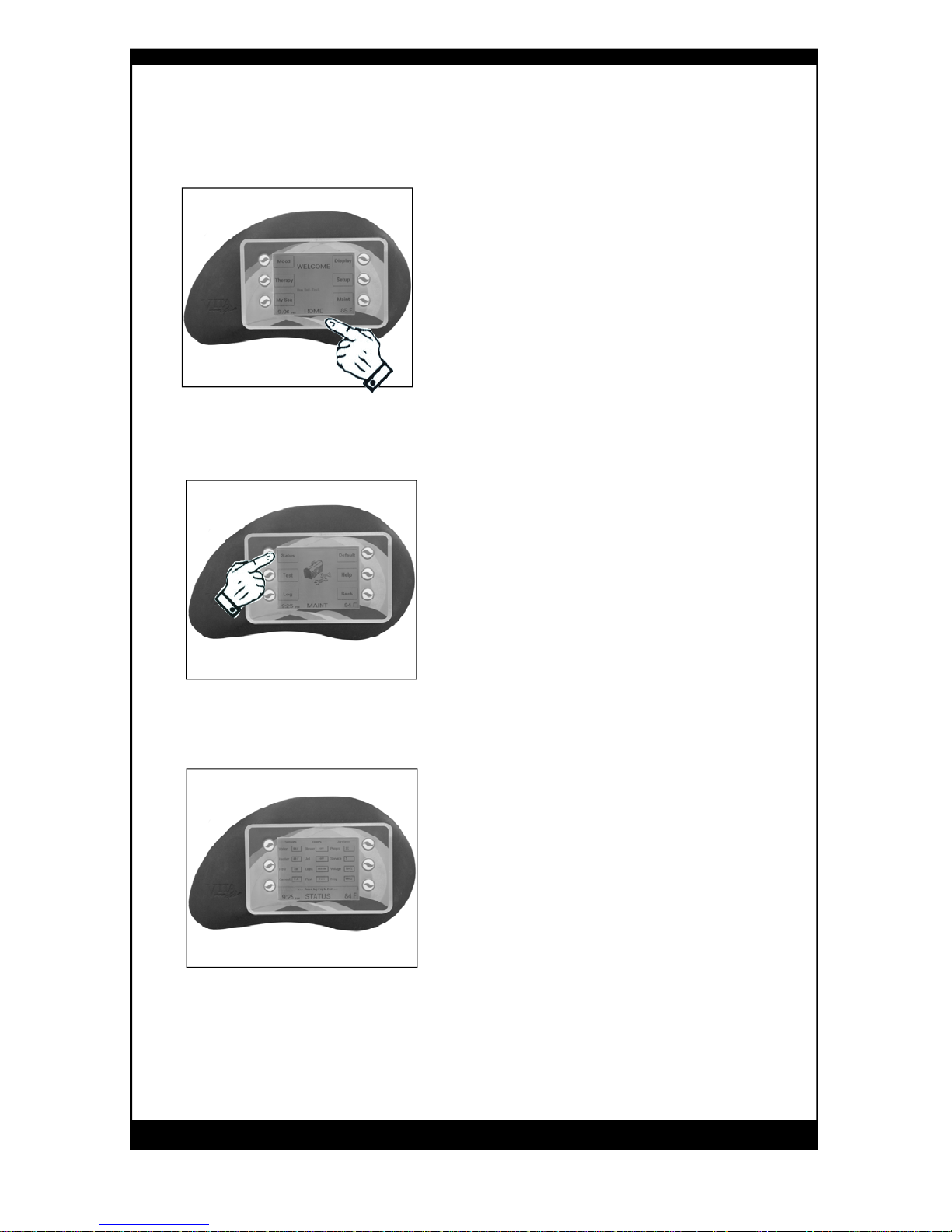

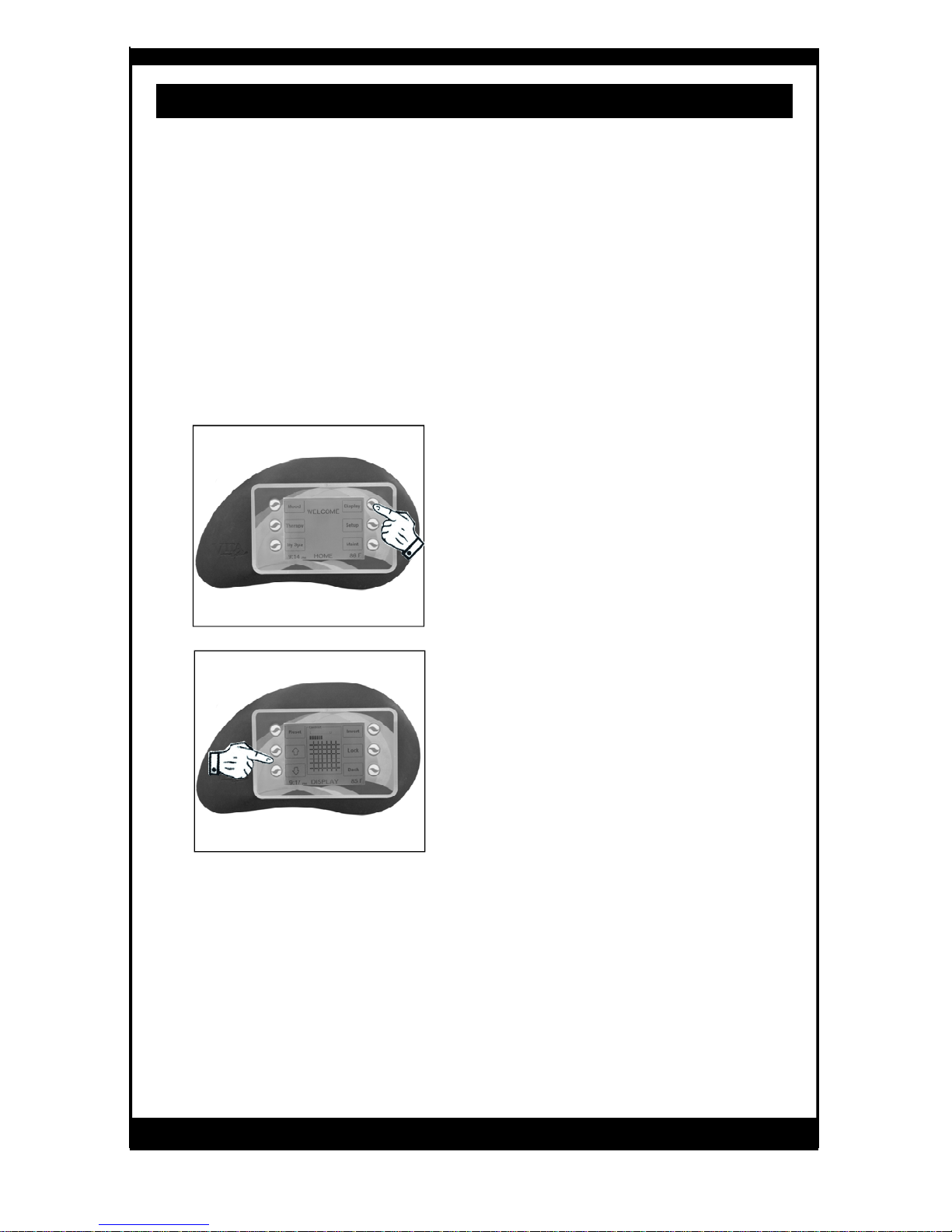

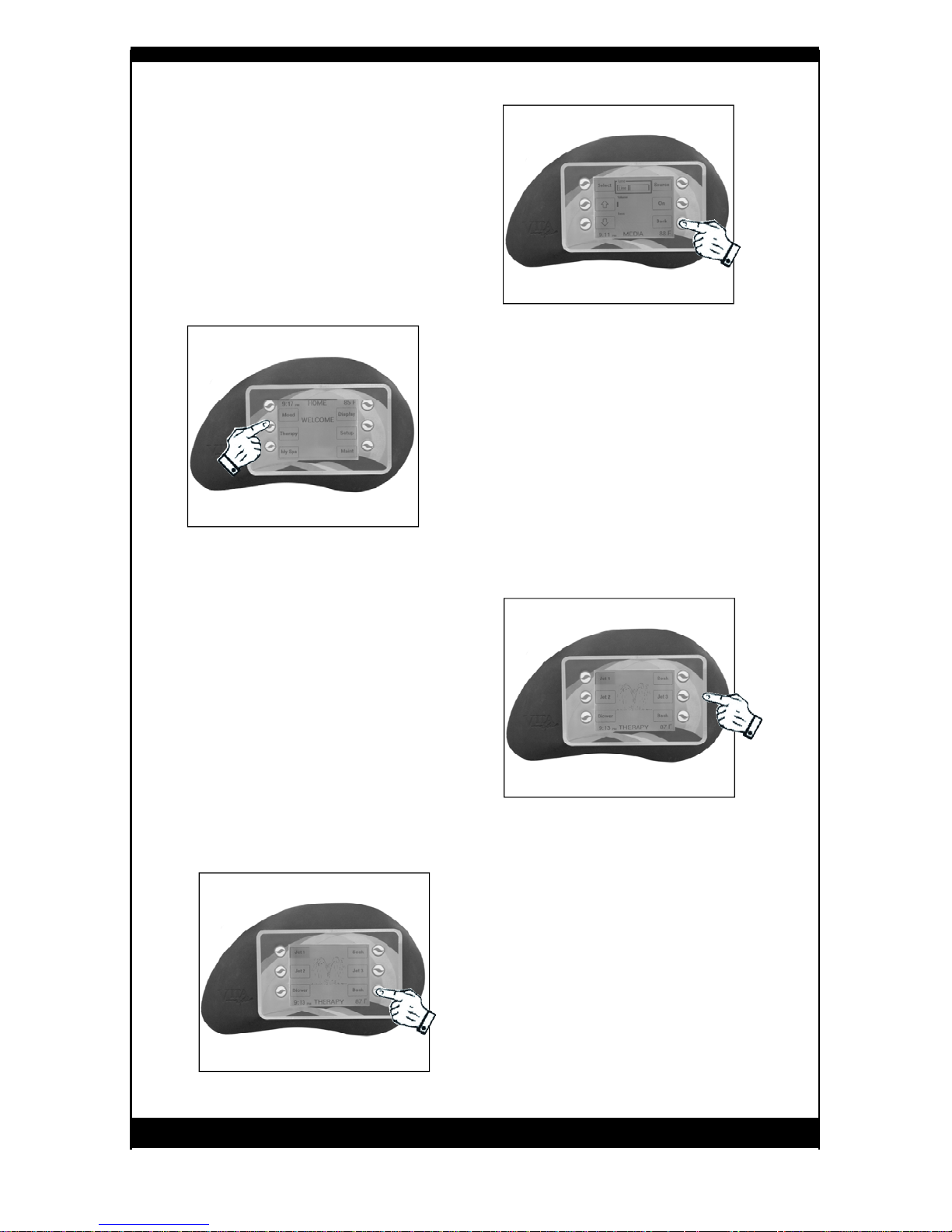

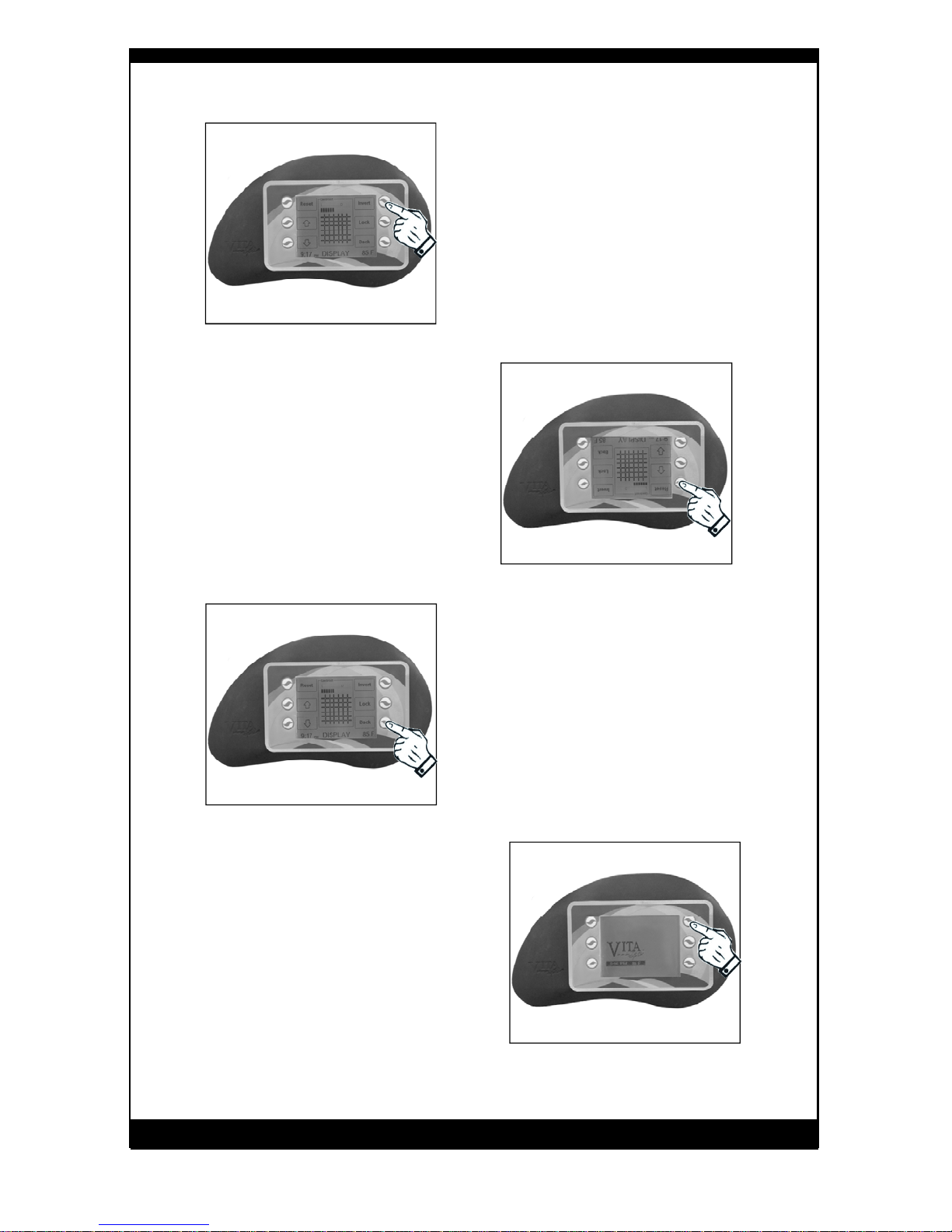

Press “Mood” for spa options.

Press “Help” to view directions for this screen

Press “Back” to return to “Mood” display.

“Welcome” screen give you the option of going into any of the operations

Press “LIGHTS” to cycle through light sequences.

Use “ON/OFF” button to activate lights

Use “ARROWS” to select color The upper right button shows the level of brightness.

Press the button to cycle through SOFT, NORMAL, or BRIGHT lights.

PAGE 8

Use “BACK” to return to “MOOD” display

Press “MEDIA” to enter stereo mode

Use “SOURCE” to cycle through Line, TV, AM, and FM

Use “SELECT” to change from media to “VOLUME”to“BASS”

Use “ARROWS” to adjust accordingly.

PAGE 9

Press “BACK” to return to

welcome screen.

Press “DISPLAY” to enter displaying mode.

Press “THERAPY” to operate the pumps.

Press “SOA K” to operate Low Speed on pumps 1 and 2

Press “JET 1” to operate high speed pump 1

Press “JET 2” to operate high speed pump 2

Press “JET 3” to operate high speed pump 3.

Press “BLOWER” to operate the aroma therapy option.

Press “Back” to return back to main screen.

PAGE 10

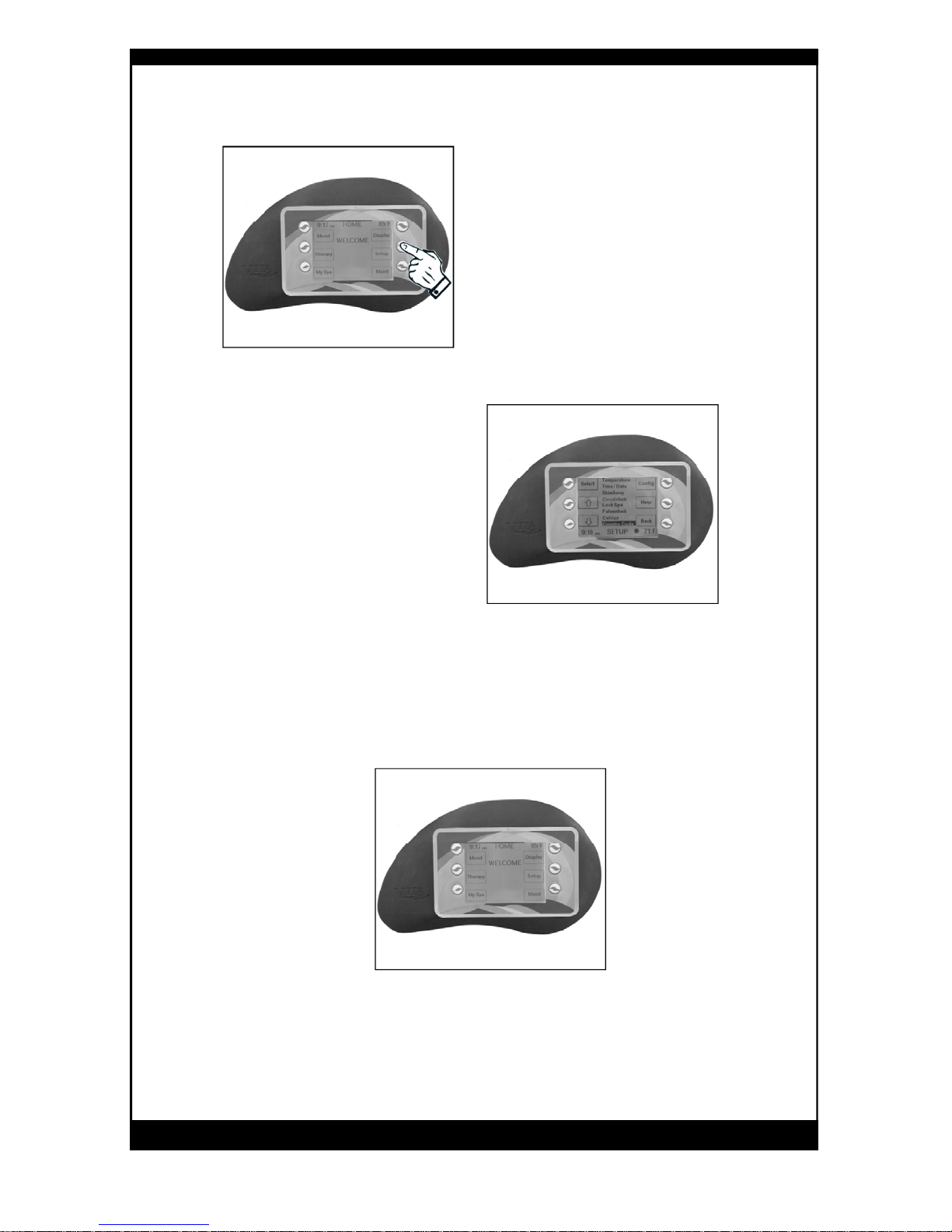

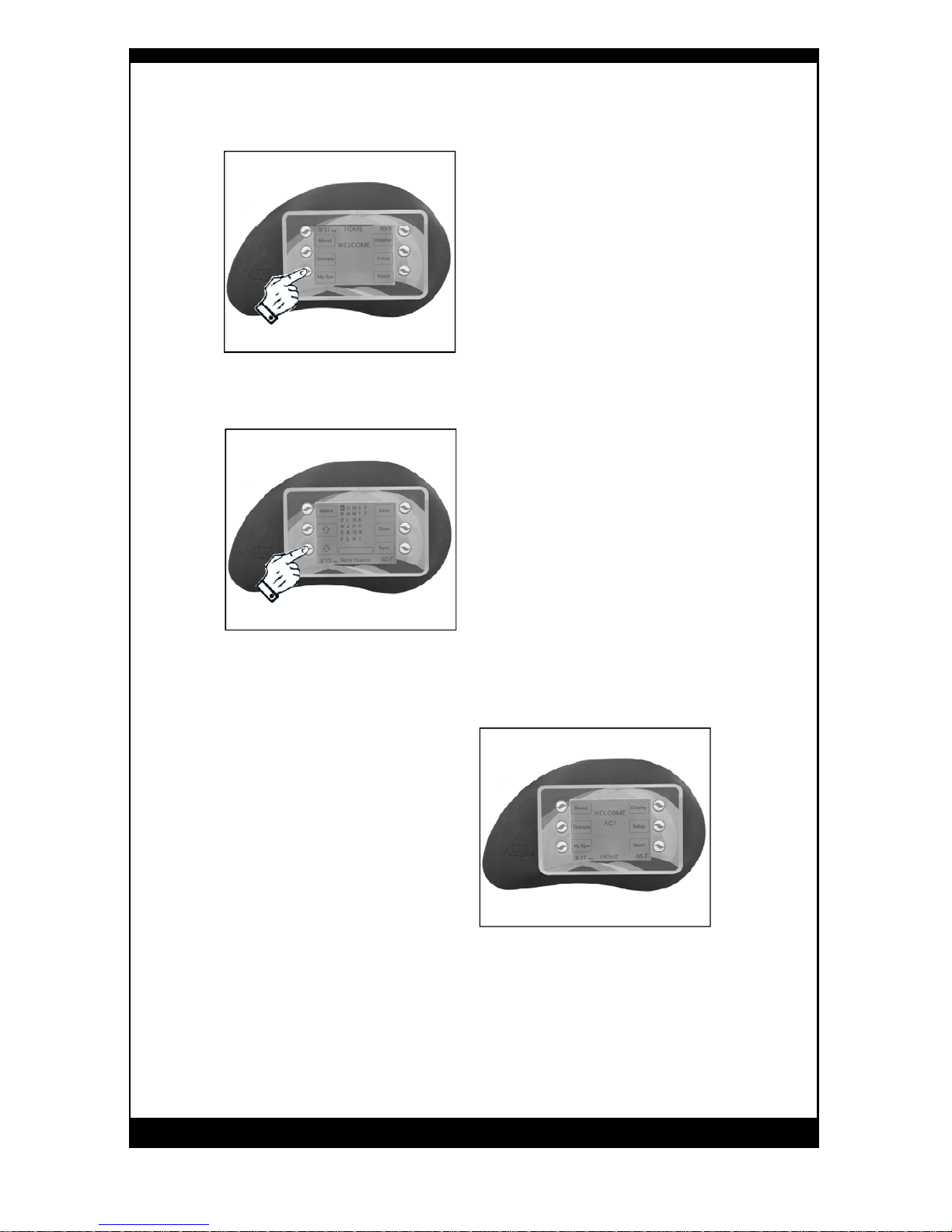

Press “SETUP” to enter section.

The setup section will allow

adjustments to

“TEMPERATURE”

“TIME / DATE”

“SKIM AWAY”

“CIRCULATION”

“LOCK SPA”

“FEHRENHEIT”

“CELCIUS”

“COUNTRY CODE”

Use “UP” and “DOWN” arrows to cycle past the selections. Use

the “SELECT” key to choose your selection then adjust accordingly.

Press “BACK” to return to main screen.

Let’s continue so this may be personalized for you.

PAGE 11

Press “MY SPA” to enter your personal settings.

After pressing “E D I T ” y o u may now enter name then “SAVE”. You will notice your name displayed on main screen.

The name entered and all your own personal setting are saved on the system

The set programming name setting will appear on screen in the “WELCOME” area

The set programming name setting will appear on screen in the

“WELCOME” area.

PAGE 12

If there is an error that the spa has found it will flash “RUN SELF TEST” will flash on your screen.

You then press “MAINT” to enter the maintenance mode you will have to be in.

Press “STATUS” to view status of pump setting, amp draw, and other settings

Status screen, press any button to return

PAGE 13

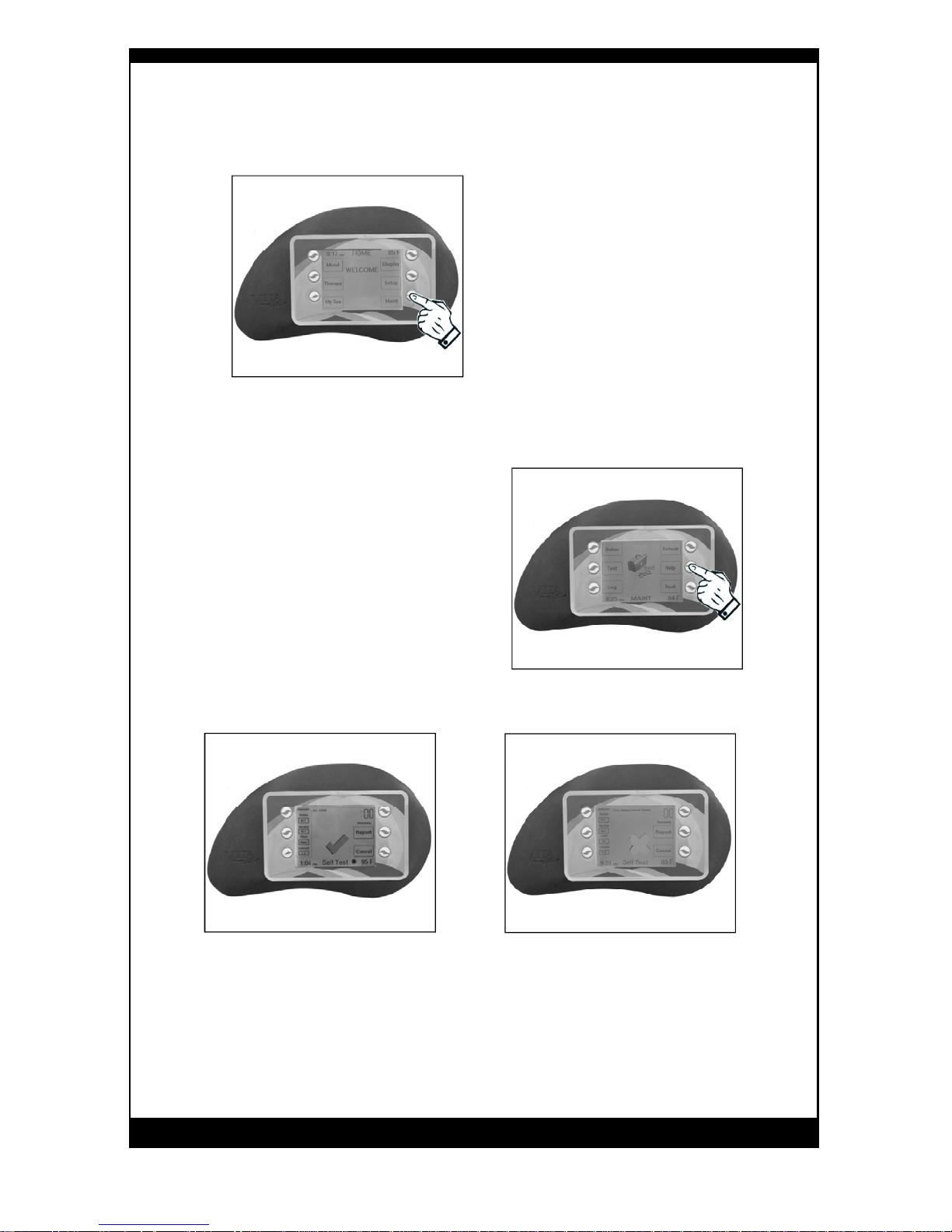

Press “TEST” to enter systems check.

Press “BEGIN” to start 4:00 minute countdown for testing.

Press “MAINT” to enter servicing section.

“ALL GOOD”

No problems found

“Error: ”

Problem found will display

PAGE 14

JETOPERATION

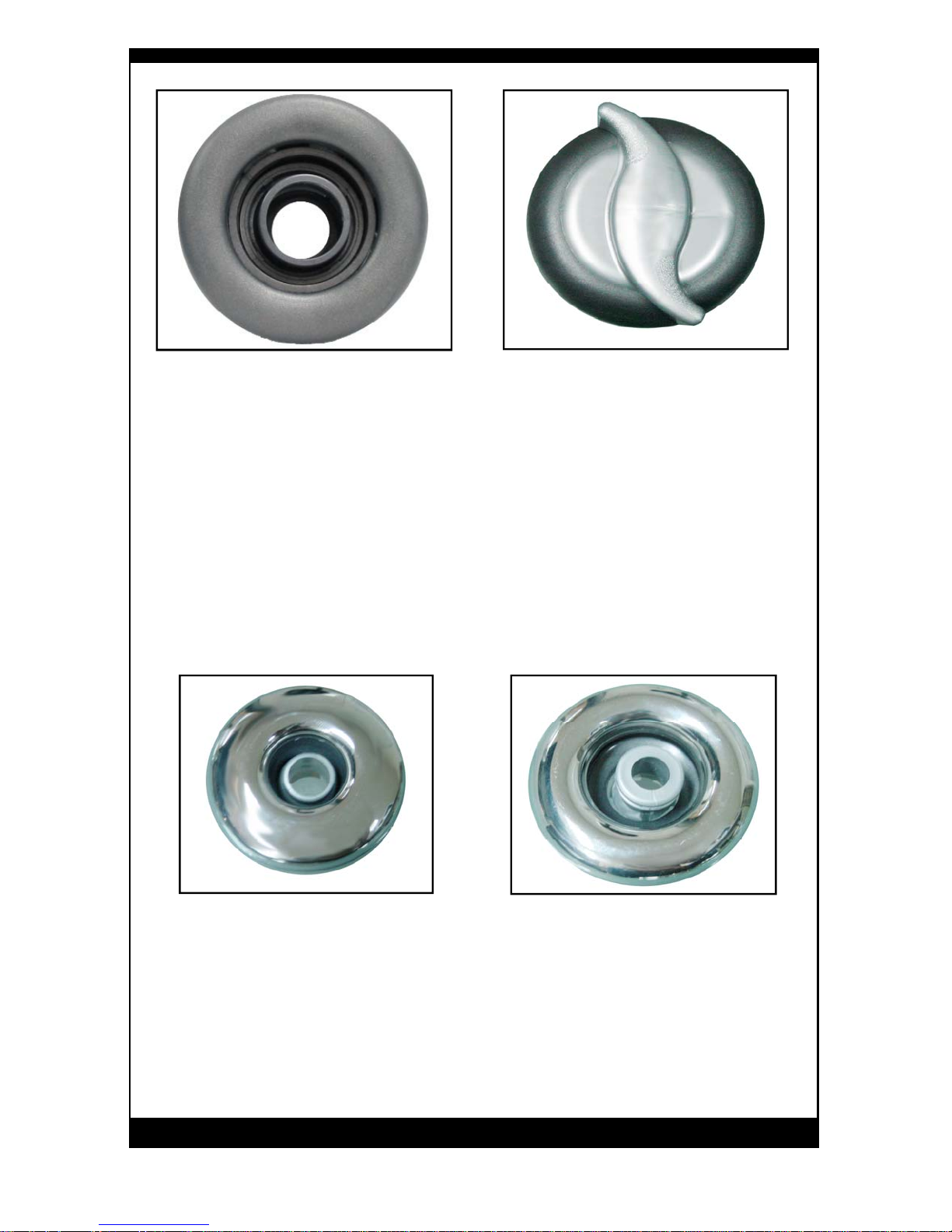

Your Vita Spa is designed with a unique jet system to allow you to select a wide variety of massage patterns. The following is a description of the various types of jets and their operation you may use to tailor your spa to your specific massage needs.

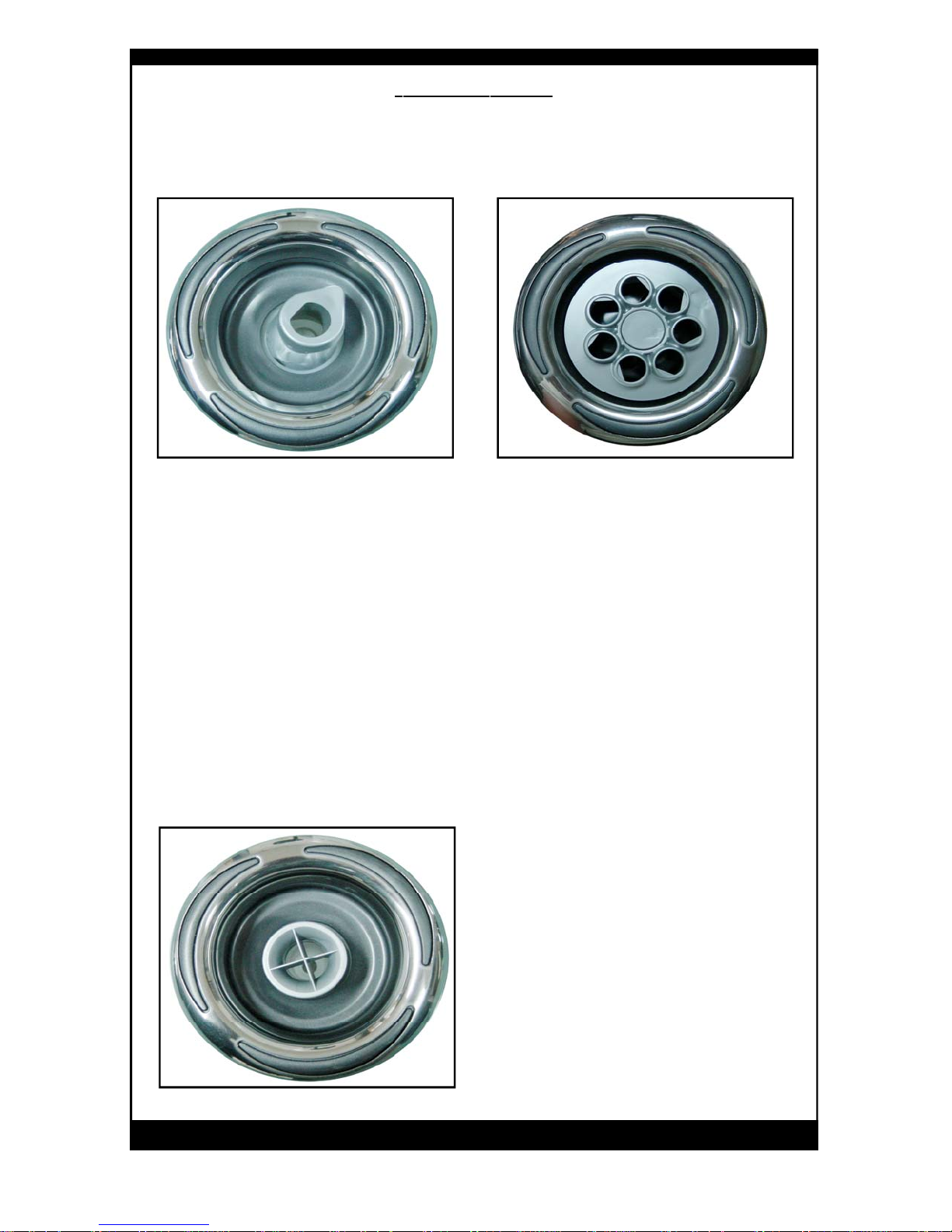

(A) SELECT—A—SWIRL™ JETS

The water flow direction is adjustable by rotating the directional jet nozzle. The amount of pressure can be adjusted by rotating the outer rim of the jet(s) clockwise for minimum pressure and counter–clockwise for maximum pressure. Pressure may also be varied by the use of the air control.

This jet can be removed for cleaning by turning the outer ring counter–clockwise until you feel it stop. Then slightly apply pressure in the same direction to overcome the “stop”. The jet can then be pulled out of the jet body for cleaning. To install the jet, insert the jet back into the body and turn clockwise.

(B) PULSATOR JETS

Interchangeable with SELECT–A–SWIRL™ and QUAD STREAM™ jets. Water pressure can be adjusted by rotating the outer rim of the jet(s) clockwise for minimum pressure and counter–clockwise for maximum pressure. Pressure may also be varied by the use of the air control.

This jet can be removed for cleaning by turning the outer ring counter–clockwise until you feel it stop. Then slightly apply pressure in the same direction to overcome the “stop” . The jet can then be pulled out of the jet body for cleaning. To install the jet, insert the jet back into the body and turn clockwise.

(C) QUAD STREAM™

Interchangeable with SELECT—A—SWIRL™ and PULSATOR JETS. It is one powerful jet, whose force, redirected into four different directions, results in strong, even vibrations to soothe those overworked calf muscles.

PAGE 15

(D) TURBO JET

The Turbo Whirlpool Jet is not individually adjustable. To adjust the flow, you must open or close air control valve.

The Turbo Whirlpool Jet utilizes a high flow design to create a powerful whirlpool current throughout the spa. It's great for working out the hard to relieve knot. For cleaning purposes, the Turbo Jet face can be removed by turning the face counter clockwise. Re-install by pushing the face in and turning clockwise.

(E) THREE—WAY POWER DIVERTER

VALVE

This valve is functional when the primary or s e c o n d a r y, two-speed p umps are operating. Water may be diverted to two individual sections of jets or a combined operation of both sections.

Do not adjust when pump is set at high speed.

For the operation of a specific spa, review the following:

(F) CLUSTER JET

These jets work as a team, that’s why they’re usually found in groups of two or more. They can deliver vigorous pinpoint action for a therapeutic effect, or you can turn into soothing massage with just a twist of your finger.

(G) MIDI DIRECTION & MIDI

SWIRL

(TENSION EASE™)

Creates a power ful massaging action that penetrates deep into your upper back, neck and shoulders—the areas most commonly afflicted by tension. Adjust the pressure to your own comfort level.

PAGE 16

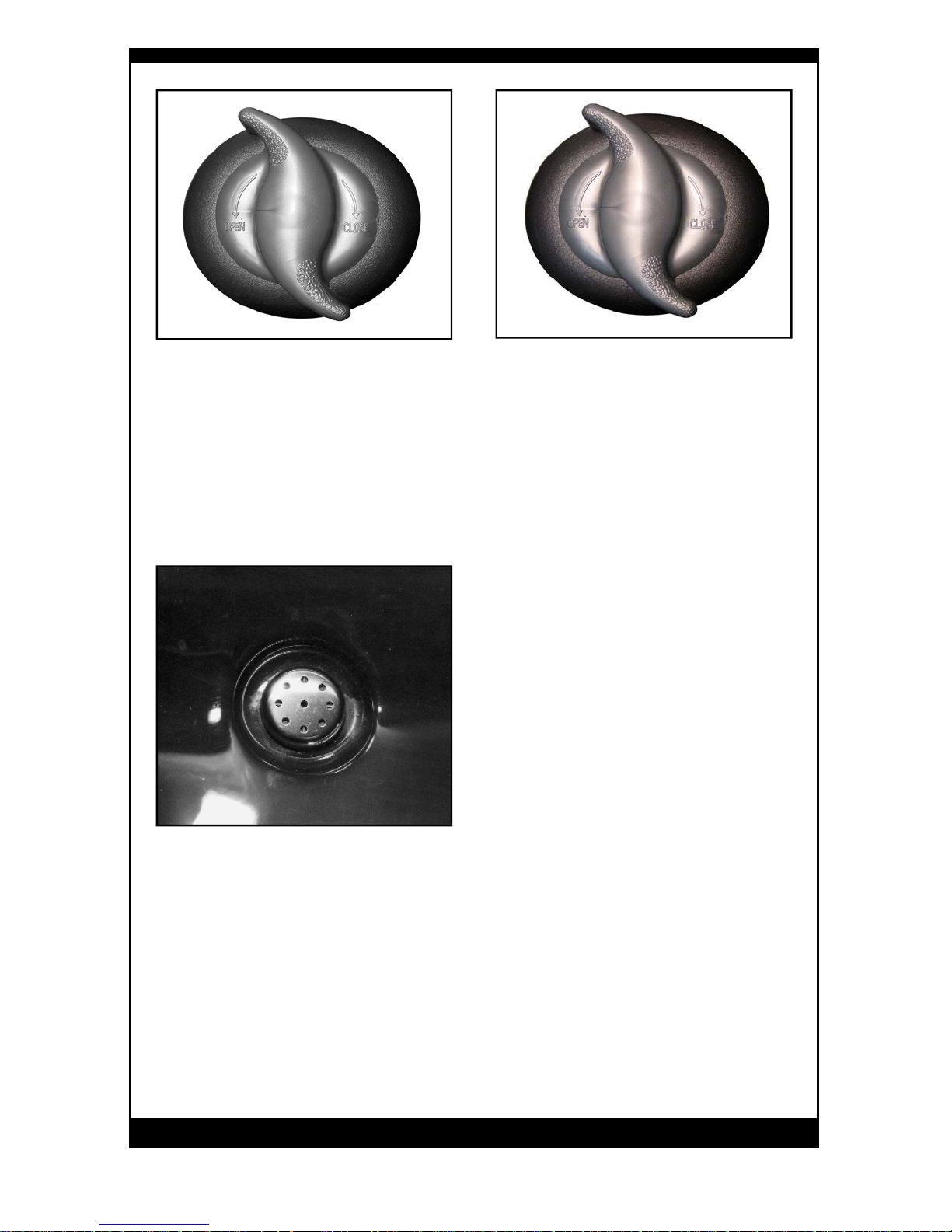

(H) AIR CONTROL

(I) WATERFALL OPERATIONS

The Air Controls are used to introduce air into the water jet stream. They allow the user to increase (open) jet pressure or decrease (close) jet pressure as desired.

(J) FRAGRANCE INJECTORS

On the Nuage and Romance model spas. This valve increases or decreases volume of water from the waterfall. On the Nuage, a second valve of this type increases or decreases the volume of water from the Colorado River Jet.™l

These injectors blow thousands of air bubbles while at the same time allowing the VitAroma scents to be released.

PAGE 17

VITAROMA

INJECTION SYSTEM

VitAroma therapy offers the unique benefits of combining Aroma and Hydrotherapy. Simply defined, aromatherapy is the practice of using pure essential oils – the highly concentrated extracts of plants, herbs, and flowers – to improve one’s feelings of well being through the acute sense of smell.

Your spa is equipped with a unique “Above the Water” aromatherapy induction system. To activate VitAroma, insert one of Vita Spa’s exclusive aromatherapy scents and turn on the VitAroma Induction System. The system is activated when the air blower button is depressed. This system dispenses aromatherapy through the small ports adjacent to the spa pillows and through the underwater air injection system. Experience the wonder and pleasure of aromatherapy. It will soothe your senses and invigorate your spirit.

To extend the lifespan of the VitAroma beads, it is recommended that they be removed from the spa and stored in the resealable packet after each use. VitAroma aromatherapy scents are available exclusively from Vita Spa Dealers.

PAGE 18

WATER PURIFICATION SYSTEM

VITAZONE

Located in the equipment compartment, the VitaZone ozonator converts O form, it acts as an oxidizer, and reduces the need for sanitation (bromine or chlorine).

into O3. In such

2

BIOZONE

The L700C series spas are equipped with our exclusive BiOzone purification system. BiOzone is the combination of ozone (a strong oxidizer) and Sparkle Clear, our trademarked mineral sanitation system.

SPARKLE CLEAR (L700C Series)

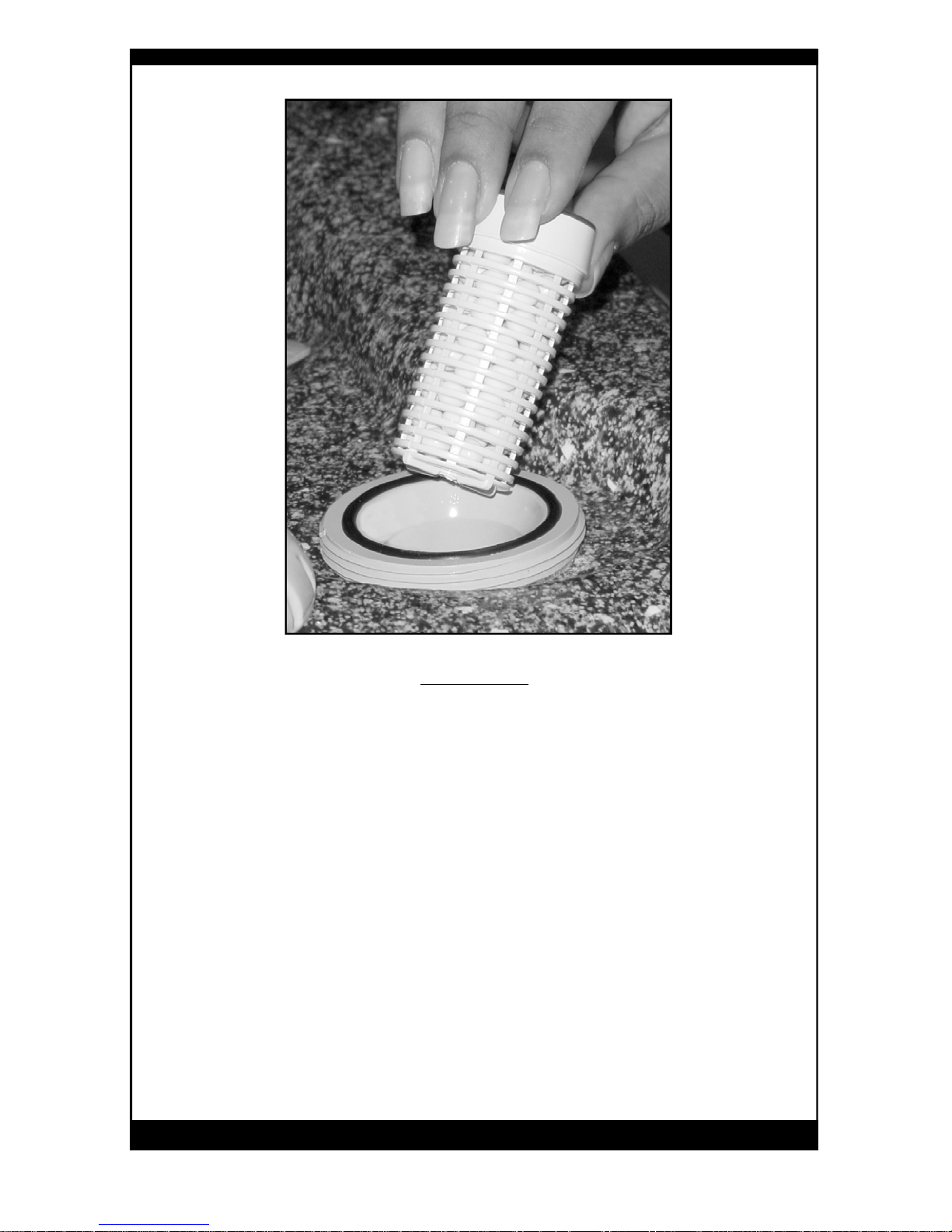

The cartridge is housed in your filter attached to the filter cap. It works in conjunction with the Vitazone ozonation system. Sparkle Clear sanitation procedures are different than conventional means, therefore you must carefully follow the Sparkle Clear instructions.

PURIFIER START UP

Upon filling your spa, balance the water per dealer guidelines. Add 1 teaspoon of dichlor to the spa per 250 gallons.

EVERY DAY

No action required.

BEFORE EACH USE

Add 1 tablespoon of potassium peroxymonosulfate gallons

ONCE A WEEK (if required) Per “Brand” guidelines, shock with a chlorine or bromine shock.

(MPS) to spa per 250

EVERY 4 MONTHS

Drain and refill spa. Replace SPARKLE CLEAR cartridge.

AS NEEDED

If water looks hazy, shock treat with 1 teaspoon of dichlor per 250 gallons.

N OT E : Potassium peroxymonosulfate may cause a lowering of the pH and total alkalinity of your spa water. Please monitor pH and total alkalinity at least once per week and adjust accordingly.

PAGE 19

SPA MAINTENANCE

Your Vita Spa is manufactured with the highest quality and most durable materials available. A spa care and maintenance program is recommended to increase your comfort, maintain the spa’s reliability, and protect your investment.

FILTER MAINTENANCE

Vita Spas are designed with the most efficient top loading filtration system in the industry. Filter maintenance is the most critical factor in keeping your spa water clean.

TO CLEAN THE FILTER:

(NOTE: Never run the spa without a filter installed)

Remove the cartridge and spray it with a garden hose. It will be necessary to rotate the cartridge while spraying so as to thoroughly remove the debris lodged between the filter pleats.

After allowing to dry, inspect the cartridge for calcium deposit (scaling) or an oil film. Rapid mineral build-up from hard water, or oil build-up from the use of oil-based water scent or body oil may coat the filter cartridge. A filter cleaner to soak the cartridge is available from your Vita Spa dealer and should be used as part of your spa maintenance. Use a rag to remove any debris at the bottom of the filter housing and inside the filter screen. Replace the cartridge in the filter housing. We recommend the use of a spare filter. This way one can be soaking and cleaning while you continue to enjoy the use of your spa.

DRAINING YOUR SPA

Detergent residues from bathing suits as well as s o a p f i l m f r o m y o u r b o d y m a y g r a d u a l l y accumulate in the water. Foam inhibitors will suppress the foam but will not remove the soap from the water. Eventually, the soap build-up in the water will concentrate enough to leave an unclean feeling on the user’s skin, causing sudsing and make the water impossible to clarify. Depending on the amount of soap input, the spa water should last between two and three months.

TO DRAIN YOUR SPA

Turn the power off at the GFCI breaker. To locate drain look at the front base of the spa. Once located remove cap by turning it counterclockwise. Attach a garden hose to the bib that is located directly behind the cap, once removed. Route the outlet of the hose to an appropriate draining area. Twist body then pull. The spa will empty by gravity. Siphon or scoop out the balance of the water.

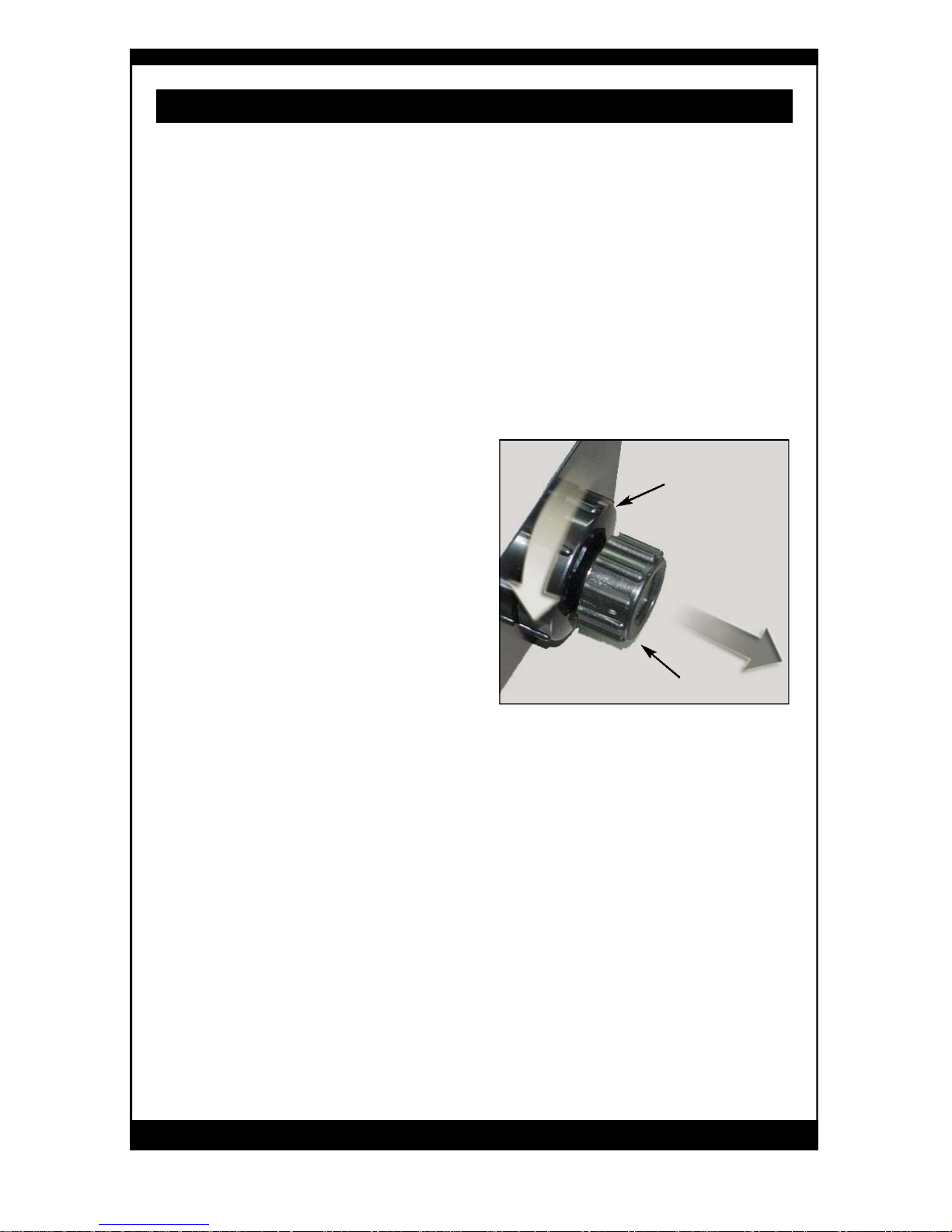

Drain Body

Drain Cap

IMPORTANT: Spa water with a high sanitizer

level may harm plants and grass. If you are draining your spa for the winter, be sure to fully drain water from the pipe by disconnecting the two unions at the gate valves found by each of the two speed pumps and the two unions found by the circulation pump. Drain the water pumps by removing the pump plug. Then reinstall the pump plugs. Remove the filter and clean as required. Inspect the spa shell and clean as required.

Refill the spa BEFORE restoring power to it.

PAGE 20

SPA MAINTENANCE

WINTERIZING YOUR SPA

Your Vita Spa has been designed and engineered for year-round use in any climate. If the spa will not be used for prolonged periods of time, contact your local authorized service station to properly drain and protect your spa.

EXCEL-PLUS CABINET MAINTENANCE

The exterior of your Vita Spa cabinet is made from a newly formulated high strength material that is factory stained and sealed. Depending on the location and exposure of the spa to nature’s elements, it is recommended that you clean the cabinet once or twice a year with warm water and a mild soap.

COVER MAINTENANCE

Your cover is manufactured from a durable marine grade, UV resistant material. Even so, monthly cleaning and periodic conditioning is recommended to maintain its beauty. To clean and condition the vinyl cover: Lightly spray the cover with a garden hose to rinse it and remove the debris. Using a large sponge or soft cloth and a mild soap solution (1 teaspoon dish washing liquid with 2 gallons of water), scrub lightly in circular motion. Then rinse it thoroughly with plenty of water. Condition the vinyl after cleaning by applying a thin film of vinyl conditioner. NOTE: To remove tree saps, use lighter fluid (not charcoal lighter but the kind used in cigarette lighters). Use sparingly and rinse with mild soap solution afterwards. Wipe dry.

CARE OF ACRYLIC SURFACE

To maintain the surface of your spa, simply clean with a soft damp cloth (a mild detergent is okay) or with any glass cleaner. DO NOT clean the surface with any type of abrasive as it will dull the surface and natural luster of the acrylic. DO NOT use any type of oil based solvent. Such products can be very harmful to the surface of the spa and will void the surface warranty of the spa.

SPA LIGHT COLORED LENS REMOVAL

In your owners packet you will find colored lenses for your spa light. They can easily be installed or removed by placing them over the spa light and gently pushing on the outer edges to install and pulling along the edges to remove.

S P A L I G H T

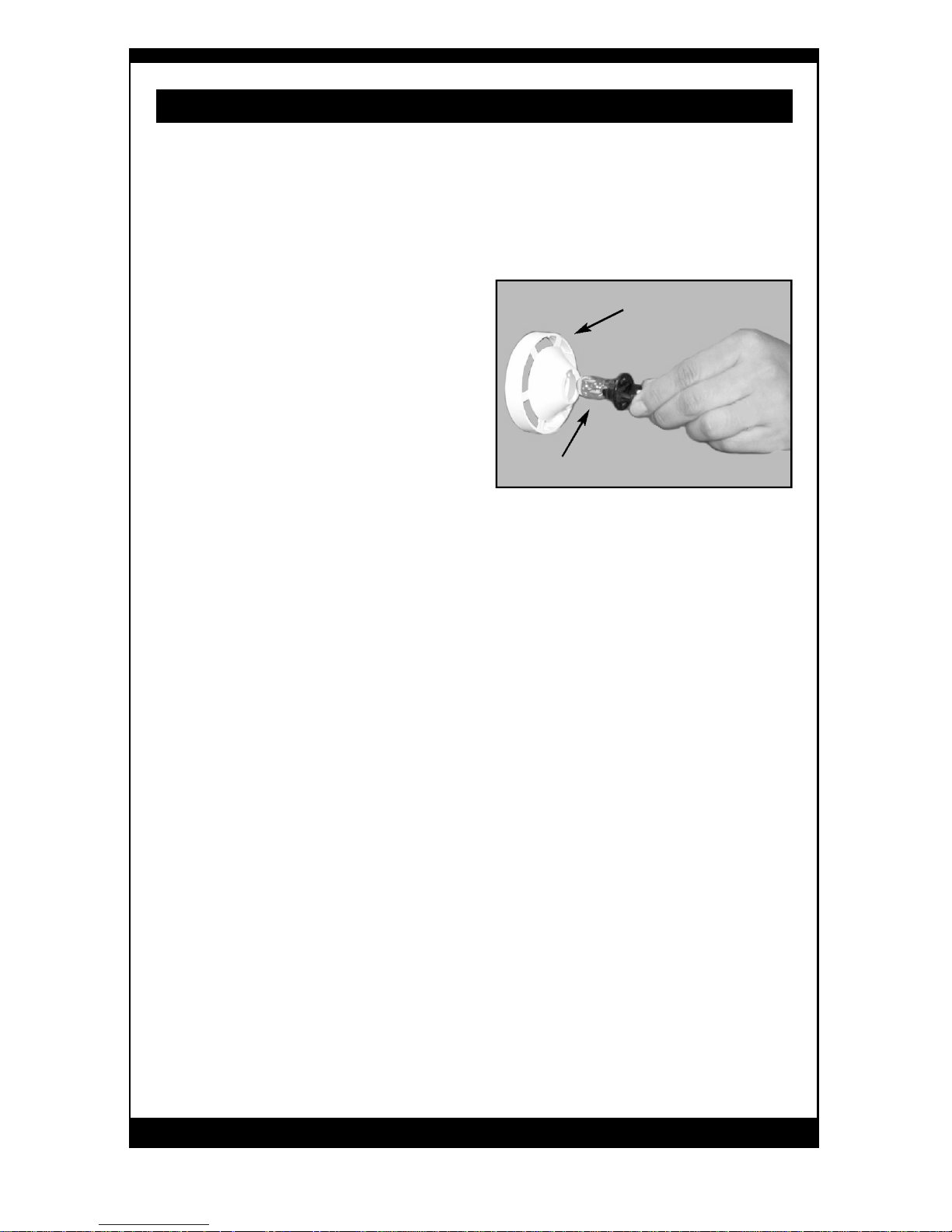

LIGHT BUL B

LIGHT BULB REPLACEMENT

1. Turn off the power to the spa.

2. Remove the front panel of the spa.

3. Locate the spa light.

4. Turn the bulb counter - clockwise 1/4 turn to remove from its socket

5. The replacement bulb is locked into place by turning it clockwise 1/4 turn

6. Close up the cabinet and turn the power back on.

7. Check the Top Side display and adjust the time.

CARE OF SPA PILLOWS

The spa pillows will provide years of comfort if treated with care. Each pillow has been positioned above the water level to minimize the bleaching effects of chlorinated water and other spa water chemicals. It is recommended that pillows be removed and cleaned each time the spa itself is cleaned. A mild soap and warm water works best in removing body oils. ALWAYS rinse the pillows off thoroughly after applying any type of soap to assure that no residue remains. If you are winterizing your spa or do not plan on using it for a while, it is best to remove the pillows until the next use. Pillows should always be removed whenever the spa is being superchlorinated.

PAGE 21

S PA M A I N T E N A N C E

DIVERTER VALVE

Over a period of time sand or grit may intrude into your spa. The diverter valves may become difficult to turn. It is important that the debris be removed as soon as possible to avoid damage to the valve.

1. Turn off the power to the spa.

2. Remove the diverter handle by pulling upward and gently rocking it.

3. Grasp the collar and turn it counterclockwise.

4. Lift the valve body up.

5. Wipe the valve body and interior walls of the valve with a soft cloth.

6. Inspect the valve and valve walls for any grooves caused by the debris.

7. Using a fine grit sandpaper, smooth down any deep furrows.

8. Wipe the valve and wall down with a damp cloth and remove any debris left behind.

9. Lubricate the valve body with a waterproof lubricant.

PRIMING THE PUMP

Every so often after a spa is filled or refilled a pump is operating but the water is not flowing from any of its jets. This is a sign that the pump did not properly prime.

To correct, please perform the following:

1. Turn off the power to the spa.

2. Remove the front cabinet panel.

3. Turn the power back on and locate the pump by listening to the pumps and cycling them to determine which pump is not primed.

4. Turn the power back off.

5. Locate the union on the top of the pump and loosen it to allow the air to escape. When water begins to flow out of the union, hand tighten the union.

6. Turn the power back on to the spa. Activate the pump and check to make sure that the union is tight enough to keep from leaking.

7. Reinstall the cabinet panel and adjust the Top Side display for time.

10. Reassemble the valve and restore the power to the spa.

11. Check the Top Side display and adjust for time.

PAGE 22

Fountain Jet (L700C)

1. Remove cover off of Fountatin Jet

2. Using a pair of needle nose pliers pinch the nozzle and pull.

3. Remove bottom of nozzle

4. Using warm soap & water to clean any debris found.

5. Put pieces back together

6. Slide nozzle into jet over the light and push as far as possible.

7. Replace cover back on jet.

WATER QUALITYAND MAINTENANCE

G E N E R A L G U I D E L I N E S F O R W AT E R QUALITY MAINTENANCE

Maintaining water quality within specific limits will enhance your enjoyment and prolong the life of the spa. Safe, comfortable and clean spa water is a fairly simple task to achieve, but it does require attention because of the numerous factors that can alter it. There is no one formula to be followed because of the variables, i.e. quality of the water used to fill the spa, water temperature, user load, etc. For specific guidelines for water quality maintenance, consult your Vita Spa dealer who can assist you to develop a program based on your specific needs. Disregard for water maintenance will result in poor soaking conditions, damage your spa investment, and possibly void your warranty.

SPA WATER MAINTENANCE CONSISTS OF T HR EE SEPA RATE, EAS I LY DEVELO PE D PROGRAMS:

Sanitizing and maintaining a safe level of sanitizer in the spa water. Balancing the pH and maintaining the recommended mineral content level. Achieving and maintaining water clarity.

SANITIZING

To destroy bacteria and organic compounds in the spa water, a sanitizer must be used regularly. The use of ozone as an oxidizer has proven to be an effective method to help maintain water cleanliness, but a residual chemical sanitizer such as bromine, the most common sanitizer used in spas, must be used in conjunction with oz o n e . Do not drop bromine tablets directly in the spa. The use of a floater is required to dispense safely and properly the right amount of bromine in the spa water. A bromine residual of 2 to 3 PPM is generally considered desirable. A two-part bromine system or granular chlorine (Dichlor) are also acceptable sanitizers.

I M P O R T A N T : N E V E R U S E C H L O R I N E TABLETS (TRICHLOR) IN YOUR SPA.

This chemical can have an extremely corrosive effect on certain materials in the spa. Also, the use of liquids, chlorine or acid, are not recommended. Damage caused by use of any chemical, is not covered under the spa warranty.

OZONE WATER PURIFICATION SYSTEM

The use of Ozone has become very popular in spas as a water treatment method. In addition to being a strong oxidizer, Ozone makes spa waters easier to maintain, creates “softer” water with no skin or eye irritation, reduces chemical sanitizer by up to 70% and helps provide a pleasant, sparkling environment.

Used in conjunction with a residual chemical sanitizer such as bromine, Ozone provides the safest and most effe ctive way to ensure maximum water quality.

Your spa comes equipped with a 24 - h o u r BIOZONE water purification system, the most efficient and effective system to introduce ozone in spa water. After being filtered and heated, the spa water goes through a venturi ozone injector known as a “Vitazone Injector”. The Vitazone Injector draws ozone from a high efficiency ozone generator and mixes it under pressure with the water. The ozonated water travels around the spa before it is discharged into the main body of water. The Vitazone injector and t r a v e l t i m e p r o v i d e o p t i m u m o z o n a t i o n effectiveness with minimum undissolved ozone release.

pH CONTROL

pH is a measure of acidity and alkalinity of the spa water. The recommended pH for spa water is 7.4 to 7.6 PPM. Below 7.0 (considered neutral), the spa water is acidic and can cause damage to the heating system. Above 7.8 the water is too alkaline and can result in cloudy water and scale formation on the spa shell, heater and cover.

PAGE 23

IMPORTANT WATER MAINTENANCE PROCEDURES

DAILY

Check water level. Keep water above bottom of skimmer

door and a minimum of 1” above highest jet.

3 days a week

Check and adjust chlorine level to 1.0 to 3.0 ppm

if chlorine is used as sanitizer. If Sparkle Clear is used, check weekly.

WEEKLY

Test the spa water using 3-way water test strips

Adjust pH and total alkalinity. pH: 7.4 to 7.6 (ideal 7.6).

Total Alkalinity: 80 to 120 ppm

Once a week

Maintain 1.0 to 3.0 ppm bromine or free chlorine.

Add 1 ounce of additive, such as “Spa Defender,” to prevent calcium build-up.

Calcium hardness: 120 to 250 ppm.

Four to six weeks

Two to three months

Spray filter element to remove loose particles.

MONTHLY

Inspect and clean the spa filter cartridge. It is important

to maintain your spa filter cartridge and keep it clean and free of particles which can restrict water flow. If the filter is not cleaned on a regular basis, the filter may clog and restrict water f l o w, which causes improper filtration and poor jet performance. See “Filter Cleaning” instructions.

Drain your spa. Follow the procedures outlined in “Draining Your Spa” page 22 and clean it following the procedures on page 23. When refilling your spa, be sure to follow the procedures outlined in “Balancing Your Spa Water” on the next page.

PAGE 24

WATER MAIN T E N A N C E

BA LA N C ING TH E S PA WAT E R

Water treatment is an important factor in the enjoyment of your Vita Spa. Proper water sanitation is essential to your health as well as permitting years of trouble-free use of your spa. The most common water chemistry problems that can damage your spa are:

1. Improper pH maintenance. pH balance is critical to proper water maintenance. Too low of a pH level will result in corrosion of the spa’s components.

2. Not pre-dissolving chemicals before adding to the water.

3. Use of improper chemicals.

4.

Over chlorinization. Sodium dichlor is the recommended type of sanitizer. Sodium dichlor dissolves easily and has a neutral pH, which minimizes the effect that the addition of a sanitizer has on a pH balance. Trichlor compounds are not recommended because they have a very low pH, and are very potent and difficult to dissolve.

BALANCING YOUR SPA WATER

The instructions below will assist you with balancing the spa water for the first time. You will need the following items to balance your spa water.

1. “3-WAY TEST STRIPS”

2. “PH-UP” and”PH-DOWN” for pH control.

3. “ MINE RAL SURFACE P R OT EC TOR” for

Calcium and Scale control.

4. “ METAL IN HIBI TOR” for brea kdown of

mineral deposits.

5 . “ P OTA S S I U M P E R OX Y - M O N O S UL FAT E ” f o r

shock treatment.

6. “BROMINE” or “CHLORINE” for sanitizing the

spa water.

Please read “WATER MAINTENANCE” then fo l lo w t h e s e e a s y s t e p s :

1 . Fill your spa until the water level is 1 inch above

the highest jet. It is NOT advisable to use softened water in your spa, as may become corrosive.

2 . Add a 1/2 pint of Spa Metal Inhibitor to prevent

iron or copper deposits from staining the finish of your spa. If your water is known to contain high concentrations of thesemetals it may be necessary to add an additional quantity of Spa Metal Inhibitor.

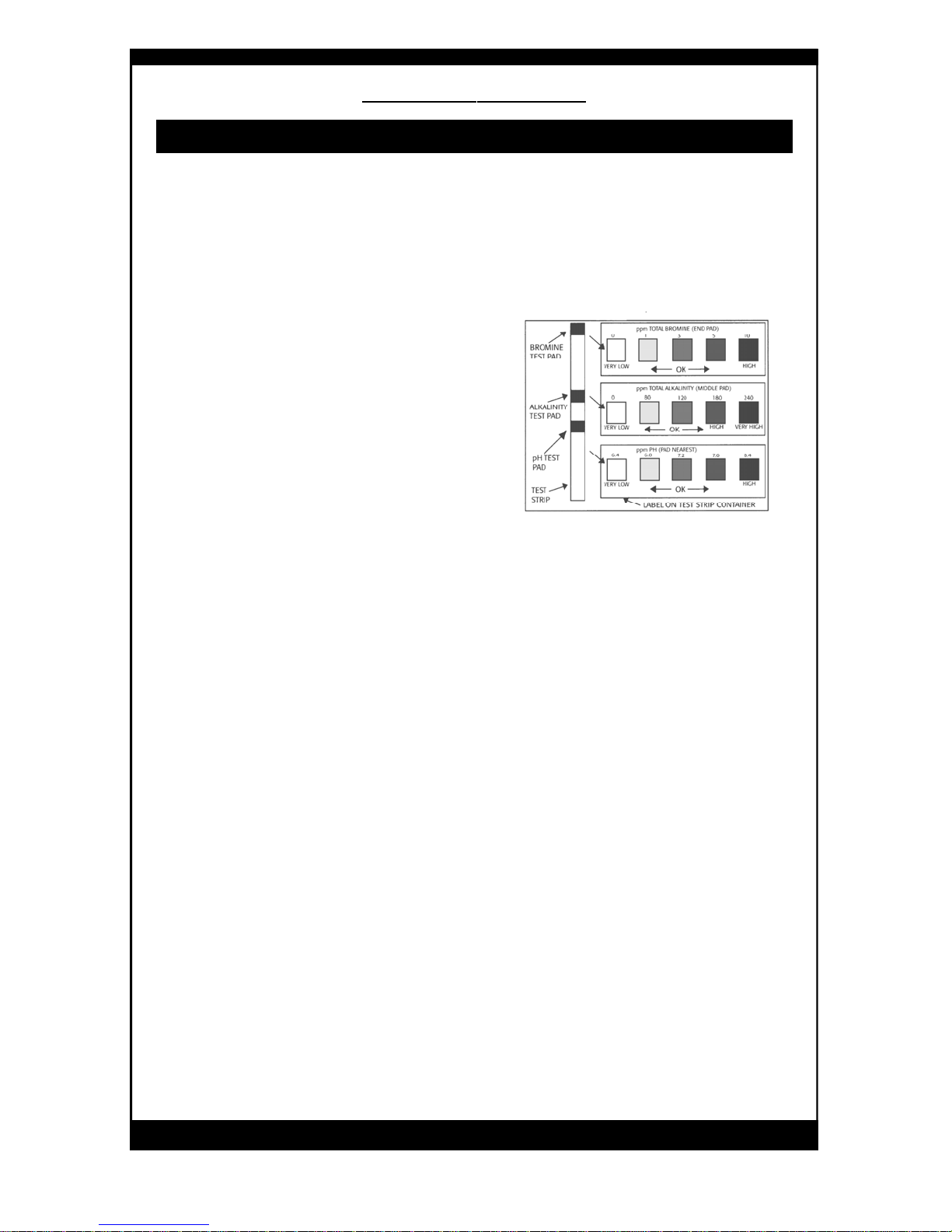

3 . Use a 3-Way Spa Water Test Strip or test kit to

measure the pH and Alkalinity of your water. Th e following instructions utilize test strips for testing. Immerse the test strip in the spa water, following the instructions on the test strip container label. Compare the strip to the label to determine the condition of the spa water.

4 . If the Alkalinity is not within the acceptable

range (80 to 120 ppm) it should be adjusted first. If it is low, raise the alkalinity by adding PH - UP 1 oz. at a time, retesting until the alkalinity reaches 120 ppm. If the alkalinity is high, it should be lowered by using PH - D OW N 1 oz. at a time.

5 . After the alkalinity is properly adjusted, the pH

is next. If the pH is above 7.8, use PH - D OW N (1 oz. at a time) to lower it to the acceptable range. It is extremely important to NE V E R allow the pH of your spa water to be under

7.0, as this can severely damage your equipment and will void the warranty.

6 . Add Sanitizer, either chlorine or bromine. Fo r

Chlorine: Follow the directions on the bottle. Chlorine dissolves rapidly; you should get a reading on the test strip within minutes of application. For Bromine: Follow the directions on your floating brominator. It is necessary to add sodium bromine only when the spa is being filled. Bromine tablets erode slowly, and it may take several hours before you will get a reading on the test strip. It may be necessary to adjust the floating brominator.

7. To properly maintain the chemical balance of your spa, follow the 3 day a week progr a m outlined on pages 27 and 29 .

PAGE 25

BALANCING THE SPA WATER

3 DAY A WEEK SPA CARE PROGRAM ALKALINITY

MONDAY

1. TEST THE WATER USING “3-WAY SPA WATER TEST STRIPS”.

2. Adjust pH and total alkalinity - Refer to pH and total alkalinity on label of “PH-UP” and “PH-DOWN”.

3. Maintain 1.0 to 3.0 ppm Bromine or

free Chlorine.

4. Add 1 ounce of “METAL SURFACE PR OT EC TOR” to prevent calcium build up.

5 . Shock treat with 2 ounces of

“ P OTA S S IUM PE R OX Y M ON O SUL FAT E ”, a non-chlorine shock, every week as n e e d e d .

WEDNESDAY

1. Nothing required if Bromine is used as sanitizer. Check and adjust Chlorine level if Chlorine is used.

FRIDAY

1. Nothing required if Bromine is used as sanitizer. Check and adjust Chlorine level if Chlorine is used.

VERY LOW 0 ADD SO D IUM

BI CA RB O N AT E

TO IN C RE A S E

8 0

A C C E P TA B L E

Z O NE ID E A L

120

HI G H 18 0 ADD SO D IUM

BIS UL FATE TO

V E RY H I G H 2 4 0 D EC RE A S E

pH LEVEL

TOO ALKA L INE

S CA L ING ZO NE

ADD pH DECREA SER

8.4

8.2

TO LO W ER pH

7. 8

CO MF O RT ZO NE

7. 6 ID EA L

7. 4

7. 2

T O O A C I D I C

C O RR O SI V E

ZO NE

p p m

7. 0

6.8

ADD pH IN CREA SER

TO RA ISE pH

SANITIZER LEVEL

DO NOT USE SPA UN T IL TEST KIT

R EA D IN G I S B EL OW 5 .0 pp m

N o te: The above table is an example only. Actual spa usage will determine the amount of chemicals required to maintain proper chemical balance.

PAGE 26

5 . 0 4 . 0 3 . 0 2 . 0 -

1. 0 -

RE CO MMEND ED L EV EL

S A FE

DO NOT USE SPA

0 -

ADD SANI T IZER TO REACH

RE CO MMEND ED L EV EL

WATER MAINTENANCE DO’S AND DON’TS

DO

Add all chemicals slowly with the hydro jets

operating in high speed.

DO

Use care when handling chemicals.

DO

Store granulated chlorine in a cool, dry place to maintain the chlorine’s freshness. Granulated chlorine will degrade if stored improperly or for a long period of time. Do not store in sunlight.

DO

Maintain total alkalinity level within the recommended range of 80 to 120 ppm. The calcium hardness level should be maintained in the 120 to 250 ppm range.

D O

Maintain the pH level within the recommended range of 7.4 to 7. 6 .

DO

Maintain proper chemical balance to reduce the risk of catching or spreading infection.

D O

Use granulated chlorine/bromine produced specifically for portable spas.

DO NOT Use swimming pool chemicals in your spa.

CHEMICAL SAFETY INSTRUCTIONS

When using chemicals, read labels carefully and follow directions precisely. Though chemicals protect you and your spa when used correctly, they may be hazardous in a concentrated form. Observe these guidelines:

DO

Accurately measure and use the exact

quantities specified, never more.

DO

Handle all containers with care. Store in a

cool, dry, well ventilated place.

DO

Keep chemical containers closed at all times when not in use. Replace caps on proper containers.

DO

Allow only a responsible person to handle spa chemicals. Keep them out of the reach of children.

DO

Follow the emergency advice on the product label in case of accidental contact, or if the chemical is swallowed. Call a doctor or local Poison Control Center. If a doctor is needed, take the product container along so that the substance can be identified.

DO NOT Use household bleach (liquid sodium hypochlorine).

DO NOT Use swimming pool (muriatic) acid to lower pH. Many swimming pool water care products can cause damage to spa and equipment.

DO NOT Allow anyone to be in the spa while chemicals are being added or dissolving.

DO NOT Use incorrect products such as Trichlor, which has a very low pH (2.6), dissolves very slowly, is highly concentrated, and was designed for concrete or plaster swimming pools. It will cause damage to your spa!

DO NOT Inhale fumes or let chemicals come in contact with your eyes, nose or mouth. Wash your hands after use.

DO NOT Let chemicals get on surrounding surfaces or landscaping. Don’t use a vacuum cleaner to clean up chemical spills.

DO NOT Smoke around chemica ls. Fu m e s may be highly flammable.

PAGE 27

SPAWATER TROUBLESHOOTING

SYMPTOM

Cloudy Water

Water Odor

Chlorine Odor

PROBABLE CAUSE

Inadequate filtration/dirty filter

Excessive oils/organic matter

Improper sanitation

High pH and/or high alkalinity

Suspended particles/organic matter

Overused or old water

Excessive Organics Too many chloramines bromamines - insufficient free available chlorine

Improper sanitation

Low pH

Too many chloramines-insufficient free available chlorine

S O LU T I O N S

Clean filter with a filter cleaner or d e g r e a s e r .

Sho ck th e spa with “P OTA S S IUM PE R OX Y M ON O SUL F AT E ”.

Increase sanitizer to recommended level.

Adju st p H; ad d “ PH - D OW N ”.

Use clarifier

Drain the spa, clean and refill.

Sho ck th e spa with “P OTA S S IUM PE R OX Y M ON O SUL F AT E ”.

Increase sanitizer level to recommended lev e l .

Raise p H with “ PH - UP ”.

Sho ck th e spa with “P OTA S S IUM PE R OX Y M ON O SUL F AT E ”.

Musty Odor

Foaming

Organic Buildup/ Scum Ring Around The Tub

Low pH

Bacterial or algae growth

Buildup of body oils, lotion and chemicals resulting in soap or detergent

Overused or old water

Excessive organics

Body oils and dirt

Inadequate filtration

Adjust pH; raise pH with “PH - UP ”

Shock the spa. If problem is visible, draining and cleaning may be required.

Add defoamer, or drain and refill.

Drain and refill.

S h o c k w i t h “ P O TA S S I U M PE R O X Y M O N O S UL FAT E ”.

Wipe off scum with a clean rag or use mild detergent. If needed, drain, refill spa, and adjust water.

Clean filter with a filter cleaner or d e g r e a s e r .

PAGE 28

SPAWATER TROUBLESHOOTING

SYMPTOM

Algae

Eye Irritation

Skin Irritation/Rash

PR O BA BLE CAUSE

High pH

Low free chlorine/bromine

Low pH

Insufficient free available c h l o r i n e / b r o m i n e

Unsanitary/polluted water.

S O LU T I O N S

S h o c k w i t h “ P O TA S S I U M PE R O X Y M O N O S UL FAT E ”, a d j us t pH .

S h o c k w i t h “ P O TA S S I U M PE R O X Y M O N O S UL FAT E ”, m a i nt a i n s an it iz e r a t recommended level.

Raise p H with “ PH - UP ”.

S h o c k w i t h “ P O TA S S I U M PE R O X Y M O N O S UL FAT E . "

Maintain recommended sanitizer residual at all times; super-chlorinate.

Stains

Scale

Chlorine/bromine level too high (above 5ppm FAC ) .

pH or total alkalinity too low.

High iron or copper in water s o u r c e .

Too much calcium dissolved in water pH.

Allow chlorine/bromine level to drop below 5 ppm before using spa.

Adjust pH and total alkalinity; use sequestering agent; drain and clean with appropriate product.

Use sequestering agent for metals; adjust water

Adjust total alkalinity and pH levels by adding the appropriate sodium bisulfate product; with concentrated scale deposits, drain the spa, clean the liner (as outlined in Liner Clean Up), refill the spa and balance the water.

PAGE 29

DIAGNOSTIC & TROUBLESHOOTING

SYMPTOM

Spa Inoperative

Top Side Inoperative

IF ANY ERRORS ARE FOUND, THE FOLLOWING REPLACEMENT MESSAGES MAY BE DISPLAYED:

MESSAGE

BLO

CP

CS

F1 or F2

HC

HP

ME A N IN G

Power failure outside of spa.

Top Side could be locked.

Blower Error

HE ET pump may be faulty.

Current Sensor

Blown Fu s e

Heater Error

H i g h V o l t a g e

ACTION

Check power source Breaker and GFCI; Reset breaker/GFCI. Call Electrician if it will not start.

Press unlock button 4 times.

Check fuse 3 and then verify that the blower motor is plugged in.

Check that HE ET pump is plugged in.

Check that current sensor board is plugged into circuit board.

Replace fuse 1 or fuse 2

Replace heater

High power (voltage) observed. Check power connections and rerun diagnostic test

LB

LP

O3U

P1 or P2

PS

LS

SS

HILI

FLO

REL

BUS

Light Error

Low Vo l t a g e

Ozonator Error

Pump 1 or Pump 2 Error

Pressure Switch Error

Water Sensor

Heater Sensor

High Limit Sensor Detects Temperature Rise Above 112 F

Lack of Flow:Heater disabled

Faulty relay

Communication Error

Replace underwater light bulb

Low Power (voltage) observed. Check power connections and rerun diagnostic test

R e p l a c e o z o n a t o r

Check plug for Pump 1 or Pump 2

Replace Pressure Switch or Flow Switch

Replace Sensor

Allo w Spa to Co ol, Power Down S pa, Tu r n Power Back on and Reset Spa Side Control

Remove filter. If “FLO”disappears, clean filter.

Check power board for sticking relay.

Reboot Power Board.

IF ANY PROBLEMS PERSIST, CALL YOU LOCAL VITA DEALER FOR SERVICE.

PAGE 30

Maintenance Log

Use these pages to keep a record of when you perform any maintenance on your spa.

_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

PAGE 31

Maintenance Log

_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

PAGE 32

V i t a I n t e r n a t i o n a l

DM Industries, Ltd., 2320 Northwest 147th Street, Miami, Florida 33054

Phone: (305) 908-8187 • Toll Free: (877) 240-9457

Is a Registered Trademark of

Division of

MIAMI FLORIDA

SPAGR-060617
