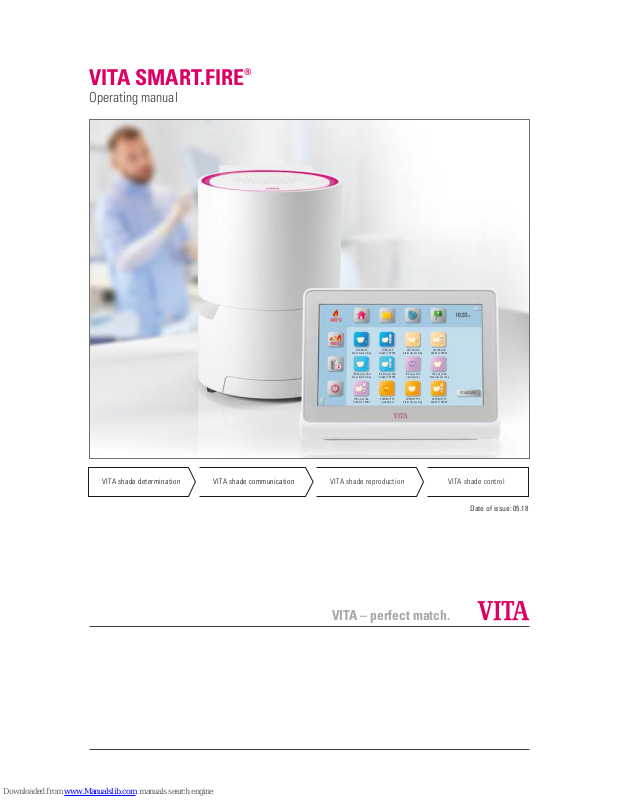

vita SMART.FIRE Operating Manual

VITA SMART.FIRE

®

VITA – perfect match.

VITA Farbkommunikation

VITA Farbkommunikation

VITA shade control

VITA shade reproduction

VITA shade communicationVITA shade determination

Operating manual

Date of issue: 05.18

VITABLOCS

Stains fixation firing

IPS Empress CAD

Stains fixation firing

IPS e.max CAD

GLAZE LT SPRAY

CELTRA DUO

Stains fixation firing

IPS e.max CAD
crystallization

SUPRINITY PC

Stains fixation firing

VITABLOCS

GLAZE LT SPRAY

IPS Empress CAD
GLAZE LT SPRAY

SUPRINITY PC
crystallization

CELTRA DUO

GLAZE LT SPRAY

IPS e.max CAD

Stains fixation firing

SUPRINITY PC

GLAZE LT SPRAY

STANDARD

Dear customer,

Congratulations and thank you for choosing the VITA SMART.FIRE firing system.
The VITA SMART.FIRE firing system is manufactured using the highest quality
standards, and is equipped with modern hardware and software for easy and intuitive
control and operation.

In order to use the firing system safely and effectively, please read this manual
completely before use. This operating manual must always be kept close to the device.
It must be read and used by all persons who operate, clean and maintain the system.

I hope you enjoy it and achieve great results!

Onur Yildirim

Product manager for VITA dental devices and accessories, VITA Zahnfabrik

The efficient firing unit for chairside restorations

System/technology info Please note

Explanation of symbols:

Modifiable parameters

Note Process Hotline and support

1. The system

1.1 The firing unit ........................................ 5

1.2 The control unit ....................................... 6

1.3 Accessories .......................................... 6

2. First use

2.1 Starting firing in 6 steps ................................ 7

2.2 Setting up the firing unit ................................ 7

2.3 Switching off the firing unit and control unit ................ 8

2.4 Cleaning the firing unit and control unit .................... 8

3. Operation

3.1 Gesture controls of the control unit ....................... 9

3.2 Starting firing and basic firing window ................... 10

3.3 Firing status indicators in the basic firing window .......... 10

3.4 Assistance function. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

3.5 System functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

3.6 Sleep mode ........................................ 13

3.7 Stand-by temperature ................................ 13

3.8 File manager ....................................... 14

3.9 Settings ........................................... 15

3.10 General help ....................................... 16

4. Desktop management

4.1 Desktop editing menu ................................. 17

4.2 Naming the desktop .................................. 18

4.3 Changing the desktop color ............................ 18

4.4 Desktop information .................................. 19

4.5 Creating a new desktop ............................... 19

4.6 Copying a desktop. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

4.7 Cutting a desktop ................................... 20

4.8 Pasting a desktop ................................... 21

4.9 Deleting a desktop .................................. 21

5. Button management

5.1 Button editing menu .................................. 23

5.2 Multi-selection ...................................... 23

5.3 Moving a button ..................................... 24

5.4 Naming a button ..................................... 24

5.5 Configuring a button .................................. 25

5.6 Storing button information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

5.7 Creating a new firing program ......................... 26

5.8 Copying a button ................................... 27

5.9 Cutting a button .................................... 27

5.10 Pasting a button .................................... 28

5.11 Deleting a button ................................... 28

6. Detailed firing window

6.1 Detailed firing window for firing process .................. 29

6.2 Predrying temperature / predrying time .................. 30

6.3 Lift position for predrying .............................. 30

6.4 Prevacuum .......................................... 31

6.5 Rise time / gradient .................................. 31

6.6 Main vacuum ...................................... 32

6.7 Holding temperature and holding time. . . . . . . . . . . . . . . . . . . 32

6.8 Cooling temperature .................................33

6.9 Lift position for cooling ...............................33

6.10 Changes after program start. . . . . . . . . . . . . . . . . . . . . . . . . . . 34

7. Scope of supply / system solutions

7.1 VITA SMART.FIRE scope of supply ....................... 37

7.2 VITA system solutions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

8. Technical data / information

8.1 Technical data for firing unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

8.2 Technical data for control unit .......................... 39

8.3 Symbols ............................................ 39

8.4 Information ......................................... 40

8.5 Safety functions ..................................... 41

9. Additional information

9.1 Competitor material in the VITA SMART.FIRE .............. 42

9.2 VITA warranty and consumer protection .................. 42

9.3 Update messenger ................................... 42

9.4 Spare parts ......................................... 42

9.5 Patents and trademarks ............................... 42

9.6 Copyright information ................................. 42

9.7 Hotline and support .................................. 43

ADDITIONAL

INFORMATION

TECHNICAL DATA

INFORMATION

SCOPE OF SUPPLY

SYSTEM SOLUTIONS

DETAILED

FIRING WINDOW

BUTTON

MANAGEMENT

DESKTOP

MANAGEMENT

OPERATION FIRST USE THE SYSTEM

44

VITABLOCS

Stains fixation firing

IPS Empress CAD

Stains fixation firing

IPS e.max CAD

GLAZE LT SPRAY

CELTRA DUO

Stains fixation firing

IPS e.max CAD

crystallization

SUPRINITY PC

Stains fixation firing

VITABLOCS

GLAZE LT SPRAY

IPS Empress CAD
GLAZE LT SPRAY

SUPRINITY PC
crystallization

CELTRA DUO

GLAZE LT SPRAY

IPS e.max CAD

Stains fixation firing

SUPRINITY PC

GLAZE LT SPRAY

STANDARD

5

VITA SMART.FIRE VITA SMART.FIRE

VITA SMART.FIRE

1. The system 2. First use

1. The system

1.1 The firing unit

Note:

• What? Space-saving chairside firing unit for convenient use.

• What for? For crystallization, glaze, stain and corrective firing.

Firing platform

Accessory drawer

Base

Furnace head

Main switch

Mains power
supply connection

Power connection
for vacuum pump

Fusesvacuum

Control unit
connection

VITA SMART.FIRE System

Chairside firing unit

Accessories

Control unit

ADDITIONAL

INFORMATION

TECHNICAL DATA

INFORMATION

SCOPE OF SUPPLY

SYSTEM SOLUTIONS

DETAILED

FIRING WINDOW

BUTTON

MANAGEMENT

DESKTOP

MANAGEMENT

OPERATION FIRST USE THE SYSTEM

66

Firing unit port

USB ports(1 + 2)

1. The system 2. First use

1.3 Accessories

Note:

• What? Control unit with preinstalled programs for all common chairside materials.

• What for? For intuitively easy firing.

Note:

• What? Accessory set integrated into the firing unit for convenient firing.

• What for? For convenient access to all important accessories.

Cooling table Ø = 70 mm

Firing pliers L = 160 mm

Platinum pins = 2 pieces (molar, anterior tooth)

Fibrous pad firing support Ø = 44 mm

Firing tray Ø = 60 mm

SD card slot

1.2 The control unit

7

6

3

5

2

4

1

Start the firing process.Select the firing program.

Connect the firing unit to the power
supply.

Turn on the main switch.

Press on the drawer front panel to
remove the accessories.

Connect the firing unit and the control
unit to the connecting cable.

2.1 Starting firing in 6 steps

2. First use

1. The system

2. First use 3. Operation

Note:

• Ensure that the metal ring around the firing platform is free of dust and other particles.

• Remove crumbs from the firing platform with a paintbrush.

Please note:

• The firing unit may not be connected to power strips with an extension because there is a risk of fire if electrical cables

are overloaded.

2.2 Setting up the firing unit

• Please ensure that the following conditions are met.

Please note:

• The distance between the firing unit and the nearest wall must be at least 20 cm.

• There should be at least 15 cm of clearance above the firing unit when the firing chamber is open.

• Do not place the control unit in the heat emissions range of the firing chamber.

• The distance between the firing unit and the control unit must be at least 20 cm.

• The ventilation openings on the top of the firing unit must not be covered.

• Set up the device in such a way that the main switch can be easily accessed and the power supply cable can be easily disconnected.

• Ensure that the unit is installed on a heat-resistant and non-flammable surface.

• The emissions and heat radiation of the device are within a non-hazardous range. However, nearby, temperature-sensitive

surfaces and materials could still be damaged by heat.

• Avoid exposing the unit to direct sunlight.

• Do not place flammable objects near the firing unit.

ADDITIONAL

INFORMATION

TECHNICAL DATA

INFORMATION

SCOPE OF SUPPLY

SYSTEM SOLUTIONS

DETAILED

FIRING WINDOW

BUTTON

MANAGEMENT

DESKTOP

MANAGEMENT

OPERATION FIRST USE THE SYSTEM

88

2.3 Switching off the firing unit and control unit

• When the unit is not in use, move the furnace head downwards and switch off the unit from the main switch.

• Closing the furnace head protects against moisture entering the unit.

2.4 Cleaning the firing unit and control unit

VITA SMART.FIRE Furnace

• Disconnect the unit from the power supply before cleaning.

• The housing must only be cleaned with a damp cloth and no cleaning agent.

No flammable liquids or solvents may be used.

• The inside of the firing chamber does not need to be cleaned.

• Remove crumbs from the firing platform with a paintbrush.

VITA SMART.FIRE control unit

• Clean the display at regular intervals with a screen cleaner.

• Screen cleaners are especially good since they do not cause any scratches, have an antistatic effect

and prevent further dirt accumulation.

Please note:

• Damage to the display resulting from improper use during operation or cleaning is excluded from the VITA warranty.

1. The system 2. First use 3. Operation

9

2. First use 3. Operation 4. Desktop management

3. Operation

3.1 Gesture controls of the control unit

Swiping

To go to the next desktop, swipe right or left on the desktop.

Zooming

You can zoom in and out of photos or PDFs by using two fingers to maximize
or minimize the image.

Scrolling

Swipe downwards or upwards to move between pages in a PDF.

Short tap

You open the basic firing window with a short tap (see 3.2).

Long tap

You can call up an additional function, such as the desktop editing menu
or the button editing menu, with a long tap.

Rotating

Photos can be rotated by 90°.

ADDITIONAL

INFORMATION

TECHNICAL DATA

INFORMATION

SCOPE OF SUPPLY

SYSTEM SOLUTIONS

DETAILED

FIRING WINDOW

BUTTON

MANAGEMENT

DESKTOP

MANAGEMENT

OPERATION FIRST USE THE SYSTEM

1010

32

2

1

1

4

3.2 Starting firing and basic firing window

2. First use

3. Operation 4. Desktop management

Status display

Back button

Start and stop firing

Assistance
function

Detailed firing window

3.3 Firing status indicators in the basic firing window

Note:

• Select the firing program and go to the basic firing window by briefly tapping the program button.

Note:

• If the icon lights up red, there is an error message.

3rd phase: The icon lights up blue.
The firing process is activated.

2nd phase: The icon lights up green.
The heating/cooling phase starts.

1st phase: The icon lights up gray.
The firing is ready.

4th phase: The firing process is
completed.

Please note:

• Control unit and firing unit are not connected.

• Troubleshooting: Connect the control unit and the firing unit and restart them.

11

3

6

2

5

1

4

7

2. First use 3. Operation 4. Desktop management

3.4 Assistance function

Tap the assistance function.

Example image for using
occlusion paper

Choose this option to return
to the basic firing window.

Select item 1, "Prepare restoration."

Choose this option to open
the material overview for the
"Prepare restoration" item.

Tap on a word highlighted in blue to
open an image or tutorial video.

This takes you to the video tutorial
overview

Note:

• What? Software-based assistance function for supported step-by-step firing.

• What for? This function assists you by providing step-by-step instructions for the "Prepare restoration,“

"Restoration in the furnace" and "Rework restoration" functions.

ADDITIONAL

INFORMATION

TECHNICAL DATA

INFORMATION

SCOPE OF SUPPLY

SYSTEM SOLUTIONS

DETAILED

FIRING WINDOW

BUTTON

MANAGEMENT

DESKTOP

MANAGEMENT

OPERATION FIRST USE THE SYSTEM

1212

21

2. First use 3. Operation 4. Desktop management

Hidden function area

Desktop area

Displayed function area

3.5 System functions

Note:

• You can display function areas by tapping the top and the side areas of the screen.

You can hide the two function areas by tapping the arrows on the edge of the screen.

Note:

• The function buttons are used for controlling system functions and are found in the displayed function areas.

Sleep mode

Open/close firing
chamber

Standby temperature

Current firing
chamber temperature

General help

Display of the
current desktop
and quick button
for changing between
the desktops

File manager

Return to home
desktop

Settings

VITABLOCS

Stains fixation firing

SUPRINITY PC

Combination firing

YZ HT

Stains fixation firing

VITABLOCS

GLAZE LT PASTE

SUPRINITY PC

GLAZE LT SPRAY

YZ HT

GLAZE LT PASTE

VITABLOCS

GLAZE LT SPRAY

SUPRINITY PC

Stains fixation firing

YZ HT

GLAZE LT SPRAY

SUPRINITY PC
crystallization

SUPRINITY PC

GLAZE LT PASTE

STANDARD

13

3.6 Sleep mode

Note:

• What? The control unit and the firing unit are placed in sleep mode. You wake up the system by tapping the screen.

• What for? Energy saving.

2. First use 3. Operation 4. Desktop management

3.7 Standby temperature

Note:

• What? The firing chamber is closed and the firing room temperature rises to the defined standby temperature (380°C by

default). Once the standby temperature has been reached, it should be held for 20 minutes. The firing unit will then be ready
for firing processes.

• What for? Prevents loss of time by automatically preheating the firing unit so that firing can begin quickly.

VITA AntiCon.

If the firing unit is switched off for an extended period of time, the firing chamber is heated for 5 minutes while slightly open
the next time the firing unit is switched on and the standby temperature is activated. This allows the condensed water on the
insulation to evaporate. After 5 minutes have passed, the device closes and goes into normal standby mode.

Auto standby mode.

If standby mode remains active when the firing unit is switched off, auto standby mode is activated after the burner unit has
been switched on again. The firing unit automatically adopts the most recently set standby temperature. It is deactivated by
pressing the standby temperature again. If standby mode remains active when the firing unit is switched off, auto standby mode
is also deactivated and must be switched on after the unit is turned on again.

ADDITIONAL

INFORMATION

TECHNICAL DATA

INFORMATION

SCOPE OF SUPPLY

SYSTEM SOLUTIONS

DETAILED

FIRING WINDOW

BUTTON

MANAGEMENT

DESKTOP

MANAGEMENT

OPERATION FIRST USE THE SYSTEM

---° C

1414

2. First use 3. Operation 4. Desktop management

3.8 File manager

Note:

• File manager for creating a custom desktop and for flexible file management

• It allows you to copy and delete firing programs, PDF documents and images.

• The "VITA" folder contains all preinstalled programs for VITA materials. You can transfer these programs

to the desired desktop.

• The "Others" folder contains preinstalled firing programs for other materials. You can transfer these programs
to the desired desktop.

• Files deleted on the desktops are collected in the recycling bin and can be recovered from this folder, if necessary.

• Programs, PDF documents and images can be moved between a USB flash drive, SD card and vPad media as desired.

Return to previous folder

Return to previous folder

Transfer

Delete

Return to desktopFilter firing programs

Filter PDF documents

Filter images

USB1

USB2

SD

Desktop

VITA

Others

Trash

USB1

USB2

SD

Desktop

15

3

6

9

2

5

8

1

4

7

21

ADDITIONAL

INFORMATION

TECHNICAL DATA

INFORMATION

SCOPE OF SUPPLY

SYSTEM SOLUTIONS

DETAILED

FIRING WINDOW

BUTTON

MANAGEMENT

DESKTOP

MANAGEMENT

OPERATION FIRST USE THE SYSTEM

2. First use 3. Operation 4. Desktop management

Example: transferring a program in the file manager

Select the "VITA" folder.Tap the file manager.

Select the folder, for example
"VITABLOCS."

"Standard" folder activated.

Select the target desktop as default,
for example.

Select the firing, for example
VITABLOCS GLAZE LT SPRAY.

Note:

• Example of transferring the VITABLOCS GLAZE LT SPRAY firing program to the "Standard" desktop.

3.9 Settings

Transfer completed.

Return to the "Standard" desktop.Start the transfer.

Note:

• What? This area contains information and settings for the firing unit and the control unit.

• What for? For changing factory settings, performing updates and viewing operating data.

Firing unit settings

Information about firing unit
and control unit

Update

Control unit settings

1616

1

1

1

2

2

2

2

1

111

3.10 General help

Note:

Restore settings: All vPad settings can be reset here. Restore desktops: Upon confirmation, the factory settings are

restored. Date settings: The date and time can be changed. Country settings: Language and temperature unit, as well as
date and time format can be changed.

Note:

• Temperature offset and standby temperature can be set. Cleansing firing, silver test and sealing test can be carried out.

Note:

• You can view the operating data here, as well as export it to a USB flash drive.

Note:

• What? The "General Help" function button takes you to processing and operating instructions for VITA CAD / CAM materials,

VITA veneering materials and VITA devices. The help function consists of two pages.

• What for? Quick assistance, thanks to preinstalled processing instructions and operating manuals.

2. First use 3. Operation 4. Desktop management

17

21

3. Operation 4. Desktop management 5. Button management

4. Desktop management

Desktop

Note:

• The area inside the dotted magenta outline is the desktop. This is the workspace where firing programs,

images and PDFs can be stored.

4.1 Desktop editing menu

Desktop editing menu

Note:

• Press on the desktop and hold until the desktop editing menu appears. You can hide the desktop

by briefly tapping it.

Naming the desktop

Change desktop color

Store desktop information

Create new desktop

Copy desktop

Cut desktop

Paste desktop

Delete desktop

Note:

• What? The desktop editing menu is used for managing all desktop functions.

• What for? For fast setup and customization of the desktop.

ADDITIONAL

INFORMATION

TECHNICAL DATA

INFORMATION

SCOPE OF SUPPLY

SYSTEM SOLUTIONS

DETAILED

FIRING WINDOW

BUTTON

MANAGEMENT

DESKTOP

MANAGEMENT

OPERATION FIRST USE THE SYSTEM

VITABLOCS

Stains fixation firing

SUPRINITY PC

Combination firing

YZ HT

Stains fixation firing

VITABLOCS

GLAZE LT PASTE

SUPRINITY PC

GLAZE LT SPRAY

YZ HT

GLAZE LT PASTE

VITABLOCS

GLAZE LT SPRAY

SUPRINITY PC

Stains fixation firing

YZ HT

GLAZE LT SPRAY

SUPRINITY PC

crystallization

SUPRINITY PC

GLAZE LT PASTE

1818

3

3

2

2

1

1

4 5

4 5

3. Operation 4. Desktop management 5. Button management

4.2. Naming a desktop

Choose "Name desktop." Enter the desktop name.Press on the desktop and hold until

the desktop editing menu appears.

Tap the desktop to close the editing
menu.

Renamed desktop.

4.3 Changing the desktop color

Note:

• What? This function allows you to assign your own name to the desktop.

• What for? For customized allocation of the desktop according to patient or indication.

Choose "Change desktop color." "Select desktop color

and confirm."

Press on the desktop and hold until the
desktop editing menu appears.

Tap the desktop to close the editing
menu.

Changed desktop color.

Note:

• What? Determination of the background color for each individual desktop.

• What for? To more easily distinguish between multiple desktops, thanks to clear color coding.

Screen

19

3

3

2

2

1

1

4

3. Operation 4. Desktop management 5. Button management

4.4 Desktop information

Press on the desktop and hold until the
desktop editing menu appears.

Choose "Desktop info." Tap the input field.

Now you can add information about the
desktop.

4.5 Creating a new desktop

Note

• What? You can store information about the desktop here.

• What for? This function gives you access to all information about the desktop in one location.

Note:

• When you create a new desktop, a new workspace with 12 possible buttons is created.

Choose "Create new desktop"
to create another new desktop.

Added desktop.

Press on the desktop and hold until the
desktop editing menu appears.

ADDITIONAL

INFORMATION

TECHNICAL DATA

INFORMATION

SCOPE OF SUPPLY

SYSTEM SOLUTIONS

DETAILED

FIRING WINDOW

BUTTON

MANAGEMENT

DESKTOP

MANAGEMENT

OPERATION FIRST USE THE SYSTEM

i

2020

3

3

6

2

2

5

5

1

1

4

4

4.6 Copying desktop

Desktop editing menu
is automatically hidden.

Copy of the desktop.

Select "Copy desktop."

Select "Paste desktop."

Press on the desktop and hold until the
desktop editing menu appears.

Select the desktop and activate the
editing menu.

3. Operation 4. Desktop management 5. Button management

4.7 Cutting a desktop

Select "Cut desktop."

Repositioned desktop.

Select "Paste desktop."

Press on the desktop and hold until the
desktop editing menu appears.

Select the new desktop and
activate the editing menu.

Note:

• What? This function allows you to duplicate the desktop. The name of the copied desktop is indicated

by a number in parentheses, for example (2), and added in front of the active desktop.

• What for? You can change a duplicate desktop while retaining the original.

Note:

• This function allows you to completely reposition the desktop or customize the desktop sequence. The repositioned desktop

is added behind the active desktop.

21

21

4.8 Pasting a desktop

Please note:

• This function is only active in combination with the desktop copy function and the desktop paste function.

3. Operation 4. Desktop management 5. Button management

4.9 Deleting a desktop

Select "Delete desktop"
to delete the current desktop.

Press on the desktop and hold until the
desktop editing menu appears.

Note:

• This function puts the current desktop in the trash. The final manual deletion of the desktop must then be done in the file

manager. This function can free up memory if the desktop is not reused.

ADDITIONAL

INFORMATION

TECHNICAL DATA

INFORMATION

SCOPE OF SUPPLY

SYSTEM SOLUTIONS

DETAILED

FIRING WINDOW

BUTTON

MANAGEMENT

DESKTOP

MANAGEMENT

OPERATION FIRST USE THE SYSTEM

2222

VITABLOCS

Stains fixation firing

PRINITY PC

Dentine firing

VITABLOCS

Corrective firing

SUPRINITY PC

GLAZE LT Powder

VITABLOCS

GLAZE LT POWDER

SUPRINITY PC

Stains fixation firing

SUPRINITY PC

crystallization

STANDARD

23

21 3

21

4. Desktop management 5. Button management 6. Detailed firing window

5. Button management

5.1 Button editing menu

Tap the desktop to close the editing
menu.

Hold down the button until the button
editing menu is activated.

Naming button

Configure button

Store information button

Create new firing program

Copy button

Cut button

Paste button

Delete button

Note:

• Functions available in the button editing menu.

5.2 Multi-selection

Hold down the button until the button
editing menu is activated.

Multiple buttons can be selected for an
action.

Note:

• You can select up to 12 buttons at the same time and perform an action for these buttons.

The "Name button," "Configure button," "Create a new firing program" and "Button information"
buttons are disabled when multiple buttons are selected.

ADDITIONAL

INFORMATION

TECHNICAL DATA

INFORMATION

SCOPE OF SUPPLY

SYSTEM SOLUTIONS

DETAILED

FIRING WINDOW

BUTTON

MANAGEMENT

DESKTOP

MANAGEMENT

OPERATION FIRST USE THE SYSTEM

2424

21

2

4 5

1 3

5.3 Moving a button

Repositioned button.

Hold down the button and move it to the
desired position.

Note:

• What? This function allows you to reposition the button on the desktop.

• What for? You can rearrange the buttons to meet your needs.

4. Desktop management 5. Button management 6. Detailed firing window

5.4 Naming a button

Named button.Tap the desktop to close the editing

menu.

Enter button name.Hold down the button until the button

editing menu is activated.

Select "Name button."

Note:

• What? This function allows you to change the name of the button.

• What for? You can choose personalized and familiar names.

Icon

25

2

5

1

4

3

21

4

7

5 6

3

4. Desktop management 5. Button management 6. Detailed firing window

Configured button.

Select the icon and background color.

5.5 Configuring a button

Hold down the button until the button
editing menu is activated.

Tap the desktop to close the editing
menu.

Select "Configure button."

Note:

• What? This function allows you to freely select icons and background colors for firing programs.

• What for? For customizing firing program buttons.

5.6 Storing button information

Select "Store button information."Hold down the button until the button

editing menu is activated.

Add your own information about the
button.

ADDITIONAL

INFORMATION

TECHNICAL DATA

INFORMATION

SCOPE OF SUPPLY

SYSTEM SOLUTIONS

DETAILED

FIRING WINDOW

BUTTON

MANAGEMENT

DESKTOP

MANAGEMENT

OPERATION FIRST USE THE SYSTEM

i

2626

2

5

1

3

4

1)

2)

3)

5.7 Creating a new firing program

Select "Create new firing program."

Added button.

Firing curve types

Hold down the button until the button
editing menu is activated.

Tap the desktop to close the editing
menu.

4. Desktop management 5. Button management 6. Detailed firing window

Choose between three firing curve
types.

Note:

• This function allows you to create and customize firing programs.

• In addition to the "Create new firing program" function, a firing program with predefined firing parameters can also be

created via the file manager.

1)

Predrying curve = e.g. drying stained zirconium restorations

2)

Single-stage curve = standard firing curve, for most firing programs on the market, e.g. VITA SUPRINITY PC

3)

Two-stage curve = special programs, e.g. IPS e.max CAD crystallization

Note:

• What? You can store information about the button and access it anytime.

• What for? For example, if you want to change firing parameters, you can link this information directly to the button.

• In the basic firing window, the button information is also shown as a note.

27

21

4 5

3

21

4

3

5

5.8 Copying a button

Select "Copy button."

Hold down the button until the button
editing menu is activated.

Select the desktop and activate the
button editing menu.

Select "Paste button."

Copied button.

Note:

• What? This function allows you to copy the button to any number of desktops. The "original" firing program button

is retained. The name of the copied button is indicated by a number in parentheses, for example (2).

• What for? For example, you do not need to restore a modified firing program because you can still access

the original firing program.

4. Desktop management 5. Button management 6. Detailed firing window

5.9 Cutting a button

Select "Cut button."Hold down the button until the button

editing menu is activated.

Select the desktop and activate
the button editing menu.

Select "Paste button."

Cut button.

Note:

• What? You can simply cut out a button and reposition it on another desktop.

• What for? This eliminates the time-consuming task of restoring a modified button.

ADDITIONAL

INFORMATION

TECHNICAL DATA

INFORMATION

SCOPE OF SUPPLY

SYSTEM SOLUTIONS

DETAILED

FIRING WINDOW

BUTTON

MANAGEMENT

DESKTOP

MANAGEMENT

OPERATION FIRST USE THE SYSTEM

2828

21

3

5.10 Pasting a button

Note:

• This function is only active in combination with the cut function and the paste function.

5.11 Deleting a button

Select "Delete button."Hold down the button until the button

editing menu is activated.

Note:

• What? This function moves the selected button to the trash. The final manual deletion must then be done

in the file manager.

• What for? This function can free up memory if the button is not reused.

Buttons that are mistakely deleted can be restored from the recycling bin source folder in the file manager.

4. Desktop management 5. Button management 6. Detailed firing window

Deleted button.

29

5. Button management 6. Detailed firing window 7. Scope of supply / system solutions

6. Detailed firing window

6.1 Detailed firing window for firing process

Rise time/temperature

Firing temperature and holding time

Cooling temperature

Cooling lift position

Return to
basic firing window

Process data

Predrying tempera­ture / predrying time
Predrying lift position

Prevacuum Main vacuum

Save Start/stop program

Note:

• The firing curve is displayed in the detailed firing window so that you can view firing parameters and if necessary,

adjust them to your specific needs.

ADDITIONAL

INFORMATION

TECHNICAL DATA

INFORMATION

SCOPE OF SUPPLY

SYSTEM SOLUTIONS

DETAILED

FIRING WINDOW

BUTTON

MANAGEMENT

DESKTOP

MANAGEMENT

OPERATION FIRST USE THE SYSTEM

3030

2

2

1

1

Modifiable parameters

• Predrying temperature: 60°C –600°C

• Predrying time: 00:00 min to 20:00 min

6.2 Predrying temperature / predrying time

5. Button management

6. Detailed firing window 7. Scope of supply / system solutions

Note:

• The possible values to enter are displayed above the number field.

• Predrying is used for evaporating processed fluids prior to the actual firing process.

6.3 Lift position for predrying

Modifiable parameters

• Value c: highest lift position entry: min. value b - max. 100 %

• Value b: middle lift position entry: min. value a - max. Value c

• Value a: lowest lift position entry: 0% - max. Value b

Note

• Adjusting the lift position:

Enter lift position in % and accept with "Confirm" button
Move the lift into the desired position with the arrow buttons and accept the value with "Enter."

• Confirming time value for position:

Tap the input field for time a or b and enter time.
Value for c is determined automatically.

Please note:

• The time values of the individual lift positions depend on the total predrying time.

• Together, the individual time values can only be set to a maximum of the total predrying time.

• The upper time value c automatically changes when the value b or a changes.

Values are saved

Values are saved

Old values are retained and the
system returns to the firing curve

Old values are retained and the
system returns to the firing curve

31

2

2

1

1

6.4 Prevacuum

5. Button management

6. Detailed firing window 7. Scope of supply / system solutions

Values are saved

Values are saved

Old values are retained and the
system returns to the firing curve

Old values are retained and the
system returns to the firing curve

Modifiable parameters:

• Pre-vacuum time: 00:00 min - 10:00 min

Note:

• The "Prevacuum" setting enables you to build up the vacuum in the firing chamber

before the temperature rise is active.

• By entering the time 00:00, the prevacuum is switched off.

• The possible values to enter are displayed above the number field.

• Special ceramics can be fired using the prevacuum.

Modifiable parameters:

• Rise time: 00:05 min - 60:00 min

• Rise gradient: 02°C/min –120°C/min

Note:

• The gradient is automatically calculated and adjusted after the predrying temperature or rise time is entered.

• The rise time is automatically calculated and displayed after the gradient is entered. The possible values

to enter are displayed above the number field.

• For reliable firing results with a good degree of gloss and correct color reproduction.

6.5 Rise time/gradient

ADDITIONAL

INFORMATION

TECHNICAL DATA

INFORMATION

SCOPE OF SUPPLY

SYSTEM SOLUTIONS

DETAILED

FIRING WINDOW

BUTTON

MANAGEMENT

DESKTOP

MANAGEMENT

OPERATION FIRST USE THE SYSTEM

3232

21

21

Values are saved

Old values are retained and the
system returns to the firing curve

5. Button management 6. Detailed firing window 7. Scope of supply / system solutions

Values are saved

Old values are retained and the
system returns to the firing curve

Modifiable parameters:

• Main vacuum time: 00:00 min - 90:00 min

• Starting temperature: min. predrying temperature – max. firing temperature

Note:

• The time values for switching the vacuum pump on and off are dependent on the indicated program values.

If the final temperature or the predrying temperature changes, the vacuum time is then adjusted to the rise time.

• The max. vacuum time is calculated from the rise time, plus the holding time at the final temperature.

The actual values to enter are displayed above the number field.

• The main vacuum extracts air that would otherwise be trapped in the ceramic and can render it cloudy

with a milky appearance.

Modifiable parameters:

• Firing temperature: Predrying temperature plus 10°C – 1050°C

• Holding time: 00:00 min - 30:00 min

Note:

• The actual values to enter are displayed above the number field.

• For reliable firing results with a good degree of gloss and correct color reproduction.

6.7 Holding temperature and holding time

6.6 Main vacuum

33

21

21

6.8 Cooling temperature

5. Button management

6. Detailed firing window 7. Scope of supply / system solutions

Values are saved

Old values are retained and the
system returns to the firing curve

Values are saved

Old values are retained and the
system returns to the firing curve

Modifiable parameters:

• Cooling temperature: 60°C – 600°C

Note:

• The "Activate cooling" button is automatically activated when the temperature is entered and must be pressed.

The possible values to enter are displayed above the number field.

• Deactivate cooling: Press "Activate cooling" button. The check disappears.

• For slow cooling of the restoration to prevent thermal stress on the material.

Modifiable parameters:

• Cooling lift position: 0% - 100%

Note:

• The actual values to enter are displayed above the number field.

• This is for adjusting the speed at which the cooling temperature is reached. The more closed the oven,

the slower the cooling.

6.9 Lift position for cooling

ADDITIONAL

INFORMATION

TECHNICAL DATA

INFORMATION

SCOPE OF SUPPLY

SYSTEM SOLUTIONS

DETAILED

FIRING WINDOW

BUTTON

MANAGEMENT

DESKTOP

MANAGEMENT

OPERATION FIRST USE THE SYSTEM

3434

6.10 Changes after program start

Note:

• Changes of program values are possible after starting a firing program. To avoid misfires, changes which automatically

impact other program areas are not allowed, such as changes in the rise time, which causes an automatic adjustment of
the vacuum time.

Please note:

You can only change non-active program areas. The program areas that can still be changed are identified by the button
display (dark button).
If a program area that is still available is selected for changing and it becomes active in the meantime, the display switches
to the image of the firing curve and the program continues to run with the previously contained value.

If the final temperature is changed, the °C/min gradient is always retained, and the rise time and vacuum time are
correspondingly adjusted.

5. Button management 6. Detailed firing window 7. Scope of supply / system solutions

35

5. Button management 6. Detailed firing window 7. Scope of supply / system solutions

ADDITIONAL

INFORMATION

TECHNICAL DATA

INFORMATION

SCOPE OF SUPPLY

SYSTEM SOLUTIONS

DETAILED

FIRING WINDOW

BUTTON

MANAGEMENT

DESKTOP

MANAGEMENT

OPERATION FIRST USE THE SYSTEM

3636

6. Detailed firing window 7. Scope of supply / system solutions 8. Technical data / information

Chairside firing unit

Control unit

Integrated
accessory set

VITABLOCS

Stains fixing firing

IPS Empress CAD
Stains fixing firing

IPS e.max CAD

GLAZE LT SPRAY

CELTRA DUO

Stains fixing firing

IPS e.max CAD
crystallization

SUPRINITY PC

Stains fixing firing

VITABLOCS

GLAZE LT SPRAY

IPS Empress CAD
GLAZE LT SPRAY

SUPRINITY PC
crystallization

CELTRA DUO

GLAZE LT SPRAY

IPS e.max CAD

Stains fixing firing

SUPRINITY PC

GLAZE LT SPRAY

STANDARD

37

1x

1x

1x

1x

1x

1x

2x

1x

1x

1x

1x

1x

6. Detailed firing window 7. Scope of supply / system solutions 8. Technical data / information

7. Scope of supply / system solutions

7.1 VITA SMART.FIRE scope of supply

Article

Scope of supply

VITA SMART.FIRE chairside firing unit

1) 220 V – 230 V

2) 110 V

3) 100 V
VITA SMART.FIRE control unit

Firing platform

Round firing trays

Firing pliers

Round fibrous pad firing support (o 44mm)

Platinum pins (1 anterior and 1 posterior pin)

Cooling table

Insert for accessory drawer

Cable for connecting firing unit and control unit

Power cable

1) 220 V – 230 V EU

2) 110 V

3) 220 V – 230 V GB

4) 220 V – 230 V CN

5) 220 V – 230 V CH

6) 220 V – 230 V ZA

7) 220 V – 230 V AU

8) 220 V – 230 V IL

Operating manual for the VITA SMART.FIRE firing system

Note:

• All VITA SMART.FIRE components can be individually reordered.

ADDITIONAL

INFORMATION

TECHNICAL DATA

INFORMATION

SCOPE OF SUPPLY

SYSTEM SOLUTIONS

DETAILED

FIRING WINDOW

BUTTON

MANAGEMENT

DESKTOP

MANAGEMENT

OPERATION FIRST USE THE SYSTEM

3838

7.2 VITA system solutions

6. Detailed firing window 7. Scope of supply / system solutions 8. Technical data / information

*) Note: The feldspar ceramic material can be inserted immediately after milling and polishing.

Crystallization firing is mandatory for the glass ceramic.

• For digital shade determination, use VITA Easyshade V, and for
traditional shade determination, the VITA Linearguide 3D-MASTER or

VITA classical A1–D4 can be used.

• For CAD/CAM fabrication of highly esthetic restorations, VITA offers you
feldspar and glass ceramic blocks – simply select the material

solution that meets your individual requirements.

• Use VITA AKZENT Plus masking and glazing stains
for feldspar and glass ceramics.

• Use VITA platinum pins and VITA Firing Paste to ensure that the
restoration is securely placed on the firing tray.

• Use the VITA SMART.FIRE firing unit for crystallization, glaze, stain and
corrective firing of all common chairside materials.

• In the case of VITA feldspar ceramics, use polishing systems suitable for
silicate ceramics (e.g. the VITA Karat diamond polishing set).

• Use the VITA SUPRINITY Polishing Set for VITA glass ceramics.

• Full-adhesive or self-adhesive luting with VITA ADIVA LUTING

SOLUTIONS is possible for restorations made of feldspar and glass
ceramics.

Shade

determination

CAD/CAM

fabrication

Shade

modification*

Firing

preparation

Firing*

Polishing

Luting

39

Article

Scope of supply

Hazardous voltage This pictogram warns the user about hazardous voltage. Before opening the

instrument, always disconnect it from the mains current by unplugging the
AC adapter.

Hot surface This pictogram warns the user about hot surfaces Burns are possible.

Separate disposal This unit and all accessories labeled with this symbol are subject to Directive

2002/96/EC (WEEE) and the applicable national regulations and may not be
disposed of as unsorted municipal waste in the European Union (EU). Old units
can be returned to VITA Zahnfabrik.

CE marking VITA SMART.FIRE complies with the applicable regulations of the

European Union (EU). The declaration of conformity can be requested from
VITA (Regulatory Affairs Department) at: www.vita-zahnfabrik.com

7. Scope of supply / system solutions 8. Technical data / information 9. Additional information

8. Technical data / information

8.1 Technical data of firing unit

8.2 Technical data of control unit

Dimensions (Ø / depth / height) 230 mm / 300 mm / 340 mm (closed)

Net weight 12 kg

Firing chamber internal dimensions (Ø / height) 80 mm / 43 mm

Firing chamber temperature Max. 1050°C

Electrical connection Specified on identification plate, tolerance ±10 %

Power consumption Max. 950 W (230 V), max. 1100 W (100 V, 110 V)

Temperature range for operation: 10°C to 35°C

Humidity for operation Max. 80% RH

Operating altitude Max. 3,800 m above sea level

Classifications EN 60601-1:2010

UL 60601-2:2012 (3rd Ed.)
CAN/CSA-C22.2 NO. 61010-12

Application area Approved for indoor operation only

Dimensions (width / depth / height) 260 mm / 150 mm / 200 mm

Net weight 1.6 kg

Temperature for operation 10°C to 35°C

Humidity for operation Max. 80 % RH

Application area Approved for indoor operation only

8.3 Symbols

ADDITIONAL

INFORMATION

TECHNICAL DATA

INFORMATION

SCOPE OF SUPPLY

SYSTEM SOLUTIONS

DETAILED

FIRING WINDOW

BUTTON

MANAGEMENT

DESKTOP

MANAGEMENT

OPERATION FIRST USE THE SYSTEM

4040

7. Scope of supply / system solutions 8. Technical data / information 9. Additional information

8.4 Information

Basic information on the instrument design

• The instrument is designed according to state-of-the-art technology and recognized safety standards.

• However, if it is used inappropriately, hazards for the health and safety of the operating personnel or third parties,

as well as the risk of damaging the instrument and other material property, may arise.

Unauthorized modes of operation

• Do not operate the control unit with sharp-edged or hot objects. This causes damage to the display.

• The operation of the instrument with power sources, products, etc., which are subject to hazardous materials regulations

or could have any negative impact on the health of the operating personnel when using equipment modified by the user,
are not permitted.

• The unit may not be used without the firing platform. The firing platform must always be inserted in its designated recess on
the bottom of the firing unit. The unit may not be used with a flammable narcotic agent with air or nitrous oxide.

• The device is equipped with a fan. The fan is temperature-controlled. Activation, deactivation and speed of the fan are
controlled automatically. The fan prevents excessive heating of the unit and contributes to the overall operating safety.
The openings in the top cover of the firing chamber must not be covered or closed.

Authorized modes of operation

• The insulation of the firing chamber contains ceramic mineral fibers (Index No. 650-017-00-08), which is classified

as a CAT 2 carcinogen (Annex VI, EC 1272/2008). When working with the firing chamber or exchanging the firing muffle,
fiber dust may be discharged.

• Exposure to this dust can be potentially hazardous to health if inhaled and result in irritation of the skin, eyes and respiratory
organs. Therefore, always follow these instructions when replacing parts of the firing chamber:

• Wear long-sleeved protective clothing.

• Wear safety goggles as well as protective gloves.

• Use a dust vacuum system or wear a FFP 2 respirator.

• Once work has been completed, rinse the dust from unprotected skin using cold water.

• Wash workwear separately from everyday clothing.

• The operation of the device is only permitted if this operating manual has been completely read and understood and the

procedures described in it have been observed. Any other or additional use, e.g., processing of products other than those
intended, as well as handling of hazardous materials or substances injurious to health, is considered to be contrary to the
recommended use.

• Repairs and servicing of any kind may only be carried out by specially trained personnel.

Please note:

• The manufacturer/supplier will not be liable for any damage resulting from such unauthorized use. The risk is borne solely by

the user.

41

7. Scope of supply / system solutions 8. Technical data / information 9. Additional information

8.5 Safety functions

The firing unit has the following safety and monitoring features:

1. Temperature sensor monitoring

2. Power supply failure protection

3. Obstruction sensor

4. Temperature protection switch

5. Automatic temperature calibration

Temperature sensor monitoring

The temperature sensor monitoring feature detects a failure of the temperature sensor in the firing chamber. If a failure of the
temperature sensor has been detected, the firing chamber is prevented from heating up and an error message is displayed.

Power supply failure protection

The instrument is equipped with power supply failure protection. This element prevents firing programs from aborting in the
event of a short-term power failure. If the power failure time lasts less than 15 seconds, the current program will continue to
run even though the display will remain out of service for the duration of the power failure. The current program is aborted if
power is interrupted for more than 15 seconds. An error message is displayed once power is restored.

Obstruction sensor

The vertical movement of the firing head is controlled by computer. Any objects that are caught, are detected and the drive is
switched off, if necessary. This prevents injuries caused by pinching. The system may still be operated without any restrictions
after the drive is switched off.

Temperature protection switch

Temperature protection switches are installed in the housing of the firing unit and prevent the firing unit from overheating by
switching off the heater if the heating control system malfunctions. An error message is displayed if this type of malfunction
occurs. The firing system may not be used again until the system cools down. This can take some time.

Automatic temperature calibration

The temperature is automatically calibrated each time the furnace is switched on.
This temperature calibration takes into consideration and corrects all deviations occurring in the electronic components for
temperature measurement and temperature regulation. In this way, a constant temperature of ± 1°C is achieved, even if the unit
is operated for a long period.

ADDITIONAL

INFORMATION

TECHNICAL DATA

INFORMATION

SCOPE OF SUPPLY

SYSTEM SOLUTIONS

DETAILED

FIRING WINDOW

BUTTON

MANAGEMENT

DESKTOP

MANAGEMENT

OPERATION FIRST USE THE SYSTEM

4242

9. Additional information

9.1 Competitor material in the VITA SMART.FIRE

The VITA SMART.FIRE contains firing programs for Celtra Duo, IPS e.max CAD, and IPS Empress CAD.
However, it should be noted that the firings for IPS e.max CAD in VITA SMART.FIRE must be carried out on an Ivoclar Vivadent
firing tray. The firings for IPS Empress CAD and Celtra Duo can be carried out on the VITA SMART.FIRE round firing tray with
VITA platinum pins. The current firing parameters in the VITA SMART.FIRE for Celtra Duo, IPS e.max CAD, and IPS Empress CAD
are to be used as guide values. Users must check for themselves that the used equipment is suitable for the intended
application.

9.2 VITA warranty and consumer protection

The VITA warranty and consumer protection document can be found on our website at:
https://www.vita-zahnfabrik.com/de/Oefen/VITA-Garantie-50694,27568.html

9.3 Update messenger

Software updates are available as a download on the website of the supplier, VITA Zahnfabrik.
To automatically have the latest device information emailed to you, an option to register is provided at
www.vita-zahnfabrik.com/updatemessenger.

9.3 Spare parts

Spare parts must comply with the technical requirements specified by the manufacturer. This can only be ensured by using
VITA original spare parts.

9.5 Patents and trademarks

VITA SMART.FIRE® is a registered trademark of VITA Zahnfabrik. Other trademarks mentioned in this document are the property
of the respective company.

9.6 Copyright information

© Copyright 2017, VITA Zahnfabrik. All rights reserved.

This document and/or the software, data and information referenced or contained herein contain confidential and proprietary
information of VITA Zahnfabrik.
This document does not convey or represent any right or license to use any software, data or information, any right or license
to use any intellectual property rights, or any rights or obligations on the part of VITA Zahnfabrik to provide support or other
services in connection therewith. Any right or license to use any software data, information or other intellectual property
rights of VITA Zahnfabrik, or any obligation to provide support, must be conveyed by separate written agreement with
VITA Zahnfabrik.

8. Technical data / information 9. Additional information

43

8. Technical data / information 9. Additional information

9.7 Hotline and support

We are here to help

Hotline Sales Support

Mr. Udo Wolfner and his team (Internal
Sales Department) will be glad to assist you
with orders or questions about delivery,
product data and marketing materials.

Phone [phone] / 56 28 84
Fax [phone] / 56 22 99
8:00 a.m. to 5 p.m. CET
E-mail: [e-mail]

Technical Hotline

If you have technical questions
concerning VITA product solutions,
you can contact our technical specialists,
Mr. Ralf Mehlin or Mr. Daniel Schneider.

Phone [phone] / 56 22 22
Fax [phone] / 56 24 46
8:00 a.m. to 5 p.m. CET
E-mail: [e-mail]

VITA instruments service

Please do not hesitate to contact us if you have any
questions concerning VITA instruments.

Phone [phone] / 56 21 11
Fax [phone]
8 a.m. to 5 p.m. CET
E-mail: [e-mail]

ADDITIONAL

INFORMATION

TECHNICAL DATA

INFORMATION

SCOPE OF SUPPLY

SYSTEM SOLUTIONS

DETAILED

FIRING WINDOW

BUTTON

MANAGEMENT

DESKTOP

MANAGEMENT

OPERATION FIRST USE THE SYSTEM

VITA Zahnfabrik H. Rauter GmbH & Co.KG
Spitalgasse 3 · D-79713 Bad Säckingen · Germany
Tel. [phone] · Fax [phone]
Hotline: Tel. [phone] · Fax [phone]
www.vita-zahnfabrik.com · [e-mail]

facebook.com/vita.zahnfabrik

More information on VITA SMART.FIRE
is available at www.vita-zahnfabrik.com

Please note: Our products must be used in accordance with the instructions for use.
We accept no liability for any damage resulting from incorrect handling or usage. The
user is furthermore obliged to check the product before use with regard to its suitability
for the intended area of applications. We cannot accept any liability if the product is
used in conjunction with materials and equipment from other manufacturers that are
not compatible or not authorized for use with our product. Furthermore, our liability for
the accuracy of this information is independent of the legal basis and, in as far as legal­ly permissible, shall always be limited to the value as invoiced of the goods supplied,
excluding value-added tax. In particular, as far as legally permissible, we do not assume
any liability for loss of earnings, indirect damages, ensuing damages or for third-party
claims against the purchaser. Claims for damages based on fault liability (culpa in con­trahendo, breach of contract, unlawful acts, etc.) can only be made in the case of intent
or gross negligence. The VITA Modulbox is not necessarily a component of the product.

Date of issue of this product information: 05.18

After the publication of this information for use any previous versions become obsolete.
The current version can be found at www.vita-zahnfabrik.com

VITA SMART.FIRE is CE marked within the meaning of EC Guideline 2006/95/EC,
2004/108/EC and 2011/65/EC.

10416E - 0518 (X.) S - Version (02)
