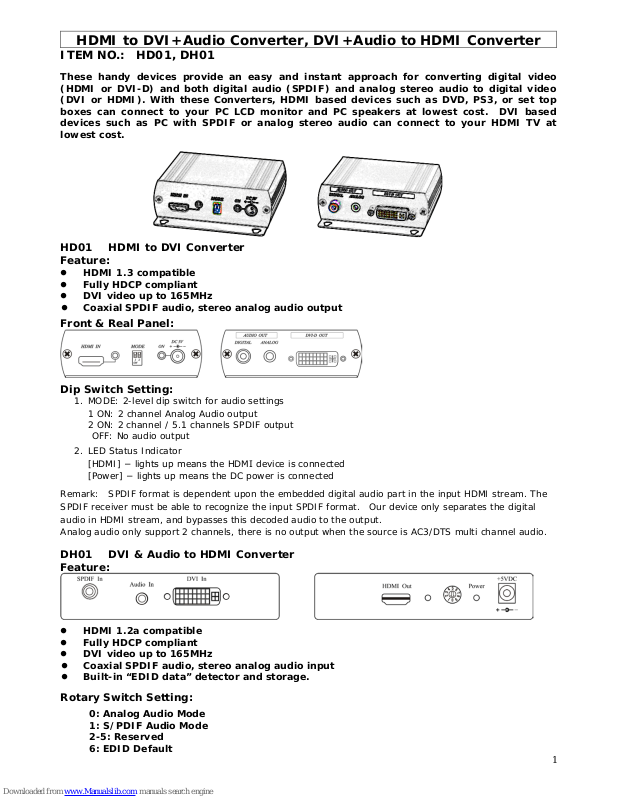

HDMI to DVI+Audio Converter, DVI+Audio to HDMI Converter
ITEM NO.: HD01, DH01
These handy devices provide an easy and instant approach for converting digital video
(HDMI or DVI-D) and both digital audio (SPDIF) and analog stereo audio to digital video
(DVI or HDMI). With these Converters, HDMI based devices such as DVD, PS3, or set top
boxes can connect to your PC LCD monitor and PC speakers at lowest cost. DVI based
devices such as PC with SPDIF or analog stereo audio can connect to your HDMI TV at
lowest cost.
HD01 HDMI to DVI Converter
Feature:
HDMI 1.3 compatible
Fully HDCP compliant
DVI video up to 165MHz
Coaxial SPDIF audio, stereo analog audio output

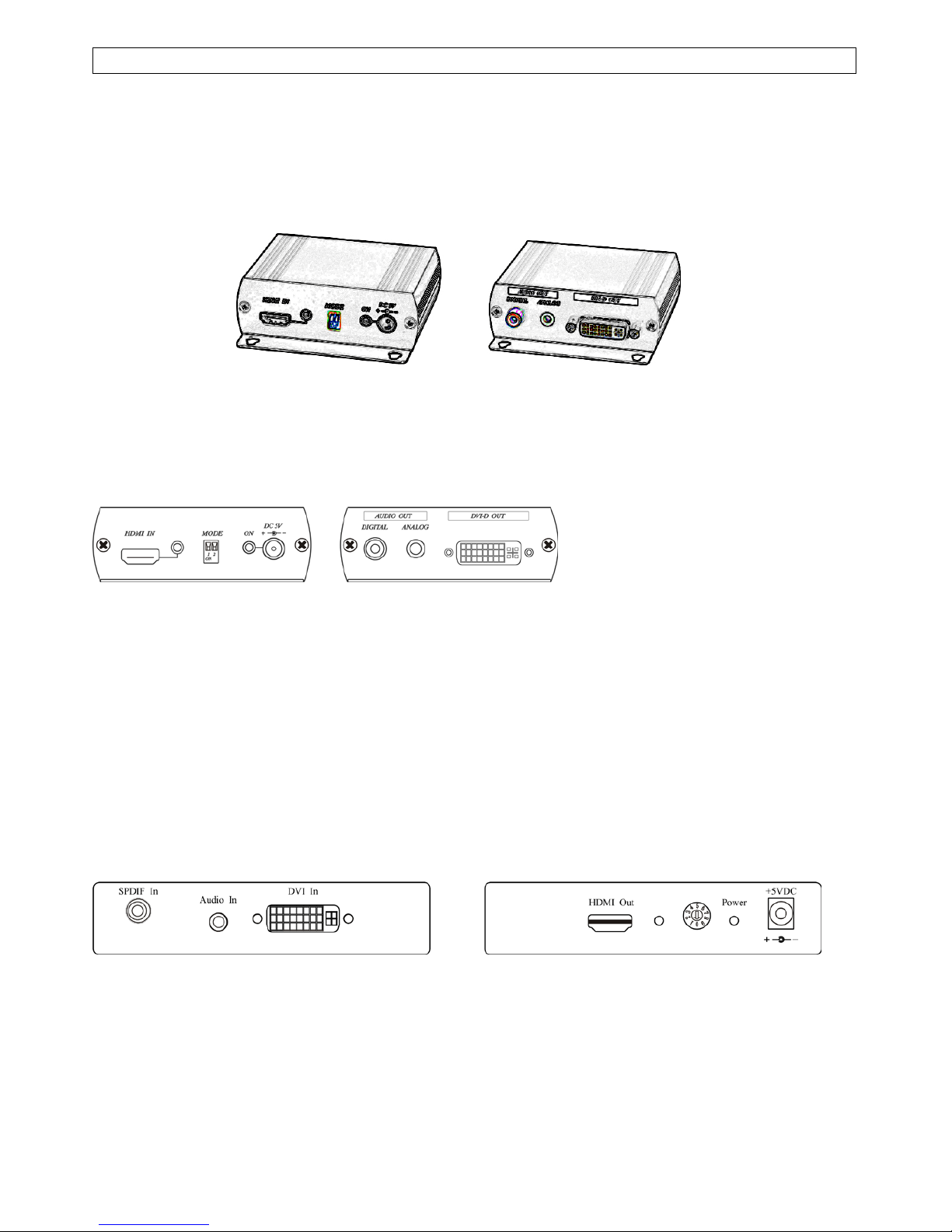

Front & Real Panel:
Dip Switch Setting:
1. MODE: 2-level dip switch for audio setting s
1 ON: 2 channel Analog Audio output
2 ON: 2 channel / 5.1 channels SPDIF output
OFF: No audio output
2. LE D Status Indicator
[HDMI] − lights up means the HDMI device is connected
[Power] − lights up means the DC power is connected
Remark: SPDIF format is dependent upon the embedded digital audio part in the input HDMI stream. The
SPDIF receiver must be able to recognize the input SPDIF format. Our device only separates the digital
audio in HDMI stream, and bypasses th is decoded audio to the output.
Analog audio only support 2 channels, there is no output when the source is AC3/DTS multi channel audio.
DH01 DVI & Audio to HDMI Converter
Feature:
HDMI 1.2a compatible
Fully HDCP compliant
DVI video up to 165MHz
Coaxial SPDIF audio, stereo analog audio input
Built-in “EDID data” detector and storage.
Rotary Switch Setting:
0: Analog Audio Mode
1: S/PDIF Audio Mode
2-5: Reserved
6: EDID Default
2
Step 1: Power on
Step 2: Switch to 6 then green led will on
Step 3: Wait green led off then switch back to 0 or 1
7: EDID Update from HDMI monitor
Step 1: Power on
Step 2: Connect HDMI cable
Step 3: Switch to 7 then green led will on
Step 4: Wait green led off then switch back to 0 or 1

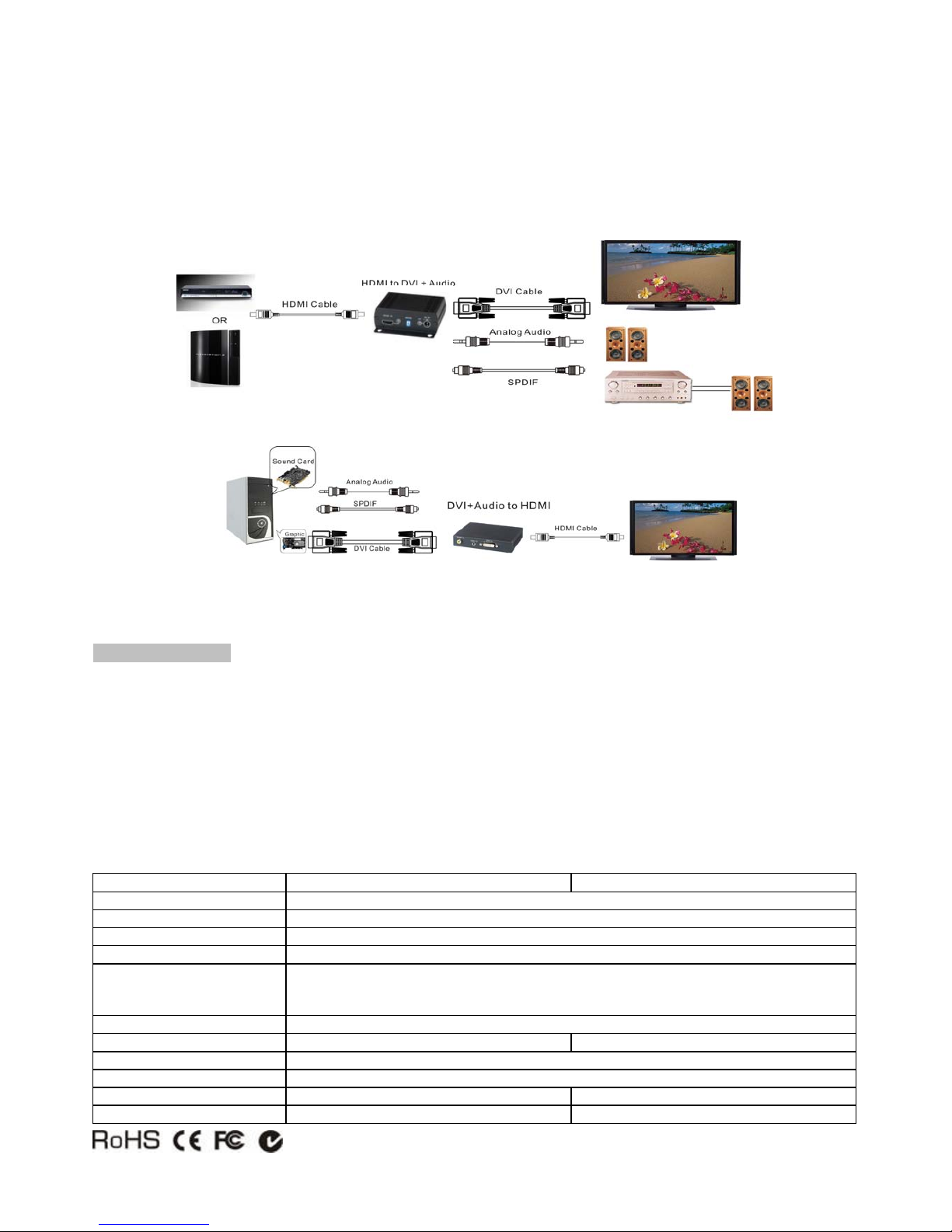

Installation View:
HD01
DH01
REMARK:
EDID: Extended display identification data is a data structure provided by a computer display to
describe its capabilities to a graphics card. It is what enables a modern personal computer to
know what kind of monitor is connected.
Trouble Shooting:
1. If your monitor without audio function, th e n please setting the rotary switch at 6 (EDID Default), force
“audio output” to your external speaker.
2. Only HDMI enabled TV sets with underscan/overscan* support, the full act ive video can be accurately
displayed. Some HDMI equipped TV sets may not support this feature. If underscan/overscan* is NOT
supported, the top, bottom , left and right border of the active video may be screened, and the S/PDIF
audio may not sound right.
3. S/PDIF audio input can support up to 8-channel audio input. If your TV not support Dolby Digital or
dts audio decoding , then you will add audio decoder or amplifier.
4. S/PDIF supports only 48KHz audio sample rate. Oth er than this rate, the input digital audio should be
adjusted to 48KHz in order to get audio signal correctly sent.
Specification:
TEM NO. HD01 DH01
Video Amplifier Bandwidth 1.65 Gbps
Output Video Signal 1.2 Volts p-p
Output DDC Signal 5 Volts p-p (TTL)
Single Link Rang 1080P/1920 X 1200
Input/Output Connector DVI-I 29 pin female (Digital only)
HDMI Type A 19 PIN
RCA : Coax SPDIF, Phone Jack: Analog stereo
Temperature
Operation:-10℃~45℃, Stora ge: -30℃~70℃
Power Consumption 440mA (Max) 510mA (Max)
Power Supply DC5V 1Amp
Temperature Operation: 0 to 55℃, Storage: -20 TO 85℃, Hum idity: up to 95%
DIMENSIONS mm 88 x 95 x 30 123 x 103 x 25.4
Weight g
190
290
Rev. B
