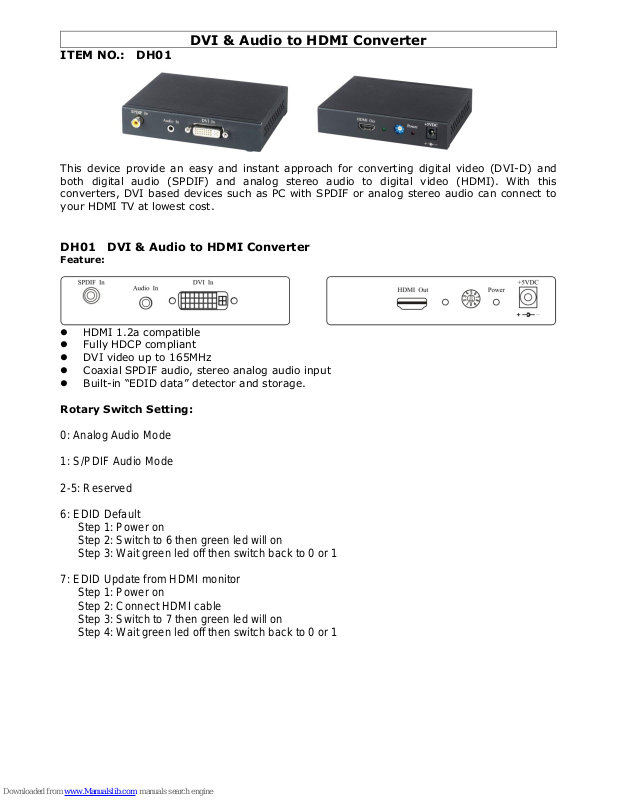

DVI & Audio to HDMI Converter
ITEM NO.: DH01
This device provide an easy and instant approach for converting digital video (DVI-D) and
both digital audio (SPDIF) and analog stereo audio to digital video (HDMI). With this
converters, DVI based devices such as PC with SPDIF or analog stereo audio can connect to
your HDMI TV at lowest cost.

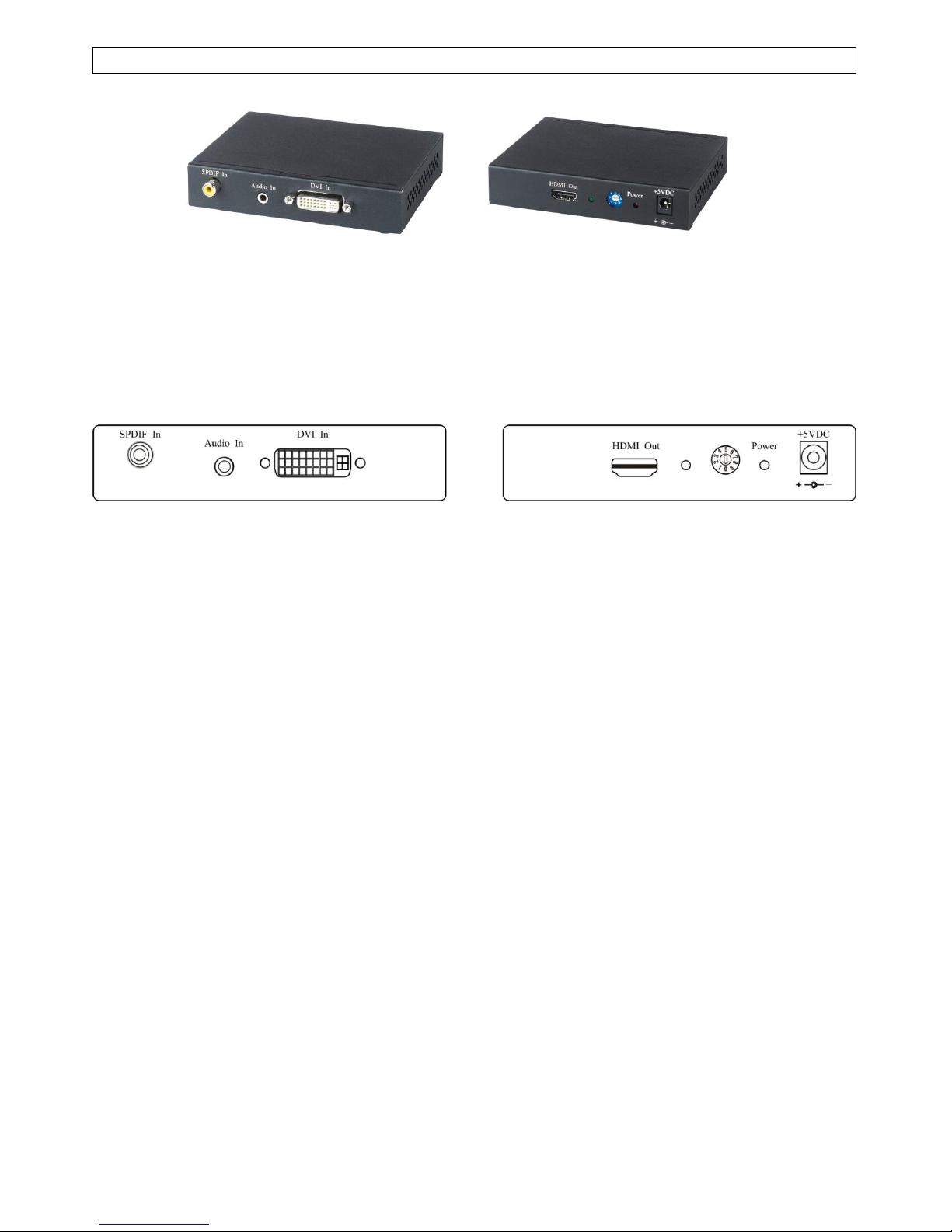

DH01 DVI & Audio to HDMI Converter
Feature:
HDMI 1.2a compatible
Fully HDCP compliant
DVI video up to 165MHz
Coaxial SPDIF audio, stereo analog audio input
Built-in “EDID data” detector and storage.
Rotary Switch Setting:
0: Analog Audio Mode
1: S/PDIF Audio Mode
2-5: Reserved
6: EDID Default
Step 1: Power on
Step 2: Switch to 6 then green led will on
Step 3: Wait green led off then switch back to 0 or 1
7: EDID Update from HDMI monitor
Step 1: Power on
Step 2: Connect HDMI cable
Step 3: Switch to 7 then green led will on
Step 4: Wait green led off then switch back to 0 or 1
Page 2
2

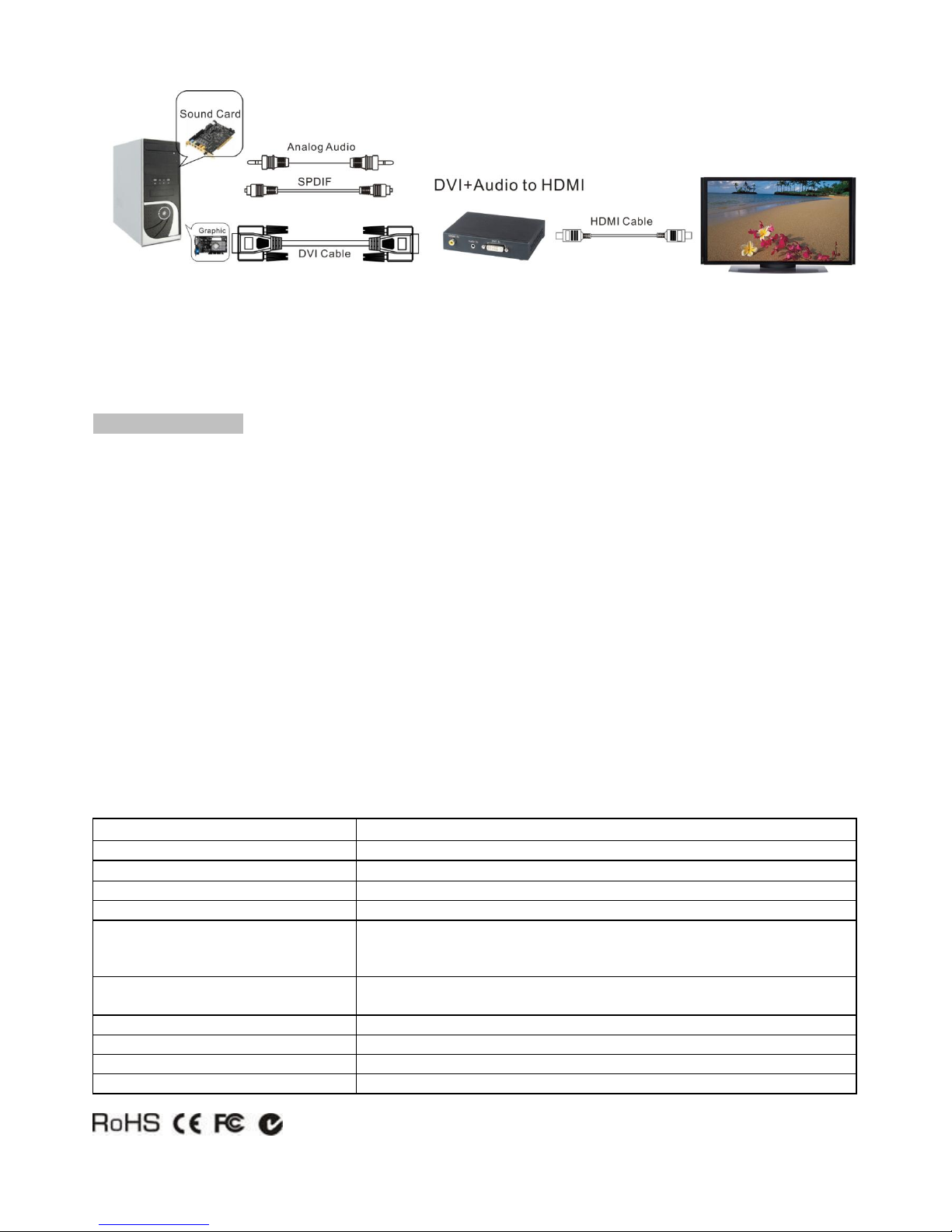

Installation View:
DH01
REMARK:
EDID: Extended display identification data is a data structure provided by a computer display
to describe its capabilities to a graphics card. It is what enables a modern personal computer
to know what kind of monitor is connected
Trouble Shooting:
1. If your monitor without audio function, then please setting the rotary switch at 6 (EDID
Default), force “audio output” to your external speaker.
2. Only HDMI enabled TV sets with underscan/overscan* support, the full active video can
be accurately displayed. Some HDMI equipped TV sets may not support this feature. If
underscan/overscan* is NOT supported, the top, bottom, left and right border of the
active video may be screened, and the S/PDIF audio may not sound right.
3. S/PDIF audio input can support up to 8-channel audio input. If your TV not support
Dolby Digital or dts audio decoding , then you will add audio decoder or amplifier.
4. S/PDIF supports only 48KHz audio sample rate. Other than this rate, the input digital
audio should be adjusted to 48KHz in order to get audio signal correctly sent.
Specification:
TEM NO.
DH01
Video Amplifier Bandwidth
1.65 Gbps
Output Video Signal
1.2 Volts p-p
Output DDC Signal
5 Volts p-p (TTL)
Single Link Rang
1080P/1920 X 1200
Input/Output Connector
DVI-I 29 pin female (digital only)
HDMI Type A 19 PIN
Temperature
Operation: 0 to 55℃, Storage: -20 TO 85℃, Humidity: up to
95%
Power Consumption
10 watts (max)
Power Supply
DC5V 2AMP
DIMENSIONS mm
122x95x25
Weight g
300
Rev. B
