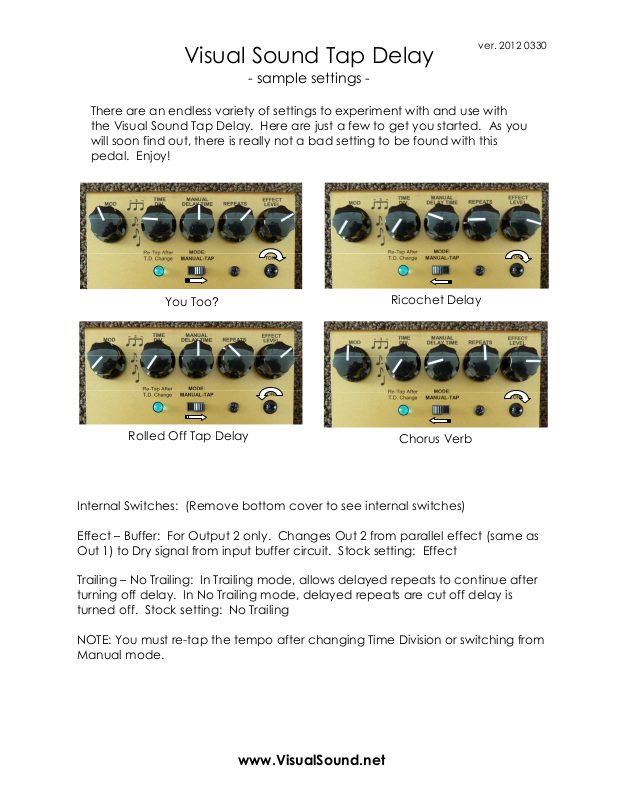

Visual Sound Tap Delay User Manual

ver. 2012 0330

Visual Sound Tap Delay

- sample settings -

There are an endless variety of settings to experiment with and use with
the Visual Sound Tap Delay. Here are just a few to get you started. As you
will soon find out, there is really not a bad setting to be found with this
pedal. Enjoy!

You Too?

Rolled Off Tap Delay

Internal Switches: (Remove bottom cover to see internal switches)

Effect – Buffer: For Output 2 only. Changes Out 2 from parallel effect (same as
Out 1) to Dry signal from input buffer circuit. Stock setting: Effect

Trailing – No Trailing: In Trailing mode, allows delayed repeats to continue after
turning off delay. In No Trailing mode, delayed repeats are cut off delay is
turned off. Stock setting: No Trailing

NOTE: You must re-tap the tempo after changing Time Division or switching from
Manual mode.

Ricochet Delay

Chorus Verb

www.VisualSound.net

Jack Panel

Input: Guitar or effect input
Out 1: Mono output
Out 2: Output to second amp (effected or dry – internal switch
selectable)
Ext. Tap Input: External tap tempo switch or Visual Sound Time
Bandit input. (not included)
9VDC: 1 SPOT or other 9VDC regulated (center pin negative) power
supply

Current Draw: approx. 92mA (NOTE: Make sure to check your
power supply owner’s manual for instructions and limitations. Or just
use a 1 SPOT and don’t worry about it!)

Controls

Effect Level: Sets volume of repeats
Repeats: Sets number of repeats
Manual Delay Time: Sets delay time in Manual Mode
Time Div: 4 position switch for choosing time division (quarter, eighth, etc.)
Tone: High cut treble control for repeats
Mode: Switch for choosing Tap Tempo or Manual Mode
Modulation: Adds chorus effect to repeats

Questions or Comments? Please contact Visual Sound through the website

or call 1-931-487-9001
