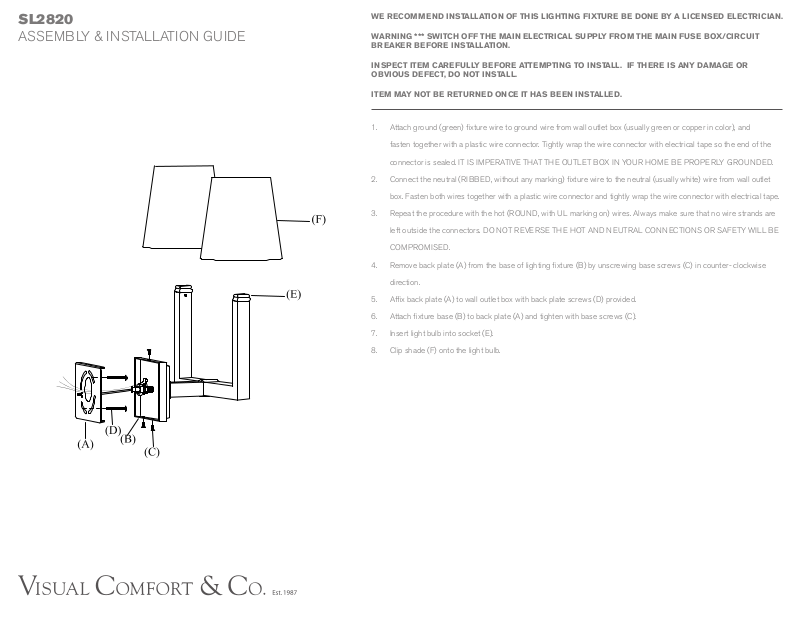

SL2820
ASSEMBLY & INSTALLATION GUIDE
WE RECOMMEN D INSTALLATION OF THIS LIGHTING FIXTUR E BE DON E BY A LICENSED ELECTRICIAN.
WARNING *** SWITCH OFF THE MAIN ELECTRICAL SUPPLY FROM THE MAIN FUS E BOX/CIRCUIT
BREAKER BE FORE INSTALLATION.
INSPECT ITEM CAREFULLY BE FORE ATTEMPTING TO INSTALL. IF THERE IS ANY DAMAGE OR
OBVIOUS DEFECT, DO NOT INSTALL.
ITEM MAY NOT BE RETURNED ONCE IT HAS B EEN INSTALLED.
1. Attach ground (green) fixture wire to ground wire from wall outlet box (usually green or copper in color), and
fasten together with a plastic wire connector. Tightly wrap the wire connector with electrical tape so the end of the
connector is sealed. IT IS IMPERATIVE THAT THE OUTLET BOX IN YOUR HOME BE PROPERLY GROUNDED.
2. Connect the neutral (RIBBED, without any marking) fixture wire to the neutral (usually white) wire from wall outlet
box. Fasten both wires together with a plastic wire connector and tightly wrap the wire connector with electrical tape.
3. Repeat the procedure with the hot (ROUND, with UL marking on) wires. Always make sure that no wire strands are
left outside the connectors. DO NOT REVERSE THE HOT AND NEUTRAL CONNECTIONS OR SAFETY WILL BE
COMPROMISED.
4. Remove back plate (A) from the base of lighting fixture (B) by unscrewing base screws (C) in counter- clockwise
direction.
5. Affix back plate (A) to wall outlet box with back plate screws (D) provided.
6. Attach fixture base (B) to back plate (A) and tighten with base screws (C).
7. Insert light bulb into socket (E).
8. Clip shade (F) onto the light bulb.
